USER MANUAL SC-268AU8TM Seiki

Front view of a white refrigerator with a flat top and side railing (no visible text or symbols)

INSTRUCTION MANUAL

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General	Safety
Product	Overview		8
Installation		9
Operation		10
Reversing	the	Door
Troubleshooting			15
Specifications			16
Customer	Helpline		20

4

IMPORTANT INFORMATION

Read this manual thoroughly before you start using the Top Mount Refrigerator.

The safety precautions instructions reduce the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

Warning symbol image with exclamation mark inside triangle

Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING or CAUTION. These words will be used to alert you of potential hazards that and injure you and others. Following these instruction will tell you how to reduce the chance of injury and the possible dangers if instructions aren't followed.

Warning sign depicting a flame symbol in yellow and black on white background

This symbol alerts you to take care as the appliance contains flammable materials: isobutane as refrigerant and cyclopentane as insulation blowing gas. Do not expose it to high heat, sparks and open flames.

Warning: Risk of Fire/Flammable Materials

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a gas with a high level of environmental compatibility, which is flammable. During transportation and installation of the appliance, make sure that none of the components of the refrigerant circuit become damaged.

WARNING: Never use an appliance with a damaged refrigerant circuit. If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat and ignition sources. Thoroughly ventilate the room in which the appliance is located.

It is dangerous for anyone other than an authorised service person to work on this appliance. In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs which involve the removal of covers.

The room for installing the appliance must be at least 1m^3 per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found in the Technical Specifications at the back of the manual and on the appliance rating label.

GENERAL SAFETY INSTRUCTIONS (Cont.)

This appliance is intended to be used in household and similar applications such as: - staff areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications

R600A WARNINGS

NOTE: This model uses 0.052Kg of R600a flammable refrigerant in its sealed system. The following must be observed for your safety:

R600A Refrigerant Warning

• This appliance contains a small quantity of R600A refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
• During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
• Leaking refrigerant can ignite and may damage the eyes.
• In the event any damage does occur, avoid exposure to open fires and any device which creates a spark. Disconnect the appliance from the mains power.
• Thoroughly ventilate the room in which the appliance is located for several minutes.
• Notify Customer Service for necessary action and advice.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is listed above in grams; it is also noted on the Rating Plate of the appliance.

It is hazardous for anyone other than an Authorised Service Person to carry out servicing or repairs to this appliance. In Queensland the authorized person must hold a Gas Work Authorisation for hydrocarbon refrigerants, before carrying out servicing or repairs which involve the removal of covers.

WARNING

1. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Do not damage the refrigerant circuit.
4. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5. Do not store explosive substances such as aerosol cans with a flammable propellant in the appliance.

The environment and personal safety must be considered when disposing of this appliance. Please ensure the appliance is taken to a recycle center for safe recycling. DO NOT dispose of the appliance in land fill as the insulation and refrigerant gas contained in these appliances are flammable.

GENERAL SAFETY INSTRUCTIONS (Cont.)

To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below:

INSTALLATION

• Heavy: The product is heavy, be careful when moving it. To avoid back or other injury, have 2 people lift or mechanical aid when installing.
• Damage: When unnoxing, thoroughly inspect the appliance carefully for any damage. If there is any damage, do not install the appliance. Contact our support centre on [e-mail] for advice.
• Protection from moisture: Make sure the appliance is installed in an indoor area away from wind, rain, water spray or drips.
• Protect from heat: Do not place the appliance next to an oven, grill or other source of high heat, or where it will be exposed to direct sunlight for long periods of time.
• WARNING: Ventilation: Make sure to have enough ventilation, keep any ventilation openings, in the appliance enclosure or in the built-in structure, clear all obstructions. Make sure plenty of air circulation around the appliance to prevent overheating.
• Level: Install appliance level in order for proper operation.

ELECTRICAL SAFETY

• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.
  Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.
• Power cord: Do not kink or damage the power supply cord. Make sure it is behind the appliance so no one can step on or place anything on the power supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or abrasion damage. Any damage to the cord may cause a short circuit, fire and/or electric shock. Contact our support centre on [e-mail] for advice
• WARNING! The light supplied with this appliance cannot be replaced by the user. Contact the authorised service agent for replacement or service.
• Disconnection: Never pull the powercord to unplug appliance. Grip the plug and pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work, make sure it is carried out by an electrician.

GENERAL SAFETY INSTRUCTIONS (Cont.)

USAGE CONDITIONS AND RESTRICTIONS

• Children: Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children.
• Usage restrictions: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Indoor domestic use only: Only for indoor domestic use only, such as in households, kitchen areas in shops, offices and in other working environments, use by clients in hotels, motels, bed and breakfast establishments and in catering and similar non-retail applications. It is not to be used for industrial or commercial use.
• Intended purpose: Do not use this product for anything other than its intended purpose, and only use it as described in this manual. Do not attempt to alter or modify this appliance.
• WARNING! Do not use any electrical or electronic appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CLEANING AND MAINTENANCE

• Flames: Do not allow open flames or ignition sources enter the appliance.
• Disconnect: Make sure to unplug appliance before cleaning or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet.
• Flammable/explosive substances: Do not store flammable or explosive substances such as aerosol cans with flammable propellant in this appliance.
• Solvents: Do not use solvent based cleaning products or abrasives on the interior.
• WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• Service: Never try to repair, modify or replace any part of the appliance, unless this manual says you can do so. All other servicing is to be done by a qualified technician, or contact our support centre on [e-mail] for advice.

REPONSIBLE DISPOSAL

- Do not throw this appliance out with your household rubbish. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately.

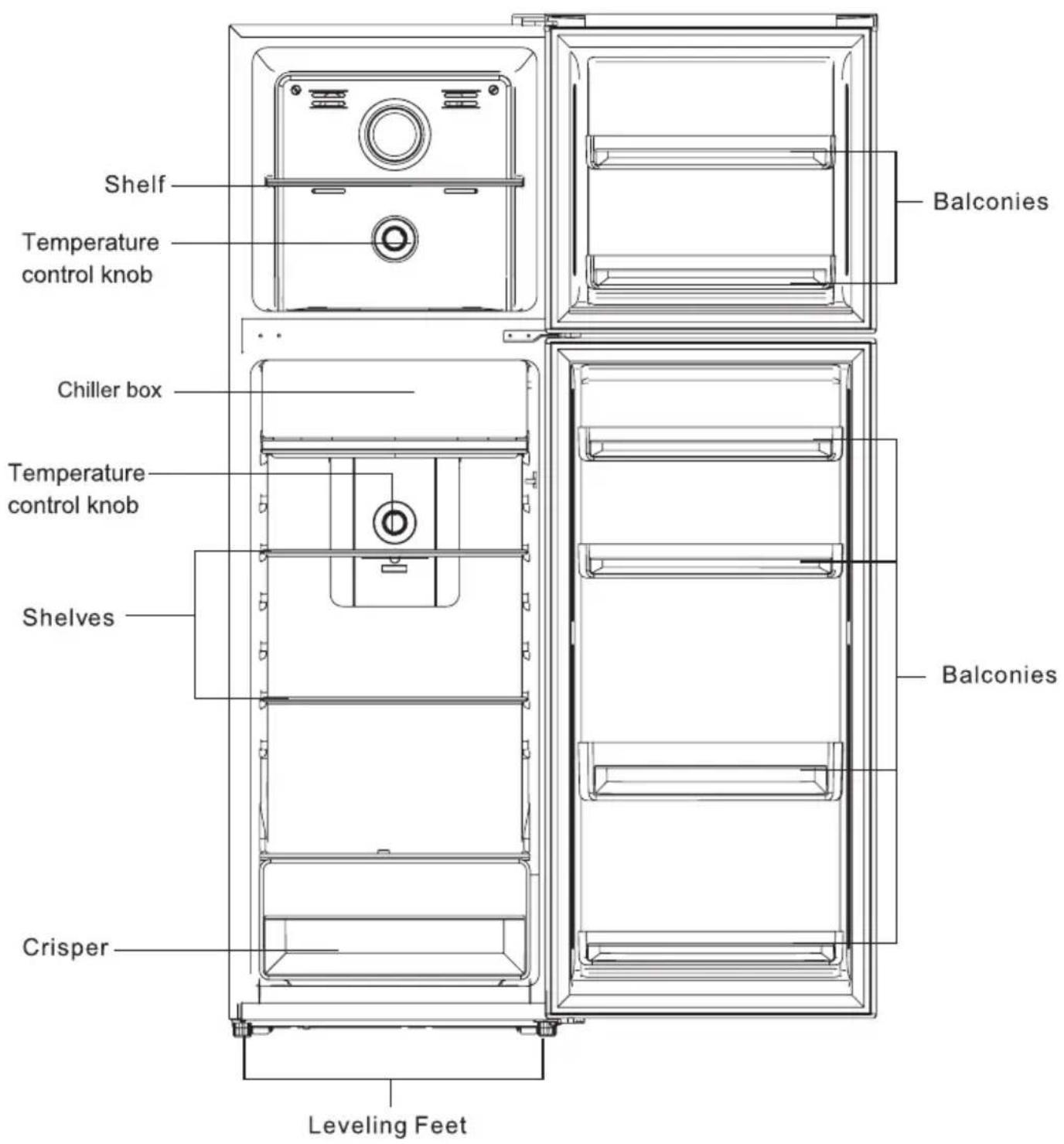

PRODUCT OVERVIEW

Shelf Temperature control knob Chiller box Temperature control knob Shelves Crisper Leveling Feet Balconies Balconies

INSTALLATION

• Safety first: Before installing your new bar fridge, read all safety instructions in this manual, especially the sections on electrical safety and installation.
• Do not tilt the appliance more than 45^ from upright when moving.
• This appliance is designed to be freestanding only and is not be recessed or built in.
• Do not apply force to any part such as the condenser or door.
• Place the bar fridge on a strong, level floor that is solid enough to support the unit when it is fully loaded.
  • To fix the balance, Adjust the levelling legs at the bottom of the appliance.
• Ensure there is nothing that could prevent the door from closing.
• SPACING: Allow 10cm clear space between the back and 5cm on the sides of the appliance and your wall or anything else to make sure there is enough air circulation, which is needed to allow for the cooling of the compressor and condenser.
• If you have to position the refrigerator on carpet, use a plastic carpet protector underneath the appliance.

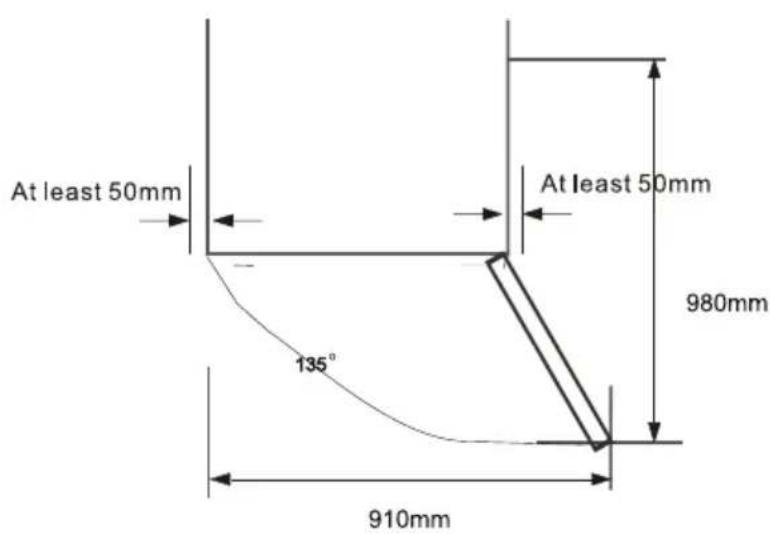

TOP VIEW

At least 50mm At least 50mm 980mm 135° 910mm

SIDE VIEW

Top 10cm 10cm Back

BE SURE TO PLACE APPLIANCE:

• Away from direct sunlight.
• Away from sources of heat (may increase power consumption).
• An area without excessive moisture and high humidity.

WARNING: Before you plug in the appliance, let it stand upright for 2 hours.

This will allow the refrigerant gases to settle into the compressor and reduce the possibility of a malfunction in the cooling system from transportation.

INSTALLATION

Technical line drawing of a two-side electrical enclosure or frame structure with mounting feet (no text or symbols)

• Leveling and anchor the refrigerator by adjust the feet.
• Clockwise rotate feet to heighten them by hand.
  -Anticlockwise rotate feet to lower them by hand.

OPERATION

1. For first time use, Please make sure to set the thermostat dial to 3, then leave it powered on for 2-3 hours. Then set the thermostat to desired settings and place foods in the appliance.

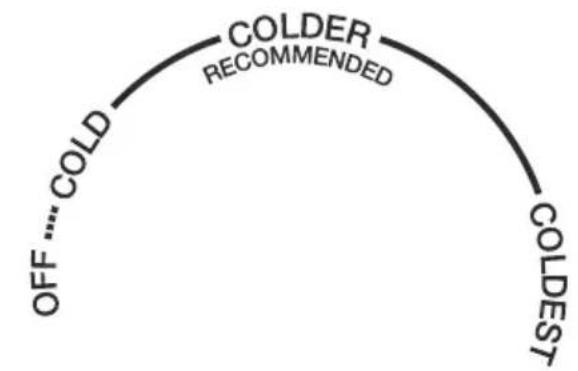

FRIDGE COMPARTMENT TEMPERATURE SETTING

The internal temperature is controlled by a sensor. There are 4 settings: OFF, COLD, COLDER (which is recommended) and COLDEST.

TEMPERATURE CONTROL

FREEZER COMPARTMENT TEMPERATURE SETTING

The internal temperature is controlled by a sensor. There are 3 settings: COLD, COLDER (which is recommended) and COLDEST.

COLD — COLDER — COLDEST RECOMMENDED

FREEZER CONTROL

REVERSING THE DOOR

This appliance has the capability of opening the door from either the left or right side. The appliance is delivered to you with the door opening from the left side.

To change the opening direction, please follow the below instructions. Be sure to unplug the appliance to change the door.

WARNING: To ensure correct reliable operation of the refrigerator, contact an authorised service agent to reverse the door for you. Incorrect installation of the door may result in damage and excessive wear on refrigerant components.

To reverse the door, you will need a straight screw driver, cross screwdriver, spanner and components in the poly bag:

TOOLS REQUIRED

• Philips screwdriver
• Flathead screwdriver
• Hexagonal Spanner

BEFORE STARTING

• Reversing of the doors must be completed by an authorised service agent.
• Make sure to unplug and empty out the refrigerator.
• To take the door off it is nessecary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the process.
• DO NOT lay the unit flat this may damage the coolant system required to cool your refrigerator.

COMPONENTS INCLUDED

Left hinger x1

Left hinge cover x1

Left middle stopper x1

Left middle stopper metal block x1

REVERSING THE DOOR (Cont.)

1. Close upper door, take out the screw from the top hinge covers with screwdriver.

Take off hinge cover, then unscrew top hinge and take off upper door.

Technical line drawing showing a mechanical assembly before and after modification, with no visible text or symbols.

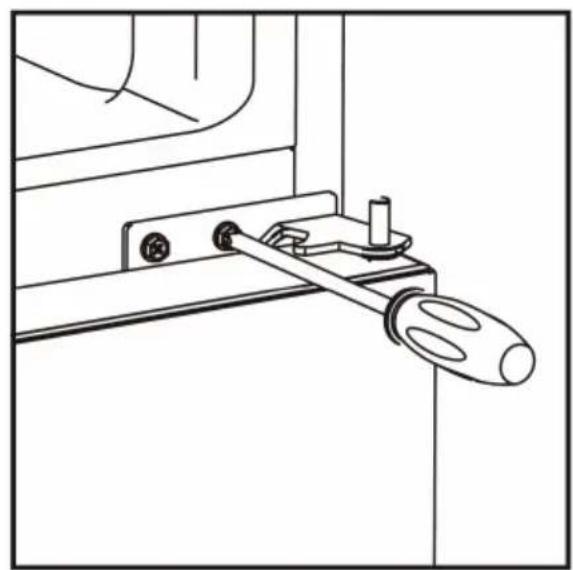

1. Unscrew from the middle hinge by screwdriver, then take off the lower door.

Line drawing of a mechanical clamp or lever assembly (no text or symbols)

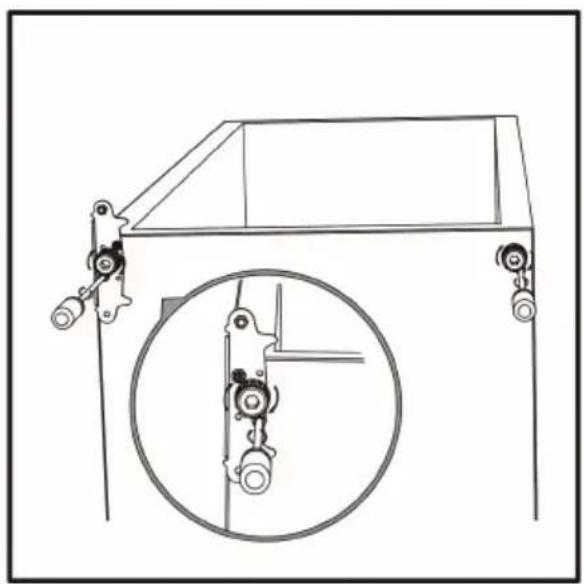

1. Tilting the refrigerator back with someone holding the back so it does not fall. Take out the does not fall. Take out the adjusting feet as shown to the right, then unscrew the lower hinge by screwdriver.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

REVERSING THE DOOR (Cont.)

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

unscrew screw

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

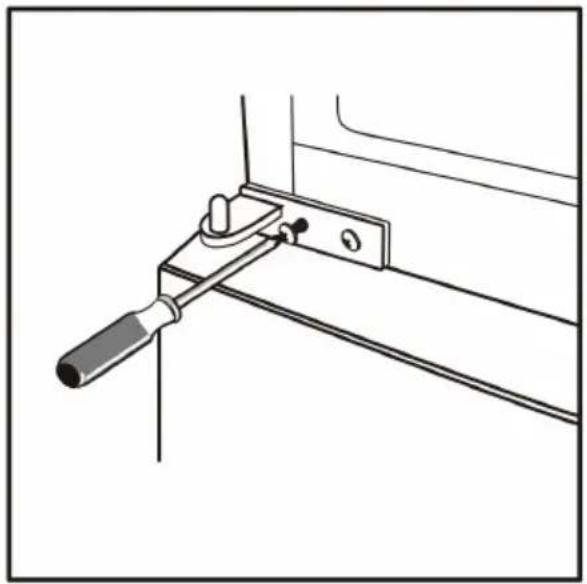

1. Make the middle hinge reverse the direction 180^ , then transfer it to the left property position.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Make the middle hinge pin in the upper hole of the lower door, then tighten the screws.

REVERSING THE DOOR (Cont.)

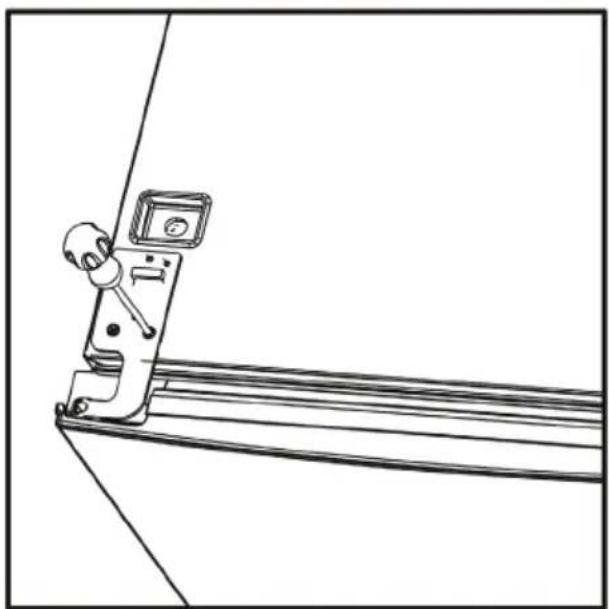

1. Unscrew right middle stopper with metal block from bottom of upper door. Then install left middle stopper and metal block in left side/bottom of upper door.

Line drawing of a device rear panel with a cable inserted, showing no text or symbols

Line drawing of a device with a screwdriver inserted into a base (no text or symbols)

1. Install the upper door, fix the upper door hinge onto the cabinet.

Line drawing of a mechanical clamp or bracket with a small tool inserted, no text or symbols present

1. Take the left hinge cover from accessory bag and install it with the top hinge. Then install hole cover at right side.

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

TROUBLSHOOTING

Problem Possible Cause
The appliance does not operate	It is not plugged in. Make sure it is properly plugged in and there is power at the socketThe circuit breaker tripped or has blown a fuse.A general power outage has cut power to your home.
The fridge turns on and off frequently.	The room temperature is higher then usualToo much food is within the fridge.Door is open too oftenDoor not closedTemperature set incorrectly.
There are vibrations • Appliance is not level.
The fridge seems to make too much noise.	A rattling noise may come from the flow of the refrigerant, which is standard.You may hear gurgling sounds caused by the flow of refrigerant.Contraction and expansion of the internal walls may cause popping and crackling noises.
The door will not close properly.	Not LevelThe door was reversed and not installed correctly.The gasket is dirty or bent.The shelves, bins or baskets are out of position.
Moisture forms on the inside or outside walls of the bar fridge.	Hot and humid weather increases the rate of frost build-up.Open the door less often
Excessive frost and ice has built up.	Door has been left open.Something is preventing the door from closing.The door gasket is dirty or damaged.
The compressor runs continuously.	Select a lower setting.The door is open or not closed properly.Too much food is within the fridge.

SPECIFICATIONS

Total Net Volume 248 Litres
Gross Refrigerator Storage 194 Litres
Gross Freezer Storage 54 Litres
Climate Class T
Rated Current 1.3 A
Power Supply 220-240V ~ 50Hz
Defrost Power 150W
Refrigerant R600a(52g)
Insulation Blowing Gas Cyclopentane
Weights Net: 50 kg / Gross: 54 kg
Dimensions 550 (w) x 600 (d) x 1670 (h) mm

SEIKI

SHOME

CUSTOMER HELPLINE:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
