USER MANUAL DHP7122W Defy

Line drawing of a cylindrical industrial fan with a control panel and grid-patterned interior (no text or symbols)

Please read this user manual first!

Dear Customer,

Thank you for preferring a Defy product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, include the user manual too. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning to actions that must never perform.
	Warning for electric shock.

	Warning for danger of fire.
	Warning for hot surfaces.
	Do not cover it.

This product has been produced in environmentally friendly, modern facilities

CONTENTS

1 Important safeguards 4

2 Instructions for use 7

2.1 Features 7
2.2 Components description....7
2.3 Operation method 8
2.4 Inserting batteries 10

3 Others 11

3.1 Saftey features....11
3.2 Cleaning and maintenance....11
3.3 Technical parameters....11

1 Important safeguards

When using any electrical appliance, basic safety precautions should always be followed, including the following:

To ensure familiarity with the controls, safety features, and operation of your heater - read all instructions before using.

- Do not insert foreign objects through the intake or discharge grilles.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

●Disconnect the cord from the outlet before cleaning. A heater should never be used under conditions where it may be immersed, or come in contact with water. Similarly do not plug in your heater if its surfaces are damp.

- Do not use the appliance on the same socket or electric circuit with other electrical appliances so as to prevent the circuit from being overloaded, which will cause fire. Please do not prolong the power cords by yourself or use movable socket.

Unplug heater by grasping plug and pulling it from the outlet. Never yank on cord.

If the supply cord is damaged, it must be replaced by its service agent or a similar qualify person in order to avoid hazard.

- Do not use in locations when the heater will be left unattended for long periods of time. (for example - several weeks in an unoccupied summer cottage)

1 Important safeguards

• Do not use attachments not recommended and sold by a Defy distributor.
  Loose connections between the heater plug and the electrical outlet may cause the plug to overheat.
• Ensure no other appliances are plugged into the same circuit as your heater. A circuit overload could occur resulting in dimmed lights, blown fuses, tripped circuit breakers, or fire hazard.
• The heater is intended for household indoor use only.
  The heater must not be located immediately below a socket-outlet.

Warning: In order to avoid overheating, do not cover the heater.

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Correct disposal of this product

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

1 Important safeguards

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Warning: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

Warning: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Warning: The heater must not be used if the glass/ceramic panels are damaged.

Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

Warning: In order to avoid overheating, do not cover the heater.

do not use this heater if it has been dropped; do not use if there are visible signs of damage to the heater; use this heater on a horizontal and stable surface, or fix it to the wall, as applicable. Do not use this heater in small

1 Important safeguards

Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2 Instructions for use

2.1 Features

1. PTC effective heating
2. Intelligence thermostat
3. LED electronic display, multi-functional remote controller
4. 24h timer
5. Automatic swing and heating with wide angle
6. Overheating protection device
7. Tip-over safety protection device
8. Fireproof material for the entire machine
9. Dust filter

2.2 Components description

• Product structure


LED display panel Front cover Air outlet

Back cover Power switch Filter Oscillation bracket

2 Instructions for use

- Display panel

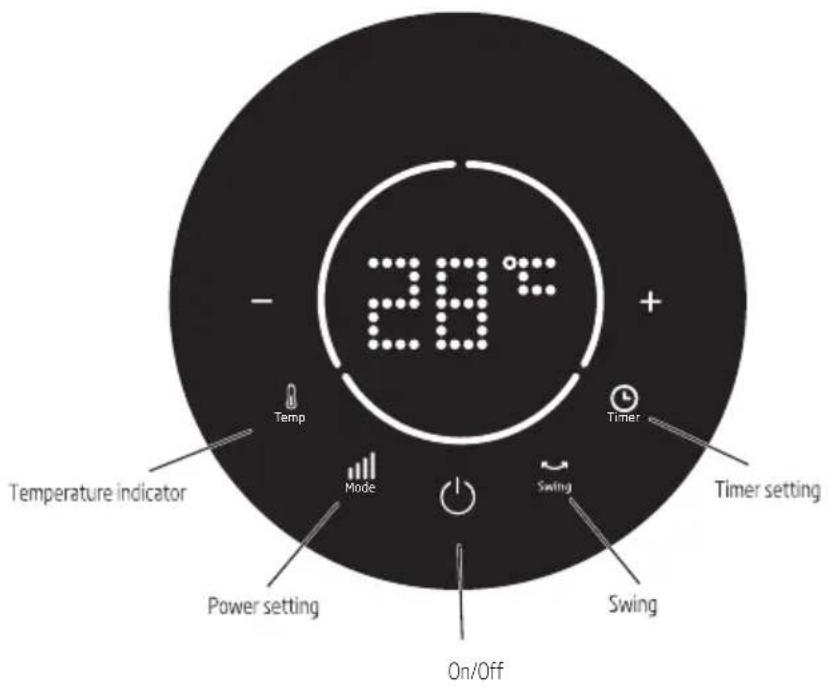

28°C Temperature indicator Temp Mode Swing Timer Timer setting Power setting On/Off Swing

- Remote panel

Power setting Temperature increase Temperature decrease On/Off Timer setting Swing

2.3 Operation method

- Check before turning on the machine

1. Check if the power wire is under good condition.
2. The product adopts 220-240 VAC power supply, before use, please confirm if the rated current of the power socket meets the local requirements with safe earthing device, otherwise, please replace it with the qualified socket.
3. Put the machine on the flat place

Uneven place may possibly cause the turnover switch at abnormal position, then the heater can't work after turning on, therefore, please put the heater on the flat place, at least the surface below the base of the heater must be flat.

2 Instructions for use

- Insert the power plug into the socket to supply power, press the Power switch to enter into the Standby mode, and then operate in the operation panel.

Symbol	Function
	On/OffUnder Standby mode, press this button to turn on the heater, the default mode is High power. Press this button again enters into standby mode.
		Note: After turning off the heater, the fan will continue working for 15s before stop, the display panel will show the countdown Off time, it is suggested not to cut off the power supply or remove the power cord before the fan stops working completely, otherwise, it may possibly influence the fan or shorten the service life of the heater.
	Power setting buttonUnder On mode, press this button repeatedly to set the mode as:High → Miedlow
	Temperature Setting button under On mode, press the "+"/'" button to set the working temperature at the range of 5°C-35°C, the temperature interval is 1°C. It will confirm the setting temperature if no button is pressed within 5s and then display the current environment temperature.Hold this button for over 1s to quickly set the temperature.
	Timer setting buttonUnder On mode, press this button to set the timer, the timer indicator lights on and temperature indicator lights off, display panel shows the remained time, press the "+" —" button to set the Off time at the range of 0-24h. It will confirm the setting time if no button is pressed within 5s and then display the current environment temperature, timer indicator lights on, and other displays recover the previous state. If the set time is 0, it means to cancel the timer setting, if the setting time is not 0, after reaching the setting time, the heater will turn off automatically and enter into the Standby mode, the timer indicator lights off. The timer functiun will restart when you reset the timing.
	Swing buttonUnder On mode, press this button to start Swing, press it again to stop Swing.

2 Instructions for use

2.4 Inserting batteries

1. Press down on the battery compartment cover and slide it out.
2. Insert the batteries, making sure that the positive terminals are facing the proper direction marked inside the battery compartment.
3. Close the cover by sliding it in.

Note:

1. Use 2 "AAA" batteries (not included).
2. Do not mix old and new batteries.
3. Do not mix alkaline, standard (carbon-line) or rechargeable (nickel-cadmium) batteries.
4. Remove the batteries from remote if is to be left unused for a long period of time.

Remote controller Battery Battery cover

Warning: This heater includes a thermal cut-off that shuts the heater off if it overheats due to abnormal conditions. If this occurs, turn the heater "off", unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, and then plug it back in and resume normal operation.

3 Others

3.1 Saftey features

Thermal cut-off: This heater includes a thermal cut-off that shuts the heater off if it overheats due to abnormal conditions. If this occurs, turn the heater off, unplug it, and inspect and remove any objects on or adjacent to the heater. Allow it to cool for a few minutes, and then plug it back in and resume normal operation.

Tip-over switch: This heater includes a safety tip-over protection feature that will shut the heater off in case it is tipped over. If, at any time, the heater tips over, please put the heater back in the upright position. The heater will resume its normal operation.

3.2 Cleaning and maintenance

1. Light accumulated dust may be removed from the heater with a soft cloth. Wipe the exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the case thoroughly with a soft dry cloth before operating the heater.
2. The fan motor is lubricated by the factory, and will require no further lubrication.
3. No other user maintenance is required or recommended. If service is required, send your heater to the nearest authorized service depot.
4. Store heater in a clean and dry place when not in use.

Remember - portable electric heaters are designed for spot heating, or as a supplementary heat source. They are not intended to be main sources of heat during the normal heating season.

Note: There may be trace of smoke or odour when unit is first operated. Do not be alarmed. This indicates that a drop of oil fell on the heating coil during the manufacturing process. It will quickly evaporate, and should not re-occur.

3.3 Technical parameters

Product model	Selectable power (W) Rated				voltage (V)	Frequency (Hz)	Socket load current (A)
	Off Low	Medium	High
DHP7122	0 800	1400 220	0 220-240	~ 50 10

* All performance parameters in the table above were measured before delivery and are for reference only.

Table for information requirements for electric local space heaters					P
Model identifier(s):
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric local space heaters only (select one)
Nominal heat output	Pnom	2,2	kW	Manual heat charge control with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	0,8	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax	2,2	kW	Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	elmax	2,134	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,789	kW	Single stage heat output and no room temperature control	[no]
In standby mode	eISB	0,45	W	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[no]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer	[yes]
				Electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[no]
				With distance control option	[no]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact details:	Arçelik A.S.Karaagaç Caddesi No:2-6,34445,Sütlüce, Istanbul, Turkey
Remark:For electric local space heaters, the measured seasonal space heating energy efficiency ηs cannot be worse than the declared value at the nominal heat output of the unit.
