USER MANUAL RCM-231B Infiniton
Warning symbol image with exclamation mark inside a black triangle¡PRECAUCIÓN!
Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)natural_image
Simple line drawing of a rectangular door or cabinet with a vertical slot and mounting feet (no text or symbols)Dear users, this manual contains the basic knowledge of the product, how to use it, fault diagnosis and basic methods.
of the product, how to use it, fault diagnosis and basic troubleshooting methods. troubleshooting methods. To better understand and use this product product, please take good care of this manual and read it carefully.
In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance. - Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
- Keep all packaging well away from children. There is risk of suffocation.
Safety information
- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
General safety
⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)
1) If there is a light in the compartment.
⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
- During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
- avoid open flames and sources of ignition
- thoroughly ventilate the room in which the appliance is situated
- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
- This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
- staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.
Safety information
⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
⚠ WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)
• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.
Daily use
- Do not put hot on the plastic parts in the appliance.
- Do not place food products directly against the rear wall.
1) If there is a light in the compartment.
- Frozen food must not be re-frozen once it has been thawed out. ^1)
- Store pre-packed frozen food in accordance with the frozen food manufacture's instructions. ^1)
- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
- Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
• To avoid contamination of food, please respect the following instructions
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
- One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
- If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.
Care and cleaning
- Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
- Do not clean the appliance with metal objects.
- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
- Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2)
Installation
Important! For electrical connection carefully follow the instructions given in specific paragraphs.
- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
Safety information
- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
- Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
- The appliance must not be located close to radiators or cookers.
- Make sure that the mains plug is accessible after the installation of the appliance.
Service
- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
Energy saving
- Don't put hot food in the appliance;
- Don't pack food close together as this prevents air circulating;
- Make sure food don't touch the back of the compartment(s);
Safety information
- If electricity goes off, don't open the door(s);
- Don't open the door(s) frequently;
- Don't keep the door(s) open for too long time;
- Don't set the thermostat on exceeding cold temperatures;
- Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.
The materials used on this appliance marked by the symbol ⚙ are recyclable.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
Packaging materials
The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.
Disposal of the appliance
- Disconnect the mains plug from the mains socket.
- Cut off the mains cable and discard it.
WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.
It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.
Please be far away fire source during using, service and disposal.
- WARNING: When placing the appliance, make sure that the power cord is not trapped or damaged.
- WARNING: Do not place portable power outlets or portable power supplies on the back of the device
-Children from 3 to 8 years of age can load and unload refrigeration appliances.
-To avoid contamination of food, respect the following instructions:
- Opening the door for prolonged periods can cause a significant increase in temperature in the compartments of the appliance.
- Regularly clean surfaces that may come into contact with accessible food and drainage systems.
- Clean water tanks if they have not been used for 48 h; Rinse the water system connected to a water supply if no water has been drawn for 5 days.
- Store raw meat and fish in suitable containers in the refrigerator so that they are not in contact with dripping onto other foods.
- Two-star frozen food compartments are suitable for storing, freezing or freezing pre-frozen foods, as well as making icecubes.
- The one-, two- and three-star compartments are not suitable for freezing fresh food.
- If the refrigeration appliance is left empty for prolonged periods, turn off, thaw, clean, dry and leave the door open to prevent mold from forming inside the appliance
safety
It is dangerous for anyone who is not of authorized service to make repairs or repairs that involve the removal of the covers. To avoid the risk of an electric shock, do not try to repair this device yourself.
Safety Tips
Do not use appliances such as a hair dryer or heater to thaw your refrigerator/freezer.
Containers with flammable gases or liquids can filter out at low temperatures.
Noor store containers with flammable materials, such as aerosol cans, spare fire extinguisher cartridges, etc. in the refrigerator/freezer.
N or remove items from the refrigerator/freezer compartment if your hands are wet/humid, as this could cause skin abrasions or "freeze burns." Bottles and cans should not be placed in the freezer, as they can explode when the contents are frozen.
Se must respect the storage times recommended by the manufacturer. Please refer to the relevant instructions.
Do not allow children to manipulate the controls or play with the refrigerator/freezer. The refrigerator/freezer is heavy. Care must be taken when moving it. It is dangerous to alter the specification or attempt to modify this product in any way.
Do not store flammable gases or liquids inside your refrigerator.
If the power cord is damaged, it must be replaced by the manufacturer, its
service agent or qualified persons to avoid risks.
This device can be used by children over 8 years of age and people with reduced physical, sensory or mental abilities or due to lack of experience and knowledge if they have been given supervision or instructions on the use of the
safely and understand the dangers involved. Children should not play with the device.
Cleaning and maintenance of the user should not be performed by unsupervised children.
This device is intended for use in domestic and similar applications such as
· Staff kitchen areas in shops, offices and other work environments;
· Rural houses and by clients in hotels, motels and other residential environments;
- Bedroom-type environments;
- Catering and similar non-commercial applications.
Nor store flammable substances inside
- WARNING: Keep the vents, in the appliance cabinet or in the built-in structure, unobstructed.
- WARNING: Do not use mechanical devices or other means to speed up the thawing process, other than those recommended by the manufacturer.
- WARNING: Do not damage the coolant circuit.
- WARNING: Do not use appliances inside the food compartments of the appliance, unless they are of the type recommended by the manufacturer.
Considerations
Old appliances still have some residual value. An environmentally friendly disposal method will ensure that valuable raw materials can be recovered and used again.
The refrigerant used in your appliance and insulating materials requires special removal procedures. Make sure that none of the tubes on the back of the appliance are damaged before removal. You can get up-to-date information on the options for disposing of your old appliance and packaging at the location where you purchased the new appliance.
blockade
If your refrigerator/freezer is equipped with a lock, to prevent children from getting trapped, keep the key out of reach and not close to the appliance. If you get rid of an old fridge/freezer break any old locks or locks as a safeguard.
introduction
Before using
Please read these instructions and safety guidelines carefully on page 1 before using your new refrigerator/freezer. The refrigerator/freezer is for indoor, domestic use only.
Overview
| 1 | light |
| 2 | Glass Shelf refrigerator |
| 3 | Cajohn |
| 4 | Salad drawer |
| 5 Top | freezer drawer |
| 6 Freezer | glass shelf |
| 7 | Bottom freezer drawer |
| 8 | Adjustable pi es |
| 9 | bottle rack |
| 10 | Egg tray |
| 11 | Lower bottle rack |
installation
location
When selecting a location for your refrigerator/freezer you need to make sure that the floor is flat and firm, and the room is well ventilated with an ambient temperature of between 10°C and 43°C. Avoid locating your refrigerator/freezer near a heat source, for example. Kitchen, boiler or radiator. Also avoid sunlight. If you are placing your refrigerator/freezer in a place like a garage or an annex make sure that the refrigerator/freezer is placed above the moisture course, otherwise condensation will occur in the refrigerator/freezer cabinet. Never place the refrigerator/freezer in a wall hole or in closets or furniture. When your refrigerator/freezer is working, the grill on the back can make the sides hot and warm. Therefore, it should be installed so that the back of the refrigerator/freezer has at least 9cm (31/2") of free space and the sides have 2cm (3/4"). Do not cover the refrigerator/freezer with any cover.

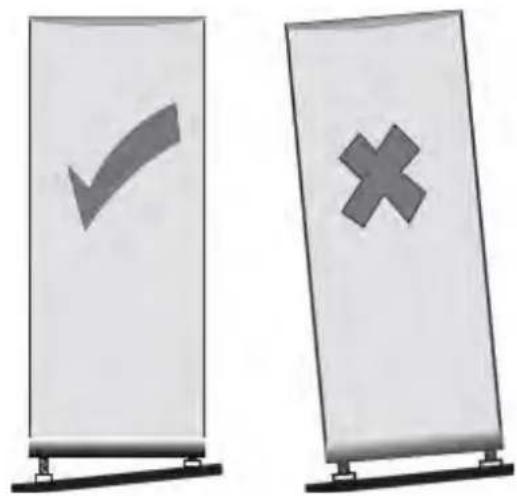

level
If the refrigerator/freezer is not level, the door and magnetic alignment of the seal are wrong can cause the refrigerator/freezer to work improperly. Once the refrigerator/freezer is placed in its final location, adjust the leveling feet at the front by turning them.
Clean the inside of the fridge/freezer with a weak solution of baking soda.
Then rinse with warm water using a wet sponge or cloth. Wash baskets and shelves in warm soap and water and dry them thoroughly before putting them back in the refrigerator/freezer. The external parts of the refrigerator/freezer can be cleaned with wax polish.
Before connecting YOU MUST
Check that you have a plug compatible with the plug supplied with the refrigerator/freezer.
Before you turn on!
The coolant needs time to settle. If the appliance is turned off, wait 30 minutes before re-igniting it to allow the coolant to settle.
Before you fill your refrigerator/freezer
Before storing food in your refrigerator/freezer, turn on the refrigerator/freezer and wait 24 hours, to make sure it is working properly and for the refrigerator/freezer to drop to the correct temperature.
Electrical connection
\~DANGER\~
Improper use of the grounded plug can result in a risk of electric shock. If the power cord is damaged, replace it with another at an authorized service center.
This refrigerator must be properly grounded for your safety. This refrigerator's power cord is equipped with a three-pin plug that connects with standard three-pin wall sockets to minimize the possibility of an electric shock.
Do not cut, in any case, the third ground plug of the supplied power cord.
This refrigerator requires a 230 A (230\~240) V A.C outlet. \~/50Hz with three-pointed ground.
This refrigerator is not designed to be used with an inverter.
The cord must be secured behind the refrigerator and not left exposed or hanging to avoid accidental injuries.
Never unplug the refrigerator by pulling the power cord. Always hold the plug firmly and pull out the receptacle.
Do not use an extension cable with this device. If the power cord is too short, ask a qualified electrician or service technician to install a power outlet near the appliance. Using an extension cable can adversely affect the performance of the drive.
begin
Control system schematics
Control mode: the electronic air cooling control mode uses the control card and temperature sensor to collect the difficult-to-control temperature; The control board is on the back of the device; The display panel is in the upper compartment of the refrigerator and uses LED light.
1, Control Panel: Contains a model of switched power supply with output loads, including compressor, heater, motor and LED lamp, etc., and input loads, including sensor, refrigerator thawing sensor, and display keys.
2, In spring and autumn the temperature ranges between 16-35 °C. With the SET button, you can set the temperature to 4 or 6 speeds, the air volume control lever can be placed in the medium position.
3, In summer especially the temperature is above 35 ^ , the temperature is set to 2, the air volume control lever is adjusted to the maximum.
4, In winter (16 °C and less) to adjust the temperature, air volume control lever to the regionor intermediate between the minimum and, preferably, a minimum or almost the minimum position.
| 2 | 4 | 6 | 8 | SET |
FAST COOL
1, When you need to quickly cool hot food, you can select the "FAST COOL" button.
Note: After 2-3 hours, the refrigerator will automatically adjust to the previous range operation, at the end of the "FAST COOL" function;
MIN
MAX
1, air volume control switch
When adjusted to the minimum amount of air, the highest temperature inside the refrigerator
Food storage
1. How to use the refrigerator compartment
* Cooking dishes can be put in the refrigerator to keep them cool after their temperature drops to room temperature.
* Containers and bottles for eggs, butter, milk and beverage bottles, etc.
2.Meal place
* The right place should be left not too crowded during food storage.
* The food to be stored should be wrapped with clean plastic film or fresh maintenance paper, then distributed to various frames, even to avoid contamination and loss of water and odor from the mixture.
* Cooling hot food to room temperature before storing or electricity consumption will increase and lead to the formation of ice inside.
use
- The appliance may not function consistently (the ability to thaw the contents or the temperature may get too hot in the frozen food compartment) when it is for an extended period of time below the cold limit of the temperature range for which the refrigerator is designed
- The climate class is ST, and the ambient temperature between 16 °C and 38 °C.
- The fact that internal temperatures could be affected by factors such as the location of the refrigeration appliance, the ambient temperature and the frequency of door opening and, where appropriate, a warning that the adjustment of any temperature control device might have to be varied to allow these factors
- The fact that effervescent beverages are not stored in food freezer compartments or cabinets or in low temperature compartments or cabinets and that some products should not be consumed too cold
- The need not to exceed the storage time(s) recommended by food manufacturers for any type of food
- The fact that an increase in the temperature of frozen foods during manual thawing, maintenance or cleaning could shorten the storage life
- It is best to wrap frozen foods in several layers of glass shelves.
- The care required with respect to stored frozen foods in the event of an extension of the operation of the refrigerator (interruption of feeding or failure of the refrigeration system)
- The door to evaporator separation can be used to store food;
Tips to keep food in perfect condition
Pay special attention to meat and fish
Cooked meats should always be stored on a shelf above raw meats to prevent the transfer of bacteria. Keep raw meats in a dish that is large enough to collect the juices and cover with film or foil.
Leave spaces between meals
This allows cold air to circulate around the fridge, ensuring that all parts of the refrigerator are kept cool.
Wrap the food!
To avoid the transfer of tastes and odors, food should be packaged or covered separately.
Fruits and vegetables do not need to be wrapped.
Precooked foods must be properly cooled
Let precooked foods cool before placing them in the refrigerator. This will help to stop the internal temperature of the fridge in its optimal place.
Close the door!
To prevent cold air from escaping, try to limit the number of times you open the door. When resetting the purchase, sort the food to be stored in your refrigerator before opening the door. Just open the door to put food or take it out.
Tips when buying frozen food
Your freezer is 4 stars
When you are buying frozen foods, observe the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period that is displayed for a 4 star rating. This is usually the period indicated as "best, before", indicated on the label.
Check freezer temperature
Check the temperature of the frozen food compartment at the store where you buy your frozen food.
Choose packages carefully
Make sure the frozen food package is in perfect condition.
Buy frozen food for the last time
Always buy frozen products at once in the supermarket.
Keep frozen foods together
Try to keep frozen food together during shopping, and on the trip home, as this will help keep the food fresher.
Store food right away
Do not buy frozen foods unless you can freeze it right away. Special insulating bags can be purchased in most supermarkets and hardware stores. These keep food frozen for longer.
Thawing of frozen foods
For some foods, thawing before cooking is unnecessary. Vegetables and pastas can be added directly to boiling water or steamed. Frozen sauces and soups can be put in a saucepan and gently heated until thawed.
Freezing fresh food, useful tips
Use quality food and handle it as little as possible. Freeze food in small amounts, freeze faster, take less time to thaw and allows you to eat in the amount you need.
Freezing fresh food
First, estimate the amount of food you will freeze. If you are freezing large amounts of fresh food, remember to turn the control dial to Max. This will reduce the temperature in the freezer, freezing your food faster and helping to keep the best of them. However, you should do this sparingly to conserve energy.
Preparations for freezing
· Let the cooked foods cool completely.
- Cool food in a refrigerator before freezing if possible.
- Consider how you want to cook food before freezing it.
- Do not freeze food in metal containers, as you may want to do so directly from the freezer.
- Use special freezer bags available in supermarkets, freezer film, polyethylene bags, plastic containers, aluminum foil for acidic foods (such as citrus).
Do not use film or thin glass. Do not use used food containers (unless you first clean it carefully).
- Exclude as much air as possible from the container. You can buy a special vacuum pump that sucks over air out of the container.
· Leave a small amount of "air space" when freezing liquids, to allow expansion. - You can use the freezer space more efficiently if you freeze liquids (or solids with liquids, such as stew) in square blocks.
This is known as "running" pour the liquid into a polyethylene bag that is inside a square-sided container. Freeze it this way, then remove it from the container and seal the bag.
defrost
This device is designed as automatic defrost, without the need to defrost by hand.
Recommended storage periods
For information on the recommended storage time, see the information on the food packaging.
Clean the freezer
You need to clean the refrigerator/freezer internally with a weak solution of baking soda. Then rinse with warm water using a wet sponge or cloth and dry it. Wash baskets with warm soap and water and make sure they are completely dry before replacing them in the refrigerator/freezer.
Cleaning out of the refrigerator/freezer
Use standard non-abrasive detergent diluted in warm water to clean the outside of the refrigerator/freezer.
The condenser grid on the back of the refrigerator/freezer and the
Adjacent components can be vacuumed using a soft brush.
Do not use strong cleaners, scrub pads or solvents to clean any part of the refrigerator/freezer
Easy fault analysis and removal
Not all failures require technical service personnel to solve the next small problem; You can try to fix the problem.
| case | inspection | solution |
| • completely no cooling | • Is the power plug off?• Are the switches and fuses broken?• No electricity? | • Plug back in.• Open the door and check if the lamp is on. |
| • Abnormal noise | • Is the refrigerator?• Does the refrigerator reach the wall? | • Adjust the adjustable feet of the refrigerator.• Next to the wall. |
| • poor cooling efficiency | • Do you put hot food or too much food?• Do you open the door frequently?• Is the bag of food cut off to the door seal?• Direct sunlight or near an oven or stove?• Is it well ventilated?• Is the temperature too high? | • Put food in the refrigerator when hot food cools.• Checking and closing the door.• Remove the refrigerator from the heat source.• Empty the distance to maintain good ventilation.• Adjustment to temperature adequate. |
| • Special smell in the refrigerator | • Any food Broken?• Do you need to clean the refrigerator?• Did you introduce foods with strong flavors? | • Throw spoiled food.• Cleaning the refrigerator.• Food packaging with strong flavors. |
Move the refrigerator/freezer
Location
Do not place your refrigerator/freezer near a heat source, for example. Kitchen, boiler or radiator. Also avoid direct sunlight outdoors or in sunny rooms.
Refrigerator/freezer leveling
Makesure the refrigerator/freezer is level. Use the rotating feet of
levelingor levelingat the front. If the refrigerator/freezer is not level, the doors and magneticclosures will beaffected and can cause your refrigerator/freezer to work improperly.
Do not turn on the refrigerator/freezer for 4 hours
After the fridge/freezer is in place, it should be left for 4 hours. This allows time for the cooling line to settle.
Installationohn
Do not cover or block vents or grates of your appliance.
If you're not home for a long time
- Turn off the refrigerator first and unplug the unit from the outlet.
- Remove all food.
- Clean the refrigerator.
- Leave the lid slightly open to prevent condensation, mold, or odors from forming.
- Be very careful in the case of children. The unit should not be accessible to the child's play.
- Short vacation: Leave the refrigerator running during the vacation of less than three weeks.
- Long vacation: If the device will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior completely. To prevent the smell and growth of mold, leave the door slightly open: locking it if necessary or remove the door.
How to save energy
- Install the refrigerator in the cooler part of the room, out of direct sunlight and away from ducts or heating logs. Do not place the refrigerator near appliances that produce heat, such as an oven or dishwasher.
- The refrigerator door should remain open only as long as necessary; Do not place hot food inside the refrigerator.
- Arrange the refrigerator to reduce door openings. Remove as many items as you need at once and close the door as soon as possible.
- The refrigerator door should be tightly closed to prevent increased energy consumption and the formation of ice and/or condensation inside.
- The cold air that circulates constantly maintains the homogeneous temperature inside the refrigerator. For this reason, it is important to distribute food properly, to facilitate airflow.
- Cover food and dry containers before placing them in the refrigerator. This reduces the accumulation of moisture within the unit.
- Do not overcharge the refrigerator or block fans from cold air. Doing so will make the refrigerator work harder and use more energy. Shelves should not be coated with aluminum foil, waxed paper or paper towels. The
coatings interfere with the circulation of cold air, which makes the refrigerator less efficient, which could cause food spoilage.
-
During prolonged absences (example: vacation), it is advisable to disconnect the refrigerator, remove all food and clean it. The door should be left slightly open to avoid mold and unpleasant odors. This will not affect the refrigerator when it is reconnected.
-
During short absences (example: vacation), the refrigerator may stay on. However, remember that prolonged blackouts can occur while you are gone.
service
This product must be reviewed by an authorized engineer and only original parts must be used.
Under no circumstances should you try to repair the device yourself.
Repairs performed by inexperienced people can cause injury or serious malfunction. Contact the local store where your purchase was made.
When the appliance is not in use for long periods, disconnect it from electric current, empty all food and clean the appliance leaving the door ajar to avoid unpleasant odors.
THIS DEVICE MUST BE GROUNDED.
This device is equipped with a plug that will be suitable for use in all houses equipped with sockets to current specifications.
If the adapted plug is not suitable for power outlets, it should be carefully cut and removed.
To avoid a possible risk of electrocution, do not insert the discarded plug into a socket.
This device complies with the following IEC Directives:
2014/35 / EU (Low Voltage Directive)
2014/30 / EU (CEM Directive).
Successful removal of this product
PROCEDURE IN CASE OF FAILURE OF A MILECTRIC PRODUCT
Dear customers, to request technical assistance or repair of your MILECTRIC product, you have our website, operating 24 hours a day, 7 days a week:
https://milelectric.com/asistencia-tecnica/
Alternatively, if they wish, they can request technical assistance via email:
• Gama Blanca: rmablanca@milectric.com
• Gama Marrón: rma@milectric.com
To streamline all procedures, the following information should always be indicated:
• Name and surname
- Telephone 1
- Phone 2
- Full address
- Postal Code
- Population
- Brand
- Product model
- Serial number
- Product failure
You can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).
