Use & Care / Installation Manual

READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

SECTION ...... PAGE

Warranty 2

Safety Instructions 3

Operation.... 4

Cleaning 4

Parts Included With Hood 5

Parts Not Included With Hood .... 5

Tools Needed 5

Equivalent Duct Length Chart 6

Install Ductwork 7

Prepare The Hood 7-9

Prepare The Hood Location 10-13

EZ1 One-Person Installation 10-11

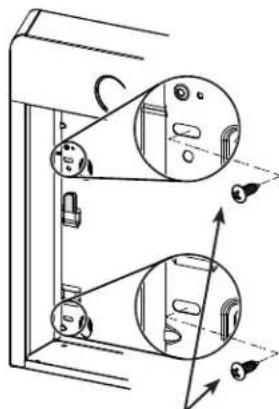

Install The Hood (EZ-1 Brackets) 12

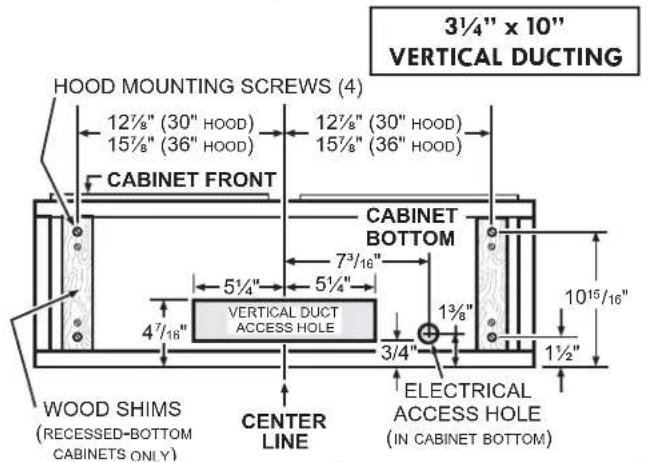

Standard Installation (without EZ1 Brackets) 13

Install The Hood (Standard Installation) 13

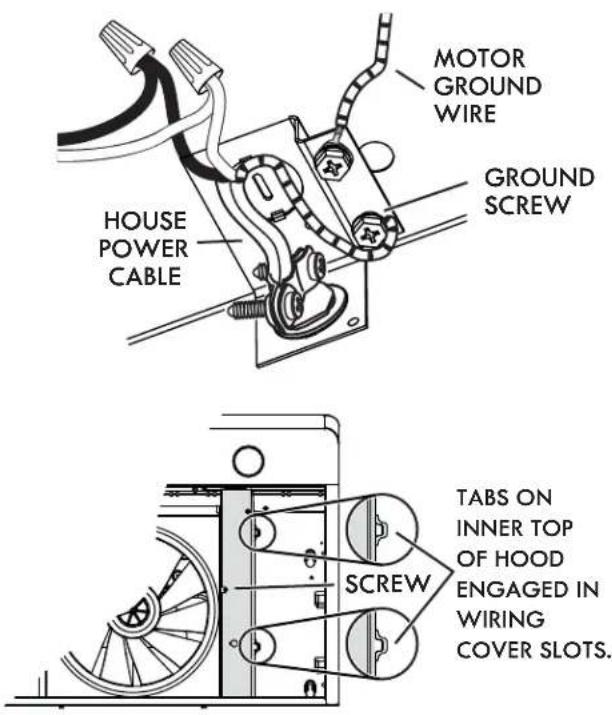

Connect The Wiring 14

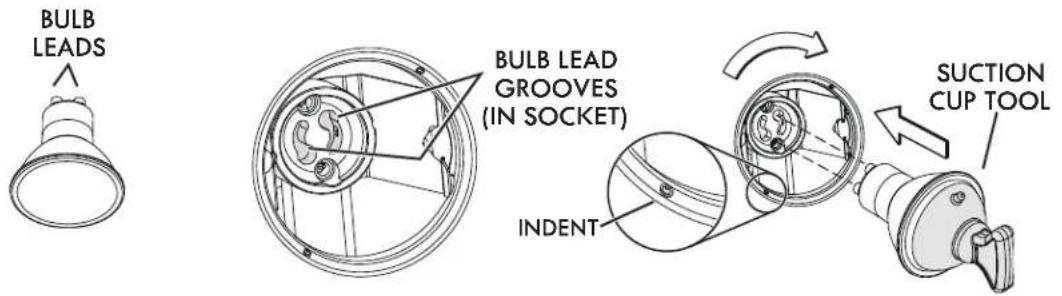

Install The Light Bulbs 15

Install The Filters 15

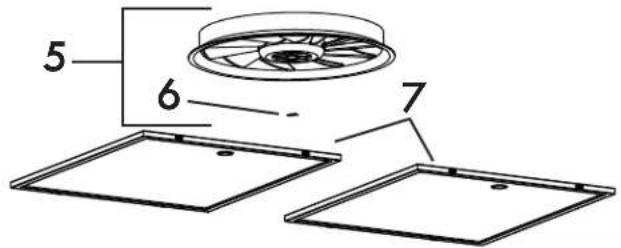

Service Parts 16

KENMORE LIMITED WARRANTY

WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions.

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appliance will receive free repair or replacement at option of seller. This ONE YEAR coverage does not apply to the finish of any painted or bright metal part.

FOR THIRTY DAYS from the date of sale, any painted or bright metal part of this product will be replaced free of charge if its fi nish is defective in material or workmanship.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

All warranty coverage is void if this product is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.

2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.

3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.

KENMORE LIMITED WARRANTY

1. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
2. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
3. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
4. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
5. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year for the range hood and thirty days for painted or bright metal parts, or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation,

Hoffman Estates, IL 60179

SAFETY INSTRUCTIONS

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fi re-rated codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. To reduce the risk of fire or electric shock, do not use this range hood with an additional speed control device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

1. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when cooking flaming foods.
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:\*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
4. Use an extinguisher ONLY if:
   A. You know you have a Class ABC extinguisher and you already know how to operate it.
   B. The fire is small and contained in the area where it started.
   C. The fire department is being called.
   D. You can fight the fire with your back to an exit.
   * Based on "Kitchen Fire safety Tips" published by NFPA.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. For best capture of cooking impurities, your range hood should be mounted so that the top of the hood is 18-24" above the cooking surface.
4. Use only with range hood cord-connection kits that have been investigated and found acceptable for use with this model range hood.
5. Please read specification label on product for further information and requirements.

NOTE

If hood is to be installed Non-Ducted: Purchase non-ducted fi Iters and attach them to the aluminum mesh fi Iters

"Non-ducted Filters" available by calling 1-844-553-6667

CLEANINGOPERATION


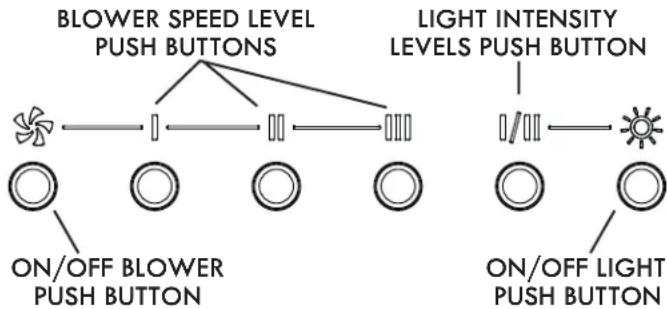

When blower is OFF, push on this button to turn ON the blower at the last selected speed. Push on this button again to turn OFF the blower.

NOTE: If there is no speed selected (all blower speed push buttons up), the blower will not turn ON. In that case, press on the desired speed level push button to activate the blower.

When blower is ON, change the blower speed by pressing on the push button corresponding to the desired speed: one line for LOW, two lines for MEDIUM and three lines for HIGH speed.

When lights are OFF, push once on this button to turn ON the lights at the last selected setting. Push on this button again to turn OFF the lights.

LIGHT INTENSITY LEVELS PUSH BUTTON

Push on this button to change the light intensity (HIGH or LOW).

WARNING: To reduce the risk of electric shock, disconnect from power supply before cleaning.

Micromesh fi Iters

Clean frequently using hot water and a mild detergent or in your dishwasher. The micromesh filters should be washed approximately every month depending on the amount of usage. Wash more often if your cooking style generates greater grease - like frying foods or wok cooking.

Non-ducted recirculation fi Iters

(available separately - see page 5)

The non-ducted recirculation filters should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking. Refer to installation instructions included with non-ducted recirculation filters.

Painted hood surfaces

Clean with warm water and mild detergent only. If discoloration occurs, use a fi nish polish such as automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)

Stainless steel hood surfaces

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
  • Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
  • Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

Fan assembly

The fan blade should be cleaned frequently. Use a clean cloth soaked with warm detergent solution.

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The fan blade should also be replaced.

PARTS INCLUDED WITH HOOD

Micromesh Grease Filters (2 per hood)

Shielded Halogen Bulbs (120 V, 50 W max., MR16 or PAR16 with GU10 base) (2 per hood)

3 ^1/4 " x 10" Damper / Duct Connector

7" Round Duct Connector

Parts Bag

(4 no. 8-18 x 1/2" metal screws,
6 no. 8 x 5/8" round head wood screws,
6 no. 8 x 1/2" countersunk wood screws,
1 suction cup tool)

PARTS NOT INCLUDED WITH HOOD

OPTIONAL PARTS (purchase separately)

Non-Ducted Recirculation Filters
(Non-ducted hoods only)
(2 per hood)
Part Nos.:
S97020466 (30-in. width hoods)
S97020467 (36-in. width hoods)

7-inch Round Damper
(For use with 7-inch Round Duct)
Part No. 59183

"Parts Not Included With Hood" available by calling 1-844-553-6667

TOOLS NEEDED FOR HOOD INSTALLATION

Screwdriver (Flat & Phillips no. 2)

Drill (with 1/8" and 7/64" drill bits, and 1½" hole saw)

Long Nose Pliers

Metal Foil Duct Tape

Sabre Saw -or- Keyhole Saw

EQUIVALENT DUCT LENGTH CHART

Kenmore range hoods are designed to perform efficiently when attached to long runs of duct. As a point of reference, this hood will function at approximately 80% of its rated air flow when 25 equivalent feet of 7" round ductwork is attached. Use this chart to calculate the equivalent duct length of your system.

Straight Duct 3¼-in. x 10-in. x 2-ft. long Equivalent length 2 ft.

Straight Duct 7-in. round x 2-ft. long Equivalent length 2 ft.

7-in. Round Elbow Equivalent length 8 ft.

3¼-in. x 10-in. to 7-in. Round Transition Equivalent length 5.5 ft.

3½-in. x 10-in. Right-angle Elbow Equivalent length 8.5 ft.

3¼-in. x 10-in. Right-angle Flat Elbow Equivalent length 24 ft.

Technical line drawing of a mechanical component with no visible text or symbols

3¼-in. x 10-in. Right-angle Short Eave Elbow Equivalent length 15 ft.

Technical line drawing of a mechanical component with no visible text or symbols

3¼-in. x 10-in. Right-angle Long Eave Elbow Equivalent length 15 ft.

B7-in. Round Wall Cap Equivalent length 34 ft. (6-ft. w/o damper)

Isometric line drawing of a rectangular electronic component with a recessed top (no text or symbols)

3¼-in. x 10-in. Wall Cap Equivalent length 45 ft. (7-ft. w/o damper)

Isometric line drawing of a 3D geometric object on a plane, no text or symbols present

Roof Cap (accepts 7-in. round or 3 ^1/4 -in. x 10-in. duct) Equivalent length 30 ft. (7-ft. w/o damper)

"Ducting Accessories" available by calling 1-844-553-6667

INSTALL DUCTWORK (DUCTED INSTALLATION ONLY)

1. Determine whether hood will discharge vertically (3 ^1/4 " x 10" or 7" Round) or horizontally (3 ^1/4 " x 10" only).
2. Run ductwork between the hood location and a roof cap or wall cap.
3. Choose a straight, short duct run to allow the hood to perform most efficiently. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. When possible, use at least 2 foot straight runs before any turns. Larger ductwork may be required for best performance with longer duct runs.
4. Install wall cap or roof cap (sold separately); ensure there is no leak in hoïouse insulation. Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

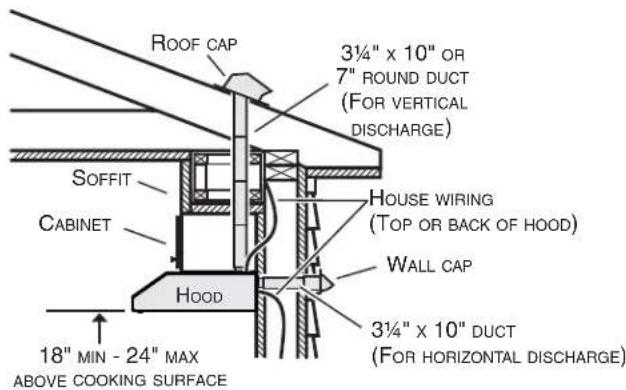

ROOF CAP 3¼" x 10" OR 7" ROUND DUCT (FOR VERTICAL DISCHARGE) SOFFIT CABINET HOUSE WIRING (TOP OR BACK OF HOOD) WALL CAP Hood 3¼" x 10" DUCT (FOR HORIZONTAL DISCHARGE) 18" MIN - 24" MAX ABOVE COOKING SURFACE

NOTE: Distances over 24" are at the installer and user discretion.

PREPARE THE HOOD

1. If present, remove all protective polyfi lm from the hood and/or parts. Using the fi nger cup, remove the Micromesh Filters from the hood by pushing down and tilting fi lters out.
2. Remove the EZ1 brackets from inside the hood by cutting off the tie wrap. Remove both screws holding damper assembly to hood. Remove parts bag (captured behind the damper assembly). Remove damper assembly from inside the hood and keep the screws for further use.

Diagram of a door with labeled parts and directional arrows indicating movement or assembly

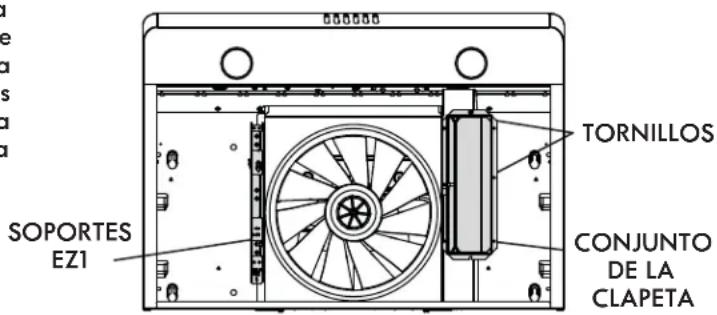

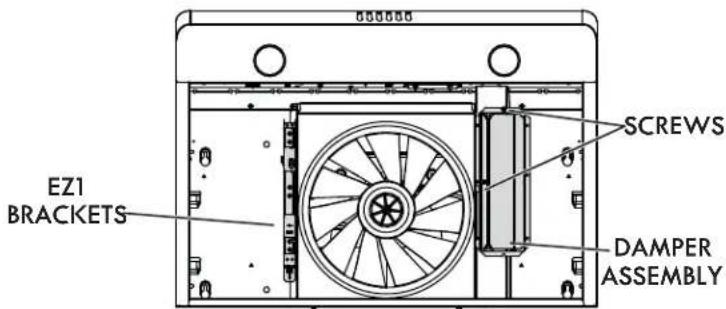

EZ1 BRACKETS SCREWS DAMPER ASSEMBLY

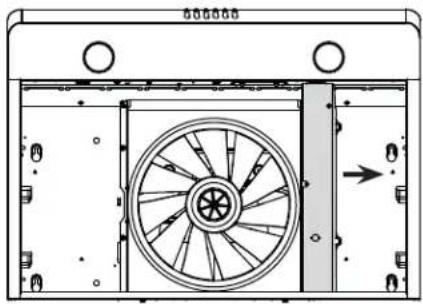

1. Remove the wiring cover (shaded part on illustration beside) by sliding it out from the hood and set it aside.

2. Remove 7" Round Duct Plate from top/back of hood (see illustration beside).

3. Remove Electrical Power Cable Knockout from top (vertical exhaust) or back (horizontal exhaust) of hood. Install an appropriate strain relief, 1/2" diameter (not included).

Technical diagram of a mechanical component with a central wheel and mounting holes (no text or symbols)

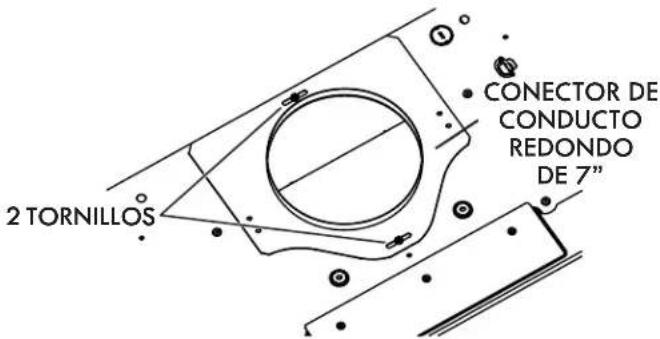

2 SCREWS 7" ROUND DUCT PLATE

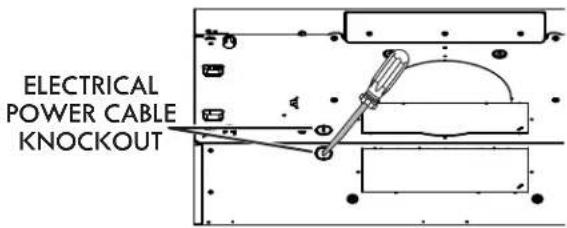

ELECTRICAL POWER CABLE KNOCKOUT

NON-DUCTED INSTALLATIONS ONLY

1. Remove 3 screws retaining the recirculation cover plate (shaded part in illustration beside) to the hood. Discard this plate with its screws.

RECIRCULATION COVER PLATE SCREWS

DUCTED INSTALLATIONS ONLY

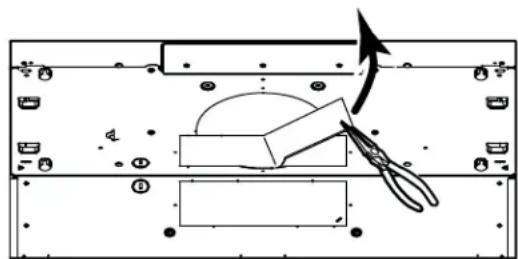

1. Remove 3 14 " x 10" vertical, 3 14 " x 10" horizontal, or 7-inch round knockout plate as appropriate for your ducting method (see FIGURES 1 A and 1 B).

FIGURE 1 A FIGURE 1 B

7" ROUND KNOCKOUT PLATE (ALSO REMOVE VERTICAL KNOCKOUT PLATE) 3¼" x 10" VERTICAL KNOCKOUT PLATE 3¼" x 10" HORIZONTAL KNOCKOUT PLATE

Diagram showing a mechanical or electrical component with labeled parts and an arrow indicating direction, possibly illustrating a process or assembly.

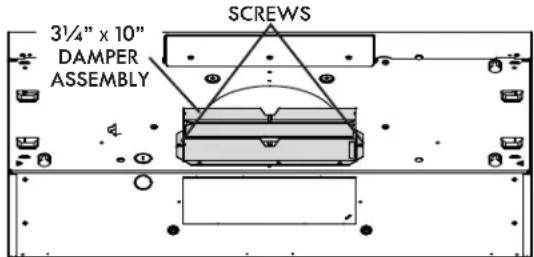

1. Attach 3 ^1/4 " x 10" Damper Assembly on top OR back of hood (if using 3 ^1/4 " x 10" duct; shaded part in FIGURE 2 A) or 7" Round Duct Plate (if using 7-inch round duct, FIGURE 3) over the knockout opening. When installed, the 3 ^1/4 " x 10" damper assembly must open as shown in FIGURE 2 B.

FIGURE 2 A

3¼" x 10" DAMPER ASSEMBLY SCREWS

FIGURE 2 B

TOP/BACK EDGE OF HOOD DAMPER FLAP PIVOT

3½" x 10" DAMPER ASSEMBLY SCREWS

BACK OF HOOD DAMPER FLAP PIVOT

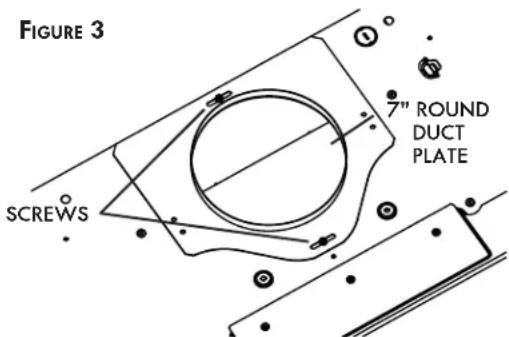

FIGURE 3 7" ROUND DUCT PLATE SCREWS

NOTE: To accommodate off-center ductwork, the 7" round duct plate can be installed up to 1/2" on either side of the hood center.
TIP: Insert a small length of duct over the 3½" x 10" damper assembly (for rectangular ducting) or 7" round (for round ducting) and seal the joint using aluminum foil duct tape to ease connection with the house ductwork.

PREPARE THE HOOD LOCATION

NOTE: Before starting installation, read all the steps of these instructions.

Use the illustration beside to identify your kitchen cabinet type.

This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1 one-person installation system (using included template and brackets). For the standard installation, go to page 13.

FRAMED CABINET FRAMELESS CABINET

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

EZ1 One-person installation system

EZ1 installation is designed for use with kitchen cabinets that have the same width designation as the range hood width. If the cabinet is greater than 1/2" wider than the range hood width, please use the standard installation method.

1. Use the proper template for vertical OR horizontal discharge (included) for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring. If replacing a hood and plan to use the existing duct and electrical, steps 2 to 5 may not be necessary. If so, skip to step 6.

2. Measure and mark the hood center line on cabinet bottom.

3. Align the center line on template with the hood center line marked on the bottom of the cabinet, placing the edge (where indicated) of the template against back wall. When using with framed cabinet for vertical exhaust installation, fold over rear edge of template equal to the depth of the cabinet frame at the wall (use graduations on template, C locations on template). Tape the template in place.

NOTE: When facing the installation, A and B (on template) must be at right.

CABINET FRONT VERTICAL EXHAUST DUCTING CABINET FRONT FOLD TEMPLATE ALONG GRADUATED SCALE WHEN INSTALLING TO FRAMED CABINET. CENTER LINE A C ELECTRICAL ACCESS HOLE LOCATION (A) (IN CABINET BOTTOM)

CENTER LINE HORIZONTAL EXHAUST DUCTING HORIZONTAL EXHAUST ELECTRICAL ACCESS HOLE LOCATION (A) (IN WALL)

1. Drill a 1/8" dia. pilot hole for house wiring, at A location on template.

2. Use a sharp pencil or 1/8" drill bit to mark the locations for the appropriate duct access holes (16 locations for 7" round duct, or 4 corner locations for rectangular duct). Remove the template.

3. Draw the border for the exhaust ducting by linking its marks (16 for round duct and 4 for rectangular duct), then cut the opening in the cabinet bottom (vertical exhaust) or in the wall (horizontal exhaust). Drill the house wiring hole by using a 1½" hole saw centered with the pilot hole previously made in 4.

4. Install the proper installation brackets according to the type of cabinet (framed or frameless). See below.

FRAMED CABINET

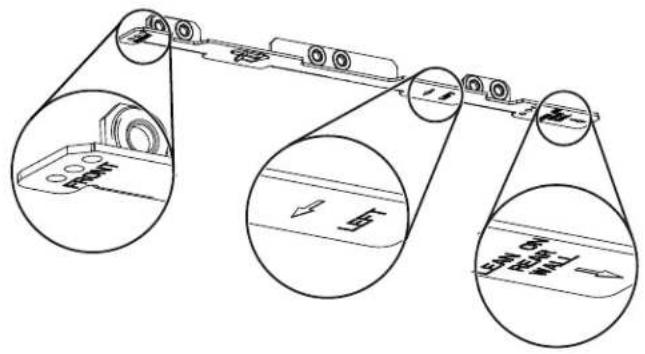

Refer to the marking on the brackets to determine the correct installation side and orientation.

Technical diagram showing mechanical assembly with pulleys and labeled parts, including a 50mm mark and 500mm mark.

① Mate the corresponding bracket to the cabinet side frame, while placing rear end of bracket against the wall. Use a pencil to mark 3 holes (there are 6 holes but only 3 are necessary).
② Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
③ Assemble the bracket to the side frame using a Phillips screwdriver and 3 provided no. 8 x 5/8" wood screws. Repeat for the other side frame.

1

Pure mechanical assembly diagram showing structural components without any text, numbers, or symbols

2

7/64"

3

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

FRAMELESS CABINET

Refer to the marking on the brackets to determine the correct installation side and orientation.

PORT A NEW

① Align the corresponding bracket to the cabinet side, while placing rear end of bracket against the wall. Draw a line on the outer edge of the bracket (as shown).
② Slide the bracket towards the center of cabinet and align the outside edge of the bracket with the marked line, keeping the rear end edge leaning on the wall.
③ Use a pencil to mark 3 holes.
4 Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
⑤ Assemble the bracket to the cabinet bottom using a Phillips screwdriver and 3 provided countersunk wood screws. Repeat for the other cabinet side .

① 3 X

Install the hood (EZ1 brackets)

NOTE: The following procedure applies to both framed or frameless cabinet installations.

1. Run house power cable between service panel and hood location.
2. There are 2 pairs of recessed holes on each side of the top of the hood (on rear: A and B, on front C and D on illustration below); these holes allow the range hood to hang on the brackets (previously installed).

HORIZONTAL EXHAUST INSTALLATION ONLY

1. Temporarily hang the hood on the brackets using its 2 recessed REAR HOLES (A and B). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 5 on page 8.

2. Unhook the rear holes from the brackets and hang the hood using its 2 recessed FRONT HOLES (C and D). While holding the hood, attach the power cable to the hood using the strain relief.

VERTICAL EXHAUST INSTALLATION ONLY

1. Hang the hood on the brackets using the 2 recessed FRONT HOLES (C and D). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 5 on page 8. Attach power cable to the hood.

Technical diagram showing labeled components of a roof structure with annotations A, B, C, D and a magnified detail view.

DUCTED INSTALLATIONS ONLY

1. Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

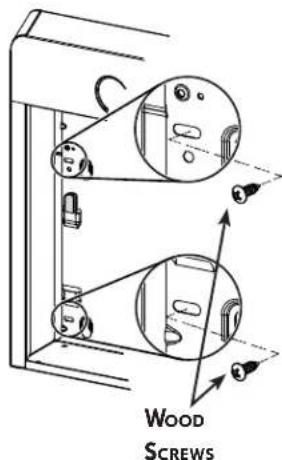

2. For framed cabinet, secure the hood to the EZ1 brackets using 4 no. 8-18 x 1/2" metal screws (screws included in parts bag). Insert 2 screws per side, in the slots (as shown in inset on illustration beside).

3. For frameless cabinet, secure the hood to the cabinet using 4 no. 8 x 5/8" round head wood screws (screws included in parts bag). Insert 2 screws per side, in the slots (as shown in inset on illustration beside).

FRAMED CABINET FRAMELESS CABINET

METAL SCREWS

WOOD SCREWS

Standard Installation (without EZ1 brackets)

1. Use these diagrams for proper placement of ductwork and electrical cutout in cabinet or wall.

For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring

7" ROUND VERTICAL DUCTING HOOD MOUNTING SCREWS (4) 12½" (30" HOOD) 15½" (36" HOOD) CABINET FRONT 12½" (30" HOOD) 15½" (36" HOOD) CABINET BOTTOM 7³/₁₆" 7-IN. ROUND DUCT ACCESS HOLE 8" DIA. HOLE 1¾" 10¹⁵/¹⁶" 1½" WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM)

1. Install part-way four (4) ROUND HEAD no. 8 x 5/8" mounting screws into shims/cabinet, according to the proper diagram above. (Mounting screws are included in parts bag, but wood shims and shim mounting screws are not included)

3¼" x 10" VERTICAL DUCTING HOOD MOUNTING SCREWS (4) 12½" (30" HOOD) 15½" (36" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) CABINET FRONT CABINET BOTTOM 7¾/16" 5½" 4¾/16" VERTICAL DUCT ACCESS HOLE 1¾" 3/4" ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM) WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE

WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) 3½" x 10" HORIZONTAL DUCTING CABINET FRONT 13/16" 3/16" HORIZONTAL DUCT ACCESS HOLE CABINET BOTTOM 5½" 5½" 7³/₁₆" 12½" (30" HOOD) 15½" (36" HOOD) 12½" (30" HOOD) 15½" (36" HOOD) HOOD MOUNTING SCREWS (4) CENTER LINE ELECTRICAL ACCESS HOLE (IN WALL)

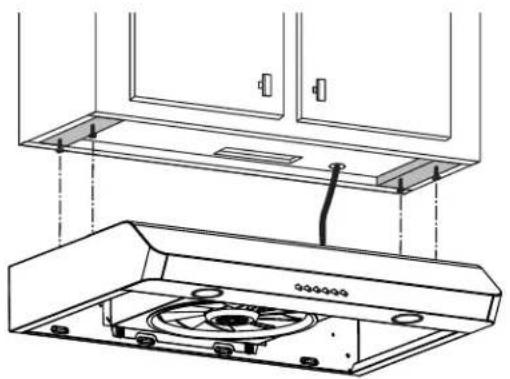

Install the Hood (Standard Installation)

NOTE: Two installers are recommended because of the weight of this hood.

1. Run house power cable between service panel and hood location. Run the house power cable into the hood through the strain relief previously installed in step 5 on page 8.
2. Hang hood from (4) mounting screws previously installed. Slide hood back towards wall until mounting screw heads are engaged in narrow end of keyhole slots in top of hood. Tighten screws securely. Attach power cable to the hood using the strain relief.

Technical line drawing of a kitchen air conditioner unit with ventilation system (no text or symbols)

DUCTED INSTALLATIONS ONLY

1. Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

CONNECT THE WIRING

WARNING: Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

1. Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.

2. Reinstall wiring cover and attach it to the hood using its retaining screw.

CAUTION: Ensure both tabs on inner top of hood are engaged in their corresponding slots in wiring cover. Also, take care not to pinch wires while reinstalling wiring cover.

MOCTOR GROUND WIRE GROUNDS SCREW HOUSE POWER CABLE SCREW TABS ON INNER TOP OF HOOD ENGAGED IN WIRING COVER SLOTS.

INSTALL THE LIGHT BULBS

This range hood requires two shielded Halogen Bulbs (120 V, 50 W max., MR16 or PAR16 with GU10 base).

WARNING: Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of personal injury, only install shielded halogen lamps. Also, never install a cool beam, a dichroic lamp, a lamp not suitable for use in recessed luminaires or identified for use in enclosed fixtures.

BULB LEADS BULB LEAD GROOVES (IN SOCKET) INDENT SUCTION CUP TOOL

1. Align the bulb leads with the small indentations located on the border of the lamp location on hood (see inset above), then install the bulbs by placing the bulb leads into their grooves in the socket.

2. Gently push upwards and turn clockwise until secure.

NOTE: The Suction Cup Tool (included with hood) can be used to install and remove light bulbs. Press suction cup tool on bulb and rotate counterclockwise to remove bulb or clockwise to install bulb.

CAUTION: Most GU10 LED replacement bulbs commonly found in the market are not designed for use in a cooking environment and might not perform as advertised. Their usage with this product is not recommended.

INSTALL THE FILTERS

Ducted Installation Only:

Re-install grease filters removed in step 1 on page 7, under "Prepare the Hood".

Non-ducted Installation Only:

Purchase two non-ducted filters (see part number in Service parts list). Attach the non-ducted filters following instructions packed with the non-ducted filters.

"Non-ducted Filters" available by calling 1-844-553-6667

SERVICE PARTS

Exploded view diagram of a kitchen air conditioner unit with numbered components

5 6 7

KEY NO.	PART NO. DESCRIPTION		QUANTITY
			51282	51283	51289	51292	51293	51299
1	S97020030 R	ECIRCULATION COVER PLATE, WHITE (INCL. SCREWS)	1			1
	S97020031 R	ECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS)		1			1
	S97020029 R	ECIRCULATION COVER PLATE, BLACK (INCL. SCREWS)			1			1
2 SR6	80508 7" R	OUND DUCT PLATE (INCLUDING SCREWS)	1	1	1	1	1	1
3 S97	020534 31⁄4"	X 10" DAMPER ASSEMBLY (INCLUDING SCREWS)	1	1	1	1	1	1
4	S97020409 B	LOWER MOTOR (INCL. 4 SCREWS AND 1 CAPACITOR)	1	1	1	1	1	1

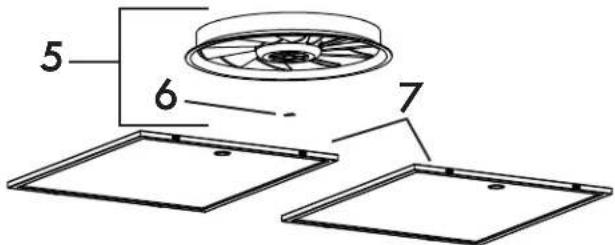

5	S97020407	FANPELLER (INCLUDING ITEM 6)	1	1	1	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1	1	1	1
7	S99010434-002	GREASE FILTER - MICRO MESH - TYPE C1 (SET OF 2)				1	1	1
	S99010434-003	GREASE FILTER - MICRO MESH - TYPE D1 (SET OF 2)	1	1	1
8	S97020427	MECHANICAL PUSH-BUTTON CONTROL (6 BUTTONS)	1	1	1	1	1	1
9	SV05921	SHIELDED HALOGEN BULB 50 W, GU10	2	2	2	2	2	2
* S97	020450 W	IRE HARNESS	1	1	1	1	1	1
*	S98011637	WIRING COVER	1	1	1	1	1	1
*	S97020292	PARTS BAG INCLUDING: 1 SUCTION CUP TOOL,4 METAL SCREWS NO. 8-18 X 1/2",6 ROUND HEAD NO. 8 X 5/8" WOOD SCREWS,6 NO. 8 X 1/2" COUNTERSUNK WOOD SCREWS	1	1	1	1	1	1
* S97	020466	NON-DUCTED FILTER - TYPE XC (SET OF 2)(NON-DUCTED INSTALLATION ONLY)				1	1	1
* S97	020467	NON-DUCTED FILTER - TYPE XD (SET OF 2)(NON-DUCTED INSTALLATION ONLY)	1	1	1
*	S99527587	NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)	1	1	1	1	1	1
*	S97020470	EASY INSTALL KIT (INCLUDING HARDWARE)	1	1	1	1	1	1

Order replacement parts by PART NO. - not by KEY NO.
* Not illustrated

REPLACEMENT PARTS

In order to ensure your unit remains in good working condition, you must use the manufacturer genuine replacement parts only. The manufacturer genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. To purchase the genuine replacement parts listed above, call 1-844-553-6667.

LEA Y CONSERVE ESTAS INSTRUCCIONES

TABLA DE CONTENIDO

SECCIÓN....PÁGINA

Garantía....17

Sears Brands Management Corporation, Hoff man Estates, Illinois 60179

PREVISTO PARA COCINAR DOMÉSTICO SOLAMENTE.

VERTICAL EXHADS A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Isometric line drawing of a rectangular electronic component with a recessed top (no text or symbols)

Isometric line drawing of a 3D geometric object with a sloped top surface and a flat base (no text or symbols)

Diagram of a door with labeled parts and directional arrows indicating movement or change

SOPORTES EZ1 TORNILLOS CONJUNTO DE LA CLAPETA

Technical line drawing of a mechanical component with a central wheel and mounting holes (no text or symbols)

2 TORNILLOS • CONECTOR DE CONDUCTO REDONDO DE 7"

Diagram showing a mechanical or electrical component with labeled parts and an arrow indicating direction, possibly illustrating a process or assembly.

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

Technical diagram showing mechanical assembly with pulleys and labeled parts, including Chinese annotations

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

7/64"

3

Technical line drawing of a structural assembly with mounting holes and beams (no text or symbols)

Technical diagram showing three mechanical components with labeled parts and circular insets for detail views.

① 3 X

Instale la campana (Soportes EZ1)

Technical line drawing of a mechanical device with pulleys and rotating components (no text or symbols)

TORNILLOS
PARA METAL

ARMARIO SIN ARMAZÓN

Technical line drawing of a mechanical device with pulleys and directional arrows indicating motion (no text or symbols)

TORNILLOS
PARA MADERA

Technical line drawing of a kitchen appliance with a chimney and ventilation system (no text or symbols)

Exploded view diagram of a kitchen air conditioner unit with numbered components

5 6 7

Customer Care Hotline

To schedule in-home repair service or order replacement parts
