INSTALLATION

1. Select a good location. Place your refrigerator where it is easy to use.

2. Avoid placing the unit near heat sources, direct sunlight or moisture.

3. There must be proper air circulation around your refrigerator to keep it operating efficiently. If your refrigerator is placed in a recessed area in the wall, allow at least 10 inches (25cm) or greater clearance above the refrigerator and 2 inches (5cm) or more from the wall. The refrigerator should be elevated 1 inch (2.5cm) from the floor, especially if it is carpeted.

4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.

5. Don't install this appliance below 5 °C. It may cause the debasement of the refrigerator.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. You have a model with bar-type handle, assemble the handle according to instruction card.
4. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
5. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
   Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

FEATURE CHART

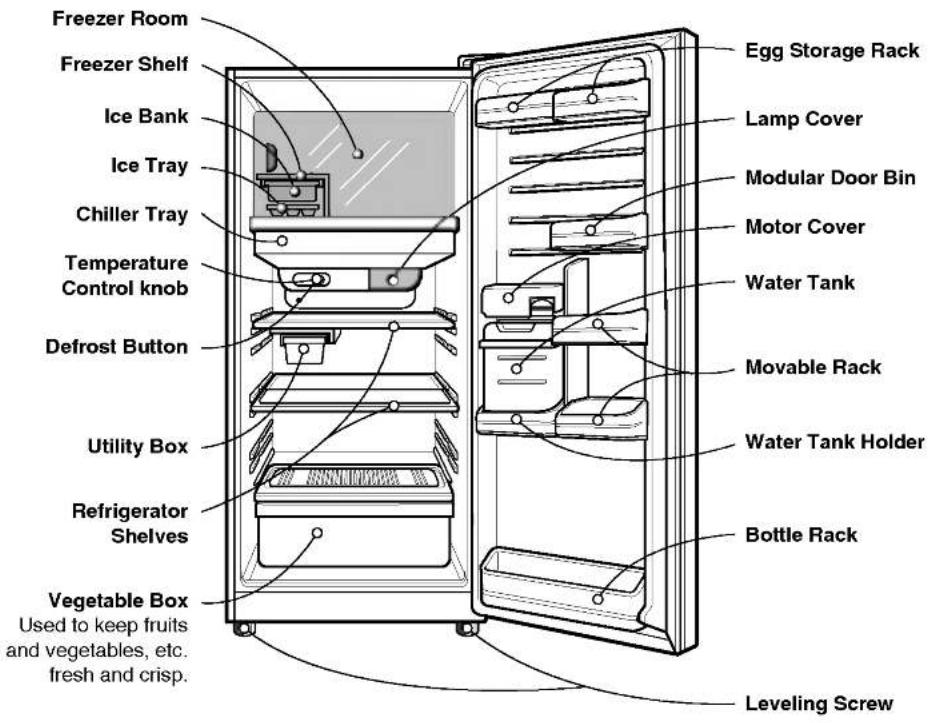

Freezer Room Freezer Shelf Ice Bank Ice Tray Chiller Tray Temperature Control knob Defrost Button Utility Box Refrigerator Shelves Vegetable Box Used to keep fruits and vegetables, etc. fresh and crisp. Egg Storage Rack Lamp Cover Modular Door Bin Motor Cover Water Tank Movable Rack Water Tank Holder Bottle Rack Leveling Screw

- All parts shown may not be included with every model.

OPERATIONS

BEFORE SETTING THE TEMPERATURE

● The refrigerator has one temperature control knob.
- The default setting of the temperature control for the refrigerator is mid.

CONTROLS FOR REFRIGERATOR

TEMP. CONTROL

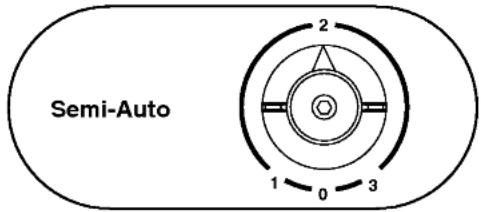

Semi-Auto 1 0 3 2

- For colder temperatures, adjust the control knob to 3, and for warmer temperatures, adjust the control knob to 1 position.

ICE MAKING

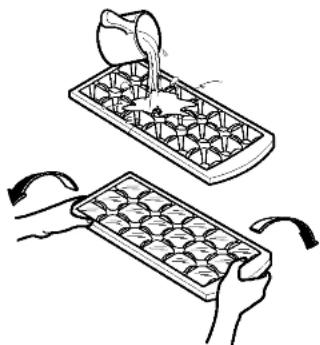

• To make ice cubes, fill the ice tray with water and place it on the freezer surface.
• To remove ice cubes, hold the tray at its ends and twist gently.

- To remove ice cubes easily, run water on the tray before twisting.

Illustration of two hands holding a tray with chocolate cubes, one pouring liquid from a container (no text or symbols)

DEFROSTING

- It is necessary to regularly defrost your refrigerator in order to ensure efficient operation. The frost on the surface of evaporator should not exceed 6 mm before defrosting.

Semiauto Type

● To defrost, press the defrosting button.
- Remove food from the evaporator before you start defrosting operation.
- When defrosting complete, defrosting button will return to normal position automatically. Remove the chiller tray, empty water, dry and put it back to its normal position.

Manual Type

• To defrost, adjust the control knob to OFF position.
• Remove food from the evaporator before you start defrosting operation.
• When defrosting complete, adjust the control knob to normal position. Remove the chiller tray, empty water, dry and put it back to its normal position.

OPERATIONS (Water Dispenser)

Features

EXTERIOR

WATER NOZZLE DISPENSER PAD

INTERIOR

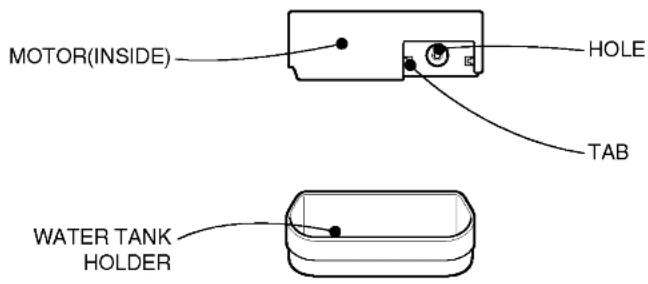

MOTOR(INSIDE) HOLE TAB WATER TANK HOLDER

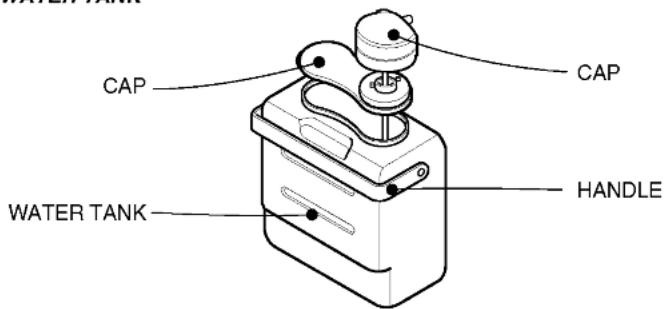

WATER TANK

CAP CAP WATER TANK HANDLE

OPERATIONS (Water Dispenser)

Putting The Water In The Water Tank

1 Remove cap and pour water into the dispenser water tank.

Diagram showing a small mechanical device and a portable device with liquid being poured into it (no text or symbols present)

2 Close the cap by tilting it and putting one side in first and then the other side as shown.

3 Place the water tank in the tank holder inside the refrigerator. Make sure that the groove on the connecting part is in position with the tab. Push the connecting part into the hole unit it "Clicks".

Tab Groove

• Do not use anything other than pure water.
• Hot water needs to be cooled before being put in the water tank.

Drinking

1 Press the dispenser pad with the glass.

2 The water is released when the dispenser pad is pressed. The pad returns to its original position when the glass is removed, and the water stops its flow.

OPERATIONS (Water Dispenser)

CLEANING

Water Tank

1 Remove the cap.

Line drawing of a hand pressing down on a battery (no text or symbols)

2 Clean the inside and outside of the water tank with dishwashing detergent and rinse thoroughly under running water.

er running water.

Other Parts

Remove the cap and clean the cap and connecting part with a mild detergent and rinse thoroughly.

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

D

• Use lukewarm water when cleaning.
• Do not use anything other than water. If it is used with soft drinks, put water in the water tank and discharge three or four cups of water shortly.

OPERATIONS (Modular Door bin)

• Bins can be moved right to left & left to right side.
  ● To remove the bin, simply lift the bin up and pull straight out.
• To replace the bin, slide it in above the desired support button and push down until it stops.

Diagram showing mechanical or structural components with upward and downward arrows indicating motion or force directions.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER, CHILLER ROOM

• Do not store bottles in the freezer or chiller room - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.

REFRIGERATOR ROOM

• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.
• Door rack - Loading the food on the whole area of door rack would cause no problems in performance.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Cautions for cleaning:

• Do not use flammable or toxic cleaning liquids.
• Do not use: surface active agent. car wax, anticorrosive, all sorts of oil, gasoline, acids, wax.
• Use usable detergent: vegetable dish washable solution, soapy water.
• When careless using, it can occur a color change.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti-Condensation Pipe

LAMP REPLACEMENT

1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. To remove the lamp cover, insert a slotted driver at the left side hole of the lamp cover and twist it.
4. Tum the lamp counterclockwise.
5. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.

Hand using a screwdriver to adjust or install a component on a sink (no text or symbols visible)

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.
