USER MANUAL GN-B352YVCA LG

READ THIS OWNER'S MANUAL THOROUGHLY

BEFORE OPERATING AND KEEP IT HANDY

FOR REFERENCE AT ALL TIMES.

FRIGORIFERO- CONGELATORE

LIBRETTO ISTRUZIONI

LEGGERE QUESTO

LIBRETTO D'ISTRUZIONI PRIMA DELL'USO

E TENERLO A PORTATA DI MANO PER

SUCCESSIVE CONSULTAZIONI.

ΨΥΓΕΙΟΚΑΤΑΨΥΚΤΗΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΕΩΣ

IMPORTANT SAFETY INFORMATION .... 3

INSTALLATION 9

FEATURE CHART 10

OPERATION ....11

Starting

Temperature Control

Ice Making

Fresh Zone

Defrosting

Deodorizer(option)

Vitamin Kit(option)

SUGGESTIONS ON FOOD STORAGE ....14

CLEANING 15

GENERAL INFORMATION .... 15

LAMP REPLACEMENT 16

IMPORTANT WARNINGS .... 16

BEFORE CALLING FOR SERVICE ..... 17

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and the dispenser may be leaked.

Diagram of a rope knot with two crossed loops (no text or symbols)

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a cartoon refrigerator with a sad face and a double-headed arrow pointing to a box, connected by a crossed-out door (no text or symbols)

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a 'NO' sign and a phone, no text or symbols present

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling refrigerator with a 'NO' sign, accompanied by a person holding a phone (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

- It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Illustration of a child standing beside an open refrigerator with a smiling face (no text or symbols)

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children interacting with a medical X-shaped device (no text or symbols present)

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand holding a tool near a cloth (no text or symbols)

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

2. When using the refrigerator

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a large box with a cross mark, next to a smiling girl (no text or symbols)

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

NO

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO I₁ P

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a sad book character reacting to a broken box labeled 'Elder' and 'Trimming'

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a 'X' symbol, no text or symbols present.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Do not use the combustible spray near the refrigerator.

It may cause fire.

NO

Avoid the heating devices.

It may cause fire.

Cartoon illustration of a refrigerator and a gift box, no text or symbols present

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a smiling gift box character with arms and a 'NO' sign, no text or symbols present.

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person walking away (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling book character and a girl holding a sign with 'NO' and 'YES' symbols (no text or symbols on the figures themselves)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center. It may cause fire.

Service center

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a girl running away from a smiling book next to a distressed book, with no visible text or symbols.

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling rectangular object with arms and legs, crossed out by a 'X' symbol (no text or symbols present)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Illustration of a child holding a knife next to an open refrigerator (no text or symbols)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling refrigerator with arms crossed out, indicating stress or discomfort (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill

(exhaust hole) at the backside.

It may cause electric shock or injury.

Illustration of a child standing beside a door with a crossed-out X symbol, next to a cardboard box (no text or symbols present)

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

Down-block office!

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with wet

hands.

It may cause frostbite.

Cartoon illustration of a child holding a 'No' sign while standing beside an open refrigerator with a crossed-out X symbol (no text or symbols present)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

NO After 5minutes

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Warning symbol showing a bottle crossed out with a broken glass and a lightning bolt, indicating chemical hazard or toxicity.

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a smiling book character holding a 'NO' sign, with a crossed book and bucket nearby (no text or symbols on the main subjects)

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a person lying on the floor (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of three workers in hard hats pulling a large rectangular object (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a child sitting on the floor (no text or symbols on the main image)

Do not put any living animal in the refrigerator.

NO

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location. Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge-freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Install this appliance between 10^ C and 43^ C. If the temperature around the appliance is too low or high, cooling ability may lessen.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
   Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

FREEZER COMPARTMENT

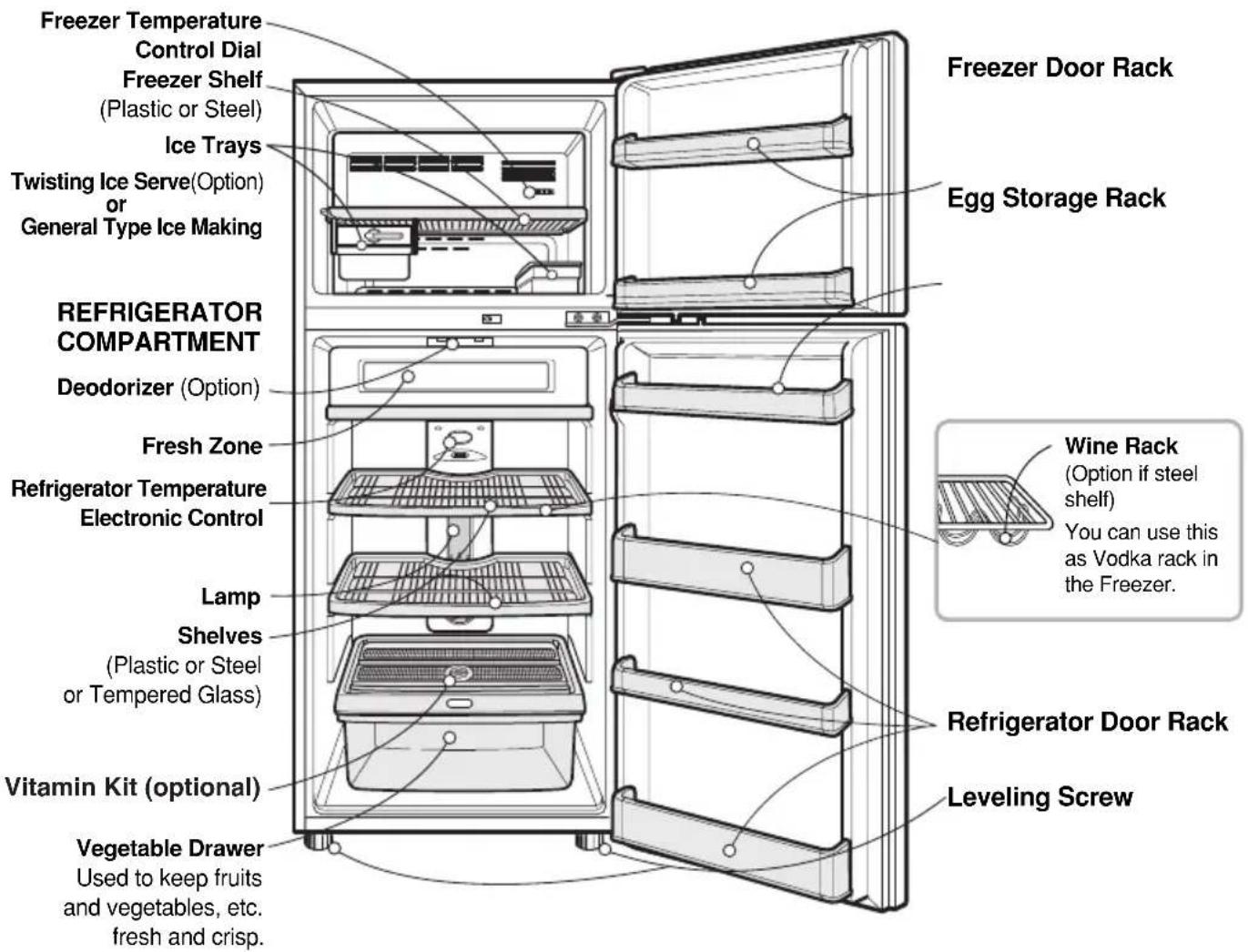

Freezer Temperature Control Dial Freezer Shelf (Plastic or Steel) Ice Trays Twisting Ice Serve(Option) or General Type Ice Making Refrigerator COMPARTMENT Deodorizer (Option) Fresh Zone Refrigerator Temperature Electronic Control Lamp Shelves (Plastic or Steel or Tempered Glass) Vitamin Kit (optional) Vegetable Drawer Used to keep fruits and vegetables, etc. fresh and crisp. Freezer Door Rack Egg Storage Rack Wine Rack (Option if steel shelf) You can use this as Vodka rack in the Freezer. Refrigerator Door Rack Leveling Screw

- If you find out some parts which are not in your unit, the parts are applied to other models.

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, allow 5 minutes delay before restarting.

TEMPERATURE CONTROL

□ REFRIGERATOR

MIN MAX REF. TEMP. CONTROL

• Your refrigerator has two controls that let you regulate the temperature in the freezer and refrigerator compartments.
• The default setting of the temperature control button for the refrigerator compartment is NORMAL.

You can set the refrigerator temperature using the Electro Temp Control.

Whenever pressing the button, the LED emit light.

The temperature of the compartment goes down as the LED luminesce from MIN to MAX.

You can select the desired set point in five (5) steps between minimum and maximum.

For the economic electricity, set the LED to the MIN position.

FREEZER

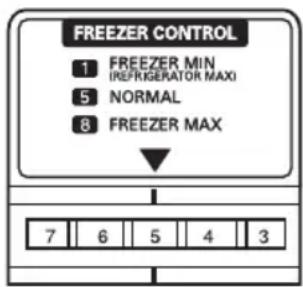

FREEZER CONTROL 1 FREEZER MIN (REFRIGERATOR MAX) 5 NORMAL 8 FREEZER MAX 7 6 5 4 3

(PLASTIC SHELF)

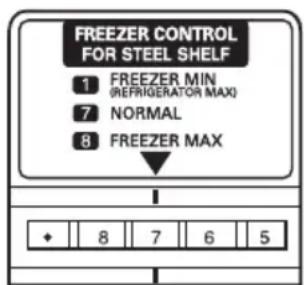

FREEZER CONTROL FOR STEEL SHELF 1 FREEZER MIN (REFRIGERATOR MAX) 7 NORMAL 8 FREEZER MAX ◆ 8 7 6 5

(STEEL SHELF)

• COLD AIR CONTROL - 1, 2, 3, 4, 5, 6, 7, 8
Setting at "8", the freezer compartment becomes colder. But the refrigerator compartment becomes warmer because less cold air flows into the refrigerator compartment.
- In cold weather the unit operates less and the freezer compartment has a tendency to warm up.
For colder freezer, turn the COLD AIR CONTROL to "7"\~"8".
- If you take a lot of foods in the freezer or open its door frequently, its temperature is apt to be somewhat higher. In this case, set the COLD AIR CONTROL dial between 7 and 8 to cool it. Return the COLD AIR CONTROL dial to the original position to cut down the consumption of energy
- In hot weather or to put much foods in the refrigerator compartment, the refrigerator compartment has a tendency to warm up. For colder refrigerator, turn the COLD AIR CONTROL to "2"\~"4" to direct more cold air into the refrigerator compartment, and the Electro Temp Control to MAX. Setting at "7"\~"8" of the COLD AIR CONTROL, the refrigerator compartment will not be cold enough.

- Setting the Freezer Knob at 📄 will satisfy 4 STAR.

Setting the Freezer Knob at NORMAL will have sufficient freezing effect, so it is recommended to set the Knob at NORMAL.

OPERATION

ICE MAKING

Kindly, Find your appliance is using General type or Twisting ice serve type.

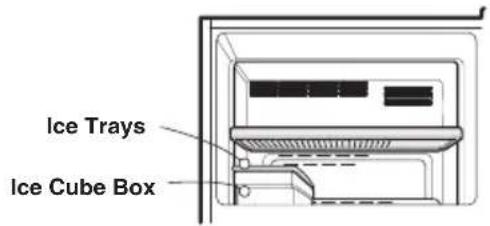

General Type

To make ice cubes, fill the ice tray with water and place it on the Ice cube box. Then insert the ice cube box in the freezer compartment.

Ice Trays Ice Cube Box

To remove ice cubes, hold the tray at its ends and twist gently.

Illustration of hands holding a tray with beads, no text or symbols present

Twisting Ice Serve Type

To make ice cubes, fill the ice tray with water and insert in its position.

Line drawing of a tray with a container filled with ice cubes, being heated by a ladle (no text or symbols)

To remove ice cubes, hold the knob of the tray and turn gently. Then, ice cubes drop in the ice cube box.

Ice Trays Ice Cube Box

OPERATION

FRESH ZONE

When the door is opened, the warmer air don't influence in the fresh zone. So you can store food more fresh in it.

DEFROSTING

Defrosting takes place automatically.

The defrosted water flows down to the evaporating tray which is located in the lower back-side of the refrigerator and is evaporated automatically.

Illustration of a refrigerator with a cartoon character inside, showing its open door and a close-up inset of the interior (no text or symbols)

DEODORIZER (OPTIONAL)

By using a catalyst, deodorizing performance is guaranteed.

Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

How to use

As the catalyst is located in cooling air outlet for circulating air in fresh food compartment, there is no need for any handling.

Do not prick the cooling air outlet with a sharp tip because the deodorizing catalyst may be damaged.

When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

C t lyssCata y t

To remove the deodorizer, take down while pulling it forward after inserting type driver into the inside hole as shown in the figure at right.

Cartoon illustration of a distressed character holding a device, with wings and legs nearby (no text or symbols)

Diagram showing a hand pressing down on a device panel with a black arrow indicating downward motion.

VITAMIN KIT (OPTIONAL)

It contains anti-oxydant that is able to avoid oxidation process in order to make the fruits and vegetables fresh for longer time.

VITAMIN KIF VITAMIN KIF to eat

This part contains anti-oxydant substance that do not to eat. Opening and closing the door too much often can reduce its lifetime.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and defrosted is an important factor in maintaining freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to high electric bills!
• When storing, wrap food in vinyl, or place in a covered container. This prevents moisture from evaporating, and helps food to keep its taste and nutritional valve.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, causing temperatures to rise.
• To adjust the temperature control easily, do not store food near the temperature control dial.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been defrosted. This causes loss of taste and nutritional valve.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

Technical line drawing of a refrigerator interior showing front panel, side door, and storage unit (no text or labels)

Newly Introduced Food

REFRIGERATOR COMPARTMENT

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.
• Door rack - Loading the food on the whole area of door rack would cause no problems in performance.

- If you keep the refrigerator in a hot, and humid place, frequently open its door or put a lot of vegetables in it, dew may form in it, which has no effect on its performance. Remove the dew with dust cloth free from care.

CLEANING

It is important that you refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock.

Do not use flammable or toxic cleaning liquids.

- Caution for Cleaning Not in use : Surface active agent, Car wax, Anticorrosive, All sorts of oil, Gasoline, Acids, Wax.

- Usable Detergent Vegetable dish washable solution, Soapy water.

- When careless using, it can occur a color change.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screws, turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation. Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti-Condensation Pipe

LAMP REPLACEMENT

1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. To remove the lamp cover, insert ⊖type driver at the one of under hole of the lamp cover and pull it out forwards.
4. Turn the lamp counterclockwise.
5. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.

Illustration of a hand holding a device next to a vertical panel, with an arrow indicating the process (no text or symbols present)

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH

It will cause electric shock or fire.

Safety warning illustration showing a hand holding a 'no' symbol above a refrigerator with exhaust smoke.

An empty refrigerator can be a dangerous attraction to children. Remove gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

NEVER STORE EXPLOSIVES AND CHEMICALS

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE	CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door is not closed entirely.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

- Información óf flúórinated greenhóúse gases és úsed as refrigerant óf this refrigerator.

Chemical name	Composition of Gases	Total GWP (kg CO2-eq)
R-134a	100% HFC-134a	1300

LG Electronics Inc.
