USER MANUAL PAESP M AKG

Discreet Acoustics Modular PLUS Series

Table of Contents

1 Safety and Environment....3

Safety....3

Environment 3

2 Description....4

Introduction 4

3 Microphone Applications ....5

4 Installation and Connection ....6

Capsule Modules 6

5 Modules falling into Place....7

CK49 7

CK43 8

CK41 9

GN15,30,50 M 10

GN155 M 11

HM1000 M....12

PAESP M....13

PAE5 M....14

PAE M....15

6 Mounting Material, Cables and Accessories....16

Mounting Material....16

MF M 16

H600....16

H500....17

ST45 (+SA60)....17

SA60....17

Cables....18

MK150 M....18

MK150 ML 18

Accessories 18

UWA9 M....18

W40 M....18

7 Application Examples ....19

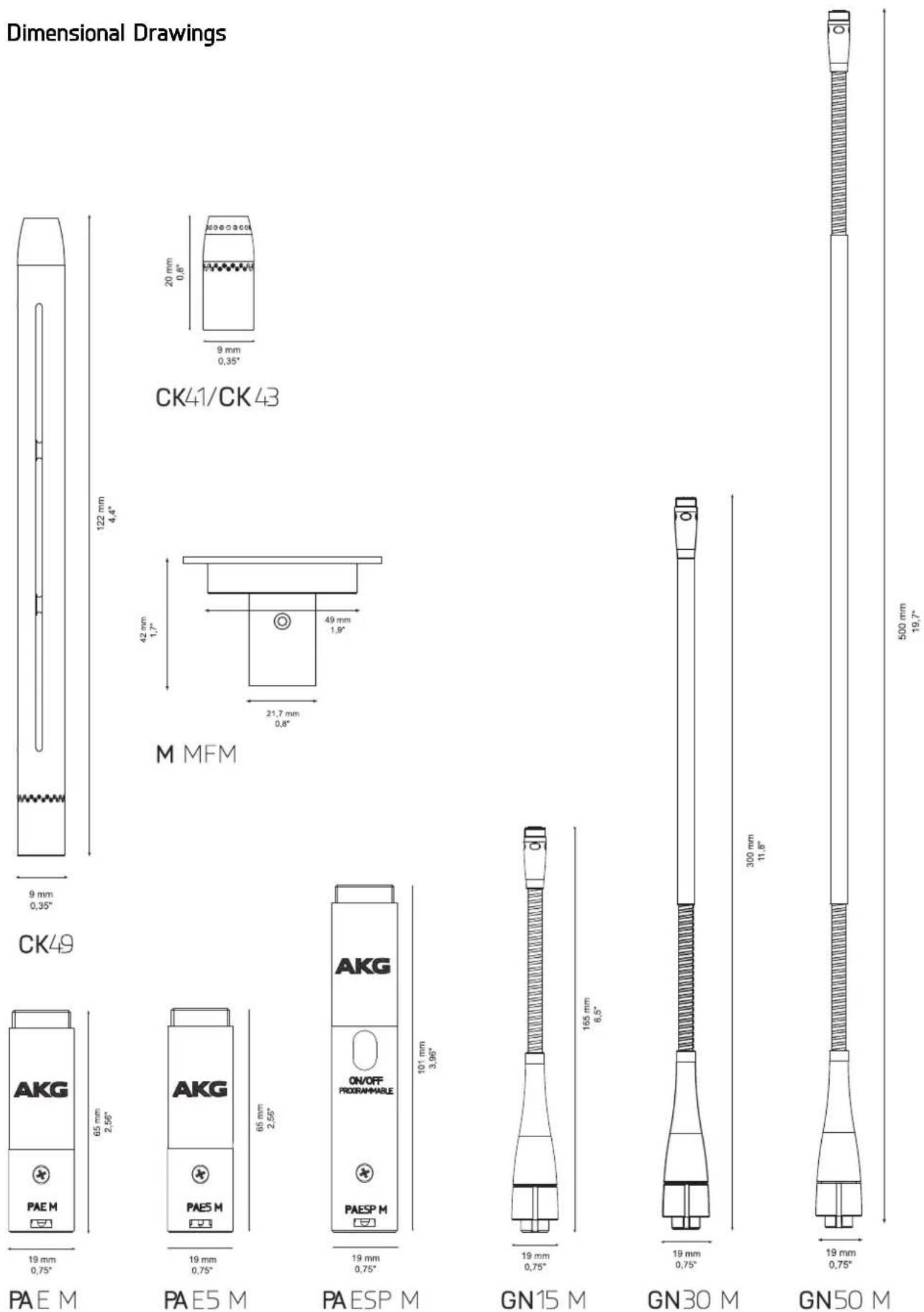

8 Dimensional Drawings....22

9 Comparison Chart....24

10 Notes......25

1 Safety and Environment

Safety

• Do not expose the equipment to direct sunlight, excessive dust, moisture, rain, mechanical vibrations, or shock.
• Do not spill any liquids on the equipment or allow objects to fall inside through the ventilation slots.
• The equipment must only be used in dry rooms.
• The equipment must only be opened, serviced, and repaired by authorised personnel. The equipment contains no user-serviceable parts.
• If any solid object or liquid should get into the equipment, shut down the system immediately.
• Do not place the equipment near heat sources such as radiators, heating ducts, amplifiers, etc. and do not expose it to direct sunlight, excessive dust, moisture, rain, mechanical vibrations, or shock.
• To avoid hum or interference, route all audio lines, particularly those connected to the microphone inputs, away from power lines of any type. If you use cable ducts, be sure to use separate ducts for the audio lines.
• Clean the equipment with a moistened (not wet) cloth only. Be sure to disconnect the AC adapter from the power outlet before cleaning the equipment. Never use caustic or scouring cleaners or cleaning products containing alcohol or solvents since these may damage the enamel and plastic parts.
• Only use the equipment for the applications described in this manual. AKG cannot accept any liability for damages resulting from improper handling or misuse.
• Electrostatic charges may damage electronic circuits. Therefore, be sure to touch a bare, grounded metal part to discharge any static charge that may have built up on your body, before touching any electronic circuit board.
• The packaging of the equipment is recyclable. To dispose of the packaging, make sure to use a collection/recycling system provided for that purpose and observe local legislation relating to waste disposal and recycling.

Environment

2 Description

Introduction

Gooseneck microphones are often overlooked, but they are high-performing electro-acoustic devices which carry out difficult work discreetly and reliably. They have to function flawlessly in demanding situations with very different, often inexperienced speakers. Yet at the same time they have to deliver perfect speech clarity. AKG Discreet Acoustics Modular Series microphones have been in continuous use at international meetings, conferences and summits, in parliaments and in churches for decades and are recognized as an industry standard.

Depending on the specific purpose, special requirements can often only be fulfilled by modular systems. The Discreet Acoustics Modular Series is renowned worldwide for its durability, reliability and flexibility.

Modularity: The AKG Discreet Acoustics Modular Series offers a choice of interchangeable capsule modules with different polar patterns and frequency responses. A wide range of goosenecks and installation modules is also available. In addition, there are special-purpose modules for applications not covered by any other available products. They can be used in conjunction with wireless systems as well as with AKG's digital conference system CS5. Their rapidly changeable capsules not only allow optimal adaptation to different rooms and speakers but also enable quick microphone capsule exchange if, in exceptional circumstances, anything should go wrong.

Reliability: A wide range of features minimizes the risk of operating errors, material fatigue, or signal dropouts. The LED ring and self-cleaning gold-plated contacts for the threaded connections are standard, as are anti-twist cables and a switchable bass roll-off filter.

Low profile: The extremely compact design and matte finish underscore the inconspicuous appearance of the Discreet Acoustics Modular Series. The low-profile installation modules ensure quick setup and takedown of all versions of the series. Excellent response and extremely good intelligibility make the Discreet Acoustics Modular Series the first choice whenever quality and reliability have top priority. Small wonder that decision makers all over the world appreciate AKG as a professional partner. Targeting the premier league of the installation market, the further development of the Discreet Acoustics Modular Plus Series means that literally everything became even better. Its slimmer design and improved audio quality are a perfect fit in the high-end market. An additional interface between gooseneck module and phantom power adapter means added modularity and flexibility, resulting in significant advantages throughout the distribution chain, where fewer variations need to be stocked. Moreover, installers will receive the required products faster and the added modularity and new accessories will enable solutions for applications never before dreamed of. With just a few components on hand, the Discreet Acoustics Modular Series allows a nearly unlimited number of combinations.

The Discreet Acoustics Modular Plus Series is the logical evolution of AKG's Modular Series. It brilliantly fulfills all essential requirements for professional sound system applications. It is quick, reliable and available – and it works perfectly for you!

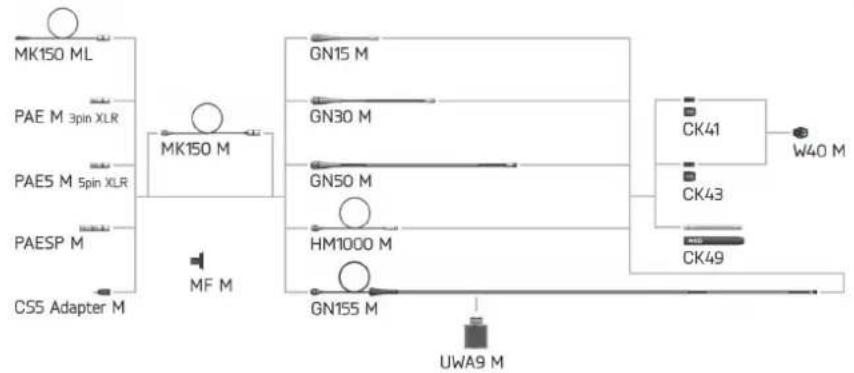

3 Microphone Applications

Note that both the maximum working distance and the area covered by the microphone depend on the pickup angle. The smaller the pickup angle (hypercardioid), the longer the maximum distance between the talker and the microphone and the smaller the area covered by the microphone.

Whether an omnidirectional, cardioid, or hypercardioid capsule will give the best results therefore depends on the specific application situation.

Omnidirectional capsules are primarily suited for recording use.

4 Installation and Connection

Capsule Modules

All Discreet Acoustics Modular Capsule Modules are condenser microphones and therefore require a power supply (phantom power). The Installation Modules have been designed for connection to microphone inputs with 9 to 52 V phantom power.

1) Screw the Capsule Module onto the Installation Module. The screw thread is relatively fine and therefore very smooth-running. Make sure not to tilt the capsule when placing it on the Installation Module thread because this would damage the thread.
2) To lock the capsule, use a single drop of commercial minimum-tack screw locking adhesive that allows you to unscrew the capsule later if needed.
3) For better visibility put the LED-Ring Expansion between the Installation Module and the Microphone Capsule. (The LED-Ring Expansion is enclosed to the Installation Module.)

NOTE

UNWANTED NOISE

Before replacing a Capsule Module, be sure to switch your sound system OFF in order to prevent unwanted noise.

Choose the Phantom Power Adapter according to your application.

PAESP M (page 13), PAE5 M (page 14) or PAE M (page 15).

5 Modules falling into Place

CK49

Black cylindrical device with vertical slots and dotted ends, labeled 'CK40' at bottom (no other text or symbols visible)

Reference Shotgun Condenser Capsule

Lectern and Ambo

Presentation

Theater

The CK49 is a reference condenser capsule with an 80° pickup angle and clean off-axis response. It is an ideal tool for inexperienced speakers; when people talk into the microphone from greater distances it focuses on the voice, and when they talk into it from very short distances it reduces pop-noise. Its special capsule is a further development of the legendary CK47 capsule. Like its predecessor, it is designed using AKG's unique staple technology for brilliant studio-quality audio performance.

The CK49 capsule is integrated into an extremely slim and rugged metal housing. It fits all gooseneck modules of the Modular Plus Series as well as the HM1000 M hanging module. To prevent contact problems the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK49 comes complete with a windscreen that efficiently reduces wind and pop noise.

• Tight, hypercardioid polar pattern eliminates noise from the sides
• 80^ pickup angle for unexperienced speakers and greater distances
• Sophisticated staple capsule technology for studio-quality audio performance
  • Highly reliable capsule contacts prevent contact problems and ensure extra-long life
  • Highly efficient windscreen reduces wind and pop noise

Included accessories:

Windscreen

Item Number:

CK49

3165Z00030

CK43

Reference Condenser Capsule

Theater and onstage miking

Houses of worship

Parliaments

The CK43 is a reference supercardioid condenser capsule with studio-quality audio performance. Due to the narrow 95° pickup angle, the supercardioid polar pattern is a good choice for all situations when unwanted noise typically arrives from the sides (e.g. in places of worship) and where people talk into the microphone from greater distances.

The CK43 capsule is integrated into an extremely slim and rugged metal housing. It fits any mounting module of the Modular Plus Series. To prevent contact problems the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads, which prevent misalignment and ensure extra-long life. The CK43 comes complete with a highly efficient windscreen.

• Supercardioid polar pattern
eliminates noise from the sides
- 95^ pickup angle
perfect when people talk from greater distances
• Sophisticated staple capsule technology
for studio-quality audio performance
• Highly reliable capsule contacts
prevent contact problems and ensure extra-long life
- Wide frequency range
for a speech-optimized audio performance

Included accessories: Windscreen

Optional accessories: W40 M Wire-mesh windscreen

Item Number: CK43 3165Z00020

CK41

Reference Condenser Capsule

Round table discussions

Press conference

Videoconference

The CK41 is a reference condenser capsule with a wide cardioid polar pattern and a speech optimized frequency response. The cardioid is the most popular polar pattern, since it can be used almost universally. The 125° pickup angle is especially suited for inexperienced or very vivacious speakers as well as applications where more than one person uses the microphone in turn.

The CK41 capsule is integrated into an extremely slim and rugged metal housing. It fits any mounting module of the Modular Plus Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK41 comes complete with a highly efficient windscreen.

• Cardioid polar pattern
  eliminates noise from the rear side
• 125^ pickup angle
  for inexperienced or very vivacious speakers
  • Sophisticated staple capsule technology
  for studio-quality audio performance
  • Highly reliable capsule contacts
  prevent contact problems and ensure extra-long life
• Wide frequency range
  for a speech-optimized audio performance

Included accessories:

Windscreen

Optional accessories:

W40 M Wire-mesh windscreen

Item Number:

CK41

3165Z00010

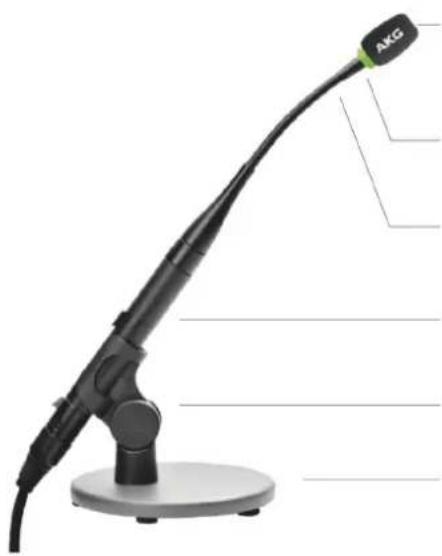

GN15, 30, 50 M

Three black medical or surgical instruments with pointed tips, shown from different angles (no text or symbols visible)

Reference Gooseneck Module

Discussion systems

Lectern and Altars

Press conferences

The Modular Plus Series premium gooseneck modules for permanent and mobile installation are available in three different lengths: 165 mm (6.5 in), 300 mm (11.8 in) or 500 mm (19.7 in). The extremely slim and rugged gooseneck modules feature an LED ring which indicates whether the phantom power is on or off. A special light-ring expander comes with every Modular Plus gooseneck module to improve the visibility of the LED ring if necessary.

For quick setup and maximum flexibility all gooseneck modules come with a Modular Plus Series system connector. This high quality connector with gold-plated contacts reliably fits all available phantom power modules. The gooseneck module is compatible with all Modular Plus Series capsules, CK41, CK43, CK49 via self-cleaning contacts. Their extremely deep thread groove prevents misalignment and ensures a long useful life of all Modular Plus components.

• Extremely rugged gooseneck construction for an extra-long life of reliability and stability
• Highly reliable contacts for capsule modules prevent contact problems and ensure extra-long life
• Integrated switchable LED ring to show system status
• Integrated system connector helps saving costs in stock keeping
• Broad assortment of mounting accessories available for quick and hassle-free installation

Included accessories: LED ring expander

Item Number:

GN15 M 3165H00080 165 mm (6.5 in)

GN30 M 3165H00090 300 mm (11.8 in)

GN50 M 3165H00100 500 mm (19.7 in)

GN155 M

Modern black floor lamp with adjustable arm and base, no visible text or symbols

Reference Gooseneck Floor Stand

Houses of worship

Choir recording

Presentation

The GN155 M is a reference 1490 mm (58.7 in) gooseneck module with a heavy, shock-mounted floor stand. It works perfectly as a stand-alone unit on stages or placed in front of a lectern as well as for pickup of violins and other instruments. An integrated light-ring shows the status of the microphone at a glance. A special light-ring expander comes with every Modular Plus gooseneck module to improve the visibility of the LED ring if needed.

The GN155 M has an attached 10 m (33 ft) cable with a Modular Plus Series system connector, fitting all available phantom power modules. The gooseneck module is compatible with all Modular Plus Series capsules, CK41, CK43, CK49 via highly reliable contacts.

• Elegant, low profile floor stand fitting ALL environments
• Integrated switchable LED ring to show system status
• Extremely rugged gooseneck construction for an extra-long life of reliability and stability
• Quick-absorbing rubber shock mount for optimum suppression of structure-borne noise
• Highly reliable contacts for capsule modules prevent contact problems and ensure extra-long life

Included accessories: LED ring expander, Floor stand

Item Number: GN155 M 3165Z00240

GN155 M Installation Module

1) Screw the desired Capsule Module onto the Installation Module.
2) Screw the Installation Module onto the supplied floor stand.
3) Screw one of the three available phantom power adapters or MK150 M / MK150 ML onto the cable end.
4) Connect the phantom power adapter to a microphone input with phantom power.

HM1000 M

Close-up of a black cable with a green connector, isolated on white background (no text or symbols)

Illustration of a classroom scene with students and adults, no visible text or symbols

Reference Hanging Module

Theater and onstage miking

Houses of worship

Broadcast studio

The HM1000 M is a reference hanging module compatible with all capsules of the Modular Plus Series (CK41, CK43 and CK49). It is used to fly microphones from the ceiling to record music or speech in places of worship or conference rooms, or on theater stages. An integrated switchable light-ring shows the status of the microphone at a glance. A special light-ring expander comes with every Modular Plus hanging module to improve the visibility of the LED ring if necessary.

The HM1000 M provides a 10 m (33 ft) special cable that will not tend to twist, even if the temperature varies. A spring steel hanging clamp for precise microphone alignment is also included in the package. The integrated system connector fits all available phantom power modules of the Modular Plus Series.

• Twist-free 10m cable included to fix and secure the designated mic position
• Highly reliable contacts for capsule modules prevent contact problems and ensure extra-long life
• Spring clamp for vertical adjustment allows quick and hassle-free installation
• Integrated switchable LED ring indicator for full control of the installation status
• Ingenious system connector interface adapter adds flexibility to all mounting modules

Included accessories:

Hanging clamp, LED ring expander

Item Number:

HM1000 M 3165H00250

HM1000 M Hanging Module

1) Prior to installing the HM1000 M, straighten the cable by carefully pulling it through your fingers. Make sure not to buckle or twist the cable.
2) Fasten a hook to the ceiling, use an existing hook, or stretch a line across the hall.
3) Pass the cable through the hook or over the line so that it will hang at the desired height.
4) Fix the cable in place with electrician's tape.

ATTENTION

RISK OF DAMAGE!

Do not tie a knot into the cable to hang it on the hook.

Illustration of a hand holding a rope with directional arrows indicating movement (no text or symbols)

5) Hold the cable with one hand and turn the microphone carefully into the desired position.

To activate the bass cut, refer to PAESP M (page 13), PAE5 M (page 14) or PAE M (page 15).

Steadying the microphone

To keep the microphone steady even in a draft,

1) Stretch a suitable length of fishing line horizontally across the room, passing the fishing line through the eye on the HM1000 M.
2) Fix the fishing line to two opposite walls so as to create just enough downward pull to steady the microphone laterally.

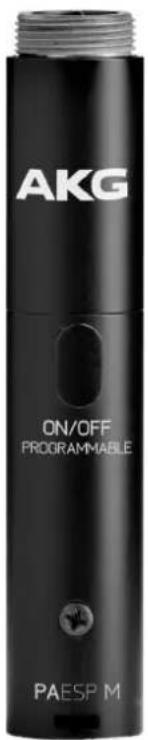

PAESP M

AKG ON/OFF PROGRAMMABLE PAESP M

Reference Programmable Powering Module

Small discussion systems

Press conference

Lectern

The Modular Plus Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off).

The PAESP M features a completely noiseless microphone switch. Rather than actually disconnecting the signal, it reduces the level by 26 dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling even by inexperienced talkers. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the Modular Plus Series.

• Programmable on/mute/off switch offers noiseless switching
• Selectable operating modes for switchable bass roll off and light-ring function
• RFi Shield technology provides high immunity to radio-frequency interference
• Accepts 9-52 V input for almost any available mixer inputs
  • Feeds all Modular Plus Series capsules for highest flexibility

Item Number:

PAESP M 3165H00170

PAESP M

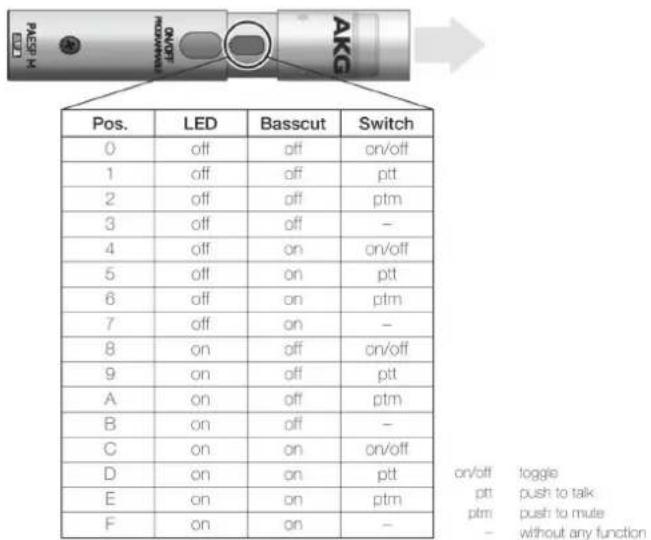

POS. LED Basscut Switch 0 off off on/off 1 off off ptt 2 off off ptm 3 off off - 4 off on on/off 5 off on ptt 6 off on ptm 7 off on - 8 on off on/off 9 on off ptt A on off ptm B on off - C on on on/off D on on ptt E on on ptm F on on - on/off toggle ptt push to talk ptm push to mute - without any function

Disconnect XLR-plug before changing settings!

PAE5 M

AKG PAES M

Reference Power Module To Combine With Automixers

Podium discussions

Houses of worship

Broadcast stations

The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52 V logic output from any automatic mixer to show the "mic on" status. With its wide voltage range the module will fit most available microphone mixers.

The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the Modular Plus Series as well as the HM1000 M hanging module.

• Extra feeding of LED ring to show Mic status for use with automixers including logic outputs
• Switchable bass rolloff for reduction of body noise and proximity effect
• Highly reliable contacts to mounting modules prevent contact problems and ensure extra-long life
  • RFi Shield technology provides high immunity to radio-frequency interference
  • Feeds all Modular Plus Series capsules for highest flexibility

Item Number:

PAE5 M 3165H00160

1 2 3 4 5

Added Connectivity: 5-pin powering

The 5-pin XLR connector allows the audio signal and control voltage for the LED ring to be fed separately. Connector pin out:

1: Audio ground, 2: LED ring +, 3: Audio in phase, 4: LED ring -, 5: Audio return

PAE5 M

AKG OFF ON No function Basscut

PAE M

AKG PAE M

Reference Powering Module

Houses of worship

Conferencing

Theaters

The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise.

The PAE M comes with an integrated system connector with gold-plated contacts. This unique connection securely fits all available gooseneck modules of the Modular Plus Series as well as the HM1000 M hanging module.

• Feeds all Modular Plus Series capsules for highest flexibility
- RFi Shield technology provides high immunity to radio-frequency interference
- Accepts 9-52 V input for almost any available mixer inputs
- Switchable bass roll off for reduction of body noise and proximity effect
- Highly reliable contacts to mounting modules prevent contact problems and ensure extra-long life

Item Number:

PAE M 3165H00150

PAE M

PAEM LED AKG OFF ON LED Basscut

6 Mounting Material, Cables and Accessories

Mounting Material

Close-up of a black mechanical component with circular top and mounting holes (no visible text or symbols)

To mount your gooseneck please choose one of the following accessories according to your needs.

MF M

The MF M is a flush-mount module that efficiently reduces body noise from tables. Its slim design can integrate each powering module of the Modular Plus Series and allows the microphones to be detached when not in use. A special blind cap seals the connector outlet, leaving an attractive flush interface in the table and simultaneously sealing the connector to protect it against dust.

Item Number: MF M 3165H00220

1) Cut a hole of 50 mm (2 in) into the table.
2) Insert the MF M from above.
3) Integrate either PAE M or PAE5 M from below and secure the power adapter with included screws.

Close-up of a black mechanical component with mounting holes and a central hole (no visible text or symbols)

H600

The H600 is a flush-mount module that offers optimum attenuation of structure-borne noise. Its two different diameters offer highly flexible mounting options. The H600 offers a unique theft-proof lock and is ideal for use with the PAESP M (powering module with programmable switch) in combination with GN15 M and GN30 M goosenecks modules. Required mounting hole: 53 mm (2.1 in).

Item Number: H600 2426X00030

40-60mm Tabletop H600

PAESP M H600

Close-up of a gray plastic mechanical component with a flanged top and central hole (no text or symbols visible)

H500

The H500 is a shock mount for gooseneck microphones. It is the most cost-efficient solution, ideal for easy installation and takedown of sound systems. The construction is designed to hold even longer goosenecks such as the GN50 M. The H500 requires a mounting hole of 50 mm (2 in).

Item Number:

H500

6000H01900

Tabletop H500

PAESP M H500

ST45 (+SA60)

Circular gray object with a small metallic knob on top, placed on a flat base (no text or symbols visible)

The ST45 is a reference table stand for easiest installation and takedown of mobile sound systems. It is made of one solid piece of metal which gives it a firm stand on every table. The massive base plate and special shock-absorbing rubber feet effectively eliminate footfall noise. The ST45 table stand can be teamed up with the SA60 stand adapter for use with all Discreet Acoustics Modular Plus Series powering modules.

Item Number:

ST45

6000H03080

3D diagram of a mechanical component labeled SA60 and ST45, with no visible text or symbols beyond labels.

SA60

The SA60 is a professional stand adapter for use with straight-shaft microphones. It perfectly fits all Modular Plus powering modules and is compatible with the ST45 table stand.

Item Number:

SA60

6000H60010

Cables

Coiled black cable with two connectors, one connected to a black device labeled 'AFC' (no additional text or symbols visible)

Coiled black cable with a metallic contact lens (no visible text or symbols)

Accessories

Black rectangular device with a strap and mounting bracket (no visible text or symbols)

MK150 M

The MK150 M is a reference extension cable for fixed and mobile installations. The cable is equipped with the Modular Plus system connector and excellently fits all mounting and powering modules. The metal housing, gold-plated contacts and deep, rugged thread prevent contact problems and ensure extra-long life. The MK150 M comes with a cable length of 1,5 m (5 ft).

Item Number:

MK150 M 3165H00260

MK150 ML

The MK150 ML is a reference connection cable to combine microphones of the Modular Plus Series with any AKG bodypack transmitter (except DPT70). It enables all Modular Plus microphones to be operated wirelessly. One side of the cable is equipped with the unique Modular Plus system connector, fitting all mounting modules of the series. The other side of the cable ends in a professional 3-pin mini XLR connector. At 1,5 m (5 ft) the cable is long enough to reach a safe point in a mobile lectern table and short enough to be inconspicuous on the GN155 M.

Item Number:

MK150 ML 3165H00270

Does not work with DPT70.

UWA9 M

The UWA9 M is a holder for wireless body-pack transmitters. It fits perfectly on the GN155 M floor stand gooseneck module. In combination with the MK150 ML it creates a wireless floor stand microphone for presentations or for choir and instrumental recording. The rugged metal plate is covered with foam to prevent scratching the transmitter housing. A universal Velcro strip is used to hold any AKG wireless body-pack transmitter.

Item Number:

UWA9 M 3165H00280

W40 M

The W40 M is a reference windscreen with the highest performance in its class. Two layers of mesh and a combination of foam reduce wind and pop noise to a minimum. Its rugged wire-mesh grill securely protects the microphone even under rough day-to-day usage. The W40 M is compatible with the CK41 and CK43 capsules from the Modular Plus Series.

Item Number:

W40 M 3165H00290

7 Application Examples

Close-up of a black KKG microphone with a green logo and base mount (no text or symbols visible)

STANDARD WINDSCREEN

efficiently reduces wind and pop noise

CK4 REFERENCE SUPERCARDIOID CONDENSER CAPSULE

perfect when people talk from greater distances

LIGHT RING EXPANDER

for improved visibility of the mic's On/Off status

GN19 GOOSENECK MODULE

unobtrusive and discreet

H600SH SHOCK MOUNT MODULE

high-damping rubber for efficient body noise suppression

PAE M PHANTOM POWER MODULE

ideal for combination with automatic microphone mixers

Black ACG microphone on a stand, no visible text or symbols on the device itself

CK4REFERENCE CARDIOID

CONDENSER CAPSULE

especially suited for inexperienced or very "vivacious" talkers

INTEGRATED SWITCHABLE LED RING

to show system status

GN18 GOOSENECK MODULE

extremely slim and rugged

PAESP M PROGRAMMABLE POWERING MODULE

with integrated noiseless On/Off switch

SAGTANDADAPTER

securely holds the gooseneck microphone in place

ST4REFERENCE TABLE STAND

for easy installation and takedown

Close-up of a black medical or laboratory instrument with a green label 'AKC' on its tip, no visible text or symbols on the device itself.

CK43 REFERENCE SUPERCARDIOID CONDENSER CAPSULE

eliminates noise from the sides

LIGHTRING EXPANDER

for clear indication of the mics On/Off status from the distance

GN30 M GOOSENECK MODULE

perfectly aligned and easy bend in the right position

MF M FLUSH SCHOCK MOUNT MODULE

perfectly fits into quality designed desks

PAE M PHANTOM POWER MODULE

provides high immunity to radio-frequency interference

Medical catheter or tube with needle inserted, showing anatomical structure without any text or labels

CK49 REFERENCE SHOTGUN CONDENSER CAPSULE

highly directive for picking up speech via greater distances

GN50 M EXTRA LONG GOOSENECK MODULE

with two bends for easy positioning

H500 SHOCK MOUNT MODULE

designed to hold long gooseneck microphones

PAE M PHANTOM POWER MODULE

accepts 9-52 V input for almost any available mixer inputs

Close-up of a black cable with a green connector, shown in profile view (no text or symbols)

PAE M PHANTOM POWER MODULE

with professional 3pin XLR connector for universal use

H1000 M HANGING MODULE

with twist free cable to secure the designated mic position

SPRING STEEL HANGING CLAMP

for precise microphone alignment

CK43 OR CK49 REFERENCE CONDENSER CAPSULES

for picking up signals from greater distances while reducing noise from the side

Simple line drawing of a vertical pole with a small device attached, no text or symbols present

CK49 REFERENCE SHOTGUN CONDENSER CAPSULE

for studio-quality audio performance

GN155 M ELEGANT LOW PROFILE FLOOR STAND

fitting ALL environments

UWA9 M

holds any AKG wireless bodypack transmitter (except DPT70)

MK150 ML REFERENCE CONNECTION CABLE

to connect any modular plus microphone with a wireless system

QUICK-ABSORBING RUBBER SHOCK MOUNT

for optimum suppression of structure-borne noise

8 Dimensional Drawings

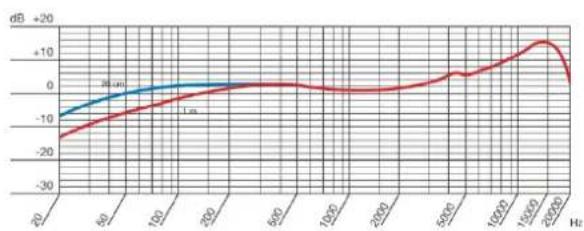

9 Comparison Chart

Polar Pattern

Frequency Bandwidth (-6dB)

Sensitivity

Max. SPL for 3% THD

Equivalent Noise Level (IEC 60268-4)

Signal/Noise Ratio (A-weighted)

Diameter

Height

Finish

Net Weight

CK41 cardioloid 60

22000 Hz 5 mV/Pa

142 dB 30 dB-A

64 dB-A

9 mm

(0.35 in)

20 mm (0.79 in)

matte black 3,9 g (0.14 oz)

CK43

supercardioid

80-21000 Hz

5 mV/Pa

142 dB

30 dB-A

64 dB-A

9 mm (0.35 in)

20 mm (0.79 in)

matte black 3,9 g (0.14 oz)

CK49

hypercardiolid

60-20000 Hz

10 mV/Pa

136 dB

30 dB-A

64 dB-A

9 mm (0.35 in)

122 mm (4.80 in)

matte black 24,5 g (0.88 oz)

	DiameterGooseneck	DiameterConnector	Total Length	Number offlexible parts	LED Ring	Cable Length	Finish	Net Weight
GN15 M	6 mm(0.24 in)	9 mm top (0.35 in)11,3 mm bottom (0.44 in)	165 mm(6.5 in)	1	+		matte black	77 g(2.71 oz)
GN30 M	6 mm(0.24 in)	9 mm top (0.35 in)11,3 mm bottom (0.44 in)	300 mm(11.81 in)	1	+		matte black	94 g(3.31 oz)
GN50 M	6 mm(0.24 in)	9 mm top (0.35 in)11,3 mm bottom (0.44 in)	500 mm(19.69 in)	2	+		matte black	114 g(4.02 oz)
GN155 M	6 mm(0.24 in)	9 mm top (0.35 in)11,3 mm bottom (0.44 in)	1490 mm(58.66 in)	2	+	1 m(39.3 in)	matte black	4,2 kg(9.26 lbs)
HM1000 M		9 mm top (0.35 in)11,3 mm bottom (0.44 in)	10 m(393.7 in)	cable	+	10 m(393.7 in)	matte black	184 g(6.49 oz)

Connector Type

Contact

Programmable Switch

Bass Cut Filter

Electrical Impedance

Recommended Load Impedance

Voltage Range

Current Consumption

Diameter

Height

Net Weight

PAE M

XLR

3

-

150 Hz

< 600 Ohms

>2000 Ohms

9-52 V

3,5 mA

19

1 mm (0.75 in)

65,5 mm (2.58 in)

43 g (1.51 oz)

PAE5 M

XLR

5

-

150 Hz

< 600 Ohms

>2000 Ohms

9-52 V

3,5 mA

19

1 mm (0.75 in)

65,5 mm (2.58 in)

43 g (1.51 oz)

PAESP M

XLR

3

+

150 Hz

< 600 Ohms

>2000 Ohms

9-52 V

4 mA

19,1

mm (0.75 in)

100,5 mm (3.96 in)

63 g (2.22 oz)

10 Notes

For other products and distributors worldwide visit www.akg.com

ROHS OK

Technische Änderungen vorbehalten. Specifications subject to change without notice. Ces caractéristiques sont susceptibles de modifications. Ci riserviamo il diritto di effettuare modifiche tecniche. Nos reservamos el derecho de introducir modificaciones técnicas. Especificações sujeitas a mudancas sem aviso prévio.

04/13 5014466
