USER MANUAL JVM1850BF GE

Safety Instructions . . . .2-9

Operating Instructions

Auto Features .....20

Care and

Cleaning .....33, 34

Changing the

Power Level .....13

Cooking Guide .....15, 16

Defrosting Guide .....18

Exhaust Feature ....37, 38

Features of Your

Microwave Oven . . . .11, 12

Microwave Terms .....32

Other Features .... 25–31

Replacing Bulbs ....35, 36

Sensor Features ....21-24

Time Features .....14–19

Troubleshooting Tips .. .39

Things That Are

Normal With Your

Microwave Oven .....40

Consumer Support

Consumer

Support .....Back Cover

Optional Kits .....10

Product

Registration .....41, 42

Warranty .....43

Español

For a Spanish version of this manual, visit our Website at GEAppliances.com.

Write the model and serial numbers here:

Model #

Serial #

Find these numbers on a label inside the oven.

Abstract decorative swirl design with no text or symbols

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

Black and white graphic with a central exclamation mark surrounded by radiating lines (no text or symbols)

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

1 door (bent),
2 hinges and latches (broken or loosened),
3 door seals and sealing surfaces.

The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel.

Black and white graphic with a central exclamation mark surrounded by radiating lines (no text or symbols)

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

Read and follow the specific precautions in the Precautions to Avoid Possible Exposure to Excessive Microwave Energy section above.

This appliance must be grounded. Connect only to a properly grounded outlet. See the Grounding Instructions section on page 8.

■ Install or locate this appliance only in accordance with the provided Installation Instructions.

This microwave oven is UL listed for installation over electric and gas ranges.

This microwave oven is not approved or tested for marine use.

Use this appliance only for its intended purpose as described in this Owner's Manual.

• Do not mount this appliance over a sink.
  This over-the-range oven was designed for use over ranges no wider than 36". It may be installed over both gas and electric cooking equipment.
  Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric.
• Do not cover or block any openings on the appliance.
  Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use.
  Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations.
• Keep power cord away from heated surfaces.
• Do not immerse power cord or plug in water.
  Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation.

■To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking.
- Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven.
- Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use.
- If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread.
- Do not use the Sensor Features twice in succession on the same food portion. If food is undercooked after the first countdown, use Time Cook for additional cooking time.
See door surface cleaning instructions in the Care and cleaning of the microwave oven section of this manual.
This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.
As with any appliance, close supervision is necessary when used by children.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

Black square with white lightning bolt symbol (no text or numbers)

ARCING

If you see arcing, press the CLEAR/OFF pad and correct the problem.

Arcing is the microwave term for sparks in the oven. Arcing is caused by:

The metal shelf not installed correctly so it touches the microwave wall.

■Metal or foil touching the side of the oven.

■Foil not molded to food (upturned edges act like antennas).

Metal, such as twist-ties, poultry pins, or gold-rimmed dishes, in the microwave.

■ Recycled paper towels containing small metal pieces being used in the microwave.

Abstract black-and-white graphic with irregular white shapes on a dark background (no text or symbols)

FOODS

Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens.

Some products such as whole eggs and sealed containers—for example, closed jars—are able to explode and should not be heated in this microwave oven. Such use of the microwave oven could result in injury.

Do not boil eggs in a microwave oven. Pressure will build up inside egg yolk and will cause it to burst, possibly resulting in injury.

Operating the microwave with no food inside for more than a minute or two may cause damage to the oven and could start a fire. It increases the heat around the magnetron and can shorten the life of the oven.

Foods with unbroken outer “skin” such as potatoes, hot dogs, sausages, tomatoes, apples, chicken livers and other giblets, and egg yolks should be pierced to allow steam to escape during cooking.

SUPERHEATED WATER

Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

— Do not overheat the liquid.
— Stir the liquid both before and halfway through heating it.
— Do not use straight-sided containers with narrow necks.
— After heating, allow the container to stand in the microwave oven for a short time before removing the container.
— Use extreme care when inserting a spoon or other utensil into the container.

Avoid heating baby food in glass jars, even with the lid off. Make sure all infant food is thoroughly cooked. Stir food to distribute the heat evenly. Be careful to prevent scalding when warming formula or breast milk. The container may feel cooler than the milk really is. Always test the milk before feeding the baby.
Don't defrost frozen beverages in narrow-necked bottles (especially carbonated beverages). Even if the container is opened, pressure can build up. This can cause the container to burst, possibly resulting in injury.
Hot foods and steam can cause burns. Be careful when opening any containers of hot food, including popcorn bags, cooking pouches and boxes. To prevent possible injury, direct steam away from hands and face.
Do not overcook potatoes. They could dehydrate and catch fire, causing damage to your oven.
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

MICROWAVE-SAFE COOKWARE

Make sure all cookware used in your microwave oven is suitable for microwaving. Most glass casseroles, cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does not have metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled “suitable for microwaving.”

If you are not sure if a dish is microwave-safe, use this test: Place in the oven both the dish you are testing and a glass measuring cup filled with 1 cup of water—set the measuring cup either in or next to the dish. Microwave 30–45 seconds at high. If the dish heats, it should not be used for microwaving.

If the dish remains cool and only the water in the cup heats, then the dish is microwave-safe.

If you use a meat thermometer while cooking, make sure it is safe for use in microwave ovens.

Do not use recycled paper products. Recycled paper towels, napkins and waxed paper can contain metal flecks which may cause arcing or ignite. Paper products containing nylon or nylon filaments should be avoided, as they may also ignite.

Some styrofoam trays (like those that meat is packaged on) have a thin strip of metal embedded in the bottom. When microwaved, the metal can burn the floor of the oven or ignite a paper towel.

■ Do not use the microwave to dry newspapers.

Not all plastic wrap is suitable for use in microwave ovens. Check the package for proper use.

Paper towels, waxed paper and plastic wrap can be used to cover dishes in order to retain moisture and prevent spattering. Be sure to vent plastic wrap so steam can escape.

Cookware may become hot because of heat transferred from the heated food. Pot holders may be needed to handle the cookware.

“Boilable” cooking pouches and tightly closed plastic bags should be slit, pierced or vented as directed by package. If they are not, plastic could burst during or immediately after cooking, possibly resulting in injury. Also, plastic storage containers should be at least partially uncovered because they form a tight seal. When cooking with containers tightly covered with plastic wrap, remove covering carefully and direct steam away from hands and face.

Use foil only as directed in this manual. TV dinners may be microwaved in foil trays less than 3/4"high; remove the top foil cover and return the tray to the box. When using foil in the microwave oven, keep the foil at least 1"away from the sides of the oven.

Plastic cookware – Plastic cookware designed for microwave cooking is very useful, but should be used carefully. Even microwave-safe plastic may not be as tolerant of overcooking conditions as are glass or ceramic materials and may soften or char if subjected to short periods of overcooking. In longer exposures to overcooking, the food and cookware could ignite.

Follow these guidelines:

1 Use microwave-safe plastics only and use them in strict compliance with the cookware manufacturer's recommendations.

2 Do not microwave empty containers.

3 Do not permit children to use plastic cookware without complete supervision.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

Improper use of the grounding plug can result in a risk of electric shock.

Simple line drawing of a hand holding a tool next to a square with three dots (no text or symbols)

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service technician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

THE VENT FAN

The fan will operate automatically under certain conditions (see Automatic Fan feature). Take care to prevent the starting and spreading of accidental cooking fires while the vent fan is in use.

• Clean the underside of the microwave often. Do not allow grease to build up on the microwave or the fan filters.
  In the event of a grease fire on the surface units below the microwave oven, smother a flaming pan on the surface unit by covering the pan completely with a lid, a cookie sheet or a flat tray.
  ■ Use care when cleaning the vent fan filters. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filters.
  When preparing flaming foods under the microwave, turn the fan on.
  Never leave surface units beneath your microwave oven unattended at high heat settings. Boilovers cause smoking and greasy spillovers that may ignite and spread if the microwave vent fan is operating. To minimize automatic fan operation, use adequate-sized cookware and use high heat on surface units only when necessary.

Simple black-and-white icon of an exclamation mark with radiating lines, no text or symbols present.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

About optional kits.

OPTIONAL KITS

Filler Panel Kits

JX52WH – White

JX52BL - Black

JX52CT - Bisque

When replacing a 36" range hood, filler panel kits fill in the additional width to provide a custom built-in appearance.

For installation between cabinets only; not for end-of-cabinet installation. Each kit contains two 3"-wide filler panels.

Filter Kits

JX81B - Recirculating Charcoal Filter Kit (1800 Series models)

JX81H - Recirculating Charcoal Filter Kit (2000 Series models)

Filter kits are used when the microwave oven cannot be vented to the outside.

Available at extra cost from your GE supplier.

Throughout this manual, features and appearance may vary from your model.

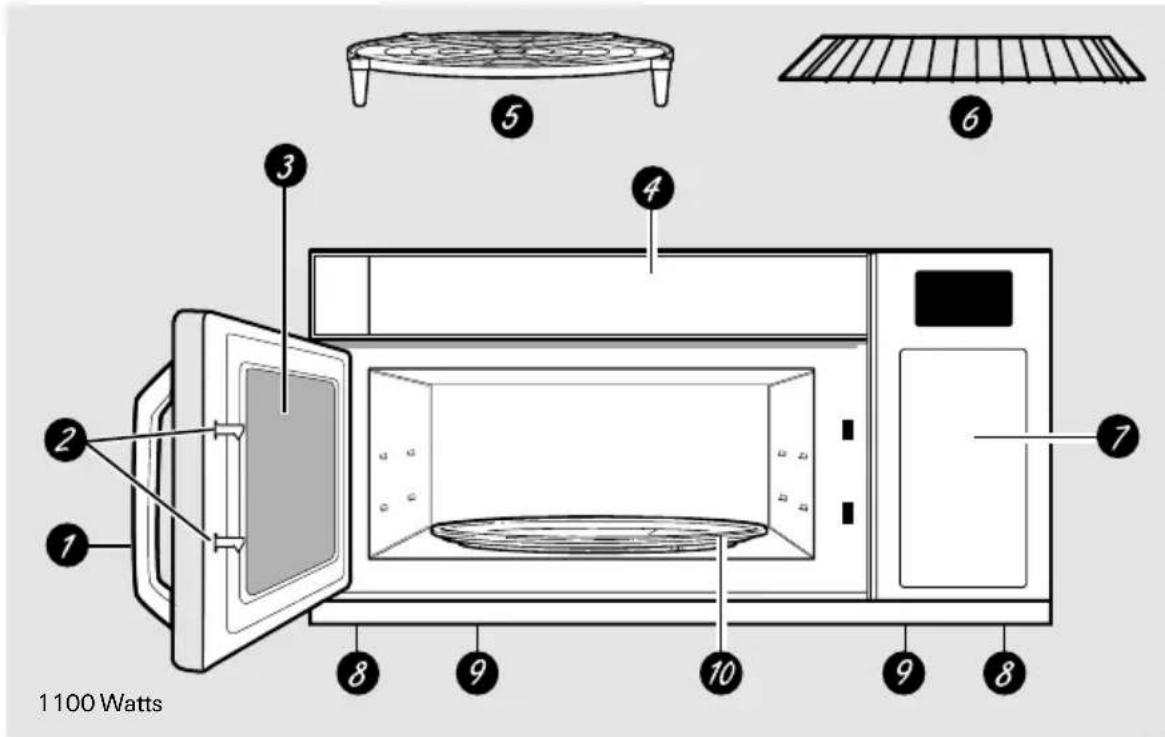

1100 Watts 2 3 4 5 6 7 8 9 10 9 8

Features of the Oven

7 Door Handle. Pull to open the door. The door must be securely latched for the microwave to operate.
2 Door Latches.
3 Window with Metal Shield. Screen allows cooking to be viewed while keeping microwaves confined in the oven.
4 Active Vent (on some models). The vent door swings open when the fan operates and closes when the fan shuts off.
5 Defrost Rack. When defrosting, for best results, place food directly on the defrost rack and place the rack on the turntable.

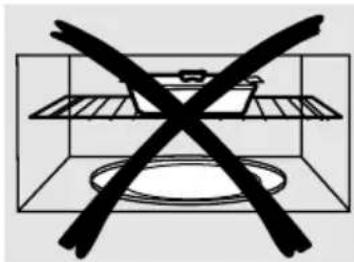

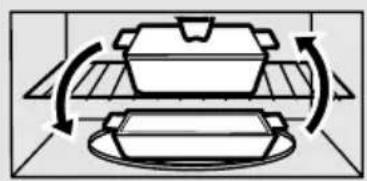

6 Shelf. Lets you microwave several foods at once. Food microwaves best when placed directly on the turntable.
7 Touch Control Panel Display.
8 Cooktop Lights.
9 Grease Filters.
10 Removable Turntable. Turntable and support must be in place when using the oven. The turntable may be removed for cleaning.

NOTE: Rating plate is located on the inside wall of the microwave, or on the upper left front behind the door. Oven vent(s) and oven light are located on the inside walls of the microwave oven.

About the features of your microwave oven.

You can microwave by time, with the sensor features or with the auto features.

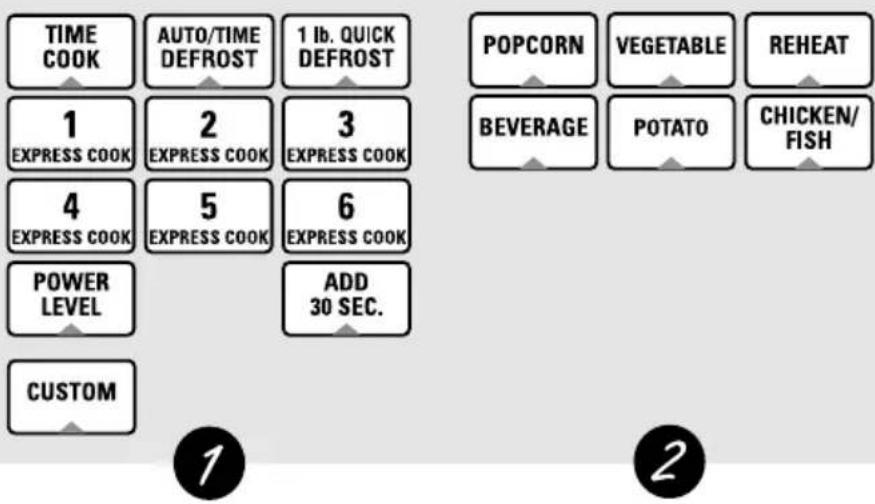

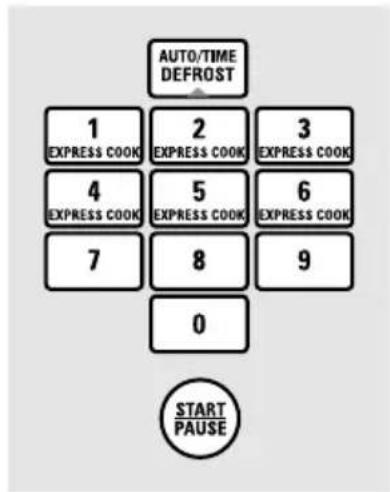

TIME COOK AUTO/TIME DEFROST 1 lb. QUICK DEFROST 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK POWER LEVEL ADD 30 SEC. CUSTOM POP CORN VEGETABLE REHEAT BEVERAGE POTATO CHICKEN/ FISH 1 2

Cooking Controls

Time and Auto Features

Press Enter

TIME COOK I & II Amount of cooking time

Press once or twice

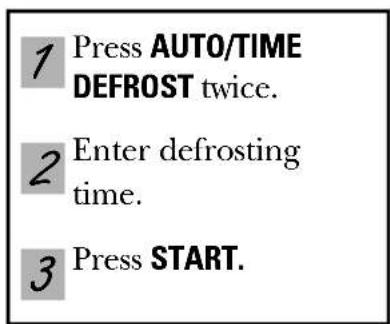

AUTO/TIME DEFROST Amount of defrosting time

Press twice

CUSTOM (on some models) Follow displayed instructions

EXPRESS COOK Starts immediately!

ADD 30 SEC Starts immediately!

POWER LEVEL Power level 1–10

AUTO/TIME DEFROST Food weight

Press once up to 6 lbs.

1 lb. QUICK DEFROST Starts immediately!

Sensor Features

Press Enter Option

POPCORN	Starts immediately!	more/less time
BEVERAGE	Starts immediately!
REHEAT	Starts immediately!	more/less time
POTATO	Starts immediately!	more/less time
VEGETABLE	Starts immediately!
Press once (fresh vegetables)		more/less time
Press twice (frozen vegetables)		more/less time
Press three times (canned vegetables)		more/less time(on some models)

CHICKEN/FISH (on some models) Starts immediately! more/less time

Press once (chicken pieces)

Press twice (fish)

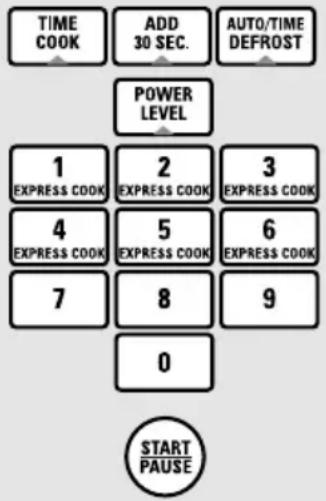


How to Change the Power Level

The power level may be entered or changed immediately after entering the feature time for TIME COOK, TIME DEFROST, EXPRESS COOK or ADD 30 SEC.

The power level may also be changed during time countdown.

1 Press TIME COOK or select Time Defrost.
2 Enter cooking or defrosting time.
3 Press POWER LEVEL.
4 Select desired power level 1–10.
5 Press START.

Variable power levels add flexibility to microwave cooking. The power levels on the microwave oven can be compared to the surface units on a range. High (power level 10) or full power is the fastest way to cook and gives you 100% power. Each power level gives you microwave energy a certain percent of the time. Power level 7 is microwave energy 70% of the time. Power level 3 is energy 30% of the time.

A high setting (10) will cook faster but food may need more frequent stirring, rotating or turning over. Most cooking will be done on High (power level 10). A lower setting will cook more evenly and need less stirring or rotating of the food.

Some foods may have better flavor, texture or appearance if one of the lower settings is used. Use a lower power level when cooking foods that have a tendency to boil over, such as scalloped potatoes.

Rest periods (when the microwave energy cycles off) give time for the food to “equalize” or transfer heat to the inside of the food. An example of this is shown with power level 3—the defrost cycle. If microwave energy did not cycle off, the outside of the food would cook before the inside was defrosted.

Here are some examples of uses for various power levels:

Power Level Best Uses

High 10 Fish, bacon, vegetables, boiling liquids.

Med-High 7 Gentle cooking of meat and poultry; baking casseroles and reheating.

Medium 5 Slow cooking and tenderizing such as stews and less tender cuts of meat.

Low 2 or 3 Defrosting without cooking; simmering; delicate sauces.

Warm 1 Keeping food warm without overcooking; softening butter.

About the time features.

TIME COOK 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK 7 8 9 0 START PAUSE

Time Cook I

Allows you to microwave for any time up to 99 minutes and 99 seconds.

Power level 10 (High) is automatically set, but you may change it for more flexibility.

You may open the door during TIME COOK to check the food. Close the door and press START to resume cooking.

Time Cook II

Lets you change power levels automatically during cooking. Here's how to do it:

1 Press TIME COOK. 2 Enter cooking time. 3 Change power level if you don't want full power. (Press POWER LEVEL. Select a desired power level 1-10.) 4 Press START.

1 Press TIME COOK. 2 Enter the first cook time. 3 Change the power level if you don’t want full power. (Press POWER LEVEL. Select a desired power level 1–10.) 4 Press TIME COOK again. 5 Enter the second cook time. 6 Change the power level if you don’t want full power. (Press POWER LEVEL. Select a power level 1–10.) 7 Press START.

At the end of Time Cook I, Time Cook II counts down.

Cooking Guide for Time Cook I and Time Cook II

NOTE: Use power level High (10) unless otherwise noted.

Vegetable Amount Time Comments

Asparagus(fresh spears) 1 lb. 6 to 9 min., In 1 12 qt. oblong glass bakingMed-High (7) dish, place 1/4 cup water.(frozen spears) 10-oz package 5 to 7 min. In 1-qt. casserole.
Beans(fresh green)	1 lb. cut in half 9 to 11 min.	In 112 qt. casserole, place 1/2 cup water.
(frozen green)	10-oz package 6 to 8 min. In 1-qt. casserole, place 2 tablespoons water.
(frozen lima)	10-oz package 6 to 8 min. In 1-qt. casserole, place 1/4 cup water.
Beets(fresh, whole) 1 bunch 17 to 21 min. In 2-qt. casserole, place 1/2 cup water.
Broccoli(fresh cut)	1 bunch 7 to 10 min. (1 14 to 1 12 lbs.)	In 2-qt. casserole, place 1/2 cup water.
(fresh spears) 1 bunch 9 to 13 min. (1 14 to 1 12 lbs.)	In 2-qt. oblong glass baking dish, place 1/4 cup water.
(frozen, chopped)	10-oz package 5 to 7 min. In 1-qt. casserole.
(frozen spears) 10-oz package 5 to 7 min. In 1-qt. casserole, place 3 tablespoons water.
Cabbage(fresh)	1 medium head 8 to 11 min. (about 2 lbs.)	In 112 or 2-qt. casserole, place 1/4 cup water.
(wedges)	7 to 10 min.	In 2- or 3-qt. casserole, place 1/4 cup water.
Carrots(fresh, sliced)	1 lb. 7 to 9 min. In 1 14 qt. casserole, place 1/4 cup water.
(frozen)	10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.
Cauliflower(flowerets)	1 medium head 9 to 14 min.	In 2-qt. casserole, place 1/2 cup water.
(fresh, whole)	1 medium head 10 to 17 min.	In 2-qt. casserole, place 1/2 cup water.
(frozen)	10-oz package 5 to 7 min. In 1-qt. casserole, place 2 tablespoons water.

About the time features.

Vegetable Amount Time Comments
Corn(frozen kernel)	10-oz package 5 to 7 min. In 1-qt. casserole, place2 tablespoons water.
Corn on the cob(fresh) 1 to 5 ears	3 to 4 min. In 2-qt. oblong glass bakingper ear dish, place corn. If corn is inhusk, use no water; if corn hasbeen husked, add 1/4 cupwater. Rearrange after halfof time.
(frozen) 1 ear 5	to 6 min. Place in 2-qt. oblong glassbaking dish.2 to 6 ears 3 to 4 min. Cover with vented plastic wrap.per ear Rearrange after half of time.
Mixed vegetables(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place3 tablespoons water.
Peas(fresh, shelled)	2 lbs. unshelled 9 to 12 min.		In 1-qt. casserole, place1/4 cup water.
(frozen) 10-oz package 5 to 7 min. In 1-qt. casserole, place2 tablespoons water.
Potatoes(fresh, cubed, white)	4 potatoes (6 to 8 oz each)	9 to 12 min.	Peel and cut into 1 inch cubes.Place in 2-qt. casserole with1/2 cup water. Stir after halfof time.
(fresh, whole, 1 sweet or white)	(6 to 8 oz)	3 to 4 min. Pierce with cooking fork.Place in center of the oven.Let stand 5 minutes.
Spinach(fresh)	10 to 16 oz	5 to 7 min.	In 2-qt. casserole, place washedspinach.
(frozen,choppedand leaf)	10-oz package 5 to 7 min. In 1-qt. casserole, place3 tablespoons water.
Squash(fresh, summer and yellow)(winter, acorn,butternut)	1 lb. sliced	5 to 7 min.	In 1 12 -qt. casserole, place1/4 cup water.Cut in half and remove fibrousmembranes. In 2-qt. oblongglass baking dish, place squashcut-side-down. Turn cut-side-upafter 4 minutes.
	1 to 2 squash (about 1 lb. each)	8 to 11 min.

AUTO/TIME DEFROST 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK 7 8 9 0 START PAUSE

Time Defrost

Allows you to defrost for the length of time you select. See the Defrosting Guide for suggested times.

Power level 3 is automatically set, but you may change this for more flexibility. You may defrost small items more quickly by raising the power level after entering the time. However, they will need more frequent attention than usual.

Power level 7 cuts the total defrosting time in about half; power level 10 cuts the total time to approximately 1/3. Rotate or stir food frequently.

1 Press AUTO/TIME DEFROST twice. 2 Enter defrosting time. 3 Press START.

A dull thumping noise may be heard during defrosting. This sound is normal when the oven is not operating at High power.

Defrosting Tips

For best results, place food directly on the defrost rack and place the rack on the turntable.

■Foods frozen in paper or plastic can be defrosted in the package. Tightly closed packages should be slit, pierced or vented AFTER food has partially defrosted. Plastic storage containers should be at least partially uncovered.

Family-size, prepackaged frozen dinners can be defrosted and microwaved. If the food is in a foil container, transfer it to a microwave-safe dish.

Foods that spoil easily, such as milk, eggs, fish, stuffings, poultry and pork should not be allowed to sit out for more than one hour after defrosting. Room temperature promotes the growth of harmful bacteria.

For more even defrosting of larger foods, such as beef, lamb and veal roasts, use Auto Defrost.

- Be sure large meats are completely defrosted before cooking.

When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwave very briefly, or let it stand a few minutes.

About the time features.

Defrosting Guide

Food Time Comments
Breads, CakesBread, buns or rolls (1 piece) 1 min.Sweet rolls (approx. 12 oz) 3 to 5 min.
Fish and SeafoodFilletts, frozen (1 lb.) 6 to 8 min.Shellfish, small pieces (1 lb.)	5 to 7 min.	Place block in casserole. Turn over and break up after half the time.
FruitPlastic pouch - 1 to 2 3 to 6 min.(10-oz package)
MeatBacon (1 lb.) 2 to 5 min. Place unopened package in oven.Franks (1 lb.)	2 to 5 min. Place unopened package in oven.Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.
Ground meat (1 lb.)Roast: beef, lamb, veal, pork	5 to 7 min. 12 to 16 min. per lb.	Turn meat over after half the time. Use power level 1.
Steaks, chops and cutlets	5 to 7 min. per lb.	Place unwrapped meat in cooking dish. Turn over after half the time and shield warm areas with foil.When finished, separate pieces and let stand to complete defrosting.
PoultryChicken, broiler-fryercut up (2 12 to 3 lbs.)	15 to 19 min.	Place wrapped chicken in dish. Unwrap and turn over after half the time. When finished, separate pieces and microwave 2 to 4 minutes more, if necessary. Let stand to finish defrosting.
Chicken, whole(2 12 to 3 lbs.)	17 to 21 min.	Place wrapped chicken in dish. After half the time, unwrap and turn chicken over. Shield warm areas with foil. Finish defrosting. If necessary, run cold water in the cavity until giblets can be removed.
Cornish hen	7 to 13 min. per lb.	Place unwrapped hen in the oven breast-side-up. Turn over after half the time. Run cool water in the cavity until giblets can be removed.
Turkey breast (4 to 6 lbs.)	5 to 9 min. per lb.	Place unwrapped breast in dish breast-side-down. After half the time, turn over and shield warm areas with foil. Finish defrosting. Let stand 1 to 2 hours in refrigerator to complete defrosting.

1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK

Express Cook

This is a quick way to set cooking time for 1–6 minutes.

Press one of the Express Cook pads (from 1 to 6) for 1 to 6 minutes of cooking at power level 10.

For example, press the 2 pad for 2 minutes of cooking time.

The power level can be changed as time is counting down. Press POWER LEVEL and enter 1–10.

Add 30 Seconds

You can use this feature two ways:

It will add 30 seconds to the time counting down each time the pad is pressed.
It can be used as a quick way to set 30 seconds of cooking time.

About the auto features.

Auto Defrost

Auto Defrost automatically sets the defrosting times and power levels to give even defrosting results for meats, poultry and fish weighing up to six pounds.

For best results, remove food from the package, place food directly on the defrost rack and place the rack on the turntable.
Twice during Auto Defrost, the oven signals Turn Food Over. At each signal, turn the food over. Remove defrosted meat or shield warm areas with small pieces of foil.
■After defrosting, most meats need to stand 5 minutes to complete defrosting. Large roasts should stand for about 30 minutes.

Conversion Guide

If the weight of food is stated in pounds and ounces, the ounces must be converted to tenths (.1) of a pound.

Weight of Enter FoodFood in WeightOunces (tenths ofa pound)	Weight of Enter FoodFood in WeightOunces (tenthsa pound)
1–2 .1	9–10	.6
3 .2	11	.7
4–5 .3	12–13	.8
6–7 .4	14–15	.9
8 .5

1

Press AUTO/TIME DEFROST once for Auto Defrost.

2

Using the Conversion Guide at right, enter food weight. For example, press pads 1 and 2 for 1.2 pounds (1 pound, 3 ounces). Enter weight up to 6 pounds for Auto Defrost.

3

Press START.

1 lb. Quick Defrost

1 Ib. Quick Defrost automatically sets the defrosting times and power levels for foods weighing one pound.

Press 1 lb. Quick Defrost. The oven starts automatically. When the oven signals, turn food over.

For best results, remove food from the package, place food directly on the defrost rack and place the rack on the turntable.

Simple line drawing of a cooking pot (no text or symbols)

Covered

Humidity Sensor

What happens when using the Sensor Features:

The Sensor Features detect the increasing humidity released during cooking. The oven automatically adjusts the cooking time to various types and amounts of food.

Simple line drawing of a container with internal tissue (no text or symbols)

Vented

Do not use the Sensor Features twice in succession on the same food portion—it may result in severely overcooked or burnt food. If food is undercooked after the countdown, use Time Cook for additional cooking time.

Symbolic illustration of a crossed-out pot with water droplets (no text or labels)

Dry off dishes so they don't mislead the sensor.

The proper containers and covers are essential for best sensor cooking.

Always use microwave-safe containers and cover them with lids or vented plastic wrap. Never use tight sealing plastic containers—they can prevent steam from escaping and cause food to overcook.

Be sure the outside of the cooking containers and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor.

NOTE: Do not use this feature twice in succession on the same food portion—it may result in severely overcooked or burnt food.

Beverage

Press BEVERAGE once to heat an 8–10 oz cup of coffee or other beverage.

Drinks heated with the Beverage feature may be very hot. Remove the container with care.

If food is undercooked after the countdown use Time Cook for additional cooking time.

About the sensor features.

POPCORN 1 EXPRESS COOK 9

Use only with prepackaged microwave popcorn weighing 3.0 to 3.5 ounces.

NOTE: Do not use the metal shelf when using the Popcorn feature.

NOTE: Do not use this feature twice in succession on the same food portion—it may result in severely overcooked or burnt food.

Popcorn

How to Use the Popcorn Feature

1 Follow package instructions, using Time Cook if the package is less than 3.0 ounces or larger than 3.5 ounces. Place the package of popcorn in the center of the microwave.

2 Press POPCORN for a regular size (3.0 to 3.5 oz) bag of popcorn. The oven starts immediately.

If you open the door while POPCORN is displayed, an error message will appear. Close the door and press START.

If food is undercooked after the countdown use Time Cook for additional cooking time.

How to Adjust the Popcorn Program to Provide a Shorter or Longer Cook Time

If you find that the brand of popcorn you use underpops or overcooks consistently, you can add or subtract 20–30 seconds to the automatic popping time.

To add time:

After pressing POPCORN, press 9 within the first 30 seconds after the oven starts for an extra 20 seconds.

Press 9 again to add another 10 seconds (total 30 seconds additional time).

To subtract time:

After pressing POPCORN, press 1 within the first 30 seconds after the oven starts for 20 seconds less cooking time.

Press 1 again to reduce cooking time another 10 seconds (total 30 seconds less time).

REHEAT 1 EXPRESS COOK 9 START PAUSE

For reheating single servings of previously cooked foods or a plate of leftovers.

NOTE: Do not use the metal shelf when using the Reheat feature.

NOTE: Do not use this feature twice in succession on the same food portion—it may result in severely overcooked or burnt food.

Reheat

How to Use the Reheat feature:

1 Place the cup of liquid or covered food in the oven. Press REHEAT once, twice or three times.

The oven starts immediately.

Press once for a plate of leftovers.

Press twice for pasta (8–12 oz).

Press three times for vegetables (1/2 to 2 cups).

2 The oven signals when steam is sensed and the time remaining begins counting down.

Do not open the oven door until time is counting down. If the door is opened, close it and press START immediately.

After removing food from the oven, stir, if possible, to even out the temperature. Reheated foods may have wide variations in temperature. Some areas may be extremely hot.

If food is not hot enough after the countdown use Time Cook for additional reheating time.

How to Change the Automatic Settings:

To reduce time by 10%:

Press 1 within 30 seconds after pressing the REHEAT pad.

To add 10% to cooking time:

Press 9 within 30 seconds after pressing the REHEAT pad.

Some Foods Not Recommended For Use With Reheat:

It is best to use Time Cook for these foods:

Bread products.

■Foods that must be reheated uncovered.

■Foods that need to be stirred or rotated.

- Foods calling for a dry look or crisp surface after reheating.

About the sensor features.

ONE TOUCH SENSOR VEGETABLE POTATO CHICKEN/ FISH 1 EXPRESS COOK 9

Sensor cooking gives you easy, automatic results with a variety of foods (see the Cooking Guide below).

NOTE: Do not use the metal shelf with Sensor Cooking.

NOTE: Do not use this feature twice in succession on the same food portion—it may result in severely overcooked or burnt food.

Sensor Cooking (on some models)

Vegetables, Potatoes, Fish, Chicken Pieces

1 Place covered food in the oven. Press the food pad. For vegetables, press the VEGETABLE pad once for fresh vegetables, twice for frozen vegetables, or three times for canned vegetables. For chicken or fish, press the CHICKEN/FISH pad once for chicken pieces or twice for fish. The oven starts immediately.

2 The oven signals when steam is sensed and the time remaining begins counting down. Turn or stir the food if necessary.

Do not open the oven door until time is counting down. If the door is opened, close it and press START immediately.

If food is undercooked after the countdown use Time Cook for additional cooking time.

How to Change the Automatic Settings (automatic settings for canned vegetables cannot be adjusted on some models):

You can adjust the cooking time for all foods to suit your personal taste.

To reduce time by 10%: Press 1 within 30 seconds after pressing the food pad.

To add 10% to cooking time: Press 9 within 30 seconds after pressing the food pad.

Cooking Guide

Food Type	Amount Comments
Canned Vegetables 4–16 oz Cover with lid or vented plastic wrap.
Frozen Vegetables 4–16 oz Follow package instructions for adding water. Cover with lid or vented plastic wrap.
Fresh Vegetables 4–16 oz Add 1/4 cup water per serving.Cover with lid or vented plastic wrap.
Potatoes 8–32 oz Pierce skin with fork. Place potatoes on the turntable.
Fish 4–16 oz Cover with vented plastic wrap.

Chicken Pieces 2–8 pieces Cover with vented plastic wrap.

CUSTOM 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK 7 8 9 0

Custom (on some models)

The CUSTOM pad allows you to save your most frequently used settings. (Sensor cooking settings cannot be saved.)

To set and save a setting:

1 Press the CUSTOM pad.

2 Set the amount of cooking time.

3 Set the power level, if desired. (Full power will automatically be set if you do not change it.)

4 Press the CUSTOM pad.

Your custom setting will be remembered for future one touch use.

To clear the custom setting, press and hold the CUSTOM pad for 2 seconds.

Help

The HELP pad displays feature information and helpful hints. Press HELP; then select a feature pad.

Cooking Complete Reminder

To remind you that you have food in the oven, the oven will display FOOD IS READY and beep once a minute until you either open the oven door or press CLEAR/OFF.

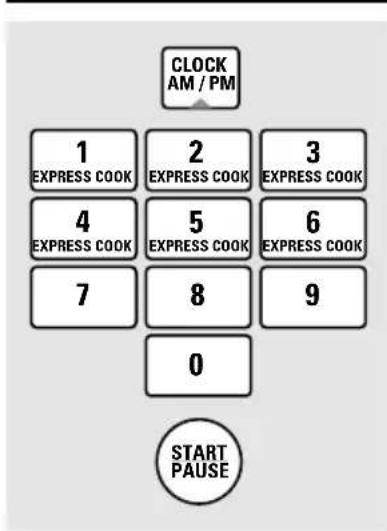

CLOCK AM / PM 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK 7 8 9 0 START PAUSE

Clock

Press CLOCK to set the time of day.

1 Press CLOCK.

2 Enter the time of day.

3 Select AM or PM.

4 Press START.

To check the time of day while microwaving, press CLOCK.

Other features your model may have.

Delay Start

Delay Start allows you to set the microwave to delay cooking up to 24 hours.

Press DELAY START.

Select the cooking or defrosting feature you wish to delay; then enter the cooking or defrosting time.

Press START.

Enter the time you want the oven to start. (Be sure the microwave clock shows the correct time of day.)

Select AM or PM.

Press START.

The start time will be displayed and will remain until the oven automatically starts at the delayed time.

The time of day may be displayed by pressing CLOCK.

TIMER 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK 7 8 9 0

Timer

Timer operates as a minute timer and can be used at any time, even when the oven is operating.

Press TIMER.

Enter time you want to count down.

Press TIMER to start.

To pause the countdown, press TIMER.

When time is up, the oven will signal. To turn off the timer signal, press TIMER.

NOTE: The timer indicator will be lit while the timer is operating.

To cancel the timer, press and hold the TIMER pad for 2 seconds.

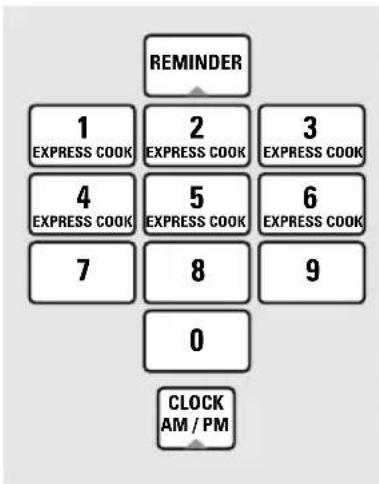

REMINDER 1 EXPRESS COOK 2 EXPRESS COOK 3 EXPRESS COOK 4 EXPRESS COOK 5 EXPRESS COOK 6 EXPRESS COOK 7 8 9 0 CLOCK AM / PM

Reminder

The Reminder feature can be used like an alarm clock, and can be used at any time, even when the oven is operating. The Reminder time can be set up to 24 hours later.

1 Press REMINDER.
2 Enter the time you want the oven to remind you. (Be sure the microwave clock shows the correct time of day.)
3 Select AM or PM.
4 Press REMINDER. When Reminder signal occurs, press REMINDER to turn it off. The Reminder time may be displayed by pressing REMINDER.

NOTE: The REM indicator will remain lit to show that the Reminder is set. To clear the Reminder before it occurs, press and hold the REMINDER pad for 2 seconds.

Start/Pause

In addition to starting many functions, START/PAUSE allows you to stop cooking without opening the door or clearing the display.

Child Lock-Out

You may lock the control panel to prevent the microwave from being accidentally started or used by children.

To lock or unlock the controls, press and hold CLEAR/OFF for about three seconds. When the control panel is locked, CONTROL LOCKED or LOCKED will be displayed.

Other features your model may have.

Turntable

For best cooking results, leave the turntable on. It can be turned off for large dishes. Press TURNTABLE to turn the turntable on or off.

Sometimes the turntable can become too hot to touch.

Be careful touching the turntable during and after cooking.

Vent Fan

The vent fan removes steam and other vapors from surface cooking.

Press VENT FAN once for high fan speed, twice for medium fan speed, a third time for low fan speed, or a fourth time to turn the fan off.

Press the VENT FAN BOOST pad for extra fan speed.

Automatic Fan

An automatic fan feature protects the microwave from too much heat rising from the cooktop below it. It automatically turns on if it senses too much heat.

If you have turned the fan on, you may find that you cannot turn it off. The fan will automatically turn off when the internal parts are cool. It may stay on for 30 minutes or more after the cooktop and microwave controls are turned off.

SURFACE LIGHT

Surface Light

Press SURFACE LIGHT once for bright light, twice for the night light, or three times to turn the light off.

CLOCK AM / PM

Options

Press the OPTIONS pad multiple times to cycle through the available options.

Auto Nite Light

The Auto Nite Light can be set to come on and go off at desired times.

To set the timer:

Press 1.

Enter the time of day for the light to come on.

Select AM or PM.

Press the OPTIONS pad.

Enter the time of day for the light to go off.

Select AM or PM.

Press the OPTIONS pad.

To review the nite light settings, press 2 after selecting the Auto Nite Light option.

To turn the nite light off, press 0 after selecting the Auto Nite Light option.

Beeper Volume

The beeper sound level can be adjusted. Choose 0–3 for mute to loud.

Charcoal Filter Reminder

The Charcoal Filter Reminder is a 180-day timer to remind you when to change the charcoal filter. Press 0 to turn the reminder off. Press 1 to set the reminder. Press 2 to reset the reminder.

Display Language

The language for the scrolling display may be set at either English or Spanish.

Press 1 for English or 2 for Spanish.

Display On/Off

You can choose to turn the clock display on or off. Press 0 to turn the display off. Press 1 to turn the display on.

Display Speed

The scroll speed of the display can be changed.

Select 1–5 for slowest to fastest scroll speed.

Other features your model may have.

Shelf

Food microwaves best when placed on the turntable or on the shelf in the lower position.

Only use the shelf when reheating on more than one level. Do not store the shelf inside the oven cavity.

How to Use the Shelf When Microwaving

■ Make sure the shelf is positioned properly inside the microwave to prevent damage to the oven from arcing.

Do not use a microwave browning dish on the shelf. The shelf could overheat.

Do not use the oven with the shelf on the microwave floor. This could damage the microwave.

■ Use pot holders when handling the shelf—it may be hot.

Do not use the shelf when cooking popcorn.

Do not use the shelf with Sensor Cooking or Reheat.

Simple line drawing of a cooking pot on a saucer inside a rectangular chamber (no text or symbols)

For best results

Simple line drawing of a cage with a cross symbol crossed out, no text or labels present.

Uneven results

Simple line drawing of a kitchen sink with a bowl and tray (no text or symbols)

Simple line drawing of a cooking setup with a pot and tray (no text or symbols)

2-level reheating

Diagram of a kitchen appliance with rotating sides and a plate, showing no text or symbols.

Switch places after 1/2 time

Diagram of two identical containers on a tray with directional arrows indicating rotation (no text or symbols)

Switch places after 1/2 time

Diagram of a four-tiered cylindrical tank with rotating flow arrows, no text or symbols present

Switch places twice

Shelf and Reheating

To reheat on 2 levels

OR

To reheat 2 dishes on the lower level:

1 Multiply reheat time by 1^1/2 .
2 Switch places after 1/2 the time.

To reheat on 3 levels:

1 Turn the turntable off.
2 Double the reheating time.
3 Switch places twice and give the dishes a 1/2 turn during reheating. (Place dense foods, or those that require a longer cook time, on the upper shelf first.)

Microwave terms.

Term Definition
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:■the metal shelf being installed incorrectly and touching the microwave walls.■metal or foil touching the side of the oven.■foil that is not molded to food (upturned edges act like antennas).■metal such as twist-ties, poultry pins, gold-rimmed dishes.■recycled paper towels containing small metal pieces.
Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic wrap or covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.
Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in microwave cooking. Note that a microwaved cake is not placed on a cooling rack.
Venting After covering a dish with plastic wrap, you vent the plastic wrap by turning back one corner so excess steam can escape.

Illustration of household items including a bottle, framed picture, and stacked books (no text or symbols)

Helpful Hints

An occasional thorough wiping with a solution of baking soda and water keeps the inside fresh.

NOTE: Be certain the power is off before cleaning any part of this oven.

Line drawing of a microwave oven with open door and side panel (no text or symbols)

How to Clean the Inside

Walls, Floor, Inside Window, Metal and Plastic Parts on the Door

Some spatters can be removed with a paper towel; others may require a damp cloth. Remove greasy spatters with a sudsy cloth; then rinse with a damp cloth. Do not use abrasive cleaners or sharp utensils on oven walls.

Never use a commercial oven cleaner on any part of your microwave.

Removable Turntable and Turntable Support

To prevent breakage, do not place the turntable into water just after cooking. Wash it carefully in warm, sudsy water or in the dishwasher. The turntable and support can be broken if dropped. Remember, do not operate the oven without the turntable and support in place.

Shelf

Clean with mild soap and water or in the dishwasher.

Do not clean in a self-cleaning oven.

Defrost Rack

Clean with mild soap and water or in the top rack of the dishwasher.

Care and cleaning of the microwave oven.

Line drawing of a hand inserting a component into a container with two grilles (no text or symbols)

How to Clean the Outside

We recommend against using cleaners with ammonia or alcohol, as they can damage the appearance of the microwave oven. If you choose to use a common household cleaner, first apply the cleaner directly to a clean cloth, then wipe the soiled area.

Bottom

Clean off the grease and dust on the bottom often. Use a solution of warm water and detergent.

Case

Clean the outside of the microwave with a sudsy cloth. Rinse and then dry. Wipe the window clean with a damp cloth.

Control Panel and Door

Wipe with a damp cloth. Dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel—they can damage it. Some paper towels can also scratch the control panel.

Door Seal

It's important to keep the area clean where the door seals against the microwave. Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Stainless Steel (on some models)

Do not use a steel-wood pad; it will scratch the surface.

To clean the stainless steel surface, use a hot, damp cloth with a mild detergent suitable for stainless steel surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.

If food soil remains, try a general kitchen cleaner.

For hard-to-clean soil, use a standard stainless steel cleaner, such as Bon-Ami ^® or Cameo ^® .

Apply cleaner with a damp sponge. Use a clean, hot, damp cloth to remove cleaner. Dry with a dry, clean cloth. Always scrub lightly in the direction of the grain.

After cleaning, use a stainless steel polish, such as Stainless Steel Magic ^® , Revere Copper and Stainless Steel Cleaner ^® or Wenol All Purpose Metal Polish ^® . Follow the product instructions for cleaning the stainless steel surface.

PROMATO TOMATO

Cooktop Light/Night Light

On models JVM1850 and JVM1851, replace the burned-out bulb with a 40-watt incandescent bulb (WB36X10003), available from your GE supplier.

On models JVM1860, JVM1861, JVM1870 and JVM2050 replace the burned-out bulb with a 120 volt, 20-watt halogen bulb (WB36X10213), available from your GE supplier.

To replace the bulb(s), first disconnect the power at the main fuse or circuit breaker panel or pull the plug.
2 Remove the screw at the right edge of the light cover and push on the left edge of the cover to open.
3 Be sure the bulb(s) to be replaced are cool before removing. After breaking the adhesive seal, remove the bulb by either gently turning (for models JVM1850 and JVM1851) or pulling straight out (for models JVM1860, JVM1861, JVM1870 and JVM2050). Replace with the same size and type bulb.
4 Raise the light shield and replace the screw. Connect electrical power to the oven.

Replacing the light bulbs.

Line drawing of a microwave oven with control panel and door (no text or symbols)

Light cover

On some models

Light cover

On some models

Oven Light

Replace the burned-out bulb with a 120 volt, 20-watt halogen bulb (WB36X10213), available from your GE supplier.

1 To replace the oven light, first disconnect the power at the main fuse or circuit breaker panel or pull the plug.
2 Remove the top grille by taking out the screws on top of the grille that hold it in place and sliding the grille to the left (opening the door makes grille removal easier).
3 Next, remove the light cover.

On some models, the light cover is located in the center of the top opening. Remove the screw that secures the light cover and lift the cover off.

On some models, the light cover is located at the left of the top opening. Lift the cover off.

4 Pinch the clips that hold the light socket in place and lift the socket out.
5 Remove the bulb from the light socket by pulling straight out. Replace with the same size and type bulb, then replace the light socket and cover.
6 Replace the grille and screws. Connect electrical power to the oven.

Charcoal Filter (on some models)

Diagram of a microwave oven with control panel and door (no text or labels)

Reusable Grease Filters (on all models)

The Vent Fan

The vent fan has 2 metal reusable grease filters.

Models that recirculate air back into the room also use a charcoal filter.

Reusable Grease Filters

The metal filters trap grease released by foods on the cooktop. They also prevent flames from foods on the cooktop from damaging the inside of the microwave.

For this reason, the filters must ALWAYS be in place when the hood is used. The grease filters should be cleaned once a month, or as needed.

Diagram of a hand placing a component into a vehicle's dashboard (no text or symbols visible)

Removing and Cleaning the Filter

To remove, slide it to the outside using the tab. Pull it down and out.

To clean the grease filter, soak it and then swish it around in hot water and detergent. Don't use ammonia or ammonia products because they will darken the metal. Light brushing can be used to remove embedded dirt.

Rinse, shake and let it dry before replacing.

To replace, slide the filter in the frame slot at the outside of the opening. Pull up and in to lock into place.

About the exhaust feature.

Charcoal Filter (on some models)

The charcoal filter cannot be cleaned. It must be replaced.

For JVM1800 Series models, order Part No. WB2X10733 from your GE supplier.

For JVM2000 Series models, order Part No. WB2X10956 from your GE supplier.

If the model is not vented to the outside, the air will be recirculated through a disposable charcoal filter that helps remove smoke and odors.

The charcoal filter should be replaced when it is noticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).

Line drawing of a microwave oven with control panel and door (no text or symbols)

Remove grille screws to remove the grille.

To Remove Charcoal Filter

To remove the charcoal filter, disconnect power at the main fuse or circuit breaker panel or pull the plug.

Remove the top grille by removing the screws on top of the grille that hold it in place and sliding the grille to the left (opening the door makes grille removal easier). Slide the filter towards the front of the oven and remove it.

Line drawing of a hand placing a textured object into a microwave oven (no text or symbols)

To Install Charcoal Filter

To install a new filter, remove plastic and other outer wrapping from the new filter.

Insert the filter into the top opening of the oven as shown. It will rest at an angle on 2 side support tabs and in front of the right rear tab. Replace the grille and screws.

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Oven will not start	A fuse in your home may be blown or the circuit circuit breaker. breaker tripped.	Replace fuse or reset
	Power surge.	Unplug the microwave oven; then plug it back in.
	Plug not fully inserted into wall outlet. plug on the oven is fully inserted into wall outlet.	Make sure the 3-prong
Floor of the oven is warm, even when the oven has located below the oven not been used floor. When the light is on, the heat it produces may make the oven floor get warm.	The cooktop light is	This is normal.
"CONTROL LOCKED" or "LOCKED" appears on the display	The control has been locked.	Press and hold CLEAR/OFF for about 3 seconds to unlock the control.
"SENSOR ERROR" appears on the display	When using a Sensor feature, the door was opened before steam could be detected.	Do not open door until steam is sensed and time is shown counting down on the display.
	Steam was not detected in maximum amount of time.	Use Time Cook to heat for more time.
You hear an unusual, low-tone beep	You have tried to start the Reminder without a valid time of day.	Start over and enter a valid time of day.
	You have tried to start the Auto Nite Light without a valid time of day entered for the on-time and off-time.	Start over and enter a valid time of day.
	You have tried to change the power level when it is not allowed.	Many of the oven's features are preset and cannot be changed.
Food amount too large for Sensor Reheat	Sensor Reheat is for single servings of recommended foods.	Use Time Cook for large amounts of food.

Before you call for service...

Things That Are Normal With Your Microwave Oven

■ Moisture on the oven door and walls while cooking. Wipe the moisture off with a paper towel or soft cloth.
■ Moisture between the oven door panels when cooking certain foods. Moisture should dissipate shortly after cooking is finished.
■Steam or vapor escaping from around the door.
Light reflection around door or outer case.
Dimming oven light and change in the blower sound at power levels other than high.
■Dull thumping sound while oven is operating.
TV/radio interference might be noticed while using the microwave. Similar to the interference caused by other small appliances, it does not indicate a problem with the microwave. Plug the microwave into a different electrical circuit, move the radio or TV as far away from the microwave as possible, or check the position and signal of the TV/radio antenna.
The Active Vent door (on some models) will open during operation, and remain open while the microwave is running, to keep the electronics cool. It is also normal to hear a clicking noise as the vent door opens and closes.

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
  • No out-of-pocket expenses
  • No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1 Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

2 After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737).

3 Read your Owner's Manual carefully. It will help you operate your new appliance properly.

Model Number

Serial Number

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

Cut here

Consumer Product Ownership Registration

Important Mail Today!

Model Number

Serial Number

Mr. □Ms. □Mrs. □

Miss □

First Name Last Name

Street Address

Apt. # E-mail Address*

City Zip CodeState

Date Placed in Use Month Day Year Phone Number

GE Appliances

GE Consumer Products General Electric Company Louisville, Kentucky www.GEAppliances.com

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).

□ Check here if you do not want to receive communications from GEA's carefully selected partners.

GE Microwave Oven Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year Any part of the microwave oven which fails due to a
From the date of the original purchase	defect in materials or workmanship. During this full one-year warranty, GE will also provide, free of charge, all labor and related service costs to repair or replace the defective part.

Second Through Tenth Year The magnetron tube, if the magnetron tube fails due to From the date of the a defect in materials or workmanship. During this original purchase additional nine-year limited warranty, you will be responsible for any labor or related service costs.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of the cooktop light bulbs.

■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for ordinary home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us www.GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to:

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance www.GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Horno Microondas Spacemaker

Abstract decorative swirl design with no text or symbols

Black and white graphic with a central exclamation mark surrounded by radiating lines (no text or symbols)

Black and white graphic with a central exclamation mark surrounded by radiating lines (no text or symbols)

Black square with white lightning bolt symbol (no text or numbers)

Abstract black-and-white line drawing with irregular shapes and curved lines (no text or symbols)

COMIDAS

Simple black-and-white icon of a lightbulb with radiating lines, symbolizing an idea or illumination (no text or symbols)

Simple line drawing of a cooking pot (no text or symbols)

Cubierto

Sensor de humedad

Simple line drawing of a container with internal tissue (no text or symbols)

Ventilado

Symbolic illustration of a crossed-out pot with water droplets, no text or symbols present

Simple line drawing of a cooking pot on a tray inside a rectangular chamber (no text or symbols)

Simple line drawing of a cage with two crossed X marks (no text or symbols)

Resultados irregulares

Simple line drawing of a kitchen appliance with a tray and lid (no text or symbols)

Simple line drawing of a kitchen appliance inside a storage room, with no text or symbols present.

Diagram of a kitchen appliance with rotating parts and directional arrows indicating motion (no text or symbols)

Diagram of two identical containers on a tray with a circular base, showing directional arrows (no text or symbols)

Diagram of four circular objects arranged in a grid with curved arrows indicating rotation or flow (no text or symbols)

Illustration of household items including a bottle, framed picture, and stacked books (no text or symbols)

Consejos prácticos

Line drawing of a microwave oven with open door and control panel (no text or symbols)

Diagram of a hand inserting a component into a container with a handle (no text or symbols)

Diagram of a ventilation system with airflow path and component placement (no text or labels)

Remueva el tornillo

Diagram of a vehicle interior showing dashboard, seats, and exhaust pipe (no text or labels)

Line drawing of a microwave oven with front panel and door (no text or symbols)

Top-down schematic of a microwave oven with ventilation grilles and control panel (no text or labels)

Diagram of a hand inserting a component into a vehicle's door panel (no text or symbols visible)

Line drawing of a microwave oven with control panel and door (no text or symbols)

Line drawing of a hand pressing down on a microwave oven with a handle (no text or symbols)
