USER MANUAL Profile PVM9005DJBB GE

Safety Instructions 2 - 8

Owner's Manual

Operating Instructions

PVM9005

Oven Features 9

Controls 10

Time Features 11

Defrost Features 12-14

Sensor Features 15-19

Power Levels 20

Other Features 21-27

Care and Cleaning....28, 29

Replacing the Light Bulb 30

Exhaust Features 30

Troubleshooting Tips

Before you call for service .....31, 32

Consumer Support

Optional Kits 8

Warranty 33

Consumer Support 34

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on a label when the door is open.

IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING.

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING!

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

(1) door (bent)
(2) hinges and latches (broken or loosened)
(3) door seals and sealing surfaces

(d) The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel.

• Read all instructions before using this appliance.
• Read and follow the specific precautions in the PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Section above.
  This appliance must be grounded. Connect only to a properly grounded outlet. See the GROUNDING INSTRUCTIONS section on page 7.
  This microwave oven is UL listed for installation over both gas (less than 60,000BTU) and electric ranges.
  This over-the-range oven is designed for use over ranges no wider than 36." It may be installed over both gas and electric cooking equipment.
  ■ Do not operate this appliance if it has a damaged power cord or plug, if it is not

working properly, or if it has been damaged or dropped. If the power cord is damaged, it must be replaced by General Electric Service or an authorized service agent using a power cord available from General Electric.

■ Install or locate this appliance only in accordance with the provided installation instructions.
■ Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving risk of electric shock.

Use this appliance only for its intended purpose as described in this Owner's Manual.

■ To reduce the risk of fire in the oven cavity:
— Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the oven while cooking.
— Remove wire twist-ties and metal handles from paper or plastic containers before placing them in the oven.
— Do not use the oven for storage purposes. Do not leave paper products, cooking utensils or food in the oven when not in use.
— Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens.
— If materials inside the oven ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread.
— Do not use the oven to dry newspaper.
■ Thermometer—Do not use regular cooking or oven thermometers when cooking by microwave. The metal and mercury in these thermometers could cause arcing and possible damage to the oven. Do not use a thermometer in food you are microwaving unless the thermometer is designed or recommended for use in the microwave oven.
■ Do not store any materials, other than our recommended accessories, in this oven when not in use.
■ Do not store this appliance outdoors. Do not use this product near water—for example, in a wet basement, near a swimming pool, near a sink or in similar locations.
- Keep power cord away from heated surfaces.
■ Do not immerse power cord or plug in water.
■ Do not block or cover any openings on the appliance.

■ This microwave is not approved or tested for marine use.
■ Use this appliance only for its intended use as described in this manual.
■ Do not use corrosive chemicals or vapors in this appliance.
This microwave oven is specifically designed to heat, dry or cook food, and is not intended for laboratory or industrial use.
■ Some products such as whole eggs and sealed containers—for example, closed jars—are able to explode and should not be heated in this microwave oven. Such use of the microwave oven could result in injury.
It is important to keep the area clean where the door seals against the microwave. Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.
■ This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for examination, repair or adjustment.
■ As with any appliance, close supervision is necessary when used by children.
■ Do not store anything directly on top of the microwave oven surface when the microwave oven is in operation.
■ Do not mount this appliance over a sink.
■ Do not let the cord hang over edge of counter.
■ Do not use paper products in oven when appliance is operated in any cooking mode except microwave only.

Abstract black-and-white graphic with lightning bolt and explosion lines (no text or symbols)

⚠ WARNING! ARCING

If you see arcing, press the CANCEL/OFF button and correct the problem.

Arcing is the microwave term for sparks in the oven. Arcing is caused by:

■ Metal or foil touching the side of the oven.
■ Turntable ring support not installed correctly.
■ Foil not molded to food (upturned edges act like antennas).
■ Metal, such as twist-ties, poultry

pins, or gold-rimmed dishes, in the microwave.

■ Recycled paper towels containing small metal pieces being used in the microwave.

Abstract black-and-white line drawing with irregular shapes and no text or symbols

⚠ WARNING! FOOD

■ Do not pop popcorn in your microwave oven unless in a special microwave popcorn accessory or unless you use popcorn labeled for use in microwave ovens.

■ Do not boil eggs in a microwave oven. Pressure will build up inside egg yolk and will cause it to burst, possibly resulting in injury.

■ Operating the microwave with no food inside for more than a minute or two may cause damage to the oven and could start a fire. It increases the heat around the magnetron and can shorten the life of the oven.

- Foods with unbroken outer "skin" such as potatoes, hot dogs, sausages, tomatoes, apples, chicken livers and other giblets, and egg yolks should be pierced to allow steam to escape during cooking.

SUPERHEATED WATER

Liquids, such as water, coffee, or tea, are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

— Do not overheat the liquid.

— Stir the liquid both before and halfway through heating it.

— Do not use straight-sided containers with narrow necks.

— After heating, allow the container to stand in the microwave oven for a short time before removing the container.

— Use extreme care when inserting a spoon or other utensil into the container.

■ Foods cooked in liquids (such as pasta) may tend to boil more rapidly than foods containing less moisture. Should this occur, refer to the Care and Cleaning of the Microwave Oven section for instructions on how to clean the inside of the oven.

■ Avoid heating baby food in glass jars, even with the lid off. Make sure all infant food is thoroughly cooked. Stir food to distribute the heat evenly. Be careful to prevent scalding when warming formula. The container may feel cooler than the formula really is. Always test the formula before feeding the baby.

- Don't defrost frozen beverages in narrow-necked bottles (especially carbonated beverages). Even if the container is opened, pressure can build up. This can cause the container to burst, possibly resulting in injury.

■ Hot foods and steam can cause burns. Be careful when opening any containers of hot food, including popcorn bags, cooking pouches and boxes. To prevent possible injury, direct steam away from hands and face.

■ Do not overcook potatoes. They could dehydrate and catch fire, causing damage to your oven.

■ Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING.

MICROWAVE-SAFE COOKWARE

Do not operate the oven in the microwave mode without the turntable and the turntable support seated and in place. The turntable must be unrestricted so it can rotate. Make sure all cookware used in your microwave oven is suitable for microwaving. Most glass casseroles, cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does not have metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled “suitable for microwaving.”

If you are not sure if a dish is microwave-safe, use this test: Place in the oven both the dish you are testing and a glass measuring cup filled with 1 cup

Line drawing of a cup and bowl in a circular frame (no text or symbols)

How to test for a microwave-safe dish.

of water—set the measuring cup either in or next to the dish. Microwave 30–45 seconds at high. If the dish heats, it should not be used for microwaving.

If the dish remains cool and only the water in the cup heats, then the dish is microwave-safe.

■ Oversized food or oversized metal cookware should not be used in a microwave/convection oven because they increase the risk of electric shock and could cause a fire.
■ Sometimes the oven floor, turntable and walls can become too hot to touch. Be careful touching the floor, turntable and walls during and after cooking.
■ If you use a meat thermometer while microwaving, make sure it is safe for use in microwave ovens.
- Do not use recycled paper products. Recycled paper towels, napkins and waxed paper can contain metal flecks which may cause arcing or ignite. Paper products containing nylon or nylon filaments should be avoided, as they may also ignite.

■ Some foam trays (like those that meat is packaged on) have a thin strip of metal embedded in the bottom. When microwaved, the metal can burn the floor of the oven or ignite a paper towel.
■ Do not use your microwave oven to dry newspapers.
■ Not all plastic wrap is suitable for use in microwave ovens. Check the package for proper use.
■ Paper towels, waxed paper and plastic wrap can be used to cover dishes in order to retain moisture and prevent spattering while microwaving. Be sure to vent plastic wrap so steam can escape.
■ Cookware may become hot because of heat transferred from the heated food. Pot holders may be needed to handle the cookware.
- When microwaving "boilable" cooking pouches and tightly closed plastic bags, they should be slit, pierced or vented as directed by package. If they are not, plastic could burst during or immediately after cooking, possibly resulting in injury. Also, plastic storage containers should be at least partially uncovered because they form a tight seal. When cooking with containers tightly covered with plastic wrap, remove covering carefully and direct steam away from hands and face.

MICROWAVE-SAFE COOKWARE (cont.)

■ Use foil only as directed in this manual. When using foil in the microwave oven, keep the foil at least 1" away from the sides of the oven.
■ Plastic cookware designed for microwave cooking is very useful, but should be used carefully. Even microwave-safe plastic may not be as tolerant of overcooking conditions as are glass or ceramic materials and may soften or char if subjected to short periods of overcooking. In longer exposures to overcooking, the food and cookware could ignite.

Follow these guidelines:

1 Use microwave-safe plastics only and use them in strict compliance with the cookware manufacturer's recommendations.
2 Do not microwave empty containers.
3 Do not permit children to use plastic cookware without complete supervision.

GROUNDING INSTRUCTIONS

WARNING!

Improper use of the grounding can result in a risk of electric shock.

Technical illustration of a plug-in socket connected to a wall socket (no text or symbols present)

Ensure proper ground exists before use.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric

shock by providing an escape wire for the electric current.

This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service technician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

For best operation, plug this appliance into its own electrical outlet to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS. READ ALL INSTRUCTIONS BEFORE USING.

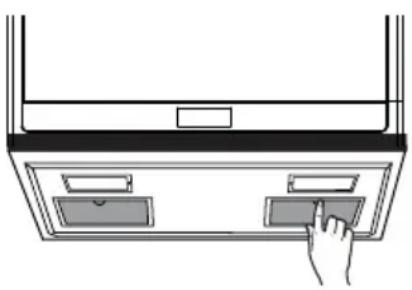

THE VENT FAN

The fan will operate automatically under certain conditions (see Automatic Fan feature). Take care to prevent the starting and spreading of accidental cooking fires while the vent fan is in use.

■ Clean the underside of the microwave often. Do not allow grease to build up on the microwave or the fan filters.
In the event of a grease fire on the surface units below the microwave oven, smother a flaming pan on the surface unit by covering the pan completely with a lid, a cookie sheet or a flat tray.

■ Use care when cleaning the vent fan filters. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filters.
■ When preparing flaming foods under the microwave, turn the fan on.
■ Never leave surface units beneath your microwave oven unattended at high heat settings. Boilovers cause smoking and greasy spillovers that may ignite and spread if the microwave vent fan is operating. To minimize automatic fan operation, use adequate sized cookware and use high heat on surface units only when necessary.

PACEMAKERS

Most pacemakers are shielded from interference from electronic products, including microwaves. However, patients with pacemakers may wish to consult their physicians if they have concerns.

OPTIONAL KITS

Available at extra cost from your GE supplier.

15" bump-out kits

■ JX15BUMPWW —White
■ JX15BUMPBB —Black
■ JX15BUMPES —Stainless/Slate

For use with cabinets deeper than 14 58 inches. Brings microwave further out from the wall for improved ventilation, access, and appearance.

Charcoal Filter Kits

■ JX81L —Recirculating Charcoal Filter Kit

Filter kits are used when the oven cannot be vented to the outside.

See back cover to order by phone or at GEAppliances.com.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

Throughout this manual, features and appearance may vary from your model.

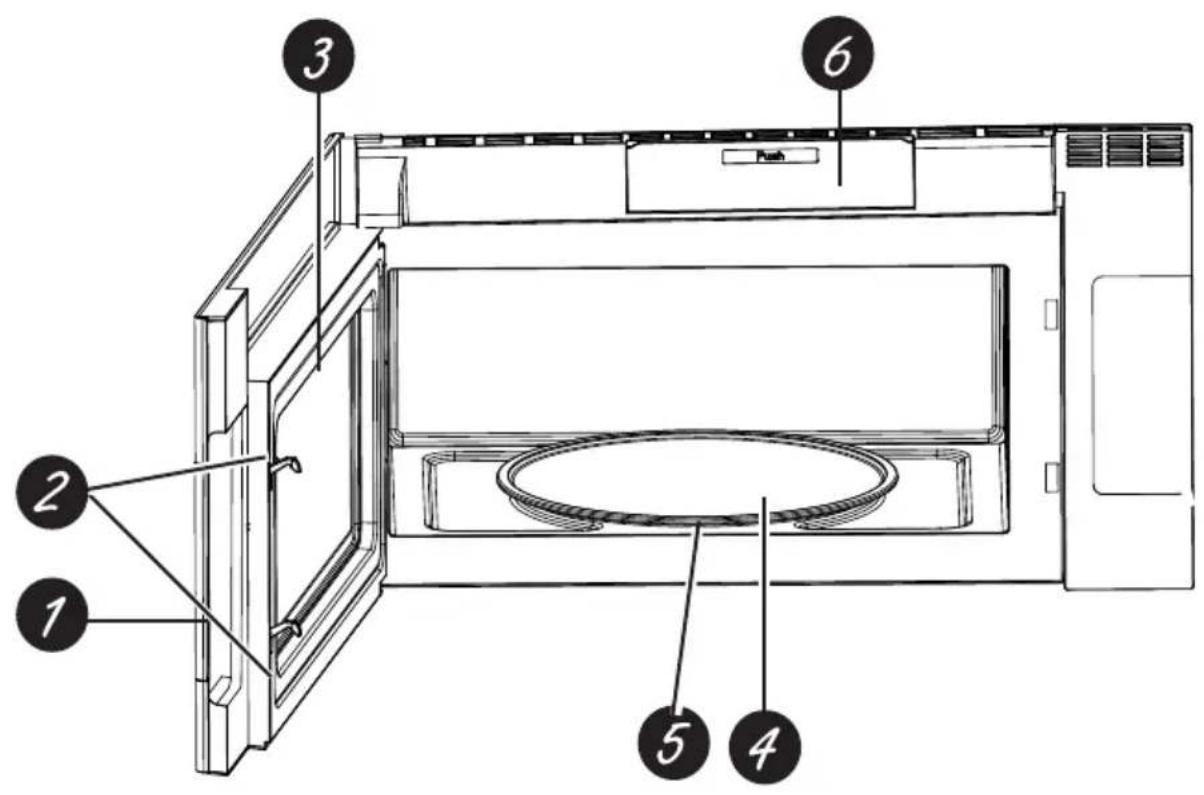

Technical diagram of a microwave oven with numbered components for identification

Features of the Oven

Door Handle.

Door Latches.

Window with Metal Shield. Screen allows cooking to be viewed while keeping microwaves confined in the oven.

Removable Turntable. Do not operate the oven in the microwave mode without the turntable and turntable support seated and in place.

Removable Turntable Support.

Do not operate the oven in the microwave mode without the turntable and turntable support seated and in place.

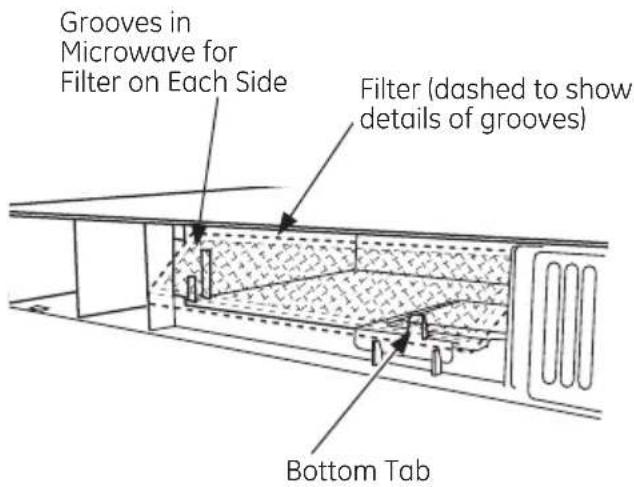

Charcoal Filter Cover. Push the cover to replace the charcoal filter without taking the unit off from cabinet.

About the cooking features of your microwave oven.

Throughout this manual, features and appearance may vary from your model.


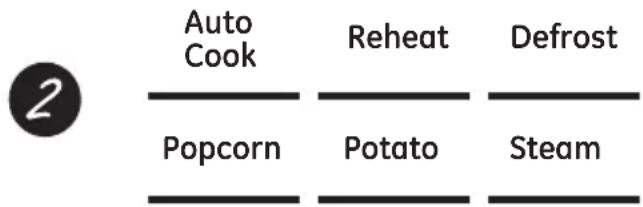

Sensor Cooking -

2 Auto Cook Reheat Defrost Popcorn Potato Steam

Cooking Controls

Check the Convenience Guide before you begin.

Time Features

Press	Enter
COOK TIME Amount of cooking time
DEFROST Weight or time
TIMER
POWER LEVEL Power level 1 to 10
ADD 30 SEC Starts immediately!
EXPRESS COOK	Starts	immediately!

Sensor/Convenience Features

Press	Enter
AUTO COOK Press pad to select food
POPCORN	Start immediately
REHEAT Press pad to select food
POTATO	Start immediately
STEAM Press pad to select food

About the time features. GEAppliances.com

Cook Time

Express Cook

1	2	3	4	5
6	7	8	9	0

Start Pause

Express Cook

1	2	3	4	5
6	7	8	9	0

Add 30 Sec

Cook Time

Allows you to microwave for any time up to 99 minutes and 99 seconds.

Power level 10 (HIGH) is automatically set, but you may change it for more flexibility.

1 Press Cook Time.

2 Enter cooking time.

3 Press START. Cooking will start when the countdown begins in the display.

You may open the door during Cook Time to check the food. Close the door and press START to resume cooking.

Express Cook

This is a quick way to set cooking time for 1-5 minutes.

1 Press one of the Express Cook pads (from 1-5) for 1-5 minutes of cooking at power level 10. For example, press the 2 pad for 2 minute of cooking time.

The power level can be changed as time is counting down. Press POWER LEVEL and enter 1-10.

NOTE: Express Cook function pertains to pads 1-5 only.

Add 30 Sec

This will add 30 seconds to the time counting down each time the pad is pressed. Each touch will add 30 seconds, up to 99 minutes and 99 seconds.

Add 30 sec can also be used like an express 30 seconds button. The microwave oven will start immediately when pressed.

About the defrost features.

Defrost

Express Cook

1

2

3

4

5

6

7

8

9

0

Start Pause

Weight Defrost

Use Weight Defrost for meat, poultry and fish. Use Time Defrost for most other frozen foods. (Time Defrost is explained on page 13.)

1 Press DEFROST once for Weight Defrost.
2 Enter the weight in pounds.
3 Press START. Cooking will start when the countdown begins in the display.

Defrosting Tips

■ Remove meat from package and place on microwave-safe dish.
■ When the oven signals, turn the food over. Remove defrosted meat or shield warm areas with small pieces of foil.
■ After defrosting, most meats need to stand 5 minutes to complete defrosting. Large roasts should stand for about 30 minutes.

Conversion Guide

If the weight of food is stated in pounds and ounces, the ounces must be converted to tenths (.1) of a pound.
Ounces Pounds
1-2 .1
3	.2
4-5 .3
6-7 .4
8	.5
9-10 .6
11 .7
12-13 .8
14-15 .9

Note: Max 6.0 lbs.

Defrost

Express Cook

1

2

3

4

5

6

7

8

9

0

Start Pause

Time Defrost

Allows you to defrost for a selected length of time. See the Defrosting Guide on page 14 for suggested times (Weight Defrost is explained on page 12).

1 Press DEFROST twice for Time Defrost.
2 Enter defrosting time in minutes and seconds.
3 Press START.

Cooking will start when the countdown begins in the display.

At one half of selected defrosting time, turn food over and break apart or rearrange pieces for more even defrosting. Shield any warm areas with small pieces of foil. The oven will continue to defrost if you don't open the door and turn the food.

Noises may be heard during defrosting. This is normal when oven is not operating at High power.

Defrosting Tips

• Foods frozen in paper or plastic can be defrosted in the package. Closed packages should be slit, pierced or vented AFTER food has partially defrosted. Plastic storage containers should be partially uncovered.
  ■ Family-size, prepackaged frozen dinners can be defrosted and microwaved. If the food is in a foil container, transfer it to a microwave-safe dish.
  ■ Foods that spoil easily should not be allowed to sit out for more than one hour after defrosting. Room temperature promotes the growth of harmful bacteria.
  ■ For more even defrosting of larger foods, such as roasts, use Time Defrost. Be sure large meats are completely defrosted before cooking.
  ■ When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the microwave very briefly, or let it stand a few minutes.

Defrosting Guide

FOOD TIME COMMENTS
Bread, Cakes Bread, buns, or rolls (1 piece) Sweet rolls (approx. 12 oz)	1/4 min. 2 to 4 min. Rearrange after half the time
Fish and Seafood Fillets, Frozen (1 lb) 6 to 9 min.
Fruit Plastic Pouch - 1 or 2 (10 oz package)	1 to 5 min.
Meat Bacon (1 lb)	2 to 5 min.	Place unopened package in oven. Let stand 5 minutes after defrosting.
Franks (1 lb)	2 to 5 min.	Place unopened package in oven. Microwave just until franks can be separated. Let stand 5 minutes, if necessary, to complete defrosting.
Ground meat (1 lb)	4 to 6 min.	Turn meat over after first half of time.
Roast: beef, lamb, veal, pork	9 to 13 min. per lb.	Use power level 10.
Steaks, chops and cutlets	4 to 8 min. per lb.	Place unwrapped meat in cooking dish. Turn over after first half of time and shield warm areas with foil. After second half of time, separate pieces with table knife. Let stand to complete defrosting.
Poultry Chicken, broiler-fryer, cut up (21⁄2 to 3 lbs.)	14 to 20 min.	Place wrapped chicken in dish. Unwrap and turn over after first half of time. After second half of time, separate pieces and place in cooking dish. Microwave 2 to 4 minutes more, if necessary. Let stand a few minutes to finish defrosting.
Chicken, whole (21⁄2 to 3 lbs.)	20 to 25 min.	Place wrapped chicken in dish. After half the time, unwrap and turn chicken over. Shield warm areas with foil. To complete defrosting, run cold water in the cavity until giblets can be removed.
Cornish hen	7 to 13 min. per lb.	Place unwrapped hen in the oven breast-side up. Turn over after first half of time. Run cool water in the cavity until giblets can be removed.
Turkey breast (4 to 6 lbs.)	3 to 8 min. per lb.	Place unwrapped breast in microwave-safe dish breast-side down. After first half of time, turn breast-side up and shield warm areas with foil. Defrost for second half of time. Let stand 1 to 2 hours in refrigerator to complete defrosting.

Simple line drawing of a cooking pot (no text or symbols)

Covered

Simple line drawing of a container with liquid and a handle, no text or symbols present

Vented

Cross symbol of a cooking pot with raindrops, no text or labels present

Dry off dishes so they don't mislead the sensor.

The Sensor Features detect the increasing humidity released during cooking. The oven automatically adjust the cooking time to various types and amounts of food.

Do not use the Sensor Features twice in succession on the same food portion - It may result in severely overcooked or burnt food. Be sure to let the oven cool down for 5 - 10 minutes before starting the next sensor cook.

If food is undercooked after the countdown, use Cook Time for additional cooking time

- The proper containers and covers are essential for best sensor cooking.

• Always use microwave-safe containers and cover them with lids or vented plastic wrap.

Never use tight-sealing plastic covers - they can prevent steam from escaping and cause food to overcook.

- Be sure the outside of the cooking container and the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning into steam can mislead the sensor.

About the sensor features.

Auto Cook

Express Cook

1 2 3 4 5 6 7 8 9 0

Start Pause

How to Change the Automatic Settings

To reduce time by 10%:

Press 1 after the feature pad.

To add 10% to cooking time:

Press 9 after the feature pad.

Auto Cook

Allows you to microwave food choices with sensor.

1 Press AUTO COOK button.

2 Enter the food type code. See Cooking Guide for AUTO COOK below for codes or check the display for food types..

3 Press START. The oven signals when steam is sensed and the time remaining begins counting down.

Do not open the oven door until time is counting down. If the door is opened before time is counting down 4 beeps are emitted while the display will Scroll & Cycle "SENSOR ERROR" until CANCEL is pressed. The sensor cook will be cancelled as well. If the Door is opened during the counting down, close it and press START immediately.

Cooking Guide for Auto Cook Feature

CODE ENTRY	FOOD COMMENTS
1 Chicken
2 Fish
3 Ground Meat
4 Veggies Enter veggies type

Popcorn

Popcorn

To use the Popcorn feature:

1 Place the package of popcorn in the center of the microwave.

2 Press POPCORN. The oven starts immediately.

Your popcorn bag may get stuck and stop rotating, but this will not affect the cooking performance. Do not open the door even if the bag is not rotating.

Using the vent function in combination with the popcorn sensor feature may lead to over cooking.

How to Change the Automatic Settings

To reduce time by 10%:

Press 1 after the feature pad.

To add 10% to cooking time:

Press 9 after the feature pad.

If food is undercooked after the countdown, use Cook Time for additional cooking time. We recommend 30 seconds and watch carefully.

Reheat

Reheat

The Reheat feature reheats servings of previously cooked foods or a plate of leftovers.

1 Press REHEAT.
2 Using the cooking guide below, enter food code. For example, 1 for Pasta.
3 Press START/PAUSE. The oven signals when steam is sensed and the time remaining begins counting down.

Do not open the oven door until time is counting down. If the door is opened before time is counting down 4 beeps are emitted while the display will Scroll & Cycle "SENSOR ERROR" until CANCEL is pressed. The sensor cook will be cancelled as well. If the Door is opened during the counting down, close it and press START immediately.

After removing food from the oven, stir, if possible, to even out the temperature. If the food is not hot enough, use Cook Time to reheat for more time. Reheated foods may have wide variations in temperature. Some areas may be extremely hot.

It is best to use Cook Time for these foods:

■ Bread products.
■ Foods that must be reheated covered.
■ Foods that need to be stirred or rotated during reheating.
■ Foods calling for a dry look or crisp surface after reheating.

How to Change the Automatic Settings

To reduce time by 10%:

Press 1 after the feature pad.

To add 10% to cooking time:

Press 9 after the feature pad.

Cooking Guide for Reheat Feature:

Code Entry Food
1 Pasta
2 Pizza
3 Plate
4	S

About the sensor features.

Potato

Potato

To use the Potato feature:

1 Place the potato in the center of the microwave.
2 Press POTATO. The oven starts immediately.

Do not open the oven door until time is counting down. If the door is opened before time is counting down 4 beeps are emitted while the display will Scroll & Cycle "SENSOR ERROR" until CANCEL is pressed. The sensor cook will be cancelled as well. If the Door is opened during the counting down, close it and press START immediately.

How to Change the Automatic Settings

To reduce time by 10%: Press 1 after the feature pad.

To add 10% to cooking time: Press 9 after the feature pad.

Microwave terms.

Term Definition
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:metal or foil touching the side of the oven.foil that is not molded to food (upturned edges act like antennas).metal such as twist-ties, poultry pins, gold-rimmed dishes.recycled paper towels containing small metal pieces.
Covering Covers hold in moisture, allow for more even heating and reduce cooking time.Venting plastic wrap or covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs on poultry, which would cook before larger parts.
Standing Time	When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish cooking or to set. Standing time is especially important in micro-wave cooking. Note that a microwaved cake is not placed on a cooling rack.
Venting After covering a dish with plastic wrap, vent the plastic wrap by turning back one corner so excess steam can escape.

Steam

Express Cook

1

2

3

4

5

6

7

8

9

0

Start Pause

Steam

Use the STEAM feature to steam certain preprogrammed foods.

Cooking Guide for Steam Feature

Code Entry	Food Amount Entry
1 Rice	1 - 1 cup white	2 - 1 cup brown
2 Asparagus	1 - 1 cup	2 - 2 cups
3 Broccoli	1 - 1 cup	2 - 2 cups
4 Brussel Sprouts		1 - 1 cup2 - 2 cups
5 Carrots	1 - 1 cup	2 - 2 cups
6 Cauliflower	1 - 1 cup	2 - 2 cups
7 Zucchini	1 - 1 cup	2 - 2 cups

1 Press STEAM button.

2 Enter the food type code you wish to steam. See Cooking Guide for STEAM below for codes or check the display for food types.

3 Place steamer bowl with water, salt (if necessary), and food in the microwave with the steam vents on the steamer bowl in the OPEN position.

4 Press START button to being cooking.

NOTE: The NordicWare Rice Cooker/Steamer Bowl should be used for best cooking results.

About the Power Level features.

Power Level

Express Cook

1

2

3

4

5

6

7

8

9

0

Changing the Power Level

The power level may be entered or changed before or during cooking. Power Level is set for Level 10 (High) unless it is changed.

1 Press Power Level button.
2 Enter new power level by using the number pads or press the Power Level button multiple times until you find the level you want.
3 After you have selected the power level, wait five seconds. The display will go back to the Cook Time screen.
4 Enter cooking time and press START.

OR

1 Press Cook Time button.
2 Enter your cooking time.
3 Press Power Level button.
4 Enter new power level by using the number pads or press the Power Level button multiple times until you find the level you want.
5 After you have selected the power level, wait five seconds. The display will go back to the Cook Time (Enter Time) screen.

6 Press START.

Variable power levels add flexibility to microwave cooking. The power levels on the microwave oven can be compared to the surface units on a range. Each power level gives you microwave energy a certain percent of the time. Power level 7 is microwave energy 70% of the time. Power level 3 is energy 30% of the time. Most cooking will be done on High (power level 10) which gives you 100% power. Power level 10 will cook faster but food may need more frequent stirring, rotating or turning over. A lower setting will cook more evenly and need less stirring or rotating of the food. Some foods may have better flavor, texture or appearance if one of the lower settings is used. Use a lower power level when cooking foods that have a tendency to boil over, such as scalloped potatoes and some casseroles.

Rest periods (when the microwave energy cycles off) give time for the food to “equalize” or transfer heat to the inside of the food. An example of this is shown with Power level 3—the defrost cycle. If microwave energy did not cycle off, the outside of the food would cook before the inside was defrosted.

Here are some examples of uses for various power levels:

High 10 (100%): Fish, bacon, vegetables, boiling liquids.

Med-High 7 (70%): Gentle cooking of meat and poultry; baking casseroles and reheating.

Medium 5 (50%): Slow cooking and tenderizing for stews and less tender cuts of meat.

Low 2 or 3 (20 or 30%): Defrosting; simmering; delicate sauces.

Warm 1 (10%): Keeping food warm; softening butter.

NOTE: You can also change the power level during many cooking modes by pressing the power level button entering a valid power level.

About the other features. GEAppliances.com

SetClock	ClockTo change the time of day.1 Press the Set Clock button. (The microwave should not be running.)2 Enter the appropriate time of day. Clock is on a 12-hour scale.3 Press Set Clock or Start to accept the time.
StartPause	Start/PauseIn addition to starting many functions, START/PAUSE allows you to stop cooking without opening the door or clearing the display and resume cooking later.
CancelOff	Cancel/OffPress the CANCEL/OFF button to stop and cancel cooking at any time.
LockControlHold 3 Sec	Control Lock-OutYou may lock the control panel to prevent the oven from being accidentally started during cleaning or being used by children.To lock or unlock the controls, press and hold the LOCK CONTROL button for three seconds. When the control panel is locked, LOCKED will be displayed briefly anytime a button or dial is pressed. “L” will show in the display.
SurfaceLight	Surface LightPress SURFACE LIGHT once for low light, twice for high light or a third time to turn the light off.Note: If the microwave is working and the vent fan is on Boost speed, the surface lights will be turned to low light automatically.

About the other features.

Timer On/Off

NOTE: The Timer indicator will be lit while the timer is operating.

Timer

The Timer operates as a minute timer and can be used at any time, even when the oven is operating.

1 Press the Timer button.
2 Enter a time.
3 Press the Timer button to start.

To cancel, press the Timer button.

When time is up, the oven will signal. To turn off the timer signal, press Timer.

Display

00:48

If you have the Timer counting down and you are using the Cook Time at the same time, you can change the display to show either the timer or the cook time countdown.

If the display shows the time for the Timer and you would like to view the Cook Time, press the COOK TIME button.

4:31

TIMER

If the display shows the time for the Cook Time and you would like to view the Timer, press the TIMER button

About the other features. GEAppliances.com

Turntable

Turntable

For best cooking results, leave the turntable on. It can be turned off for large dishes.

Press the Turntable pad once to turn the turntable off. Press again to turn the turntable back on.

Sometimes the turntable can become too hot to touch. Be careful touching the turntable during and after cooking.

Turntable can be turned off during the Cook Time or Express Cook features by pressing the Turntable pad. Note: At the conclusion of the Cook Time and Express Cook features, the turntable will automatically return to ON.

Vent Fan

Vent Fan

The vent fan removes steam and other vapors from surface cooking.

Press Vent Fan once for low fan speed, twice for medium fan speed, three times for high fan speed, four times for boost speed or five times to turn the fan off

Automatic Fan

An automatic fan feature protects the microwave from too much heat rising from the cooktop below it. It automatically turns on if it senses too much heat.

If you have turned the fan on you may find that you cannot turn it off. The fan will automatically turn off when the internal parts are cool. It may stay on for 30 minutes or more after the cooktop and microwave controls are turned off.

Insert Food Reminder

A reminder will show on the display if the user tries to start the cooking cycle without placing food inside the microwave oven within 5 minutes prior to starting the cooking cycle.

Cooking Complete Reminder

To remind you that you have food in the oven, the oven will display "Food is ready" and beep once a minute until you either open the oven door or press the CANCEL/OFF button.

Settings

Settings

Settings allow to change the default settings of your OTR.

1 Press the Settings pad. "SELECT SETTING ITEM 1 - BEEPER VOLUME, 2 - CLOCK MODE, 3 - DISPLAY ON/OFF, 4 - LIGHT SYNC, 5 - VENT FAN SYNC, 6 - SYNC AUTO OFF, or 7 - EXIT" will scroll and repeat on display.

2 Select the item to change the settings. See below tables for detail Guide

Code Entry	Items for setting Level Entry
1 Beeper Volume 0 - Mute		1 - Low2 - Normal3 - LoudDefault is normal
2 Clock Mode 0 - 12 hours		1 - 24 hoursDefault is 12 hours
3 DisplayOn/Off		0 - Off1 - OnDefault is On
4 Light Sync - Selects the light level at which the surface lights will automatically turn on when paired range's burner is turned on. Select "Off" to disable this feature. Surface light will turn on manually.		0 - Off1 - Low2 - HighDefault is High
5 Vent Fan Sync - Selects the fan speed at which the vent fan will automatically turn on when paired range's burner is turned on. Select "Off" to disable this feature. Vent fan will turn on manually.		0 - Off1 - Low2 - Medium3 - High4 - BoostDefault is OFF
6 Sync Auto Off - When the Light/Vent fan sync mode is enabled (ON), this will automatically turn OFF the light/fan when the range burner has been turned off. Select the period of time the light/fan will remain on until the microwave automatically turns it off.		0 - 0 minutes1 - 5 mintues2 - 10 minutes3 - 15 minutes4 - ManualDefault is 15 minutes
7 Settings Exit 1 - Exit

Chef Connect On/Off

To Pair Hold 3 Sec

Chef Connect

Use the Chef Connect feature for connecting your microwave to a GE range to sync your vent fan, cooktop surface lights and clock via Bluetooth technology.

1 You must have a Chef Connect enabled range. To pair your microwave for the first time, initiate the Chef Connect process on the GE range. Refer to the range owner's manual for instructions
2. On the microwave, hold Chef Connect button for 3 seconds. The Bluetooth icon on the display will start flashing as the microwave starts to search and pair with your GE Range. The icon will remain ON after pairing successfully.

If a GE Range is not found within 2 minutes during search mode the microwave will stop searching and the Bluetooth icon will turn OFF.

On initial setup, the setup protocol will start.

If the Chef Connect feature is enabled the default settings are as follows:

• Display clock sync: ON
• Auto cooktop light: ON (HIGH setting)
• Auto vent fan: OFF
• Auto off: 15 minutes

3 Select 1 to sync the surface lights to your GE range. It allows the microwave surface lights to turn on at HIGH level automatically when the paired range's cooktop burner turns on.
4 Select 1 to sync the vent fan to your GE range. This allows the microwave vent fan to turn on at LOW speed automatically when the paired range's cooktop burner turns on.

Pairing is now complete, the Chef Connect feature is now on.

Note: If there is no sync option selected during set up, 5 minutes after icon ➕ turns on, the units will return to stand-by mode.

After completing the setting per above steps, your microwaves vent fan and cooktop light will be set to turn on automatically when the cooktop burner is turned on. The cooktop and range clock display will be synced to display the same time. The vent fan and cooktop light will be set to automatically turn off 15 minutes after the cooktop burner is turned off.

If desired, the light, fan, and auto off settings can now be changed using settings options 4, 5, and 6, respectively.

Press Chef Connect once to turn off and twice to re-connect. The icon ✦ will illuminate when on.

In the case of an unintended disconnect such as lost power to the microwave or range the connection will remain after power resumed. For very short power interruptions, the power may need to be reset in order to reconnect

About the other features.

Reset Filter

Hold 3 Sec

Reset Filter

The red LED indicator will light every 6 months as a reminder to replace the charcoal filter.

After replacing the charcoal filters, Hold the Rest Filter for 3 seconds to turn off the Red LED indicator.

Charcoal Filter

The charcoal filter cannot be cleaned. It must be replaced. Order Part No. WB02X11550 from your GE supplier.

If the model is not vented to the outside, the air will be recirculated through a disposable charcoal filter that helps remove smoke and odors.

The charcoal filter should be replaced when the red LED indicator lights under the Reset Filter pad. See "Optional Kits," page 8, for more information.

Line drawing of a microwave oven with open door and internal compartments (no text or symbols)

To Remove The Charcoal Filter

To remove the charcoal filter, first disconnect power at the main fuse or circuit breaker, or pull the plug. Open the microwave oven door and push the "Push" area on charcoal filter cover at center of the grille. Press back on the top of the filter with both hands until the filter lays down almost horizontal. Lift the filter at the bottom until it comes free of the tabs. Slide the filter down and out.

Technical line drawing of a car air conditioner unit with internal airflow path (no text or symbols)

Grooves in Microwave for Filter on Each Side Filter (dashed to show details of grooves) Bottom Tab

To Install the Charcoal Filter

To install a new charcoal filter, remove plastic and other outer wrapping from the new filter.

Insert the top of the filter up and into the grooves on both sides of the inside of the top opening. Once you have cleared the bottom tab, push the bottom of the filter in until it rests in place vertically behind the tab.

Close the charcoal filter cover at center of the grille by pushing the "Push" area again.

How to install charcoal filter, here is video instruction.

http://www.geappliances.com/videos/microwave-troubleshooting-fix.htm

QR code image containing encoded data, no visible human-readable text

Use your smartphone app to scan this code.

Care and cleaning of the oven.

Illustration of various household items including a baking soda, soap bottle, and stacked bricks (no text or symbols)

Helpful Hints

An occasional thorough wiping with a solution of baking soda and water keeps the inside fresh.

Be sure the power is off before cleaning any part of this microwave oven.

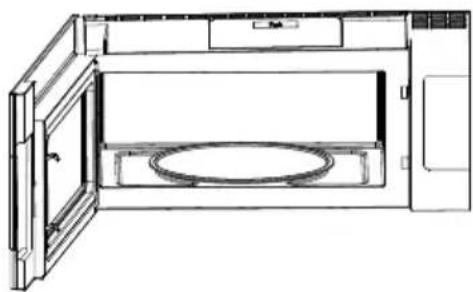

Line drawing of a microwave oven with open door and side panel (no text or symbols)

How to Clean the Inside

Walls, Floor, Inside Window, Metal and Plastic Parts on the Door

Some spatters can be removed with a paper towel; others may require a damp cloth. Remove greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not use abrasive cleaners or sharp utensils on oven walls.

Never use a commercial oven cleaner on any part of your microwave.

Simple line drawing of a rectangular container with a circular ring on the bottom (no text or symbols)

Removable Turntable and Turntable Support

To prevent breakage, do not place the turntable into water just after cooking. Wash it carefully in warm, sudsy water or in the dishwasher. The turntable and support can be broken if dropped. Remember, do not operate the oven in the microwave mode without the turntable and support seated and in place.

Simple line drawing of a rectangular room or space with a central dot and rectangular base (no text or symbols)

Line drawing of a laptop with two side drawers, no text or symbols present

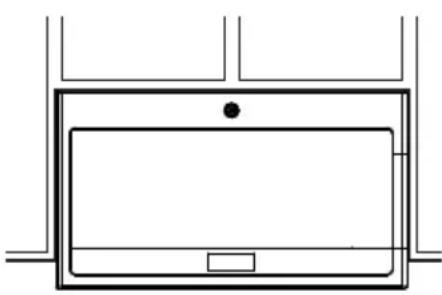

How to Clean the Outside

We recommend against the use of spray cleaners and using cleaners with ammonia or alcohol, as they can damage the appearance of the microwave oven. If you choose to use a common household cleaner, first apply the cleaner directly to a clean cloth, then wipe the soiled area.

Case

Clean the outside of the microwave with a sudsy cloth. Rinse and then dry. Wipe the window clean with a damp cloth.

Diagram of a hand pressing down on a device panel with two buttons (no text or symbols)

Control Panel

Wipe with a damp cloth. Dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel—they can damage it. Some paper towels can also scratch the control panel.

Door Panel

Before cleaning the front door panel, make sure you know what type of panel you have. Refer to the eighth digit of the model number. "S" is stainless steel "B", "W" or "C" are plastic colors.

Stainless Steel (on some models)

The stainless steel panel can be cleaned with Stainless Steel Magic or a similar product using a clean, soft cloth. Apply stainless cleaner carefully to avoid the surrounding plastic parts. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel finishes.

Plastic Color Panels

Use a clean, soft, lightly dampened cloth, then dry thoroughly.

Door Seal

It's important to keep the area clean where the door seals against the microwave. Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Bottom

Clean off the grease and dust on the bottom often. Use a solution of warm water and detergent.

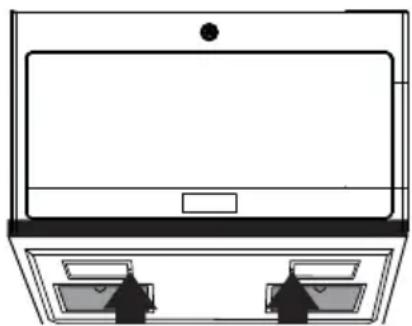

Removing and Cleaning the Filters

To remove, slide them to the rear using the tabs. Pull down and out.

To clean the vent filters, soak them and then swish around in hot water and detergent. Don't use ammonia or ammonia products because they will darken the metal. Light brushing can be used to remove embedded dirt.

Rinse, shake and let dry before replacing.

To replace, slide the filters into the frame slots on the back of each opening. Press up and to the front to lock into place.

Line drawing of a laptop front panel with two side monitors (no text or symbols)

Remove screws.

Simple line drawing of a laptop with two hanging binders (no text or symbols)

Replacing the Oven Cavity Lamp

1. Disconnect power at the main fuse or circuit breaker panel.
2. Remove the top grill by removing the two screws that hold it in place.
3. Remove charcoal filter if present. NOTE: Charcoal filter is an optional kit, you may not have one.
4. Press the retainer holding the lamp shield in place.

Cooktop Lights/Nite Lights

Replace with 120 volt, 40 watt (max) incandescent bulbs. Order WB25X10030 from your GE supplier.

1 To replace the cooktop lights/nite lights, first disconnect the power at the main fuse or circuit breaker panel, or pull the plug.
2 One side at a time, remove the screw from the side of the light compartment cover and lower the cover until it stops.
3 Be sure the bulb is cool before removing. Break the adhesive seal by gently unscrewing the bulb.
4 Screw in the new bulb, then raise the light cover and replace the screw. Repeat for the other light. Connect electrical power to the oven.

1. Pull the lamp shield out. Unscrew the light bulb out and replace with the 120V-130V, 30W incondescent bulb. Order WB25X10029 from your GE supplier.
2. Return the lamp and lamp shield to original position and replace charcoal filter.
3. Replace the grill and 2 screws. Reconnect power to the oven.

About the exhaust feature.

Charcoal filter (on some models).

Diagram of a laptop with two side drawers and directional arrows indicating orientation (no text or symbols)

Reusable vent filters (on all models).

Vent Fan

The vent fan has two metal reusable vent filters. Models that recirculate air back into the room also use a charcoal filter.

Reusable Vent Filters

The metal filters trap grease released by foods on the cooktop. They also prevent flames from foods on the cooktop from damaging the inside of the oven.

For this reason, the filters must always be in place when the hood is used. The vent filters should be cleaned once a month, or as needed.

Things That Are Normal With Your Microwave Oven

• Moisture on the oven door and walls while cooking. Wipe the moisture off with a paper towel or soft cloth.
• Moisture between the oven door panels when cooking certain foods. Moisture should dissipate shortly after cooking is finished.
  ■ Steam or vapor escaping from around the door.
  ■ Light reflection around door or outer case.

Dimming oven light and change in the blower sound at power levels other than high.
- Noises while oven is operating.
TV-radio interference might be noticed while using the microwave. Similar to the interference caused by other small appliances, it does not indicate a problem with the microwave. Plug the microwave into a different electrical circuit, move the radio or TV as far away from the microwave as possible or check the position and signal of the TV/radio antenna.

Before you call for service....

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Cause What To Do
Oven will not start A fuse in your home may be blown or the circuit breaker tripped.		Replace fuse or reset circuit breaker.
Control panel lighted, yet oven will not start	Door not securely closed. Open the door and close securely.
	Door not securely closed. Open the door and close securely.
	START/PAUSE button not pressed after entering cooking selection.	Press START/PAUSE.
	Another selection entered already in oven and CANCEL/OFF button not pressed to cancel it.	Press CANCEL/OFF.
	Cooking time not entered after pressing COOK TIME	Make sure you have entered cooking time after pressing COOK TIME.
	CANCEL/OFF was pressed accidentally.	Reset cooking program and press START/PAUSE.
CONTROL LOCKED appears on display	The control has been locked.	Press and hold CANCEL/OFF for about 3 seconds to unlock the control.
Floor of the oven is warm even when the oven has not been used	The cooktop light is located below the oven floor. When light is on, the heat it produces may make the oven floor get warm.	This is normal.
You hear an unusual low-tone beep	You have tried to change the power level when it is not allowed	Many of the oven's features are preset and can-not be changed.
Vent fan comes on automatically	The vent fan automatically turns on to protect the microwave if it senses too much heat rising from the cooktop below.	This is normal.
Bluetooth connection not paired	Power interruption may disrupt bluetooth connection	Try to reconnect by initiating the CHEF CONNECT process on the GE Range, then holding the CHEF CONNECT button for 3 seconds on the microwave. This will restart the pairing process. If this does not work, unplug unit or reset the circuit breaker to reset the control.

GE Microwave Oven Warranty. GEAppliances.com

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, online, contact us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial and model numbers available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Choose to Replace or Service:
One YearFrom the date of original purchase	In the event of service, GE will provide any part of the microwave oven which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and original purchase related service costs to replace the defective part when the unit is serviced.
Five YearFrom the date of original purchase	GE will choose to either replace the unit or replace the magnetron tube, if the magnetron tube fails due to a defect in materials or workmanship. During this five - year limited warranty, you will be responsible for any labor or in-home service cost.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance. If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting, and other connecting facilities.
Failure of the product or damage to the product if it is abused, misused (for example, cavity arcing from wire rack or metal/foil), or used for other than the intended purpose or used commercially.
- Replacement of house fuses or resetting of circuit breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
- Product not accessible to provide required service.
■ Service to repair or replace light bulbs, except for LED lamps.
■ Damage to the finish, such as surface rust, tarnish, or small blemishes not reported within 48 hrs of delivery.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts™" your questions, and so much more...

Schedule Service

GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio

GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today (GEAppliances.com). For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties

GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories

GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Two overlapping envelope icons with @ symbols, enclosed in a rounded square (no text or labels)

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to:

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance

GEAppliances.com

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Black square with white lightning bolt symbol (no text or numbers)

Abstract black-and-white line drawing with irregular shapes and no text or symbols

Line drawing of a pitcher inside a bowl (no text or symbols)

How to test for a microwave-safe dish.

Technical illustration of a plug-in socket connected to an open electrical outlet (no text or symbols)

Technical diagram of a microwave oven with numbered components for identification

Funciones del Horno

Manija de la Puerta

Simple line drawing of a cooking pot (no text or symbols)

Cubierto

Cross-sectional diagram of a container with internal structure and lines, no text or symbols present

Ventilado

Symbolic illustration of a crossed-out container with raindrops and water droplets (no text or labels)

About the other features.

Reset Filter

Hold 3 Sec

Reinicio del Filtro

Line drawing of a microwave oven with open door and internal tray (no text or symbols)

Technical line drawing of a car air vent or airflow system (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Illustration of various cooking and cleaning items including baking soda, swivel jar, and stone blocks (no text or symbols)

Consejos Útiles

Line drawing of a microwave oven with open door and control panel (no text or symbols)

Simple line drawing of a rectangular container with an oval inside, no text or symbols present.

Line drawing of a two-panel appliance front view showing top and side views (no text or symbols)

Line drawing of a hand pressing down on a cabinet or drawer with two compartments (no text or symbols)

Line drawing of a laptop front panel with two side monitors (no text or symbols)

Simple line drawing of a laptop with two hanging binders (no text or symbols)

Diagram of a laptop with two side drawers and directional arrows indicating orientation (no text or symbols)

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su Electrodoméstico

GEAppliances.com
