Product Type	Through-the-wall / Window Air Conditioner
Brand	GE
Model	Quiet-Aire AGN24DA
Cooling Capacity (BTU)	24,000 BTU
Power Supply	230V, 60Hz, 15A
Dimensions (W x H x D)	26.0 x 18.5 x 26.5 inches
Net Weight	95 lbs
Energy Efficiency Ratio (EER)	10.0
Modes	Cool, Fan Only, Energy Saver, Sleep
Fan Speeds	3 (High, Medium, Low)
Air Direction Control	4-way adjustable louvers
Remote Control	Yes (included)
Timer	24-hour programmable timer
Filter Type	Washable, reusable mesh filter
Filter Maintenance	Clean every 30 days
Refrigerant	R-410A
Installation Type	Window or through-the-wall (kit included)
Safety Features	Auto restart, circuit breaker, anti-theft screws
Warranty	1 year parts and labor
Spare Parts Available	Filter, remote control, thermostat, fan motor

Frequently Asked Questions - Quiet-Aire AGN24DA GE

How do I install the GE Quiet-Aire AGN24DA air conditioner?

Installation requires fitting the unit into a window or through-the-wall sleeve. The included kit provides side panels, screws, and foam seal. Ensure the power supply matches 230V. For safety, follow the manual's step-by-step guide.

How often should I clean the filter?

Clean the washable mesh filter every 30 days. A dirty filter reduces cooling efficiency. To clean, remove the filter and rinse with water; let it dry completely before reinstalling.

What does the Energy Saver mode do?

Energy Saver mode cycles the fan on and off with the compressor to save power. The fan runs only when cooling is active, reducing energy consumption compared to continuous fan operation.

Why is my air conditioner not cooling properly?

Check if the filter is dirty, the thermostat is set correctly, and the mode is on 'Cool'. Ensure the unit is sized for the room. Also, verify that the outdoor temperature is within operating range. If the problem persists, contact a technician.

Can I use an extension cord with this unit?

No. Never use an extension cord. The air conditioner requires a dedicated 230V outlet. Using an extension cord can cause overheating and fire hazard.

How do I set the timer?

Press the Timer button on the remote or control panel. Use the +/- buttons to set the desired time (1-24 hours). The unit will start or stop automatically after the set delay.

What type of refrigerant does this unit use?

The GE Quiet-Aire AGN24DA uses R-410A refrigerant, which is environmentally friendly and does not deplete the ozone layer.

How do I clean the interior coils?

Interior coil cleaning is recommended annually. Turn off the unit, remove the front panel, and use a soft brush or vacuum to gently clean the coils. Avoid bending the fins. For deep cleaning, consult a professional.

Does the unit have a remote control?

Yes, a remote control is included. It allows you to adjust temperature, fan speed, mode, and timer from across the room. Replace batteries (AAA) when needed.

What should I do if the unit makes unusual noises?

Common noises include a click from the thermostat or a hum from the compressor. If you hear rattling, check that the unit is level and that installation hardware is tight. Unusual sounds may require service.

USER MANUAL Quiet-Aire AGN24DA GE

Safety Instructions .....2, 3

Operating Instructions

Control Knob Models .....6, 7

Touch Pad Models .....4, 5

Care and Cleaning

Air Filter 8

Grille and Case ....8

Outdoor Coils 8

Installation Instructions

Preparing to Install the

Air Conditioner .....9

Window Installation .....10-14

Troubleshooting Tips ....15, 16

Normal Operating Sounds ....16

Consumer Support

Consumer Support .....20

Product Registration .....17, 18

Warranty .....19

Write the model and serial numbers here:

Model #

Serial #

Find these numbers on a label on the side of the air conditioner.

Owner's Manual and Installation Instructions

AGF18 AGL24

AGL18 AGN24

AGM18 AGQ24

AGN18 AGV24

AGQ18 AGW24

AGV18

Abstract decorative swirl design with no text or symbols

3828A20296H 49-7448 11-02 JR

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETY PRECAUTIONS

Use this appliance only for its intended purpose as described in this Owner's Manual.
This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
■ Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ Turn the mode control to OFF and unplug your air conditioner before making any repairs or cleaning.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

⚠ WARNING!

USE OF EXTENSION CORDS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

USE OF ADAPTER PLUGS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established.

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

About the controls on the air conditioner—models with touch pads.

Features and appearance will vary.

3 Timer on 8 2 9 MODE TIMER FAN COOL ENERGY SVER 86 Cool on Fan on Energy Saver on F1 LOW F2 MED F3 HIGH FAN TEMP CIRCULARE POWER 5 4 7 1

Air Conditioner Controls

POWER - TEMP + FAN SPEED TIMER MODE ENERGY SAVER CIRCULAIRE

Remote Control

Controls

ON/OFF Pad

Turns air conditioner on and off.

Display

Shows the set temperature or time remaining on timer.

MODE

Use to set the air conditioner to COOL or FAN mode.

Increase ▲/Decrease ▼ Pads

Use to set temperature when in COOL mode.

FAN Pad

Use to set the fan speed to LOW (F1), MED (F2) or HIGH (F3).

ENERGY SAVER—Controls the fan. (on some models)

ON—The fan and compressor cycle on and off. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. Note: The fan will continue to run for a short time after the compressor cycles off.

OFF—The fan runs all the time, while the compressor cycles on and off.

This feature must be set at OFF in order to use the fan settings (on the mode control).

Note: On some models, the ENERGY SAVER feature cannot be set on the air conditioner. It must be set using the remote control.

CIRCULAIRE (on some models)

For continuous side-to-side air circulation (cool settings only), set the Circulaire switch to ON.

For fixed side-to-side air direction, turn ON until the desired air direction is obtained, then turn it OFF.

TIMER Pad

ON—When the air conditioner is off, it can be set to automatically come on in 1 to 12 hours at its previous setting. Each touch will set the timer in hours.

OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 12 hours. Each touch will set the timer in hours.

To cancel the timer, press the TIMER pad until the display time disappears.

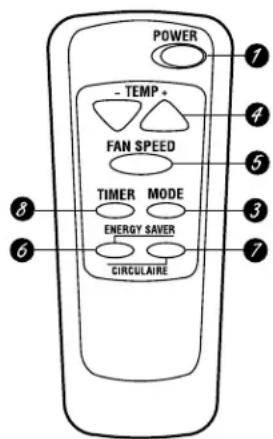

Remote Control Signal Receiver

Remote Control

■ To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up to 21 feet.

■ Make sure nothing is between the air conditioner and the remote control that could block the signal.
■ Make sure batteries are fresh and installed correctly as indicated on the remote control.

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

COOL Mode

Use the COOL mode with HIGH (F3), MED (F2) or LOW (F1) fan for cooling. Use the INCREASE ▲ / DECREASE ▼ pads to set the desired temperature between 60°F and 86°F in 1°F increments.

An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH (F3) or MED (F2) fan with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH (F3) fan with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW (F1) fan with a middle set temperature.

NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.

FAN Mode

Use the FAN at HIGH (F3), MED (F2) or LOW (F1) to provide air circulation and filtering without cooling. Since fan only settings do not provide cooling, a temperature setting will not be displayed.

Vent Control

The vent control is located on the inside of the air louvers on the lower right side.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some inside air is exhausted outside.

To open the vent, pull the lever toward you. To close it, push it in.

Air Direction—Up and Down

Fingertip pressure on the bank of horizontal louvers adjusts the air direction up or down.

Line drawing of a portable microwave oven with a hand inserting a button to the right (no text or symbols)

About the controls on the air conditioner—models with control knobs.

Features and appearance will vary.

OFF HIGH FAN HIGH COOL LOW FAN MED COOL LOW COOL

OFF HI FAN HI COOL LOW FAN LOW COOL

1 MODE CONTROLS

Your model will have one of the above type controls.

5 6 4 7 3 8 2 9 1 10

4 5 3 6 2 7 1 8

3 4 2 5 1 6

2 TEMP CONTROLS

Your model will have one of the above type controls.

Controls

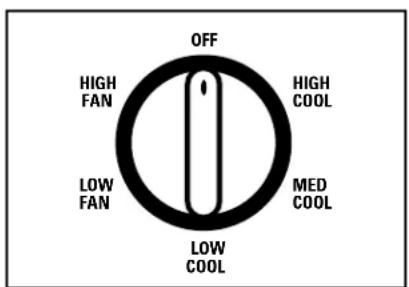

Mode Controls

HIGH COOL, MED COOL and LOW COOL provide cooling with different fan speeds.

FAN settings provide air circulation and filtering without cooling.

NOTE: If you move the mode control from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.

Cooling Descriptions

For Normal Cooling—Select HIGH COOL or MED

COOL with the temp control at midpoint.

For Maximum Cooling—Select HIGH COOL with the temp control at the highest number available on your knob.

For Quieter & Nighttime Cooling—Select LOW COOL

with the temp control at midpoint.

Temp Controls

The temp control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.

Additional controls and important information.

Energy Saver (on some models)

The energy saver switch controls the fan.

ON—The fan and compressor cycle on and off together. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied.

OFF—The fan runs all the time, while the compressor cycles on and off.

This switch must be set at OFF in order to use the fan settings (on the mode control).

Vent Control

The vent control is located above the control knobs.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some inside air is exhausted outside.

To open the vent, pull the lever toward you. To close it, push it in.

Air Direction—Side-to-Side

CIRCULAIRE (on some models)

For fixed side-to-side air direction, set the Circulaire switch to ON until the desired air direction is obtained, then move it to OFF.

For continuous side-to-side air circulation (cool settings only), set the Circulaire switch to ON.

CIRCULAIRE OFF ON

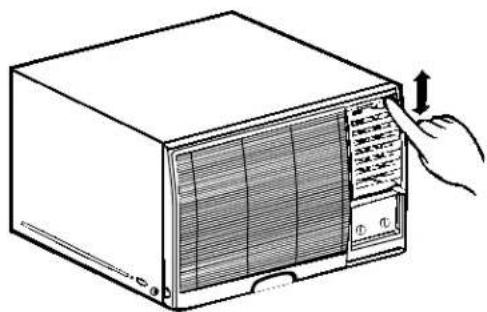

Air Direction—Up and Down

Fingertip pressure on the bank of horizontal louvers adjusts the air direction up or down.

Line drawing of a portable air conditioner unit with a hand pointing to the front panel (no text or symbols)

Care and cleaning of the air conditioner.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

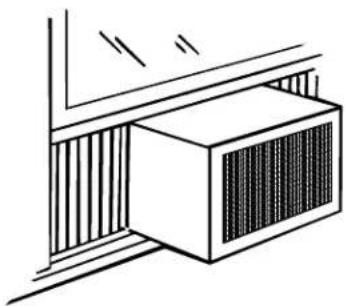

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot they may be professionally steam cleaned, a service available through your GE service outlet.

Simple line drawing of a cabinet or enclosure with vertical bars, no text or symbols present

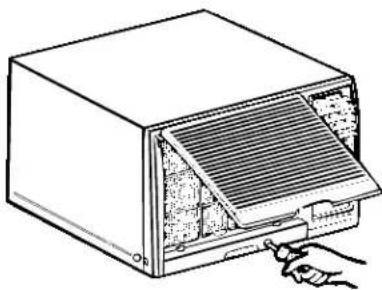

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

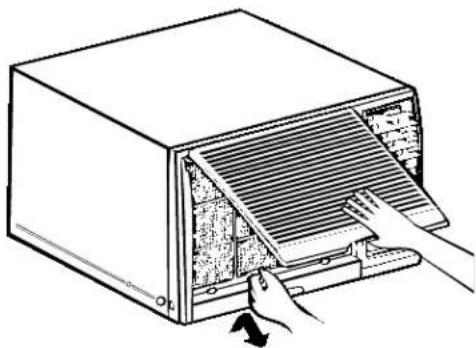

To remove:

1 Open the inlet grille upward by pulling out the bottom of the inlet grille.
2 Using the tab, pull up slightly on the filter to release it and pull it down.

Line drawing of a computer oven with hands inserting or removing the lid (no text or symbols)

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

Preparing to install the air conditioner.

Read these instructions completely and carefully.

Before You Begin

NOTE TO INSTALLER: Leave these instructions with the air conditioner after installation is completed.

NOTE TO CONSUMER: Keep this Owner's Manual and Installation Instructions for future use.

IMPORTANT NOTES:

For personal safety, this air conditioner must be properly grounded.

It is important to have the wall outlet and circuit checked by a qualified electrician if there is any doubt as to whether a proper ground exists.

Follow National Electric Codes (NEC) and/or local codes and ordinances.

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

Electrical Requirements

Some models require 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

Tools You Will Need

Phillips-head screwdriver
Flat-blade screwdriver
■ Ruler or tape measure
Scissors or knife

Pencil
Level
Hammer

Window Installation Instructions.

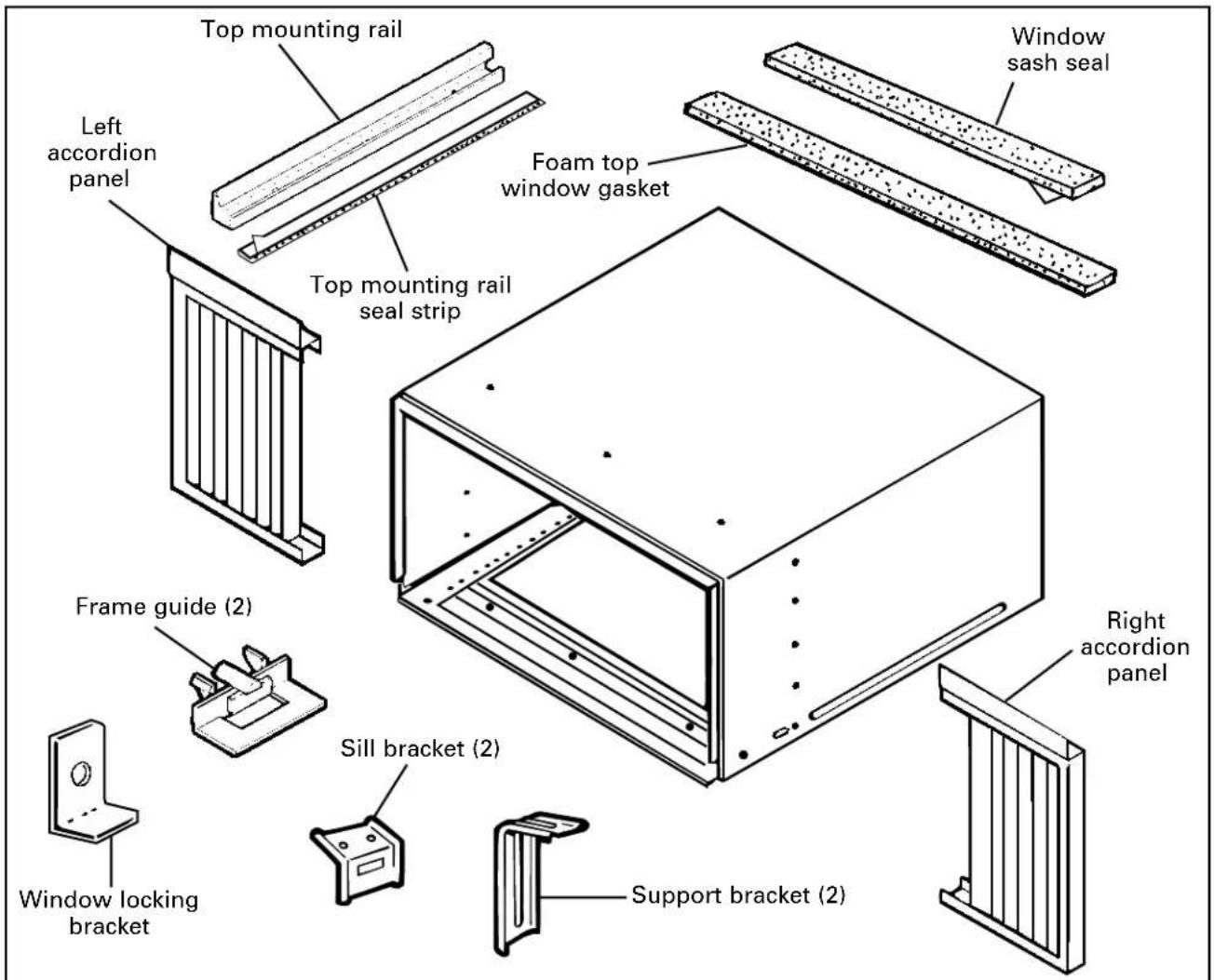

Parts Included

Top mounting rail Left accordion panel Top mounting rail seal strip Foam top window gasket Window sash seal Frame guide (2) Sill bracket (2) Window locking bracket Right accordion panel Support bracket (2)

Type A (14)

Type B (7) Type C (5) Type D

Type C (5) Type D

(2) Carriage Bolt

(2) Lock Nut (4)

Read completely, then follow step-by-step.

1

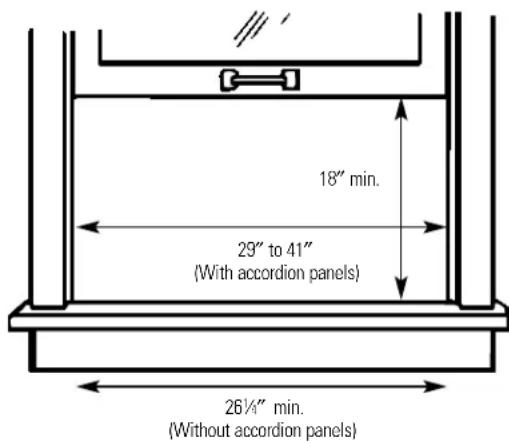

Window Requirements

These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions to the right.
All supporting parts must be secured to firm wood, masonry or metal.
The electrical outlet must be within reach of the power cord.

18" min. 29" to 41" (With accordion panels) 26¼" min. (Without accordion panels)

2

Storm Window Requirements

A storm window frame will not allow the air conditioner to tilt towards the outside and will keep it from draining properly. To adjust for this, attach a piece of wood to the stool.

1/2" higher than frame Storm window frame Wood Stool

WOOD PIECES—

WIDTH: 2"

LENGTH: Long enough to fit inside the window frame.

THICKNESS: To determine the thickness, place a piece of wood on the stool to make it 1/2" higher than the top of the storm window frame.

Attach securely with nails or screws provided by the installer.

3

Remove the Air Conditioner From the Case

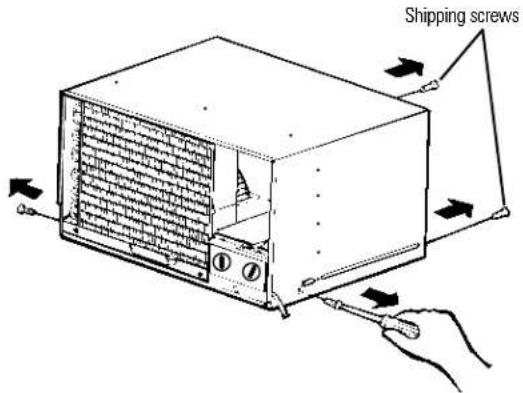

A Remove the 2 shipping screws from the back of the case.
B Remove the 2 screws on each side of the case. Keep these for later use.

Shipping screws

C Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case.

Diagram of a computer heat exchanger with cooling fins and cooling unit (no text or symbols)

4

Prepare the Window and the Case

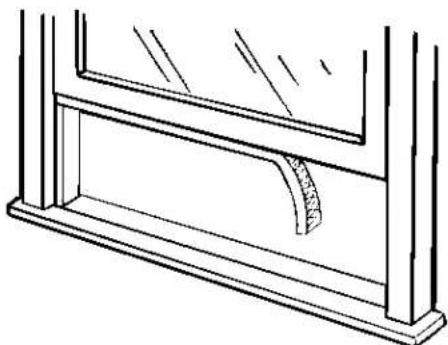

A Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

Technical line drawing of a structural frame with a curved cutout detail (no text or symbols)

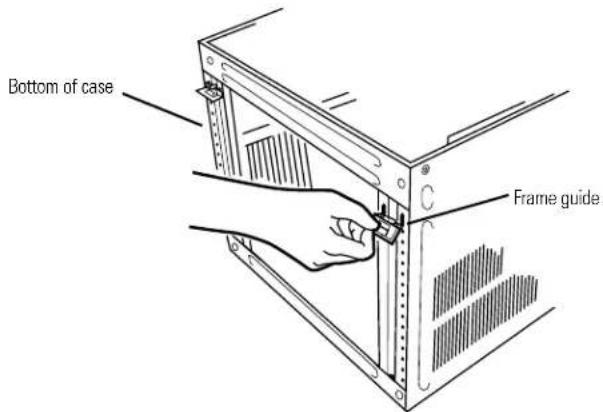

B Carefully insert the plastic frame guides into the bottom of the case on each side.

Bottom of case Frame guide

C Remove the backing from the top mounting rail seal strip and attach the seal to the bottom of the top mounting rail.

Technical line drawing of a mechanical component with flanged ends and a central grooved beam (no text or symbols)

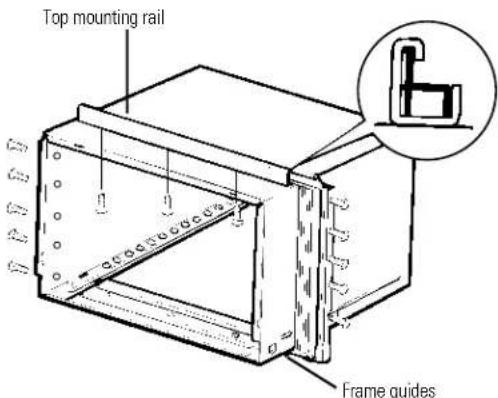

D Install the top mounting rail with 3 type A screws on the inside of the case. Insert the frames for the accordion panels into the top mounting rail and the frame guides. Attach the accordion panels to the side of the case using 5 type A screws.

Top mounting rail Frame guides

5

Prepare the Window

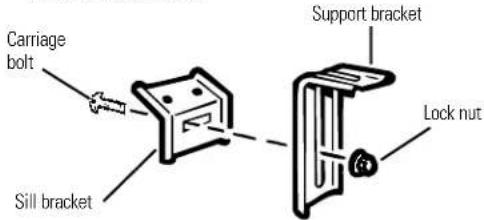

A Loosely attach the sill brackets to the support brackets using the 2 carriage bolts and 2 lock nuts.

Carriage bolt Sill bracket Support bracket Lock nut

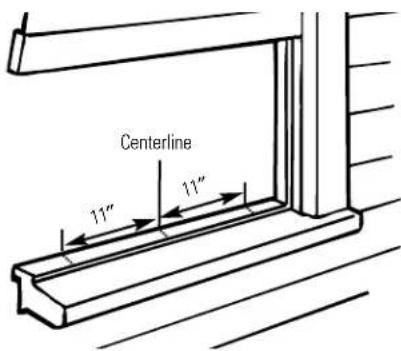

B Open the window and mark the centerline of the window stool. Measure and mark 11" to the left and right of the centerline.

Centerline 11" 11"

6

Install the Case in the Window

A Align the inside edge of the sill brackets with the 11" marks from the centerline and attach them to the window sill using 2 type B screws on each side.
B Carefully place the case on the window stool aligning the center front on the bottom with the centerline marked on the window stool. Close the window making sure the window sash is behind the top mounting rail.

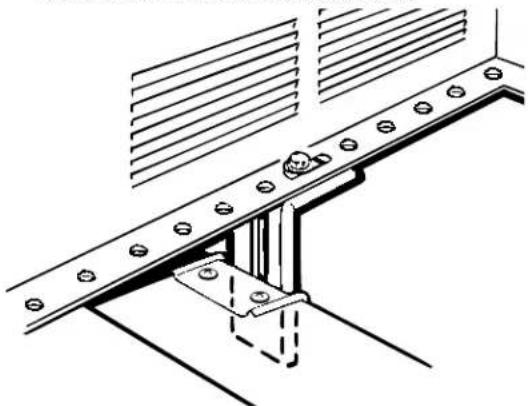

C Using the larger diameter hole in the case, attach the brackets to the case using two type D screws and 2 lock nuts on each side.

Technical line drawing of a structural support bracket with mounting holes and dashed alignment lines (no text or symbols)

D Adjust the carriage bolts and the lock nuts in each support so that the case is installed with a slight tilt to the outside. Use a level; about 1/3 bubble will be the correct case slant to the outside. Tighten the bolts.

CAUTION: DO NOT drill a hole in the base pan. The unit is designed to operate with approximately 1/2" of water in the base pan.

E Secure the case to the window stool by using 3 type B screws.

Technical line drawing of a structural frame assembly (no text or symbols)

F Pull the accordion panels to each window sash track. Attach them on each side to the window sash and the window stool using 4 type C screws.

Technical diagram showing a hand using a tool to cut or inspect a rectangular panel with measurement annotations and angle markings.

Window Installation Instructions.

7

Install the Window Locking Bracket and the Foam Top Window Gasket

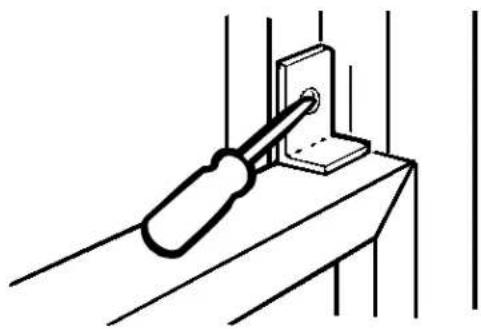

A Attach the window locking bracket with a type C screw.

Line drawing of a screwdriver inserted into a bracket on a wooden surface (no text or symbols)

B Cut the foam top window gasket to the window width.

C Stuff the foam between the glass and the window to prevent air and insects from getting into the room.

Line drawing of a hand holding a knife over a window with liquid (no text or symbols)

8

Install the Air Conditioner in the Case

A Slide the air conditioner into the case. Reinstall the 2 screws removed earlier on each side of the case.

B Before installing the front grille, pull out the vent control lever located above the unit control knobs, as shown.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

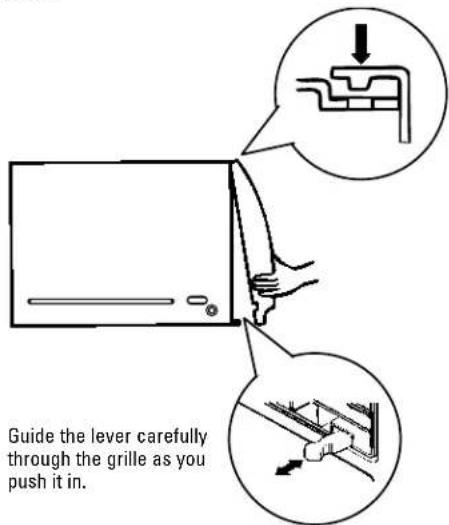

C Attach the front grille to the case by inserting the tabs on the grille into the slots on the front of the case. Push the grille in until it snaps into place.

Guide the lever carefully through the grille as you push it in.

D Lift the inlet grille and secure the front frame with a type A screw. Lower the inlet grille into place.

Line drawing of a computer monitor with ventilation slots and a hand holding a scroll (no text or symbols)

Troubleshooting Tips

Save time and money! Review the chart below first and you may not need to call for service.

Problem Possible Causes What To Do
Air conditioner does not start is unplugged.	The air conditioner into the outlet.	Make sure the air conditioner plug is pushed completely
	The fuse is blown/circuit breaker is tripped. the fuse or reset the breaker.	Check the house fuse/circuit breaker box and replace the breaker.
	Power failure.	If power failure occurs, turn the air conditioner OFF. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner does not cool as it should	Airflow is restricted.	Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner.
	The temp control may not be set correctly.	On models with touch pads: In COOL mode, press the DECREASE ▼pad.On models with control knobs, turn the temperature knob to a higher number.
	The air filter is dirty.	Clean the filter at least every 30 days.See the Operating Instructions section.
	The room may have been hot.	When the air conditioner is first turned on you need to allow time for the room to cool down.
	Cold air is escaping.	Check for open furnace floor registers and cold air returns.Set the air conditioner's vent to the closed position.
	Cooling coils have iced up.	See “Air conditioner freezing up” below.
Air conditioner freezing up	Ice blocks the air flow and stops the air conditioner from cooling the room.	On models with control knobs, set the mode control at HIGH FAN or HIGH COOL with the temp at 1 or 2.On models with touch pads, set the controls at HIGH (F3) FAN or HIGH (F3) COOL and set the thermostat to a higher temperature.
The remote control is not working	The batteries are inserted incorrectly.	Check the position of the batteries. They should be inserted in the opposite (+) and (-) direction.
	The batteries may be dead.	Replace the batteries.
Water drips outside	Excessively hot and humid weather.	This is normal.
Water drips indoors	The air conditioner is not tilted to the outside.	For proper water disposal, make sure the air conditioner slants slightly from the case front to the rear.
Water collects in base pan	Moisture is removed from indoor air and drains into rear of a cabinet where a fan blows it against the outdoor condenser coil.	This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas.

Before you call for service...

Normal Operating Sounds

You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
- You may hear the thermostat click when the compressor cycles on and off.

Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
The fan may run even when the compressor does not.

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
  • No out-of-pocket expenses
  • No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1

Complete and mail your Consumer Product Ownership Registration today. Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

2

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737).

3

Read your Owner's Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

Consumer Product Ownership Registration

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Mr. □ Ms. □ Mrs. □ Miss □ First Name Last Name Street Address Apt. # F-mail Address* City State Zip Code Date Placed In Use Month Day Year Phone Number - - - -

Date Placed In Use Month Day Year Phone Number

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).

□ Check here if you do not want to receive communications from GFA's carefully selected partners.

GE Appliances

Air Conditioner Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737).

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One YearFrom the date of the original purchase service	Any part of the air conditioner which fails due to a defect in materials or workmanship.During this full one-year warranty, we will also provide, free of charge, all labor and in-home to replace the defective part.
Five YearsFrom the date of the original purchase	Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship. During this four-year additional warranty, we will also provide, free of charge, all labor and in-home service to replace the defective part.

What Is Not Covered:

■ Service trips to your home to teach you how to use the product.
Improper installation. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.
In commercial locations labor necessary to move the unit to a location where it is accessible for service by an individual technician.

Replacement of house fuses or resetting of circuit breakers.
Failure due to corrosion on models not corrosion-protected.
Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this air conditioner.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Abstract decorative swirl design with no text or symbols

3828A20296H 49-7448 11-02 JR

Illustration of a hand pressing down on a rack-mounted air conditioner unit (no text or symbols visible)

OFF HI FAN HI COOL LOW FAN LOW COOL

1 CONTROLES DE MODO

Line drawing of a portable air conditioner unit with a hand pointing to the front panel (no text or symbols)

Simple line drawing of a cabinet or enclosure with vertical bars, no text or symbols present

Filtro de aire

Line drawing of a computer rack with hands inserting or removing the lid (no text or symbols)

Illustration of a computer rack unit with cooling fan and heat exchanger (no text or symbols)

4

Technical line drawing of a structural frame with a curved cutout (no text or symbols)

Technical line drawing of a mechanical component with grooves and flanges (no text or symbols)

Technical line drawing of a structural support bracket with mounting holes and a dashed connection point (no text or symbols)

Technical line drawing of a structural frame assembly (no text or symbols)

Technical diagram showing a hand holding a tool interacting with a 3D object, with dimension annotations and angle markings.

Line drawing of a screwdriver inserted into a bracket on a wooden surface (no text or symbols)

Line drawing of a hand holding a knife over a window with liquid (no text or symbols)

8

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a computer monitor with ventilation slots and a hand holding a scroll (no text or symbols)

Garante: General Electric Company. Louisville, KY 40225

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
