USER MANUAL ASW18DC GE

Safety Instructions .....2, 3

Operating Instructions

Controls—Control Knobs .....6, 7

Controls—Touch Pads .....4, 5

Care and Cleaning

Air Filter 8

Batteries 8

Grille and Case ....8

Outdoor Coils ....8

Installation Instructions

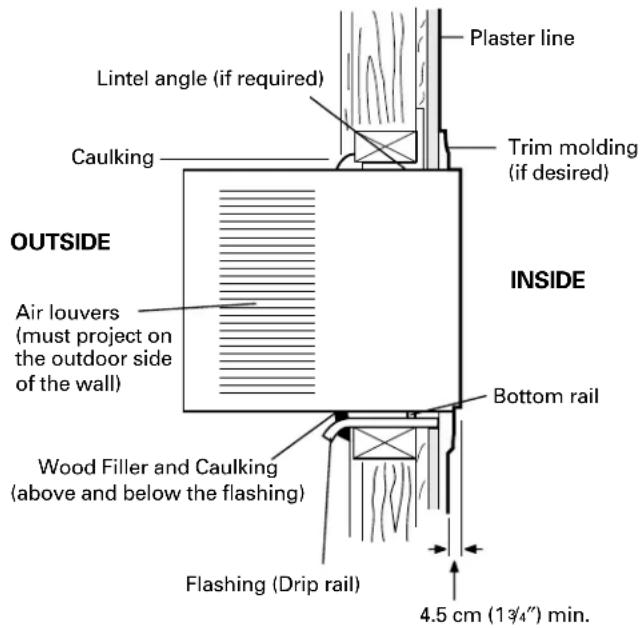

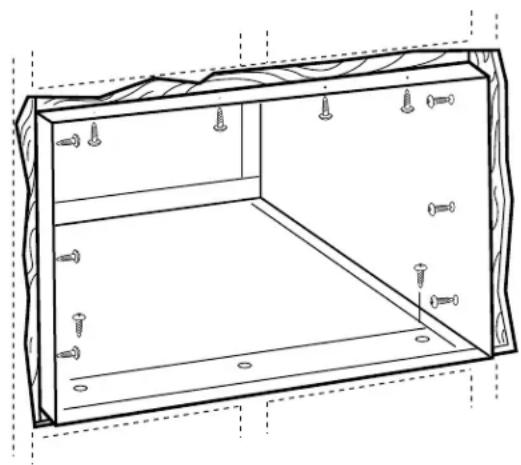

Through-the-Wall

Installation—Optional .....15

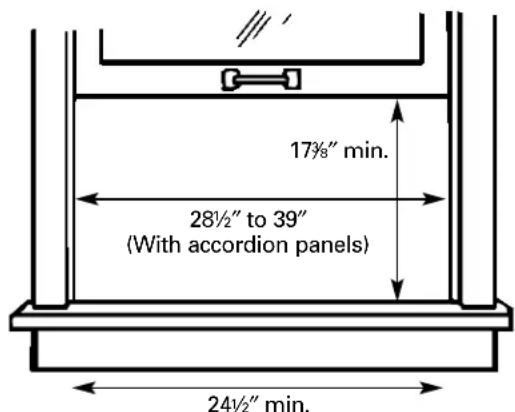

Window Installation .....9–14

Troubleshooting Tips .....16

Normal Operating Sounds .....16

Consumer Support

Consumer Support .....20

Product Registration .....17, 18

Warranty....19

Write the model and serial numbers here:

Model # ____

Serial #

Find these numbers on a label on the side of the air conditioner.

Owner's Manual and Installation Instructions

ASH18

ASW18

ASF24

ASL24

ASM24

ASN24

ASQ24

ASV24

ASW24

Abstract decorative swirl design with no text or symbols

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETY PRECAUTIONS

Use this appliance only for its intended purpose as described in this Owner's Manual.
This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
■ Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ Turn the mode control OFF and unplug your air conditioner before making any repairs or cleaning.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
For your safety...do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

⚠ WARNING!

USE OF EXTENSION CORDS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

▲ CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

USE OF ADAPTER PLUGS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established.

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

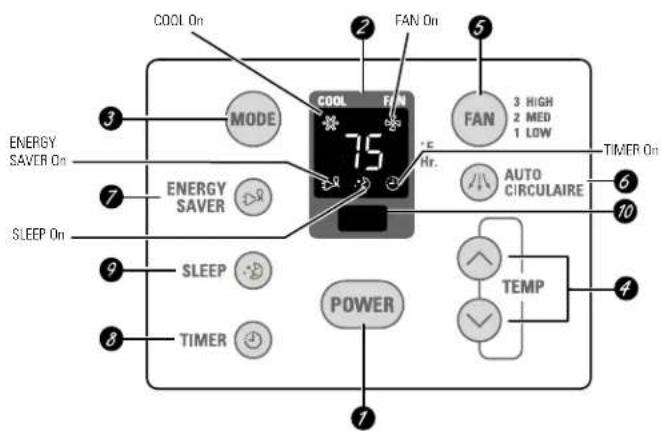

About the controls on the air conditioner—models with touch pads.

Features and appearance will vary.

COOL On 2 FAN On 5 MODE 75 FAN 3 HIGH 2 MED 1 LOW ENERGY SAVER On ENERGY SAVER SLEEP On AUTO CIRCULAIRE 6 TIMER On 10 SLEEP POWER TEMP 4 TIMER 7

Air Conditioner Controls

8 9 3 7 6 CIRCULAIRE TIMER SLEEP FAN MODE COOL ENERGY SAVER on/off TEMP HIGH MED LOW FAN 4 5 1

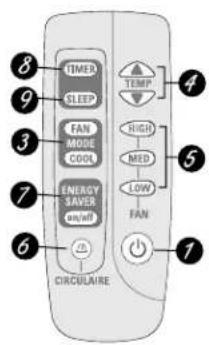

Remote Control

ON/OFF

Turns air conditioner on and off.

2 Display

MODE

Use to set the air conditioner to COOL or FAN mode.

Increase ▲/Decrease ▼ Pads

4 Use to set temperature when in COOL mode.

FAN

Use to set the fan speed at LOW, MED or HIGH.

AUTO CIRCULAIRE

Turn on to provide continuous side-to-side air circulation.

For fixed side-to-side air direction, turn ON until the desired air direction is obtained, then turn it OFF.

7 ENERGY SAVER—Controls the fan.

ON—The fan and compressor cycle on and off. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. Note: The fan will continue to run for a short time after the compressor cycles off.

OFF—The fan runs all the time, while the compressor cycles on and off.

This switch must be set at OFF in order to use the fan settings (on the mode control).

8 TIMER ON

ON—When the air conditioner is off, it can be set to automatically turn on in 1 to 12 hours or 1 to 24 hours (depending on model) at its previous setting. Each touch will set the time in hours.

OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 12 hours or 1 to 24 hours (depending on model). Each touch will set the time in hours.

To cancel the timer, press the TIMER pad until the display time disappears.

9 SLEEP Press to

Press to set the air conditioner to run for 8 hours before it automatically shuts off.

When the SLEEP pad is pressed, SLEEP displays for approximately 15 seconds, then shows the time remaining.

One hour after the sleep timer is set, the set temperature will automatically increase 2^ F.

To cancel the sleep mode, press the SLEEP pad a second time.

Note: The sleep timer will be cancelled if the TIMER, ENERGY SAVER or MODE pad is pressed.

10

Remote Control Signal Receiver

Remote Control

To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■ The remote control signal has a range of up to 21 feet.

■ Make sure nothing is between the air conditioner and the remote control that could block the signal.
■ Make sure batteries are fresh and installed correctly—see the Care and Cleaning section.

When the air conditioner is turned on, it will automatically start in the setting last used.

Power Outage Recovery Feature

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. The TIMER and

SLEEP features will reset to the original setting. You may need to set a new time if desired.

COOL Mode

Use the COOL mode with HIGH (3), MED (2) or LOW (1) fan for cooling. Use the INCREASE ▲/DECREASE ▼ pads to set the desired temperature between 64°F and 86°F in 1°F increments.

A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH (3) or MED (2) fan with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH (3) fan with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW (1) fan with a middle set temperature.

NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.

FAN Mode

Use the FAN at HIGH (3), MED (2) or LOW (1) to provide air circulation and filtering without cooling.

Since fan only settings do not provide cooling, a temperature setting will not be displayed.

Vent Control (on some models)

The vent control is located on the inside of the air louvers in the lower right corner.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some inside air is exhausted outside.

Diagram of layered materials with a central connector, no text or symbols present

To open the vent, push the lever to the right. To close it, push it to the left.

Air Direction—Up and Down (on some models)

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Diagram showing a device with ventilation grilles and a separate air conditioner unit (no text or symbols)

Air Direction—Side-to-Side (on some models)

On some models, the side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.

Illustration of a computer with an open door and a separate air conditioner unit (no text or symbols)

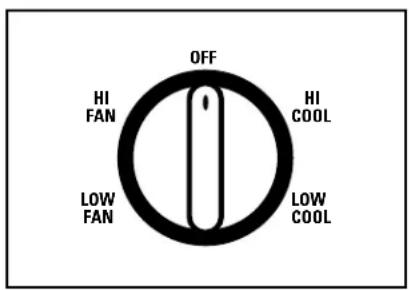

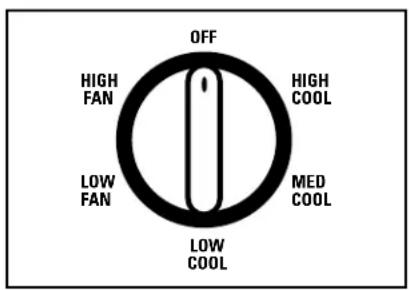

About the controls on the air conditioner—models with control knobs.

Features and appearance will vary.

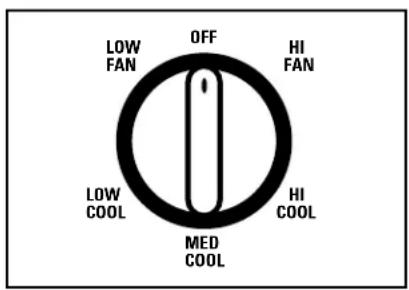

LOW FAN OFF HI FAN LOW COOL HI COOL MED COOL

OFF HIGH FAN HIGH COOL LOW FAN MED COOL LOW COOL

OFF HI FAN HI COOL LOW FAN LOW COOL

1 MODE CONTROLS

Your model will have one of the above type controls.

5 6 4 7 3 8 2 9 10 1 COOLEST

4 5 3 6 2 7 1 8 COOLEST

3 4 2 5 1 6 COOLEST

2 TEMP CONTROLS

Your model will have one of the above type controls.

Controls

Mode Controls

HIGH COOL, MED COOL and LOW COOL provide cooling with different fan speeds.

LOW FAN or HIGH FAN provides air circulation and filtering without cooling.

NOTE: If you move the switch from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.

Cooling Descriptions

For Normal Cooling-Select HIGH COOL or MED COOL with the temp control at midpoint.

For Maximum Cooling-Select HIGH COOL with the temp control at the highest number available on your knob.

For Quieter & Nighttime Cooling-Select LOW COOL with the temp control at midpoint.

Temp Controls

The temp control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number, the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.

Additional controls and important information.

Energy Saver (on some models)

The energy saver switch controls the fan.

ON—The fan and compressor cycle on and off together. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied.

OFF—The fan runs all the time, while the compressor cycles on and off.

This switch must be set at OFF in order to use the fan settings (on the mode control).

ON OFF ENERGY SAVER

Vent Control (on some models)

The vent control is located on the inside of the air louvers in the lower right corner.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at OPEN, some inside air is exhausted outside.

Pure diagram of layered rectangular blocks with a central internal structure, no text or symbols present

To open the vent, push the lever to the right. To close it, push it to the left.

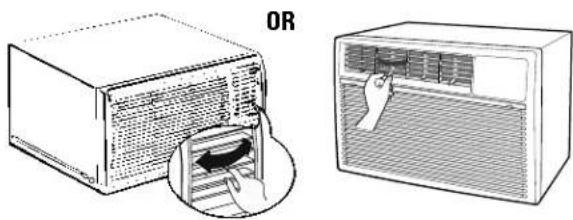

Air Direction—Side-to-Side

On some models, the side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.

OR

AUTO CIRCULAIRE (on some models)

For fixed side-to-side air direction, set the Auto Circulaire switch to ON until the desired air direction is obtained; then move it to OFF.

For continuous side-to-side air circulation, set the Auto Circulaire switch to ON and leave it there.

ON OFF CIRCULAIRE

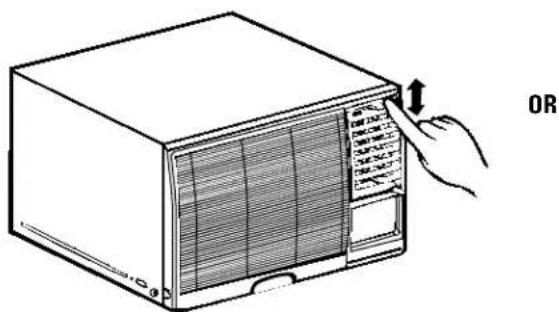

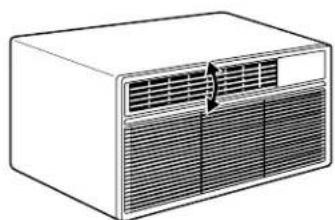

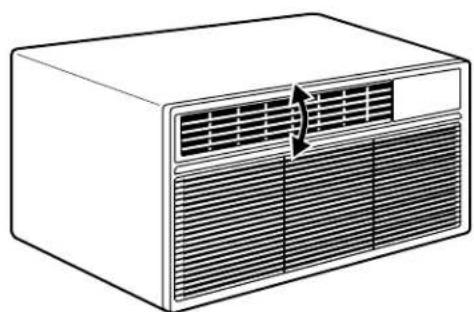

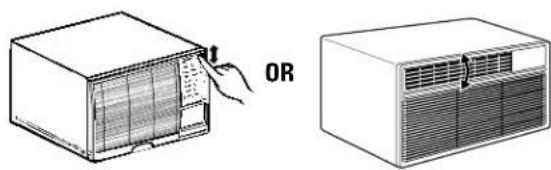

Air Direction—Up and Down (on some models)

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

OR

Line drawing of a portable air conditioner unit with ventilation grilles and airflow direction arrow (no text or symbols)

Care and cleaning of the air conditioner.

How to Insert the Batteries

1 Remove the battery cover by sliding it according to the arrow direction.
2 Insert new batteries, making sure that the (+) and (-) of battery are installed correctly.
3 Reattach the cover by sliding it back into position.

NOTES:

■ Use 2 AAA (1.5 volt) batteries. Do not use rechargeable batteries.
■ Remove the batteries from the remote control if the system is not going to be used for a long time.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally steam-cleaned, a service available through your GE service outlet.

Line drawing of a window-mounted air conditioner unit mounted on a wall (no text or symbols)

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.

⚠️ CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

To remove (on some models):

1 Open the inlet grille upward by pulling out the bottom of the inlet grille.
2 Using the tab, pull up slightly on the filter to release it and pull it down.

Line drawing of a computer oven with hands inserting or removing the lid (no text or symbols)

To remove (on some models):

Grab the tabs on the filter and pull it up and out.

Diagram of an air conditioner unit with heat exchanger and airflow direction arrow (no text or labels)

Installation Instructions

Air Conditioner

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
  • IMPORTANT — Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

▲CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

TOOLS YOU WILL NEED

Diagram of a screwdriver with a magnified view of the tip (no text or symbols)

Phillips head screwdriver

Pencil

Scissors or knife

Level

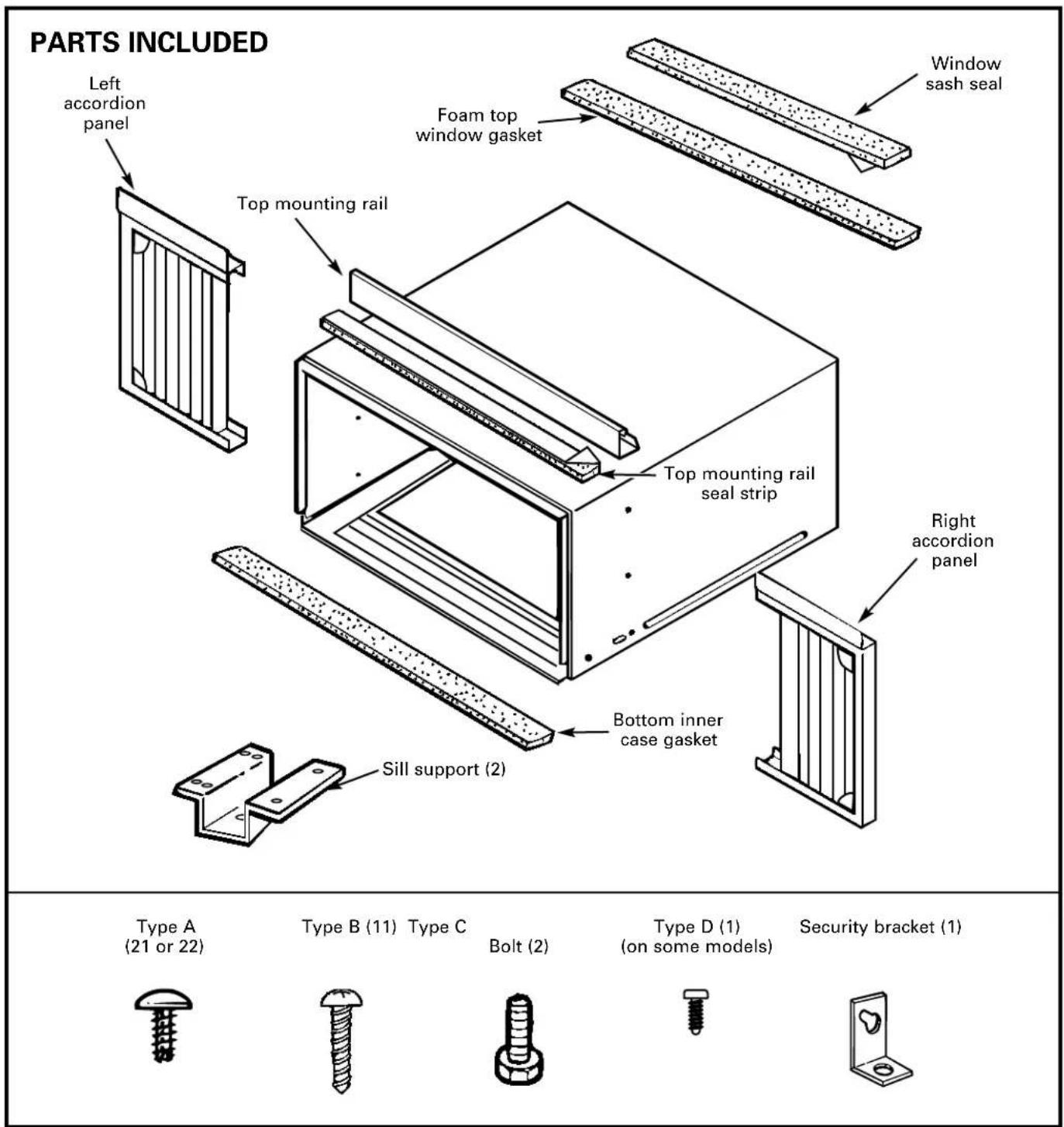

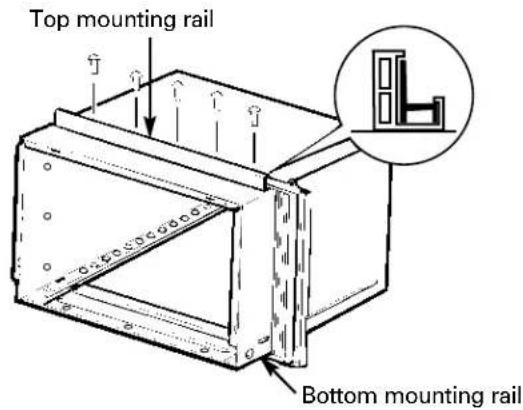

PARTS INCLUDED Left accordion panel Top mounting rail Foam top window gasket Window sash seal Top mounting rail seal strip Right accordion panel Bottom inner case gasket Sill support (2) Type A (21 or 22) Type B (11) Type C Bolt (2) Type D (1) (on some models) Security bracket (1)

① WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
• The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions below.
• All supporting parts must be secured to firm wood, masonry or metal.
• The electrical outlet must be within reach of the power cord.

17¾" min. 28½" to 39" (With accordion panels) 24½" min.

(Without accordion panels)

③ REMOVE THE FRONT GRILLE (IF ATTACHED)

A Remove shipping tape, if present.

On models with a raise-up inlet grille, lift it and remove the screw behind it (if present) that holds the grille in place.

On some models, open the inlet grille from the sides and remove it. Remove the screw, if present.

② STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the stool.

WOOD PIECES-

WIDTH: 2"

LENGTH: Long enough to fit inside the window frame.

THICKNESS: To determine the thickness, place a piece of wood on the stool to make it 1/2" higher than the top of the storm window frame.

Attach securely with nails or screws provided by the installer.

1/2" higher than frame Storm window frame Wood Stool

③ REMOVE THE FRONT GRILLE (IF ATTACHED) (cont.)

B Pull the bottom grille corners out to release the lower tabs on each side.

Illustration of a hand holding a clipboard next to a window (no text or symbols visible)

NOTE: Do not pull the bottom edge toward you more than 3" or you may damage the

C Lift the grille up and off the top tabs.

④ REMOVE THE AIR CONDITIONER FROM THE CASE

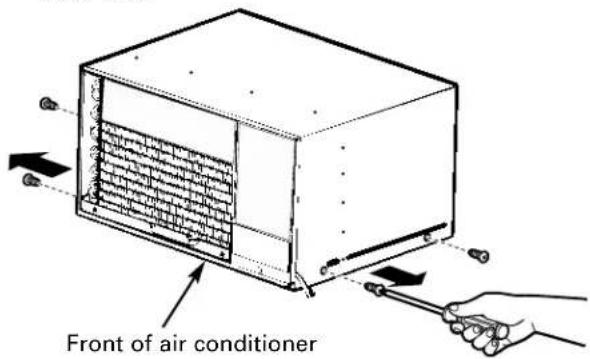

A Remove the 4 screws on each side of the case. Keep the 2 front-side screws for later use.

Front of air conditioner

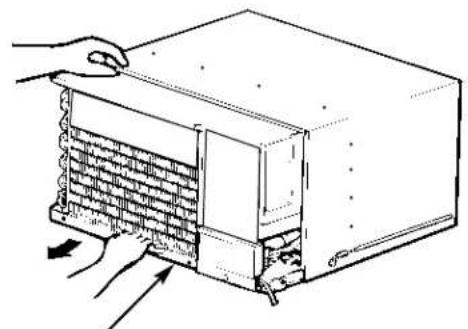

B Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case.

Diagram of a computer rack with a hand holding the lid, showing internal components and directional arrows (no text or symbols)

Front of air conditioner

Remove packing cardboard and tape, if present.

⑤ PREPARE THE CASE

A Remove the backing from the top mounting rail seal strip and attach it to the bottom of the top mounting rail.

Technical line drawing of a structural beam with flanged ends and a central support (no text or symbols)

B Install the top mounting rail with 5 type A screws from the outside of the case.

Top mounting rail Bottom mounting rail

C Insert the frames for the accordion panels into the top and bottom mounting rails. Attach the accordion panels to the side of the case using 8 type A screws.

Top mounting rail Accordion panel Type A screws BACK Bottom mounting rail

⑥ INSTALL THE CASE IN THE WINDOW

A Cut the window sash seal to the window width and stick the adhesive side to the bottom of the sash.

Window sash seal

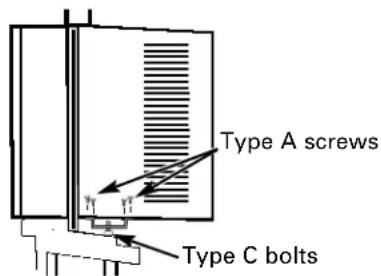

B Thread two type C bolts into the support brackets.

Slide the case into the window and lower the window behind the top mounting rail.

Position the brackets on the case bottom so they will be near the outermost point on the window sill. Attach the support brackets to each side of the case bottom using 4 type A screws on each side. The case should be slightly tilted to the outside. Use a level; about a 1/2 bubble will be the correct case slant to the outside.

Type A screws Type C bolts

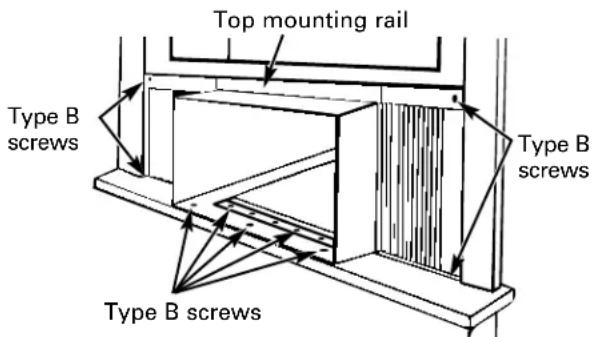

C Locate the 8 screw holes along the bottom front edge of the case. Center the case, side-to-side, in the window and mount it to the window sill using 5 type B screws staggered in the front and back rows if possible.

Top mounting rail Type B screws Type B screws Type B screws

D Extend the left and right accordion panels to the vertical window sashes and attach with 4 type B screws.

⑦ INSTALL THE SECURITY BRACKET AND THE FOAM TOP WINDOW GASKET

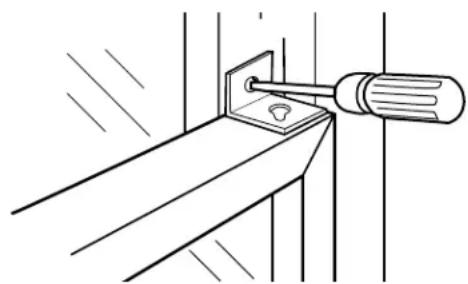

A Attach the security bracket with a type B screw.

Line drawing of a mechanical assembly with a screwdriver inserted into a bracket (no text or symbols)

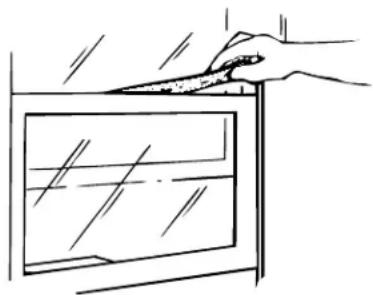

B Cut the foam top window gasket to the window width.

C Stuff the foam between the glass and the window to prevent air and insects from getting into the room.

Hand holding a tool above a window with liquid, no text or symbols visible

⑧ INSTALL THE AIR CONDITIONER IN THE CASE

A Slide the air conditioner into the case. Reinstall the 2 front-side screws removed earlier on each side of the case.
B Place the bottom inner case gasket between the bottom of the air conditioner and the inside bottom of the case. Fold up the ends on both sides and push them in.

Front of air conditioner Bottom inner case gasket

C Attach the front grille to the case by inserting the tabs on the grille into the slots on the front of the case. Push the grille in until it snaps into place.

Guide the lever carefully through the grille as you push it in.

D Secure the front grille to the case by replacing the screw removed in Step 3. If a screw was not removed in Step 3, secure the grille with a type A screw for models with a raise-up inlet grille or a type D screw for models with a slide-out filter. The installation is now complete.

The case may be installed through the wall in both existing and new construction.

Read completely, then follow step-by-step.

① IMPORTANT

Through-the-wall installation is not appropriate if any of the side louvers in the case will be obstructed by the wall.

All side louvers in the case must project on the outdoor side of the wall.

The room side of the case must project into the room at least 1^3/_4 " from the finished wall.

The case must be installed level from side-to-side and with a slight tilt from front to rear. Use a level; about a 1/2 bubble will be the correct case slant to the outside.

A Remove the air conditioner from the case. For specific instruction, refer to the Window Installation Instructions.
B Make certain that a wall receptacle is available close to the hole location or make arrangements to install a receptacle.

Technical line drawing of a rectangular cabinet or enclosure with bolt holes and mounting brackets (no text or symbols)

C Place the case in the wall opening and secure with 12 1"long #10 wood screws.

NOTE: Drill pilot holes, if necessary, for proper installation. If the frame is oversized, use shims to prevent case distortion.

② FINISH THE WALL OPENING

Caulk all four sides on the outdoor side of the case to prevent moisture from getting through to the interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and down the outside of the building.

Plaster line Lintel angle (if required) Caulking Trim molding (if desired) OUTSIDE INSIDE Air louvers (must project on the outdoor side of the wall) Bottom rail Wood Filler and Caulking (above and below the flashing) Flashing (Drip rail) 4.5 cm (1 3/4") min.

Troubleshooting Tips...

Troubleshooting Tips: Save time and money!

Problem Possible Causes What To Do

Air conditioner does not start is unplugged.	The air conditioner completely into the outlet.	Make sure the air conditioner plug is pushed
	The fuse is blown/circuit breaker is tripped. the fuse or reset the breaker.	Check the house fuse/circuit breaker box and replace the breaker.
	Power failure.	If power failure occurs, turn the air conditioner OFF. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
Air conditioner does not cool as it should	Airflow is restricted.	Make sure there are no curtains, blinds or furniture blocking the front of the air conditioner.
	The temp control may not be set correctly.	On models with touch pads: In COOL mode, press the DECREASE ▼ pad.On models with control knobs, turn the temperature knob to a higher number.
	The air filter is dirty.	Clean the filter at least every 30 days.See the Operating Instructions section.
	The room may have been hot.	When the air conditioner is first turned on, you need to allow time for the room to cool down.
	Cold air is escaping.	Check for open furnace registers and cold air returns.Set the air conditioner's vent to the closed position.
	Cooling coils have iced up.	See “Air conditioner freezing up” below.
Air conditioner freezing up	Ice blocks the air flow and stops the air conditioner from cooling the room.	On models with control knobs, set the mode control at HIGH FAN or HIGH COOL with the temp at 1 or 2.On models with touch pads, set the controls at HIGH FAN or HIGH COOL and set the thermostat to a higher temperature.
The remote control is not working	The batteries are inserted incorrectly.	Check the position of the batteries. They should be inserted in the opposite (+) and (−) direction.
	The batteries may be dead.	Replace the batteries.
Water drips outside	Hot, humid weather.	This is normal.
Water drips indoors	The air conditioner is not tilted to the outside.	For proper water disposal, make sure the air conditioner slants slightly from the case front to the rear.
Water collects in base pan	Moisture removed from air and drains into base pan.	This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas.
“E1” appears in the display	Function error code.	Unplug the air conditioner. Wait 3 minutes and plug it back in.
TIMER or SLEEP feature not working properly	A power outage or interruption occurred.	In the case of a power outage or interruption, the unit TIMER and SLEEP features will reset to the original setting. You may need to set a new time if desired.

Normal Operating Sounds

You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.

■ You may hear the thermostat click when the compressor cycles on and off.

The fan may run even when the compressor does not.

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
  • No out-of-pocket expenses
  • No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1

Complete and mail

your Consumer

Product Ownership

Registration today.

Have the peace of

mind of knowing we

can contact you in

the unlikely event of a

safety modification.

2

After mailing the

registration below,

store this document

in a safe place. It

contains information

you will need should

you require service.

Our service number is

800.GE.CARES

(800.432.2737).

3

Read your Owner's

Manual carefully.

It will help you

operate your new

appliance properly.

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

Cut here

Consumer Product Ownership Registration

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Mr. □ Ms. □ Mrs. □ Miss □ First Name

E-mail Address*

GE Appliances

GE Consumer Products

General Electric Company

Louisville, Kentucky

www.GEAppliances.com

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).

□ Check here if you do not want to receive communications from GEA's carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR

WARRANTY RIGHTS.

For information about GFA's privacy and data usage policy, go to www.GEAppliances.com and click on "Privacy Policy" or call 800.626.2224.

Air Conditioner Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737).

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One YearFrom the date of the original purchase service	Any part of the air conditioner which fails due to a defect in materials or workmanship.During this full one-year warranty, we will also provide, free of charge, all labor and in-home to replace the defective part.
Five YearsFrom the date of the original purchase	Any part of the sealed refrigerating system (the compressor, condenser, evaporator and all connecting tubing) which fails due to a defect in materials or workmanship. During this four-year additional warranty, we will also provide, free of charge, all labor and in-home service to replace the defective part.

What Is Not Covered:

Service trips to your home to teach you how to use the product.Improper installation, delivery or maintenance. If you have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.In commercial locations labor necessary to move the unit to a location where it is accessible for service by an individual technician.

Replacement of house fuses or resetting of circuit breakers.Failure due to corrosion on models not corrosion-protected.Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.Incidental or consequential damage caused by possible defects with this air conditioner.Damage after delivery.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Acondicionadores

de Aire

Abstract decorative swirl design with no text or symbols

Diagram of a layered structure with a central connector, showing no text or symbols.

OFF HI FAN HI COOL LOW FAN LOW COOL

1 CONTROLES DE MODO

ON OFF ENERGY SAVER

Diagram of layered materials with a central connector and directional arrows (no text or symbols)

Line drawing of a portable electronic device with a hand pointing to its side panel (no text or symbols)

O BIEN

Line drawing of a portable air conditioner unit with ventilation grilles and airflow arrow (no text or symbols)

Simple line drawing of a cabinet or air conditioner unit mounted on a wall, with no text or symbols present.

Filtro de aire

Line drawing of a refrigerator with hands inserting or removing the lid panel (no text or symbols)

Diagram of an air conditioner unit with heat exchanger and ventilation grilles (no text or labels)

Illustration of a hand holding a clipboard next to a window (no text or symbols visible)

Diagram of a computer tower with a hand inserting a cable into the frame (no text or symbols present)

Technical line drawing of a structural beam with flanged ends and a tapered end (no text or symbols)

Line drawing of a mechanical assembly with a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a hand holding a tool near a window with liquid (no text or symbols)

⑧ INSTALE EL ACONDICIONADOR DE AIRE EN LA CAJA

Technical line drawing of a rectangular cabinet or enclosure with mounting holes and internal structure (no text or symbols)

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
