Product type	Decorative island hood
Brand	SAUTER
Model	SHD 987X
Dimensions (W x D x H) hood only	900-1000 x 500 x 86 mm
Total height with chimney	831 - 1101 mm
Estimated net weight	18 kg
Power supply	230-240 V ~ 50 Hz
Motor power	2 x 165 W
Lighting power	2 x 20 W halogen
Total max power	370 W
Installation type	Ducted or recirculating
Air outlet diameter	125 mm (150 mm recommended)
Minimum distance from hob	650 mm
Speed levels	4 speeds + automatic mode
Special functions	Automatic operation with sensor, timer, filter alarm
Grease filter	Metal, dishwasher safe (every 30h)
Charcoal filter	Active, replace every 120h (ref. SHK30AF1)
Lighting	2 halogen lamps 20 W
Safety devices	Non-return flap, earthing, all-pole disconnection
Body maintenance	Non-abrasive products, soft cloth
Warranty	2 years (standard)
Repairability	Original spare parts, intervention by approved professional

Frequently Asked Questions - SHD 987X SAUTER

How to install the SHD 987X hood in ducted version?

Attach the bracket to the ceiling using the template. Assemble the telescopic structure, then the chimney pipes. Connect the exhaust duct (ø125 mm min) to the flange with non-return flap. Ensure the flap rotates freely. Connect the power supply and fix the hood to the structure.

How to activate automatic mode?

Press the B button. The letter A appears on the display and the hood automatically adjusts the speed according to detected vapors. To adjust sensor sensitivity, turn off the hood with B, then press and hold D and E to access the setting (1 to 9).

How to clean the grease filter?

Remove the filter by pivoting the front panel. Wash it by hand with household cleaner or in the dishwasher (without dishes). Rinse and dry. Reinstall the filter, then press the D button (in alarm mode) to reset the counter.

When should the charcoal filter be replaced?

Approximately every 120 hours of operation (or every 6 months). A lit or flashing center segment on the display indicates it's time to clean the grease filter or replace the charcoal filter. Filter reference: SHK30AF1.

What to do if the hood does not turn on?

Check that there is no power outage, that the plug is connected and the circuit breaker has not tripped. Ensure a speed has been selected. If the problem persists, unplug the appliance and contact SAUTER after-sales service.

How to adjust sensor sensitivity?

Turn off the hood by pressing the B button. Press D and E simultaneously: the display shows the current sensitivity (default 5). Use D or E to adjust from 1 (minimum) to 9 (maximum). After a power cut, the sensor automatically returns to 5.

How to change the halogen lamps?

Disconnect the hood from power (unplug or turn off the circuit breaker). Open the lamp cover by prying at the intended cracks. Replace the lamps with identical models (20 W, halogen). Do not touch the bulb with bare hands.

What is the minimum distance between the hood and the hob?

The minimum distance between the pot support surface and the bottom of the hood is 650 mm. Also follow the instructions of your hob if they require a greater distance.

What is the charcoal filter reference?

The charcoal filter reference for the SHD 987X hood is SHK30AF1. You can order it from your SAUTER dealer.

How to reset the filter hour counter?

After cleaning the grease filter or replacing the charcoal filter, press the D button (in alarm mode, when the center segment is lit) to reset. The hour count automatically restarts.

USER MANUAL SHD 987X SAUTER

GUIDE D'INSTALLATION & D'UTILISATION

INSTRUCTIONS FOR INSTALLATION AND USE

Hotte de cuisine

Cooker Hood

SHD987

Black-and-white photo of a plated dish featuring diced white food items, garnished with mint leaves and a small green garnish (no text or symbols visible)

Chère Cliente, Cher Client,

Technical diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force, labeled 'fig. 2' (no text or symbols on the diagram itself)

• RACCORDEMENT ELECTRIQUE

3D mechanical part diagram with labeled component B and mounting holes (no text or symbols beyond label)

Technical line drawing of a mechanical device with mounting holes and a base plate (no text or symbols)

Technical line drawing of a 3D cabinet or enclosure with internal compartments and mounting points (no text or symbols)

Technical line drawing of a 3D mechanical part with labeled section C, showing internal compartments and mounting holes (no text or symbols beyond label)

3D diagram of a rectangular device with internal compartments and labeled dimensions (no text or symbols beyond labels)

3D technical drawing of a mechanical housing or enclosure with internal compartments and mounting points (no text or symbols)

H M fig. 10

D fig. 11

- Recyclage

3D diagram of a rectangular enclosure with internal compartments and labeled dimensions (no text or symbols beyond labels)

L H fig. 15

D fig. 16

• DESCRIPTION DES COMMANDES

CONTROLS (Fig.17):

Technical line drawing of a device with a panel and arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a device panel with a magnified inset showing a circular component and a grid-patterned panel (no text or symbols)

Attention

• Safety recommendations ____ 18
  • Environmental protection 19
  • Description of your appliance ____ 20

2/INSTALLING YOUR APPLIANCE

• Using the evacuation mode ____ 21
• Using the recycling mode ____ 21
• Electrical connections 22
• Assembling the hood 23
• Fixing the telescopic flues ____ 23
• Ducting mode 24
• Filtering mode 25

3/USING YOURAPPLIANCE

• Description of the control panel ____ 26

4/CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the grease filter 27
• Changing the charcoal filter ____ 27
• Cleaning and caring of the casing ____ 28
• Changing the light bulb ____ 28
• Maintaining your appliance ____ 29

5/TROUBLESHOOTING 30

6/AFTER SALES SERVICE 30

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.

• SAFETY RECOMMENDATIONS

• This oven was designed for use by private persons in their homes.
• This appliance is to be used by adults.

Make sure that children do not touch and that they do not treat it as a toy. Make sure that they do not touch the appliance's control panel.

• When you receive the appliance, unpack or have it unpacked immediately. Give it an over-all general inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form.
• Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.
• Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety.
• Repairs must only be carried out by an approved specialist.
• Always unplug the hood before cleaning it or performing other maintenance acts.
• Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gases.
• You should never "flambé" dishes under the hood or operate gas rings under the hood without placing cookware on them (the flames sucked up into the hood can damage the appliance).
• When frying food under the appliance, you must carefully monitor the preparation at all times.
  Oils and grease brought to very high temperatures can catch fire.
• Respect the recommended frequency of cleanings and filter replacements. The accumulation of grease deposits may cause a fire.

• The hood should never be used over a combustible fuel burning stove (wood, coal, etc.).

• Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety).

• With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress.
• In order to easily locate the reference information for your appliance, we recommend that you note these data on the "After-Sales Service Department and Customer Relations" page.

(This page also explains to you where to find this information on your appliance.)

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "filtering" version of the hood should be installed. Do not use the hood without grease filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

• ENVIRONMENTAL PROTECTION

- This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

• Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.
• We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians

Warning

Remove the protective film from the grease filter before use.

• DESCRIPTION OF YOUR APPLIANCE

250 295 min245 max515 500 min 831 - max 1101 86 900 - 1000 600 A B

Air exhaust grids

Telescopic flues

This hood is equipped with a system able to manage all functions of the hood. With this system, the air in the kitchen can be always pure and odorless: once this system is activated, it detects all vapors, odors and smoke and the hood starts to work automatically, without the user's intervention.

• The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.
• Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.
• If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.
• If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.
• Under no circumstances should the exhaust duct empty into the attic.
• Install the hood at safe distance of at least 65 cm from an cooking hob.

This appliance can be installed in either duction version or filtering version.

The appliance is supplied in the ducting version.

• USING THE DUCTING MODE

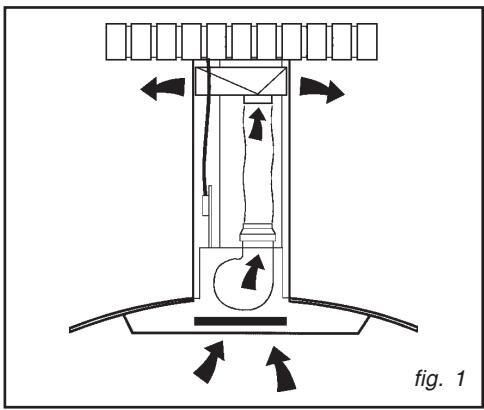

If you possess an outlet to the exterior (fig. 1)

Your hood can be connected to this outlet using a flue (minimum ∅ 125mm that is enamelled, in aluminium, flexible or made of inflammable material). Your cooker hood is a ducting version.

• USING THE FILTERING MODE

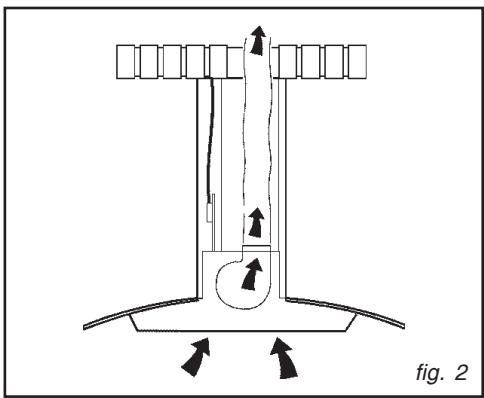

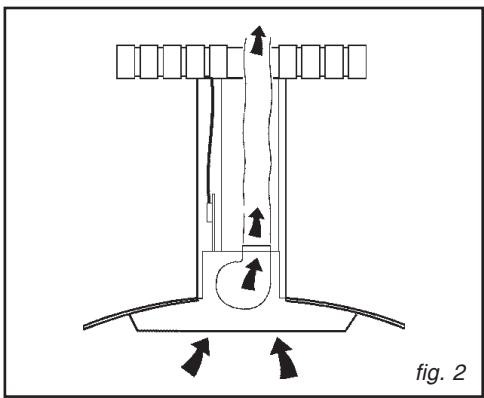

If you do not possess an outlet to the exterior (fig. 2)

All of our appliances can be used in recycling mode.

The air and steam taken up by the unit are purified with charcoal filter and returned to the environment through the aeration grids on the side of the telescopic flue.

Technical diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force, labeled 'fig. 2' (no text or symbols on the diagram itself)

• ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The electrical connections are made before the appliance is installed in its housing.

Ensure that

• the electrical installation has sufficient voltage,
• the electrical wires are in good condition,
• the diameter of the wires complies with the installation requirements.

Warning

This appliance must be grounded.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead.

In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3mm, such separating device ensuring disconnection from the main must be included in the fixed installation. This appliance is delivered with a H05VVF power cord that has three-0.75mm² conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 230-240V single phase current) via a CEI60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

• ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

Warning

Three people are required for proper installation; the unit should be installed by a qualified operator. Also follow carefully each step of the assembly instructions, and once installation has been completed, make sure that the hood is firmly secured in place.

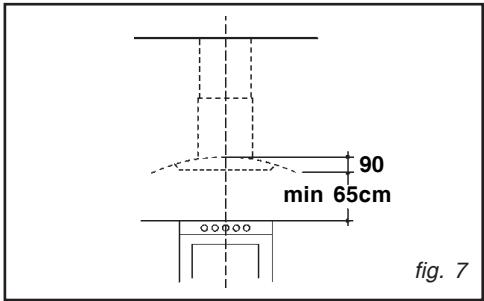

The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 650 mm. If the instructions for installation for the hob specify a greater distance, this has to be taken into account.

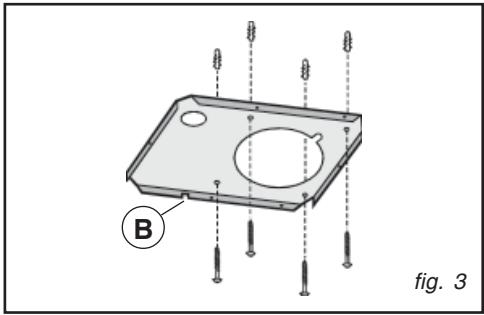

- Using the special drilling template, drill the holes for fixing to the ceiling on the vertical side of your hob. Carefully observe all the indications for final positioning of the apparatus. Take into account that one of the template axes must correspond to the axis of the hood controls.

- Fix the bracket to the ceiling using the screws and screw anchors provided (Fig. 3). Be careful, because the position of the bracket determines the final position of the apparatus: the side with the slot B corresponds to the side opposite the controls. Fit the electrical system plate, securing it with 2 screws and 3 washers (Fig.4).

- Ducting mode

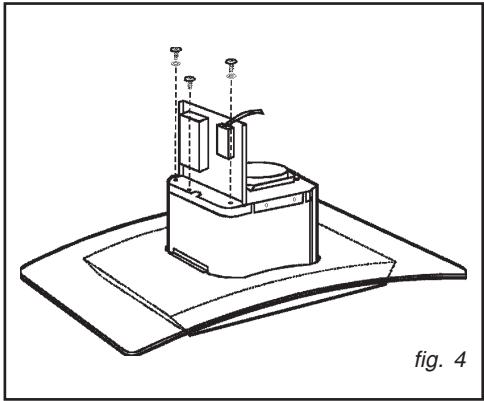

- Secure the telescopic structure to the bracket using 4 screws (provided), passing the air exhaust pipe inside the telescopic structure and running the power cable through the hole in the bracket (Fig. 5).

3D mechanical part diagram with labeled component B and mounting holes (no text or symbols beyond labels)

Technical line drawing of a mechanical device with mounting holes and a base plate (no text or symbols)

Technical line drawing of a 3D cabinet or enclosure with internal compartments and mounting points (no text or symbols)

Technical line drawing of a 3D mechanical part with labeled section C, showing internal compartments and mounting holes (no text or symbols beyond label)

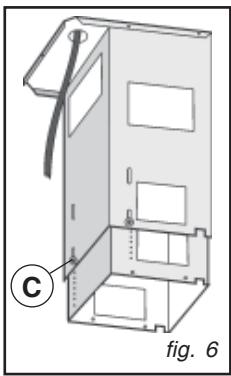

Adjust the height of the telescopic structure using the 4 retaining screws C (Fig. 6) bearing in mind that the height of the hood is 86 mm and that the distance of the hood from the hob must be at least 650 mm (Fig.7).

Take the upper flue (with the round slots) and fit it on the telescopic structure with the slots facing downwards; fit the flue to the bracket with 2 screws (Fig. 8). Take the lower flue and fit it in the same manner as before; slide it to the top and stop it in that position using a screw inserted in the hole of the upper flue as a catch (Fig.9).

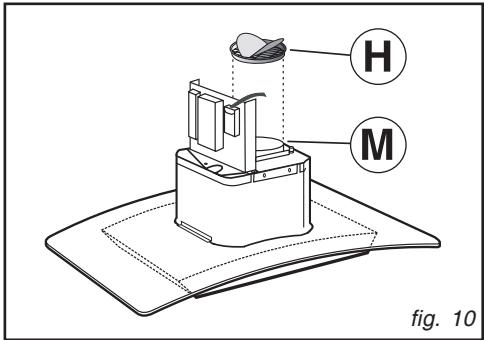

Take the flange with the non-return valve H (Fig.10) and fit it on the air vent of your hood exercising slight pressure.

NON-RETURN VALVE

If installing the ducting version, fitting the non-return valve hinders air intake and return. Before securing the valve, check that the tabs can move freely H (Fig. 10).

• Secure the hood to the telescopic structure by means of 4 screws (provided) - Fig.11.

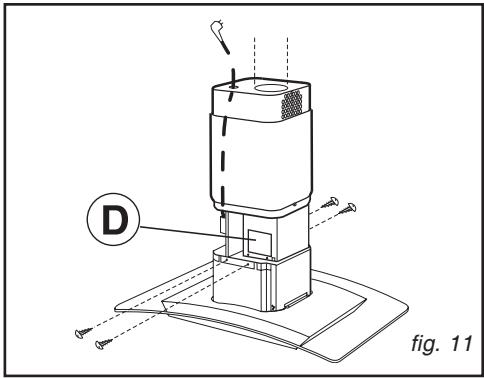

• Through the openings D (Fig.11) secure the air exhaust pipe to the flange (H).
• Make the electrical connection by means of the power cable.
• Remove the screw used as catch and slide the lower flure downwards, placing it gently on the apparatus.

Tip

For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using out-door evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

90 min 65cm fig. 7

3D diagram of a rectangular device with internal compartments and labeled dimensions (no text or symbols beyond labels)

3D technical drawing of a mechanical housing or enclosure with internal compartments and mounting points (no text or symbols)

H M fig. 10

D fig. 11

- Filtering mode

• Secure the telescopic structure to the bracket using 4 screws (provided), running the power cable through the hole in the bracket (Fig.5). Adjust the height of the telescopic structure using the 4 retaining screws C (Fig. 6) bearing in mind that the height of the hood is 90 mm and that the distance of the hood from the hob must be at least 650 mm (Fig.7).

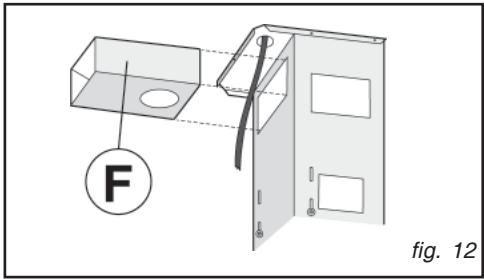

• Insert the air baffle (F) into the structure (Fig.12) Through the openings E (Fig.13), fit the flange (G) to the baffle (F) and lock it with a rotary movement. Fit a flexible hose (125 mm diameter) to the flange (G) for air evacuation (Fig.13).
• Take the upper flue (the one with the round slots) and fit it on the telescopic structure with the slots at the top; secure the flue to the bracket with 2 screws (Fig.13). Take the lower flue and fit it in the same way as the upper flue; slide it upwards and secure it in that position using a screw inserted in the hole of the upper flue as a catch (Fig.14).

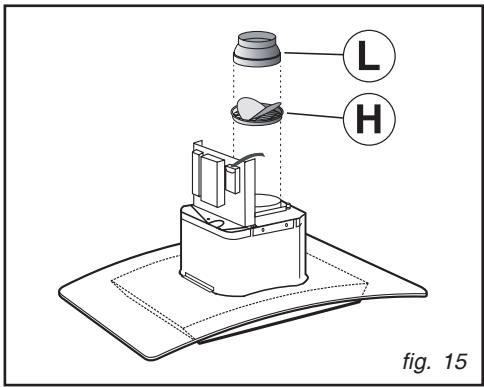

• Take the flange (Fig.15H) with the metal valve and assemble it onto the air venting opening of the hood, pressing slightly; take the reducer (L) and fit it on the flange (H) in the same way.
• Secure the hood to the telescopic structure by means of 4 screws (provided) - Fig. 16.
• Secure the air exhaust pipe to the reducer (L).
• Make the electrical connection by means of the power cable.
• Remove the screw used as catch and slide the lower flue downwards, placing it gently on the apparatus.

F fig. 12

E G fig. 13

3D diagram of a rectangular enclosure with internal compartments and labeled dimensions (no text or symbols beyond labels)

L H fig. 15

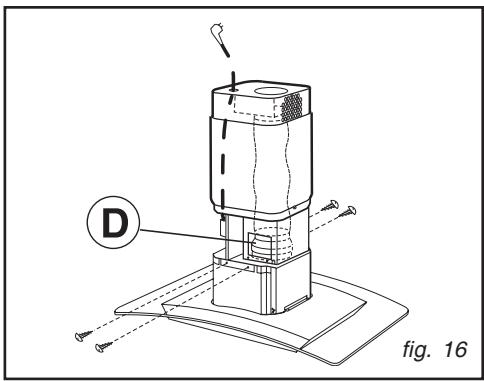

D fig. 16

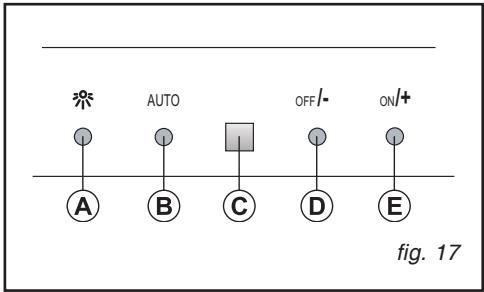

• DESCRIPTION OF CONTROL PANEL

COMMANDES (Fig.17):

Depending on the model, the unit is equipped with the following commands:

AUTOMATIC OPERATION WITH SENSOR:

Key A : switches the lights on/off.

Key B : enables/disables “Automatic” function. When this function is selected, an “A” appears on the display C, and the speed of the motor increases or decreases depending on the smoke, odours and gas present in the kitchen.

✿ AUTO OFF/- ON/+ A B C D E fig. 17

Display C :

• indicates the automatic operation of the sensor (the letter "A" appears);
• indicates the motor speed selected automatically by the sensor; indicates the filter alarm whenever the central segment is illuminated or flashing.

Key D : decreases motor speed / Reset; decreases motor speed to zero (stopping); in any case however, after approximately 1 minute, the hood resumes automatic operation at the speed set by the sensor. Whenever the key is pressed during the display of filter alarms, a RESET occurs, and the counting of the hours resumes again.

Key E : increases motor speed; in any case however, after approximately 1 minute, the hood resumes automatic operation at the speed set by the sensor.

Modification of sensor sensitivity: sensor sensitivity can be modified by operating as follows:

• Stop the hood by pressing key B.
• Simultaneously press keys D and E (the sensor's sensitivity index will appear on the display)
• Pressing keys D or E, the sensor's sensitivity will either increase or decrease (1 : minimum sensitivity / 9: maximum sensitivity).

- whenever the power supply is interrupted, the sensor will resume operation with a sensitivity index of 5.

Warning: in order to avoid damaging the sensor, never use silicone products near the hood!

Key A : switches the lights on/off.

Display C :

• indicates the motor speed selected (from 1 to 4);
• indicates the operation of the Timer when the number is flashing;
• indicates filter alarms whenever the central segment is illuminated or flashing.

Key D : decreases motor speed / Stop / Reset; decreases motor speed to zero (stopping). Whenever the key is pressing during filter alarm display, a RESET occurs, and the counting of the hours resumes again. Key E : enables the motor / increases motor speed / TIMER. Pressing this key starts the motor (at the latest speed set); pressing the key again increases motor speed, while keeping the key pressed down for a few seconds enables the TIMER, and 5 minutes later the motor will stop (while the number of speed setting selected will simultaneously begin flashing on the display); the Timer will remain enabled if motor speed is changed. In order to disable the Timer, press the key again.

Tip

This guide to installation and use is valid for several models. Minor differences in details and fittings may emerge between your appliance and the descriptions provided.

Warning

Always unplug the hood before cleaning it or performing other maintenance acts.

Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and filters may cause fires.

Please carefully adhere to the maintenance recommendations.

• CLEANING THE GREASE FILTER

Pay special attention to the grease filter, that must be cleaned at regular intervals.

Filter cleaning frequency:

The central segments (Fig. 17) appears on the control display every 30 hours of hood operation to indicate that the grease filter/s need to be cleaned. Press the button (R) to restart the hour counter. Wash the filters with a commercial household cleanser, then rinse fully and dry. They may be cleaned in a dishwasher making sure that the filter does not come into contact with dirty dishes or silver tableware.

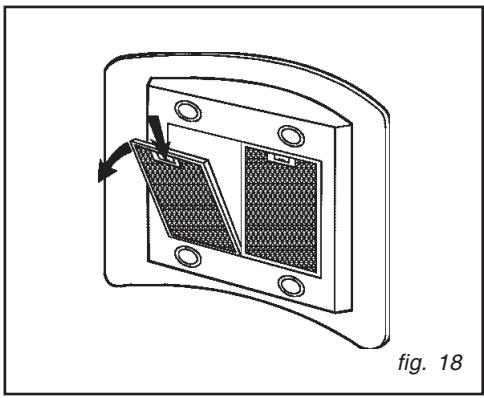

- Removing the grease filter (fig.18)

Turn the panel by gripping it from the front part of the hood; remove the grease filter by pushing the catch towards the rear of the hood and turning the filter outwards.

• CHANGING THE CHARCOAL FILTER

If using the hood in the filtering version, the charcoal filters will periodically have to be replaced.

Frequency of filter replacement:

The central segments (Fig.17) appears on the control display every 120 hours of hood operation to indicate that the charcoal filter needs to be replaced.

Once the new filters have been refitted, press the button (D) and restart the hour counter.

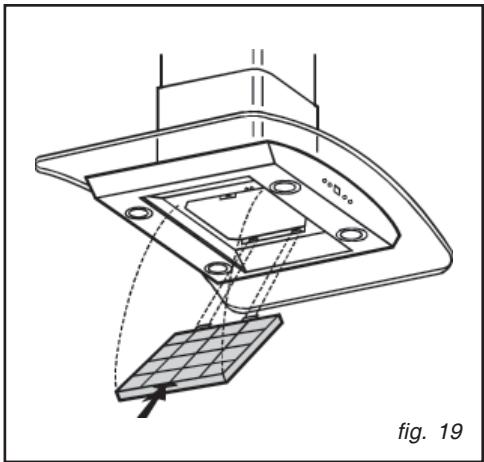

- Replacing the charcoal filter (fig.19)

Remove the grease filters (fig.19): pull the handle outwards and release the filter.

Then remove the charcoal filter (fig.18): push the catch towards the inside and turn the filter so that the 2 filter clips slip out of their seats.

Diagram of a device with a mesh panel and directional arrow, labeled 'fig. 18' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with no visible text or symbols

- CLEANING AND CARING OF THE CASING

Avoid products containing abrasives when cleaning the casing.

• CHANGING THE LIGHT BULB

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

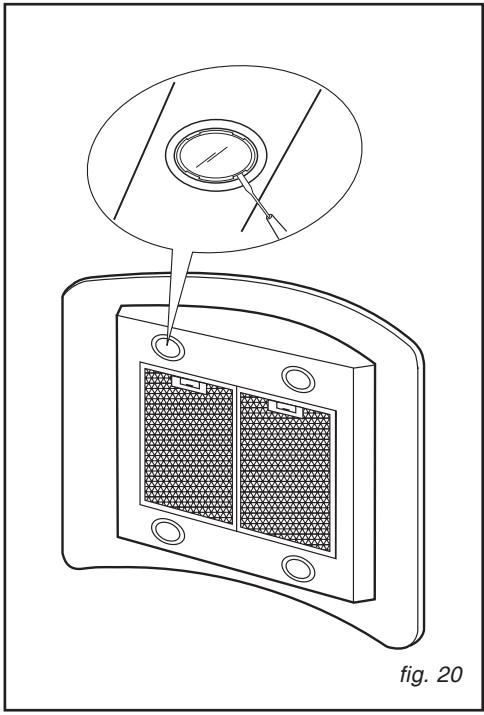

To change the halogen bulbs open the cover levering from the proper slots (Fig. 20). Replace with bulbs of the same type.

CAUTION: Do not handle glass bulb with bare hands.

Technical line drawing of a device panel with a magnified inset showing a circular component and a grid-patterned panel (no text or symbols)

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE

MAINTENANCE...	WHAT TO DO ?	PRODUCTS/ACCESSORIES TO USE
Top surface and accessoires	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Grease filter	This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher. (Do not allow them touch dirty dishes or silverware).
Charcoal filter	This filter traps odours and must be changed at least once every 6 months depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

To keep your appliance in good working order, we recommend that you use Clearit household products.

Professional expertise for the general public

Clearit offers you professional products and adapted solutions for the daily upkeep of your household and kitchen appliances.

You may find them in conventional retail outlets, along with a complete line of by-products and consumables.

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.• The kitchen is sufficiently ventilated to allow une for fresh air intake.• The charcoal filter is not worn (hood operating in filtering mode).• The sensor sensitivity is sufficient (if the hood is in automatic operation).
The hood stopped working	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

EN

6 / AFTER SALES SERVICE

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.
