USER MANUAL 2XL-4602 PowerBass

powerbass® X T R E M E

Collection of black-and-white images of various speaker speakers (no text or symbols visible)

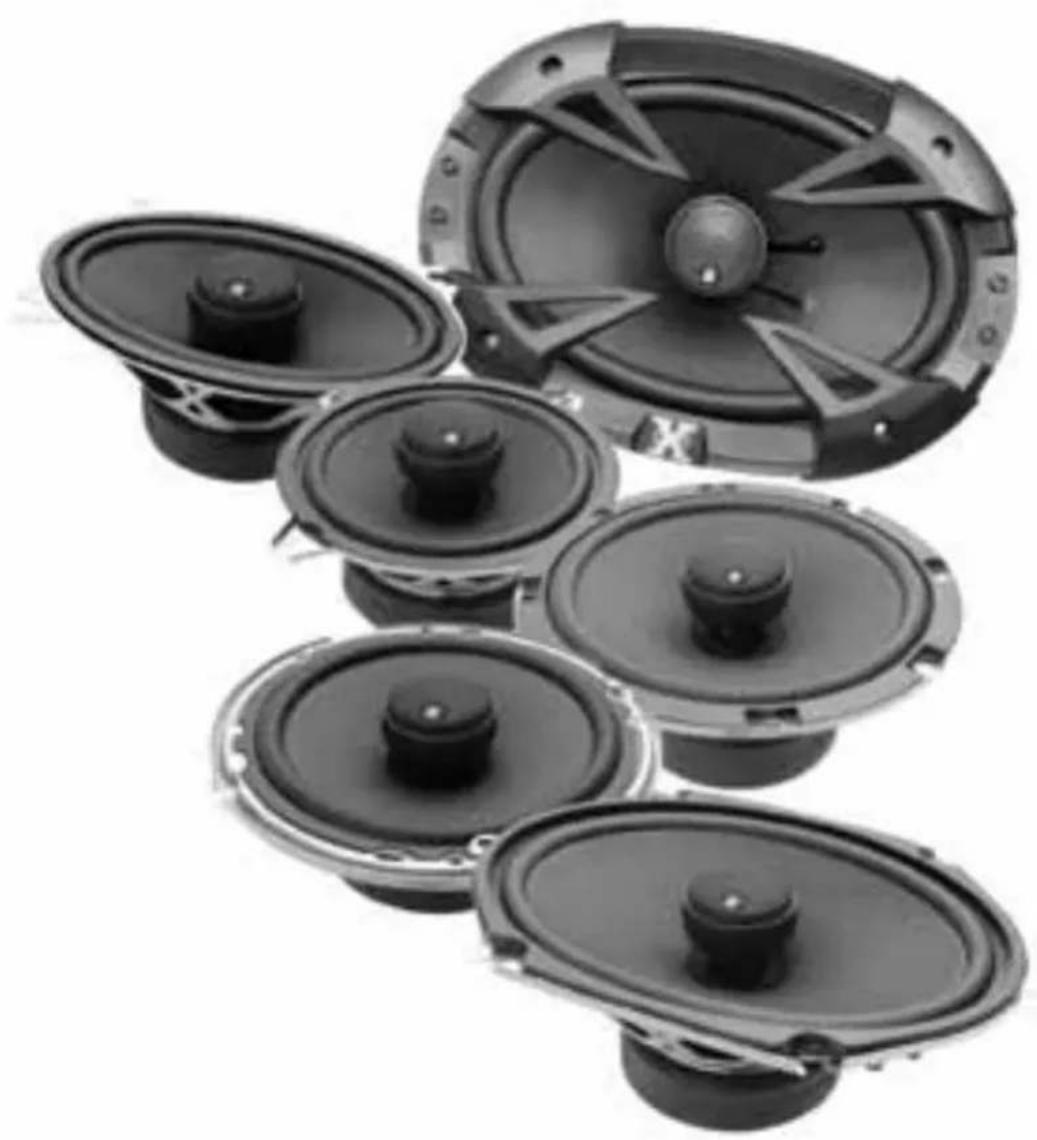

2XL SPEAKER SERIES

Application Guide

powerbass® X T R E M E

Thank you and Congratulations

Congratulations on your purchase of Powerbass Xtreme speakers. You now own a speaker of uncompromising design and engineering from a factory that truly believes in the relentless pursuit of perfection. Incorporating the highest quality parts and state-of-the-art materials, these speakers display the ultimate balance between high fidelity, extreme performance and long-lasting reliability.

powerbass powerbass powerbass powerbass

At PowerBass USA, Inc. we are confident you will have many years of outstanding enjoyment from this great SPEAKER investment. For maximum performance we recommend that you have your new PowerBass Xtreme product installed by an Authorized PowerBass Xtreme Dealer. Doing so will also automatically extend your warranty to a full THREE YEAR Period.

To learn more about PowerBass Xtreme, please visit us on the World Wide Web at http://www.powerbassusa.com

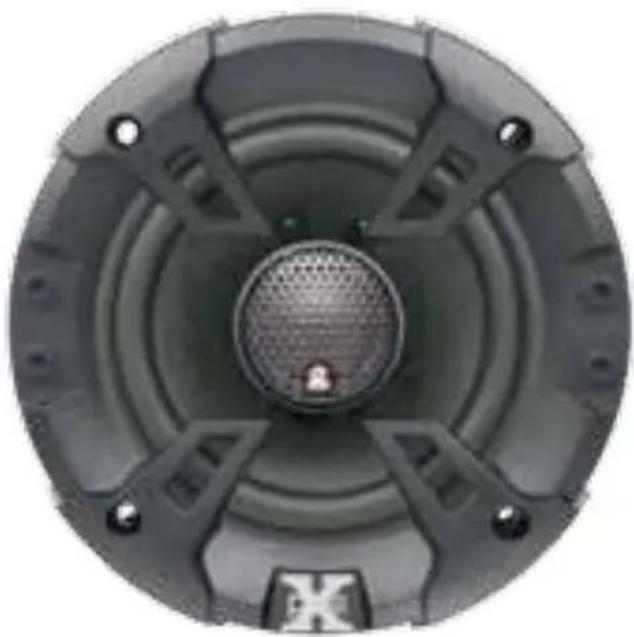

Δ Warning Δ

Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Xtreme Speakers are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product. property damage due to the result of use or misuse of this product.

Stamped Basket (Stainless Steel Finish): These rigid baskets are designed to give the moving parts of the speaker the solid, corrosion free platform that they need to perform for even the most discriminating listener.

4-Layer Wool/Paper Composite Cone: The premium grade cones on these speakers are coated fibrous paper cone with woven wool fibers for addition strength and rigidity. This results in an extremely stiff cone that is lightweight and will deliver a warm sound that you can listen to for hours.

High Damping Butyl Rubber Surround: This surround is used to ensure linear travel throughout the entire frequency range resulting in more bass output and higher efficiency while reducing distortion.

Balanced Pure Silk Soft Dome Pivoting Tweeter: These very large hand treated silk dome tweeters incorporate a neodymium motor structure and edge wound ribbon wire voice coil to provide an extremely wide bandwidth.

Mylar High Pass 6dB Crossover: A mylar capacitor was selected for a smoother high frequency response and increased power handling.

High Powered Multi-Layer 3-ohm Voice Coil: Kapton is a high temperature voice coil former that is light weight and designed for greater efficiency and increased power handling that gives you that loud and clear sound you are looking for.

Additional Features: pbX tuner inspired custom grills*, gold plated input terminals, customized rubber boot to protect the magnet, professional mounting hardware and speaker wire adds further value to your investment.

(due to Constant Improvement, Specification and Parameter are subject to change without notice)

Model Size	Nominal Impedance Frequency Response Sensitivity			1W/1M	Magnet Size	Mounting Depth Power	RMS/Max
2XL-4002 4"	3 Ohm 68 Hz	- 20 kHz 88 dB 10 oz.	2.1" 50 W / 100 W
2XL-4602*	4 x 6"	3 Ohm	68 Hz - 20 kHz	88 dB	10 oz.	1.95"	50 W / 100 W
2XL-5202	5.25"	3 Ohm 62 Hz	- 20 kHz 89 dB 12 oz.	2.2" 60 W / 120 W
2XL-650T	6.5" thin	3 Ohm	60 Hz - 21 kHz	89 dB	12 oz.	2.15"	60 W / 120 W
2XL-6502	6.5"	3 Ohm 59 Hz	- 21 kHz 90 dB 14 oz.	2.4" 75 W/ 150 W
2XL-6705*	6.75"	3 Ohm	60 Hz - 21 kHz	89 dB	12 oz.	2.15"	75 W / 150 W
2XL-6802* 6	x 8" 3 Ohm 5	3 Hz - 21 kHz 91 dB	4 oz. 2.4" 75W / 150 W
2XL-6902	6 x 9"	3 Ohm	40 Hz - 21 kHz	92 dB	30 oz.	3.3"	100 W / 200 W

*Grills Not Included On Some Models.

Top-down view of a black speaker grille with visible teeth and central mesh structure (no text or symbols)

INSTALLATION EXPERIENCE

Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions.

If you have any reservations about your installation skills or lack of the proper tools, please contact your local PowerBass Xtreme dealer for assistance.

TIPS TO GET THE MOST OUT OF YOUR POWERBASS SYSTEM

Your PowerBass Xtreme speakers have been meticulous engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used. In general, you will hear distortion as a so-called warning before any damage occurs. If you hear distortion in your system, immediately reduce the musical level to the point where the sound retains its clarity.

1. Be sure you supply the speakers with enough unclipped amplifier power to drive them properly. (More damage can be done to a speaker by under-powering and clipping your amplifier than any other way!)
2. Where possible, a separate amplifier just for your speaker should be used with an electronic crossover to set the frequency range. One amplifier with passive crossovers will work (Tri-Way Setup), but the system will do more with less stress on the amplifier by using two amps.
3. To avoid any possible sound cancellation from the front of the speaker to that of the rear of the speaker, cut a panel of Masonite or MDF to firmly mount the speaker if the vehicle's original cutout is too big.
4. When connecting speaker wires from the amplifier or head unit to that of the speaker itself, pay attention to the polarity of the connection. This will insure optimum sound reproduction and performance.
5. For maximum dynamic performance use weather stripping to insure a tight seal.
6. Do not mount any speakers or external crossovers where they will get wet.
7. Remember the Golden Rule "Measure twice...cut once."

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for proper installation.

1. An electric drill with drill bits
2. Phillips-head and standard screwdrivers
3. Wire strippers
4. Crimping tool and needle-nose pliers
5. Silicone sealant or closed cell weather-stripping
6. Metal file
7. Hole saw

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it.

• Always wear protective eyewear when using tools.
• Turn off all stereo and other electrical devices before you begin.
- Disconnect the (-) negative lead from your vehicle's battery.
- Keep the speakers in the package until final installation.
- Locate all fuel lines, brake lines, oil lines, and electrical cables when planning your installation.
- Check to see if there is enough clearance behind the mounting surface before installing the speakers.
- When running speaker wires through sheet metal, be sure to use grommets to properly insulate the wires from metal edges.

INSTALLATION PROCEDURES

• Since these speakers utilize a unique low profile swivel tweeter housing that has minimal tweeter protrusion, original factory mounting cutouts can still be used with the factory grills in many cases.
• These PowerBass Xtreme speakers can be used above or below the mounting hole. Typically, your vehicle factory's speaker cutouts will accommodate these new speakers without any modifications. When the speaker has been correctly installed, there should be no air leaks between the front and back of the speaker.
• For door installations, check the clearance of the windows throughout the entire range of the window's travel.
• Check the available mounting depth before installing the speaker. Use care when removing factory grills, door panels and factory speakers.

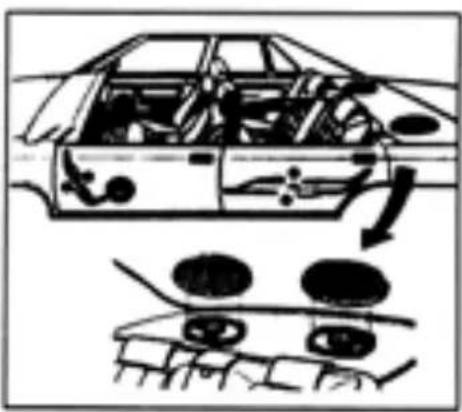

EXAMPLE OF MOUNTING

Diagram of a car interior showing dashboard and steering wheel (no text or symbols)

Interior view of a car showing multiple seats and dashboard (no text or symbols visible)

Mounting Options

A. Rear Deck Mounting

B. Multiple Mounting

Diagram of a car interior showing structural components and airflow direction (no text or labels)

Multi-Speaker Installation Wiring Diagram

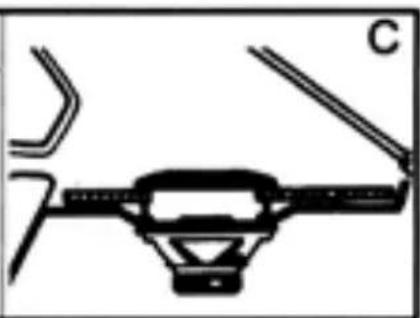

ILLUSTRATION OF REAR DECK MOUNT INSTALLATION

Simple line drawing of a funnel inside a rectangular frame, no text or symbols present

Diagram of a mechanical or architectural component with no visible text or symbols

Pure mechanical diagram showing a bracket and lever mechanism without any text or symbols

A. Speaker mounting depth and hole cutout diameter.

B. Cut hole using saber saw/ utility knife.

C. Connect wiring to speaker terminals. Make sure of polarity (+)positive (-)ground.

Using a philips screwdriver secure speakers and attach grille, if applicable.

POWERBASS XTREME LIMITED WARRANTY POLICY

PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:

PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized PowerBass Xtreme Dealer completes the installation.

This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the United States of America. Products purchased by consumers from a PowerBass dealer in another country are covered only by that country's Distributor and not by PowerBass USA.

This warranty covers only the original purchaser of PowerBass product. In order to receive service, the purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at PowerBass's discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this product under the following situations:

• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplifier clipping or distortion
• Product that has not been installed according to this owners manual

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.

Please call [phone] for PowerBass Customer Service. You must obtain an RA# (Return Authorization Number) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping. Return the defective product along with a copy of the original dated retail sales receipt, plus \$9.00 for handling and diagnostic evaluation to:

PowerBass USA, Inc., Attn: Returns (RA#____)

13936 Mountain Avenue, Chino, CA 91710

Residents of HI, AK and US territories will be charged for return shipping. All inquires regarding service and warranty should be sent to the above address.

This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2008 PowerBass USA, Inc.
