USER MANUAL Ideal Washstation 3S The Galley
THEGALLEY® REINVENT YOUR KITCHEN
Installation Guide

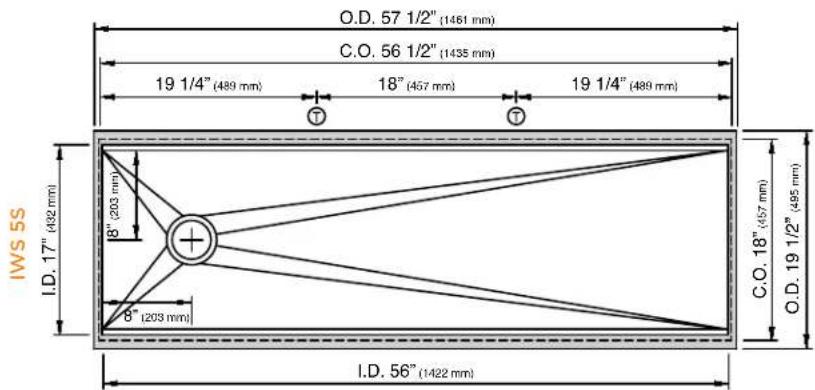

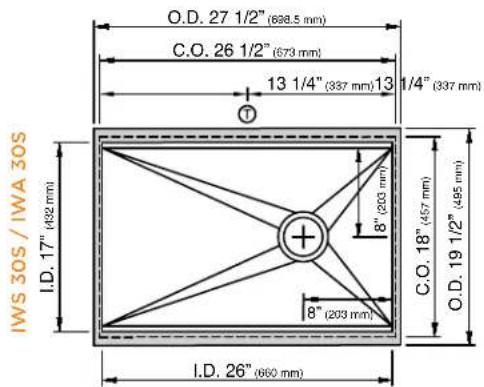

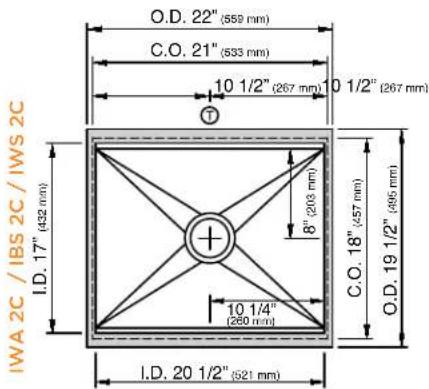

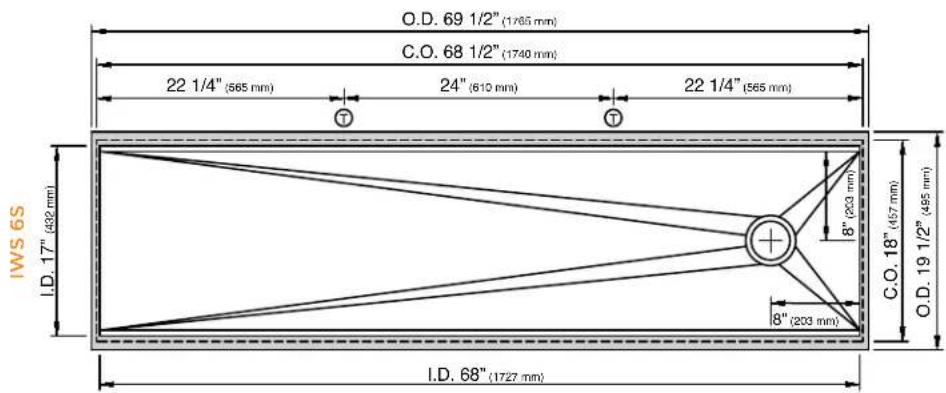

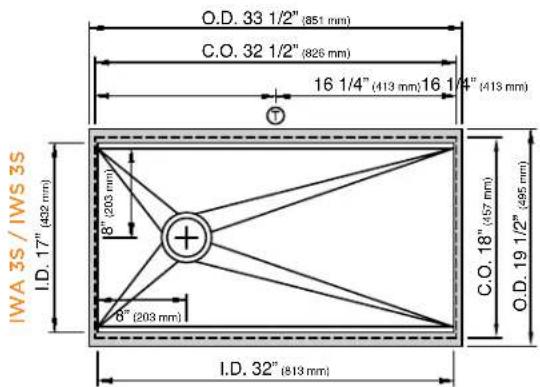

Ideal Workstations, Work&WashStations ^™ , Workstations/WashStations ^™ with DryDock, BarStations and WashStations ^™

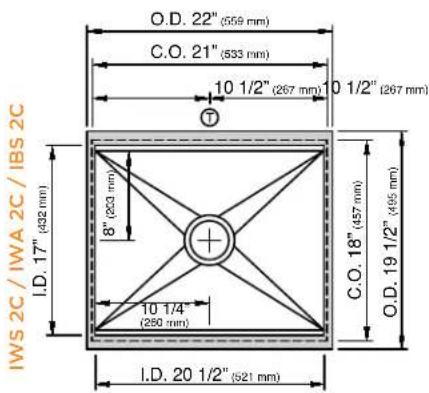

Workstations
Right Hand Drain Orientation

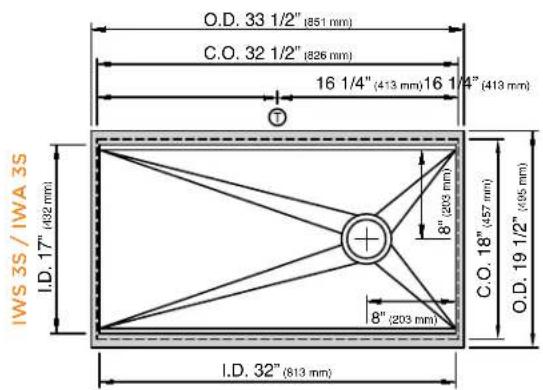

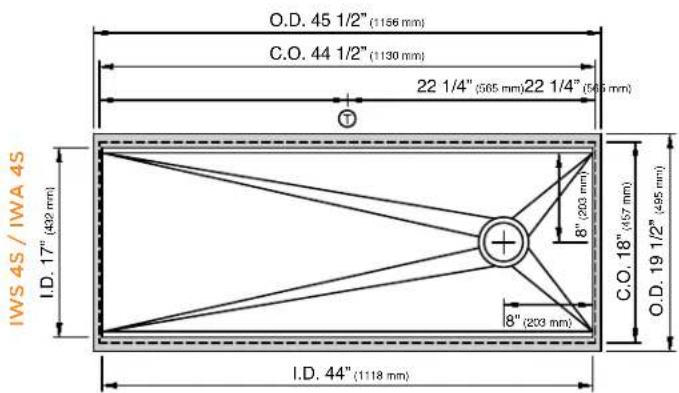

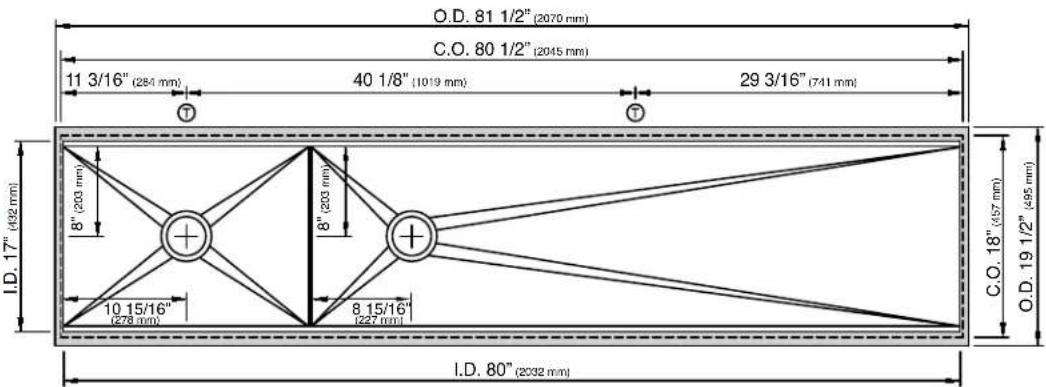

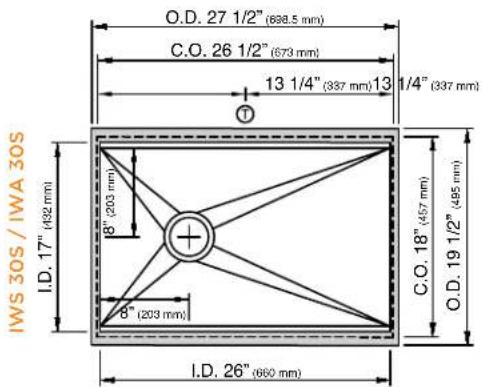

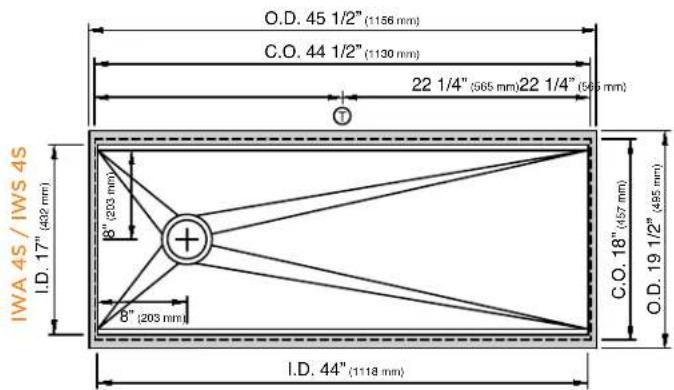

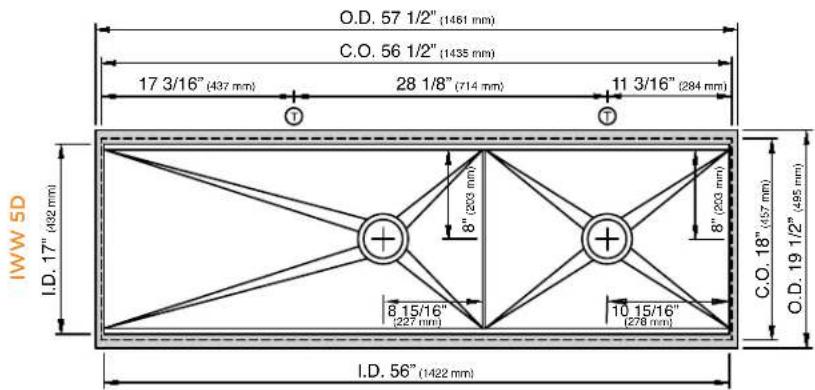

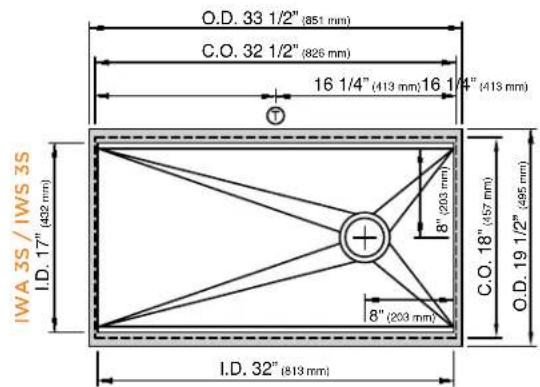

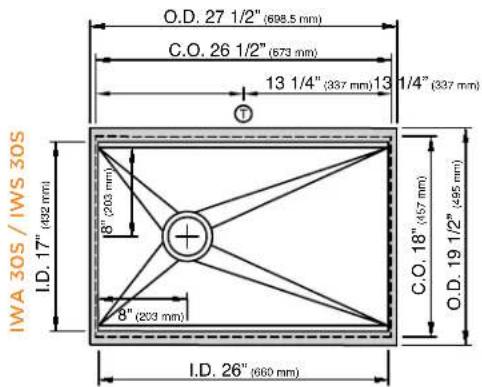

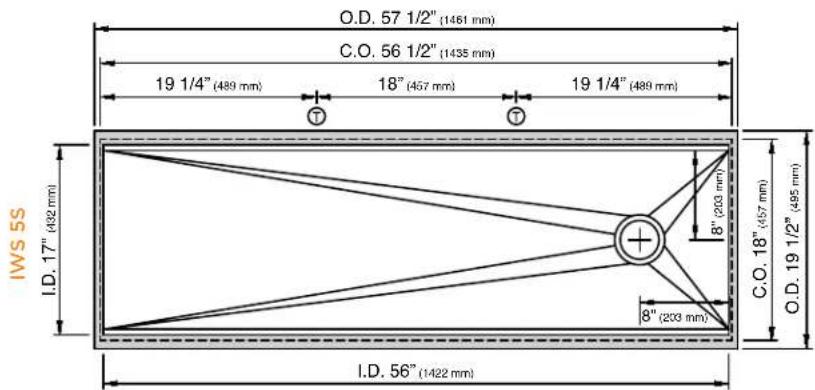

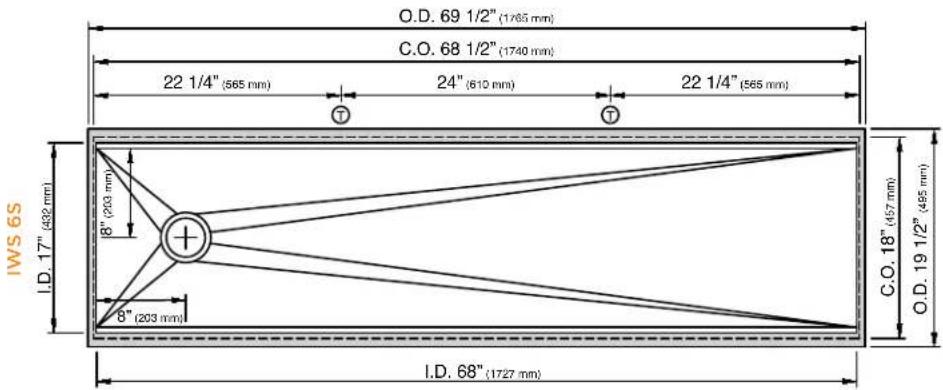

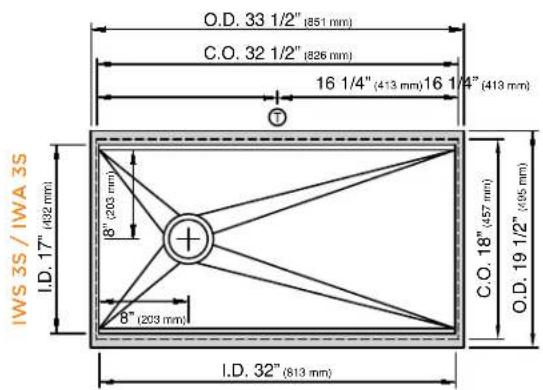

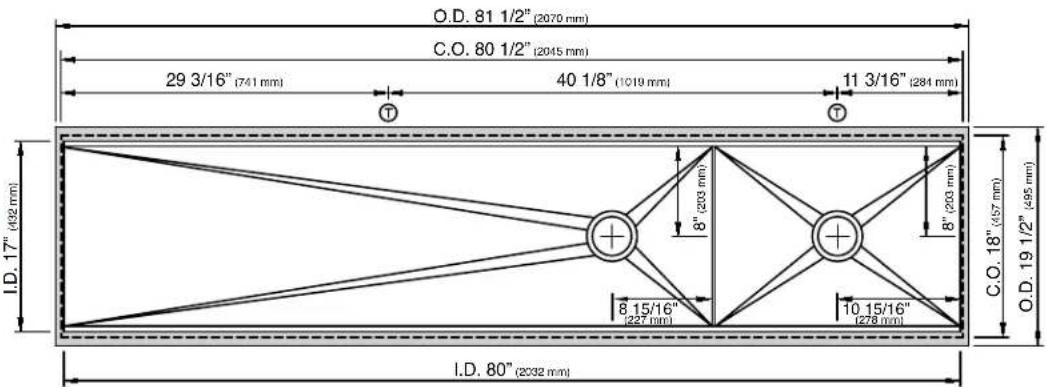

IWS 75
Workstations

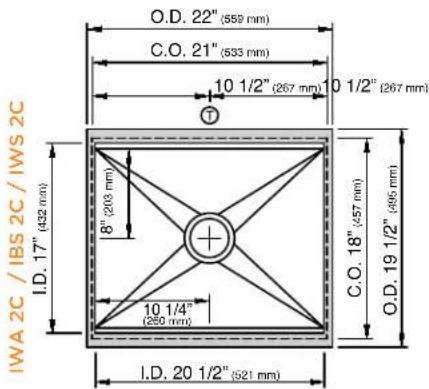

Left Hand Drain Orientation

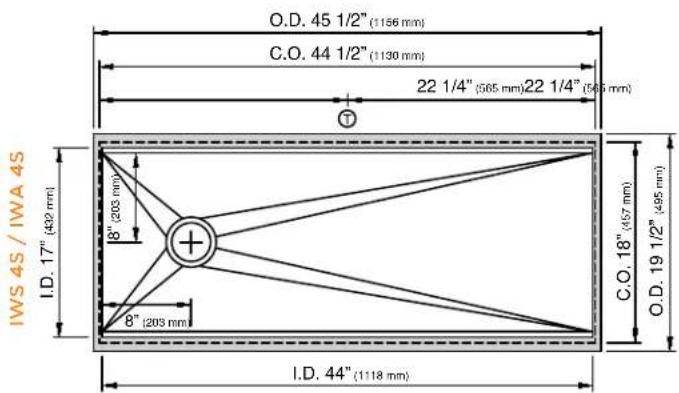

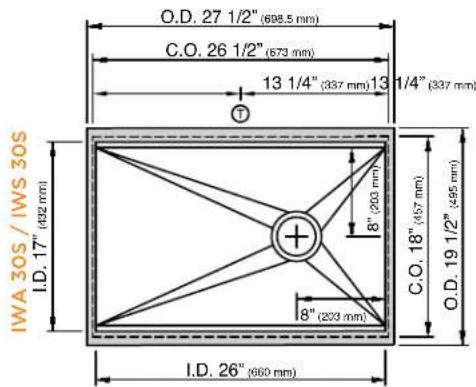

IWS 75

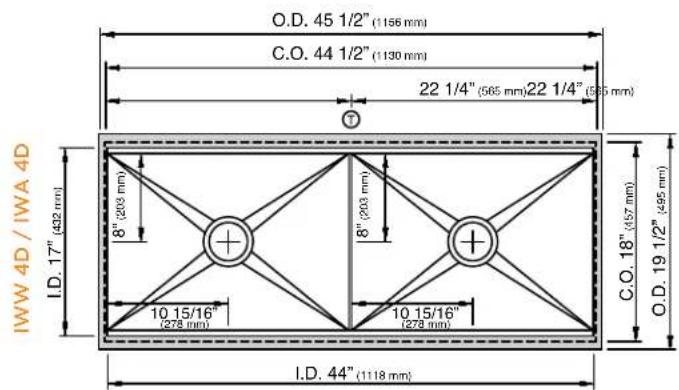

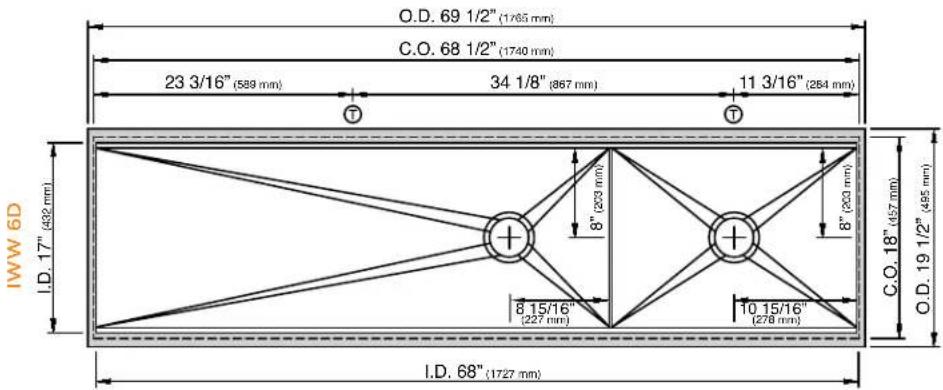

Work&WashStations™
Right Hand Drain Orientation
Side view applies to all Work&WashStations

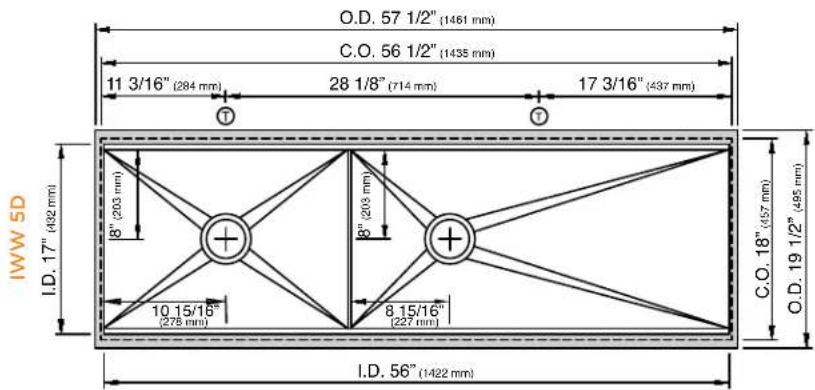

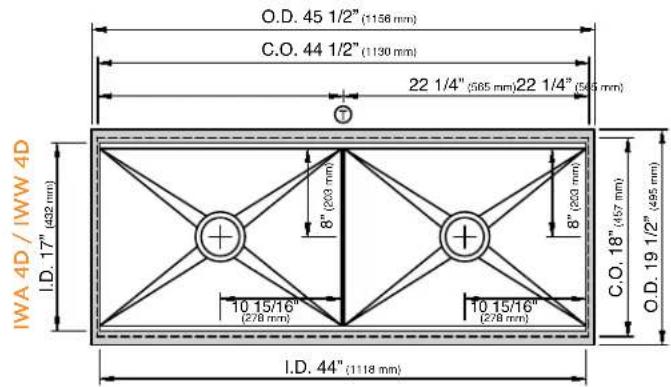

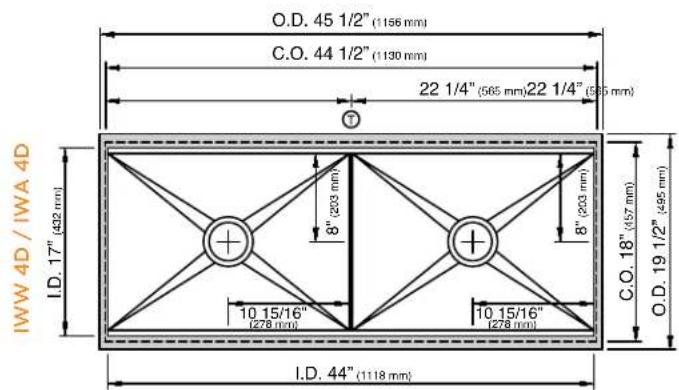

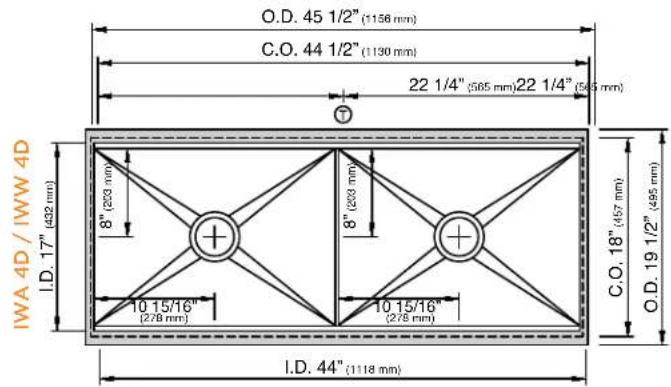

IWW 7D
Work&WashStations™
Left Hand Drain Orientation
Side view applies to all Work&WashStations
IWW 7D

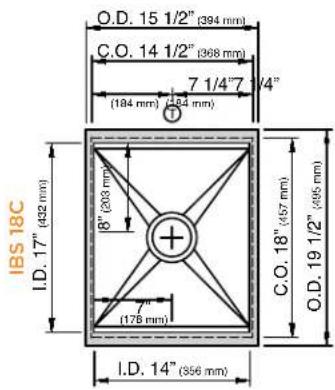

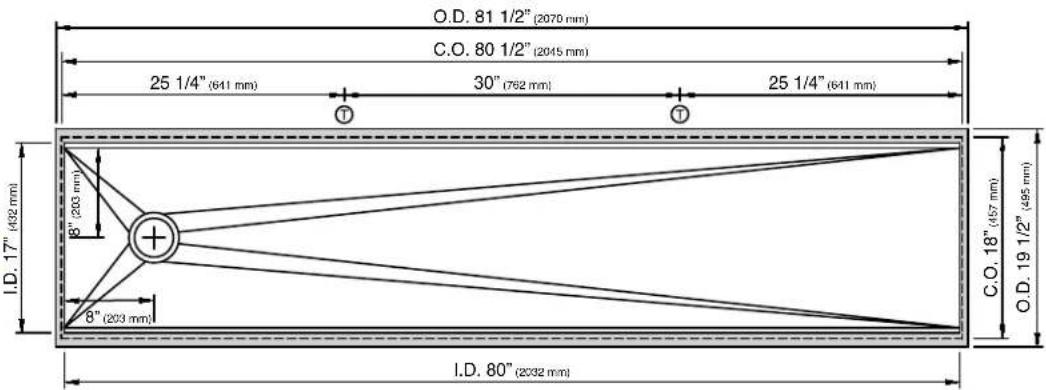

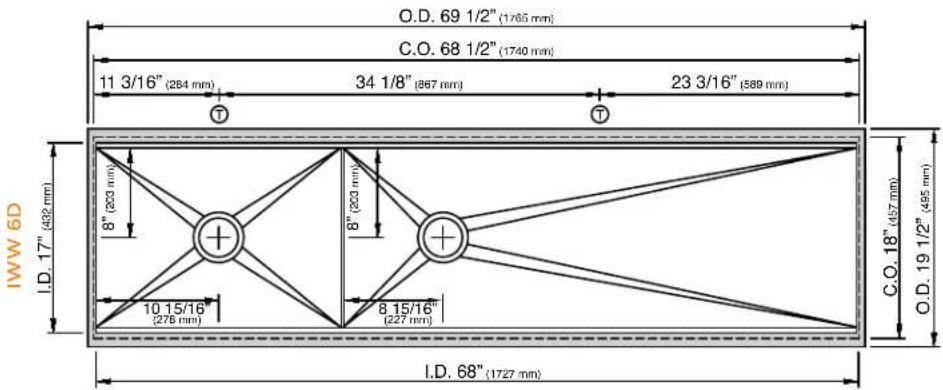

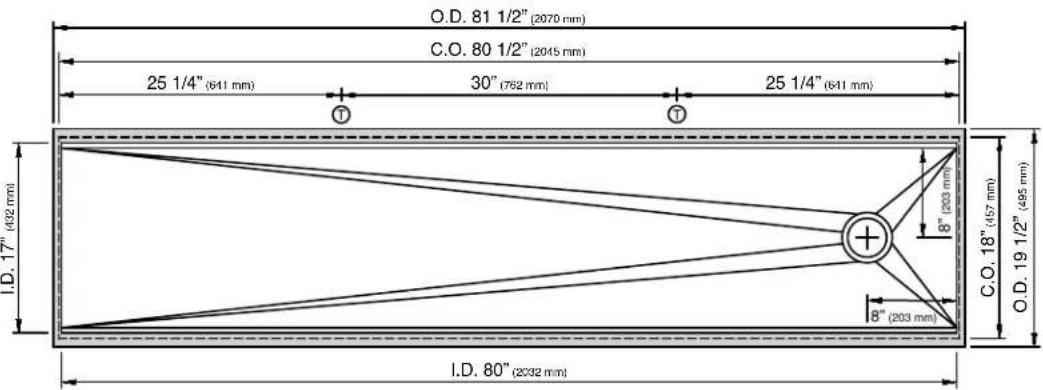

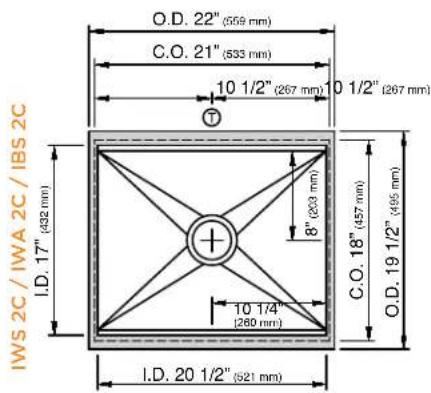

BarStations and WashStations™
Right Hand Drain Orientation
Side view applies to all
BarStations and WashStations

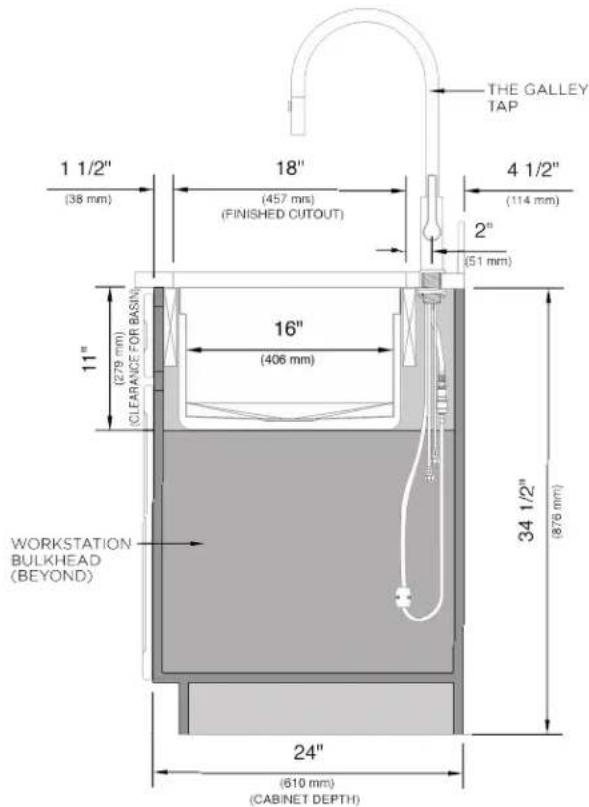

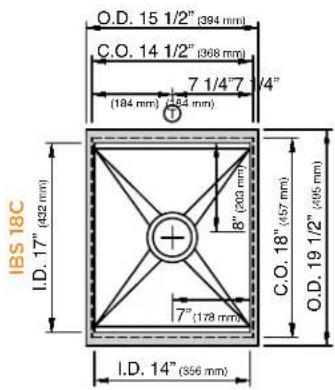

SUGGESTED GALLEY TAP PLACEMENT GUIDE
Suggested maximum inside corner radius of countertop cutout 3/8"
① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter
Center Tap hole diameters 2" behind cutout
Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap
Note: Tap Placements are for right hand or left hand drain orientation
Call 800.375.4255 or email customerservice@thegalley.com for additional guidance on Tap and Tap Accessory placements
BarStations and WashStations™
Left Hand Drain Orientation
Side view applies to all
BarStations and WashStations
SUGGESTED GALLEY TAP PLACEMENT GUIDE
Suggested maximum inside corner radius of countertop cutout 3/8"
① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter
Center Tap hole diameters 2" behind cutout
Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap
Note: Tap Placements are for right hand or left hand drain orientation
Call 800.375.4255 or email customerservice@thegalley.com for additional guidance on Tap and Tap Accessory placements

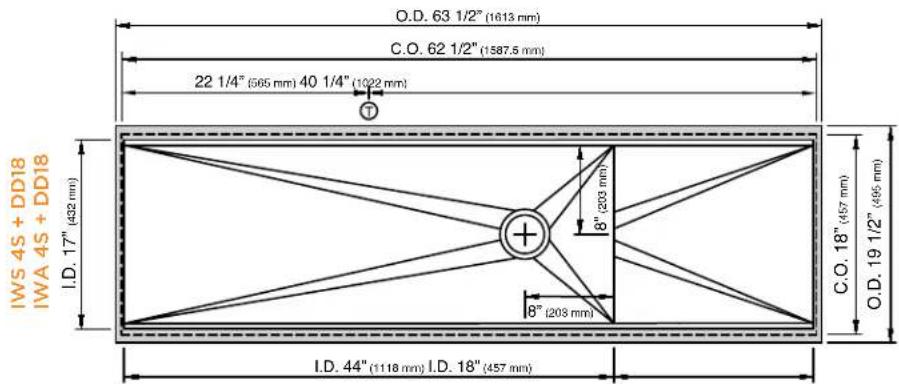

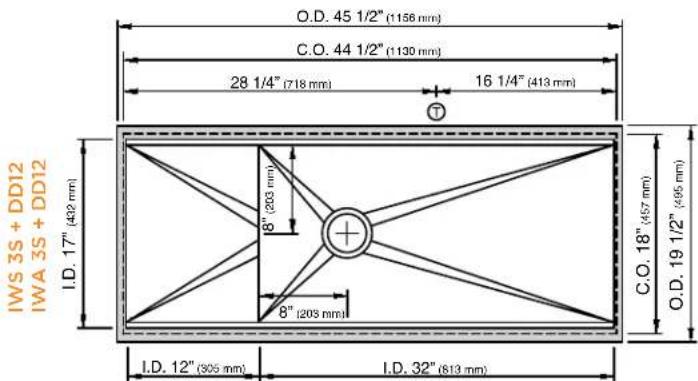

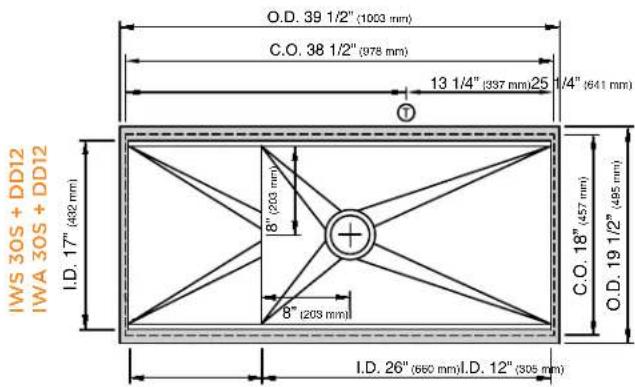

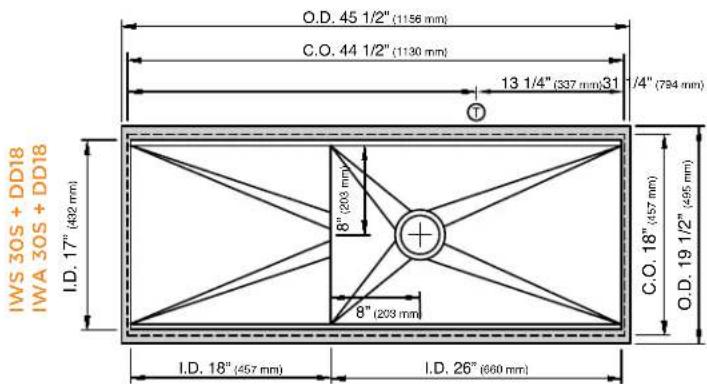

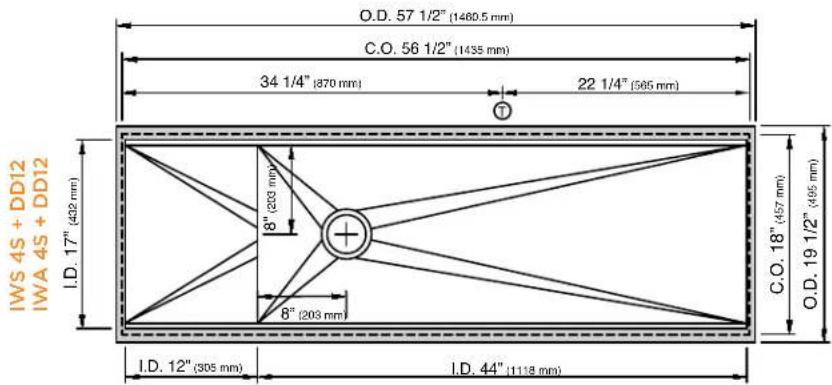

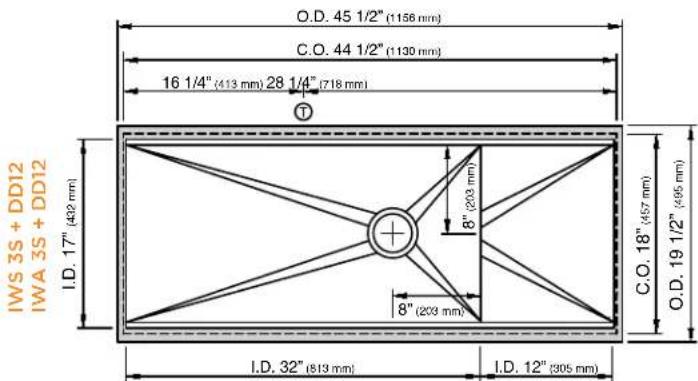

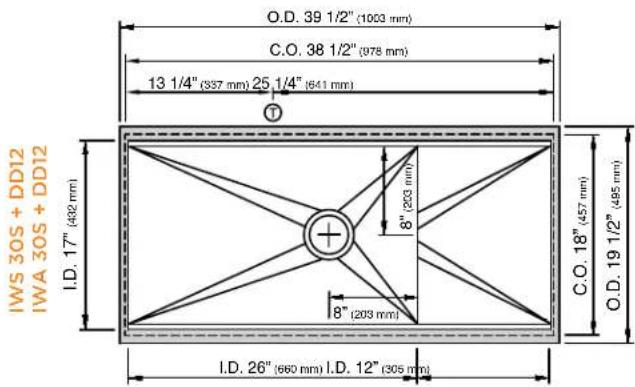

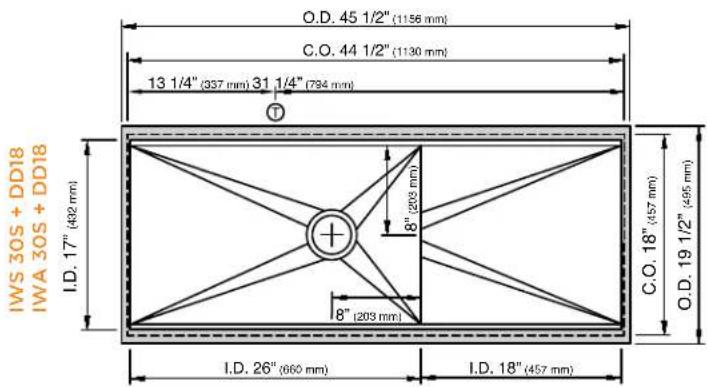

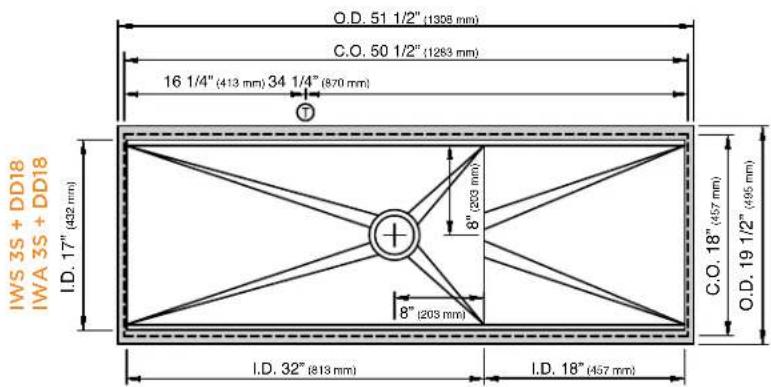

In Stock Workstations / WashStations™ with DryDock.
Right Hand Drain Orientation
Side view applies to all DryDock Workstations shown

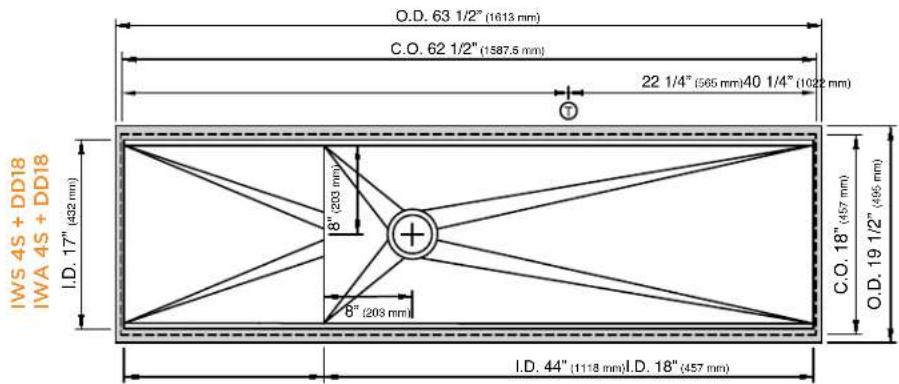

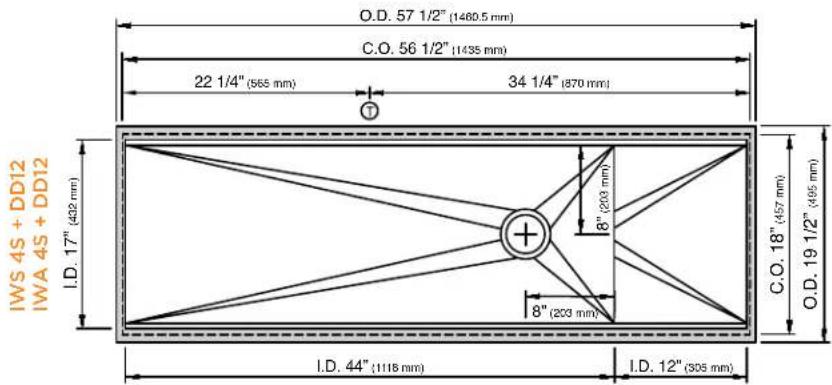

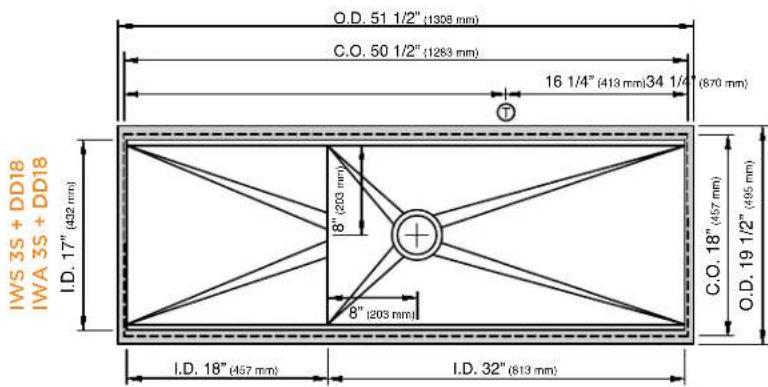

In Stock Workstations / WashStations™ with DryDock.
Left Hand Drain Orientation
Side view applies to all DryDock Workstations shown
SUGGESTED GALLEY TAP PLACEMENT GUIDE
Suggested maximum inside corner radius of countertop cutout 3/8"
① Galley Tap 1 3/8" minimum to 1 1/2" maximum hole diameter
Center Tap hole diameters 2" behind cutout
Note: Galley Hot & Cold Tap requires a minimum 8" clearance to center if installed to the right of the Galley Tap
Note: Tap Placements are for right hand or left hand drain orientation
Call 800.375.4255 or email customerservice@thegalley.com for additional guidance on Tap and Tap Accessory placements
IMPORTANT
- Please note: Unlike typical undermount kitchen sink installations, The Galley Workstation is installed in the cabinet prior to the counter being templated. A wood support frame will need to be constructed and mounted inside the base cabinet(s) and recessed down 1/16" from the top of the cabinet(s).
- Leave the installation instructions tray affixed to The Galley Basin until the countertop has been templated, and leave the basin braces affixed to the Basin's tiers until the countertop has been installed and silicone has cured for a minimum of one hour.
- The Workstation and Tap require a minimum of 22 1/2" inside the cabinet. For 24" deep inset cabinets installed against a wall, the cabinet must be pulled 1" away from the wall.
- For countertops with a laminated or built-up decorative front edge, construct the wood support frame to finish 1/16" below the underside of the countertop cutout area.
Inspect The Galley Basin for any damage prior to installation. For any questions or concerns please contact us immediately at 800.375.4255 or customerservice@thegalley.com.
Please refer to all local plumbing and building codes prior to installation.
Tools
DRILL
CIRCULAR SAW
LEVEL
TAPE MEASURE
WOOD SCREWS
CLAMPS
(OPTIONAL)
(4) 1" X 6"
HARDWOOD BOARDS
(OR ANY SIZE A CARPENTER DEEMS TO BE MOST EFFECTIVE)
CLOTH
2" PAINTERS TAPE
100% CLEAR SILICONE
SPRAY BOTTLE
Before You Begin

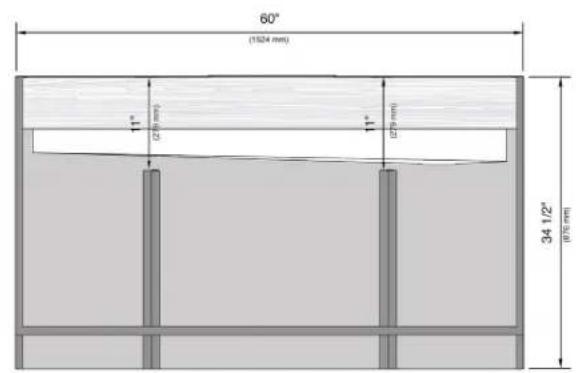

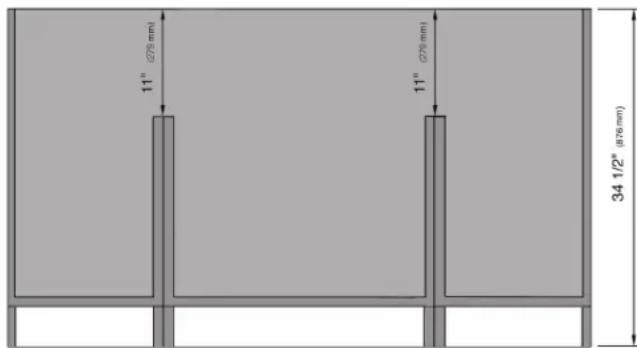

If your cabinet(s) have been built to accommodate your Galley Workstation, proceed to Step One. If you are joining two or more cabinets together to house the Galley Workstation, you will need to trim the bulkheads to create an 11" clearance for the Basin.
1. CONSTRUCT SUPPORT STRUCTURE

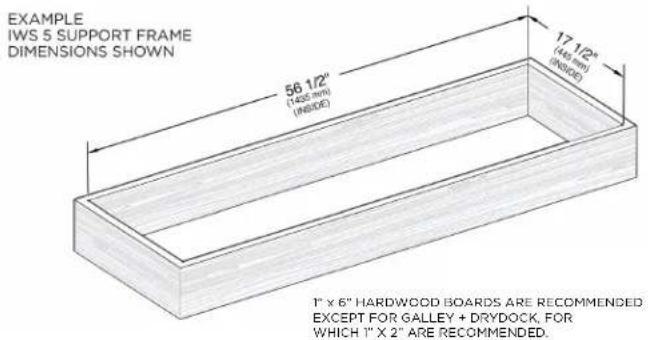

a) A wood support frame (cleat system) will need to be built and installed into the cabinet(s). This frame will support the weight of The Galley Workstation.
NOTE: Clips are NOT to be used.
b) Construct the support frame so that the inside dimensions of the frame are 1/2" larger than the Basin's inside width and length dimensions. Please refer to pages 1-8 for your Galley dimensions.
NOTE: For a Galley Workstation + DryDock, the support frame must be built with 1" x 2" boards so that there is no interference with any undercounter appliances.

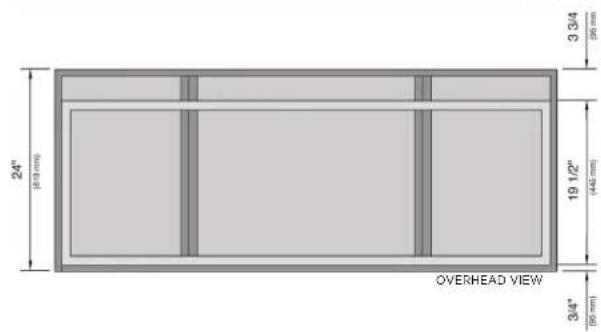

2. ATTACH THE SUPPORT FRAME TO THE INTERIOR WALLS OF THE CABINET
\*\*IMPORTANT\*\*
Place the support frame into the cabinet flush with the front of the cabinet. This will ensure that there is the minimum 3" plumbing space from the back of the frame to the cabinet wall needed.

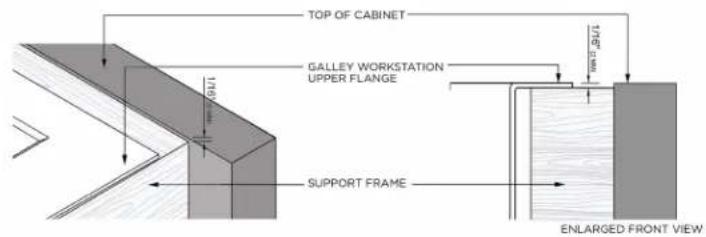

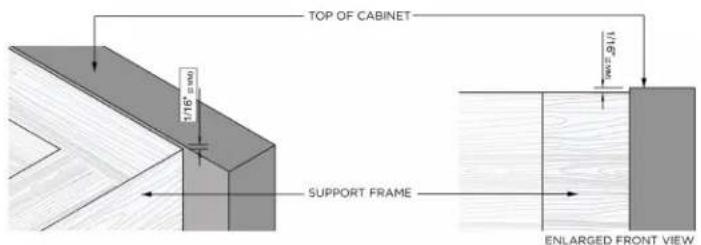

The support frame must be installed 1/16" lower than the top of the cabinet.
NOTE: Use a level to ensure that the support frame is installed level in the cabinet. Once installed, the top of the Basin Flanges will be flush with the top of the cabinet.
Attach the support frame to the interior walls of the cabinet.

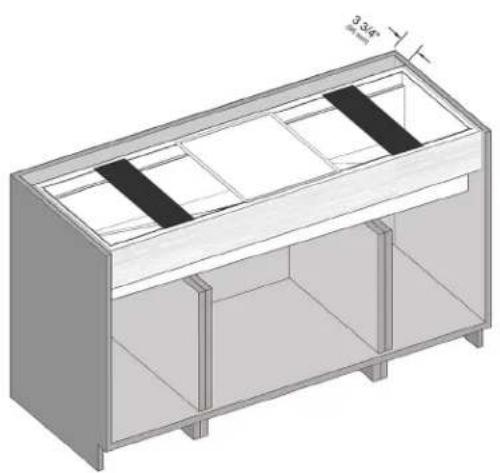

3. INSTALL THE WORKSTATION BASIN
a) Carefully place The Galley Basin into the cabinet by resting the flanges on the support frame. All four flanges should rest on the support frame.
b) Use a level to ensure that the flanges are level. The top of the flanges should be flush with the top of the cabinet.
c) Position the Basin so that it is perfectly square within the cabinet.
YOU ARE NOW READY FOR THE COUNTERTOP FABRICATOR
Countertop Installation
Use the white template tray affixed to The Galley Basin flanges as your guide for the front to back, and left to right cutout. Refer to pages 1-8 for your overall cutout dimensions or refer to the drawing on the template tray.
NOTE:
The suggested maximum corner radius is 3/8".
*Please refer to countertop manufacturer's warranted minimums*
The front to back cutout dimension must always be exactly 18".
The finished countertop will not completely cover the Basin flanges. A 1/2" will be exposed on the front and back flanges and a 1/4" exposed on the left and right flanges.
Creating this reveal allows for the Tools to slide across the upper tier.
STEP 1
a) On the front and back flanges, measure exactly 1/2" from the inside of the Basin and mark with a pencil.
b) On the left and right flanges, measure exactly 1/4" from the inside of the Basin and mark with a pencil. Now you are ready to tape the flanges with painters tape.
c) Apply tape to the marked area, covering exactly 1/4" closest to the inside of the Basin. Ensure that the tape covers the entire length of the flanges and that it extends exactly 1/2" onto the front and back flanges.
IMPORTANT: Be sure that it does not extend more than 1/2" onto the front and back flanges as shown.
d) Apply tape to the marked area, covering exactly 1/2" closest to the inside of the Basin. Ensure that the tape covers the entire length of the flanges and that it extends exactly 1/4" onto the left and right flanges.
IMPORTANT: Be sure that it does not extend more than 1/4" onto the left and right flanges as shown.
STEP 2
Apply a heavy bead of silicone to the untaped part of the flange.
STEP 3
Before setting the countertop in place, make sure the Basin is perfectly square in the cabinet. Set the countertop and position it properly so there is exactly 1/2" exposed reveal on the front and back flanges and exactly a 1/4" exposed reveal on the left and right flanges. Press countertop down on the flange. The silicone should fill any gaps.
STEP 4
Once the countertop has been set and the reveals measured, remove the excess silicone that is on the taped flanges, (do not remove the tape in this step). Using a spray bottle and a cloth, carefully clean all excess silicone off of the exposed taped flange.
STEP 5
Wait approximately one hour and remove tape and Basin braces. This will ensure there is a clean flange, free from silicone, which will enable the Tools to slide freely.
