USER MANUAL Fnac 3.0 7 bq
GUÍA RÁPIDA
QUICK START GUIDE
ESPAÑOL
Tablet Fnac 3.0 7"
Thank you for choosing Fnac 3.0 8"/3.0 8" 3G tablet. Before using your tablet carefully read this quick-start guide.
Content of package
Before using your tablet Fnac 3.0 7" for the first time, please check the content of the package. If any of the following items is not in the box, contact the retailer where you purchased the device.
- Tablet Fnac 3.0 7"
- MicroUSB - PC cable
- DC/AC adapter
- Documents
INSTRUCTIONS
- To properly use the device, carefully read this quick-start guide before using it.
- Instructions are based on factory settings of the device.
- Images and screenshots in this guide may not exactly match those of the final product.
- Parts of the content may not exactly match the operation of the product owing to firmware updates of the device. For the latest version of the user manual, visit www.fnac.es.
- Fnac is not liable for any performance problems or incompatibilities caused by the user's editing of the registry.
- Part of the content and services accessed through this device belong to third parties and are protected by copyright, patent, registered trademark and/or other intellectual property laws. Fnac does not guarantee the content or the services provided.
- Fnac does not guarantee the content of the services provided by third parties.
Instructional icons
Alert: important tips and notifications about how to use your new device.
Next: indicates the next step in a sequence.
Trademarks
Fnac is a registered brand under the license of Fnac, S.A.
Android ^TM logo is registered trademark of Google Inc.
Wi-Fi ^® , Wi-Fi CERTIFIED and Wi-Fi logos are registered trademarks of Wi-Fi Alliance.
Bluetooth ^® is a registered trademark of Bluetooth SIG, Inc.
MicroSD ^™ is a registered brand and logo registered of SD-3D, LLC.
Other trademarks and their copyrights are property of their respective owners.

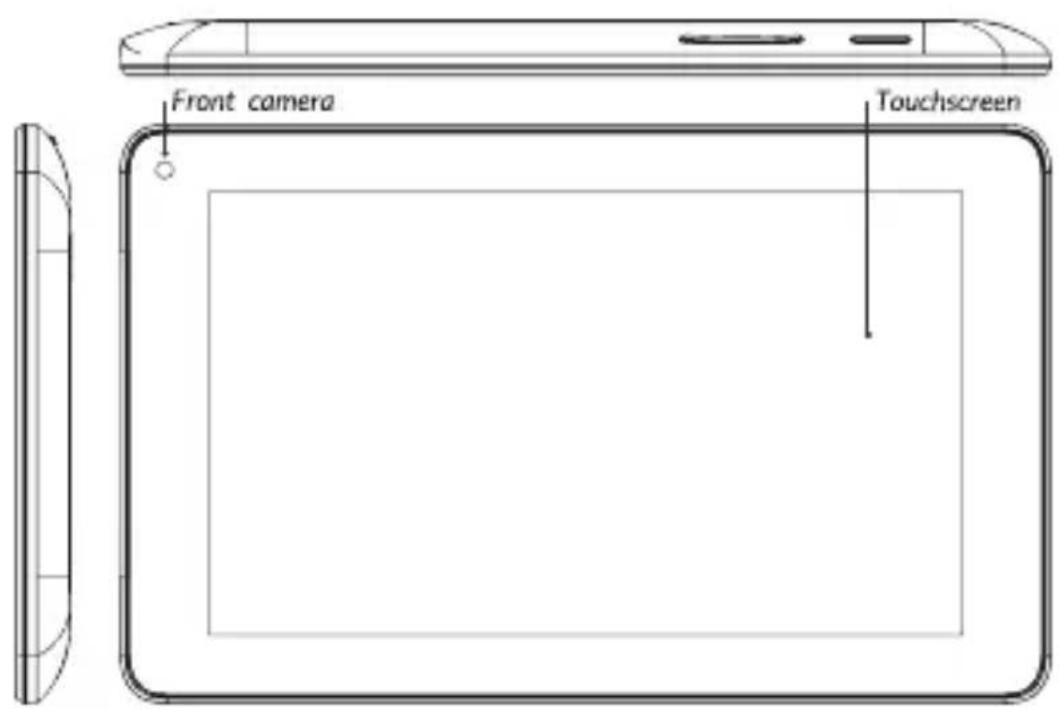

General views of the device

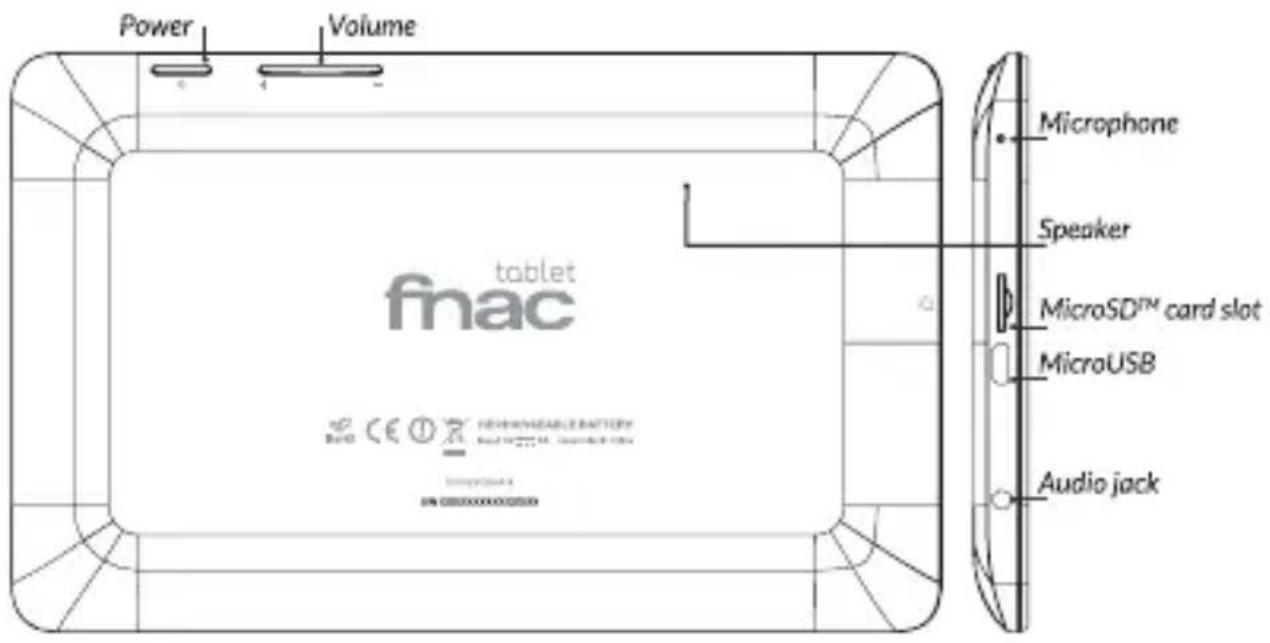

Buttons and ports
| Power | Long press to switch on the device, short press to turn on the screen when the device is in suspended mode. Press and hold for 15 seconds with the device turn on, it will force the turn off. |
| Microphone | Captures and records sounds and voices. |
| Audio jack | Insert your CTIA headphone cable here in order to listen to audio played on the device. |
| MicroUSB port | A port which enables your tablet to be connected to a computer via USB cable, in order to transfer files between the two devices and charge the battery. |
| Front camera | VGA camera which can be used to take photographs and record video |
Rear camera
2Mp camera which can be used to take photographs and record video.
Touch-screen
The capacitive touch-screen enables you to perform actions by touching it directly.
Volume buttons
Enable the adjustment of multimedia volume on the tablet.
MicroSD™ slot
MicroSD ^TM cards can be inserted into the device in order to increase its storage capacity.
Speaker
Emit the audio when the headphones are not connected.
GETTING STARTED
Battery
This device contains a rechargeable battery and non-removable Li-ion battery. To charge your tablet battery, connect the AC adapter to any standard socket and connect the microUSB of the device.
When the battery is fully charged, the battery icon will be shown as full. Disconnect the device cord and unplug the charger from the socket.
You should fully charge the battery before using the tablet for the first time.
Power on/off
To power on the device, press the power button ⏻ for a few seconds. To power it off, press the power button ⏻ until the popup screen Device options appears (other options will appear, select the one you want). Tap on Power off and confirm by tapping on OK.
If you press and hold for 15 seconds when the device is turned on, it will force the turn off. If you click once will switch off the screen but not the device.
Insert/Remove the microSD™ card
To install the microSD ^TM card, insert it in the slot and press until it clicks into place. To safely remove the microSD ^TM card, press the Menu button and go to
Settings > Storage > Unmount SD card. Press the card to remove it from the slot.
Operating system
The operating system in your Tablet Fnac 3.0 7" is 4.2.2 (Jelly Bean).
Transferring files
To transfer files from your device to a computer or vice-versa, follow these steps:
- Connect the microUSB cable to the corresponding ports on the device and on the computer. The device will be detected as a multimedia device (MTP). You can select the mode Camera (PTP).
- Select and copy files onto either the tablet or the computer.
- Once the files have been transferred, safely remove the device from your computer. Do not detach the cable while files are being transferred.
To transfer files from your tablet onto a computer which is running Mac OS and vice versa, it is necessary to download and install the free application “Android File Transfer” onto your computer: http://www.android.com/filetransfer/.
Periodically backup data in your tablet to avoid loss of files in case of physical damage, theft or loss.
To change the storage mode tap on Settings > Storage > menu button > USB computer connection.
USING THE SCREEN
Screen lock
The tablet screen locks automatically and by default when it is powered on or when the device is not used for a long period of time.
To set the screen timeout interval, press the button and go to Settings > Display > Sleep.
To turn off the screen manually, press the power button.
Adjust screen orientation
The orientation of the display switches automatically from portrait (vertical) to landscape (horizontal) and vice-versa according to the position of the device in all applications that support this function.
To change the display orientation, press the button
Settings > Display and turn off Auto-rotate screen.
Home screen
The home screen is the main pathway to the tools and applications installed on the Tablet Fnac 3.0 7". On the home screen, you can control the status of the device, open websites, open applications with their icons, open the Menu, etc.
The Toolbar is located in the lower part of the screen, with the Launcher and the Start Menu.
Launcher. Enables you to access: App, Widgets and Market.
Start Menu. In the Toolbar you will find the following buttons:
Back. This will take you back to the previous screen within the application.
Home. This will take you back to the start screen.
Open applications. This enables you to return or fully close an application so that it does not continue to execute its function. To close an application, simply click on it and move it over up or down and out of the list.
Top bar. The top bar displays time, device status, battery level, the intensity of the Wi-Fi signal and other system notifications.
Wi-Fi ^® . This will appear if your device is connected to a Wi-Fi ^® network, and will also indicate the strength of the signal.
Battery. This indicates how much charge is in the battery.
Bluetooth ^® . This will appear if you have activated the Bluetooth ^® .
From this bar you can access to the Settings pop-up window, and to the Notifications pop-up window.
Settings pop-up window
Swipe your finger down from the right-hand corner of the Top bar to bring up the Settings pop-up window. Here you can view the owner profile, adjust screen brightness, access settings, activate Wi-Fi ^® networks, Bluetooth ^® , view battery level and activate automatic screen rotation.
Notifications pop-up window
Swipe your finger down from the left-hand corner of the Top bar to bring up the Notifications pop-up window. From here you can select the method used to transfer files to your computer.
Expanded screens
You can use up to four additional extensions of the Home Screen, that can be personalised with shortcuts, applications and other tools. To move between the Home screen and the extended screens, drag the screen to the left or to the right using your finger.
Personalizing the Home screen
You can personalize the Home screen or the extended screens with your own images, such as backgrounds, icons or shortcuts to your favourite applications, etc.
Change the screen background
To change the screen background, long-press here, a pop-up window will appear in which you can select the origin of the image. Select an image to use as the screen background and tap on Set wallpaper to confirm the selection.
Add shortcuts
To add shortcuts to the Home screen, go to the extended screen where you wish to add an icon. Tap ☐ to open the menu and press and hold the application icon until the screen icon appears. Drag it to the place you wish to put it on the screen.
APPLICATIONS
In the applications Menu you can access all the applications installed on your Tablet Fnac 3.0 7". To open the Menu tap on , it is located in the lower part of the screen. To access an application, tap on its icon. To go back to the screen, tap on
Wi-Fi® CONNECTION
To connect to the Internet or use and application that requires an Internet connection, you must first connect the device to a Wi-Fi ^® network. To do this, follow these steps:
- You can access it by pressing the Notifications Menu, which is located in the bar at the bottom of the screen, or by pressing and accessing the Settings > Wireless & Networks > Wi-Fi. Turn on Wi-Fi ^® . The device will begin to search for an available network.
- Tap Wi-Fi settings. A list of the names of the Wi-Fi ^® networks (SSID) detected. Scroll down the list of the available networks. Tap on the network detected to check the security level and the intensity of the signal.
- If the connection is secure, enter the password and tap on Connect to start the connection. In the top bar, an icon with the signal intensity is shown 📤.
BLUETOOTH®
It allows file exchange between your device and other Bluetooth ^® devices:
- To access Bluetooth settings press Settings > Wireless & Networks > Bluetooth. Enable your Bluetooth ^® and select search devices. The system will show a list of available Bluetooth ^® device.
- Press on the name of the device you wish to pair with.
- Once pairing is complete you can transfer files between your tablet and the paired Bluetooth ^® device.
You can also search for your Fnac tablet from another device, tap on the ■ button and adjust the visibility timeout.
If you want to access the advanced settings by clicking on the application menu button :
SAFETY PRECAUTIONS
To use the device safely, please observe the following safety precautions:
- Do not use damaged power cords or connectors or loose sockets.
- Do not touch the power cord with wet hands or pull on the cord to disconnect the charger.
- Do not fold or damage the power cord.
- Do not use the device while charging or with wet hands.
- Do not strike or drop the charger or battery.
- Do not charge the battery with chargers that have not been approved by the manufacturer.
- Do not use the device during a lightning storm.
- Do not handle damaged or leaky Li-ion batteries.
- Handle and dispose batteries and chargers precaution.
- Do not use the device near a pacemaker: possible, avoid using the device at a distance of less than 15 cm from the pacemaker, as the device may interfere with it.
- Do not use the device in a hospital or near medical equipment which is vulnerable to interference caused by radiofrequency.
- If you use medical equipment, contact the manufacturer to ensure that the equipment is protected from radiofrequency. If you use a hearing aid, contact the manufacturer for further information on radio interference.
- In potentially explosive environments, turn off the device instead of removing the battery. Observe all rules, instructions and warning signs in potentially explosive environments.
- Do not use the device in fuel loading areas (service stations) or near fuels or chemicals in explosive areas.
- Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the device, its parts or accessories.
- Turn off the device when on board a plane.
- Electronic devices in a motor vehicle may behave in a wrong way due to the device’s radiofrequency.
Warning
This product has to be used with a power supply that has the following technical specifications:
INPUT: 100-240V \~ 50/60 Hz 0.4A max.
OUTPUT: 5.0V = 2.0A
Polarity has to be the same as described in this
picture:
Micro USB
Pin 1" +"
Pin 5 "-"
The use of power sources with different specifications may cause damage to equipment and can compromise the safety of people and goods.
Cleaning
Before cleaning the device, turn it off and disconnect all the system and power cords. Ensure that the device is completely dry before connecting again the cords and turning it on. Do not use any cleaning liquids or sprays directly on the surface of the screen or the case.
Use a soft, clean and lint-free cloth to remove dust and dirt from the screen. For fingerprints and stains a cloth with mild cleaning products. Moisten the cloth with clean water, wring it well and clean the cloth remove any leftover detergent.
ANNEX B: CORRECT DISPOSAL OF THIS PRODUCT
(Electric and electronic device waste)
(Applicable in the European Union and in European countries with selective waste collection systems).
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, easy separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
ANNEX C: DECLARATION OF CONFORMITY
Mundo Reader, S.L.
Pol. Ind. Európolis
Calle Sofía, 10
28232 Las Rozas de Madrid (Madrid) - Spain.
CIF: B85991941
Made in China
Warrants that this product:
Tablet Fnac 3.0 7" complies with the provisions of Directive 2006/95/CE on the harmonisation of the laws of Member States relating to Electrical Equipment designed for use within certain voltage limits and Directive 2004/108/CEE on Electromagnetic Compatibility complying with the harmonized standards: EN 60950-1:2006 + A11:2009, EN 62311:2008, EN 301 489-1 V 1.8.1, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1, EN 55022: 2006 + A1: 2007, EN 55013: 2001 + A1: 2003 + A2: 2006, EN 61000-3-2: 2006 + A1: 2009 + A2: 2009, EN 61000-3-3: 2008, EN 55024: 1998 + A1:2001 + A2: 2003, EN 55020: 2007.
Madrid, October 2013.
Alberto Méndez Peydró
CEO
