Product Type	Intelligent Charging Cart
Brand	Black Box
Model	Deluxe UICSB-BIN1-48H-HASP
Category	Mobile Phone Accessory (for tablets, laptops, Chromebooks)
Dimensions (Unit Height)	49.3 inches (125.2 cm)
Dimensions (Unit Width)	25.6 inches (65.0 cm) without handle; 29.1 inches (73.9 cm) with handle
Dimensions (Unit Depth)	23.6 inches (59.9 cm)
Unit Weight	150 lb (68.2 kg)
Shipping Weight	175 lb (79.5 kg)
Material	18 ga (1.2 mm) minimum thick steel, powder coat finish, molded ABS plastic top
Color	Gray
Input Power	120 VAC, 15 A, 50-60 Hz, 1 Ph
Power Cord	NEMA5-15P plug, min. 6-ft (1.8-m) cord
Charging Type	Intelligent Power Charger
Charging Modes	Charge Mode (auto-stop at full charge) and Manage Mode (continuous charging)
Device Capacity	30, 36, 42, or 48 devices (depending on configuration)
Ventilation	Min. 75% high flow steel mesh, 2 places per shelf
Casters	2 fixed, 2 swiveling and locking, 5-inch (12.7 cm) polyurethane tread
Top Weight Capacity	150 lb (68.2 kg)
Safety Compliance	UL 60950, UL 1678 tip test, CE, RoHS2
Warranty (Cart)	Lifetime
Warranty (Electronics)	3 Years
Included Accessories	1 Cart, 2 sets of keys

Frequently Asked Questions - Deluxe UICSB-BIN1-48H-HASP Black Box

How do I set up the charging cart for the first time?

Unpack and remove all packaging. Lock the casters, inspect doors and locks. Route cables through the cable manager at the back, then front. Plug in devices, then connect the cart to a 120V outlet. Turn on the internal power switches and select charging mode on the control panel.

What is the difference between Charge Mode and Manage Mode?

Charge Mode is best when all devices are powered off and connected simultaneously; it stops charging automatically when batteries are full. Manage Mode is for when devices are left on or returned at different times; it continues charging until manually stopped. Use Manage Mode for iPads or devices in sleep mode.

How many devices can the cart charge?

Capacity varies by configuration: 30, 36, 42, or 48 devices. The specific model Deluxe UICSB-BIN1-48H-HASP supports up to 48 devices.

Can I move the cart while it is plugged in?

No, always unplug the cart from the wall receptacle and wrap the cord around the cord wrap or handle before moving. Lock the casters after moving and plug it into a suitable outlet.

What should I do if the reset button pops out?

The reset button indicates the internal circuit breaker tripped due to misuse or power surge. Ensure all devices are supported and properly connected, then press the reset button back in to restore power.

Is the cart safe for children?

No, the cart can tip over if children climb on it, causing serious injury. Only adults should move the cart, and it should not be left unattended in areas accessible to children. Always lock casters and store out of reach.

What type of power outlet is required?

The cart must be connected to a 110–120-volt AC, 15-amp power supply with a grounded NEMA5-15P plug. Do not use extension cords.

How do I route cables for charging?

At the back, loosen cable manager screws, slide top section, place charging cable into slots, then tighten. At the front, loosen side/front screws, drop cable manager, place cable, secure. Wrap excess cable around cable wrap on shelf back.

What is the auxiliary power button for?

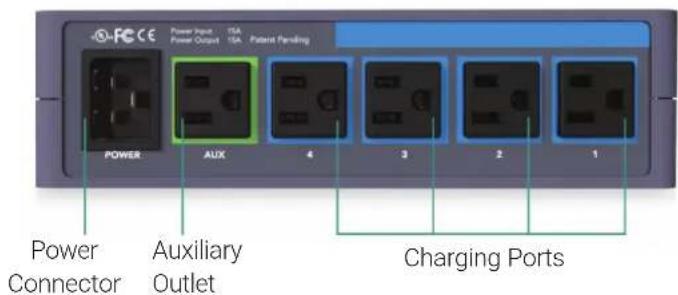

The AUXILIARY POWER button controls power to peripherals plugged into the AUX power strip at the back. For auxiliary devices to work during charging, the system must be in Manage Mode. Note that this may lengthen charging time.

How do I interpret the LED indicators?

The four quadrant LEDs show which sections of the cart are active. When all four are solid green, charging is complete. The power icon indicates the cart is connected to power. The CHARGE/MANAGE buttons illuminate when active.

USER MANUAL Deluxe UICSB-BIN1-48H-HASP Black Box

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS 3

Important Safety Information....3

Electrical Precautions....3

1. SPECIFICATIONS......4

1.1 Deluxe Intelligent Charging Carts General Specifications....4

1.2 Deluxe Intelligent Charging Carts Specifications for Hinged Door 5

1.3 Deluxe Intelligent Charging Carts Specifications for Sliding Door 6

2. OVERVIEW....7

2.1 Introduction....7

2.2 What's Included....7

3. CONFIGURATION AND SETUP....8

3.1 Unpacking 8

3.2 Routing the Cables 8

3.3 Using the Intelligent Charging System....11

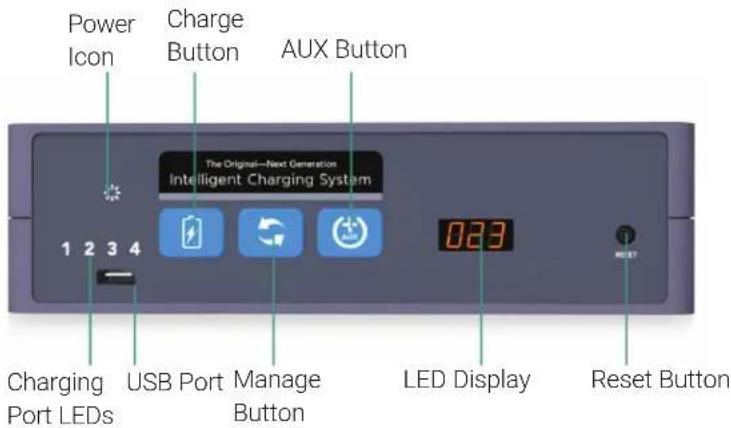

3.3.1 Display Tour 11

3.3.2 To Begin Charging....12

3.3.3 Basic Functions 12

3.4 Plugging In the Cart 13

3.5 Turning On the Cart 13

3.6 Moving the Cart 14

APPENDIX A. REGULATORY INFORMATION....15

A.1 FCC Statement....15

A.2 NOM Statement (Electrical Safety)....15

TRADEMARKS USED IN THIS MANUAL....17

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS

IMPORTANT SAFETY INFORMATION

WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.

WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in motion.

• Only adults should move the cart.
• Do not leave the cart unattended in areas where children have access.
• Do not block the air vent openings.
• The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
• The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.

ELECTRICAL PRECAUTIONS

DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.

• The power switch must be in the "OFF" position before plugging the Cart into a wall receptacle.
• The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
• The Cart must only be used by adults or with adult supervision.
• Never pull the Cart by the power cord.
  Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.

- Do not use an extension cord in conjunction with the Cart.

- Do not use liquids in or around the Cart environment.

- Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.

For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be checked for ground integrity and appropriate branch circuit protection.

The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.

The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and engaging or releasing the directional and locked casters, must be done with adult supervision.

1.1 DELUXE INTELLIGENT CHARGING CARTS GENERAL SPECIFICATIONS

TABLE 1-1. GENERAL SPECIFICATIONS

SPECIFICATION DESCRIPTION
General
Approvals UL	* 60950 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Fully welded box frame, riveted and bolted panels
Finish Powder Coat
Color Gray
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord	NEMA5-15P plug, min. 6-ft. (1.8-m) cord
Power Cord Access	(2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch	(1) illuminated switch on charging unit
Device Charging Type	Intelligent Power Charger
Modes	Charged Mode; Managed Mode
Auxiliary Power	(1) NEMA 5-15R on intelligent power charger unit (for units w/o external power); (3) NEMA5-15R and (2) USB 2.0 Type A outlets (external power option only)
Dimensions
Unit Height 49.3" (125.2 cm)
Unit Width	25.6" (65.0 cm) w/o handle, 29.1" (73.9 cm) w/ handle
Unit Depth	23.6" (59.9 cm)
Unit Weight	150 lb. (68.2 kg)
Shipping Height	55" (139.7 cm)
Shipping Width	35" (88.9 cm)
Shipping Depth	32" (81.3 cm)
Shipping Weight	175 lb. (79.5 kg)
Top Weight Capacity	150 lb. (68.2 kg)
Frame
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Top	Molded ABS plastic top with recessed work area
Casters
Type	(2) Fixed, (2) Swiveling and Locking
Diameter	5" (12.7 cm)
Wheel	Polyurethane tread
Frame	Nickel Plated Steel
Warranty
Cart	Lifetime
Electronics	3 Years

1.2 DELUXE INTELLIGENT CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

Up towards cable manager: 201, Down towards shell: 5.96 ^* Up towards cable manager: 5+1, Down toward shell: 5+

Part Number	Typical Device	Device Quantity	External Power	Lock Type	Max. Devicc Size (inches)			Max. Wailmount Power Supply Size(inches)		Max. Power Brick Size (inches) BasketDistributionSystem
					Height	Width	Depth	Height	Width	Depth	Height
UIGSS-10-30H	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A
UIGSS-10-30H-HASP	Tablet	30	No	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A
UIGSS-12-36H	Tablet	36	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCS-12-36H-HASP	Tablet	36	Yes	Paylock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCS-12-36H-HASP	Tablet	36	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCS-12-36H-HASP	Tablet	36	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCS-12-30H	Tablet	30	No	Key lock	10.62	1.36	13	SEE BELOW*	1.1	4.69	N/A
UIGCSM-10-30H-HASP	Chromedock	30	Yes	Key lock	10.62	1.36	13	SEE BELOW*	1.1	4.69	N/A
UIGCSM-10-30H-HASP	Chromedock	30	No	Paylock	10.62	1.36	13	SEE BELOW*	1.1	4.69	N/A
UIGCSM-10-30H	Chromedock	30	Yes	Key lock	10.62	1.36	13	SEE BELOW*	1.1	4.69	N/A
UIGCSM-10-30H-HASP	Chromedock	30	No	Paylock	10.62	1.36	13	SEE BELOW*	1.1	4.83	N/A
UIGCSM-10-30H	Chromedock	30	Yes	Key lock	10.62	1.36	13	SEE BELOW*	1.1	4.83	N/A
UIGCSM-10-30H-HASP	Chromedock	30	No	Paylock	10.62	1.36	13	SEE BELOW*	1.1	4.83	N/A
UIGCSM-10-30H	Chromedock	30	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCSM-10-30H-HASP	Chromedock	30	No	Paylock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCSM-10-30H	Chromedock	30	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCSM-10-30H-HASP	Chromedock	30
UIGCS-12-36H	Tablet	36	Yes	Paylock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A
UIGCS-12-36H-HASP	Tablet	36	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-12-36H-HASP	Tablet	36	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-12-36H	Tablet	36	No	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-12-36H	Tablet	36	No	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS 12-36H-HASP	Chromedock	30	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCSM-12-36H-HASP	Chromedock	30	No	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCSM-12-36H-HASP	Chromedock	30	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCSM-12-36H-HASP	Chromedock	30	No	Key lock	10.62	1.15	10	SEE RELOW*	1.1	4.83	N/A/N/A
UIGCSM-12-36H-HASP	Chromedock	30	Yes	Key lock	10.62	1.15	10	SEE RELOW*	1.1	4.83	N/A/N/A
UIGCSM-12-36H-HASP	Chromedock	30	No	Key lock	10.62	1.15	10	SEE RELOW*	1.1	4.83	N/A/N/A
UIGCSM-12-36H-HASP	Chromedock
UIGCSM-12-36H-HASP	Chromedock
UIGCSM-12-36H-HASP	Chromedock
UIGCSM-12-36H-HASP	Chromedock
UIGCS-12-36H	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12-36H-HASP	Chromedock
UIGCS-12,36H	Tablet	36	Yes	Paylock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-12-36H-HASP	Tablet	36	Yes	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-36H	Tablet	36	No	Key lock	10.62	1.15	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-36H	Tablet	30	Yes	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-36H-HASP	Tablet	30	Yes	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-36H-HASP	Tablet	30	No	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-36H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-36H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-37H	Tablet	30	Yes	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-37H-HASP	Tablet	30	Yes	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-37H-HASP	Tablet	30	No	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-37H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-37H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-38H	Tablet	30	Yes	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-38H-HASP	Tablet	30	Yes	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-38H-HASP	Tablet	30	No	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-38H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-38H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-39H	Tablet	30	Yes	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-39H-HASP	Tablet	30	Yes	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-39H-HASP	Tablet	30	No	Paylock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-39H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A
UIGCS-2-39H-HASP	Tablet	30	No	Key lock	10.62	1.4	10	SEE BELOW*	1.1	4.83	N/A/N/A

DELUXE INTELLIGENT CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

1.3 DELUXE INTELLIGENT CHARGING CARTS SPECIFICATIONS FOR SLIDING DOOR

*Up towards cable manager 4.7", Down towards shelf S/A **Up towards cable manager 5+, Down toward shelf S+

Part Number Typical Device Device System	Quantity	External Power	Lock Type	Max. Device Size (inches)			Max. Wall Wart Size (inches)			Max. Power Brick Size (inches)
				Height	Width	Depth	Height	Width	Depth	Height	Width	Depth
UCSS-10-30T	Tablet	30	No	Key lock	1062	14	10	STE BELOW*	11	483	N/A	N/A
UCSS-10-30T-HASP	Tablet	30	Yes	Paylock	1062	14	10	STE BELOW*	11	483	N/A	N/A
UCSS-10-30T-HASP	Tablet	30	Yes	Key lock	1062	14	10	STE BELOW*	11	483	N/A	N/A
UCSS-12-36T	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-12-36T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-12-36T-HASP	Tablet	35	No	Paylock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-12-36T-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-12-36T-HASP	Tablet	35	No	Paylock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-12-36T-HASF	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-10-30T-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS 10-30T-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A	N/A
UCSS-10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-10-30T-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-12-36THP-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-12-36THP-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-12-36THP-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-36THP-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-36THP-HASP	Tablet	35	Yes	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSS-36THP-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS-10-30T-HASP	Tablet	35	Yes	Paylock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS-10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS-10-30T-HASP	Tablet	35	Yes	Paylock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS 10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS-10-30T-HASP	Tablet	35	Yes	Paylock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS-10-30T-HASP	Tablet	35	No	Key lock	1062	115	10	STE BELOW*	11	483	N/A
UCSCS-10-30T-HASP	Tablet	35	Yes	Paylock	1062	115	10	STE BELOW*	11

DEUXE INTELLIGENT CHARGING CARTS SPECIFICATIONS FOR SLIDING DOOR

2.1 INTRODUCTION

The Deluxe Intelligent Charging Cart is designed to store, charge and transport tablets, e-readers, laptops, netbooks, Chromebooks and other similar devices. Each cart plugs into a typical 120-V, 15-A outlet. The units come equipped with an intelligent charging unit that efficiently charges low-battery devices first while ensuring the cart won't overload the electrical circuit.

The Deluxe Intelligent Charging cart can be equipped in various configurations according to the following standard options.

• 30, 36, 42, 48 stored devices
- Split hinged steel front door or split sliding plastic front door
- Keyed front and back lock or padlock front and back lock
- External power outlets
- Basket distribution system

In addition to the standard options, the Deluxe Intelligent Charging cart can be equipped with non-standard (custom) options. The following are typical custom options or accessories that can be configured.

• 19" Rackmount Equipment
• Shelf and divider device protection
• Caster size & type
• Lock type
• Exterior color
• Exterior artwork

All deluxe intelligent charging carts feature a heavy-duty, fully welded steel frame, molded plastic top work surface, heavy duty, 5" casters and 19"/23" EIA-310 rackmount rails for mounting of equipment.

Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains important information concerning the use and safety of your cart and the operators. This cart must be used for its intended purpose only and in accordance with these operating instructions.

2.2 WHAT'S INCLUDED

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [e-mail].

(1) Cart
(2) sets of keys

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

3.1 UNPACKING

Remove and discard all packaging materials and lock the lockable casters.

Open and inspect the cart to verify all doors, locks, and casters are working properly.

Do not plug the cart into a wall outlet until all configurations and setup are complete.

3.2 ROUTING THE CABLES

1. At the back of the cart, loosen the two screws on the cable manager, slide the top section of the cable manager, and place the device side of the charging cable into one of the slots. See Figure 3-1.

FIGURE 3-1. CABLE ROUTING DIAGRAM #1

1. Slide back the top section of the cable manager and tighten the screws.
2. Route the device side of the charging cable to the front of the cart.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

1. At the front of the cart, loosen the screws on the side and front of the cable manager.

FIGURE 3-2. CABLE ROUTING DIAGRAM #2

1. Push back and down on the front cable manager to drop it down and make it accessible. Slide the top section and place the charging cable into the slots.

FIGURE 3-3. CABLE ROUTING DIAGRAM #3

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

1. Slide back the top section and tighten the front screws.

FIGURE 3-4. CABLE ROUTING DIAGRAM #4

1. Push up and pull back on the cable manager to secure it.
2. Wrap any excess cable around the cable wrap on the back of the shelf.
3. Attach the power brick to the back of the shelf using the hook and loop strap.
4. Plug the charger power plug into the power strip located below the shelf.

FIGURE 3-5. CABLE ROUTING DIAGRAM #5

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

3.3 USING THE INTELLIGENT CHARGING SYSTEM

The Intelligent Charging System Module arrives installed in your cart.

3.3.1 DISPLAY TOUR

FIGURE 3-6. FRONT OF THE INTELLIGENT CHARGING SYSTEM UNIT

FIGURE 3-7. BACK OF THE INTELLIGENT CHARGING SYSTEM UNIT

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

3.3.2 TO BEGIN CHARGING

• Connect to Power
• Select Charging Mode (Choose from Charge Mode or Manage Mode.)

CHARGE MODE: Best used if all devices are powered off and connected at the same time. Power is discontinued when batteries reach full charge to conserve energy.

MANAGE MODE: Best used if all or some devices are left on or are returned at different times. Charging continues until it is manually stopped.

NOTE: THE CHARGING SYSTEM SHOULD ALWAYS BE IN MANAGE MODE IN ORDER TO CHARGE IPADS AND DEVICES THAT REMAIN IN SLEEP MODE.

3.3.3 BASIC FUNCTIONS

CHARGE BUTTON

Pressing the CHARGE button will start charge mode. This is best used when all devices are powered down and returned to the cart at the same time. Charging will automatically stop when all batteries are 100% charged. You can also stop charging at any time by pressing the CHARGE button a second time.

MANAGE BUTTON

Pressing the MANAGE button will start manage mode and turn on the auxiliary power. This mode will continuously monitor and distribute power until manually stopped. This mode is best used if some of the devices may be left on when connected or if devices are connected at different times. Press the button again to stop manage mode.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

AUXILIARY POWER BUTTON

Pressing the AUXILIARY POWER button controls power to any peripherals that are plugged into the AUX power strip in the back of the cart. If the AUX devices must be operational during charging, then the system must be in manage mode. Be aware that this may lengthen charging time.

1 2 3 4

CHARGING PORT LEDS

Indicates which sections of the cart are active. The charging unit controls this automatically, ensuring that all devices inside are charged in the fastest, most efficient way possible. When all four quadrant LEDs are solid green, charging is complete.

POWER ICON

Indicates when the cart is connected to power and ready.

RESET

RESET BUTTON

The Intelligent Charging System is protected with its own circuit breaker. If it encounters misuse such as plugging in unsupported devices or if there is a power surge, the circuit will trip and the reset button will pop out. To reset the cart, simply press it back in. Please first ensure that everything is plugged in properly and that only supported devices are connected before resetting.

3.4 PLUGGING IN THE CART

After the devices have been loaded into the Cart, plug the power cord of the Cart into a suitable receptacle.

3.5 TURNING ON THE CART

Locate the internal power switches and power strips of the Cart and push the switches to the ON position. They will illuminate if on. The outside charger control panel will illuminate and begin charging.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

3.6 MOVING THE CART

• Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
  ◆ Close and lock the hinged or sliding doors.
  ◆ Unlock the locking and swiveling casters before moving the cart to a new location.
• When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.

A.1 FCC STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

TRADEMARKS USED IN THIS MANUAL

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL is a registered trademark of Underwriters' Laboratories.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NOTES

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.87 7.2269
