Product Type	Deluxe Charging Cart
Brand	Black Box
Model	UCCSM-10-30H-R2
Device Capacity	30 devices (tablets, Chromebooks, etc.)
Dimensions (H x W x D)	49.3 x 25.6 (w/o handle) / 29.1 (w/ handle) x 23.6 in (125.2 x 65.0 / 73.9 x 59.9 cm)
Weight	150 lb (68.2 kg)
Input Power	120 VAC, 15 A, 50-60 Hz, 1 Ph
Power Cord	NEMA5-15P plug, 6-ft (1.8 m) cord
On/Off Switch	Illuminated rocker switch on timer unit
Timer Settings	5, 10, 15, 30, or 60 minutes (user customizable via DIP switches)
Charging Outlets	4 timed NEMA5-15R outlets + 1 always-on NEMA5-15R outlet (on timer unit)
External Power Option	3 NEMA5-15R + 2 USB 2.0 Type A outlets (on external power units)
Construction	Fully welded steel box frame, riveted and bolted panels, powder coat finish (gray)
Top Work Surface	Molded ABS plastic with recessed work area
Casters	2 fixed, 2 swiveling with locks, 5 in (12.7 cm) polyurethane tread on nickel-plated steel
Ventilation	Minimum 75% high flow steel mesh, 2 places per shelf
Certifications	UL 60950, UL 60730, UL 1678 Tip Test compliant, CE, RoHS2
Use Environment	Indoor office and mobile use only
Warranty – Cart	Lifetime
Warranty – Electronics	3 Years

Frequently Asked Questions - Deluxe UCCSM-10-30H-R2 Black Box

What is the Black Box Deluxe UCCSM-10-30H-R2?

The Black Box Deluxe UCCSM-10-30H-R2 is a charging cart designed to store, charge, and transport up to 30 devices such as tablets, Chromebooks, laptops, and similar electronics. It features a heavy-duty steel frame, customizable timed power distribution, and safety certifications.

How many devices can the cart charge simultaneously?

The cart is configured for 30 devices. However, the actual number depends on the power distribution setup and device power requirements. The timer unit manages power to avoid circuit overload, allowing efficient charging in groups.

How do I set the charging timer?

The cart timer unit has 8 DIP switches that control the charging interval (5, 10, 15, 30, or 60 minutes) and outlet grouping. Refer to the manual's DIP switch table (Table 3-1) for specific settings. The default is 15 minutes with all outlets active.

What safety precautions should I follow?

Important safety precautions include: do not allow children to climb or move the cart; ensure even weight distribution; use only with a 110-120V, 15A outlet; never pull by the power cord; keep liquids away; and have a qualified electrician check the circuit if needed. The cart is UL listed and tip-test compliant.

What is included in the package?

The package includes one cart and two sets of keys. The cart comes fully assembled. If any items are missing or damaged, contact Black Box Technical Support at 877-877-2269.

How do I move the cart safely?

First, unplug the cart and wrap the cord around the cord wrap. Close and lock the doors. Then unlock the swiveling and locking casters before moving. At the destination, lock the casters and plug into a wall outlet. Only adults should move the cart due to its weight (150 lb).

Can I use the cart for laptops?

Yes, the cart is suitable for tablets, Chromebooks, laptops, netbooks, and similar devices up to a certain size. The maximum device size varies by configuration; refer to the specifications for your model. Ensure devices are evenly distributed to prevent tipping.

What are the electrical specifications?

Input power: 120 VAC, 15 A, 50-60 Hz, single phase. Power cord: NEMA5-15P plug, 6 ft minimum. The timer unit has one always-on and four timed NEMA5-15R outlets, plus optional external power outlets (3 NEMA5-15R and 2 USB Type A). Do not exceed 12 amps load.

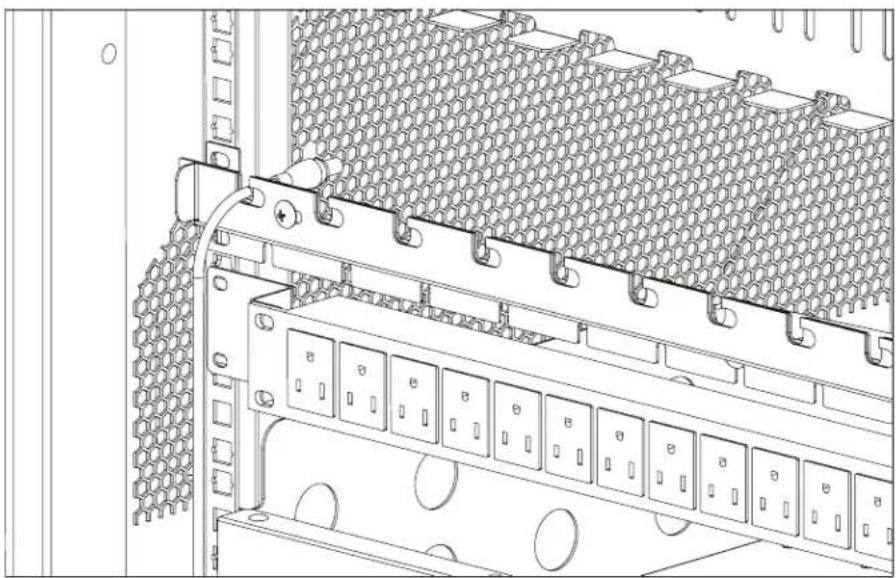

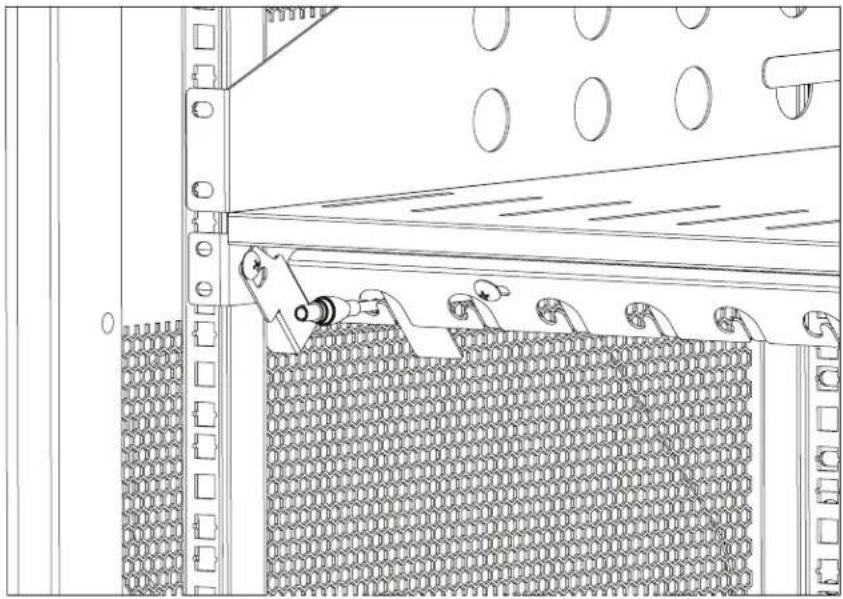

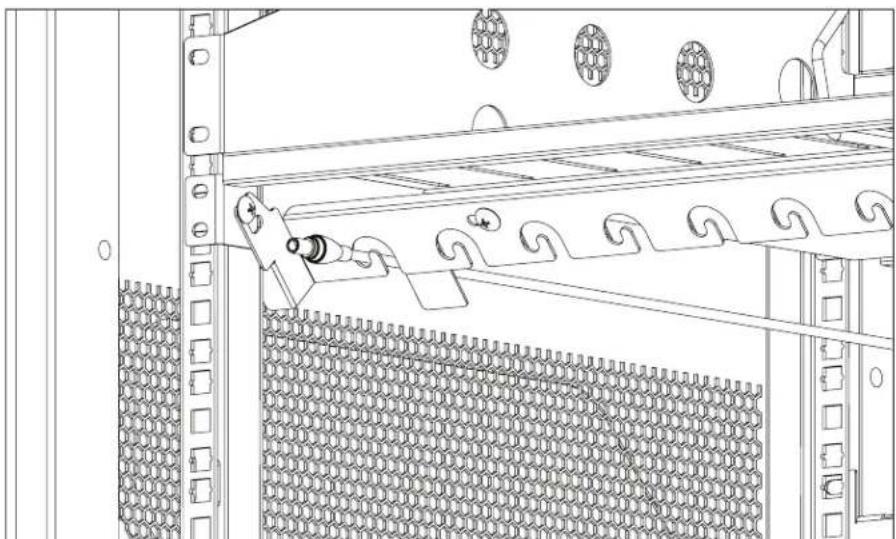

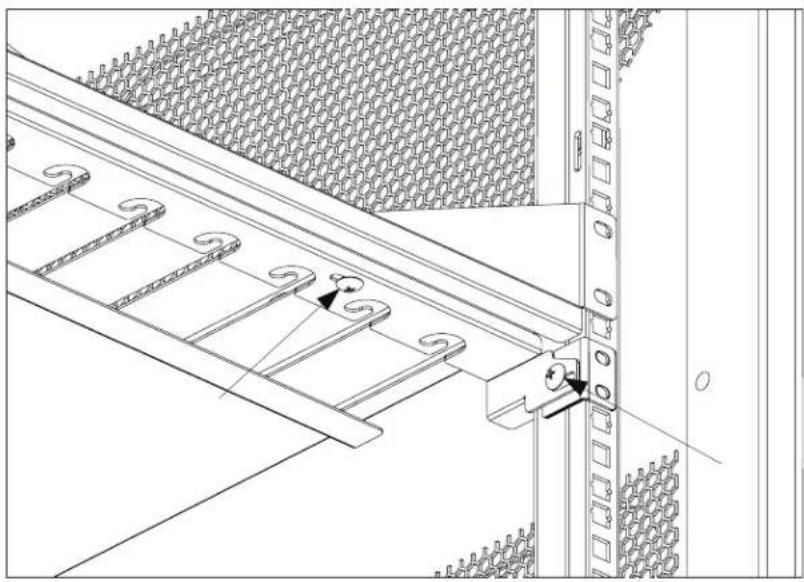

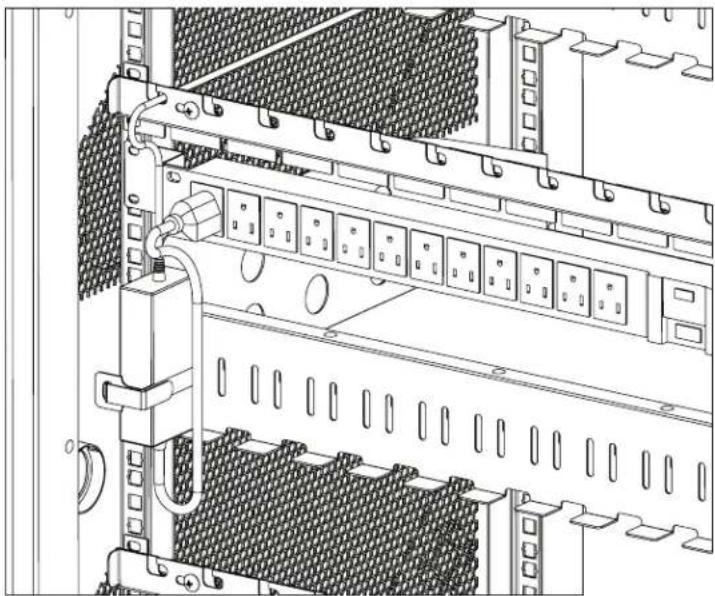

How do I route the charging cables?

At the back, loosen the cable manager screws, slide the top section, and place the device side of each charging cable into a slot. Route cables to the front, then loosen front screws, drop the cable manager, and insert cables into front slots. Secure by tightening screws and wrapping excess cable around the back cable wrap.

What should I do if the cart is not working?

First, ensure the power switch on the timer is ON (illuminated). Check that the cart is plugged into a working 120V outlet and the circuit breaker is not tripped. Verify DIP switch settings. If issues persist, contact Black Box Technical Support at 877-877-2269 or [e-mail]. Do not attempt repairs not covered in the manual.

USER MANUAL Deluxe UCCSM-10-30H-R2 Black Box

Two industrial cart carts side by side, one open and one with vertical slats (no text or symbols visible)

TABLE OF CONTENTS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.8 7 7.2269

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS .... 3

Important Safety Information....3

Electrical Precautions....3

1. SPECIFICATIONS....4

1.1 Deluxe Charging Carts General Specifications....4

1.2 Deluxe Charging Carts Specifications for Hinged Door 5

1.3 Deluxe Charging Carts Specifications for Sliding Door 6

2. OVERVIEW....7

2.1 Introduction....7

2.2 What's Included....7

3. CONFIGURATION AND SETUP 8

3.1 Unpacking 8

3.2 Routing the Cables 8

3.3 Customizing the Timer 11

3.4 Plugging In the Cart 12

3.5 Turning On the Cart 12

3.6 Moving the Cart....12

APPENDIX A. REGULATORY INFORMATION....13

A.1 FCC Statement....13

A.2 NOM Statement (Electrical Safety)....13

TRADEMARKS USED IN THIS MANUAL....15

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS

IMPORTANT SAFETY INFORMATION

WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.

WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in motion.

• Only adults should move the cart.
• Do not leave the cart unattended in areas where children have access.
• Do not block the air vent openings.
• The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
• The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.

ELECTRICAL PRECAUTIONS

DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.

• The power switch must be in the "OFF" position before plugging the Cart into a wall receptacle.
• The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
• The Cart must only be used by adults or with adult supervision.
• Never pull the Cart by the power cord.
  Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.
• Do not use an extension cord in conjunction with the Cart.
• Do not use liquids in or around the Cart environment.

- Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.

For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be checked for ground integrity and appropriate branch circuit protection.

The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.

The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and engaging or releasing the directional and locked casters, must be done with adult supervision.

All electrical outlets provided are for the sole purpose of charging electronic devices. Any use of these electrical outlets, other than for the intended purpose, is not advised and must be approved by a qualified electrician.

Do not exceed the maximum specified wattage of the cart timer. The load current shall not exceed 12 amps under any operating conditions.

1.1 DELUXE CHARGING CARTS GENERAL SPECIFICATIONS

TABLE 1-1. GENERAL SPECIFICATIONS

SPECIFICATION DESCRIPTION
General
Approvals UL	* 60950 Approved; UL 60730 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Fully welded box frame, riveted and bolted panels
Finish Powder Coat
Color Gray
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord	NEMA5-15P plug, min. 6-ft. (1.8-m) cord
Power Cord Access	(2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch	(1) illuminated switch on cart timer unit
Device Charging Type	Customizable round-robin style timed power switch
Power Switch Time	5 mins, 10 mins, 15 mins, 30 mins or 60 mins (factory set, user customizable)
Auxiliary Power	(1) NEMA5-15R on cart timer unit (for units w/o external power);(3) NEMA5-15R and (2) USB 2.0 Type A outlets (external power option only)
Dimensions
Unit Height 49.3" (125.2 cm)
Unit Width	25.6" (65.0 cm) w/o handle, 29.1" (73.9 cm) w/ handle
Unit Depth	23.6" (59.9 cm)
Unit Weight	150 lb. (68.2 kg)
Shipping Height	55" (139.7 cm)
Shipping Width	35" (88.9 cm)
Shipping Depth	32" (81.3 cm)
Shipping Weight	175 lb. (79.5 kg)
Top Weight Capacity	150 lb. (68.2 kg)
Frame
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Top	Molded ABS plastic top with recessed work area
Casters
Type	(2) Fixed, (2) Swiveling and Locking
Diameter	5" (12.7 cm)
Wheel	Polyurethane tread
Frame	Nickel Plated Steel
Warranty
Cart	Lifetime
Electronics	3 Years

1.2 DELUXE CHARGING CARTS SPECIFICATIONS FOR HINGED DOOR

*4up towards cable manager 5+, Down towards shelf 5+. *4up towards cable manager 2,01+, Down towards shelf 5,96.

Part Number	Typical Device	Device Quantity	External Power	Distribution System
UCOSS-10-30H	Tablet	30	No	Max. Power Brick Size (inches) Basket
UCOSS-12-36H-R2	Tablet	36	No	N/A
UCOSS-12-36H-HASP	Tablet	36	Yes	N/A
UCOSS-12-36H-RASP	Tablet	36	Yes	N/A
UCOSS-12-36H-HASP	Tablet	36	Yes	N/A
UCOSS-12-36H-R2	Tablet	36	Yes	N/A
UCOSM-10-30H-R2	Chromedock	36	No	N/A
UCOSM-10-30HP-R2	Chromedock	30	Yes	N/A
UCOSM-10-30HP-R2	Chromedock	30	Yes	N/A
UCOSM-10-30HP-R2	Chromedock	30	Yes	N/A
UCOSM-12-36H-R2	Chromedock	36	No	N/A
UCOSM-12-36HP-HASP	Chromedock	36	Yes	N/A
UCOSM-12-36HP-HASP	Chromedock	36	Yes	N/A
UCOSM-12-36HP-R2	Chromedock	30	Yes	N/A
UCOSM-12-36HP-R2	Chromedock	30	Yes	N/A
UCOSM-14-24H-R2	Chromedock	36	No	N/A
UCOSM-14-24H-R2	Chromedock	42	No	N/A
UCOSM-14-24H-R2	Chromedock	42	Yes	N/A
UCOSM-14-24H-R2	Chromedock	42	Yes	N/A
UCOSM-14-24ZH	Lapdog	42	No	N/A
UCOSL-14-24ZH-HASP	Lapdog	42	Yes	N/A
UCOSL-14-24ZH-R2	Lapdog	42	No	N/A
UCOSL-14-24ZH	Lapdog	42	Yes	N/A
UCOSL-14-24ZH-HASP	Lapdog	42	Yes	N/A
UCOSL-14-24ZH-R2	Lapdog	42	No	N/A
UCOSB-BIN1-48H-HASP	Laptop	48	Yes	N/A
UCOSB-BIN1-48P	Lapdog	48	Yes	N/A
UCOSB-BIN1-49P	Lapdog	48	Yes	N/A
UCOSB-BIN1-49P	Lapdog	48	Yes	N/A
UCOSB-BIN1-49H	Lapdog	48	Yes	N/A
UCOSB-BIN1-48H-HASP	Laptop	48	No	N/A
UCOSB-BIN1-48H	Lapdog	48	Yes	N/A
UCOSB-BIN1-48H-R2	Lapdog	48	No	N/A
UCOSB-BIN1-48H-R2	Lapdog	48	Yes	N/A

DELUXE CHARGING CARTS SPECIFICATIONS FOR HIKEED DOOR

1.3 DELUXE CHARGING CARTS SPECIFICATIONS FOR SLIDING DOOR

*Up towards cable manager: 4.7, Down towards shelf 5.4"

*Up towards cable manager: 5+, Down toward shelf 5+

*3Up towards cable manager: 2.01, Down towards shelf 5.96

Basket Distribution System	Part Number Typical Device Device	Quantity	Extramal Power	Lock Type	Max. Device Size (inches)			Max. Wall Wart Size (inches)		Max. Power Block Size (inches)
					Height	Width	Depth	Height	Width	Height	Width
UCOS-10-30T	Tablet	30	No	Key lock	1062	14	10	SET BELOW**	11	483	N/A
UCOS-10-30T-HASP	Tablet	30	Yes	Key lock	1062	14	10	SET BELOW**	11	483	N/A
UCOS-10-30T-R2	Tablet	36	No	Key lock	1062	115	10	SET BELOW**	11	483	N/A
UCOS-12-36T-HASP	Tablet	36	Yes	Key lock	1062	115	10	SET BELOW**	11	483	N/A
UCOS-12-36T-HASP	Tablet	36	No	Redlock	1062	115	10	SET BELOW**	11	483	N/A
UCOS-12-36T-R2	Chromedock	30	No	Key lock	1062	136	10	SET BELOW**	11	469	N/A
UCOSM-10-30T-HASP-R2	Chromedock	30	Yes	Key lock	1062	136	10	SET BELOW**	11	469	N/A
UCOSM-10-30T-R2	Chromedock	30	Yes	Key lock	1062	136	10	SET BELOW**	11	469	N/A
UCOSM-10-30T-HASP	Chromedock	30	Yes	Redlock	1062	136	10	SET BELOW**	11	469	N/A
UCOSM-12-36T-HASP	Chromedock	36	No	Redlock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-R2	Chromedock	36	No	Key lock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-P HASP	Chromedock	36	Yes	Redlock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-R2	Chromedock	36	No	Redlock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-P HASP	Chromedock	36	Yes	Key lock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-P HASP	Chromedock	36	No	Redlock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-42T-HR2	Chromedock	36	No	Key lock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-14-42T-R2	Chromedock	36	No	Key lock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-14-42T-P HASP	Chromedock	42	No	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSM-14-42T-R2	Chromedock	42	Yes	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSM-14-42T-P HASP	Chromedock	42	Yes	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSM-14-27T-R2	Chromedock	42	No	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSM-14-27T-R2	Chromedock	42	No	Redlock	1062	091	13	SET BELOW**	11	469	N/A
UCOSM-14-27T-HASP	Chromedock	42	No	Redlock	1062	091	13	SET BELOW**	11	469	N/A
UCOSL-12-36T-HASP	Chromedock	42	Yes	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSL-12-36T-R2	Chromedock	42	No	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSL-12-36T-P HASP	Chromedock	42	Yes	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCOSL-12-36T-R2	Chromedock	42	No	Key lock	1062	091	13	SET BELOW**	11	469	N/A
UCCSL-12-36T-HASP	Chromedock	36	Yes	Redlock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-HASP	Chromedock	36	No	Redlock	1062	11	15	SET BELOW**	11	469	N/A
UCOSM-12-36T-P HASP	Chromedock	36	Yes	Key lock	1062	11	15	SET BELOW**	11	469	N/A
UCOSL-12-36T-HASP	Chromedock	36	No	Redlock	1062	11	15	SET BELOW**	11	469	N/A

DELUXE CHARGING CARTS SPECIFICATIONS FOR SLIDING DOOR

2.1 INTRODUCTION

The Deluxe Charging Cart is designed to store, charge and transport tablets, e-readers, laptops, netbooks, Chromebooks and other similar devices. Each cart plugs into a typical 120-V, 15-A outlet. The units come equipped with a charging unit that efficiently charges devices while ensuring the cart won't overload the electrical circuit.

The Deluxe Charging cart can be equipped in various configurations according to the following standard options.

• 30, 36, 42, 48 stored devices
- Split hinged steel front door or split sliding plastic front door
- Keyed front and back lock or padlock front and back lock
- External power outlets
- Basket distribution system

In addition to the standard options, the Deluxe Charging cart can be equipped with non-standard (custom) options. The following are typical custom options or accessories that can be configured.

• 19" Rackmount Equipment
• Shelf and divider device protection
• Caster size & type
• Lock type
• Exterior color
• Exterior artwork

All deluxe charging carts feature a heavy-duty, fully welded steel frame, molded plastic top work surface, heavy duty, 5" casters and 19"/23" EIA-310 rackmount rails for mounting of equipment.

Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains important information concerning the use and safety of your cart and the operators. This cart must be used for its intended purpose only and in accordance with these operating instructions.

2.2 WHAT'S INCLUDED

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [e-mail].

(1) Cart
(2) sets of keys

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

3.1 UNPACKING

Remove and discard all packaging materials and lock the lockable casters.

Open and inspect the cart to verify all doors, locks, and casters are working properly.

Do not plug the cart into a wall outlet until all configurations and setup are complete.

3.2 ROUTING THE CABLES

1. At the back of the cart, loosen the two screws on the cable manager, slide the top section of the cable manager, and place the device side of the charging cable into one of the slots. See Figure 3-1.

Technical line drawing of a server rack with hexagonal mesh insulation and multiple circuit switches (no text or symbols)

FIGURE 3-1. CABLE ROUTING DIAGRAM #1

1. Slide back the top section of the cable manager and tighten the screws.
2. Route the device side of the charging cable to the front of the cart.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LEAVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.87 7.877.2269

1. At the front of the cart, loosen the screws on the side and front of the cable manager.

Technical line drawing of a structural panel assembly with ladder and bracket (no text or symbols)

FIGURE 3-2. CABLE ROUTING DIAGRAM #2

1. Push back and down on the front cable manager to drop it down and make it accessible. Slide the top section and place the charging cable into the slots.

Technical line drawing of a mechanical assembly with hexagonal lattice structure and mounting brackets (no text or symbols)

FIGURE 3-3. CABLE ROUTING DIAGRAM #3

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

1. Slide back the top section and tighten the front screws.

Technical line drawing of a mechanical assembly with chain-link mesh and mounting bracket (no text or symbols)

FIGURE 3-4. CABLE ROUTING DIAGRAM #4

1. Push up and pull back on the cable manager to secure it.
2. Wrap any excess cable around the cable wrap on the back of the shelf.
3. Attach the power brick to the back of the shelf using the hook and loop strap.
4. Plug the charger power plug into the power strip located below the shelf.

Technical line drawing of a server rack with multiple drive bays and ventilation slots (no text or symbols)

FIGURE 3-5. CABLE ROUTING DIAGRAM #5

3.3 CUSTOMIZING THE TIMER

The cart timer unit is designed to supply power to multiple power distribution units (PDUs) inside the charging cart or locker while preventing overloading of the building circuit.

The cart timer unit has one illuminated on/off rocker switch. This turns on or off the power to the cart.

The cart timer unit has one C13 inlet where the cart power cord plugs into. The power cord plugs into a 120-VAC, 15-A, 50/60-Hz, 1-ph NEMA5-15R outlet only.

The cart timer unit has one "always on" NEMA5-15R outlet for constant power supply to any appliance requiring 120 VAC, 15 A, 50/60 Hz, 1 ph. The external power outlets on certain cart configurations will plug into the "always on" outlet.

The cart timer unit also has 4 "timed" NEMA5-15R outlets that supply power to the PDUs, which in-turn charge the devices stored within. The 4 timed outlets switch from on to off based on the configuration of the cart timer unit.

The cart timer unit has 8 DIP switches that control the configuration of the cart timer unit.

The features, functions and instructions described in this manual are important to understand and follow to successfully use this product.

The timer is configured from the factory to a certain setting of charging. The timer configuration can be changed to change the charging profile of the cart or locker. This could increase the evenness of the charged devices and the speed to charge. The configuration can be set by activating or deactivating different timed outlets, charging timed outlets together by grouping and increasing or decreasing charging interval. The table below shows the different DIP switch settings to achieve the desired configuration of the cart timer unit.

TABLE 3-1. DIP SWITCH SETTINGS

*Default settings: Active: 1-3 ON, No Group, Timing: 15 min.

Additional Details

Purpose of Control	Time Switch
Construction of Control	Freestanding Control
Action Type	Type 1 Action (Operating Control)
Pollution Degree	Pollution Degree 2
Impulse Voltage	1500 V

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

3.4 PLUGGING IN THE CART

After the devices have been loaded into the Cart, plug the power cord of the Cart into a suitable receptacle.

3.5 TURNING ON THE CART

Locate the internal power switches on the timer and power strips of the Cart and push the switches to the ON position. They will illuminate if on. The external power indicator will glow green under "Cart Power" if the cart is on.

3.6 MOVING THE CART

• Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
• Close and lock the hinged or sliding doors.
  ◆ Unlock the locking and swiveling casters before moving the cart to a new location.
• When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.

A.1 FCC STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

TRADEMARKS USED IN THIS MANUAL

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877.2269

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

UL is a registered trademark of Underwriters' Laboratories.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.87 7.2269
