USER MANUAL SNR-6400 Hanwha

©2011 Samsung Techwin Co., Ltd. All rights reserved.

Trademark

SAMSUNG TECHWIN is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Warranty

If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:

• Data loss due to a damaged hard disk
- If the system behaves abnormally because you run a program irrelevant to the system operation.
• Data loss due to virus infection
• Deteriorated performance or natural worn-out in process of time
- Sensory phenomenon that does not affect the performance or quality of the product (ex: working noise).

Preface

Thank you for choosing a Samsung Network Video Recorder (Disk Player) product.

This instruction manual provides detailed information and instructions for the NVR network DVR products. Please read this manual and any supplementary document(s) thoroughly before attempting to install and/or operate the product.

The contents of this manual, and the software and hardware explained herein, are protected by copyright law. All copy, reprint and translation to other languages of a part of or all of the contents of this instruction manual without permission of Samsung Techwin Co., Ltd. are expressly prohibited except for fair use within the scope of copyright law.

The specifications of the product may change without prior notice for product improvement.

Product Warranty and Limited Liability

The manufacturer of this product is not responsible for the sale of the product, nor does the manufacturer delegate such responsibility to a third party. The product warranty does not extend to any accident, neglect, alteration, or misuse of the product. Furthermore, this warranty does not cover any components or parts that are not supplied by the manufacturer of this product.

The product warranty period is for three years from the purchase date. However, the warranty does not cover any of the following problems, and a nominal service fee will be charged if:

● Product has been improperly used or handled by user.
● Product has been disassembled and/or altered by user.
● Product has been damaged by connecting a power supply with improper specifications.
- Product has been damaged due to an "Act of God" (fire, flood, tsunami, natural disaster, etc.)
● To replace expendable components: HDD, Fan, etc.
(The warranty for the HDD and Fan is valid for one year from the purchase date.)

This warranty covers only the product supplied with the warranty.

After the warranty period (three years) has expired, a service fee will be charged for any inspection and/or repair for the product. During the warranty period, a service fee will be charged for repair and/or inspection for the product for any problems that are not covered by the warranty.

This product is not an anti-theft or fire-prevention device; the manufacturer is not responsible for any damage to property or personnel that may occur during its use.

This product must be installed by skilled and experienced personnel; self-installation by the user is prohibited. Self-installation by the user may result in fire, electrocution, and/or product malfunctions. Please contact your local dealer for assistance with the installation of the product.

The contents of this manual may change in order to accommodate upgrades in firmware and/or software. Also, the specifications and/or design of this product may change without prior notice for product improvement.

Table of Contents

Preface....1

Product Warranty and Limited Liability ...... 1

Table of Contents....3

Chapter 1. Overview ...... 6

1.1. Safety Precautions ...... 6
1.2. Product Contents....9

Chapter 2. Part Names ...... 10

2.1. Front Panel.... 10

2.2. Back Panel....12

2.3. Default Settings ...... 13

2.3.1. Monitoring Page.... 13
2.3.2. Playback Page 13
2.3.3.Config Page 14
2.3.4. System Page....17

Chapter 3. Installation ...... 18

3.1. Installing and Connecting Product ...... 18

3.1.1. Supplying Power and Operating the Product 18
3.1.2. Configuring the Network .... 18
3.1.3. Internal HDD 19
3.1.4. External HDD 22
3.1.5. Sensor....23
3.1.6. Relays 24
3.1.7. USB 25

3.2. Connecting to the Website....26

3.2.1. Connecting Cable 26
3.2.2. Adding an IP Address.... 26
3.2.3. Connecting and Changing Settings 28

Chapter 4. Operation ...... 31

4.1. System Requirements ...... 31
4.2. Compatible Web Browsers 31
4.3. Login 32
4.4. Monitoring 33

4.4.1. Splitting Screen and Changing Channels 33
4.4.2. Video Control 34
4.4.3. PTZ Control.... 34

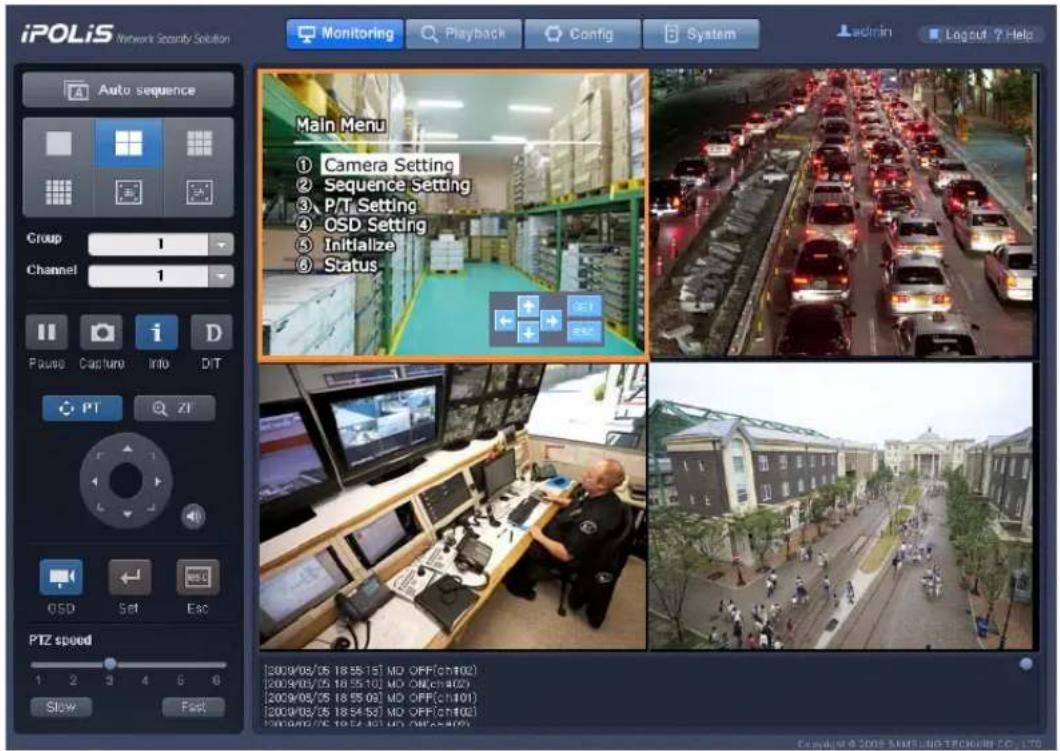

4.4.4. OSD Control....35

4.5. Playback 37

4.5.1. Time Search....37
4.5.2. Event Search 39

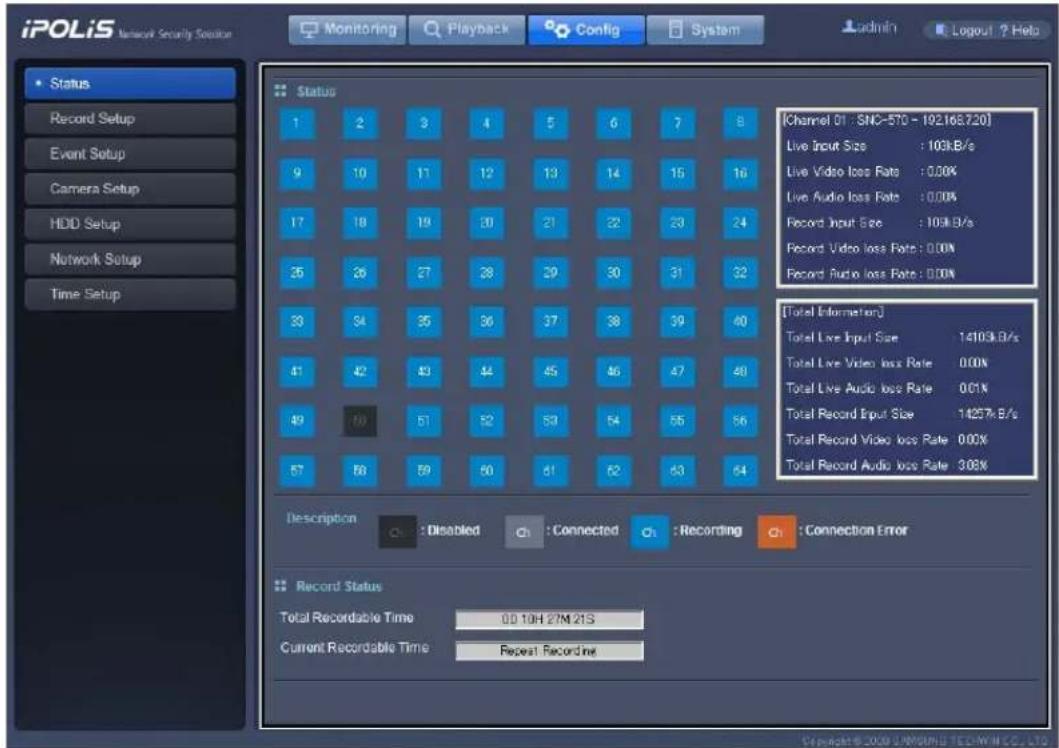

4.6.Config 42

4.6.1. Status 43
4.6.2. Record Setup 44
4.6.3. Event Setup 45
4.6.4. Camera Setup....48
4.6.5.HDD Setup 52
4.6.6. Network Setup .... 58
4.6.7.Time Setup 63

4.7. System 65

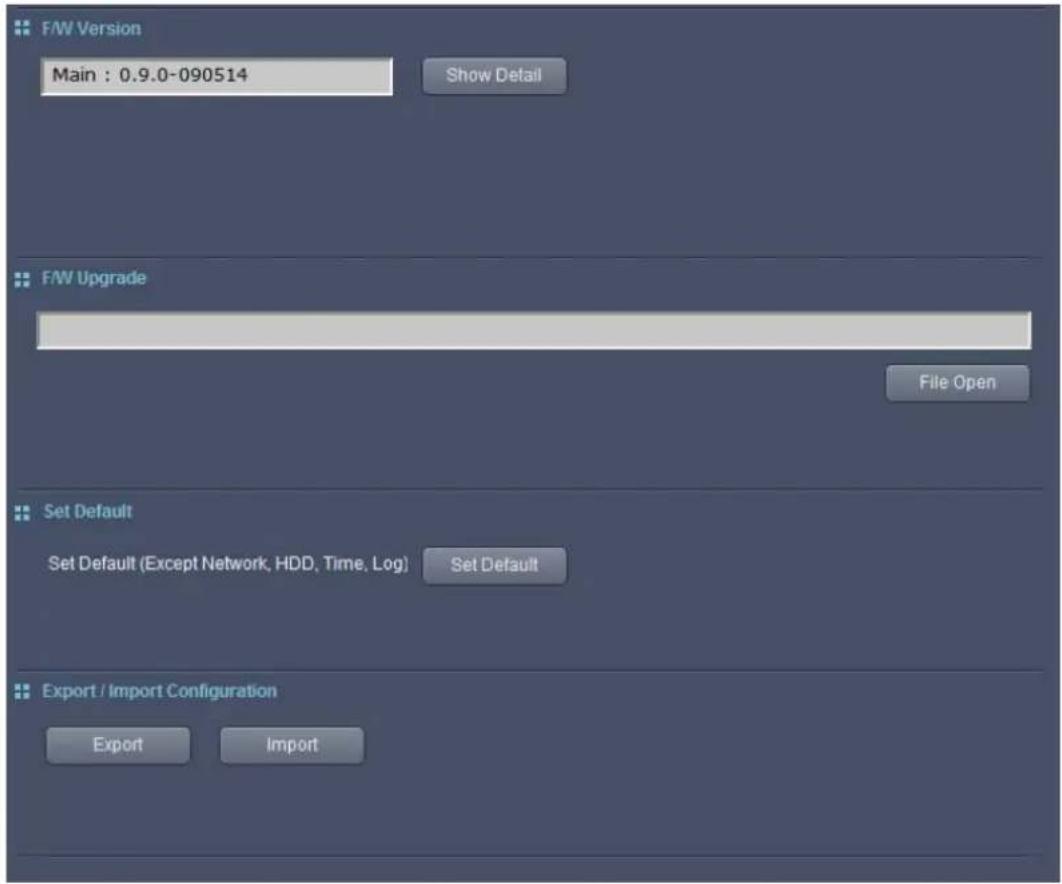

4.7.1. Upgrade 66
4.7.2. System Log 68
4.7.3.User Setup 71
4.7.4.Backup 72

Chapter 5. LCD Setup....76

5.1. System....77

5.1.1. Checking Firmware Version....77
5.1.2. Turning On/Off Beep 77
5.1.3. Relay Off 78
5.1.4. System Update 78
5.1.5. Initializing Settings 79
5.1.6.HDD Check 80
5.1.7.Shutting the System Down 81

5.2. Network Setup....82

5.2.1. Monitor Ethernet Port Setup 82
5.2.2. Source Ethernet Port Setup 85
5.2.3.Storage Ethernet Port Setup 86

5.3.HDD Mode Setup 87

5.4. Removing HDDs....90

5.5. Formatting HDDs ...... 91

5.5.1. Formatting a Single Internal HDD 91
5.5.2. Formatting All Internal HDDs 92
5.5.3. Formatting a Single External HDD....92
5.5.4. Formatting All External HDDs 93
5.5.5. Formatting All HDDs 94

Troubleshooting....95

Product Specifications....97

Product Dimensions....99

Chapter 1. Overview

This digital video recorder plus disk player features HDD storage and playback capabilities for 64/32-channel digital video.

Setting up this recorder is easy; you may use the buttons on the front of the product, or connect to the product remotely via a network.

With proven performance and reliability, the NVR is a self-sufficient video recorder as well as ideal for digital video feed storage for monitoring systems of banks, apartment buildings, and public offices that require a high security level. Since video is stored on hard disk, there is no loss in picture quality due to repeated playback from the storage media. Further, since all video data is stored as digital files, it is easily and quickly searchable.

This high-resolution video recorder features a large storage capacity and also comes with a wide variety of user-friendly features such as: Simultaneous recording and playback capabilities, motion detection, PTZ (pan, tilt, zoom) control, password, real-time voice data recording, convenient access permissions setup using Key Lock, and maintenance of up to 10,000 event lists and log files.

1.1. Safety Precautions

Warning

The following information or instruction is vital for user safety; please read it thoroughly to avoid serious injury or death.

◆ Installing the Product

√ Please check the power outlet voltage (AC 100V\~240V) before you connect the power to the outlet.
√ Make sure that the product is switched off before you install it.
√ To avoid the risk of electric shock and/or fire, do not install the product in a damp area.
√ The product must be grounded to reduce the risk of electric shock.

◆ Using the Product

√ Opening or removing the product case will expose you to the risk of electric shock; do not open or remove the case unless you are a qualified technician.

√ To prevent electrical fire, do not connect multiple power cords to a single outlet.
√ Do not place heavy objects or vessels containing water on the unit since it can cause serious malfunctions.
√ Do not use this item in a location containing propane gas, gasoline, or other flammable substances to avoid risk of explosion or fire.
√ To avoid the risk of electric shock, do not touch the power plug with moisture on your hands.
√ Make sure that no electrically conductive material enters the cooling vent.
√ Do not pull on the power plug with any force; a damaged plug may cause electric shock or fire.

- Disassembling and Cleaning the Product

√ There is a risk of malfunction, shock, or other dangers. Do not disassemble or attempt to fix or alter the product yourself.
√ Do not clean the product with water, paint thinner, or other organic solvent as doing so may cause product malfunctions and/or electric shock. When cleaning the product, use a dry cloth to wipe the exterior of the device.

Caution

Misuse or wrongful operation of the item may result in injury or damage to the item. It indicates caution should be observed when operating.

◆ Installing the Product

√ When installing the product, please leave at least 15 cm of space between the cooling vent and the wall for proper heat dissipation.
√ To prevent user injury and product damage, please install the product on a level surface with no risk of the product falling.
√ Avoid installation in an environment where the product will be exposed to heat or direct sunlight; product deformation and/or damage may result.

√ When installing the closure, take into consideration the operating temperature and humidity of the installation environment according to the product specifications (see Appendix).

Using the Product

√ Avoid shock and vibration while operating or moving the item.
√ Do not move the product while it is in operation; do not expose the product to strong impact or throw the product.
√ If you wish to add a hard disk to the product, please contact your vendor; adding a non-recommended hard disk may cause the product to function abnormally.
√ Arbitrarily adding a hard disk to the product will void your product warranty.
√ This product is not an anti-theft or fire-prevention device; the manufacturer is not responsible for any damage to property or personnel that may occur.

Caution

Samsung Techwin recommends the installation of a UPS (Uninterrupted Power Supply) with all its recording products.

eco RoHS compliant

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environmentally friendly products.

The Eco mark represents Samsung Techwin's will to create environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.

1.2. Product Contents

The contents of this product are as shown below.

Power Cord	Key	Rack Mount and Fixture Screws
HDD Fixture Screws	User's Manual	Quick Reference Guide
NET-I Viewer/User's Manual CD	Cross Cable	HDD Tray (4EA)

Chapter 2. Part Names

2.1. Front Panel

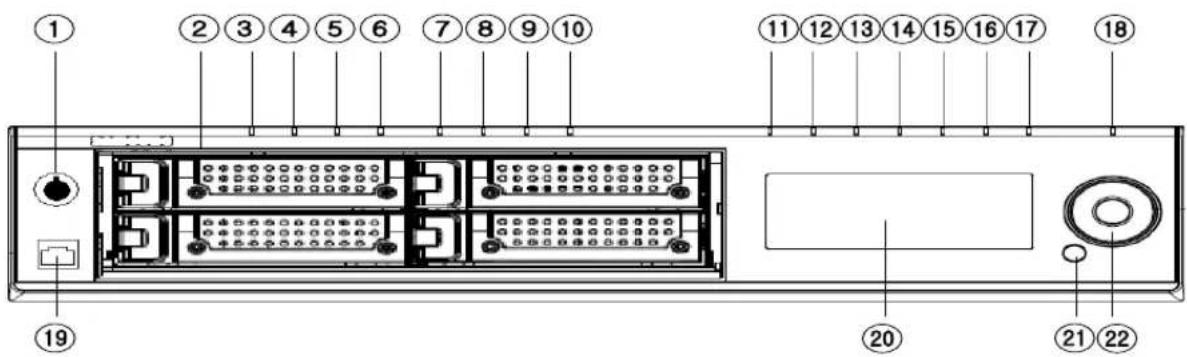

Diagram of a server rack with numbered ports and internal components, likely for system labeling or status indication.

No.	Name Function
1	Key Lock Turning the	key completely engages the lock, so the buttons on the front panel cannot be accessed and the HDD bay door cannot be opened.
2	SATA-Bracket Mounts	hard disks for storing recorded video. Up to four hard disks can be mounted. Mounted HDDs are referred to as Internal HDD1 (upper left), Internal HDD2 (upper right), Internal HDD3 (lower left), and Internal HDD4 (lower right.)
3	Internal HDD1 A	blue indicator means that Internal HDD1 is installed and functioning normally. A red indicator means that Internal HDD1 is not functioning properly.
4	Internal HDD2 A	blue indicator means that Internal HDD2 is installed and functioning normally. A red indicator means that Internal HDD2 is not functioning properly.
5	Internal HDD3 A	blue indicator means that Internal HDD3 is installed and functioning normally. A red indicator means that Internal HDD3 is not functioning properly.
6	Internal HDD4 A	blue indicator means that Internal HDD4 is installed and functioning normally. A red indicator means that Internal HDD4 is not functioning properly.
7	EXTERNAL HDD1	A blue indicator means that an external HDD is connected to the rear eSATA Port1 and functioning normally. A red indicator means that External HDD1 is not functioning properly.
8	EXTERNAL HDD2	A blue indicator means that an external HDD is connected to the rear eSATA Port2 and functioning normally. A red indicator means that External HDD2 is not functioning properly.
9	EXTERNAL HDD3	A blue indicator means that an external HDD is connected to the rear eSATA Port3 and functioning normally. A red indicator means that External HDD3 is not functioning properly.
10	EXTERNAL HDD4	A blue indicator means that an external HDD is connected to the rear eSATA Port4 and functioning normally. A red indicator means that External HDD4 is not functioning properly.
11	REC A red indicator means that the product is in recording mode.
12	ALARM A blue indicator means that an event in Input Group has occurred.
13	ERROR A red indicator means that the product is not functioning properly.
14	RAID A blue indicator means that the product is running in RAID mode.
15	LINK/ACT1 A blinking blue indicator means that a network cable is properly connected to the Monitor Ethernet Port, and data communication is taking place properly.
16	LINK/ACT2 A blinking blue indicator means that a network cable is properly connected to the Source Ethernet Port, and data communication is taking place properly.
17	LINK/ACT3 A blinking blue indicator means that a network cable is properly connected to the Storage Ethernet Port, and data communication is taking place properly.
18	POWER A red indicator means that the product is powered on.
19	Config Ethernet Port	Used to connect the product to a computer for the system configuration.
20	LCD Panel	The panel displays the current status of the product; it can also be used to change the system configuration with the adjacent buttons.
21	ESC Button This button is used to change the system configuration. 'Chapter 5 LCD Setup' covers its use in detail.
22	Direction Button Enter Button	This button is used to change the system configuration. 'Chapter 5 LCD Setup' covers its use in detail.

2.2. Back Panel

Labeled diagram of a server rack with numbered components including AC input, sensor, and RS-28C module

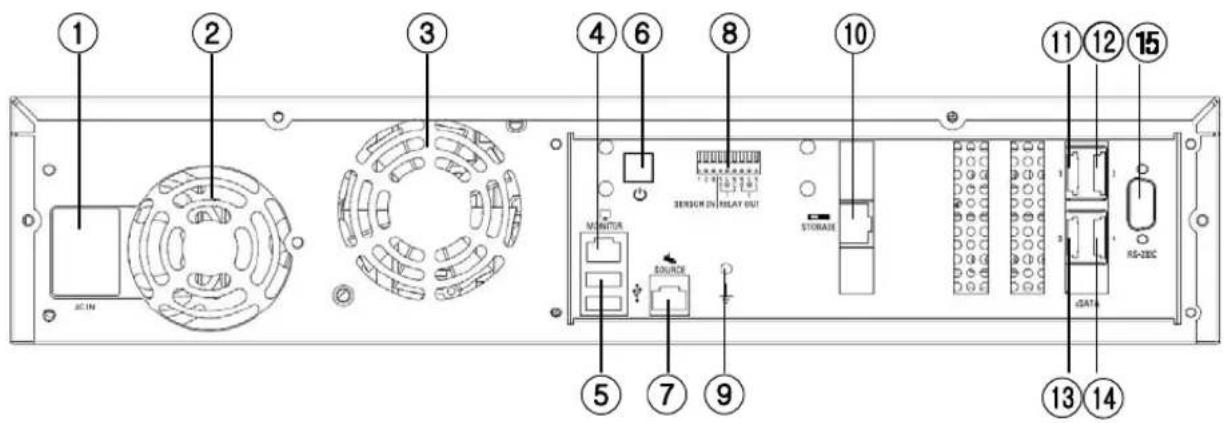

No.	Name Function
1	AC IN Used to connect the product power cable.
2	SMPS FAN This fan cools the power supply.
3	DC FAN This fan cools the inside of the product.
4	Monitor Ethernet Port A network port that allows the product to connect to a PC to run Web Viewer.
5	USB Port Used to upgrade the firmware version of the product.

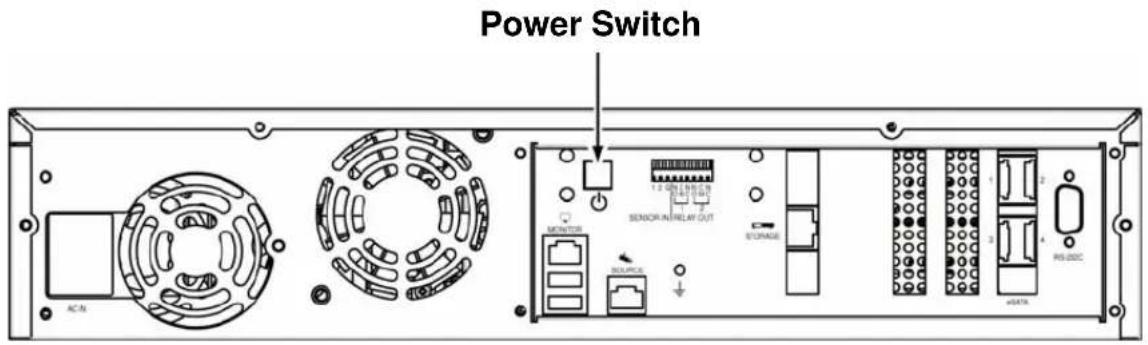

6	Power Button Turns on or off the product.
7	Source Ethernet Port A network port that connects the product to the video camera.

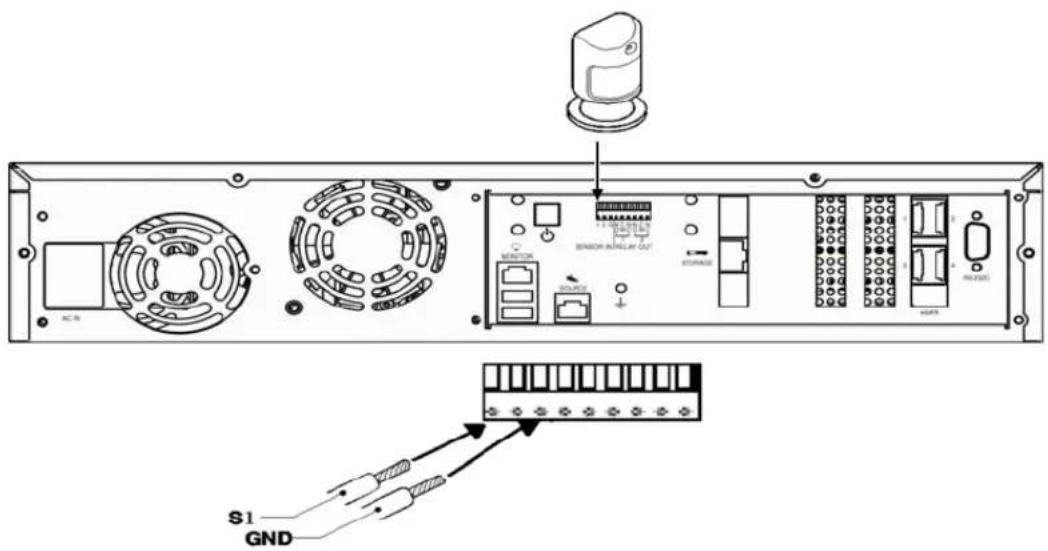

8	SENSOR IN / RELAY OUT	Used to connect a sensor or alarm.
9	GROUND	A terminal that is used to ground the frame to an external device.
10	Storage Ethernet Port	Used to connect NAS (Network Attached Storage) within the same network.
11	eSATA Port1	Used to connect an external HDD.
12	eSATA Port2	Used to connect an external HDD.
13	eSATA Port3	Used to connect an external HDD.
14	eSATA Port4	Used to connect an external HDD.
15	RS232C Port	Unused terminal.

2.3. Default Settings

The following are the factory default settings for the product.

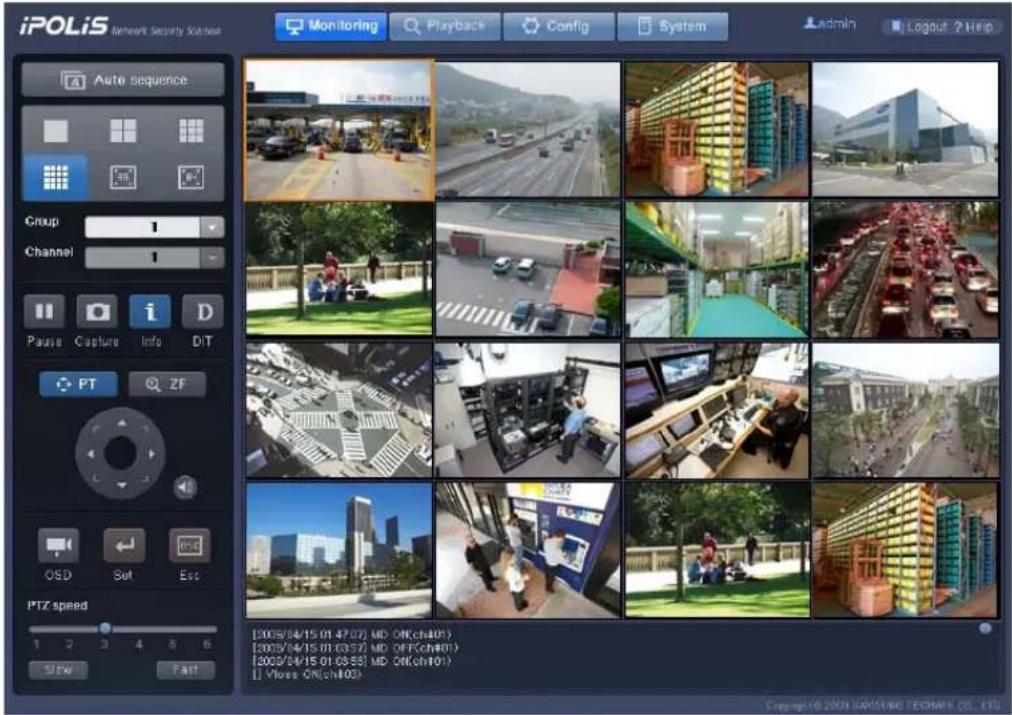

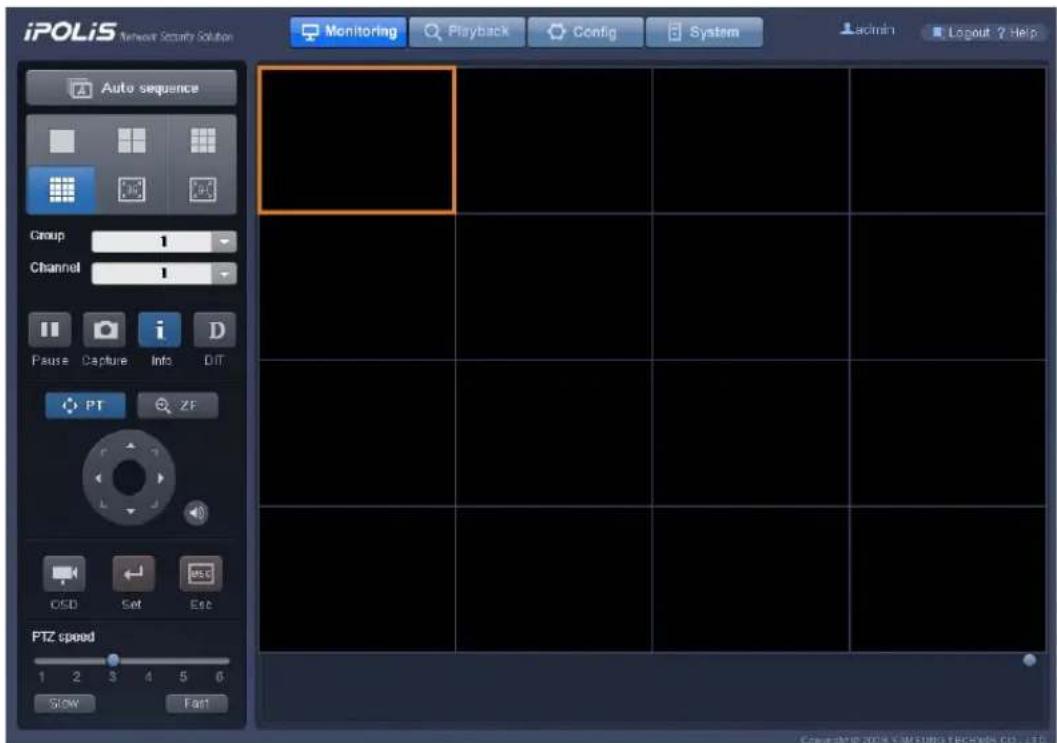

2.3.1. Monitoring Page

Main Menu Sub Menu Default Setting
Auto Sequence Off
Display Mode 16Ch display
Group		1
Channel		1
Info		On
DIT		Off
PT, ZF PT Activated
OSD		Off
PTZ speed 3

2.3.2. Playback Page

Main Menu Sub Menu Default Setting

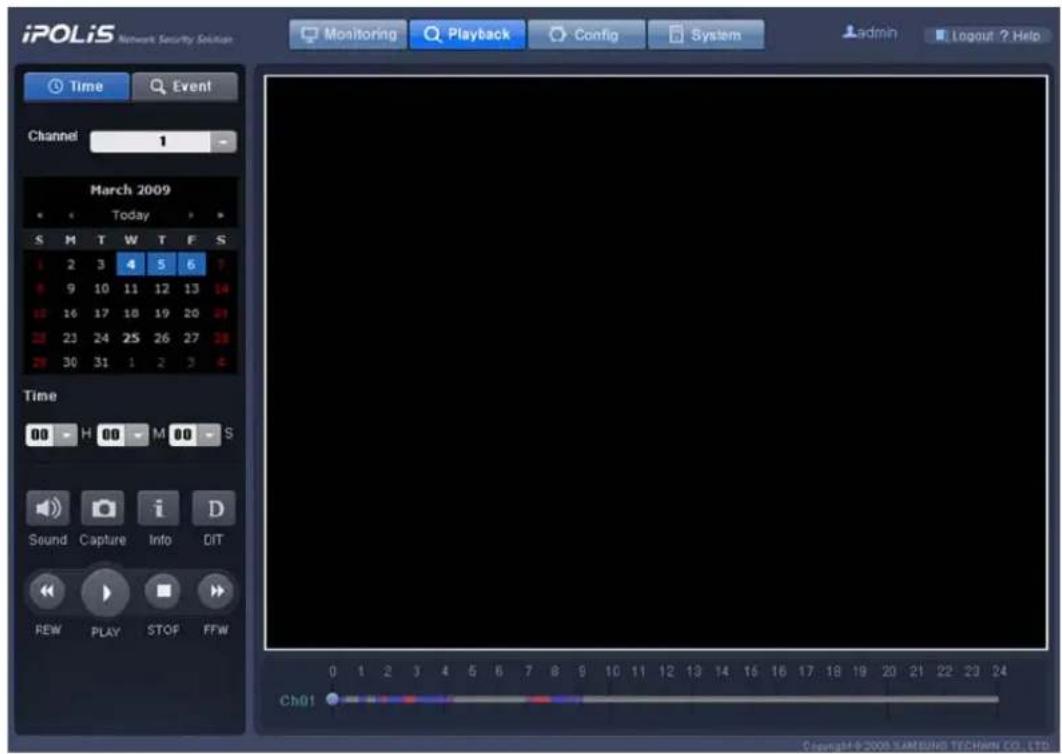

Time	Channel	-
	Calendar	-
	Time	-
Event	Event Type	-
	Channel	-
	Date / Time	-

2.3.3.Config Page

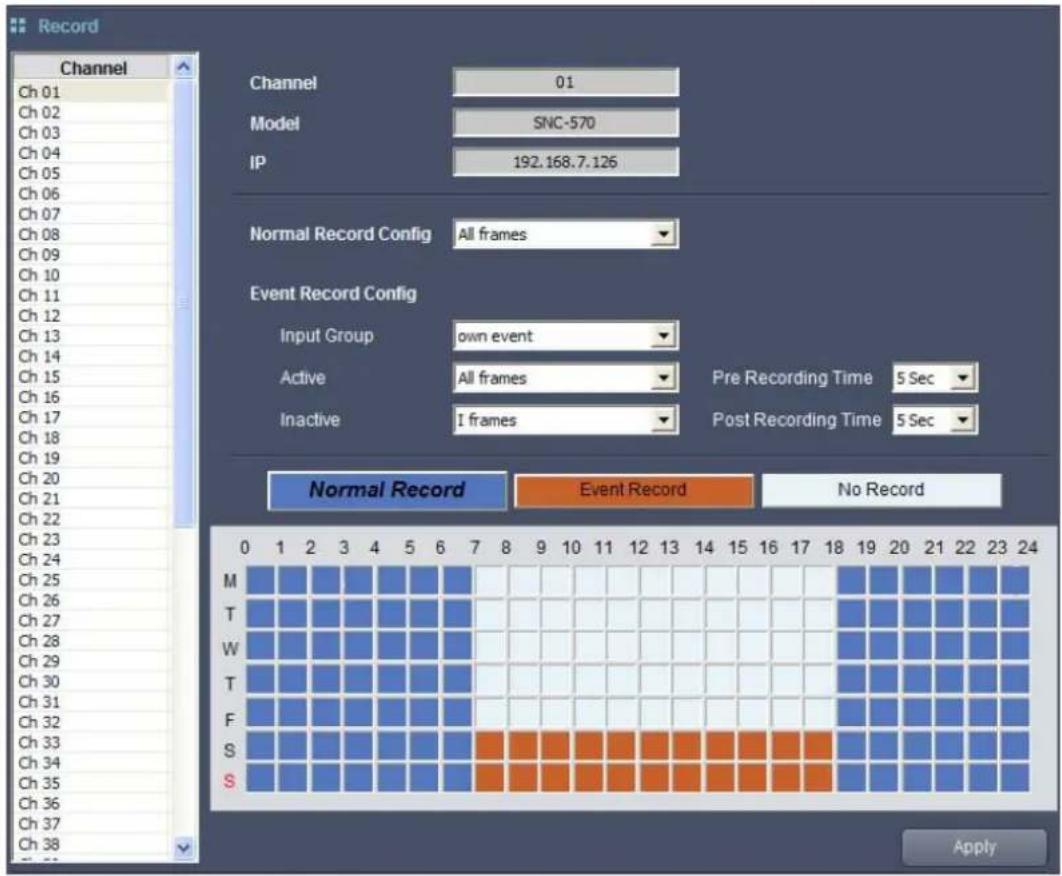

Record Setup

Main Menu Sub Menu Default Setting
Normal Record Config All frames
Event Record Config	Input GroupActiveInactivePre Recording TimePost Recording Time	own eventAll framesI frames5 Sec5 Sec
Record	ButtonTime Table	Normal Record selectedAlways Normal Record

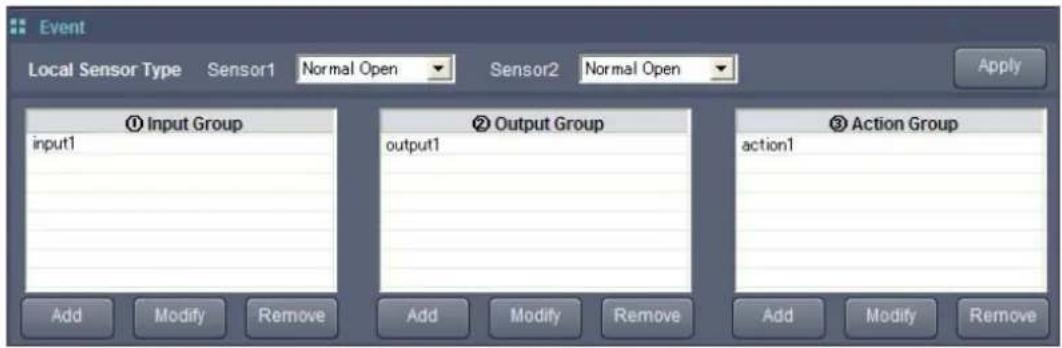

Event Setup

Main Menu Sub Menu Default Setting
Local Sensor Type	Sensor1	Normal Open
	Sensor2	Normal Open

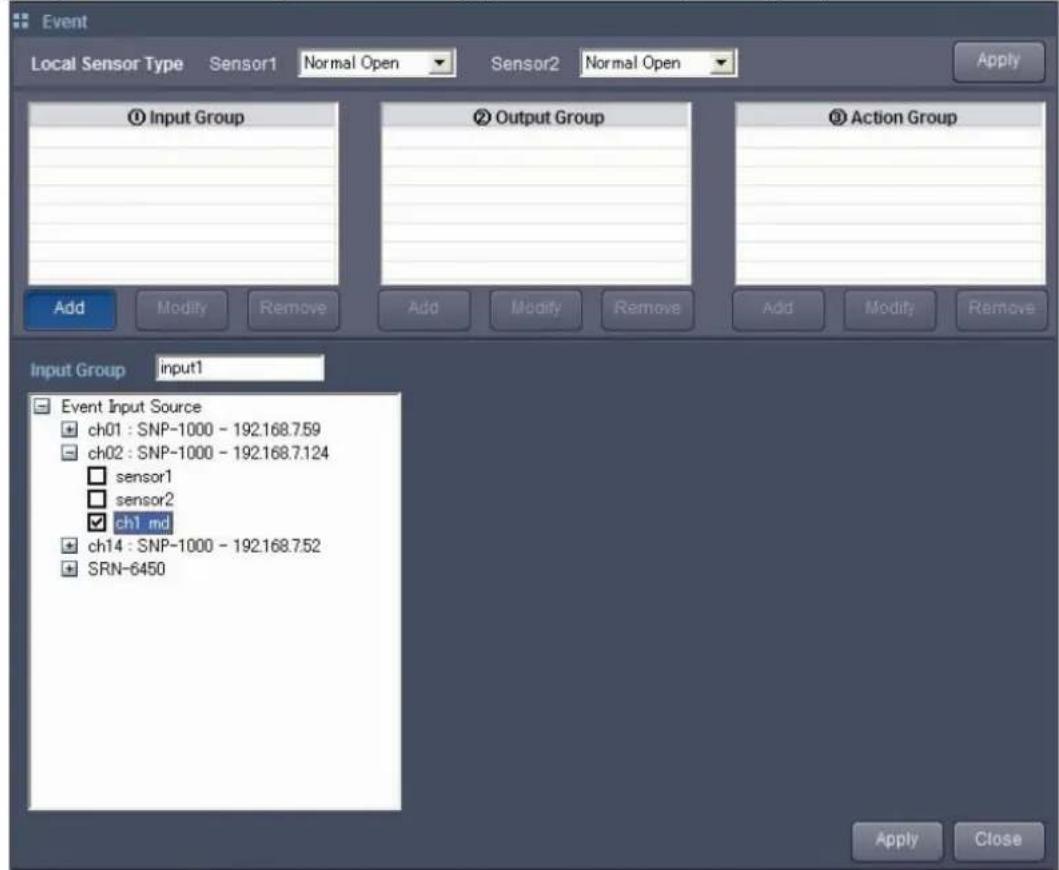

Event Group	Input Group	-
	Output Group	-
	Action Group	-

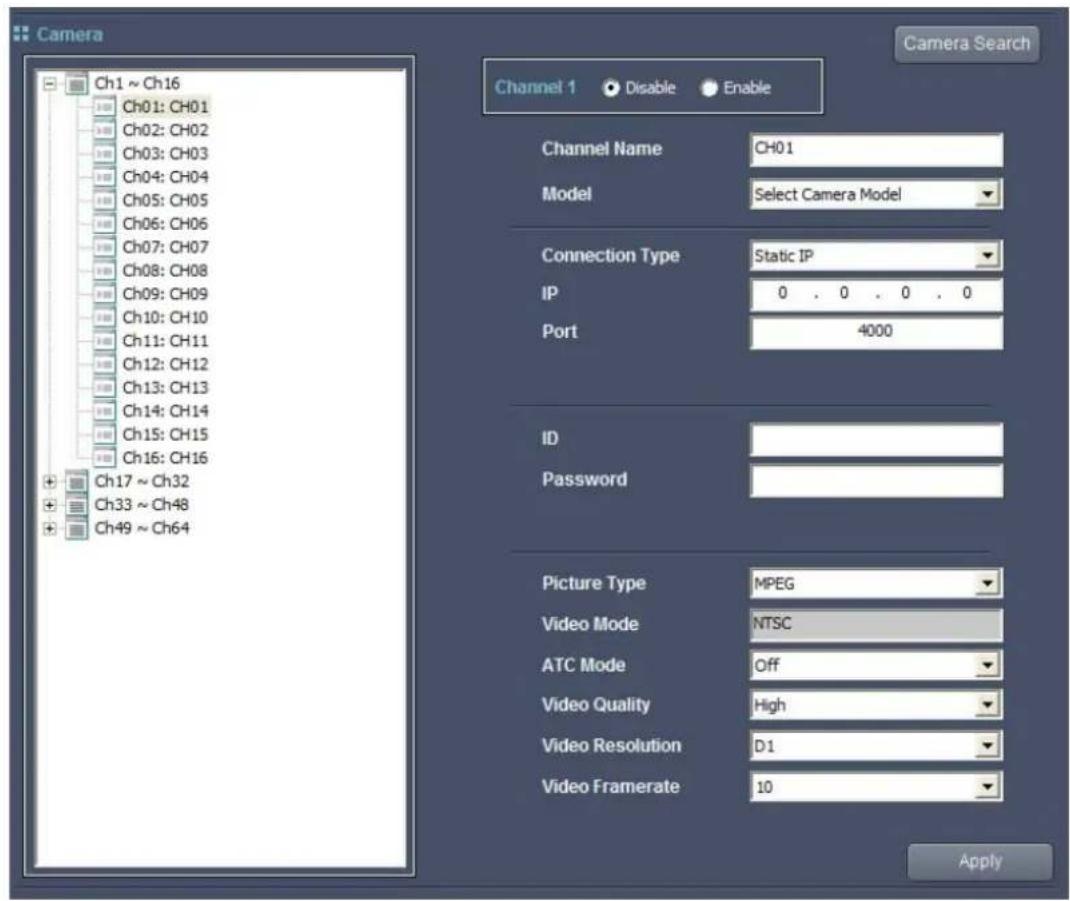

◆ Camera Setup

Main Menu Sub Menu Default Setting

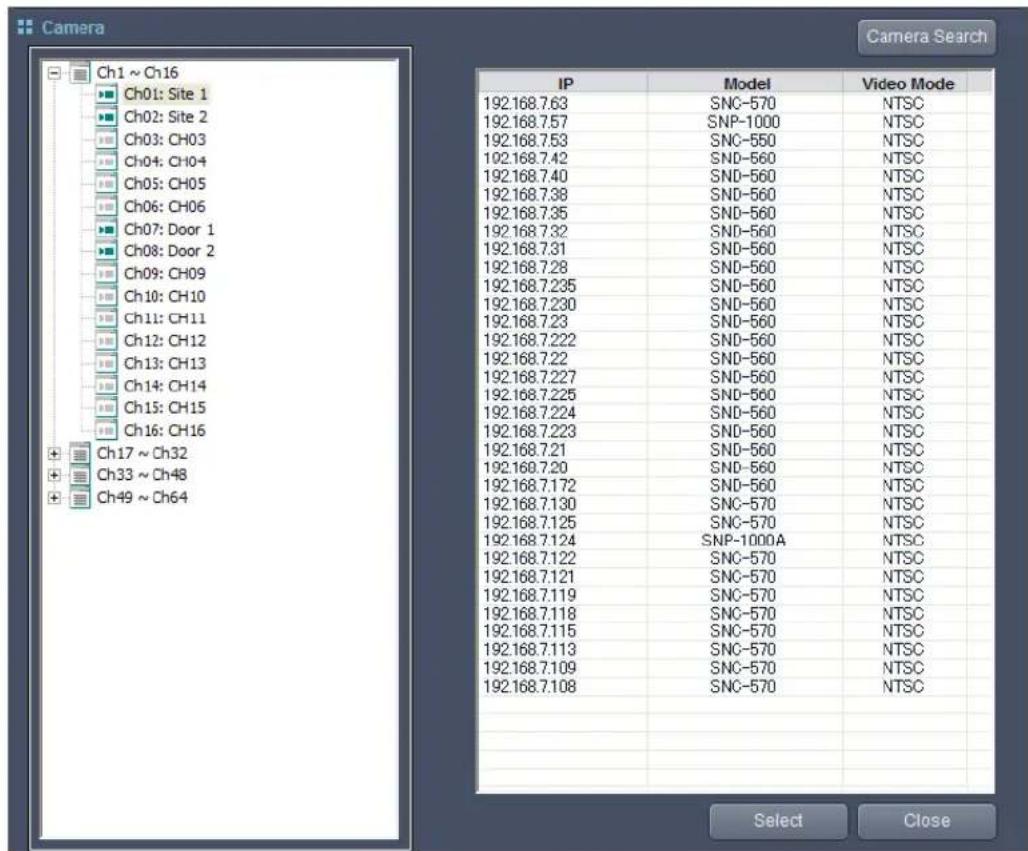

Channel List	Open Channel ListSelect Channel	Ch1 ~ Ch16Ch01
Channel Setup	Disable/EnableChannel NameModelConnection TypeIPConnection PortIDPasswordPicture TypeATC ModeVideo QualityVideo ResolutionVideo Framerate	DisableCh01, Ch02, Ch03, ...-Static IP0.0.0.04000--MPEGOffHighD110

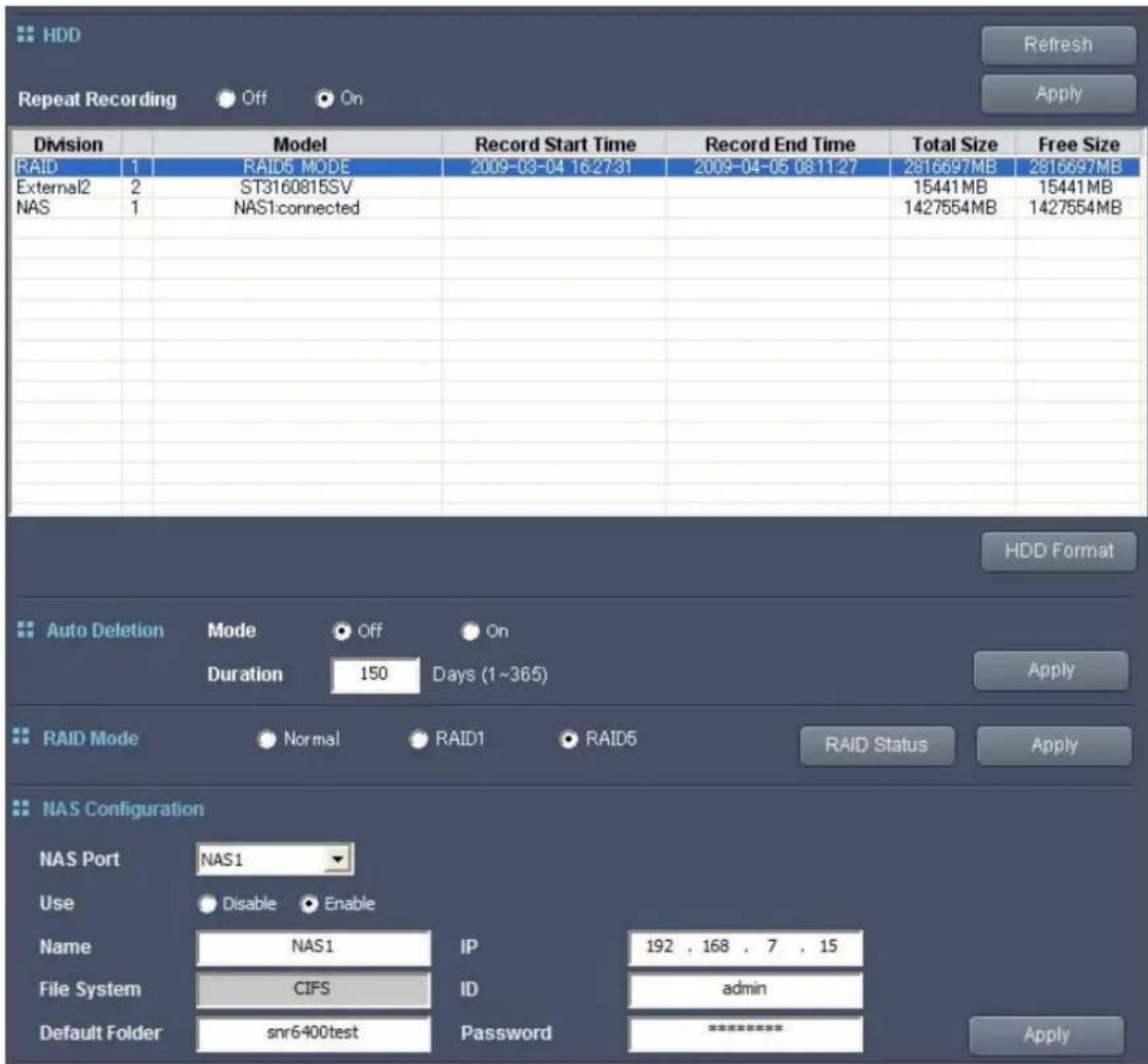

HDD Setup

Main Menu Sub Menu Default Setting
HDD	Repeat	Recording On
AutoDeletion	Mode	Off
	Duration	180
RAID Mode Normal
NAS Configuration	Nas Port	Nas1
	Use	Disable
	Name	-
	Default Folder	-
	IP	0.0.0.0
	ID	-
	Password	-

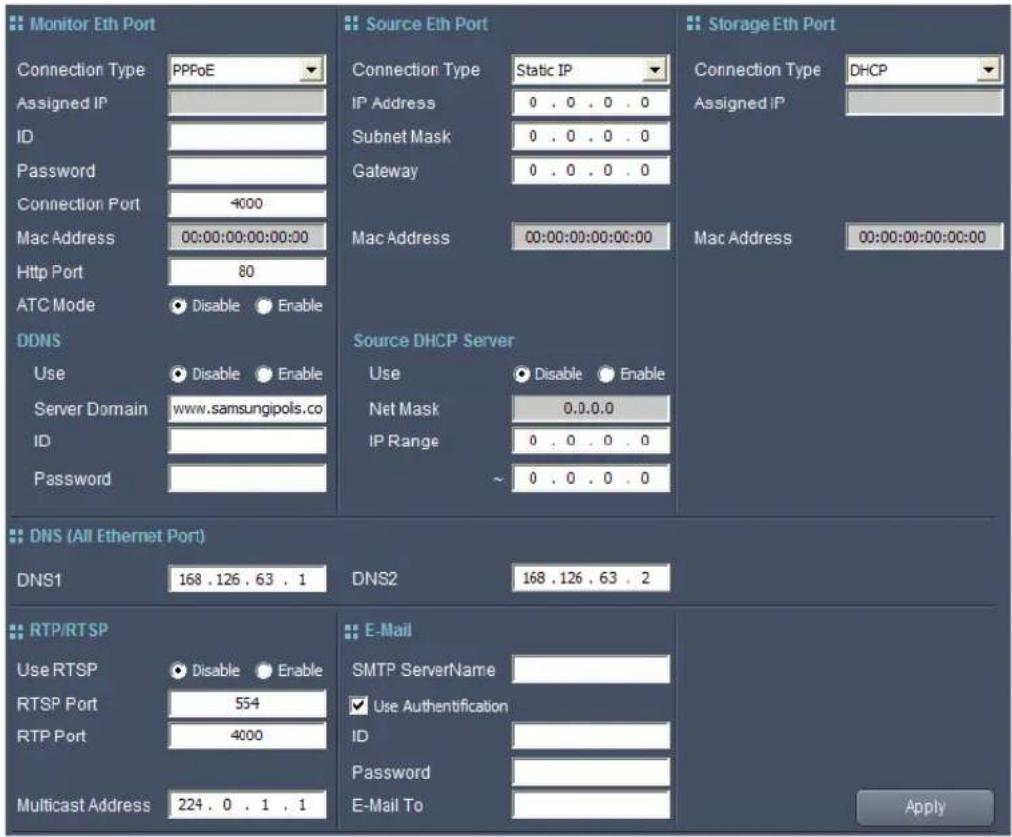

Network Setup

Main Menu Sub Menu Default Setting
Monitor Ethernet Port	Connection TypeIP AddressSubnet MaskGatewayConnection PortHttp PortATC Mode	Static IP0.0.0.00.0.0.00.0.0.0400080Disable
DDNS	UseServer DomainIDPassword	Disablewww.samsungipolis.com--
Source Ethernet Port	Connection TypeIP AddressSubnet MaskGateway	Static IP0.0.0.00.0.0.00.0.0.0
Source DHCP Server	UseIP Range	Disable0.0.0.0 ~ 0.0.0.0
Storage Ethernet Port	Connection TypeIP AddressSubnet MaskGateway	Static IP0.0.0.00.0.0.00.0.0.0
DNS	DNS1DNS2	168.126.63.1168.126.63.2
RTP/RTSP	Use RTSPRTSP PortRTP PortUse MulticastMulticast Address	Disable5544000Disable224.0.1.1
E-Mail	SMTP Server NameUse AuthenticationIDPasswordE-Mail To	-Yes--

Time Setup

Main Menu Sub Menu Default Setting

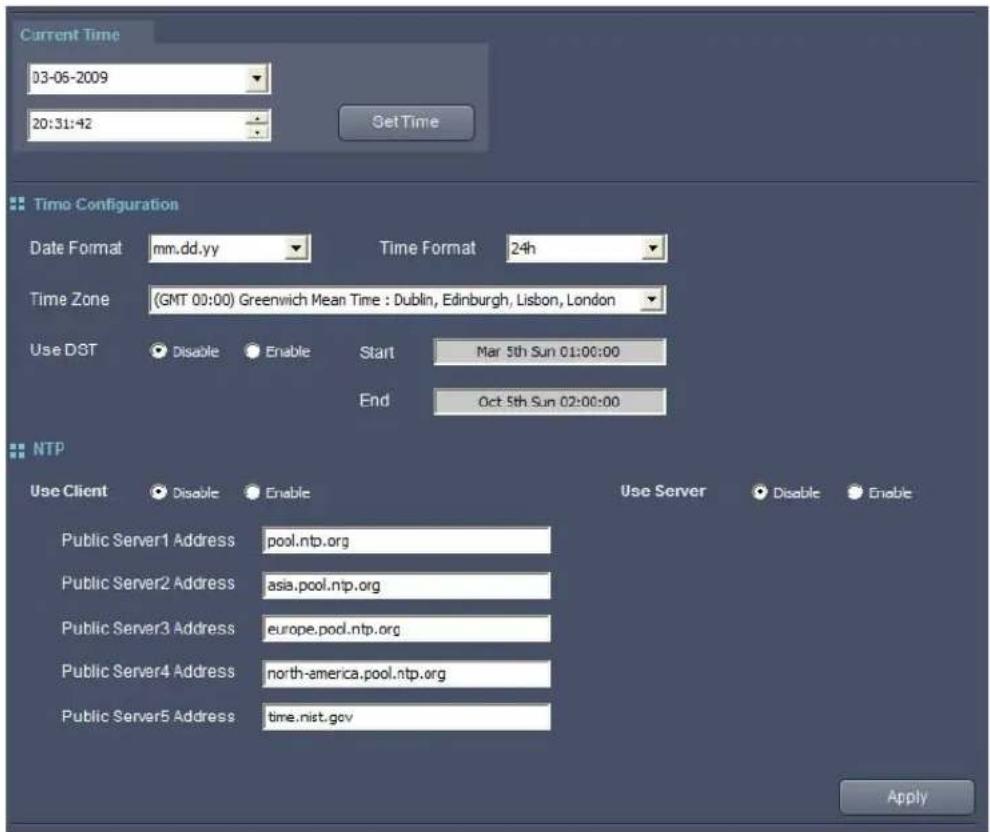

Time Configuration	Date Format	mm.dd.yy
	Time Format	24h
	Time Zone	(GMT 00:00) Greenwich Mean Time
	Use DST	Disable
NTP	Use Client	Disable
	Use Server	Disable
	Public Server1 Address	pool.ntp.org
	Public Server2 Address	asia.pool.ntp.org
	Public Server3 Address	europe.pool.ntp.org
	Public Server4 Address	north-america.pool.ntp.org
	Public Server5 Address	time.nist.gov

2.3.4. System Page

User

Main Menu Sub Menu Default Setting
Admin	Password	11111111
User	ID	user
	Password	22222222
	Authority	Only Monitoring is Allowed.

Chapter 3. Installation

3.1. Installing and Connecting Product

3.1.1. Supplying Power and Operating the Product

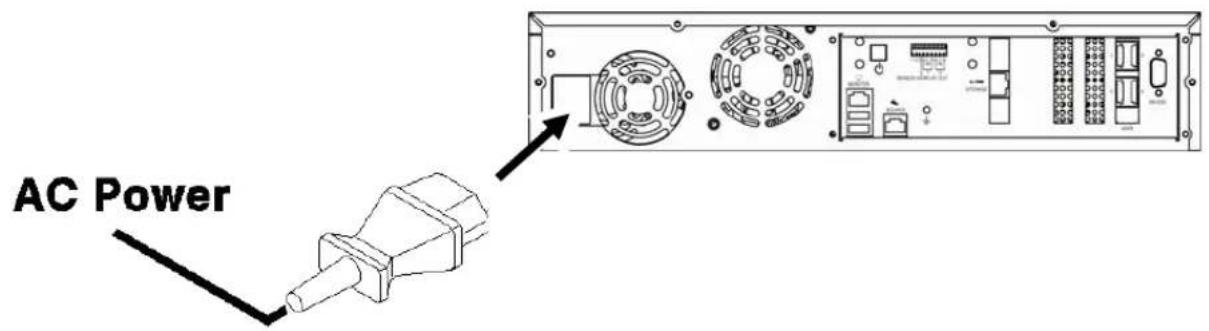

Connect the power cord to the product as shown in the picture below.

AC Power

• Once the power cord is securely connected, press the power switch in the rear panel to boot the system.
• When the product is turned on, you can press the power switch briefly to turn off the product.
• When the system has encountered an error and you can't turn it off normally, you can press and hold down the power switch for five seconds to force the system to shut down.

Power Switch AC A MONITOR SENSOR IN RELAY OUT STORAGE RESURFACE 1 2 3 4 RS-020C DATA

3.1.2. Configuring the Network

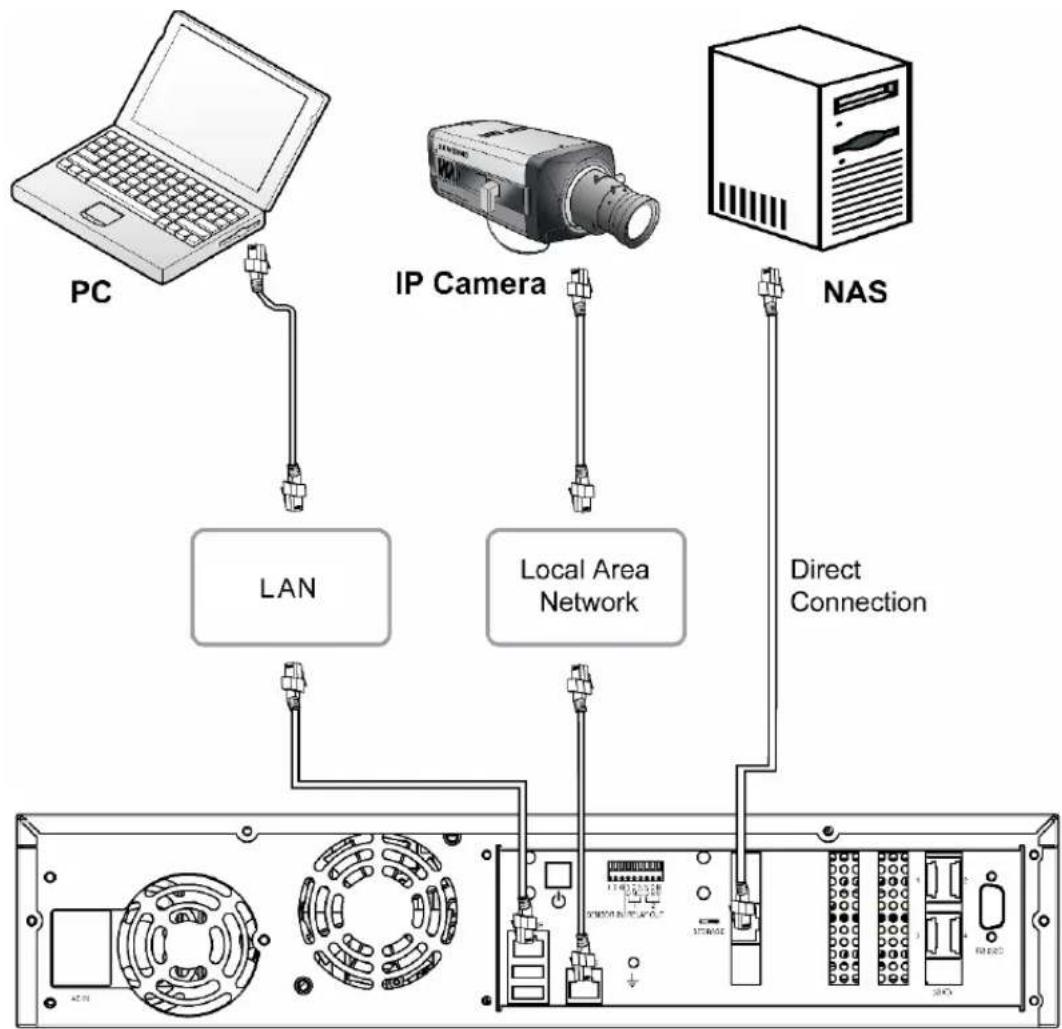

The following picture is an example of a network diagram using the NVR. The 3 network ports on the product back panel are for a computer, camera, and NAS (Network attached Storage.) Please Refer to "2.2. Back Panel"

The rear panel network ports can be used for devices within the same network, or in different networks as shown in the example diagram.

3.1.3. Internal HDD

Open the HDD Bay as shown below to add, remove, or replace an internal HDD.

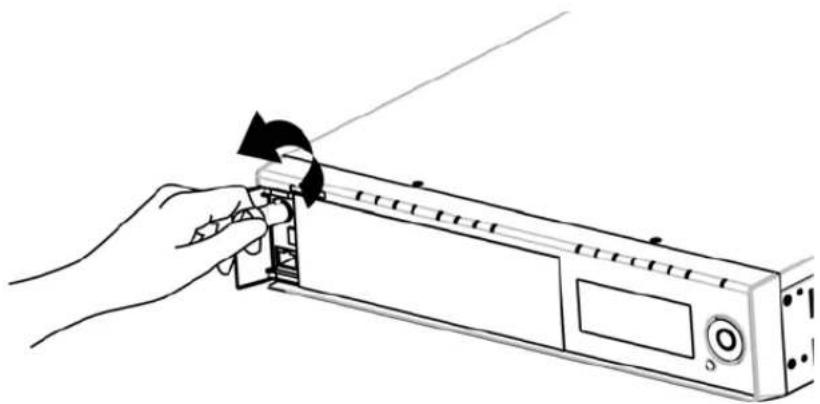

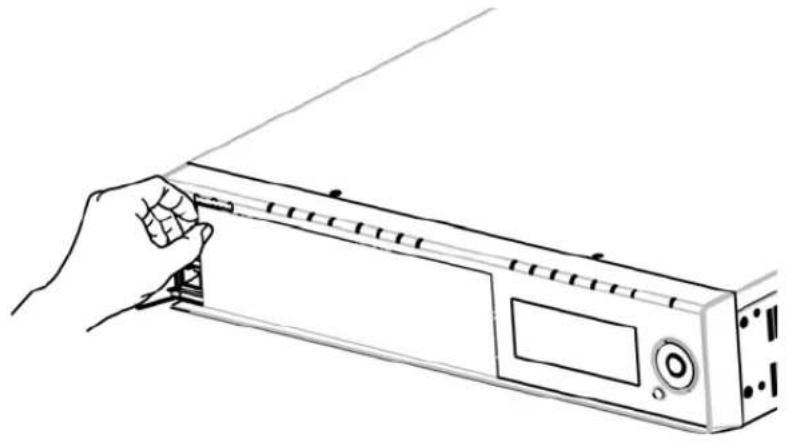

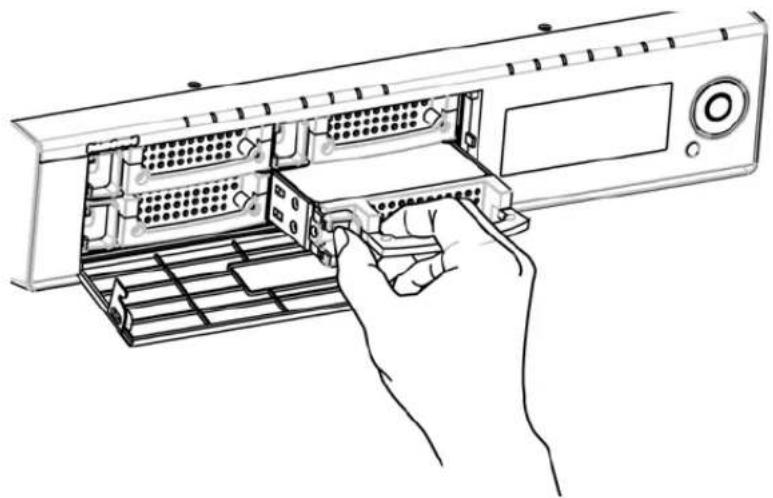

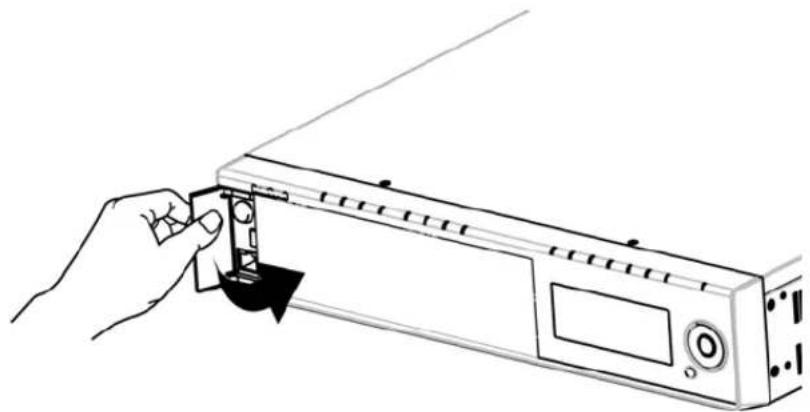

① Press PUSH: to open the Locking Door.
② Turn Key Lock counterclockwise to unlock.

Line drawing of a hand holding a device with a scroll wheel, showing a right-hand rule for rotation (no text or symbols present)

③ Open the HDD Door.

Line drawing of a hand holding a device with a ruler, no text or symbols present

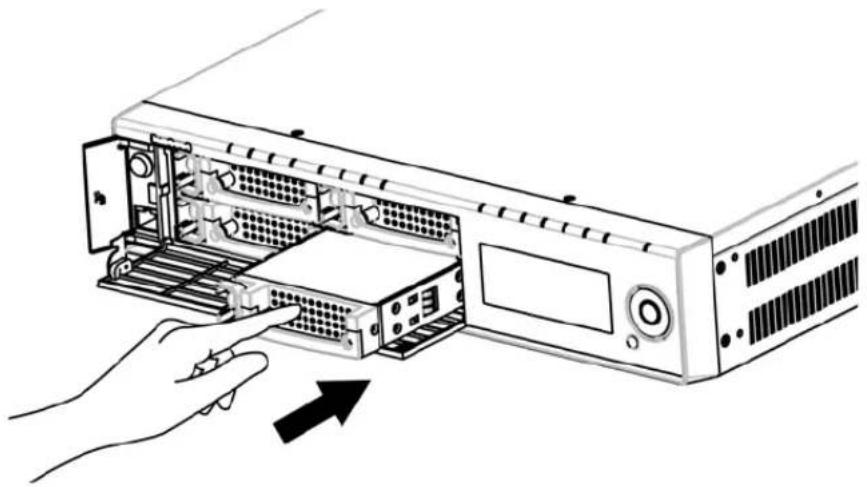

④ While pressing the HDD Hook down, pull on the handle to pull out the SATA Bracket.

Line drawing of a hand inserting a component into a computer monitor rack (no text or symbols)

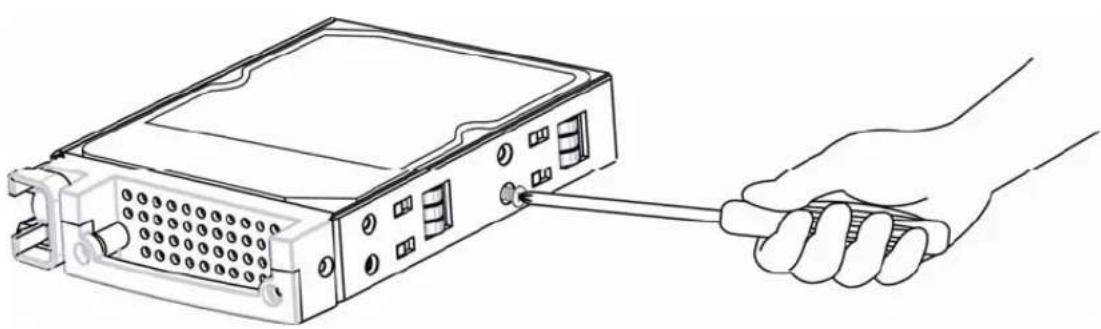

⑤ Unscrew the fixture screws on the SATA Bracket before removing the HDD; fasten the screws securely after you insert the HDD in the SATA Bracket.

Line drawing of a computer tower with a hand holding the cable (no text or symbols)

⑥ Make sure that the SATA Bracket is pushed back all the way in the HDD Bay, and close the HDD Door.

Illustration of a computer tower drive showing internal components and a hand inserting a cable (no text or symbols)

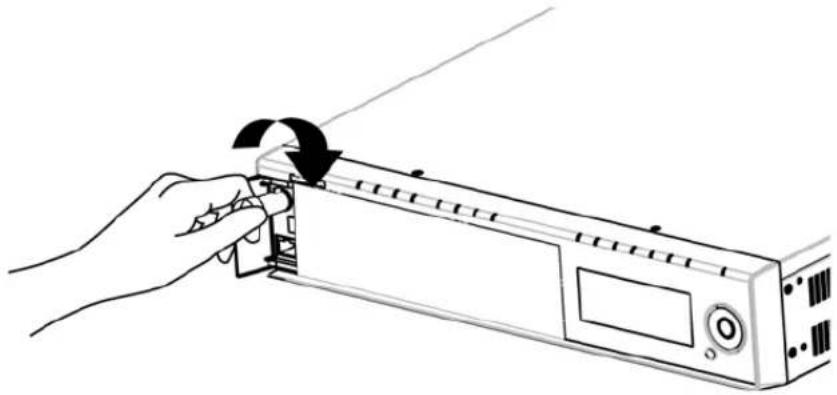

⑦ Turn Key Lock clockwise to lock.

Line drawing of a hand inserting a device into a rack, showing the handle and scroll (no text or symbols)

⑧ Close the Locking Door.

Line drawing of a hand inserting a card into a device (no text or symbols)

⑨ When adding a new, unformatted HDD, the product automatically formats the HDD.

Formatting HDD
is in Progress...

displaying the formatting process in the front LCD.

Internal HDD [2]
Added successfully!

Upon completing the formatting process, the message above is displayed in the LCD along with a blue indicator in the HDD LED, indicating that the new HDD is ready to use.

Note

For a list of compatible HDDs, please refer to “※ Recommended HDDs.

Caution

Do Not remove an HDD while the product is in operation. To safely remove HDDs, please refer to "5.4. Removing HDDs".

Caution

To lock the HDD door, please make sure to turn Key Lock clockwise completely.

3.1.4. External HDD

The NVR supports an eSATA interface for connecting external storage devices; four eSATA ports are located on the rear panel. The product can have up to 20 TB of storage capacity by utilizing the internal HDDs and eSATA ports. (Based on 1TB data capacity per HDD.)

An external eSATA HDD can be connected to the eSATA port on the rear panel as shown on the next page. Note that an eSATA port does not supply power to the device connected to it; the external device must supply its own power.

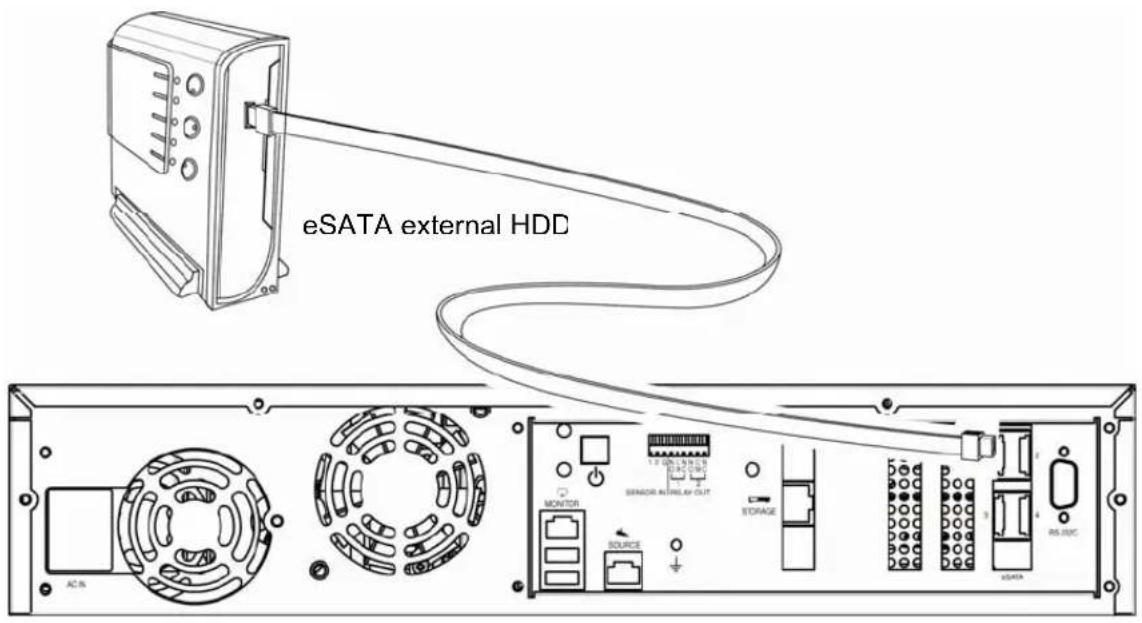

eSATA external HDD MONITOR SOURCE SENSOR IN DISPLAY OUT STORAGE RS-ADC AC No

Note

- You may connect an external HDD while the product is in operation. However, this may result in certain models of external HDDs not being detected. As such, it is recommended that you connect any external HDD by following the steps outlined below.

1. Turn the product off.
2. Connect the external HDD (also turned off) to the product with an eSATA interface cable.
3. Turn on the external HDD.

4. Turn on the product.

5. The eSATA cable is not included with the product.

6. For a list of compatible HDDs, please refer to"※ Recommended HDDs".

3.1.5. Sensor

The following are specifications and operating conditions for sensor input.

Spec	Number of Input Circuits 2
	Input Types N.C, N.O
	Supported Sensor Types Dry Contact sensors.
	Connection Type Attach stripped wire connections to the terminal block.
Power	DC	150V
	Output Current Typical DC 1	2mA

Please refer to the diagram on the next page to connect sensor inputs. It illustrates an example of a dry contact sensor being connected to the product.

S1 GND

For detailed instructions on connecting sensors, please refer to "4.6.3. Event Setup"

3.1.6. Relays

The following are specifications and operating conditions for alarm output.

Spec.	Number of Input Circuits 2 Relays
	Output Types Dry Contact.
	Connection Type Attach stripped wire connections to the terminal block.
Power	DC	30V 1A
	AC	125V 0.5A

When connecting the relay outputs, first determine the attributes of the device to be connected (Normal Open, or Normal Close), then connect the device by referring to the diagram below.

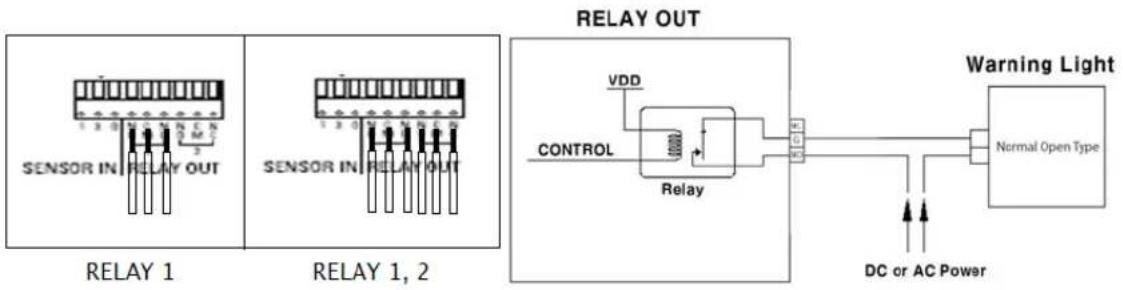

RELAY OUT RELAY 1 RELAY 1, 2 VDD CONTROL Relay C H Warning Light Normal Open Type DC or AC Power

RELAY OUT 1 NC CM NO
Normal Close O	O	-
Common	-	O	-
Normal Open -	O	O
RELAY OUT 2 NC CM NO
Normal Close O	O	-
Common	-	O	-
Normal Open -	O	O

For detailed instructions on connecting the relay output, please refer to "4.6.3. Event Setup"

3.1.7. USB

The USB ports on the rear panel are used to upgrade the product's firmware with the buttons on the front panel. Please refer to "5.1.4. System Update"

3.2. Connecting to the Website

3.2.1. Connecting Cable

Press PUSH: on the front panel to open the Locking Door, then connect a PC to the Front Panel Network Port with the supplied crossover cable as shown in the illustration below. (When using a hub to connect the product to a computer, you may use a normal LAN cable instead of a cross-over cable.)

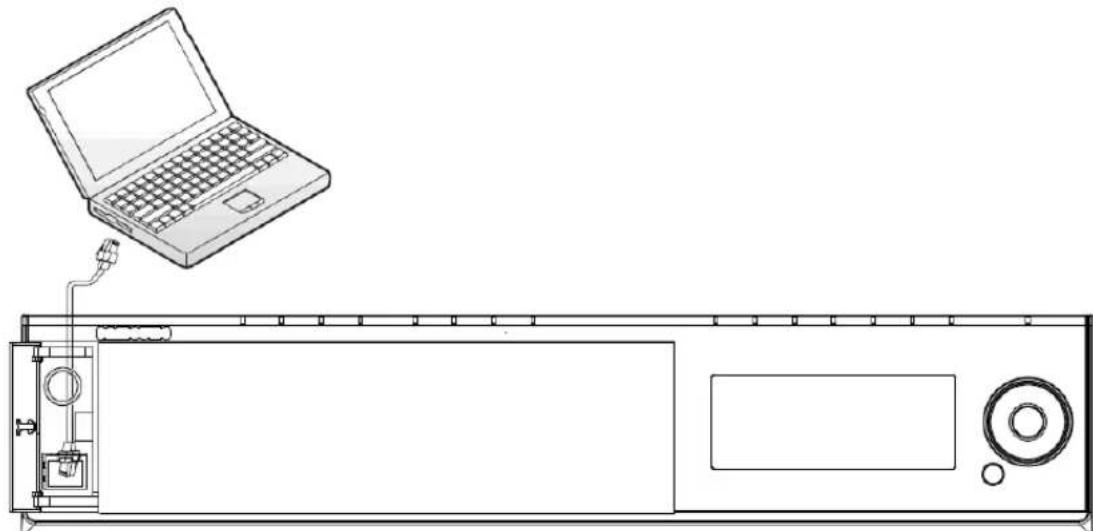

Line drawing of a laptop connected to a monitor and a separate panel (no text or symbols)

3.2.2. Adding an IP Address

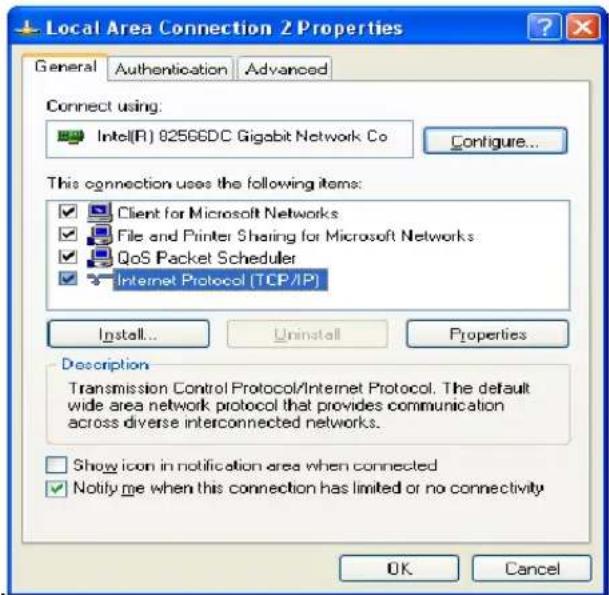

In your computer, click Start > Control Panel > Network Connections > Local Area Connection > Properties.

Local Area Connection 2 Properties General Authentication Advanced Connect using: Intel(R) 82566DC Gigabit Network Co Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks QoS Packet Scheduler Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Notify me when this connection has limited or no connectivity OK Cancel

Select Internet Protocol (TCP/IP.) Click the Properties button then in the Internet Protocol (TCP/IP) Settings dialog, click the Advanced button to open the Advanced TCP/IP Settings

dialog. (If the "Obtain an IP address automatically" option is checked under the Internet Protocol (TCP/IP) Properties window, please click the "Use the following IP address" radio button option before proceeding.)

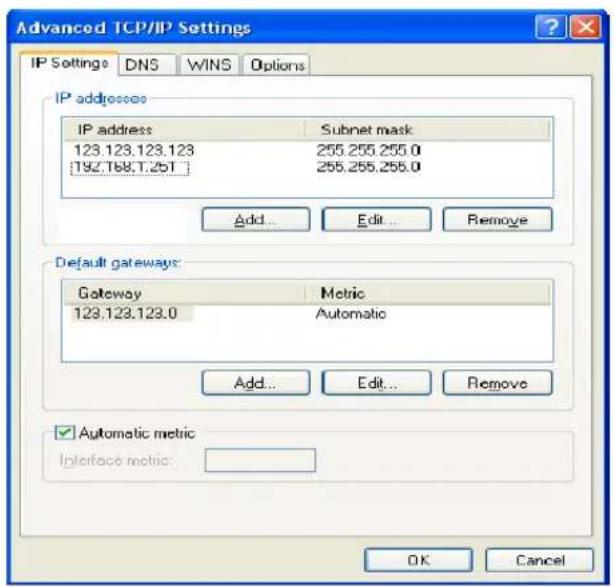

Advanced TCP/IP Settings IP Settings DNS WINS Options IP addresses IP address Subnet mask 123.123.123.123 255.255.255.0 [192.T68.T.251] 255.255.255.0 Add... Edit... Remove Default gateways: Gateway Metric 123.123.123.0 Automatic Add... Edit... Remove ✓ Automatic metric Interface metric: OK Cancel

Click Add under IP addresses then enter 192.168.1.xxx. The NVR uses 192.168.1.100 as the IP address; you cannot use the address for your computer's internal IP address.

3.2.3. Connecting and Changing Settings

Type 192.168.1.100 in your Internet browser address bar then press Enter.

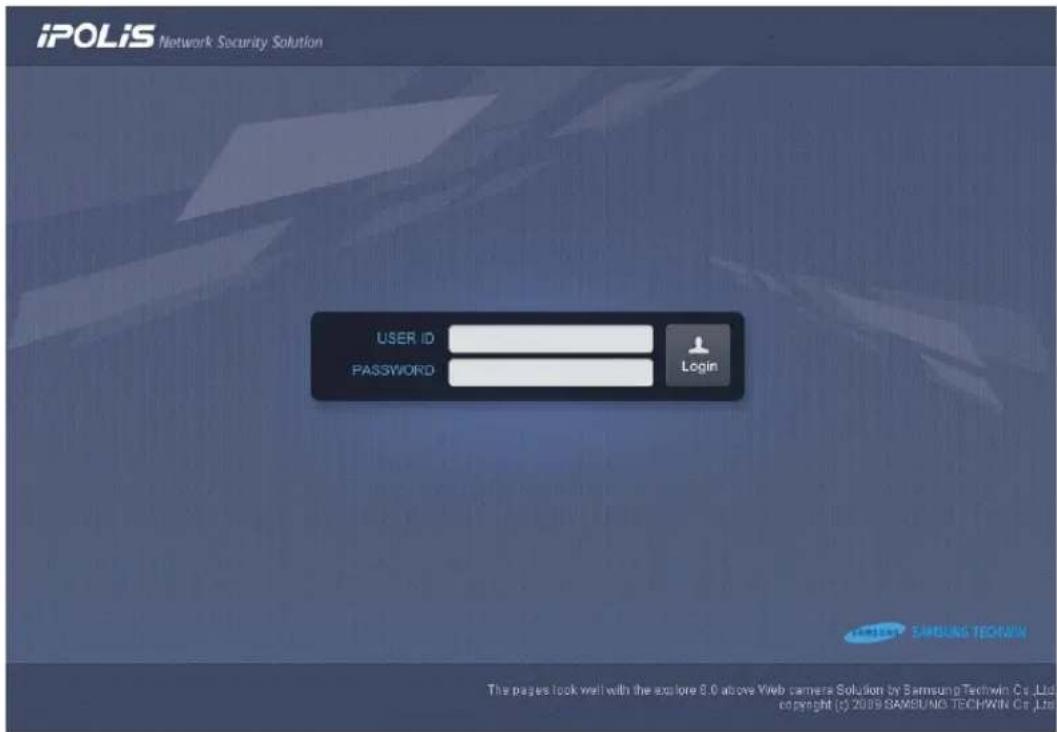

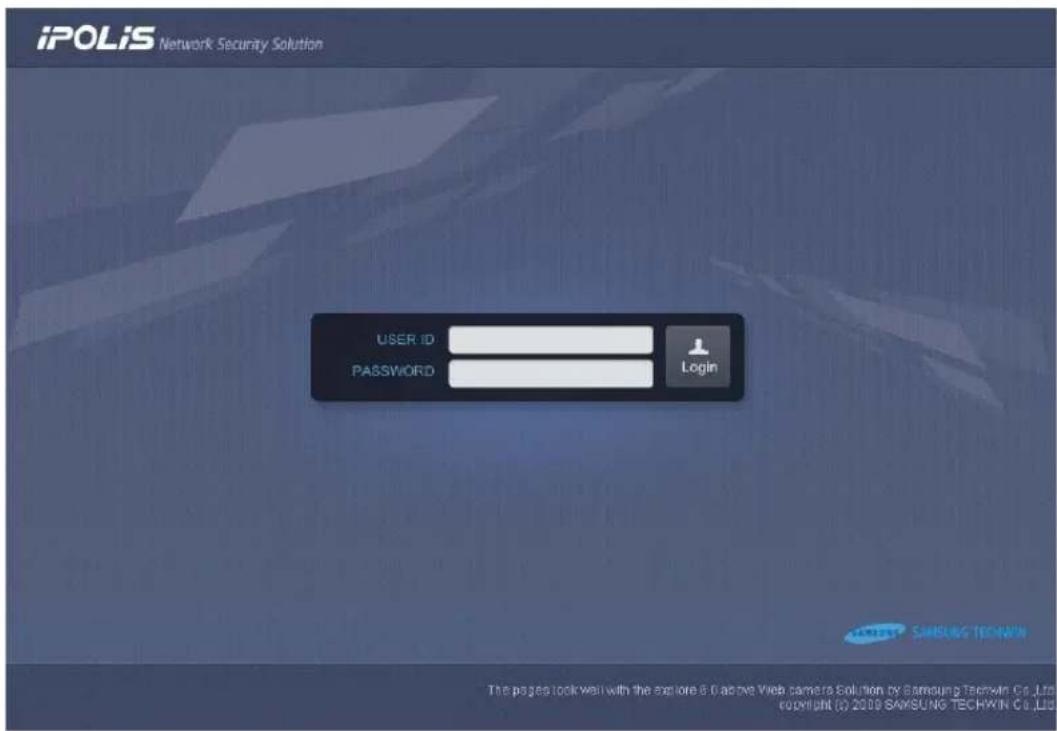

iPOLiS Network Security Solution USER ID PASSWORD Login The pages look well with the explore 8.0 above Web camera Solution by SamsungTechwin Co.,Ltd. copyright (© 2009 SAMSUNG TECHWIN Co.,Ltd)

In the login window, enter admin as the User ID and 11111111 for the Password. Click Login to connect to the product.

iPOLiS Network Security Solution Monitoring Playback Config System Auto sequence Group 1 Channel 1 Pause Dapture Info DIT PT ZF OSD Set Ecc PTZ speed 1 2 3 4 5 6 Slow Fast Copyright © 2019 C:\MOSI\Tech\vol. Co., Ltd.

When connecting to the product for the first time, no video displays as no network or camera is set up.

Clicking Config at the top of the screen directs you to a new page, as shown in the screenshot below.

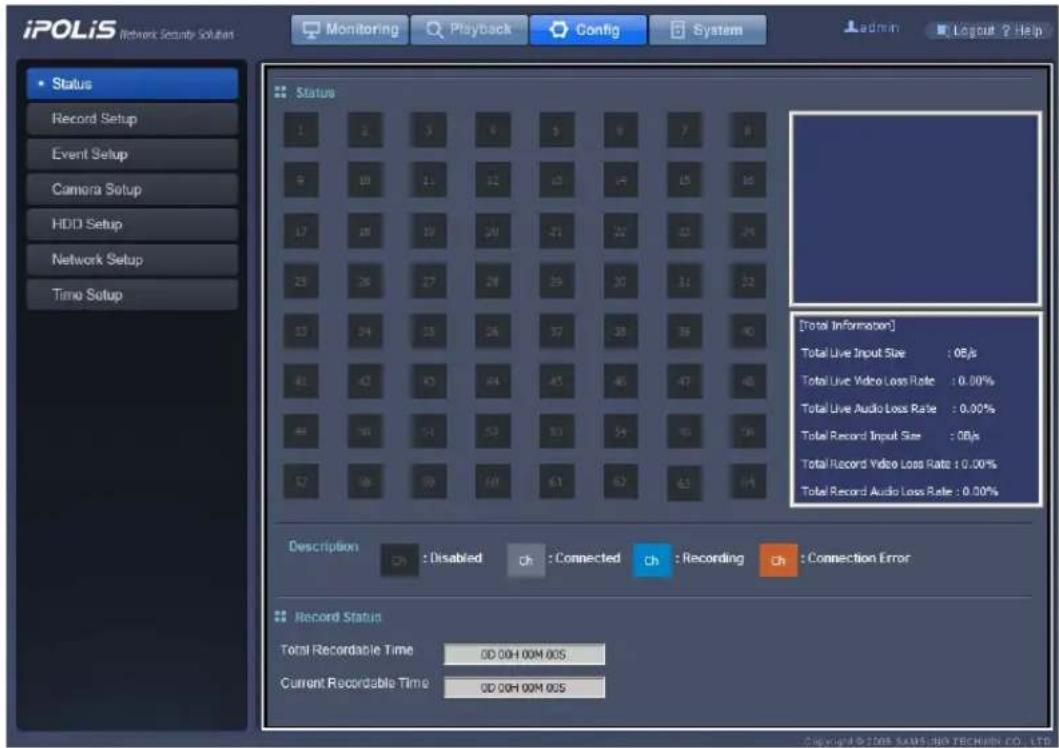

iPOLiS Network Security Solution Monitoring Playback Config System admin Layout ? Help Status Record Setup Event Setup Camera Setup HDD Setup Network Setup Time Setup Status 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 [Total Information] Total Live Input Size : 0.0% Total Live Video Loss Rate : 0.00% Total Live Audio Loss Rate : 0.00% Total Record Input Size : 0.0% Total Record Video Loss Rate : 0.00% Total Record Audio Loss Rate : 0.00% Description C: Disabled C: Connected C: Recording C: Connection Error Record Status Total Recordable Time : 0D 00H 00M 00S Current Recordable Time : 0D 00H 00M 00S Copyright © 2008 SAMSUNG TECHNIN CO., LTD

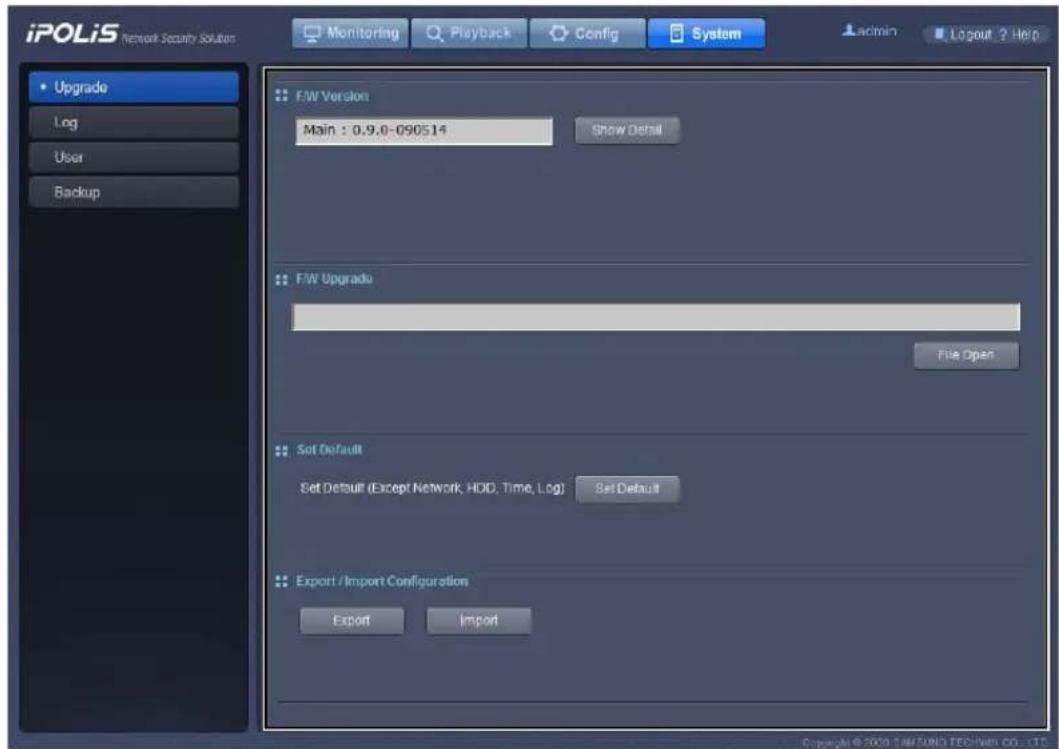

Clicking System directs you to a new page, as shown in the screenshot below.

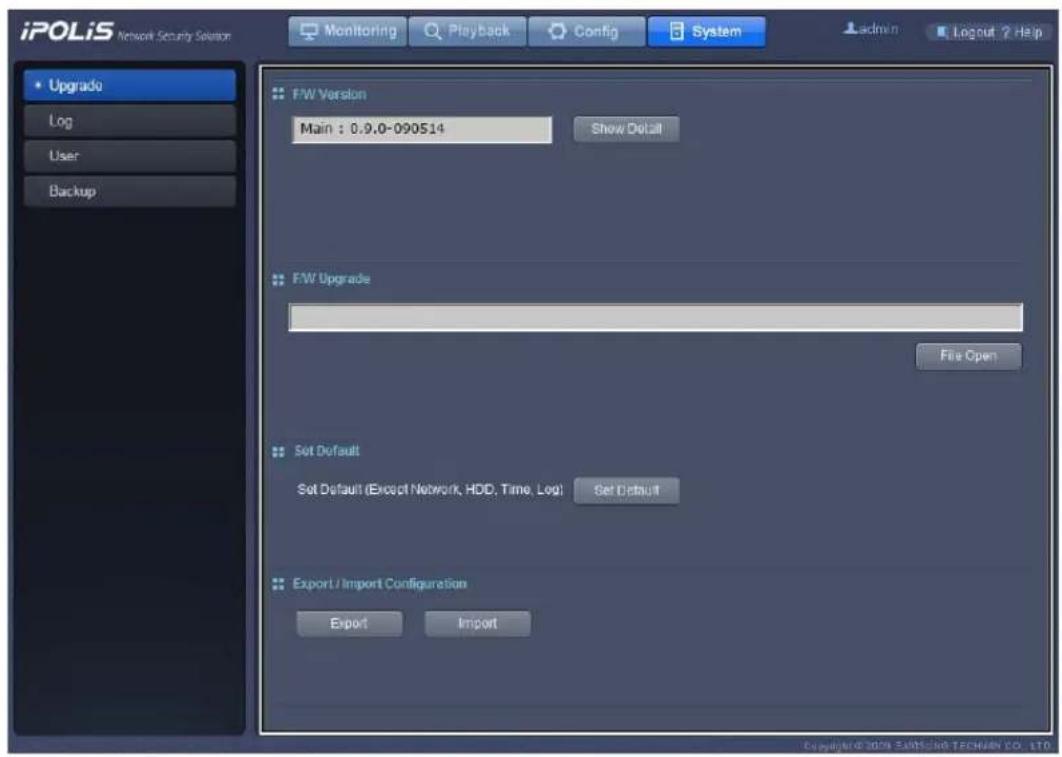

iPOLiS Network Security Solution Monitoring Playback Config System admin Logout ? Help Upgrade Log User Backup F/W Version Main : 0.9.0-090514 Show Detail F/W Upgrade File Open Set Default Set Default (Except Network, HDD, Time, Log) Set Default Export / Import Configuration Export Import Copyright © 2009 TAW SUND TECHWIN CO., LTD.

Use the left menu to set up the product. For detailed instructions on each menu item, please refer to "4.6. Config" and "4.7. System" Once a network is set up,

You can use the Monitor Ethernet Port on the product back panel to connect to the product.

Note

• The IP address for the front port is fixed as 192.168.1.100; this value cannot be changed.
• It is strongly recommended that you change the default administrator password (Admin PW) as soon as possible. For instructions on changing the password, please refer to "4.7.3. User Setup"

Chapter 4. Operation

4.1. System Requirements

Category Minimum Recommended
CPU Intel Core 2 Quad2.5GHz or higher		Intel i7 or higher
Main Memory 3GB	4GB or higher
Video Memory 512	MB 1GB or higher
Display Resolution 1,280 x 1,024
Hard Disk 1GB or higher
Operating System	Windows XP Professional / Windows Vista Business / Windows 7
Network Gigabit	Ethernet
Miscellaneous DirectX 9.0 or higher

4.2. Compatible Web Browsers

Web Viewer is optimized for use with Microsoft Internet Explorer 6.0 or higher. You must have Microsoft Internet Explorer 6.0 or higher installed on your PC to ensure trouble-free operation of Web Viewer.

4.3. Login

Open a web browser, and then enter the IP address of the product. You are directed to the login page. Enter your ID and password, then click the Login button to connect to the system. You are directed to the Monitoring Page. If you have not set up your own ID and password yet, the default ID is "admin", and the default password is "11111111" (without the quotation marks.) For instructions on changing the ID and password, please refer to "4.7.3. User Setup".

iPOLiS Network Security Solution USER ID PASSWORD Login The page took well with the explore 8.0 active Web camera Solution by Samsung Techwin Co., Ltd. copyright (© 2019 SAMSUNG TECHWIN Co.,LTD)

Note

• To connect to the product using the front network port, please make sure to enter 192.168.1.100. To connect to the product using the rear Monitor Ethernet Port, make sure to enter the IP address assigned to the port.
• The connecting port and computer must be within the same network.
• For an HTTP port number with any value other than 80, then the access address is http://:.

For example if the IP address is 192.168.1.110, and the HTTP port number is 8080, then the address for Web Viewer is http://192.168.1.110:8080.

- For instructions on changing the Monitor Ethernet Port IP address, please refer to "4.6.6. Network Setup"

4.4. Monitoring

If you are logging in to your Network Video Recorder for the first time, or if you click the Monitoring button at the top of Web Viewer, you will be directed to the Monitoring Page where you can view the video feeds from the cameras connected to your product.

iPOLiS Network Security Solution Monitoring Playback Config System admin Logout ? Help Auto sequence Group 1 Channel 1 Pause Capture Info DIT PT ZF OSD Set Est PTZ speed 1 2 3 4 5 6 Slow Fast [2008/04/15 01:47:07] MD CN(ch40f) [2008/04/15 01:03:57] MD DFF(chRTf) [2008/04/15 01:08:55] MD CN(ch10f) ][Vlose CN(ch10s) [2008/SAMSUNG TECHMEN CO., LTD. Copyright © 2009 SAMSUNG TECHMEN CO., LTD.

4.4.1. Splitting Screen and Changing Channels

You can select the number of video feeds to simultaneously display on-screen by clicking the

button in the upper left of the screen. You can have 1-, 4-, 9-, 16-, 36-, or 64-channel video feed(s) displayed simultaneously on-screen; a separate browser window will open to display 36- or 64-channel video feeds. When displaying 1\~36 channels, the channels are displayed in groups to manage visibility.

For example, if you are viewing 16 channels simultaneously, then channels 1\~16 are displayed

in group 1, and channels 17\~32 are displayed in group 2, and so on. is used to select which group or channel you want to view; To watch video in all channels in an orderly manner, click the Auto sequence button. to activate the Auto Sequence option that cycles through videos in different groups at 7-second intervals. The logs for the current channel are at the bottom of the screen: event (MD, V-Loss), main frame sensor, and relay event. To check the logs, move the button on the right side of the window upward or downward. The names of events like 'MD', 'V-Loss' etc are displayed on the video of channels where events occur.

4.4.2. Video Control

When clicking on a video channel, the selected screen is outlined in orange. With a channel selected, you can use the buttons on left side of the page to control the video feed in that channel.

• Button: Pauses or un-pauses the video feed in the selected channel.
• Button: Captures a screenshot of the current screen that you can save as a JPG picture file.
• Button: displays the name and current time for a channel on the video screen.
• D Button: Activates or disables the Deinterlace option on the video for a channel.

Place the cursor over the image and right-click it to display the audio context menu.

- Audio: This works the same as clicking the button on the left side of the screen. Audio playback is from the currently selected channel. An icon ( ) appears to indicate which channel the audio feed is from; you can also click to adjust the volume.

- Preset: Displays PS on a channel video screen. Clicking PS lets you to select a preset. A Preset is a pre-selected angle and zoom operation for a PTZ camera. Selecting a preset reverts the camera to the previous angle and zoom settings. The NVR only supports loading existing presets. To create new presets, you must manually set them up in your PTZ cameras.

4.4.3. PTZ Control

Click on a channel displayed on-screen; an orange border appears around that channel to indicate that the channel has been selected. With a channel selected, you can use the button on the left side of the page to control the PTZ (pan, tilt, zoom) of the camera for the selected channel.

PT changes the direction that the camera faces. Click the button to display the circular button, shown on the right. Click a direction on the circular button to pan the camera in that direction.

ZF adjusts the zoom and focus of a selected camera. Click the button to display the circular button, shown on the right. Click + and - to zoom in and out; click + and - to adjust the focus.

Click the 📄 button next to the circular button to play the audio feed from the selected channel. The effect of this button is identical to the Audio option in the right-click context menu.

You can adjust the PTZ speed with the slider knob at the bottom of the page. A total of 6 different PTZ speed levels are available. Click Slow to decrease the PTZ speed by one level, and Fast to increase it by one. "1" is the slowest PTZ speed setting, and "6" is the fastest.

PTZ speed 1 2 3 4 5 6 Slow Fast

Note

The PTZ control and preset options are only compatible with PTZ enabled cameras.

4.4.4. OSD Control

When clicking on a channel video, the video screen is outlined in orange to indicate that it is selected. To display the camera OSD of the selected channel, click 📄 on the left side of the screen.

iPOLiS Network Security Solution Monitoring Playback Config System admin Logout ? Help Auto sequence Group 1 Channel 1 Main Menu ① Camera Setting ② Sequence Setting ③ P/TI Setting ④ OSD Setting ⑤ Initialize ⑥ Status PT ZT OSD Set Esc PTZ speed 1 2 3 4 5 6 Slow Slow Foot [2009/08/05 18:55:15] MD OFF(ch100) [2009/09/05 18:55:10] MD ONCh100 [2009/09/05 18:55:09] MD OFF(ch101) [2009/09/05 18:54:53] MD OFF(ch102) [2009/09/05 18:52:30] MD ONCh103 Emball © 2009 SAMSUNG TECHNOLOGY CO., LTD

To control the OSD menu, click the ← → SET ESC buttons at the bottom of the video screen. To move between OSD menus and change the settings, use the arrow buttons. To move to a sub menu or apply new settings, click the SET button. To move back to the previous menu, click the ESC button. Instead of the SET and ESC buttons on the video screen, you may also use the ← and 📋 buttons next to the 📋 button. For detailed instructions on setting up an OSD, please refer to the user manual for the respective camera.

Note

Control of PTZ operations, Preset and OSD is not available in AXIS camera.

4.5. Playback

Click Playback at the top of the screen to display the Playback screen. This screen lets you watch saved videos. There are two ways to use the Playback option; Time enables you to search and watch videos by the recorded time and date, while Event lets you view videos according to events that have occurred. When connecting to the Playback screen for the first time, the Time Search menu appears as the default.

4.5.1. Time Search

iPOLiS Network Security Solution Monitoring Playback Config System Time Event Channel 1 March 2009 Today S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 10 16 17 18 19 20 21 20 23 24 25 26 27 28 29 30 31 1 2 3 4 Time 00 H 00 M 00 S Sound CaptureInfo DIT REW PLAY STOP FFW Ch01 Copyright © 2009 YAMSUNG TECHWIN CO., LTD.

• Channel: Enables selecting a channel.
• To watch a video conveniently, select a date on the calendar under the Channel button. Dates available with videos are displayed in blue, e.g. 4 5
• Time Area: While the video screen is paused, selecting a time and clicking the Play button plays a video at that time. While a video is being played, the Time area displays the recorded time of the video.
  ■ Sound Button: Turns audio on or off for the current video.
• Capture Button: Captures a screenshot of the current screen in JPG format.
  ■ Info Button: Displays the channel name and recorded time of the current video.
  DIT Button: Activates or disables the Deinterlace option for the current video.

- REW and FFW Buttons: Rewind, fast forward, and adjust the current video play speed. While a video is playing, the buttons change to 8x, 4x, 2x, 1x, 1C, 2X, 4X, 6X, indicating the play direction and speed. The adjusted play speeds are 1x, 2x, 4x, and 8x backward and forward. Each time the REW or FFW button is pressed, the play speed changes by one level.

(Playback or movement by the frame is not supported.)

- PLAY Button: Plays a video. While a video is playing, it changes to the “(PAUSE) button. Clicking the PAUSE button pauses the current video.

- Stop Button: Stops a video.

- Move the ☐ knob on the slider below the playback screen to seek to a specific video time. A time with available video is highlighted in blue on the time slider while a time with event video is in red.

Ch01 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

4.5.2. Event Search

displays the Event Search screen, as shown in the picture below. For detailed about events, please refer to "4.6.3. Event Setup"

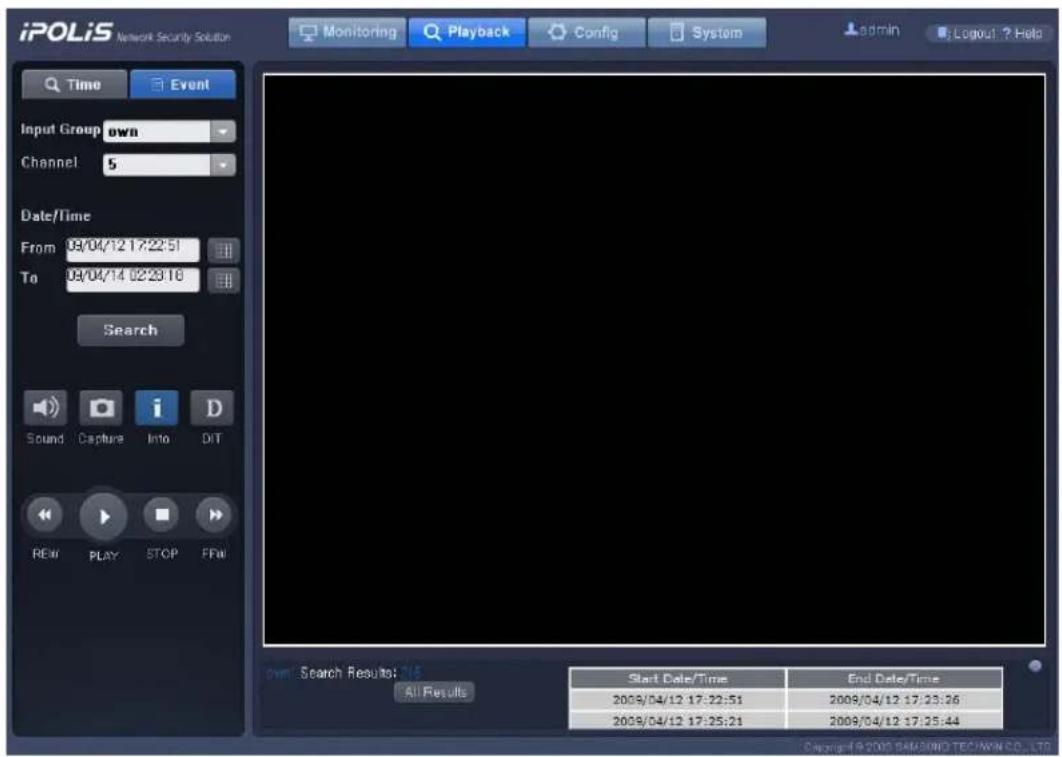

iPOLiS Network Security Solution Monitoring Playback Config System admin Logoul ? Help Time Event Input Group own Channel 5 Date/Time From 09/04/12 17:22:51 To 09/04/14 02:23:16 Search Sound Capture Into DiT REAR PLAY STOP FFai own Search Results: 175 All Results Start Date/Time End Date/Time 2009/04/12 17:22:51 2009/04/12 17:23:26 2009/04/12 17:25:21 2009/04/12 17:25:44 Copyright © 2009 BAKSING TECH/WIN CO., LTD.

• Input Group own Area: Enables selecting an Event Input Group.
• Channel 5 Area: Enables selecting a channel that contains the record of the selected Event Input Group.
  Area: Enables selecting the beginning and ending times to search events.

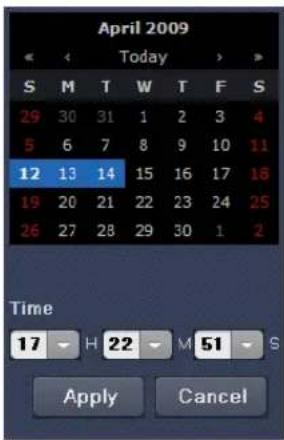

• Button: Displays a calendar, as shown on the next page, enabling you to select the beginning and ending dates and times for searching events. Select a date and time, and then click Apply.

April 2009 Today S M T W T F S 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 Time 17 H 22 M 51 S Apply Cancel

- Search Searches videos with conditions that match a selected event type, channel, date and time, and then displays the first 10 results at the bottom of the screen, as shown in the screenshot below. To play a video, click on a result. To check all the 10 results, move the in the right of the screen upward and downward.

Start Date/Time	End Date/Time
2009/04/12 17:22:51	2009/04/12 17:23:26
2009/04/12 17:25:21	2009/04/12 17:25:44

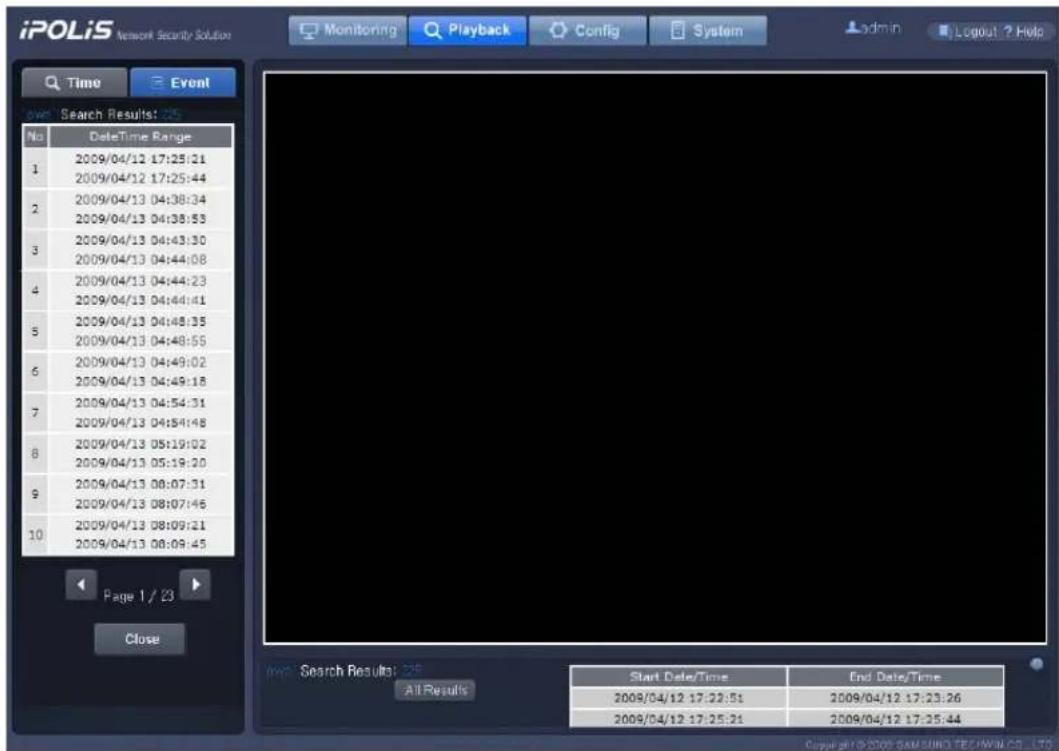

- All Results displays all search results on the left side of the page. 10 Search results are displayed at a time. Clicking on an item automatically plays a video saved in the selected time. ◀ and ▶ move to the previous or next results page. Close moves to the previous screen.

iPOLiS Network Security Solution Monitoring Playback Config System admin Logout ? Help Time Event Search Results: 25 No DateTime Range 1 2009/04/12 17:25:21 2009/04/12 17:25:44 2 2009/04/13 04:38:34 2009/04/13 04:38:53 3 2009/04/13 04:43:30 2009/04/13 04:44:08 4 2009/04/13 04:44:23 2009/04/13 04:44:41 5 2009/04/13 04:48:35 2009/04/13 04:48:55 6 2009/04/13 04:49:02 2009/04/13 04:49:18 7 2009/04/13 04:54:31 2009/04/13 04:54:48 8 2009/04/13 05:19:02 2009/04/13 05:19:20 9 2009/04/13 08:07:31 2009/04/13 08:07:46 10 2009/04/13 08:09:21 2009/04/13 08:09:45 Page 1 / 23 Close Search Results: 25 All Results Start Date/Time End Date/Time 2009/04/12 17:22:51 2009/04/12 17:23:26 2009/04/12 17:25:21 2009/04/12 17:25:44 Copyright © 2009 GAMMURG TECHWAL.PD LTD

Note

• The maximum searchable period is 7 days.
• If more than 500 event video files are recorded within a selected search period, data saved on the day for which 500 or more accumulated video files are recorded is searched but data saved on the day after is not searched. (For example, if video files are searched from 10^th to 15^th and 800 accumulated video files are saved by 11^th , the program will not search data saved after 11^th , and will display search results only up to the 800^th file.)
• Events that occurred during Normal Record mode cannot be searched.

■ Sound Button: Turns audio on or off for the current video.
- Capture Button: Captures a screenshot of the current screen in JPG format.
- Info Button: Displays the channel name and recorded time of the current video.
DIT Button: Activates or disables the Deinterlace option for the current video.
- REW and FFW Buttons: Rewind, fast forward, and adjust the play speed of the current video. While a video is being played, the buttons change to 8x, 4x, 2x, 1x, 2x, 4x, and 8x, indicating the play direction and speed. The adjusted play speeds are 1x, 2x, 4x, and 8x backward and forward. Each time the REW or FFW button is clicked, the play speed changes by one level.
- PLAY Button: Plays a video. While a video is playing, it changes to the "(PAUSE) button. Clicking the PAUSE button pauses the current video.
- Stop Button: Stops a video.

4.6. Config

The following screen appears when Config at the top of the screen is clicked. Clicking on a button on the left menu directs you to the corresponding page.

iPOLiS Network Security Solution Monitoring Playback Config System admin Logout ? Help Status 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 [Channel 01 : SNC-570 - 192168.720] Live Input Size : 103kB/s Live Video loss Rate : 0.00% Live Audio loss Rate : 0.00% Record Input Size : 103kB/s Record Video loss Rate : 0.00% Record Audio loss Rate : 0.00% [Total Information] Total Live Input Size : 14103kB/s Total Live Video loss Rate : 0.00% Total Live Audio loss Rate : 0.01% Total Record Input Size : 14257kB/s Total Record Video loss Rate : 0.00% Total Record Audio loss Rate : 3.08% Description C: Disabled C: Connected C: Recording C: Connection Error Record Status Total Recordable Time : 00:10H 27M 21S Current Recordable Time : Repeat Recording Copyright © 2009 ZAMORUS TECHNOLOGY CO., LTD.

4.6.1. Status

Displays the current status of each channel along with the free storage space of the product at the bottom.

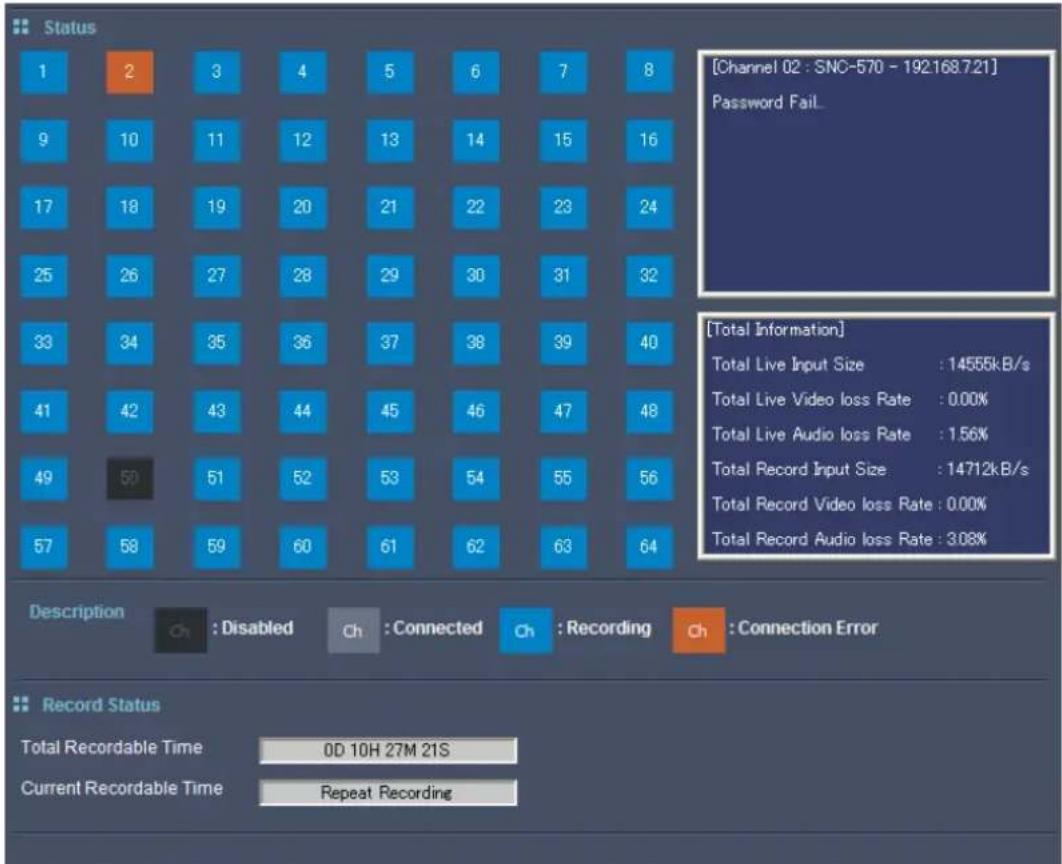

Status 1 2 3 4 5 6 7 8 [Channel 02 : SNC-570 - 192168.7.21] Password Fail. [Total Information] Total Live Input Size : 14555kB/s Total Live Video loss Rate : 0.00% Total Live Audio loss Rate : 1.56% Total Record Input Size : 14712kB/s Total Record Video loss Rate : 0.00% Total Record Audio loss Rate : 3.08% Description : Disabled Ch : Connected Ch : Recording Ch : Connection Error Record Status Total Recordable Time 0D 10H 27M 21S Current Recordable Time Repeat Recording

The Status Page lets you check the status of all channels in one screen. Dark gray indicates an unused channel. Light gray indicates a channel that is connected to a camera, but is not in recording mode. Blue indicates a channel that is in recording mode. Orange indicates a channel that is experiencing a connection problem with its camera.

The right panes display the details of channels: the bitrate, video loss, and audio loss for both Live and Record modes. The top pane displays information for the current channel while the bottom displays information for all channels. When selecting a channel that is Connected or Recording, the bitrate as well as video and audio losses for the channel are displayed. For a channel in Connection Error state, it displays the error information.

Note

• "Live" indicates a live video feed. "Record" indicates a live video feed that is being recorded and saved in the product's HDD.
• "Record" uses data from the last 8 seconds to calculate statistics; there may be a slight discrepancy between the bitrates of "Live" and "Record," even when all the frames coming from the camera are being stored normally.

Record Status displays remaining recordable hours under the current recording settings. Total Recordable Time displays a total recordable time of all connected data storage units. Current Recordable Time displays remaining recordable hours based on the current free storage space of the product. If the HDD becomes full during the Repeat Recording mode, the Current Recordable Time menu displays Repeat Recording. Please Refer to "4.6.5. HDD Setup"

4.6.2. Record Setup

Select a channel on the left of the screen to choose its video recording method.

Record Channel Ch 01 Ch 02 Ch 03 Ch 04 Ch 05 Ch 06 Ch 07 Ch 08 Ch 09 Ch 10 Ch 11 Ch 12 Ch 13 Ch 14 Ch 15 Ch 16 Ch 17 Ch 18 Ch 19 Ch 20 Ch 21 Ch 22 Ch 23 Ch 24 Ch 25 Ch 26 Ch 27 Ch 28 Ch 29 Ch 30 Ch 31 Ch 32 Ch 33 Ch 34 Ch 35 Ch 36 Ch 37 Ch 38 Channel 01 Model SNC-570 IP 192.168.7.126 Normal Record Config All frames Event Record Config Input Group own event Active All frames Pre Recording Time 5 Sec Inactive I frames Post Recording Time 5 Sec Normal Record Event Record No Record M T W T F S S

Select a channel on the left side of the screen to choose its video recording method. To choose

time and a method of saving a video on each day, select one of Normal Record, Event Record, or , and then drag the cursor in the bottom timetable to

make a selection. Different colored blocks of hours and days indicate different record modes. Upon selecting, the name of the record mode buttons are Bolded and Italicized to

Normal Record, Event Record and No Record

Normal Record mode records video always at a set frame rate while Event Record changes its frame rate for events. You can select an Event Input Group or Own Event to activate Event Record mode. When selecting an Input Group, Event Record is activated for events corresponding to the Input Group. When selecting Own Event, Event Record is activated for all

events occurring in the selected channel. For Event Record, "Pre Recording Time" defines the amount of time before the Event, and "Post Recording Time" defines the amount of time that elapses after the Event, to employ a special frame rate for storing video. You can have up to 5 seconds of Pre Recording Time, and up to 60 seconds of Post Recording Time. You can search videos recorded by Event Record in the Playback screen. For instructions on setting up events and Input Group, please refer to "4.6.3. Event Setup"

You can select different frame rates for each recording mode: Normal Record, Event Record – Active (when an event occurs), Event Record – Inactive (while no event is detected.) For Normal Record and Event Record – Active, All frames, I frames, and 2 I frames are available. For Event Record – Inactive, All frames, I frames, 2 I frames, and No Record are available. Choose "All frames" to store all video feeds from the camera while "I frame" stores only the 1 frame of the video feed per 1second. Choosing "2 I frames" stores only the I frame of the video feed per 2 seconds. No Record does not record any video.

Note

New settings are applied only if you click

4.6.3. Event Setup

From this screen, you can configure Event-related settings.

Event Local Sensor Type Sensor1 Normal Open Sensor2 Normal Open Apply ① Input Group input1 ② Output Group output1 ③ Action Group action1 Add Modify Remove Add Modify Remove Add Modify Remove

◆ Local Sensor Type

Local Sensor Type let you select the operation type for Sensor 1 and 2 between Normal Open and Normal Close. Normal Open activates a sensor input when the contact type is short or the dynamic type is at the Low level. Normal Close activates a sensor input when the contact type is open or the active type is high impedance (open collector). For more information about sensors, please refer to the user's manual of each sensor.

Event Input/Output Group

Event Input Group defines a group of events that may occur in cameras and the Network Video Recorder; Event Output Group defines a group of responses that cameras and the Recorder may take for a particular event. Click Add under either Event Input Group or Event Output Group to see the following screen. This screen also appears when selecting a group and then clicking Modify, or simply double clicking on a group.

Event Local Sensor Type Sensor1 Normal Open Sensor2 Normal Open Apply ① Input Group ② Output Group ③ Action Group Add Modify Remove Add Modify Remove Add Modify Remove Input Group input1 Event Input Source ch01 : SNP-1000 - 192.168.759 ch02 : SNP-1000 - 192.168.7.124 sensor1 sensor2 ch1 md ch14 : SNP-1000 - 192.168.7.52 SRN-6450 Apply Close

Enter a new group name in the Input Group or Output Group pane. The list below the panes displays the channel camera names along with the product. To display available Input Event or Output Event sources, double click on a camera or the product. For Input Group, available options include Sensor and MD (Motion Detector), and Relay, E-mail, and Beep for Output Group. (For more information about input and output signals for cameras, please refer to the user manual of each camera.) Check on all options to include them in the new group, and then click Apply to create the group via the Add button, or apply new settings via the Modify button. Close closes the Group Settings window without creating a group or saving new settings.

For Output Group, Output Source Duration is available to add and modify. Beep and Relay actions duration can be set from '1second' to 'always' (to make actions keep operating once an event occurs).

To delete a group, select a group in a group list, and then click Remove.

Event Action Group

Event Action Group links Event Input Group and Event Output Group into one functional unit, so that when an Event included in the Event Input Group occurs, all the responses included in the Event Output Group are included. Click Add under Event Action Group list, and you'll be directed to the screen shown below. This screen also appears when selecting a group and then clicking Modify, or simply double clicking on a group.

Event Local Sensor Type Sensor1 Normal Open Sensor2 Normal Open Apply ① Input Group input1 ② Output Group output1 ③ Action Group Add Modify Remove Add Modify Remove Add Modify Remove Action Group action1 Input Group input1 Ch IP Model Event Type Ch IP Model Event Type Ch2 192.168.7.124 SNP-1000 ch1 md Ch2 192.168.7.124 SNP-1000 relay1 - - SRN-6450 relay1 - - SRN-6450 email - - SRN-6450 beep Ch IP Model Event Type Ch2 192.168.7.124 SNP-1000 - - SRN-6450 - - SRN-6450 email - - SRN-6450 beep Apply Close

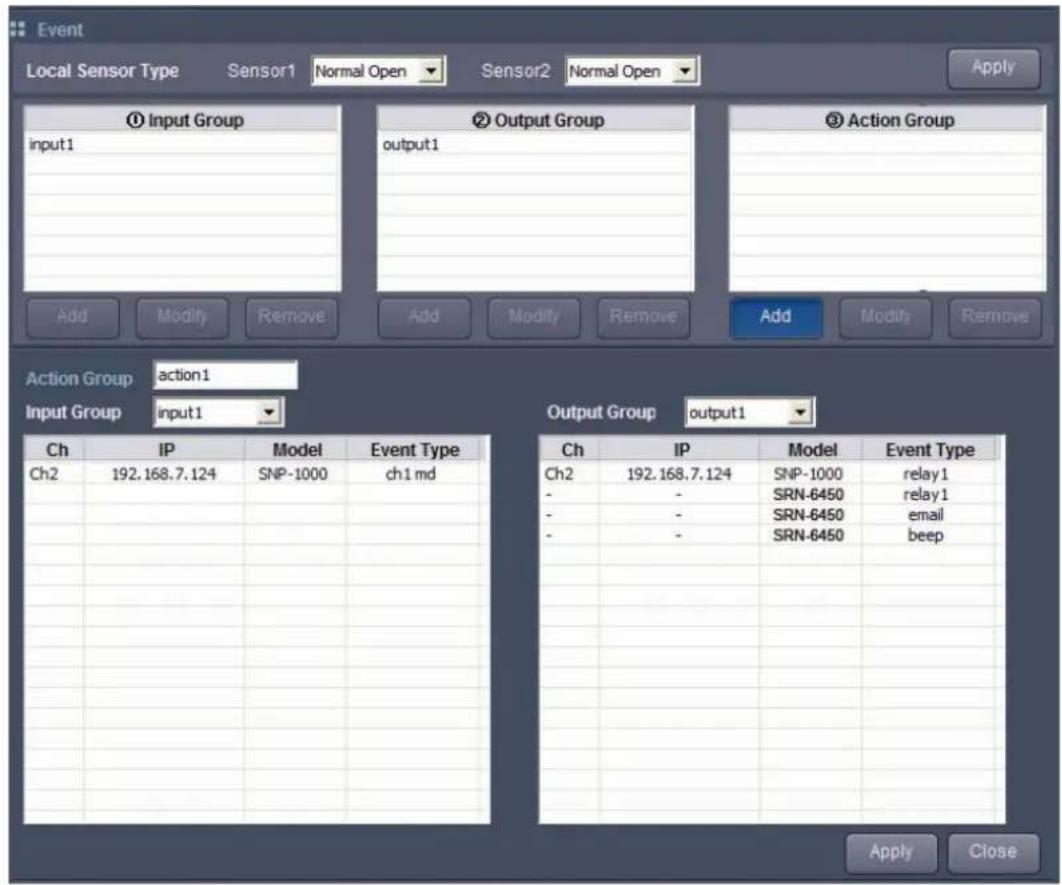

First, enter a new group name in Group Name. Then select Event Input and Output Groups in the Input Group and Output Group list. Events registered for the selected Input and Output Groups are at the bottom of the screen. Click Apply to create the group. Close closes the Group Settings window without creating the group.

To delete a group, select a group in the Group list, and then click Remove.

Deleting an Input or Output Group deletes an Action Group corresponding to the Input or Output Group.

4.6.4. Camera Setup

Camera Ch1 ~ Ch16 Ch01: CH01 Ch02: CH02 Ch03: CH03 Ch04: CH04 Ch05: CH05 Ch06: CH06 Ch07: CH07 Ch08: CH08 Ch09: CH09 Ch10: CH10 Ch11: CH11 Ch12: CH12 Ch13: CH13 Ch14: CH14 Ch15: CH15 Ch16: CH16 Ch17 ~ Ch32 Ch33 ~ Ch48 Ch49 ~ Ch64 Channel 1 Disable Enable Channel Name CH01 Model Select Camera Model Connection Type Static IP IP 0 . 0 . 0 . 0 Port 4000 ID Password Picture Type MPEG Video Mode NTSC ATC Mode Off Video Quality High Video Resolution D1 Video Framerate 10 Apply

Select a channel in the left list; you can view or modify its camera settings. Active channels are displayed with ☐ while inactive ones are with ☐

■ Disable Enable: Selecting Enable activates a channel.
- Channel Name: Name a channel. Channel Name is displayed on the top of the Monitoring and Playback screens.
- Model: Select the model number for a camera. In addition to network cameras, you can choose network video servers such as the SNS-100, SNS-400, etc.
- Connection Type: Select the connection type for a camera between Static IP and DDNS.

- To use Static IP, enter the IP address and connection port for a camera.

- To use DDNS, enter the DDNS server address and user ID.

• ID, Password: Enter the login ID and password for a camera.
• Picture Type: Select an image save method between MPEG and JPEG formats.

- Video Quality, Video Resolution, Video Framerate: Select a video quality, resolution, and video frame rate. Selecting higher settings for these will give you higher quality video, at the expense of network bandwidth and disk storage capacity.

Note

• The product's maximum frame rate is limited and varies depending on the resolution and RAID settings. (Refer to the product specifications page.)
• The frame rate of a channel with its Picture Type set to JPEG is double that of a channel with its Picture Type is set to MPEG when calculating total frame rate.
• The system is a single-stream based device that proceeds with recording and live playback in the camera mode specified in the Camera Setup page.

Note

• Video Mode shows the selected camera's color encoding system, NTSC or PAL, and cannot be modified.
• The available resolutions differ depending on the network camera. For a resolution of higher than 720p, no separation between NTSC and PAL exists, and the maximum frame rate will be changed accordingly.

	NTSC PAL
QCIF	176 x120 176 x144
CIF	352 x240 352 x288
2CIF	704 x240 704 x288
4CIF	704 x480 704 x576
D1	720x480	720
720p	1280x720
960p	1280x960
FullHD	1920x1080
QVGA	320x240
VGA	640x480
SVGA	800x600
XGA	1024 x768
SXGA	1280 x1024
UXGA	1600 x1200
QXGA	2048 x1536

x576

Caution

• If the product specifications are not followed by the user, some data can be lost. So be sure to configure the camera settings in consideration of the limit of the product specifications. (Refer to Product Specifications)
• If you change the camera settings while in record mode, the image recorded at the moment of the change may not be played properly.

Note

The NVR can be used in connection with Samsung Techwin network products as well as with AXIS products. AXIS cameras have, however, limited compatibility with this product, as described below.

• Only AXIS cameras that support both VAPIX and MPEG4 output are compatible with this product.
  ■ Audio Encoding: G711 μ-law
• Camera Search: Cannot search.
• Resolution: In Camera Setup page, one of D1, Half D1, or CIF can be selected as a AXIS resolution. But certain AXIS camera models do not support D1, Half D1, and CIF resolutions. In this case, please use the following chart to determine Video Mode and Video Resolution. For instance, if you want to use CIF video resolution for an AXIS camera, check if 352x240, 320x240, or 352x288 is listed under the resolution in the chart. If one of the sizes is available, that means that you can use the resolution. If a selected resolution is not applicable, the product searches for a supported resolution in the order of D1, Half D1, and CIF, and then changes the resolution automatically. AXIS cameras that do not support any of the listed resolutions below cannot be used in connection with the NVR.

NTSC PAL
D1 704x480, 4CIF, 640x480 704x576
Half D1 704x240, 2CIF 704x288
CIF	352x240, 320x240 352x288

■ Camera Search automatically searches the current network to find cameras to connect.

Camera Ch1 ~ Ch16 Ch01: Site 1 Ch02: Site 2 Ch03: CH03 Ch04: CH04 Ch05: CH05 Ch06: CH06 Ch07: Door 1 Ch08: Door 2 Ch09: CH09 Ch10: CH10 Ch11: CH11 Ch12: CH12 Ch13: CH13 Ch14: CH14 Ch15: CH15 Ch16: CH16 Ch17 ~ Ch32 Ch33 ~ Ch48 Ch49 ~ Ch64 IP Model Video Mode 192.168.7.63 SNC-570 NTSC 192.168.7.57 SNP-1000 NTSC 192.168.7.53 SNC-550 NTSC 192.168.7.42 SND-560 NTSC 192.168.7.40 SND-560 NTSC 192.168.7.38 SND-560 NTSC 192.168.7.35 SND-560 NTSC 192.168.7.32 SND-560 NTSC 192.168.7.31 SND-560 NTSC 192.168.7.28 SND-560 NTSC 192.168.7.235 SND-560 NTSC 192.168.7.230 SND-560 NTSC 192.168.7.23 SND-560 NTSC 192.168.7.222 SND-560 NTSC 192.168.7.22 SND-560 NTSC 192.168.7.227 SND-560 NTSC 192.168.7.225 SND-560 NTSC 192.168.7.224 SND-560 NTSC 192.168.7.223 SND-560 NTSC 192.168.7.21 SND-560 NTSC 192.168.7.20 SND-560 NTSC 192.168.7.172 SND-560 NTSC 192.168.7.130 SNC-570 NTSC 192.168.7.125 SNC-570 NTSC 192.168.7.124 SNP-1000A NTSC 192.168.7.122 SNC-570 NTSC 192.168.7.121 SNC-570 NTSC 192.168.7.119 SNC-570 NTSC 192.168.7.118 SNC-570 NTSC 192.168.7.115 SNC-570 NTSC 192.168.7.113 SNC-570 NTSC 192.168.7.109 SNC-570 NTSC 192.168.7.108 SNC-570 NTSC Select Close

Select a camera on the list and then double-click on it, or simply click Select. The Model, Connection Type, IP, and Connection Port options of the camera will be automatically set up depending on the settings of the camera.

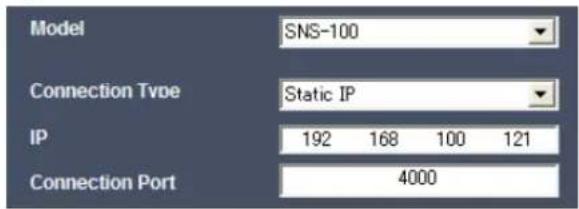

Model SNS-100 Connection Type Static IP IP 192 168 100 121 Connection Port 4000

Note

Camera Search does not always find all the cameras on the network; you may have to click more than once to find all the camera(s) you want.

Note

New settings are applied only if you click

Apply

4.6.5. HDD Setup

From this page, you can configure the storage devices connected to the system.

HDD Repeat Recording Off On Refresh Apply Division Model Record Start Time Record End Time Total Size Free Size RAID 1 RAID5 MODE 2009-03-04 16:27:31 2009-04-05 08:11:27 2816697MB 2816697MB External2 2 ST3160815SV NAS 1 NAS1:connected 15441MB 15441MB 1427554MB 1427554MB HDD Format Auto Deletion Mode Off On Duration 150 Days (1~365) Apply RAID Mode Normal RAID1 RAID5 RAID Status Apply NAS Configuration NAS Port NAS1 Use Disable Enable Name NAS1 IP 192 . 168 . 7 . 15 File System CIFS ID admin Default Folder snr6400test Password ********* Apply

HDD

On top of the screen the types and statuses of internal HDDs, external HDDs, and/or NAS devices currently connected to the system are listed. Internal and external HDDs give their model, record times, "total size" (total capacity) and "free size" (remaining capacity); NAS devices give their user-assigned names and current connection statuses. RAID-configured internal HDDs are displayed as "RAID" instead of "Internal" and their model names are replaced by the raid mode: "RAID1 MODE" or "RAID5 MODE." While an HDD is being formatted, an HDD is in the disk checking process, and a new RAID mode is being configured; "Formatting," "Testing," and "Building" are displayed instead of the device model names.

Set Repeat Recording to On, and the system will automatically erase the oldest recorded video to make room for new video when no free space remains on the HDD.

To renew the list of connected HDDs, click Refresh.

When you select an HDD, HDD Format appears; click it to format the selected HDD. While formatting is in progress, the front LCD displays the following message.

Formatting HDD is in Progress...

HDD Format

[DONE]

While an HDD is being formatted, an HDD is in the disk checking process, or a new RAID mode is being configured, the product cannot be used to format another new HDD; the

HDD Format

button is not displayed even if you select an HDD in the list.

Selecting a NAS and then clicking HCD Format does not format the entire NAS; it only deletes the entire video data of a selected NAS.

Note

New Repeated Recording setting is applied only if you click top of the screen.

at the

Auto Deletion

In In Auto Deletion, you can select and specify necessary items of Auto Deletion as well as the storage period. Set the Mode item to On and specify the storage period in the Duration item. Then, press Apply in the right side. This will automatically delete older data in the HDD than the specified period. The storage period can be specified by the day, ranging from at least one day to a max of 365 days.

Note

If you activate Auto Deletion for the first time, HDD data older than specified will be deleted automatically and it may take a while until the Auto Deletion mode gets started.

RAID Mode

In the RAID Mode menu, you can change the system RAID settings. To change the settings, select Normal, RAID1, or RAID5, and then click Apply on the right. Normal is the non-RAID mode. Upon applying new RAID settings, the system automatically reboots itself; you

will be disconnected from Web Viewer. The system requires approximately 2 minutes to reboot and establish a network connection.

While the new RAID settings are being applied, the front LCD displays the following messages according to the progress.

Preparing RAID1 is in Progress...

Rebooting system is in Progress...

Build RAID1: 48.8%
Finish: 37.6min

RAID1 Setup
[DONE]

Unbuilding RAID
is in Progress...

Rebooting system is in Progress...

Unbuilding RAID
[DONE]

When the system is in a RAID mode, RAID Status appears on the right.

RAID Mode Normal RAID1 RAID5 RAID Status Apply

RAID Status Displays the current RAID status of the system along with the information of RAID-configured HDDs.

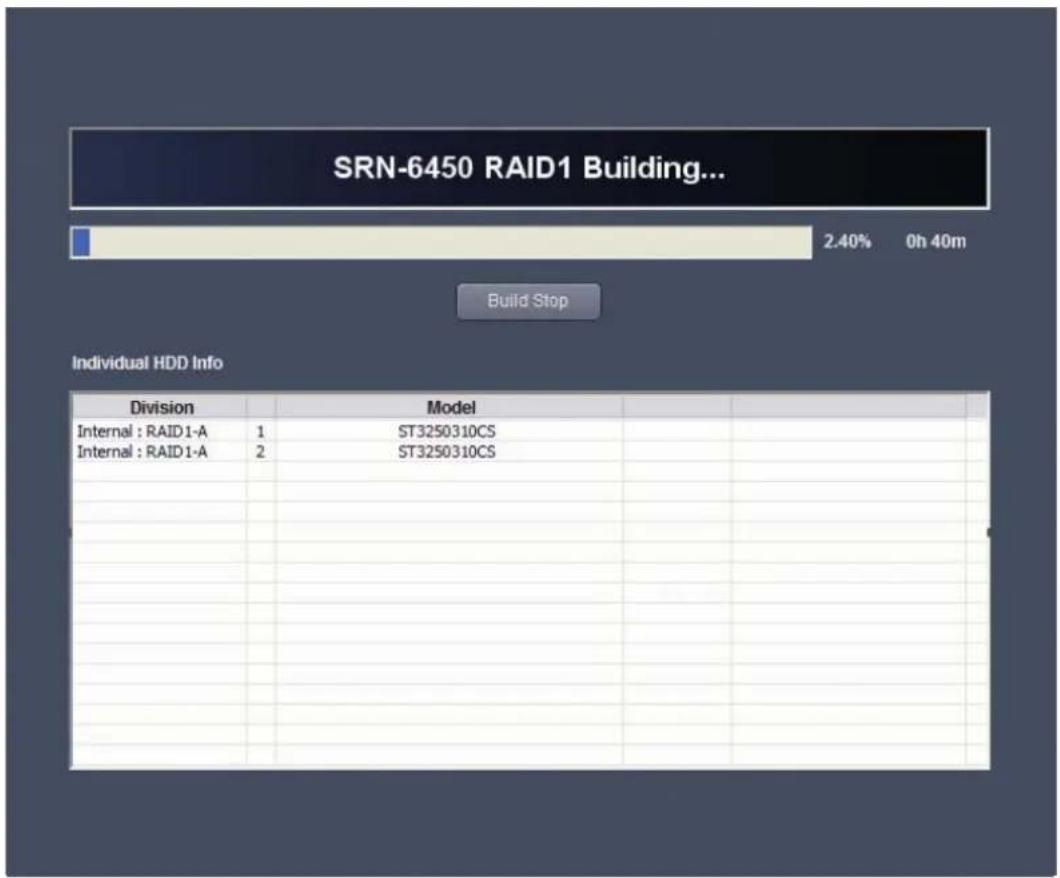

SRN-6450 RAID1 Building... 2.40% 0h 40m Build Stop Individual HDD Info Division Model Internal : RAID1-A 1 ST3250310CS Internal : RAID1-A 2 ST3250310CS SRND-6450 RAID1 Building... Build Stop

While building a RAID mode, Build Stop appears in the RAID Status screen. Clicking the button aborts the RAID building process.

Note

• RAID (Redundant Array of Independent Disks) helps you keep data safe in case the system HDD is damaged.
• Selecting RAID1 mode configures HDD1 and HDD2 as one array, and HDD3 and HDD4 as the other array. RAID1 uses 2 physical HDDs as 1 functional HDD. For instance, configuring HDD1 and HDD2—while each is equipped with a 500GB HDD—to RAID1 displays the system's functional HDD as one 500GB RAID. In RAID1 mode, no data is lost even if one of the two HDDs of a RAID array is damaged.
• Selecting RAID5 configures 4 HDDs to 1 RAID array. RAID5 uses 4 physical HDDS as 3 functional HDDs. For instance, configuring HDD1, 2, 3, and 4—while each one of them is equipped with a 500GB HDD—to RAID5 displays the system's functional HDD as one 1.5TB RAID. In RAID5 mode, no data is lost even if one of the four HDD is damaged.
• RAID1 requires at least 2 HDDs to be equipped next to each other—HDD1 and HDD2, or HDD3 and HDD4—while RAID5 requires all 4 HDDs to be equipped.
• To configure a RAID mode, HDDs must be the same size. It is highly

recommended that you use the same brand and model HDDs to configure RAID.

• RAID settings are available only for internal HDDs.
  ■ Building RAID using 4 x 500GB HDDs takes approximately 3 hours for RAID1, and 4 hours for RAID5.

- Changing the RAID settings to a new mode automatically deletes all data in the HDDs of the product, and new video files are not saved until the new RAID mode is completely configured.

- When the product is turned off abnormally, i.e. by pulling the AC power adapter out, and then turned on, the product may reconfigure its RAID settings automatically to ensure the integrity of saved data. While a new RAID mode is being configured, existing data is not lost, but new data will not be saved either.

- If more than two RAID configured HDDs are broken or removed from the product, the RAID configuration will malfunction, causing data loss.

NAS

Up to four NAS devices can be connected; each NAS is referred to by its NAS Port. Choose a NAS Port to view or change its configuration.

Use lets you determine whether to use the selected NAS Port or not.

Name lets you assign a name to the NAS device. NAS Name displays under the Model category in the HDD list at the top of the screen.

Default Folder lets you specify a folder on NAS to save recorded video.

Enter the IP address, login ID, and password for the NAS in IP, ID, and Password respectively.

• Only the CIFS (Samba) file system is supported for NAS ports.
• NAS name and default folder name can contain a maximum of 32 bytes, i.e. 32 alphanumeric characters.(English)
• A NAS HDD may not appear in the HDD list if it is turned off at the time when the product is turned on for the first time, or the product fails to connect to the HDD for other reasons. In these cases, the product is unable to connect to the NAS HDD automatically even if the problem is resolved. To connect to the NAS HDD, you must change settings to Disable, and then change back to Enable.
• If a connected NAS HDD becomes disconnected from the product, its status in the HDD list changes from "Connected" to "Not Connected." In this case, the

product automatically connects to the NAS HDD if the problem is resolved. The status of the HDD then reverts to "Connected".

- The NAS data-saving speed is slower than internal and external HDDs; this may cause video files to be saved improperly.

Note

New NAS settings are applied only if you click at the bottom of the screen.

Caution

HDDs MUST not be removed from the system while the system is in operation. To remove HDDs safely, please refer to "5.4. Removing HDDs"

4.6.6. Network Setup

You can configure network settings on this screen.

Monitor Eth Port Connection Type PPFoE Assigned IP ID Password Connection Port 4000 Mac Address 00:00:00:00:00:00 Http Port 80 ATC Mode Disable Enable DDNS Use Disable Enable Server Domain www.samsungipols.co ID Password Source Eth Port Connection Type Static IP IP Address 0 . 0 . 0 . 0 Subnet Mask 0 . 0 . 0 . 0 Gateway 0 . 0 . 0 . 0 Mac Address 00:00:00:00:00:00 Source DHCP Server Use Disable Enable Net Mask 0.0.0.0 IP Range 0 . 0 . 0 . 0 ~ 0 . 0 . 0 . 0 DNS (All Ethernet Port) DNS1 168 . 126 . 63 . 1 DNS2 168 . 126 . 63 . 2 RTP/RTSP Use RTSP Disable Enable RTSP Port 554 RTP Port 4000 Multicast Address 224 . 0 . 1 . 1 E-Mail SMTP ServerName ✓ Use Authentication ID Password E-Mail To Storage Eth Port Connection Type DHCP Assigned IP Mac Address 00:00:00:00:00:00 Apply

You can use either PPPoE, Static IP, or DHCP as a connection method for the network ports on the rear panel. If you are not sure which method to use, please ask your network administrator for assistance.

If the product is connected to a PPPoE-type xDSL line, choose PPPoE as the connection method, and enter the access ID and password. Choose the Static IP connection method if you wish to use a static IP, and enter the IP address, subnet mask, and gateway to use. Choose DHCP if a DHCP server is connected to the network you want to connect to; the DHCP server will automatically assign an IP address for you.

Note

• If you are using PPPoE or DHCP, you will find the IP address currently assigned to your product in Assigned IP; you cannot set Assigned IP yourself.
• Changing the network connection method from PPPoE to DHCP or Static IP automatically reboots the system.

The 3 rear network ports (Refer to "2.2. Back Panel" and "3.1.2. Configuring the Network") are the Monitor Ethernet Port, Source Ethernet Port, and Storage Ethernet Port. The Monitor Ethernet Port connects the monitoring computer to the NVR via the web or the setup program.

The Source Ethernet Port connects to the cameras. The Storage Ethernet Port connects to NAS devices.

In relation to Monitor Ethernet Port, you can set the connection port number and http port. The http port is used to connect to the product via Web Viewer. If you changed the default value (80) for HTTP Port, then you must append "(your port number)" to the product's address when connecting to your product with Web Viewer. For example, if your IP address is 192.168.1.110 and HTTP Port is 8080 then http://192.168.1.110:8080 is the product access address for Web Viewer. The connection port is used to connect your computer to the product after the http connection is established.

You can activate or disable ATC in the ATC Mode menu. ATC automatically adjusts the video quality depending on the network's connection status.

Monitor Ethernet Port supports DDNS. By registering your product with a DDNS server, you can connect to the Monitor Ethernet Port from outside by using the DDNS server ID, instead of the product's IP address. If you are using either PPPoE or DHCP to connect to the Monitor Ethernet Port, you'll be assigned a n`ew IP address each time you connect the product to the network. DDNS is especially useful in these circumstances.

Note

Using DDNS

1. Register as a member on iPOLiS home page (www.samsungipolis.com).
2. Log in, and register your NVR with the product registration menu in MY IPOLIS. (Be sure to check for duplicate domains when you register your domain.) You can check if your product has been registered normally on the Product List.
3. Next set DDNS Use to "Enable," enter "www.samsungipolis.com" in Server Domain (without the quotation marks), and finally type in the ID and password you registered with at the iPOLiS home page.
4. You can view the connection status for your registered product(s) on iPOLiS Product List. ("ON" means that the product is connected to DDNS.)
5. Click Connect to Product on the Product List to connect to your product.
6. You also can enter http://www.samsungipolis.com/ID in your Internet browser's address bar to connect to your product. ("ID" is the domain you chose when you registered your product.)

Source Ethernet Port can act as a DHCP server to assign an IP address to a connected camera. Enter two IP addresses—the first and last addresses of an IP range—to limit the range of dynamic IPs. This DHCP Server option is especially useful when you want to open only the NVR to an external network and keep the connected cameras within the internal network.

Note

To use the DHCP Server, the connection method for Source Ethernet Port must be set to Static IP.

Note

• The front network port (Config Ethernet Port) is fixed as IP 192.168.1.100, HTTP Port 80, Connection Port 4000; you cannot change this setting.
• When connecting to the system via the Monitor Ethernet Port instead of the Config Ethernet Port, changing the settings of the Monitor Ethernet Port may terminate the connection. If this happens, you must use the new address to connect to the product.

All ports use the same DNS server; you can have up to two DNS servers. DNS1 is used as the default, and DNS2 is used when DNS1 is unavailable.

Using RTP/RTSP lets you watch the video of the SRN-6450 in the monitoring system without using Web Viewer. To use RTP/RTSP, select "Enable" in the Use RTSP menu, and then change the RTSP and RTP port numbers in the Settings menu. (RTSP is used to control video, and RTP is used to transfer video data.)

The Multicast option is useful when sending video to multiple users simultaneously without consuming too much bandwidth. Multicast is available only within a local network that is configured with a multicast-enabled router; it cannot be used via the Internet.

Note

• The RTSP port number cannot be identical to the number of the connection port for the Monitor Ethernet Port.
• Please be advised that you should not change the address unless you are familiar with the RTP multicast protocol. The default Multicast address is 224.0.1.1.
• RTSP monitoring is applied only to a MPEG-compliant camera. (H.264 and JPEG-compliant cameras are not supported)

Note

To connect your computer to the product and watch video via RTP/RTSP, please follow the instructions below. For a video player, we recommend using VLC Media Player(Some players such as Quicktime may not function correctly, as they do not support interlacing.) VLC Media Player's menu configuration may vary depending on its version. (Version 0.9.8a or higher.)

1. In the Network Setup page, select "Enable" in the Use RTSP menu.

To use Multicast, select "Enable" in the Use Multicast menu.

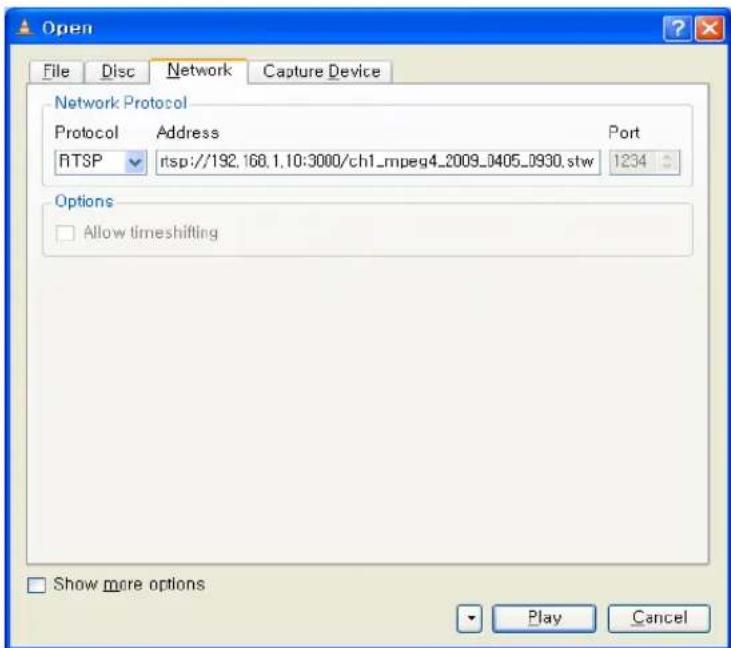

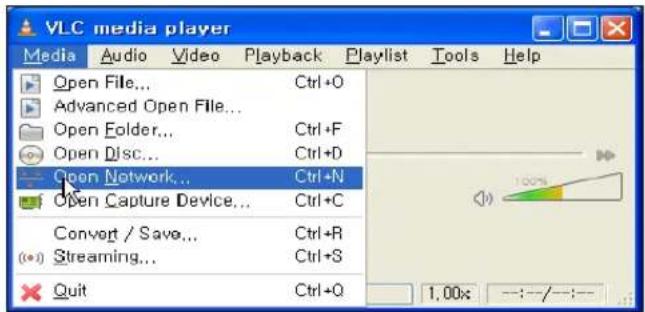

1. Install and run VLC Media Player in your computer. Under the Media menu, select Open Network or simply use the shortcut key (Ctrl+N) Select RTSP under Protocol.

VLC media player Media Audio Video Playback Playlist Tools Help Open File... Ctrl+O Advanced Open File... Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network... Ctrl+N Open Capture Device... Ctrl+C Convert / Save... Ctrl+R Streaming... Ctrl+S Quit Ctrl+Q 1.00x --:--/---

Open File Disc Network Capture Device Network Protocol Protocol Address Port RTSP rsp://192, 160, 1, 10:3000/ch1_mpeg4_2009_0405_0930.stw 1234 Options Allow timeshifting Show more options Play Cancel

1. Depending on the type of a video, enter an address as from the examples in

the following chart, and then click Play. When using the default RTSP port number, 554, you may skip entering the port number.)

Video Type Address
Live	Unicast rtsp://:/ch_mpeg4.stw
	Multicast rtsp://:/mch_mpeg4.stw
Recorded	Unicast	rtsp://:/ch_mpeg4__.stw
	Multicast	rtsp://:/ch_mpeg4__.stw

i.e.) If the Monitor Ethernet Port IP address is 192.168.1.10 with the RTSP port as 3000, enter rtsp://192.168.1.10:3000/ch1_mpeg4_2009_0405_0930.stw to watch a video from Channel 1 that is recorded on April 5, 2009 at 9:30am

You can register your e-mail address in the Network Setup screen, so your product can notify you with an e-mail when a defined Event occurs. Please Refer to "4.6.3. Event Setup" Enter an outgoing e-mail server address under SMTP Server Name, and an e-mail address under E-Mail To. If your mail server requires authentication for sending e-mail, check User Authentication. Enter your login ID and password for your mail server in ID and Password.

Note

To use the E-Mail option, the Monitor Ethernet Port must be connected to a mail server.

Note

New network settings are applied only if you click

Apply

4.6.7. Time Setup

This page deals with the system's time settings.

Current Time 03-06-2009 20:31:42 Set Time Time Configuration Date Format mm.dd.yy Time Format 24h Time Zone (GMT 00:00) Greenwich Mean Time : Dublin, Edinburgh, Lisbon, London Use DST Disable Enable Start Mar 5th Sun 01:00:00 End Oct 5th Sun 02:00:00 NTP Use Client Disable Enable Use Server Disable Enable Public Server1 Address pool.ntp.org Public Server2 Address asia.pool.ntp.org Public Server3 Address europe.pool.ntp.org Public Server4 Address north-america.pool.ntp.org Public Server5 Address time.nist.gov Apply

You set the current time for the product under Current Time. Current date is located above; current time is below. Select an item by clicking on it, and use either the up/down arrow keys or the number keys on your keyboard to change its value. The + up/down button can be used instead of the keyboard to change the current time.

To display a calendar, click ↓ in the date window. The current date of the product is highlighted in blue. The current date of the product is highlighted in blue. The current date of your computer is circled in red on the calendar, as well as written on the bottom of the calendar. To move to the previous or next month, click ↓ or ↑ at the top of the calendar. To change the current date, click on a date on the calendar.

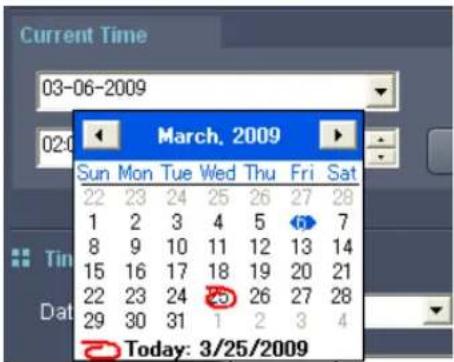

Current Time 03-06-2009 March, 2009 Sun Mon Tue Wed Thu Fri Sat 22 23 24 25 26 27 28 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 Today: 3/25/2009

Date Format lets you choose either yy.mm.dd, mm.dd.yy, or dd.mm.yy for displaying the current date. yy is year, mm is month, and dd is day. You can choose between 24-hour and 12-hour time formats for displaying the current time in Time Format.

Click Time Zone to select your time zone and city. If your city observes Daylight Saving Time, it will be applied automatically. You can also manually decide whether to use DST or not with DST Use.

You can choose to use an NTP client and NTP server in the NTP menu. NTP (Network Time Protocol) synchronizes the time among the various devices and systems connected to a network; NTP client automatically communicates with registered NTP servers to adjust its time setting. To use an NTP server other than the default one, change Public Server Address.

• Changing the GMT settings automatically changes Current Time.
• Synchronizing the time settings of the NTP server and the product may take a while if you change NTP client settings from Disable to Enable. Updating the time settings of the product does not take effect immediately; you must refresh the screen by opening the Time Setup page.
• To use the NTP client option, the NTP public servers and the Monitor Ethernet Port must be within the same network.
• When the NTP Server option is activated, the Source Ethernet Port acts as the NTP server.

New Current Time settings are applied only if you click . New Time Configuration and NTP settings are applied only if you click Apply.

4.7. System

The following page appears when selecting at the top of the screen. By clicking on one of the buttons on the left of the screen, you can go to the page that corresponds to the function described on that button.

iPOLiS Network Security Solution Monitoring Playback Config System admin Logout Help Upgrade Log User Backup F/W Version Main : 0.9.0-090514 Show Detail F/W Upgrade File Open Set Default Set Default (Except Network, HDD, Time, Log) Set Default Export / Import Configuration Export Import Copyright © 2004 FANSARI TECHNOLOGY CO., LTD

4.7.1. Upgrade

Displays the current firmware version of the system, and enables resetting the settings.

F/W Version Main : 0.9.0-090514 Show Detail F/W Upgrade File Open Set Default Set Default (Except Network, HDD, Time, Log) Set Default Export / Import Configuration Export Import

F/W Version

At top of the screen is the current firmware version. Click Show Detail for more details as shown in the screenshot below.

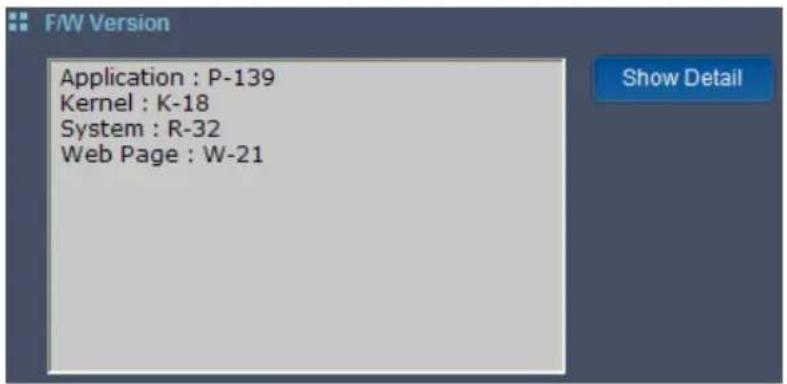

F/W Version Application : P-139 Kernel : K-18 System : R-32 Web Page : W-21 Show Detail

F/W Upgrade

To upgrade the firmware of the product, click under the F/W Upgrade menu, and then select a firmware file to upgrade.

Selecting a firmware file activates File Send under . Click it to begin upgrading the file.

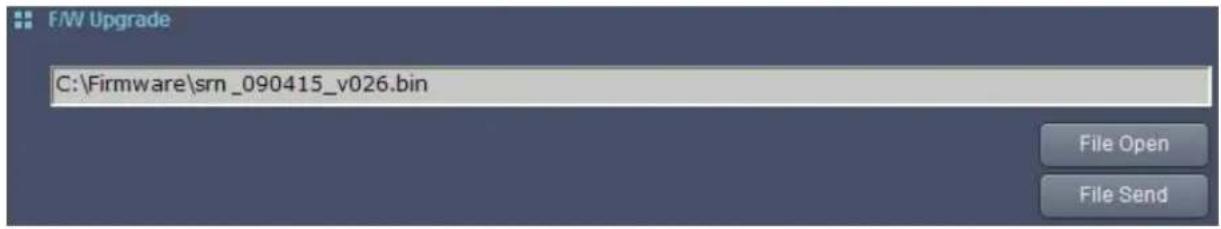

F/W Upgrade C:\Firmware\srn_090415_v026.bin File Open File Send

Note

To download the latest firmware files, please visit Support > Download Center at www.samsungcctv.com.

Upon completing the upgrade progress, the system automatically reboots itself; you will be disconnected from Web Viewer. The system requires approximately 2 minutes to reboot and establish a network connection.

Set Default

Get Default

resets the settings of the Record, Event, Camera, and User menu.

For more information about the default settings value, please refer to "2.3. Default Settings"

❖ Import / Export Configuration

You can save the product's current settings as a file, and then use the file to restore the settings in the future. To save the current settings of the product as a file, click the Export button, and then set the filename and path.

To reboot and restore old settings from a file, click the Import button, and then select a settings file.

Caution

When importing old settings, if the old RAID settings are different than the current, all the internal HDD data will be deleted.

4.7.2. System Log

You can view the System Log on this page.

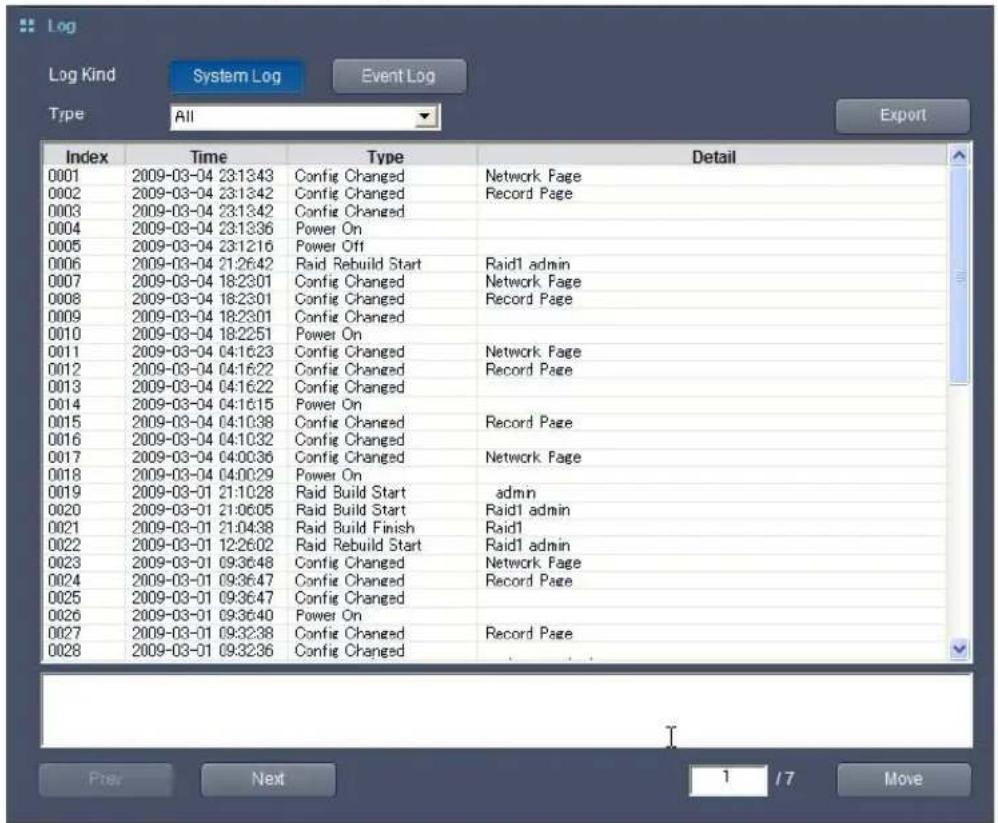

Log Log Kind System Log Event Log Type All Export Index Time Type Detail 0001 2009-03-04 23:13:43 Config Changed Network Page 0002 2009-03-04 23:13:42 Config Changed Record Page 0003 2009-03-04 23:13:42 Config Changed 0004 2009-03-04 23:13:36 Power On 0005 2009-03-04 23:12:16 Power Off 0006 2009-03-04 21:26:42 Raid Rebuild Start Raid1 admin 0007 2009-03-04 18:23:01 Config Changed Network Page 0008 2009-03-04 18:23:01 Config Changed Record Page 0009 2009-03-04 18:23:01 Config Changed 0010 2009-03-04 18:22:51 Power On 0011 2009-03-04 04:16:23 Config Changed Network Page 0012 2009-03-04 04:16:22 Config Changed Record Page 0013 2009-03-04 04:16:22 Config Changed 0014 2009-03-04 04:16:15 Power On 0015 2009-03-04 04:10:38 Config Changed Record Page 0016 2009-03-04 04:10:32 Config Changed 0017 2009-03-04 04:00:36 Config Changed Network Page 0018 2009-03-04 04:00:29 Power On 0019 2009-03-01 21:10:28 Raid Build Start admin 0020 2009-03-01 21:06:05 Raid Build Start Raid1 admin 0021 2009-03-01 21:04:38 Raid Build Finish Raid1 0022 2009-03-01 12:26:02 Raid Rebuild Start Raid1 admin 0023 2009-03-01 09:36:48 Config Changed Network Page 0024 2009-03-01 09:36:47 Config Changed Record Page 0025 2009-03-01 09:36:47 Config Changed 0026 2009-03-01 09:36:40 Power On 0027 2009-03-01 09:32:38 Config Changed Record Page 0028 2009-03-01 09:32:36 Config Changed

Log Kind lets you choose which log to view: Event Log, or System Log. System Log displays the product operation logs while Event Log displays the logs of Event inputs sent from connected cameras.

Selecting a log type in the Type option displays only that type of logs.

To see the history of the system settings changes or event group changes, double-click on a log file of the Configuration Changed or Event Group Created type. The details appear as shown in the screenshot below.

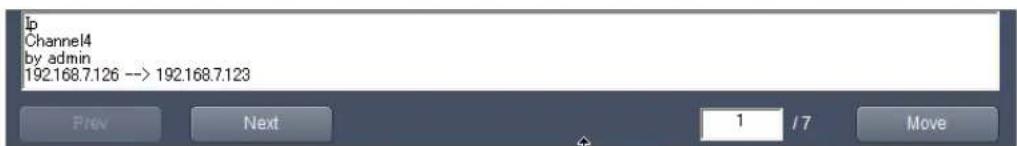

IP Channel4 by admin 192.168.7.126 --> 192.168.7.123 Prev Next 1 /7 Move

Prev and Next moves to the previous or next page. To move directly to a page, enter the page number in the text box, and then click Move.

To save a system log file to your computer, click Export

Up to 10,000 logs each for System Logs and Event Logs can be saved. If the number of either log exceeds 10,000, the system automatically deletes the oldest logs.

The following chart displays the various log types.

Log Type Description
Power On Power was turned on.
Power Off Power was turned off.
System Rebooting System re-booted.
Record On Started to record video.
Record Off Finished recording video.
HDD Format An HDD was formatted.
Camera Connection A camera was connected.
Config Changed Product configuration was changed.
HDD Full Capacity limit for HDD was reached/exceeded.
HDD Added An HDD was added.
HDD Removed Removing HDD.
RAID Build Start Started building a RAID array.
RAID Build Finish Completed building a RAID array.
RAID Unbuild	A RAID array has been removed.
RAID Rebuild Start	RAID was rebuilt.
Event Group Created	An Event Group was created.
Event Group Deleted	An Event Group was deleted.
Key Lock On	Key Lock was locked.
Key Lock Off	Key Lock was unlocked.
HDD Test	HDD disk-checking was performed.
Log File Export A log was exported.
Firmware Update	Firmware was updated.
Set Default	Set Default was executed via Web Viewer.
Factory Reset	Factory Reset was performed using the front panel button.
RAID Error	A RAID error occurred.
HDD Check Error	An HDD checking error occurred.
HDD I/O Error	An HDD encountered an I/O error.
Upgrade Error	A firmware update error occurred.
Network Status Connection to network was either lost or re-established.
Camera Connection Error	An error occurred while connecting to a camera.
Export Config Product settings were exported to the monitoring computer.
Import Config Old product settings were imported and restored.
Backup Back up stored data
Log-in	User login
Log-in Failed Attempted to login but failed
Log-out	Use logout
DDNS Reg Failed Failed to register DDNS

Log Type Description
Motion Detection Movement Detected.
Sensor	Sensor Setup.
Relay	Relay Output.
V Loss Video was lost from a camera.
Monitoring Connection The Live screen was connected.
Input Group An Event included in Input Group occurred.
Output Group An Event included in Output Group occurred.
Intelligence An Event specified in the Intelligence feature occurred.
Alarm Manually cleared	Use NVR-front button to set off the beep.
Playback Started	Access the Playback page to check the video.

4.7.3.User Setup

On this page, you can set the Admin password, and set the ID, password, and privileges for the User account.

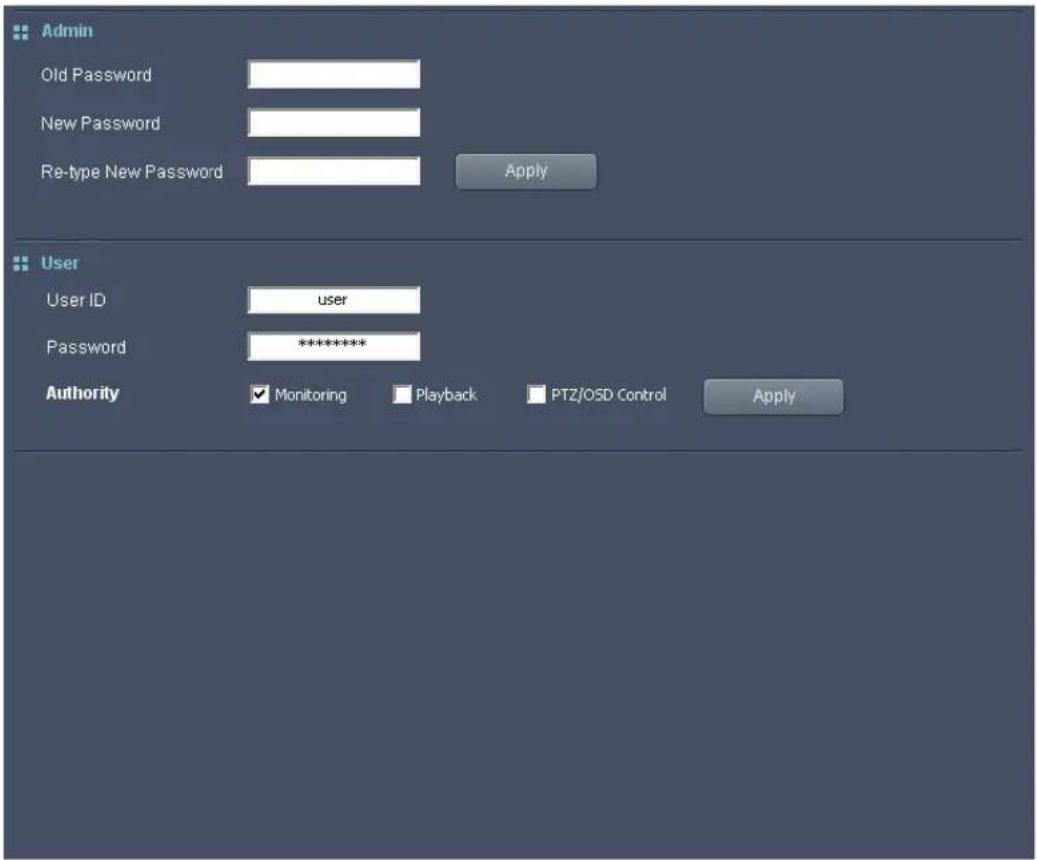

Admin Old Password New Password Re-type New Password Apply User User ID user Password ****** Authority Monitoring Playback PTZ/OSD Control Apply

In Admin, you can set a new Admin password. Enter the current password in "Old Password", enter a new password in "New Password", confirm the new password in "Re-type New Password", then click the Apply button. The Admin password is used for logging in to the Admin account, which is the system administrator account with the highest permissions level.

In addition to the Admin account, you can set up one user account with limited permissions. The User account is granted permissions by the Admin under the Authority menu. Monitoring and Playback refer to the menus used when accessing the product via Web Viewer; PTZ/OSD Control refers to the connected cameras' PTZ and OSD functions.

(Refer to "4.4.3. PTZ Control" and "4.4.4. OSD Control"

If you wish to change the User account's ID, password, or privileges, you can do so by entering the new ID in User ID, entering the new password in Password, and checking the permissions to grant to the User account. Click Apply to enable the changes.

4.7.4. Backup

Backup video files from the product to a computer.

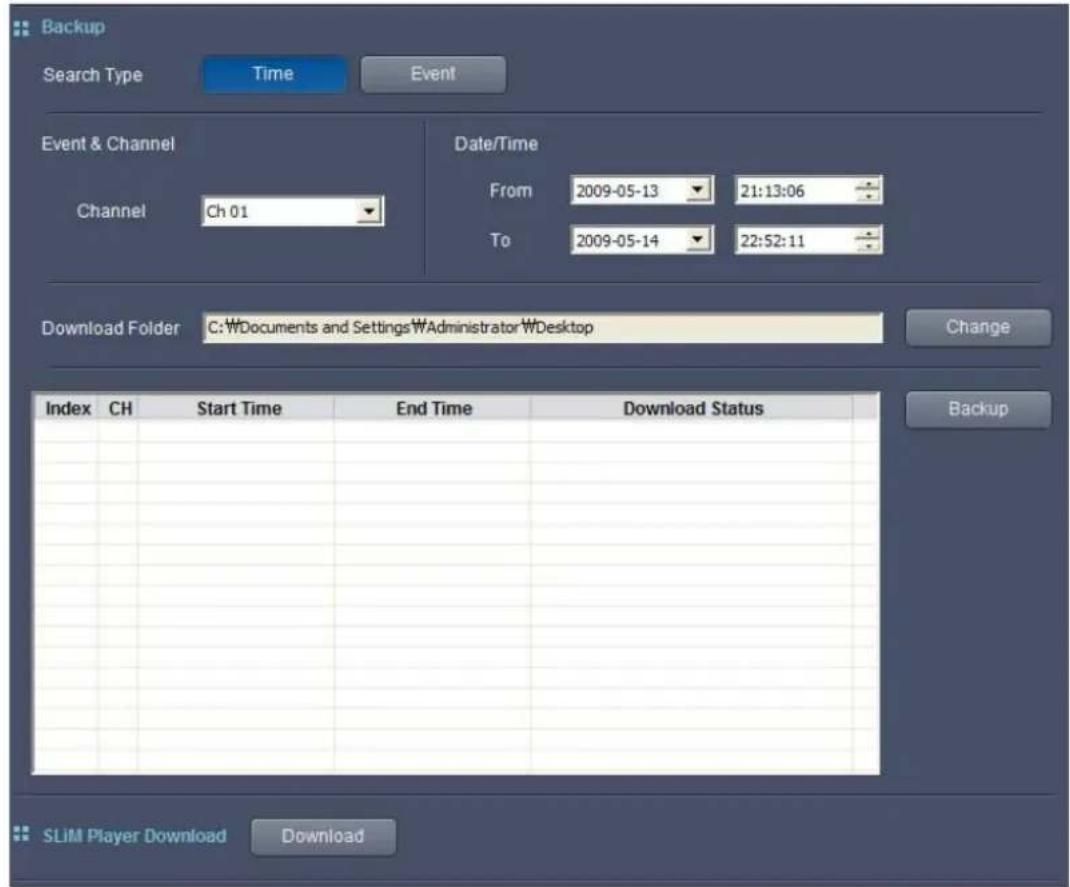

Backup Search Type Time Event Event & Channel Channel Ch 01 Date/Time From 2009-05-13 21:13:06 To 2009-05-14 22:52:11 Download Folder C:\Documents and Settings\Administrator\Desktop Change Index CH Start Time End Time Download Status Backup SLIM Player Download Download

To select a recorded period for backup video files, click the Time button.

Selecting a channel in the Channel dropdown menu displays the channel's recorded period in the From and To panes under the Date/Time menu. Select the beginning and ending time of the backup video files in the From and To panes, and then click the Backup button to start backing up the video files.

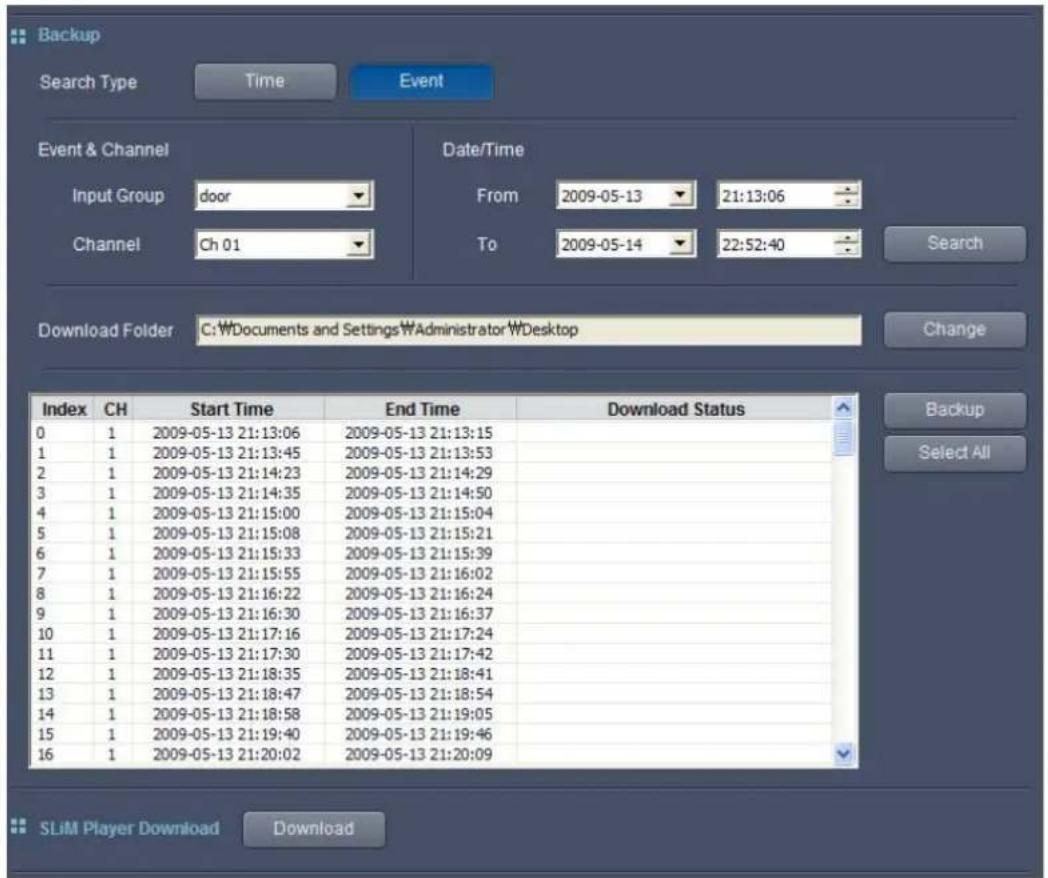

Backup Search Type Time Event Event & Channel Date/Time Input Group door From 2009-05-13 21:13:06 Channel Ch 01 To 2009-05-14 22:52:40 Search Download Folder C:\Documents and Settings\Administrator\WDesktop Change Index CH Start Time End Time Download Status 0 1 2009-05-13 21:13:06 2009-05-13 21:13:15 1 1 2009-05-13 21:13:45 2009-05-13 21:13:53 2 1 2009-05-13 21:14:23 2009-05-13 21:14:29 3 1 2009-05-13 21:14:35 2009-05-13 21:14:50 4 1 2009-05-13 21:15:00 2009-05-13 21:15:04 5 1 2009-05-13 21:15:08 2009-05-13 21:15:21 6 1 2009-05-13 21:15:33 2009-05-13 21:15:39 7 1 2009-05-13 21:15:55 2009-05-13 21:16:02 8 1 2009-05-13 21:16:22 2009-05-13 21:16:24 9 1 2009-05-13 21:16:30 2009-05-13 21:16:37 10 1 2009-05-13 21:17:16 2009-05-13 21:17:24 11 1 2009-05-13 21:17:30 2009-05-13 21:17:42 12 1 2009-05-13 21:18:35 2009-05-13 21:18:41 13 1 2009-05-13 21:18:47 2009-05-13 21:18:54 14 1 2009-05-13 21:18:58 2009-05-13 21:19:05 15 1 2009-05-13 21:19:40 2009-05-13 21:19:46 16 1 2009-05-13 21:20:02 2009-05-13 21:20:09 SLIM Player Download Download

To back up specific event video files, use the Event button and search events. Selecting an Event Input Group in the Input Group pane displays a list of channels that contain the selected event video files. Select a channel, select desired times in the From and To panes, and then click the Search button to display a list of the selected event video files that are saved within the selected period. Select backup video files in the list, and then click the Backup button to start backing up the files. To select multiple files, use Ctrl + click or Shift + click. Clicking the Select All button selects all search results.

Note

- The maximum searchable period is 7 days.

- If more than 500 event video files are recorded within a selected search period, data saved after a day for which 500 or more accumulated video files are recorded is not searched. (For example, if video files are searched from 10^th to 15^th and 800 accumulated video files are saved by 11^th , the program will not search data saved after 11^th , and will display search results only up to the 800^th file.)

- Events that occurred during Normal Record mode cannot be searched.

- Do not click a mouse button or press any key during the backup process. If the cursor position on the window is changed by your selecting other item or moving to other tab, backup will not be performed properly. Backup will be stopped if you enter a different item during the process.

Index	CH	Start Time	End Time	Download Status
0	1	2009-05-13 21:14:35	2009-05-13 21:14:50	Downloading... 2009-05-13 21:14:49
1	1	2009-05-13 21:15:33	2009-05-13 21:15:39	waiting...
2	1	2009-05-13 21:16:30	2009-05-13 21:16:37	waiting...
3	1	2009-05-13 21:18:47	2009-05-13 21:18:54	waiting...

While a backup task is in progress, the Stop button is displayed. To abort the backup process, click the Stop button. (Video files that are downloaded prior to aborting the backup will be saved in the backup directory.)

To change the download folder, click the button.

Backing up video files automatically creates a sub folder under the designated download folder. The sub folder is named after the product IP address, e.g., SRN-6450_Backup_192.168.1.100, and contains the backup video files.

Backup video files are playable with SLiM Player. To download SLiM Player, click the download button at the bottom of the page.

Note

The buttons and functions of SLiM Player are as listed below.

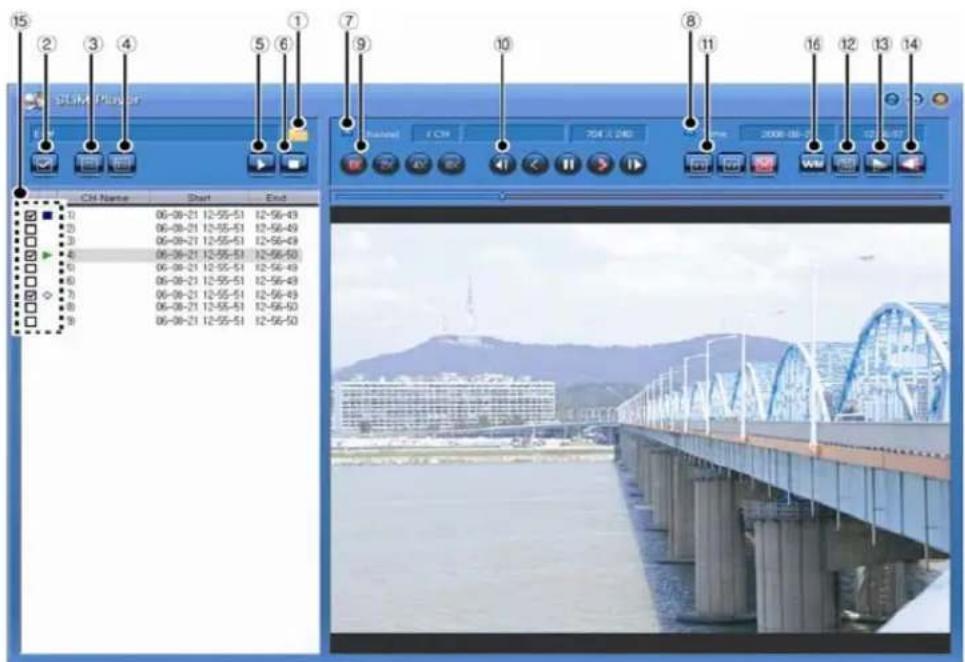

15 2 3 4 5 6 7 8 9 10 11 12 13 14 STLak Player Channel / CM 754 2.240 2008-06-01 12:56:47 CM Name Start End 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51 12-56-43 06-08-21 12:55-51

Button Name Function
1	Select Folder	Use this button to open a folder that contains backup video files. Available video files are listed in the order of time or channels.
2	Select/Deselect	Select or deselect all files.
3	Select File	Select one or more files.
4	Deselect File	Deselect one or more files.
5 Play Play selected files one by one.
6 Stop Stop playing, and deselect files on the play list.
7 Channel Info Display information of saved channels.
8	Time Info	Display the running time of a video file that is being played.
9	Play Speed	Adjust the play speed of the player: 1x, 2x, 4x, and 8x.
10	Play Options	Play options:Skip back a framePlay backwardPausePlay forwardSkip forward a frame
11	ScreenSize	Adjust the screen size of the player.- 1x/2x/Full Screen- 704x240 and 704x288 videos can be enlarged by 2x without degrading image quality.
12	Screenshot	Save the current screen as a JPEG file.
13	Rotate 180°	Rotate the current screen by 180°.
14	Audio	Turns audio on or off.
15	Play List	◇ : Pending▶ : Play forward◀ : Play backward■ : Pause■ : Stop
16	Watermark Check	Activate or disable the Watermark Check option.

Chapter 5. LCD Setup

The front panel LCD displays the current time and recording status by default (shown below.)

2009 Mar 06 08:07 14CH/15CH NORMAL

ENTER ESC iPOLiS

The first line in the LCD indicates Year, Month, Day, Hour, and Minute. The second line indicates the number of active channels/total channels and RAID mode.

By using the LCD and the < , , , > , ENTER, and ESC buttons located to the right, you can check the system's status and change some of its settings.

• Up and Down Buttons: Used to move between menus, and select letters and numbers in text mode.
• Left and Right Buttons: Used to move the cursor in text input mode.
• ENTER Button: Moves to the next phase.
• ESC Button: When pushed, it moves back to the previous phase. When holding it down for 2 seconds or longer, it moves to the main screen displaying the current time and recording status.

Note

The buttons are locked when the front panel key Lock is locked.

5.1. System

On the default LCD screen, press ∧, ∨ to move to the screen shown below and press ENTER.

1. System
[SET]

Sub-menus will appear where you can use the ∧, ∨ buttons to navigate.

1. Firmware Version
2. Key Beep On/Off

3. Relay off
4. System Update

5. Factory Reset
6. Test HDD

7. System Power Off

5.1.1. Checking Firmware Version

Under System, select 1. Firmware Version, and then press Enter. The current firmware version of the system displays as shown in the illustration below.

Below is a sample picture provided for your reference; the firmware version differs depending on the model.

Firmware Version
0.1.4-090309

5.1.2. Turning On/Off Beep

You can turn the beep of the front panel buttons on or off using this menu item.

Under System, select 2. Key Beep On/Off, and then press ENTER.

1. On
2. Off

Selecting "1. On" and pressing Enter turns on the beep. Selecting "2. Off" and pressing Enter turns off the beep in each case, the following messages appear.

Key Beep is On!

Key Beep is Off!

Note

The beep sound automatically turns on after rebooting the system, even if it is turned off.

5.1.3. Relay Off

Under System, select 3. Relay Off, and then press ENTER button. The following message appears while Relay 1, 2 outputs on the rear panel are removed.

Relays are off!

Note

- For detailed instructions on the relay output setup, please refer to "4.6.3. Event Setup"

- The beep sound followed by events occurred is turned off if you press any button on the panel.

5.1.4. System Update

Note

- To update the system, a USB flash drive containing the update file must be connected to the USB port on the rear panel.

- The firmware update file must have a file name that starts with "srn", and a filename extension ".bin".

- The firmware update file must be located in the root directory of the flash drive. If more than one update file exists on the flash drive, the firmware update might not install properly.

- To download the latest firmware files, please visit Support > Download Center at www.samsungcctv.com.

Under System, Select 4. System Update, and then press Enter.

If a USB flash drive containing a firmware update file is detected, the system displays a message prompting to see if you want to continue or stop updating, as shown in the illustration below.

Warning! All actions will be stopped

Update Firmware? Yes: Enter No: Esc

When pressing Enter, the following messages appear while the firmware is being updated. Once the update process is complete, the system automatically reboots itself. To move back to a previous phase, press ESC. To cancel the update and move back to the main screen, hold down ESC for 2 seconds or longer.

System Update
is in Progress...

System will reboot after 5 seconds

Rebooting system is in Progress...

If a USB flash drive is not inserted into the product back panel USB terminal, the following error message appears.

There's no usb stick
Check usb please...

If a USB flash drive is inserted, but does not contain a firmware update file, the following error message appears.

No f/w file in usb
Check usb please...

5.1.5. Initializing Settings

Under System, select 5. Factory Reset, and then press ENTER. A message appears on the display prompting you to confirm that you wish to reset all configurations to their defaults.

Warning! All actions
Will be stopped

Are you sure?
Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while settings are being initialized. When initialized, the system reverts to the factory default settings. To move back to a previous phase, press ESC. To cancel the initialization and move back to the main screen, hold down ESC for 2 seconds or longer.

Factory reset
is in Progress...

System will reboot after 5 seconds

Rebooting system is in Progress...

For more information about the default settings value, please refer to "2.3. Default Settings"

Note

The Factory Reset does not reset the RAID settings of the system or delete data saved in the HDDs.

5.1.6. HDD Check

Under System, select 6. Test HDD, then press Enter. The following messages appear asking you to select an HDD to check.

HDD to examine Internal HDD? [1]

HDD to examine RAID PARTITION? [1]

Selecting an HDD displays a message asking if you really want to perform disk-checking for the selected HDD.

Record on this HDD will be stopped

Are you sure? Yes: Enter No: Esc

When pressing ENTER, the following message appears as the disk-checking process is initiated. Once the process is complete, the screen displays the check results.

Executing... Please Wait!!!

Examining Int HDD[1] is in Progress...

Examining Int HDD[1] [DONE]

HDD test result: 0 bad block

The check results stay on the screen until you click a button.

When selecting an HDD that is not available or connected, the following message appears.

Internal HDD [1] is empty!!

RAID PARTITION [1] Does not exist!

Check HDD to Examine Please Try Again

Note

• While an HDD is being checked, new data is not saved in the HDD or its RAID array. However, if another HDD or another HDD array is available then new data is saved in the HDD or array.
• The HDD disk-checking option is available only for internal HDDs.

5.1.7. Shutting the System Down

Under System, select 7. System Power Off, and then press Enter. The following message appears prompting you for if you really want to shut down the system.

Are you sure? Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while the system shuts down. To move back to the previous phase, press ESC. To cancel shutting down and move back to the main screen, hold down ESC for 2 seconds or longer.

Preparing Poweroff is in Progress...

System will be down in seconds

These messages also appear when the power switch on the product back panel is flicked, until the system is completely shut down.

5.2. Network Setup

On the default LCD screen, press ∧, ∨ to move to the screen shown below and press ENTER.

1. Network Setup [SET]

Sub-menus will appear where you can use the ∧, ∨ buttons to navigate.

1. Monitoring Port
2. Source Port
3. Storage Port

Note

For information on each network setting and its operation, please refer to "4.6.6. Network Setup"

5.2.1. Monitor Ethernet Port Setup

The Monitor Ethernet Port is a port used to connect your computer to the product.

Under Network Setup, select 1. Monitor Ethernet Port, and press ENTER.

1. Use Static IP

2. Use DHCP (Client)

3. Use PPPoE

4. Use DDNS

Use one of the first 3 options to set an IP address for the Monitor Ethernet Port. Selecting menu item 4 lets you to use DDNS instead of an IP address.

Static IP Setting

Press ∧ and ∨ to select 1. Use Static IP, and then press Enter.

IP Address
0.0.0.0

Press the ∧, ∨ buttons to select numbers (0\~9), space, and period (.); press the <, > buttons to move between digits. Once you have finished entering the IP address, press Enter.

Subnet Mask
0.0.0.0

Gateway
0.0.0.0

DNS1 Server IP
192.168.1.1

Enter the Subnet Mask, Gateway, and DNS Server 1 address the same way.

Confirm IP Setup?
Yes: Enter No: Esc

Pressing Enter moves to the next screen, as the IP address for Monitor Ethernet Port is being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.

IP Setup
[DONE]

Note

• The DNS1 address can be set under Monitor Ethernet Port Port > Static IP. The DNS 2 address is under Source Port > Static IP. Once set, these DNS servers are used by all ports.
• DNS1 is used as the default, and DNS2 is the backup.

DHCP Client Setup

Press ∧ and ∨ to select 2. Use DHCP (Client), and then press Enter.

Use DHCP Client?
Yes: Enter No: Esc

Pressing Enter moves to the next screen, as Monitor Ethernet Port is updated to use DHCP. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.

Client Mode Setup
[DONE]

◆ PPPoE Setup

Press ∧ and ∨ to select 3. Use PPPoE, and then press Enter.

ID
a

Press the ∧, ∨ buttons to select characters (a\~z) and spaces; press the <, > buttons to move to the next character. Once you have finished entering the ID to use, press Enter.

Password
a

Repeat the steps to enter a password, and then press Enter.

Confirm PPPoE Setup?
Yes: Enter No: Esc

Pressing ENTER moves to the next screen, as the new PPPoE settings of Monitor Ethernet Port are being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.

PPPoE Setup

[DONE]

Note

- Changing the network connection method from PPPoE to DHCP or Static IP automatically reboots the system.

DDNS Setup

Press ∧ and ∨ to select 4. Use DDNS, and then press Enter.

Server Domain
www.samsungipolis.co

The default DDNS server is www.samsungipolis.com. To use a DDNS server other than iPOLiS, use ^ and ∨ to select from alphanumeric characters (a-z and 0-9), space, and period (.); use < and > to move between characters and edit the default DDNS address.

Press Enter when you've finished entering the DDNS server address.

ID
a

Password a

Repeat the steps to enter the login ID and password of the new DDNS server.

Confirm DDNS Setup?
Enter: Yes Esc: No

Pressing Enter moves to the next screen, as the new DDNS settings are being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.

DDNS Server Setup
[DONE]

5.2.2. Source Ethernet Port Setup

The Source Ethernet Port is used for communication between the product and cameras. Under Network Setup, select 2. Source Ethernet Port, and then press ENTER.

1. Use Static IP
2. Use DHCP (Client)

3. Use PPPoE
4. Use DHCP (Server)

Use one of the first 3 options to set an IP address for the Source Ethernet Port. For detailed instructions on the port setup, please refer to Static IP, DHCP Client, and PPPoE setups under

"5.2.1. Monitor Ethernet Port Setup"

Selecting menu item 4 lets you use the DHCP Server option.

DHCP Server Setup

Press ∧ and ∨ to select 4. Use DHCP (Server), and then press Enter.

IP Range: from 0

Press the ^, ∨ buttons to select numbers (0\~9), space, and period (.); use < and > to move between characters.

IP Range: to 0

Repeat the steps to enter the ending IP address for the range.

Use DHCP Server?
Yes: Enter No: Esc

Pressing Enter moves to the next screen, as the new DHCP Server settings are being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.

Server Mode Setup
[DONE]

5.2.3. Storage Ethernet Port Setup

The Storage Ethernet Port is used for communication between the product and NAS. Under Network Setup, select 3. Use Storage Ethernet Port, and then press ENTER.

1. Use Static IP

2. Use DHCP (Client)

3. Use PPPoE

Use one of the 3 options to set an IP address for Source Ethernet Port. For detailed instructions on the port setup, please refer to Static IP, DHCP Client, and PPPoE setups under "5.2.1. Monitor Ethernet Port Setup"

5.3. HDD Mode Setup

On the main screen, press ∧ and ∨ to move to the following screen, and then press Enter.

1. HDD Mode Setup [SET]

Sub-menus will appear where you can use ∧ and ∨ to navigate.

1. Normal

2. RAID1

3. RAID1

4. RAID5

Select an HDD operation mode, and then press Enter. The following warning message will appear. Normal is the non-RAID mode.

Warning! All Record data will be removed

After displaying this warning message for 3 seconds, the screen moves to the next screen corresponding to the selected mode.

Unbuild RAID? Yes: Enter No: Esc

Use RAID1? Yes: Enter No: Esc

Use RAID5? Yes: Enter No: Esc

Press Enter to change the HDD mode to the selected mode. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.

While the new RAID mode is being configured, the following messages appear in order, informing of the progress and remaining time.

Preparing RAID1 is in Progress...

Rebooting system is in Progress...

Build RAID1: 48.8% Finish: 37.6min

RAID1 Setup [DONE]

(When RAID1 or RAID5 is selected.)

Unbuilding RAID is in Progress...

Rebooting system is in Progress...

Unbuilding RAID [DONE]

(When Normal is selected.)

If the HDD is already set to the new RAID mode, the following message appears.

Current HDD mode is RAID1 mode

Current HDD mode is Normal mode

Check HDD mode and Please Try Again!

If the number of equipped HDDs is not enough, the following message appears. RAID1 requires at least 2 HDDs to be equipped next to each other, HDD1 and HDD2, or HDD3 and HDD4, and RAID5 requires all 4 HDDs to be equipped.

There are not enough HDD to build RAID5

Check HDD mode and Please Try Again!

Note

- RAID (Redundant Array of Independent Disks) helps you keep data safe in case the system HDD is damaged.

- Selecting RAID1 configures HDD1 and HDD2 as one array, and HDD3 and HDD4 as the other array. RAID1 uses 2 physical HDDs as 1 functional HDD. For instance, configuring HDD1 and HDD2—while each is equipped with a 500GB HDD—to RAID1 displays the system's functional HDD as one 500GB RAID. In the RAID1 mode, no data is lost even if one of the two HDDs of a RAID array is damaged.

• Selecting RAID5 configures 4 HDDs to 1 RAID array. RAID5 uses 4 physical HDDs as 3 functional HDDs. For instance, configuring HDD1, 2, 3, and 4—while each one of them is equipped with a 500GB HDD—to RAID5 displays the system's functional HDD as one 1.5TB RAID. In RAID5 mode, no data is lost even if one of the four HDDs is damaged.
• To configure a RAID mode, HDDs must be the same size. It is highly recommended that you use the same brand and model HDDs to configure RAID.
• RAID settings are available only for internal HDDs.
  ■ Building a RAID mode using 4 x 500GB HDDs takes approximately 3 hours for RAID1, and 4 hours for RAID5.
  (It is recommended to use UPS while configuring RAID because reconfiguring RAID due to a power failure during the first try may take a while.)
• Changing the RAID settings to a new mode automatically deletes all data in the HDDs of the product, and new video files are not saved until the new RAID mode is completely configured.
• When the product is abnormally turned off, i.e. by pulling the AC power adapter out, and then turned on, the product may reconfigure its RAID settings automatically to ensure the integrity of saved data. While a new RAID mode is being configured, existing data is not lost, but new data will not be saved either.
• If more than two RAID configured HDDs are broken or removed from the product, the RAID configuration will malfunction, causing data loss.

Caution

5.4. Removing HDDs

On the main screen, press ∧ and ∨ to move to the following screen, and then press Enter.

4. Remove HDD
[SET]

The screen shown below appears where you can use ∧ and ∨ to select the HDD to remove.

HDD Number to remove
Internal HDD? [1]

HDD Number to remove External Bay? [1]

Select the number for an internal HDD or an external HDD bay, and then press Enter. Upon pressing Enter, the following messages appear while the selected HDD is being removed.

Executing...
Please Wait!!!

Remove Int HDD[1] [DONE]

Remove Ext Bay[1] [DONE]

Once the [Done] message appears, you may physically remove the HDD from the product.

When selecting an HDD that is not available or connected, the following message appears.

Internal HDD[1] is empty!!

External Bay[1] is not connected!!

Check HDD to Remove
Please Try Again

Note

The number for an internal HDD or external HDD bay is determined depending on which product port that you connect to. Available numbers are 1, 2, 3, and 4 from the upper left and right to the bottom left and right. Please Refer to "Chapter 2. Part Names"

5.5. Formatting HDDs

On the main screen, press ∧ and ∨ to move to the screen shown below, and then press Enter.

5. HDD Format
[SET]

The screen shown below appears where you can use ∧ and ∨ to select the HDD to format.

1. Internal HDD
2. External HDD

2. External HDD
3. All HDD

5.5.1. Formatting a Single Internal HDD

Under HDD Format, select 1. Internal HDD, and then press Enter.

1. Individual HDD
2. All Internal HDD

1. Select 1. Individual HDD, and then press Enter.

HDD Number to format
Internal HDD? [1]

Use the ^, v buttons to select the number for the HDD to format, then press ENTER.

Format HDD [1]?
Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while the selected HDD is being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.

Formatting HDD
is in Progress...

HDD Format
[DONE]

When selecting an HDD that is not available or connected, the following message appears.

Internal HDD[1] is empty!!

Check HDD to format
Please Try Again!

5.5.2. Formatting All Internal HDDs

Under HDD Format, select 1. Internal HDD, and then press Enter.

1. Individual HDD
2. All Internal HDD

1. Select All HDD, and then press Enter.

Format All HDD?
Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while all internal HDDs are being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.

Formatting HDD
is in Progress...

HDD Format
[DONE]

5.5.3. Formatting a Single External HDD

Under HDD Format, select 2. External HDD, and then press Enter.

Bay Number to format
External Bay? [1]

Use ^ and ∨ to select the number for the external HDD bay containing the HDD to format, then press Enter.

1. Individual HDD
2. All HDD in Bay[1]

1. Select 1. Individual HDD, and then press Enter.

HDD Number to format
Internal HDD? [1]

Use ∧ and ∨ to select the number for the external HDD bay containing the HDD to format, and then press Enter.

Format HDD [1]?
Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while the selected HDD is being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.

Formatting HDD
is in Progress...

HDD Format
[DONE]

When selecting an HDD that is not available or connected, the following message appears.

External Bay[1] is not connected!!

External Bay[1] is not connected!!

5.5.4. Formatting All External HDDs

Under HDD Format, select 2. External HDD, and then press Enter.

Bay Number to format
External Bay [1]

Use ∧ and ∨ to select the number for the external HDD bay containing the HDD to format, and then press Enter.

1. Individual HDD
2. All HDD in Bay[1]

1. Select All HDD in Bay[#], and then press Enter.

Format Bay[1]?
Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while the entire HDDs of the selected external bay are being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.

Formatting HDD
is in Progress...

HDD Format
[DONE]

5.5.5. Formatting All HDDs

Under HDD Format, select 3. All HDD and then press Enter.

Format All HDD?
Yes: Enter No: Esc

Upon pressing Enter, the following messages appear while all HDDs—both internal and external—are being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.

Formatting HDD
is in Progress...

HDD Format
[DONE]

Troubleshooting

1. Cannot boot.

• Check power.
• Check power cord.

2. Some channels fail to display video.

• Check camera power.
• Check camera video output.
• Check Recorder's input port.

3. Video is not stored.

• Check the connection of HDDs on the HDD Setup page.
• Check the free space of HDDs.
• Check video recording setup.

4. Stored video does not play.

- Check video recording setup.

5. Video is too bright or too dark.

- Check camera setup.

6. Front panel buttons do not work.

• Check power.
• Check Key Lock status.

7. Network does not function.

• Check network cable connection.
• Check Recorder's IP setup.
• Check PC's IP setup.
• Run Ping Test.
• If Web Viewer fails to show video on a PC, check the PC's technical specifications.

8. You must contact your vendor when...

If you are experiencing any of the following issues, you must stop using the product and turn the power off immediately, then contact your vendor for assistance.

• Product is behaving strangely (example: unusual noises, smells, or smoke is coming from the product.)
  ● The power cable connector has been damaged.
  ● Rain or other liquid has entered the product.
• You have spilled liquid into the product, or foreign material has entered the product.
  ● The product does not work as specified in this instruction manual.
  ● The product has been dropped and severely damaged.
• There is a noticeable degradation in the performance of the product.

※ Recommended HDDs

Please use HDD products from the following manufacturers with your Samsung Network Video Recorder:

It is strongly recommend that you use HDD models from the following manufacturers with a data capacity of 1TB or less.

● Western Digital AV Series.
● Seagate SV 35.5 Series.

Product Specifications

		SRN-6450/SNR-6400 SRN-3250/SNR-3200
DISPLAY
Video IP Camera	Inputs 64 channels 32 channels
Web Support	Live	1, 4, 9, 16, 36, 64 channelssimultaneously	1, 4, 9, 16, 32 channelssimultaneously
	Search	1 channel
	Control Pan / Tilt / Zoom / Focus for available camera
	Configuration IP, Port	ID, Password, Picture type, Video Quality, Resolution, Framerate
PERFORMANCE
Recording	Compression (IP) H.264,MPEG-4,M-JPEG, supported by the connected camera
	Bandwidth	Up to 48Mbps (Up to 8Mbps eachcamera)	Up to 36Mbps (Up to 8Mbps eachcamera)
	Record Rate / MEGA	Up to 160fps@2048x1536 Up to 60fps@2048x1536
		Up to 320fps@1280x1024 Up to 120fps@1280x1024
	Record Rate / NTSC	Up to 1,280fps@704 x 480 Up to 480fps@704 x 480
		Up to 1,920fps@704 x 240 Up to 960fps@704 x 240
		Up to 1,920fps@352 x 240 Up to 960fps@352 x 240
	Record Rate / PAL	Up to 1,152fps@704 x 576 Up to 480fps@704 x 576
		Up to 1,600fps@704 x 288 Up to 800fps@704 x 288
		Up to 1,600fps@352 x 288 Up to 800fps@352 x 288
	* Mode Manual, Schedule (Normal / Event)
	Overwrite Modes Continuous
	Pre-alarm Up to 5sec
	Post-alarm Up to 60sec
Search &Playback	Search Mode Time, Event, Calendar
	Playback Function REW, FWD (Depends on CMS)
Network	Bandwidth Control Automatic (Automatic Transmission Control)
	Remote UsersMaximum	5 Users simultaneously
	Protocol Support	TCP/IP, DHCP, DNS, DDNS, HTTP, ARP, ICMP, NTP, RTP/RTCP, RTSP
	Monitoring	CMS Software Net-I Viewer, Built-in web server
Storage	Maximum Capacity Up to 20TB using external storage option
	RAID Normal, RAID1,	RAID5 Normal, RAID1
	Internal HDD Up to 4 SATA HDDs
	External HDD Up to 4 expansion bays (up to 4 HDD each)
	NAS Up to 4 NAS connections (CIFS/Samba)
Security Password Protection 2 User Level

INTERFACE

Monitor DOT Matrix LCD		20 x 2 status display
Alarm	Inputs	Screw terminal 2 inputs, NO/NC
	Outputs	Screw terminal 2 relay outputs, NO/NC
	Remote Notification	Notification via e-mail
Connections	Ethernet	3 (RJ-45 100/1000 Base-T), 1 (RJ-45 100Base-T)
	Serial Interface	RS-232C
	USB	2 USB 2.0 ports (firmware upgrade)
	eSATA	4 External SATA ports
Supported IP Cameras		Samsung Techwin network products, AXIS network cameras (VAPIX,MPEG4 Modes, limited some functions)

GENERAL

Electrical	Input Voltage	100 ~ 240 V AC ±10%, 50/60 Hz, Auto ranging
	Power Consumption	Max. 110W (with 1xHDD)
		Max.130W (with 4xHDD)
Environmental	Operating Temperature	+5°C ~ +40°C (+41°F ~ +104°F)
	Humidity	0%RH ~ 60%RH
Mechanical	Dimensions (WxHxD)	430 x 88 x 501 mm (16.92" x 3.46" x 19.73")
	Weight (4 HDDs)	Approx. 11kg (24.25 lb)
	Rack Mount Kit	For mounting one unit in an EIA 19 inch rack
Language (LCD)		English
Certification		FCC (Class A), cUL/UL listed, CE (Class A)

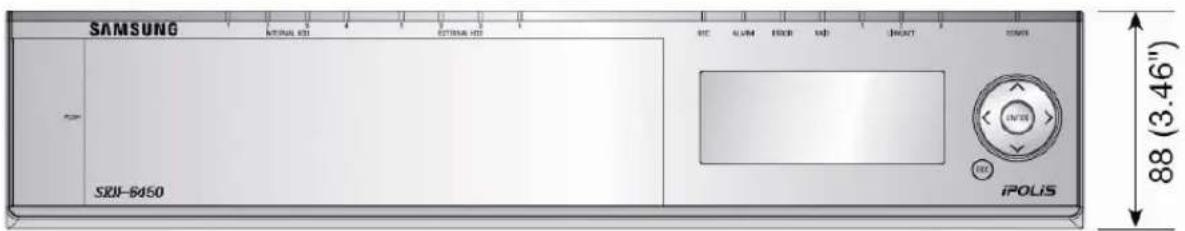

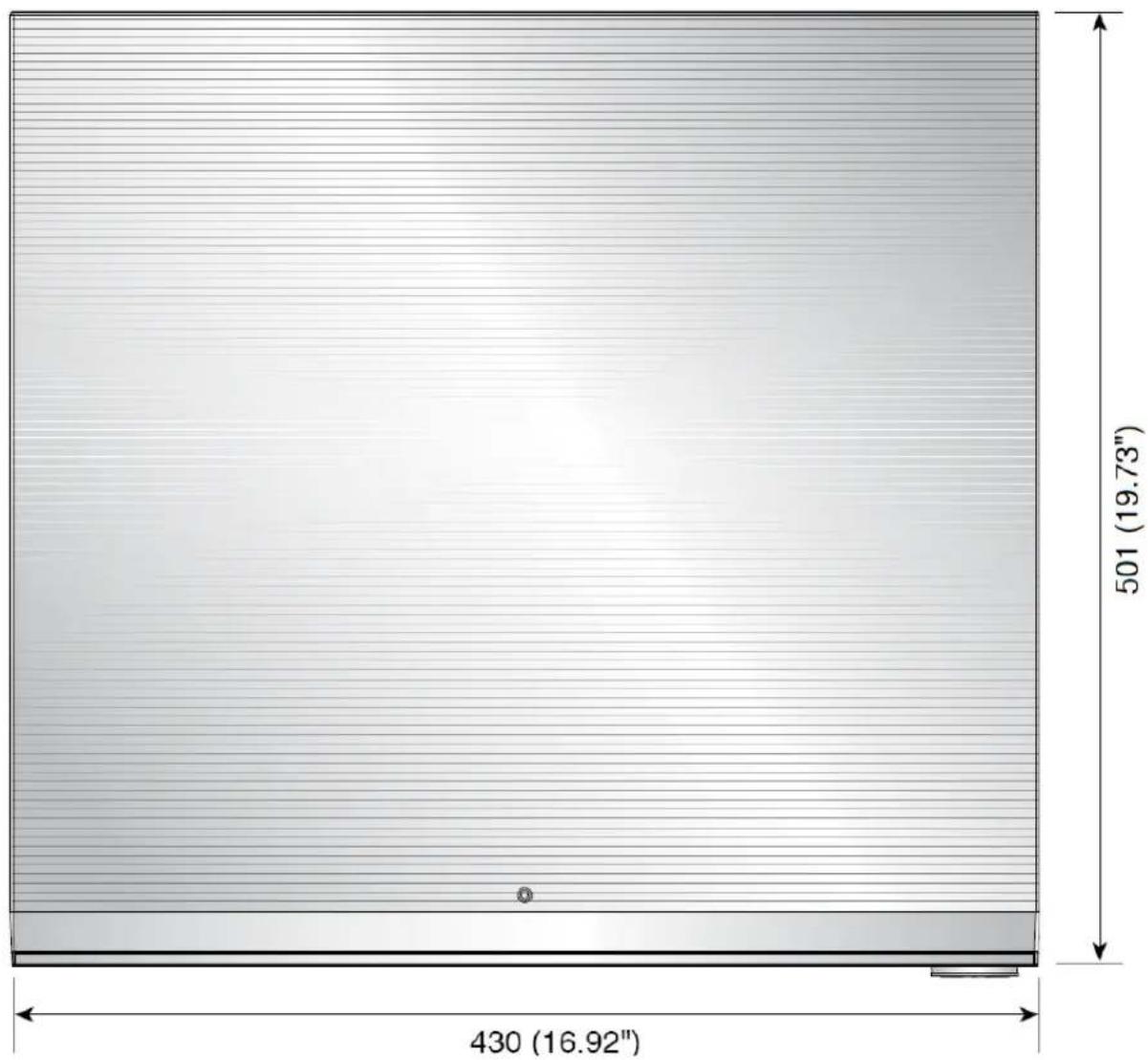

Product Dimensions

SAMSUNG INTERNAL RED OPTIONAL RED S201-6450 RCC GUM FLOOR HD INPUT I2010 iPOLiS 88 (3.46")

Open Source License Report on the Product

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to [e-mail].

If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.

• GPL Software : linux kernel, Sysvinit, dosfstols, wget, msmtp, busybox, cdrtools, dvd+rw-tools, iconv, smartctl, uboot, minicom, openssl, bash, lm_sensors
  • LGPL Software : glibc, vmstat, inetutils
• OpenSSL License : OpenSSL

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc.

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps:

(1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License.

The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or.

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all.

For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.

EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

1. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found.

one line to give the program's name and an idea of what it does. Copyright (C) yyyy name of author

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Also add information on how to contact you by

electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than ‘show w’ and ‘show c’; they could even be mouse-clicks or menu items-whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program ‘Gnomovision’ (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit

incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU GENERAL PUBLIC LICENSE

Version 3, 29 June 2007

Copyright © 2007 Free Software Foundation, Inc. http://fsf.org/ Everyone is permitted to copy and distribute verbatim

copies of this license document, but changing it is not allowed.

Preamble

The GNU General Public License is a free, copyleft

license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users. We, the Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.

To protect your rights, we need to prevent others from denying you these rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you distribute copies of the software, or if you modify it: responsibilities to respect the freedom of others.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must pass on to the recipients the same freedoms that you received. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

Developers that use the GNU GPL protect your rights with two steps: (1) assert copyright on the software, and (2) offer you this License giving you legal permission to copy, distribute and/or modify it.

For the developers' and authors' protection, the GPL clearly explains that there is no warranty for this free software. For both users' and authors' sake, the GPL requires that modified versions be marked as changed, so that their problems will not be attributed erroneously to authors of previous versions.

Some devices are designed to deny users access to install or run modified versions of the software inside them, although the manufacturer can do so. This is fundamentally incompatible with the aim of protecting users' freedom to change the software. The systematic pattern of such abuse occurs in the area of products for individuals to use, which is precisely where it is most unacceptable. Therefore, we have designed this version of the GPL to prohibit the practice for those products. If such problems arise substantially in other domains, we stand ready to extend this provision to those domains in future versions of the GPL, as needed to protect the freedom of users.

Finally, every program is threatened constantly by software patents. States should not allow patents to restrict development and use of software on general-purpose computers, but in those that do, we wish to avoid the special danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS

0. Definitions.

"This License" refers to version 3 of the GNU General Public License.

"Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor masks.

"The Program" refers to any copyrightable work licensed under this License. Each licensee is addressed as "you". "Licensees" and "recipients" may be individuals or organizations.

To “modify” a work means to copy from or adapt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a “modified version” of the earlier work or a work “based on” the earlier work.

A “covered work” means either the unmodified Program or a work based on the Program.

To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.

To “convey” a work means any kind of propagation that enables other parties to make or receive copies. Mere interaction with a user through a computer network, with no transfer of a copy, is not conveying.

An interactive user interface displays “Appropriate Legal Notices” to the extent that it includes a convenient and prominently visible feature that (1) displays an appropriate copyright notice, and (2) tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.

1. Source Code.

The “source code” for a work means the preferred form of the work for making modifications to it. “Object code” means any non-source form of a work.

A “Standard Interface” means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.

The “System Libraries” of an executable work include anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A “Major Component”, in this context, means a major essential component (kernel, window system, and so on) of the specific operating system (if any) on which the executable work runs, or a compiler used to produce the work, or an object code interpreter used to run it.

The “Corresponding Source” for a work in object code form means all the source code needed to generate, install, and (for an executable work) run the object code and to modify the work, including scripts to control those activities. However, it does not include the work's System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes

interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between those subprograms and other parts of the work.

The Corresponding Source need not include anything that users can regenerate automatically from other parts of the Corresponding Source.

The Corresponding Source for a work in source code form is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are met. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as provided by copyright law. You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.

Conveying under any other circumstances is permitted solely under the conditions stated below. Sublicensing is not allowed; section 10 makes it unnecessary.

3. Protecting Users' Legal Rights From Anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention of such measures. When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code; keep intact all notices of the absence of any warranty; and give all recipients a copy of this License along with the Program.

You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program, in the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified it, and giving a relevant date.

b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement modifies the requirement in section 4 to "keep intact all notices".
c) You must license the entire work, as a whole, under this License to anyone who comes into possession of a copy. This License will therefore apply, along with any applicable section 7 additional terms, to the whole of the work, and all its parts, regardless of how they are packaged. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have separately received it.
d) If the work has interactive user interfaces, each must display Appropriate Legal Notices; however, if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work need not make them do so.

A compilation of a covered work with other separate and independent works, which are not by their nature extensions of the covered work, and which are not combined with it such as to form a larger program, in or on a volume of a storage or distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and 5, provided that you also convey the machine-readable Corresponding Source under the terms of this License, in one of these ways:

a) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange.

b) Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by a written offer, valid for at least three years and valid for as long as you offer spare parts or customer support for that product model, to give anyone who possesses the object code either (1) a copy of the Corresponding Source for all the software in the product that is covered by this License, on a durable physical medium customarily used for software interchange, for a price no more than your reasonable cost of physically performing this conveying of source, or (2) access to copy the Corresponding Source from a network server at no charge.

c) Convey individual copies of the object code with a copy of the written offer to provide the corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 6b. d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need not require recipients to copy the Corresponding Source along with the object code. If the place to copy the object code is a network server, the

Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source. Regardless of what server hosts the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

e) Convey the object code using peer-to-peer transmission, provided you inform other peers where the object code and Corresponding Source of the work are being offered to the general public at no charge under subsection 6d.

A separable portion of the object code, whose source code is excluded from the

Corresponding Source as a System Library, need not be included in conveying the object code work.

A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling. In determining whether a product is a consumer product, doubtful cases shall be resolved in favor of coverage. For a particular product received by a particular user, “normally used” refers to a typical or common use of that class of product, regardless of the status of the particular user or of the way in which the particular user actually uses, or expects or is expected to use, the product. A product is a consumer product regardless of whether the product has substantial commercial, industrial or non-consumer uses, unless such uses represent the only significant mode of use of the product.

“Installation Information” for a User Product means any methods, procedures, authorization keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding Source. The information must suffice to ensure that the continued functioning of the modified object code is in no case prevented or interfered with solely because modification has been made.

If you convey an object code work under this section in, or with, or specifically for use in, a User Product, and the conveying occurs as part of a transaction in which the right of possession and use of the User Product is transferred to the recipient in perpetuity or for a fixed term (regardless of how the transaction is characterized), the Corresponding Source conveyed under this section must be accompanied by the Installation Information. But this requirement does not apply if neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROM). The requirement to provide Installation Information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.

Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

“Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions. Additional permissions that are applicable to the entire Program shall be treated as though they were included in this License, to the extent that they are valid under applicable law. If additional permissions apply only to part of the Program, that part may be used separately under those permissions, but the entire Program remains governed by this License without regard to the additional permissions.

When you convey a copy of a covered work, you may at your option remove any additional permissions from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.) You may place additional permissions on material, added by you to a covered work, for which you have or can give appropriate copyright permission.

Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms:

a) Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or
b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or
c) Prohibiting misrepresentation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version; or
. d) Limiting the use for publicity purposes of names of licensors or authors of the material; or
. e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or
f) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on those licensors and authors.

All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material governed by the terms

of that license document, provided that the further restriction does not survive such relicensing or conveying.

If you add terms to a covered work in accord with this section, you must place, in the relevant source files, a statement of the additional terms that apply to those files, or a notice indicating where to find the applicable terms.

Additional terms, permissive or non-permissive, may be stated in the form of a separately written license, or stated as exceptions; the above requirements apply either way.

8. Termination.

You may not propagate or modify a covered work except as expressly provided under this License. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under this License (including any patent licenses granted under the third paragraph of section 11).

However, if you cease all violation of this License, then your license from a particular copyright holder is reinstated (a) provisionally, unless and until the copyright holder explicitly and finally terminates your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation.

Moreover, your license from a particular copyright holder is reinstated permanently if the copyright holder notifies you of the violation by some reasonable means, this is the first time you have received notice of violation of this License (for any work) from that copyright holder, and you cure the violation prior to 30 days after your receipt of the notice.

Termination of your rights under this section does not terminate the licenses of parties who have received copies or rights from you under this License. If your rights have been terminated and not permanently reinstated, you do not qualify to receive new licenses for the same material under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept this License in order to receive or run a copy of the Program. Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this License.

An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party's predecessor in interest had or could give under the previous paragraph, plus a right to possession of the

Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.

You may not impose any further restrictions on the exercise of the rights granted or affirmed under this License. For example, you may not impose a license fee, royalty, or other charge for exercise of rights granted under this License, and you may not initiate litigation (including a cross-claim or counterclaim in a lawsuit) alleging that any patent claim is infringed by making, using, selling, offering for sale, or importing the Program or any portion of it.

11. Patents.

A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is based. The work thus licensed is called the contributor's “contributor version”.

A contributor's “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version. For purposes of this definition, “control” includes the right to grant patent sublicenses in a manner consistent with the requirements of this License.

Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version.

In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To “grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.

If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to copy, free of charge and under the terms of this License, through a publicly available network server or other readily accessible means, then you must either (1) cause the Corresponding Source to be so available, or (2) arrange to deprive yourself of the benefit of the patent license for this particular work, or (3) arrange, in a manner consistent with the requirements of this License, to extend the patent license to downstream recipients. “Knowingly relying” means you have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

If, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of, a covered work, and grant a patent license to some of the parties receiving the covered work authorizing them to use, propagate, modify or convey a specific copy of the covered work, then the patent license you grant is automatically extended to all recipients of the covered work and works based on it.

A patent license is “discriminatory” if it does not include within the scope of its coverage, prohibits the exercise of, or is conditioned on the non-exercise of one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an arrangement with a third party that is in the business of distributing software, under which you make payment to the third party based on the extent of your activity of conveying the work, and under which the third party grants, to any of the parties who would receive the covered work from you, a discriminatory patent license

(a) in connection with copies of the covered work conveyed by you (or copies made from those copies), or
(b) primarily for and in connection with specific products or compilations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007.

Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others' Freedom.

If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU Affero General Public License into a single combined work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU Affero General Public License, section 13, concerning interaction through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies that a certain numbered version of the GNU General Public License “or any later version” applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the Free Software Foundation.

If the Program specifies that a proxy can decide which future versions of the GNU General Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program.

Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. Limitation of Liability.

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 15 and 16.

If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee. END OF TERMS AND CONDITIONS

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301

USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages-typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library.

The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/ Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus

any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

_. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

_. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library. b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not

apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

_. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”.

Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under

Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this

License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that
(1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License.

However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

1. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

2. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

3. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

1. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. one line to give the library’s name and an idea of what it does.

Copyright (C) year name of author

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice.

OpenSSL LICENSE

Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson([e-mail]).

Original SSLeay License

Copyright (C) 1995-1998 Eric Young ([e-mail]) All rights reserved. This package is

an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young ([e-mail])" The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson (tjh@ cryptsoft.com)"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS " AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

SAMSUNG

SALES NETWORK

SAMSUNG TECHWIN CO., LTD.

Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400

TEL: [phone]\~60 FAX: [phone]

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660

Toll Free : [phone] Direct : [phone]

Fax: [phone]

www.samsungcctvusa.com

SAMSUNG TECHWIN EUROPE LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park

Chertsey, Surrey, UNITED KINGDOM KT16 OPS

TEL: [phone] FAX: [phone]

www.samsungtechwin.com

www.samsungsecurity.com

www.samsungipolis.com
