USER MANUAL D:screet Core 6060 DPA

3 mm of audio perfection

Medical medical device with three metallic tubing and a probe, displayed against a dark background (no text or symbols visible)

6066 Subminiature Headset 6060 Subminiature Lavalier

dpamicrophones.com/3mm

You've never heard a subminiature like this before

• Amazingly tiny 3 mm capsules
• CORE by DPA technology
- Renowned DPA sound

We've taken the amazing CORE by DPA technology and shrunk it down to fit into our 3 mm (.12 in) subm nature mics. Despite their small size, they pack the audio power of our larger, award-winning DPA mics. So now you don't have to compromise on sound to focus on aesthetics.

Precision engineering and miniscule optimizations of our capsule technology have created a subminiature that significantly outperforms all other risks in their class and beyond.

These subminiatures have a lower noise floor than any other 3 mm capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, both the discrete ^TM 6061 and the dfine ^TM 6066 have a noise floor of only 76 dB(A), which is exactly on par with the 5 mm (20 in) DPA miniature capsules.

Stainless steel construction makes the mic extremely durable. It can tolerate high temperatures and is resilient against impacts and resistant to abrasion. The subminiature mics use the same size cable ( 1.6 mm (.06 in)) and the same rugged cable relief as on our 5 mm mics. The cables are extremely durable, do not become entangled and are equipped with an inner core made of Kevlar that withstands rough pulls. A strain relief is integrated in the mic housing to strengthen the assembly.

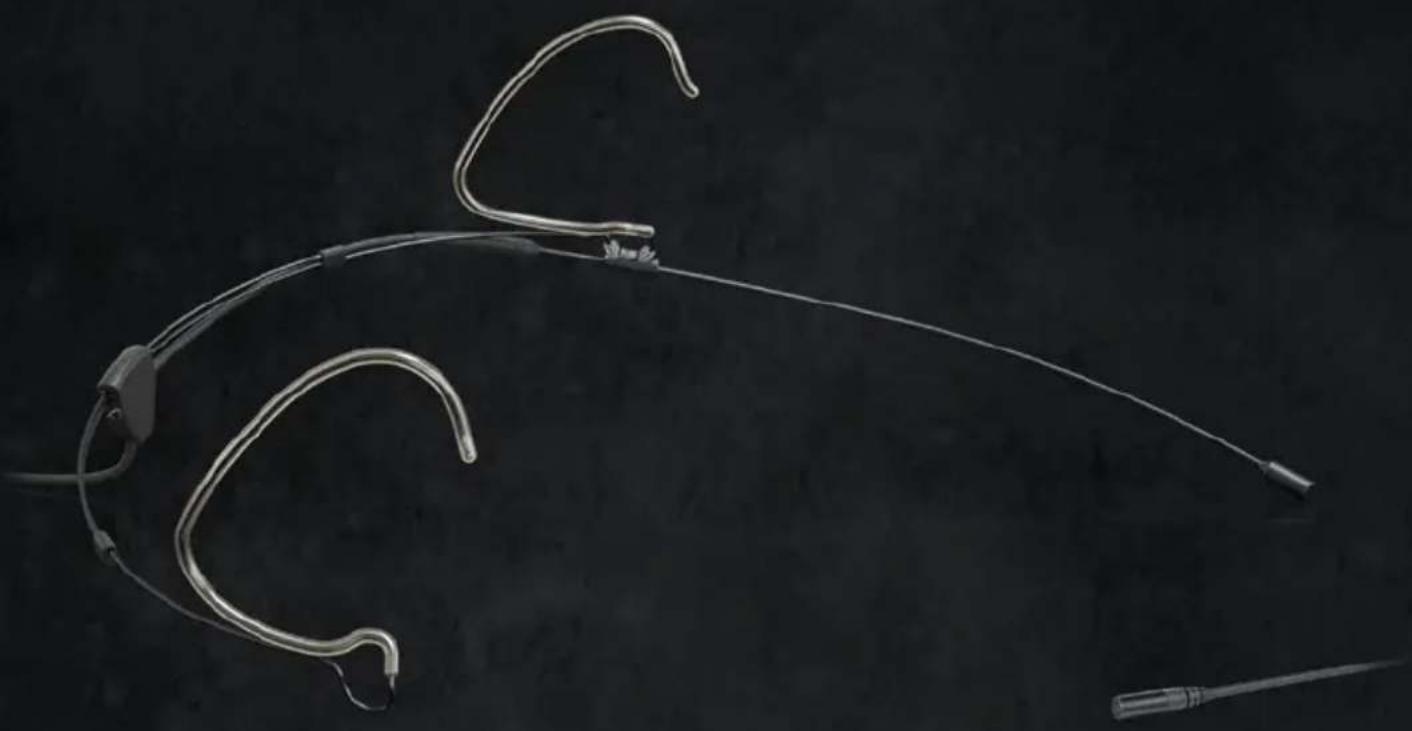

6066 Subminiature Headset

Abstract line drawing of a medical or surgical device with curved and straight lines (no text or symbols)

Comfortable, customizable and secure

The new one-size-fits-all headset is the most advanced construction on the market. It ensures comfort, even during long-term wear, but does so without sacrificing security. Its form grips gently and snuggly around the head and ears and is easily adjustable. The headset can be customized quickly on site to suit individual performers for perfect fit every time.

Close-up of a medical or surgical device with metallic tubing and ear loops (no text or symbols visible)

re

by DPA minimizes distortion on • expands dynamic range • increases clarity

Advanced construction

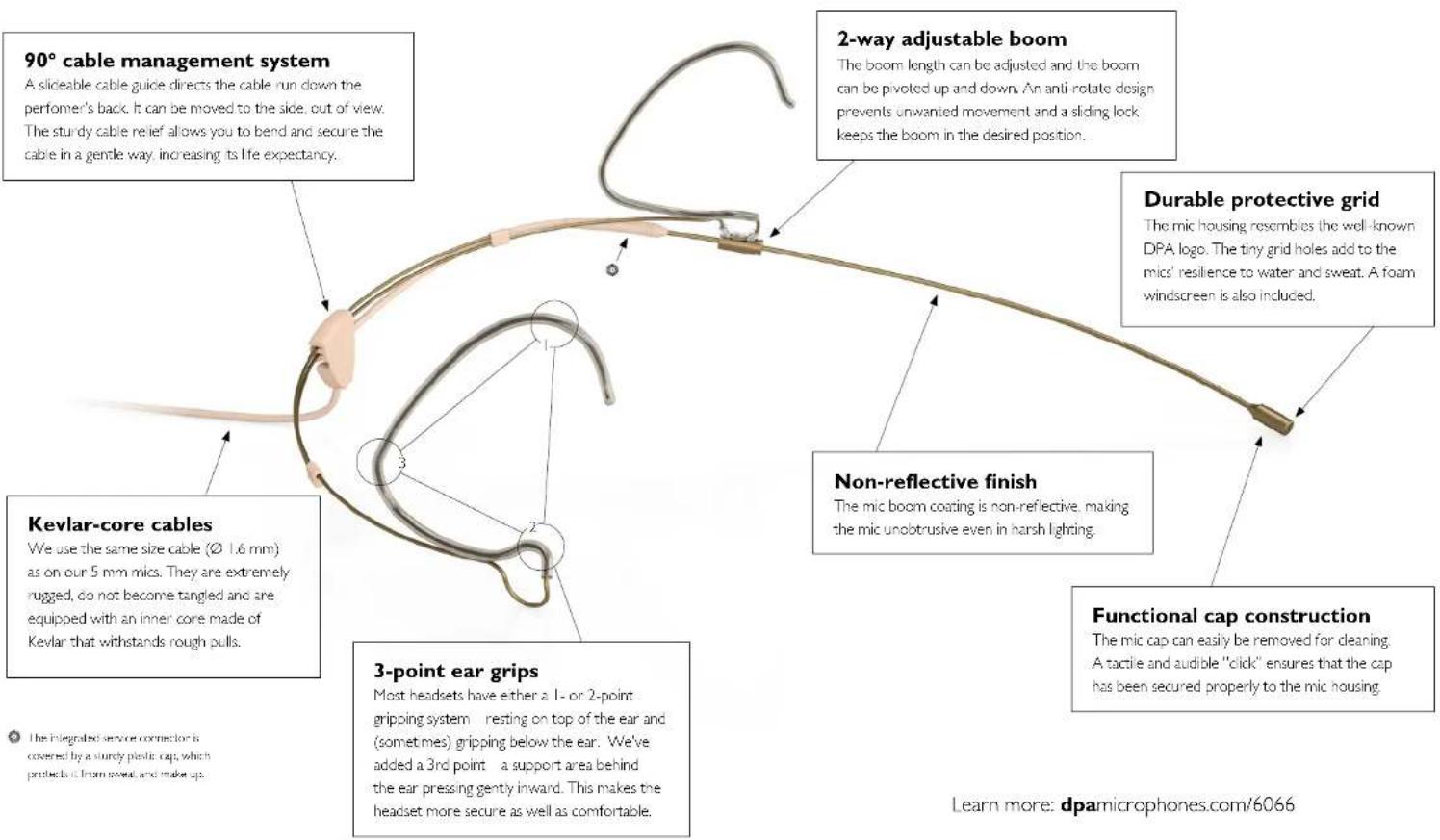

The entire headset is made of stainless steel and is Physical Vapor Deposition (PVD) coated, which increases durability.

Learn more: dpamicrophones.com/6066

6060 Subminiature Lavalier

Close-up of a metallic cable with multiple connectors (no text or symbols visible)

Almost invisible yet totally unforgettable

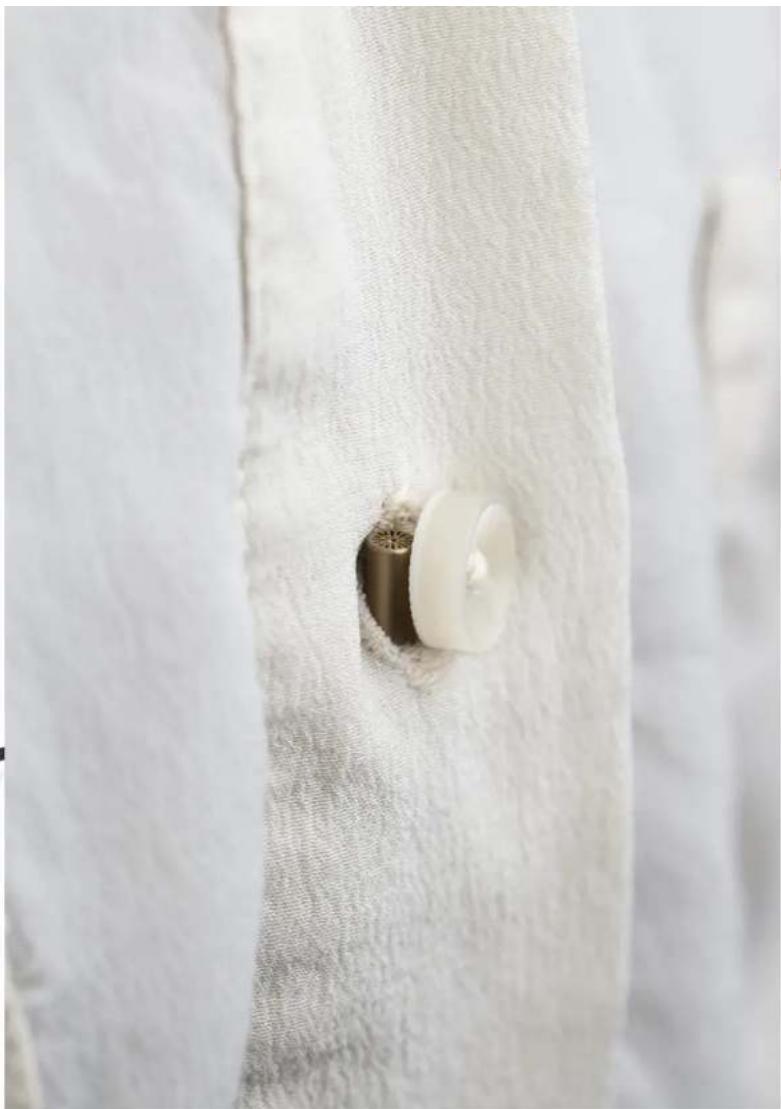

discrees™ 6060 CORE Subminiature Microphones are only three millimeters in size and they pack the audio power of larger, award-winning DPA mics. Despite their unobtrusive size, they are exceptionally clear, consistent and durable – three qualities that truly matter.

The mic housing resembles the well-known DPA logo with the tiny grid holes adding to the mics' resilience to water and sweat. The mic cap can easily be removed for cleaning. When you put the cap back on, a tactile and audible "click" ensures that it has been secured properly.

It's the only 3 mm mic that gives you the DPA sonic quality that you know and love.

Close-up of a black cable with a pointed tip, isolated on white background (no text or symbols)

Learn more: dpa microphones.com/6060

Close-up of a white fabric garment with a circular button and perforated edge (no text or symbols visible)

Close-up of a light blue button-up shirt collar with a black plastic clip attached (no text or symbols visible)

8-way Clip for Subminiature

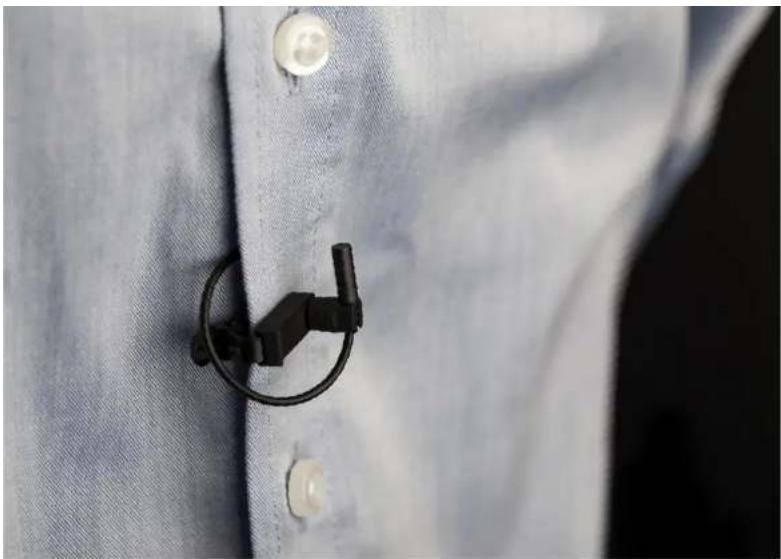

When used as a lavaler, a special rotatable clip is available. The 360" clip allows the lay to be mounted in eight positions, chosen in 45" incremental steps. This makes it very easy to change the mcs from women's to men's shirts (left- to right-buttoned) or even t-shirts and the like where the neckline is used.

Specifications 6060/6061/6066

Directional pattern

Omnidirectional

Cartridge type

Pre-polarized condenser

Frequency range

20 Hz - 20 kHz

Sensitivity, nominal ±3 dB at 1 kHz

6060: 20 mV/Pa; -34 dB re. 1 V/Pa

6061: 6 mV/Pa; -44 dB re. 1 V/Pa

6066: 5 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted

6060: Typ. 24 dB(A) re. 20 μPa

6061: 1yp. 26 dB(A) re. 20 μPa

6066: Typ. 26 dB(A) rc. 20 μPa

Total harmonic distortion (THD)

6060: < 1% THD up to 126 dB SPL peak

6061: < 1% THD up to 128 dB SPL peak

6066: < 1% THD up to 128 dB SPL peak

Max. SPL, peak before clipping

6060:134dB

6061: 144 dB

6066: 144 dB

Connector

MicroDot, TA4F, LEMO and Min Jack

Color

Beige, Black

Frequency response

typical on-axis frequency response.

3 mm of audio perfection
