USER MANUAL 1595-90152A-WH Hooker
ASSEMBLY INSTRUCTION
ITEM# 1595-90151-LTBK 5/0 Panel Headboard
1595-90152-LTBK 5/0 Panel Footboard
1595-90167-LTBK 6/0-6/6 Panel Headboard
1595-90168-LTBK 6/0-6/6 Panel Footboard
1595-90153-LTBK 5/0-6/6 Rails
1595-90163-LTBK 6/0 Panel Rails
Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more people.
| NO. | HARDWARE LIST | Q'TY | |
| E | NUT | 8 | |
| F | SPANNER WRENCH | 1 | |
| G | CURVED WASHER | 8 | |
| H | FULL THREADED BOLT | 8 | |
| K | SCREW | 20 (FOR 6/6&8/0 BED)16 (FOR 5/0 BED) | |
| R | 4MM ALLEN WRENCH | 1 | |
| Q | 35MM BOLT | 10 (FOR 6/6&8/0 BED)8 (FOR 5/0 BED) | |
| V | 1/4" LOCK WASHER | 10 (FOR 6/6&8/0 BED)8 (FOR 5/0 BED) | |
| U | 1/4" FLAT WASHER | 10 (FOR 6/6&8/0 BED)8 (FOR 5/0 BED) | |
| M | 5MM ALLEN WRENCH | 1 | |


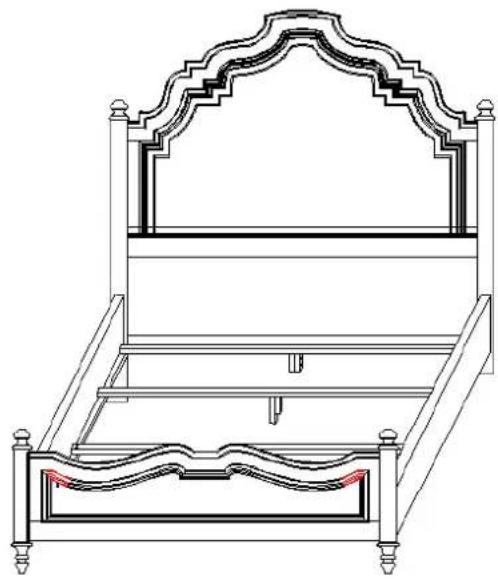

Line drawing of a traditional ornate bed with arched frame and wooden legs (no text or symbols)
Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.
Assembly steps:

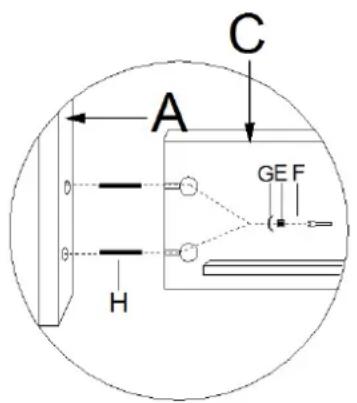

- Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F). (See Diagram 1)
- Take out center supports (L) from rail box, attach center supports (L) to slats (D) by using 2 bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R). (See Diagram 2)


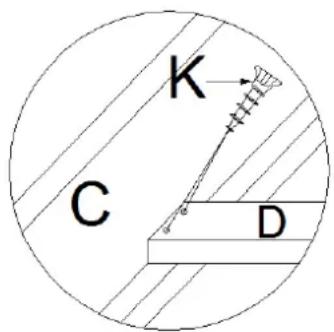

- Attach slats (D) to side rails (C), align pre-drilled holes on the slats to holes on the cleats of side rails (C), using screws (K) to tighten both. (See diagram 3)
- Insert the finials into footboard posts, and turn finials in clockwise direction until tight. (See Diagram 6)


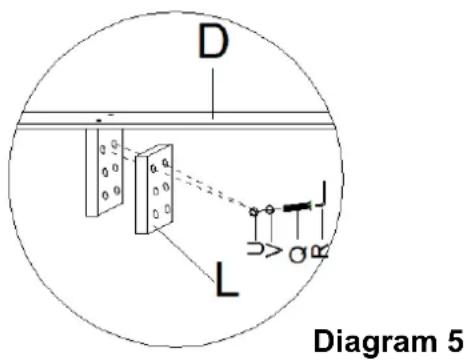

C JO I M Diagram 4You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the following steps.
- Unscrew bolts on center supports (L) with allen wrench (R).
- Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with
2 bolts (Q), 2 lock washers (V) and 2 flat washers (U) by turning with allen wrench (R) in clockwise direction.

