Product Type	Baby Bed / Bed Frame
Brand	Hooker
Model	5960-90866-MULTI
Compatible Mattress Sizes	Twin (5/0), Full (6/0), Queen (6/6) depending on variant
Material	Wood frame with upholstered headboard
Assembly Required	Yes, by two or more people
Tools Included	Allen wrenches (4mm and 5mm), spanner wrench
Adjustable Slat Height	Yes, via cleat adjustment
Adjustable Center Support Height	Yes
Hardware Included	Bolts, nuts, washers, screws
Cleaning Instructions	Mild dishwashing liquid and water on damp cloth; polish with furniture polish
Safety Warning	Heavy item; assemble with assistance; ensure all bolts are tightened
Number of Slats	Varies by size; includes center supports

Frequently Asked Questions - 5960-90866-MULTI Hooker

What mattress sizes are compatible with this bed frame?

The model 5960-90866-MULTI is compatible with Twin (5/0), Full (6/0), and Queen (6/6) mattresses, depending on the specific variant purchased. Check your product label for the exact size.

How do I adjust the height of the slats?

To adjust slat height, remove bolts (I), lock washers (O), and flat washers (J) from the cleats using the 5mm Allen wrench (M). Move the cleats to the desired position, then tighten the bolts clockwise. Refer to Diagram 4 in the manual.

How many people are needed for assembly?

This bed is heavy and can best be assembled with the help of two or more people. It is recommended to have assistance for safety and ease.

What tools are included with the bed frame?

The package includes a spanner wrench (F), 4mm Allen wrench (R), and 5mm Allen wrench (M). No additional tools are required for assembly.

Can I adjust the center supports?

Yes, you can adjust the height of center supports (L) by unscrewing bolts with the 4mm Allen wrench, repositioning the supports, and tightening with bolts (Q), lock washers (V), and flat washers (U). See Diagram 5.

How do I clean and maintain the upholstered headboard?

Clean finished parts with a mild dishwashing liquid and water solution on a damp cloth. Polish the finish with a soft cloth and an industry-recognized furniture polish. Avoid abrasive cleaners.

What is the weight capacity of this bed?

The weight capacity is not specified in the manual. However, the bed is constructed with sturdy materials and center supports for enhanced stability. Ensure proper assembly for optimal support.

Are replacement parts available for this model?

Replacement parts may be available from the manufacturer or authorized retailers. Contact Hooker customer service with your model number (5960-90866-MULTI) for assistance.

Is this bed suitable for a child?

This bed frame is categorized as a baby bed and is designed for children. However, ensure that the mattress fits snugly and that all hardware is tightened regularly for safety.

What should I do if I lose a hardware piece?

The hardware list includes bolts, nuts, washers, and screws. If a piece is missing, contact Hooker or the retailer with the item number (5960-90866-MULTI) to request a replacement. Standard hardware may be available at local hardware stores.

USER MANUAL 5960-90866-MULTI Hooker

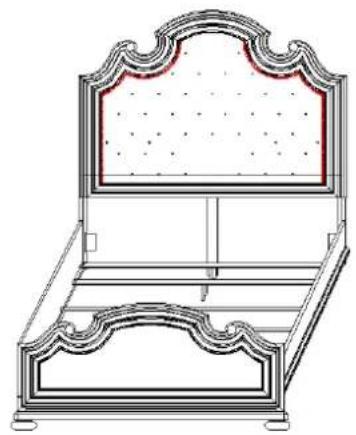

ASSEMBLY INSTRUCTION

ITEM# 5960-90851-BRN Fair Oaks 5/0 Upholstered Headboard

5960-90852-MULTI Fair Oaks 5/0 Footboard

5960-90867-BRN Fair Oaks 6/0-6/6 Upholstered Headboard

5960-90868-MULTI Fair Oaks 6/0-6/6 Footboard

5960-90853-BRN Fair Oaks 5/0-6/6 Rails

5960-90863-BRN Fair Oaks 6/0 Rails

Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more people.

NO.	HARDWARE LIST		Q'TY
E		NUT	8
F		SPANNER WRENCH	1
G		CURVED WASHER	8
H		FULL THREADED BOLT	8
K		SCREW	20 (for 6/6&6/0 bed)16 (for 5/0 bed)
R		4MM ALLEN WRENCH	1
Q		BOLT	10 (for 6/6&6/0 bed)8 (for 5/0 bed)
V		LOCK WASHER	10 (for 6/6&6/0 bed)8 (for 5/0 bed)
U		FLAT WASHER	10 (for 6/6&6/0 bed)8 (for 5/0 bed)
M		5MM ALLEN WRENCH	1

Diagram 3

Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails.

Assembly steps:

1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F). (See diagram 1)

Diagram 1

1. Take out center supports (L) from the rail box, attach center supports (L) to slats (D) by using 2 bolts (Q), 2 lock washers (V) and 2 flat washers (U). Secure bolts (Q) by using allen wrench (R). (See diagram 2)

Diagram 2

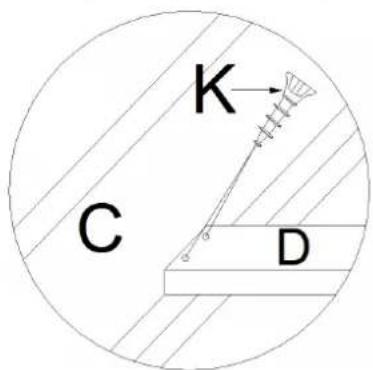

1. Attach slats (D) to side rails (C), align pre-drilled holes on the slats to holes on the cleats of side rails (C), using screws (K) to tighten both. (See diagram 3)

Diagram 3

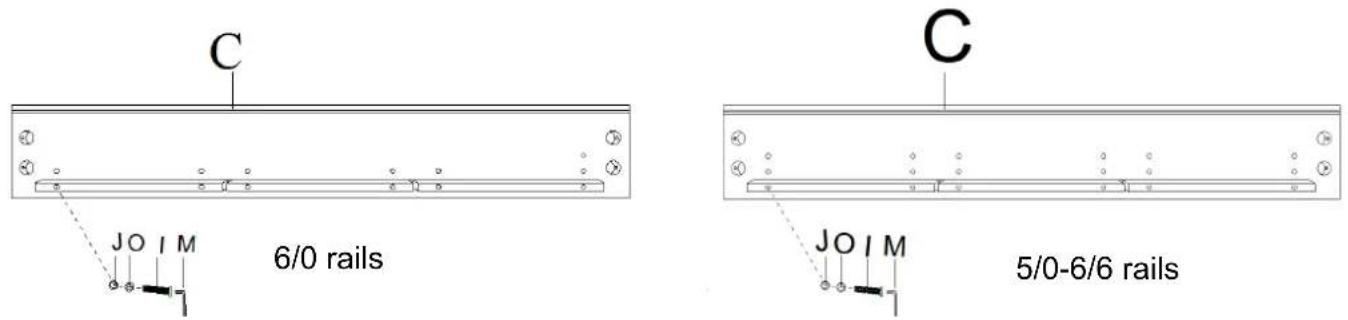

Note: You can change the height of slats by adjusting the height of cleats on side rail as shown in diagram 4. Remove bolts (I), lock washers (O) and flat washers (J) from the cleats by turning the bolts (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired position, and then secure lock washers, flat washers, bolts in clockwise direction by turning with allen wrench.

Diagram 4

You can adjust the height of center supports (L) as shown in diagram 5 to meet your need by the following steps.

1. Unscrew bolts on center supports (L) with allen wrench (R).
2. Adjust the height of center supports, align holes on 2pcs of woods and tighten them together with 2 bolts (Q), 2 lock washers (V) and 2 flat washer (U) by turning with wrench (R) in clockwise direction.

Diagram 5

Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
