USER MANUAL 1654-90251-DKW1 Hooker

ASSEMBLY INSTRUCTION

ITEM# 1654-90251-DKW1 5/0 Panel Headboard

1654-90252-DKW1 5/0 Panel Footboard

1654-90253-DKW1 5/0-6/6 Rails

Caution: Please make sure you have all parts indicated below prior to assembly. This unit is heavy and can best be assembled with the help of two or more persons.

Hooker 1654-90251-DKW1 - ASSEMBLY INSTRUCTION - 1

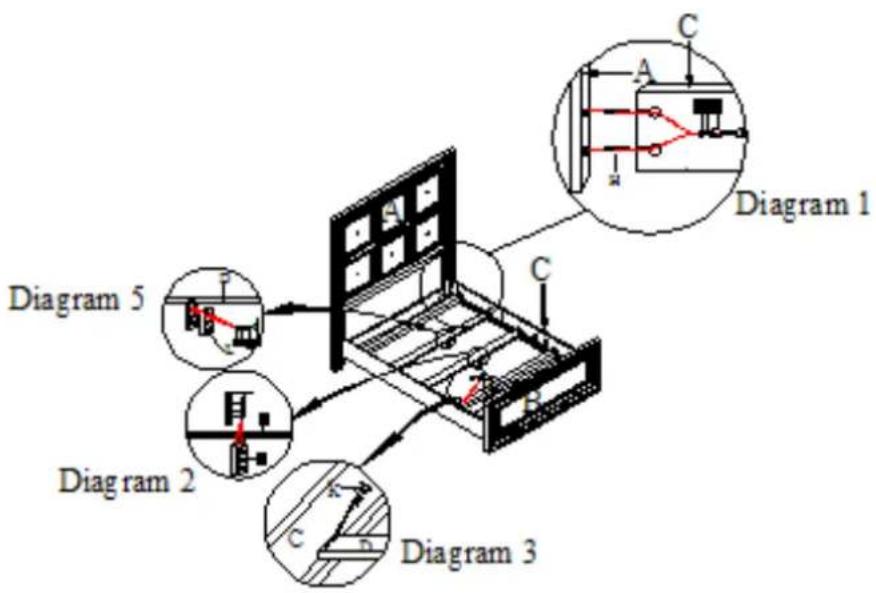

text_image Diagram 1 C A C C Diagram 5 Diagram 2 Diagram 3

Hooker 1654-90251-DKW1 - ASSEMBLY INSTRUCTION - 2

text_image C A GE F H

Diagram 1

NO.HARDWARE LISTQ'TY
ENUT8
FSPANNER WRENCH1
GCURVERD WASHER8
HFULL THREADED BOLT8
KSCREW16
R4mm ALLEN WRENCH1
QBOLT8
VLOCK WASHER8
UFLAT WASHER8
M5mm ALLEN WRENCH1

Assembly steps:

  1. Insert 2 bolts (H) into holes of each posts on Headboard (A) and Footboard (B), attach end of side rails (C) to the bolts (H) on posts using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F). (See diagram 1)

Hooker 1654-90251-DKW1 - Assembly steps: - 1

text_image R Q V U D L

Diagram 2

  1. Take out center supports (L) from rail box, attach center supports (L) to slats using 2 bolts (Q), 2 lock washers (V) and 2 flat washers (U). Securing the bolts (Q) by using Allen wrench (R). (See diagram 2)

Hooker 1654-90251-DKW1 - Assembly steps: - 2

text_image k C D

Diagram 3

  1. Attach slats (D) to side rails (C), align pre-drilled holes on the slat to holes on the cleat of side rail (C), using screws (K) to tighten both. (See diagram 3)

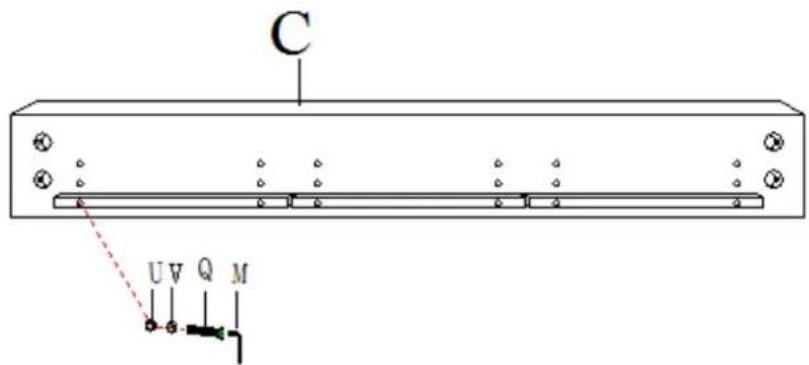

Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 4, remove the bolt (Q), lock washer (V) and flat washer (U) from the cleat by turning the bolt (Q) with Allen wrench (M) in anti-clockwise direction, adjust the cleat to a desired position, and then secure the lock washer, flat washer, bolt in a clockwise direction by turning with Allen wrench.

Hooker 1654-90251-DKW1 - Assembly steps: - 3

text_image C UV Q M

Diagram 4

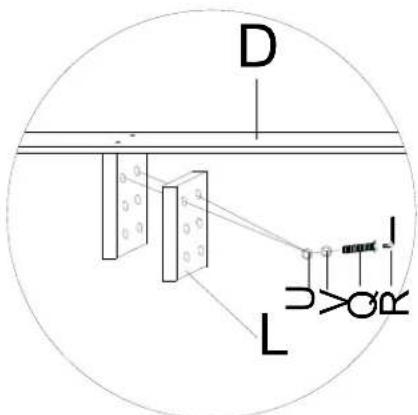

You can adjust the height of center supports (L) as shown in Diagram 5 to meet your need by following steps.

  1. Unscrew bolts on center supports (L) with Allen wrench (R).
  2. Adjust the height of center supports, align the holes on 2pcs of woods and tighten them together with 2 bolts(Q), 2 lock washers (V) and two flat washers(U) by turning with Allen wrench(R) in a clockwise direction.

Hooker 1654-90251-DKW1 - Assembly steps: - 4

text_image D L

Diagram 5

Cleaning Instruction: Clean finished parts with a mild dishwashing liquid and water solution on a damp cloth. Polish the finish with soft cloth and an industry recognized furniture polish.
