BPH C384T-64+4A - Battery PowerPlus - Free user manual and instructions

Product Type	Battery Pack for UPS
Brand	PowerPlus
Model	BPH C384T-64+4A
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 45°C
Humidity Range	30% to 90% non-condensing
Ventilation Clearance	20 cm from walls
Installation Environment	Indoor, avoid direct sunlight, dust, corrosive or salty environments
Recharge Frequency (in storage)	Every 2-3 months (or more frequently at high temperatures)
Charging Duration (storage recharge)	1-2 hours
Battery Service Life	3-5 years at 25°C
Safety Precautions	Remove metal objects, use insulated tools, wear rubber gloves and boots
Warning	Do not dispose in fire or mutilate batteries
Warning	Hazardous voltage between battery terminals and ground
Maintenance	No user-serviceable parts
Disposal	Recycle spent batteries at a recycling facility or return to dealer
Storage Conditions	Store covered and upright in a cool, dry location
Connection/Disconnection	Disconnect charging source before connecting/disconnecting battery terminals
DC Mode	Do not plug/unplug battery connector when UPS operates in DC (discharge) mode
Warranty Conditions	Warranty void if water or foreign objects enter the battery box, or if batteries overheat
Service	Contact local supplier for replacement or repairs

Frequently Asked Questions - BPH C384T-64+4A PowerPlus

What is the recommended operating temperature range for the battery box?

The operating temperature range is 0°C to 40°C with humidity between 30% and 90% non-condensing.

How often should I recharge the battery if it is not used?

Recharge every 2-3 months. At storage temperatures between 40°C and 45°C, recharge every 2 months. Charging duration is 1-2 hours.

What safety precautions should I take when working on the batteries?

Remove watches, rings, or other metal objects. Use tools with insulated handles. Wear rubber gloves and boots. Do not lay tools or metal parts on top of batteries.

How should I dispose of old batteries?

Do not dispose of batteries in fire as they may explode. Deliver spent batteries to a recycling facility or ship them to your dealer in the replacement battery packing material.

How long is the battery service life?

The battery service life is 3-5 years at 25°C ambient temperature. Once exceeded, batteries must be replaced by a dealer.

Can I install the battery box outdoors?

No, the battery box is designed for indoor use only. Do not install in dusty, corrosive, or salty environments or under direct sunlight.

What should I do if water or liquid spills on the battery box?

The warranty is void if water or other liquid is spilled or poured directly onto the battery box. Avoid such contact and keep the unit dry.

How do I connect the battery cables?

Refer to the manual for specific diagrams. In general, use short battery cables (100mm) and long battery cables (300mm) as indicated. Connect breaker cables (red, blue, black) to battery terminals with proper polarity.

Are there any user-serviceable parts inside?

No, the unit contains no user-serviceable parts. Do not try to assemble or repair it yourself. Contact your local supplier for qualified service.

What voids the warranty?

The warranty is void if batteries fail due to overheating (e.g., from direct sunlight or blocked ventilation), if water or foreign objects enter the enclosure, or if the battery is not recharged every 2-3 months when unused.

USER MANUAL BPH C384T-64+4A PowerPlus

User Manual Battery Pack

1. Important Safety Warnings

Please comply with all warnings and operating instructions in this instruction strictly. Read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

• Do not try to assemble or repair the unit yourself, contact your local supplier, seek for help of qualified technician
• To eliminate any overheating of the battery box, keep all ventilation openings free from obstruction and do not place any foreign objects on top of the battery bank. Keep the battery box 20 cm away from the wall.
• Make sure the battery box is installed within the proper environment as specified. (0-40°C and 30-90% non-condensing humidity)
• Do not install the battery box under direct sunlight. Your warranty will be void if the batteries fail due to overheating.

- This battery box is not designed for use in dusty, corrosive and salty environment.

- The warranty for this battery bank will be void if water or other liquid is spilled or poured directly onto the battery box. Similarly we do not warrant any damage to the battery box if foreign objects are deliberately or accidentally inserted into the battery box enclosure.

- The battery will discharge naturally if the system is unused for a period of time.

- It should be recharged every 2-3 months if unused. If this is not done, then the warranty will be null and void. During normal operation, the batteries will be automatically remained in charged condition.

- Servicing of batteries should be performed or supervised by trained personnel with knowledge of batteries and the required precautions.

- When replacing batteries, it is necessary to replace ALL batteries with the same quantity, type & capacity.

- CAUTION – Do not dispose of battery or batteries in a fire. The battery may explode.

- CAUTION – Do not open or mutilate the batteries. The electrolyte from the batteries is toxic and harmful to the skin and eyes.

- CAUTION – Risk of Electric Shock – Hazardous voltage may exist between battery terminals and ground. Test before touching with bare hands.

- CAUTION – A battery can present a risk of electrical shock and high short circuit current. The following precaution should be observed when working on batteries:

1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting battery terminals.

- Do not plug or unplug the battery connector if UPS works in DC (discharging) mode.

Installation and Setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use

Storage & Maintenance

The unit contains no user-serviceable parts. If the battery service life (3\~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.

Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.

Storage

Before storing, charge the unit 4 hours. Store the unit covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:

Storage Temperature Recharge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours

S.O.P. - How to assemble BP C384T-64x9Ah

Left side of cabinet:

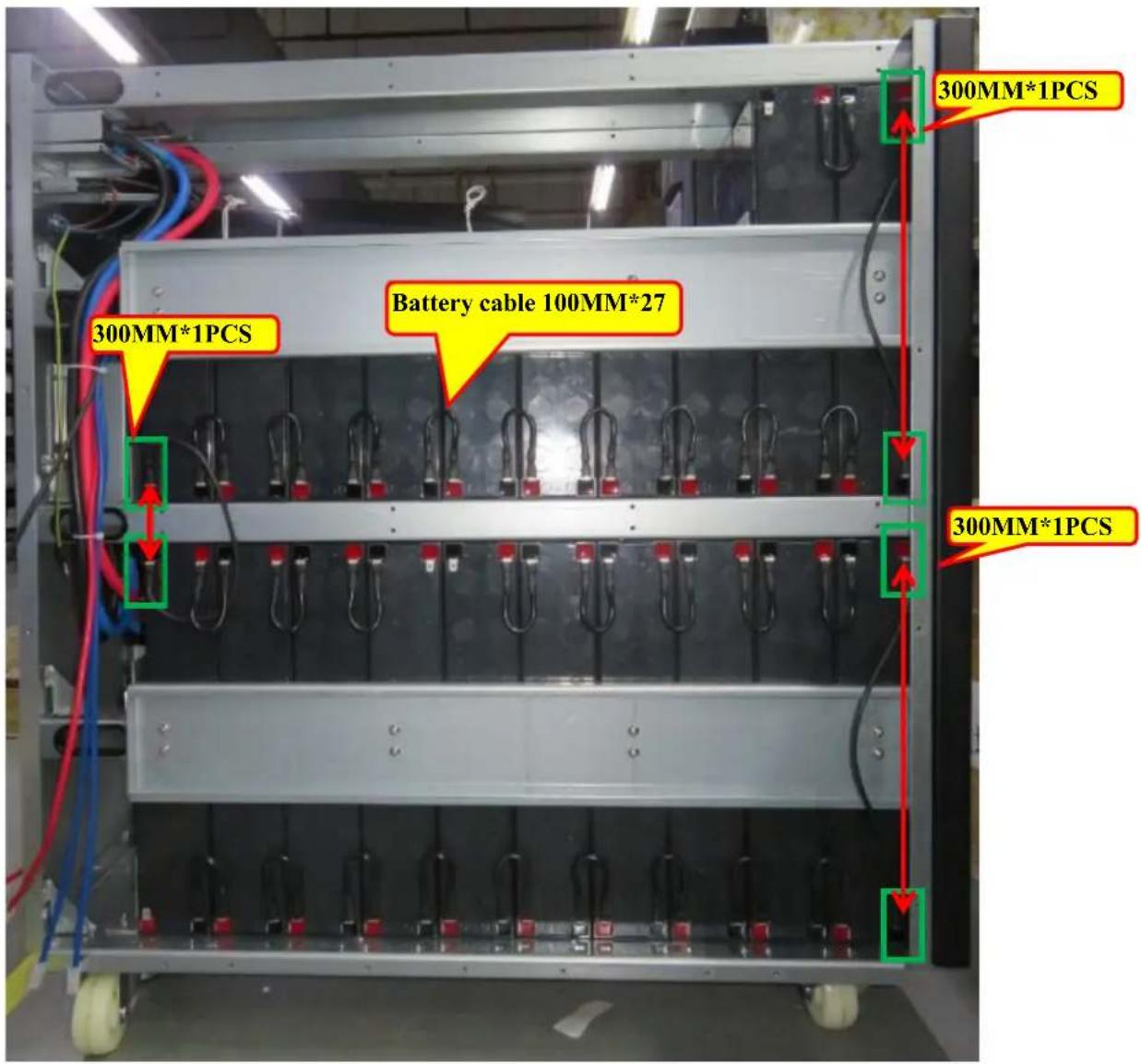

Please refer to below picture to connect short battery cables, 100MM*27 and long battery cable 300MM*3.

Right side of cabinet:

Please refer to below picture to connect short battery cables, 100MM*27 and long battery cables 300MM*3。

Please refer to below pictures to breaker red/ blue/ black cables with battery terminals.
