USER MANUAL BPH A48R-8 PowerPlus

User Manual Battery Pack

1. Important Safety Warnings

Please comply with all warnings and operating instructions in this instruction strictly. Read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

• Do not try to assemble or repair the unit yourself, contact your local supplier, seek for help of qualified technician
• To eliminate any overheating of the battery box, keep all ventilation openings free from obstruction and do not place any foreign objects on top of the battery bank. Keep the battery box 20 cm away from the wall.
• Make sure the battery box is installed within the proper environment as specified. (0-40°C and 30-90% non-condensing humidity)
• Do not install the battery box under direct sunlight. Your warranty will be void if the batteries fail due to overheating.
• This battery box is not designed for use in dusty, corrosive and salty environment.
• The warranty for this battery bank will be void if water or other liquid is spilled or poured directly onto the battery box. Similarly we do not warrant any damage to the battery box if foreign objects are deliberately or accidentally inserted into the battery box enclosure.
• The battery will discharge naturally if the system is unused for a period of time.
• It should be recharged every 2-3 months if unused. If this is not done, then the warranty will be null and void. During normal operation, the batteries will be automatically remained in charged condition.
• Servicing of batteries should be performed or supervised by trained personnel with knowledge of batteries and the required precautions.
• When replacing batteries, it is necessary to replace ALL batteries with the same quantity, type & capacity.
• CAUTION – Do not dispose of battery or batteries in a fire. The battery may explode.
• CAUTION – Do not open or mutilate the batteries. The electrolyte from the batteries is toxic and harmful to the skin and eyes.
• CAUTION – Risk of Electric Shock – Hazardous voltage may exist between battery terminals and ground. Test before touching with bare hands.

- CAUTION – A battery can present a risk of electrical shock and high short circuit current. The following precaution should be observed when working on batteries:

1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting battery terminals.

- Do not plug or unplug the battery connector if UPS works in DC (discharging) mode.

Installation and Setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use

Storage & Maintenance

The unit contains no user-serviceable parts. If the battery service life (3\~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.

Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.

Storage

Before storing, charge the unit 4 hours. Store the unit covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:

Storage Temperature Recharge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours

SOP - How to assemble BP A48R-8x9Ah

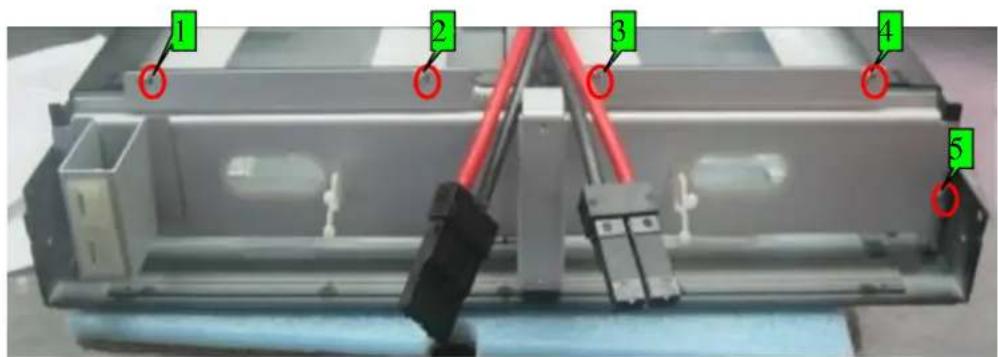

Labeled diagram of an electronic battery pack with numbered components and red circuit lines

Close-up of a white mechanical component with two rectangular slots and a green label '6' pointing to it (no readable text or symbols beyond the label)

Two transparent plastic containers with rectangular cutouts and patterned lids, each enclosed in a red border (no text or symbols visible)

1. As shown above: unscrew all screws on the battery isolation pad for separation.

Screw P/N: 38-000008-00G*6

Two black battery cells with red and black wires, placed on a gray floor (no visible text or symbols)

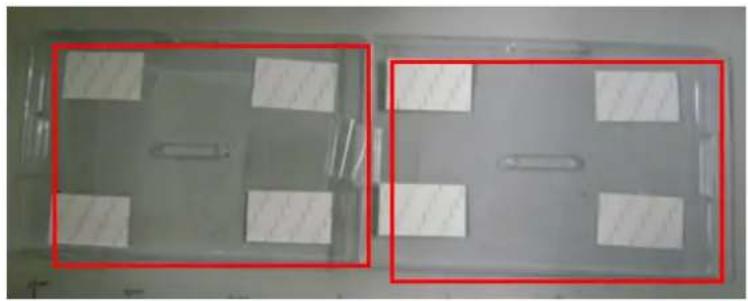

1. As shown left: take out the plastic isolation tray for later assembly(44-040053-XXG)

2. As shown left: get 4 batteries in serial connection (26-000003-XXG/45W、12V、9AH) Please be noticed about the rubber protection on the red wire.

Notice:

1. Check with correct battery spec.
2. No short between positive and negative polar of batteries
3. No reverse connection is allowed.

Tool:

Pliers

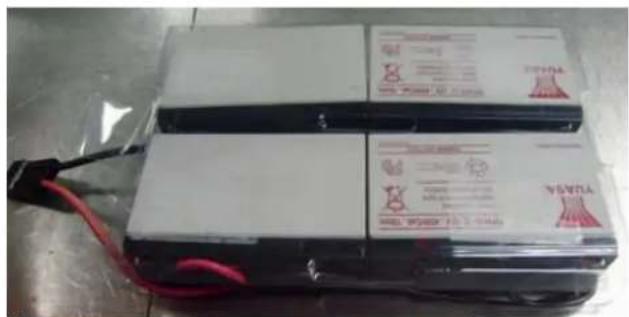

Two battery packs with printed labels and red warning symbols, placed on a metal surface with wires and a cable.

1. As shown left: get the batteries stuck onto the double-side tap on the previous isolation tray

Warning Stick SPARID: 12.0V, KONICOL, TINIC TASA SPARID: 12.0V, KONICOL, TINIC TASA SPARID: 12.0V, KONICOL, TINIC TASA

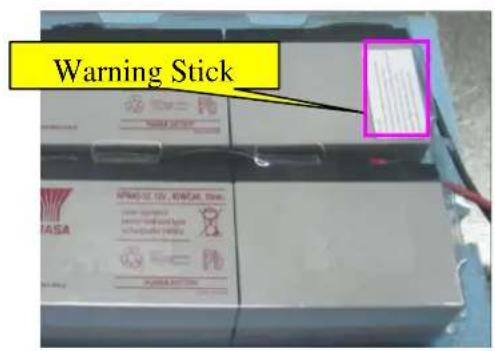

1. As shown left: Put on the warning stick (37-000031-XXG) onto the battery (text facing up)

Notice:1. Check with correct battery spec.2. No short between positive and negative polar of batteries3. No reverse connection is allowed.

Tool:Pliers

Two transparent plastic containers with white rectangular samples and red bounding boxes, no visible text or symbols.

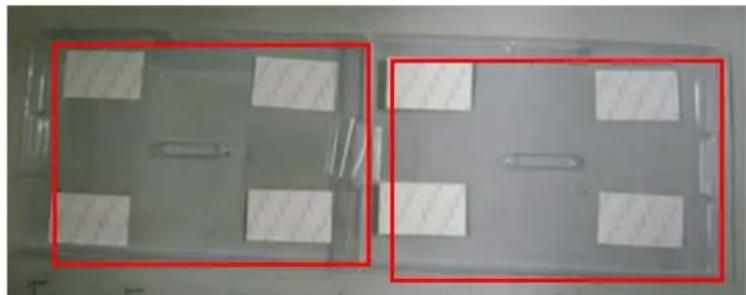

1. As shown left: take out the plastic isolation tray for later assembly(44-040053-XXG)

Two black battery cells with red and black wires, one partially submerged in a red wire (no visible text or symbols)

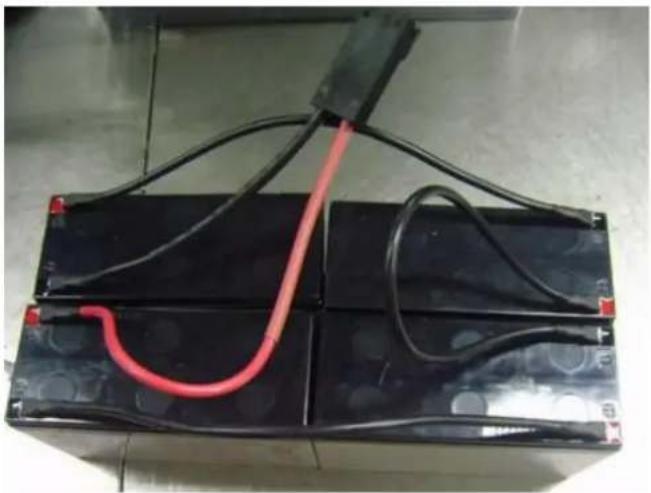

1. As shown left: get 4 batteries in serial connection (26-000003-XXG/45W、12V、9AH) Please be noticed about the rubber protection on the red wire.

Photo of two battery packs with visible labels and red warning symbols, partially covered by a transparent plastic wrap.

Warning Stick SPMS-12 - 15V, ETCAM, TBI user: e-03 user: e-04 user: e-05 user: e-06 user: e-07 user: e-08 user: e-09 user: e-10 user: e-11 user: e-12 user: e-13 user: e-14 user: e-15 user: e-16 user: e-17 user: e-18 user: e-19 user: e-20 user: e-21 user: e-22 user: e-23 user: e-24 user: e-25 user: e-26 user: e-27 user: e-28 user: e-29 user: e-30 user: e-31 user: e-32 user: e-33 user: e-34 user: e-35 user: e-36 user: e-37 user: e-38 user: e-39 user: e-40 user: e-41 user: e-42 user: e-43 user: e-44 user: e-45 user: e-46 user: e-47 user: e-48 user: e-49 user: e-50 user: e-51 user: e-52 user: e-53 user: e-54 user: e-55 user: e-56 user: e-57 user: e-58 user: e-59 user: e-60 user: e-61 user: e-62 user: e-63 user: e-64 user: e-65 user: e-66 user: e-67 user: e-68 user: e-69 user: e-70 user: e-71 user: e-72 user: e-73 user: e-74 user: e-75 user: e-76 user: e-77 user: e-78 user: e-79 user: e-80 user: e-81 user: e-82 user: e-83 user: e-84 user: e-85 user: e-86 user: e-87 user: e-88 user: e-89 user: e-90 user: e-91 user: e-92 user: e-93 user: e-94 user: e-95 user: e-96 user: e-97 user: e-98 user: e-99 user: e-100

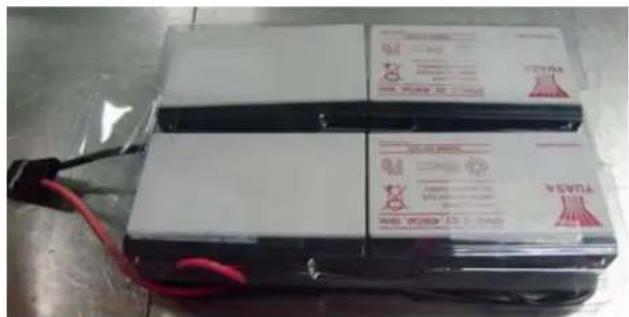

1. As shown left: get the batteries stuck onto the double-side tap on the previous isolation tray

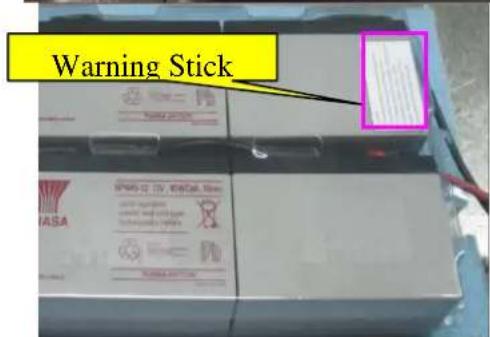

2. As shown left: Put on the warning stick (37-000031-XXG) onto the battery (text facing up)

Photo of battery pack with red arrows indicating charging station connections and labels on panels

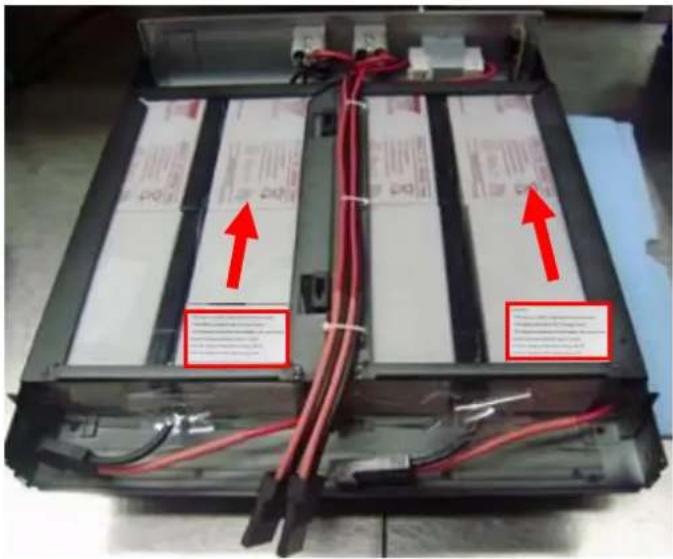

1. As shown both of two: Push the assembled battery bank into the case following the instructed direction (the red arrow)

2. As shown bellow: screw the processed battery isolation pad onto the case M3*6 round-cross screw 38-000008-XXG*6, Torque: 8KGF-CM。

3. Check with no missed isolation sticks on the 4 battery terminals (44-040046-XXG)

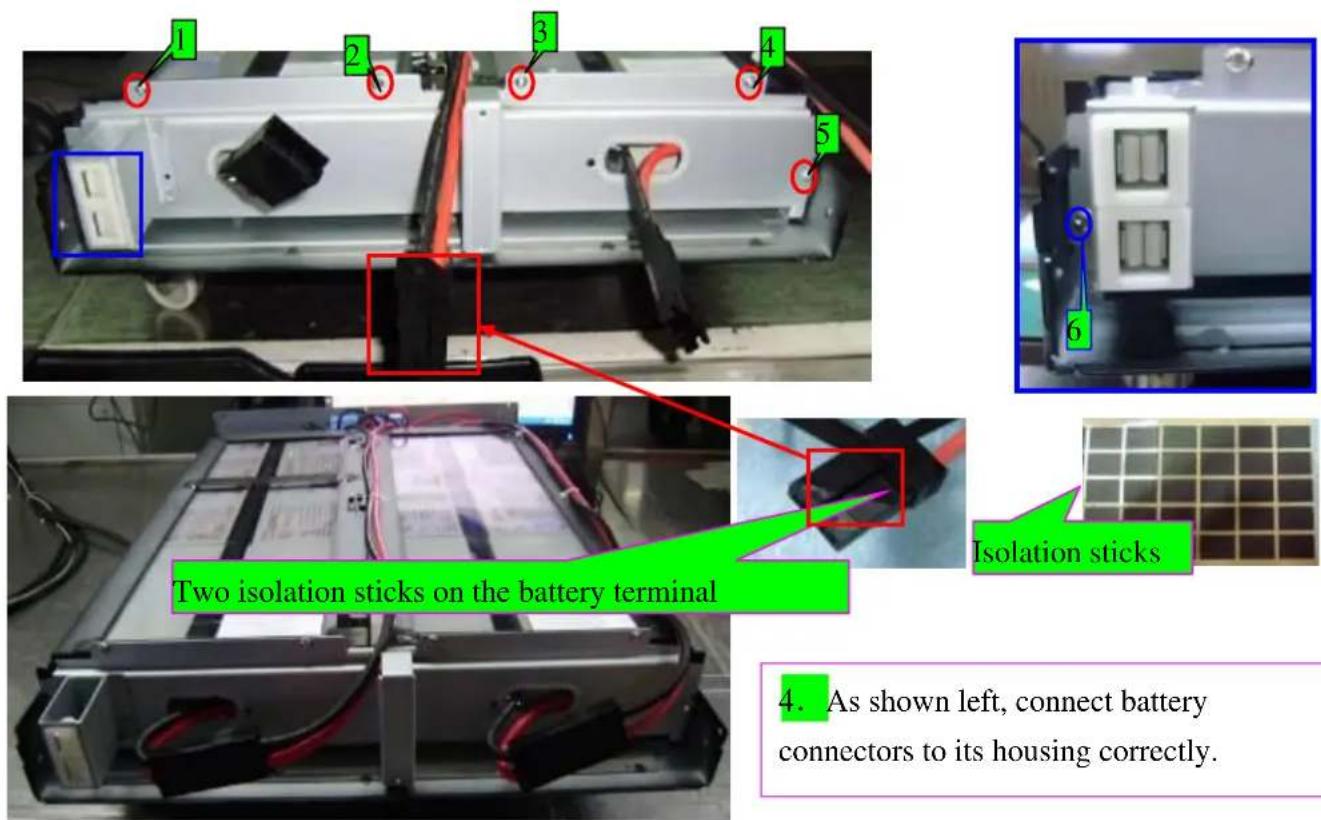

1 2 3 4 5 6 Two isolation sticks on the battery terminal Isolation sticks 4. As shown left, connect battery connectors to its housing correctly.

Notice:

1. No reversed, incorrect, and missed isolation stick is allowed.
2. No missed screwing is allowed,

Tools:

Electrical drill, cross screw bit
