Product Type	Cordless Grass Trimmer
Brand	PowerPlus
Model	BPH T288T-48
Voltage	48 V
Battery Type	Lithium-ion (not included)
Battery Capacity	2.0 Ah
Cutting Width	30 cm
Cutting System	Dual line auto-feed
Telescopic Shaft	Yes
Adjustable Handle	Yes
Weight	3.5 kg
Overall Length	120 cm
Noise Level	96 dB(A)
Vibration Level	2.5 m/s²
Protection Class	IPX4 (splash proof)
Charging Time	Approx. 2 hours
Runtime	Up to 30 minutes
Spare Parts	Cutting line, spool, blade (if applicable)
Maintenance	Clean after use, check for wear
Safety Features	Dual switch safety, guard
Recommended Use	Gardening, lawn edging

Frequently Asked Questions - BPH T288T-48 PowerPlus

How do I charge the battery for the PowerPlus BPH T288T-48?

To charge the battery, use the compatible PowerPlus charger (not included). Insert the battery into the charger and plug it into a mains outlet. The LED indicator will show red during charging and green when fully charged. Charging time is approximately 2 hours.

What type of battery does the BPH T288T-48 use?

The trimmer uses a 48V lithium-ion battery. The battery is not included with the tool and must be purchased separately. It is compatible with PowerPlus 48V series batteries.

How do I replace the cutting line?

To replace the cutting line, press the spool release tabs and remove the spool cap. Remove the old line and wind new 2.0mm line in the direction indicated. Feed the ends through the eyelets and reassemble. Ensure the line is cut to proper length (approx. 15 cm on each side).

Is the battery included with the PowerPlus BPH T288T-48?

No, the battery is not included. You need to purchase a compatible 48V PowerPlus battery separately. The tool is sold as a bare unit.

What is the cutting width of the BPH T288T-48?

The cutting width is 30 cm (12 inches), allowing efficient trimming of grass and weeds.

Can I adjust the handle height?

Yes, the handle can be adjusted to different positions for comfort and better control. Loosen the adjustment knob, slide the handle to the desired height, and tighten the knob securely.

What safety precautions should I follow?

Always wear eye and ear protection. Keep bystanders and pets at least 15 meters away. Do not operate near flammable materials. Use the dual switch safety feature to prevent accidental start. Remove battery before maintenance.

How should I store the trimmer?

Store the trimmer in a dry, cool place away from direct sunlight. Remove the battery before storage. Clean the tool thoroughly and check for any damage. If storing for a long period, charge the battery to 50%.

What maintenance is required for the BPH T288T-48?

After each use, clean the trimmer with a soft brush and remove grass debris. Check the cutting line and replace if worn. Lubricate the moving parts occasionally. Inspect the guard and safety features regularly.

Is the shaft telescopic?

Yes, the shaft is telescopic, allowing you to adjust the length for comfortable use. Loosen the collar, extend or retract the shaft, and tighten the collar securely.

USER MANUAL BPH T288T-48 PowerPlus

User Manual Battery Pack

1. Important Safety Warnings

Please comply with all warnings and operating instructions in this instruction strictly. Read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

• Do not try to assemble or repair the unit yourself, contact your local supplier, seek for help of qualified technician
• To eliminate any overheating of the battery box, keep all ventilation openings free from obstruction and do not place any foreign objects on top of the battery bank. Keep the battery box 20 cm away from the wall.
• Make sure the battery box is installed within the proper environment as specified. (0-40°C and 30-90% non-condensing humidity)
• Do not install the battery box under direct sunlight. Your warranty will be void if the batteries fail due to overheating.

- This battery box is not designed for use in dusty, corrosive and salty environment.

- The warranty for this battery bank will be void if water or other liquid is spilled or poured directly onto the battery box. Similarly we do not warrant any damage to the battery box if foreign objects are deliberately or accidentally inserted into the battery box enclosure.

- The battery will discharge naturally if the system is unused for a period of time.

- It should be recharged every 2-3 months if unused. If this is not done, then the warranty will be null and void. During normal operation, the batteries will be automatically remained in charged condition.

- Servicing of batteries should be performed or supervised by trained personnel with knowledge of batteries and the required precautions.

- When replacing batteries, it is necessary to replace ALL batteries with the same quantity, type & capacity.

- CAUTION – Do not dispose of battery or batteries in a fire. The battery may explode.

- CAUTION – Do not open or mutilate the batteries. The electrolyte from the batteries is toxic and harmful to the skin and eyes.

- CAUTION – Risk of Electric Shock – Hazardous voltage may exist between battery terminals and ground. Test before touching with bare hands.

- CAUTION – A battery can present a risk of electrical shock and high short circuit current. The following precaution should be observed when working on batteries:

1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect charging source prior to connecting or disconnecting battery terminals.

- Do not plug or unplug the battery connector if UPS works in DC (discharging) mode.

Installation and Setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use

Storage & Maintenance

The unit contains no user-serviceable parts. If the battery service life (3\~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.

Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.

Storage

Before storing, charge the unit 4 hours. Store the unit covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:

Storage Temperature Recharge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours

BlueWalker Assembly work instruction

Subject: 10120560 N	Self-checking is a must
	station: Assy	page: 1/7	version: 00
114-20425-XX insulator

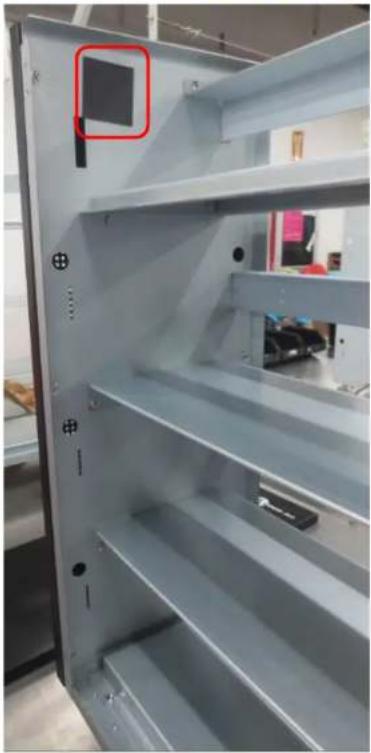

2 1.Paste insulator as shown in below picture.
	Self-checking is a must
	station : Assy	page : 2/7	version : 00

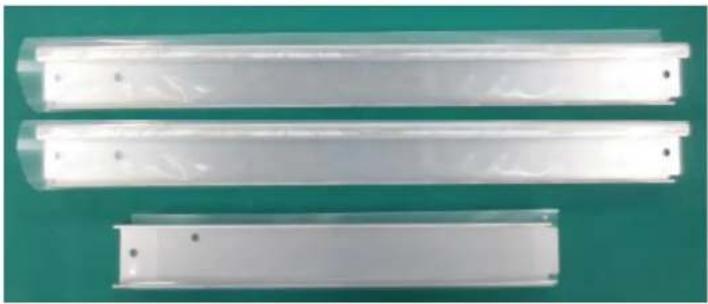

373-03962-XX Long battery plate 2373-50001-XX Short battery plate 1610-00903-XX Insulator bag 3410-91023-XX M4*8 screw 3W112-000090 Battery112-00356-XX Battery12V 45W112-00817-XX Battery12V 34W112-00836-XX Battery12V 34W520-93003-XX Insulator box	2. Put insulator bag on battery plates; fix battery plates( wider side is on the top). 1、Insert one side of battery plate into the slot; fix the other side to the metal with M4*8 screws.(fix into the top screw holes)40	3. Put 2 pieces of batteries into insulator box as shown below. Totally there are 20 groups of batteries.4. Put these 20 groups of batteries into the chassis.	Torque : 16kgf cm	Cross scre torqueRemarks: to avoid short circuit, please be noted that the battery terminals must not contact the metal parts.
W112-000090 Battery 8112-00356-XX Battery12V 45W112-00817-XX Battery12V 34W112-00836-XX Battery12V 34W114-20425-XX insulator 1Insultor should the right side of battery, and al insulator should be 1.5cm higher than the 4thbattery.
373-14613-XX battery plate 1 1373-14612-XX battery plate 2 1410-91023-XX M4*8 screw 7610-00903-XX Insulator bag 3373-03962-XX Long battery plate 2373-50001-XX Short battery plate 1
	Battery plate 1	Battery plate 2	Torque:16kgf-c Cross scre torque n torque
	7. After fix battery plate 1, Put insulator bag on battery plates 2 and combination it on the metal, fix in the middle of two battery plates with M4*8 screws.
Fix battery plates 1 with			Fix with M4*8Put insulator bag on other battery plates; fix battery plates( wider side is on the top).
720-A9606-XX Short battery wire 23 8、As shown in the figure, Insert the wires.720-E5503-XX 9# 500mm battery 2 wire720-E5504-XX 10# 570mm 1 battery wire7.Verify step6 is OK, insert 80mm short battery wire *66.insert 500mm long battery wire *15.insert 80mm short battery wire *54.insert 570mm long battery wire *13.insert 80mm short battery wire *62.insert 570mm long battery wire *11.insert 80mm short battery wire *6				Note: Insert the battery wire on the right side of the 5# battery(into the red terminal);It can't be inserted into the black terminal.That is dangerous!8. insert 6# RED wire from rear cover
720-A9606-XX Short battery wire 17 9、As shown in the figure, Insert the wires.720-E5503-XX 9# battery wire 2720-E5504-XX 10# battery wire 18. insert 5# RED wire from rear cover7.insert10#wire into the black terminal of the 4# battery6. insert 500mm long battery wire *15. insert 80mm short battery wire *54. insert 570mm long battery wire *13. insert 80mm short battery wire *62. insert 570mm long battery wire *11. insert 80mm short battery wire *6
