Product Type	Hand blender system (immersion blender with multiple jugs)
Model	MMBC700BCN
Power Rating	350 W
Voltage / Frequency	220 V ~ 50 Hz
Dimensions (H x W x D)	327 x 104 x 104 mm
Jug Material - To-Go & Chopper	Tritan (unbreakable, BPA-free, no taste or smell)
Jug Material - Glass	ThermoSafe glass (heat-proof)
Jug Capacities - To-Go	600 ml (max level)
Jug Capacities - Chopper	200 ml (max level)
Jug Capacities - Glass	500 ml (max level)
Number of Speeds	2 (low speed I and high speed II)
Control Type	Press buttons (I and II)
Illuminated Ring	Indicates correct assembly and operation
Safety Systems	Start lock-out if jug not correctly attached; automatic cut-out if jug detaches during operation
Max. Temperature for Plastic Jugs	50 °C
Max. Hot Liquid in Glass Jug	0.3 L
Dishwasher Safe Parts	Jugs, lids, drinking cap, screw cap (excluding base unit and blade holder seal)
Blade Holder Cleaning	Remove seal; clean with brush under running water only
Base Unit Cleaning	Wipe with a soft damp cloth; never immerse in water
Included Accessories (depending on model)	Base unit, blade insert, To-Go jug, chopper jug, glass jug, lids, caps
Intended Use	Domestic use; mixing, chopping, puréeing, crushing ice, blending frozen fruit
Manufacturer	BSH Home Appliances (China) Co., Ltd.

Frequently Asked Questions - MMBC700BCN BOSCH

How do I assemble the blender jug correctly?

Hold the blade insert by the plastic ring and insert it into the jug, turning anticlockwise until it clicks. Then turn the jug over and attach it to the motor block by turning clockwise until it locks into place.

Can I process hot liquids in the plastic blender jug?

No, do not process food hotter than 50°C in the plastic jug. For hot liquids, use the glass blender jug and pour a maximum of 0.3 liters. Steam can escape through the funnel; hold the lid firmly but do not cover the filling opening.

Why won't the blender start?

The blender will only start if the jug is correctly attached. Make sure it is turned clockwise until it clicks into place. If the illuminated ring (if equipped) does not light up, the jug may not be properly locked. Release the button, unplug, reattach the jug, and try again.

How should I clean the blade holder?

Remove the seal before cleaning. Clean the blade holder only with a brush under running water. Do not leave it soaking in water or place it in the dishwasher.

Can I put the jugs and lids in the dishwasher?

Yes, the blender jugs (Tritan and ThermoSafe), lids, drinking cap, and screw cap are dishwasher safe. However, the base unit and blade holder seal must not be placed in the dishwasher.

What is the maximum capacity for ice crushing?

The recommended maximum quantity for ice cubes or frozen fruit is about 200 ml (or 50 g) for the chopper jug. Use the high speed setting and process in short bursts (20 x 1 second) if needed.

Can I blend frozen fruit directly?

Yes, the blender is suitable for processing frozen fruit. Use the chopper or To-Go jug and the high speed setting. For best results, add a little liquid first and process in pulses.

What does the illuminated ring indicate?

The illuminated ring lights up when the blender jug is correctly assembled and the appliance is plugged in. It remains lit while the appliance is in use. If it does not light up, check the jug attachment and power connection.

How can I order replacement accessories?

Replacement parts such as the To-Go jug, chopper jug, glass jug, and blade inserts can be ordered from customer service. Order numbers are provided in the manual for each accessory.

Can I use the glass blender jug in the microwave?

No, the glass blender jug is not microwave safe. Only use it for blending as intended. Do not heat it in a microwave.

USER MANUAL MMBC700BCN BOSCH

Portable Blender

MMBC5..CN

MMBC7..CN

BOSCH

zh Instruction manual

en Instruction manual

Intended use

[e-mail]

Company website:

www.bosch-home.cn

Technical data:

This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use.

This appliance is suitable for mixing liquid or semi-solid food, for cutting or chopping raw fruit and vegetables, for puréeing food and for chopping frozen food (such as fruit) or for crushing ice cubes. The appliance must not be used for processing other substances or objects. Additional applications are possible if the accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories. Never use the accessory parts for other appliances.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

⚠️ Risk of electric shock and fire!

■ Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.

■ Never connect the appliance to timer switches or remote-controllable sockets. Never leave the appliance unattended while it is switched on!

■ Do not place the appliance on or near hot surfaces, e.g. hobs. The power cord must not come into contact with hot parts or be pulled across sharp edges.

■ Never immerse the base unit in liquids or hold under running water and do not clean in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands.

■ After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Risk of injury!

■ Care should be taken when handling the sharp cutting blades, emptying the container and during cleaning.

■ Before replacing accessories or additional parts which move during operation, the appliance must be switched off and disconnected from the power supply.

■ Never place fingers in the attached blender jug. Never operate the appliance without a completely assembled blender or attached lid! Do not remove or attach blender jug until the appliance has been switched off and the drive has come to a standstill. When the appliance has been switched off, the blade continues running for a short time.

■ Never process food that is hotter than 50°C in the plastic blender jug.

Risk of scalding!

■ Caution when processing hot liquids.

If processing hot liquids in the glass blender jug, steam escapes through the funnel in the lid. You should always use one hand to hold the lid firmly in place while you work, but don't place your hand over the filling opening!

Pour a maximum of 0.3 liters of hot or frothing liquid into the glass blender jug.

Risk of suffocation!

Do not allow children to play with packaging material.

Important!

The blender jugs are not suitable for use in the microwave.

We recommend that the appliance is never switched on for longer than is necessary to process the ingredients. Do not operate at no-load.

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. See "Cleaning and servicing" on page 14.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our web page.

Manufacturer:

BSH Home Appliances (China) Co., Ltd. 20/F, 21/F, CN International Mansion, 129 Zhongshan Road, Nanjing, Jiangsu Province, PRC.

Applicable standards:

GB 4706.1-2005

Safety of Household and Similar Electrical Appliances Part 1: General Requirements GB 4706.30-2008

Safety of Household and Similar Electrical Appliances – Particular Requirements for Kitchen Machines

Careline:

4008855888

Service E-mail:

[e-mail]

Company website:

www.bosch-home.com

Technical specifications:

Electrical connection (voltage – frequency)	220 V~50 Hz
Power rating 350 W
Dimensions (H x W x D)	327 x 104 x 104 mm

Contents

Intended use....9

Important safety information....9

Overview.... 11

Illuminated ring ....12

Blender jug ....12

Before using for the first time....13

Use 13

Cleaning and servicing ....14

Safety systems ....15

Troubleshooting....15

Recipes....15

Disposal....16

Guarantee....16

These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages.

→ Fig. G

Overview

→ Fig. A

1 Base unit / Motor block

a Buttons to switch on b Operation indicator (illuminated ring)* c Drive d Mains cable

I = low mixing speed

| = high mixing speed

2 Blade insert with mixing blade

3 To-Go blender jug

a Container made of Tritan b Scale marked with "max" level c Lid with opening for drinking d Drinking cap

4 Chopper blender jug*

a Container made of Tritan b Scale marked with "max" level c Lid with opening for drinking d Screw cap

5 Glass blender jug*

a Container made of ThermoSafe glass b Lid with opening for filling c Locking cap

* Depending on the model

If any of the accessories is not included with the hand blender, it can be ordered from customer service:

Accessories Order no.
To-Go blender jug
Black 12012850
White 12012851
dark grey 12012853
Chopper blender jug
Black 12012855
White 12012857
Glass blender jug
Black 12012847
White 12012848

With the chopper blender jug, you can use the appliance at full power. Note the specified processing quantities and times!

→ Fig. H

Illuminated ring

Depending on the model

The illuminated ring lights up when all the parts have been correctly assembled and the appliance is plugged in. The illuminated ring remains lit up while the appliance is in use.

Blender jug

Notes:

• The to-go blender jug and the chopper blender jug are made of Tritan. Tritan is an unbreakable plastic with no discernable taste or smell.
• The glass blender jug is made of heat-proof ThermoSafe glass.

The blender jugs are suitable for different purposes (depending on the model):

Application Blender	jug
Blending and frothing liquids
Cutting and chopping herbs, raw fruit, vegetables, onions, peanuts, nuts, parmesan and chocolate
Crushing and blending ice cubes and frozen fruit
Blending fruit juice and other drinks
Preparing mayonnaise
Puréeing soups and sauces, processing hot ingredients
Adding ingredients during the mixing process
Use in the microwave	XXX

Important!

Note the recommended processing quantities and times. → Fig. H

Before using for the first time

Before the new appliance can be used, it must be fully unpacked, cleaned and checked.

Caution!

Never operate a damaged appliance!

■ Remove the base unit and all accessories from the packaging. ■ Remove the packaging material that is present. ■ Check that all the parts are present and examine them for obvious damage.

→ Fig. A

■ Thoroughly clean and dry all parts before using for the first time.

→ "Cleaning and servicing" see page 14

Use

Risk of injury!

• Do not insert the mains plug until all preparations for working with the appliance are complete and the required attachments are assembled correctly and connected to the base unit.
• Never process food that is hotter than 50°C in the plastic blender jug.
• Handle the blade insert with care, and don't put your hand between the blades.

→ Fig. B

Never put your hand in the blender jug once it is in place, and always put the lid on before using the appliance.

Risk of scalding!

Pour no more than 0.3 litres of hot or frothing liquid into the glass blender jug.

Place the base unit on a stable and level work surface. Completely unwind the mains cable.

Using the to-go or chopper blender jug

→ Fig. C

1. Put the desired ingredients into the blender jug.
2. Hold the blade insert by the plastic ring and insert it – blade first – into the blender jug. Turn the blade insert anticlockwise until it audibly clicks into place.
3. Turn the blender jug over.

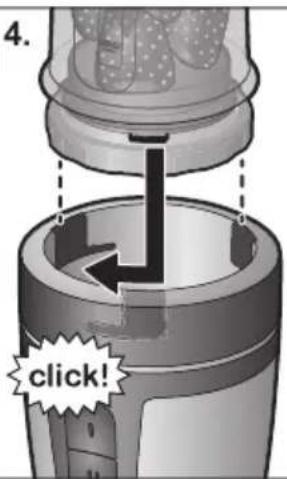

4. Insert the blender jug into its recess on the motor block and turn it clockwise until it audibly clicks into place.
5. Plug the mains plug into the mains.

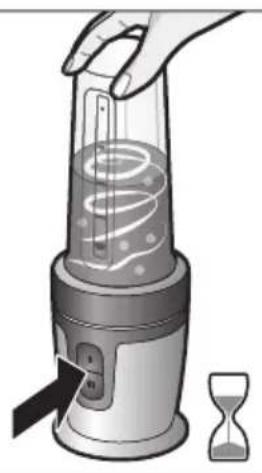

6. Hold the blender jug firmly with one hand. Hold down the I or II button until the mixture has reached the desired consistency.
7. Release the button and wait until the appliance comes to rest. Disconnect the mains plug.
8. Turn the blender jug anti-clockwise and then remove it.
9. Turn the blender jug over.
10. Turn the blade insert clockwise and then remove it.

Caution!

Never set the blade insert down with the blade underneath. This could damage the blade and scratch your work surface.

→ Fig. B

1. Close the jug with the lid.

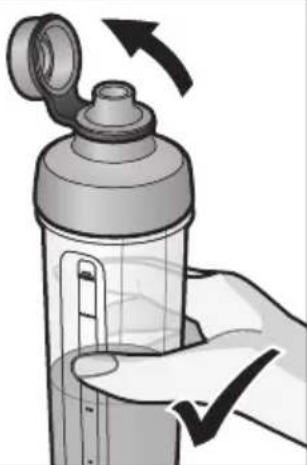

2. To pour out or drink contents, undo screw cap and remove, or lift up drinking cap.

Clean all the parts.

→ "Cleaning and servicing" see page 14

Working with the glass blender jug

→ Fig. D

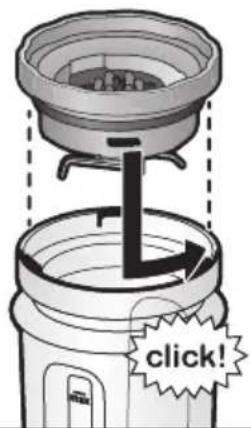

1. Hold the blade insert by the plastic ring and insert it – blade first – into the blender jug. Turn the blade insert anti-clockwise until it audibly clicks into place.
2. Turn the blender jug over.
3. Insert the blender jug into its recess on the motor block and turn it clockwise until it audibly clicks into place.
4. Put the desired ingredients into the blender jug.
5. Put the lid and locking cap in place.
6. Plug the mains plug into the mains.

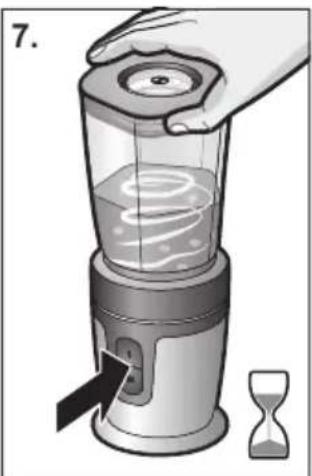

7. Hold the lid firmly with one hand, but don't place your hand over the filling opening. Hold down the I or II button until the mixture has reached the desired consistency.
8. Release the button and wait until the appliance comes to rest. Disconnect the mains plug.
9. Turn the blender jug anti-clockwise and then remove it.
10. Remove the lid.
11. Pour the blended food into another container.
12. Turn the blade insert clockwise and then remove it.

Caution!

Never set the blade insert down with the blade underneath. This could damage the blade and scratch your work surface.

→ Fig. B

Clean all the parts.

→ "Cleaning and servicing" see page 14

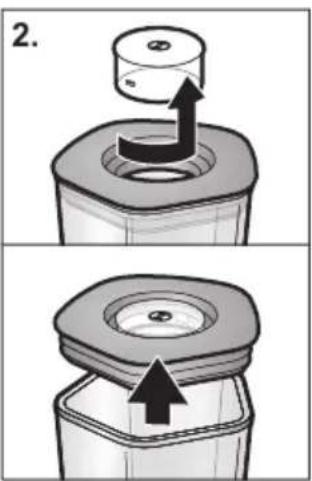

Adding more ingredients

→ Fig. E

1. Release the button and wait until the appliance comes to rest.
2. Remove the locking cap or the entire lid.
3. Add the extra ingredients.
4. Replace the lid and the locking cap, and again hold down the I or II button.

Note: you can remove the locking cap by turning it anticlockwise.

Cleaning and servicing

The appliance and all the attachments and accessories used must be thoroughly cleaned after each use.

⚠️ Risk of electric shock!

– Unplug the appliance before cleaning it. - Never immerse the base unit in liquids and do not clean in the dishwasher. - Do not use a steam cleaner.

Risk of injury!

Do not touch the blender blades with your bare hands.

Caution!

• Do not use any cleaning agents containing alcohol or spirits.
• Do not use any sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.

Notes:

• It is best to clean the parts immediately after use. This will prevent residues from drying on and possibly attacking the plastic (e.g. essential oils in herbs).
• Pour a little water and washing-up liquid into the empty blender jug and hold down button || for a few seconds.
• The plastic parts may become discoloured when you process certain ingredients, such as carrots, but this can be removed with a few drops of cooking oil.

In Fig. F you will find a summary of how to clean the individual parts.

Base unit

Wipe the outside of the base unit with a soft, damp cloth and dry off.

Blade holder

Remove the seal before cleaning. Only clean the blade holder with a brush under running water. Don't leave it soaking in water!

Blender jugs and lids

You can clean the blender jugs and other parts with a detergent solution and a soft cloth or sponge, or put them in the dishwasher.

Safety systems

Start lock-out and automatic cut-out

The appliance can be switched on only if the blender jug has been latched firmly into place. The appliance will switch off automatically if the blender jug becomes detached while it is running.

→ "Troubleshooting" see page 15

Troubleshooting

Risk of injury!

Before dealing with any faults, unplug the mains plug.

Fault

Appliance fails to start up or switches off while in use. The illuminated ring (depending on the model) does not light up.

Possible cause

Blender jug is not correctly positioned or has become detached.

Remedy

■ Release the button. Disconnect the mains plug. ■ Position the blender jug correctly and turn it until it latches audibly into place. - Plug the mains plug into the mains. Press the | or || button again to test the function.

Important note

If this does not resolve the problem, please contact customer service. → You will find their contact information at the end of these operating instructions

Recipes

Notes:

• First mix the solid ingredients with half the amount of liquid, then add the remainder of the liquid.
• Use the appropriate blender jug for each recipe.
• Note the recommended processing quantities and times. → Fig. H

Green smoothie

• 1 green apple (ca. 100 g) – Juice of one lemon (ca. 20 g)
• 20 g kale
• 10 g celery
• 10 g coriander leaves
• 10 g linseed
• 1 g ground cinnamon
• 300 g cooled water ■ Cut apple, celery and kale into pieces. ■ Put a little of the water in the blender jug. ■ Blend for 1 minute at speed ||. ■ Add all the remaining ingredients to the blender jug. ■ Blend for 1 minute at speed ||.

Smoothie

• 1 banana (ca. 100 g)
• 4 g fresh red ginger
• 100 g yoghurt
• 30 g honey
• 100 ml milk
• Peel the banana and ginger and cut into pieces. ■ Place all the ingredients in the to-go blender jug. ■ Blend for 1 minute at speed II.

Energy drink

• 240 g low fat milk
• ½ banana (ca. 50 g)
• 30 g sugar
• 20 g cocoa powder ■ Cut the banana into pieces and freeze overnight. ■ Place all the ingredients in the blender jug. ■ Blend for 1 minute at speed II.

Apples and peas

• 100 g frozen peas
• 100 g frozen soya beans
• 1 apple (ca. 100 g)
• 220 g apple juice

■ Peel and core the apple and cut it into pieces. ■ Rinse the peas and soya beans under running water. ■ Put the apple, peas and soya beans into boiling water and let them stand for 3 minutes. ■ Rinse the cooked ingredients in a sieve under running water and then place them in iced water for a further 3 minutes to cool. ■ Place the cooked ingredients and the apple juice in the blender jug. ■ Blend the mixture at speed II until it is thick and creamy.

Avocado cream

• 1 apple or pear (ca. 100 g)
• ½ avocado (ca. 70 g)
• 100 g water
• Peel and core the apple or pear and cut it into pieces. ■ Gently simmer the pieces in a little water on a low heat until they are soft.
• Peel the avocado, cut it into pieces and remove the stone. ■ Place the cooked ingredients and the piece of avocado in the blender jug. ■ Blend the mixture at speed II until it is thick and creamy.

Sportsman's cocktail

• 150 g oranges
• 50 g lemon
• 1 tsp sugar or honey
• 125 ml apple juice
• 125 ml mineral water
• Peel the oranges and lemons, cut into pieces and remove the pips. Place all the ingredients in the blender jug. Blend for 1 minute at speed I.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Customer Service

DE Deutschland, Germany

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite, Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

*Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

European Trade Center Building, 5th floor 1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch.home.bg

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Kazakhstan

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto: [e-mail]

Technodom Service

Utegen Batira Str. 73

480096 Almaty

Tel.: [phone]

mailto: [e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str. 51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon,

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm (exclude public holidays)

PL Polska, Poland

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore Singapore

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenia, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Service-General SH.P.K.

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

Manufacturer:

BSH Home Appliances (China) Co., Ltd.

Address:

C

1.

1.

1.

1.

1.

1.

1.

9.

1.

1.

1.

D

1.

2.

1.

E

F

G

MMBC510VCN

2x

MMBC54GZCN

2x

MMBC700BCN

MMBC700WCN

H
		√			600 ml 180 s		II
			√		200 ml 180 s		II
				√	500 ml 180 s		II
		√		√		60 s	II
		√			300 ml 60 s		I / II
	max. 50°C!			√	200 ml 60 s		I / II
					4 x 10 g(40 g)	20 x 1 s	###
	→ (1 cm)				50 g		###
1.							###
2. +		20-23°C					###
