Product Type	Hand Mixer
Brand	Bosch
Model	MFQM570BCN
Dimensions (H x W x D)	142 x 200 x 75 mm
Weight	Approx. 1 kg
Power Consumption	500 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Speed Settings	5 steps + Instant max (M)
Included Tools	Stirrer 'Fine Creamer', Kneading hook
Optional Accessories	Blender jug, high-speed hand blender (plastic/stainless steel), universal cutter
Maximum Dough Capacity	500 g flour
Material (Base Unit)	Plastic
Material (Tools)	Metal (stirrer and kneading hook)
Cord Length	Approx. 1.5 m (estimated)
Cleaning	Base unit: wipe with damp cloth; Tools: dishwasher safe
Safety Features	Auto restart prevention, ejector button, self-closing rear aperture
Noise Level	Quiet operation (closed housing)
Country of Origin	Slovenia
Guarantee	Varies by country
Certifications	GB 4706.1-2005, GB 4706.30-2008

Frequently Asked Questions - MFQM570BCN BOSCH

What is the maximum amount of dough I can mix with this hand mixer?

The maximum processing quantity is 500 g of flour and ingredients for stiff mixtures such as bread dough.

Can I use the blender jug in the microwave?

No, the blender jug is not suitable for use in the microwave.

How do I remove the tools from the hand mixer?

Set the switch to position 0, then press the ejector button to release the tools. The ejector button only works when the switch is at 0.

What should I do if the switch cannot be moved to settings 1 to 5?

Ensure the rear aperture is closed. When the rear aperture is open, the selector switch 1-5 will not function; only instantaneous switching (M) is possible.

Can I wash the base unit in the dishwasher?

No, never immerse the base unit in liquids or clean it in the dishwasher. Wipe it with a damp cloth only.

How do I store the power cord?

The power cord can be wound up and secured using the cable clamp on the base unit for convenient storage.

What is the 'Fine Creamer' stirrer used for?

The 'Fine Creamer' stirrer is designed for sauces, beaten egg white, whipped cream, mayonnaise, and light dough like cake mixture. It is not suitable for heavy dough.

How do I use the high-speed hand blender accessory?

Insert the high-speed hand blender into the rear aperture until it locks. Use instantaneous switching (M) for blending. For recipes like mayonnaise, place ingredients in the jug, start at the bottom, and slowly raise the blender.

Can I use the appliance with damp hands?

No, do not use the appliance with damp hands to avoid risk of electric shock.

What are the main safety precautions for this hand mixer?

Always disconnect from power when unattended or before cleaning. Never grip rotating tools, and wait until they stop before removing. Do not immerse base unit in liquids. Keep children away from the appliance.

USER MANUAL MFQM570BCN BOSCH

Close-up of two eggs inside a textured, granular substance (no text or symbols visible)

立即注册您的新博世产品：

www.bosch-home.cn

Black Bosch electric hand mixer with whisk, no visible text or symbols on the device body

Close-up of a coiled wire with two black probes (no text or symbols visible)

Close-up of a baked bread loaf with powdered sugar and a cut section showing a slice of bread (no text or symbols visible)

手持式料理机

MFQM..CN

BOSCH

zh 使用说明书

en Instruction manual

Illustration of an open book with a curved arrow indicating rotation (no text or symbols)

安全须知

[e-mail]

公司网站：

www.bosch-home.cn

技术数据:

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is intended for domestic use only. Use the appliance for processing normal quantities of food for domestic use. The hand mixer is suitable for mixing doughy or liquid foods or for whipping cream. It must not be used for processing other objects or substances. Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance shall not be performed by children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use the appliance indoors at room temperature and up to 2000 m above sea level. Do not use the appliance if the power cord and/or appliance are damaged. Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Do not place the power cord over sharp edges or hot surfaces. To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Electric shock risk

If the power is interrupted, the appliance remains switched on and restarts when the power is restored. Switch off the appliance immediately. Never immerse the base unit in liquids and do not clean in the dishwasher. Do not use a steam cleaner! Do not immerse the appliance in liquid above the joint between the high-speed hand blender and base unit. Do not use the appliance with damp hands. Do not operate the appliance at no-load. Operate the appliance with original accessories only. Insert tools of one type only (e.g. kneading hook). Recommendation: Never switch on the appliance for longer as you need to processing the ingredients. The blender jug is not suitable for use in the microwave.

Risk of injury from rotating drive!

Never grip the rotating tools. Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

Contents

For your safety ....8

Overview....10

Operation....10

Troubleshooting....11

Recipes.... 11

Disposal....13

Guarantee....13

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our web page.

Country of origin:

Slovenia

Exclusive distributor:

BSH Home Appliances (China) Co., Ltd.

20/F,21/F, CN International Mansion,

129 Zhongshan Road, Nanjing,

Jiangsu Province, PRC.

Applicable standards:

GB 4706.1-2005

Safety of Household and Similar Electrical

Appliances Part 1: General Requirements

GB 4706.30-2008

Safety of Household and Similar Electrical

Appliances – Particular Requirements for

Kitchen Machines

Careline:

4008855888

Service E-mail:

[e-mail]

Company website:

www.bosch-home.cn

Technical specifications:

Electrical connection (voltage – frequency)	220-240 V~50/60 Hz
Power rating 500 W
Dimensions (H x W x D)	142 x 200 x 75 mm

These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages.

(Fig. D)

Overview

Please fold out the illustrated pages.

Figure A:

1 Base unit
2 Power cord
3 5-step switch + fast and continuous operation

For switching the appliance on and off and adjusting the operating speed.

0 = switched off

1 = slowest speed

5 = fastest speed

M = Instantaneous switching

(maximum speed)

press to the left and hold in place

4 Ejector button
For removing the tools
5 Cable clamp
6 Apertures for inserting the tools with lock

Are automatically closed when tool is pushed on the rear aperture.

7 Release buttons

For removing accessories from the rear aperture. Press both buttons simultaneously.

8 Self-closing rear aperture

To insert accessory, e.g. the high-speed hand blender, push on the rear aperture and hold in place. Rear aperture closes automatically when the accessory is removed.

Tools

9 Stirrer "Fine Creamer"

Thanks to the special shape of the whisk, the mixing result is particularly quick and effective.

10 Kneading hook

Depending on Model:

11 Blender jug
12 High-speed hand blender

made of plastic

13 High-speed hand blender made of stainless steel
14 Universal cutter

With the universal cutter use the appliance at full power to prepare honey spread (according to the recipe).

You can find the recipe in the operating instructions of the universal cutter.

If an accessory is not supplied as standard, it can be ordered from customer service.

High-speed hand blender:

plastic order no. 657242

stainless steel order no. 657258

Universal cutter: order no. 659058

When using the accessories, follow the separate operating instructions for the accessories.

Operation

The closed shape of the housing means that the appliance runs especially quietly.

Nevertheless, it reaches full motor power and speed. An especially good result is achieved if the tools are used for the following applications:

Stirrers for...

...sauces, beaten egg white, mashed potatoes, crème fraîche, mayonnaise, cream and light dough, e.g. cake mixture.

Stirrers are not suitable for processing heavy dough.

Kneading hook for...

...stiff mixtures such as short pastry, yeast dough and potato dough as well as for mixing heavy mincemeat dough, pasta or bread dough.

The maximum processing quantity is 500 g of flour and ingredients.

Important information

When the rear aperture is open, the appliance can be operated using instantaneous switching only. Selector switch 1-5 will not function. Move slide for actuating the lock in switch position 0 only.

Risk of injury from rotating drive!

Never grip the rotating tools. Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly. Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

■ Before using the appliance for the first time, clean base unit and tools.

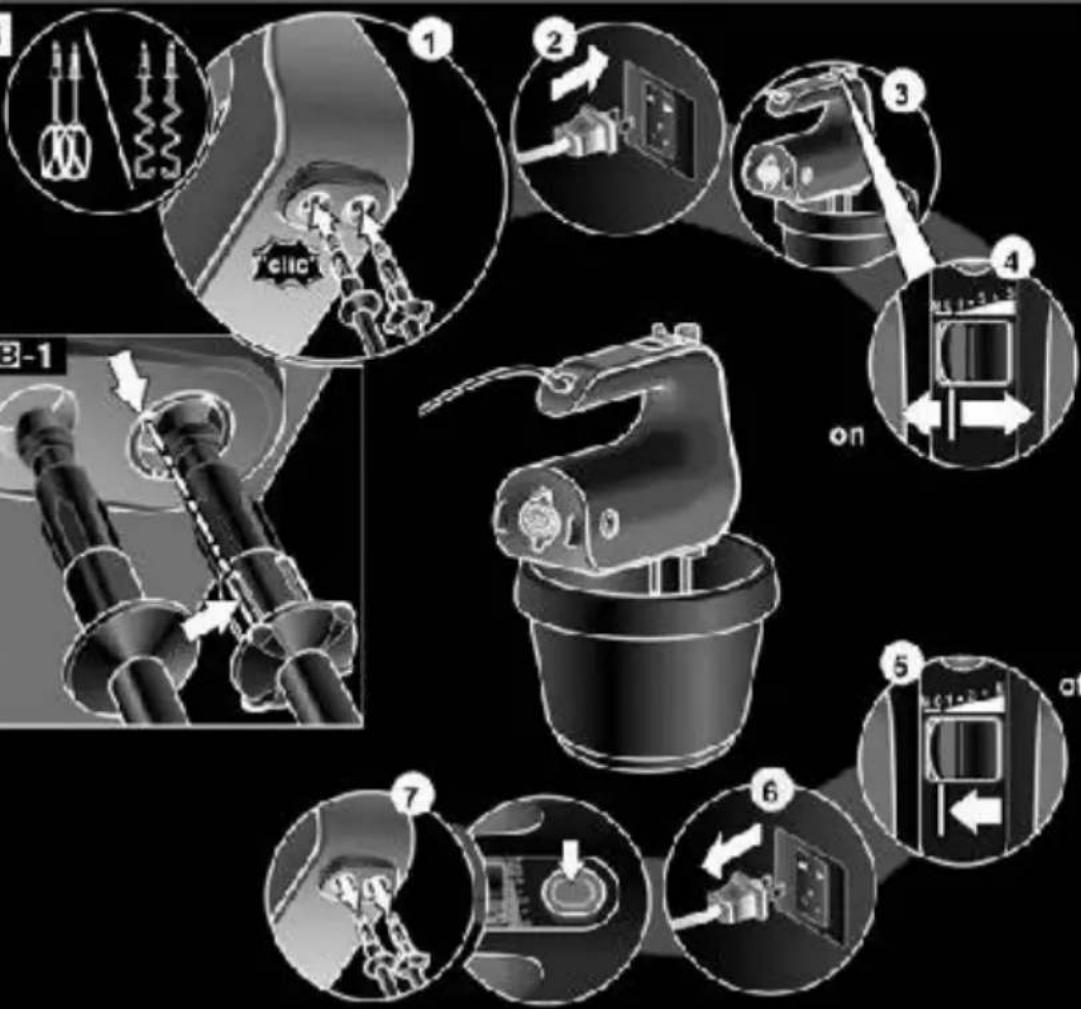

Figure B:

■ Completely unwind the power cord.
■ Place the required tool on the base unit and depress until it locks into position.

Note the shape of the plastic parts to prevent mixing them up (see Fig. B-1)!

■ Insert the mains plug.
■ Place the food in a suitable receptacle.
■ Insert tools into the receptacle and switch on the appliance at the required setting. Settings 1, 2: for working in and mixing in. Settings 3, 4, 5: for kneading and beating.

■ After working, set the switch to 0 and release and remove the tools with the ejector button.

Attention:

The ejector button cannot be actuated unless the switch is in the 0 position.

Note:

Always switch off the base unit before taking it out of the blended food.

After using the appliance / cleaning

Important information

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional.

Risk of electric shock!

Never immerse the base unit in liquids and do not clean in the dishwasher. Do not use a steam cleaner! Do not use the appliance with damp hands.

Warning!

Surfaces may be damaged. Do not use abrasive cleaning agents.

■ Remove mains plug.
■ Wipe the base unit with a damp cloth and then wipe dry.
■ Clean the tools in the dishwasher or with a brush under running water.

Note: If processing e.g. red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Figure C:

■ The power cord can be wound up to facilitate storage of the appliance.
■ Attach mains plug to the cable clamp.

Troubleshooting

Switch cannot be moved to settings 1 to 5.

Remedial action: When the rear aperture is open, selector switch 1-5 will not function.

Recipes

Whipped cream

• 100 g-500 g
  ■ Whip cream with the stirrer for 12 to 5 minutes at setting 5 (depending on the quantity and properties of the cream).

Egg white

• 1 to 5 egg whites
  ■ Using the stirrer, beat egg whites for 2 to 5 minutes at setting 5.

Sponge mixture

Basic recipe

• 2 eggs
• 2-3 tbs. hot water
• 100 g sugar
• 1 packet of vanilla sugar
• 70 g flour
• 70 g cornflour
  – Baking powder if required

■ Beat the ingredients (except flour and cornflour) with the stirrer for approx. 3-4 minutes at setting 5 until frothy.

■ Switch appliance to Setting 1, mix sifted flour and cornflour by the spoonful within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

- 2 eggs

- 125 g sugar

- 1 pinch of salt

- 1 packet of vanilla sugar or peel from 12 lemon

- 125 g butter or margarine (room temperature)

- 250 g flour

- 1 packet of baking powder

- 60 ml of milk

■ Mix all ingredients with the stirrer for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Short pastry

Basic recipe

- 125 g butter (room temperature)

- 100-125 g sugar

-1 egg

- 1 pinch of salt

– A little lemon peel or vanilla sugar

-250g flour

– Baking powder if required

■ Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Base for fruit flan

Basic recipe

-2 eggs

- 125 g sugar

- 125 g ground hazelnuts

- 50 g breadcrumbs

■ Beat eggs and sugar for 3 to 4 minutes at setting 5 until frothy.

■ Switch appliance to setting 1, add hazelnuts and breadcrumbs and process for 12 minute with the stirrer.

Maximum quantity: 2 x basic recipe

Plaited bun

Basic recipe

- 250 g flour

- 1 packets of dry yeast

- 110 ml warm milk

- 1 egg

- 1 pinch of salt

- 40 g sugar

- 30 g melted and cooled fat

– Graded rind of half a lemon

■ Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Pizza dough

Basic recipe

-250g flour

- 1 packets of dry yeast

- 1 tsp. sugar

- 1 pinch of salt

- 3 tbs. oil

- 125 ml warm water

■ Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Bread dough

Basic recipe

- 500 g flour

- 14 g sugar

- 14 g margarine

-7 g salt

- 1 packets of dry yeast

- 250 ml water

■ Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 5.

Mayonnaise

• 1 egg (egg yolk and egg white)
• 1 tbs. mustard
• 1 tbs. lemon juice or vinegar
• 200-250 ml oil
  – Salt, pepper to taste
  Ingredients must be at the same temperature!

■ Put the ingredients in the jug.
■ Place high-speed hand blender in the bottom of the jug and switch on (setting M) until the mixture emulsifies.
■ Slowly raise the switched on high-speed hand blender as far as the upper edge of the mixture and lower again until the mayonnaise is ready.

Tip: According to this recipe you can also make mayonnaise with egg yolk only. However, use only half the amount of oil.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrica and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

DE Deutschland, Germany

HEATHERTON, Victoria 3202

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

*Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

BH Bahrain

Khalaifat Est.

P.O. Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat,

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg.

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

*Mo-Sa: 8.00am to 8.00pm

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30am to 4.00pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia, ,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore,新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

B

C

Illustration of a portable nightlight with a bulb and coiled cable (no text or symbols)

D

Simple line drawing of a cylindrical object with a flared top and base (no text or symbols)

MFQM440VCN

MFCM5504CN

MFQM570BCN
