Retro 21673 - Kettle RUSSELL HOBBS - Free user manual and instructions

Product Type	Electric Kettle
Brand	Russell Hobbs
Model	Retro 21673
Body Material	Stainless Steel
Capacity	1.7 L (estimated)
Power	2200-2400 W (typical)
Voltage	220-240 V (typical)
Weight	Approximately 1.2 kg
Dimensions (HxWxD)	Approx. 24 x 15 x 22 cm (estimated)
Water Temperature Gauge	Yes, integrated thermostatic gauge
Boil Dry Protection	Yes, automatic safety cut-out
Automatic Shut-Off	Yes, when water boils or kettle lifted from base
Removable Filter	Yes, anti-scale mesh filter
Cordless Operation	Yes, with 360° base (typical)
Rapid Boil Indicator	Yes, zones marked inside
Lid Type	Removable lid
Cleaning	Wipe with damp cloth; descale monthly
Safety	Use only with supplied base; keep connectors dry
Warranty	2 years (extendable to 3 years by registration)
Spare Parts Availability	Filter, stand (consumables not covered by standard warranty)

Frequently Asked Questions - Retro 21673 RUSSELL HOBBS

How do I clean the filter of my Russell Hobbs Retro 21673 kettle?

To clean the filter, remove the lid and push the hook on top of the filter down, then lift it out. Rinse under running tap water while brushing with a soft brush. Reinsert by engaging the bottom hook in the spout and pressing the top to lock.

How often should I descale my kettle and which descaler should I use?

Descale at least monthly using a proprietary descaler. Follow the instructions on the descaler product. Failure to descale may affect performance and warranty.

What does the water temperature gauge do?

The water temperature gauge constantly shows the current temperature inside the kettle. It is useful for making drinks that require specific temperatures, such as green tea (70-80°C) or coffee (90-96°C). The gauge only works when there is at least 1 cup of water.

What happens if the kettle boils dry?

The kettle has a boil dry protection feature that automatically switches it off. Unplug the kettle and let it cool until the safety cut-out resets. Repeated boil dry use may shorten element life.

Is the kettle safe for children to use?

Children aged 8 and above can use the kettle if supervised and instructed about hazards. Children under 8 should be kept away from the appliance and its cord. Cleaning and maintenance must not be done by children unless supervised.

Can I use the kettle without a lid?

No, always fit the lid when boiling to prevent steam escape and ensure proper shut-off. Using without lid may cause spitting or inaccurate temperature readings.

How do I register for the extra year warranty?

Register online at www.russellhobbs.co.uk/productregister/ within 28 days of purchase. Provide proof of purchase. The extra year adds to the standard 2-year guarantee.

Why is there moisture on the base after boiling?

Moisture on the stand is normal and caused by steam condensing when the kettle switches off automatically. It is not a fault.

What should I do if the kettle stops working?

Check the power cord, plug fuse, and main circuit breaker. If it still doesn't work, consult the retailer or contact Russell Hobbs Customer Service at 0345 658 9700. Do not attempt to repair yourself.

Can I use the kettle with other liquids?

No, use only for heating water. Using other liquids may damage the kettle and void the warranty.

USER MANUAL Retro 21673 RUSSELL HOBBS

Exterior view of a modern stainless steel kettle with a black handle and digital temperature gauge (no text or symbols on the main body)

21673

www.russellhobbs.com

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Parts of the appliance will get hot during use.

If you overfill, the kettle may spit boiling water.

Use the kettle only with the stand supplied (and vice versa).

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Avoid spillage on the stand/connector.

The surface of the heating element is subject to residual heat after use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

by clients in hotels, motels and other residential type environments; bed and breakfast type environments;

farm houses.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

- Don't use the kettle for any purpose other than heating water.

- Don't operate the appliance if it's damaged or malfunctions.

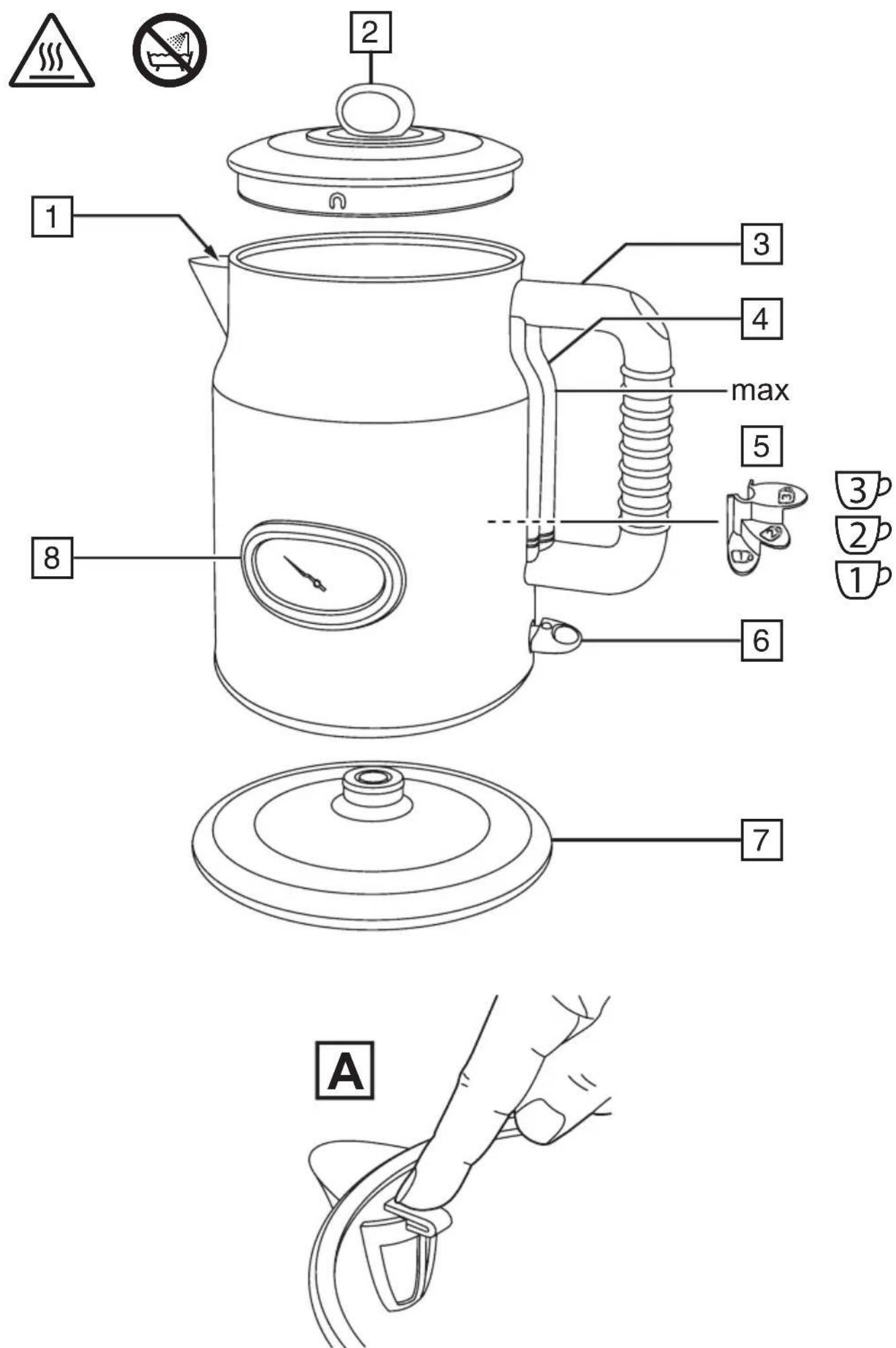

PARTS

1. Filter
2. Lid
3. Handle

4. Water level gauge

5. Rapid boil zones maker

6. Switch/light
7. Stand
8. Water level gauge

BEFORE USING FOR THE FIRST TIME

Fill to max, boil, discard the water, then rinse. Do this twice to remove any manufacturing dust, etc.

FILLING

1. Remove the lid.
2. Fill with at least 1 cup of water, but not above max.
3. If you want only 1, 2, or 3 cups of water, fill to the 1, 2, or 3 marks inside the kettle.
4. Refit the lid. Always fit the lid when boiling the kettle.

USING YOUR KETTLE

1. Put the stand on a stable, level surface.
2. Plug the stand into the wall socket.
3. Put the kettle on the stand.
4. Move the switch to I.
5. The light will come on and the kettle will start to heat up.
6. When the water boils the kettle will switch off.
7. To switch off manually, move the switch to O, or simply lift the kettle off the stand.

WATER TEMPERATURE GAUGE

The water temperature gauge constantly shows you the temperature of the water inside the kettle. Use the gauge when you are making drinks that require different water temperatures like green teas, white teas, coffee, etc. The gauge will not work if there is insufficient water in the kettle (minimum 1 cup).

GENERAL

Note: When you lift your kettle, you may see moisture on the stand. This is normal and is caused by the steam used to switch your kettle off automatically.

BOIL DRY PROTECTION

If your kettle boils dry, a safety cut-out device will automatically switch it off. If this happens, unplug your kettle and allow it to cool down until the cut-out resets itself. Allowing your kettle to boil dry will shorten the life of the element.

CARE AND MAINTENANCE

1. Unplug the stand, and let the kettle cool before cleaning.
2. Wipe all surfaces with a clean damp cloth.
3. Keep the connectors dry.
4. Remove the lid.
5. Push the hook on top of the filter down then lift the filter out of the kettle (fig A).
6. Rinse the filter under a running tap while brushing with a soft brush.
7. Lower the filter into the kettle, and engage the bottom hook in the bottom of the spout.
8. Press the top of the filter towards the kettle, to lock the hook in place.
9. Refit the lid.

Descale regularly, (at least monthly).

Use a proprietary descaler. Follow the instructions accompanying the descaler.

Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

SERVICE

If you ring Customer Service, please have the Model Number to hand, as we won't be able to help you without it. It's on the rating plate (usually underneath the product).

The product isn't user-serviceable. If it's not working, read the instructions, check the plug fuse and main fuse/circuit breaker. If it's still not working, consult your retailer.

If that doesn't solve the problem – ring Customer Service – they may be able to offer technical advice.

If they advise you to return the product to us, pack it carefully, include a note with your name, address, day phone number, and what's wrong. If under guarantee, say where and when purchased, and include proof of purchase (till receipt). Send it to:

Customer Service

Spectrum Brands (UK) Ltd

Fir Street, Failsworth, Manchester M35 0HS

email: [e-mail]

telephone: [phone] (local rate number)

Please note: If you have purchased the product within the last 6 months, please contact the retailer in the first instance to deal with any matters relating to warranty.

GUARANTEE

Defects affecting product functionality appearing within the guarantee period will be corrected by replacement or repair at our option provided the product is used and maintained in accordance with the instructions. Your statutory rights are not affected.

Guarantee period = 2 years from first retail purchase.

To claim an extra 1 year guarantee, register your product online within 28 days of purchase.

Register at: www.russellhobbs.co.uk/productregister/

Consumables are guaranteed only for their recommended lifecycle. Replacement/Spare parts* are excluded and are only covered by a 1 year warranty.

* Examples include filters, removable grill plates, drip trays/crumb trays etc.

ONLINE

www.russellhobbs.com for more products

REGISTER ONLINE

Register online for an EXTRA year guarantee*.

Visit www.russellhobbs.co.uk/productregister/

*You must register within 28 days of purchase.
