Product Type	Wireless Speaker
Dimensions	6.3 x 4.7 x 4.3 inches
Weight	1.2 lbs
Power Supply	5V DC via USB cable
Battery Life	Up to 8 hours
Bluetooth Version	5.0
Wireless Range	33 feet (10 meters)
Speaker Type	Full-range stereo
Inputs	3.5mm aux, Bluetooth
Controls	Power, volume +/-, play/pause, next/previous track
Built-in Microphone	Yes (for hands-free calling)
Compatibility	Smartphones, tablets, laptops, and other Bluetooth devices
Care Instructions	Wipe with a soft, dry cloth. Do not use liquids or solvents.
Safety Warning	Keep away from water and moisture. Do not disassemble.
Spare Parts Availability	Spare parts are not available separately.
Repairability	Not user-serviceable. Contact support for issues.
Included Accessories	USB charging cable, audio cable, user manual

Frequently Asked Questions - MS3801 On-Q

How do I pair the speaker with my phone?

Turn on the speaker and enable Bluetooth on your phone. Select MS3801 from the list of available devices. If prompted, enter PIN 0000.

How long does the battery last?

The battery lasts up to 8 hours at moderate volume. Actual time may vary based on usage.

Can I use the speaker while charging?

Yes, you can use the speaker while it is connected to a power source via the USB cable.

Why is there no sound?

Ensure the speaker is turned on, volume is up, and it is properly paired. Check that the source device is playing audio and not muted.

How do I reset the speaker?

Press and hold the Power button for 10 seconds until the LED flashes rapidly. The speaker will reset and enter pairing mode.

Can I connect two speakers together?

No, this model does not support stereo pairing or multi-speaker connectivity.

What does the LED indicator mean?

A solid blue light indicates connected. Flashing blue means pairing mode. Red light indicates low battery or charging.

Is the speaker waterproof?

No, the speaker is not waterproof. Keep it away from water and moisture.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or cleaning agents.

What should I do if the speaker won't turn on?

Charge the speaker for at least 30 minutes. If it still does not turn on, try resetting it. If the problem persists, contact customer support.

USER MANUAL MS3801 On-Q

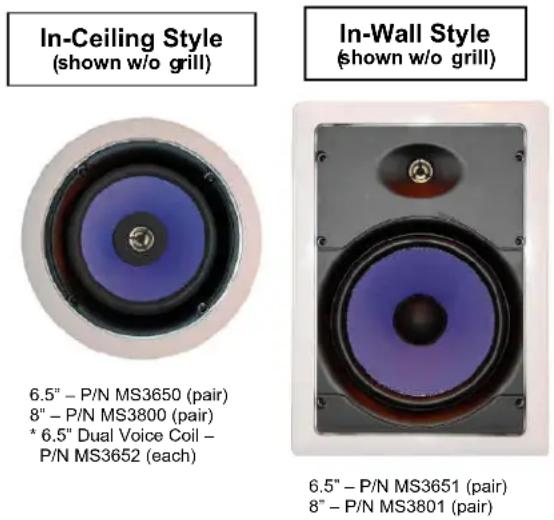

On-Q/Legrand offers both in-ceiling and in-wall styles of evōQ™ 3000 speakers. These two styles encompass two (2) sizes and five (5) part numbers (as shown in Figure 1 to the right). The speakers are optimized for audio distribution (central sound). All models are 2-way speakers that feature Mica-Fiber woofers and PEI (Polyetherimide) Mylar tweeters. These speakers come with dual templates with center markings and paint rings. Optional speaker pre-construction brackets are available for all models.

(*P/N MS3652, 6.5" In-Ceiling Dual Voice Coil Speaker, is for reference only and NOT part of this instruction sheet.)

Disclaimer: Make sure you are in compliance with local building codes before installing these speakers. On-Q evōQ™ 3000 In-Wall and In-Ceiling Speakers are suitable for moisture rich environments such as bathrooms, saunas and outdoor applications.

6.5" – P/N MS3650 (pair) 8" – P/N MS3800 (pair) * 6.5" Dual Voice Coil – P/N MS3652 (each)
6.5" – P/N MS3651 (pair) 8" – P/N MS3801 (pair)

Figure 1

2. Description

The On-Q/Legrand evōQ™ 3000 speakers are made of a tough semi-flexible plastic frames that feature a built in foam gasket to minimize vibration and maximize seal-ability. They also feature a perforated metal grill with an acoustically transparent scrim cloth to enhance the speakers appearance once installed. All evóQ speakers, except sub woofers, are paint-able. They also come with painting shields to protect the drivers while painting. These speakers are suitable for moisture rich environments. They also feature flip out tabs for easy installation and removal.

3. Installation

Installation of the evōQ™ 3000 speakers is best accomplished at multiple times during new construction, at "Rough-in" before the drywall is installed, and at "Trim-out" after the drywall is installed and painted.

A. "Rough-in" steps:

NOTE: It is recommended that a minimum of 16 gauge, 2 conductor wire be used for most applications from the amplifier or volume control to the speaker. Different gauges can, and should, be used based upon the distance of the intended run or quality of installation (see Figure 2).

NOTE: All On-Q/Legrand lyriQ™ Audio components accommodate wire gauges from 18 to 14.

Speaker Wire Gauge Selection Chart

Distance	Gauge
<10 Feet 18
10-50 Feet 16
>50 Feet 14

Figure 2

1. Run x/2 conductor (x=gauge preference) stranded speaker wire from the distribution/volume control to the speaker location (pre-wiring).

2. If an On-Q Speaker Pre-Construction Bracket is to be used, skip to Step "5" and refer to IS-0243 for detailed instructions.

3. If pre-wiring withouting the On-Q Pre-Construction Speaker Brackets, leave 4 to 6 feet of wire at the speakers intended location. Use a strip of cardboard stapled to the joints/studs with a hole through it as a wire place holder for the drywall installers if installation of the speakers is intended (see Figure 3).
4. After drywall and/or painting is complete, push wire through hole, center template over hole, mark with a pencil and cut out with a dry-wall knife.

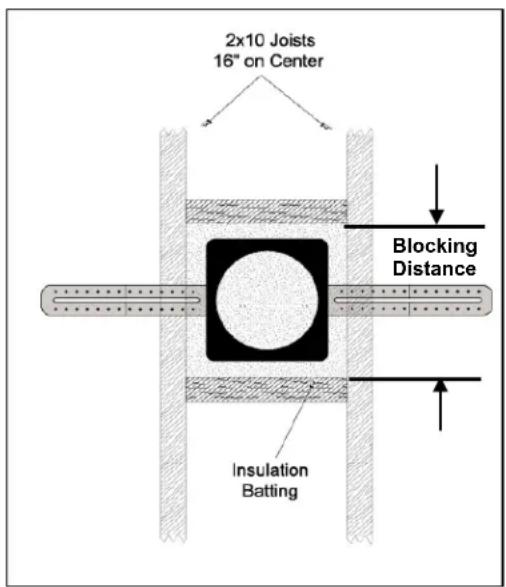

5. When using the On-Q Pre-Construction Bracket (see Figure 4), leave a coil of speaker wire on top of the bracket coiled around the speaker mounting hole. There are clips on the corner of the bracket to secure the speaker wire. Leave enough speaker wire to be able to pull the wire through the bracket and comfortably connect the wire to the speaker after the drywall is installed. Strip off 3 inches or so of the speaker cable jacket to expose the positive and negative insulated wires. Strip 3/8-1/2 inch of insulation off of these conductors.
6. It is recommended to place insulation behind the speaker to provide some damping for the woofer driver. This will yield the best possible sound. On-Q recommends using poly-encapsulated insulation such as Johns Manville Comfort Therm®. If a defined, consistent sound is desired from both speakers in a space, blocking can be installed to yield the ideal cubic footage for each driver. Insulation would then be put in this space during speaker installation. Refer to blocking chart for details.
7. If installing speakers in a space with an attic above it is recommended that the speakers be boxed in with 1/2 inch MDF (medium density fiber board) or plywood with insulation installed. This will provide a defined acoustic space and protect the speaker. The best possible sound will be achieved by doing this. Refer to the blocking chart for details.

Please Pull Thru Dry-Wall Here

Figure 3

2x10 Joists 16" on Center Blocking Distance Insulation Batting

Figure 4

Note: Make sure you are in compliance with local building codes before installing this speaker in an attic space.

B. "Trim-out" steps:

1. After drywall and/or painting is complete, push the speaker wire through hole, center template over hole, mark with a pencil and cut out with a dry-wall knife.
2. Hold the speaker with one hand, (if speaker grill is off, pay careful attention not to push on the woofer's cone, this can cause permanent contortion of the voice coil, thus producing a mechanical rubbing sound or speaker failure), push in the speaker terminal connectors and insert wires; remove speaker grill. Be sure to have the positive wire in the RED terminal and the negative wire in the BLACK terminal.

NOTE: Wiring both speakers identically as the above instruction states will yield speakers that are “in phase”. If one speaker is wired opposite of the other, the speakers will be “out of phase” with one another. If the speakers are “out of phase” the sound might appear smeared (canned) and a significant loss of bass might be noticeable due to phase cancellation. Make sure every installed speaker is correctly phased.

3 Use one hand to push the speaker into the cut out (again, pay careful attention not to push on the woofer's cone, this can cause permanent contortion of the voice coil, thus producing mechanical rubbing sound or speaker failure) and the other to turn the screws that engage the installation tabs (see Figure 5). Tighten the tabs in a cross or X-pattern until "snug". Be careful not to over tighten the tabs or damage could result. The speaker should appear flush to the surface.

NOTE: If using a cordless drill/screwdriver, it is suggested that the screws be turned until almost tight, then finish tightening via a hand screwdriver.

NOTE: A strip of grill adhesive is provided to more securely attach the speaker grills on final installation. Simply insert several short strips evenly around the grill slot prior to insalling the grill cover.

evōQ™ Speaker Blocking Chart

6.5" Speaker (0.7 CuFt) Blocking Distance
16" on Center, 2x4	24.00"
16" on Center, 2x6	15.25"
16" on Center, 2x8	11.50"
16" on Center, 2x10	9.00"
16" on Center, 2x12	7.50"
24" on Center, 2x4	15.50"
24" on Center, 2x6	10.00"

8" Speaker (2.1 CuFt) Blocking Distance

16" on Center, 2x4 71.50"

16" on Center, 2x6 45.50"

16" on Center, 2x8 34.50"

16" on Center, 2x10 27.00"

16" on Center, 2x12 22.25"

24" on Center, 2x4 46.00"

24" on Center, 2x6 29.50"

Line drawing of a hand using a tool to adjust or install a component on a speaker ring (no text or symbols present)

Figure 5

Speaker Specifications

	evōQTM 3000	evōQTM 3000	evōQTM 3000	evōQTM 3000
Size/Type 6.5" In-Ceiling 6.5" In-Wall 8" In-Ceiling 8" In-Wall
Efficiency	91dB	91dB	91dB	91dB
Power (RMS/Peak)	50W/100W	50W/100W	75W/150W	75W/150W
Frequency Response	60-20K	60-20K	50-20K	50-20K
Woofer Type	Mica Fiber	Mica Fiber	Mica Fiber	Mica Fiber
Tweeter Type	PEI Mylar	PEI Mylar	PEI Mylar	PEI Mylar
Drywall Hole Size	7.75" dia.	7.5" x 10.75"	9.5" dia.	8.75" x 12.75"
