USER MANUAL VH242HL ASUS

VH242xL/VH232xL/VH236HL VH222xL Series

LCD Monitor

User Guide

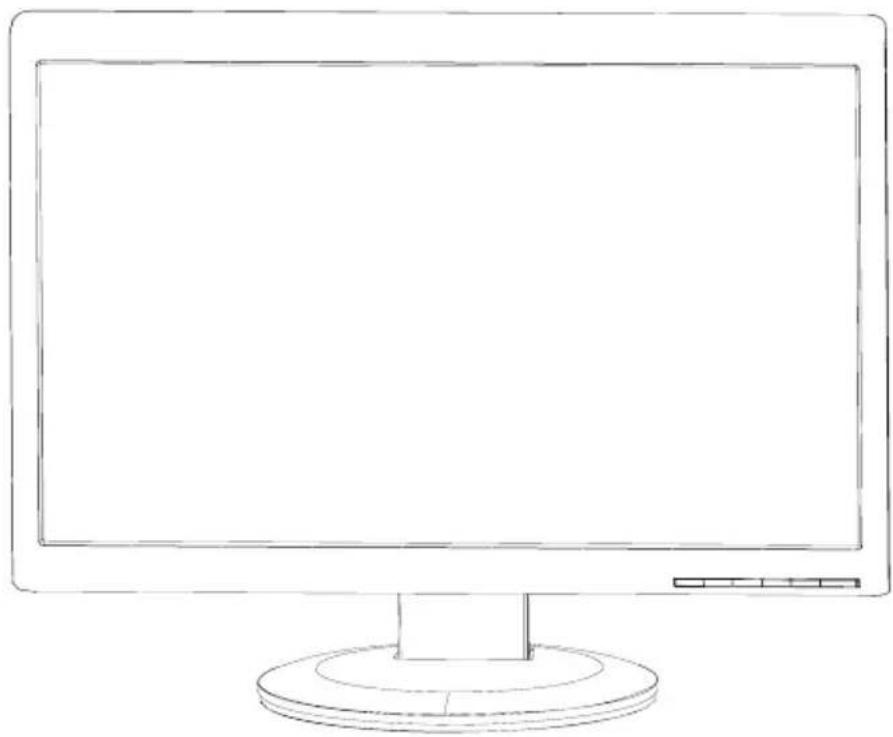

Line drawing of a computer monitor with a circular base and stand (no text or symbols)

Table of contents

Notices .... iii

Safety information ...... iv

Care & Cleaning ...... v

Chapter 1: Product introduction

1.1 Welcome! 1-1
1.2 Package contents 1-1
1.3 ....Adjusting.the.monitor..... 1-2
1.4 Connect Cables 1-3
1.5 Monitor introduction.... 1-4

1.5.1 Front of the LCD monitor 1-4

1.5.2 Rear of the LCD monitor 1-7

Chapter 2: Setup

2.1 Detaching the arm/stand (for VESA wall mount).... 2-1
2.2 Assembling the monitor Base 2-2

Chapter 3: General Instruction

3.1 OSD (On-Screen Display) menu 3-1

3.1.1 How to reconfigure 3-1
3.1.2 OSD Function Introduction 3-1

3.2 Specifications summary 3-4
3.3 Troubleshooting (FAQ) 3-7
3.4 Supported operating modes 3-8
3.5 HDMI Supported Primary Timings.... 3-9

Copyright © 2009 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

As an Energy Star ^® Partner, our company has determined that this product meets the Energy Star ^® guidelines for energy efficiency.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

Safety information

• Before setting up the monitor, carefully read all the documentation that came with the package.
  • To prevent fire or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power standard.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC.
• If you encounter technical problems with the monitor, contact a qualified service technician or your retailer.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation, such as warranty card, that may have been added by your dealer. These documents are not part of the standard package.

1.1 Welcome!

Thank you for purchasing the ASUS® VH242xL/VH232xL/VH236HL/VH222xL Series LCD monitor!

The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience.

With these features, you can enjoy the convenience and delightful visual experience that the VH242xL/VH232xL/VH236HL/VH222xLSeries brings you!

1.2 Package contents

Check your VH242xL/VH232xL/VH236HL/VH222xL Series LCD package for the following items:

√ LCD monitor
√ Monitor base
√ Support CD
√ Quick Start Guide
√ Power cord
√ VGA cable
√ DVI cable (Only for some models)
√ Audio cable (Only for some models)

If any of the above items is damaged or missing, contact your retailer immediately.

1.3 Adjusting the monitor

• For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the base to prevent the monitor from falling when you change its angle.

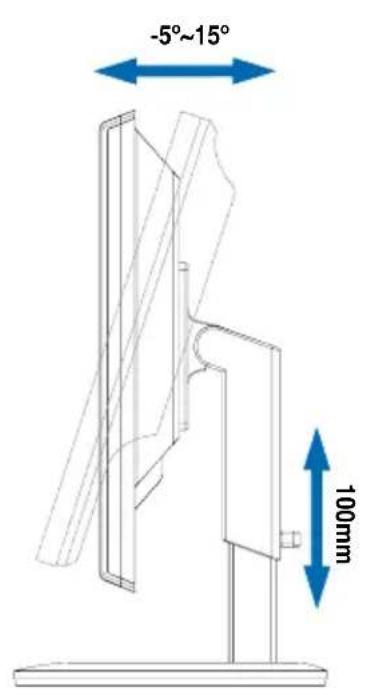

• You can tilt the monitor's from -5^ to 15^ , swivel from left-to-right for 150^ , and lift the monitor's height for about 100mm.

-5°~15° 100mm

150° 150° 0°

1.4 Connect cables

Connect cables which you need

1.4.1 VH242HL/VH232HL/VH236HL/VH222HL

Technical diagram of a device with numbered components, likely an electronic or mechanical assembly.

1	AC-IN port
2	HDMI-IN port
3	DVI port
4	VGA port
5	Line - in Port
6	Earphone - out Port
7	SPDIF Out

1.4.2 VH242TL/VH232TL/VH222TL

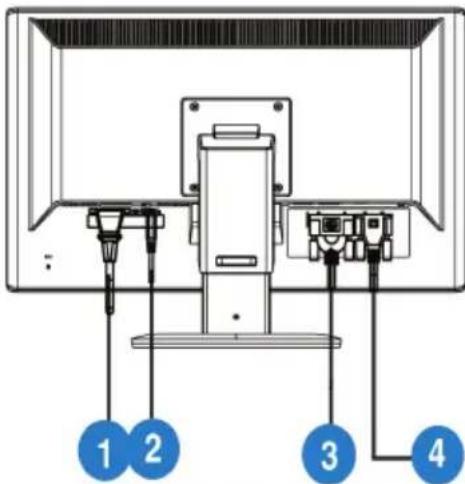

Diagram of a monitor setup with labeled components and connection points

1	AC-IN port
2	Line - in Port
3	DVI port
4	VGA port

1.5 Monitor introduction

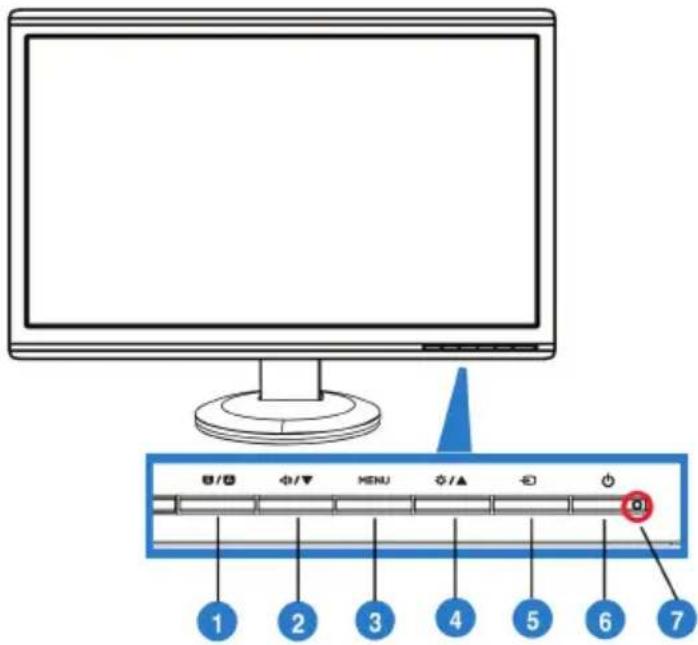

1.5.1 Front of the LCD monitor

0/0 +/▼ MENU +/▲ - + 1 2 3 4 5 6 7

1. bu \$ n A

• Automatically adjust the image to its optimized position, clock, and phase by long pressing this button for 2-4 seconds (for VGA mode only).
• Use this hotkey to switch from five video preset modes (Game Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode) with SPLENDID™ Video Enhancement Technology.

- Exit the OSD menu or go back to the previous menu as the OSD menu is active.

2. Button.

- Press this button to decrease the value of the function selected or move to the next fuction.

• This is also a hotkey for Volume adjustment.

3. MENU Button:

- Press this button to enter/select the icon (function) highlighted while the OSD menu is activated.

4. Button:▲

- Press this button to increase the value of the function selected or move to the previous fuction.

• This is also a hotkey for Brightness adjustment.

5. Input Select Button

Use this hotkey to switch from VGA,DVI,HDMI input signal. (for some models)

1. Power button

- Press this button to turn the monitor on/off.

1. Power indicator

Status Description
Blue ON
Amber Standby mode
OFF OFF

1.5.2 Rear of the LCD monitor

Line drawing of a computer monitor with a mounted stand and front panel (no text or symbols)

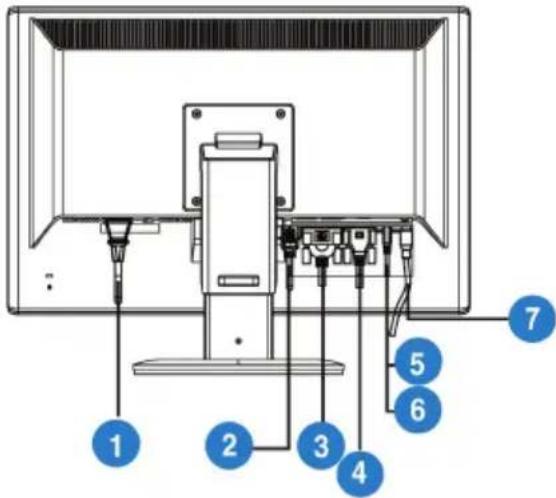

1.5.2.1 VH242HL/VH232HL/VH236HL/VH222HL

1 2 3 4 5 6 7 Rear connectors

1	AC-IN port
2	HDMI-IN port
3	DVI port
4	VGA port
5	Line - in Port
6	Earphone - out Port
7	SPDIF Out

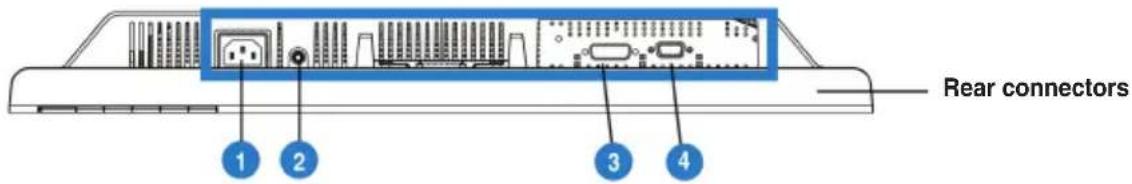

1.5.2.2 VH242TL/VH232TL/VH222TL

Rear connectors 1 2 3 4

1	AC-IN port
2	Line - in Port (Only for some models)
3	DVI port (Only for some models)
4	VGA port

2.1 Detaching the arm/stand (for VESA wall mount)

The detachable stand of the VH242xL/VH232xL/VH236HL/VH222xL Series LCD monitor is specially designed for VESA wall mount.

1. Lower the monitor to its lowest height, and then inset the monitor height adjustment lock.
2. Have the front of the monitor face down on a table.
3. Use a screwdriver to remove the two screws on the VESA cover, the slide out the arm/base to detach it from the monitor.

• We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.
• Hold the stand of the monitor when you remove the screws.

The VESA wall mount kit (100 mm x 100 mm) is purchased separately.

For use only with UL Listed Wall Mount Bracket with minimum weight/load 7.4Kg (Screw size: 4mm x 12 mm)

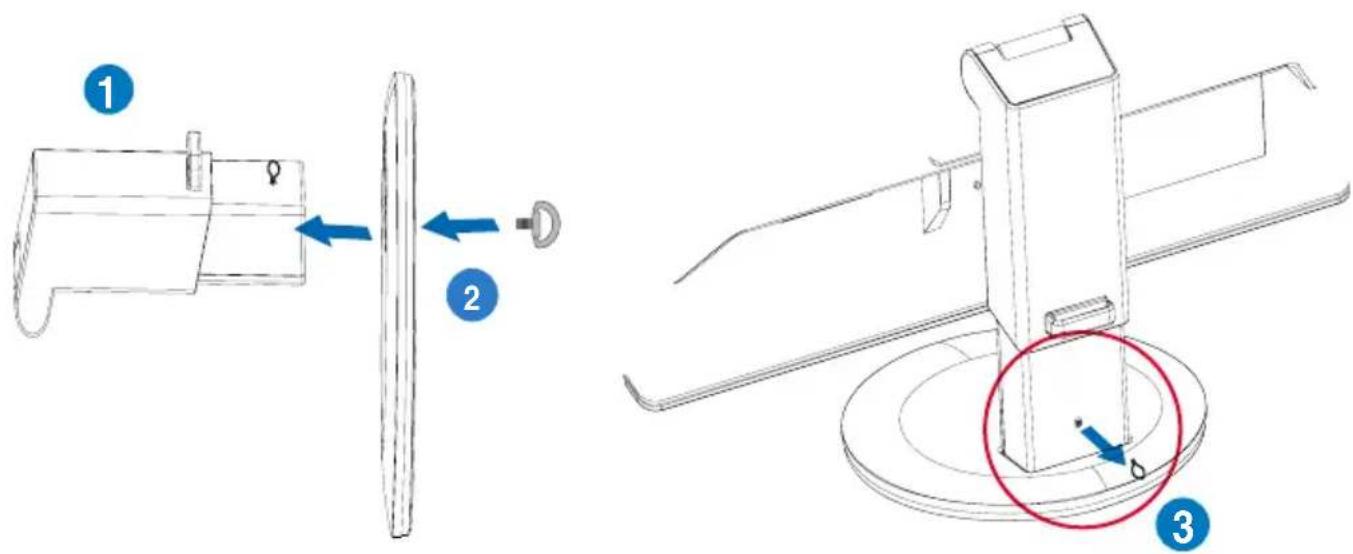

2.2 Assembling the monitor base

To assemble the monitor base

1. Have the monitor base place on a flat table.
2. Use the screw, lock the base to the arm according to the below drawing.
3. Remove the monitor height adjustment lock.

Technical diagram showing three-step assembly of a mechanical device with labeled components and directional arrows.

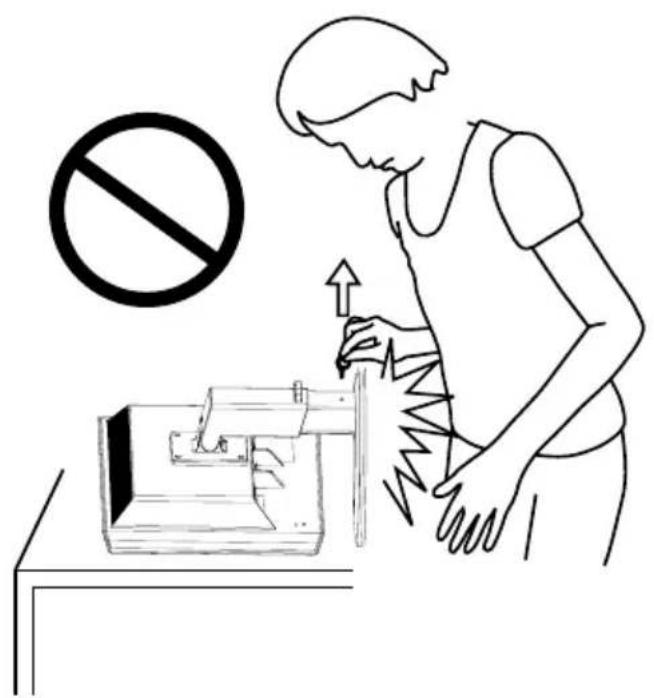

The monitor height adjustment lock should NEVER be removed BEFORE you place the monitor VERTICALLY on a flat surface.

Safety warning illustration showing a person using a device with a 'No' symbol above, indicating no proper motion.

3.1 OSD (On-Screen Display) menu

3.1.1 How to reconfigure

1. Press the MENU button to activate the OSD menu.

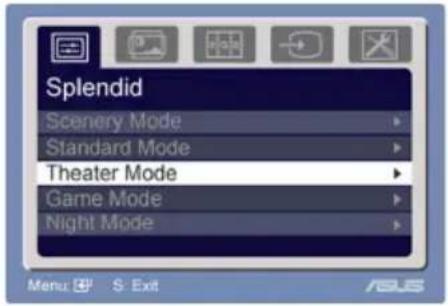

Splendid Scenery Mode Standard Mode Theater Mode Game Mode Night Mode Menu: S- Exit

1. Press and to navigate through the functions. Highlight and activate the desired function by pressing the MENU button. If the function selected has a sub-menu, press ▼ and ▲ again to navigate through the sub-menu functions. Highlight and activate the desired sub-menu function by pressing the MENU button.
2. Press and to change the settings of the selected function.
3. To exit the OSD menu, press the button. Repeat step 2 and step 3 to adjust any other function.

3.1.2 OSD Function Introduction

1. Spendid

This function contains five sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode.

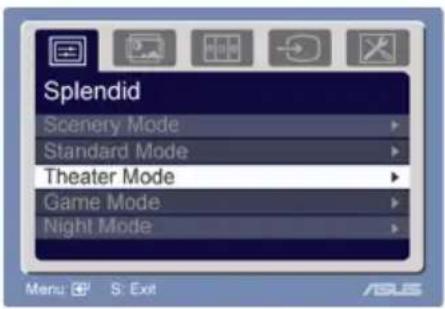

Splendid Scenery Mode Standard Mode Theater Mode Game Mode Night Mode Menu: S: Exit

- Scenery Mode: best choice for scenery photo display with SPLENDID™ Video Enhancement.

• Standard Mode: best choice for document editing with SPLENDID™ Video Enhancement.
  • Theater Mode: best choice for movie with SPLENDID™ Video Enhancement.
  • Game Mode: best choice for game playing with SPLENDID™ Video Enhancement.
  • Night View Mode: best choice for dark-scene game or movie with SPLENDID™ Video Enhancement.

• In the Standard Mode, the user-configurable.

Satuation and ASCR functions are not

• In the other modes, the

sRGB function is not user-configurable.

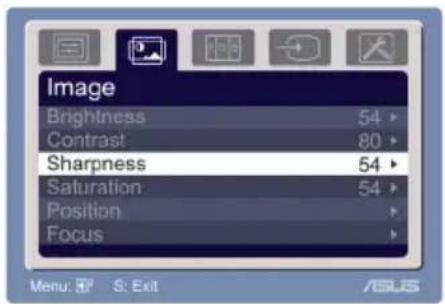

2. Image

You can adjust brightness, contrast, sharpness, saturation, position (VGA only), and focus (VGA only) from this main function.

Image Brightness 54 Contrast 80 Sharpness 54 Saturation 54 Position Focus Menu: S: Exit ASUS

• Brightness: the adjusting range is from 0 to 100. activate this function.
  is a hotkey to
• Contrast: the adjusting range is from 0 to 100.
• Sharpness: the adjusting range is from 0 to 100.
  • Saturation: the adjusting range is from 0 to 100.
• Position: adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100.

- Focus: reduces Horizontal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100.

• Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances.
• Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional.

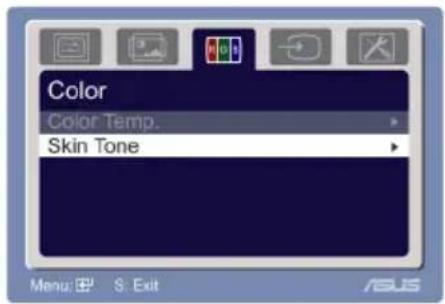

3. Color

Select the image color you like from this function.

Color Color Temp. Skin Tone Menu: S: Exit ASUS

• Color Temp.: contains five color modes including Cool, Normal, Warm, sRGB, and User mode.

- Skin Tone: contains three color modes including Reddish, Natural, and Yellowish.

In the User mode, colors of R (Red), G (Green), and B (Bluee) are user-configurable; the adjusting range is from 0-100.

4. Input Select

In this function, you can select VGA,DVI,HDMI input source. (Only for some models)

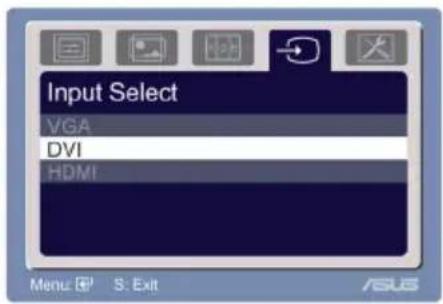

Input Select VGA DVI HDMI Menu: S: Exit ASUS

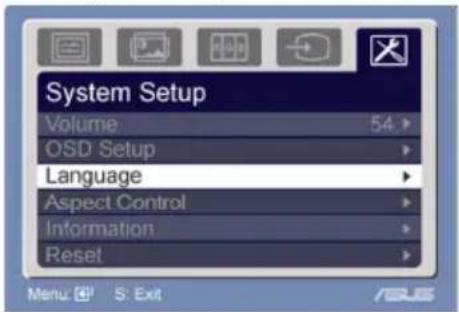

5. System Setup

Allow you to adjust the system.

System Setup Volume 54 QSD Setup Language Aspect Control Information Reset Menu S Exit

• Volume: the adjusting range is from 0 to 100. is a hotkey to activate this function.
- OSD Setup: adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the OSD. The adjusting range is from 0 to 100. In the OSD Timeout selection, you can adjust the OSD timeout from 10 to 120.
• Language: there are ten languages for your selection, including English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, and Korean.
- Aspect Controls: adjusts the aspect ratio to "Full" or "4:3". (for some models)
• Information: shows the monitor information.
- Reset: "Yes" allows you to revert to the preset mode.

3.2 Specifications summary

Model	VH242HL	VH242TL
Panel Size	23.6"W	23.6"W
True Resolution	1920x1080	1920x1080
Brightness (Max.)	≥ 300cd/m^2 ≥ 300cd/m^2
Intrisinc Contrast Ratio	≥ 1000:1	≥ 1000:1
Viewing Angle (CR=10)	≥ 160^(V), ≥ 170^(H)	≥ 160^(V), ≥ 170^(H)
Color Saturation (NTSC)	72%	72%
Display Colors	16.7 M	16.7 M
Response Time	5ms (Tr+Tf) 5ms (Tr+Tf)
Satellite Speaker	2W x 2 stereo	2W x 2 stereo
HDMI input	HDMI	-
DVI input	DVI	DVI
D-Sub input	Yes	Yes
Audio Line-in	Yes	Yes
Earphone Output	Yes	-
SPIDIF output	Yes	-
Power ON	50W	50W
Tilt	+20° ~ -5°	+20° ~ -5°
VESA Wall Mounting	Yes(100mmx100mm)	Yes(100mmx100mm)
Phys. Dimension	562.04x250x423.20	562.04x250x423.20
Box Dimension (WxHxD)	640x234x492	640x234x492
Net Weight (Esti.)	7.4	7.2
Gross Weight (Esti.)	9.8	9.6
Voltage Rating	AC:100~240V(Built-in)	AC:100~240V(Built-in)

Model	VH232HL	VH232TL VH236HL
Panel Size 23"W		23"W	23"W
True Resolution 1920x1080		1920x1080	1920x1080
Brightness (Max.)	≥ 300cd/m^2 ≥ 300cd/m^2		≥ 300cd/m^2
Intrisinc Contrast Ratio	≥ 1000:1	≥ 1000:1	≥ 1000:1
Viewing Angle (CR=10)	≥ 160^(V), ≥ 160^(H)	≥ 160^(V), ≥ 160^(H)	≥ 160^(V), ≥ 160^(H)
Color Saturation (NTSC)	72%	72%	72%
Display Colors 16.7 M		16.7 M	16.7 M
Response Time 5ms (Tr+Tf)		5ms (Tr+Tf)	2ms
Satellite Speaker 2W x 2 stereo		2W x 2 stereo	2W x 2 stereo
HDMI input	HDMI	-	HDMI
DVI input DVI		DVI	Yes
D-Sub input Yes		Yes	Yes
Audio Line-in Yes		Yes	Yes
Earphone Output Yes		-	Yes
SPIDIF output Yes		-	Yes
Power ON	50W	50W	50W
Tilt +20° ~ -5°		+20° ~ -5°	+20° ~ -5°
VESA Wall Mounting	Yes(100mmx100mm)	Yes(100mmx100mm)	Yes(100mmx100mm)
Phys. Dimension	548.8x250x419	548.8x250x419	548.8x250x419
Box Dimension (WxHxD)	625x232x483	625x232x483	625x232x483
Net Weight (Esti.)	7.1	6.9	7.1
Gross Weight (Esti.)	8.9	8.6	8.9
Voltage Rating	AC:100~240V(Built-in)	AC:100~240V(Built-in)	AC:100~240V(Built-in)

Model	VH222HL	VH222TL
Panel Size 21.5"W		21.5"W
True Resolution 1920x1080		1920x1080
Brightness (Max.)	≥ 300cd/m^2	≥ 300cd/m^2
Intrisinc Contrast Ratio	≥ 1000:1	≥ 1000:1
Viewing Angle (CR=10)	≥ 160^(V), ≥ 170^(H)	≥ 160^(V), ≥ 170^(H)
Color Saturation (NTSC)	72%	72%
Display Colors 16.7 M		16.7 M
Response Time 5ms (Tr+Tf)		5ms (Tr+Tf)
Satellite Speaker 2W x 2 stereo		2W x 2 stereo
HDMI input	HDMI	-
DVI input DVI	DVI
D-Sub input Yes		Yes
Audio Line-in Yes	Yes
Earphone Output	Yes	-
SPIDIF output	Yes	-
Power ON	45W	45W
Tilt	+20° ~ -5°	+20° ~ -5°
VESA Wall Mounting	Yes(100mmx100mm)	Yes(100mmx100mm)
Phys. Dimension	515x250x409.5	515x250x409.5
Box Dimension (WxHxD)	590x220x457	590x220x457
Net Weight (Esti.)	6.5	6.3
Gross Weight (Esti.)	8.0	7.8
Voltage Rating	AC:100~240V(Built-in)	AC:100~240V(Built-in)

*Specifications are subject to change without notice.

3.3 Troubleshooting (FAQ)

Problem Possible Solution
Power LED is not ON • Press the button to	check if the monitor is in the ON mode.• Check if the power cord is properly connected to the monitor and the power outlet.
The power LED lights amber and there is no screen image	• Check if the monitor and the computer are in the ON mode.• Make sure the signal cable is properly connected the monitor and the computer.• Inspect the signal cable and make sure none of the pins are bent.• Connect the computer with another available monitor to check if the computer is properly working.
Screen image is too light or dark • Adjust the	Contrast and Brightness settings via OSD.
Screen image is not centered or sized properly	• Press the A button for two seconds to automatically adjust the image.• Adjust the H-Position or V-Position settings via OSD.
Screen image bounces or a wave pattern is present in the image	• Make sure the signal cable is properly connected to the monitor and the computer.• Move electrical devices that may cause electrical interference.
Screen image has color defects (white does not look white)	• Inspect the signal cable and make sure that none of the pins are bent.• Perform Reset via OSD.• Adjust the R/G/B color settings or select the Color Temperature via OSD.
Screen image is blurry or fuzzy • Press the	button for twA seconds to automatically adjust the image (for VGA mode only).• Adjust the Phase and Clock settings via OSD.
No sound or sound is low • Ensure that the	audio cable is properly connected to the monitor and the computer• Adjust the volume settings of both your monitor and computer.• Ensure that the computer sound card driver is properly installed and activated.

3.4 VH242xL/VH232xL/VH236HL/VH222xLPC Supported Timing List

VESA Modes, Factory Preset Timings

Mode	Resolution	H(KHz)	V(Hz)	Pixel(MHz)
VGA 640x	480 31.469		60	25.175
	640x480	37.861	72	31.5
	640x480	37.5	75	31.5
SVGA	800x600	35.156	56	36
	800x600	37.879	60	40
	800x600	48.077	72	50
	800x600	46.875	75	49.5
XGA	1024x768	48.363	60	65
	1024x768	56.476	70	75
	1024x768	60.023	75	78.75
SXGA	1152x864	67.5	75	108
	1280x960	60	60	108
	1280x1024	63.981	60	108
	1280x1024	79.976	75	135
WXGA+	1440x900	55.935	59	106.5
WSXGA+	1680x1050	65.29	60	146.25
1080P	1920x1080	67.5	60	148.5

IBM Modes

Mode	Resolution	H(KHz)	V(Hz)	Pixel(MHz)
DOS	640x350	31.469	70	25.175
	720x400	31.469	70	28.322

MAC Modes

Mode	Resolution	H(KHz)	V(Hz)	Pixel(MHz)
VGA	640x480	35	67	30.24
SVGA	832x624	49.725	75	57.2832

VESA Modes, User Available Timings

Mode	Resolution	H(KHz)	V(Hz)	Pixel(MHz)
	848x480	31.02	60	33.75
720P	1280x720	44.444	60	64
	1280x720	44.772	60	74.5
	1280x720	56.456	75	95.75
WXGA	1280x768	47.396	60	68.25
	1280x768	47.776	60	79.5
	1280x768	60.289	75	102.25
	1280x800	49.306	60	71
	1280x800	49.702	60	83.5
	1280x800	62.795	75	106.5
WXGA+	1440x900	55.469	60	88.75
	1440x900	70.635	75	136.75
WSXGA+	1680x1050	64.674	60	119
1080P	1920x1080	66.587	60	138.5

VH242HL/VH232HL/VH236HL/VH222HL HDMI Supported Primary Timings

Mode	Resolution	H(KHz)	V(Hz)	Pixel(MHz)
480P	640x480P	31.469/31.5	59.94/60	25.175/25
	720x480P	31.469 / 31.5	59.94 / 60	27 /27.027
	720x480P	31.469 / 31.5	59.94 / 60	27 /27.027
576P	720x576P	31.25	50	27
	720x576P	31.25	50	27
720P	1280x720P	37.5	50	74.25
	1280x720P	44.955/45	59.94/60	74.176/74.25
1080i	1920x1080i	28.125	50	74.25
	1920x1080i	33.716/33.75	59.94/60	74.176/74.25
1080P	1920x1080P	56.25	50	148.5
	1920x1080P	67.433/67.5	59.94/60	148.352/148.5

* Modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables
