1.1 Welcome!

Thank you for purchasing the ASUS® LCD monitor!

The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience.

With these features, you can enjoy the convenience and delightful visual experience that the monitor brings to you!

1.2 Package contents

Check your package for the following items:

√ LCD monitor
√ Monitor base
√ Quick start guide
√ Warranty card
√ Power adapter
√ Power cord
√ HDMI cable (optional)
√ VGA cable
√ Audio cable (optional)

If any of the above items is damaged or missing, contact your retailer immediately.

1.3 Monitor introduction

1.3.1 Front view

ASUS 7 6 5 4 3 2 1

1. Power button/power indicator

2. Turns the monitor on/off.

3. The color definition of the power indicator is as the below table.

Status Description
White On
Amber Standby mode
Off Off

1. Menu button:

2. Press this button to display the OSD menu when the OSD is off.

3. Enters the OSD menu.

4. ✗ Close button:

5. Press this button to display the OSD menu when the OSD is off.

6. Exits the OSD menu.

7. Toggles the Key Lock function between on and off with a long press for 5 seconds.

8. Input select button:

9. Press this button to display the OSD menu when the OSD is off.

10. Selects an available input source.

11. EyeCheck button:

12. Press this button to display the OSD menu when the OSD is off.

13. Use this hotkey to activate EyeCheck function as a vision test.

14. ⚙️ Shortcut 1

15. Press this button to display the OSD menu when the OSD is off.

16. Default: Brightness hotkey
    • To change the hotkey function, go to the Shortcut > Shortcut 1 menu.

17. Shortcut 2

18. Press this button to display the OSD menu when the OSD is off.

19. Default: Blue light filter hotkey
20. To change the hotkey function, go to the Shortcut > Shortcut 2 menu.

1.3.2 Back view

Diagram of a computer monitor rear panel with labeled ports and connectors, showing front view and rear panel details.

1. DC-IN port. This port connects the power cord.
2. HDMI port. This port is for connection with an HDMI compatible device.
3. DisplayPort. This port is for connection for a DisplayPort compatible device.
4. VGA port. This 15-pin port is for PC VGA connection.
5. Audio-in port. This port connects PC audio source by the bundled audio cable.
6. Kensington lock slot.

1.3.3 EyeCheck function

The EyeCheck function contains three patterns: (1) Snellen Chart (2) Amsler Grid (3) Astigmatism.

1. Snellen Chart

P1 P2 P3
L1.2 W m 2 E	L0.3 W m 3 E
L1.0 W m 3 E	L0.5 W m 3 E
L0.4 W m 3 E	L0.4 W m 3 E
L0.6 W m 3 E	L0.3 W m 3 E
L0.7 W m 3 E

1. Amsler Grid

While focusing at the center point, check that all the lines are straight.

Blank grid paper with no text, numbers, or symbols

1. Astigmatism

Check that each line is of the same width.

Radial pattern of evenly spaced black lines radiating from a central point (no text or symbols)

2.1 Assembling the monitor arm/base

To assemble the monitor base:

1. Have the front of the monitor face down on a table.

2. Attach the base into the arm, making sure the tab on the arm fits into the groove on the base.

3. Fix the base to the arm by fastening the bundled screw.

We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion or rotation.

2.2 Adjusting the monitor

• For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.

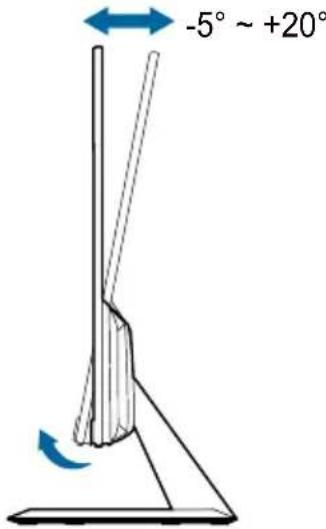

• The recommended adjusting angle is +20 to -5°.

-5° ~ +20°

2.3 Connecting the cables

Connect the cables as the following instructions:

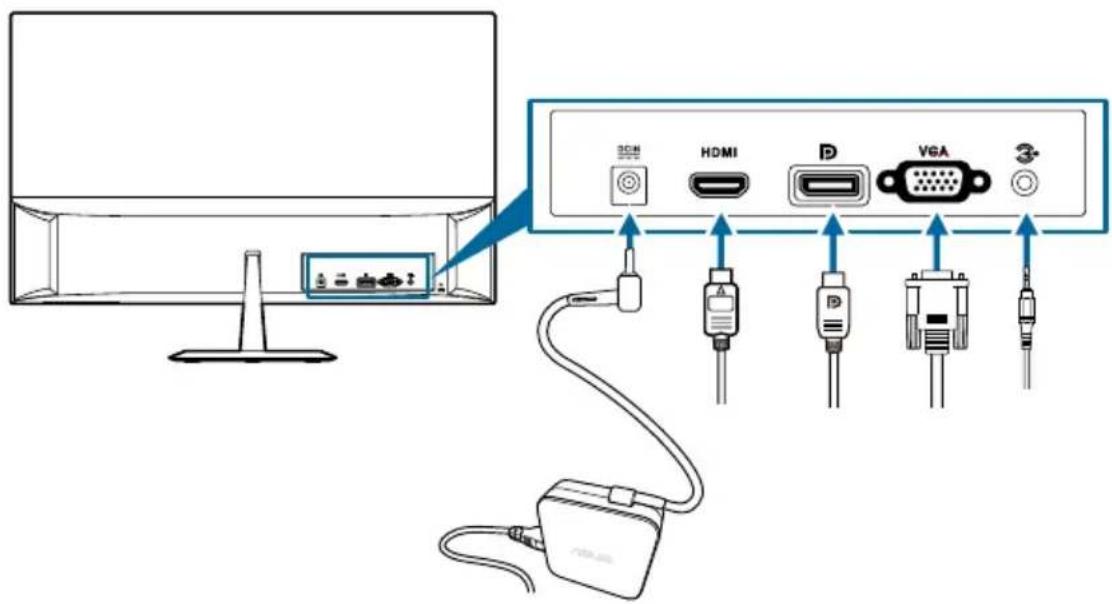

Diagram showing cable connection between a monitor and connected to various electronic devices including HDMI, P, VGA, and an oscilloscope.

• To connect the power cord:

a. Connect the power adapter securely to the monitor's DC input.
b. Connect one end of the power cord to the power adapter and the other end to a power outlet.

• To connect the VGA/DisplayPort/HDMI cable:

a. Plug one end of the VGA/DisplayPort/HDMI cable to the monitor's VGA/DisplayPort/HDMI jack.
b. Connect the other end of the VGA/DisplayPort/HDMI cable to your computer's VGA/DisplayPort/HDMI jack.
c. Tighten the two screws to secure the VGA connector.

- To connect the audio cable: connect one end of the audio cable to the monitor's Audio-in port, the other end to the computer's audio-out port.

When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu.

2.4 Turning on the monitor

Press the power button ⏻See page 1-2 for the location of the power button. The power indicator ⏻lights up in white to show that the monitor is ON.

3.1 OSD (On-Screen Display) menu

3.1.1 How to reconfigure

Splendid Soc ner y Mo de Sta ndar r d M ode The als r Mo de Gam e M o de Night View Mo de sRG B M o de Res ding Mo de Dar kro o m M ode ASUS VZ 27A Stand ar d M ode HD MI 14 40 x 90.0 @ 60Hz

1. Press any button (except the Power button) to display the OSD menu.
2. Press the ☐Menu button to activate the OSD menu.
3. Press the buttons as indicated on the screen to navigate through the functions. Highlight the desired function and press √ to activate it. If the function selected has a sub-menu, press ▼ and ▲ gain to navigate through the sub-menu functions. Highlight the desired sub-menu function and press √ to activate it.
4. Press ▼ and ▲o change the settings of the selected function.
5. To exit and save the OSD menu, press or repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4.

3.1.2 OSD function introduction

1. Splendid

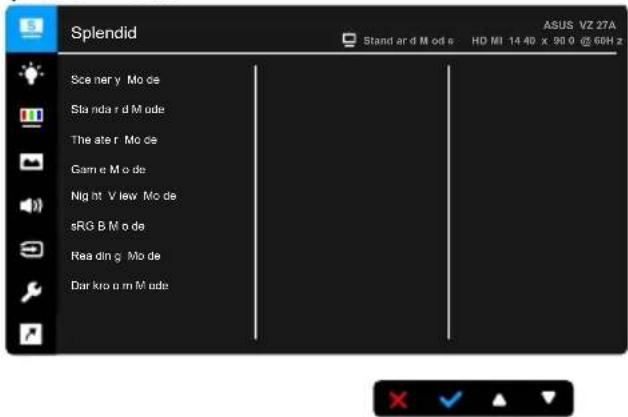

This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode.

Splendid Scaner v Mode Standar r d Mode The ate r Mode Gam e M o de Night View Mode sRG B M o de Readin g Mode Dar kro u m Mode

- Scenery Mode: Best choice for scenery photo display with SplendidPlus Video Enhancement.

- Standard Mode: Best choice for document editing with SplendidPlus Video Enhancement.

- Theater Mode: Best choice for movies with SplendidPlus Video Enhancement.

- Game Mode: Best choice for game playing with SplendidPlus Video Enhancement.

- Night View Mode: Best choice for dark-scene games or movies with SplendidPlus Video Enhancement.

- sRGB Mode: best choice for viewing photos and graphics from PCs.

- Reading Mode: This is the best choice for book reading.

- Darkroom Mode: This is the best choice for a weak ambient light environment.

- In the Standard mode, the following function(s) are not user-configurable: Saturation, Skin Tone, Sharpness, ASCR.

- In the sRGB mode, the following function(s) are not user-configurable: Brightness, Contrast, Saturation, Color Temp., Skin Tone, Sharpness, ASCR.

- In the Reading mode, the following function(s) are not user-configurable: Contrast, Saturation, Color Temp., Skin Tone, Sharpness, ASCR.

2. Blue Light Filter

In this function, you can adjust the blue light filter level.

Blue Light Filter Stand ar d M o d e HD MI 14 40 x 90 0 @ 60Hz Level 0 Level 1 Level 2 Level 3 Level 4 ASUS VZ 27A

• Level 0: No change.
- Level 1\~4: The higher the level, the less blue light is scattered.

When Blue Light Filter is activated, the default settings of Standard Mode will be automatically imported. Between Level 1 to Level 3, the Brightness function is user-configurable. Level 4 is optimized setting. It is compliance with TUV Low Blue Light Certification. The Brightness function is not user-configurable.

Please refer to the following to alleviate eye strains:

• Users should take some time away from the display if working for long hours. It is advised to take short breaks (at least 5 mins) after around 1 hour of continuous working at the computer. Taking short and frequent breaks is more effective than a single longer break.
• To minimize eye strain and dryness in your eyes, users should rest the eye periodically by focusing on objects that are far away.
• Eye exercises can help to reduce eye strain. Repeat these exercises often. If eye strain continues please consult a physician. Eye exercises: (1) Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal.
• High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome).

3. Color

Set a desired color setting from this menu.

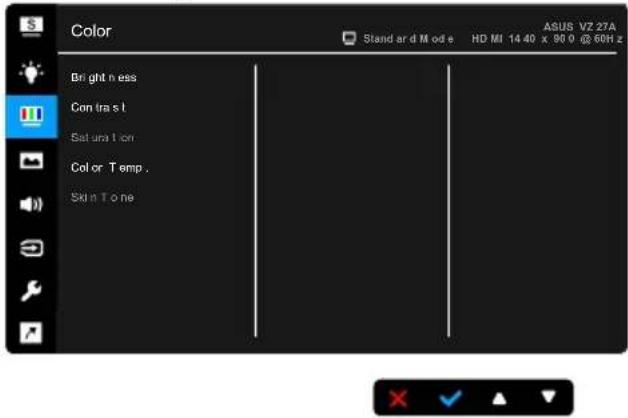

Color Brightness Contra Light Saturation Color Temp. Skin Tone

• Brightness: The adjusting range is from 0 to 100.
• Contrast: The adjusting range is from 0 to 100.
  • Saturation: The adjusting range is from 0 to 100.
  • Color Temp.: Contains 4 modes including Cool, Normal, Warm and User Mode.
• Skin Tone: contains three color modes including Reddish, Natural, and Yellowish.

4. Image

Set the image related setting from this menu.

Image Show ar d M o d e HD MI 14.40 x 90.0 @ 60Hz ASUS VZ 27A She rpn e ss Trace Free Aspect Con tro I Viv IdP I xel ASC R Ada pti v e S ync Pos it i o n More

• Sharpness: The adjusting range is from 0 to 100.
• Trace Free: Adjusts the response time of the monitor.
• Aspect Control: Adjusts the aspect ratio to full, 4:3, 1:1 or OverScan.

4:3 is only available when input source is in 4:3 format. OverScan is only available for the HDMI input source.

• VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen.
  • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function.

- Adaptive-Sync (DisplayPort only): Allows an Adaptive-Sync supported* graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.

* Adaptive-Sync can only be activated within 49Hz \~ 76Hz.

* For supported GPUs, minimum PC system and driver requirements, please contact the GPU manufactures.

- Position (Only available for VGA input): adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100.

- Focus (Only available for VGA input): reduces Horizontal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100.

- Phase adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the screen shows horizontal disturbances.

- Clock (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the image is not proportional.

- Auto Adjust.: Automatically adjusts the image to its optimized position, clock, and phase (for VGA mode only).

5. Sound

Set the sound related setting from this menu.

Sound Volume e Multi Source ASU S VZ 27A Standard Mode HDM 144.0 x 9.00 @ 60Hz

• Volume: the adjusting range is from 0 to 100.

- Mute: toggles the monitor sound between on and off.

- Source: decides the monitor sound comes from which source.

6. Input Select

In this function, you can select your desired input source.

Input Select VGA HDMI Display Port ASUS VZ 27A Stand ar d Mode HD MI 14.40 x 90.0 @60Hz

7. System Setup

Allows you to adjust the system.

System Setup Spend Id Demo Mode Game ePI u s Eye Check ECO Mode OSD Setup Language Key Lock More ASUS VZ 27A Stand ar d Mode HD MI 14 40 x 90.0 @ 60Hz

• Splendid Demo Mode: Splits the screen into two for Splendid modes comparison. (Scenery mode only)
• GamePlus: The GamePlus function provides a toolkit and creates a better gaming environment for users when playing different types of games. The crosshair overlay with four different crosshair options lets you choose the one that best suits the game you're playing. There's also an onscreen timer you can position on the left of the display so you can keep track of the elapsed gaming time. Display Alignment displays alignment lines on 4 sides of the screen, serving as an easy and handy tool for you to line up multiple monitors perfectly.

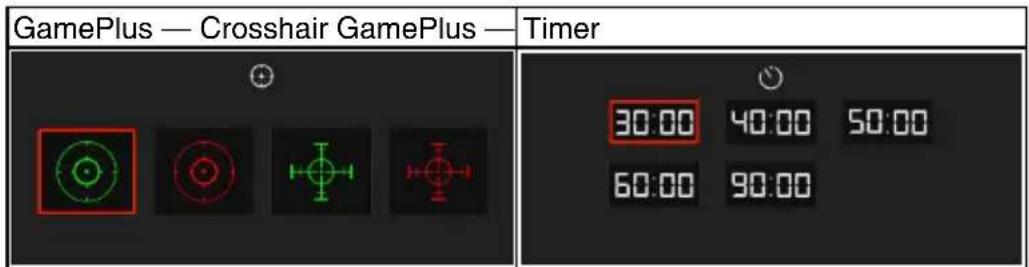

GamePlus — Crosshair GamePlus — Timer 30:00 40:00 50:00 60:00 90:00

• EyeCheck: displays patterns for eyesight test.
  • ECO Mode: reduces power consumption.
• OSD Setup:

* Adjusts the OSD timeout from 10 to 120 seconds.
* Enables or disables the DDC/CI function.
* Adjusts the OSD background from opaque to transparent.

• Language: There are 21 languages for your selection, including English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian.
• Keylock: To disable all function keys. Press the second button from the right over five seconds to cancel the key lock function.
  • Information: Shows the monitor information.
• Power Indicator: Turns the power LED indicator on/off.
  • Power Key Lock: Enables or disables the power key.
• All Reset: "Yes" allows you to restore the default settings.

7. Shortcut

Defines the functions for Shortcut 1 and 2 buttons.

Shortcut Shortlc u t 1 Shortlc u t 2 ASUS VZ 27A Stand ar d M od c HD MI 14.40 x 90.0 @80Hz

- Shortcut 1/Shortcut 2: selects a function for Shortcut 1 and 2 buttons.

When a certain function is selected or activated, your shortcut key may not support. Available function choices for shortcut: Blue Light Filter, Splendid, Brightness, Auto Adjust, Contrast, Color Temp., Volume, GamePlus.

3.2 Specifications summary

Panel Type TFT LCD
Panel size	27" (16:9, 68.48 cm) wide screen
Max. Resolution 2560 x 1440
Pixel pitch 0.2331 mm x 0.2331 mm
Brightness (Typ.) 250 cd/m	2
Contrast Ratio (Typ.) 1000:1
Contrast Ratio (Max.) 100,000,000:1 (with ASCR on)
Viewing angle (H/V) CR>10 178°/178°
Display colors 1.07 B
Response time 5 ms (Gray to Gray)
SplendidPlus Video Enhancement	Yes
SplendidPlus selection 8 video preset modes
Auto adjustment Yes
Color temperature selection 4 color temperatures
Analog input D-sub
Digital input	DisplayPort v1.2, HDMI v1.4
Earphone jack No
Audio input Yes
Speaker (Built-in)	2 W x 2 Stereo, RMS
USB 2.0 port	No
Colors	Black
Power LED White (On)/Amber (Standby)
Tilt	+20° ~ -5°
Pivot	No
Swivel	No
Height Adjustment	No
Kensington lock	Yes
AC input voltage	AC: 100~240VDC: 19V, 2.1A (AC adapter)
Power consumption	Power On: < 40 W** (Typ.), Standby: < 0.5 W (Typ.), Power Off: 0.5 W
Temperature (Operating)	0°C~40°C
Temperature (Non-operating)	-20°C~+60°C
Dimension (W x H x D) with stand	612.7 x 440.8 x 210 mm (machine), 689 x 117 x 544 mm (package)
Weight (Esti.)	4.3 kg (Net); 5.3 kg (Gross)
Multi-languages	21 languages (English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian)
Accessories	Power cord, Power adapter, HDMI cable (optional), VGA cable, Audio cable (optional), Quick start guide, Warranty card

Compliance and Standards

Energy Star, TCO, EAC, CB, CE, CU, CCC, UL/cUL, FCC, RCM, BSMI, VCCI, RoHS, WEEE, J-MOSS, ErP, PSE, CEL, Windows 7 WHQL, Windows 8.1 WHQL, Windows 10 WHQL, KCC, E-Standby, TUVFlicker Free, TUV-Low Blue Light, UkrSEPRO, MEPS

*Specifications are subject to change without notice.

**Measuring a screen brightness of 200 nits without audio/USB/Card reader connection.

3.3 Troubleshooting (FAQ)

Problem Possible Solution

Power LED is not ON	Press the ⏻ button to check if the monitor is in the ON mode.Check if the power cord is properly connected to the monitor and the power outlet.Check if the power switch is ON.
The power LED lights amber and there is no screen image	Check if the monitor and the computer are in the ON mode.Make sure the signal cable is properly connected the monitor and the computer.Inspect the signal cable and make sure none of the pins are bent.Connect the computer with another available monitor to check if the computer is properly working.
Screen image is too light or dark • Adjust the	Contrast and Brightness settings via OSD.
Screen image is not centered or sized properly	Adjust the H-Position or V-Position settings via OSD.
Screen image bounces or a wave pattern is present in the image	Make sure the signal cable is properly connected to the monitor and the computer.Move electrical devices that may cause electrical interference.
Screen image has color defects (white does not look white)	Inspect the signal cable and make sure that none of the pins are bent.Perform All Reset via OSD.Adjust the R/G/B color settings or select the Color Temperature via OSD.
Screen image is blurry or fuzzy • Adjust the	Phase and Clock settings via OSD.
No sound or sound is low • Ensure that the	HDMI/DisplayPort cable is properly connected to the monitor and the computer.Adjust the volume settings of both your monitor and HDMI/DisplayPort device.Ensure that the computer sound card driver is properly installed and activated.

3.4 Supported operating modes

Resolution Frequency	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Pixel (MHz)
640x480 31.4	7(N) 59.94(N) 25.1	8
640x480 35.0	0(N) 66.66(N) 30.2	4
640x480 37.8	7(N) 72.82(N) 31.5
640x480 37.5	(N) 75.00(N) 31.5
720x400 31.4	7(N) 70.08(P) 28.3	2
800x600 35.1	6(P) 56.25(P) 36.00
800x600 37.8	8(P) 60.32(P) 40.00
800x600 48.0	8(P) 72.12(P) 50.00
800x600 46.8	6(P) 75.00(P) 49.50
832X624 49.7	2(P/N) 74.55(P/N)	57.28
1024x768 48.3	6(N) 60.00(N) 65.00
1024x768 56.4	76(N) 70.069(N) 75.00
1024x768 60.0	2(N) 75.00(N) 78.75
1152x864	67.5(P/N)	75.00(P/N)	108.00
1280x960 60.0	0(P) 60.00(N)	108.00
1280x1024 63.9	8(P) 60.02(P)	108.00
1280x1024 79.9	8(P) 75.02(P)	135.00
1366x768 47.7	12(P) 59.79(P) 85.50
1440x900 55.9	4(N) 59.89(P)	106.50
1600x1200 75.0	0(P) 60.00(P)	162.00
1680x1050 65.2	9(N) 60.00(P)	146.25
1920x1080 67.5	6(P) 60.00(P) 148.5
1920x1200 (Reduced Blanking)	74.038(P)	59.95(N)	154
1920x1200	74.556(N)	59.885(P)	193.25
2560x1080	66.636(P)	59.978(N)	181.25
2560x1440	88.787(P)	59.951(N)	241.50
2560x1440*	111.857(P)	74.971(N) 304.25

*Supported for the following graphic cards when the input source is DisplayPort: AMD R9 295X2, AMD R9 290, AMD R9 285, AMD R9 270X, AMD R7 260X, AMD R7 250, AMD HD 7990, AMD HD 7970, AMD HD 7850, AMD HD 7790, AMD HD 7770, AMD HD 6990, NVIDIA GTX 980, NVIDIA GTX 960, NVIDIA GTX TITAN Z, NVIDIA GTX 780, NVIDIA GTX 770, NVIDIA GTX 750 Ti, NVIDIA GTX 750, NVIDIA GTX 690, NVIDIA GTX 680, NVIDIA GTX 770, Intel HD Graphics 4400, Intel HD Graphics 4600.

Timing Name	Pixel Format	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Rate (MHz)
480p	720 x 480	31.469 60 27
720p	60 1280 x 720	45 60 74.25
576p	720 x 576	31.25 50 27
720p	50 1280 x 720	37.5 50 74.25
1080p	60 1920 x 1080	67.5 60 148.5
1080p	50 1920 x 1080	56.25 50 148.5
