EZA1540 - Security Camera EverFocus - Free user manual and instructions

Product Type	Security Camera (Bullet)
Brand	EverFocus
Model	EZA1540
Image Sensor	5MP SONY STARVIS CMOS
Lens	3.6mm Fixed Lens with ICR
IR Range	Up to 25m / 82ft (20 LEDs)
Wide Dynamic Range	True WDR (T-WDR)
Day/Night	Auto, Color, B/W, External (ICR)
Video Output	Analog (AHD, TVI, CVI, CVBS)
Resolution / Frame Rate	5MP@12.5/20fps, 4MP@15/30fps, 1080p@30fps, 4K@15fps
Mounting	Wall or Ceiling (3-Axis Rotation)
Ingress Protection	IP66 (Metal Housing)
Power Supply	12VDC
Cable Description	Power, Video, Joystick for OSD
OSD Control	Via Joystick on Cable (UTC supported)
Dimensions (Camera)	Approx. 70 x 70 x 180 mm (estimated)
Weight (Camera)	Approx. 400g (estimated)
Optional Accessory	BA-E310 Mount (White/Metal, 101x52mm, 540g)
Package Contents	Camera, Mounting Sticker, L-Type Wrench, Screws & Anchors, Manual
Scanning System	NTSC / PAL
Release Date	September 2019

Frequently Asked Questions - EZA1540 EverFocus

How do I connect the EZA1540 camera?

Connect the Power Cable to a 12VDC power source. Connect the Video Output Cable to a monitor or DVR. Use the Joystick on the cable to configure OSD settings.

What is the maximum IR distance?

The IR range is up to 25m / 82ft with 20 built-in LEDs, depending on scene reflectivity.

How do I adjust the camera angle?

Loosen the Rotate Screw on the bracket using the supplied L-Type Wrench, adjust the camera head (3-axis rotation), then tighten the screw securely.

Can I use this camera outdoors?

Yes, the camera is IP66-rated with a metal housing, making it suitable for outdoor use.

How do I access the OSD menu?

Remove the Protection Cap from the Joystick on the cable. Push the joystick up/down to navigate, left/right to adjust, and press to enter/exit submenus.

What video formats does the camera support?

It supports AHD, TVI, CVI, and CVBS analog formats, selectable in the OSD under System > Analog Mode.

Does the camera support WDR?

Yes, it features True Wide Dynamic Range (T-WDR) to improve visibility in high-contrast scenes. You can configure it in the Backlight menu.

How do I reset the camera to factory defaults?

In the OSD menu, go to System > Reset and select 'On'. Confirm to reset all settings to default.

What is the power requirement?

The camera requires 12VDC power. Use a compatible power supply (not included).

Can I control the camera from a DVR?

Yes, it supports UTC (Up-The-Coax) function, allowing OSD control directly from a compatible DVR.

USER MANUAL EZA1540 EverFocus

EZA1540 eZ.HD Series

5MP IP66 IR Bullet Camera

User's Manual

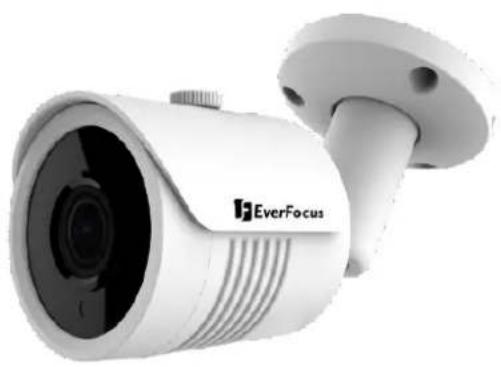

Exterior view of a white surveillance camera with 'EverFocus' branding (no additional text or symbols visible)

EverFocus

Copyright © EverFocus Electronics Corp.

Release Date: September, 2019

All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version. Information contained in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: [phone] FAX: [phone] www.everfocus.com.tw

1. Introduction

EverFocus eZ.HD series cameras – EZA1540 is equipped with a 5MP SONY STARVIS CMOS sensor. The model provides 3.6mm fixed lens with ICR. Featured with True Wide Dynamic Range (T-WDR), the camera can provide clear images even under backlight circumstances where intensity of illumination can vary excessively. The EZA1540 supports both NTSC and PAL scanning systems and is IP66 certified.

1.1 Packing List

• Camera x 1

• Mounting Sticker x 1
  • L-Type Wrench x 1

• Screw & Screw Anchor x 3

• User Manual x 1

1.2 Features

• Equipped with SONY STARVIS 5MP CMOS sensor
• 3.6mm fixed lens with ICR to capture the desired field of view
- Extended IR range of up to 25m / 82ft. with 20 LEDs (depends on scene IR reflectivity)
• T-WDR to improve the visibility under high contrast scene
- The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Supports UTC function: Control camera OSD settings from DVR end

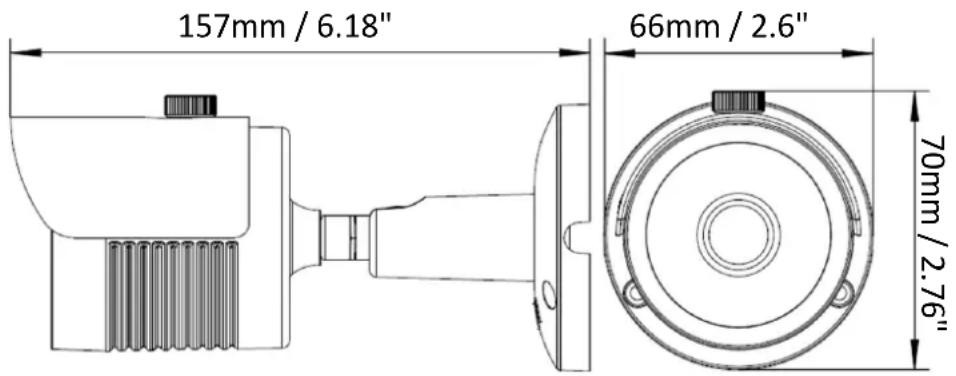

1.3 Dimensions

1.4 Optional Accessory

BA-E310

Color / Material: White / Metal

Size (Φ x H): 101 x 52mm / 3.98" x 2"

Weight: 540g / 1.2lb

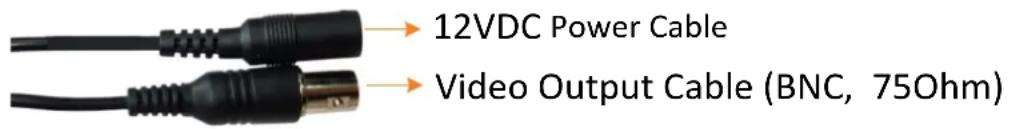

1.5 Cable Description

2. Installation

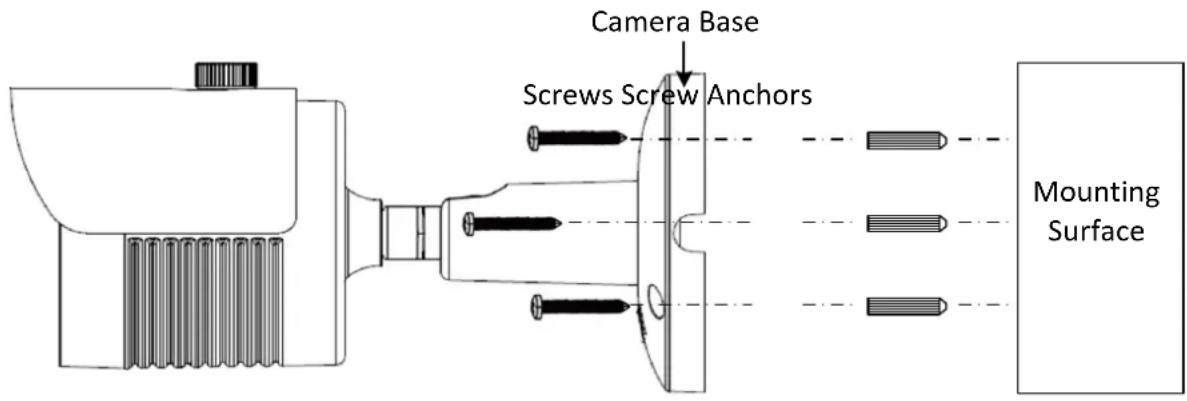

1. Stick the supplied Mounting Sticker to the surface to mark the 3 screw positions. Drill 3 holes on the surface and insert the supplied 3 Screw Anchors into the screw holes. If you want to run the cable through the surface, drill a hole within the 3 screw area.
2. To mount the camera to the surface, screw the Camera Base to the surface using the supplied 3 Screws.

1. Connect the Power Cable to a 12VDC power source. Connect the Video Output Cable to a monitor or DVR.

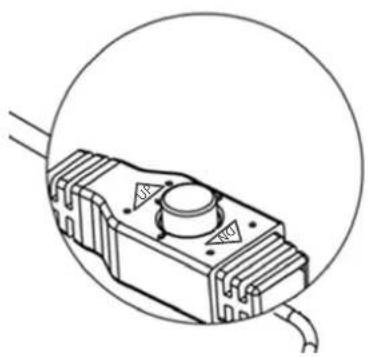

2. You can use the Joystick on the cable to configure camera OSD settings. Remove the Protection Cap from the Joystick before using it.

Technical line drawing of a mechanical component with no visible text or symbols

Configuring OSD Settings:

• Push the Joystick up / down to select among menu items.
• Push the Joystick left / right to adjust the level of the selected item.

• Press the Joystick to enter the submenu or exit the OSD Setup Menu.

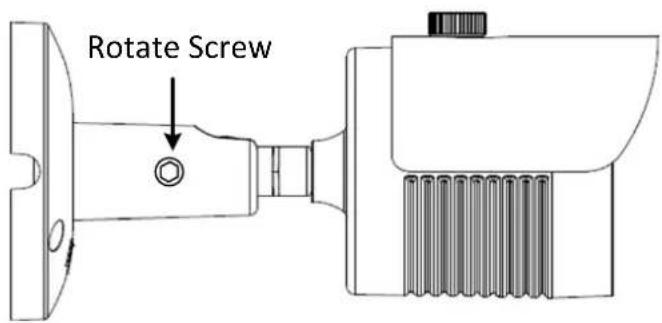

• You can optionally adjust camera angles. To do so, loosen the Rotate Screw on the bracket using the supplied L-Type Wrench to adjust camera angles. After adjusting camera angles, tightly screw back the Rotate screw.

1. Configuration in the OSD Menu

No	Main	Sub Menu	Sub Menu / Function
1	Edge Det	On	Level	0-10
			Color	YEL, CYN, GRN, MAG, RED, BLU, BLK, WHT
		Off
2	Exposure	Brightness	0-20
		Shutter	Auto	Mode	Normal / Deblur
			Manual Speed		1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/15000, 1/30000
			Flicker
		Sens-Up	X2, x4, x8, x16, x32, Off
		AGC	0-10
3	Backlight	HLC	Level	0-20
			Color	YEL, CYN, GRN, MAG, RED, BLU, BLK, WHT
		BLC	H-POS	0-26
			V-POS	0-32
			H-SIZE	0-26
			V-SIZE	0-32
		WDR	WDR Mode	Frame, Line
			ROI Mode	Box	Window Zone	0-3
					Window Use	On, Off
					H-POS	0-2608
					V-POS	0-1960
					H-SIZE	0-2608
					V-SIZE	0-1960
				Polygon	Window Zone	0-3
					Window Use	On, Off
					POS0-X	0-721
					POS0-Y	0-535
					POS1-X	0-721
					POS1-Y	0-535
					POS2-X	0-721
					POS2-Y	0-535
					POS3-X	0-721
					POS3-Y	0-535
				Off
			Weight	High, Middle, Low
		Off
4	Day/Night Mode	Auto	IR LED		Adaptive, Off
			Anti-Sat.		0-20
			D>N Thres		0-20
			N>D Thres		0-20
			Delay		High, Middle, Low
			Color
			B/W	IR LED		Adaptive, Off
				Anti-Sat.		0-20
				D>N Thres		0-20
				N>D Thres		0-20
				Delay		High, Middle, Low
			Extern	IR LED		Adaptive, Off
				Anti-Sat.		0-20
				Extern SW		High, Low
				D>N Thres		0-20
				N>D Thres		0-20
				Delay		High, Middle, Low
5 Color		AWB	Auto
			Autoext
			Preset
			Manual	C-Temp		3000K, 5000K, 8000K
				R-Gain		0-20
				B-Gain		0-20
		Color Gain	0-20
6	DNR	High, Middle, Low, Off
7 Image		Sharpness	0-10
		Gamma	0.45, 0.55, 0.65, 0.75
		Mirror	On, Off
		Flip	On, Off
		D-Zoom	1.0X-16X
		ACE	High, Middle, Low, Off
		Defog	On	Mode		Auto, Manual
				Level		High, Middle, Low
			Off
		Shading	On	Weight		0%-100%
			Off
		Privacy	Box	On	Zone Num		0-15
					Zone Disp		On, Off
					H-POS		0-80
					V-POS		0-61
					H-Size		0-80
					V-Size		0-61
					Y Level		0-20
					CB Level		0-20
					CR Level		0-20
					Trans		0-3
				Off
			Polygon On		Zone Num		0-7
					Zone Disp		On, Off
					POS0-X		0-162
					POS0-Y		0-122
					POS1-X		0-162
					POS1-Y		0-122
					POS2-X		0-162
					POS2-Y		0-122
					POS3-X		0-162
					POS3-Y		0-122
					Y Level		0-20
					CB Level		0-20
					CR Level		0-20
					Trans		0-3

				Off
8 Motion		On	Det Window	Window Use	0-3
				Window Zone	On, Off
				Det H-POS	0-80
				Det V-POS	0-60
				Det H-Size	0-80
				Det V-Size	0-60
			Sensitivity	0-10
			Motion OSD	On, Off
			Text Alarm	On, Off
			Signal Out	On, Off
		Off
9 System		Output	Frame Rate	4K/15fps, 4MP/30fps, 1080p/30fps, 5MP/12.5fps, 5MP/20fps, 4MP/15fps
			Freq	60Hz, 50Hz
			Analog Mode	AHD, TVI, CVI, CVBS
			Confirm	Yes
			Return
			Exit
		Image Range	Full
			Comp
			User	Offset	0-32
		Color Space	HD-CbCr, SD-CbCr, YUV
		Audio Mic	Not supported
		Color Bar	On, Off
		Language	ENG, CHN, CHN(S), JPN, KOR, POR, ESP
		Cam Title	Left-Down
			Right-Up
			Off
		Reset	On
10	Exit
