Product Type	HDcctv 1080p Outdoor IR Vandal-Proof Dome Camera
Brand	EverFocus
Model	EBH5241
Image Sensor	1/2.9" Sony 2.43 Megapixel Color Progressive CMOS
Effective Resolution	1920 x 1080 (1080p)
Frame Rate	30 fps
Video Output	HDcctv 1.5 Gb/s over coax via BNC connector
Lens	Fixed f3.6mm
Day/Night	True Day/Night with automatic IR cut filter (ICR)
Minimum Illumination	0 lux (IR LED on)
IR Wavelength	850 nm
IR Range	Up to 60 ft (18 m)
IR LED Count	20 long-life LEDs
Power Supply	12 VDC
Power Consumption	390 mA max
Weather Rating	IP66
Vandal Proof	Yes
Dimensions (Diameter x Height)	93 mm x 63 mm (3.66" x 2.48")
Weight	Approximately 0.5 kg (1.1 lb)
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Certifications	FCC, CE
Mounting Type	3-axis turret, surface or ceiling mount
Accessories Included	Camera, mounting template, manual, screws, L-wrench, plastic anchors, power pigtail
Cleaning Instructions	Use lens tissue with ethanol for sensor/lens; damp soft cloth for body; no harsh solvents
Spare Parts / Repairability	Contact EverFocus for replacement parts; no user-serviceable parts inside

Frequently Asked Questions - EBH5241 EverFocus

What is the maximum resolution of the EBH5241?

The EBH5241 delivers 1920x1080 (1080p) resolution at 30 frames per second over HDcctv.

What type of cable does the camera use?

It uses standard coaxial cable (e.g., RG59) with BNC connectors for HDcctv digital video transmission.

Is the camera suitable for outdoor use?

Yes, it has an IP66 weatherproof rating and operates from -10°C to 50°C, but it is not submersible.

How does the day/night feature work?

The camera has a true day/night function with an automatic IR cut filter (ICR) that switches between color and black-and-white modes for optimal low-light performance.

What is the IR range?

The integrated 20 IR LEDs provide an effective range of up to 60 feet (18 meters) depending on scene reflectivity.

How do I clean the camera lens?

Use lens tissue or a cotton-tipped applicator with ethanol to gently clean the lens and sensor. For the body, use a damp soft cloth; avoid solvents or abrasive agents.

What power supply is required?

The camera requires 12 VDC power supply with a maximum consumption of 390 mA. A properly fused or Class 2 power-limited supply is recommended.

Is the camera vandal-proof?

Yes, the camera features a vandal-proof housing designed to withstand impacts and tampering.

How do I mount the camera?

The camera has a 3-axis turret for flexible positioning. Mount it on a solid surface using the provided screws and anchors. For drop ceilings, use a safety wire for extra support.

Can I connect this camera to a standard DVR?

Yes, it connects to any HDcctv DVR or compatible HDcctv signal equipment via coaxial cable with BNC connectors.

USER MANUAL EBH5241 EverFocus

Operation Instruction

Technical line drawing of a mechanical bearing assembly (no text or symbols)

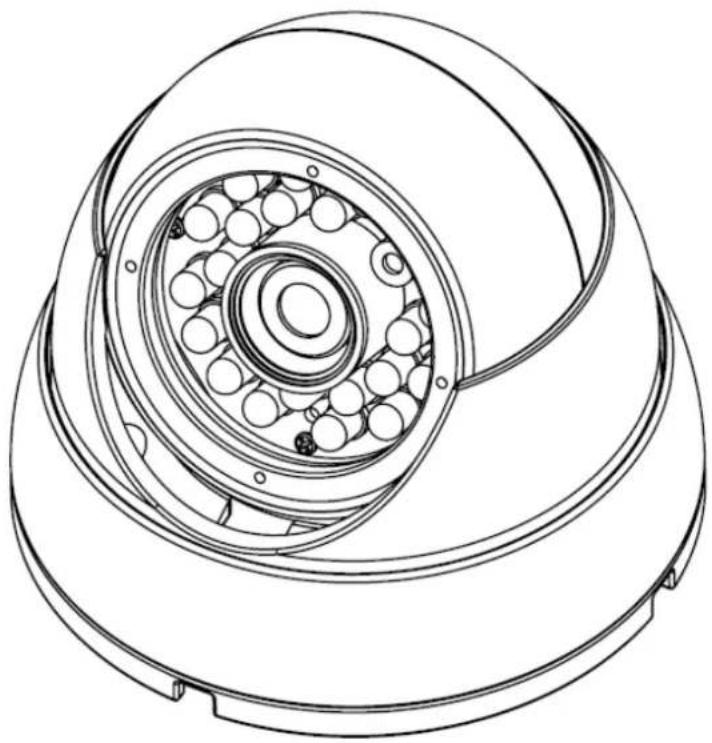

HDcctv 1080p Outdoor IR Vandal-Proof Dome Camera

EBH5241

Operation Instruction

© 2012 EverFocus Electronics Corp

Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.

All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.

1. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. Improper disassembly or introduction of corrosive materials may result in equipment failure or other damage.

2. Try to avoid facing the camera toward the sun.

In some circumstances, direct sunlight may cause permanent damage to the sensor and/or internal circuits, as well as creating unbalanced illumination beyond the capability of the camera to compensate.

1. Keep the power cord away from water and other liquids and never touch the power cord with wet hands. Touching a wet power cord with your hands or touching the power cord with wet hands may result in electric shock.

2. Never install the camera in areas exposed to oil, gas or solvents.

Oil, gas or solvents may result in equipment failure, electric shock or, in extreme cases, fire.

1. Cleaning

For cameras with interchangeable lenses, do not touch the surface of the sensor directly with the hands. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor and the camera lens. Use a damp soft cloth to remove any dirt from the camera body. Please do not use complex solvents, corrosive or abrasive agents for cleaning of any part of the camera.

1. Do not operate the camera beyond the specified temperature, humidity or power source ratings. This camera is suitable for indoor and outdoor operation. Use the camera at temperatures within -10^ 50^ ( 14^ 122^ ) and in an IP66 compliant environment; this device is not rated as submersible. The input power source is 12VDC. The use of properly fused or Class 2 power limited type supplies are highly recommended.

2. Mounting

Use care in selecting a solid mounting surface which will support the weight of the camera plus any wind, snow, ice or other loading, and securely attach the camera to the mounting surface using screws and anchors which will properly support the camera. If necessary (e.g. when mounting to drop ceilings) use a safety wire to provide additional support for the camera.

ATTENTION! This is a class A product which may cause radio interference in a domestic environment; in this case, the user may be urged to take adequate measures.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

•Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the users' authority to operate this equipment.

Table of Contents

1. PRODUCT OVERVIEW....6

1.1 FEATURES 6
1.2 ACCESSORY PARTS LIST....7
1.3 SPECIFICATIONS 8
1.4 DIMENSIONS....9

1. CAMERA COMPONENT DESCRIPTION .... 10

2. INSTALLATION ....11

1. Product Overview

The EBH5241 is an HDcctv turret style outdoor dome camera with True Day/Night capability in an IP66 vandal proof housing. Based on a Sony 2.1 megapixel progressive scan sensor for HD 1080p resolution 100% digital images, it delivers vastly superior video quality compared to traditional CCTV images. This superior resolution not only captures more critical evidentiary information, but the inherent ability for megapixel video also extends the area of coverage, expedites completion of investigations, resolves complaints and reduces both capital and operational costs. Designed with 20 long lifespan IR LEDs, the EBH5241 can capture images at up to 30 ft. in low or no light environments.

No major upgrade to the IT network is required to deploy this powerful technology; HDcctv cameras communicate at digital speeds up to 1.5Gb/s over existing or new coaxial cable (RG59 or other types for longer distances), using industry standard BNC connectors. With its 3-Axis positioning and IR illuminators, the EBH5241 delivers flexible, robust coverage in a wide range of demanding surveillance environments while delivering stunning HD image quality.

1.1 Features

● HDcctv Megapixel real time 1920x1080 HD video over coax
● Video output of 1080p at 30fps
● True day/night operation with automatic ICR module
- Includes DNR to improve picture clarity while enabling DVRs to improve disk storage utilization
● 3-Axis positioning turret style for flexible mounting and aiming
● 20 long life leds for an IR range of up to 30 ft. (Depends on scene IR reflectivity)
● Vandal Proof Construction
● Weather Resistant IP66 rated

1.2 Accessory Parts List

Please be careful when you unpack the box due to the electronics devices inside. Check and make sure that you have all the items listed below inside the original box:

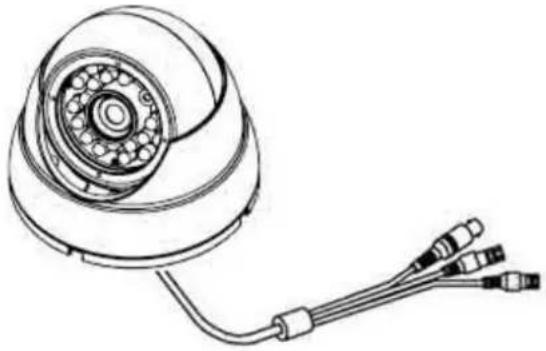

Camera
Template	Manual
Screws / L-Wrench / Plastic anchors	Pigtail (Power)

Please Note: If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. If any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer Service. The shipping carton is the safest container in which the unit may be transported. Save it for possible future use.

1.3 Specifications

Pickup Device 1/2.9" Sony 2.43 Megapixel Color Progressive CMOS Sensor
Sensitivity 0lux(IR LED ON)
S/N Ratio Max. 50dB
Video Format Main Output HDcctv 1.5Gb/s digital system
Resolution Main Output 1920 x 1080
Video Mode Main Output 1080p 30fps
Main Output Connector BNC
Test Video Output Connector BNC
Video Format Test Output NTSC
Exposure Control Electronic Iris
Lens Type Fixed f3.6mm
True Day/Night Control Yes (Auto IR cut filter removal)
Auto Gain Control	Yes (Max)
Auto White Balance	ATW
DSS	Yes (4x)
Lens Shading	Yes
DNR	Yes (Mid)
IR Wavelength	850nm
IR Range	Up to ~60 ft.
Power Sources & Consumption	12VDC: 390mA max.
Dimensions (φ x H)	93 mm (O.D.) x 63 mm (H) / 3.66" (O.D.) x 2.48 "(H)
Weight
Operating Temperature	-10°C~50°C; 14°F~122°F
Weather Resistant	IP66 rated
Vandal Proof	Yes
Certifications	FCC/CE

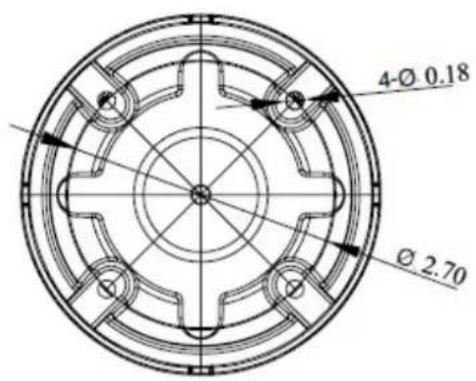

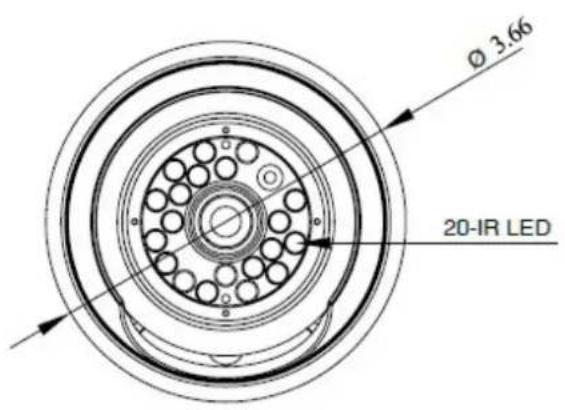

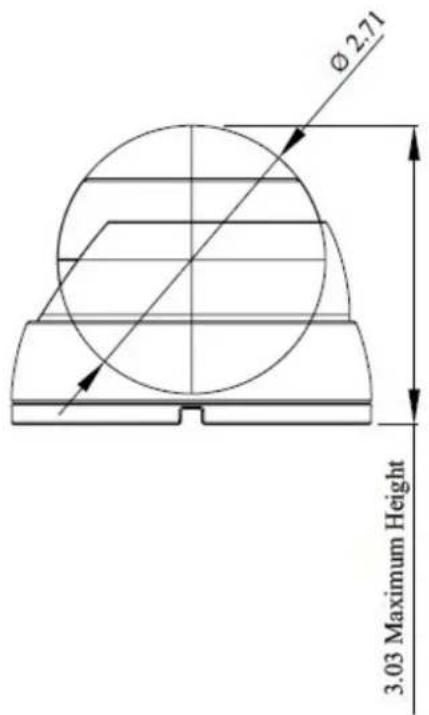

1.4 Dimensions

Inches:

Technical drawing of a mechanical component with a 2.48mm dimension label (no other text or symbols)

Chapte

2

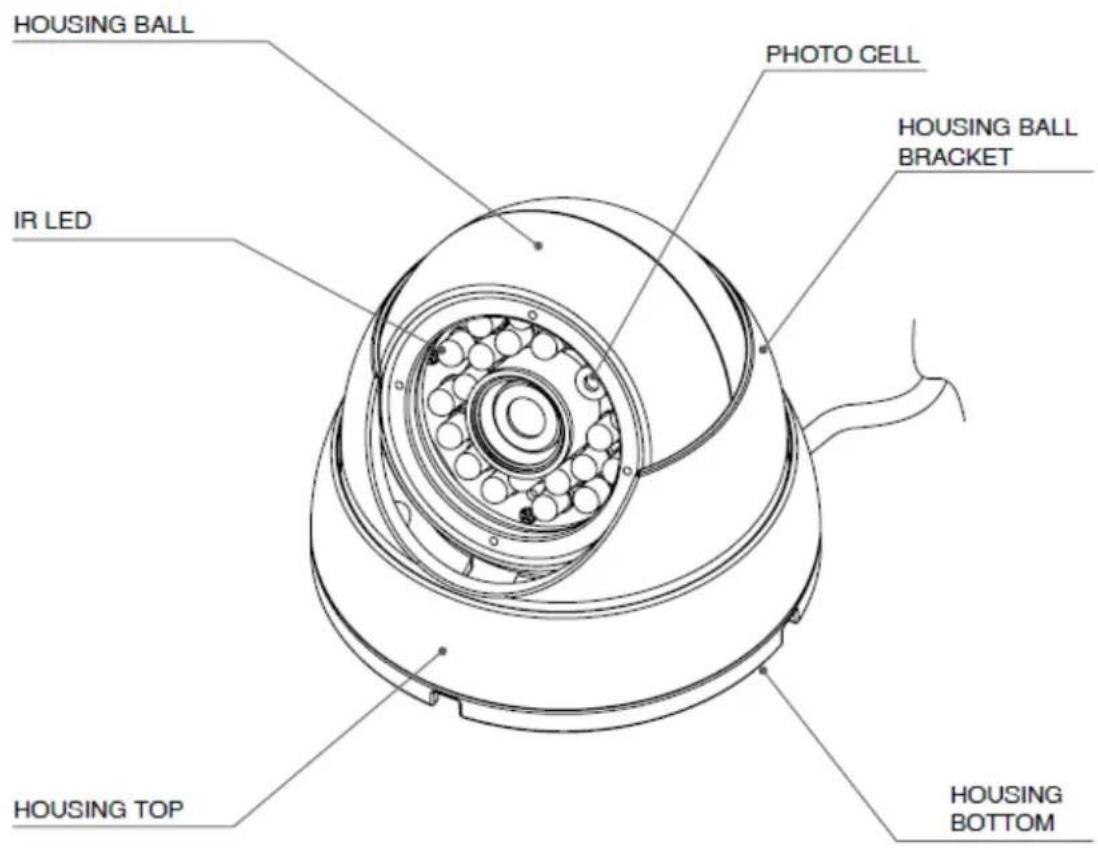

2. Camera Component Description

Chapte

3

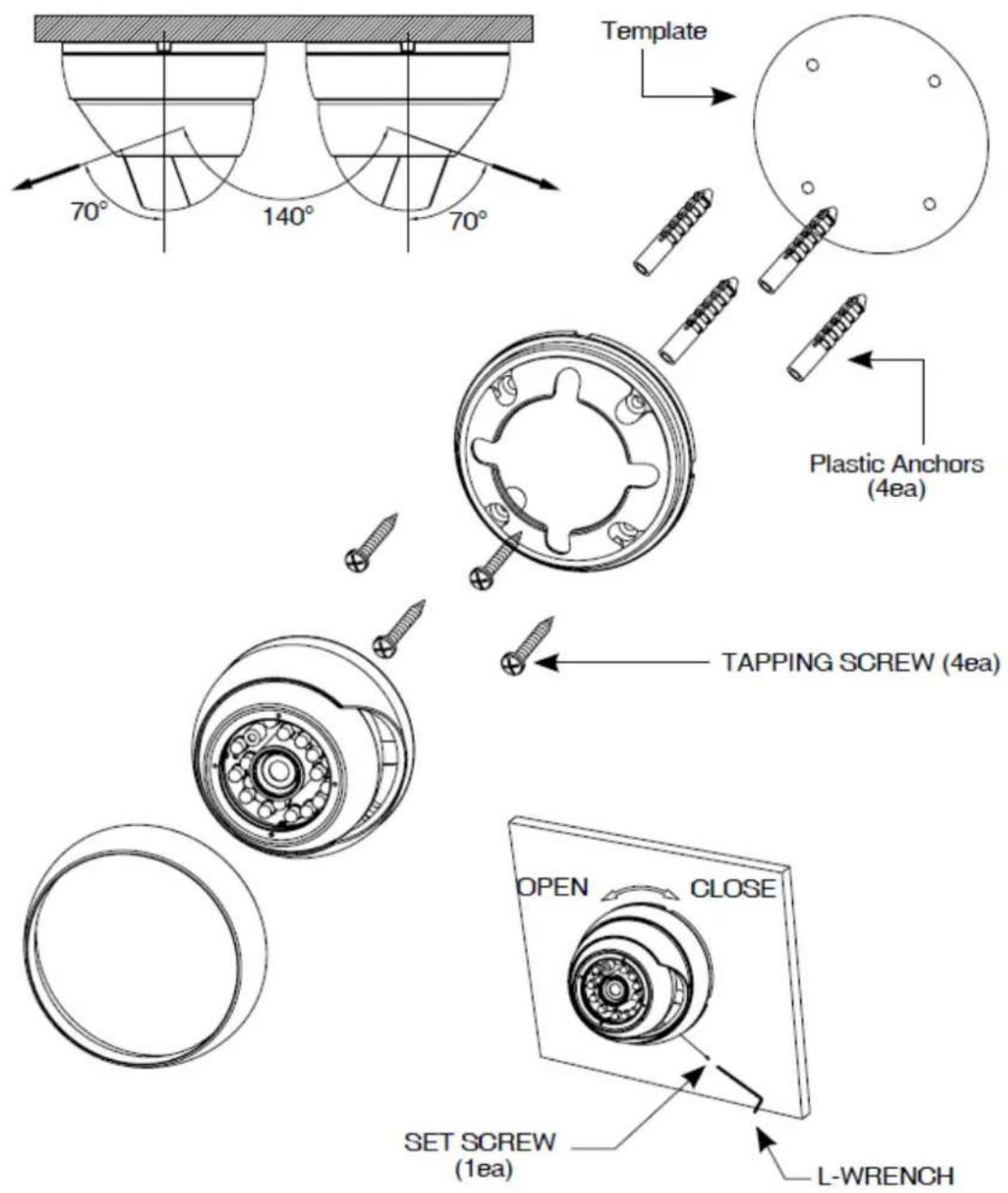

3. Installation

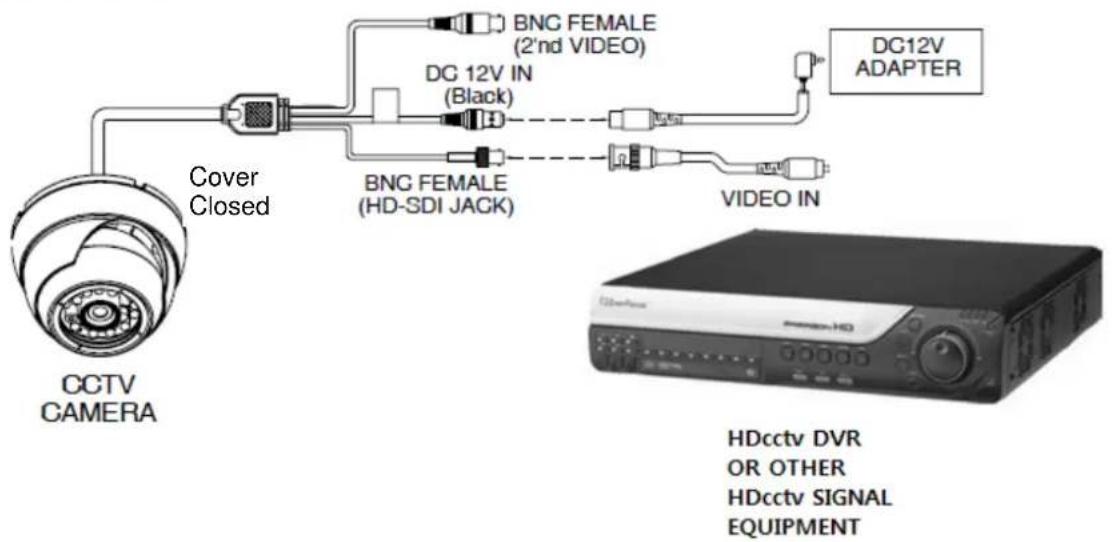

Connection

** NOTE

When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
