Product Type	Security Camera
Brand	EverFocus
Model	EM500NHP1
Image Sensor	1/3" Sony Super HAD CCD, approx. 410,000 pixels
Horizontal Resolution	550 TVL
Lens Type	Manual zoom, conical pinhole
Focal Length	3.7 mm
Video Format	NTSC
Scanning System	2:1 Interlace
Electronic Shutter	1/60 ~ 1/100,000 sec
Minimum Illumination	0.2 Lux
S/N Ratio	More than 45 dB
Video Output	BNC 1.0Vp-p, 75 ohms
Power Supply	DC 12V (+10%)
Power Consumption	3.5 W max
Dimensions (Camera)	25 x 25 mm (0.98 x 0.98 in)
Weight	0.3 kg (0.7 lbs)
Operating Temperature	10°C to 45°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Mounting	Bracket included, ceiling or wall mount
Package Contents	Camera unit, mounting bracket, power/video cable, screws, manual
Cleaning	Use soft cloth for body; lens tissue or cotton swab with ethanol for lens/sensor
Safety Precautions	Avoid magnetic fields, direct sunlight, water, oil, gas; do not disassemble

Frequently Asked Questions - EM500NHP1 EverFocus

What power supply does the EM500NHP1 require?

The camera requires a DC 12V power source with a tolerance of +10%. It consumes up to 3.5W. Use the included power/video cable and ensure proper polarity: black wire with white stripe is positive, solid black is negative.

How do I install the camera?

First, secure the mounting bracket to the wall or ceiling using the provided screws. Then attach the camera to the bracket with the power/video connector facing downward for correct orientation. Finally, connect the power/video cable and run the video output to a monitor or DVR.

What is the video output type?

The camera outputs a standard BNC 1.0Vp-p composite video signal at 75 ohms. Use a BNC cable to connect to a monitor or recording device.

Can I mount the camera on a wall or ceiling?

Yes. If the image appears horizontal, you may need to remove the camera module and rotate it 90° before reattaching it to the bracket. Refer to the installation section in the manual.

How do I clean the camera lens?

Use a soft cloth to clean the camera body. For the lens and sensor, use lens tissue or a cotton swab with ethanol. Do not touch the sensor with bare hands.

What is the minimum light level for operation?

The camera can capture images at light levels as low as 0.2 Lux (with F=1.2). It also features a wide-range automatic electronic shutter up to 1/100,000 sec.

What are the operating temperature limits?

The camera operates between 10°C and 45°C (14°F to 122°F). Storage temperature range is -20°C to 60°C (-4°F to 140°F).

What is included in the package?

The package contains the camera unit, a mounting bracket, a power/video cable, three screws, and the user manual.

What should I do if there is no power?

Check that the power supply provides sufficient current (amperage) at 12V DC. Also verify the polarity of the connection: the black wire with white stripe is positive, solid black is negative.

What type of lens does the EM500NHP1 have?

It features a manual zoom conical pinhole lens with a focal length of 3.7 mm, allowing adjustment of the viewing angle.

USER MANUAL EM500NHP1 EverFocus

Black square mechanical component with central circular recess and four mounting holes (no text or symbols visible)

EVERFOCUS

1/3" Square Metal Case

DSP Color CCD Camera

Operation Instructions

Model No. EM500NH P1, P3, P4

Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio speakers since the magnetic fields generate from above devices will distort the video images.

1. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

1. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

1. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

1. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

1. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

Use the camera at temperatures within 0^ 40^ C ( 32^ to 104^ F) and humidity between 20%\~80%. The input power source is 12VDC/24VAC.

FEATURES

● 1/3" Sony Super HAD CCD image sensor with approximately 410,000 pixels.
● Over 550 TVL of horizontal resolution.
● Revolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images and excellent picture quality.
● Low light sensitivity 1.0 Lux/F=1.2.
● Wide-range automatic electronic shutter: up to 1/100,000.
- Manual zoom lens with adjustable viewing range.

PACKAGE CONTENTS

• Camera Unit x 1
• Mounting bracket x 1

Black metal bracket with rounded corners and cutouts (no text or symbols visible)

● Power/Video Cable x 1

Coiled black cable with two yellow connectors, no visible text or symbols

• Screws x 3
• Manual x 1

SPECIFICATIONS

	EM-500NHP1		EM-500NHP1
Lens Size 3.7mm 3.7mm 4	3mm
Lens Type Conical Pinhole Lens Flat Pinhole Lens		Super Cone Pinhole Lens
Dimensions 25 x 25mm | 0.98 x 0.98 Inches
Video Format NTSC
Image Sensor Color 1/3” High Res CCD Sony ICX638 Chip
Scanning System 2:1 Interlace
Scanning Frequency H: 15.734 KHz, V: 59.94Hz
Total Pixels 811 (H) x 508 (V), 410K
Effective Pixels Vari-focal lens f=4.0~9.0mm, Fixed Iris
Horizontal Resolution 550TVL
Electronic Shutter	1/60 ~ 1/100,000 sec
S/N Ratio	More than 45db
Video Output BNC 1.0Vp-p, 75ohm
Gamma Correction	0.45
Sync Mode	Internal Sync
Power Source DC12V + 10%
Power Consumption 12VDC	3.5W max
Operating Temperature	10°C ~ 45°C / 14~122°F
Storage Temperature	-20o C ~ 60o C / -4~ 140o F
Weight	0.3 kg ; 0.7lbs
Sensitivity	0.2Lux/F-20
Angle of View	66

EM-500N

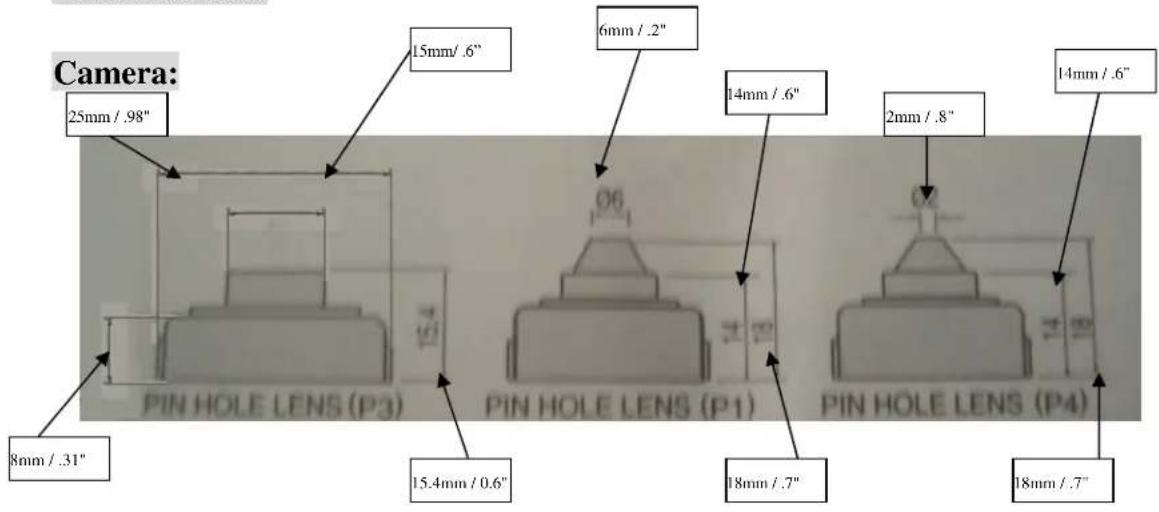

DIMENSIONS

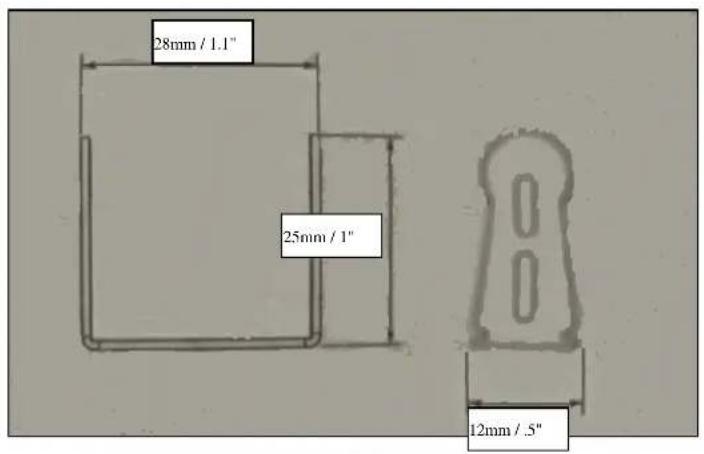

Bracket:

CAMERA MAJOR PARTS FUNCTIONS

EM500NHP3 EM500NHP1 EM500NHP4

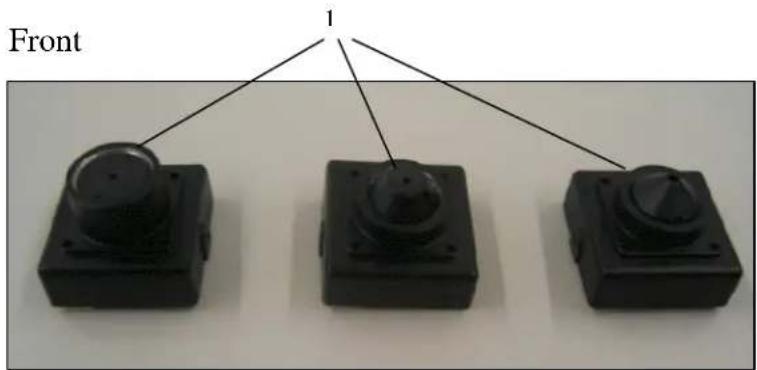

(1) Lens

The EMNH series cameras come with 3 types on pinhole lenses.

• Flat - EM500HP3.
• Conical – EM500NHP1
  • Super Conical – EM500NHP4

(2) Screw holes for included mounting bracket.

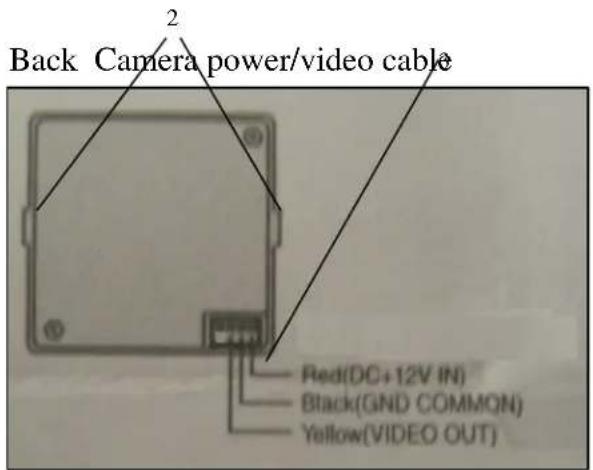

(3) Power/video port.

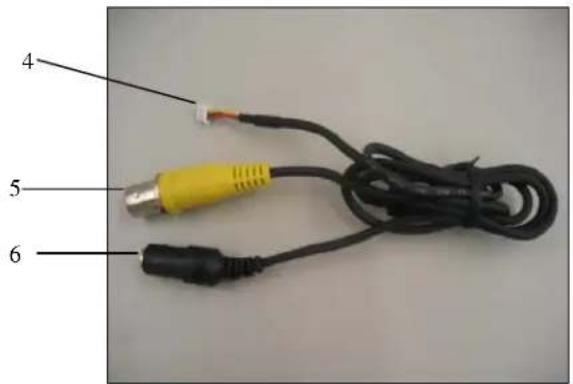

(4) Power/video connector to be plugged into the camera.

(5) Video Output BNC Connector

BNC 1.0Vp-p, 75ohm. Use the connector to connect with the video in connector of a monitor.

(6) Power input

Use the connector to connect with 12VDC power adaptor.

INSTALLATION

This section covers detailed steps of the simple installation. Please follow instructions for preventing any unnecessary damage

1. Secure camera mounting bracket to mounting surface.

a. Mark 2 screw points in mounting surface.

Close-up of a black metal bracket with two screws inserted (no text or symbols visible)

Figure 1-1

b. Fix the bracket to the mounting service with included screws. see figure 1-1.

2. Fix camera to mounting Bracket.

Close-up of a black square camera module with a cable extending from its side (no visible text or symbols)

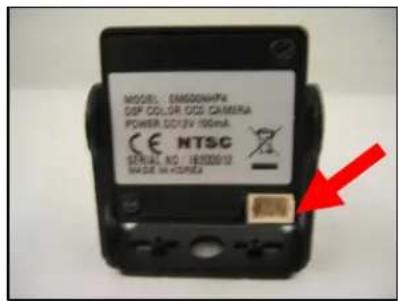

a. PositFigurhe 2almFigurady-2o be mounted on bracket so that the power/video connector is on the bottom to ensure that the camera is facing right side up. See arrow in figure 2.1 pointing at the power/video connector on bottom.

b. Secure camera on bracket with the fixing screws included.

3. Connect power/video cable to camera power/video connector

Figure 3-1

4. Connect Power and Video

Close-up of two black audio/video cables with metallic connectors, no text or symbols visible

Figure 4-1

a. Connect pigtail (male power adapter) to the camera female power connector. See Figure 3-1.

b. Connect power to pigtail wires (pigtail- male power adapter is purchased separately

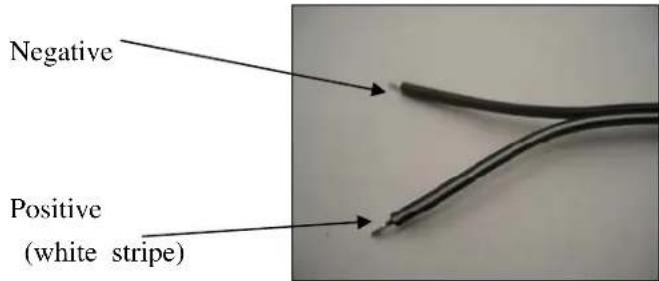

Pigtail Polarity: (Important since DC voltage is used)

Figure 3-2

Black Wire with white stripe is positive and solid black wire is negative. See figure A4-2.

Close-up of a black cable with two metallic connectors, one yellow and one black, against a plain background (no text or symbols visible)

c. Connect video cable to a BNC female cable run. See figure A4-3.

Troubleshooting

No power

Check to be certain that you have sufficient current or amperage from the power supply.

Amount of current needed depends on voltage. See this manuals spec. sheet for information on power consumption.

Picture output is horizontal.

Depending on camera will be installed on wall or on ceiling, you may have to remove camera module and rotate it so can install for wall or ceiling. See Installation A step 2 for explanation and steps.
