USER MANUAL EZ-VF325NH EverFocus

Black cylindrical mechanical component with flange and central bore (no visible text or symbols)

1/3" 550 TVL High Resolution DSP Color Mini Bullet Camera Operation Instructions

Model No. EZ-VF325NH

Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio speakers since the magnetic fields generate from above devices will distort the video images.

1. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

1. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

1. Keep the power cord away from water and fluid.

Touching the wet power cord may result in electric shock.

1. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within -10^ 50^ ( 14^ to 122^ ) and humidity between 20% 80% . The input power source is 12VDC.

PREFACE

The stylish appearance can be applied as per installer's ideal locations on the ceiling or wall. The mini bullet camera designed with advanced digital processing circuitry for high resolution 1/3" color interline transfer CCD sensor. Very low power consumption of 150mA or less.

FEATURES

● 1/3" Sony Super HAD CCD image sensor with approximately 410,000 pixels.
- 550 TVL of horizontal resolution.
● Revolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images and excellent picture quality.
● Low light sensitivity 1.0 Lux/F=1.2.
● Wide-range automatic electronic shutter: up to 1/100,000.

PACKAGE CONTENTS

• Camera Unit x 1
• Mounting bracket x 1

Black plastic mechanical component with a knob and base mount (no visible text or symbols)

• Screws x 3
• Manual x 1

SPECIFICATIONS

Video Format NTSC
Image Sensor 1/3" Sony ICX638 Super HAD CCD
Scanning System 2:1 Inter lace
Scanning Frequency H: 15734 KHZ, V:59.94 Hz
Sensitivity	0.2 Lux/F=2.0
Total Pixels 811 (H) x 508 (V), 401k
Effective Pixels 768 (H) x 494 (V), 380K
Horizontal Resolution 550 TVL
S/N Ratio Over 45B
Electronic Shutter 1/50(1/60)~1/100,000
Lens Type f=3.6, Fixed Iris
Option Mirror, Digital Day/Night
Auto Gain Control Yes
Auto White Balance Yes
Gamma Correction	0.45
Video Output BNC 1.0Vp-p, 75ohm
Sync. Mode	Internal Sync
Power Source 12VDC + 10% _
Power Consumption 90mA max
Dimensions	66 (L) x 19 (W) x 19 (H) mm / 2.6" (L) x 0.75" (W) x 0.75" (H)
Weight	0.3 kg ; 0.7lbs
Operating Temperature	-10°C~50°C ; 14°F~122°F (20%~80% Humidity)

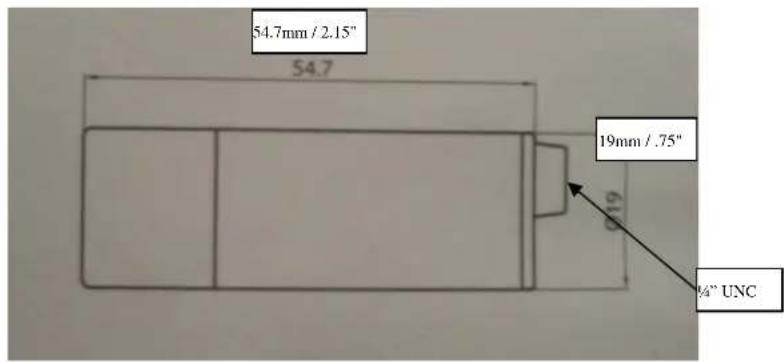

DIMENSIONS

MAJOR PARTS FUNCTIONS

(1) Lens

This Vari-Focal Lens allows users to adjust the Zoom and Focus manually.

(3) Video Output BNC Connector

BNC 1.0Vp-p, 75ohm. Use the connector to connect with the video in connector of a monitor.

(2) Power input

Use the connector to connect with 12VDC power adaptor.

INSTALLATION

This section covers detailed steps of the simple installation. Please follow instructions for preventing any unnecessary damage

1. Secure camera mounting bracket to mounting surface.

a. If Application calls for wires to go through the ceiling or wall, drill a hole on the ceiling or wall.

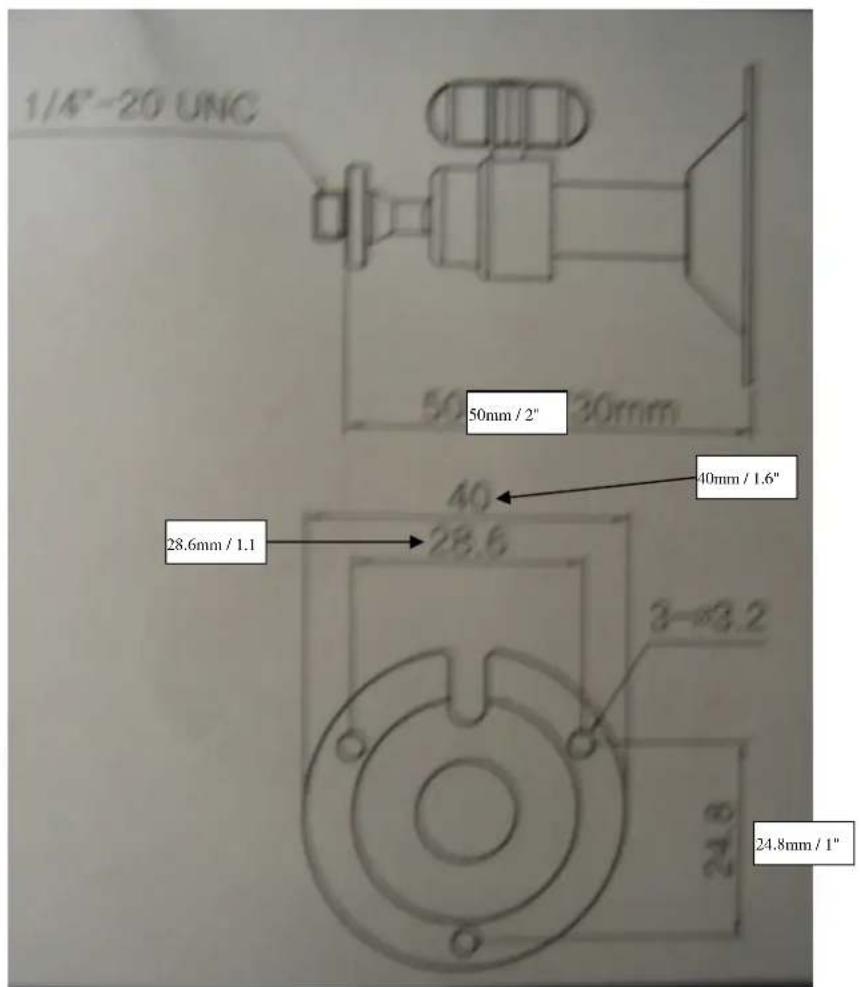

b. Mark and drill 3 holes in mounting surface according to the dimensions portion in this manual.

Close-up of a metallic mechanical component with four screws attached (no text or symbols visible)

Figure 1-1

c. Fix the bracket to the mounting service with included screws see figure 1-1

2. Fix camera to mounting Bracket.

Close-up of a black mechanical clamp with a metallic fitting inserted, showing a handle and adjustment arrow (no text or symbols visible)

Figure 2-1

a. Install camera on bracket by tuning the camera clockwise on to the 14 " screw on the bracket until camera is facing up.

b. Turn the bracket's securing ring to tighten the cameras position.

Black cylindrical device with a circular top and handle, mounted on a plain wall (no visible text or symbols)

Close-up of a black cylindrical pipe fitting mounted on a wall-mounted flange (no text or symbols visible)

Figure 2-2 Figure 2-3

Above in figures 2-2, 2-3, are the examples of installation on ceiling or wall.

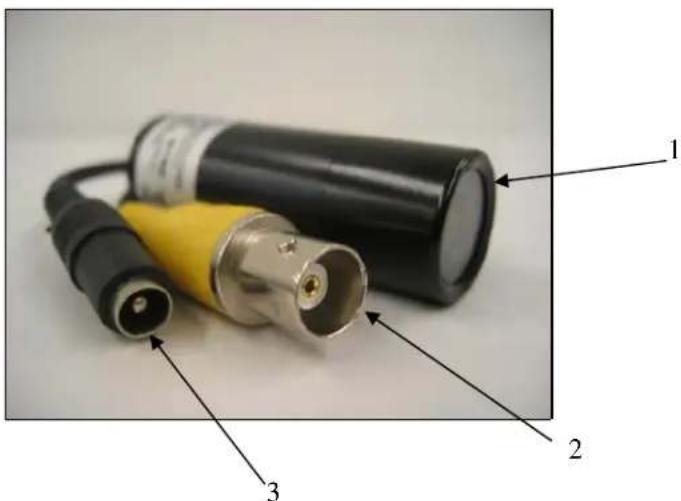

3. Connect Power and Video

Close-up of two black USB connectors with metallic tip, isolated on white background (no text or symbols)

Figure 3-1

a. Connect pigtail (male power adapter) to the camera female power connector. See Figure 3-1.

b. Connect power to pigtail wires (pigtail- male power adapter is purchased separately)

Pigtail Polarity: (Important since DC voltage is used)

Figure 3-2

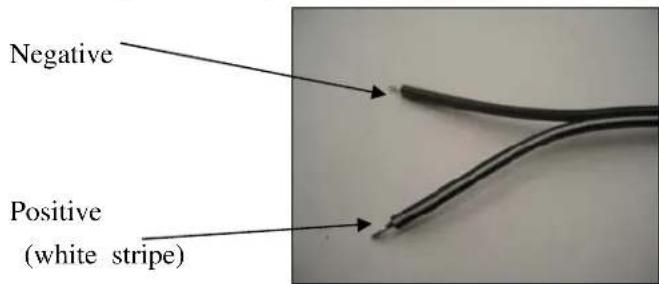

Black Wire with white stripe is positive and solid black wire is negative. See

figure A4-2.

Close-up of a black cable with two metallic connectors, one yellow and one black, against a plain background (no text or symbols visible)

d. Connect video cable to a BNC female cable run. See figure A4-3.

Troubleshooting

No power

Check to be certain that you have sufficient current or amperage from the power supply.

Amount of current needed depends on voltage. See this manuals spec. sheet for information on power consumption.

Picture output is horizontal.

Depending on camera will be installed on wall or on ceiling, you may have to remove camera module and rotate it so can install for wall or ceiling. See Installation A step 2 for explanation and steps.
