ION632 - Dehumidifier Ionmax - Free user manual and instructions

Product Type	Desiccant Dehumidifier
Brand	Ionmax
Model	ION632
Dimensions (W x D x H)	416 mm x 186 mm x 520 mm
Net Weight	8.4 kg
Power Supply	240V, 50Hz
Power Consumption	400 - 720W
Moisture Removal (at 20°C, 60% RH)	10 liters/day
Water Tank Capacity	3.5 liters
Working Temperature Range	1°C to 40°C
Desiccant Material	Zeolite
Air Filter	Washable Pre-filter
Timer	Up to 8 hours
Modes	Laundry Mode, Continuous
Continuous Drainage	Yes (hose connection)
Operating Noise	~45 dB (quiet operation)
Portability	Lightweight with handle and castors
Maintenance	Clean air filter monthly; no desiccant replacement needed
Certifications	CE, RoHS

Frequently Asked Questions - ION632 Ionmax

How does a desiccant dehumidifier work?

A desiccant dehumidifier uses a rotating wheel coated with zeolite to absorb moisture from the air. The wheel is heated to release the moisture, which is collected in a tank or drained away. This makes it effective at low temperatures.

What is the moisture removal rate of the ION632?

The ION632 can remove up to 10 liters per day at 20°C and 60% relative humidity.

Can I use the dehumidifier in cold rooms?

Yes, the ION632 works efficiently at temperatures as low as 1°C, making it ideal for unheated basements or garages.

How do I clean the air filter?

Remove the filter and wash it with mild detergent and water. Let it dry completely before reinstalling. Clean it every month for optimal performance.

Is continuous drainage possible?

Yes, you can attach a hose to the continuous drainage outlet. This allows the dehumidifier to run without emptying the tank.

Does the ION632 have an ionizer?

No, the ION632 does not include an ionizer. That feature is available on the ION612 model.

How much electricity does it consume?

Power consumption ranges from 400 to 720 watts, depending on the fan speed and heating cycle.

What is the warranty period?

Ionmax offers a 2-year warranty for the ION632. Check your local retailer for details.

How heavy is the dehumidifier?

The net weight is 8.4 kg, making it portable with built-in handles and castors.

Can I use it to dry laundry?

Yes, the Laundry Mode maximizes airflow to accelerate drying of clothes in a room.

USER MANUAL ION632 Ionmax

An Introduction to Desiccant Dehumidifiers

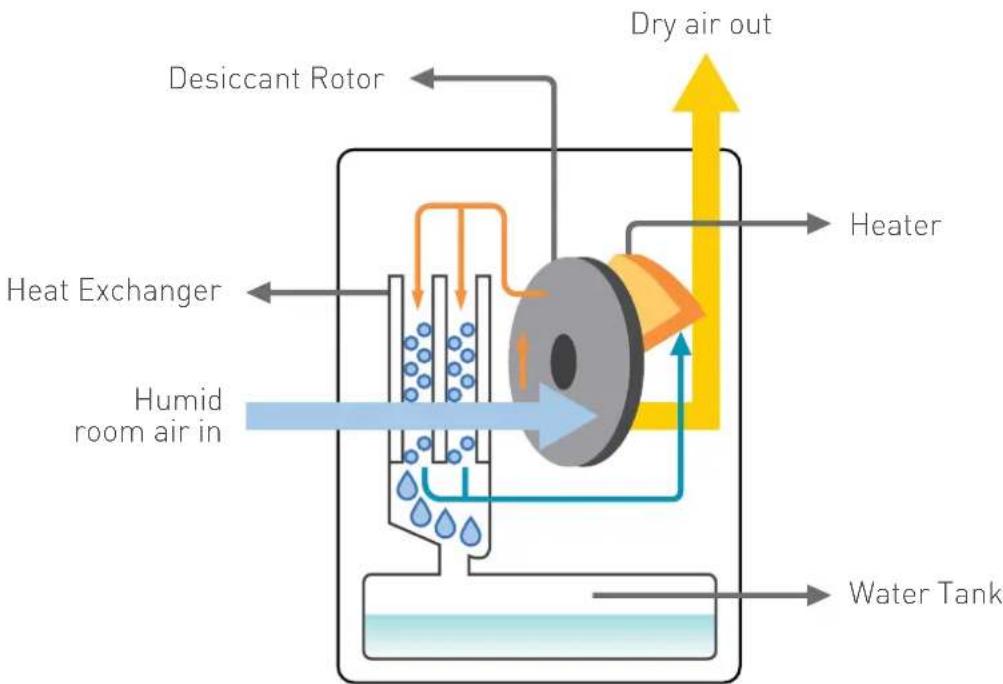

Desiccant rotor dehumidifiers use a desiccant (a substance that adsorbs water in a vapour state) that is mounted on a rotating wheel (called a rotor). In the Ionmax ION612 and ION632, the desiccant material used is Zeolite.

As the wheel turns, the incoming air passes through the desiccant where the moisture is adsorbed (collected onto the wheel surface) and the dried air is left to flow out. A flow of warm air is then passed through the desiccant wheel to 'regenerate' it and expel the moisture from its surface. The moisture is collected in the dehumidifier's water tank or drained out through a hose. The wheel continues to rotate and the adsorption process is repeated.

The adsorption principle used in desiccant rotor dehumidifiers make them especially suited for high humidity levels even at low temperatures. Unlike other types of dehumidifiers, desiccant dehumidifiers are more stable across all temperatures and can reduce humidity to much lower levels. They also require little maintenance and are quieter and lighter compared to compressor type dehumidifiers.

FEATURES

Built-in loniser

Extraction Rate 7 Litres/Day

Tank Capacity

Silver Nano Filter Technology

Laundry Mode

Stable Performance in Both Low and High Temperatures

Timer up to 8 hours

Quiet Operation

Light and Portable

SPECIFICATIONS

Voltage	240V
Power Consumption	360 - 620W
Working Temperature	1°C - 40°C
Moisture Removal	7 litres a day(at 20°C RH60%)
Tank Capacity 2 litres

	6 kgsNet Weight
Net Dimensions(W x D x H)	290mm x 175mm x 475 mm
Gross Dimensions(W x D x H)	350mm x 229mm x 545 mm

FEATURES

Extraction Rate 10 Litres/Day

Tank Capacity

Air Filter

Timer up to 8 hours

Laundry Mode

Stable Performance in Both Low and High Temperatures

Quiet Operation

Light and Portable

SPECIFICATIONS

Voltage	240V
Power Consumption	400 - 720W
Working Temperature	1°C - 40°C
Moisture Removal	10 litres a day(at 20°C RH60%)
Tank Capacity 3.5 litres

	8.4 kgsNet Weight
Net Dimensions(W x D x H)	416mm x 186mm x 520 mm
Gross Dimensions(W x D x H)	491mm x 260mm x 623 mm
