weBoost Drive OTR Antenna - TV amplifier Wilson - Free user manual and instructions

Product Type	Outside Antenna for Cellular Booster
Brand	Wilson (weBoost)
Model	Drive OTR Antenna (SKU: 311229)
Dimensions	7.422 x 2.688 in (188 x 68 mm)
Weight	0.75 lb (0.340 kg)
Frequency Bands	698-806, 806-960, 1710-1880, 1850-1990, 1910-2170, 2300-2700 MHz
Peak Gain	Up to 4.3 dBi
Impedance	50 Ohm
Polarization	Vertical
Connector Type	SMA (F)
Cable Length	16 ft (4.9 m) LMR-195
Maximum Power	10 W
Wind Rating	311 mph (500 km/h)
Radome Material	ASA Plastic
Radiator Material	Aluminum
Ingress Protection	IP66
Mounting Options	13 in. and 18 in. mast extensions, spring, side exit adapter, 3-way mirror rail mount
Shock and Vibration Rating	MIL-STD 810H
Warranty	2 years
Assembly	Assembled in USA

Frequently Asked Questions - weBoost Drive OTR Antenna Wilson

How do I install the weBoost Drive OTR Antenna on my vehicle?

First, select a mounting location on your vehicle. Insert the cable through the mast extensions and side exit adapter if using. Use thread locker on the threads. Mount the antenna using the included 3-way mirror rail mount or existing CB mounts. Ensure the antenna is vertical and at least 8 inches from all persons for RF safety.

What vehicles are compatible with this antenna?

The antenna is designed for off-road vehicles and trucks. It works with standard CB antenna mounts and includes a 3-way mount for mirror rails. It is rated to MIL-STD 810H for shock and vibration, making it suitable for rugged use.

Is the Drive OTR Antenna weatherproof?

Yes, it has an IP66 rating, meaning it is protected against heavy rain and wind. The radome is made of durable ASA plastic, and the antenna is designed to withstand wind speeds up to 311 mph.

What is the cable length included with the antenna?

The antenna comes with a 16 ft (4.9 m) LMR-195 cable. The cable is strong enough to be shut in most vehicle doors without damage.

Can I use this antenna with any cellular signal booster?

The antenna connects to mobile cellular boosters via an SMA (F) connector. It covers all major cellular bands from 698 to 2700 MHz, making it compatible with most boosters for voice and data.

How do I mount the antenna with the included spring?

To mount with the spring, disassemble the 3-way mount. Use the disc washer and nut provided to attach the spring between the antenna base and the mount. This helps reduce vibration on rough terrain.

What is the warranty period for the Drive OTR Antenna?

Wilson Electronics offers a 2-year warranty. If a defect occurs, you can contact technical support at 866-294-1660 for a Return Material Authorization (RMA) number.

Is the antenna directional or omnidirectional?

The antenna is omnidirectional with a half-power azimuth beamwidth of 360 degrees. This means it receives and transmits signals equally from all directions, ideal for mobile use.

What safety precautions should I follow during installation?

Ensure the antenna is mounted at least 8 inches away from all persons to comply with RF safety warnings. Also, the antenna must be installed no higher than 32 ft 9 in (10 m) above ground per AWS warning. Use thread locker to secure connections.

How can I contact technical support for the antenna?

You can reach Wilson Electronics support by phone at 866-294-1660 (Monday to Saturday), by email at [e-mail], or visit the support website at support.weboost.com.

USER MANUAL weBoost Drive OTR Antenna Wilson

Line drawing of a medical device with three vertical tubes and a central device, plus a separate spring-like component (no text or symbols)

Drive OTR Antenna

Index

Package Contents .... 1

Select Mounting Location & Assemble the Antenna 2

Mounting the Antenna 4

Mounting the Antenna with Spring 5

Safety Guidelines & Specifications 6

Warranty 7

Package Contents

Black cylindrical device with coiled cable, no visible text or symbols

Drive OTR Antenna w/16 ft. Cable (311229)

13 in. & 18 in. Mast Extensions

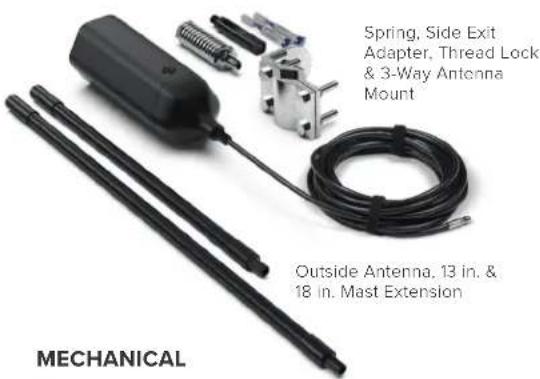

Spring, Side Exit Adapter & 3-Way Mount

Thread Lock

Select Mounting Location & Assemble the Antenna

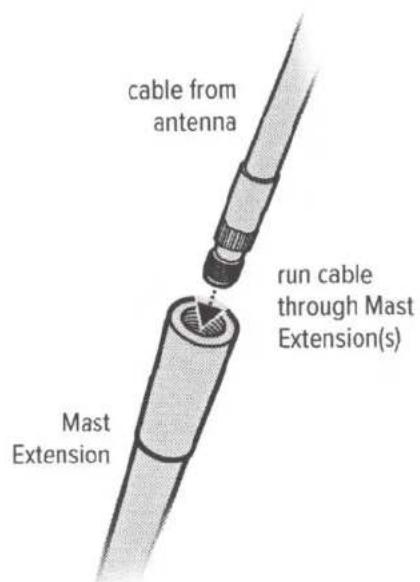

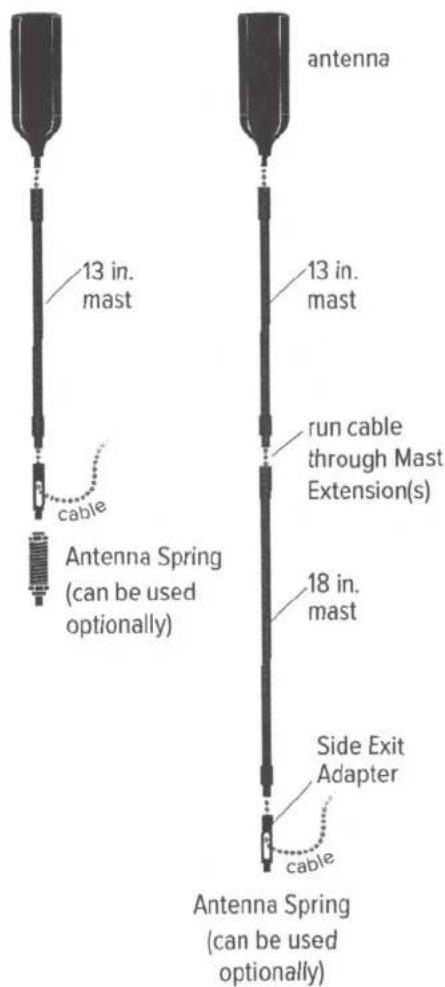

Once you have determined the best location for the antenna, insert cable through mast(s) then through Side Exit Adpater.

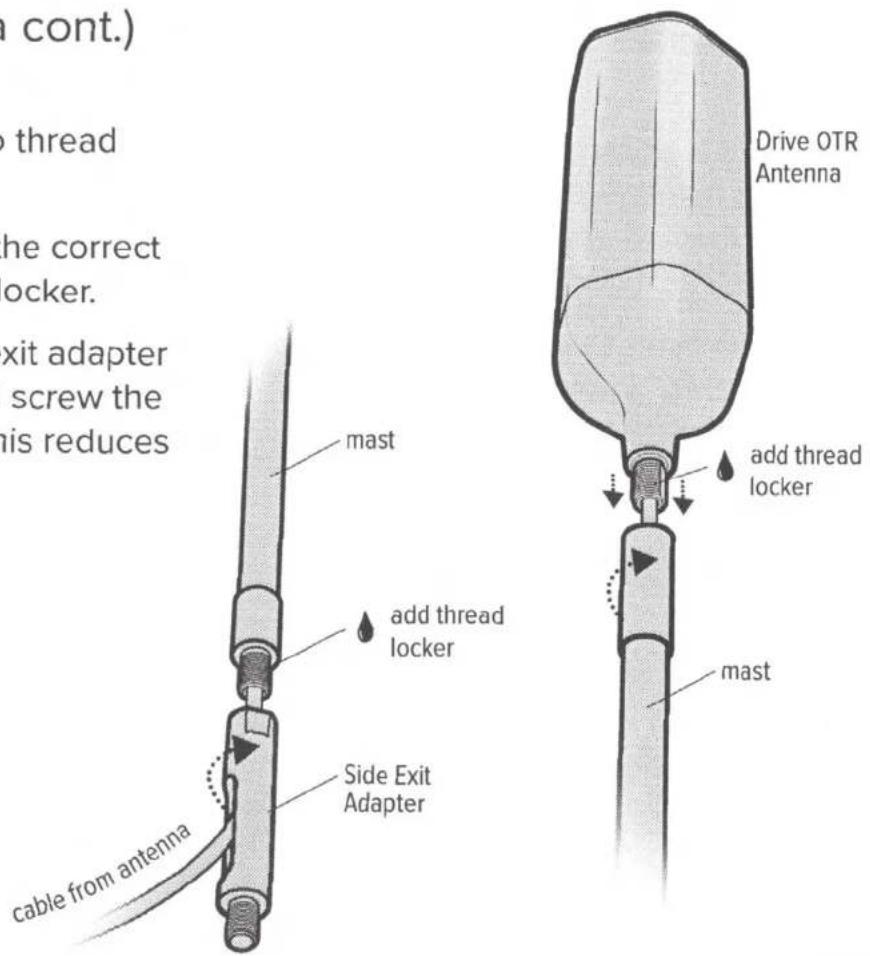

(Assemble the Antenna cont.)

Use thread locker (provided) to thread points and screw into place.

NOTE: Be sure the antenna is the correct height before applying thread locker.

NOTE: When adding the side exit adapter hold the antenna vertically and screw the adapter from the bottom up. This reduces cable twisting.

Mounting the Antenna

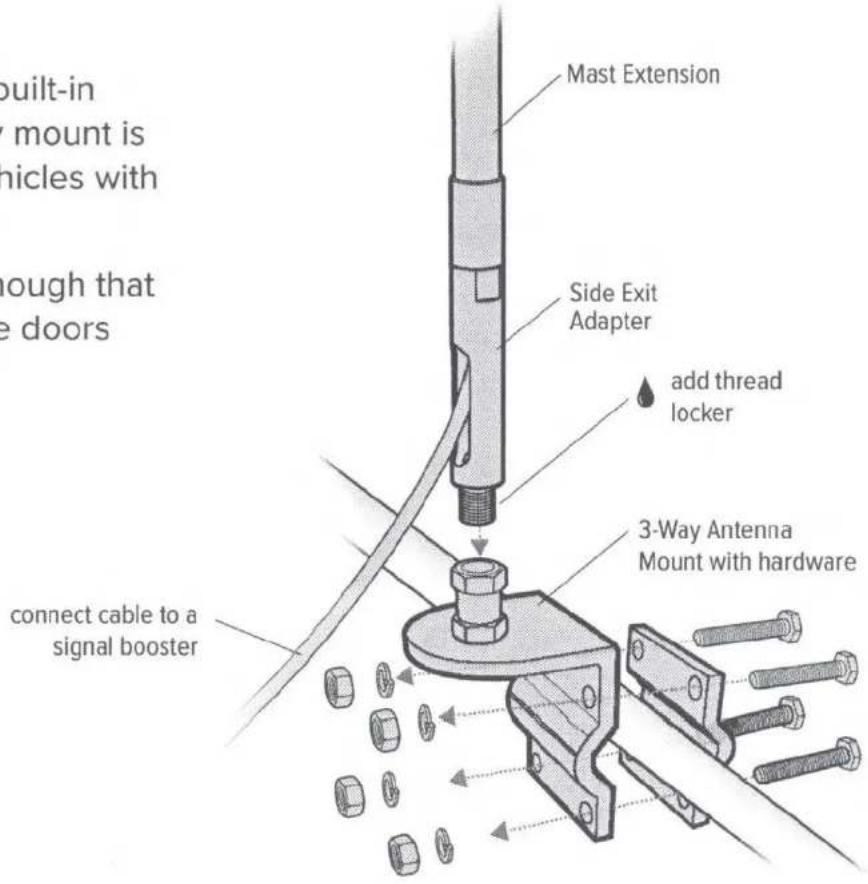

If the vehicle does not have built-in mounting points, a three-way mount is included that will work on vehicles with mirror rails.

NOTE: The cable is strong enough that it may be shut in most vehicle doors without damaging the cable.

Mounting the Antenna with Spring

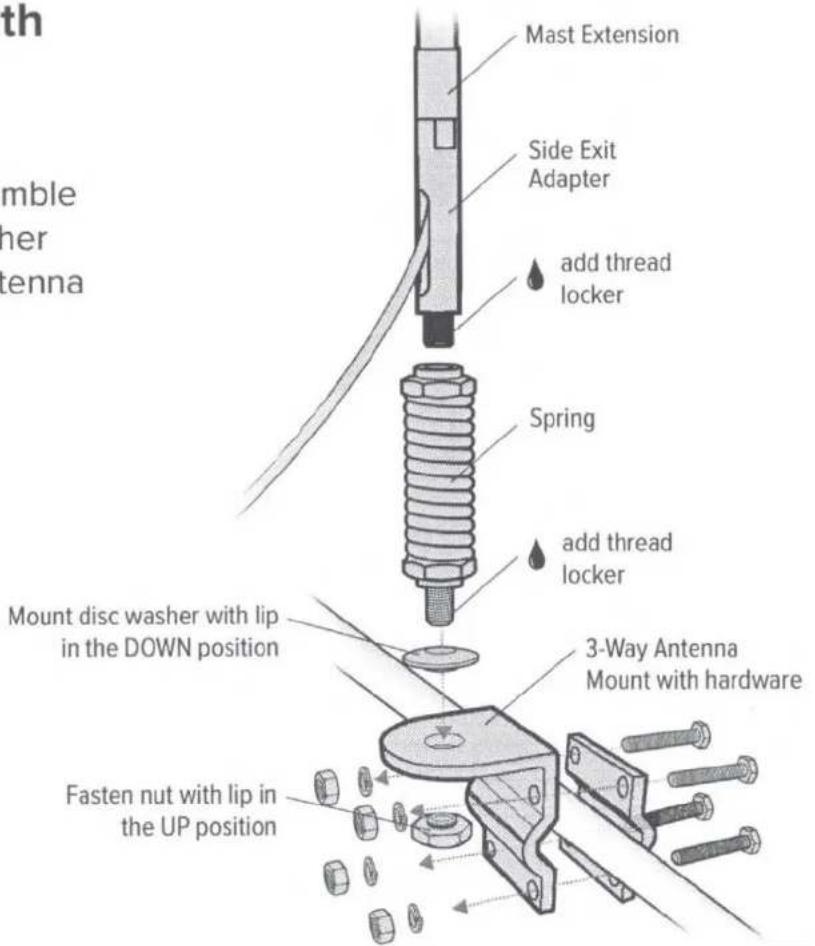

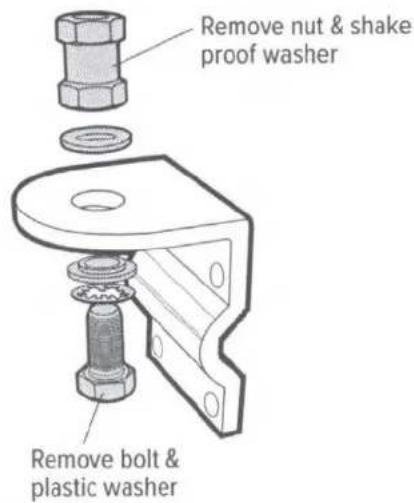

If installing with the Spring, disassemble the 3-Way Mount and use disc washer and nut (provided) to mount the antenna with Spring as shown.

Safety Guidelines & Specifications

RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. AWS Warning: The Outside Antenna must be installed no higher than 32 feet 9 inches (10 meters) above ground.

Electrical Specifications
Frequency Band (MHz)	698-806	806-960	1710-1880	1850-1990	1910-2170	2300-2700
Peak Gain (dBi)	2.4	2.6	3.8	3.8	3.7	4.3
Gain (dBi), Typical @ 2° Elevation	1.4	2.4	3.1	2.7	2.4	2.6
Cable loss LMR-195 30 in.	1.8	1.9	2.8	2.9	3.0	3.3
VSWR	<2:1		<2:1
Efficiency (%)	>70		>65
Polarization	Vertical
Half-Power Azimuth Beamwidth (°)	360	360	360	360	360	360
Half-Power Elevation Beamwidth (°)	70	78	60	70	80	33
Impedance (Ω)	50
Maximum Power (W)	10

Mechanical Specifications

Model	311229
Connector	SMA (F)
Dimensions (in / mm)	7.422 x 2.688 / 188 x 68
Weight (lb / kg)	.75 / .340
Rated Wind Velocity (mph / kph)	311 / 500
Radiator Material	Aluminum
Radome Material	Alumin Plastic Type: ASA (Acrylonitrile Styrene) Acrylate)

2 YEAR WARRANTY

Antennas may also be returned directly to the manufacturer at the consumer's expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.

Replacement products may include refurbished Wilson Electronics products that have been recertified to conform with product specifications.

This warranty does not apply to any antennas determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

DISCLAIMER: The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

MARKETING APPROVAL: Installer and end customer hereby grants to Wilson Electronics the express right to use installers or end customers company logo in marketing, sales, financial, and public relations materials and other communications solely to identify Customer as a Wilson Electronics customer.

WILSON

ELECTRONICS

3301 East Deseret Drive, St. George, UT

866.294.1660

www.wilsonelectronics.com

[e-mail]

Copyright © 2020 Wilson Electronics. All rights reserved. Wilson Electronics products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents

NOT AFFILIATED WITH WILSON ANTENNA

GDE000299_Rev02_02.24.21

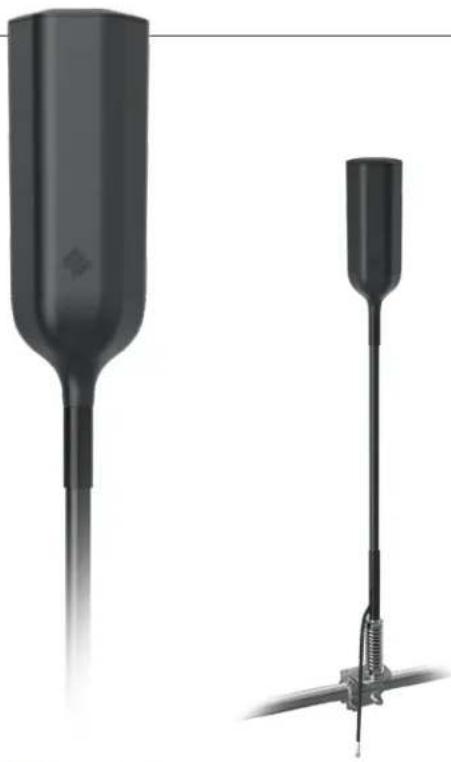

Drive OTR Antenna

SKU: 311229

MAP: \$99.99

FEATURES

• Covers 700, 800, 1700, 1900, 2200 MHz cellular
• All modes, voice and data
• High gain signal output
- Antenna can be configured into multiple lengths from 7.5-40 in.
- Off-road rated to MIL-STD 810H for shock and vibration
- Works with standard CB antenna mounts, includes 3-way mirror rail mount
- Connects to mobile cellular boosters
• IP66 rated for outdoor use
- Assembled in USA
• 2 year warranty

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Bisphenol A, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

ELECTRICAL

Frequency Band (MHz)	698-806	806-960	1710-1880	1860-1990	1910-2170	2300-2700
Peak Gain (dBi)	2.4	2.6	3.8	3.8	3.7	4.3
Gain (dBi), typical @ 2" Elevation	1.4	2.4	3.1	2.7	2.4	2.6
Cable loss LMR-195 15 ft.	1.8	1.9	2.8	2.9	3.0	3.3
Efficiency (%)	>70%		>65%
VSWR	<2:1		<2:1
Polarization	Vertical
Half-Power Azimuth Beamwidth (°)	360	360	360	360	360	360
Half-Power Elevation Beamwidth (°)	70	78	60	70	80	33
Impedance (Ω)	50
Max Power (W)	10

Two black medical or electronic devices with connectors and wires, no visible text or symbols

Kit Includes

MECHANICAL

Model	311230
Connector	SMA Male / SMB Plug
Feed Cable Length (in / mm)	30 / 762
Dimensions (in / mm)	7.422x2.688 / 188x68
Packaged Dimensions (in / mm)	8.28x20.27x3.93 / 210x515x100
Packaged Weight (lb / kg)	3.61 / 1.6
Wind Loading Area (ft2/m2)	.246 ft^2 / .0229m^2
Rated Wind Velocity (mph/kph)	311 mph / 500km/h
Radiator Material	Aluminum
Radome Material	Alumin Plastic Type: ASA (Acrylonitrile Styrene Acrylate)

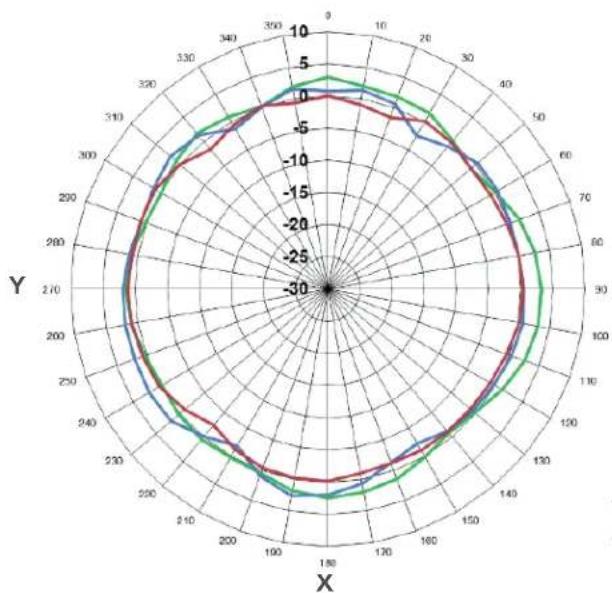

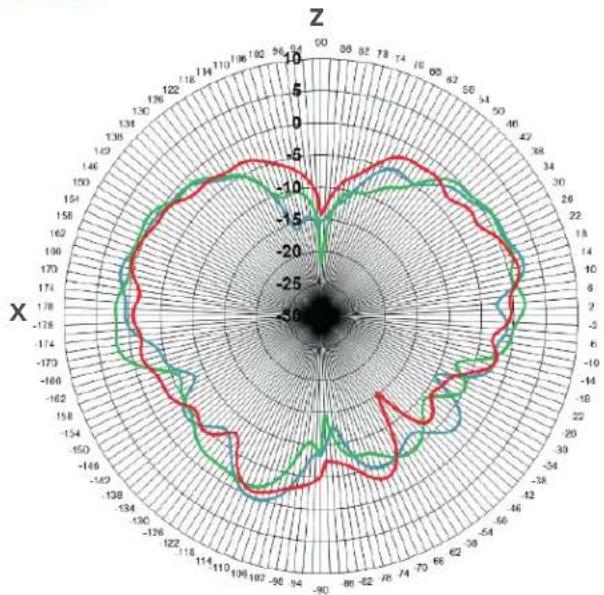

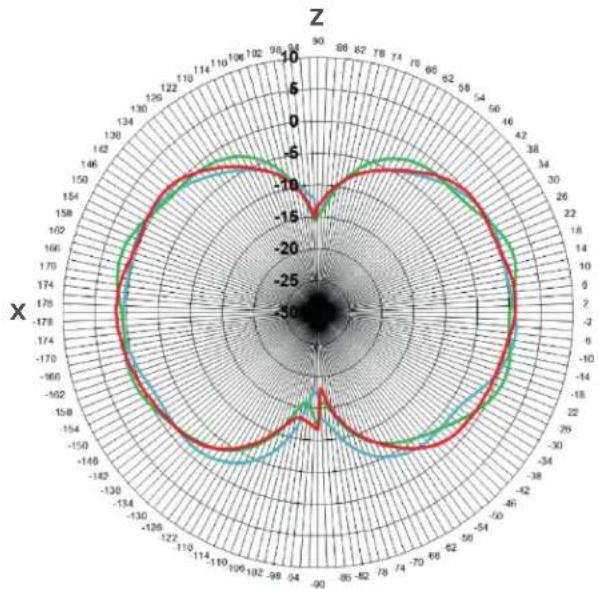

Radiation Patterns, 700-900 MHz

700 MHz 800 MHz 900 MHz

E Plane

H Plane

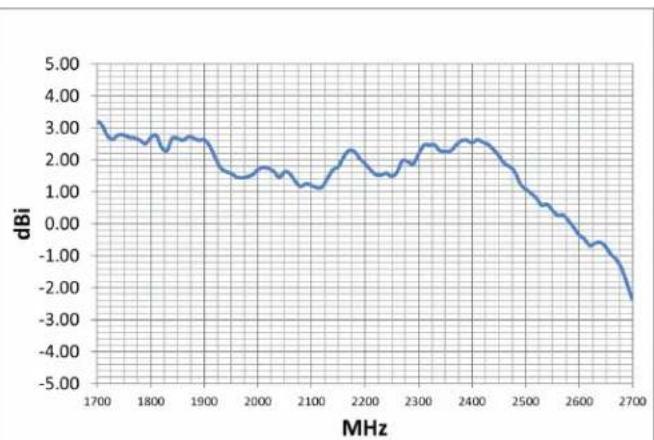

Radiation Patterns, 1700-2100 MHz
1700 MHz 1900 MHz 2100 MHz

E Plane

H Plane

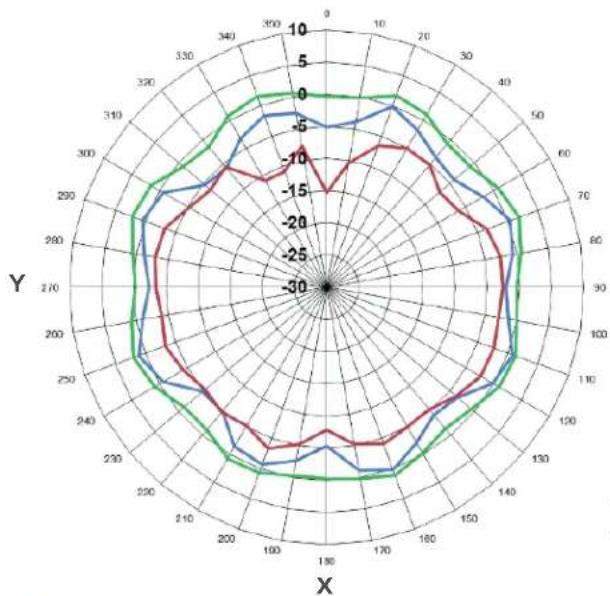

Radiation Patterns, 2300-2700 MHz

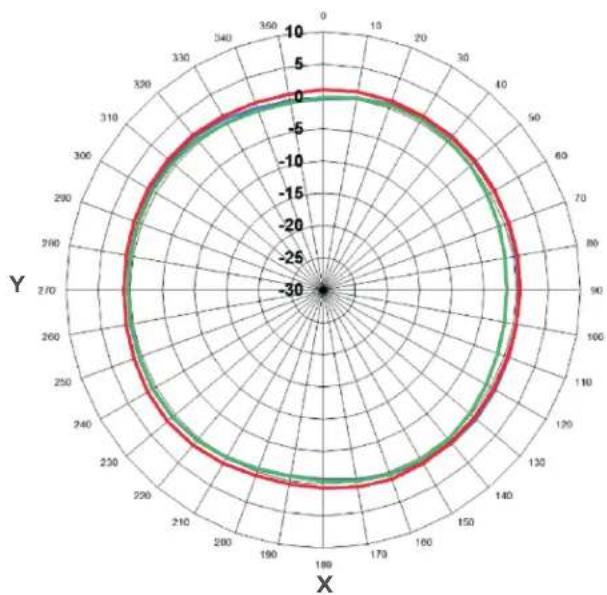

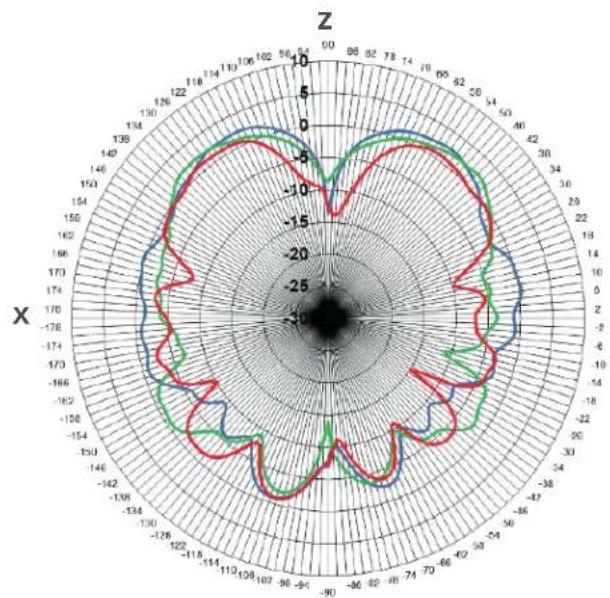

2300 MHz 2500 MHz 2700 MHz

E Plane

H Plane

Note: Gain values at 2^ elevation indicated are without cable loss. Please refer to the electrical specs chart to include cable losses.

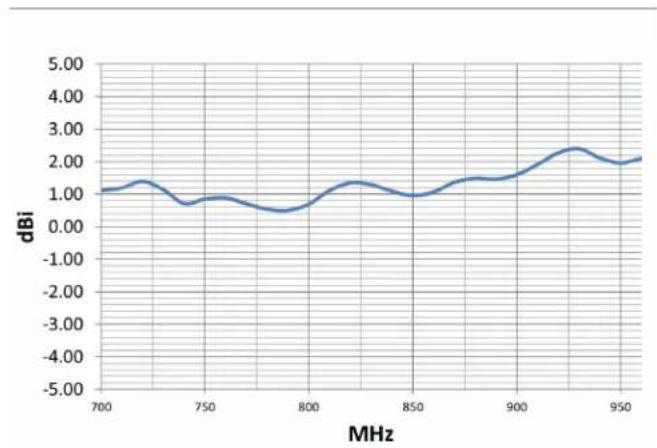

Peak Gain (@ 2° Elevation)

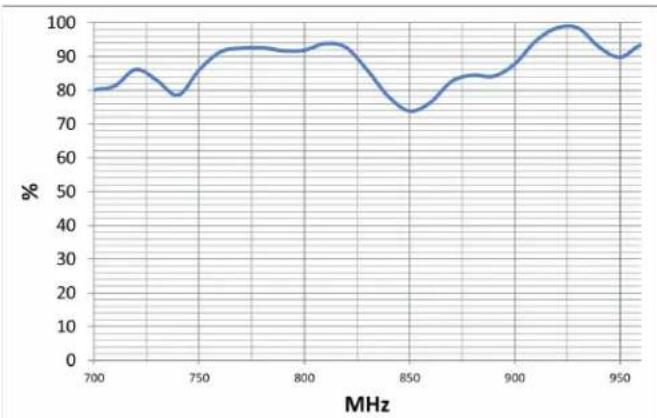

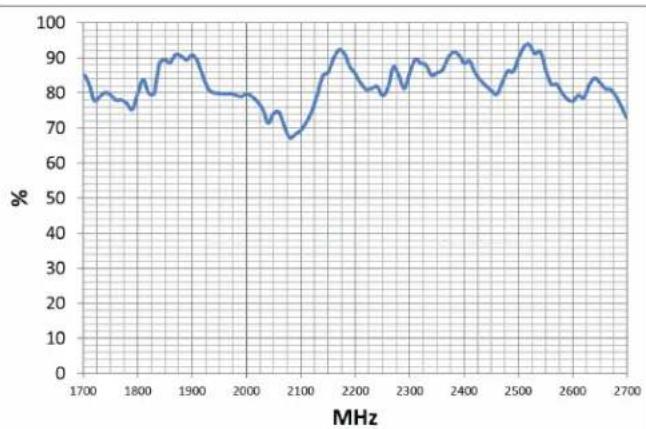

Efficiency (%)

Note: Gain values at 2^ elevation indicated are without cable loss. Please refer to the electrical specs chart to include cable losses.

Package Dimensions

8.28 W × 20.27 L × 3.93 D

FRONT

SIDE TOP/BOTTOM WEIGHT

FOR PARTNER'S USE

311229_DriveOTRAntenna_SpecSheet_Rev04_10.15.20

Support

2 Year Warranty

Email: [e-mail]

Website: http://support.weboost.com

Phone: [phone] Monday to Saturday

* WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

ASSEMBLED IN THE USA

UPC

Need help?

Contact us directly.

support.weboost.com

866.294.1660
