Product Type	Electric Shaver
Model	Series 3000 PT732
Brand	Philips
Power Supply	Adapter 100-240V, automatic voltage selector
Charging Time	8 hours for full charge
Battery Runtime	Up to 45 minutes of shaving time
Quick Charge	3 minutes for a 5-minute shave
Battery Type	Rechargeable NiMH (built-in, removable for recycling)
Charging Indicator	Green flashing (charging), green continuous (full), orange flashing (low battery)
Shaving System	Rotary shaving heads (3)
Wet/Dry Use	Can be used with or without shaving cream, cleanable under running water
Cordless Use	Yes, also usable while connected to mains
Cleaning Method	Rinse under hot tap (max 80°C) or use cleaning brush
Safety Features	Not for use in shower/bathtub; do not immerse; adapter must stay dry
Operating Temperature	10°C to 35°C
Replacement Heads	Philips HQ8 Shaving Heads, replace every 2 years
Replacement Reminder	Orange light indicates when to replace heads
Accessories Included	Protection cap, cleaning brush, pouch, adapter
Warranty	International guarantee (shaving heads excluded)
Dimensions (approx.)	Not specified, typical for rotary shaver
Weight (approx.)	Not specified

Frequently Asked Questions - Series 3000 PT732 PHILIPS

How long does it take to fully charge the Philips Series 3000 PT732?

Full charging takes approximately 8 hours. A quick charge of 3 minutes provides enough energy for a 5-minute shave.

Can I use the shaver while it is charging?

Yes, the shaver can be used directly from the mains by connecting it to the adapter while in use.

How often should I clean the shaver?

It is recommended to clean the shaver after every shave for optimal performance. You can rinse the shaving unit under a hot tap (max 80°C) or use the cleaning brush.

How do I replace the shaving heads?

Press the release button to open the shaving unit, pull it off, turn the lock anticlockwise, remove the retaining frame, and replace each shaving head. Ensure projections align with recesses. Then reassemble and press the on/off button for 5 seconds to reset the replacement reminder.

What does the orange charging light mean?

A flashing orange light indicates low battery (5 minutes or less of shaving time left). A continuous orange light on the shaving head symbol indicates that the shaving heads need to be replaced.

Is the shaver waterproof?

The shaver is suitable for cleaning under a running tap, but it should not be immersed in water or used in the shower or bathtub. The adapter must be kept dry.

What type of replacement shaving heads should I use?

Only use original Philips HQ8 Shaving Heads. They should be replaced every two years for best performance.

How do I reset the replacement reminder after changing the heads?

After installing new shaving heads, press and hold the on/off button for 5 seconds. The orange light will go out, indicating the reminder has been reset.

Can I take the shaver on a plane?

Yes, but it is recommended to put the protection cap on the shaver during travel to protect the shaving heads. The built-in battery is allowed in carry-on luggage.

What should I do if the shaver does not start?

Check if the battery is charged or connect to mains. If the shaver is too hot, it may automatically shut off; wait for it to cool down. If the problem persists, visit www.philips.com/support.

USER MANUAL Series 3000 PT732 PHILIPS

フィリップス電動シェーバー

品番

PT732

取 扱 說 明 書

保証書付

本体

保護キャップ クリーニングブラシ

ポーチ

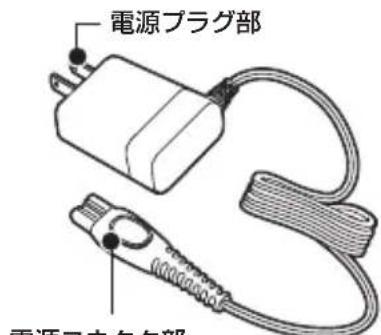

充電アダプタ HQ8505)

Guidance in English 17\~31

●保証

保証とアフターサービス 32

仕様／お客様情報センター 33

無料修理規定 …34……

保証書 ...... 最終ページ

必ずお守り ください

安全上のご注意

ユニットフレーム

内刃

外刃

保持板

充電アダプタ ▶P.7

クリーニングブラシ ▶P.11

シェービングの 仕方

警告

ほお

あごの裏側

ほおの奥から首筋

鼻の下

刃の取り付け方

18

ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Please read this user manual, as it contains information about the wonderful features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description (Fig. 1)

1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 Shaver on/off button
5 Shaving head symbol
6 Charging light
7 Pouch
8 Adapter
9 Cleaning brush

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Keep the adapter dry. -

- This symbol means: Forbidden to clean under a running tap.

Warning

The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

The appliance is not intended for use by persons - (including children) with reduced physical, sensory

ENGLISH

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they - do not play with the appliance.

Always unplug the shaver before you clean it - under the tap.

- This symbol means: Forbidden to use in the shower.

Warning: Do not use this appliance close to a - bathtub, shower or other containers filled with water.

Caution

- Do not immerse the shaver in water or any other liquid.

Do not use water hotter than 80° C to rinse the - shaver.

Be careful with hot water. Always check if the -water is not too hot, to prevent your hands from getting burnt.

The shaver is not dishwasher-proof. -

Warning: Remove the detachable cord from the - handheld part before cleaning this part in water.

Water may leak from the socket at the bottom - of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

-Do not use the shaver, adapter or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charger or part with one of the original type.

-Use, charge (specific types only) and store the appliance at a temperature between 10°C and 35°C.

ENGLISH

Always place and use the shaver on a surface that - is fluid-resistant.

Only use the adapter, charger and accessories supplied.

Always put the protection cap on the shaver - to protect the shaving heads when you are travelling.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable - standards and regulations regarding exposure to electromagnetic fields (EMF).

General

This shaver can be safely cleaned under the tap. - This symbol means: Suitable to be cleaned under a running tap.

The adapter is equipped with an automatic - voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.

The adapter transforms 100-240 volts to a safe - low voltage of less than 24 volts.

Charging

It takes approx. 8 hours to fully charge the shaver.

When you charge the shaver for the first time or after a long period of disuse, let it charge until the charging light lights up continuously.

A fully charged shaver provides up to 45 minutes of shaving time.

The shaving time may be less than 45 minutes as a result of your shaving behaviour, your cleaning habits or your beard type.

ENGLISH

Charge indications

Battery low

- When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the charging light starts to flash orange.

When you switch off the shaver, the charging light continues to flash orange for a few seconds.

Quick charging

When you start charging the empty battery, the - charging light alternately flashes orange and green. After approx. 3 minutes, the charging light starts flashing green only. The shaver now contains enough energy for a 5-minute shave.

Charging

- When the shaver is charging, the charging light flashes green.

Battery fully charged

- When the battery is fully charged, the charging light lights up green continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Charging with the adapter

1 Put the small plug in the shaver.
2 Put the adapter in the wall socket.

The charging light shows the charging status of the shaver (see section 'Charge indications' in this chapter).

ENGLISH

Using the shaver

Note: You can also use the shaver directly from the mains. Simply connect the shaver to the mains.

Shaving

1 Press the on/off button once to switch on the shaver.
2 Move the shaving heads over your skin. Make circular movements.
Do not make straight movements. - Your skin may need 2 or 3 weeks to get - accustomed to the Philips shaving system.
3 Press the on/off button once to switch off the shaver.
4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Warning: Remove the detachable cord from the handheld part before cleaning this part in water.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Clean the shaver after every shave for optimal - shaving performance.

Regular cleaning guarantees better shaving - performance.

Be careful with hot water. Always check if the -water is not too hot, to prevent your hands from getting burnt.

ENGLISH

Note: Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Cleaning the shaving unit under the tap

1 Switch off the shaver and disconnect it from the mains.
2 Press the release button to open the shaving unit.
3 Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue, as this may damage the shaving heads and the coupling spindles.

5 Open the shaving unit again and leave it open to let the shaver dry completely.

ENGLISH

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.
2 Press the release button to open the shaving unit.

3 Pull the shaving unit off the shaver.

4 Turn the lock anticlockwise (1) and remove the retaining frame (2).

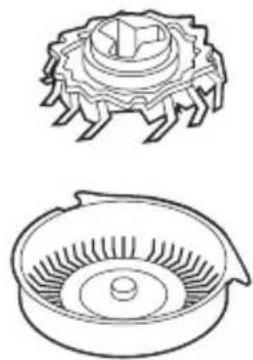

5 Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.

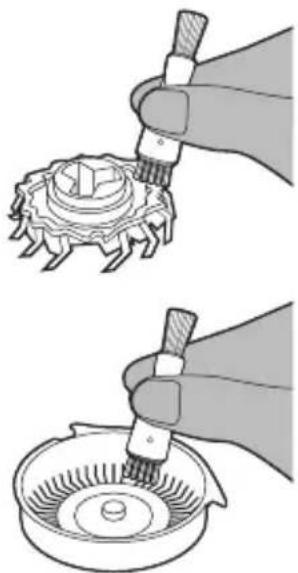

Remove the cutter from the shaving guard and - clean it with the brush.

ENGLISH

- Clean the inside and outside of the shaving guard with the brush.

6 Put the shaving heads back into the shaving unit.

Make sure that the projections of the shaving heads fit exactly into the recesses.

7 Put the retaining frame back into the shaving unit and turn the lock clockwise.

8 Insert the lug of the shaving unit into the slot in the top of the shaver (1). Then close the shaving unit (2).

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

Storage

- Put the protection cap on the shaver every time you have used it, to prevent damage.

ENGLISH

Replacement

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving head symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads right away. Only replace the shaving heads with original HQ8 Philips Shaving Heads.

1 The shaving head symbol lights up orange continuously.

2 Switch off the shaver. Disconnect the shaver from the mains and remove it from the Jet Clean System.

3 Press the release button to open the shaving unit.

4 Pull the shaving unit off the shaver.

5 Turn the lock anticlockwise (A) and remove the retaining frame (B).

6 Remove the shaving heads and place new ones in the shaving unit.

Note: Make sure that the projections of the shaving heads fit exactly into the recesses.

ENGLISH

7 Put the retaining frame back into the shaving unit (A) and turn the lock clockwise (B).

8 Insert the lug of the new shaving unit into the slot in the top of the shaver. Then close the shaving unit.

Note: If the shaving unit does not close smoothly, check if you have inserted the shaving heads properly and if the retaining frame is locked.

9 Press and hold the on/off button for 5 seconds to reset the replacement reminder on the shaver. The orange light goes out.

Ordering accessories

To buy accessories or spare parts, visit www.

shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace them with HQ8 Philips Shaving Heads

ENGLISH

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the rechargeable battery is completely empty when you remove it.

1 Disconnect the shaver from the mains.
2 Let the shaver operate until it stops.
3 Undo the screws in the back of the shaver and in the hair chamber.
4 Remove the front panel and the back panel.

ENGLISH

5 Bend the 6 hooks aside and take out the power unit.

Be careful, the hooks are sharp.

6 Remove the rechargeable battery.

Be careful, the battery strips are sharp.

Do not connect the shaver to the mains again after you have removed the rechargeable battery.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.

The shaving heads are damaged or worn.

Replace the shaving heads (see chapter 'Replacement').

ENGLISH

Problem Possible cause Solution
	Long hairs obstruct the shaving heads.	Clean the shaving heads one by one (see chapter ‘Cleaning and maintenance’).
	You have not inserted the shaving heads properly.	Make sure that the projections of the shaving heads fit exactly into the recesses (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’) or connect the shaver to the mains.
	The temperature of the shaver is too high. In this case, the shaver does not work.	As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.
