MF 3780 - Multifunction Printer SAGEM - Free user manual and instructions

Product type	Multifunction printer (fax, copy, print, scan)
Brand	SAGEM
Model	MF 3780
Dimensions (W x D x H)	457 x 478 x 655 mm (without options)
Weight	20.4 kg
Power supply	220-240 V, 50/60 Hz, 4.5 A
Power consumption (max)	580 W in copy, less than 15 W in standby
Main functions	Fax (PSTN and Internet), duplex copy, laser printing 28 ppm, color scanner 600 dpi, email, SMS
Print resolution	Fast 1200 dpi, 600 dpi, 300 dpi with KIR
Scan resolution	600 dpi
Paper capacity (standard tray)	500 sheets (80 g/m²)
Paper capacity (multipurpose tray)	100 sheets, up to 200 g/m²
Connectivity	USB 2.0, Ethernet 10/100 Base Tx, parallel port
Memory	32 MB SDRAM (expandable to 288 MB)
Maintenance and cleaning	Regular cleaning of scanner and printer, replacement of toner cartridge TNR 380
Safety	Class 1 laser radiation, disconnect before maintenance, do not open covers
Spare parts and repairability	Toner cartridge TNR 380, additional 500-sheet tray, duplex module, PC kit, memory cards
General information	Recommended monthly volume: 15 000 pages, overhaul every 300 000 pages

Frequently Asked Questions - MF 3780 SAGEM

How to install the duplex module on the MF 3780?

First install the extra paper tray, then attach the duplex module by removing the buffer and the rear cover. Then place the printer on the module.

What to do in case of a paper jam in the printer?

Remove the paper tray, take out the jammed paper, then open the rear cover to remove any remaining sheets. Refer to the Printer Incident chapter in the manual.

How to configure the local network (LAN) on the MF 3780?

Access the SETTINGS menu then LOCAL NETWORK. You can choose automatic configuration (DHCP) or manual (IP address, subnet mask, gateway).

How to send a fax via Internet (E-mail)?

First configure your Internet service provider (menu INTERNET), then place the document in the scanner, press E-Mail Send and enter the recipient's address.

Which toner cartridge to use and how many pages does it print?

Use the toner cartridge TNR 380 (ref. 251 586 569). The standard cartridge prints up to 15,000 pages (5% coverage). The starter cartridge prints 7,500 pages.

How to set the date and time on the MF 3780?

Press the ▼ key, navigate to SETTINGS > DATE/TIME, then enter the digits in the format ddmmyyyyhhmm (e.g., 080420240930 for April 8, 2024 at 09:30).

The printer displays a flashing 'ATTENTION', what to do?

The flashing ATTENTION light indicates that the printer needs maintenance or is warming up. Check the toner level and paper jams. If the problem persists, contact a technician.

Can I print duplex automatically?

Yes, if the duplex module is installed. Activate the mode in SETTINGS > RECEPTION > DUPLEX. You can also use the dedicated key on the scanner control panel.

How to scan a document to a PC?

Make sure the Scan to PC software is installed on your computer. Place the document, press the PC key on the scanner control panel, then select the destination on the screen.

What to do if the fax does not send?

Check the telephone line connection, dial tone, and prefix settings. Refer to failure codes (e.g., code 01 for busy, code 49 for Internet connection impossible).

USER MANUAL MF 3780 SAGEM

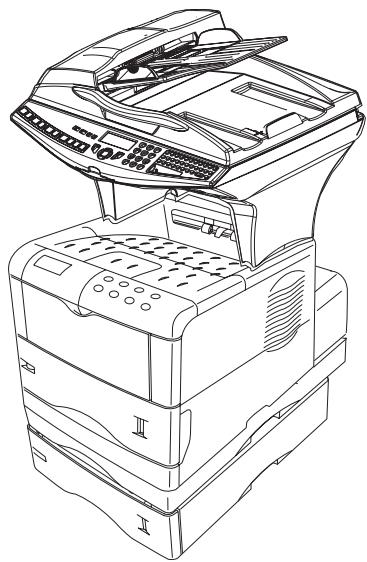

SAGEM MF 3760 - MF 3780

Line drawing of a printer with top view and front panel, no text or symbols present

Conditions requises 3-14

Calibrage scanner 7-10

Incidents 7-10

Echecs en communication 7-10

Incidents scanner 7-16

Line drawing of a printer with a top cover and front panel, no text or symbols present

INSTALLATION DE VOTRE TERMINAL

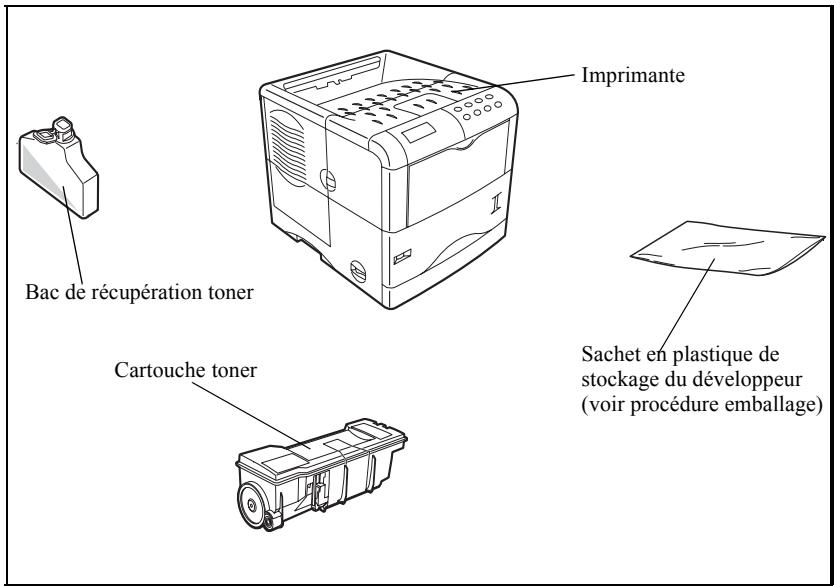

CONDITIONS D'EMPLACEMENT

Technical line drawing of a computer case chassis with internal components (no text or symbols)

Line drawing of an open printer internal structure (no text or symbols)

Technical line drawing of a server rack with internal components and mounting holes (no text or symbols)

Technical line drawing of a server rack with two views showing internal components (no text or symbols)

Technical line drawing of an open printer with internal components and a magnified inset showing internal structure (no text or symbols)

Line drawing showing three different printer units with internal compartments, no text or symbols present

Technical diagram showing mechanical assembly with curved arrows indicating motion or force directions (no text or symbols)

Technical diagram of an automotive engine compartment showing internal components and wiring (no text or labels)

RÉGLAGE DU RÉCEPTACLE DE SORTIE DU DOCUMENT ORIGINAL

CHARGEMENT DU PAPIER

Line drawing of a hand pressing down on a device casing with a black arrow indicating the process (no text or symbols present)

Line drawing of a printer being inserted into a stack top, showing internal components and a hand holding the printer (no text or symbols present)

Line drawing of a printer's door mechanism with two arrows indicating press or compression process (no text or symbols)

Line drawing of hands operating a device with two arrows pointing to the interior panel (no text or symbols)

Line drawing of a printer with an open lid and stack of paper sheets (no text or symbols)

PRINCIPES DE NAVIGATION DU PUPITRE SCANNER

PRÉSENTATION

Line drawing of a printer with a paper airplane, showing front and top views (no text or symbols)

PARAMÉTRAGES GÉNÉRAUX

$$ M E N U - \vee - I N T E R F A C E > - \vee - T C P / I P > D H C P $$

Line drawing of a printer with a top stack and front panel, no text or symbols present

Line drawing of a printer with top view and front panel, no text or symbols present

ENVOYER

Activer le reroutage

▼ 391 OK - TELECOPIE / REROUTAGE / ACTIVATION

Copie "élaborée"

BOÎTES AUX LETTRES (BAL FAX)

Line drawing of a printer with a top cover and stack of paper (no text or symbols)

UTILISATION DU PUPITRE

- KPDL (PostScript emulation)

- KPDL (auto)

- Imprim. Ligne

- IBM Proprinter

• DIABLO 630

• EPSON LQ-850

Appuyez sur ENTER.

$$ M E N U - \vee - Q U A L I T É I M P. - > - \vee - D E N S I T É I M P R. $$

Line drawing of a printer with a top stack and front panel, showing internal components (no text or symbols)

ENTRETIEN

GÉNÉRALITÉS

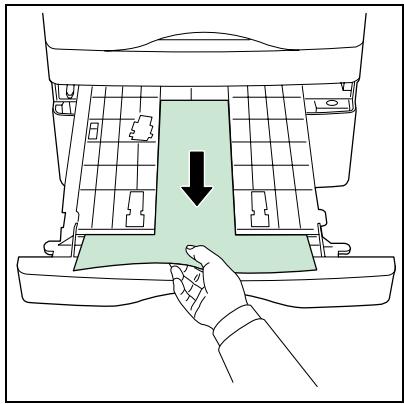

REMPLACEMENT DES CONSOMMABLES

Line drawing of hands operating a printer case with two arrows indicating process steps (no text or symbols present)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

Line drawing of hands operating a microwave oven with a paper airplane (no text or symbols)

Line drawing of hands using a computer to press or open the keyboard (no text or symbols present)

Line drawing of a laptop with an open screen and a hand inserting a tray (no text or symbols)

Illustration of hands operating a printer with a green cover and black arrow indicating compression (no text or symbols)

Diagram of a printer internal structure with arrows indicating process flow (no text or symbols)

Illustration of a printer being inserted into a green tray, with a hand holding the tray (no text or symbols present)

Illustration of a hand inserting a green paper into a printer into a rack (no text or symbols visible)

Illustration of a hand pressing down on a green plastic component inside a machine (no text or symbols)

Line drawing of a hand using a computer to press or install a device, with no visible text or symbols.

Diagram of a hand operating a device with a green highlighted section, showing internal components and a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

The device you have purchased contains one or more software programs ("Programs") which belong to international business machines corporation ("IBM"). This document defines the terms and conditions under which the software is being licensed to you by IBM. If you do not agree with the terms and conditions of this license, then within 14 days after your acquisition of the device you may return the device for a full refund. If you do not so return the device within the 14 days, then you will be assumed to have agreed to these terms and conditions.

The Programs are licensed not sold. IBM, or the applicable IBM country organization, grants you a license for the Programs only in the country where you acquired the Programs. You obtain no rights other than those granted you under this license.

The term "Programs" means the original and all whole or partial copies of it, including modified copies or portions merged into other programs. IBM retains title to the Programs. IBM owns, or has licensed from the owner, copyrights in the Programs.

1. License

Under this license, you may use the Programs only with the device on which they are installed and transfer possession of the Programs and the device to another party.

If you transfer the Programs, you must transfer a copy of this license and any other documentation to the other party. Your license is then terminated. The other party agrees to these terms and conditions by its first use of the Program.

You may not:

1) use, copy, modify, merge, or transfer copies of the Program except as provided in this license;
2) reverse assemble or reverse compile the Program; or
3) sublicense, rent, lease, or assign the Program.

2. Limited Warranty

The Programs are provided "AS IS."

There are no other warranties covering the Programs (or conditions), express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you.

3. Limitation of Remedies

IBM's entire liability under this license is the following;

1) For any claim (including fundamental breach), in any form, related in any way to this license, IBM's liability will be for actual damages only and will be limited to the greater of:

a) the equivalent of U.S.\$25,000 in your local currency; or

b) IBM's then generally available license fee for the Program

This limitation will not apply to claims for bodily injury or damages to real or tangible personal property for which IBM is legally liable.

IBM will not be liable for any lost profits, lost savings, or any incidental damages or other economic consequential damages, even if IBM, or its authorized supplier, has been advised of the possibility of such damages. IBM will not be liable for any damages claimed by you based on any third party claim. This limitation of remedies also applies to any developer of Programs supplied to IBM. IBM's and the developer's limitations of remedies are not cumulative. Such developer is an intended beneficiary of this Section. Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

4. General

You may terminate your license at any time. IBM may terminate your license if you fail to comply with the terms and conditions of this license. In either event, you must destroy all your copies of the Program. You are responsible for payment of any taxes, including personal property taxes, resulting from this license. Neither party may bring an action, regardless of form, more than two years after the cause of action arose. If you acquired the Program in the United States, this license is governed by the laws of the State of New York. If you acquired the Program in Canada, this license is governed by the laws of the Province of Ontario. Otherwise, this license is governed by the laws of the country in which you acquired the Program.

Typeface Trademark Acknowledgement

All resident fonts in this printer are licensed from Agfa Corporation.

Helvetica, Palatino and Times are registered trademarks of Linotype-Hell AG.

ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC Zapf Dingbats are registered trademarks of International Typeface Corporation.

Agfa Japan License Agreement

1. "Software" shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software.
2. You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols (“Typefaces”) solely for your own customary business or personal purposes at the address stated on the registration card you return to Agfa Japan. Under the terms of this License Agreement, you have the right to use the Fonts on up to three printers. If you need to have access to the fonts on more than three printers, you need to acquire a multi-user license agreement which can be obtained from Agfa Japan. Agfa Japan retains all rights, title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on the terms expressly set forth in this Agreement.
3. To protect proprietary rights of Agfa Japan, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces.
4. You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy. You agree that any such copy shall contain the same proprietary notices as those appearing on the original.
5. This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be terminated by Agfa Japan if you fail to comply with the terms of this License and such failure is not remedied within thirty (30) days after notice from Agfa Japan. When this License expires or is terminated, you shall either return to Agfa Japan or destroy all copies of the Software and Typefaces and documentation as requested.
6. You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.
7. Agfa Japan warrants that for ninety (90) days after delivery, the Software will perform in accordance with Agfa Japan-published specifications, and the diskette will be free from defects in material and workmanship. Agfa Japan does not warrant that the Software is free from all bugs, errors and omissions.
   The parties agree that all other warranties, expressed or implied, including warranties of fitness for a particular purpose and merchantability, are excluded.
8. Your exclusive remedy and the sole liability of Agfa Japan in connection with the Software and Typefaces is repair or replacement of defective parts, upon their return to Agfa Japan.

In no event will Agfa Japan be liable for lost profits, lost data, or any other incidental or consequential damages, or any damages caused by abuse or misapplication of the Software and Typefaces.

9.New York, U.S.A. law governs this Agreement.

1. You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Agfa Japan.

2. Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use, duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).

3. You acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms and conditions. Neither party shall be bound by any statement or representation not contained in this Agreement. No change in this Agreement is effective unless written and signed by properly authorized representatives of each party. By opening this diskette package, you agree to accept the terms and conditions of this Agreement.

CONSIGNES DE SÉCURITÉ

SAGEM SA - Customer relations department

CLASS 1 LASER PRODUCT

LASER KLASSE

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LASER DE CLASE 1

APARELHO A LASER DE CLASSE 1
