| Product Type | Network Security Camera |
| Model | FCS-1132 |
| Image Sensor | 3-Megapixel CMOS |
| Max Resolution | 1920x1080 (1080p) |
| Video Compression | H.264, MJPEG, MPEG-4 |
| Max Frame Rate | 30 fps (H.264 at 1080p) |
| Lens Mount | CS mount (lens included) |
| Audio | Two-way audio (mic and speaker) |
| Audio Codec | G.711 u-law (8 kHz) |
| Network Interface | 10/100 Mbps Ethernet |
| Power over Ethernet | IEEE 802.3af PoE |
| Power Supply | DC power adapter (included) or PoE |
| IR LEDs | Yes, with IR cut filter |
| Storage | SD card slot (local recording) |
| I/O Terminal | Digital input, digital output, RS-485 |
| LED Indicators | Power (rear right green), Link (rear left orange), Status (front left green) |
| Privacy Mask | Up to 3 windows or full screen |
| Motion Detection | Yes, up to 3 detection windows |
| Event Notification | FTP, email, Samba, HTTP, digital output |
| Protocols | HTTP, HTTPS, RTSP, UPnP, DDNS, Multicast, IPv4 |
| Default IP | DHCP (dynamic IP) |
| Default Username | admin |
| Default Password | admin |
Frequently Asked Questions - FCS-1132 LEVELONE
User questions about FCS-1132 LEVELONE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Security Camera in PDF format for free! Find your manual FCS-1132 - LEVELONE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FCS-1132 by LEVELONE.
USER MANUAL FCS-1132 LEVELONE
FCS-1132
3-Megapixel PoE Network Camera
User's Manual
H/W: V1.0
Product name: FCS-1132
Release Date: 2013/11/27
Manual Revision: V1.0
Default Settings
| IP Address | DHCP |
| Username | admin |
| Password | admin |
Table of Contents
Package Contents....1
Hardware Device Appearance....1
Hardware Reset 2
LED Behavior 3
Extension I/O Terminal Block....4
Hardware Installation....5
Camera Connection....5
Software Installation....8
Access to the Network Camera....16
Check Network Settings 16
Add Password to prevent Unauthorized Access.... 16
Authentication....17
Installing plug-in....17
Configuration 21
Camera/Video/Audio 21
Camera 21
Video 25
Audio....28
Privacy Mask Control 29
Camera Control....30
PTZ Configuration 30
Network 31
IP Settings 31
UPnP 32
DDNS (dynamic domain name service) 32
HTTP/HTTPS 34
Multicast 35
EasyLink 36
Event....37
Event Settings 37
Motion Detection 43
Digital Input (DI)....44
Audio Detection 45
Notifications....46
FTP Settings 46
E-mail Settings....47
Samba Settings....48
HTTP Settings....49
Digital Output (DO) 50
Audio Clip....51

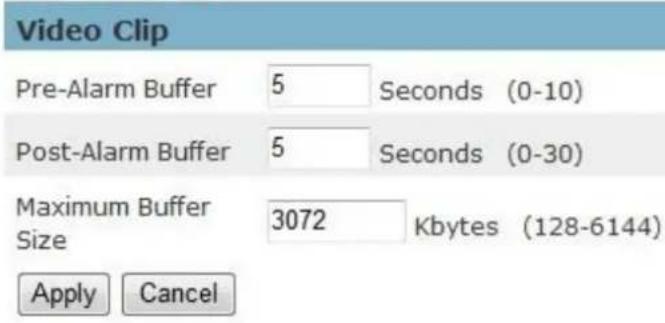

Video Clip 52
VMS Compatibility....52
SD card 53
Storage Management ....53
Maintenance....54
Language....54
User Management....54
IP Filter ....55
Firmware Upgrade ....55
Configuration 56
Reset to Default....57
Reboot....57
System....58
System Log 58
Date and Time....59
Save File Folder....60
Device Information....60
Package Contents
■ FCS-1132
■ CS mount Lens
■ Camera Stand
■ Power Adapter
■ Quick Installation Guide
■ CD Manual/utility
Hardware Device Appearance

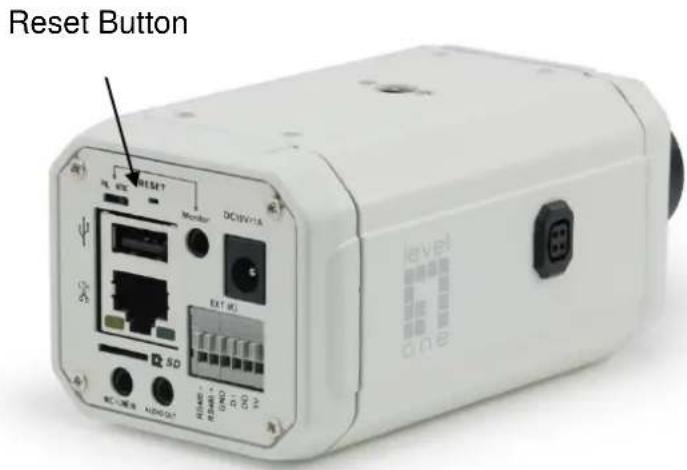

Hardware Reset
The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.
To Reboot - Press and hold the Reset Button for one second using a paper clip or thin object. Wait for the camera to reboot.
To Restore – Press and hold the Reset Button for ten seconds until the LED light turns off. When successful restored, the LED will be green during normal operation.
LED Behavior
| Function | LED Behavior | Description | Remark |
| Status | On  Off | ||
| Status | Steady On | Hardware failure | Front Left (Green) |
| 1. Restoring settings2. Normal Operation | Front Left (Green) | ||
| Status | Unlighted | 1. Power Off2. Power On till System setup | The LED can be configured to be unlighted during normal operation |
| Status | On  Off | ||
| Link | Blinking | While F/W upgrading | Front Left (Green) |
| Blinking while network connection in progress | Rear Left (Orange) | ||
| Link | Unlighted | No connection | Rear Left (Orange) |
| Power | Steady On | Normal Operation | Rear Right (Green) |
| Power | Unlighted | Power off | Rear Right (Green) |
Extension I/O Terminal Block
The Network Camera provides an extension I/O terminal block which is used to connect external input/output devices. The pin definitions are listed as below.
| Pin | Function |
| 1 | Power +5V |
| 2 | Digital Output |
| 3 | Digital Input |
| 4 | Ground |
| 5 | RS-485 + |
| 6 | RS-485 - |

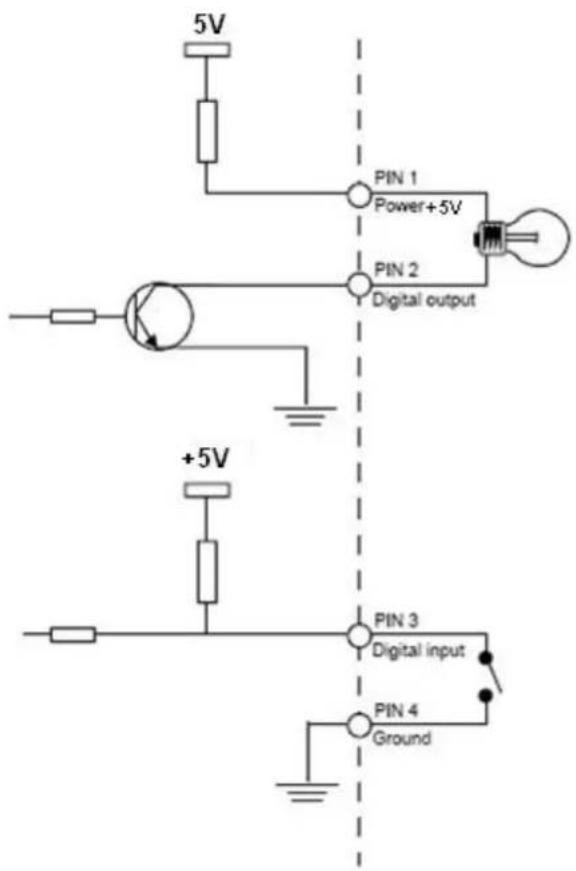

DI/DO Diagram
Hardware Installation
Camera Connection
Basic Connection (Without PoE)
1.1 If you have external devices such as sensors and alarms, please make connections with extension I/O terminal block.
1.2 Connect the camera to a switch via Ethernet cable.
1.3 Connect the supplied power cable from the camera to the power outlet.
Please check your product package contains all the accessories listed in the foregoing Package Contents. Depending on the user's application, an Ethernet cable may be needed. The Ethernet cable should meet the specs of UTP Category 5 and not exceed 100 meters in length.
Upon powering up, the power LED will become lighted first and then the device will go through booting process. The link LED will be steady amber for getting IP address. After getting IP Address, the link LED will blink orange while network connection is processing.
Power over Ethernet (PoE) Connection
1.1. When connecting to PoE-enabled switch
The camera is PoE compliant and please connects the camera to a PoE-enabled switch via single Ethernet cable.
1.2. When connecting to a non-PoE switch
Please connect the camera to a non-PoE switch via PoE Injector (optional).
System Requirements
Operating System:
Microsoft Windows XP Home Edition SP2
Microsoft Windows XP Professional SP2
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
10/100Mbps Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
Audio:
The audio function will not work if a sound card is not installed in the PC. Audio may be interrupted depending on network traffic.
Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant user access to the camera.

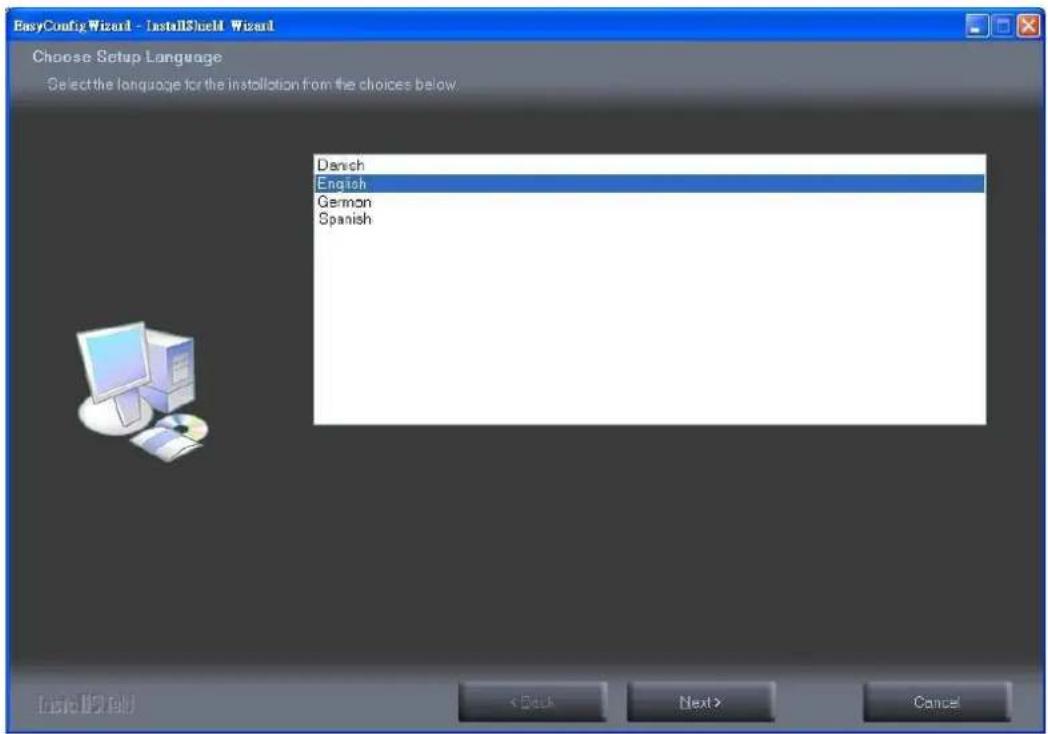

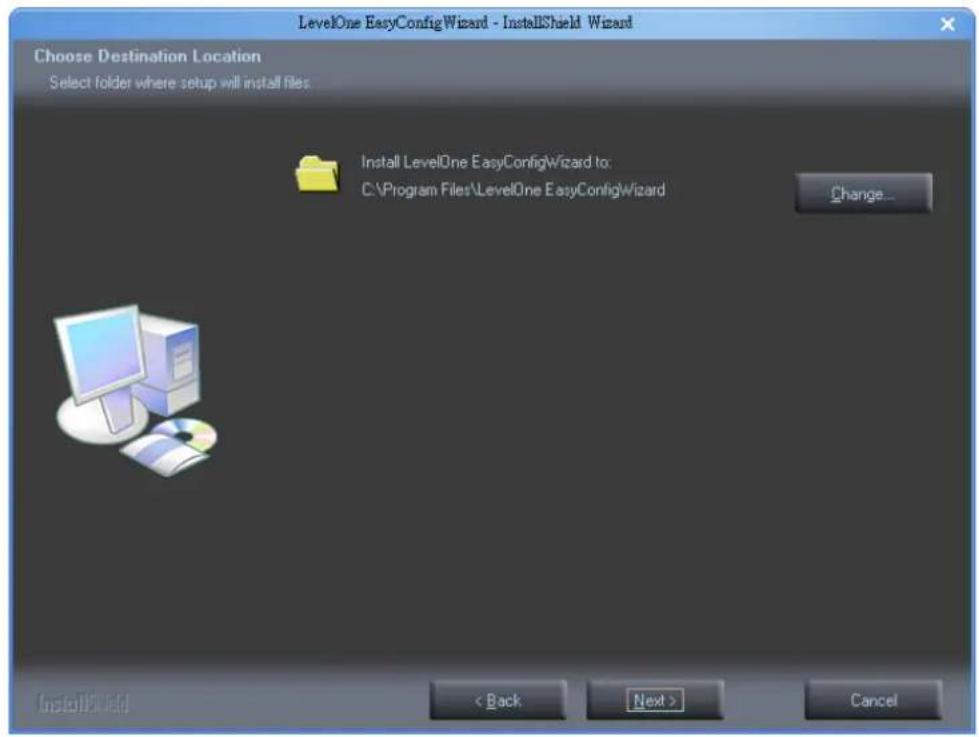

After hardware connection checking, the users can run the Installation Wizard program included in the product CD-ROM to automatically search for the Network Camera in the Intranet. There may be many Network Cameras in the local network. Users can differentiate the Network Cameras with the serial number. The serial number is printed on the labels on the carton and the bottom of the Network Camera body.
- Insert the Installation CD into the CD-ROM driver. Click install and shows the welcome screen. Follow the steps to install the Installation wizard on user's computer.
- Do not check the box if user would like to check the hardware installation settings.
Otherwise click "Skip the hardware installation" to skip the hardware connection checking, the program will automatically search for the Network Camera in the Intranet. Click "Start" to continue.
- Select the Network Camera from the survey list and enter the user name and password.
The user name and password are assigned as "admin/admin".

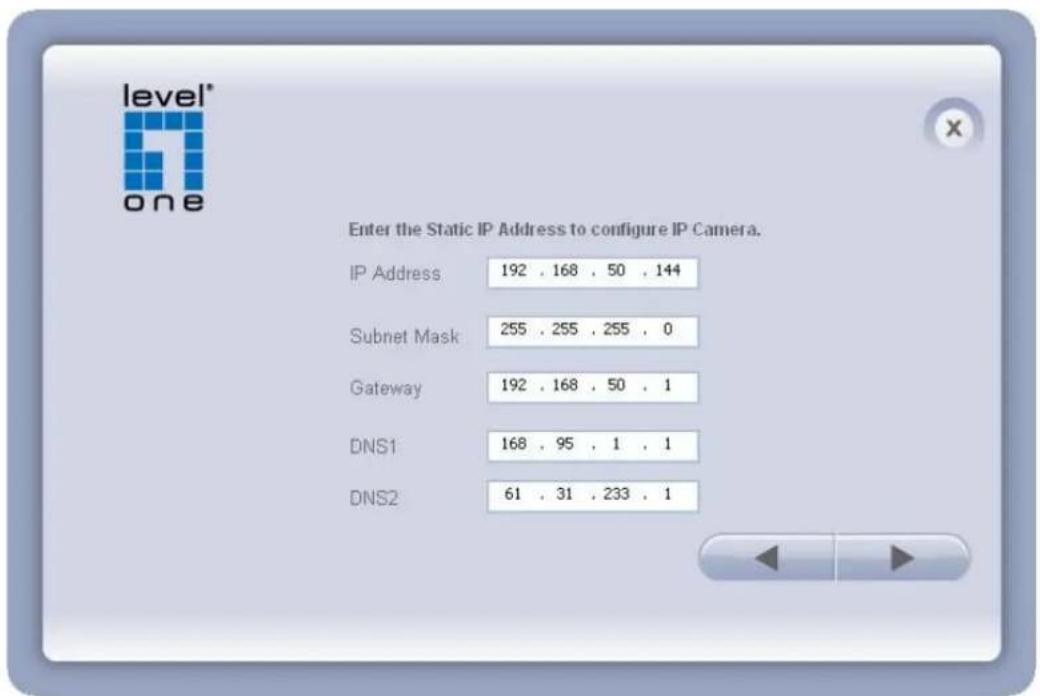

- Setting the Network Camera IP address.
User can either select simple mode or professional mode for network camera IP setting. If simple mode is selected, the easy configuration program will set up the connection automatically. If professional mode is selected, the user will need to configure the IP manually, The DHCP setting is recommended. If user wants to set IP address manually, please refer to the product user manual.
- Please make sure the internet connection is ready then start to do the internet discovery, otherwise click "Skip" to finish the setting.
The default domain name is MAC address; you can also register with your own name on-line.
- After finish setting, the connection successful or fail showed. If connection failed, user can either try again or quit the installation. User can either select "Start Web GUI" to continue or click "X" on the top right of the screen to finish the installation.
Once installation is completed, the Administrator should proceed to the next section "Access to the Network Camera" for necessary checks and configurations.
Access to the Network Camera
Check Network Settings
The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS. Ask your network administrator or Internet service provider for the detail information.
Add Password to prevent Unauthorized Access
The Administrator should immediately implement a new password as a matter of prudent security practice. The user name and password for the Administrator are assigned as “admin/admin”. Once the Administrator’s password is saved, the Network Camera will ask for the user’s name and password before each access. The Administrator can set up a maximum of ten (10) user accounts. Each user can access the Network Camera except to perform system configuration. Once the password is changed, the browser will display an authentication window to ask for the new password. Once the password is set, there is no provision to recover the Administrator’s password. The only option is to restore to the original factory default settings.
Authentication
After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. The user name and password for the Administrator are assigned as "admin/admin".
Installing plug-in
For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera on the Internet Explorer.
Permission request depends on the Internet security settings of the user's PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt. This plug-in has been registered for certificate and is used to display the video in the browser. Users may click on ____ to proceed. If the web browser does not allow
the user to continue to install, check the Internet security option and lower the security levels or contact your IT or networking supervisor for help.
Live View
FCS-1132 3-Megapixel PoE Network Camera
Configuration
Live View is the default page that opens when accessing the camera. Live video is displayed directly in the browser window.
- Stream1\~3 Channels
The network camera offers simultaneous several streams for optimized quality and bandwidth. Go to Configuration → Camera/Video/Audio → Video to configure the codec compression and video resolution or refer to the Video configuration page.
- HTTP/TCP/UDP protocol
HTTP – This unicast method can be used to traverse firewalls. Firewalls are commonly configured to allow the HTTP protocol, thus allowing RTP to be tunneled.
TCP - This protocol guarantees the complete delivery of streaming data and provides better
video quality. The downside of using this protocol is that the quality of its real-time effect is less than that of the UDP protocol.
UDP - This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection time-sensitive responses are more important than video quality.
C on /off - Displays the status of the MIC volume
leaker on/off - Displays the status of the Speaker
D on/off - Displays the status of Motion Detection
● Brightness - Drag the slider bar to adjust the image brightness level.
● Mic volume - Drag the slider bar to adjust the microphone volume.
- Speaker volume - The external speaker will play sound from an audio clip from the computer microphone when it is enabled.
- Play or Stop - Play or stop the video.
- Record - Record video to a computer.
- Snapshot - Capture and save still images.
● Digital Zoom - Enable the digital zoom operation.
- Mirror - Horizontally reflect the display of the live video.
- Flip - Vertically reflect the display of the live video.
● Real Size - View the object in real size. Press it again to switch back to normal mode.
● Full Screen - Switch to full screen mode. Press the "Esc" key to return to normal mode.
- Motion Detection - Enable the motion detection alert function.
- Mute - Turn off the sound.
- Talk - To communicate through the camera using the computer MIC.
- Default – Reset to default view settings.
NOTE
- The
functions have no effect on the recorded video. Whatever changes are made to the will not be applied to the recorded video.
Configuration
Click
NOTE - Only Administrators can access the Configuration page.
Camera/Video/Audio
Camera
Camera Settings
Profile - Up to five profiles can be created for different lighting environments. Day and night are default profiles and users can create up to three additional profiles. Select a profile from the drop-down menu or select different icons to change profile settings.
Brightness - Drag the bar to adjust the image brightness level.
Contrast - Drag the bar to adjust the image contrast level.
Sharpness - Drag the bar to adjust the image sharpness level.
Saturation - Drag the bar to adjust the image saturation level.
Exposure Control
Auto: The camera will automatically control exposure.
Manual: Select this option to define the exposure manually
Flicker-Free - Eliminates the problem of flicker.
Environment - Select outdoor or indoor mode based on the conditions.
AE Speed - Automatically control exposure speed.
De-Noise - The de-noise can be set between 1 to 3, with 3 giving the best video resolution.
Mirror and Flip
Mirror - Enable to horizontally reflect the display of the live video.
Flip - Enable to vertically reflect the display of the live video.
IR Cut - Deactivate or activate the IR cut filter
IR LED - Deactivate or activate the IR LED.
Color Effect - Select to display color or black and white video streams.
White Balance - White balance is a camera setting that adjusts for lighting in order to make Black & white.

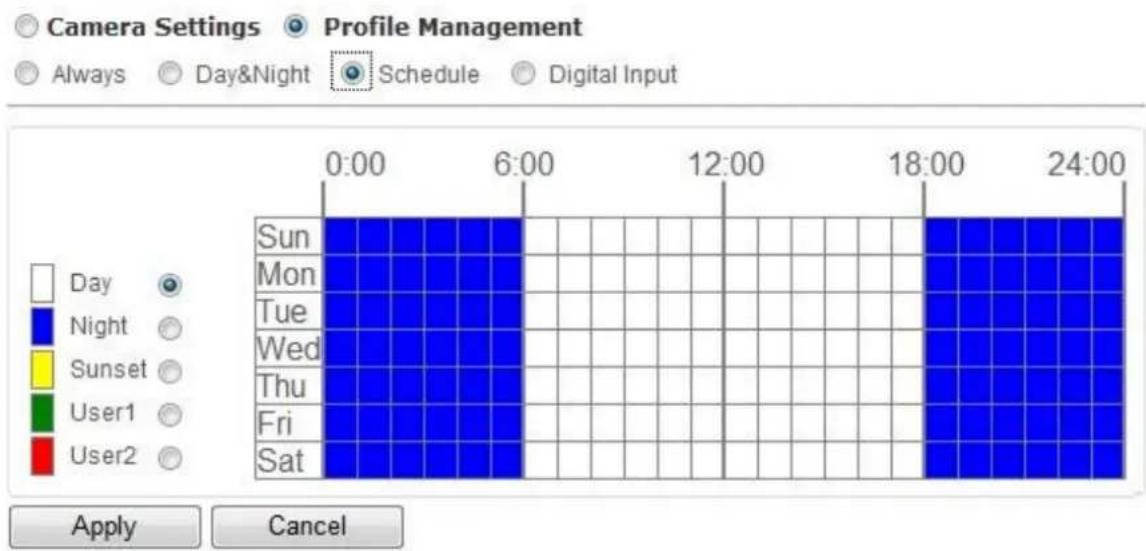

Profile Management: Profiles can be scheduled to change at scheduled times or under different lightening changes.
Always - Select Always to use a single profile. Select the profile from the drop down menu.
Day & Night - Select Day & Night to schedule two profiles for day and night. Select profiles from the drop down menu for the Day and Night Profiles.
Schedule – Select Schedule to schedule specific time periods for different profiles.
Digital Input - Select Digital Input to have the profile management controlled by an external sensor. Select profiles from the drop down menu. Profiles will change according to different trigger voltage levels.
Click Apply to apply settings or Cancel to cancel changes.
Video
The Network Camera offers several separate streams for different viewing options.
Video
Stream
Stream 1 :
Video Codec H.264
Video Resolution 1920x1080
Frame Rate 30
Bitrate Mode Constant Bitrate
Bitrate 8000 Kbps. (64\~12000)
Quality 3
Stream 2 : Enable □ TV-out √
Video Codec MJPEG
Video Resolution 1920x1080
Frame Rate 25
Bitrate Mode Variable Bitrate
Bitrate 64 Kbps. (64\~12000)
Quality 3
Stream 3 : Enable √
Video Codec H.264
Video Resolution 320x180
Frame Rate 25
Bitrate Mode Constant Bitrate
Bitrate 256 Kbps. (64\~12000)
Quality 3
Recording Stream : Source Auto
Apply
Cancel
Video Overlay
Timestamp : Position ☐ Left-Top
Format YYYYMMDDHHMMSS
Text : Position □ Left-Top
Text
Apply
Cancel
RTSP Server
RTSP Server: Port 554
Authentication NONE
RTCP Mode: Mode Without SR
Apply
Cancel
Stream 1 \~ 3
Video Codec - The Network Camera offers three choices of video codec standards for real-time viewing: H.264, MPEG-4 and MJPEG.
Video Resolution - Select from the drop-down menu to choose the best resolution recording settings.
Frame Rate - Select the frame rate from drop-down menu. When selecting from Video Codec option, the frame rate ranges from 1 to 30 fps. Set a higher frame rate for smoother video quality.
Bitrate Mode - Select the bitrate mode from the dropdown menu. Select Variable Bitrate to manually configure the bitrate. Select Constant Mode to have the bitrate set by the video codec. Set the bitrate higher for better quality.
Quality - Select MJPEG video codec to configure the video streaming using Quality. The video quality can be set between Level 1 to Level 6, with Level 6 producing the best image quality.
NOTE - a higher bitrates will use higher network bandwidth. The video quality can
be set between Level 1 to Level 6, with Level 6 producing the best image quality.
Recording Stream - Choose source to record from.
TV-Out – Enable TV-Out. Stream 2 will be used for TV-Out when selected.
Click Apply to apply settings or Cancel to cancel changes.
Video Overlay
Timestamp - To display the date and time on the screen during live view, check "Enable" to enable the timestamp function and select the format and display position from the drop-down menu.
Text - To make a note about the camera, check "Enable" and select the display position
from the drop-down menu. Enter a video description in the text box.
NOTE - The video overlay will only take effect in stream 1.
Click Apply to apply settings or Cancel to cancel changes.
RTSP Server
To utilize RTSP authentication, the user must first set a password for the camera.
RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default the port number is set to 554.
Authentication - Depending on the network security requirements, the camera provides two types of security settings for streaming via RTSP protocol: NONE and DIGEST. If DIGEST authentication is selected, user credentials are encrypted using MD5 algorithm, thus providing better protection against unauthorized access.
RTP/RTCPRTCP -
without SR - RTCP without SR (Sender Report) is the default option. Under this option, audio and video received from the IP camera are played immediately and independent of each other.
RTCP with SR - RTCP with SR option allows synchronization between video and audio on live viewing. Choose this option if audio and video become unsynchronized.
Click Apply to apply settings or Cancel to cancel changes.
Audio
The administrator can set up several streams for the camera for different viewing devices. The administrator can enable or disable the audio function on either stream. If audio enable is selected, select the Audio codec from the drop-down menu.
Audio Configuration
Advanced Settings
Camera Speaker – If the speaker is enabled, select the volume from the drop-down menu. Echo Cancellation Enabled - Enable to avoid an echo.
Click Apply to apply settings or Cancel to cancel changes.
Privacy Mask Control

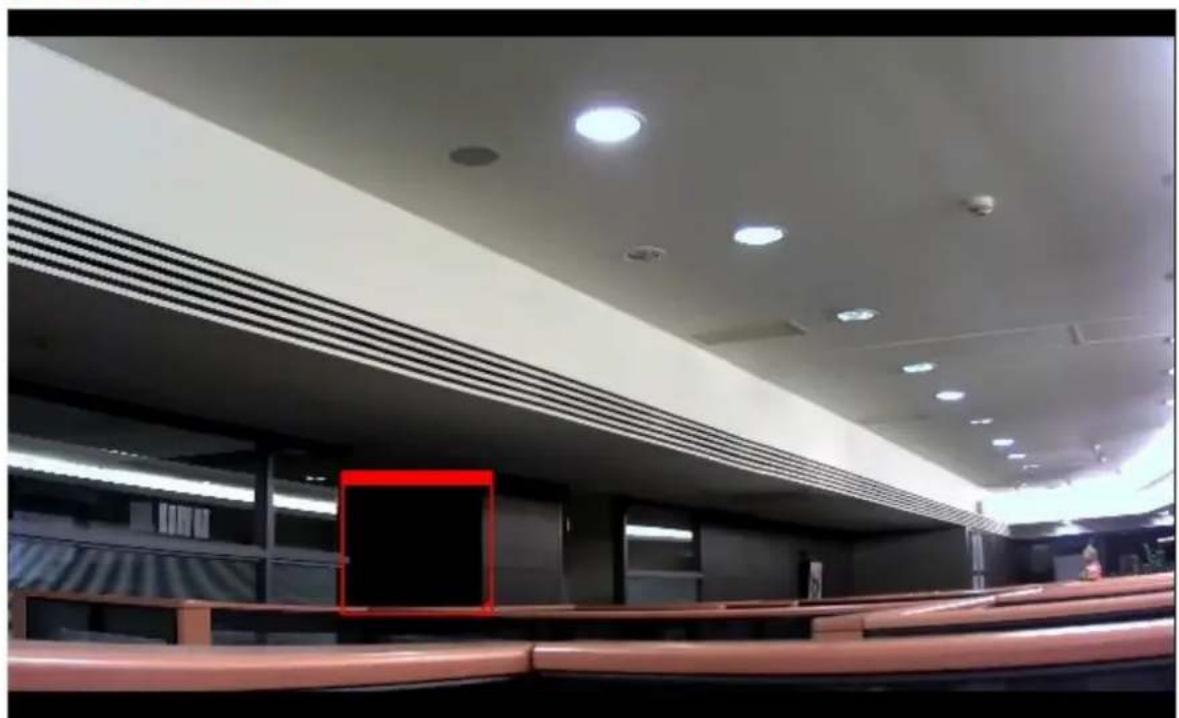

The camera is equipped with a privacy feature which allows users to mask the whole or partially of the camera's live view.
Privacy Mask
| Privacy Mask | |
| Full Screen | |
| Enable Window 1 | |
| Enable Window 2 | |
| Enable Window 3 | |
| Apply Cancel | |
Privacy Mask Control - Enable the Privacy Mask control to remotely disable live view and recording from the camera. Configure the privacy windows for up to three individual windows or for the full screen.
Click Apply to apply settings or Cancel to cancel changes.
Camera Control
PTZ Configuration
PTZ Configuration
Click Apply to apply settings or Cancel to cancel changes.
Network
IP Settings
This section explains how to configure a wired network connection for the camera. There are several ways to setup the camera over the Internet: (1) obtain an available dynamic IP address assigned by a DHCP server, (2) use a static IP, or use PPPoE (Point-to-point over Ethernet). Select the desire setup mode from the IP settings drop-down menu.
IP Settings
IP Settings
Mode
DHCP
Apply
Cancel
- DHCP –If this option is selected, the camera will automatically obtain an available dynamic IP address from the DHCP server each time it connects to the LAN.
IP Settings
IP Settings
Mode
Static IP
IP Address
192
168
50
123
Subnet Mask
255
255
255
0
Default Gateway
192
168
50
1
Primary DNS
168
95
1
1
Secondary DNS
61
31
233
1
Apply
Cancel
- Static IP - Select this option to manually assign a static IP address to the camera. Enter the static IP address, Subnet mask, Default Gateway, Primary and Secondary DNS provided by the ISP.
IP Settings

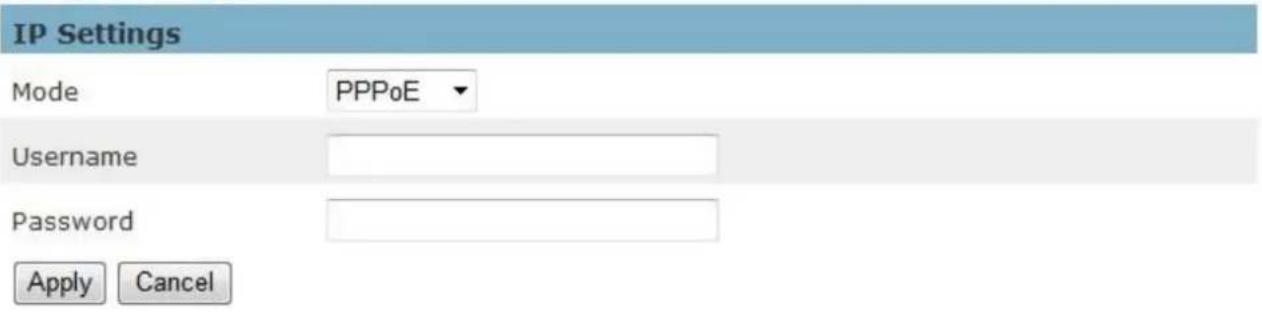

- PPPoE (Point-to-point over Ethernet): Use this mode if connecting to the Internet
through a DSL Line. ⚠NOTE - To utilize this feature, it requires an account provided by an Internet Service Provider. Enter the user name and password provided by the ISP.
Click Apply to apply settings or Cancel to cancel changes.
UPnP
Universal Plug and Play (UPnP) simplifies the process of adding a camera to a local area network. Once connected to a LAN, the camera will automatically appear on the intranet. Click "Enable" to enable this function and enter an UPnP name which the camera will appear under on the intranet.
UPnP
UPnP
Click Apply to apply settings or Cancel to cancel changes.
DDNS (dynamic domain name service)
DDNS links a domain name to an IP address, allowing users to easily access their camera
even with a changing IP address. Network cameras are compatible with three DDNS service providers (1) DynDNSand (2) TZO
NOTE - Before utilizing this function; please apply for a dynamic domain account from a DDNS provider.
DDNS
DynDNS
Enable
Username
Password
Hostname
TZO
Enable
Email Address
TZO Password
Domain Name
Apply
Cancel
DynDNS – Enable the DynDNS to allow the camera to have a fixed host and domain name.
Refer to the DynDNS website (www.dyndns.com) to apply for a dynamic domain account.
When an account has been created, enter the username, password and hostname.
TZO is a DDNS provider which allows users to create a dynamic DNS. Refer to the TZO website (http://www.tzo.com/) to apply for a dynamic domain account. When an account has been created, enter the e-mail address, password and domain name.
Click Apply to apply settings or Cancel to cancel changes.

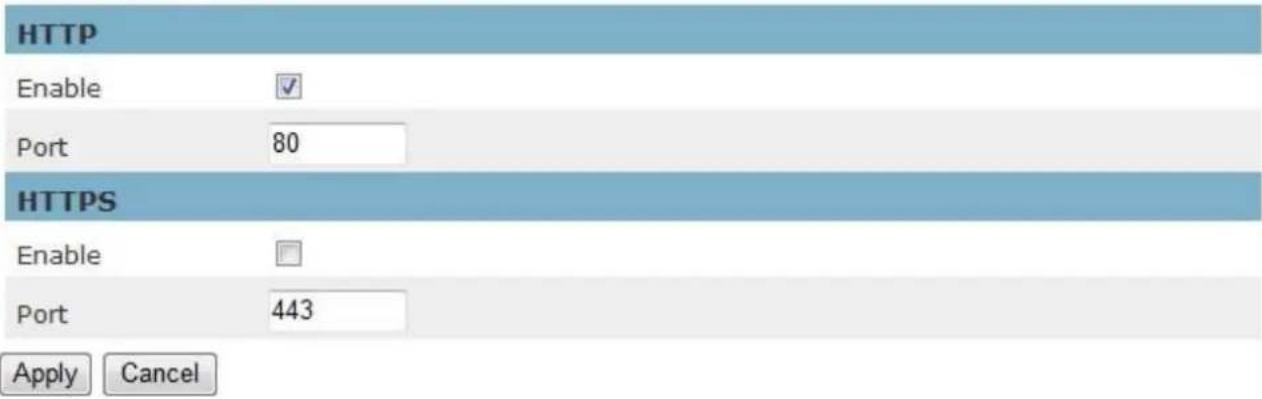

HTTP/HTTPS
HTTP/HTTPS
HTTP – (Hypertext Transfer Protocol) - This protocol allows for TCP protocol quality without having to open specific ports for streaming. Users inside a firewall can utilize this protocol to allow streaming data through.
HTTPS - (Hypertext Transfer Protocol over SSL) - This protocol allows authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on a higher security level than HTTP.
Click "Enable" to enable and Apply to apply settings or Cancel to cancel changes.
Multicast
Multicast
Multicast
Stream 1
Enable
Multicast Address 234 .1 .2 .3
Port 10000
Stream 2
Enable
Multicast Address 234 .1 .2 .3
Port 20000
Stream 3
Enable
Multicast Address 234 .1 .2 .3
Port 30000
Apply
Cancel
Multicast sends a video stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.
Therefore, multicast can effectively save Internet bandwidth. The RTSP (Real-Time
Streaming Protocol) controls the delivery of streaming media.
Click "Enable" to enable Multicast stream 1, Multicast stream 2 or Multicast stream 3. The default value for multicast address and port are 234.1.2.3 and 10000. Use different port number for different streams. It is recommended to use the default values.
NOTE - Using the IP address of the Network Camera enables access to the video.
Example: rtsp://192.168.1.1/channel1
Click Apply to apply settings or Cancel to cancel changes.
EasyLink
The IP Camera is bundled with free Level1DNS™ service which allows users to assign a unique user name to their network camera's IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses. The default domain name is MAC address, you can also register your own name on-line but it have to check the available first.
- Check the box to enable EasyLink function.
- If Auto mode is selected, the following page will be displayed.
NOTE - This mode is recommended.
- Enter a unique EasyLink name whose length must be between 5-32 characters. Verify that the EasyLink name is available.
Click Apply to apply settings or Cancel to cancel changes.
EasyLink
NOTE - The EasyLink function will not work if the following conditions occur:
- The camera cannot be located behind a double NAT network.
- The camera's IP address cannot be assigned to specific port numbers using the router's port forwarding.
- EasyLink uses UPnP to exchange port information with the router. The camera must be connected to the internet through a router which supports UPnP.
Event
Event Settings
When an event (such as unauthorized movement) occurs, the camera can be scheduled to perform certain actions. An Event Type is a set of parameters that defines these actions. This section describes how to configure the camera to perform certain actions when events occur.
Event Settings
| Event List | |||
| Enable | Name | Event Type | Action |
| Add Delete | |||
Click
Event Settings
Event List
Enable
Name
Event Type
Action
Add
Delete
Notification Settings
Enable
Name
Scheduled Event
Always
Schedule
Recurrence Pattern
Event
Motion Detect
Action
Save Stream to
FTP
Send Snapshot to
FTP
Send HTTP Notification
Send to Email
Play Audio Clip 123.wav
Activate Digital Output
Send UDP Notification to IP address
Apply
Cancel
How to Set Up an Event Schedule
Event Schedule describes how and when the camera performs certain actions.
- Check "Enable" and enter a descriptive name for the event schedule.
- Set Event Schedule to define when the event is activated by selecting from Always (24 hours), Schedule or Recurrence pattern.
a. If Schedule is selected from the Event Schedule, the following page will be displayed:
Event Settings
i. A Scheduled Event can be programmed for certain times and day. ii. Click individual boxes to schedule specific times for the camera to detect events.
b. If Recurrence Pattern is selected, the following page will be displayed.
Event Settings
i. An event schedule can be programmed to recur at different times according to the user's needs. Select the days for the event schedule to occur. Select a start time and specify the duration.
- Define what will trigger an event to occur by selecting an option from the Event drop-down list.
- Select the Actions that will occur when the event is triggered.
a. When
Event Settings
ii. Sender - Enter the email address of the sender.
iii. Recipient - Enter the email address of the recipient. To enter multiple recipients, separate each using a comma.
iv. Sender's Name – Enter the sender's name that will appear in the recipient's inbox.
v. Subject - Enter the title of the email.
- When complete, click Apply to save new event or Cancel to delete the event. The new event will appear on the event list.
- To edit an event setting; select the event from the list. To remove an event setting from the list, select an event name from the list and then click
. Click to add more events.
NOTE - Refer to the Audio Clip section for more details about the “Play Audio Clip”
action.
Motion Detection
Motion can be detected by measuring changes in the speed or vector of an object or objects in the monitored area. This section explains how to configure the Network Camera to enable motion detection.
Motion Detection
Detection Setting – Use this setting to enable and define the motion detection windows.
The user can defined up to three areas on the live view window for motion detection.
- Select
, , or to adjust the motion detection
window.
- Check the box to enable the window.
- Use the mouse to resize or move the motion detection window.
- Adjust the "Sensitivity" level. Lower sensitivity levels will result in more activity needed to trigger an event.
- Adjust the "Threshold" to change the threshold level. The higher the threshold, the larger objects need to be to trigger an event.
- The chart below the Live View window indicates the activity level of the Motion Detection window. When motion is detected by the camera and exceeds the defined threshold, a red bar will appear. Users can use this feature as a trigger source to send photos or videos to a remote server via email or FTP.
Click Apply to apply settings or Cancel to cancel changes.
Digital Input (DI)
Digital Input
Digital Input
Digital Input
Low ▼ ( Current status : High )
Apply
Cancel
The DI socket allows the IP camera to receive input from an external device.
The external device should have the ability to drive voltage on the connected DI wire to the triggering voltage level in order to notify the IP camera of any event of interest. The IP camera will then process the event notification according to the specific event rules.
Triggering voltage Level: LOW, HIGH, Rising and Falling
Users should select the option according to the capability of their external device.
Audio Detection
Audio Detection
Audio Detection
Sensitivity
30 %
Current detected value:
70%
Apply
Cancel
Users can schedule an event to be triggered if there is a change in the sound level of a monitored area. Audio detection can be used to measure change in the ambient voice.
Select the sensitivity from the drop-down menu.
Sensitivity - is used to adjust the sensitivity of the sound level from 10 - 100%.
Click Apply to apply settings or Cancel to cancel changes.
Notifications
Use the tools in this section to specify what type of notification will be sent when an event occurs. The camera can send buffered images to an FTP server, Samba, Email, or HTTP.
FTP Settings
File Transfer Protocol (FTP) is used as an application component to automatically transfer files for program internal functions. Select “Primary FTP Server” from the Server Selection drop down menu to send media files to a FTP server when an event is triggered. Enter the FTP IP address or hostname. By default, the FTP port server is set to 21. Enter the account name, password and FTP Path to configure the settings.
FTP Settings
Click Apply to apply settings or Cancel to cancel changes.
E-mail Settings
Select "Primary Email Server" option from the Server Selection drop down menu to send media files to an email server when an event is triggered.
SMTP Server - Enter the server host name of the email server.
SMTP Port - Enter the port number of the email server; by default, the SMTP port is set to 25.
Authentication - Select the authentication type from the drop-down menu.
Email Account - Enter the user name of the email account if necessary.
Email Password - Enter the password of the email account if necessary.
Email Settings
Click Apply to apply settings or Cancel to cancel changes.
Samba Settings
Select this option to send the media files via a network neighborhood when an event is triggered.
Server Address - Enter the IP address of the Samba server.
User Name - Enter the user name of the Samba server.
Password - Enter the password of the Samba server.
Work Group - Enter the workgroup of the Samba server.
Shared Folder - Enter the share folder of the Samba server.
Samba Settings
Click Apply to apply settings or Cancel to cancel changes.
HTTP Settings
Select this option to send the media files via an HTTP notification when an event is triggered.
HTTP Settings
URL –Specify the URL to send HTTP requests. The URL is normally written as:
http://ip_address/ notification.cgi?parameter
ip_address – type the IP address or host name of the HTTP host.
Parameter – type the notification parameter if necessary.
Example
URL - http://192.168.1.1/xxxx.cgi
Message - name1=value1&name2=vlaue2
Result - http://192.168.1.1/xxxx.cgi? name1=value1&name2=vlaue2
Ex:
https://192.168.1.1/notification.cgi?event=MD&camera=FB-100A
Message - Enter the message notification that will be sent when an event is triggered.
Enter the user name and password if necessary.
Click Apply to apply settings or Cancel to cancel changes.
Digital Output (DO)
Digital Output
The DO socket allows the IP camera to send output to an external device. While executing the DO notification action, the IP camera drives voltage on the connected DO wire to the triggering voltage level for X number of seconds. The connected external device will then be triggered for X number of seconds.
Triggered Voltage Level - OPEN or GROUND
Users should select the option according to the specification of their external device.
Audio Clip
Audio Recording – Audio clips can be recorded and played when an event occurs.
Audio Configuration
Click Browse to import a file from a local hard drive or network disk. Select the file and click Import.
NOTE – The camera can only play audio clips which are saved as .wav files with G.711 u-law encoding in 8000 Hz sampling rate.
To record a new clip using the camera's microphone:
- File Name-Enter a file name.
- Duration - Enter the number of seconds to record.
- Click Record to record the new audio clip.
- The new audio clip will appear on the audio clip list.
- Select an audio clip file from the Audio Clip List.
a. Play- Select to hear the audio clip
b. Stop- Select to stop playing the audio clip.
c. Delete- Select to delete an audio clip.
d. Export- Select to export the audio clip to a local hard drive or network disk.
Video Clip
Video Clip
This function is used to determine when video clips will be recorded and stored after an event is triggered.
Pre-alarm buffer - Images can be stored internally on the server from the time immediately preceding the trigger. Enter the desired length of time.
Post-alarm buffer - Images can be stored internally on the server from the time immediately following the trigger. Enter the desired length of time.
Maximum buffer size –Specify the maximum file size allowed.
Click Apply to apply settings or Cancel to cancel changes.

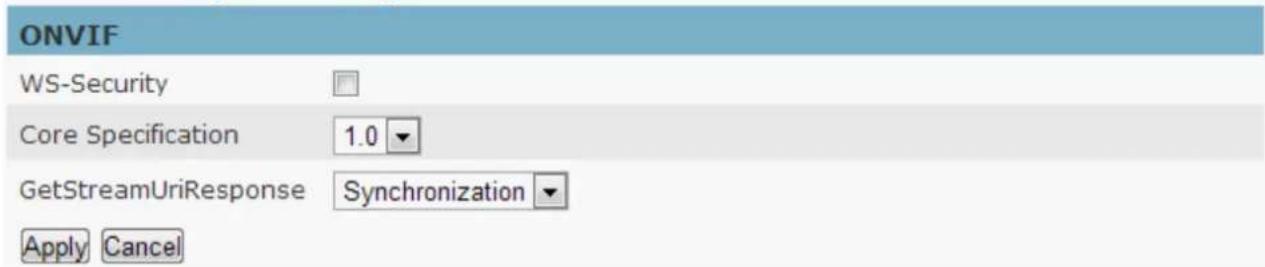

VMS Compatibility
VMS Compatibility
Click Apply to apply settings or Cancel to cancel changes.
SD card
Storage Management
Storage Management
| Local Storage Information | |
| Item | SD Card |
| Total Capacity | 0KB |
| Used Space | 0KB |
| Available Space | 0KB |
| Memory Card Management | Reload |
| Automatic Recycle √ | |
| Offline Record □ | |
| Apply Cancel | |
Click Apply to apply settings or Cancel to cancel changes.
Maintenance
Language
Language
Select the desired language from the drop-down list.
Click Apply to apply settings or Cancel to cancel changes.
User Management
This section explains how to enable password protection and create multiple accounts.
The administrator account name is "admin", which is permanent and cannot be deleted.
Click to create an account.
User Management
| Privilege Settings | |||||
| ✓ | User Name | Password | Confirm Password | Privilege | Configuration |
| 1 | admin | ●●●●● | ●●●●● | Administrator | + X 69 |
| 2 | viewer | ●●●●●● | ●●●●●● | Viewer | + X 69 |
| 3 | viewer | ●●●●●●● | ●●●●●●● | Remote Viewer | + X 69 |
| 4 | Viewer | + X 69 | |||
| 5 | Viewer | + X 69 | |||
| 6 | Viewer | + X 69 | |||
| 7 | Viewer | + X 69 | |||
| 8 | Viewer | + X 69 | |||
| 9 | Viewer | + X 69 | |||
| 10 | Viewer | + X 69 | |||
Enter the new user's name, password and confirm password. Administrators can add up to 10 user
accounts.
Select the privilege level for the new user account from the drop-down list. Privilege levels can be assigned as:
- Administrator - user has access to view and change the Configuration page. Users with administrator privilege can change other user's access rights and delete user accounts. Click Delete or Update to delete or modify a user's account.
◆ Viewer - user can only access the main page for live viewing.
◆ Remote Viewer - user can only access the main page for live viewing using TCP protocol.
IP Filter
The IP Filter is used to filter the IP addresses which are able to access the network camera.
Enable the IP Filter and select to allow or deny a range of IP addresses access to the server.
Click Add to list to add the IP range to the IP filter list.
IP Filter
Click Apply to apply settings or Cancel to cancel changes.
Firmware Upgrade
This feature allows the user to upgrade the camera firmware. It will take a few minutes to complete the process.
NOTE - Do not power off the camera or camera during the upgrade.
Upgrade - Click Browse... and specify the firmware file. Click Upgrade. The camera will
begin upgrading and will reboot automatically when the upgrade is finished.
Firmware Upgrade
Firmware Upgrade
Select a File
Upgrade
瀏覽...

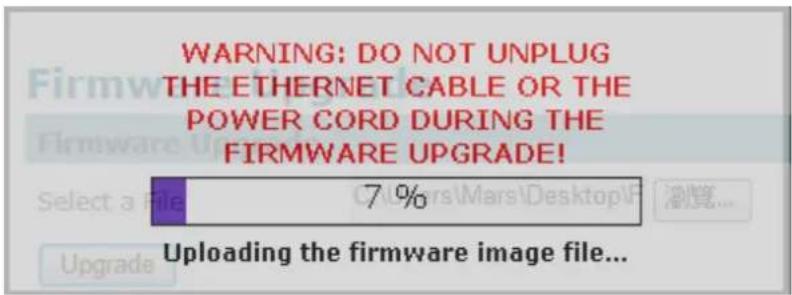

The following message will show during the firmware upgrading process.
Configuration
This feature allows the user to export/import the configuration files of the network camera.
Import/Export - Click export to pop up a dialog to indicate the location and file to export.
Click browse to indicate the location and file of the camera configuration and click import to import the configuration file back into the network camera.
Configuration
Reset to Default
This section is used to restore the camera to default factory settings. Check the boxes to preserve the IP, Date and Time, or Language settings. Click Apply to restore the camera to default factory settings.
Reset to Default
Reset to Default
Press the Apply button to restore the network camera to factory default except settings in
Language settings
Date and Time settings
IP settings
Apply
Reboot
Reboot
Reboot
Apply

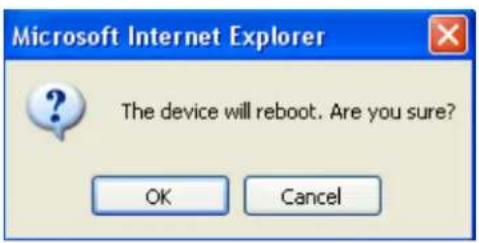

This feature will reboot the camera. Click Apply to begin. A message will pop up asking "The device will reboot. Are you sure?" Click "OK" to continue. The camera will take about one minute to reboot.
The following message will show during the rebooting process.
When completed, the live video page will be displayed in the web browser.
System
System Log
Log - Set up the camera to record a system log when an event is triggered.
System Log
System Log
LOG_INFO-stream :Channel [1] stopped streaming to host '[192.168.50.97]', Sat Jan 3 18:11:49 2009
LOG_INFO-stream :Channel [1] started streaming to host '[192.168.50.97]', Sat Jan 3 18:09:58 2009
LOG_INFO-stream :Channel [1] stopped streaming to host '[192.168.50.97]', Sat Jan 3 18:09:57 2009
LOG_INFO-stream :Channel [1] started streaming to host '[192.168.50.97]', Sat Jan 3 18:09:57 2009
LOG_INFO-stream :Channel [1] stopped streaming to host '[192.168.50.97]', Sat Jan 3 17:10:29 2009
LOG_INFO-stream :Channel [1] started streaming to host '[192.168.50.97]', Sat Jan 3 16:38:37 2009
LOG_INFO-stream :Channel [1] stopped streaming to host '[192.168.50.97]', Sat Jan 3 16:38:37 2009
LOG_INFO-stream :Channel [1] started streaming to host '[192.168.50.97]', Sat Jan 3 16:38:36 2009
LOG_INFO-stream :Channel [1] stopped streaming to host '[192.168.50.97]', Sat Jan 3 16:38:33 2009
LOG_INFO-stream :Channel [1] started streaming to host '[192.168.50.97]', Sat Jan 3 16:38:25 2009
LOG_INFO-stream :Channel [1] stopped streaming to host '[192.168.50.97]', Sat Jan 3 16:38:25 2009
LOG_INFO-stream :Channel [1] started streaming to host '[192.168.50.97]', Sat Jan 3 16:38:24 2009
LOG_NOTICE-WebServer :User '[admin]' logged in to [web server], Sat Jan 3 16:38:23 2009
LOG_INFO-udhcpc :Communication established with DHCP server [192.168.50.1], Sat Jan 3 16:38:12 2009
LOG_INFO-udhcpc :DHCP lease renewal was successful, Sat Jan 3 16:38:12 2009
Retrieve
Save to File
This page displays the system's log in chronological order. The system log is stored in the camera's buffer area and will be overwritten when the buffer area is full.
Click Retrieve to retrieve the log or click Save to file to save the system log.
Date and Time
Time Zone – Select the local time zone from drop-down menu.
Manual – Manually enter the date and time.
Clone from PC – The camera will sync with the time, date and time zone of the computer used to modify the camera settings. Check “Clone” to utilize this option. The read-only date and time of the PC will be displayed.
NTP – (Network Time Protocol) - NTP is a protocol for synchronizing the clocks of a computer system. Select to update the time with a NTP server on an hourly, daily, weekly, or monthly basis.
NTP Server 1 and Server 2 - Enter the address of the NTP server
Daylight Saving - Enable this option to automatically update for Daylight Savings Time.
Date and Time
Time Synchronization
| Mode | Set Manually | Synchronize with NTP server |
| Date | 2009 / 1 / 3 (yyyy/mm/dd) | |
| Time | 16 : 38 : 7 (hh:mm:ss) | |
| Clone from PC | Clone (Current Time: 2012/12/12 13:25:5) | |
TimeZone
| TimeZone | (GMT+08:00)Taipei | |
| Country | User Defined | |
| Offset | Hours: +0 | Minutes: 00 |
Daylight Saving Time
| Daylight Saving | Disable | Enable | Manual |
| Type | Date | ||
| Start Date | Month: 1 | Day: 1 | |
| End Date | Month: 1 | Day: 1 | |
| Apply Cancel | |||
Click Apply to apply settings or Cancel to cancel changes.
Save File Folder
Save File Folder
Recording folder path - The destination for saving the recording video files. Click Browse to specify the saving path.
Snapshot folder path - The destination for saving the snapshot files. Click Browse to specify the saving path and select the format from the drop-down menu.
Device Information
System Information – Displays the complete system information of the camera.
Device Information
System Information
| LAN MAC Address | ac:81:12:d7:70:6f |
| Firmware Version | v1.0.0.2 |
| Firmware Release Date | 2012-11-29 |
| UPnP Name | FCS-5052-706f |
Network Settings
| IP Setting Type | DHCP |
| IP Address | 192.168.50.118 |
| Subnet Mask | 255.255.255.0 |
| Default Gateway | 192.168.50.1 |
| Primary DNS | 168.95.1.1 |
| Secondary DNS | 61.31.233.1 |
| UPnP | Enabled |
| DynDNS | Disabled |
| TZO | Disabled |
Video/Audio Settings
| Stream 1 | ||
| Video Codec | H264 | |
| Video Resolution | 1920x1080 | |
| Video Frame Rate | 18 fps | |
| Video Bitrate | 8000 Kbps | |
| Audio Codec | N/A | |
| Multicast IP | N/A | |
| Stream 2 | ||
| Video Codec | MJPEG | |
| Video Resolution | N/A | |
| Video Frame Rate | 25 fps | |
| Video Quality | 3 | |
| Audio Codec | N/A | |
| Multicast IP | N/A | |
| Stream 3 | ||
| Video Codec | H264 | |
| Video Resolution | 320x180 | |
| Video Frame Rate | 25 fps | |
| Video Bitrate | 256 Kbps | |
| Audio Codec | N/A | |
| Multicast IP | N/A | |
Network Settings – Displays the complete network settings information of the camera.
Video/Audio Settings – Displays the complete video/audio settings information of the camera.
- FCS-1132
- 3-MEGAPIXEL POE NETWORK CAMERA
- USER'S MANUAL
- TABLE OF CONTENTS
- PACKAGE CONTENTS
- HARDWARE DEVICE APPEARANCE
- HARDWARE RESET
- EXTENSION I/O TERMINAL BLOCK
- HARDWARE INSTALLATION
- CAMERA CONNECTION
- BASIC CONNECTION (WITHOUT POE)
- POWER OVER ETHERNET (POE) CONNECTION
- WHEN CONNECTING TO POE-ENABLED SWITCH
- WHEN CONNECTING TO A NON-POE SWITCH
- SYSTEM REQUIREMENTS
- OPERATING SYSTEM
- COMPUTER
- CPU
- MEMORY
- MONITOR
- NETWORK INTERFACE
- WEB BROWSER
- ADOBE READER
- AUDIO
- SOFTWARE INSTALLATION
- ACCESS TO THE NETWORK CAMERA
- CHECK NETWORK SETTINGS
- ADD PASSWORD TO PREVENT UNAUTHORIZED ACCESS
- AUTHENTICATION
- INSTALLING PLUG-IN
- LIVE VIEW
- STREAM1\~3 CHANNELS
- HTTP/TCP/UDP PROTOCOL
- NOTE
- CONFIGURATION
- CAMERA/VIDEO/AUDIO
- CAMERA
- EXPOSURE CONTROL
- MIRROR AND FLIP
- VIDEO
- STREAM
- VIDEO OVERLAY
- RTSP SERVER
- STREAM 1 \~ 3
- RTP/RTCPRTCP
- AUDIO CONFIGURATION
- ADVANCED SETTINGS
- PRIVACY MASK CONTROL
- PRIVACY MASK
- CAMERA CONTROL
- PTZ CONFIGURATION
- NETWORK
- IP SETTINGS
- UPNP
- DDNS
- DYNDNS
- TZO
- HTTP/HTTPS
- MULTICAST
- EASYLINK
- EVENT
- EVENT SETTINGS
- EVENT LIST
- NOTIFICATION SETTINGS
- HOW TO SET UP AN EVENT SCHEDULE
- MOTION DETECTION
- DIGITAL INPUT (DI)
- DIGITAL INPUT
- AUDIO DETECTION
- NOTIFICATIONS
- FTP SETTINGS
- E-MAIL SETTINGS
- EMAIL SETTINGS
- SAMBA SETTINGS
- HTTP SETTINGS
- DIGITAL OUTPUT (DO)
- DIGITAL OUTPUT
- AUDIO CLIP
- VIDEO CLIP
- VMS COMPATIBILITY
- SD CARD
- STORAGE MANAGEMENT
- MAINTENANCE
- LANGUAGE
- USER MANAGEMENT
- IP FILTER
- FIRMWARE UPGRADE
- RESET TO DEFAULT
- REBOOT
- SYSTEM
- SYSTEM LOG
- DATE AND TIME
- SAVE FILE FOLDER
- DEVICE INFORMATION
Brand : LEVELONE
Model : FCS-1132
Category : Security Camera
