4K500 - Video projector OPTOMA - Free user manual and instructions

Product type	Video projector
Display technology	DLP
Native resolution	3840 x 2160 (4K UHD)
Lens	2x zoom with IRIS
Zoom ratio	1.96x
Projection distance	2.4 m – 9 m (80" – 300" screen)
Image size (diagonal)	80" – 200" for 2160p, up to 300"
Color reproduction	1073.4 million colors
Scan rate (horizontal)	15.375 – 91.146 kHz
Scan rate (vertical)	24 – 120 Hz
Built-in speaker	None
Power supply	100 – 240 V AC, 50/60 Hz
Power consumption (standby)	< 0.5 W (Eco mode)
Net weight	16.9 kg
Gross weight	21.0 kg
Dimensions (W x D x H, without feet)	550 x 500 x 178 mm
Dimensions (with feet)	550 x 500 x 192 mm
Operating temperature	5°C – 40°C
Humidity	10% – 85% (non-condensing)
Input ports	HDMI 1, HDMI 2 (HDCP2.2), HDMI 3, DisplayPort, VGA/YPbPr, RJ-45, RS-232, USB Power Out (5V 1.5A), Wired Remote
Output ports	HDMI Out, 12V Trigger A & B
Network control	Crestron, Extron, PJLink, AMX, Telnet, HTTP
Security	Kensington lock, security bar, password protection
Installation orientations	Front, Rear, Ceiling-top, Rear-top
Lamp type	Replaceable (see manual for part number)
Lamp life (Eco mode)	Not specified
Filter	Optional, clean every 3 months

Frequently Asked Questions - 4K500 OPTOMA

How do I replace the lamp?

Turn off the projector and disconnect power. Allow at least 30 minutes for cooling. Remove the lamp cover and unscrew the lamp module. Carefully pull out the module and insert the new one. Reverse steps and reset the lamp timer via Setup > Lamp Settings > Lamp Reset.

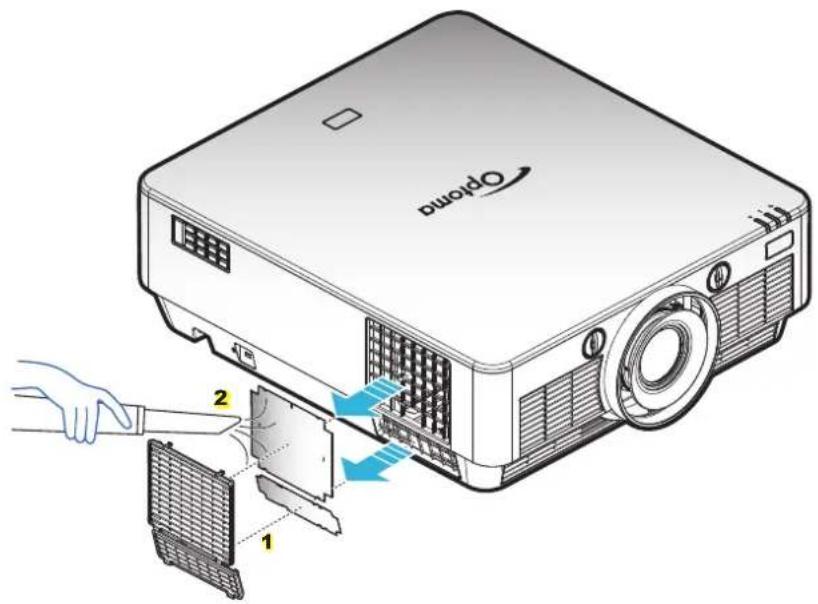

How to clean the dust filter?

Switch off the projector and unplug. Remove the dust filter from the side, clean it with a soft brush or replace if necessary. Reinstall the filter. It is recommended to clean every 3 months or more often in dusty environments.

What should I do if no image appears on screen?

Ensure all cables are securely connected and the projector is powered on. Check that the lens cap is removed (if any) and the AV Mute function is not active. Verify the correct input source is selected. Try connecting a different device.

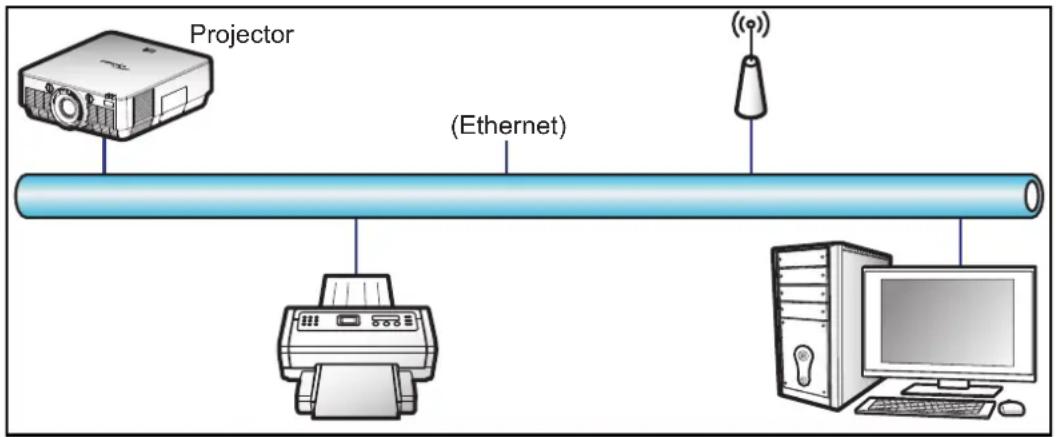

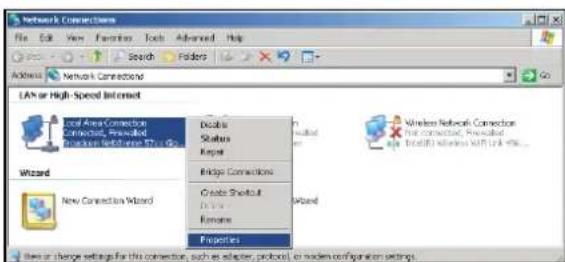

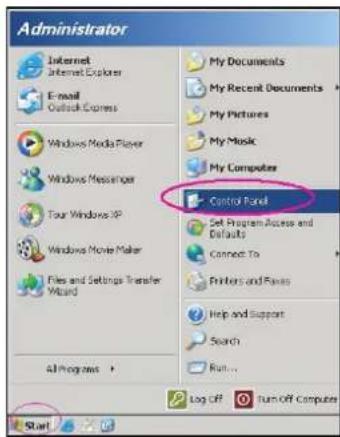

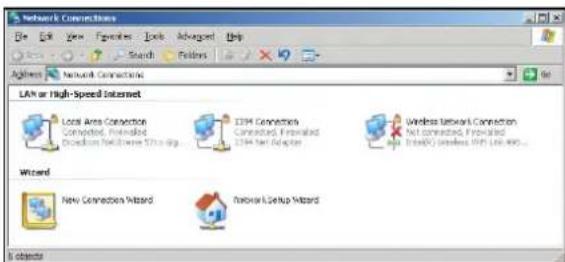

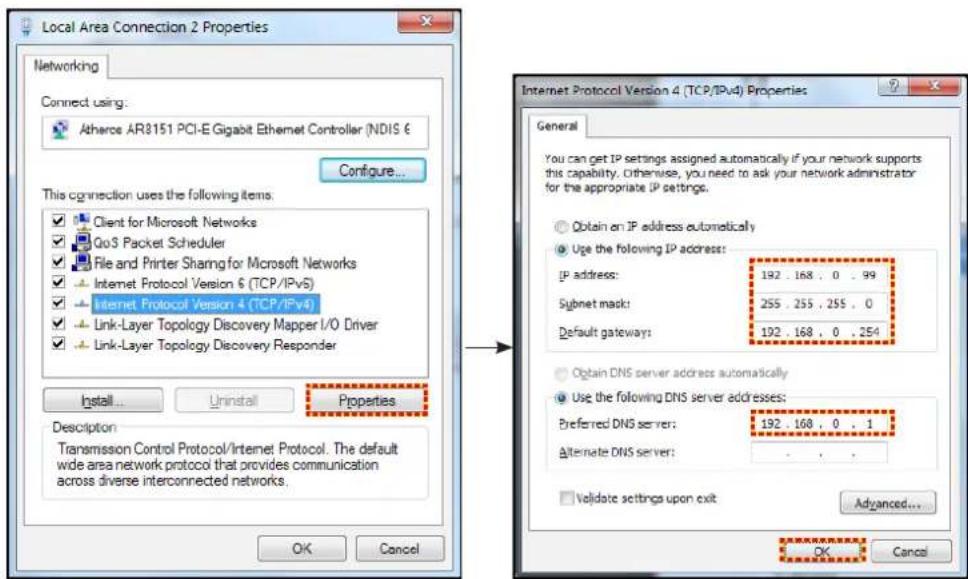

How do I connect the projector to a network?

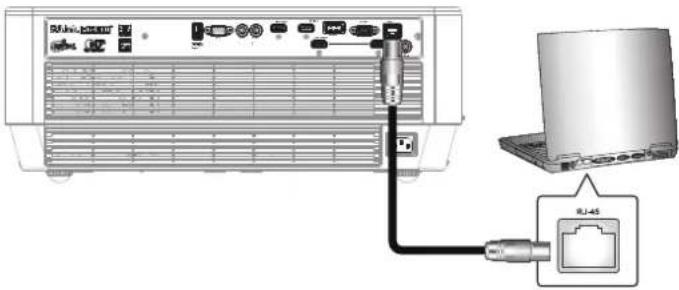

Use an RJ-45 cable to connect the projector to your network. In the OSD menu, go to Network > LAN. Enable DHCP or set IP manually. Ensure the PC and projector are on the same subnet. Access via web browser using the projector's IP address.

How do I reset the lamp timer after replacement?

Press Menu on the remote or keypad. Navigate to Setup > Lamp Settings > Lamp Reset. Select Yes and confirm. This resets the lamp hour counter to zero.

What resolutions does the projector support?

The Optoma 4K500 supports up to 4K UHD (3840x2160) at 60 Hz via HDMI 2 (HDCP2.2). It also supports 4096x2160 at 24/25/30 Hz, and various lower resolutions including 1080p, 720p, and PC timings. Refer to the Compatible resolutions table in the manual.

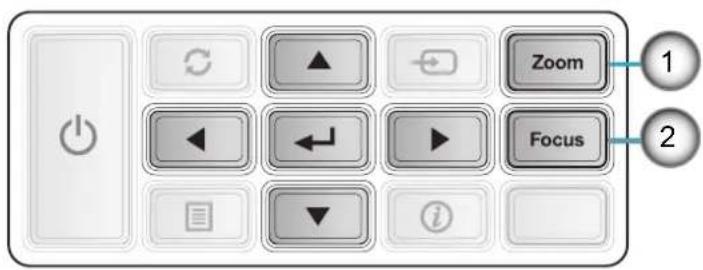

How can I adjust the image size?

Use the Zoom button on the remote or keypad to resize the image. You can also move the projector closer or farther from the screen. For fine adjustments, use the Digital Zoom function in the OSD menu under Display > Digital Zoom.

What do the LED indicators mean?

The projectors has three LEDs: On/Standby (blue/red), Temp (red), and Lamp (red). Solid red On/Standby means standby. Flashing blue means warming up. Solid blue means lamp on. Flashing red On/Standby together with Temp or Lamp indicates error (overheat, fan failure, lamp failure). See Warning indicators in manual.

How to perform a factory reset?

Press Menu, go to Setup > Reset. Select Reset OSD to reset menu settings, or Reset to Default to reset all setup settings to factory defaults. Confirm by selecting Yes.

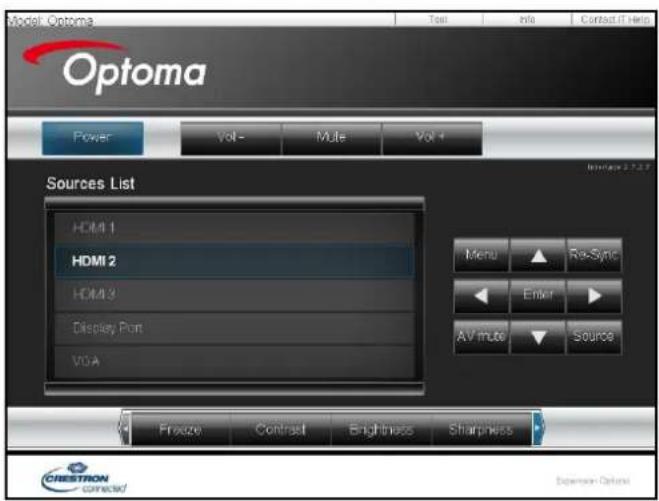

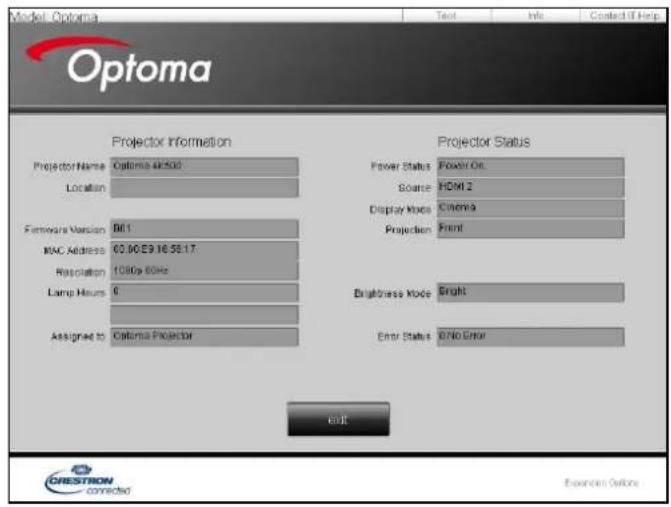

Can I control the projector remotely via software?

Yes. The projector supports Crestron, Extron, PJLink, AMX, Telnet, and HTTP protocols over LAN. You can manage power, input, brightness and view status via web browser or third-party control systems.

USER MANUAL 4K500 OPTOMA

Line drawing of a projector with camera lens and front panel (no text or symbols)

TABLE OF CONTENTS

SAFETY 4

Important Safety Instruction.... 4

Copyright 5

Disclaimer....5

Trademark Recognition 6

FCC 6

Declaration of Conformity for EU countries 7

WEEE 7

INTRODUCTION 8

Package overview 8

Standard accessories....8

Optional accessories 8

Product overview 9

Connections.... 10

Keypad 11

LED status indicators.... 11

Remote control 12

SETUP AND INSTALLATION 14

Installing the projector 14

Connecting sources to the projector.... 15

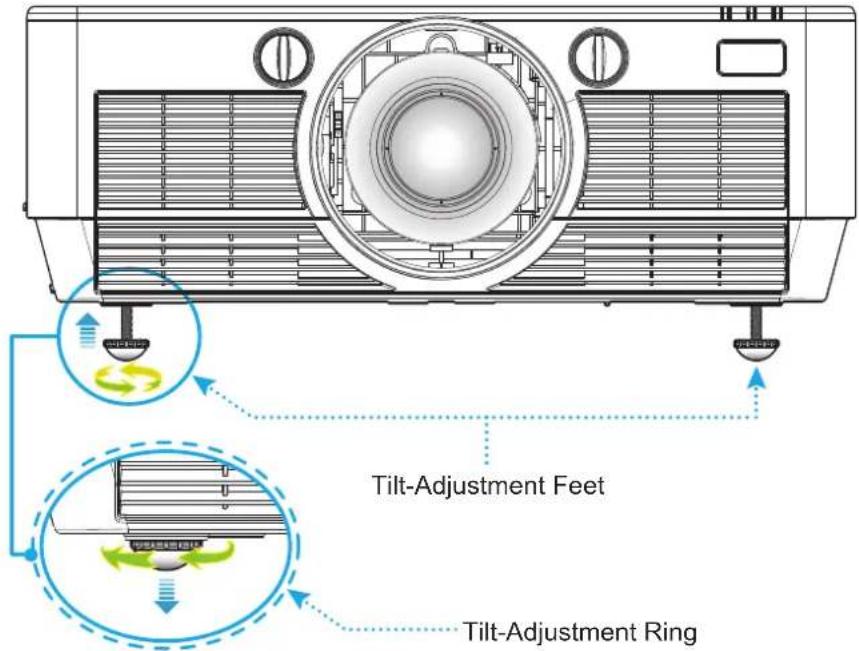

Adjusting the projector image.... 16

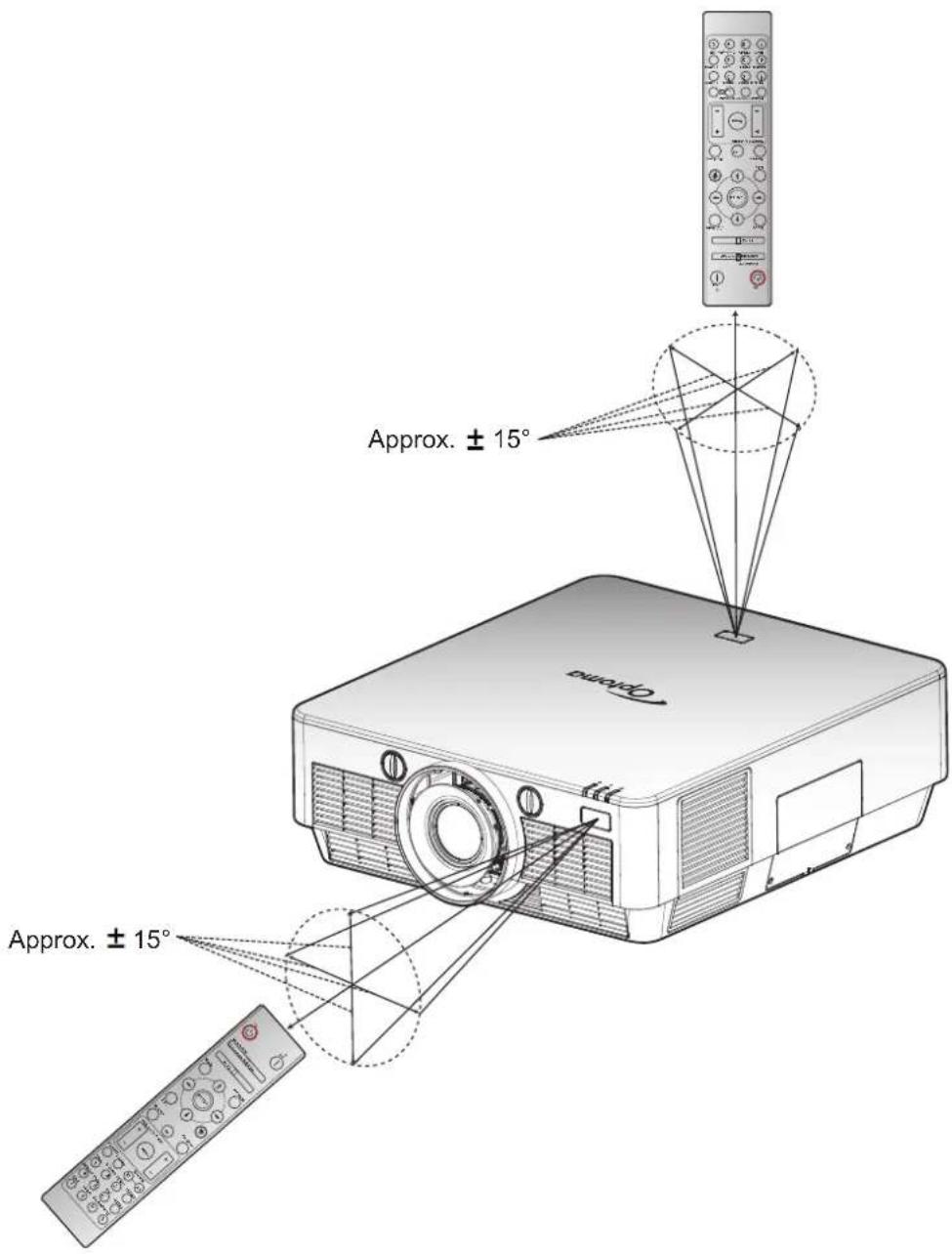

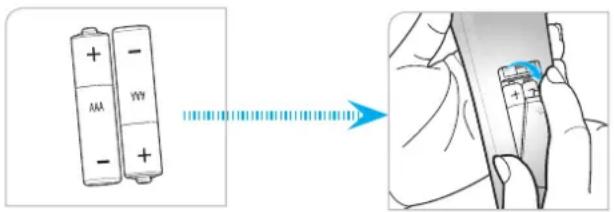

Remote setup 17

USING THE PROJECTOR....19

Powering on / off the projector.... 19

Selecting an input source 20

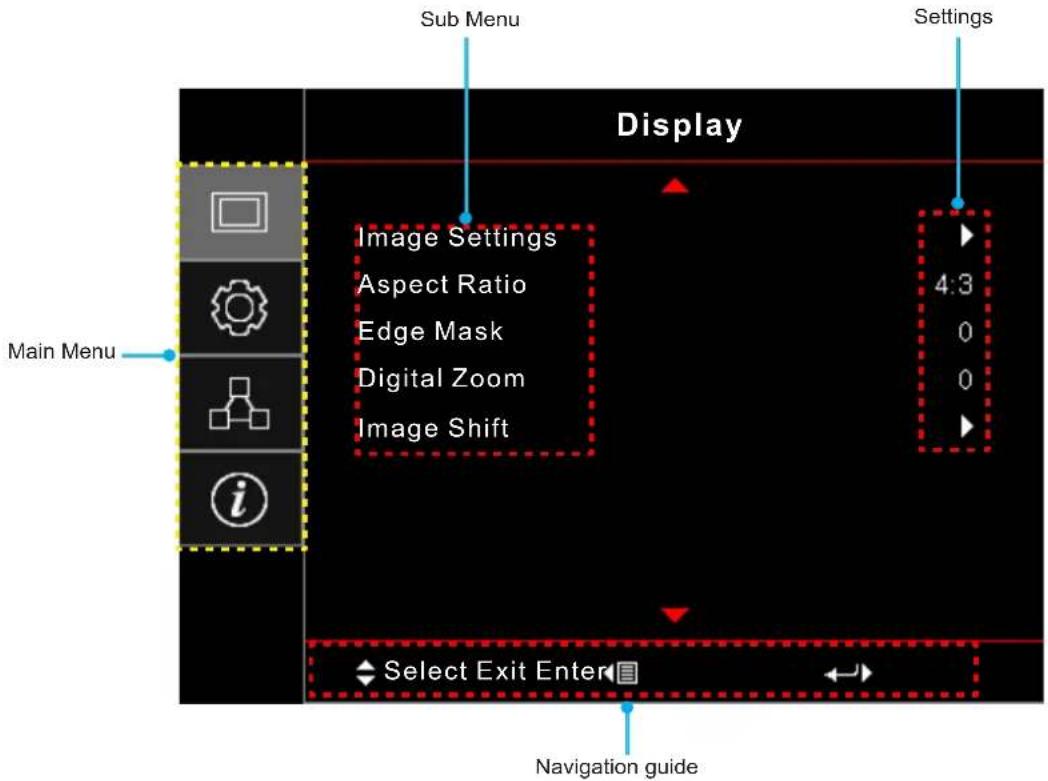

Menu navigation and features 21

OSD Menu tree....22

Display image settings menu.... 30

Display aspect ratio menu 32

Display edge mask menu 33

Display digital zoom menu.... 33

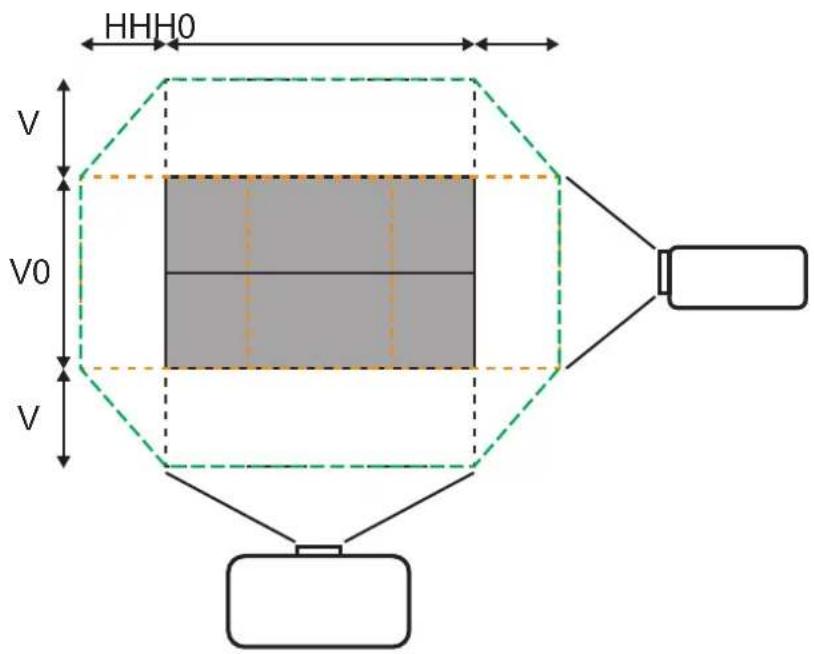

Display image shift menu 33

Setup projection menu.... 34

Setup lamp settings menu 34

Setup filter settings menu 34

Setup lens function menu 34

Setup power settings menu 35

Setup security menu 35

Setup test pattern menu 35

Setup remote settings menu.... 35

Setup projector ID menu.... 36
Setup 12V trigger menu....36
Setup options menu.... 36
Setup reset menu 37
Network LAN menu 37

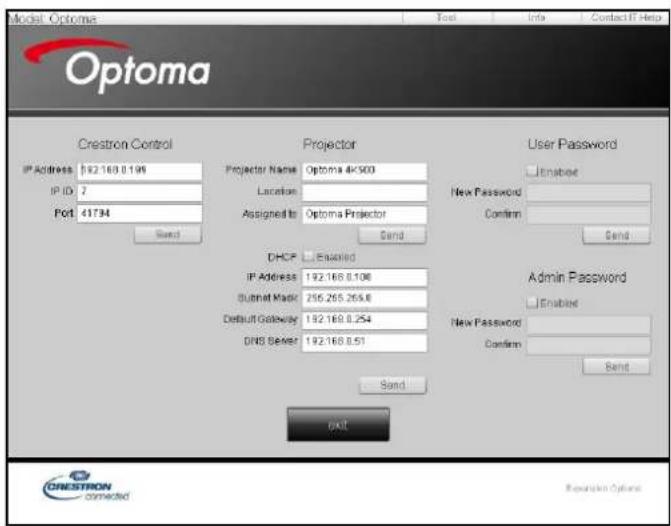

Network control menu....38

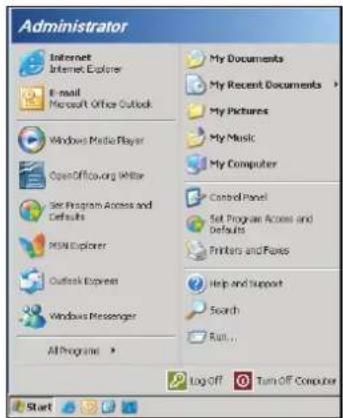

Setup network control settings menu 39
Info menu....44

MAINTENANCE 45

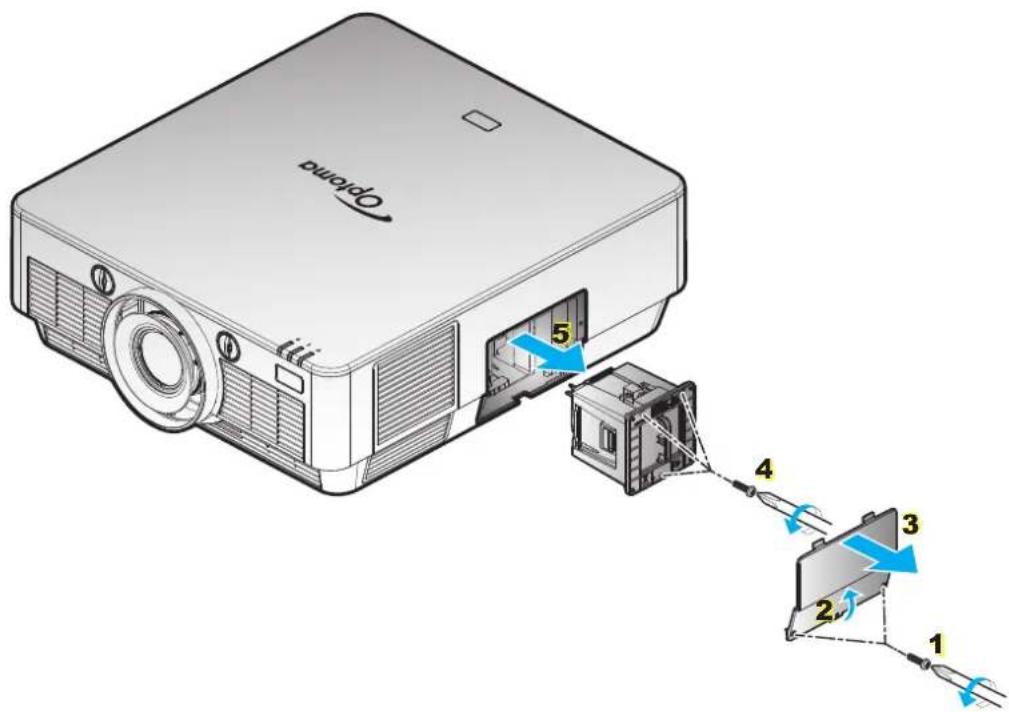

Replacing the lamp.... 45

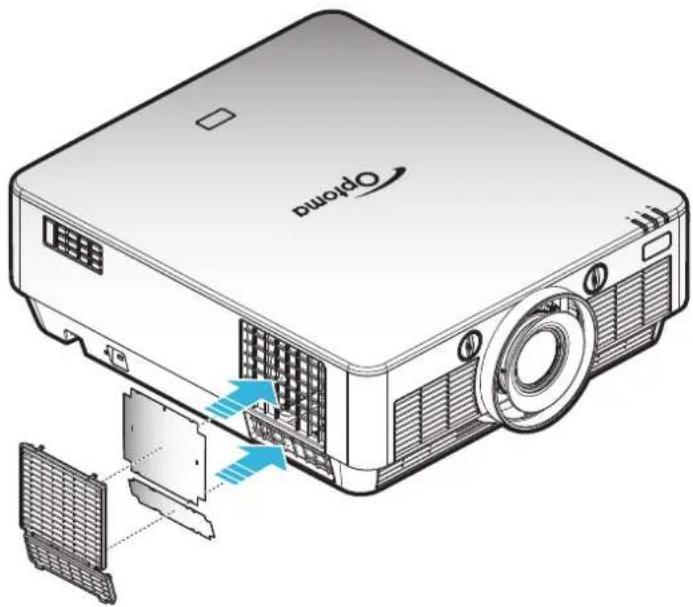

Installing and cleaning the dust filter 47

ADDITIONAL INFORMATION 48

Compatible resolutions.... 48

Image size and projection distance 49

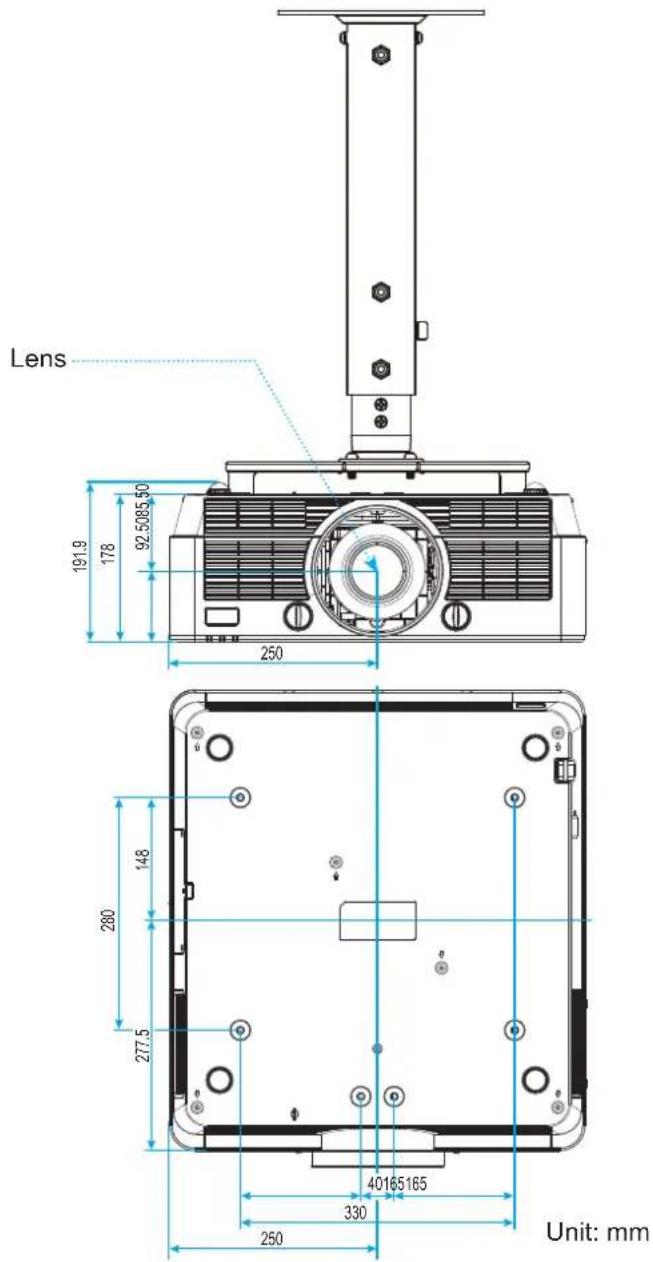

Projector dimensions and ceiling mount installation.... 51

IR remote control codes 52

Troubleshooting 54

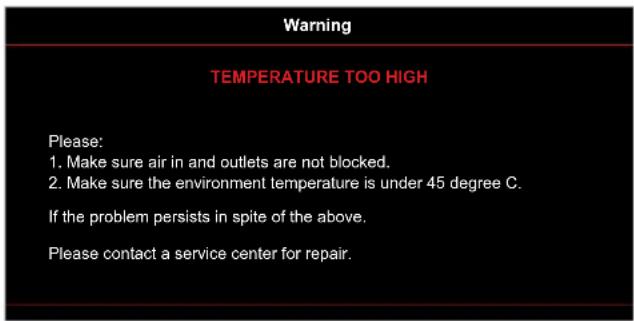

Warning indicators....55

Specifications 58

Optoma global offices....59

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

- Do not use under the following conditions:

– In extremely hot, cold or humid environments.

(i) Ensure that the ambient room temperature is within 5^ C \~ 40^ C
(ii) Relative humidity is 10% \~ 85%

– In areas susceptible to excessive dust and dirt.
– Near any appliance generating a strong magnetic field.
– In direct sunlight.

- Do not use the projector in places where flammable gases or explosives gases may be present in the atmosphere. The lamp inside the projector becomes very hot during operation and the gases may ignite and result in a fire.

- Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

• Unit has been dropped.
  – Power supply cord or plug has been damaged.
  – Liquid has been spilled on to the projector.
  – Projector has been exposed to rain or moisture.

• Something has fallen in the projector or something is loose inside.

• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.

• Do not block the light coming out of the projector lens when in operation. The light will heat the object and my melt, cause burns or start a fire.

- Please do not open or disassemble the projector as this may cause electric shock.

- Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

• See projector enclosure for safety related markings.
- The unit should only be repaired by appropriate service personnel.

- Only use attachments/accessories specified by the manufacturer.

• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.

- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 45-46.

- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

- Reset the "Lamp Reset" function from the on-screen display "Setup lamp settings" menu after replacing the lamp module.

- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

- When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.

- Turn off and unplug the power plug from the AC outlet before cleaning the product.

• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.

- Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 45-46.

• Do not setup the projector in places where it might be subjected to vibration or shock.

- Do not touch the lens with bare hands

- Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.

- Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.

- Please follow the correct projector orientation installation as non standard installation may affect the projector performance.

• Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2017

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLP ^® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor ^™ is a trademark of Texas Instruments.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

DARBEE is a trademark by Darbee Products, Inc.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EC (including amendments)
• Low Voltage Directive 2014/35/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

INTRODUCTION

Package overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

Illustration of a projector with label 'Projector Power' below (no other text or symbols)

Illustration of a bundle of cables with connectors, no text or symbols present

Note:

- The remote control is shipped with the battery.

• *(1) For European warranty information please visit www.optomaeurope.com.

• *(2) Power lead is depending on the region.

Optional accessories

Diagram of a VGA cable connector with multiple connectors and cables (no text or symbols on the diagram itself)

Note: Optional accessories vary depending on model, specification and region.

INTRODUCTION

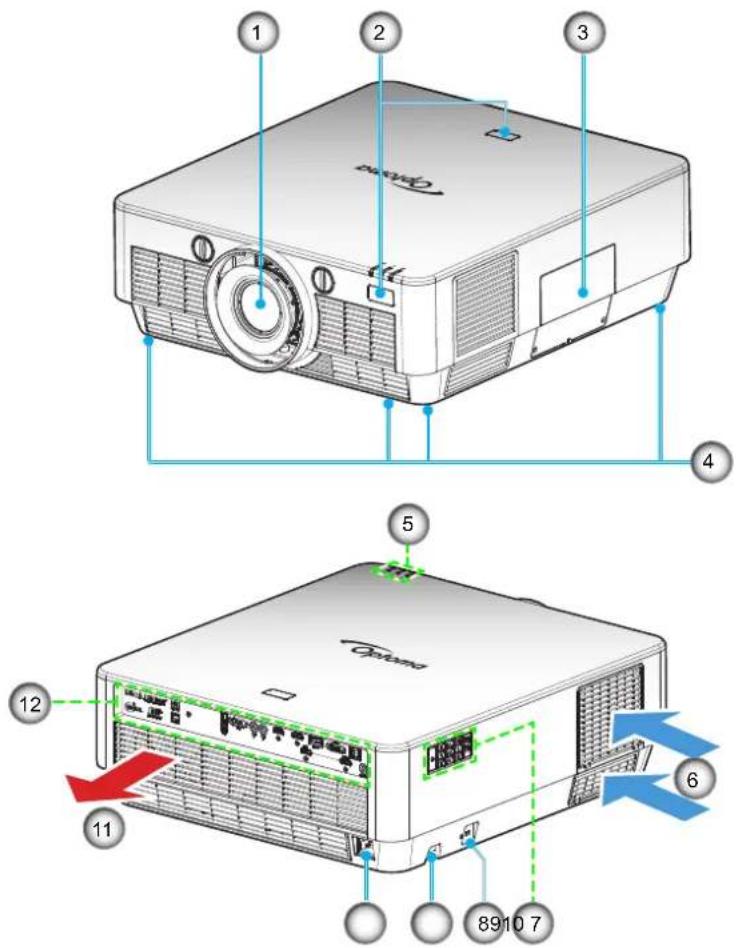

Product overview

Note: Keep a minimum distance of 20 cm between the "inlet" and "outlet" labels.

No Item No Item
1. Lens 7. Keypad
2. IR Receiver	8.	KensingtonTMLock Port
3. Lamp Cover 9. Security Bar
4. Tilt-Adjustment Feet 10. Power Socket
5. LED Status Indicators 11. Ventilation (outlet)
6. Ventilation (inlet)	12. Input / Output

INTRODUCTION

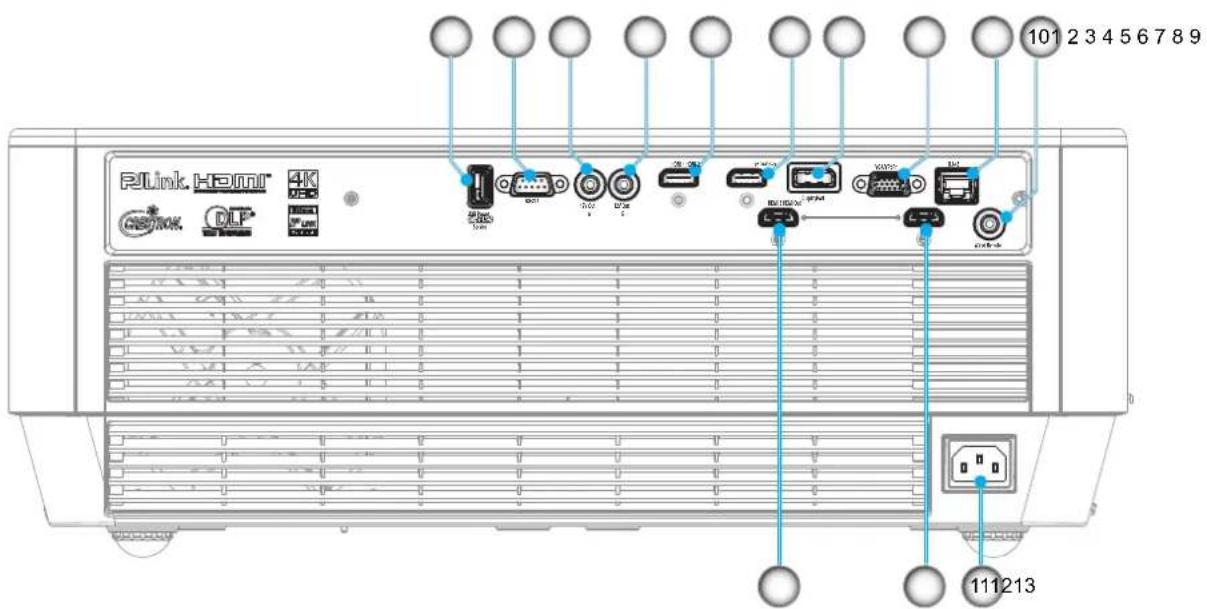

Connections

No Item No Item

1.	USB Power Out (5V—1.5A)/Service Connector
2.	RS-232 Connector
3.	12V Out A Connector
4.	12V Out B Connector
5.	HDMI 1 Connector
6.	HDMI 2 (HDCP2.2) Connector(*) 13.
7.	DisplayPort

8.	VGA/YPbPr Connector
9.	RJ-45 Connector
10.	Wired Remote Connector
11.	Power Socket
12.	HDMI Out Connector
HDMI 3 Connector

Note:

• Remote mouse requires special remote control.
• This model supports mouse / service capability.
• (*)Only HDMI 2 (HDCP2.2) connector supports 4K (Ultra HD) at 60Hz refresh rate.

INTRODUCTION

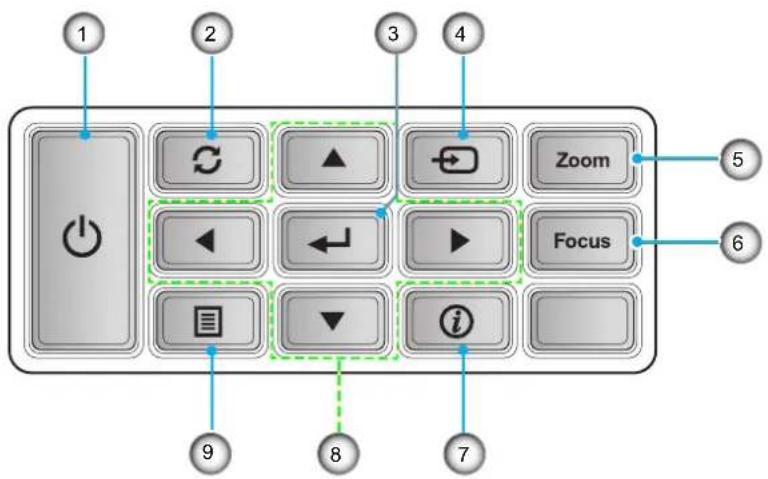

Keypad

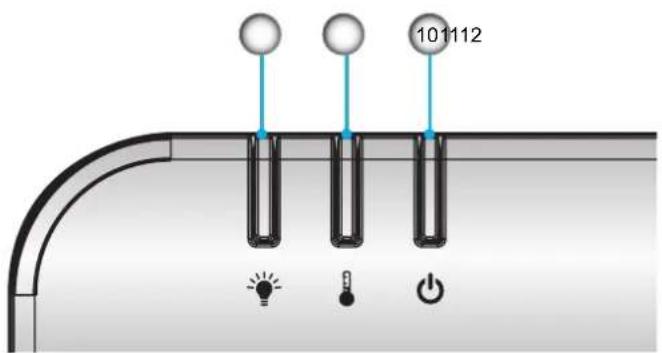

LED status indicators

No Item No Item

1. Power 7. Information

2. Re-Sync

3. Enter 9. Menu

4. Source 10. On/Standby LED

5. Zoom 11. Temp LED

6. Focus

8.	Four Directional Select Keys
2. Lamp LED

INTRODUCTION

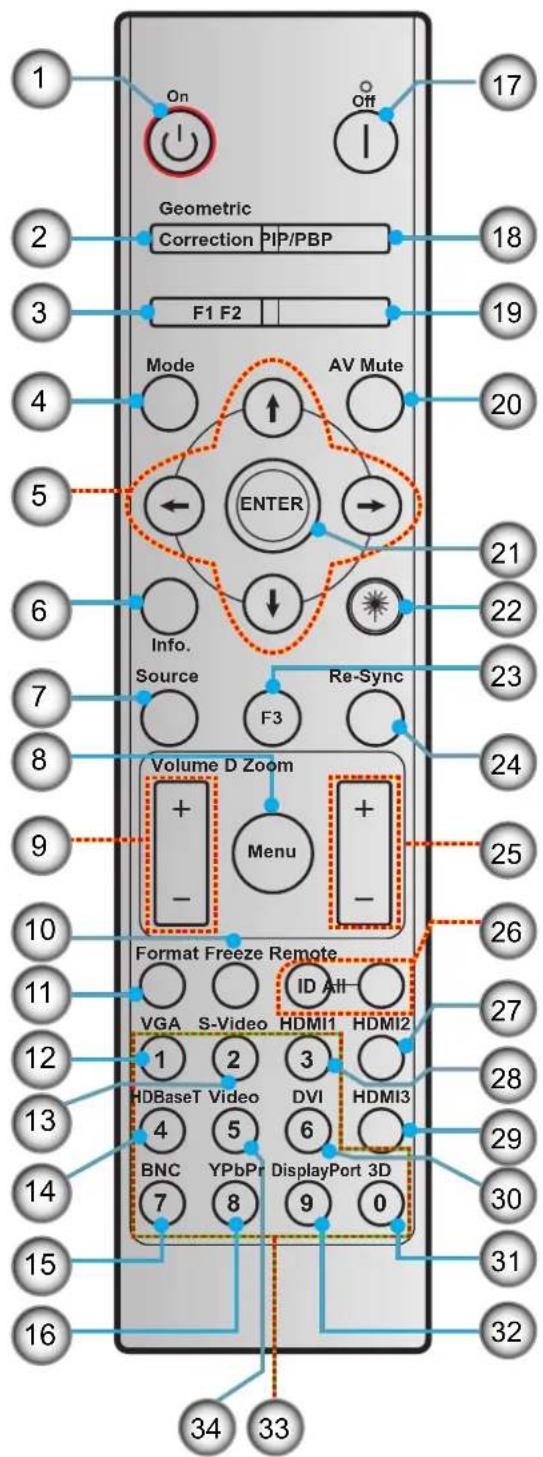

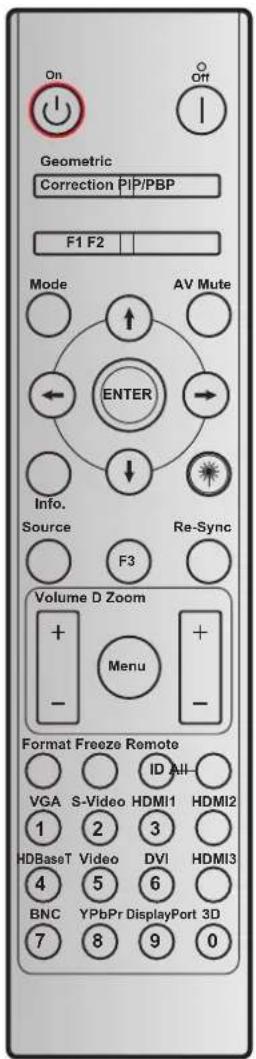

Remote control

INTRODUCTION

No Item No Item

1. Power on 18. PIP/PBP
2. Geometric Correction 19. Function button (F2) (Assignable)
3. Function button (F1) (Assignable) 20. AV mute
4. Mode 21. Enter
5. Four directional select keys 22. Laser
6. Information 23. Function button (F3) (Assignable)
7. Source 24. Re-sync
8. Menu 25. D (Digital) Zoom
9. Volume - / + 26. Remote ID / Remote all
10. Freeze 27. HDMI2
11. Format (Aspect Ratio)
12. VGA 29. HDMI3
13. S-Video 30. DVI
14. HDBaseT 31.3D
15. BNC 32. DisplayPort
16. YPbPr 33. Numeric keypad (0-9)
17. Power off 34. Video

Note:

• Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

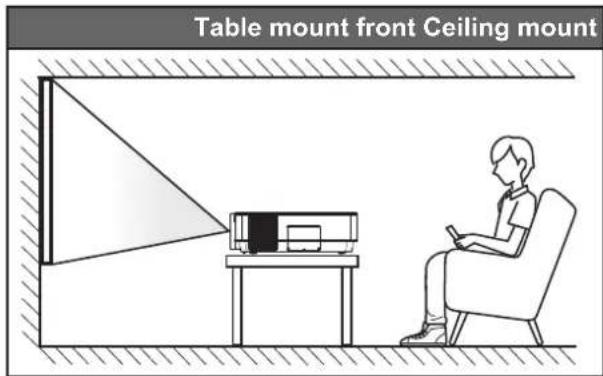

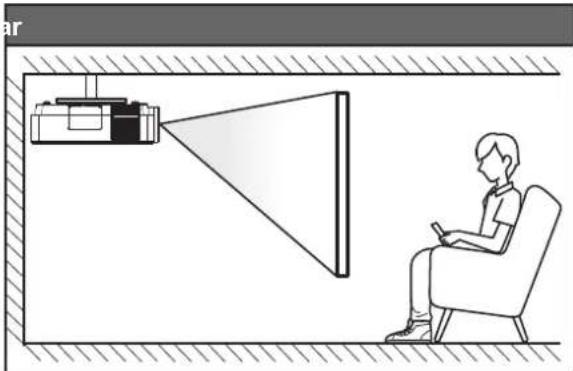

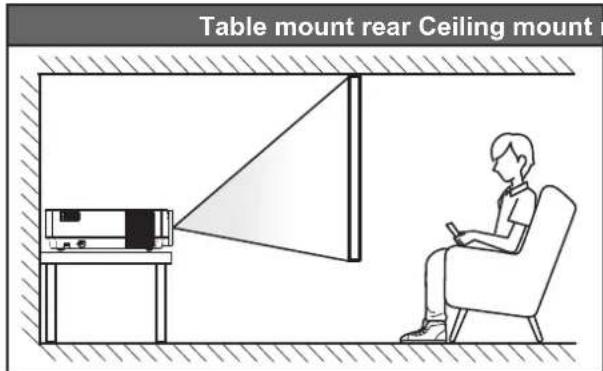

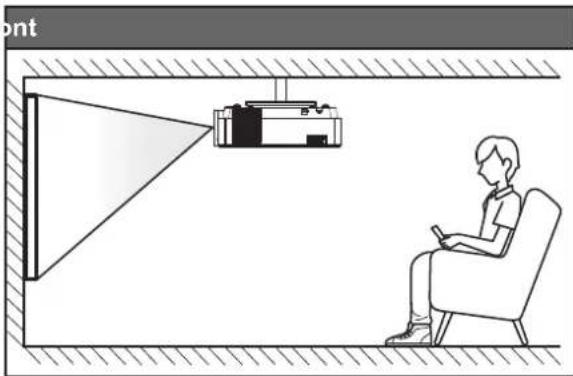

Installing the projector

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Diagram showing a person sitting in a chair watching a projector projection onto a wall, with no text or symbols present.

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

Projector should be placed flat on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on page 49.
• How to determine screen size for a given distance, please refer to distance table on pages 49.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For non-standard installation advise please contact Optoma.

SETUP AND INSTALLATION

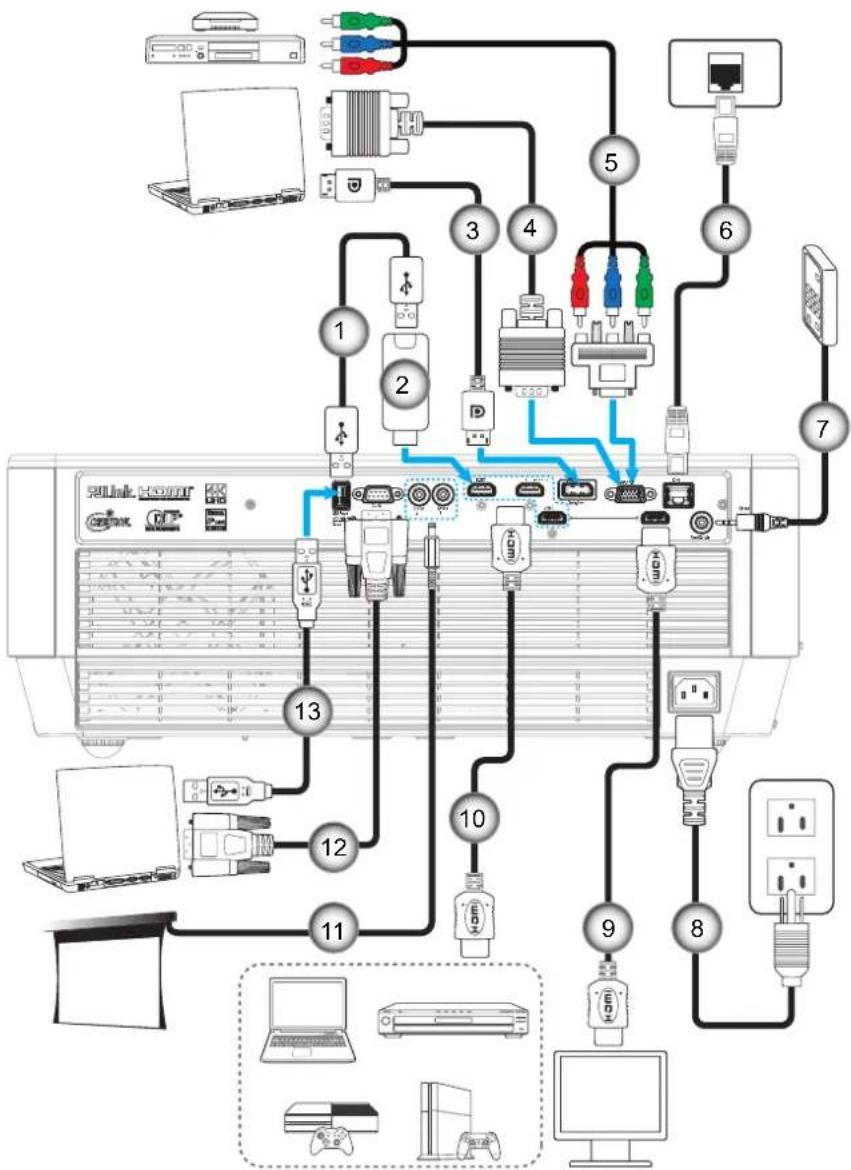

Connecting sources to the projector

No Item No Item

1. USB Power Cable 8. Power Cord
2. HDMI Stick 9. HDMI Cable
3. DisplayPort Cable 10. HDMI Cable(*)
4. VGA In Cable 11. 12V DC Jack
5. RCA Component Cable
6. RJ-45 Cable

7. Wired Remote Control Cable

8. RS232 Cable

9. USB Cable

Note: (*)The HDMI 2 (HDCP2.2) connector supports 4K (Ultra HD) at 60Hz refresh rate.

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Zoom and focus

• Use the Zoom button to resize the projected image and screen size.
• Use the Focus button to sharpen the projected image.

SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries

Two AAA size batteries are supplied for the remote control.

1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.

Note: Replace only with the same or equivalent type batteries.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
- Remove batteries as soon as they are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control for an extended period of time, remove the batteries.
- When you dispose of the batteries, you must obey the law in the relative area or country.

Effective range

Infra-Red (IR) remote control sensor is located on the top side and on the front side of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector's front IR remote control sensor and 20 degrees perpendicular to the projector's top IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 7 meters (\~ 23 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Please keep the remote controller away from fluorescent lamps for over 2 meters or the remote controller might become malfunction.
• If the remote control is closed to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, the remote control might become ineffective.
- When you aim at the screen, the effective distance is less than 10 m from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

SETUP AND INSTALLATION

Wired Remote Control

Your projector supports also wired remote control connection. Wired remote control helps you to work outside of the operating range (7m/ \~23 feet). Connect the remote control to the projector with the remote control cable (not supplied). The remote control cable maximum length depends on the wired cable quality as follows:

• 5.0V≥VIH≥2.0V (High-level input voltage)
• 0.6V≥VIL≥0V (Low-level input voltage)

Note: If the remote control is connected to the projector using a cable, then the remote control does not emit wireless signal.

USING THE PROJECTOR

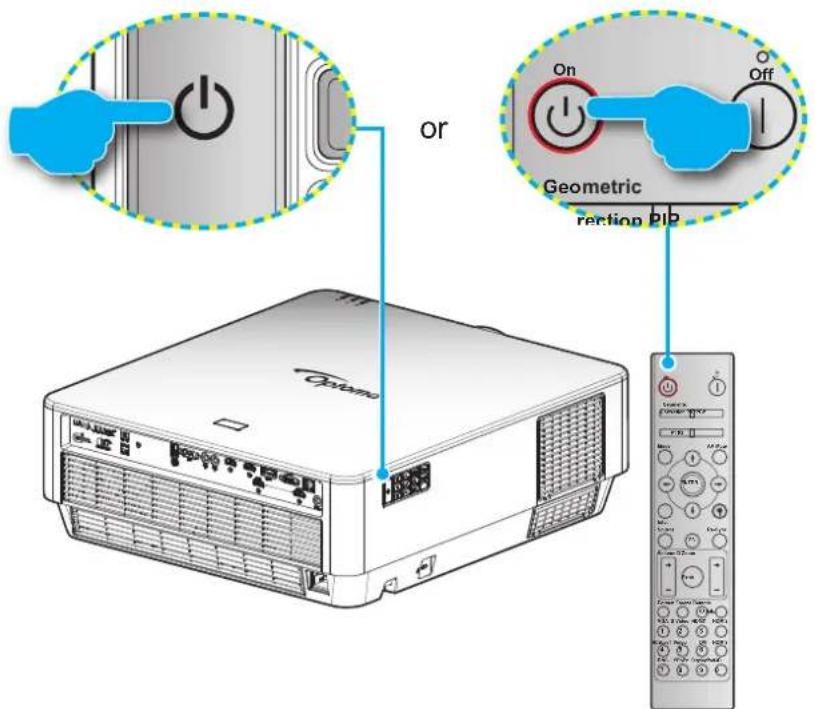

Powering on / off the projector

Powering on

1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red.
2. Turn on the projector by pressing the "⏻" either on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be flashing blue.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Powering off

1. Turn off the projector by pressing the "⏻" either on the projector keypad or the remote control.
2. The following message will be displayed:

1. Press the "①" again to confirm, otherwise the message will disappear after 15 seconds. When you press the "②" button for the second time, the projector will shut down.
2. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/Standby LED will flash blue. When the On/Standby LED turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the "U" button again to turn on the projector.
3. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.

USING THE PROJECTOR

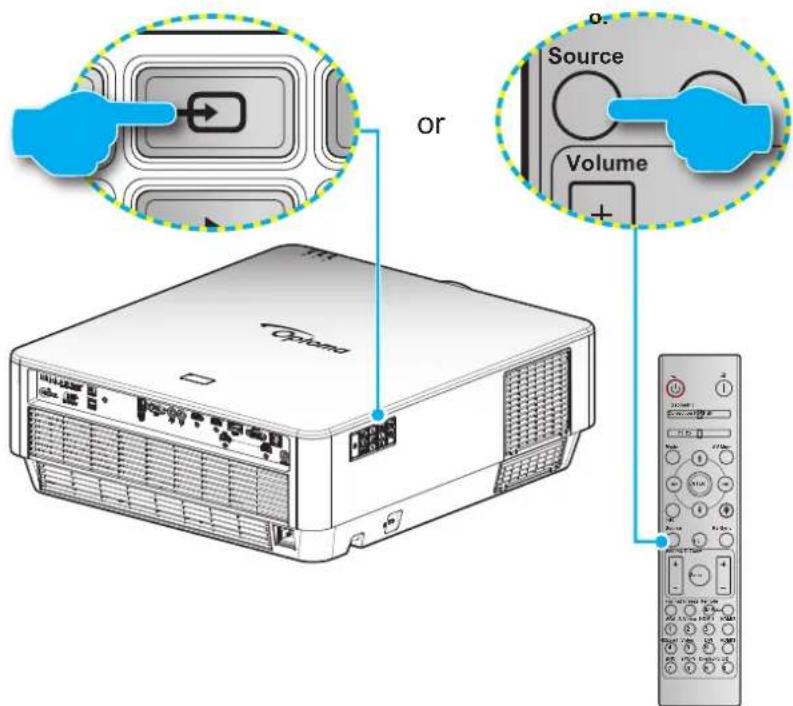

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

USING THE PROJECTOR

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press Menu on the remote control or on the projector keypad.
2. When OSD is displayed, use keys to select any item in the main menu. While making a selection on a particular page, press or key to enter sub menu.
3. Use ◀▶ keys to select the desired item in the sub menu and then press ← or ▶ key to view further settings. Adjust the settings by using ◀▶s.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the ← or ▶ to confirm, and the screen will return to the main menu.
6. To exit, press the ◀ or ⊗ again. The OSD menu will close and the projector will automatically save the new settings.

USING THE PROJECTOR

OSD Menu tree

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Display Mode [Data]			Presentation
					Bright
					Cinema
					Game
					sRGB
					DICOM SIM.
					Blending
					User
		Wall Color			Off [Default]
					Blackboard
					Light Yellow
					Light Green
					Light Blue
					Pink
					Gray
		Dynamic Range			Auto [Default]
					SDR
					HDR1
					HDR2
					HDR3
					HDR4
		Brightness -50~50
		Contrast -50~50
		Sharpness 1~15
		Color -50~50
		Tint -50~50
		Gamma	Film
			Video
			Graphics
			Standard(2.2)
			1.8
			2.0
			2.4
			Blackboard
			DICOM SIM.
		Color Settings	BrilliantColorTM		1~10
			Color Temperature		D55
					D65
					D75
					D83
					D93
					Native

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Color Settings		Color

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display	Image Settings	Brightness Mode			Bright
					Eco.
		PureEngine	UltraDetail		Off
					1
					2
					3
			PureColor		Off
					1
					2
					3
					4
					5
			PureMotion		Off
					1
					2
					3
			PureMotion Demo		Off [Default]
					H Split
					V Split
		Reset
	Aspect Ratio				4:3
					16:9
					LBX [except SVGA XGA models]
					Superwide [Video]
					Native
					Auto
	Edge Mask 0~10	[Default: 0]
	Digital Zoom -5~25	[Default: 0]
	Image shift	H: -100~100			[Default:0]
		V: -100~100
Setup	Projection				Front ult]
					Rear
					Ceiling-top
					Rear-top
	Lamp Settings	Lamp Reminder			Off
					On [Default]
		Lamp Reset			Cancel [Default]
					Yes

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup	Fittler Settings	Filter Usage Hours		(Read only)
		Optional Filter Installed		Yes
				No
		Filter Reminder		Off
				300hr
				500hr [Default]
				800hr
				1000hr
		Filter Reset		Cancel [Default]
				Yes
	Lens Function	Zoom/Focus		Lock
				Unlock
		Zoom		+
				-
		Focus		+
				-
		Compensate Focus		Off [Default]
				On
				Calibration
	Power Settings	Direct Power On		Off [Default]
				On
		Auto Power Off (min)		0~180 (5 min increments) [Default: 0]
		Sleep Timer (min)		0~990 (30 min increments) [Default: 0]
			Always On	No [Default]
				Yes
		Power Mode (Standby)		Active
				Eco [Default]
	Security	Security		Off
				On
		Security Timer	Month
			Day
			Hour
		Change Password
	Test Pattern			Green Grid
				Magenta Grid
				White Grid
				White
				Off

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Remote Settings [depends on remote]	IR Function			On
					Front
					Top
					Off
		Remote Code 0~99
		F1			Test Pattern
					LAN
					Brightness
					Contrast
					Sleep Timer
					CMS
					Color Temp
					Gamma
					Auto Source
					Projection
					Lamp Settings
					Zoom [Default]
					Focus
					Lens Iris
		F2			Test Pattern
					LAN
					Brightness
					Contrast
					Sleep Timer
					CMS
					Color Temp
					Gamma
					Auto Source
					Projection
					Lamp Settings
					Zoom
					Focus [Default]
					Lens Iris
		F3			Test Pattern
					LAN
					Brightness
					Contrast
					Sleep Timer
					CMS
					Color Temp

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup	Remote Settings [depends on remote]	F3			Gamma
					Auto Source
					Projection
					Lamp Settings
					Zoom
					Focus
					Lens Iris [Default]
	Projector ID 0~99
	12V Trigger	12V Trigger A			On
					Off
		12V Trigger B			On
					Off
	Options	Language			English [Default]
					Deutsch
					Français
					Italiano
					Español
					Português
					繁體中文
					簡体中文
					日本語
					한국어
					Русский
		Menu Settings	Menu Location		Top left
					Top right
					Center
					Bottom left
					Bottom right [6STG]
			Menu Timer		Off
					5sec
					10sec [Default]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Sub Menu 2	Sub Menu 3	Sub Menu 4	Values
Setup	Options	Auto Source				Off [Default]
						On
		Input Source				HDMI1
						HDMI2
						HDMI3
						VGA
						DisplayPort
		High Altitude				Off [Default]
						On
		Display Mode Lock				Off [Default]
						On
		Keypad Lock				Off [Default]
						On
		Information Hide				Off [Default]
						On
		Logo				Default [Default]
						Neutral
		Background Color				None [Default]
						Blue
						Red
						Green
						Gray
		HDMI 2 Setting				EDID 1 [Default]
						EDID 2
		HDMI1 EQ 1~7 [Default: 4]
		HDMI2 EQ 1~7 [Default: 4]
		HDMI3 EQ 1~7 [Default: 4]
		Detail Filter				0
						1 [Default]
						2
	Reset	Reset OSD				Cancel [Default]
						Yes
		Reset to Default				Cancel [Default]
						Yes
Network LAN		Network Status (read only)
		MAC Address (read only)
		DHCP				Off [Default]
						On
		IP Address 192.168.0.100 [Default]
		Subnet Mask 255.255.255.0 [Default]
		Gateway 192.168.0.254 [Default]
		DNS 192.168.0.51 [Default]
		Reset

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Network Control	Control	Crestron			Off
					On [Default]NOTE: Port 41794.
		Extron			Off
					On [Default]NOTE: Port 2023.
		PJ Link			Off
					On [Default]NOTE: Port 4352
		AMX Device Discovery			Off
					On [Default]NOTE: Port 9131
		Telnet			Off
					On [Default]NOTE: Port 23
		HTTP			Off
					On [Default]NOTE: Port 80
Information	Regulatory
	Serial Number
	Source
	Resolution 00x00
	Refresh Rate 0.00Hz
	Display Mode
	Power mode(standby)
	Lamp Hours	Bright 0 hr
		Eco. 0 hr
		Total
	Remote Code				00~99NOTE: Show remote in system.
	Remote Code (Active)				00~99NOTE: Show remote from Remote.
	Network Status
	IP Address
	Projector ID 00~99
	Filter Usage Hours
	Brightness Mode
	FW Version	System
		LAN
		MCU

Note: Each display mode can be adjusted and saved the value.

USING THE PROJECTOR

Display menu

Display image settings menu

Display Mode [Data]

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing PowerPoint presentations when the projector is connected to the PC.
• Bright: Maximum brightness from PC input.
  • Cinema: Select this mode for home theater.
  • Game: Select this mode to increase the brightness and response time level for enjoying video games.
• sRGB: Standardized accurate color.
  • DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.
  • Blending: Select this mode when projecting one image from different projectors.
• User: Memorize user's settings.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.

Dynamic Range

Set the dynamic range level when displaying video from 4K Blu-ray players and streaming devices. Select between auto (set the level automatically), SDR (Standard Dynamic Range), HDR1 \~ HDR4 (High Dynamic Range).

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

Gamma

Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

• Film: For home theater.
• Video: For video or TV source.
• Graphics: For PC / Photo source.
- Standard(2.2): For standardized setting.
• 1.8/ 2.0/ 2.4: For specific PC / Photo source.

USING THE PROJECTOR

• Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
  • DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.

Color Settings

Configure the color settings.

- BrilliantColor ^TM : This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

• Color Temperature: Select a color temperature from D55, D65, D75, D83, D93, or Native.
• Color Gamut: Select an appropriate color gamut from Native, HDTV, Presentation, Cinema, or Game.
CMS (Color Management System): Select one of the colors (R/G/B/C/Y/M/W) to adjust its x/y offset and brightness.

– Color: Select between red (R), green (G), blue (B), cyan (C), yellow (Y), magenta (M), and white(W) color.
- x offset: Adjust the x offset value of the selected color.
- y offset: Adjust the y offset value of the selected color.
– Brightness: Adjust the brightness value of the selected color.
- Reset: Return the factory default settings for color adjustments.
- Exit: Exit the "CMS" menu.

- RGB Gain/Bias: This settings allows to configure the brightness (gain) and contrast (bias) of an image.

• Reset: Return the factory default settings for RGB gain/bias.
• Exit: Exit the "RGB Gain/Bias" menu.

• Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: AUTO, RGB, or YUV.
• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.

Signal

Adjust the signal options.

• Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
- Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
• Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

• H. Position: Adjust the horizontal positioning of the image.

• V. Position: Adjust the vertical positioning of the image.
- Exit: Exit the "Signal" menu.

Lens Iris

Adjust the Lens Iris. Lens Iris is an aperture structure in lens and it can change the amount of light output.

Dynamic Contrast

Dynamic Contrast enables the projector to automatically optimize the brightness of the display during dark / light movie scenes to be shown in incredible detail.

USING THE PROJECTOR

Brightness Mode

Adjust the brightness mode settings.

- Bright: Choose "Bright" to increase the brightness.

- Eco.: Choose “Eco” to dim the projector lamp which will lower power consumption and extend the lamp life.

PureEngine

Adjust the PureEngine parameters.

• UltraDetail: Adjust the edges of the projected image in order to provide more perceived details.
- PureColor: Use to significantly increase the image's vividness.
• PureMotion: Use to preserve a natural motion of the displayed image.
• PureMotion Demo: This feature enables you to see the difference in the image quality between the raw unprocessed image and the image processed as processed by the PureMotion. Use this mode to check the adjustments that you make to the PureMotion settings.

Reset

Return the factory default settings for color settings.

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

- 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
- LBX [except SVGA XGA models]: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1 aspect ratio in full resolution.
• Superwide [Video]: Use this special 2.0:1 aspect ratio to display both 16:9 and 2.35:1 aspect ratio movies without black bars at the top and bottom of the screen.
• Native: This format displays the original image without any scaling.

- Auto: Automatically selects the appropriate display format.

Note:

• Detailed informations about LBX mode:

• Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.
• If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical resolution are fully utilized.

- To use the superwide format, do the following:

a) Set the screen aspect ratio to 2.0:1.
b) Select "Superwide" format.
c) Align the projector image correctly on the screen.

USING THE PROJECTOR

4K UHD scaling table:

16 : 9 screen 480i/p 576i/p 720p 1080i/p 2160p
4x3 Scale to 2880x2160.
16x9 Scale to 3840x2160.
LBX Get the central 3840x1620 image, and then scale to 3840x2160 for display.
Native mode 1:1 mapping centered.No scaling will be made; the displayed resolution depends on input source.
Auto -If source is 4:3, the screen type will be scaled to 2880x2160.-If source is 16:9, the screen type will be scaled to 3840x2160.-If source is 15:9, the screen type will be scaled to 3600x2160.-If source is 16:10, the screen type will be scaled to 3456x2160.

Auto mapping rule:

	Input resolution Auto/Scale
	H-resolution V-resolution 3840 2160
4:3	640 480	2880	2160
	800 600	2880	2160
	1024	768	2880	2160
	1280	1024	2880	2160
	1400	1050	2880	2160
	1600	1200	2880	2160
Wide Laptop	1280	720	3840	2160
	1280	768	3600	2160
	1280	800	3456	2160
SDTV	720 576	2700	2160
	720 480	3240	2160
HDTV	1280	720	3840	2160
	1920	1080	3840	2160

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Display digital zoom menu

Digital Zoom

Use to digitally reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

USING THE PROJECTOR

Setup menu

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup lamp settings menu

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

Lamp Reset

Resets the lamp hour counter after replacing the lamp.

Setup filter settings menu

Filter Usage Hours

Display the filter time.

Optional Filter Installed

Set the warning message setting.

• Yes: Display warning message after 500 hours of use.

Note: "Filter Usage Hours / Filter Reminder / Filter Reset" will only appear when "Optional Filter Installed" is "Yes".

- No: Turn off warning message.

Filter Reminder

Choose this function to show or hide the warning message when the changing filter message is displayed. The available options include 300hr, 500hr, 800hr, and 1000hr.

Filter Reset

Reset the dust filter counter after replacing or cleaning the dust filter.

Setup lens function menu

Lens Function

Configure the lens functions.

• Zoom/Focus: Enable/Disable the zoom and focus adjustment functions.
• Zoom: Adjust the zoom on the projected image.
• Focus: Adjust the focus on the projected image.

• Compensate Focus:

• Off: Focus compensation is inactive.
  – On: Focus compensation is active.
  – Calibration: Execute focus calibration function.

USING THE PROJECTOR

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Auto Power Off (min.)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Sleep Timer (min.)

Configure the sleep timer.

- Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Note: The Sleep Timer is reset every time when the projector is powered off.

- Always On: Check to set the sleep timer always on.

Power Mode (Standby)

Set the power mode setting.

- Active: Choose "Active" to return to normal standby.

- Eco: Choose "Eco." to save power dissipation further < 0.5W .

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

- On: Choose "On" to use security verification when the turning on the projector.

• Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).

Setup remote settings menu

IR Function

Set the IR function setting.

• On: Choose "On", the projector can be operated by the remote control from top and front IR receivers.

• Front: Choose "Front", the projector can be operated by the remote control from the front IR receiver.

• Top: Choose "Top", the projector can be operated by the remote control from the top IR receiver.

- Off: Choose "Off", the projector can't be operated by the remote control. By selecting "Off", you will be able to use the Keypad keys.

USING THE PROJECTOR

Remote Code

Set the remote custom code by pressing the remote ID button for 3 seconds and you will notice the remote indicator (above the Off button) starts blinking. Then, input a number between 00-99 using the keyboard numbered keys. After inserting the number, the remote indicator blinks twice quickly indicating that the remote code has changed.

F1/F2/F3

Assign the default function for F1, F2, or F3 between Test Pattern, LAN, Brightness, Contrast, Sleep Timer, CMS, Color Temp, Gamma, Auto Source, Projection, Lamp Settings, Zoom, Focus, or Lens Iris.

Setup projector ID menu

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

Setup 12V trigger menu

12V Trigger A / 12V Trigger B

• Off: Choose "Off" to disable the 12V trigger for 3.5mm ear phone.
• On: Choose "On" to enable the 12V trigger for 3.5mm ear phone.

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, traditional Chinese, simplified Chinese, Japanese, Korean, Russian.

Menu Settings

Set the menu location on the screen and configure menu timer settings.

• Menu Location: Select the menu location on the display screen.
• Menu Timer: Set the duration where the OSD menu stays visible on the screen.

Auto Source

If you set this option "On" and press the button on the projector keypad or Source button on the remote control then the next available input source is selected automatically. Set "Off" to disable auto source function.

Input Source

Select the input source between HDMI1, HDMI2, HDMI3, VGA, and DisplayPort.

High Altitude

When "On" is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Keypad Lock

When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad.

USING THE PROJECTOR

Information Hide

Enable this function to hide the information message.

• Off: Choose "On" to hide the info message.
• On: Choose "Off" to show the "searching" message.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

• Default: The default startup screen.
• Neutral: Logo is not displayed on startup screen.

Background Color

Use this function to display a blue, red, green, grey color, or none when no signal is available.

HDMI 2 Setting

Configure the HDCP2.2-compatible HDMI 2 connector settings.

• EDID 1: For 480i/p, 576i/p, 720p, 1080i/p, or 2160p input signal.
• EDID 2: For non-interlaced signals only.

HDMI 1 EQ/ HDMI 2 EQ/ HDMI3 EQ

Set the HDMI1/ HDMI2/ HDMI3 port EQ value.

Detail Filter

Apply detail filter between 0, 1, and 2.

Setup reset menu

Reset OSD

Return the factory default settings for OSD menu settings.

Reset to Default

Return the factory default settings for Setup menu settings.

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• On: Projector will obtain an IP address automatically from your network.
• Off: To assign IP, subnet mask, gateway, and DNS configuration manually.

Note: Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

USING THE PROJECTOR

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

How to use web browser to control your projector

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector's IP address ("Network > LAN > IP Address").
3. Enter the user name and password, and click "Login". The projector's configuration web interface opens.

Note:

• The default user name and password is "admin".
• The steps in this section is based on Windows 7 operating system.

Making a direct connection from your computer to the projector\*

1. Turn "Off" the DHCP option on the projector.
2. Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network > LAN").

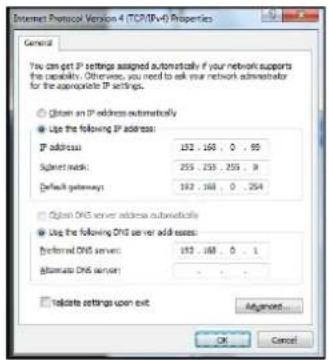

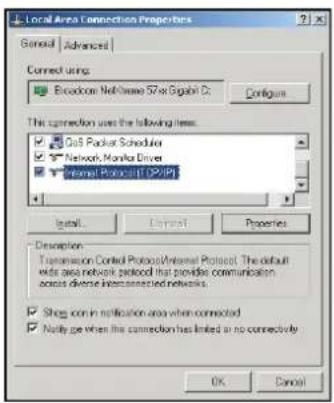

3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

1. Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3. Then press "Enter" key.

Reset

Reset all values for LAN parameters.

Network control menu

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

USING THE PROJECTOR

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

Setup network control settings menu

LAN\_RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.

• PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView ^® .

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX (Device Discovery).

http://www.amx.com/

USING THE PROJECTOR

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.

LAN RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

1. Right-click on the Local Area Connection, and select Property.

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

USING THE PROJECTOR

5. Click "Properties".

6. Type in the IP address and Subnet mask, then press "OK".

1. Press the "Menu" button on the projector.
2. Open on projector Network > LAN.

3. Enter the following connection parameters:

4. DHCP: Off

5. IP Address: 192.168.0.100
6. Subnet Mask: 255.255.255.0
7. Gateway: 192.168.0.254

8. DNS: 192.168.0.1

9. Press "Enter" to confirm settings.

10. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
11. In the Address bar, input the projector's IP address: 192.168.0.100.

1. Press "Enter".

USING THE PROJECTOR

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

Information page

Main page

Tool page

Contact IT helpdesk

USING THE PROJECTOR

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN / RJ45 interface.

Quick Start-Guide for "RS232 by Telnet"

• Check and get the IP address on OSD of the projector.
• Make sure that the PC / laptop can access the web-page of the projector.

• Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function filtering out by PC / laptop.

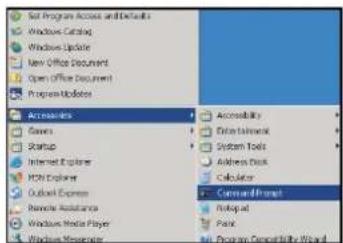

1. Select Start > All Programs.> Accessories > Command Prompt.

1. Input the command format as follows:

2. telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

3. (ttt.xxx.yyy.zzz: IP-Address of the projector)

4. If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

Specification for "RS232 by TELNET":

1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows "TELNET.exe" (console mode).
4. Disconnection for RS232-by-Telnet control normally: Close

5. Windows Telnet utility directly after TELNET connection ready.

6. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

7. Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.
8. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

USING THE PROJECTOR

Info menu

Info menu

View the projector information as listed below:

• Regulatory
• Serial Number
• Source
• Resolution
• Refresh Rate
• Display Mode
  • Power Mode (Standby)
• Lamp Hours
• Remote Code
• Remote Code(Active)
• Network Status
• IP Address
• Projector ID
• Filter Usage Hours
• Brightness Mode
• FW Version

MAINTENANCE

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used to prevent any loose parts from falling out of projector.

Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

MAINTENANCE

Replacing the lamp (continued)

Procedure:

1. Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the screws on the cover. 1
5. Slightly flip the cover to release the hinges. 2
6. Remove the cover. 3
7. Unscrew the screws on the lamp module. 4
8. Remove the lamp module carefully. 5
9. To replace the lamp module, reverse the previous steps.
10. Turn on the projector and reset the lamp timer.
11. Lamp Reset: (i) Press "Menu" → (ii) Select "Setup" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Note:

- The screw on the lamp cover and the lamp cannot be removed.

• The projector cannot be turned on if the lamp cover has not been placed back on the projector.
- Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

MAINTENANCE

Installing and cleaning the dust filter

Installing the dust filter

Note: Dust filters are only required/supplied in the selected regions with excessive dust.

Cleaning the dust filter

We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad.
2. Disconnect the power cord.
3. Remove the dust filter carefully. 1
4. Clean or replace the dust filter. 2
5. To install the dust filter, reverse the previous steps.

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

B0/Established Timing	B0/Standard Timing B0/Detail Timing B1/Video	Mode B1/Detail Timing
720x400 @ 70Hz 1280x720 @ 60Hz Native timing: 720x480i @ 60Hz 16:9 1920x1080p @ 60Hz
640x480 @ 60Hz 1280x800 @ 60Hz 1920x1080 @ 60Hz 720x480p @ 60Hz 4:3
640x480 @ 67Hz 1280x1024 @ 60Hz 720x480p @ 60Hz 16:9
640x480 @ 72Hz 1400x1050 @ 60Hz 720x576i @ 50Hz 16:9
640x480 @ 75Hz 1600x1200 @ 60Hz 720x576p @ 50Hz 4:3
800x600 @ 56Hz 720x576p @ 50Hz 16:9
800x600 @ 60Hz 1280x720p @ 60Hz 16:9
800x600 @ 72Hz 1280x720p @ 50Hz 16:9
800x600 @ 75Hz 1920x1080i @ 60Hz 16:9
832x624 @ 75Hz 1920x1080i @ 50Hz 16:9
1024x768 @ 60Hz 1920x1080p @ 60Hz 16:9
1024x768 @ 70Hz 1920x1080p @ 50Hz 16:9
1024x768 @ 75Hz 1920x1080p @ 24Hz 16:9
1280x1024 @ 75Hz 3840x2160 @ 24Hz
1152x870 @ 75Hz 3840x2160 @ 25Hz
		3840x2160 @ 30Hz
		3840x2160 @ 50Hz
		3840x2160 @ 60Hz
		4096x2160 @ 24Hz
		4096x2160 @ 25Hz
		4096x2160 @ 30Hz
		4096x2160 @ 50Hz
		4096x2160 @ 60Hz

ADDITIONAL INFORMATION

Analog compatibility

B0/Established Timing	B0/Standard Timing B0/Detail Timing B1/Video	Mode B1/Detail Timing
720x400 @ 70Hz 1280x720 @ 60Hz Native timing 1366x768 @ 60Hz
640x480 @ 60Hz 1280x800 @ 60Hz 1920x1080 @ 60Hz
640x480 @ 67Hz 1280x1024 @ 60Hz
640x480 @ 72Hz 1400x1050 @ 60Hz
640x480 @ 75Hz 1600x1200 @ 60Hz
800x600 @ 56Hz
800x600 @ 60Hz
800x600 @ 72Hz
800x600 @ 75Hz
832x624 @ 75Hz
1024x768 @ 60Hz
1024x768 @ 70Hz
1024x768 @ 75Hz
1280x1024 @ 75Hz
1152x870 @ 75Hz

Image size and projection distance

Diagonal Length Size of (16:9) Screen	Screen Size W x H Projection Distance (D)
	(m) (inch) (m) (feet)
	Width Height Width Height Wide Tele Wide Tele
84	1.86	1.05	73.21	41.2	2.5	5.0	8.2	16.4
90 1.99	1.12 78.4 44.1 2.68 5.36 8.79		17.59
100	2.21 1.25 87.2 49.0 2.98 5.96 9.78			19.55
110	2.44	1.37	95.9	53.9	3.28	6.56	10.76	21.52
120	2.66	1.49	104.6	58.8	3.58	7.16	11.75	23.46
130	2.88 1.62 113.3 63.7 3.87 7.74 12.70			25.43
140	3.10 1.74 122.0 68.6 4.17 8.34 13.68			27.36
150	3.32 1.87 130.7 73.5 4.47 8.94 14.67			29.33
180	3.98	2.24	156.9	88.2	5.36	10.72	17.59	35.20
200	4.43	2.49	174.3	98.1	5.96	11.92	19.55	39.11
220	4.87	2.74	191.8	107.9	6.56	13.12	21.52	43.01
250	5.53	3.11	217.9	122.6	7.45	14.90	24.44	48.88
280	6.20	3.49	244.0	137.3	8.34	16.68	27.36	54.76
300	6.64	3.74	261.5	147.1	8.94	17.88	29.33	58.66

Notom ratio is 1.96x.

ADDITIONAL INFORMATION

Specification:

H		V
35%H0	80%V0

Note: The information in the Specification is given with the +/- 5% tolerance.

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

- Screw type: M8*10

• Minimum screw length: 10mm

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
- Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
- Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

IR remote control codes

Key Key code			Printing-key definition	Description
Power On 2 On				Refer to the "Power On/ Off the Projector" section on page 19.
Power Off 2E Off				Refer to the "Power On/ Off the Projector" section on page 19.
Geometric Correction	Correction 34		Geometric Correction	Geometric correction.
PIP/PBP PIP/PBP 3E PIP/PBP Press to use the PIP/PBP function.
F1		26	F1	By default Zoom.
F2		27	F2	By default Focus.
F3		66	F3	By default Lens IRIS.
Mode		95	Mode	Display mode menu on/ off.
Four directional select keys	➊	C6 Up arrow		Use ↑↓ ↔ → to select items or make adjustments to your selection.
	➊	C7 Down arrow
	⊖	C8	Left arrow
	⊖	C9	Right arrow

ADDITIONAL INFORMATION

Key Key code			Printing-key definition	Description
AV Mute 3 AV Mute Press to hide/unhide the screen picture.
ENTER C5 Enter Confirm your item selection.
Info. 25 Info. Display projector information.
Laser N/A Laser Use as laser pointer.
Re-Sync	Re-Sync	4	Re-Sync	Automatically synchronize the projector to the input source.
Source	Source	18	Source	Press "Source" to select an input signal.
Volume		9	Volume +	Press to increase the volume.
		0C	Volume -	Press to decrease the volume.
Menu	Menu 88 Menu			Press "Menu" to launch the on-screen display (OSD) menu. To exit OSD, Press "Menu" again.
D Zoom +	▲	8	D Zoom +	Use ▲ to zoom in the projected image.
D Zoom -	▼	B	D Zoom -	Use ▼ to zoom out the projected image.
Format		15	Format	Press to choose the projector format.
Freeze		6	Freeze	Press to freeze the projector image.
Remote	ID	3201~3299		Press until Power LED is flashing then press 01~99 to set the particular remote code.
	ALL	32CD		Press to set remote code to all.
VGA / 1 8E	1/VGA1			Press to choose VGA source.Use as numeric keypad number "1".
S-Video / 2		1D	2/S-Video	Press to choose S-video source.Use as numeric keypad number "2".
HDMI1 / 3		16	3/HDMI1	Press to choose HDMI source.Use as numeric keypad number "3".
HDMI2		9B	HDMI2	Press to choose HDMI source.
HDBaseT / 4		70 4/HDBaseT		Press to choose HDBaseT source.Use as numeric keypad number "4".
Video / 5		1C	5/Video	Press to choose composite video source.Use as numeric keypad number "5".
DVI / 6		19 6/DVI		Press to choose DVI source.Use as numeric keypad number "6".
HDMI3		98	HDMI3	Press to choose HDMI source.
BNC / 7		1A 7/BNC		Press to choose BNC source.Use as numeric keypad number "7".
YPbPr / 8		17	8/YPbPr	Press to choose component video source.Use as numeric keypad number "8".
DisplayPort / 9		9F	9/DisplayPort	Press to choose DisplayPort.Use as numeric keypad number "9".
3D / 0		89	0/3D	Press to choose 3D source.Use as numeric keypad number "0".

Note: Some keys may have no function for models that do not support these features.

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

?

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp" section.
• Ensure that the "AV Mute" feature is not turned on.

?

Image is out of focus

• Use the Focus button on the projector keypad to adjust focus. (Please refer to page 16).

• Make sure the projection screen is between the required distance from the projector. (Please refer to page 49).

?

The image is stretched when displaying 16:9 DVD title

- When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format on projector side.

• If you play the LBX format DVD title, please change the format as LBX in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

?

Image is too small or too large

• Adjust the digital zoom.
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the different settings.

?

Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.

- Use "Display-->Image Shift" from the OSD to make an adjustment.

?

Image is reversed

- Select "Setup-->Projection" from the OSD and adjust the projection direction.

ADDITIONAL INFORMATION

Other problems

?

The projector stops responding to all controls

• If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

?

Lamp burns out or makes a popping sound

- When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section on pages 45-46.

Remote control problems

?

If the remote control does not work

- Check the operating angle of the remote control is pointed within ± 15^ to the IR receiver on the projector.

• Make sure there are not any obstructions between the remote control and the projector. Move to within 7 m (23 ft) of the projector.

- Make sure batteries are inserted correctly.

- Replace batteries if they are exhausted.

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

• "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red.

- "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.

• "TEMP" LED indicator flashes red and if "On/Standby" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or flash, please contact your nearest service center for assistance.

LED lightning messages

Message	Power LED Power LED		TEMP-LED	LAMP-LED
	(Red) (Blue) (Red) (Red)
Standby state (Input power cord)	Steady light
Power on (Warming)		Flashing(0.5 sec off /0.5 sec on)
Power on and Lamp lighting		Steady light
Power off (Cooling)		Flashing(0.5 sec off /0.5 sec light). Back to red steady light when cooling fan turns off.
Error (Over temp.) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Lamp failure)	Flashing			Steady light

ADDITIONAL INFORMATION

- Power off:

- Lamp warning:

- Temperature warning:

- Remote control function not supported:

- Fan failed:

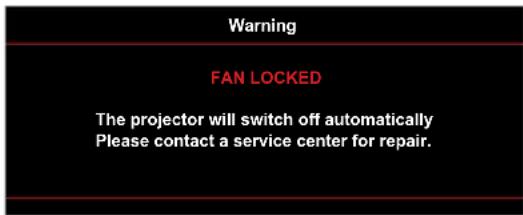

- Filter Warning:

- Out of display range:

ADDITIONAL INFORMATION

• Power down warning:

• Security timer alarm:

USING THE PROJECTOR

Specifications

Optical Description

Lens 2x Zoom with IRIS

Image size (diagonal) 2160p: 80" to 200"inches for optical range

Projection distance 2.4 m (80") ~ 9m (300") for optical range

Electrical Description
Color reproduction 1073.4 Million color
Scan rate	- Horizontal scan rate: 15.375~91.146 KHz- Vertical scan rate: 24Hz to 120Hz
Built-in speaker N/A
Power requirement 100 - 240V AC 50/60Hz
Input current 2.8-1.0 A

Mechanical Description
Installation orientation Front, Rear, Ceiling - top, Rear - top
Dimensions	- 550 mm (W) x 500 mm (D) x 178 mm (H) (without feet)- 550 mm (W) x 500 mm (D) x 192 mm (H) (with feet)
Net Weight 16.9 kg
Gross Weight 21 kg
Environmental conditions Operating in 5 ~ 40°C , 10% to 85% humidity (non-condensing)

Note: All specifications are subject to change without notice.

USING THE PROJECTOR

Optoma global offices

For service or support, please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills,

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

Germany [e-mail]

Scandinavia

Lerpeveien 25

3040 Drammen [phone]

Norway [e-mail]

PO.BOX 9515

3038 Drammen

Norway

Korea

WOOMI TECH.CO.,LTD. +82+2+34430004

4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005

Seoul,135-815, KOREA

korea.optoma.com

Japan

東京都足立区綾瀬3-25-18

株式会社オーエス

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd.,

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C.

www.optoma.com.tw

[phone]

[phone]

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street, [phone]

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone]

[phone]

www.optoma.com.cn
