Product Type	Video Projector
Brand	Optoma
Model	W365ED
Native Resolution	1024 x 768 (XGA)
Brightness	3000 ANSI Lumens
Contrast Ratio	20000:1
Lamp Life (Normal Mode)	4000 hours
Lamp Life (Eco Mode)	6000 hours
Throw Ratio	1.95 - 2.15:1
Keystone Correction	Vertical ±40°
Zoom	1.1x Manual
Inputs	1x HDMI, 1x VGA, 1x Composite, 1x S-Video
Audio Output	1x 3.5mm
Noise Level	28 dB (Eco mode)
Power Consumption	250W (Standby < 0.5W)
Dimensions (W x D x H)	315 x 240 x 90 mm
Weight	2.5 kg
Safety	Automatic shutdown after 5 minutes of inactivity
Maintenance	Clean air filter every 1000 hours; replace lamp when indicator lights
Spare Parts	Replacement lamp (model: BL-FP200A) available

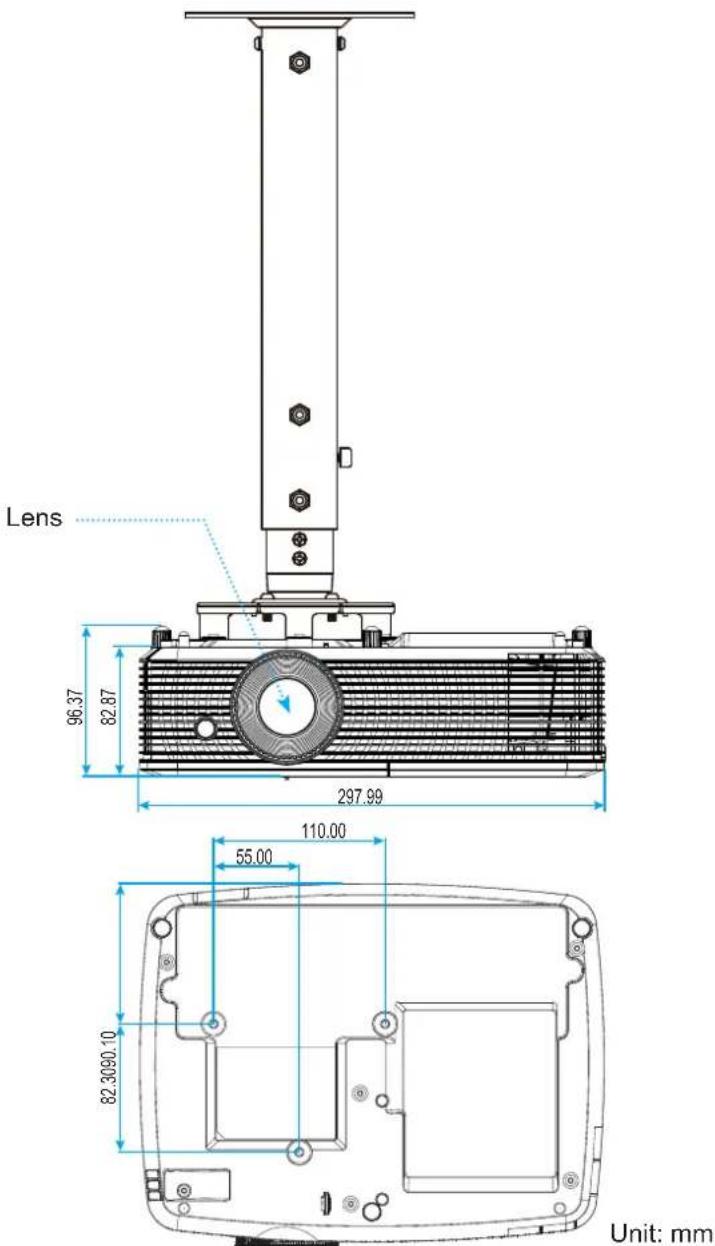

Mounting	Ceiling mount compatible (screw holes on bottom)
Warranty	2 years (depending on region)

Frequently Asked Questions - W365ED OPTOMA

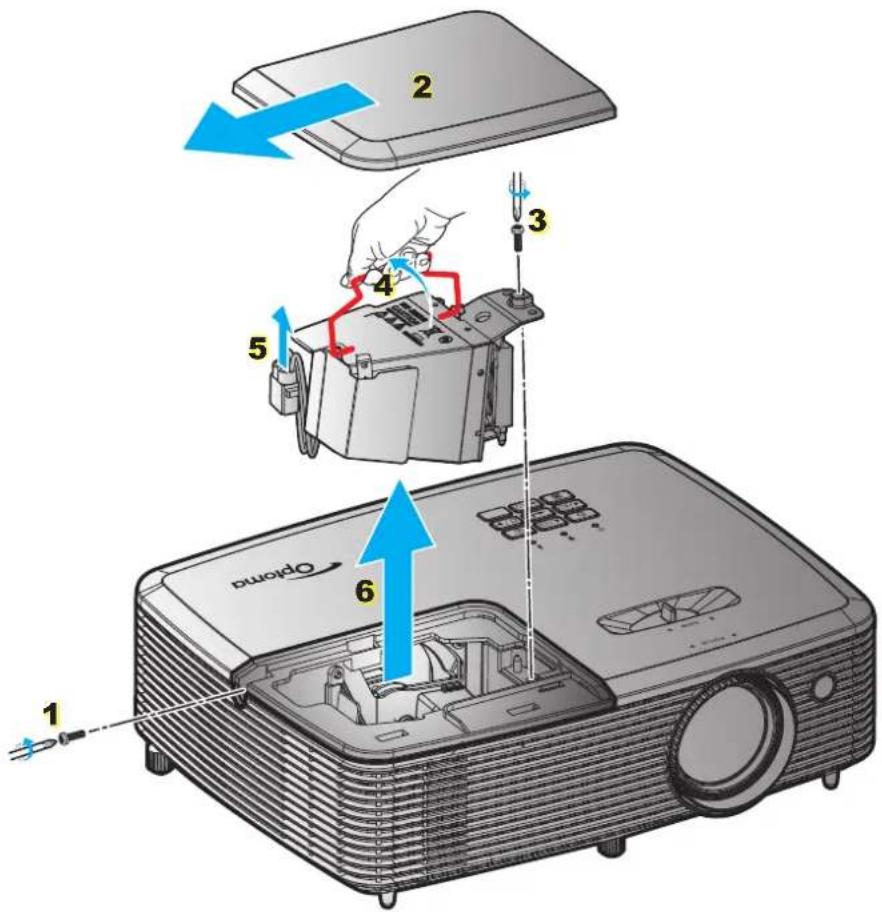

How to replace the lamp in the Optoma W365ED?

Turn off the projector and unplug it. Wait 30 minutes for the lamp to cool. Remove the lamp cover screw, open the cover, disconnect the lamp module, insert the new lamp (model BL-FP200A), reassemble, reset the lamp timer via the on-screen menu.

How to clean the air filter?

Turn off and unplug the projector. Locate the filter on the side. Slide it out, vacuum or wash with mild soap, dry completely, reinstall. Do not operate without filter.

How to connect a laptop to the Optoma W365ED?

Use a VGA cable to connect the laptop's VGA port to the projector's VGA input. Alternatively, use an HDMI cable for better quality. Select the correct input source via the Source button.

How to adjust the image size and focus?

Turn the zoom ring (on the lens) to adjust image size. Turn the focus ring to sharpen the image. Place the projector at the correct distance (throw ratio 1.95-2.15:1) for the desired screen size.

How to correct a tilted image?

Use the keystone correction buttons on the remote or menu. The W365ED has vertical keystone adjustment of up to ±40 degrees.

What to do if the projector turns off unexpectedly?

Check the lamp life indicator; replace if expired. Ensure the air filter is clean. The projector may shut down if overheating. Let it cool for 5 minutes before restarting.

How to reset the lamp timer?

After replacing the lamp, press the Menu button, go to Settings > Lamp Settings > Lamp Reset, select Yes. This clears the lamp hours counter.

Can the Optoma W365ED be mounted on a ceiling?

Yes, it has four mounting screw holes (M4) on the bottom. Use a compatible ceiling mount kit. Ensure the mount can support at least 2.5 kg.

How to use the remote control?

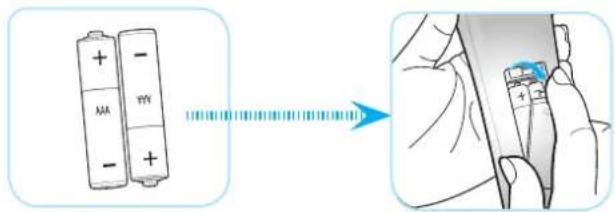

Insert two AAA batteries (not included) into the remote. Point it at the IR receiver on the front/back of the projector within 10 meters. Use buttons for power, source, volume, keystone, etc.

What is the warm-up time?

The projector takes about 30 seconds to display an image after powering on. The lamp reaches full brightness within 2 minutes.

USER MANUAL W365ED OPTOMA

Line drawing of a projector with visible ports and screen (no text or symbols)

TABLE OF CONTENTS

SAFETY 4

Important Safety Instruction.... 4

3D Safety Information....5

Copyright 6

Disclaimer....6

Trademark Recognition 6

FCC 7

Declaration of Conformity for EU countries 7

WEEE 7

INTRODUCTION 8

Package Overview....8

Standard accessories....8

Optional accessories 8

Product Overview 9

Connections.... 10

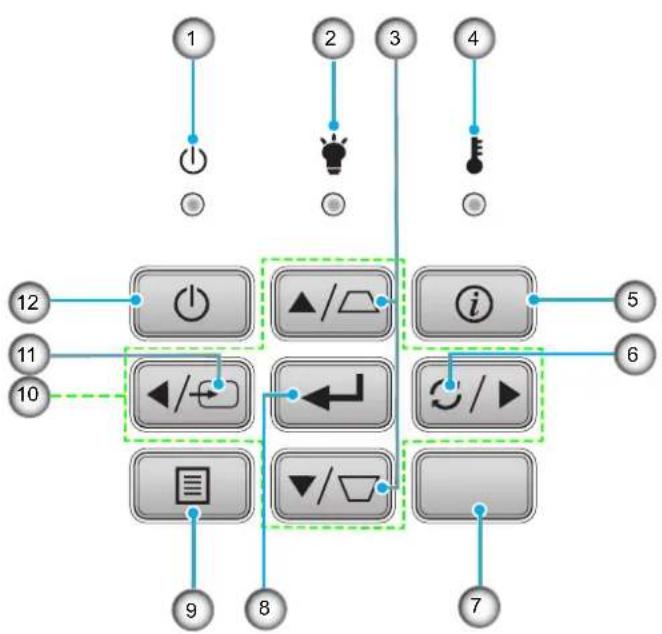

Keypad 11

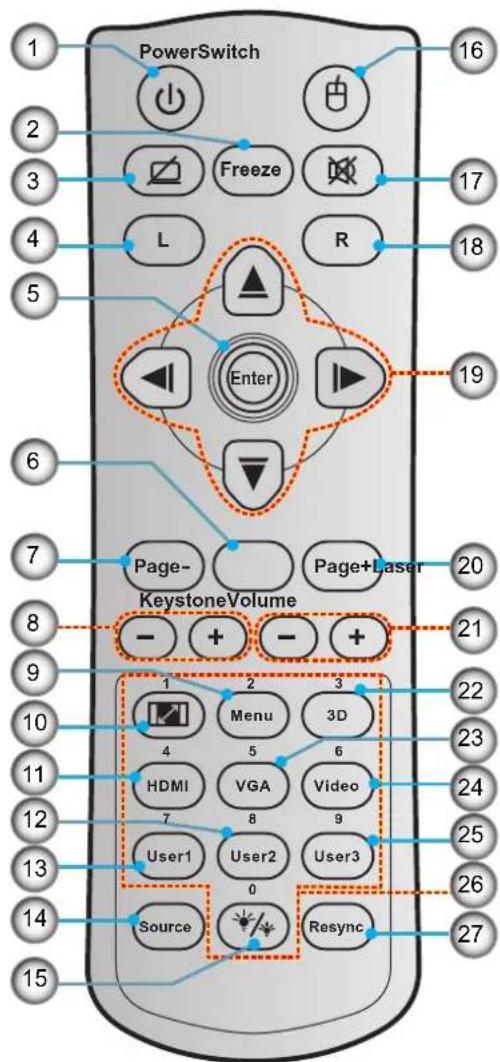

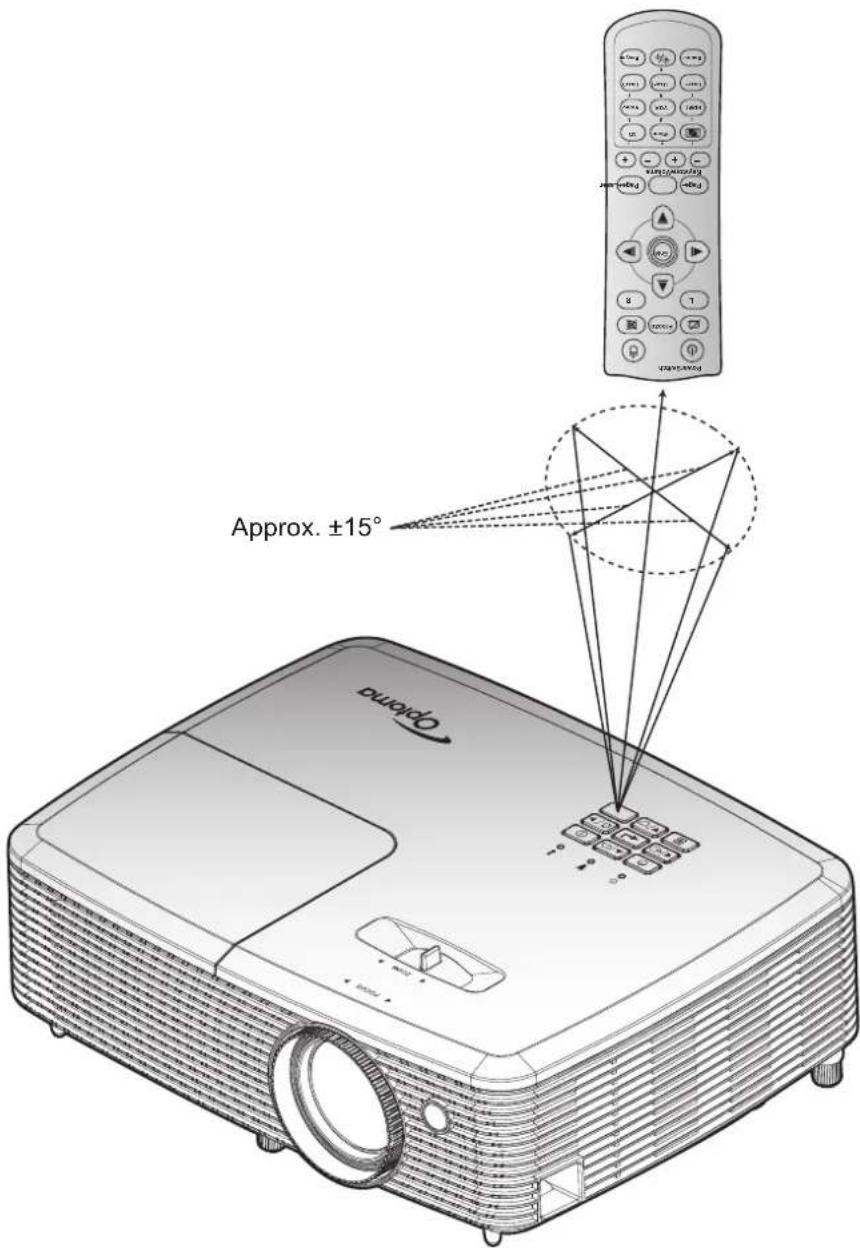

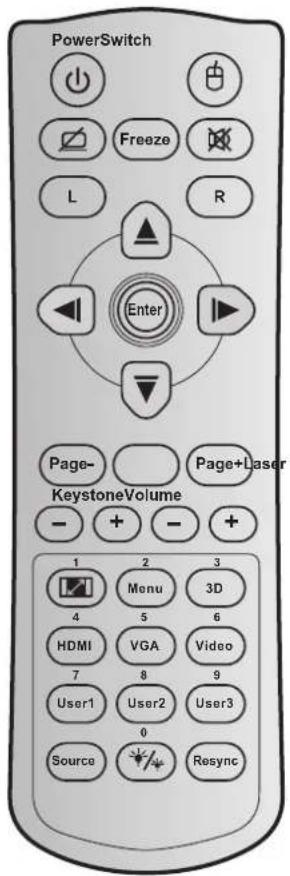

Remote control 12

SETUP AND INSTALLATION.... 13

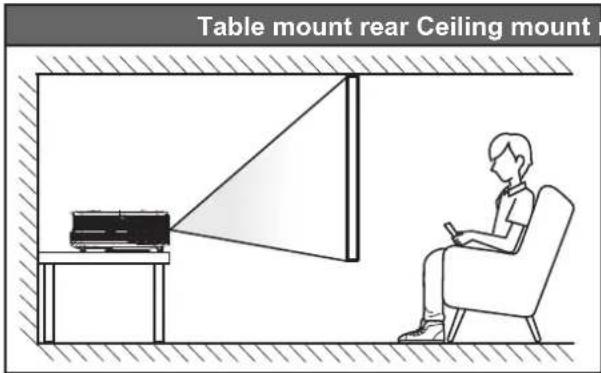

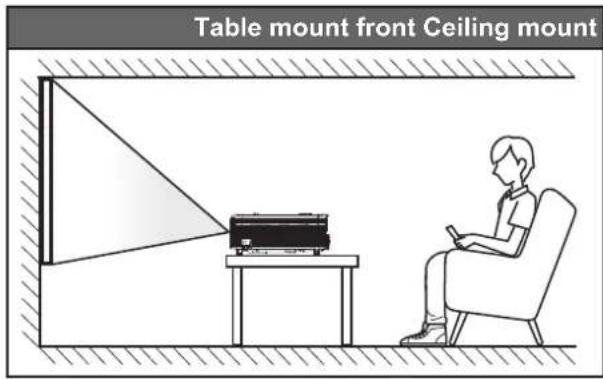

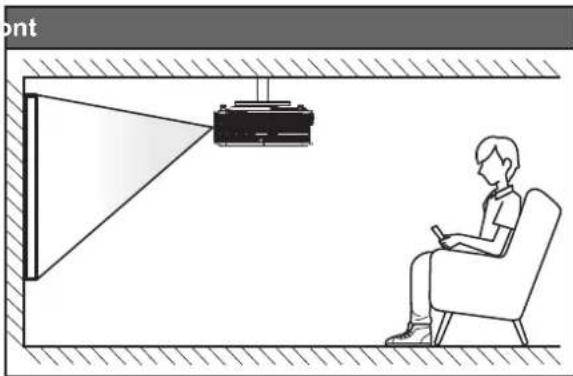

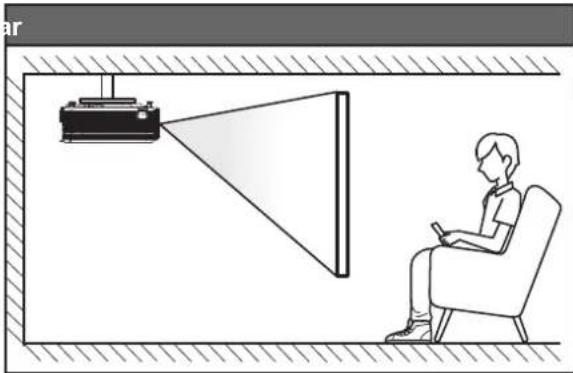

Installing the projector 13

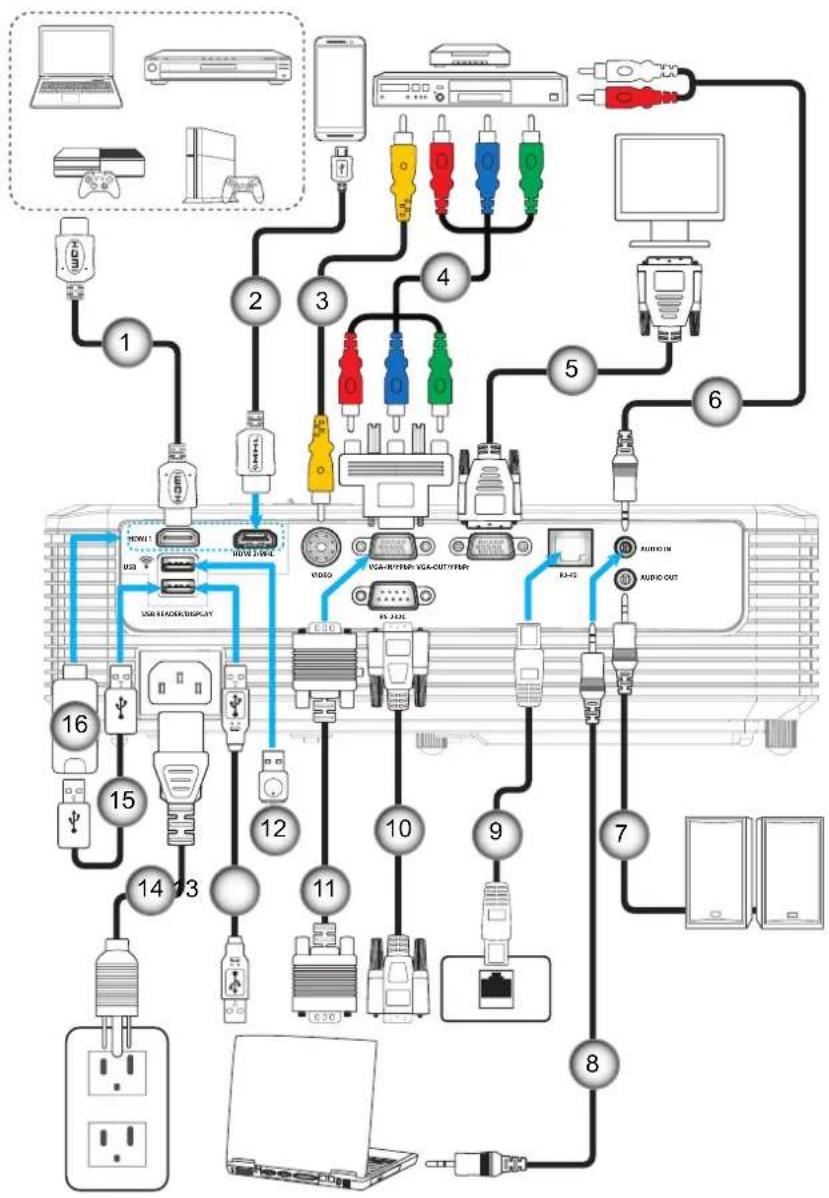

Connecting sources to the projector.... 15

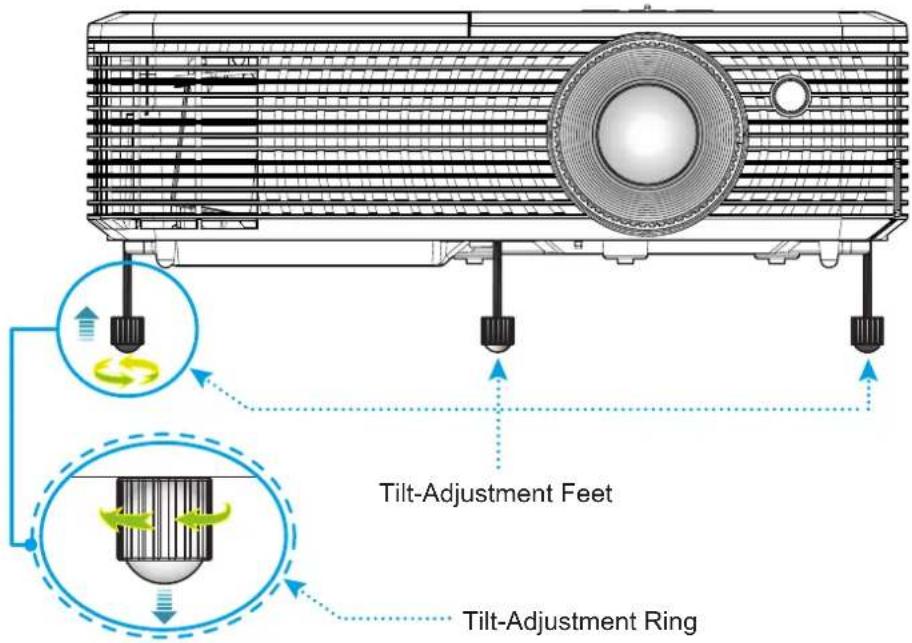

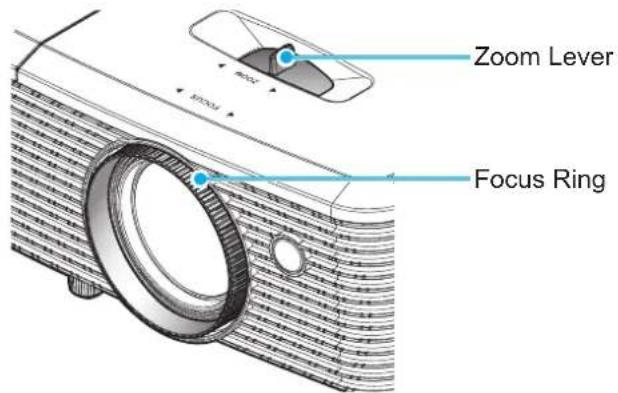

Adjusting the projector image.... 16

Remote setup 17

USING THE PROJECTOR....19

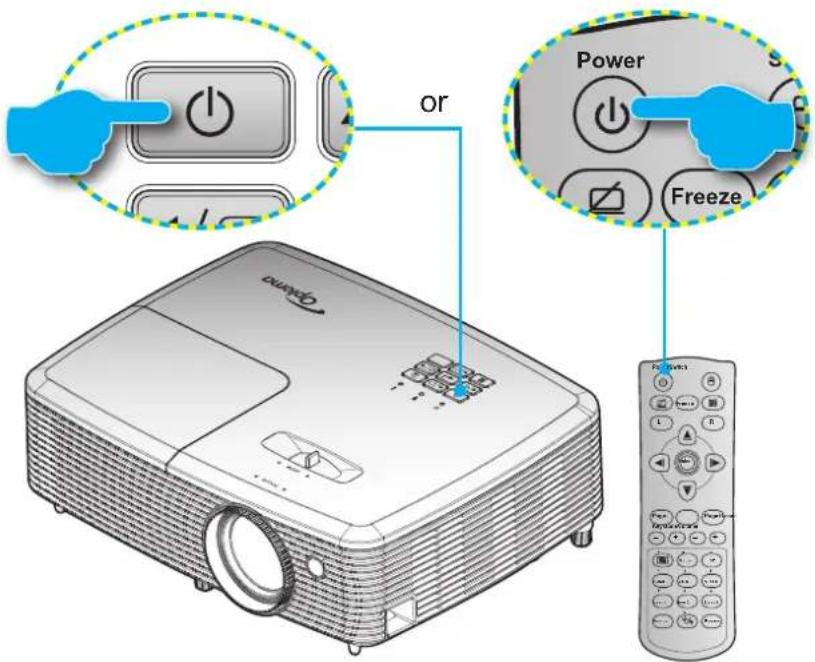

Powering on / off the projector.... 19

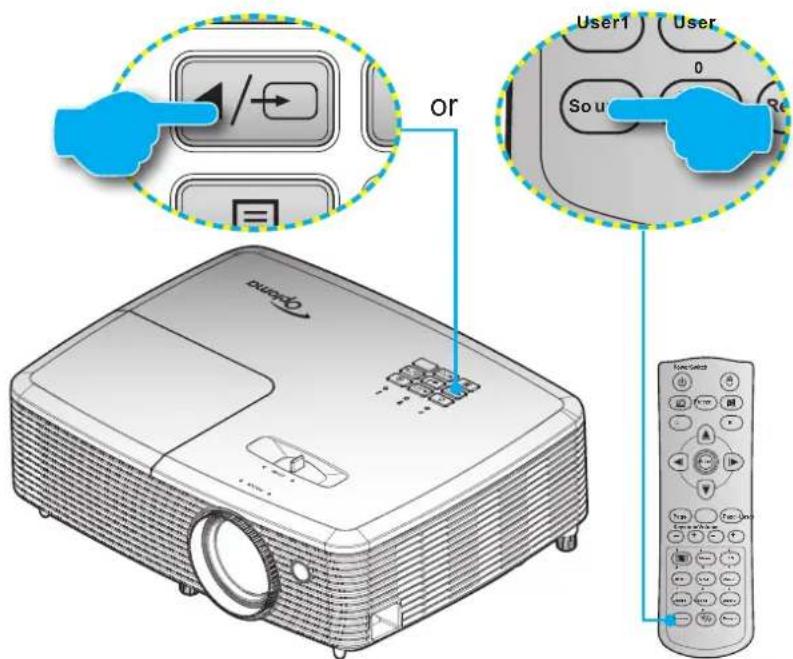

Selecting an input source 20

USING THE PROJECTOR....21

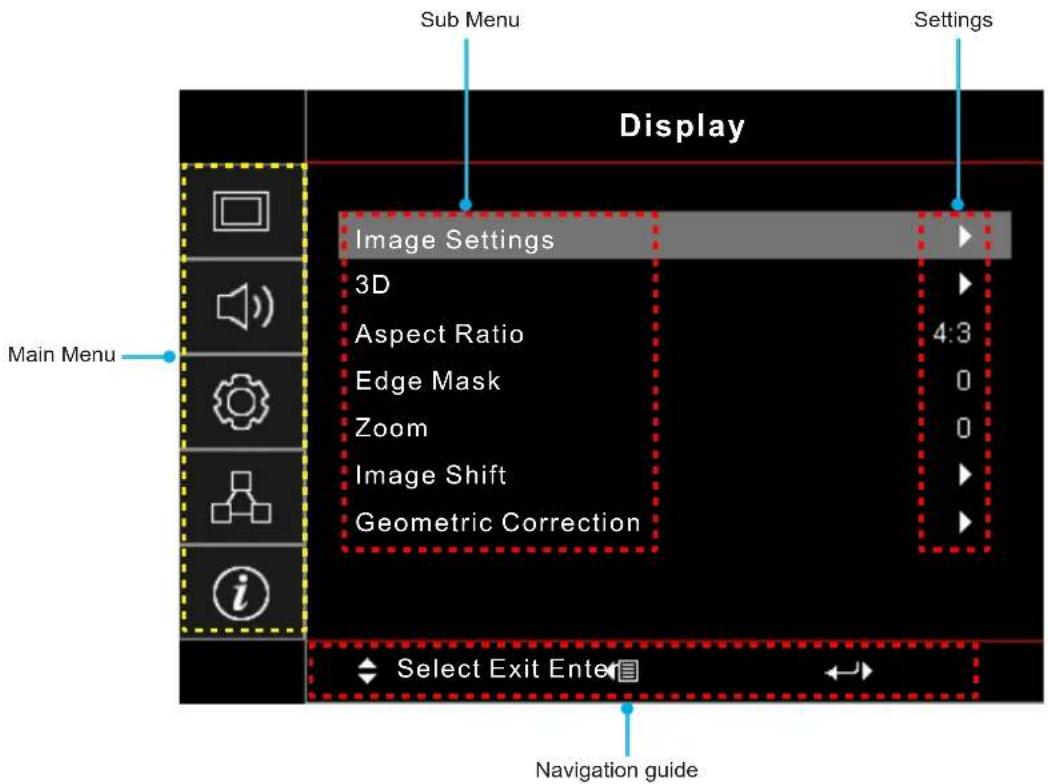

Menu navigation and features 21

OSD Menu tree.... 22

Display image settings menu.... 31

Display 3D menu 33

Display aspect ratio menu 34

Display edge mask menu 37

Display zoom menu 37

Display image shift menu 37

Display geometric correction menu 37

Audio mute menu 38

Audio volume menu....38

Setup projection menu.... 38

Setup screen type menu.... 38

Setup lamp settings menu.... 38

Setup filter settings menu 38

Setup power settings menu 39

Setup security menu.... 40

Setup HDMI link settings menu 40

Setup test pattern menu 40

Setup remote settings menu.... 40

Setup projector ID menu.... 41

Setup options menu.... 41

Setup reset all menu.... 42

Network WLAN menu 42

Network LAN menu 42

Network control menu.... 43

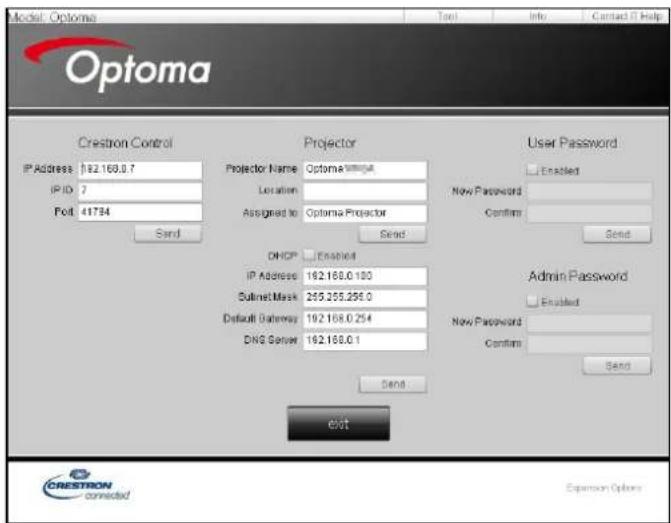

Setup network control settings menu 44

Info menu....49

MAINTENANCE 50

Replacing the lamp....50

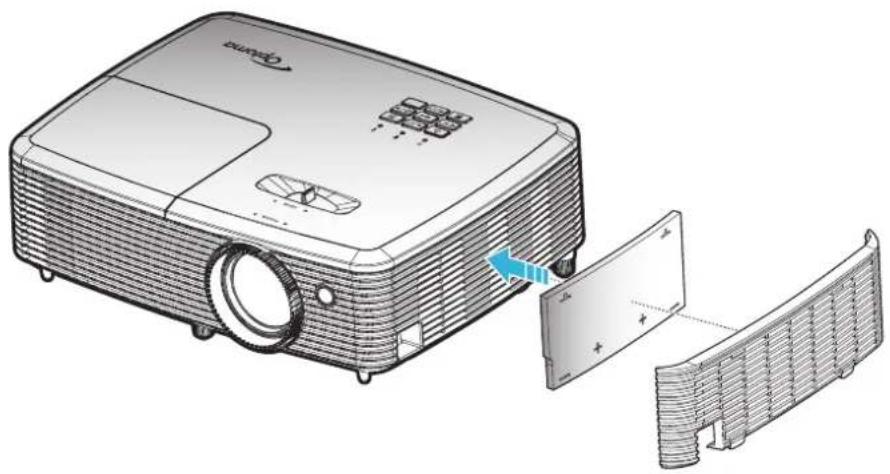

Installing and cleaning the dust filter 52

ADDITIONAL INFORMATION 53

Compatible resolutions.... 53

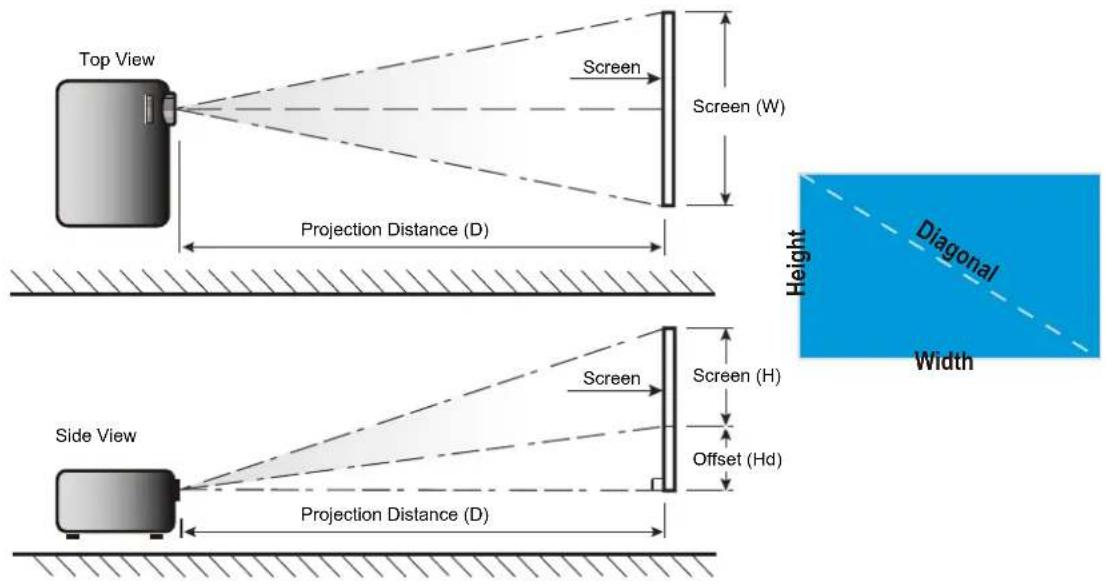

Image size and projection distance 55

Projector dimensions and ceiling mount installation.... 57

RS232 protocol function list.... 58

IR remote codes 66

Troubleshooting....68

Warning indicators....69

Specifications 72

Optoma global offices....73

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

- Do not stare into the beam, RG2.

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

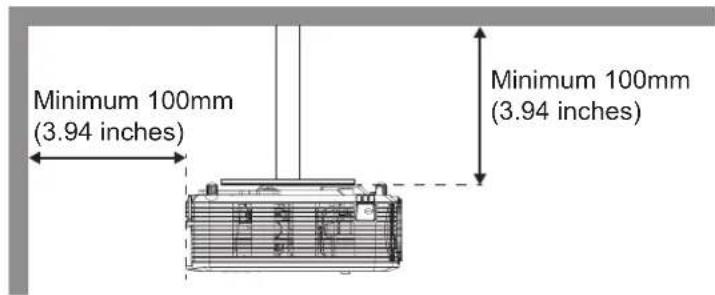

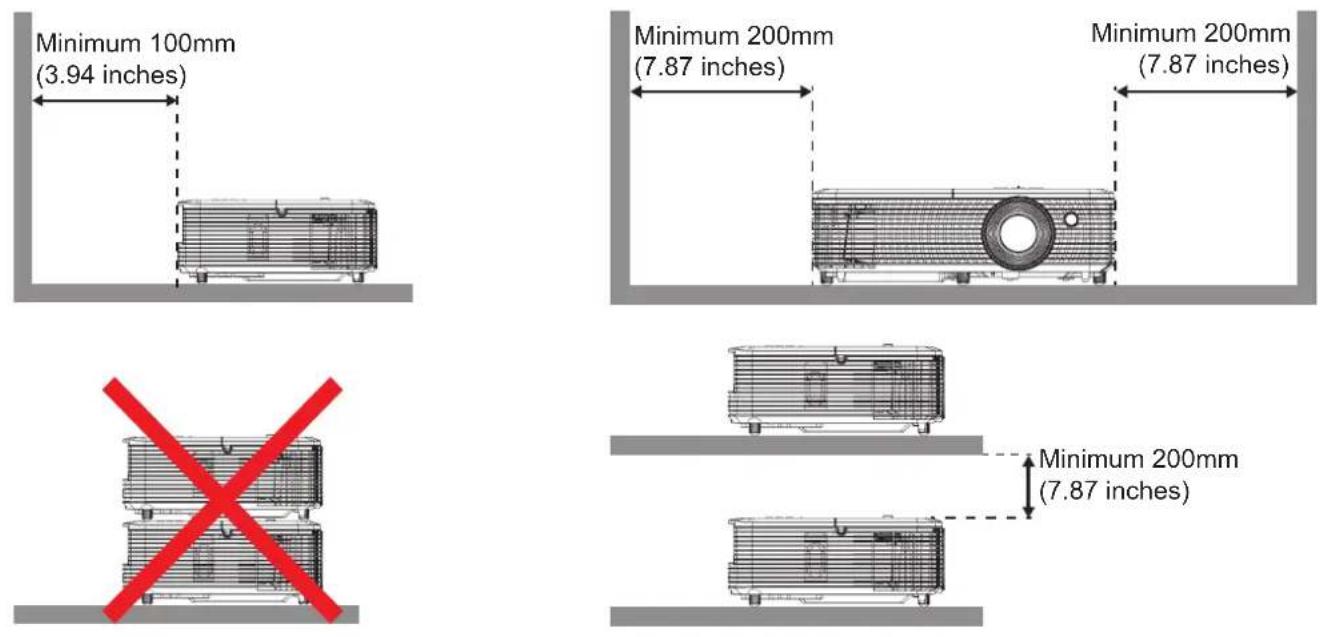

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

- Do not use under the following conditions:

– In extremely hot, cold or humid environments.

(i) Ensure that the ambient room temperature is within 5^ C \~ 40^ C
(ii) Relative humidity is 10% \~ 85%
– In areas susceptible to excessive dust and dirt.
– Near any appliance generating a strong magnetic field.
- In direct sunlight.

- Do not use the projector in places where flammable gases or explosives gases may be present in the atmosphere. The lamp inside the projector becomes very hot during operation and the gases may ignite and result in a fire.

- Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

• Unit has been dropped.
  – Power supply cord or plug has been damaged.
  – Liquid has been spilled on to the projector.
  – Projector has been exposed to rain or moisture.

• Something has fallen in the projector or something is loose inside.

• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.

• Do not block the light coming out of the projector lens when in operation. The light will heat the object and cause melt, cause burns, or start a fire.

• Please do not open or disassemble the projector as this may cause electric shock.

• Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
• See projector enclosure for safety related markings.
• The unit should only be repaired by appropriate service personnel.
• Only use attachments/accessories specified by the manufacturer.

• Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
- When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages 50-51.
- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.
- Reset the "Lamp Reset" function from the on-screen display "Setup > Lamp Settings" menu after replacing the lamp module.

- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

• When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
• Turn off and unplug the power plug from the AC outlet before cleaning the product.
  • Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.
  • Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 50-51.

• Do not setup the projector in places where it might be subjected to vibration or shock.
- Do not touch the lens with bare hands
- Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.
- Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.

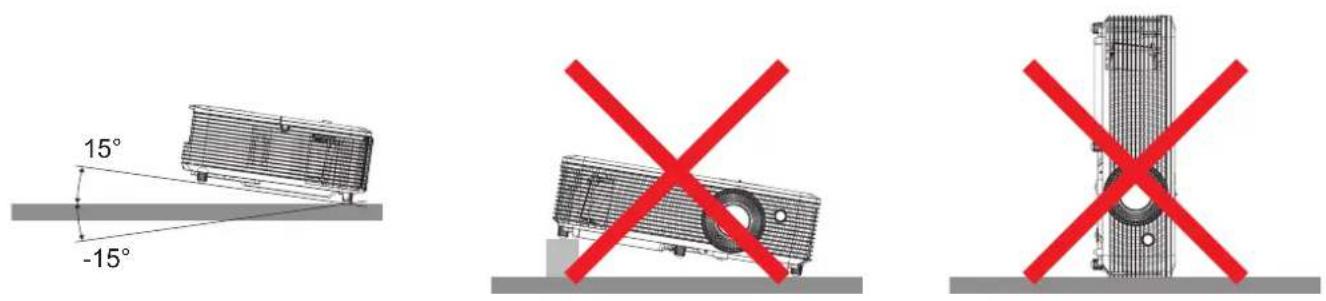

- Please follow the correct projector orientation installation as non standard installation may affect the projector performance.
• Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

3D Safety Information

Please follow all warnings and precautions as recommended before you or your child use the 3D function.

Warning

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing these images.

Photosensitive Seizure Warning and Other Health Risks

• Some viewers may experience an epileptic seizure or stroke when exposed to certain flashing images or lights contained in certain Projector pictures or video games. If you suffer from, or have a family history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
• Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.
- Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or under the influence of alcohol should avoid utilizing the unit's 3D functionality.

- If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults to experience these symptoms. Parents should monitor their children and ask whether they are experiencing these symptoms.

- Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye strain and decreased postural stability. It is recommended that users take frequent breaks to lessen the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

- Watching 3D projection while sitting too close to the screen for an extended period of time may damage your eyesight. The ideal viewing distance should be at least three times the screen height. It is recommended that the viewer's eyes are level with the screen.

- Watching 3D projection while wearing 3D glasses for an extended period of time may cause a headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D projection and rest.

- Do not use the 3D glasses for any other purpose than for watching 3D projection.

- Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and may weaken your eyesight.

• Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your 3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2017

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLP ^® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor ^™ is a trademark of Texas Instruments.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
• RED 2014/53/EU (if product has RF function)
• RoHS Directive 2011/65/EU (if product has RF function)

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

Illustration of a projector with label 'Projector Remote' below (no other text or symbols)

Illustration of a bundle of cables tied with a cable (no text or symbols)

Simple 3D rendering of a circular lens cap (no text or symbols on the object itself)

Note: The remote control is shipped with the batteries.

Optional accessories

Isometric line drawing of a two-wheeled bag with attached cables, labeled 'Carry bag' below (no other text or symbols)

Diagram of a VGA cable connector with multiple connectors and cables (no text or symbols on the diagram itself)

Note: Optional accessories vary depending on model, specification and region.

INTRODUCTION

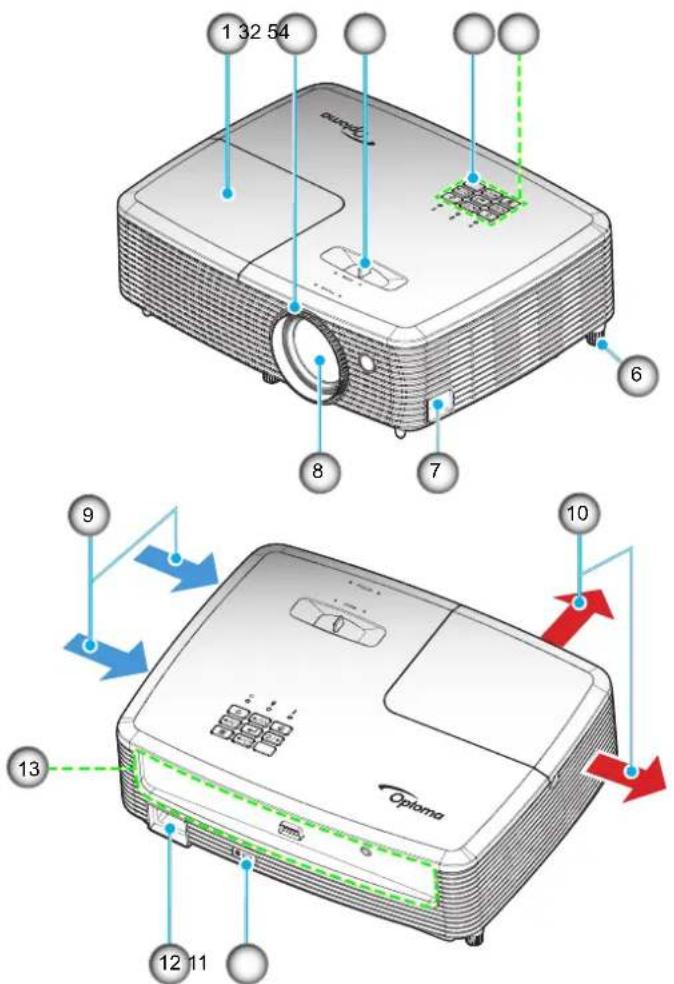

Product Overview

Note: Do not block projector inlet or outlet air vents.
(*) Optional accessory varies depending on model, specification, and region.

No Item No Item
1. Lamp Cover 8. Lens
2. Focus Ring		9.	Ventilation (inlet)
3. Zoom Lever 10. Ventilation (outlet)
4. IR Receiver 11. Kensington			TMLock Port
5. Keypad		12.	Power Socket
6. Tilt-Adjustment Foot 13. Input / Output
7. Security Bar

INTRODUCTION

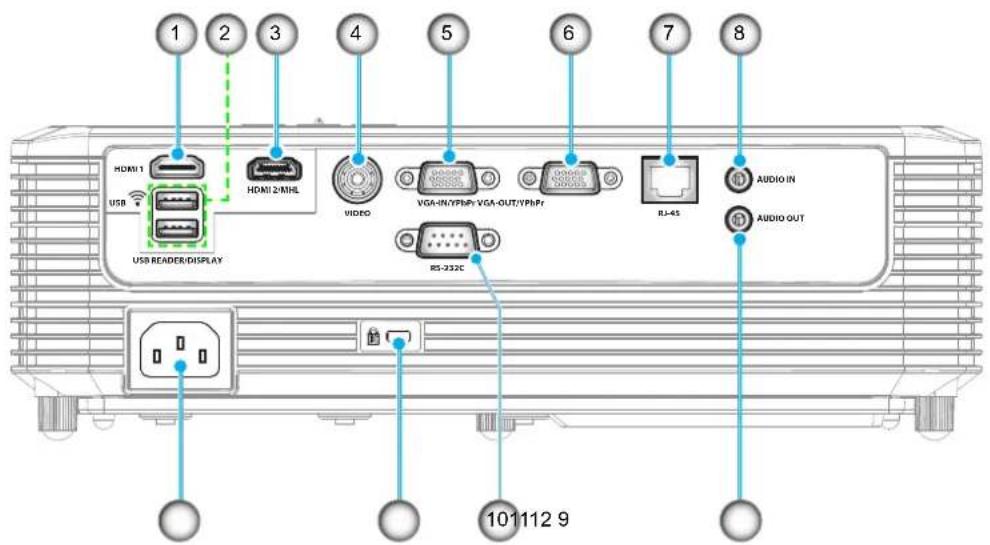

Connections

No Item No Item

1. HDMI 1 Connector 7. RJ-45 Connector

2. USB READER/DISPLAY Connector*

3. HDMI 2/MHL Connector 9. AUDIO OUT

4. VIDEO Connector 10. RS-232C Conn

5. VGA-IN/YPbPr Connector

6. VGA-OUT/YPbPr Connector

8. AUDIO IN Connector
Connector
ector
11.	KensingtonTM Lock Port
2.	Power Socket

Note:

• *Supports 5V/1A power output only if MHL source is not detected. If MHL source is detected, the 5V/1A power output is disabled automatically.
• *Supports WiFi dongle.
• *Use the USB READER/DISPLAY connector as follows:

• Network Display: (a) Plug in the WiFi USB dongle; (b) Use the HDcastPro APP on your mobile phone.
• USB Display for iOS and Android devices.
  – Multimedia: Display pictures and documents from the USB disk directly.

INTRODUCTION

Keypad

No Item No Item

1. On/Standby LED 7. IR Receiver

2. Lamp LED

3. Keystone Correction 9. Menu

4. Temp LED 10. Four Directional Select H

5. Info 11. Source

6. Re-Sync 12. Power

1. Enter

INTRODUCTION

Remote control

No Item No Item

1. Power On / Off 15. Brightness Mode
2. Freeze 16. Mouse On / Off
3. Display Blank / Audio Mute 17. Mute
4. Mouse Left Click 18. Mouse Right Click
5. Enter 19. Four Directional Select Keys
6. Laser 20. Page +
7. Page -	2
8. Keystone - / +	2
9. Menu 23. VGA
10. Aspect Ratio
11. HDMI
12. User 2
13. User 1
14. Source

1. Volume - / +
2. 3D Menu On / Off
24. Video
25. User 3
26. Numeric Keypad (0-9)
27. Resync

Note: Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Diagram showing a person sitting in a chair observing a projector mounted on a wall, with no text or symbols present.

Illustration of a person sitting in a chair watching a projector projection (no text or symbols present)

Projector should be placed flat on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages 55-56.
• How to determine screen size for a given distance, please refer to distance table on pages 55-56.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma.

SETUP AND INSTALLATION

Projector installation notice

- Place the projector in a horizontal position.

The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.

- Allow at least 20 cm clearance around the exhaust vent.

- Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

SETUP AND INSTALLATION

Connecting sources to the projector

No Item No Item

1. HDMI Cable 9. RJ-45 Cable
2. HDMI / MHL Cable	10.	RS-232C Cable
3. Video Cable 11. VGA In Cable
4. RCA Component Cable 12. WiFi Dongle
5. VGA Out Cable	13. USB Cable (mouse control)
6. Audio In Cable	14. Power Cord
7. Audio Out Cable	15. USB Power Supply (5V/1A)
8. Audio In Cable	16. HDMI Dongle

SETUP AND INSTALLATION

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Zoom and focus

• To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

Note: The projector will focus at a distance of 1m to 10.

SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries

Two AAA size batteries are supplied for the remote control.

1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.

Note: Replace only with the same or equivalent type batteries.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
- Remove batteries as soon as they are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control for an extended period of time, remove the batteries.

- When you dispose of the batteries, you must obey the law in the relative area or country.

Effective range

Infra-Red (IR) remote control sensor is located on the top side of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 6 meters (\~ 20 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Please keep the remote controller away from fluorescent lamps for over 2 meters or the remote controller might become malfunction.
• If the remote control is closed to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, the remote control might become ineffective.
- When you aim at the screen, the effective distance is less than 5 m from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

SETUP AND INSTALLATION

USING THE PROJECTOR

Powering on / off the projector

Powering on

1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will turn red.
2. Turn on the projector by pressing the "⏻" either on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be flashing green or flashing blue.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Powering off

1. Turn off the projector by pressing the "⏻" either on the projector keypad or the remote control.
2. The following message will be displayed:

1. Press the "①" again to confirm, otherwise the message will disappear after 10 seconds. When you press the "②" button for the second time, the projector will shut down.
2. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/Standby LED will flash green or flash blue. When the On/Standby LED turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the "OK" button again to turn on the projector.
3. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.

USING THE PROJECTOR

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

USING THE PROJECTOR

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press on the remote control or the projector keyboard.
2. When OSD is displayed, use keys to select any item in the main menu. While making a selection on a particular page, press or key to enter sub menu.
3. Use ◀▶ keys to select the desired item in the sub menu and then press ← or ▶ key to view further settings. Adjust the settings by using ◀▶s.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the or to confirm, and the screen will return to the main menu.
6. To exit, press the ◀ or ☐ again. The OSD menu will close and the projector will automatically save the new settings.

USING THE PROJECTOR

OSD Menu tree

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Display Mode [Data]			Presentation
					Bright
					Cinema
					Game
					sRGB
					DICOM SIM.
					User
					3D
		Wall Color [Data]			Off [Default]
					BlackBoard
					Light Yellow
					Light Green
					Light Blue
					Pink
					Gray
		Brightness -50~50
		Contrast			-50~50
		Sharpness 1~15
		Color -50~50
		Tint -50~50
		Gamma	Film
			Video
			Graphics
			Standard(2.2)
			1.8
			2.0
			2.4
		Color Settings	BrilliantColorTM		1~10
			Color Temperature [Data model]		Warm
					Medium
					Cool
			Color Matching	Color	R [Default]
					G
					B
					C
					Y
					M
					W
				Saturation -50~50 [Default:0]
				Hue -50~50 [Default:0]
				Gain -50~50 [Default:0]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Color Settings		Color Matching	Reset
					Exit
				RGB Gain/Bias	Red Gain -50~50
					Green Gain -50~50
					Blue Gain -50~50
					Red Bias -50~50
					Green Bias -50~50
					Blue Bias -50~50
					Reset
					Exit
				Color Space [Not HDMI Input]
				Color Space [HDMI Input]
				RGB Channel
				White Level -50~50
				Black Level -50~50
				Saturation -50~50
				Hue -50~50
				IRE
				Exit
		Signal		Automatic
				Frequency
				Phase
				H. Position -5~5 (depends on signal) [Default: 0]
				V. Position
				Exit
		Brightness Mode [Lamp Base - Data]
		Reset

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display	3D	3D Mode			Off
					DLP [Default]
					IR
		3D->2D			3D [Default]
					L
					R
		3D Format			Auto [Default]
					SBS
					Top and Bottom
					Frame Sequential
		3D sync invert			On
					Off [Default]
	Aspect Ratio				4:3
					16:9
					16:10 [WXGA WUXGA models]
					LBX [except SVGA XGA models]
					Native
					Auto
	Edge Mask 0~10 [Default: 0]
	Zoom -5~25 [Default: 0]
	Image shift	H: 0; V: -100			[Default:0]
		H: -100; V: 0
		H: 100; V: 0
		H: 0; V: 100
		H: -100; V: 0
		H: 0; V: -100
		H: 100; V: 0
		H: 0; V: 100
	Geometric Correction	Four Corner Adjustment
		H Keystone -20~20 [Default:0]
		V Keystone -20~20 [Default:0]
		Auto Keystone			Off
					On [Default]
		Reset
Audio	Mute				Off [Default]
					On
	Volume 0-10 [Default: 5]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Projection				Front [Default]
					Rear [IMAGE]
					Ceiling-top [IMAGE]
					Rear-top [IMAGE]
	Screen Type	[WXGA WUXGA models]			16:9
					16:10 [Default]
	Lamp Settings	Lamp Reminder			Off
					On [Default]
		Lamp Reset			Cancel [Default]
					Yes
	Filter Settings	Optional Filter Installed			Yes
					No [Default]
		Filter Usage Hours			(Read only)
		Filter Reminder			Off
					300hr
					500hr [Default]
					800hr
					1000hr
		Filter Reset			Cancel [Default]
					Yes
	Power Settings	Direct Power On			Off [Default]
					On
		Signal Power On			Off [Default]
					On
		Auto Power Off (min)			0~180 (5 min increments) [Default: 20]
		Sleep Timer	Sleep Timer (min)		0~990 (30 min increments) [Default: 0]
			Always On		Yes
					No [Default]
		Quick Resume			Off
					On [Default]
		Power Mode (Standby)			Active
					Eco [Default]
		USB Power (Standby)			Off [Default]
					On
	Security	Security
		Security Timer	Month
			Day
			Hour
		Change Password

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup	HDMI Link Settings	HDMI Link			Off
					On
	Test Pattern				Green Grid
					Magenta Grid
					White Grid
					White
					Off
	Remote Settings[Depends on remote]	IR Function			On
					Off
		User1			HDMI 2
					Test Pattern
					LAN
					Brightness
					Contrast
					Sleep Timer
					Color Matching
					Color Temp
					Gamma
					Projection
					Lamp Settings
					Zoom
					Freeze
					MHL
		User2			HDMI 2
					Test Pattern
					LAN
					Brightness
					Contrast
					Sleep Timer
					Color Matching
					Color Temp
					Gamma
					Projection
				Lamp Settings	Zoom
					Freeze
					MHL

USING THE PROJECTOR

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup	Remote Settings[Depends on remote]	User3			HDMI 2
					Test Pattern
					LAN
					Brightness
					Contrast
					Sleep Timer
					Color Matching
					Color Temp
					Gamma
					Projection
					Lamp Settings
					Zoom
					Freeze
					MHL
	Projector ID 00~99
	Options	Language			English [Default]
					Deutsch
					Français
					Italiano
					Español
					Português
					Polski
					Nederlands
					Svenska
					Norsk
					Dansk
					Suomi
					ελληνικά
					繁體中文
					簡体中文
					日本語
					한국어
					Русский
					Magyar
					Čeština
					عربي
					'ɪnu
					Türkçe
					فارسی
					Tiếng Việt
					Bahasa Indonesia
					Română
					Slovenčina
		Closed Captioning			CC1
					CC2
					Off [Default]

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup Options		Menu Settings	Menu Location		Top left ■
					Top right ■
					Center [Default]
					Bottom left ■
					Bottom right ■
			Menu Timer		Off
					5sec
					10sec [Default]
		Auto Source			Off [Default]
					On
		Input Source			HDMI1
					HDMI2/MHL
					VGA
					Video
					Network Display
					USB Display
					Multimedia
		Input Name	HDMI1		Default [Default]
					Custom
			HDMI2/MHL		Default [Default]
					Custom
			VGA		Default [Default]
					Custom
			Video		Default [Default]
					Custom
			Network Display		Default [Default]
					Custom
			USB Display		Default [Default]
					Custom
			Multimedia		Default [Default]
					Custom
		High Altitude			Off [Default]
					On
		Display Mode Lock			Off [Default]
					On
		Keypad Lock			Off [Default]
					On
		Information Hide			Off [Default]
					On
		Background Color			None [Default]
					Blue
					Red

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Options	Background Color			Green
					Grey
					Logo
	Reset	Reset OSD			Cancel [Default]
					Yes
		Reset to Default			Cancel [Default]
					Yes
Network	WLAN	WLAN			Off
					On [Default]
		Network Status			Connected (read only)
					Disconnected (read only)
		MAC Address			(read only) (depends on network card)
		IP Address 172.28	.120.1 [Default] (read only)
		SSID NetworkDisplay (read only)
		Connection Mode			Infrastructure (read only)
					Ad-hoc (read only) [Default]
	LAN	Network Status (read only)
		MAC Address (read only)
		DHCP			Off [Default]
					On
		IP Address 192.16	8.0.100 [Default]
		Subnet Mask 255.	255.255.0 [Default]
		Gateway 192.168.	0.254 [Default]
		DNS 192.168.0.51	[Default]
		Reset
	Control	Crestron			Off
					On [Default]Note: Port 41794.
		Extron			Off
					On [Default]Note: Port 2023.
		PJ Link			Off
					On [Default]Note: Port 4352
		AMX Device Discovery			Off
					On [Default]Note: Port 9131
		Telnet			Off
					On [Default]Note: Port 23
		HTTP			Off
					On [Default]Note: Port 80

USING THE PROJECTOR

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Information	Regulatory
	Serial Number
	Source
	Resolution 00x00
	Refresh Rate 0.00Hz
	Display Mode
	Power mode(standby)
	Lamp Hours	Bright mode 0H
		Eco mode 0H
		Dynamic mode 0H
		Eco+ mode 0H
		Total hours
	Network Status
	IP Address
	Projector ID 00~99
	Filter Usage Hours
	Brightness Mode
	FW Version	System
		LAN
		MCU
		AM

Note:

• If the Signal setting is set to "Automatic", the Phase and Frequency items are grayed out. If the Signal setting is set to a specific input source, the Phase and Frequency items will appear for user to manually tune and saved in settings.
  • The Lamp Reset in OSD will reset both Lamp Hours in OSD and Lamp Hours in service mode. The Projection Hours in service mode will not be reset.
• If you make changes to "IR Function", "Projection", or "Keypad Lock" functions, a confirmation message will appear on the screen. Select "Yes" to save the settings.
  • Each display mode can be adjusted and saved the value.
  • In 3D timing mode, the Zoom and Edge Mask functions will be disabled to prevent from image break.

USING THE PROJECTOR

Display menu

Display image settings menu

Display Mode

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing PowerPoint presentations when the projector is connected to the PC.
• Bright: Maximum brightness from PC input.
  • Cinema: Select this mode for home theater.
  • Game: Select this mode to increase the brightness and response time level for enjoying video games.
• sRGB: Standardized accurate color.
  • DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.
• User: Memorize user's settings.
  • 3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.

Wall Color (Data mode)

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

Gamma

Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

• Film: For home theater.
• Video: For video or TV source.
• Graphics: For PC / Photo source.
- Standard(2.2): For standardized setting.
• 1.8/ 2.0/ 2.4: For specific PC / Photo source.

USING THE PROJECTOR

Color Settings

Configure the color settings.

- BrillianColor ^TM : This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

• Color Temperature (data-mode only): Select a color temperature from Warm, Medium, or Cool.

• Color Matching: Select the following options:

– Color: Adjust the red (R), green (G), black (B), cyan (C), yellow (Y), magenta (M), and white (W) level of the image.
- Saturation: Adjust a video image from black and white to fully saturated color.
– Hue: Adjust the color balance of red and green.
– Gain: Adjust the image brightness.
- Reset: Return the factory default settings for color matching.
- Exit: Exit the "Color Matching" menu.

- RGB Gain/Bias: This settings allows to configure the brightness (gain) and contrast (bias) of an image.

- Reset: Return the factory default settings for RGB gain/bias.

- Exit: Exit the "RGB Gain/Bias" menu.

• Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: AUTO, RGB, or YUV.

• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.

- RGB Channel: Select from normal, red, green, or blue channels.

• White Level: Allow user to adjust White Level when inputting Video signals.

- Black Level: Allow user to adjust Black Level when inputting Video signals.

• Saturation: Adjust a video image from black and white to fully saturated color.

- Hue: Adjust the color balance of red and green.

- IRE: Allow user to adjust IRE value when inputting Video signals.

Note: IRE is only available with NTSC video format.

- Exit: Exit the "Color Settings" menu.

Signal

Adjust the signal options.

• Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
- Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
• Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

• H. Position: Adjust the horizontal positioning of the image.

• V. Position: Adjust the vertical positioning of the image.

- Exit: Exit the "Signal" menu.

USING THE PROJECTOR

Brightness Mode (Lamp base data)

Adjust the brightness mode settings for lamp-based projectors.

• Bright: Choose "Bright" to increase the brightness.
• Eco: Choose “Eco” to dim the projector lamp which will lower power consumption and extend the lamp life.
• Dynamic: Choose "Dynamic" to dim the lamp power which will be based on brightness level of the content and adjust lamp power consumption between 100% and 30% dynamically. The lamp life will be extended.
• Eco+: When Eco+ mode is activated, the brightness level of the content is automatically detected to significantly reduced lamp power consumption (up to 70%) during periods of inactivity.

Reset

Return the factory default settings for color settings.

Display 3D menu

3D Mode

Use this option to disable the 3D function or select the appropriate the 3D function.

• Off: Select "Off" to turn off 3D mode.
• DLP: Select to use optimized settings for DLP 3D Glasses.
• IR: Select "IR" to use optimized setting for IR 3D Glasses.

3D → 2D

Use this option to specify how the 3D content should appear on the screen.

• 3D: Display 3D signal.
- L (Left): Display the left frame of 3D content.
- R (Right): Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identification signal is detected, the 3D format is selected automatically.
- SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
- Frame Sequential: Display 3D signal in "Frame Sequential" format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

USING THE PROJECTOR

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
• 16:10 (for WXGA and WUXGA models only): This format is for 16:10 input sources, like widescreen laptops.
- LBX (except SVGA and XGA models): This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1 aspect ratio in full resolution.
• Native: This format displays the original image without any scaling.

- Auto: Automatically selects the appropriate display format.

Note:

• Detailed informations about LBX mode:

Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.

- If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical resolution are fully utilized.

XGA scaling table:

Source 480i/p 576i/p 1080i/p 720p
4x3 Scale to 1024x768.
16x9 Scale to 1024x576.
Native	No scaling will be made; the image is displayed with the resolution based on input source.
Auto -If source is 4:3, the screen type will be scaled to 1024x768.-If source is 16:9, the screen type will be scaled to 1024x576.-If source is 15:9, the screen type will be scaled to 1024x614.-If source is 16:10, the screen type will be scaled to 1024x640.

USING THE PROJECTOR

XGA auto mapping rule:

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1024 768
4:3	640 480 1024	768
	800 600 1024	768
	1024 768 1024	768
	1600 1200 1024	768
Wide Laptop	1280 720 1024	576
	1280 768 1024	614
	1280 800 1024	640
SDTV	720 576 1024	576
	720 480 1024	576
HDTV	1280 720 1024	576
	1920 1080 1024	576

WXGA scaling table (screen type 16x10):

Note:

• Supported screen type 16:9 (1280x720), 16:10 (1280x800).
- When screen type is 16:9, the 16x10 format becomes unavailable.
- When screen type is 16:10, the 16x9 format becomes unavailable.
If you select auto option then the display mode will be also automatically changed.

16 : 10 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1066x800.
16x10	Scale to 1280x800.
LBX	Scale to 1280x960, then get the central 1280x800 image to display.
Native mode	1:1 mapping centered.	1:1 mapping display 1280x800.	1280x720 centered.	1:1 mapping centered.
Auto	-Input source will be fit into 1280x800 display area and be kept its original aspect ratio.-If source is 4:3, the screen type will be scaled to 1066x800.-If source is 16:9, the screen type will be scaled to 1280x720.-If source is 15:9, the screen type will be scaled to 1280x768.-If source is 16:10, the screen type will be scaled to 1280x800.

USING THE PROJECTOR

WXGA auto mapping rule (screen type 16x10):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1280 800
4:3	640 480 1066	800
	800 600 1066	800
	1024 768 1066	800
	1280 1024 1066	800
	1400 1050 1066	800
	1600 1200 1066	800
Wide Laptop	1280 720 1280	720
	1280 768 1280	768
	1280 800 1280	800
SDTV	720 576 1280	720
	720 480 1280	720
HDTV	1280 720 1280	720
	1920 1080 1280	720

WXGA scaling table (screen type 16x9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 960x720.
16x9 Scale to 1280x720.
LBX Scale to 1280x960, then get the central 1280x720 image to display.
Native mode	1:1 mapping centered.	1:1 mapping display 1280x720.	1280x720 centered.	1:1 mapping centred.
Auto	-If this format is select, screen type will automatically become 16:9 (1280x720).-If source is 4:3, the screen type will be scaled to 960x720.-If source is 16:9, the screen type will be scaled to 1280x720.-If source is 15:9, the screen type will be scaled to 1200x720.-If source is 16:10, the screen type will be scaled to 1152x720.

USING THE PROJECTOR

WXGA auto mapping rule (screen type 16x9):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1280 720
4:3	640 480 960 720
	800 600 960 720
	1024 768 960 720
	1280 1024 960 720
	1400 1050 960 720
	1600 1200 960 720
Wide Laptop	1280 720 1280 720
	1280 768 1200 720
	1280 800 1152 720
SDTV	720 576 1280 720
	720 480 1280 720
HDTV	1280 720 1280 720
	1920 1080 1280 720

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

Display geometric correction menu

Four Corner Adjustment

Allow the image to be squeezed to fit an area defined by moving each of the four corners' x and y position.

H Keystone

Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length. This is intended for use with horizontally on-axis applications.

V Keystone

Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.

Auto Keystone

Correct keystone digitally to fit the projected image on the area on which you are projecting.

Reset

Resets the lamp hour counter after replacing the lamp.

USING THE PROJECTOR

Audio menu

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

• On: Choose the "On" to turn mute on.
• Off: Choose the "Off" to turn mute off.

Note: "Mute" function affects both internal and external speaker volume.

Audio volume menu

Volume

Adjust the volume level.

Setup menu

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup screen type menu

Screen Type (for WXGA and WUXGA models only)

Choose the screen type from 16:9 and 16:10.

Setup lamp settings menu

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

Lamp Reset

Resets the lamp hour counter after replacing the lamp.

Setup filter settings menu

Optional Filter Installed

Set the warning message setting.

• Yes: Display warning message after 500 hours of use.

Note: "Filter Usage Hours / Filter Reminder / Filter Reset" will only appear when "Optional Filter Installed" is "Yes".

- No: Turn off warning message.

Filter Usage Hours

Display the filter time.

USING THE PROJECTOR

Filter Reminder

Choose this function to show or hide the warning message when the changing filter message is displayed. The available options include 300hr, 500hr, 800hr, and 1000hr.

Filter Reset

Reset the dust filter counter after replacing or cleaning the dust filter.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose "On" to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the "Power" key on the projector Keypad or on the remote control.

Note: If the "Signal Power On" option is turned "On", the power consumption of the projector in standby mode will be over 3W.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Sleep Timer (min)

Configure the sleep timer.

- Sleep Timer (min): Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Note: The Sleep Timer is reset every time when the projector is powered off.

- Always On: Check to set the sleep timer always on.

Quick Resume

Set the quick resume setting.

- On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered on again, if selected within a period of 100 seconds.

• Off: The fan will start cooling the system after 10 seconds when user turns off the projector.

Power Mode (Standby)

Set the power mode for standby state.

- Active: Choose "Active" to return to normal standby.

- Eco: Choose "Eco." to save power dissipation further < 0.5W .

USB Power (Standby)

Enable or disable USB power function during standby.

USING THE PROJECTOR

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose "On" to use security verification when the turning on the projector.
• Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

Setup HDMI link settings menu

Note:

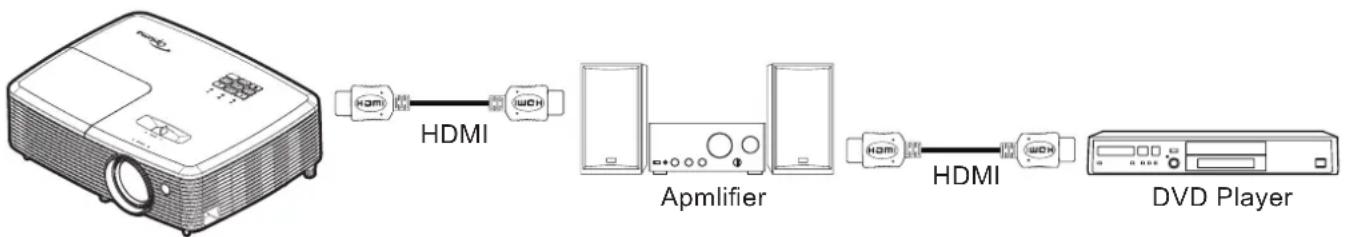

- When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector's OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature. In a typical configuration, your DVD player may be connected to the projector through an amplifier or home theater system.

HDMI Link

Enable/Disable the HDMI Link function. Support that power on control from player to projector and power off control from projector to player.

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).

Setup remote settings menu

IR Function

Set the IR function setting.

• On: Choose "On", the projector can be operated by the remote control from front or top IR receiver.
• Off: Choose "Off", the projector can't be operated by the remote control from front or top IR receiver. By selecting "Off", you will be able to use the Keypad keys.

User1/ User2/ User3

Assign the default function for User1, User2, or User3 between HDMI 2, test pattern, LAN, brightness, contrast, sleep timer, color matching, color temp, gamma, projection, lamp settings, zoom, freeze, and MHL.

USING THE PROJECTOR

Setup projector ID menu

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. The available options include "Off", "CC1", and "CC2".

Menu Settings

Set the menu location on the screen and configure menu timer settings.

• Menu Location: Select the menu location on the display screen.
• Menu Timer: Set the duration where the OSD menu stays visible on the screen.

Auto Source

If set to "On", the projector will automatically find the available input source.

Input Source

Select the input source between HDMI1, HDMI2/MHL, VGA, Video, Network Display, USB Display, and Multimedia.

Input Name

Use to rename the input function for easier identification. The available options include HDMI1, HDMI2/MHL, VGA, Video, Network Display, USB Display, and Multimedia.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Keypad Lock

When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad.

Information Hide

Enable this function to hide the information message.

• Off: Choose "On" to hide the info message.
• On: Choose "Off" to show the "searching" message.

Background Color

Use this function to display a blue, red, green, grey color, none, or logo screen when no signal is available.

USING THE PROJECTOR

Setup reset all menu

Reset OSD

Return the factory default settings for OSD menu settings.

Reset to Default

Return the factory default settings for all settings.

Network menu

Network WLAN menu

WLAN

Enable or disable WLAN function.

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

IP Address

Display the IP address.

SSID (Service Set Identifier)

Assign a network name for WLAN.

Connection Mode

Displays a connection mode.

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• On: Projector will obtain an IP address automatically from your network.
• Off: To assign IP, subnet mask, gateway, and DNS configuration manually.

Note: Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

USING THE PROJECTOR

DNS

Display the DNS number.

Reset

Reset the network parameters.

How to use web browser to control your projector

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector's IP address ("Network > LAN > IP Address").
3. Enter the user name and password, and click "Login". The projector's configuration web interface opens.

Note:

• The default user name and password is "admin".
• The steps in this section is based on Windows 7 operating system.

Making a direct connection from your computer to the projector\*

1. Turn "Off" the DHCP option on the projector.
2. Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network > LAN").

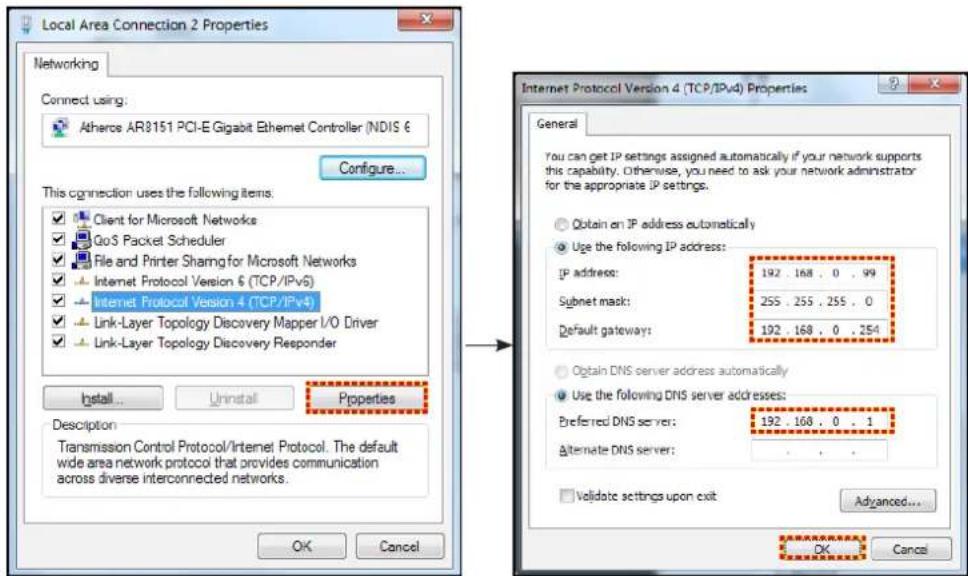

3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

1. Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3. Then press "Enter" key.

Reset

Reset all values for LAN parameters.

Network control menu

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

USING THE PROJECTOR

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

Setup network control settings menu

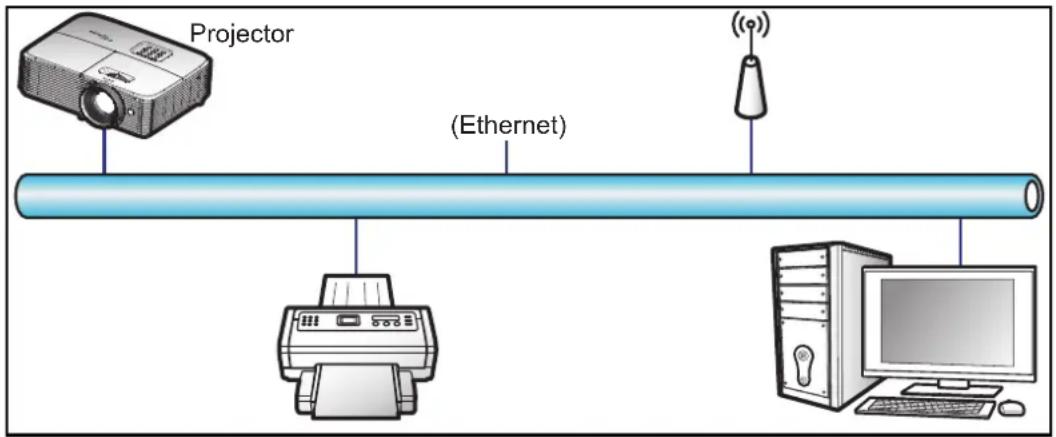

LAN\_RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.

- PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView ^® .

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX (Device Discovery).

http://www.amx.com/

USING THE PROJECTOR

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.

LAN RJ45

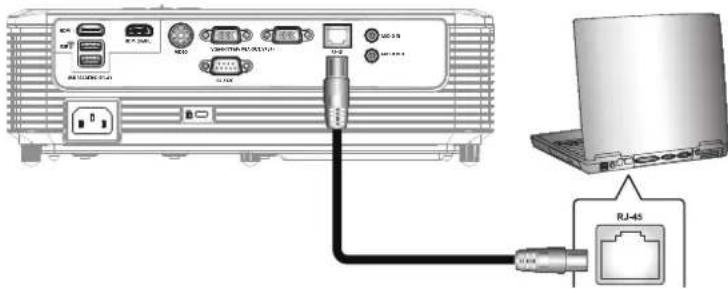

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

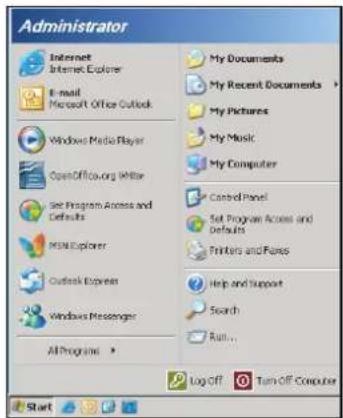

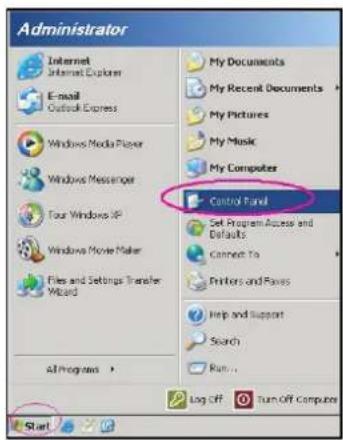

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

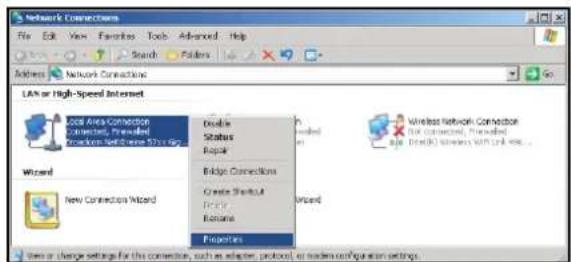

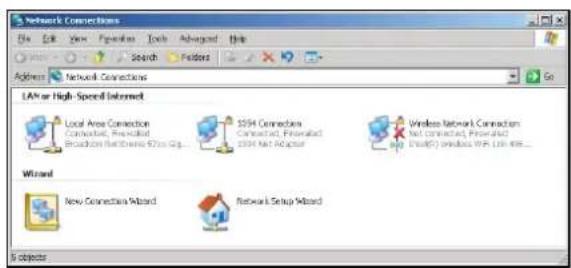

1. Right-click on the Local Area Connection, and select Property.

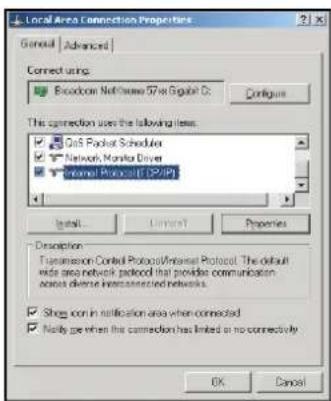

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

USING THE PROJECTOR

1. Click "Properties".

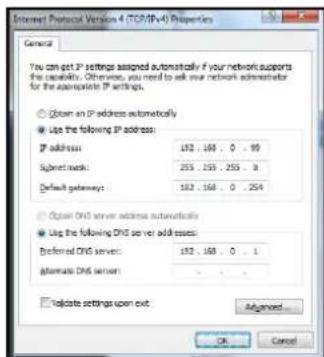

1. Type in the IP address and Subnet mask, then press "OK".

1. Press the "Menu" button on the projector.
2. Open on projector Network > LAN.

3. Enter the following connection parameters:

4. DHCP: Off

5. IP Address: 192.168.0.100
6. Subnet Mask: 255.255.255.0
7. Gateway: 192.168.0.254

8. DNS: 192.168.0.1

9. Press "Enter" to confirm settings.

10. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
11. In the Address bar, input the projector's IP address: 192.168.0.100.

1. Press "Enter".

USING THE PROJECTOR

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

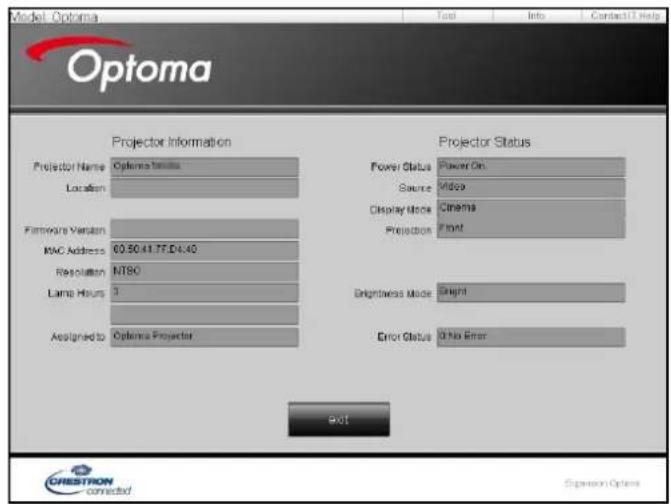

Information page

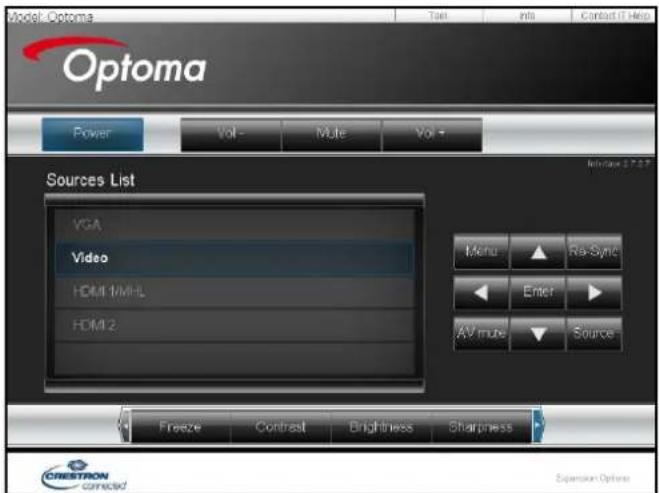

Main page

Tool page

Contact IT helpdesk

USING THE PROJECTOR

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN / RJ45 interface.

Quick Start-Guide for "RS232 by Telnet"

• Check and get the IP address on OSD of the projector.
• Make sure that the PC / laptop can access the web-page of the projector.

• Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function filtering out by PC / laptop.

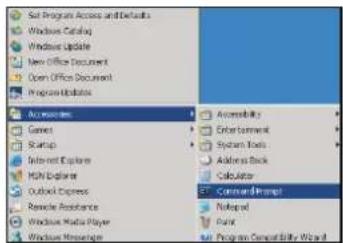

1. Select Start > All Programs.> Accessories > Command Prompt.

1. Input the command format as follows:

2. telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

3. (ttt.xxx.yyy.zzz: IP-Address of the projector)

4. If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

Specification for "RS232 by TELNET":

1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows "TELNET.exe" (console mode).
4. Disconnection for RS232-by-Telnet control normally: Close

5. Windows Telnet utility directly after TELNET connection ready.

6. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

7. Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.
8. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

USING THE PROJECTOR

Info menu

Info menu

View the projector information as listed below:

• Regulatory
• Serial Number
• Source
• Resolution
• Refresh Rate
• Display Mode
• Network Status
• Power mode(standby)
• Lamp Hours
• Network Status
• IP Address
• Projector ID
• Filter Usage Hours
• Brightness Mode
• FW Version

MAINTENANCE

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used to prevent any loose parts from falling out of projector.

Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

MAINTENANCE

Replacing the lamp (continued)

Procedure:

1. Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad.

2. Allow the projector to cool down for at least 30 minutes.

3. Disconnect the power cord.

4. Unscrew the screw on the cover. 1

5. Remove the cover. 2

6. Unscrew the screw on the lamp module. 3

7. Lift up the lamp handle. 4

8. Remove the lamp cord. 5

9. Remove the lamp module carefully. 6

10. To replace the lamp module, reverse the previous steps.

11. Turn on the projector and reset the lamp timer.

12. Lamp Reset: (i) Press "Menu" → (ii) Select "Setup" → (iii) Select "Lamp Settings" → (iv) Select "Lamp Reset" → (v) Select "Yes".

Note:

- The screw on the lamp cover and the lamp cannot be removed.

• The projector cannot be turned on if the lamp cover has not been placed back on the projector.

• Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

MAINTENANCE

Installing and cleaning the dust filter

Installing the dust filter

Illustration of a projector with internal components and a separate panel assembly (no text or symbols)

Note: Dust filters are only required/supplied in the selected regions with excessive dust.

Cleaning the dust filter

We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the " " button on the remote control or the projector keypad.
2. Disconnect the power cord.
3. Remove the dust filter carefully. 1
4. Clean or replace the dust filter. 2
5. To install the dust filter, reverse the previous steps.

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

B0/Established Timing	B0/Standard Timing	B0/Detail Timing B1/Video	Mode B1/Detail Timing
720x400 @ 70Hz SVGA: Native timing: 640x80p @ 60Hz 720x480p @ 60Hz
640x480 @ 60Hz 800x600 @ 120Hz XGA: 1024x768 @ 60Hz 720x480p @ 60Hz 1280x720p @ 60Hz
640x480 @ 67Hz 1024x768 @ 120Hz WXGA: 1280x800 @ 60Hz;1280x720 @ 60Hz			1280x720p @ 60Hz 1366x768 @ 60Hz
640x480 @ 72Hz 1280x800 @ 60Hz 1080P: 1920x1080 @ 60Hz 1920x1080i @ 60Hz 1920x1080i @ 50Hz
640x480 @ 75Hz	1280x1024 @ 60Hz		720(1440)x480i @ 60Hz	1920x1080p @ 60Hz
800x600 @ 56Hz 1680x1050 @ 60Hz 1920x1080p @ 60Hz
800x600 @ 60Hz 1280x720 @ 60Hz		720x576p @ 50Hz
800x600 @ 72Hz 1280x720 @ 120Hz 1280x720p @ 50Hz
800x600 @ 75Hz 1600x1200 @ 60Hz 1920x1080i @ 50Hz
832x624 @ 75Hz XGA/WXGA:		720(1440)x576i @ 50Hz
1024x768 @ 60Hz	1440x900 @ 60Hz		1920x1080p @ 50Hz
1024x768 @ 70Hz	1024x768 @ 120Hz 1920x1080p @ 24Hz
1024x768 @ 75Hz	1280x800 @ 60Hz		1920x1080p @ 30Hz
1280x1024 @ 75Hz	1280x1024 @ 60Hz
1152x870 @ 75Hz	1680x1050 @ 60Hz
	1280x720 @ 60Hz
	1280x720 @ 120Hz
	1600x1200 @ 60Hz
	1080P:
	1280x720 @ 60Hz
	1280x800 @ 60Hz
	1280x1024 @ 60Hz
	1400x1050 @ 60Hz
	1600x1200 @ 60Hz
	1440x900 @ 60Hz
	1280x720 @ 120Hz
	1024x768 @ 120Hz

Analog compatibility

B0/Established Timing	B0/Standard Timing	B0/Detail Timing	B1/Video Mode	B1/Detail Timing
720x400 @ 70Hz	SVGA:	Native timing:		1366x768 @ 60Hz
640x480 @ 60Hz	800x600 @ 120Hz	XGA: 1024x768 @ 60Hz
640x480 @ 67Hz	1024x768 @ 120Hz	WXGA: 1280x800 @ 60Hz; 1280x720 @ 60Hz
640x480 @ 72Hz	1280x800 @ 60Hz	1080P: 1920x1080 @ 60Hz
640x480 @ 75Hz	1280x1024 @ 60Hz
800x600 @ 56Hz	1680x1050 @ 60Hz
800x600 @ 60Hz	1280x720 @ 60Hz
800x600 @ 72Hz	1280x720 @ 120Hz
800x600 @ 75Hz	1600x1200 @ 60Hz
832x624 @ 75Hz	XGA/WXGA:
1024x768 @ 60Hz	1440x900 @ 60Hz

ADDITIONAL INFORMATION

B0/Established Timing	B0/Standard Timing	B0/Detail Timing B1/Video	Mode B1/Detail Timing
1024x768 @ 70Hz	1024x768 @ 120Hz
1024x768 @ 75Hz	1280x800 @ 60Hz
1280x1024 @ 75Hz	1280x1024 @ 60Hz
1152x870 @ 75Hz	1680x1050 @ 60Hz
	1280x720 @ 60Hz
	1280x720 @ 120Hz
	1600x1200 @ 60Hz
	1080P:
	1280x720 @ 60Hz
	1280x800 @ 60Hz
	1280x1024 @ 60Hz
	1400x1050 @ 60Hz
	1600x1200 @ 60Hz
	1440x900 @ 60Hz
	1280x720 @ 120Hz
	1024x768 @ 120Hz

True 3D video compatibility

Input resolutions	HDMI 1.4a 3D Input	Input timing
		1280x720P @ 50Hz Top - and - Bottom
		1280x720P @ 60Hz Top - and - Bottom
		1280x720P @ 50Hz Frame packing
		1280x720P @ 60Hz Frame packing
		1920x1080i @ 50 Hz Side- by-Side (Half)
		1920x1080i @ 60 Hz Side- by-Side (Half)
		1920x1080P @ 24 Hz Top - and- Bottom
		1920x1080P @ 24 Hz Frame packing
	HDMI 1.3	1920x1080i @ 50Hz	Side-by-Side(Half) SBS mode is on
		1920x1080i @ 60Hz
		1280x720P @ 50Hz
		1280x720P @ 60Hz
		800 x 600 @ 60Hz
		1024 x 768 @ 60Hz
		1280 x 800 @ 60Hz
		1920x1080i @ 50Hz	Top-and-Bottom TAB mode is on
		1920x1080i @ 60Hz
		1280x720P @ 50Hz
		1280x720P @ 60Hz
		800x600 @ 60Hz
		1024x768 @ 60Hz
		1280x800 @ 60Hz
		480i HQFS 3D format is Frame sequential

Note:

• If 3D input is 1080p@24hz, the DMD should replay with integral multiple with 3D mode.
• Support NVIDIA 3DTV Play if there is no patent fee from Optoma. 1080i@25hz and 720p@50hz will run in 100 Hz; other 3D timing will run in 120hz.
• 1080p@24hz will run in 144Hz.

ADDITIONAL INFORMATION

Image size and projection distance

(W365)

Diagonal length (inch) size of 16:9 Screen	Screen Size W x H Projection Distance (D)												Offset (HD)
	(m) (inch) (m) (inch)
	Width Height Width Height Wide Tele Wide Tele (m) (inch)
30 0.64	0.40	25.27	15.79	- 1.10	- 3.61	0.05	0.16
40 0.86	0.54	33.92	21.20	1.34	1.48	4.41	4.85	0.07	0.22
60 1.29	0.81	50.88	31.80	2.02	2.22	6.61	7.27	0.10	0.33
70 1.51	0.94	59.36	37.10	2.35	2.59	7.71	8.48	0.12	0.38
80 1.72	1.08	67.84	42.40	2.69	2.96	8.81	9.70	0.13	0.44
90 1.94	1.21	76.32	47.70	3.02	3.33	9.92	10.91	0.15	0.49
100 2.15	1.35	84.80	53.00	3.36	3.70	11.02	12.12	0.17	0.55
120 2.58	1.62	101.76		63.60	4.03	4.44	13.22	14.54	0.20	0.66
150 3.23	2.02	127.20		79.50	5.04	5.54	16.53	18.18	0.25	0.82
180 3.88	2.42	152.64		95.40	6.05	6.65	19.83	21.82	0.30	0.99
200 4.31	2.69	169.60	106.00	6.72	7.39	22.04	24.24	0.33	1.09
250 5.38	3.37	212.00	132.50	8.40	9.24	27.54	30.30	0.42	1.37
300.6	6.47	4.05	254.91	159.32		10.10	-	33.12	- 0.50	1.65

Note: Zoom ratio is 1:1.1x.

(X365)

Diagonal length (inch) size of 16:9 Screen	Screen Size W x H Projection Distance (D)											Offset (HD)
	(m) (inch) (m) (inch)
	Width Height Width Height Wide Tele Wide Tele (m) (inch)
27 0.56	0.42	21.87	16.40	-	1.20	-	3.93	0.06	2.46
40 0.81	0.61	32.00	24.00	1.58	1.76	5.17	5.76	0.09	3.60
50 1.02	0.76	40.00	30.00	1.97	2.19	6.46	7.20		0.11	4.50
60 1.22	0.91	48.00	36.00	2.37	2.63	7.76	8.64	0.14	5.40
70 1.42	1.07	56.00	42.00	2.76	3.07	9.05	10.07	0.16	6.30
80 1.63	1.22	64.00	48.00	3.15	3.51	10.34		11.51	0.18	7.20
90 1.83	1.37	72.00	54.00	3.55	3.95	11.63		12.95	0.21	8.10
100 2.03	1.52	80.00	60.00	3.94	4.39	12.93	14.39	0.23	9.00
120 2.44	1.83	96.00	72.00	4.73	5.27	15.51	17.27	0.27		10.80
150 3.05	2.29	120.00		90.00	5.91	6.58	19.39	21.59	0.34		13.50
180 3.66	2.74	144.00	108.00	7.10	7.90	23.27	25.91	0.41	16.20
200 4.06	3.05	160.00	120.00	7.88	8.78	25.85	28.78	0.46	18.00
250 5.08	3.81	200.00	150.00	9.86	10.97	32.32	35.98	0.57	22.50
304.5 6.19	4.64	243.60	182.70		12.00	-	39.36	-	0.70	27.41

Note: Zoom ratio is 1:1.1x.

ADDITIONAL INFORMATION

(S365)

Diagonal length (inch) size of 16:9 Screen	Screen Size W x H Projection Distance (D)										Offset (HD)
	(m) (inch) (m) (inch)
	Width Height Width Height Wide Tele Wide Tele (m) (inch)
27 0.55	0.41	21.60	16.20	- 1.19	- 3.89	0.06	0.20
40 0.81	0.61	32.00	24.00	1.58	1.76	5.17	5.76	0.09	0.30
50 1.02	0.76	40.00	30.00	1.97	2.19	6.46	7.20	0.11	0.37
60 1.22	0.91	48.00	36.00	2.37	2.63	7.76	8.64	0.14	0.45
70 1.42	1.07	56.00	42.00	2.76	3.07	9.05	10.07	0.16	0.52
80 1.63	1.22	64.00	48.00	3.15	3.51	10.34	11.51		0.18	0.60
90 1.83	1.37	72.00	54.00	3.55	3.95		11.63	12.95	0.21	0.67
100		2.03	1.52	80.00	60.00	3.94	4.39	12.93	14.39	0.23	0.75
120		2.44	1.83	96.00	72.00	4.73	5.27	15.51	17.27	0.27	0.90
150		3.05	2.29	120.00		90.00	5.91	6.58	19.39	21.59	0.34	1.12
180		3.66	2.74	144.00	108.00	7.10	7.90	23.27	25.91	0.41	1.35
200		4.06	3.05	160.00	120.00	7.88	8.78	25.85	28.78	0.46	1.50
250		5.08	3.81	200.00	150.00	9.86	10.97	32.32	35.98	0.57	1.87
304.5	6.19	4.64	243.60	182.70		12.00	-	39.36	-	0.70	2.28

Note: Zoom ratio is 1:1.1x.

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

- Screw type: M4*3

• Minimum screw length: 10mm

Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
- Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
- Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

RS232 protocol function list

Baud Rate : 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None

UART16550 FIFO: Disable

Projector Return (Pass): P

Projector Return (Fail): F

XX=01-99, projector's ID, XX=00 is for all projectors

Note: There is a after all ASCII commands 0D is the HEX code for in ASCII code.

SEND to projector
232 ASCII Code	HEX Code Function Description
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)
~XX00 1 7E 30 30 30 30 20 31 20 a 0D	Power ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30)
~nnnn		~9999 (a=7E 39 39 39 39)
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute	On
~XX02 0 7E 30 30 30 32 20 30 0D		Off (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute	On
~XX03 0 7E 30 30 30 33 20 30 0D		Off (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze	(0/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI
~XX12 15 7E 30 30 31 32 20 31 35 0D	Direct Source Commands HDMI 2
~XX12 5 7E 30 30 31 32 20 35 0D	VGA
~XX12 10 7E 30 30 31 32 20 31 30 0D		Video
~XX12 18 7E 30 30 31 32 20 31 38 0D		Network Display(Presenter)
~XX12 19 7E 30 30 31 32 20 31 39 0D		USB display
~XX12 23 7E 30 30 31 32 20 32 33 0D		Multimedia
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode	Presentation
~XX20 2 7E 30 30 32 30 20 32 0D	Bright
~XX20 3 7E 30 30 32 30 20 33 0D	Cinema
~XX20 12 7E 30 30 32 30 20 31 32 0D	Display Mode	Game
~XX20 4 7E 30 30 32 30 20 34 0D	sRGB
~XX20 13 7E 30 30 32 30 20 31 33 0D	Display Mode	DICOM SIM.
~XX20 5 7E 30 30 32 30 20 35 0D	User
~XX20 9 7E 30 30 32 30 20 39 0D	3D
~XX506 0 & 2 7E 30 30 35 30 36 20 30 0D	Wall Colorlens	Off
~XX506 1 7E 30 30 35 30 36 20 31 0D	Wall Color	Blackboard
~XX506 7 7E 30 30 35 30 36 20 37 0D	Wall Color	Light Yellow
~XX506 3 7E 30 30 35 30 36 20 33 0D	Wall Color	Light Green
~XX506 4 7E 30 30 35 30 36 20 34 0D	Wall Color	Light Blue
~XX506 5 7E 30 30 35 30 36 20 35 0D	Wall Color	Pink
~XX506 6 7E 30 30 35 30 36 20 36 0D	Wall Color	Gray
~XX21 n 7E 30 30 32 31 20 a 0D Brightness	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n 7E 30 30 32 32 20 a 0D Contrast	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness	n = 1 (a=31) ~ 15 (a=31 35)
~XX45 n 7E 30 30 34 34 20 a 0D	Color (Saturation)	n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n 7E 30 30 34 35 20 a 0D	Tint	n = -50 (a=2D 35 30) ~ 50 (a=35 30))
~XX35 1 7E 30 30 33 35 20 31 0D Gamma	Film
~XX35 2 7E 30 30 33 35 20 32 0D Gamma	Video
~XX35 3 7E 30 30 33 35 20 33 0D Gamma	Graphics
~XX35 4 7E 30 30 33 35 20 34 0D Gamma	Standard
~XX35 5 7E 30 30 33 35 20 35 0D Gamma	1.8
~XX35 6 7E 30 30 33 35 20 36 0D Gamma	2
~XX35 12 7E 30 30 33 35 20 31 31 0D	Gamma	2.4
~XX34 n 7E 30 30 33 34 20 a 0D	BrilliantColor	TM	n = 1 (a=30) ~ 10 (a=31 30)

ADDITIONAL INFORMATION

SEND to projector

232 ASCII Code	HEX Code Function Description
~XX36 4 7E 30 30 33 36 20 34 0D Color Temp. Warm
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Medium
~XX36 2 7E 30 30 33 36 20 32 0D Color Temp. Cool
~XX327 n 7E 30 30 33 32 37 20 a 0D Color Matching Red Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX328 n 7E 30 30 33 32 38 20 a 0D Color Matching Green Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX329 n 7E 30 30 33 32 39 20 a 0D Color Matching Blue Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX330 n 7E 30 30 33 33 30 20 a 0D Color Matching Cyan Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX331 n 7E 30 30 33 33 31 20 a 0D Color Matching Yellow Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX332 n 7E 30 30 33 33 32 20 a 0D Color Matching Magenta Hue n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX333 n 7E 30 30 33 33 33 20 a 0D Color Matching Red Stutation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX334 n 7E 30 30 33 33 34 20 a 0D Color Matching Green Stutation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX335 n 7E 30 30 33 33 35 20 a 0D Color Matching Blue Stutation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX336 n 7E 30 30 33 33 36 20 a 0D Color Matching Cyan Stutation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX337 n 7E 30 30 33 33 37 20 a 0D Color Matching Yellow Stutation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX338 n 7E 30 30 33 33 38 20 a 0D Color Matching Magenta Stutation n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX339 n 7E 30 30 33 33 39 20 a 0D Color Matching Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX340 n 7E 30 30 33 34 30 20 a 0D Color Matching Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX341 n 7E 30 30 33 34 31 20 a 0D Color Matching Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX342 n 7E 30 30 33 34 32 20 a 0D Color Matching Cyan Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX343 n 7E 30 30 33 34 33 20 a 0D Color Matching Yellow Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX344 n 7E 30 30 33 34 34 20 a 0D Color Matching Magenta Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX345 n 7E 30 30 33 34 35 20 a 0D Color Matching White /R n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX346 n 7E 30 30 33 34 36 20 a 0D Color Matching White /G n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX347 n 7E 30 30 33 34 37 20 a 0D Color Matching White /B n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX215 1 7E 30 30 32 31 35 20 31 0D Color Matching Reset
~XX24 n 7E 30 30 32 34 20 a 0D RGB Gain/Bias Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n 7E 30 30 32 35 20 a 0D RGB Gain/Bias Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n 7E 30 30 32 36 20 a 0D RGB Gain/Bias Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n 7E 30 30 32 37 20 a 0D RGB Gain/Bias Red Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n 7E 30 30 32 38 20 a 0D RGB Gain/Bias Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n 7E 30 30 32 39 20 a 0D RGB Gain/Bias Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX517 1 7E 30 30 35 31 37 20 31 0D RGB Gain/Bias Reset Reset
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto
~XX37 2 7E 30 30 33 37 20 32 0D RGB\RGB(0-255)
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX37 4 7E 30 30 33 37 20 34 0D RGB(16 - 235)
~XX200 n 7E 30 30 32 30 30 20 a 0D White level n = 0 (a=30) ~ 31 (a=33 31)
~XX201 n 7E 30 30 32 30 31 20 a 0D Black level n = -5 (a=2D 35) ~ 5 (a=35)
~XX204 1 7E 30 30 32 30 34 20 31 0D IRE
~XX204 0 7E 30 30 32 30 34 20 30 0D 7.5 IRE
~XX91 1 7E 30 30 39 31 20 31 0D Signal Automatic On
~XX91 0 7E 30 30 39 31 20 30 0D Signal Automatic Off
~XX73 n 7E 30 30 37 33 20 a 0D Signal Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX74 n 7E 30 30 37 34 20 a 0D Signal Phase n = 0 (a=30) ~ 63 (a=36 33) By signal
~XX75 n 7E 30 30 37 35 20 a 0D Signal H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n 7E 30 30 37 36 20 a 0D Signal V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright
~XX110 2 7E 30 30 31 31 30 20 32 0D Eco
~XX110 3 7E 30 30 31 31 30 20 33 0D Eco+
~XX110 4 7E 30 30 31 31 30 20 34 0D Dynamic
~XX509 1 7E 30 30 35 30 39 20 31 0D Image Settings Reset n=1 Reset
~XX230 0 7E 30 30 32 33 30 20 30 0D 3D Mode OFF
~XX230 1 7E 30 30 32 33 30 20 31 0D 3D Mode DLP-Link
~XX230 3 7E 30 30 32 33 30 20 33 0D 3D Mode IR
~XX400 0 7E 30 30 34 30 30 20 30 0D 3D->2D 3D
~XX400 1 7E 30 30 34 30 30 20 31 0D L
~XX400 2 7E 30 30 34 30 30 20 32 0D R
~XX405 0 7E 30 30 34 30 35 20 30 0D 3D Format Auto

ADDITIONAL INFORMATION

SEND to projector

232 ASCII Code	HEX Code Function Description
~XX405 1 7E 30 30 34 30 35 20 31 0D SBS
~XX405 2 7E 30 30 34 30 35 20 32 0D Top and Bottom
~XX405 3 7E 30 30 34 30 35 20 33 0D Frame sequential
~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert Off
~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert On
~XX60 1 7E 30 30 36 30 20 31 0D Aspect Ratio 4:3
~XX60 2 7E 30 30 36 30 20 32 0D 16:9
~XX60 3 7E 30 30 36 30 20 33 0D 16:10(WXGA/ WUXGA)
~XX60 5 7E 30 30 36 30 20 35 0D LBX [except for SVGA XGA models]
~XX60 6 7E 30 30 36 30 20 36 0D Native
~XX60 7 7E 30 30 36 30 20 37 0D Auto
~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n 7E 30 30 36 32 20 a 0D Zoom	n = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift	n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift	n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone	n = -20 (a=2D 32 30) ~ 20 (a=32 30)
~XX65 n 7E 30 30 36 35 20 a 0D H Keystone	n = -20 (a=2D 32 30) ~ 20 (a=32 30)
~XX69 1 7E 30 30 36 39 20 31 0D Auto Keystone	On
~XX69 0 7E 30 30 36 39 20 30 0D Auto Keystone	Off
~XX59 1 7E 30 30 35 39 20 31 0D Four corners (Top-Left)	Right+
~XX59 2 7E 30 30 35 39 20 32 0D Left+
~XX59 3 7E 30 30 35 39 20 33 0D Up+
~XX59 4 7E 30 30 35 39 20 34 0D Down+
~XX59 5 7E 30 30 35 39 20 35 0D (Top-Right)	Right+
~XX59 6 7E 30 30 35 39 20 36 0D Left+
~XX59 7 7E 30 30 35 39 20 37 0D Up+
~XX59 8 7E 30 30 35 39 20 38 0D Down+
~XX59 9 7E 30 30 35 39 20 39 0D (Bottom-Left)	Right+
~XX59 10 7E 30 30 35 39 20 31 30 0D Left+
~XX59 11 7E 30 30 35 39 20 31 31 0D Up+
~XX59 12 7E 30 30 35 39 20 31 32 0D Down+
~XX59 13 7E 30 30 35 39 20 31 33 0D (Bottom-Right)	Right+
~XX59 14 7E 30 30 35 39 20 31 34 0D Left+
~XX59 15 7E 30 30 35 39 20 31 35 0D Up+
~XX59 16 7E 30 30 35 39 20 31 36 0D Down+
~XX516 7E 30 30 35 31 36 20 0D Four corners reset	Reset
~XX71 1 7E 30 30 37 31 20 31 0D Projection	Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
(WXGA/ WUXGA only)
~XX90 1 7E 30 30 39 31 20 31 0D Screen Type	16:10
~XX90 0 7E 30 30 39 31 20 30 0D 16:9
~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder	On
~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible)
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset	Yes
~XX320 1 7E 30 30 33 32 30 20 31 0D Optional Filter Installed	Yes
~XX320 0 7E 30 30 33 32 30 20 30 0D No (0/2 for backward compatible)
~XX322 0 7E 30 30 33 32 32 20 30 0D Filter Reminder	Off
~XX322 1 7E 30 30 33 32 32 20 31 0D Filter Reminder	300 hr
~XX322 2 7E 30 30 33 32 32 20 32 0D Filter Reminder	500 hr
~XX322 3 7E 30 30 33 32 32 20 33 0D Filter Reminder	800 hr
~XX322 4 7E 30 30 33 32 32 20 34 0D Filter Reminder	1000 hr
~XX323 1 7E 30 30 33 32 33 20 31 0D Filter Reset	Yes
~XX105 1 7E 30 30 31 30 35 20 31 0D Direct Power On	On
~XX105 0 7E 30 30 31 30 35 20 30 0D Direct Power On	Off (0/2 for backward compatible)
~XX113 1 7E 30 30 31 31 33 20 31 0D Signal Power On On
~XX113 0 7E 30 30 31 31 33 20 30 0D Signal Power On Off (0/2 for backward compatible)

ADDITIONAL INFORMATION

SEND to projector

232 ASCII Code	HEX Code Function Description
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) "n = 0 (a=30) ~ 180 (a=31 38 30)(5 minutes for each step)."
~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) "n = 0 (a=30) ~ 990 (a=39 39 30)(30 minutes for each step)."
~XX507 0 7E 30 30 35 30 37 20 30 0D Sleep Timer Repeat Off (0/2 for backward compatible)
~XX507 1 7E 30 30 35 30 37 20 31 0D Sleep Timer Repeat On
~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On
~XX115 0 7E 30 30 31 31 35 20 30 0D Quick Resume Off (0/2 for backward compatible)
~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode ( Standby) Active
~XX114 0 7E 30 30 31 31 34 20 30 0D Power Mode ( Standby) Eco. (<0.5W)
~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh
			mm= 00 (aa=30 30) ~ 12 (aa=31 32)dd = 00 (bb=30 30) ~ 30 (bb=33 30)hh= 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1	7E 30 30 37 38 20 31 0D	Security On
~nnnn
~XX78 0	7E 30 30 37 38 20 32 20 a 0D	Off(0/2 for backward compatible)~nnnn = ~0000 (a=7E 30 30 30 30)~9999 (a=7E 39 39 39 39)
~nnnn
~XX511 0 7E 30 30 35 31 31 20 30 0D HDMI Link n=0 & 2 Off
~XX511 1 7E 30 30 35 31 31 20 31 0D HDMI Link n=1 On
~XX195 0	7E 30 30 31 39 35 20 30 0D Test Pattern Off
~XX195 1 7E 30 30 31 39 35 20 31 0D Test Pattern Grid (White)
~XX195 2	7E 30 30 31 39 35 20 32 0D Test Pattern White
~XX195 3 7E 30 30 31 39 35 20 33 0D Test Pattern Grid(Green)
~XX195 4 7E 30 30 31 39 35 20 34 0D Test Pattern Grid (Magenta)
~XX11 0	7E 30 30 31 31 20 30 0D IR Function Off
~XX11 1	7E 30 30 31 31 20 31 0D On
~XX79 n	7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)
~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish
~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi
~XX70 25 7E 30 30 37 30 20 32 35 0D Vietnamese
~XX70 26 7E 30 30 37 30 20 32 36 0D Indonesian
~XX70 27 7E 30 30 37 30 20 32 37 0D Romanian
~XX70 28 7E 30 30 37 30 20 32 38 0D Slovakian
~XX88 0	7E 30 30 38 38 20 30 0D Closed Captioning Off
~XX88 1 7E 30 30 38 38 20 31 0D cc1
~XX88 2 7E 30 30 38 38 20 32 0D cc2

ADDITIONAL INFORMATION

SEND to projector
232 ASCII Code	HEX Code Function Description
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
~XX515 0 7E 30 30 35 31 35 20 30 0D Menu Timer n=0 & 2 Off
~XX515 1 7E 30 30 35 31 35 20 31 0D Menu Timer n=1 5sec
~XX515 3 7E 30 30 35 31 35 20 32 0D Menu Timer n=3 & 10sec
~XX518 2	7E 30 30 35 31 38 20 32 20 a	Input Name HDMI2 (a= 7E +nnnnnnnnnn)
~nnnnnnnnnnn	0D
~XX518 5	7E 30 30 35 31 38 20 35 20 a	Input Name HDMI1/MHL (a= 7E +nnnnnnnnnnn)
~nnnnnnnnnnn	0D
~XX518 8	7E 30 30 35 31 38 20 38 20 a	Input Name VGA (a= 7E +nnnnnnnnnnn)
~nnnnnnnnnnn	0D
~XX518 13	7E 30 30 35 31 38 20 31 33 20	Input Name Video (a= 7E +nnnnnnnnnnn)
~nnnnnnnnnnn	a 0D
~XX519 1 7E 30 30 35 31 39 20 31 0D Input Name Reset Reset all input name to default
~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On
~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)
~XX348 1 7E 30 30 33 34 38 20 31 0D Display Mode Lock On
~XX348 0 7E 30 30 33 34 38 20 30 0D Display Mode Lock Off
~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock	On
~XX103 0 7E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)
~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide	On
~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)
~XX104 0 7E 30 30 31 30 34 20 30 0D Background Color	None
~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color	Blue
~XX104 3 7E 30 30 31 30 34 20 33 0D Background Color	Red
~XX104 4 7E 30 30 31 30 34 20 34 0D Background Color	Green
~XX104 6 7E 30 30 31 30 34 20 36 0D Background Color	Gray
~XX104 7 7E 30 30 31 30 34 20 37 0D Background Color	Logo
~XX80 1 7E 30 30 38 30 20 31 0D Mute	On
~XX80 0 7E 30 30 38 30 20 30 0D Off (0/2 for backward compatible)
~XX81 n 7E 30 30 38 31 20 a 0D	Volume(Audio) n = 0 (a=30) ~ 10 (a=31 30)
~XX454 0 7E 30 30 34 35 34 20 30 0D Crestron	Off
~XX454 1 7E 30 30 34 35 34 20 31 0D On
~XX455 0 7E 30 30 34 35 35 20 30 0D Extron	Off
~XX455 1 7E 30 30 34 35 35 20 31 0D On
~XX456 0 7E 30 30 34 35 36 20 30 0D PJLink	Off
~XX456 1 7E 30 30 34 35 36 20 31 0D On
~XX457 0 7E 30 30 34 35 37 20 30 0D AMX Device Discovery	Off
~XX457 1 7E 30 30 34 35 37 20 31 0D On
~XX458 0	7E 30 30 34 35 38 20 30 0D	Telnet
~XX458 1 7E 30 30 34 35 38 20 31 0D On
~XX459 0	7E 30 30 34 35 38 20 30 0D	HTTP
~XX459 1 7E 30 30 34 35 38 20 31 0D On
~XX313 1 7E 30 30 33 31 33 20 31 0D Information menu	On
~XX313 0 7E 30 30 33 31 33 20 30 0D Information menu	Off (0/2 for backward compatible)
~XX112 1	7E 30 30 31 31 32 20 31 0D	Reset to Default
~XX112 1	7E 30 30 31 31 32 20 31 0D Reset to Default	Yes (P.S When security is off)
~nnnn		Yes (P.S When security is On/ Off)
~XX546 1 7E 30 30 35 34 36 20 31 0D Reset OSD
~XX210 n 7E 30 30 32 30 30 20 n 0D	Display message on the OSD	n: 1-30 characters
SEND to emulate Remote
232 ASCII Code	HEX Code Function Description
~XX140 10	7E 30 30 31 34 30 20 31 30 0D	Up
~XX140 11	7E 30 30 31 34 30 20 31 31 0D	Left

ADDITIONAL INFORMATION

SEND to emulate Remote
232 ASCII Code	HEX Code Function Description
~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU)
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right
~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down
~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone -
~XX140 17 7E 30 30 31 34 30 20 31 37 0D Volume -
~XX140 18 7E 30 30 31 34 30 20 31 38 0D Volume +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness
~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu
~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom
~XX140 28 7E 30 30 31 34 30 20 32 38 0D Contrast
~XX140 47 7E 30 30 31 34 30 20 34 37 0D Source
SEND from projector automatically
232 ASCII Code	HEX Code Function	Projector Return	Description
when Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out		INFOn n : 0/1/2/3/4/6/7/8 =n: Standby/Warming/Cooling/Out of Range/Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out
READ from projector
232 ASCII Code	HEX Code Function	Projector Return	Description
~XX87 1 7E 30 30 38 37 20 31 0D LAN Settings /Network State		(Read only)
~XX87 3 7E 30 30 38 37 20 33 0D LAN Settings /IP Address (Read only)
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands Oka a = 0 None			a = 2 VGAa = 5 Videoa = 7 HDMI1a = 8 HDMI2a = 13 Network Displaya = 14 USB Displaya = 17 Multimedia
~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKddd		dddd: FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode	Oka a = 0 None		a = 1 Presentationa = 2 Brighta = 3 Cinemaa = 4 sRGBa = 5 User (1)a = 9 3Da = 10 DICOM SIM.a = 12 Gamen : 0/1 = Off/On
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State		OKn
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness	OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast	OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio	Okaa	aa = 2 16:9	aa=3 16:10 [WXGA WUXGA models]aa=5 LBX [except for SVGA XGA models]aa=6 Nativeaa=7 Auto
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature	Oka a=0 Medium		a=1 D50/Coola=3 D70/Warm
READ from projector
232 ASCII Code	HEX Code Function	Projector Return	Description
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n = 0 Front-Desktop
			n = 1 Rear-Desktop
			n = 2 Front-Ceiling
			n = 3 Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 1D Information Okabbbbbbcc	ddddee	a : Power Status	a=0 Power Off
		b = Lamp Hour	a=1 Power On"
		bbbb Lamp Hour	c = Input Source
		cc=00 None	cc=02 VGA1
		cc=05 Video	cc=07 HDMI1
		cc=08 HDMI2	cc=12 Network Display(Presenter)
		cc=13 USB Display	cc=17 Multimedia
		d = Firmware Version	dddd Firmware Version"
		e = Display mode	ee=00 None
		ee=01 Presentation	ee=02 Bright
		ee=03 Cinema	ee=04 sRGB
		ee=05 User(1)	ee=09 3D
		ee=10 DICOM SIM.	ee=12 Game
~XX150 4 7E 30 30 31 35 30 20 34 0D Resolution Oka a = string (e.g. Ok1920x1080)
~XX150 16 7E 30 30 31 35 30 20 31 36 0D Standby Power Mode Oka a=1 Active
			a=0 Eco.
~XX150 19 7E 30 30 31 35 30 20 31 39 0D Refresh rate Oka a = string (Refresh rate e.g. Ok60Hz)
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKa a=1 SVGA
			a=2 XGA
			a=3 WXGA
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours Okbbbb bbbb: LampHour
~XX321 1 7E 30 30 33 32 31 20 31 0D Filter Usage Hours OKbbb	bbbb: Filter Usage Hours
~XX352 1 7E 30 30 33 35 32 20 31 0D System Temperature	Okaaaa	aaa=000~999
~XX353 1 7E 30 30 33 35 33 20 31 0D Serial number	Okaaaaaaaaaaaa	serial number string
	aaaaa
~XX354 1 7E 30 30 33 35 34 20 31 0D Closed Captioning	Oka a = 0 Off
		a = 1 CC1
		a = 2 CC2"
~XX355 1 7E 30 30 33 35 35 20 31 0D AV Mute	Oka a = 0 Off
		a = 1 On
~XX356 1 7E 30 30 33 35 36 20 31 0D Mute	Oka a = 0 Off
		a = 1 On
~XX357 1 7E 30 30 33 35 37 20 31 0D LAN FW version	Okeeeee	eeee = Software Version
~XX543 1 7E 30 30 35 34 33 20 31 0D H ImageShift	Oka a=nnnn
~XX543 2 7E 30 30 35 34 33 20 32 0D V Image Shift	Oka a=nnnn
~XX543 3 7E 30 30 35 34 33 20 33 0D V Keystone Oka a=nnn
~XX558 1 7E 30 30 35 35 38 20 31 0D Projector ID Oka a=nn

ADDITIONAL INFORMATION

Note:

• \~xx112 1 \~nnnn (nnnn = password) When security is on, you need to add password after command or it will return F.
• When the projector show other OSD, user key the command “\~XX313 0 7E 30 30 33 31 33 20 30 0D Information menu Off (0/2 for backward compatible)” then it will return F.

ADDITIONAL INFORMATION

IR remote codes

Key		Repeat Format	Address Data				Printing-key definition	Description
			Byte 1	Byte 2 Byte	3 Byte 4
Power F1 32 CD 81	7E Power on/off							Press to turn on / off the projector.
Switch F1 32 CD 3E Switch								Press to switch the USB mouse on / off.
Display blank / Audio mute		F1 32	CD 8A	75				Press to hide / unhide the screen picture and turn off / on audio.
Freeze		F1 32	CD 8B	74 Freeze				Press to freeze the projector image.
Mute		F1 32	CD 92	6D				Press to momentarily turn off / on the audio.
Mouse left click	L	F1	32	CD	CB	34	L	Use as mouse left click.
Mouse right click	R	F1	32	CD	CC	33	R	Use as mouse right click.
Four directional select keys		F2 32	CD C6	39	Up arrow			Use ▲ ▼ ▶ ▶ to select items or make adjustments to your selection.
		F2 32	CD C8	37	Left arrow
		F2 32	CD C9	36	Right arrow
		F2 32	CD C7	38	Down arrow
Enter		F1	32	CD	C5/CA	3A/35	Enter	Confirm your item selection.
Page -		F2	32	CD	C2	3D	Page-	Press to page down.
Laser		-	-	-	-	-	Laser	Use as laser pointer.
Page +		F2	32	CD	C1	3E	Page+	Press to page up.

ADDITIONAL INFORMATION

Key		Repeat Format	Address Data				Printing-key definition	Description
			Byte 1	Byte 2 Byte	3 Byte 4
Keystone	- +	F2 32	CD 85 7A	Keystone+				Press to adjust image distortion caused by tilting the projector.
		F2 32	CD 84 7B	Keystone-
Volume	- +	F2 32	CD 8C 73	Volume +				Press to adjust to increase / decrease the volume.
		F2 32	CD 8F 70	Volume -
Aspect ratio / 1 F1	32	67					/1	• Press to change aspect ratio of a displayed image. • Use as numeric keypad number "1".
Menu / 2		F1 32	CD 88 77	Menu/2				• Press to display or exit the on-screen display menus for projector. • Use as numeric keypad number "2".
3D / 3		F1 32	CD 93 6C	3D/3				• Press to manually select a 3D mode that matches your 3D content. • Use as numeric keypad number "3".
HDMI / 4		F1 32	CD 86 79	HDMI/4				• Press to choose HDMI source. • Use as numeric keypad number "4".
VGA / 5		F1 32	CD D0 2F	VGA/5				• Press to choose VGA source. • Use as numeric keypad number "5".
Video / 6		F1 32	CD D1 2E	Video/6				• Press to choose composite video source. • Use as numeric keypad number "6".
User1 / 7; User2 / 8; User3 / 9		F1	32	CD	D2	2D	User 1/7	• User defined keys. Please see page 40. • Use as numeric keypad numbers "7", "8", and "9" accordingly.
		F1 32	CD D3 2C	User 2/8
		F1 32	CD D4 2B	User 3/9
Source		F1 32	CD C3 3C	Source				Press to select an input signal.
Brightness mode / 0	###	F1 32	CD 96 69				/0	• Press to automatically adjust the picture brightness to give an optimum contrast performance. • Use as numeric keypad number "0".
Re-sync		F1 32	CD C4 3B	Re-Sync				Press to automatically syn- chronize the projector to the input source.

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

?

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp" section.

?

Image is out of focus

- Adjust the focus ring on the projector lens.

• Make sure the projection screen is between the required distance from the projector. (Please refer to pages 55-56).

?

The image is stretched when displaying 16:9 DVD title

• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format on projector side.
• If you play the LBX format DVD title, please change the format as LBX in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

?

Image is too small or too large

- Adjust the zoom lever on the top of the projector.

- Move the projector closer to or further from the screen.

- Press "Menu" on the projector panel, go to "Display >Aspect Ratio". Try the different settings.

?

Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.
- Use "Display > Geometric Correction > H Keystone or V Keystone" from the OSD to make an adjustment.

?

Image is reversed

- Select "Setup > Projection" from the OSD and adjust the projection direction.

?

Blurry double image

- Press "3D" button and switch to "Off" to avoid normal 2D image is blurry double image.

ADDITIONAL INFORMATION

Two images, side-by-side format

- Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side.

? Image does not display in 3D

- Check if the battery of 3D glasses is drained.

- Check if the 3D glasses is turned on.

- When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D" button and switch to "SBS".

Other problems

The projector stops responding to all controls

• If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

Lamp burns out or makes a popping sound

- When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the "Replacing the Lamp" section on pages 50-51.

Remote control problems

If the remote control does not work

- Check the operating angle of the remote control is pointed within ± 10^ to the IR receiver on the projector.

• Make sure there are not any obstructions between the remote control and the projector. Move to within 6 m (20 ft) of the projector.

- Make sure batteries are inserted correctly.

- Replace batteries if they are exhausted.

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

• "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red.

- "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.

• "TEMP" LED indicator flashes red and if "On/Standby" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or

ADDITIONAL INFORMATION

flash, please contact your nearest service center for assistance.

LED lightning messages

Message	Power LED Power LED		Temp-LED	Lamp-LED
	(Red) (Green or Blue) (Red) (Red)
Standby state (Input power cord)	Steady light
Power on (Warming)		Flashing(0.5 sec off /0.5 sec on)
Power on and Lamp lighting		Steady light
Power off (Cooling)		Flashing(0.5 sec off /0.5 sec light). Back to red steady light when cooling fan turns off.
Quick Resume (100 secs)		Flashing(0.25 sec off /0.25 sec light)
Error (Lamp fail) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over Temp) Flashing Steady light
Standby State (Burn in mode)	Flashing(0.5 sec off /0.5 sec on)	Flashing(0.5 sec off /0.5 sec on)	Flashing(0.5 sec off /0.5 sec on)	Flashing(0.5 sec off /0.5 sec on)
Burnin (Warming) Flashing
Burnin (Cooling) Flashing
Power On(Burn in Mode)	Flashing1 sec off3 sec light	Flashing1 sec off3 sec light	Flashing1 sec off3 sec light	Flashing1 sec off3 sec light

- Power off:

- Lamp warning:

ADDITIONAL INFORMATION

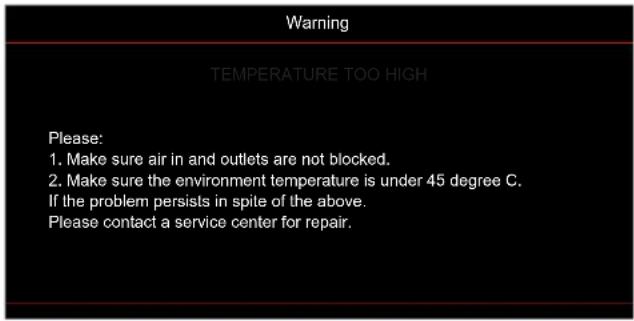

• Temperature warning:

- Fan failed:

- Out of display range:

- Power down warning:

- Security timer alarm:

ADDITIONAL INFORMATION

Specifications

Optical Description
Maximum resolution UXGA, 1600x1200, 60Hz WUXGA for WXGA 16:10
Native resolution SVGA/XGA/WXGA
Lens - Manual zoom and manual focus
Lamp life	- Bright Mode (Normal Mode) 5000 Hours Standard @190W, 50% Survival Rate- STD Mode (ECO Mode) 6000 Hours Typical @160W, 50% Survival Rate- Dynamic mode 6500 Hours- DE Mode in education cycle 10000 Hours
Image size (diagonal)	SVGA/XGA: 27.34" ~ 304.5"WXGA: 29.8" ~ 300.6"
Projection distance	SVGA/XGA: 1.2m ~ 12.0m (focus range)WXGA: 1.1m ~ 10.1m (focus range)

Electrical Description
Inputs	- HDMI 1.4a- HDMI 1.4a + MHL (v2.2)- VGA-IN- Audio 3.5mm
Outputs	- VGA- Audio 3.5mm- USB-A power
Control	- RJ45- RS232- USB mouse / service
Color reproduction 1073.4 Million color
Scan rate	- Horizontal scan rate: 15.375~91.146 KHz- Vertical scan rate: 24~85 Hz (120Hz for 3D feature projector)
Built-in speaker Yes, 15W
Power requirement 100 - 240V AC 50/60Hz
Input current 2.5-1.0 A

Mechanical Description
Installation orientation Front,	Rear, Ceiling - top, Rear - top
Dimensions	- 298 mm (W) x 230 mm (D) x 83 mm (H) (without feet)- 298 mm (W) x 230 mm (D) x 96.5 mm (H) (with feet)
Weight - 2.5 ± 0.5 kg
Environmental conditions Operating in 5 ~ 40°C, 10% to 85% humidity (non-condensing)

Note: All specifications are subject to change without notice.

ADDITIONAL INFORMATION

Optoma global offices

For service or support, please contact your local office.

USA

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

3178 Laurelview Ct. 888-289-6786 (

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

3178 Laurelview Ct. 888-289-6786

Fremont, CA 94538, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

[e-mail] www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C.

www.optoma.com.tw

[phone] [phone] [e-mail] asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone] [phone] www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone] [phone] www.optoma.com.cn
