TX770 - Video projector OPTOMA - Free user manual and instructions

Product Type	Video Projector
Display Technology	Single chip 0.7" DLP®
Native Resolution	XGA (1024 x 768)
Supported Video Standards	NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM, HDTV (480i/p, 576i/p, 720p, 1080i)
Digital Input	DVI-D with HDCP
Analog Inputs	VGA (RGB/Component/SCART), S-Video, Composite Video
Audio Input	1x Audio (3.5mm jack?)
Control Ports	RS232, USB
Keystone Correction	±16 degrees (vertical)
Zoom	Yes (manual zoom ring)
Focus	Yes (manual focus ring)
Projection Distance	1.2 m to 10.0 m (3.9 ft to 32.8 ft)
Image Size (Diagonal)	24.6" to 246.1" (62.5 cm to 625 cm)
Lamp	User-replaceable, with warning messages and lamp hour counter
Power Supply	AC 100-240V (50/60Hz) via included power cord
Accessories Included	Power cord, VGA cable, composite video cable, remote control, 2x batteries, user manual, quick start card, warranty card
Optional Accessories	Carrying case, S-Video cable, DVI cable, SCART RGB/S-Video adaptor, ceiling mount kit
Security	Kensington™ lock port
On-Screen Display Languages	English, Dutch, Japanese, German, Russian, Chinese, French, Finnish, Italian, Swedish, Korean, Spanish, Norwegian, Portuguese, Greek, Polish, Danish

Frequently Asked Questions - TX770 OPTOMA

How should I clean the projector housing?

Turn off the product before cleaning. Use a soft cloth moistened with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes, or solvents.

How do I replace the lamp?

When the warning message 'Lamp is approaching the end of its useful life' appears, allow the projector to cool for at least 30 minutes. Disconnect power, remove the lamp cover screw, lift the cover, unscrew the lamp module, pull it out, and install a new one. Reset the lamp hour counter via the OSD menu.

What should I do if no image appears on screen?

Check all cable connections, ensure the lens cap is removed, the projector is powered on, and the 'Hide' feature is not enabled. Also verify the lamp is securely installed and the signal source is active.

How do I adjust the keystone correction?

Use the Keystone buttons on the remote control or control panel. You can adjust vertically up to ±16 degrees to correct image distortion caused by tilting the projector.

How do I connect the projector to a computer?

Connect the VGA cable from the computer to the PC Analog Signal input. If using a digital signal, use a DVI-D cable. Ensure the computer's resolution is set to 1024x768 or lower for best compatibility.

What do the LED indicators mean?

Power LED (green): Flashing indicates standby, solid indicates on. Temp LED (red): Solid for overheating, flashing for fan failure. Lamp LED (red): Solid indicates lamp error. Refer to the manual for detailed patterns.

Can I mount the projector on the ceiling?

Yes, use an approved ceiling mount kit. Ensure at least 10 cm clearance from the ceiling, use M3 screws (8-10 mm length), and avoid placing near heat sources. Damage from incorrect installation voids warranty.

How do I reset the lamp hour counter?

Go to the OSD menu under Lamp Setting and select Lamp Reset. Choose 'Yes' to set the lamp hour counter back to 0 hours after replacing the lamp.

How do I adjust the projected image size?

Move the projector closer or farther from the screen. Use the zoom ring to adjust image size. The projector focuses at distances from 1.2 m to 10.0 m. Refer to the projection distance table in the manual for exact sizes.

What should I do if the projector overheats?

The projector will display a warning and shut down automatically. Allow it to cool down (about 20 seconds of solid red Temp LED). Check that ventilation slots are not blocked and the air filter is clean. If the problem persists, contact service.

USER MANUAL TX770 OPTOMA

Connecting the Projector ....10

Powering On/Off the Projector 11

Powering On the Projector 11

Powering Off the projector 12

Warning Indicator....12

Adjusting the Projected Image 13

Adjusting the Projector Image Height 13

Adjusting the Projector Zoom / Focus 14

Adjusting Projected Image Size 14

User Controls 15

Control Panel & Remote Control 15

On-Screen Display Menus 18

How to operate 18

Language 19

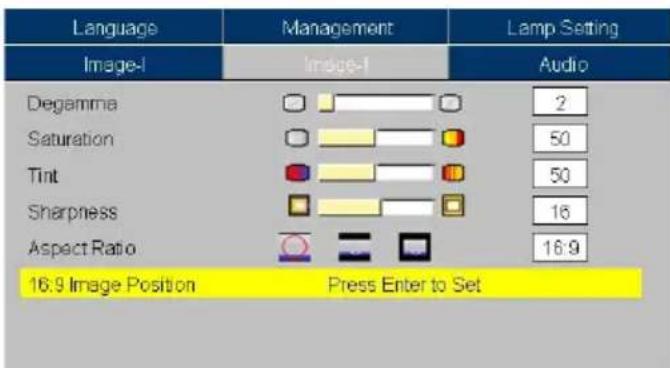

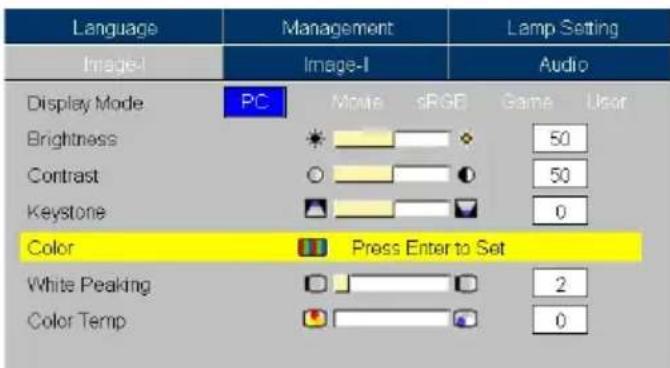

Image-1 20

Image-II (Computer Mode) 22

Image-II (Video Mode) 24

Audio....26

Management 27

Lamp Setting 29

Appendices 30

Troubleshooting 30

Replacing the lamp 34

Compatibility Modes 35

Ceiling Mount Installation 36

RS232 Commands 37

Optoma Global Offices 38

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

⚠ Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture.

⚠ Warning- Please do not open or disassemble the projector as this may cause electric shock.

Warning- When replacing the lamp, please allow unit to cool down, and follow all replacement instructions. See page 34.

Warning- This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.

Warning- Reset the "Lamp Reset" function from the on-screen display "Lamp Setting" menu after replacing the lamp module (refer to page 29).

Warning- When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power.

Warning- Turn on the projector first and then the signal sources.

Warning- Do not use lens cap when projector is in operation.

Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under "Replacing the Lamp".

Usage Notice

Do:

Turn off the product before cleaning.

Use a soft cloth moistened with mild detergent to clean the display housing.

- Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, waxes or solvents to clean the unit.

Use under the following conditions:

- In extremely hot, cold or humid environments.

- In areas susceptible to excessive dust and dirt.

- Near any appliance that generates a strong magnetic field.

- Place in direct sunlight.

Product Features

Congratulations and Thank You for choosing Optoma projectors. This product is a XGA single chip 0.7" DLP® projector. Features include:

True XGA, 1024 x 768 addressable pixels
◆ Single chip DLP® technology
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and HDTV compatible (480i/p, 576i/p, 720p, 1080i)
High-tech DVI connection for digital signal with HDCP function and supports 480p, 576p, 720p and 1080i
Full function remote control
User friendly multilingual on screen display menu
◆ Advanced digital keystone correction and high quality full screen image re-scaling
User friendly control panel
- SXGA+, SXGA compression and VGA, SVGA re-sizing
Mac compatible

Introduction

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Exterior view of a projector with visible lens and ventilation grille (no text or symbols)

Projector with lens cap

Coiled black cable with a small power plug at the top (no text or symbols visible)

Power Cord 1.8m VGA Cable 1.8m

2 x Battery

Composite Video Cable 2.0m

Remote Control

Black hard-shell briefcase with handle and side panel (no visible text or symbols)

Carrying Case (Optional Accessory)

SCART RGB/S-Video Adaptor (Optional Accessory)

Documents :

User's Guide
Quick Start Card
Warranty Card
WEEE Card

Product Overview

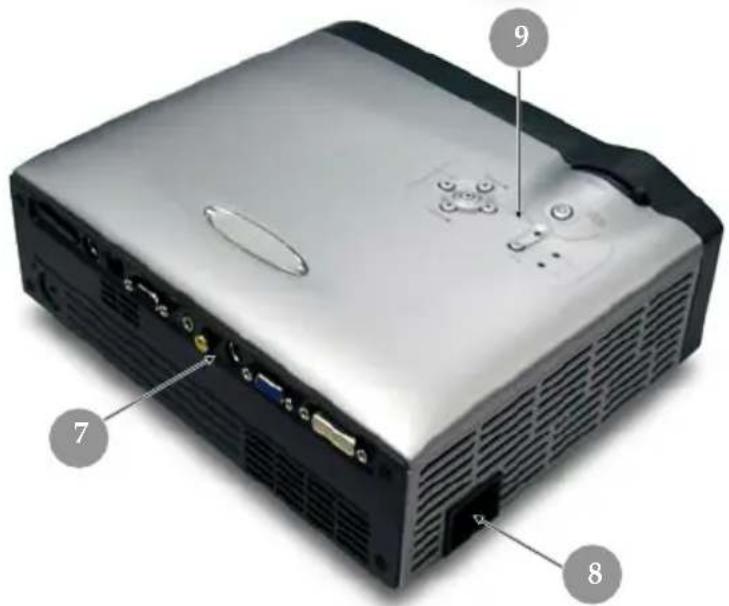

Main Unit

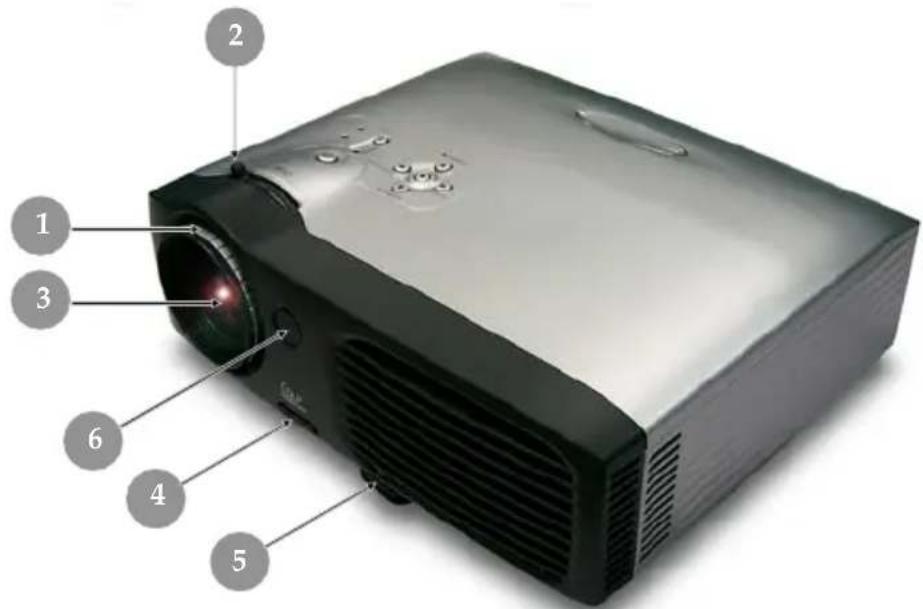

1. Focus Ring
2. Zoom Ring
3. Zoom Lens
4. Elevator Button
5. Elevator Foot
6. Remote Control Receiver
7. Connection Ports
8. Power Socket
9. Control Panel

Introduction

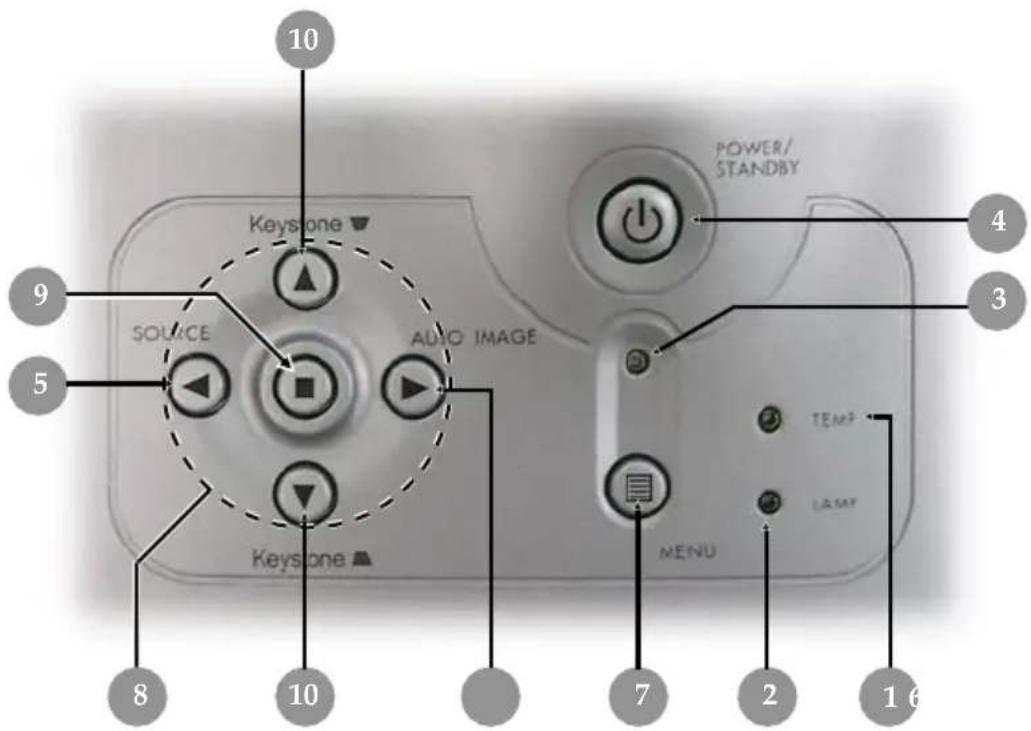

Control Panel

1. Temp Indicator LED
2. Lamp Indicator LED
3. Power Indicator LED

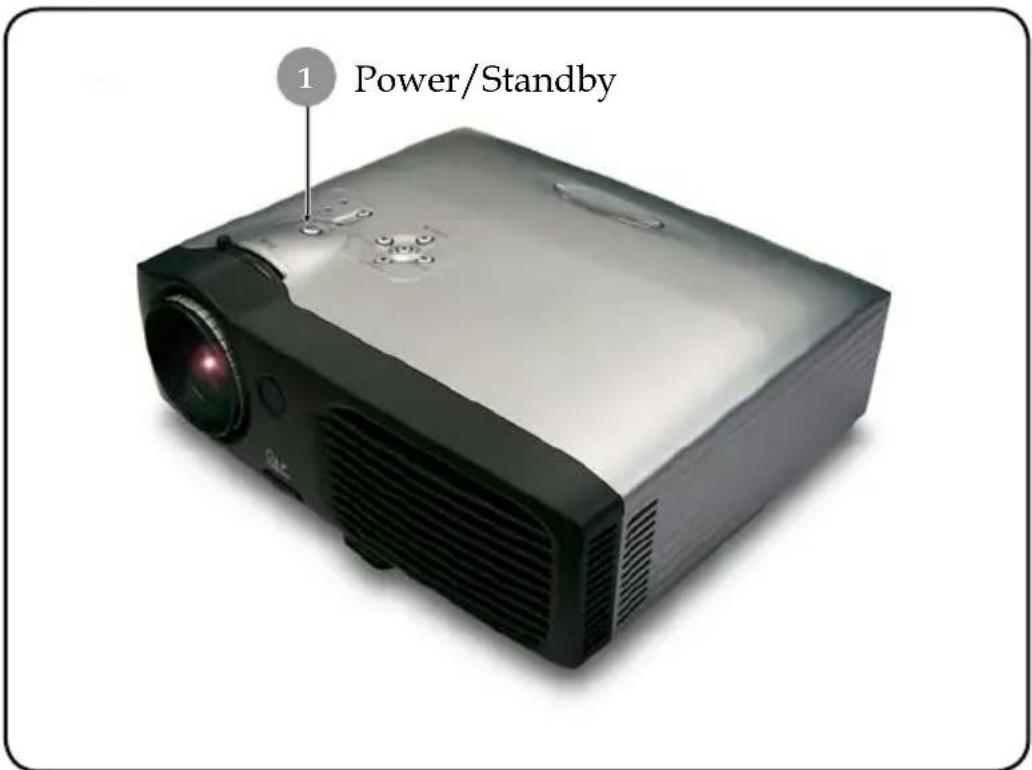

4. Power/Standby
5. Source
6. Auto Image
7. Menu (On/Off)
8. Four Directional Select Keys
9. Enter
10. Keystone Correction

Introduction

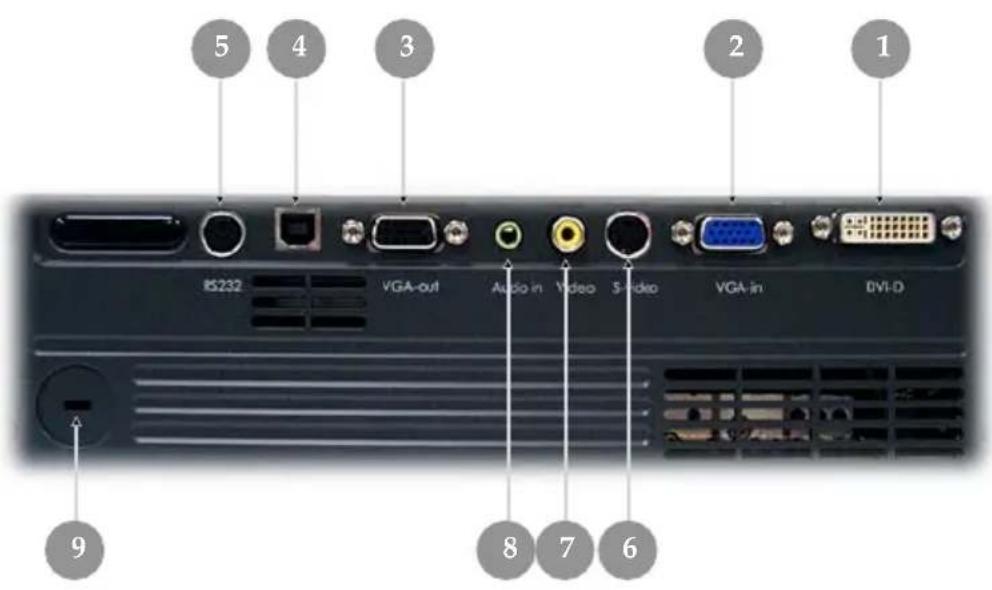

Connection Ports

1. DVI-D Input Connector (for Digital signal with HDCP function)
2. PC Analog Signal SCART RGB/HDTV/Component Video Input Connector
3. Monitor Loop-through Output Connector
4. USB Input Connector
5. RS232 Input Connector
6. S-Video Input Connector
7. Composite Video Input Connector
8. Audio Input Connector
9. Kensington ™ Lock Port

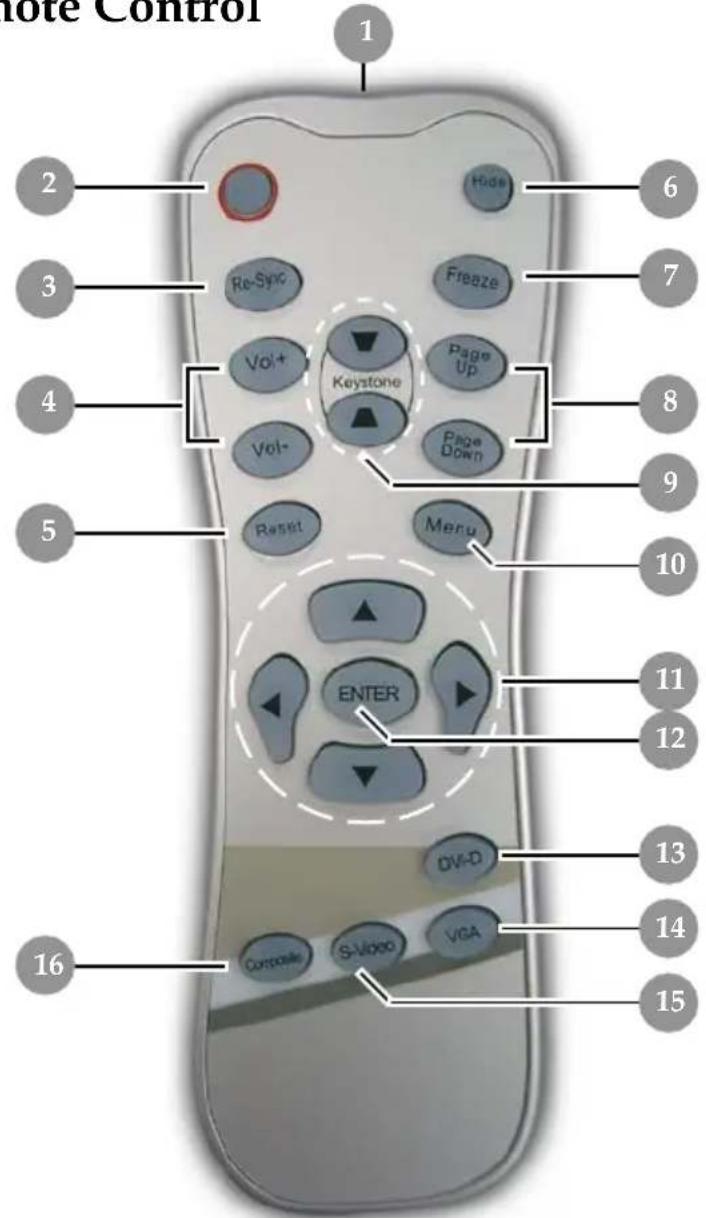

Remote Control

1. Transmit Indicator Light
2. Power
3. Re-Sync
4. Volume (+ / -)
5. Reset
6. Hide
7. Freeze
8. Page Up / Page Down
9. Keystone Correction
10. Menu

11. Four Directional Select Keys

12. Enter

13. DVI-D Source
14. VGA Source
15. S-Video Source
16. Composite Video Source

Installation

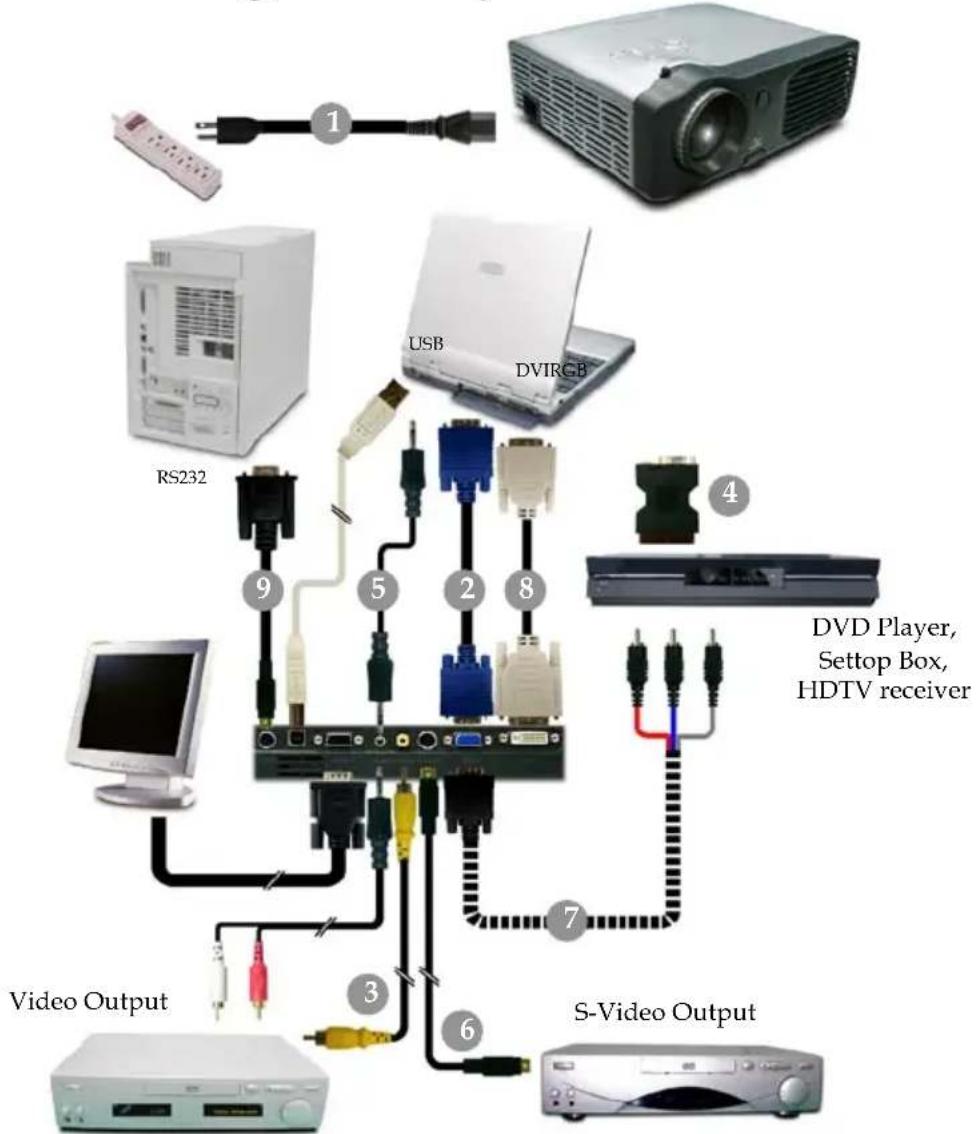

Connecting the Projector

1. Power Cord
2. VGA Cable
3. ...... Composite Video Cable
4. SCART RGB Adaptor (Optional Accessory)
5. Audio Cable Jack/Jack (Optional Accessory)
6. S-Video Cable (Optional Accessory)
7. D-Sub to RCA Cable for HDTV/Component (Optional Accessory)
8. DVI to DVI Cable (Optional Accessory)
9. ......RS232 Cable (Optional Accessory)

To ensure the projector works well with your computer, please set the display mode of your graphic card less than or equal to 1024 X 768 resolution. Make sure the timing of the display mode is compatible with the projector. Refer to the “Compatibility Modes” section on page 35.

Powering On/Off the Projector

Powering On the Projector

Quick Menu

1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely connected. The Power LED will flash green.
3. Turn on the lamp by pressing "Power/Standby" button on the control panel. ① And the Power LED will turn green.

The first time you use the projector, you can select your preferred language from quick menu after the startup screen display.

1. Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically.

If the screen displays "No Signal", please make sure the signal cables are securely connected.
If you connect multiple sources at the same time, use the "Source" button on the control panel to switch.

Turn on the projector first and then the signal sources.

Powering Off the Projector

1. Press the "Power/Standby" button to turn off the projector lamp, you will see a message "Power off the lamp? Picture Mute" displayed on the projector's screen. Press the "Power/Standby" button again to confirm, otherwise the message will disappear after 5 seconds.

Please note that if the key is pressed instead, the projector will enter the "Picture Mute" mode and no image will be displayed. To exit the "Picture Mute" mode, press the "Power/Standby" button again.

1. The cooling fans continue to operate for about 60 seconds for cooling cycle and the Power LED will turn green. When the Power LED begins flashing, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press "Power/Standby" button to restart the projector.

1. Disconnect the power cord from the electrical outlet and the projector.

2. Do not turn on the projector immediately following a power off procedure.

Warning Indicator

When the "LAMP" indicator lights solid red, the projector will automatically shut itself down. Please contact your local reseller or service center.

When the "TEMP" indicator lights solid red for about 20 seconds, it indicates the projector has been overheated. You will see a message "Projector Overheated. Lamp will automatically turn off soon." on the on-screen display. The projector will automatically shut itself down.

Under normal conditions, the projector can be switched on again after it has cooled down. If the problem persists, you should contact your local dealer or our service center.

When the "TEMP" indicator flashes red for about 10 seconds, you will see a message "Fan failure. Lamp will automatically turn off soon." on the on-screen display. Please contact your local dealer or our service center.

Adjusting the Projected Image

Adjusting the Projector Image Height

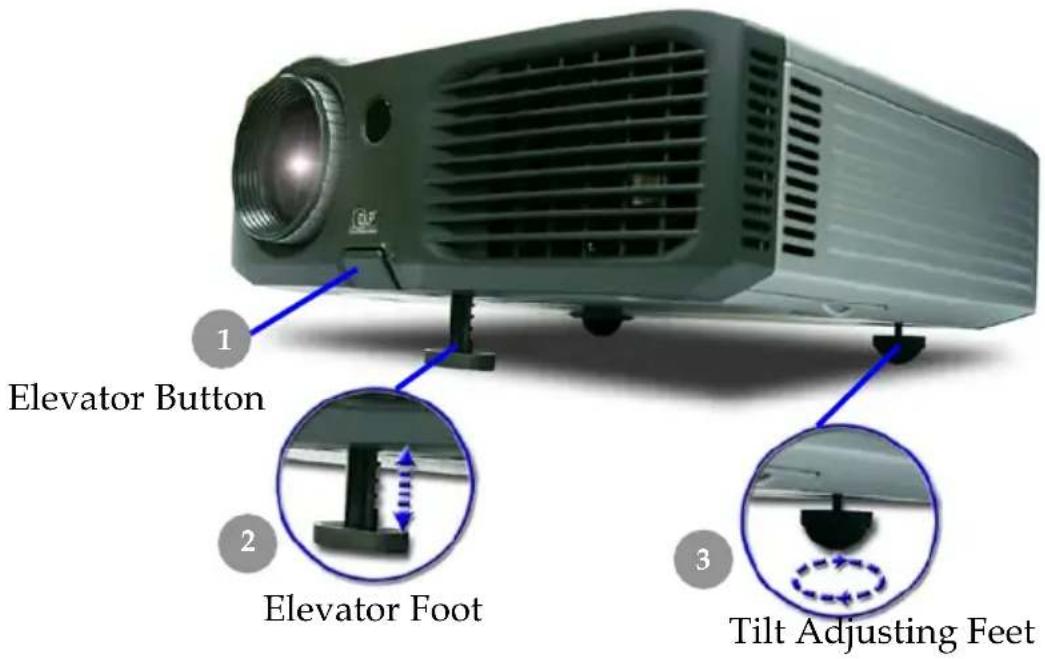

The projector is equipped with an elevator foot for adjusting the image height.

To raise the image:

1. Press the elevator button ①.

2. Raise the image to the desired height angle ②, then release the button to lock the elevator foot into position.

3. Use ③ to fine-tune the display angle.

To lower the image:

1. Press the elevator button.

2. Lower the image, then release the button to lock the elevator foot into position.

3. Use ③ to fine-tune the display angle.

Installation

Adjusting the Projector Zoom / Focus

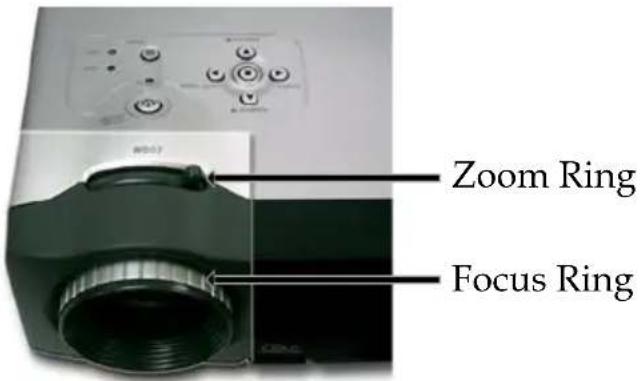

You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 3.9 to 32.8 feet (1.2 to 10.0 meters).

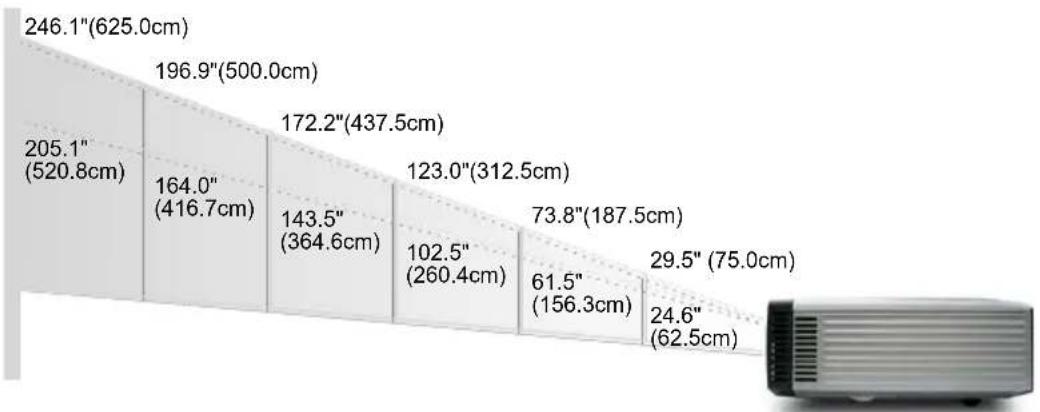

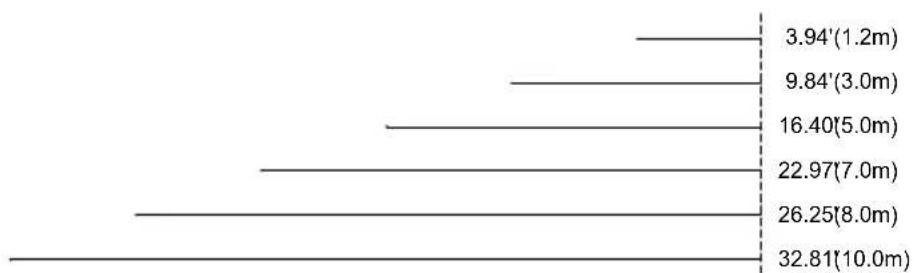

Adjusting Projection Image Size

Screen (Diagonal)	Max.	29.5"(75.0cm)	73.8"(187.5cm)	123.0"(312.5cm)	172.2"(437.5cm)	196.9"(500.0cm)	246.1"(625.0cm)
	Min.	24.6"(62.5cm)	61.5"(156.3cm)	102.5"(260.4cm)	143.5"(364.6cm)	164.0"(416.7cm)	205.1"(520.8cm)
Screen Size	Max.(WxH)	23.60" x 17.70"(60.0 x 45.0cm)	59.04" x 44.28"(150.0 x 112.5cm)	98.40" x 73.80"(250.0 x 187.5cm)	137.76" x 103.32"(350.0 x 262.5cm)	157.52" x 118.14"(400.0 x 300.0cm)	196.88" x 147.66"(500.0 x 375.0cm)
	Min.(WxH)	19.68" x 14.76"(50.0 x 37.5cm)	49.20" x 36.90"(125.0 x 93.8cm)	82.00" x 61.50"(208.3 x 156.2cm)	114.80" x 86.10"(291.7 x 218.8cm)	131.20" x 98.40"(333.4 x 250.0cm)	164.08" x 123.06"(416.6 x 312.5cm)
Distance		3.94'(1.2m)	9.84'(3.0m)	16.40'(5.0m)	22.97'(7.0m)	26.25'(8.0m)	32.81'(10.0m)

This graph is for user's reference only.

User Controls

Control Panel & Remote Control

There are two ways for you to control the functions: Remote Control and Control Panel.

Remote ControlControl

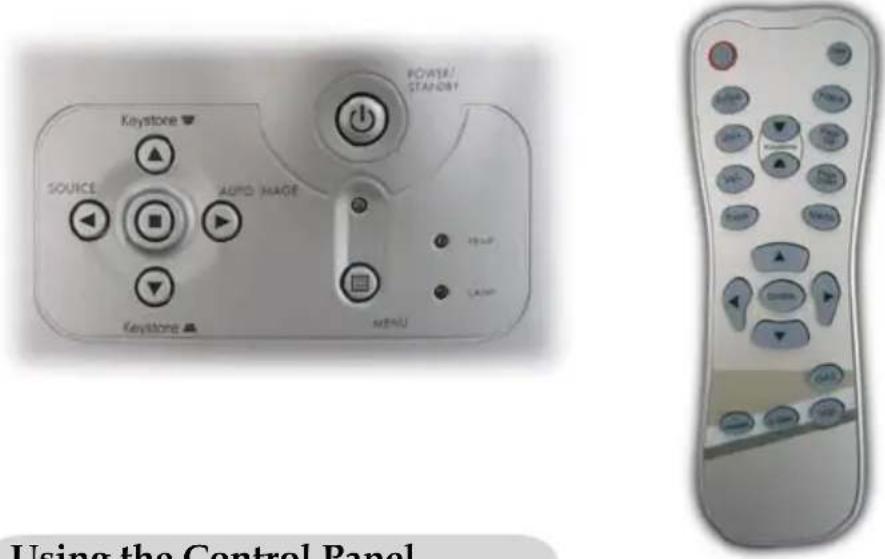

Using the Control Panel

Power/Standby

Refer to the "Power On/Off the Projector" section on pages 11-12.

Source

Press "Source" to choose RGB, Component-p, Component-i, S-Video, Composite Video and HDTV sources.

Menu

Press "Menu" to launch the on screen display (OSD) menu. To exit OSD, press "Menu" again.

Keystone ▼ Keystone ▲

Adjusts image distortion caused by tilting the projector ( ± 16 degrees).

Four Directional Select Keys

▶ Use ▲ ▼ to select items or make adjustments to your selection.

Enter

▶ Confirm your selection of items.

Auto Image

Automatically synchronizes the projector to the input source.

Using the Remote Control

Power/Standby

Refer to the "Power On/Off the Projector" section on pages 11-12.

Re-Sync

Automatically synchronizes the projector to the input source.

Volume + / - (Vol+/Vol-)

▶ Increases/decreases speaker volume.

Reset

Changes the adjustments and settings to the factory default value.

Hide

Press "Hide" to hide image, press again to restore display of the image.

Keystone ▼ ▲

Adjusts image distortion caused by tilting the projector ( ± 16 degrees).

Page Up (Computer mode only)

Use this button to page up. This function is only available when the projector is connected to a computer via an USB cable.

Page Down (Computer mode only)

Use this button to page down. This function is only available when the projector is connected to a computer via an USB cable.

Freeze

Press "Freeze" to pause the screen image.

Four Directional Select Keys

▶ Use ▲ ▼ to select items or make adjustments to your selection.

Menu

Press "Menu" to launch the on screen display menu. To exit OSD, press "Menu" again.

Enter

▶ Confirm your selection of items.

VGA

Press "VGA" to choose Analog RGB, component and SCART /HDTV source.

S-Video

Press "S-Video" to choose S-Video source.

User Controls

Composite

Press "composite" to choose Composite video source.

DVI-D

Press "DVI-D" to choose DVI-D connector.

User Controls

On Screen Display Menus

The Projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

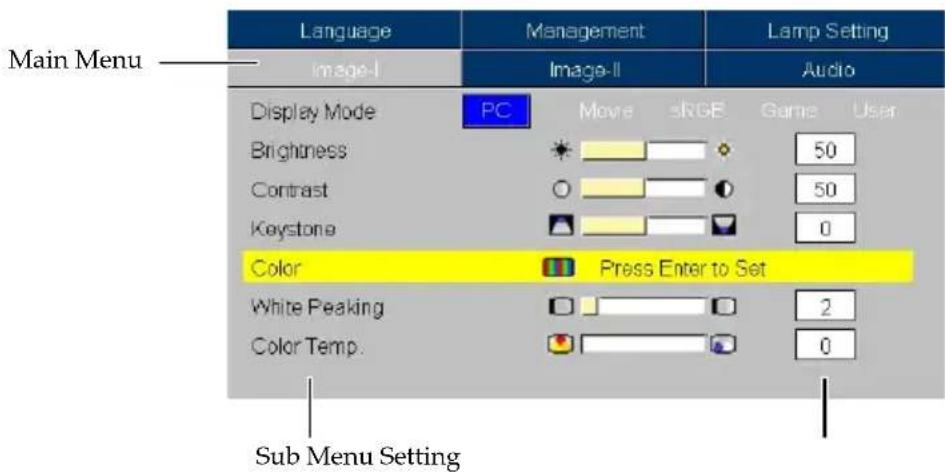

How to operate

1. To open the OSD menu, press "Menu" on the Remote Control or Control Panel.
2. When OSD is displayed, use ◀ ▶ keys to select any item in the main menu. While making a selection on a particular page, press ☐Enter " key to enter sub menu.
3. Use ▲▼ keys to select the desired item and adjust the settings by ◀ key.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press "Menu" to confirm, and the screen will return to the main menu.
6. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.

User Controls

Computer / Video Mode

Image-I	Image-I	Audio
Language	Management	Lamp Setting
English	Nederlands	日本制
Deutsch	Русский	整體中文
Français	Suomi	简体中文
Italiano	Svenska	한국어
Español	Norsk
Português	eλληνικά
Polski	Dansk

Language

Language

Choose the multilingual OSD menu. Use the 🔔 or 🔊 key to select your preferred language.

Press ☐“Enter” to finalize the selection.

User Controls

Computer / Video Mode

Image-I

Display Mode

There are many factory presets optimized for various types of images.

PC : For computer or notebook.
▶ Movie : For home theater.
Game : For game.
sRGB : For PC standard color.
User : Memorize user's settings.

Brightness

Adjust the brightness of the image.

Press the ◀ to darken image.
Press the ⬆ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ to decrease the contrast.
Press the ▶to increase the contrast.

Keystone (Keystone Correction)

Adjust image distortion caused by tilting projector. (±16 degrees)

Color

Press "Enter" to adjust the red, green and blue colors.

User Controls

Computer / Video Mode

Image-I

White Peaking

Use the white peaking control to set the white peaking level of DMD chip. 0 stands for minimal peaking, and 10 stands for maximum peaking. If you prefer a stronger image, adjust towards the maximum setting. For a smooth and more natural image, adjust towards the minimum setting.

Color Temp.

Adjust the color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.

User Controls

Computer Mode

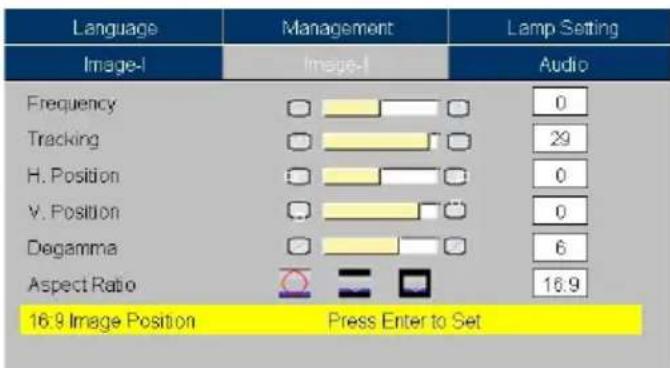

Image-II (Computer Mode)

Frequency

"Frequency" changes the display data frequency to match the frequency of your computer's graphic card. If you experience a vertical flickering bar, use this function to make an adjustment.

Tracking

"Tracking" synchronizes the signal timing of the display with the graphic card. If you experience an unstable or flickering image, use this function to correct it.

H.Position (Horizontal Position)

Press the ◀ to move the image left.
Press the ⚠ to move the image right.

V. Position (Vertical Position)

Press the ◀ to move the image down.
Press the ⬆ to move the image up.

Degamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

Aspect Ratio

Use this function to choose your desired aspect ratio.

4:3 : The input source will be scaled to fit the projection screen.
16:9 : The input source will be scaled to fit the width of the screen.

Video Mode

Image-II (Computer Mode)

Window: When a 4:3 image is bigger than a 16:9 screen, select the "Window" mode to fit the image onto the screen without changing the projection distance.

Exterior view of a traditional wooden building with tiled roof and stone wall, surrounded by trees and small pottery jars (no signage or text visible)

Exterior view of a traditional wooden house with tiled roof and stone structure, surrounded by trees and scattered objects (no signage or text visible)

WindowOriginal Pixel

16:9 Image Position

Adjust the image position to up or down, when you select the aspect ratio to 16:9.

Press the ◀ to move the image down.
Press the ⬆ to move the image up.

User Controls

Computer Mode

Image-II (Video Mode)

Degamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

Saturation

Adjusts a video image from black and white to fully saturated color.

Press the ◀ to decrease the amount of color in the image.
Press the ⬆ to increase the amount of color in the image.

Tint

Adjusts the color balance of red and green.

Press the ◀ to increase the amount of green in the image.
Press the ⬆ to increase the amount of red in the image.

“Saturation”, “Tint” and “Sharpness” function is not supported under DVI-D mode.

Sharpness

Adjusts the sharpness of the image.

Press the ◀ to decrease the sharpness.
Press the ⬆ to increase the sharpness.

Aspect Ratio

Use this function to choose your desired aspect ratio.

4:3 : The input source will be scaled to fit the projection screen.
16:9 : The input source will be scaled to fit the width of the screen.
Window: When a 4:3 image is bigger than a 16:9 screen, select the "Window" mode to fit the image onto the screen without changing the projection distance.

User Controls

Video Mode

Image-II (Video Mode)

Exterior view of a traditional wooden building with tiled roof and stone wall, surrounded by trees and scattered pottery jars (no signage or text visible)

Exterior view of a traditional wooden building with tiled roof and surrounding trees (no signage or text visible)

WindowOriginal Pixel

16:9 Image Position

Adjust the image position to up or down, when you select the aspect ratio to 16:9.

Press the ◀ to move the image down.
Press the ⬆ to move the image up.

User Controls

Computer / Video Mode

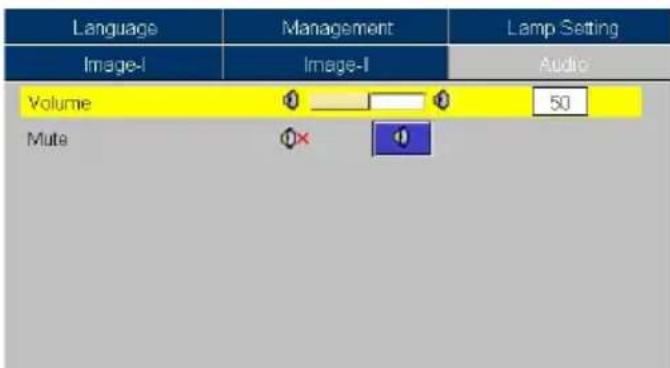

Audio

Volume

Press the ◀ to decrease the volume.
Press the ⬆ to increase the volume.

Mute

Choose the left icon to turn mute on.
Choose the right icon to turn mute off.

User Controls

Computer / Video Mode

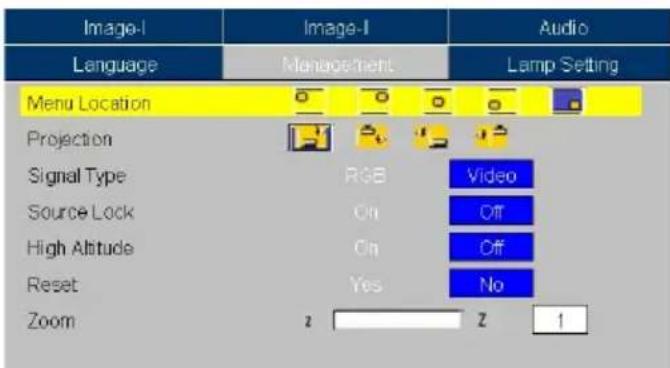

Management

Menu Location

Choose the Menu location on the display screen.

Projection

Front-Desktop

The factory default setting.

Rear-Desktop

When you select this function, the projector reverses the image so you can project behind a translucent screen.

Front-Ceiling

When you select this function, the projector turns the image upside down for ceiling-mounted projection.

Rear-Ceiling

When you select this function, the projector reverses and turns the image upside down at same time. You can project from behind a translucent screen with ceiling mounted projection.

Signal Type

Select signal type RGB or Video sources.

Source Lock

When source lock is turned off, the projector will search for other signals if the current input signal is lost. When source lock is turned on, it will continue to search for the "lost signal" after "Source" is pressed.

User Controls

Computer / Video Mode

Management

High Altitude

Choose "ON" to turn on High Altitude mode. Operates the fans at full speed continuously to allow for proper high altitude cooling of the projector.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

Zoom

Press the ◀ to reduce the size of an image.
Press the ⬆ to magnify an image on the projection screen.

User Controls

Computer / Video Mode

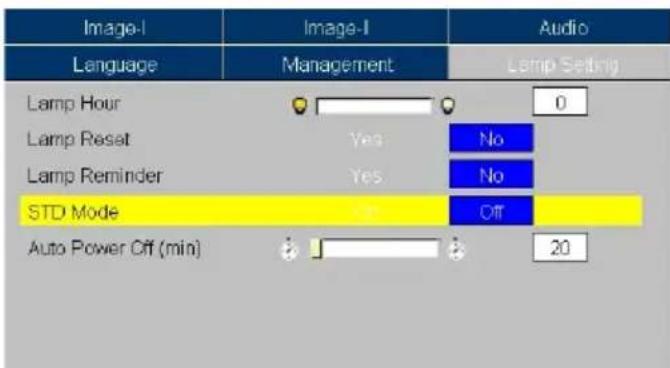

Lamp Setting

Lamp Hour

Displays the lamp's elapsed operating time (in hours).

Lamp Reset

Turns the lamp hour counter to 0 hours.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will show up 30 hours before end of life.

STD Mode

Choose "On" to dim the projector lamp which will lower power consumption and extend the lamp life by up to 130% . Choose "Off" to return BRIGHT mode.

Auto Power Off (min)

Sets the interval of power-off of the system, if there is no signal input. (In minutes)

Troubleshooting

If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local reseller or service center.

Problem: No image appears on screen.

Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please refer to the "Replacing the lamp" section.
Make sure you have removed the lens cap and the projector is switched on.
Ensure that the "Hide" feature is not enabled.

Problem: Partial, scrolling or incorrectly displayed image.

Press the "Re-Sync" button on the Remote Control or press the "Auto Image" button on the Control Panel.
If you use a PC:

If the resolution of your computer is higher than 1024 x 768. Follow the steps outlined below to reset the resolution.

For Windows 3.x:

1. In the Windows Program Manager, click the "Windows Setup" icon in the Main group.
2. Verify that your display resolution setting is less than or equal to 1024 × 768 .

For Windows 95,98,2000,XP:

1. Open "My Computer" icon, the "Control Panel" folder, and then double click on the "Display" icon.
2. Select the "Setting" tab.
3. In the "Desktop Area" you will find the resolution setting. Verify that the resolution setting is less than or equal to 1024 x 768 resolution.

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Follow the above steps 1-2. Click on the "Advanced Properties" button.
2. Select the "Change" button under the "Monitor" tab.

Appendices

1. Click on "Show all devices". Then select "Standard monitor types" under the "Manufacturers" box; choose the resolution mode you need under the "Models" box.

2. Verify that the resolution setting of the monitor display is less than or equal to 1024 × 768 .

If you are using a Notebook PC:

1. You are required to implement the above steps of resolution setting of the computer first.

2. Switch the Notebook PC display to the "external display only" or "CRT only" mode.

If you experience difficulty in changing resolutions or your monitor freezes, restart all the equipment and the projector.

Problem: The screen of the Notebook or PowerBook computer is not displaying your presentation.

If you are using a Notebook PC:

Some Notebook PCs may deactivate their screens when a second display device is in use. Refer to your computer's documentation for information on how to reactivate the monitor display.

If you are using an Apple PowerBook:

In Control Panels, open the PowerBook Display to select Video Mirroring "On".

Problem: Image is unstable or flickering

Use "Tracking" to correct it. Refer to page 22.

Change the monitor color setting from your computer.

Problem: Image has vertical flickering bar

Use "Frequency" to make an adjustment. Refer to page 22.

▶ Check and reconfigure the display mode of your graphic card to make it compatible with the product. Refer to page 30.

Problem: Image is out of focus

Adjusts the Focus Ring on the projector lens. Refer to page 14.

Make sure the projection screen is between the required distance 3.9 to 32.8 feet (1.2 to 10.0 meters) from the projector.

Appendices

Problem: The image is stretched when displaying 16:9 DVD. The projector automatically detects 16:9 DVD and adjusts the aspect ratio by digitizing to full screen with 4:3 default setting.

If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:

Please select 4:3 aspect ratio type on your DVD player if you are playing a 16:9 DVD.
If you cannot select 4:3 aspect ratio type on your DVD player, please select 4:3 aspect ratio in the on screen menu.

Problem: Image is reversed.

Select "Management" from the OSD and adjust the projection direction. See page 27.

Problem: Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp”. See page 34.

Problem: LED lighting message

Message	Power LED(Green)	Temp-LED Lamp-LED
Standby State(Input power cord)	Flashing	○	○
Lamp lighting		○	○
Power on		○	○
Power off (Cooling)		○	○
Error (Lamp fail)	○	○	☀
Error (Thermal fail)		☀	○
Error (Fan fail) Flashing	○		○
Error (Over Temp.)	○		○
Error (Lamp Breakdown)	○	○

Appendices

Problem: Message Reminders

"Lamp is approaching the end of its useful life in full power operation. Replacement Suggested!" will be shown about 10 seconds, when lamp is nearing end of life.
"Projector Overheated. Lamp will automatically turn off soon." will be shown when the system temperature is too high.
"Fan failure. Lamp will automatically turn off soon." will be shown when the fan is out of order.

Appendices

Replacing the lamp

The projector will detect the lamp life itself. It will show you a warning message “Lamp is approaching the end of its useful life in full power operation. Replacement Suggested!” When you see this message, changing the lamp as soon as possible.

Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!

⚠ Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

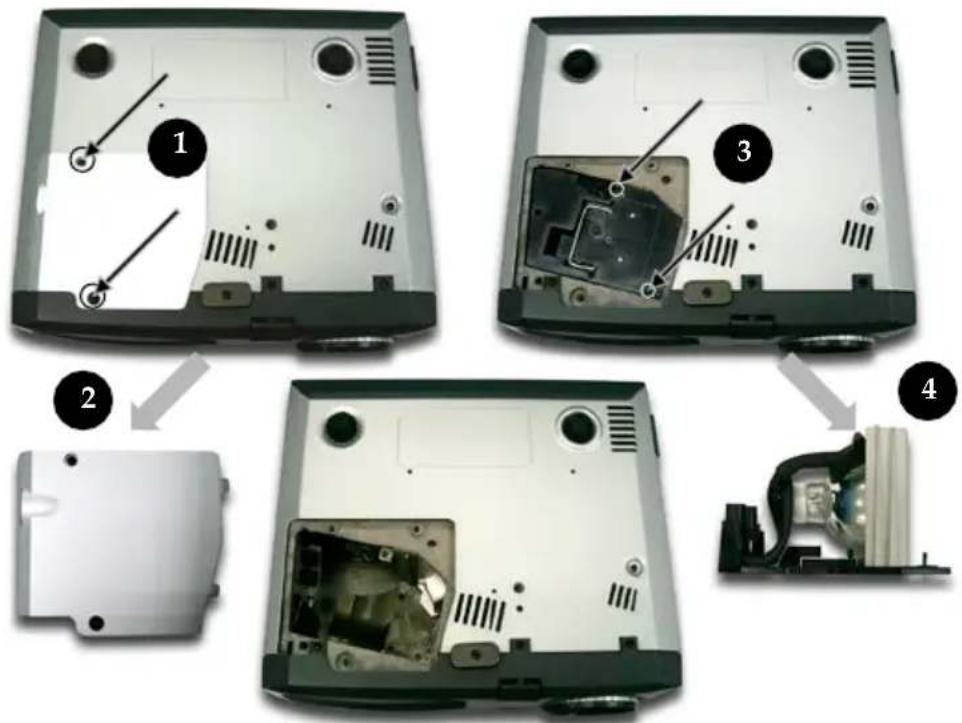

Lamp Changing Procedure:

1. Switch off the power to the projector by pressing the Power button.
2. Allow the projector to cool down at least 30 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to remove the screw from the cover. ①
5. Push up and remove the cover. ②
6. Remove the 2 screws from the lamp module.
7. Pull out the lamp module. ④

To replace the lamp module, reverse the previous steps.

Compatibility Modes

Mode	Resolution	(ANALOG)		(DIGITAL)
		V.Frequency (Hz)	H.Frequency (kHz)	V.Frequency (Hz)	H.Frequency (kHz)
VESA VGA	640 x 350	70	31.5	70	31.5
VESA VGA	640 x 350	85	37.9	85	37.9
VESA VGA	640 x 400	85	37.9	--	--
VESA VGA	640 x 480	60	31.5	60	31.5
VESA VGA	640 x 480	72	37.9	72	37.9
VESA VGA	640 x 480	75	37.5	75	37.5
VESA VGA	640 x 480	85	43.3	85	43.3
VESA VGA	720 x 400	70	31.5	70	31.5
VESA VGA	720 x 400	85	37.9	85	37.9
SVGA	800 x 600	56	35.2	56	35.2
SVGA	800 x 600	60	37.9	60	37.9
SVGA	800 x 600	72	48.1	72	48.1
SVGA	800 x 600	75	46.9	75	46.9
SVGA	800 x 600	85	53.7	85	53.7
VESA XGA	1024 x 768	60	48.4	60	48.4
VESA XGA	1024 x 768	70	56.5	70	56.5
VESA XGA	1024 x 768	75	60.0	75	60.0
VESA XGA	1024 x 768	85	68.7	85	68.7
* V ESA SXGA	1152 x 864	70	63.8	-	-
* V ESA SXGA	1152 x 864	75	67.5	-	-
* V ESA SXGA	1152 x 864	85	77.1	-	-
* V ESA SXGA	1280 x 1024	60	63.98	60	63.98
* V ESA SXGA	1280 x 1024	75	79.98	-	-
* V ESA SXGA+	1400 x 1050	60	63.98	-	-
MAC LC 13"	640 x 480	66.66	34.98	-	-
MAC II 13"	640 x 480	66.68	35	-	-
MAC 16"	832 x 624	74.55	49.725	-	-
MAC 19"	1024 x 768	75	60.24	-	-
* MAC	1152 x 870	75.06	68.68	-	-
MAC G4	640 x 480	60	31.35	-	-
i Mac DV	1024 x 768	75	60	-	-
*i Mac DV	1152 x 870	75	68.49	-	-
*i Mac DV	1280 x 960	75	75	-	-

Remark: “*” compressed computer image.

Appendices

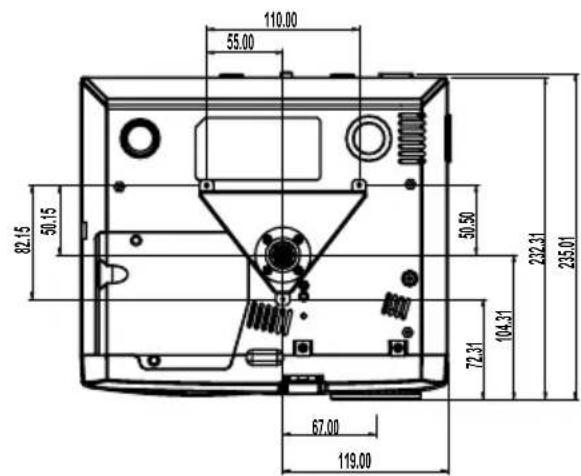

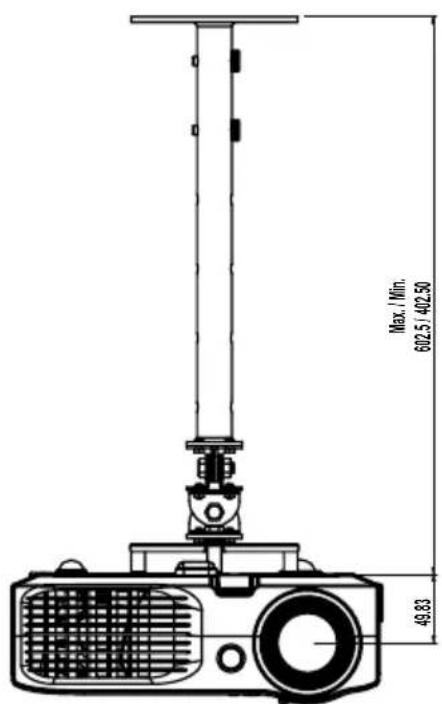

Ceiling Mount Installation

1. To prevent damaging your projector, please use the ceiling mount package for installation.

2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attached a mount to the projector met the following specifications:

Please note that damage resulting from incorrect installation will invalidate the warranty.

Warning:

1. If you buy the ceiling mount from other company, please ensure that there is at least 10cm distance between the bottom cover of the projector and the ceiling.

2. Avoid placing the projector near sources of heat such air-conditioning units and heaters otherwise it may overheat and shut down automatically.

3. Ceiling mounting shall be mounting on metal or concrete.

Screw type: M3
▶ Maximum screw length: 10mm
▶ Minimum screw length: 8mm

Appendices

RS232 Commands

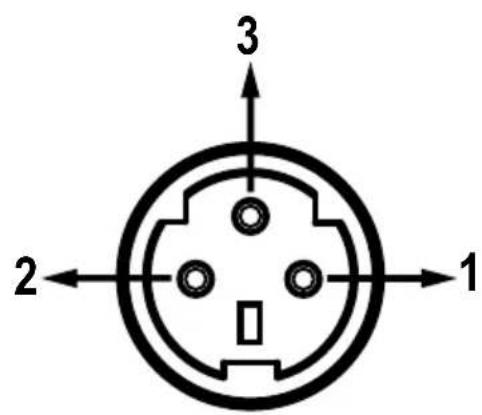

RS232 Connector

Pin no. Name		I/O (From Projector Side
1	TXD	OUT
2 RXD IN
3 GND _

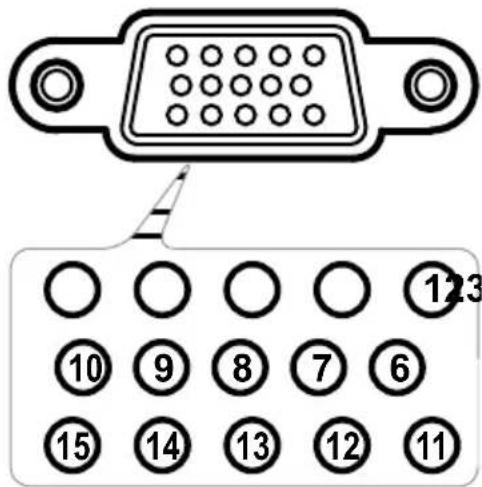

VGA-In Connector

Pin no. Spec.
1	R(RED)/Cr
2	G(GREEN)/Y
3 B(BLUE)/Cb
4	NC
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 HOT_DET
11 NC
12 DDC Date
13 HS/CS
14 VS
15 DDC Clock

Appendices

Optoma Global Offices

For service or support please contact your local office.

USA

715 Sycamore Drive Tel : [phone]

Milpitas, CA 95035, USA Fax: [phone]

www.optomausa.com Service : [e-mail]

Canada

5630 Kennedy Road, Mississauga, ON, L4Z 2A9

Tel: [phone] Fax: [phone]

www.optoma.com

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire, WD18 8QZ, UK

Tel: [phone] Fax: [phone]

www.optomaeurope.com

Service Tel : [phone] Service : [e-mail]

Taiwan

5F., No. 108, Minchiuan Rd. Tel: [phone]

Shindian City, Taipei Taiwan 231, Fax: [phone]

R.O.C. www.optoma.com.tw

Service : [e-mail] asia.optoma.com

Hong Kong

Rm. 2507, 25/F., China United Plaza,

No. 1008 Tai Nan West St., Kowloon, H.K.

Tel: [phone] Fax: [phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., Tel: [phone]

Changning District Fax: [phone]

Shanghai, 200052, China www.optoma.com.cn

Latin America

715 Sycamore Drive Tel : [phone]

Milpitas, CA 95035, USA Fax: [phone]

www.optoma.com.br www.optoma.com.mx

Regulation & safety notices

This appendix lists the general notices of your Projector.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 89/336/EEC (including amendments)
- Low Voltage Directive 73/23/EEC (amended by 93/68/EEC)
• R & TTE Directive 1999/EC (if product has RF function)
