Product Type	DLP Video Projector
Display Technology	Single 0.55" DLP® Chip by Texas Instruments
Native Resolution	XGA (1024 x 768)
Input Compatibility	NTSC, PAL, SECAM, HDTV (480i/p, 576i/p, 720p, 1080i)
Inputs	DVI-D (HDCP), VGA1 (SCART), VGA2, Composite Video, S-Video, Audio (3.5mm)
Outputs	Monitor Loop-through (VGA), Audio (3.5mm), RS232
Built-in Speaker	1 x 2W
Keystone Correction	±16° (Vertical)
Zoom	Manual (Zoom Lever)
Focus	Manual (Focus Ring)
Projection Distance	3.9 – 39.4 ft (1.2 – 12.0 m)
Projection Modes	Front Desktop, Rear Desktop, Front Ceiling, Rear Ceiling
Display Modes	PC, Photo, Movie, sRGB, User
Aspect Ratios	4:3, 16:9, LBX, Window
Remote Control	Full Function with Laser Pointer and Mouse Control
Security	Password Protection, Keypad Lock, Security Timer
Power Supply	AC 100-240V, 50-60Hz (Auto-switching)
Lamp Life	Approx. 2000 hours (Normal), up to 2600 hours (ECO mode)
Package Contents	Projector, Lens Cap, Power Cord, VGA Cable (1.8m), RS232 Cable (1.8m), Composite Video Cable (1.8m), SCART VGA/S-Video Adapter (EU), Remote Control with Batteries, User Manual, Quick Start Card, Warranty Card, Troubleshooting Guide
Product Dimensions (W x D x H)	Not available in manual - estimated 11.8" x 9.1" x 4.3" (30 x 23 x 11 cm)

Frequently Asked Questions - TX800 OPTOMA

How do I turn on the Optoma TX800 projector?

Ensure the power cord is connected and the lens cap is removed. Press the Power/Standby button on the control panel or remote. The Power LED will turn green. Then turn on your source (computer, DVD, etc.).

How do I connect my laptop to the projector?

Use a VGA cable to connect your laptop to the VGA1 or VGA2 input on the projector. For digital, use the DVI-D input. Connect audio if needed. Select the correct source using the Source button or direct source keys on the remote.

How can I adjust the keystone effect?

Press the Keystone +/- button on the control panel or remote. Use the directional keys to adjust the image shape (±16 degrees) to correct distortion caused by tilting the projector.

What should I do if the projector shows 'No Signal'?

Check that signal cables are securely connected and that your source is turned on. Ensure the correct input source is selected using the Source button. Verify that Source Lock in the Management menu is set to Off for auto-detection.

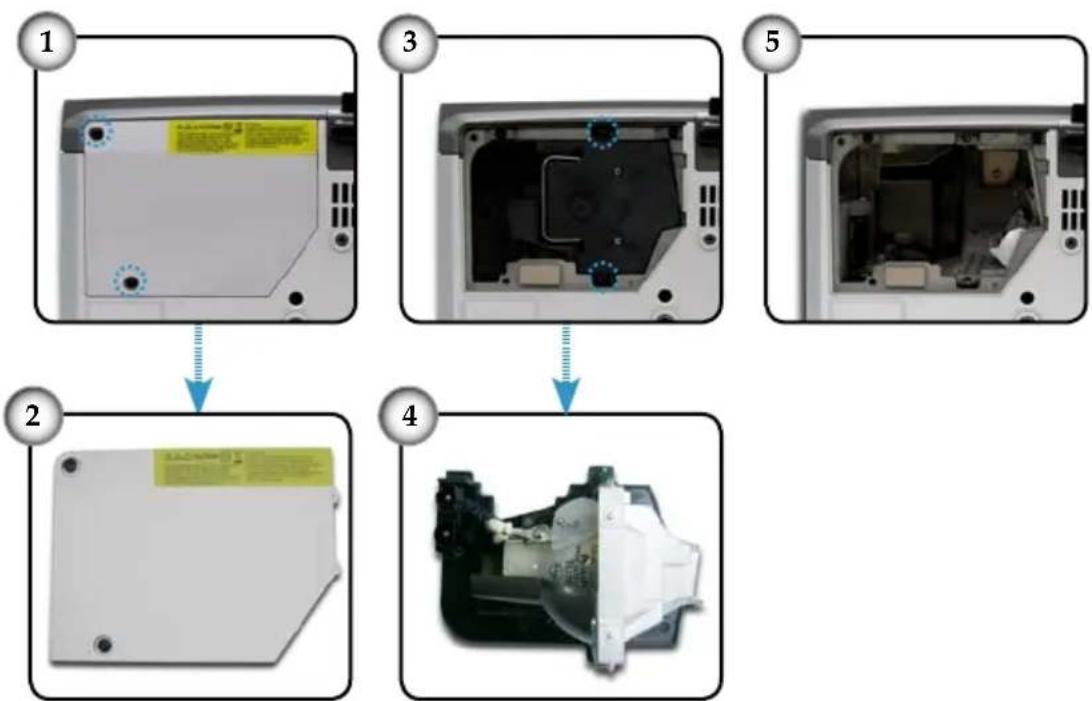

How do I replace the lamp?

Turn off the projector and allow it to cool for at least 30 minutes. Disconnect power. Remove the lamp cover screws, then the two screws holding the lamp module. Pull out the module and replace with a new one. Reverse steps and reset lamp hours in the OSD (Lamp Setting > Reset Lamp Hours).

Can I use the remote control as a laser pointer?

Yes, aim the remote at the screen and press and hold the Laser button to activate the red laser pointer. Release to turn it off.

How do I reset the lamp hours counter after replacing the lamp?

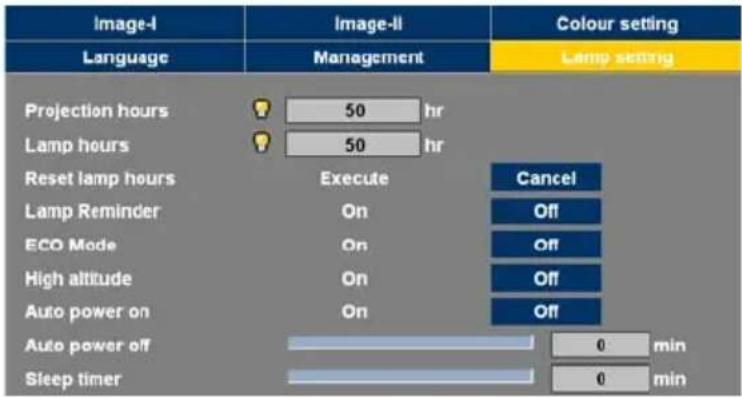

Go to the OSD menu, select Lamp Setting, then choose Reset Lamp Hours. Press Enter to confirm. This resets the cumulative lamp operating time to zero.

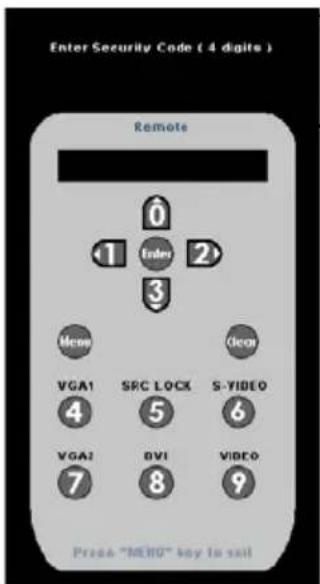

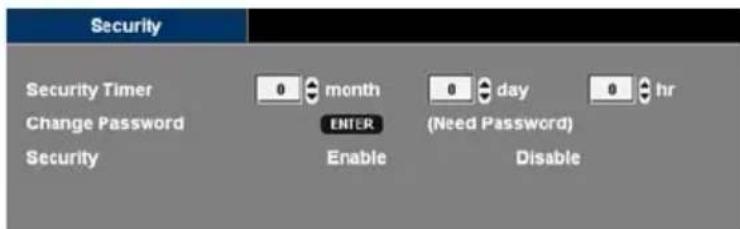

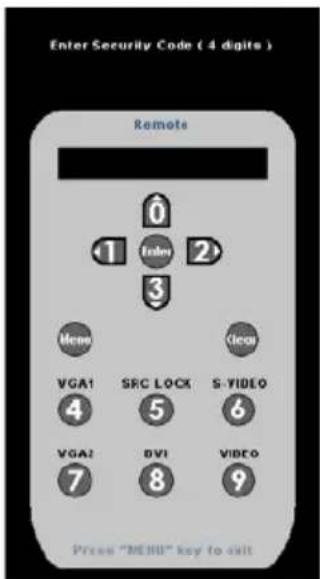

How can I set a password to secure the projector?

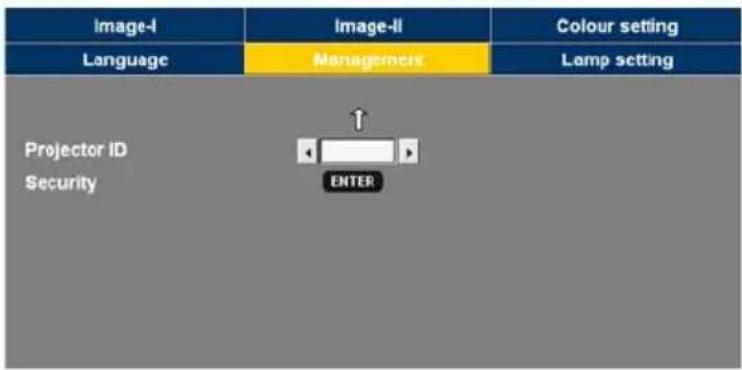

In the OSD, navigate to Management > Security. Press Enter to set a password (default 0000). Use the number buttons to enter a 4-digit password and confirm. Then enable Security Mode. The projector will require the password at startup.

What is ECO mode and how does it affect the lamp?

ECO mode dims the projector lamp, reducing power consumption and extending lamp life by up to 130%. It can be enabled in the Lamp Setting menu. The image will be slightly dimmer, suitable for less bright environments.

How do I clean the projector?

Turn off and unplug the projector. Use a soft cloth moistened with mild detergent to clean the exterior housing. Do not use abrasive cleaners or solvents. Clean the lens with a lens cleaning cloth. Ensure ventilation slots are not blocked.

USER MANUAL TX800 OPTOMA

Table of Contents ...... 1

Usage Notice 2

Precautions 2

Introduction 4

Product Features 4

Package Overview ....5

Product Overview 6

Main Unit....6

Control Panel 7

Connection Ports 8

Remote Control with Mouse Function and Laser Pointer 9

Installation 10

Connecting the Projector 10

Connect the Computer/Notebook ....10

Connect the Video 11

Powering On/Off the Projector 12

Powering On the Projector 12

Powering Off the projector 13

Warning Indicator....13

Adjusting the Projected Image 14

Adjusting the Projector Image Height 14

Adjusting the Projector Zoom / Focus 15

Adjusting Projected Image Size 15

User Controls 16

Control Panel & Remote Control 16

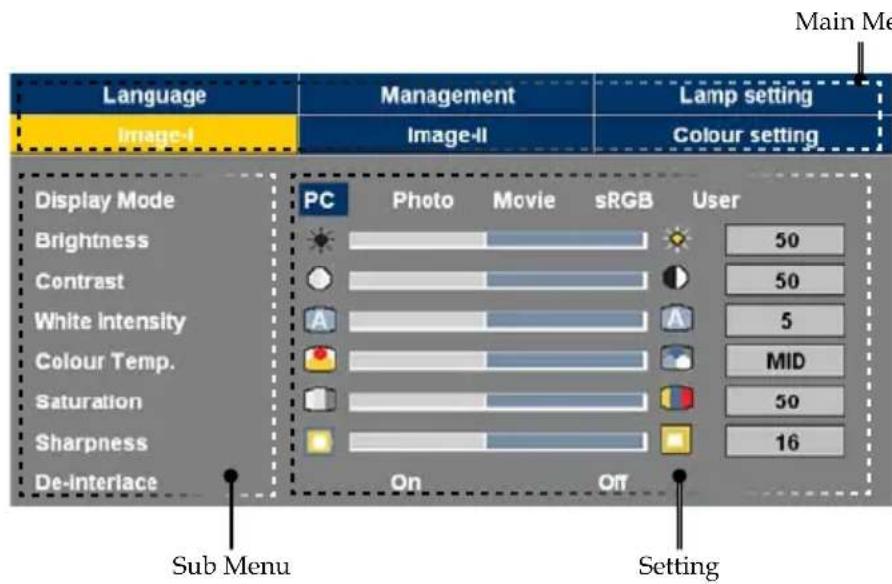

On-Screen Display Menus 18

How to Operate .... 18

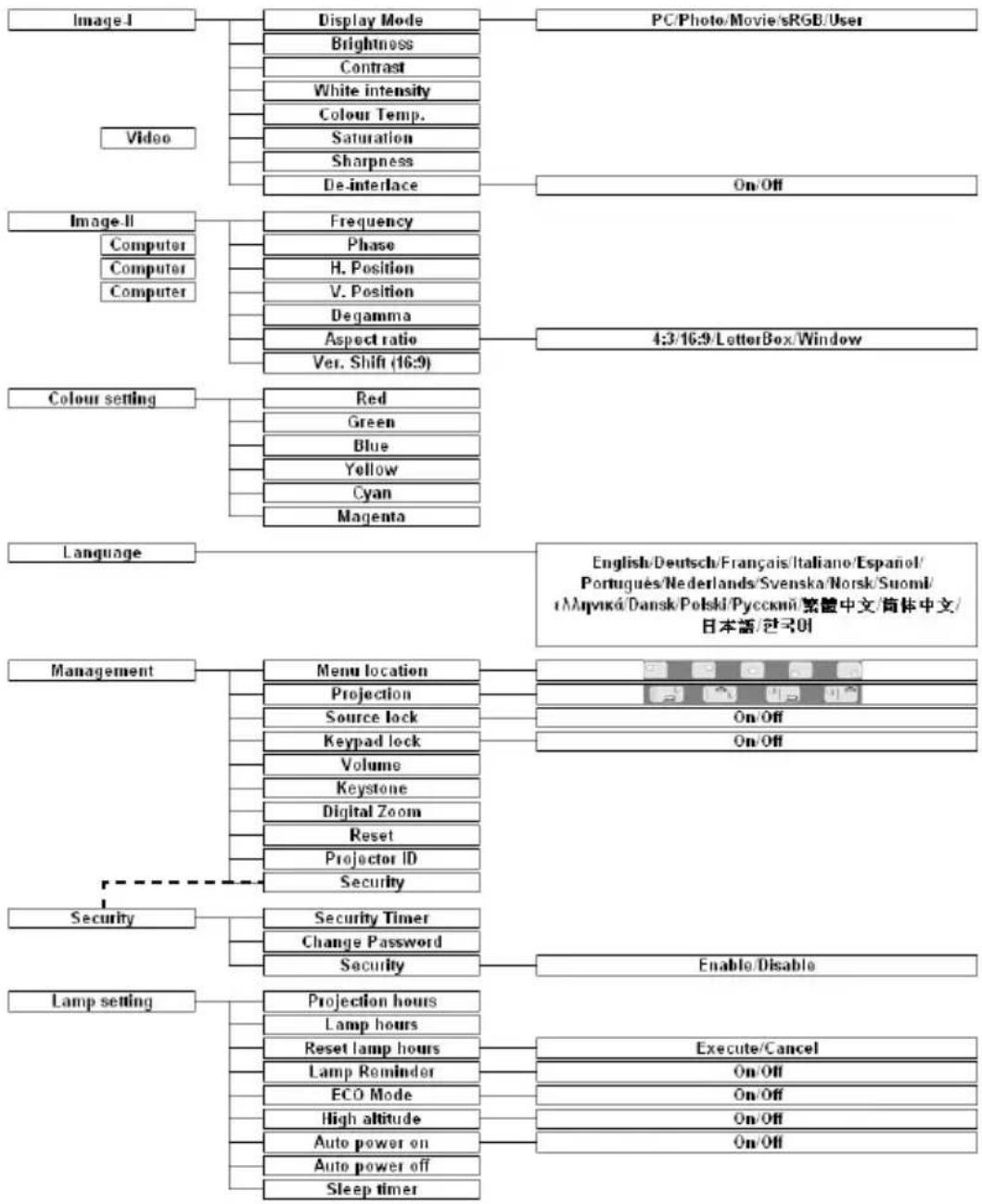

Menu Tree....19

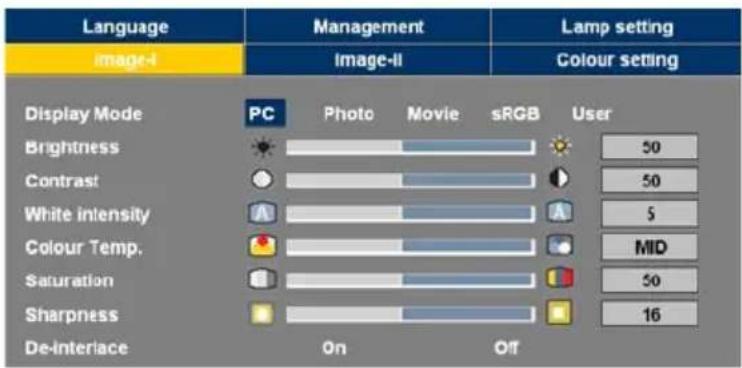

Image-I 20

Image-II 22

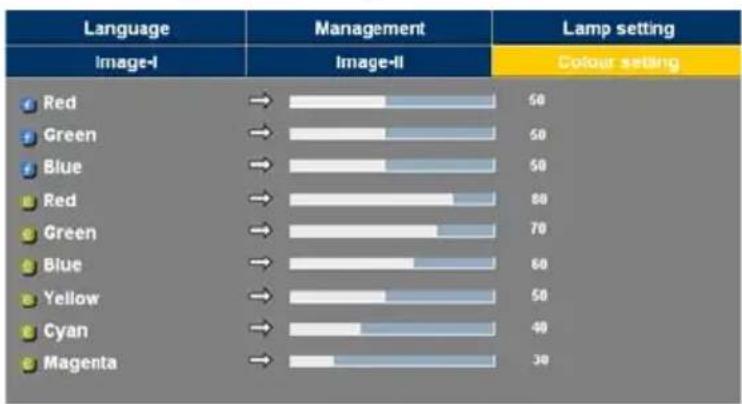

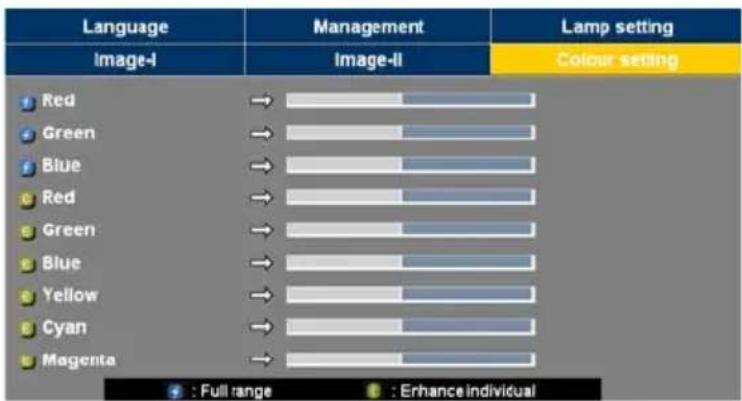

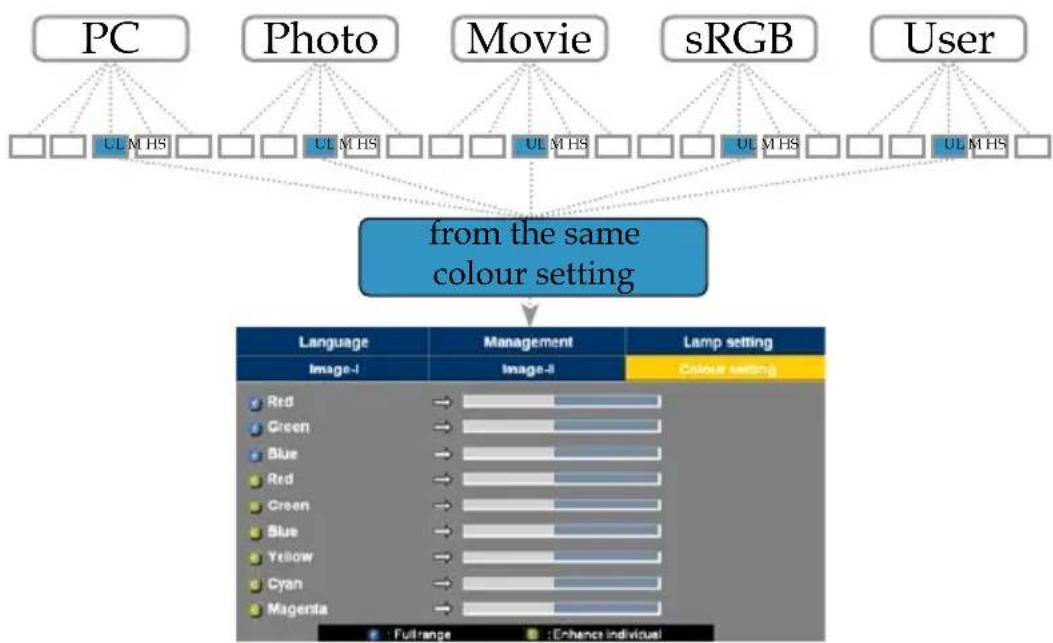

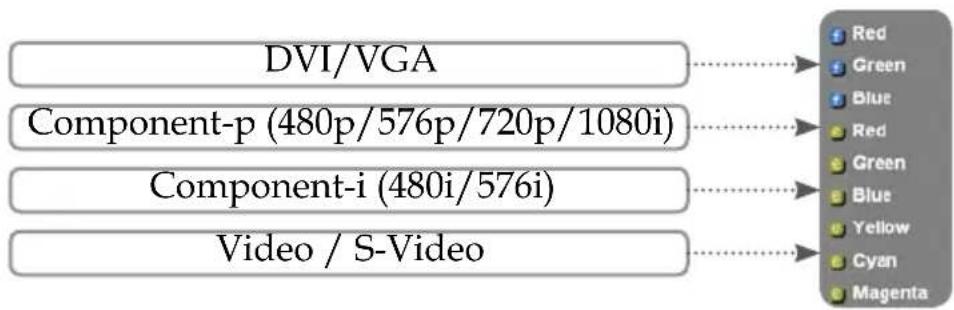

Colour Setting 24

Language 26

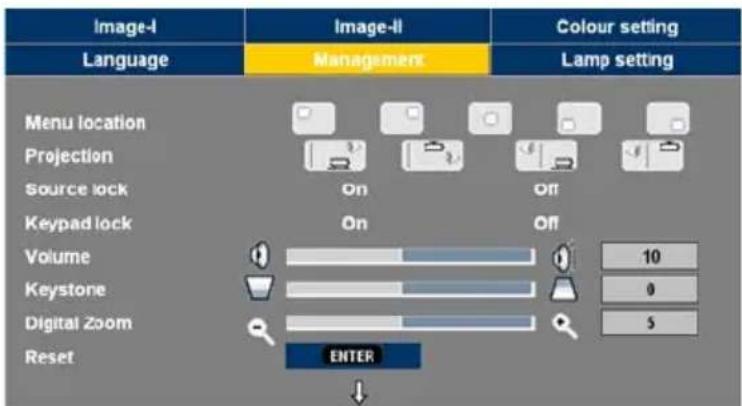

Management....27

Lamp Setting....30

Appendices 32

Troubleshooting 32

Replacing the Lamp 36

Compatibility Modes 37

RS232 Commands 38

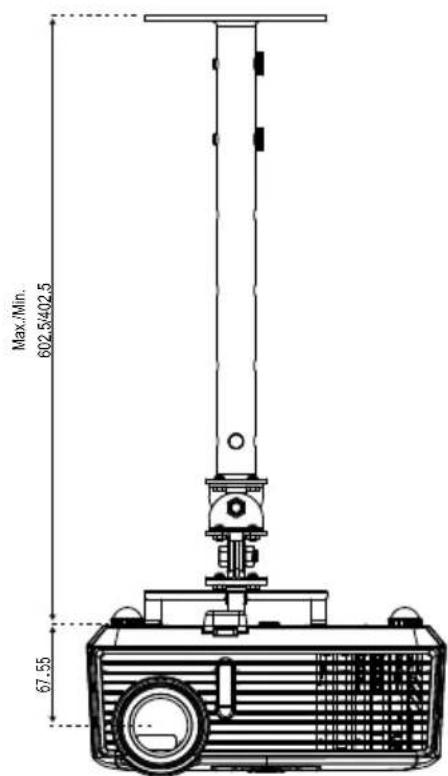

Ceiling Mount Installation 39

Optoma Global Offices 40

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.
⚠ Warning- To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
⚠ Warning- Please do not open or disassemble the product as this may cause electric shock.
Warning- When changing the lamp, please allow unit to cool down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself. Please be sure to change the lamp when it shows warning messages.
Warning- Reset the "Reset Lamp Hours" function from the On Screen Display "Lamp Setting" menu after replacing the lamp module (refer to page 30).
Warning- When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.
Warning- Turn on the projector first and then the signal sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp”. (see page 36)

Do:

• Turn off the product before cleaning.
  Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

Block the slots and openings on the unit provided for ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:

• In extremely hot, cold or humid environments.
• In areas susceptible to excessive dust and dirt.
• Near any appliance that generates a strong magnetic field.
• In direct sunlight.

Product Features

Congratulations and Thank You for choosing Optoma projector. This product is a XGA single chip 0.55" DLP® projector. Outstanding features include:

True XGA, 1024 x 768 addressable pixels
Texas Instruments Single chip DLP® Technology
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and HDTV compatible (480i/p, 576i/p, 720p, 1080i)
- Multi-Auto functions: Auto detection, Automatic saving of user adjustments
Full function IR remote control with laser pointer
◆ User friendly multilingual on screen menu
◆ Advanced digital keystone correction and high quality full screen image re-scaling
◆ User friendly control panel
One built-in speaker with 2 Watt amplifier
- SXGA+, SXGA compression and SVGA, VGA re-sizing
Mac compatible
◆ DVI support (HDCP compliant)

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Silver projector with a circular lens and ventilation grille (no visible text or symbols)

Projector with lens cap

Power Cord 1.8m VGA Cable 1.8m

RS232 Cable 1.8m

Composite Video Cable 1.8m

SCART VGA/S-Video Adaptor (available in European region only)

Due to the difference in applications for each country, some regions may have different accessories.

Wireless Remote Controller

2 x AA Batteries

Documents :

User's Guide
Quick Start Card
√ Warranty Card
√ Quick Troubleshooting Guide

Product Overview

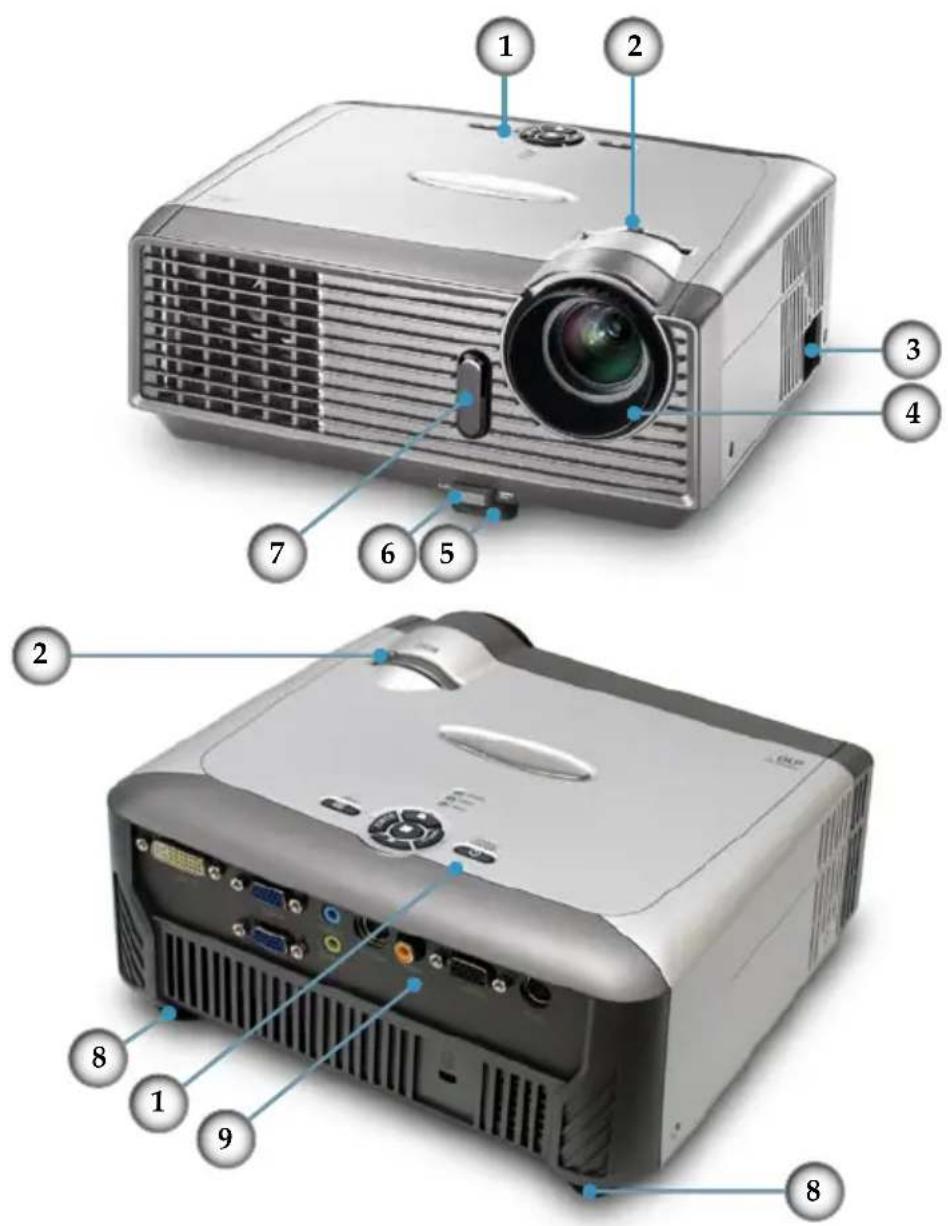

Main Unit

1. Control Panel
2. Zoom Lever
3. Power Socket
4. Focus Ring
5. Elevator Foot
6. Elevator Button
7. IR Receiver
8. Tilt Adjusting Feet
9. Connection Ports

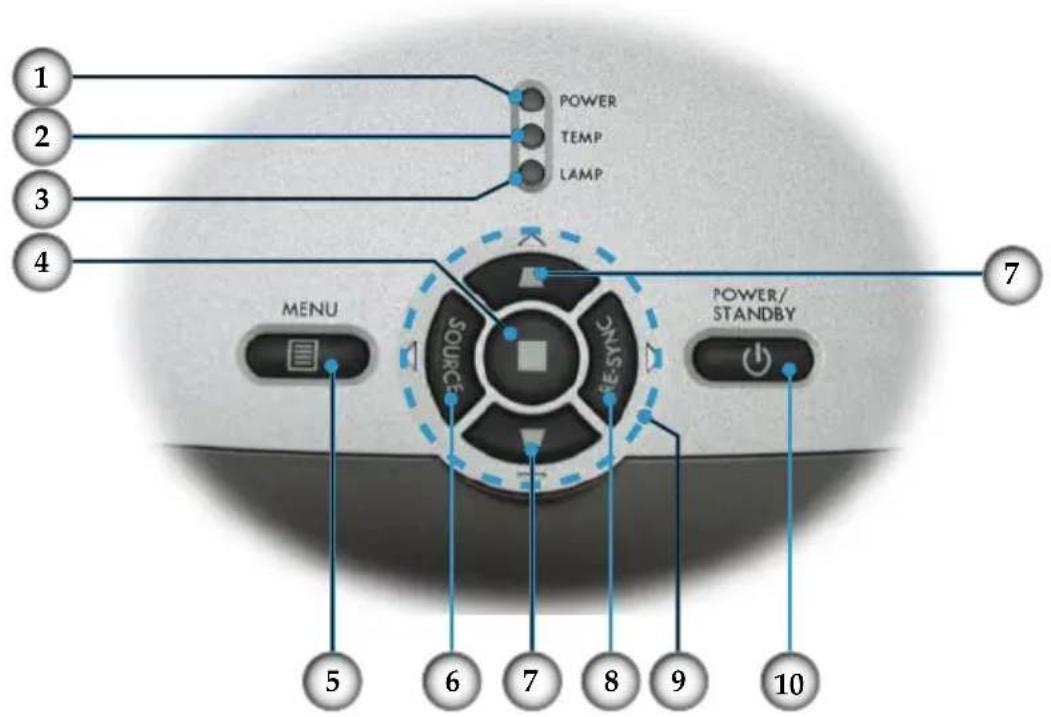

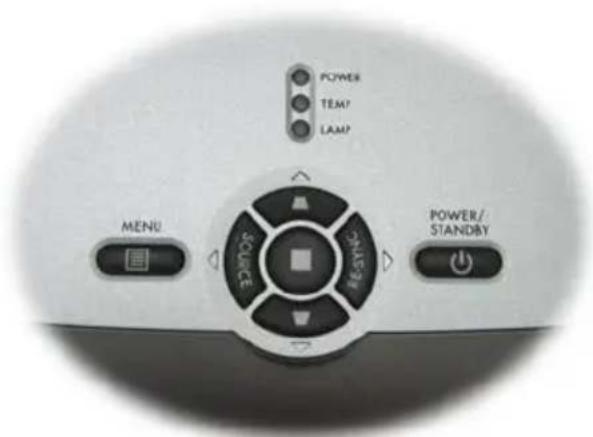

Control Panel

1. Power/Standby LED
2. Temp Indicator LED
3. Lamp Indicator LED
4. Enter
5. Menu (On/Off)
6. Source Select
7. Keystone +/-
8. Re-Sync
9. Four Directional Select Keys
10. Power/Standby

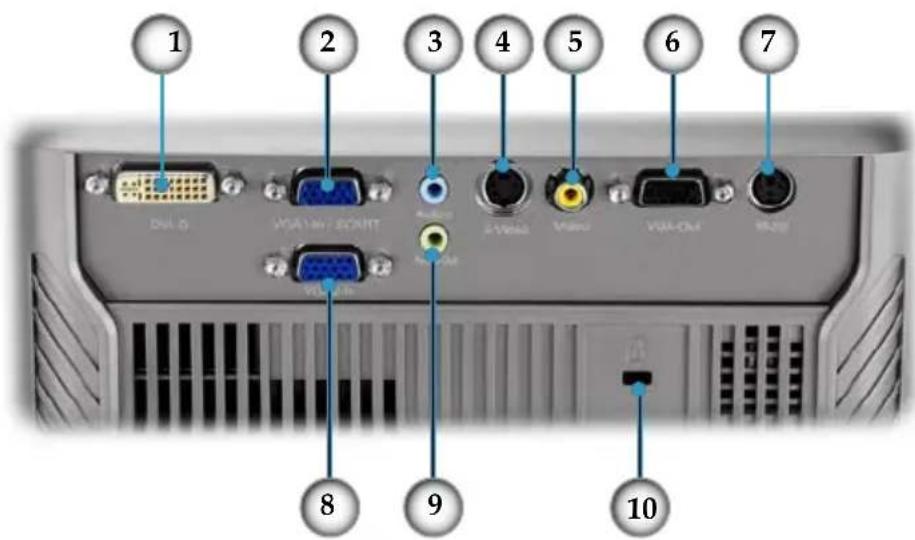

Connection Ports

1. DVI-D Input Connector (PC Digital/HDTV/HDCP Input)
2. VGA1-In SCARTConnector (PC Analog signal/SCART RGB/HD/Component Video Input)
3. Audio Input Connector
4. S-Video Input Connector
5. Composite Video Input Connector
6. Monitor Loop-through Output Connector
7. RS232 Connector
8. VGA2-In Connector (PC Analog signal/HD/Component Video Input)
9. Audio Output Connector
10. Kensington™ Lock Port

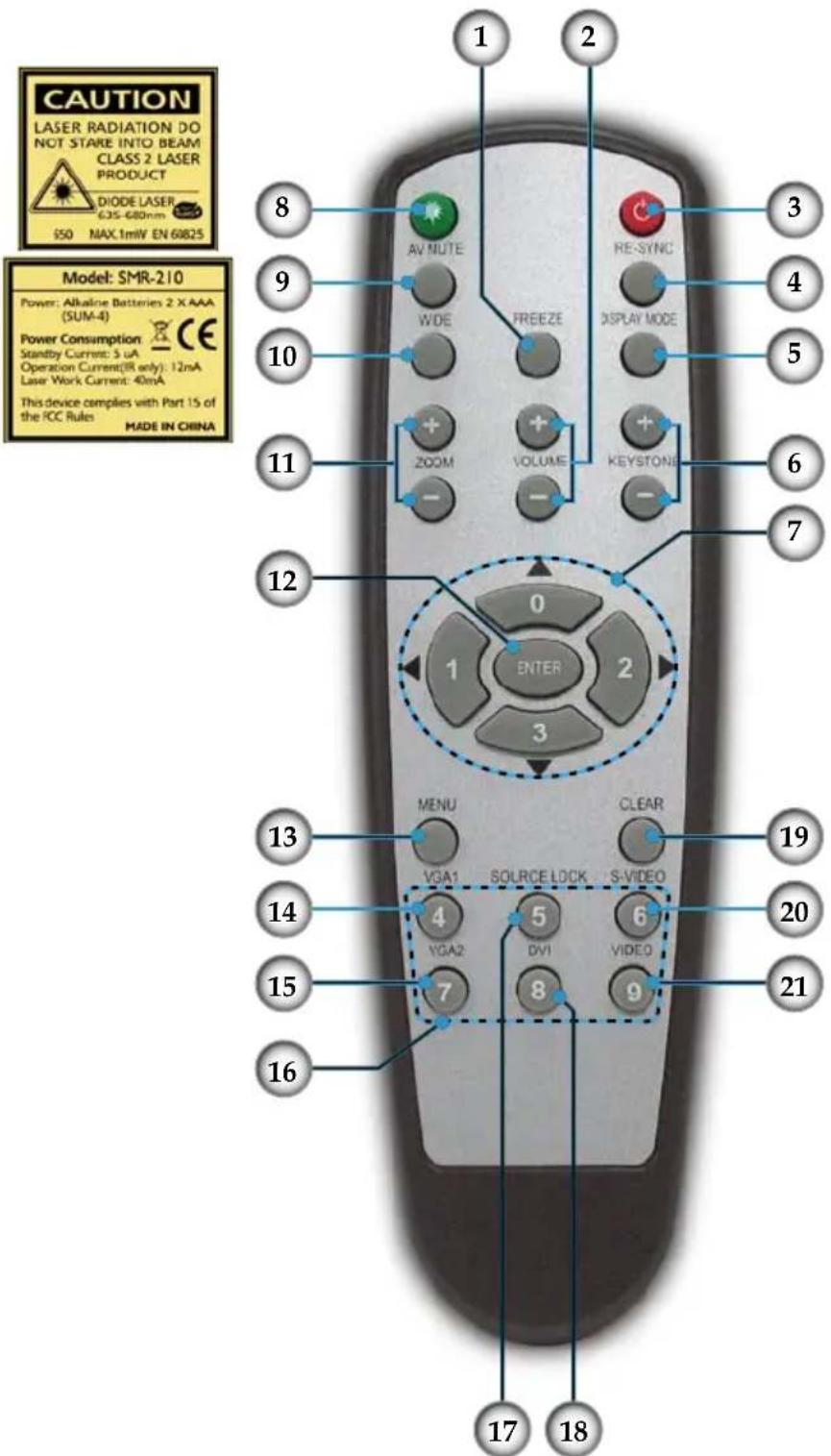

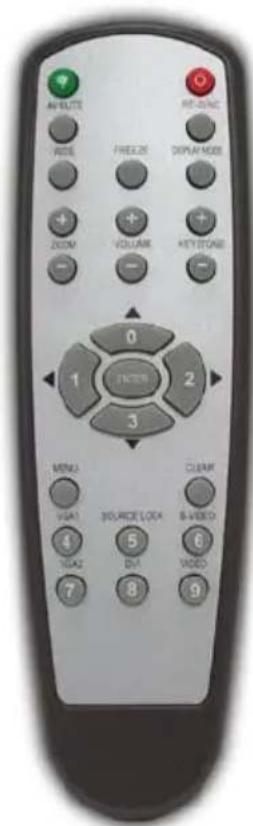

Remote Control with Mouse Function and Laser Pointer

1. Freeze
2. Volume +/-
3. Power
4. Re-Sync
5. Display Mode
6. Keystone +/-
7. Four Directional Select Keys & Number Buttons (0\~3)
8. Laser Button
9. AV Mute
10. Wide Mode
11. Zoom In/Zoom Out
12. Enter
13. Menu
14. VGA1 Source
15. VGA2 Source
16. Number Buttons (4\~9)
17. Source Lock
18. DVI Source
19. Clear
20. S-Video Source
21. Composite Video Source

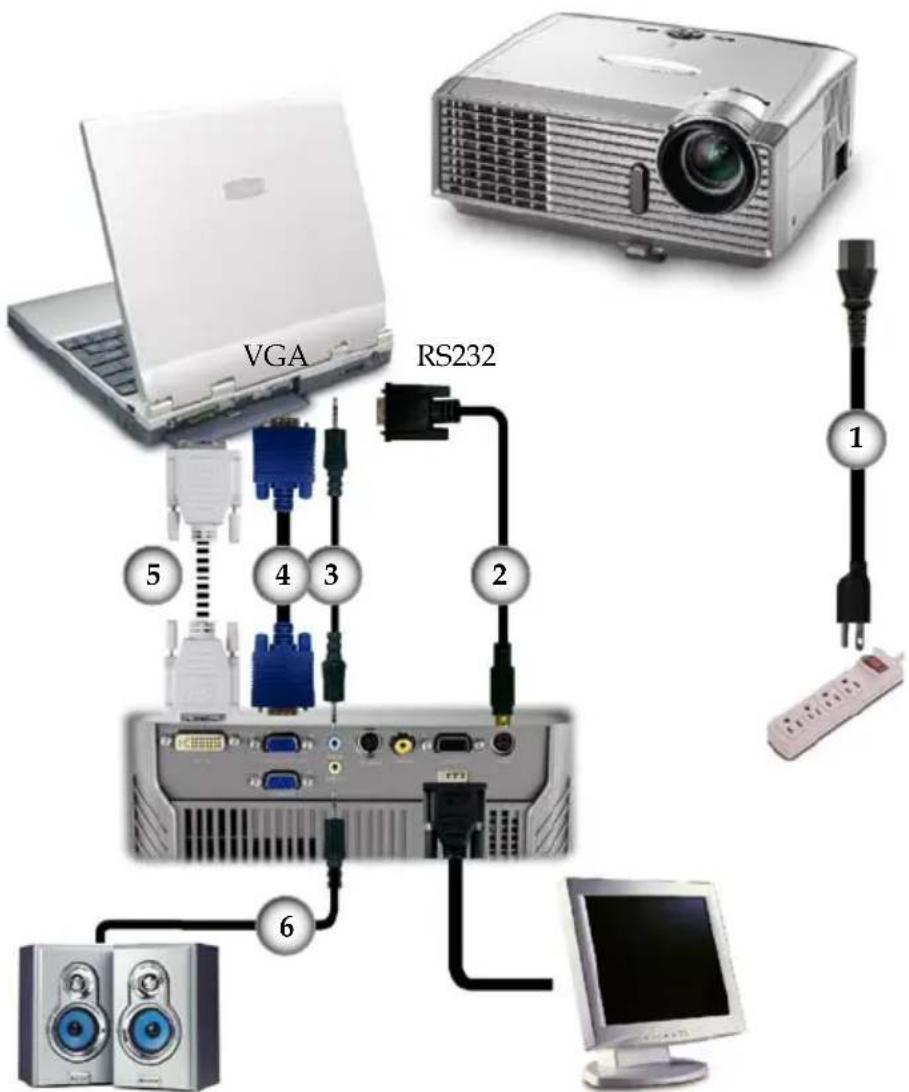

Connecting the Projector Connect the Computer/Notebook

Audio Output (For Active Speakers)

Due to the difference in applications for each country, some regions may have different accessories.

1. Power Cord
2. RS232 Cable
3. ......Audio Input Cable
4. VGA to VGA Cable
5. DVI to DVI Cable
6. Audio Output Cable

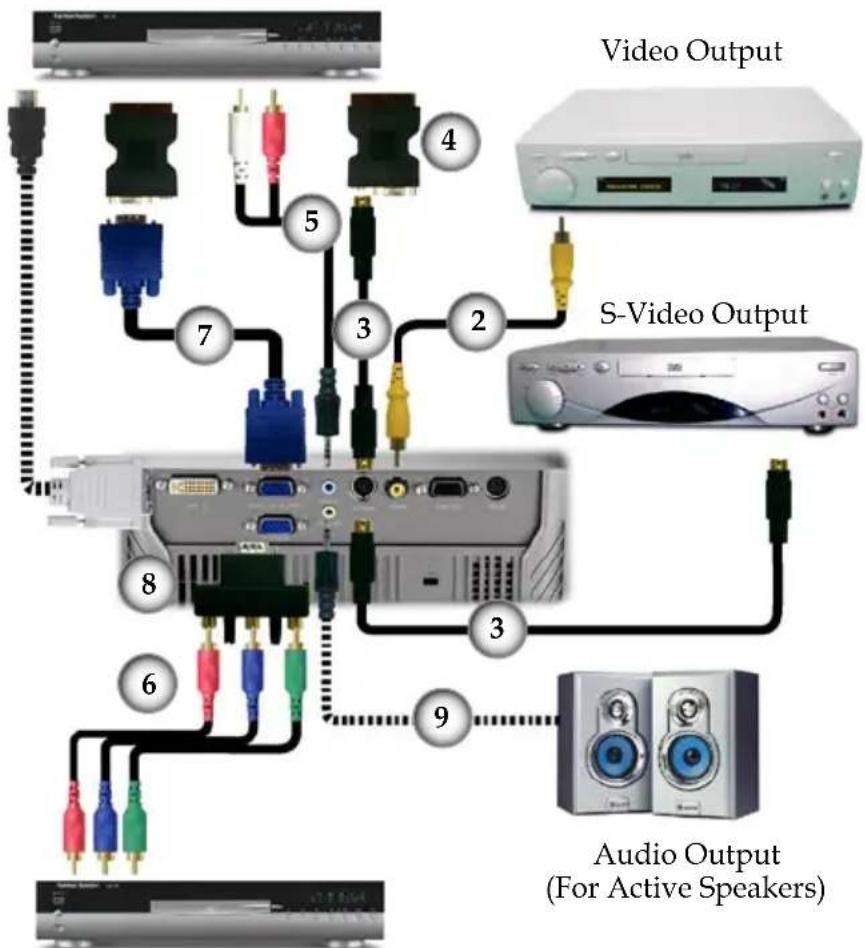

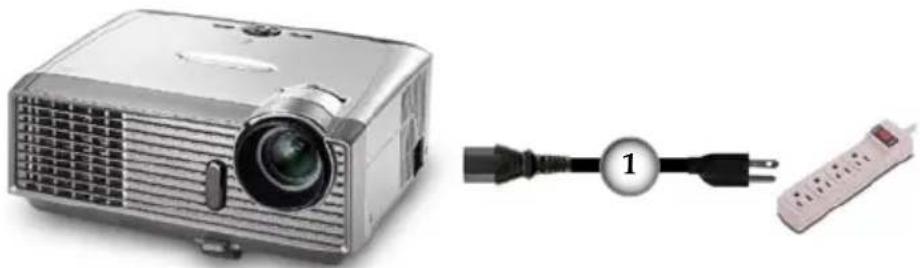

Connect the Video

Exterior view of a projector with a camera and connected to a power strip (no text or symbols visible)

DVD Player, Set-top Box, HDTV receiver

Due to the difference in applications for each country, some regions may have different accessories.

1. Power Cord
2. ...... Composite Video Cable
3. S-Video Cable
4. SCART VGA/S-Video Adapter
5. Audio Input Cable
6. RCA Component Cable for YPbPr
7. VGA to VGA Cable
8. ......VGA to 3 RCA Component/HDTV Adapter
9. ......Audio Output Cable

Powering On/Off the Projector

Powering On the Projector

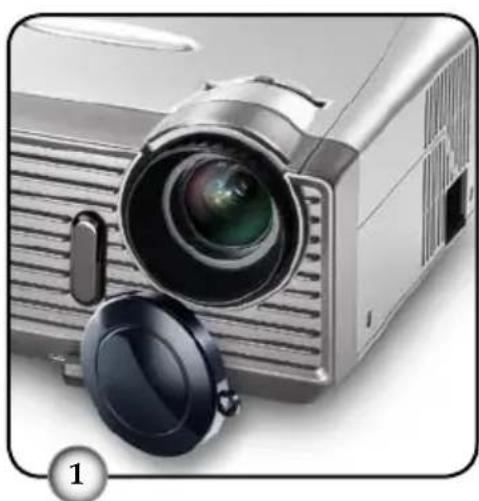

1. Remove the lens cap. ①
2. Ensure that the power cord and signal cable are securely connected. The Power LED will turn red.

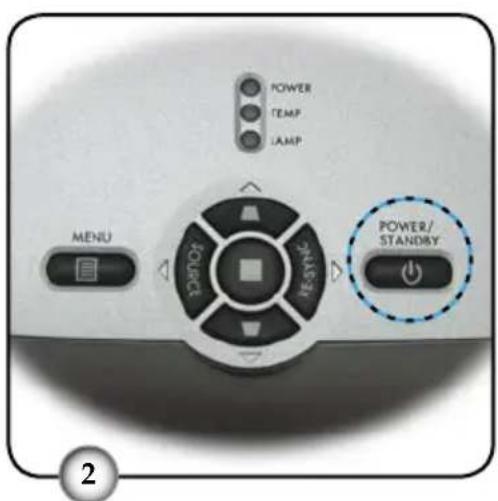

3. Turn on the lamp by pressing "Power/Standby" button on the control panel.② And the Power LED will turn green.
4. Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically within "Management" menu; check that "Source Lock" has been set to "Off".

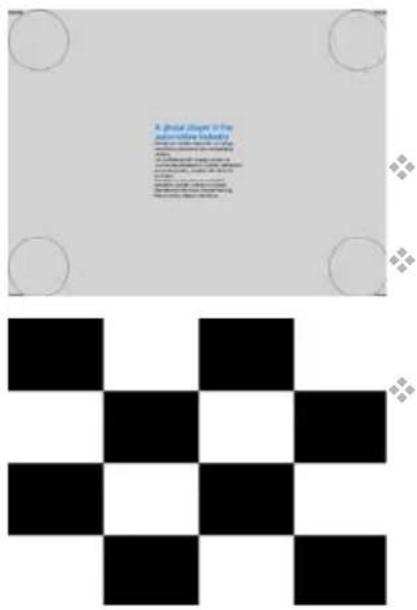

Text Pattern

If the screen displays "No Signal", please make sure the signal cables are securely connected.

You can calling out test image method is under "AV Mute" button, then press ▲key to select pattern for view and settle 4 sides, area and focus.

If you connect multiple sources at the same time, use the "Source" button on the control panel or direct source key on remote control to switch.

Turn on the projector first and then the signal sources.

Close-up of a projector with lens and cover, no visible text or symbols

Lens Cap

Power/Standby

Powering Off the Projector

1. Press the "Power/Standby" button to turn off the projector lamp; you will see a message

Wait 1 minutes before you can switch on again.

Press Power key again to confirm.

Press "Enter" key to remove this warning.

displayed on the projector's screen. Press the "Power/Stand-by" button again to confirm, otherwise the message will disappear after 5 seconds.

1. The cooling fans continue to operate for about 30 seconds for cooling cycle and the Power LED will flash red. When the Power LED stops flashing, the projector has entered standby mode.

Once in standby mode, simply press "Power/Standby" button to restart the projector.

1. Disconnect the power cord from the electrical outlet and the projector.

2. Do not turn on the projector immediately following a power off procedure.

Warning Indicator

When the “TEMP” indicator turns red, it indicates the projector has overheated. The projector will automatically shut itself down.

When the “LAMP” indicator turns red, it indicates a problem with the lamp. Turn off the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center. See page 40.

When the “LAMP” indicator flashes red, it indicates the fan has failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center. See page 40.

Adjusting the Projected Image

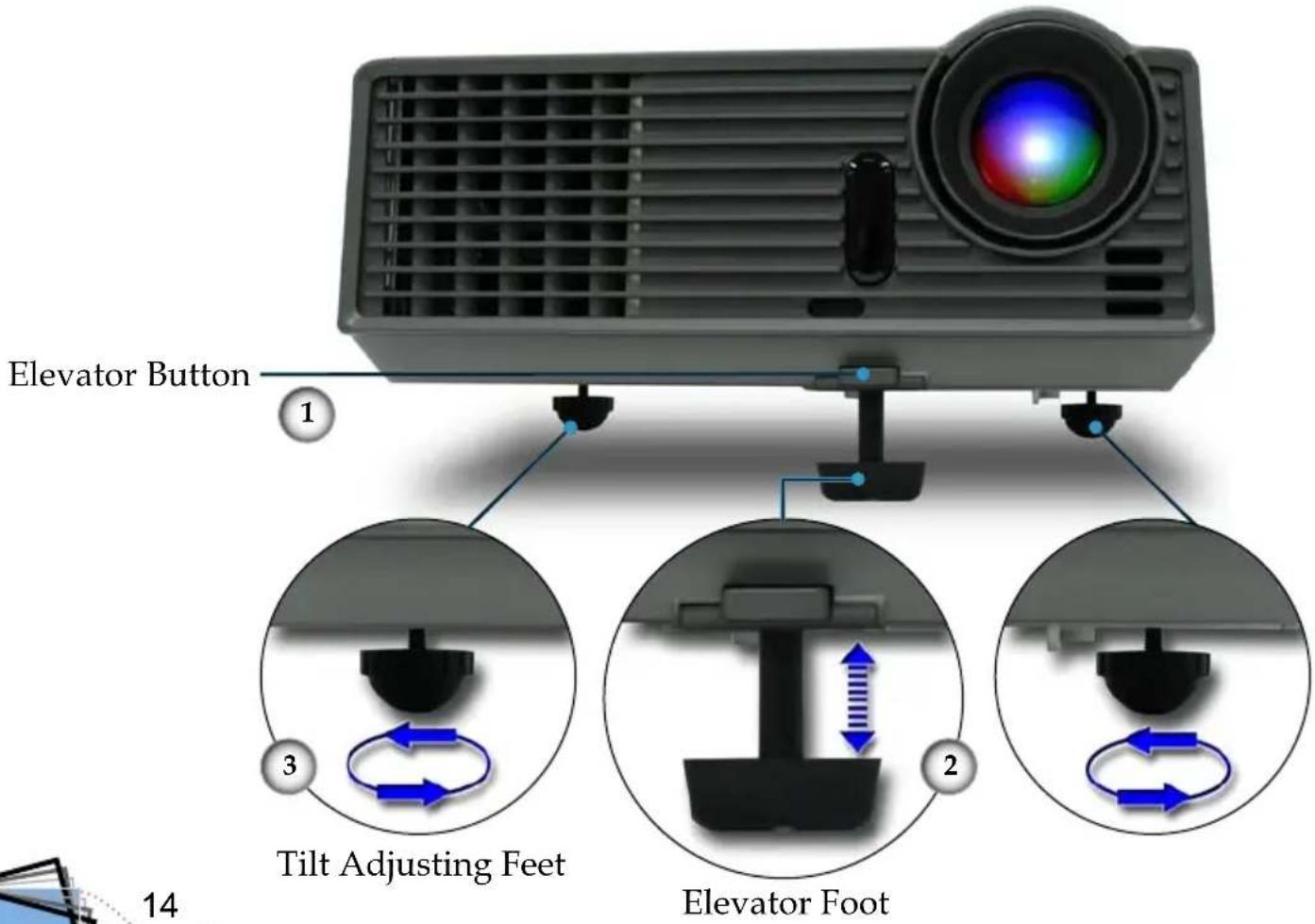

Adjusting the Projector Image Height

The projector is equipped with elevator foot for adjusting the image height.

To raise the image:

1. Press the elevator button ①.
2. Raise the image to the desired height angle ②, then release the button to lock the elevator foot into position.
3. Use screw in feet ③ to fine-tune the display angle.

To lower the image:

1. Press the elevator button.
2. Lower the image, then release the button to lock the elevator foot into position.
3. Use screw in feet ③ to fine-tune the display angle.

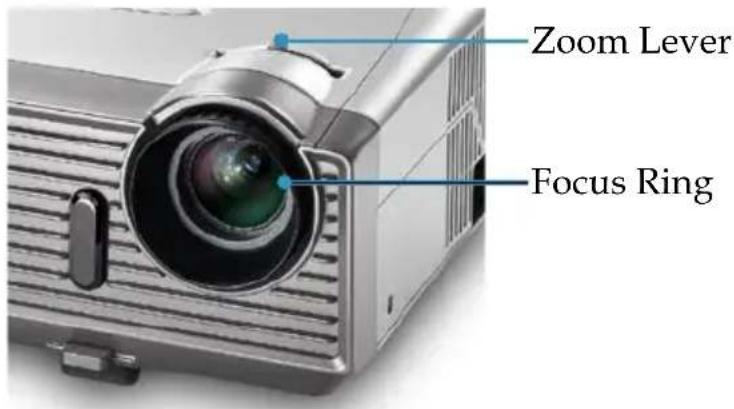

Adjusting the Projector Zoom / Focus

You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances from 3.9 to 39.4 feet (1.2 to 12.0 meters).

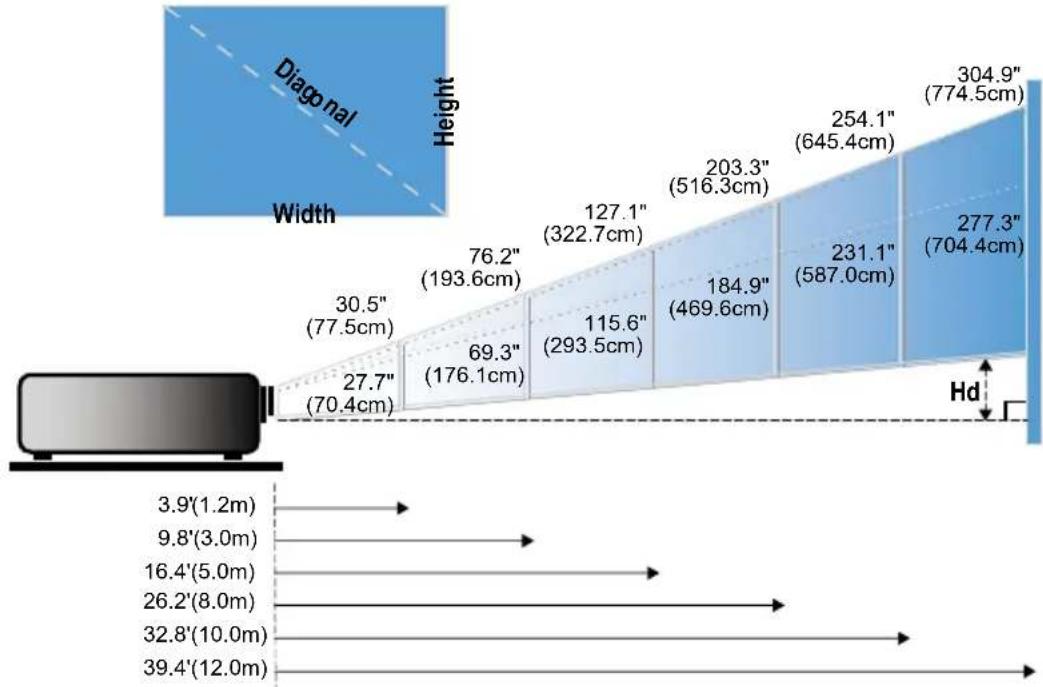

Adjusting Projection Image Size

Screen (Diagonal)	Max.	30.5"(77.5cm)	76.2"(193.6cm)	127.1"(322.7cm)	203.3"(516.3cm)	254.1"(645.4cm)	304.9"(774.5cm)
	Min.	27.7"(70.4cm)	69.3"(176.1cm)	115.6"(293.5cm)	184.9"(469.6cm)	231.1"(587.0cm)	277.3"(704.4cm)
Screen Size	Max.(WxH)	24.4"x 18.3"62.0 x 46.5cm	61.0" x 45.7"154.9 x 116.2cm	101.7" x 76.3"258.2 x 193.6cm	162.6" x 122"413.0 x 309.8cm	203.3" x 152.5"516.3 x 387.2cm	243.9" x 182.9"619.6 x 464.7cm
	Min.(WxH)	22.2" x 16.6"56.3 x 42.2cm	55.4" x 41.6"140.9 x 105.7cm	92.5" x 69.4"234.8 x 176.1cm	147.9" x 110.9"375.7 x 281.8cm	184.9" x 138.7"469.6 x 352.2cm	221.8" x 166.4"563.5 x 422.6cm
Hd	Max.	2.75" (7.0cm)	6.86" (17.4cm)	11.44" (29.0cm)	18.30" (46.5cm)	22.87" (58.1cm)	27.44" (69.7cm)
	Min.	2.49" (6.3cm)	6.24" (15.9cm)	10.40" (26.4cm)	16.64" (42.3cm)	20.80" (52.8cm)	24.96" (63.4cm)
Distance		3.9' (1.2m)	9.8' (3.0m)	16.4' (5.0m)	26.2' (8.0m)	32.8' (10.0m)	39.4' (12.0m)

This graph is for user's reference only.

Control Panel & Remote Control

There are two ways for you to control the functions: Remote Control and Control Panel.

Using the Control Panel

Power/Stand-by	Refer to the “Power On/Off the Projector” section on pages 12-13.
Source ◀	Press “Source” to select an input signal.
Menu	Turns the menu On or Off.
Four Directional Select Keys	Use ▲ ▼ to navigate through the menus.
Enter	Confirm your item selection.
Keystone	Adjusts image distortion caused by tilting the projector (±16 degrees).
Re-Sync ▶	Automatically synchronizes the projector to the input source.

Using the Remote Control
Power	Refer to the “Power On/Off the Projector” section on pages 12-13.
Re-Sync	Automatically synchronizes the projector to the input source.
Keystone	Adjusts image distortion caused by tilting the projector (±16 degrees).
Laser Button	Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.
AV Mute	Momentarily turns off the audio and video. Press this button again to unlock.
Volume +/-	Increases/decreases speaker volume.
Freeze	Press “Freeze” to pause the screen image. Press this button again to unlock.
Display Mode	Select the display mode from PC, Photo, Movie, sRGB and User.
Wide	Fix to 16:9 screen.
Zoom In	Zoom in to magnify the image.
Zoom Out	Zoom out to reduce the image.
Four Directional Select Keys	Use ▲▼to navigate through the menus.
Menu	Display or exits the on-screen display menus for projector.
Clear	Clear your selection.
Enter	Confirm your item selection.
Source Lock	Select auto detection all connector ports or lock current connector port. (See page 27 for more)
Video	Choose composite video source.
S-Video	Choose S-Video source.
VGA1	Choose primary VGA-In or SCART source.
VGA2	Choose secondary VGA-In source.
DVI	Choose DVI-D source.

On Screen Display Menus

The Projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

How to Operate

1. To open the OSD menu, press "Menu" on the Remote Control or Control Panel.

2. When OSD is displayed, use ◀ keys to select any item in the main menu. While making a selection on a particular page, press ▼ key to enter sub menu.

3. Use ▲▼ keys to select the desired item and adjust the settings by ◀▶key.

4. Select the next item to be adjusted in the sub menu and adjust as described above.

5. Press "Menu" to confirm, and the screen will return to the main menu.

6. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.

Menu Tree

User Controls

Image-I

Display Mode

There are many factory presets optimized for various types of images.

PC: For computer or notebook. (brightest image)
▶ Photo: For optimum colour at high brightness.
▶ Movie: For home theater.
sRGB: For standard PC colour. (best colour reproduction)
User: Memorize user's settings.

Brightness

Adjust the brightness of the image.

▶ Press the ◀ to darken image.
▶ Press the ▶ to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ to decrease the contrast.
▶ Press the ▶ to increase the contrast.

White Intensity

Use the white peaking control to set the white peaking level of DMD chip. 0 stands for minimal peaking, and 10 stands for maximum peaking. If you prefer a brighter image, adjust towards the maximum setting. For a smooth and more natural image, adjust towards the minimum setting.

Colour Temp.

Adjusts the colour temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.

Each display mode has its own colour temperature and can memorize user's selection. For example:

Display mode PC	Photo Movie	sRGB User
Colour Temp. sRGB Low User High Mid

When you adjust the colour setting item, the colour temperature will be set as “User” automatically. And this set “User” is the same for all display mode. (See the section of “Colour Setting” for details).

Saturation

Adjusts a video image from black and white to fully saturated colour.

Press the ◀ to decrease the amount of saturation in the image.
Press the ▶ to increase the amount of saturation in the image.

Sharpness

Adjusts the sharpness of the image.

Press the ◀ to decrease the sharpness.
Press the to increase the sharpness.

De-interlace

This function converts an interlaced video signal into progressive signal.

On: Automatically switch the mode of Deinterlace.
Off: Switch Deinterlace mode to video mode for video source or TV source.

“Saturation” and “De-interlace” functions are only supported under Video mode.

User Controls

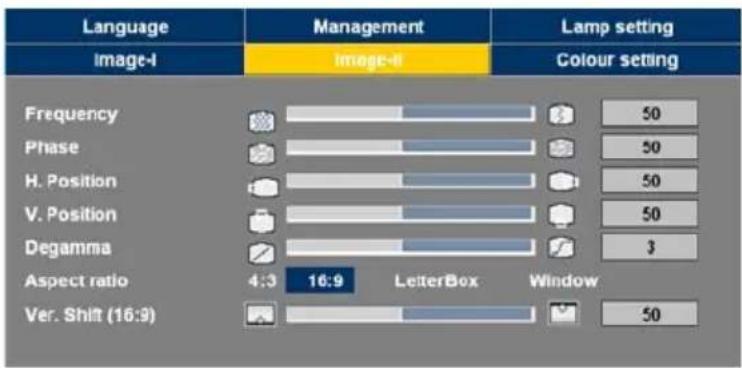

Image-II

Frequency

"Frequency" changes the display data frequency to match the frequency of your computer's graphic card. If you experience a vertical flickering bar, use this function to make an adjustment.

“Frequency”, “Phase”, “Hor. position” and “Ver. position” functions are only supported under Computer mode.

Phase

"Phase" synchronizes the signal timing of the display with the graphic card. If you experience an unstable or flickering image, use this function to correct it.

Hor. Position (Horizontal Position)

Press the ◀ to move the image left.
Press the ▶ to move the image right.

Ver. Position (Vertical Position)

Press the ◀ to move the image down.
Press the ▶ to move the image up.

Degamma

This allows you to choose a degamma table that has been fine-tuned to bring out the best image quality for the input.

Aspect Ratio

Use this function to choose your desired aspect ratio.

4:3 : The input source will be scaled to fit the projection screen.
16:9 : The input source will be scaled to fit the width of the screen.
LBX: This format is for non-16x9, letterbox source and for users who use external 16x9 lens to display 2.35:1 aspect ratio using full resolution.
Window: When a 4:3 image is bigger than a 16:9 screen, select the "Window" mode to fit the image onto the screen without changing the projection distance.

Input Signal

□ : Display area
: Picture area

Display on Screen

Or

Ver. Shift (16:9)

Adjust the image position up or down, when you select the aspect ratio of 16:9.

Ver. Shift (16:9): Image Position at window mode will also be moved accordingly.

Press the ◀ to move the image down.
▶ Press the ▶ to move the image up.

User Controls

Colour Setting

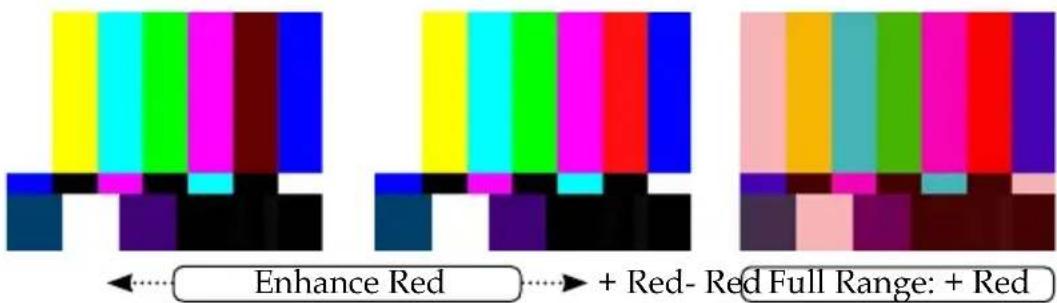

Colour Setting

Full Range: Adjust the Red, Green and Blue color for all screen.
Enhance Individual: Adjust the Red, Green, Blue, Yellow, Cyan and Magenta colors for advanced adjustment of the individual colors.

When you adjust the colour setting item, the colour temperature will be set as "User" automatically. And this set "User" is the same for all display mode. For example:

Icon Colour Temp.

L Low

M Mid

U User

S sRGB

H High

Different color setting will be memorized at 4 different source groups. But they will be same under same source.

When we adjust color setting the current color temperature will be memorized before it auto switch to "User". Because the memorized color temperature will be a base of "User". For example:

1.) Colour temp. is Mid

2.) User creates his favorite color based on "Mid" setting of colour temperature. So when user switches colour temp. to "User", will find the image color temperature close to "Mid".

User Controls

Image-I	Image-II	Colour setting
Language	Management	Lamp setting
English	Nederlands	简体中文
Français	Suomi	繁體中文
Deutsch	cMnyikó	日本語
Italiano	Dansk	한국어
Español	Norsk
Português	Polski
Svenska	Русский

Language

Language

Choose the multilingual OSD menu. Use the ▲ or ▼ key to select your preferred language.

Press "Enter" to finalize the selection.

Management

Menu Location

Choose the menu location on the display screen.

Projection

Front-Desktop

The factory default setting.

Rear-Desktop

When you select this function, the projector reverses the image so you can project from behind a translucent screen.

Front-Ceiling

When you select this function, the projector turns the image upside down for ceiling-mounted projection.

Rear-Ceiling

When you select this function, the projector reverses and turns the image upside down. You can project from behind a translucent screen with ceiling mounted projection.

Source Lock

On: The projector will search specified connection port.

Off: The projector will search for other signals if the current input signal is lost.

Keypad Lock

On: All buttons will lock on the control panel. When you unlock, press "Enter" for about 3 seconds on the control panel.

▶ Off: The control panel is worked.

User Controls

Volume

Press ◀ to decrease the volume.
Press to increase the volume.

Keystone (Keystone Correction)

Adjusts image distortion caused by tilting projector. (±16 degrees)

Digital Zoom

Press the ◀ to reduce the size of an image.
Press the ▶ to magnify an image on the projection screen.

Reset

Choose "Enter" to return the adjustments and settings to the factory default values.

Management

Projector ID

Allows RS232 control of an individual projector. Range 01-99.

Security

First Time:

1. Press "Enter" to set password.
2. The Password is 4 digits, DEFAULT VALUE is "0000". (first time)
3. Use number buttons on the remote to select your password, and then press "Enter" key to confirm your selection.

■ Change Password:

1. Press "Enter" to input old password.

User Controls

1. Use number button to enter current password, and then press "Enter" key again to reveal next OSD menu.
2. Scroll down to highlight Password, and then press "Enter" to activate.
3. Enter new password (4 digits in length) using the number buttons on the remote, then press "Enter" to confirm.
4. Enter new password again and press "Enter" to confirm.

▶ Security Mode

■ Security Timer: Can be select the time (month/day/hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again (Use number buttons on remote. To change password, follow change password instructions above).
■ Enable: Choose "Enable" to enable security verification when turning on the projector.
■ Disable: Choose "Disable" to be able to switch on the projector without password verification.

User Controls

Lamp Setting

Projection Hours

Displays the projection time.

Lamp Hours

Displays the cumulative lamp operating time.

Reset Lamp Hours

Resets the lamp life hour counter after replacing the lamp.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before end of life.

ECO Mode

Choose "On" to dim the projector lamp which will lower power consumption and extend the lamp life by up to 130% . Choose "Off" to return to normal mode.

High Altitude

Choose "On" to turn on High Altitude mode. Operates the fans at full speed continuously to allow for proper high altitude cooling of the projector.

Auto Power On

Choose "On" to power on the projector automatically when the power cord has connected. Choose "Off" to return to normal mode.

Auto Power Off

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. Then projector will automatically power off when the countdown has finished.

Sleep Timer

Sets the countdown timer interval. The timer will begin, with or without a signal input. Then the projector will automatically power off then the sleep timer countdown has finished.

Troubleshooting

If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local reseller or service center, see page 40 for details.

Problem: No image appears on screen

Ensure all the cables and power connections are correctly and securely connected as described in the “Installation” section.
▶ Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please refer to the "Replacing the lamp" section.
Make sure you have removed the lens cap and the projector is switched on.
Ensure that the "AV Mute" feature is not turned on.

Problem: Left of right edge of the image is missing or the image is unstable or noisy

Press "Re-Sync" on the remote control or on control panel.

If you are using a PC:

For Windows 3.x:

1. In the Windows Program Manager, double click the "Windows Setup" icon in the Main group.
2. Verify that your display resolution setting is less than or equal to 1400 × 1050 .

For Windows 95, 98, 2000, XP:

1. From the "My Computer" icon, open the "Control Panel" folder, and double click the "Display" icon.
2. Select the "Settings" tab.
3. Click on the "Advanced Properties" button.

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Verify the resolution setting is less than or equal to 1400 x 1050 resolution.

2. Select the "Change" button under the "Monitor" tab.

3. Click on "Show all devices." Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.

If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the toggle output settings. example: [Fn]+[F4]

$$ \begin{array}{l l} \text {Compaq = > [Fn]+[F4]} & \text {Hewlett => [Fn]+[F4]} \ \text {Dell = > [Fn]+[F8]} & \text {Packard => [Fn]+[F4]} \ \text {Gateway = > [Fn]+[F4]} & \text {NEC = > [Fn]+[F3]} \ \text {IBM = > [Fn]+[F7]} & \text {Toshiba = > [Fn]+[F5]} \end{array} $$

Mac Apple:

System Preference-->Display-->Arrangement-->Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

Problem: The screen of the Notebook or PowerBook computer is not displaying a presentation

If you are using a Notebook PC:

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's documentation for detailed information.

Problem: Image is unstable or flickering

▶ Use “Phase” to correct it. (See page 22)
Change the monitor colour setting on your computer.

Problem: Image has vertical flickering bar

Use "Frequency" to make an adjustment. (See page 22)
▶ Check and reconfigure the display mode of your graphic card to make it compatible with the product.

Problem: Image is out of focus

Adjusts the Focus Ring on the projector lens.

Appendices

Make sure the projection screen is between distance 3.9 to 39.4 feet (1.2 to 12.0 meters) from the projector. (See page 15)

Problem: The image is stretched when displaying 16:9 DVD The projector automatically detects 16:9 DVD and adjusts the aspect ratio by digitizing to full screen with 4:3 default setting.

If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:

Please select 4:3 aspect ratio type on your DVD player if you are playing a 16:9 DVD.
If you can't select 4:3 aspect ratio type on your DVD player, please select 4:3 aspect ratio in the on screen menu.

Problem: Image is reversed

Select "Management-->Projection" from the OSD and adjust the projection direction. (See page 27)

Problem: Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp”. (See page 36)

Problem: LED lighting message

Message	Power-LED		Temp-LED Lamp-LED
	(Green) (Red)
Standby State (Input power cord)	○		○	○
Warming Flashing		○	○	○
Normal Mode		○	○	○
Cooling Flashing	○		○	○
Error (Lamp failed)	○	○	○
Error (Fan failed) Flashing	○	○	○
Error (Over Temp.)	○	○		○

Steady light => No light => ○

Problem: Message Reminders

Fan fail:

Warning IFANLOCKED

The projector will switch off automatically

Please contact a service centre for repair

Over temperature:

Warning! TEMPERATURE TOO HIGH

The projector will switch off automatically

Please:

1. Allow cool down for 3 minutes

2. Make sure air in and outlets are not blocked

3. Make sure the environment temperature is under 35 degree C

If the problem persists in spite of the above, please contact a service centre for repair.

Power Off:

Wait 1 minutes before you can switch on again.

Press Power key again to confirm.

Press "Enter" key to remove this warning.

Replace the lamp:

Lamp life exceeded.

Appendices

Replacing the Lamp

The projector keeps track of the lamp usage. It will show you a warning message

Lamp life exceeded.

Warning: Lamp compartment is hot! Allow 30 minutes to cool down before changing lamp!

When you see this message, change the lamp as soon as possible. Make sure the projector has cooled down for at least 30 minutes before changing the lamp.

Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the Power/Standby button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to remove the screws from the cover.①
5. Push up and remove the cover.②
6. Remove the 2 screws from the lamp module.③
7. Pull out the lamp module. ④

To replace the lamp module, reverse the previous steps.

Compatibility Modes

Mode Resolution		(ANALOG) (DIGITAL)
		V.Frequency (Hz)	H.Frequency (kHz)	V.Frequency (Hz)	H.Frequency (kHz)
VESA VGA 640	x 350 70 31.5 70 31.5
VESA VGA 640	x 350 85 37.9 85 37.9
VESA VGA 640	x 400 85 37.9 85 37.9
VESA VGA 640	x 480 60 31.5 60 31.5
VESA VGA 640	x 480 72 37.9 72 37.9
VESA VGA 640	x 480 75 37.5 75 37.5
VESA VGA 640	x 480 85 43.3 85 43.3
VESA VGA 720	x 400 70 31.5 70 31.5
VESA VGA 720	x 400 85 37.9 85 37.9
VESA SVGA 800	x 600 56 35.2 56 35.2
VESA SVGA 800	x 600 60 37.9 60 37.9
VESA SVGA 800	x 600 72 48.1 72 48.1
VESA SVGA 800	x 600 75 46.9 75 46.9
VESA SVGA 800	x 600 85 53.7 85 53.7
VESA XGA 1024	x 768 60 48.4 60 48.4
VESA XGA 1024	x 768 70 56.5 70 56.5
VESA XGA 1024	x 768 75 60.0 75 60.0
VESA XGA 1024	x 768 85 68.7 85 68.7
* VESA SXGA 1152	x 864 70 63.8 70 63.8
* VESA SXGA 1152	x 864 75 67.5 75 67.5
* VESA SXGA 1152	x 864 85 77.1 85 77.1
* VESA SXGA 1280	x 1024 60 63.98 60 63.98
* VESA SXGA 1280	x 1024 75 79.98 75 79.98
* VESA SXGA+ 1400	x 1050 60 63.98 60 63.98
MAC LC 13" 640	x 480 66.66 34.98 ***	***
MAC II 13" 640	x 480 66.68 35	***	***
MAC 16" 832	x 624 74.55	49.725	***	***
MAC 19"	1024 x 768 75 60.24 ***		***
* MAC	1152 x 870	75.06 68.68	***	***
MAC G4 640 x	480 60 31.35 ***	***
i MAC DV	1024 x 768	75	60	***	***
* i MAC DV	1152 x 870 75 68.49 ***		***
* i MAC DV	1280 x 960	60	60	***	***

Remark: “*” compressed computer image.

RS232 Commands

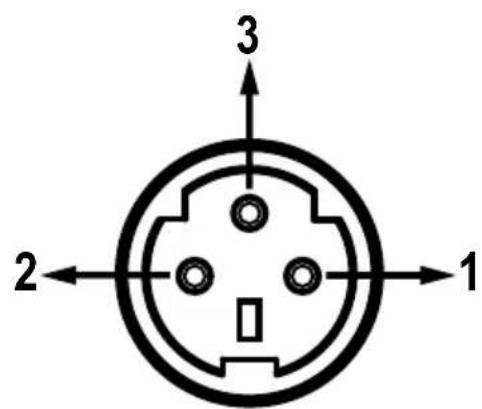

RS232 Connector

Pin no. Name		I/O (From Projector Side
1	TXD	OUT
2 RXD IN
3 GND _

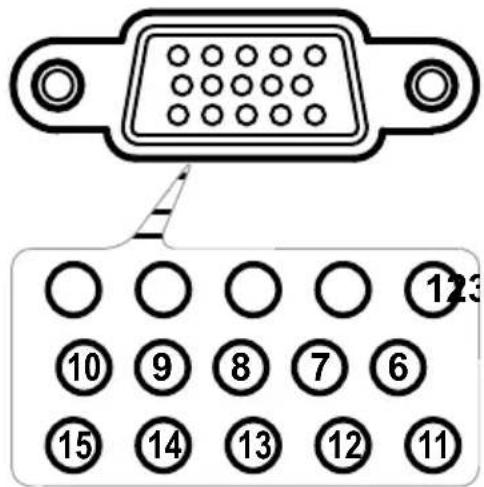

VGA-In Connector

Pin no. Spec.
1	R(RED)/Cr
2	G(GREEN)/Y
3 B(BLUE)/Cb
4	NC
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 HOT_DET
11 NC
12 DDC Date
13 HS/CS
14 VS
15 DDC Clock

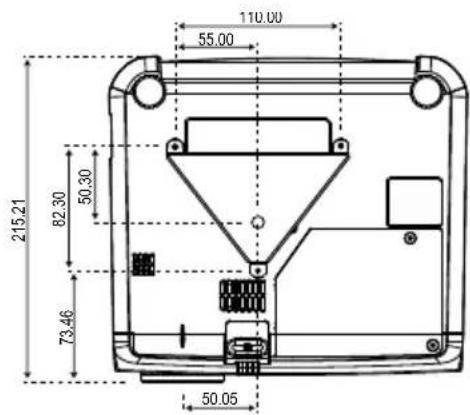

Ceiling Mount Installation

1. To prevent damaging your projector, please use the ceiling mount package for installation.

2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attached a mount to the projector meet the following specifications:

Please note that damage resulting from incorrect installation will invalidate the warranty.

Warning:

1. If you buy the ceiling mount from another manufacturer, please ensure that there is at least 10cm distance between the bottom cover of the projector and the ceiling.
2. Avoid placing the projector near sources of heat such as air-conditioning units and heaters otherwise it may overheat and shut down automatically.

Screw type: M3

▶ Maximum screw length: 10mm

▶ Minimum screw length: 8mm

Optoma Global Offices

For service or support please contact your local office.

USA

715 Sycamore Drive Tel: [phone]

Milpitas, CA 95035, USA Fax: [phone]

www.optomausa.com Service : [e-mail]

Canada

120 West Beaver Creek Road Unit #9

Richmond Hill, ON L4B 1L2, Canada

Tel: [phone] Fax: [phone]

www.optoma.com

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire, WD18 8QZ, UK

Tel: [phone] Fax: [phone]

www.optomaeurope.com

Service Tel : [phone] Service : [e-mail]

Taiwan

5F., No. 108, Minchiuan Rd. Tel: [phone]

Shindian City, Taipei Taiwan 231, Fax: [phone]

R.O.C. www.optoma.com.tw

Service : [e-mail] asia.optoma.com

Hong Kong

Rm. 2507, 25/F., China United Plaza,

No. 1008 Tai Nan West St., Kowloon, H.K.

Tel: [phone] Fax: [phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., Tel: [phone]

Changning District Fax: [phone]

Shanghai, 200052, China www.optoma.com.cn

Latin America

715 Sycamore Drive Tel: [phone]

Milpitas, CA 95035, USA Fax: [phone]

www.optoma.com.br www.optoma.com.mx
