Product Type	Video Projector
Brand	Optoma
Model	ZW502
Native Resolution	WUXGA (1920 x 1200)
Maximum Resolution	WUXGA (1920 x 1200)
Lens	Manual zoom and manual focus
Image Diagonal (WUXGA)	29" to 300.3"
Projection Distance (WUXGA)	1.0 m to 7.9 m
Brightness Mode	DynamicBlack, Eco., Power (50% to 100%)
Built-in Speaker	Yes, 10W
Inputs	HDMI 1.4a, HDMI 2.0b / MHL 2.2, VGA In, Video (RCA), Audio In 3.5mm, Microphone, USB Type-A (5V/1.5A power)
Outputs	VGA Out, Audio Out 3.5mm, 12V Trigger, 3D Sync
Control Ports	Micro USB, RS-232, RJ-45 (web control)
Color Reproduction	1073.4 million colors
Power Requirement	100-240 V ±10%, AC 50/60 Hz, 3.0 A
Dimensions (W x D x H) without feet	337 mm x 265 mm x 108 mm
Dimensions (with feet)	337 mm x 265 mm x 119.3 mm
Weight	4.6 ± 0.5 kg
Operating Temperature	5°C to 40°C
Laser Safety Class	Class 1 Laser Product - Risk Group 2 (IEC 62471-5:2015)
3D Support	DLP-Link, frame sequential, side-by-side, top-and-bottom
Network Control	Crestron, Extron, PJLink, AMX, Telnet, HTTP

Frequently Asked Questions - ZW502 OPTOMA

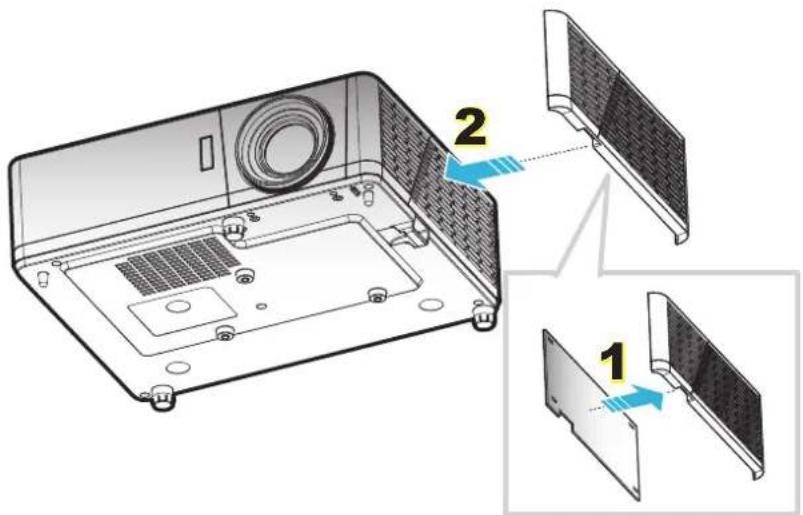

How do I clean the dust filter on my Optoma ZW502?

Switch off the projector and disconnect the power cord. Pull the dust filter compartment downwards from the bottom of the projector. Carefully remove the air filter, then clean or replace it. Reinstall by reversing the steps. It is recommended to clean every three months.

How can I connect my laptop to the projector?

Use an HDMI cable to connect your laptop's HDMI output to the projector's HDMI 1 or HDMI 2 input. Alternatively, use a VGA cable for older laptops. Press the Source button on the remote or keypad to select the corresponding input.

What is the correct way to power off the projector?

Press the Power button on the keypad or remote control. A confirmation message will appear; press the button again to confirm. Wait for the cooling cycle (about 10 seconds) until the Power LED turns solid red, indicating standby mode. Then disconnect the power cord if needed.

Can I use the projector in 3D mode?

Yes, the Optoma ZW502 supports 3D via DLP-Link technology. You need compatible DLP-Link 3D glasses and a 3D content source. In the OSD menu, go to Display > 3D and set 3D Mode to On. Select the appropriate 3D Format (e.g., Side-by-Side, Top-and-Bottom). Ensure the input signal is at 60 Hz for best performance.

How do I adjust the keystone correction?

Press the Menu button and navigate to Display > Geometric Correction. You can adjust V Keystone (vertical) and H Keystone (horizontal) using the arrow keys. The Auto Keystone feature can automatically correct the image. Note that adjusting keystone reduces image size slightly.

How can I reset the projector to factory defaults?

Go to Menu > Setup > Reset OSD to reset menu settings only, or select Reset to Default to reset all settings. Confirm by selecting Yes. The projector will restore factory values.

What is the maximum projection distance for a 100-inch screen?

For a 100-inch diagonal screen (16:9), the projection distance for the WUXGA model is approximately 2.6 m (wide) to 3.4 m (tele). Refer to the image size and projection distance table in the manual for exact values.

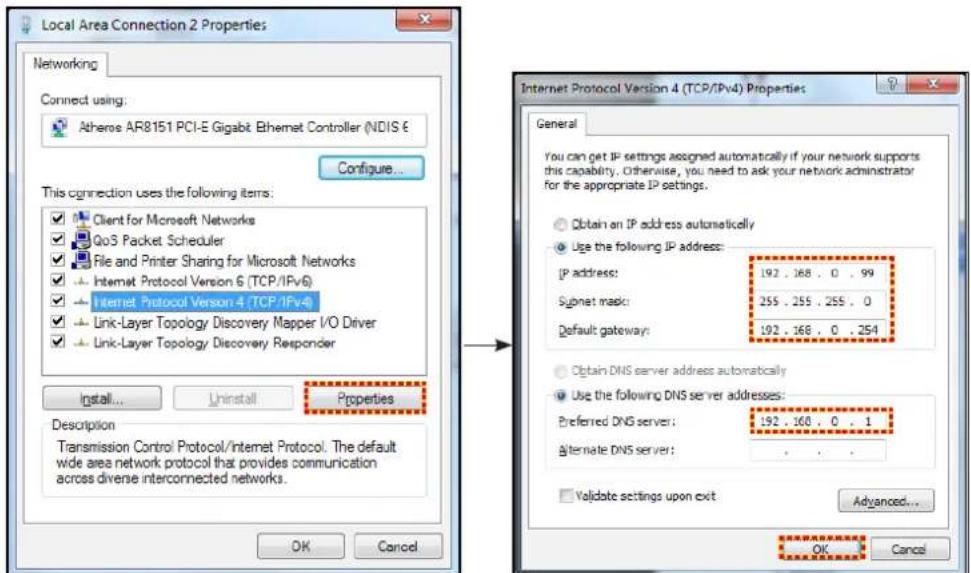

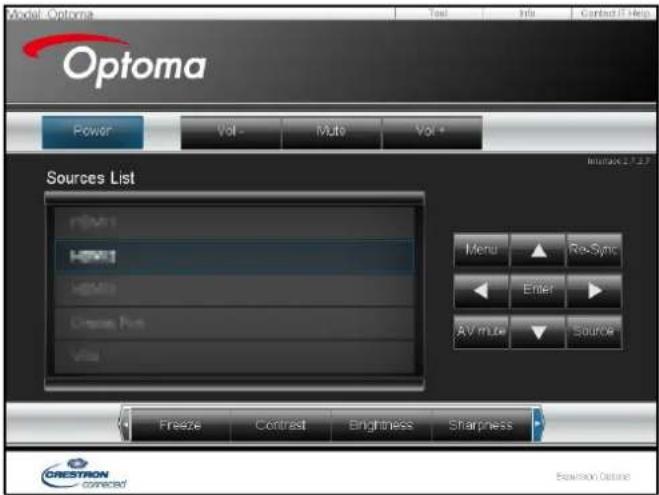

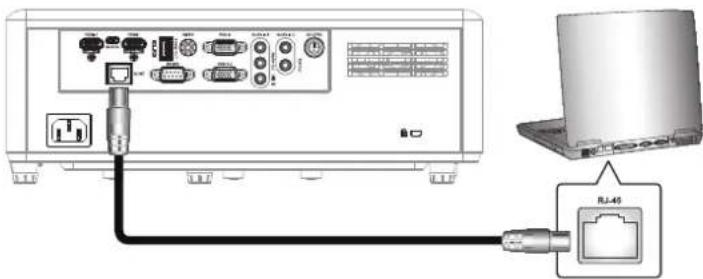

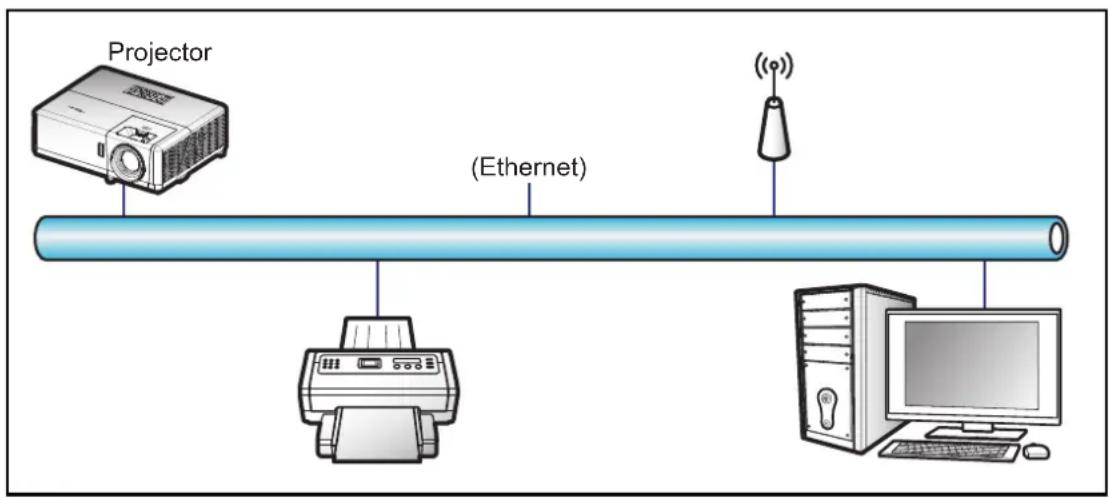

How do I control the projector over a network?

Connect an RJ-45 cable from the projector to your network. In the OSD, go to Network > LAN and configure DHCP or static IP. Open a web browser on your PC and enter the projector's IP address. Use the default username and password 'admin' to access the control interface.

What should I do if the projector does not turn on?

Check the power cord connection and ensure the power outlet is working. Verify that the Power LED is lit red when connected. If the LED is off, try a different outlet. If the LED flashes red, refer to the warning indicators in the manual. If the problem persists, contact Optoma support.

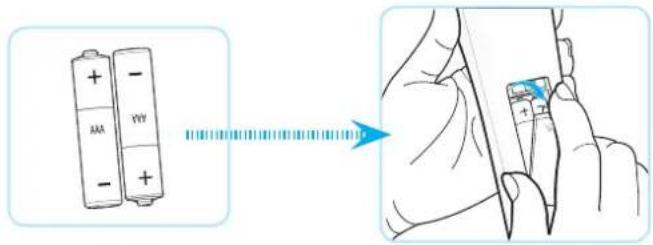

How do I replace the remote control batteries?

Slide off the battery cover on the back of the remote. Insert two AAA batteries following the polarity markings (+/-). Replace the cover. Do not mix old and new batteries or different types. Remove batteries if the remote will not be used for an extended period.

USER MANUAL ZW502 OPTOMA

Line drawing of a projector with front panel and control panel (no text or symbols)

TABLE OF CONTENTS

SAFETY 4

Important Safety Instruction.... 4

Laser Radiation Safety Information 5

Copyright 6

Disclaimer....6

Trademark Recognition 6

FCC 6

Declaration of Conformity for EU countries 7

WEEE 7

INTRODUCTION 8

Package Overview....8

Standard accessories....8

Optional accessories 8

Product Overview 9

Connections.... 11

Keypad 12

Remote control 13

SETUP AND INSTALLATION 14

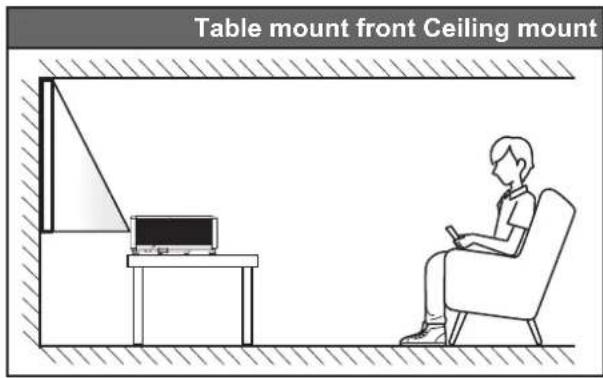

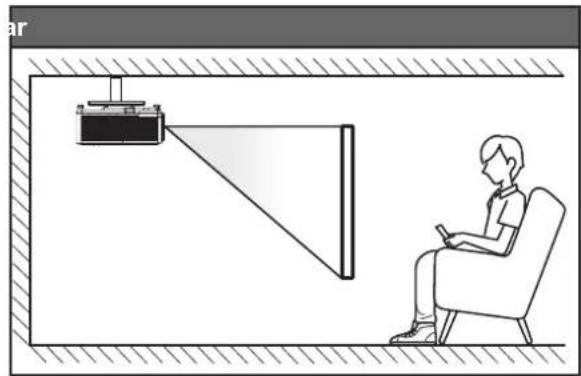

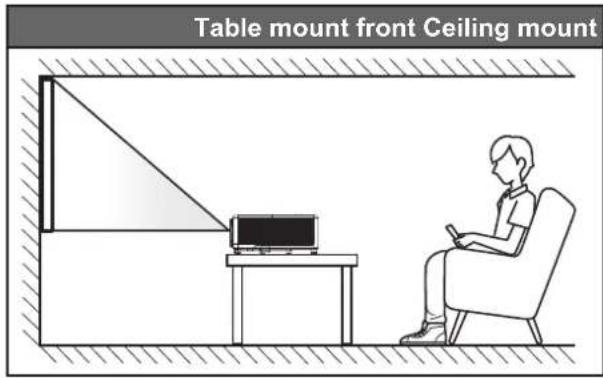

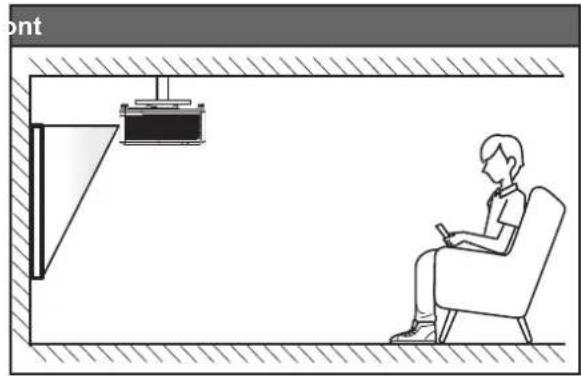

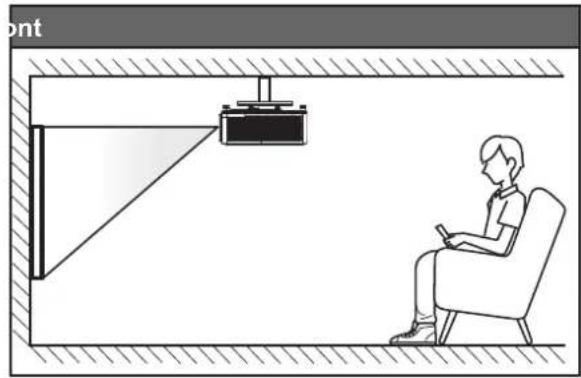

Installing the projector 14

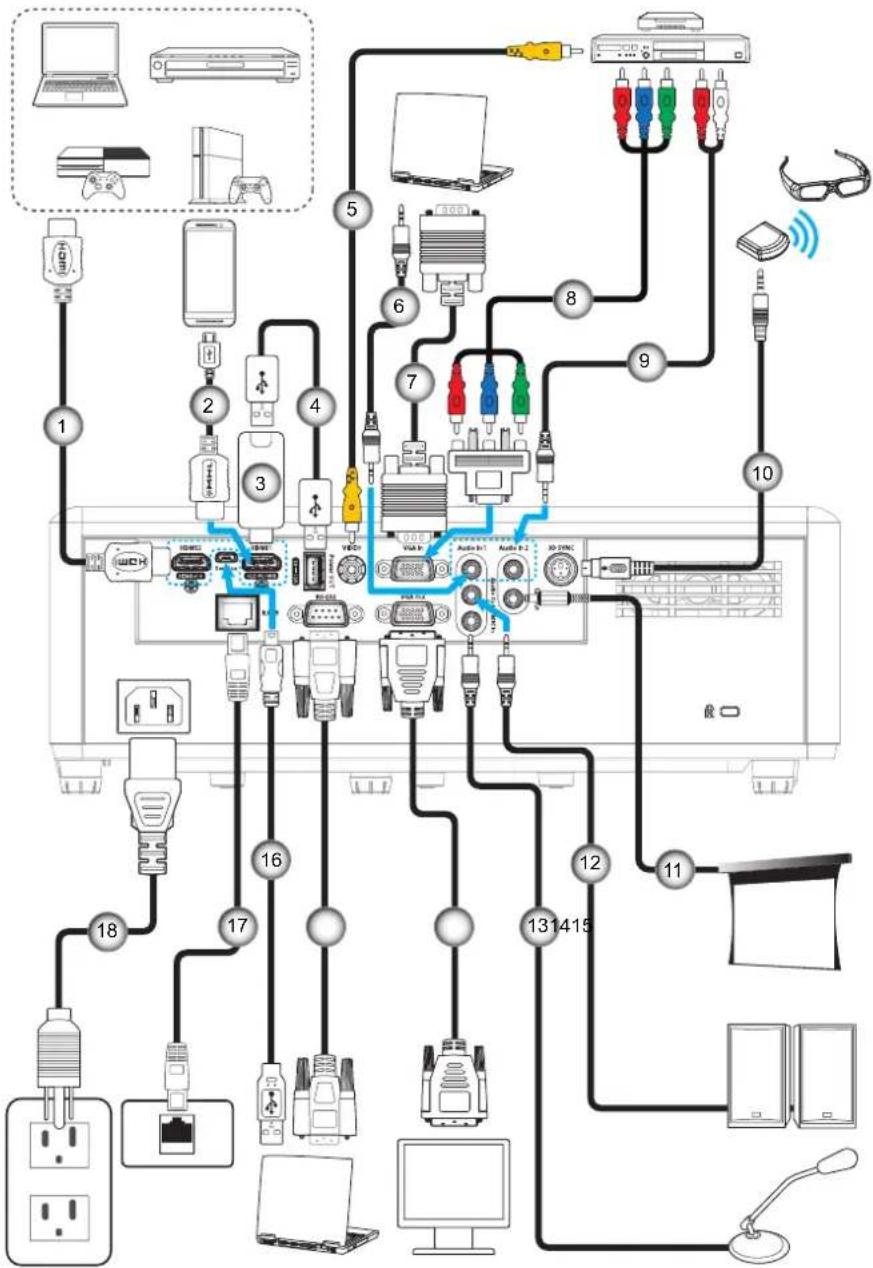

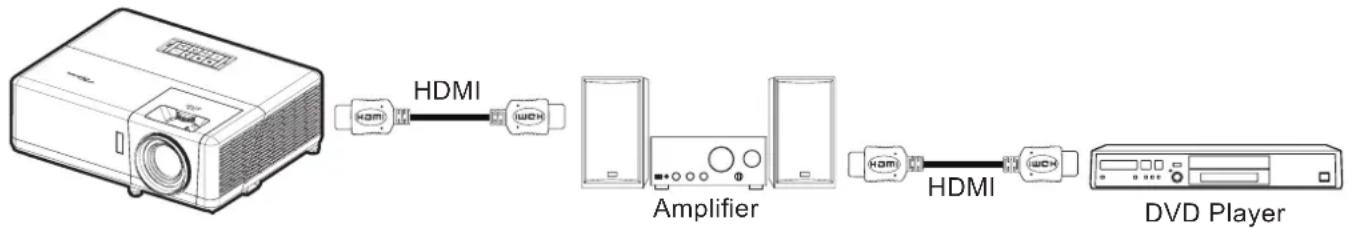

Connecting sources to the projector.... 18

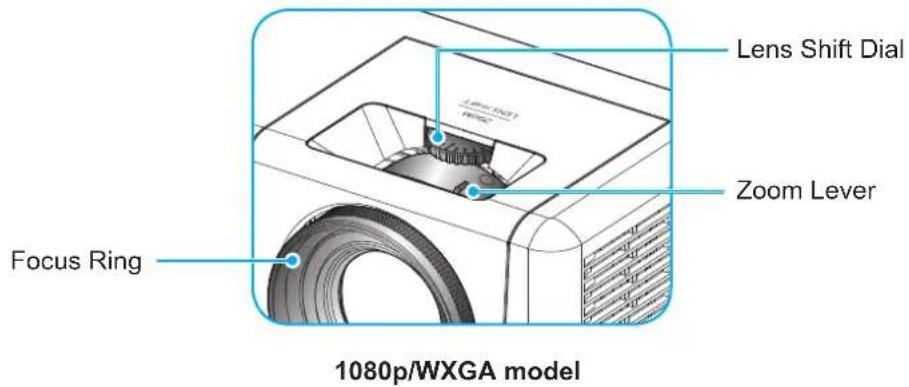

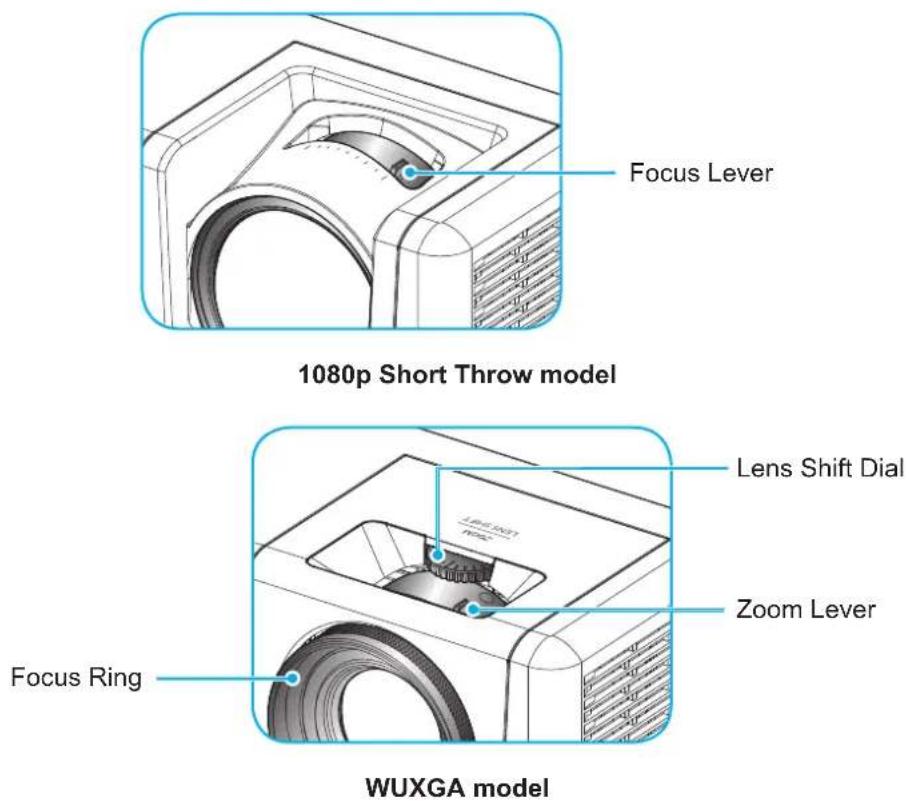

Adjusting the projector image.... 19

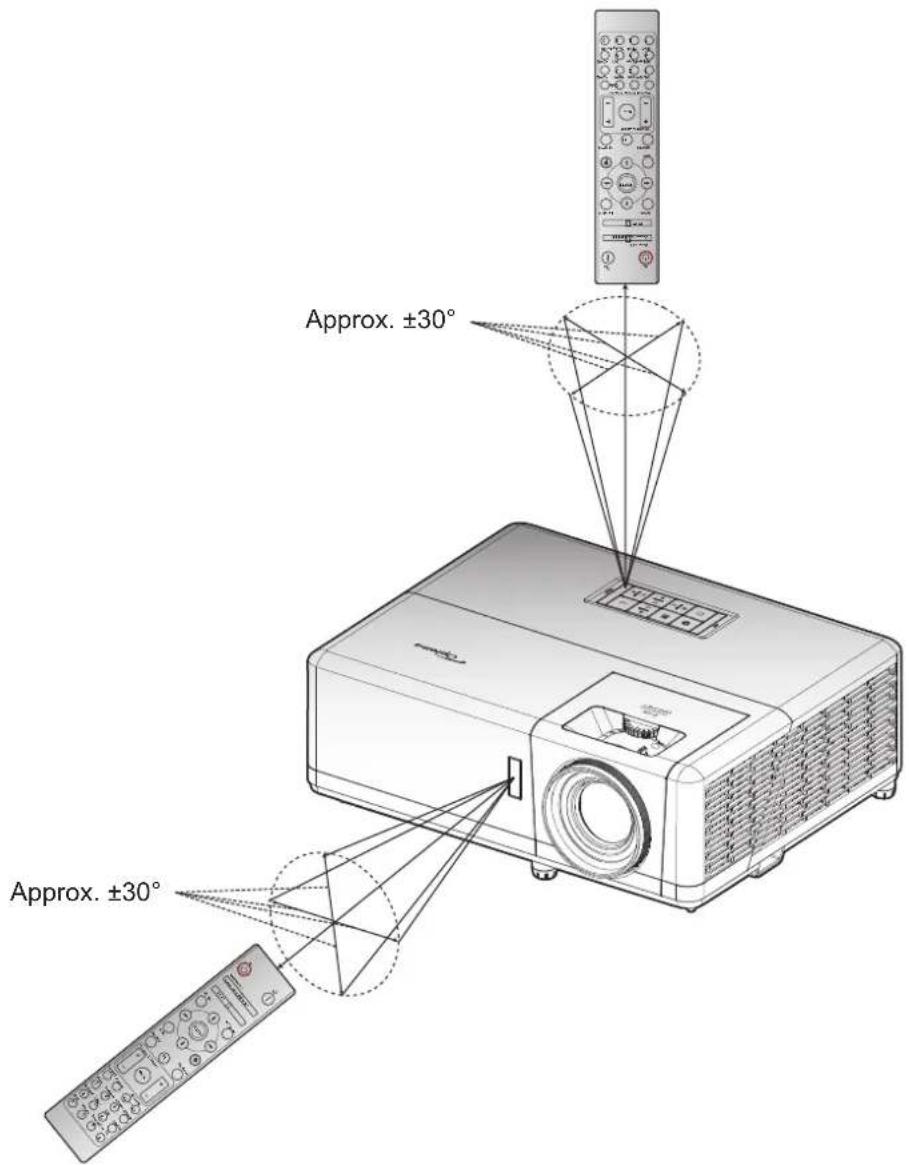

Remote setup 21

USING THE PROJECTOR......23

Powering on / off the projector.... 23

Selecting an input source 24

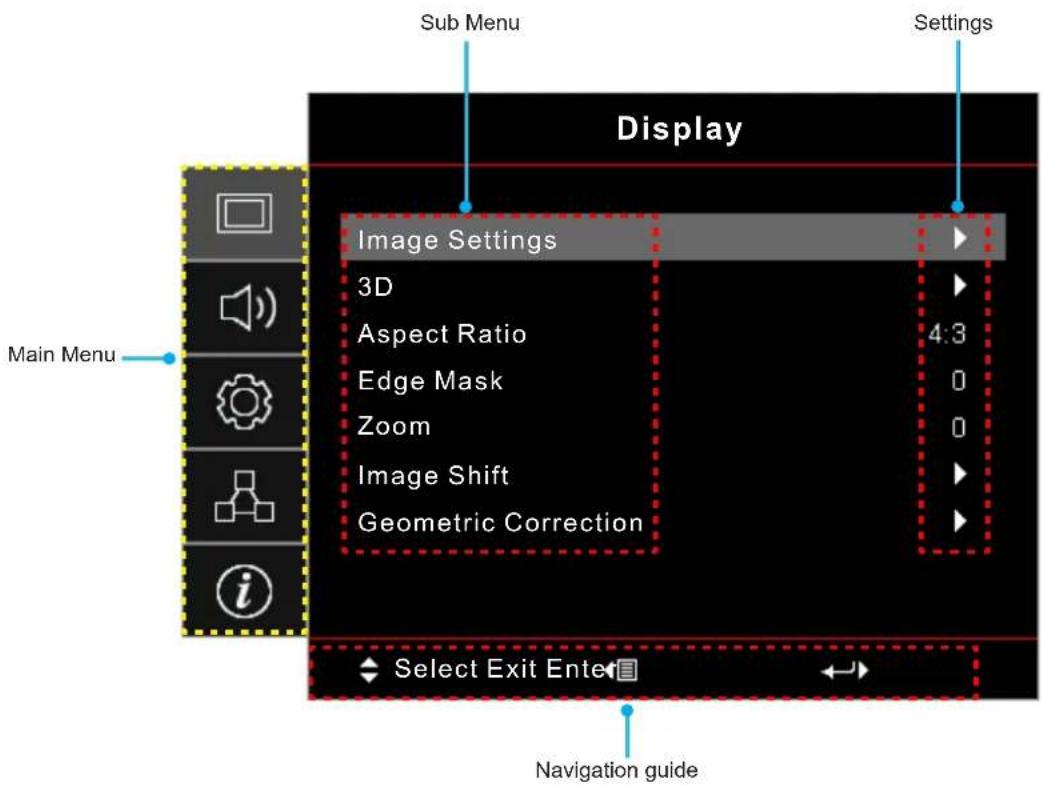

Menu navigation and features 25

OSD Menu tree....26

Display image settings menu.... 34

Display 3D menu 37

Display aspect ratio menu 38

Display edge mask menu 43

Display zoom menu 43

Display image shift menu 43

Display geometric correction menu 43

Audio mute menu 44

Audio volume menu....44

Audio audio input menu 44

Setup projection menu.... 45

Setup screen type menu.... 45

Setup power settings menu 45

Setup security menu.... 46

Setup HDMI link settings menu 46

Setup test pattern menu 47

Setup remote settings menu.... 47

Setup projector ID menu.... 47

Setup 12V trigger menu....47

Setup options menu.... 48

Setup reset OSD menu 49

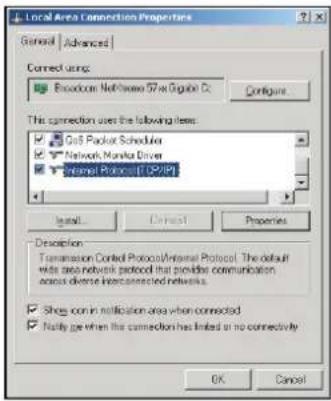

Network LAN menu 49

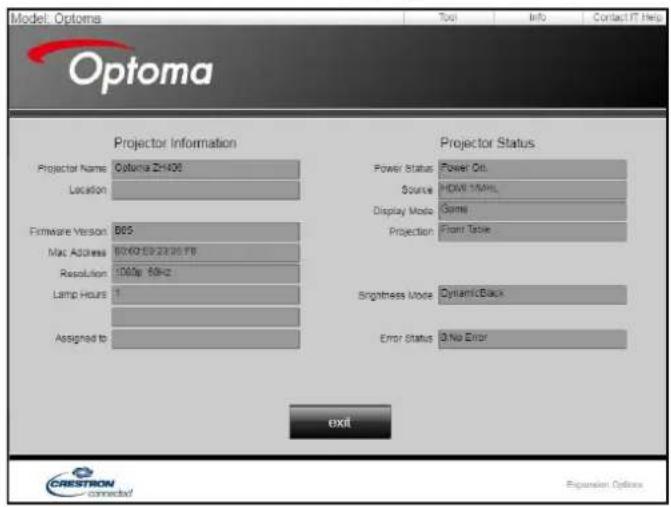

Network control menu....50

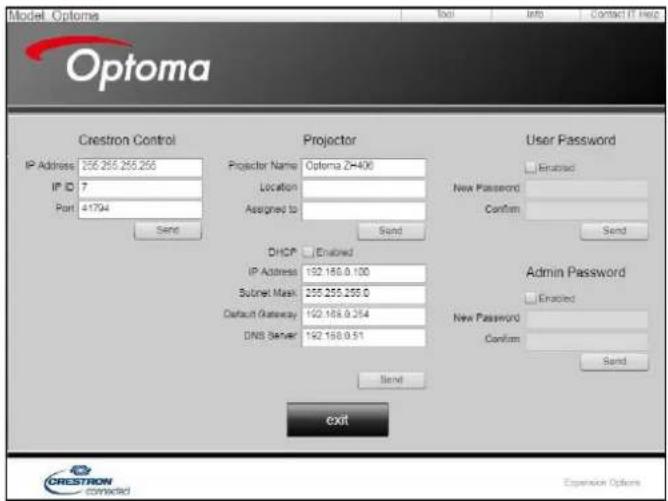

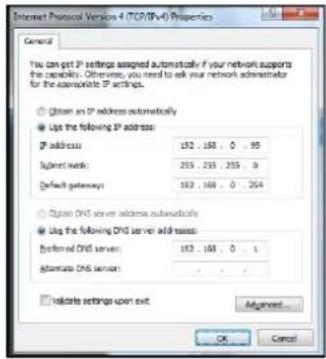

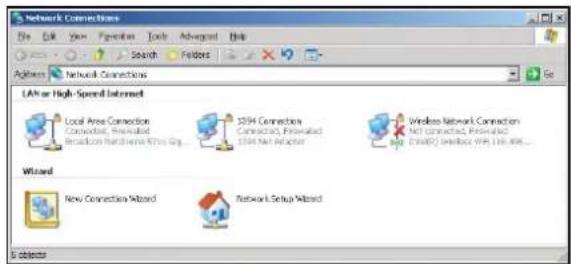

Setup network control settings menu 51

Info menu....56

MAINTENANCE 57

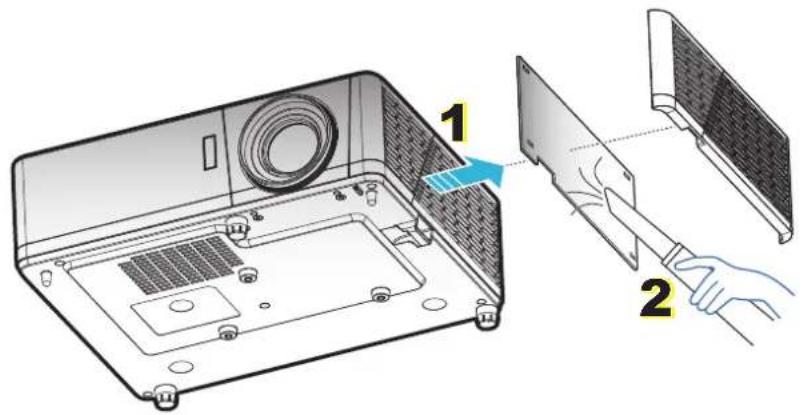

Installing and cleaning the dust filter 57

ADDITIONAL INFORMATION 58

Compatible resolutions....58

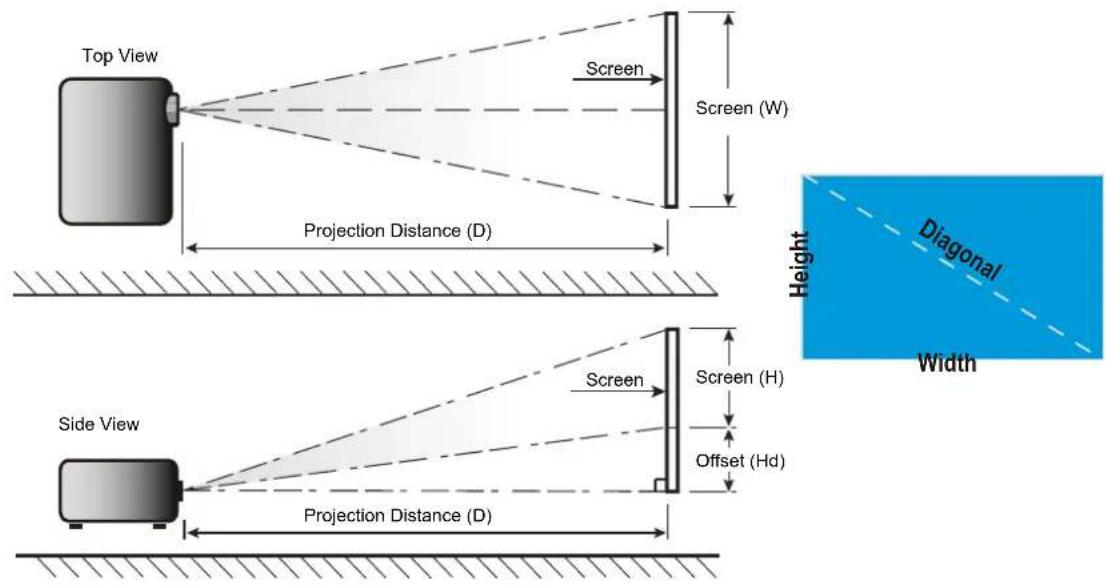

Image size and projection distance 61

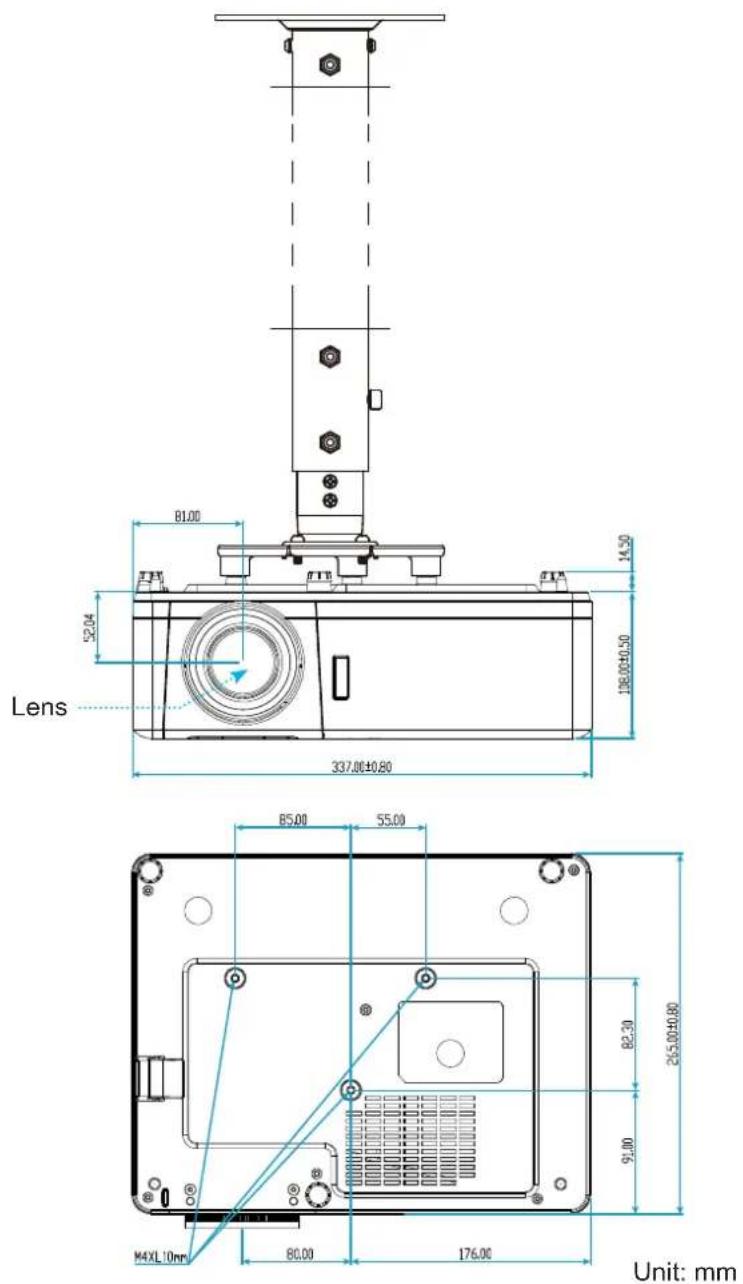

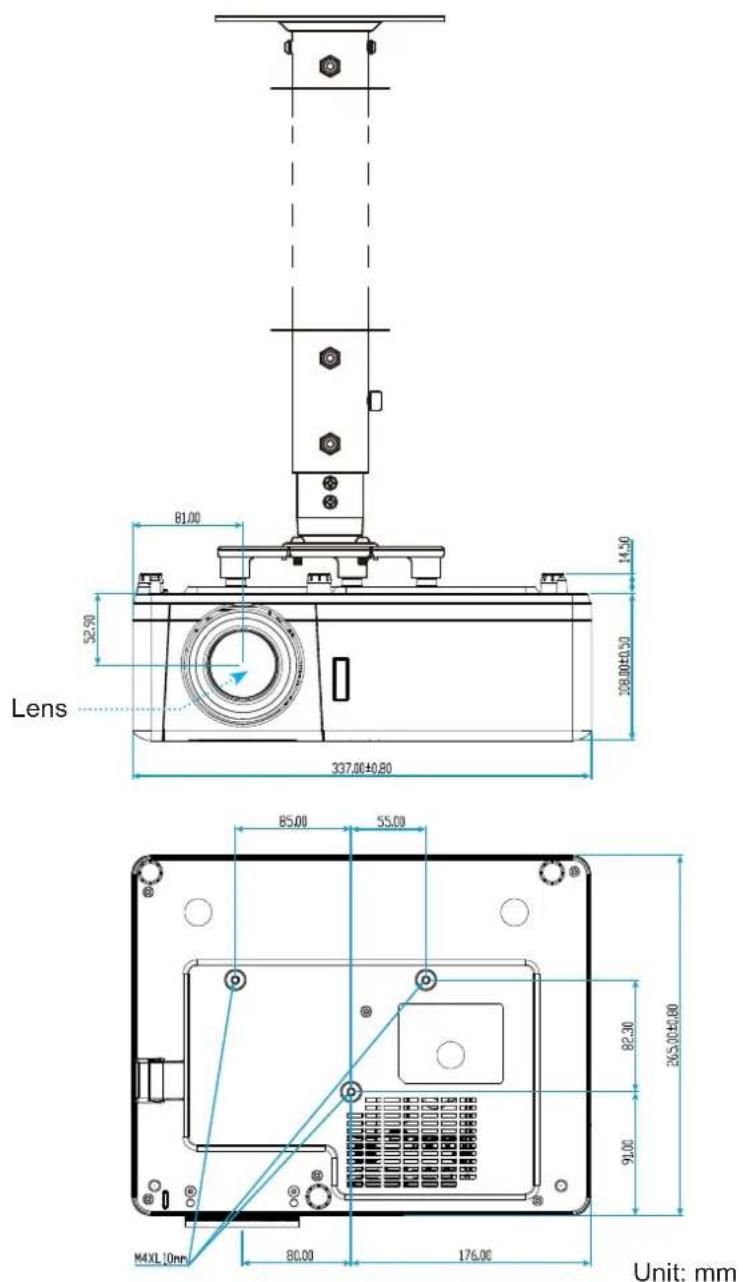

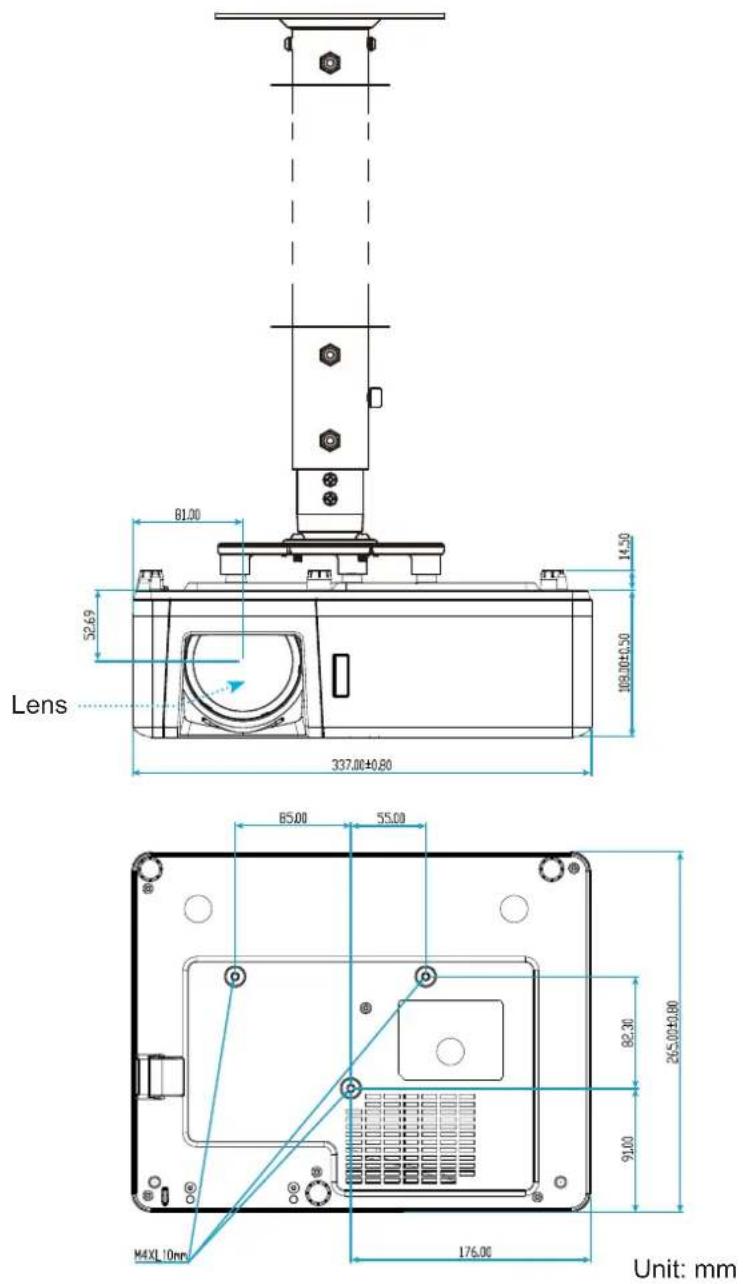

Projector dimensions and ceiling mount installation....64

IR remote codes 67

Troubleshooting 69

Warning indicators....71

Specifications 72

Optoma global offices....73

	The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

- Do not stare into the beam, RG2.

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

• Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air flow.
  • To reduce the risk of fire and/or electric shock, do not expose the projector to rain or moisture. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such as amplifiers that emits heat.
• Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in fire or electric shock.

- Do not use under the following conditions:

– In extremely hot, cold or humid environments.

(i) Ensure that the ambient room temperature is within 5^ C \~ 40^ C
(ii) Relative humidity is 10% \~ 85%
– In areas susceptible to excessive dust and dirt.
– Near any appliance generating a strong magnetic field.
- In direct sunlight.

- Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

• Unit has been dropped.
  – Power supply cord or plug has been damaged.
  – Liquid has been spilled on to the projector.
  – Projector has been exposed to rain or moisture.

• Something has fallen in the projector or something is loose inside.

• Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the projector may become damaged.

• Do not block the light coming out of the projector lens when in operation. The light will heat the object and may melt, cause burns or start a fire.

- Please do not open or disassemble the projector as this may cause electric shock.

- Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

• See projector enclosure for safety related markings.

• The unit should only be repaired by authorized service personnel.
• Only use attachments/accessories specified by the manufacturer.
  • Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
• This projector will detect the life of the light source itself.
• When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
• Turn off and unplug the power plug from the AC outlet before cleaning the product.

• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the unit.
- Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

- Do not setup the projector in places where it might be subjected to vibration or shock.

- Do not touch the lens with bare hands.

• Remove battery/batteries from remote control before storage. If the battery/batteries are left in the remote for long periods, they may leak.
• Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can adversely affect the quality of the projector performance.

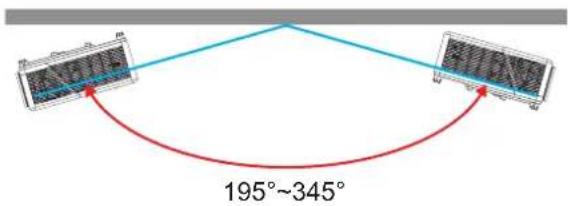

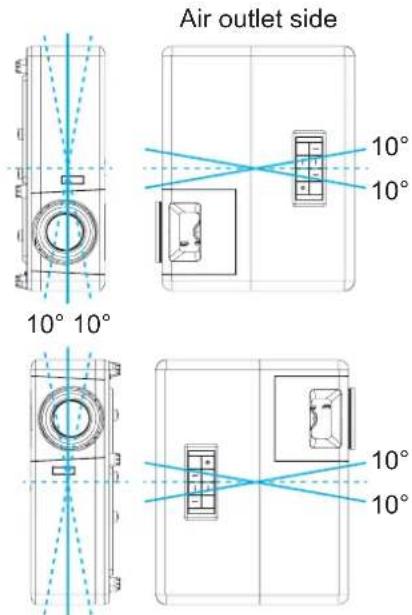

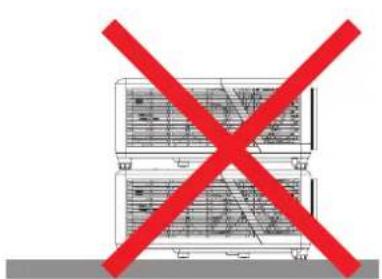

• Please follow the correct projector orientation installation as non standard installation may affect the projector performance.

- Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

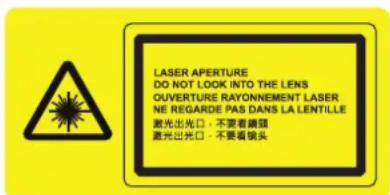

Laser Radiation Safety Information

• This product is classified as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC 60825-1 : 2014

• This product is classified as Class 3R of IEC 60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.

- As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015

- CLASS 3R LASER PRODUCT-AVOID DIRECT EYE EXPOSURE

• When turning on the projector, make sure no one within projection range is looking at the lens.
• Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes.
• Any operation or adjustment not specifically instructed by the user's guide creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage by the exposure of laser radiation.
  • Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.

Without following the control, adjustment or operation procedure may cause damage by the exposure of laser radiation

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2019

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DLP ^® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor ^™ is a trademark of Texas Instruments.

MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

FCC

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Operation Conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

• EMC Directive 2014/30/EU (including amendments)
• Low Voltage Directive 2014/35/EU
- RED 2014/53/EU (if product has RF function)

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Standard accessories

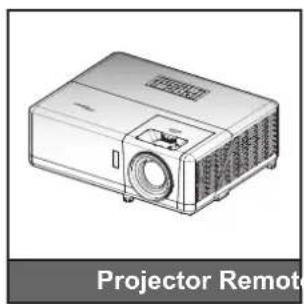

Illustration of a projector with ventilation slots and a label 'Projector Remote' below (no other text or symbols)

Coiled cable with connectors, labeled 'tion' at bottom (no other text or symbols)

Note:

• The remote control is shipped with the battery.
• *(1) For European warranty Information, please visit www.optoma.com.
• *(2) Available only for Asian region.

Optional accessories

Simple line drawing of a two-port electrical connector with wires (no text or symbols)

Pure electrical circuit lines without any symbols

Note:

• Optional accessories vary depending on model, specification and region.
• *(3) Available only for USA and Asian regions.

INTRODUCTION

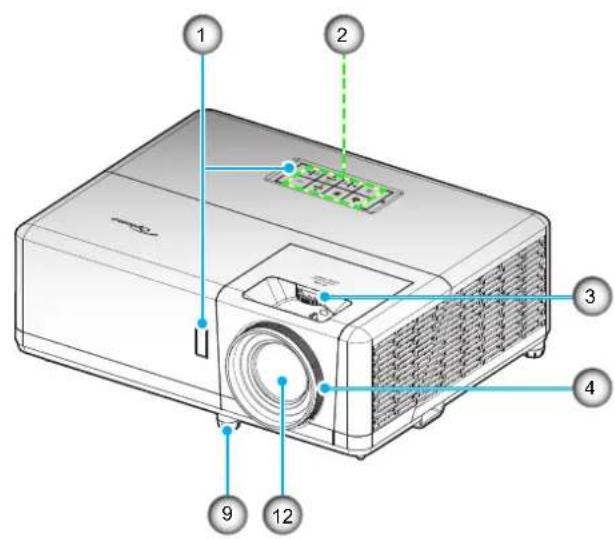

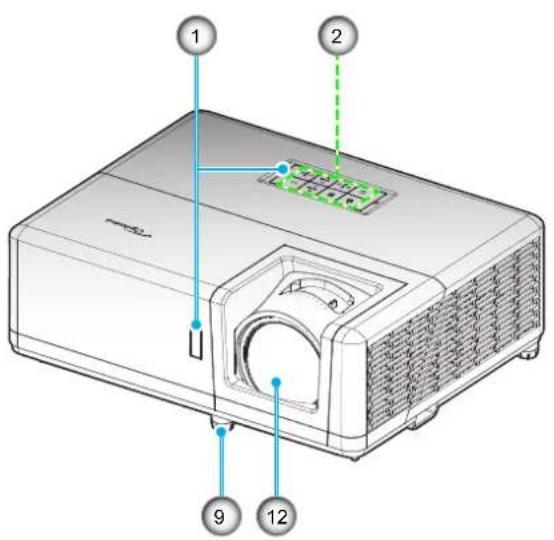

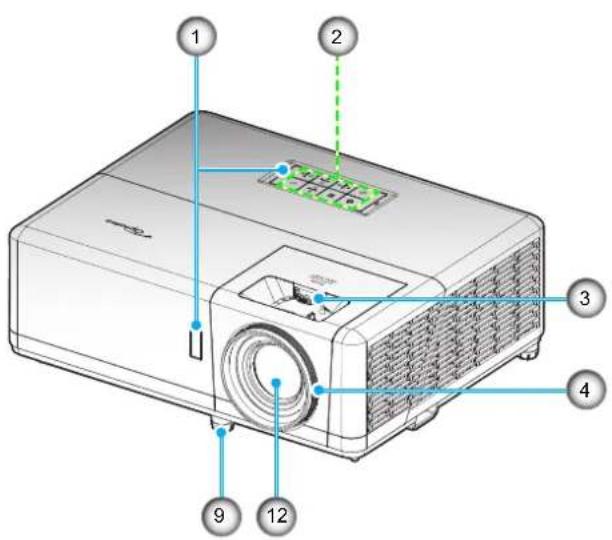

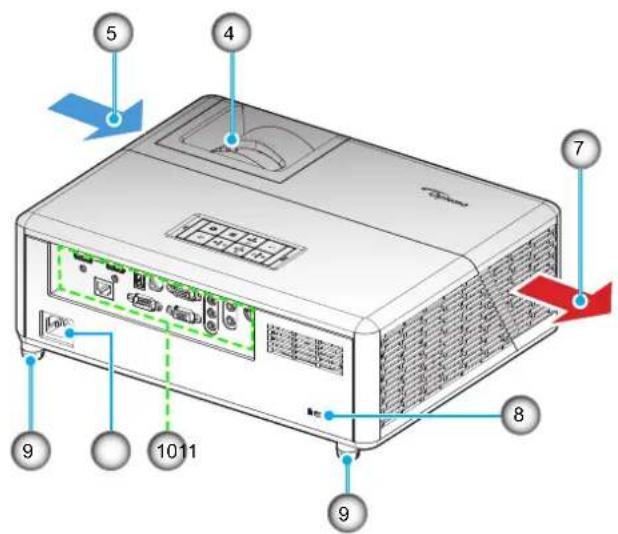

Product Overview

1080p/WXGA model

1080p Short Throw model

INTRODUCTION

WUXGA model

Note:

• Do not block projector intake and exhaust vents.

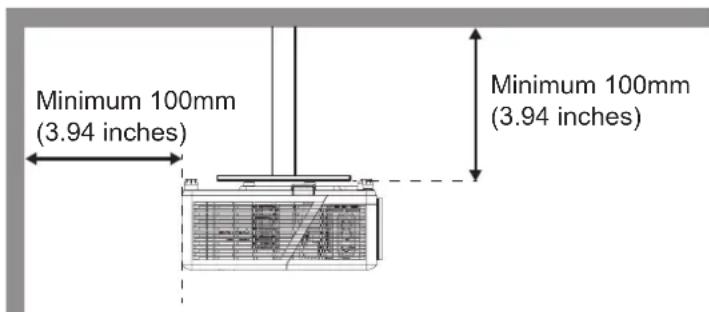

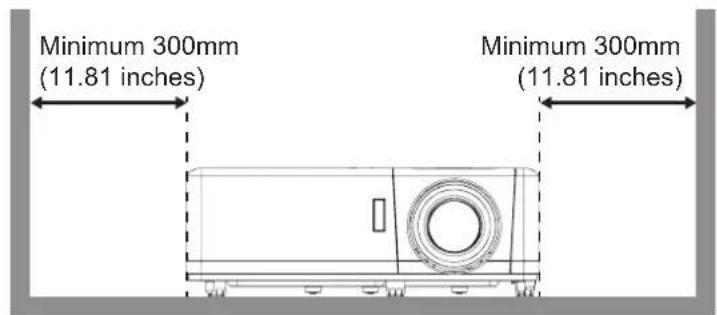

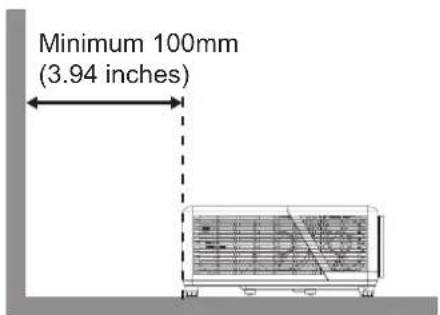

• When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

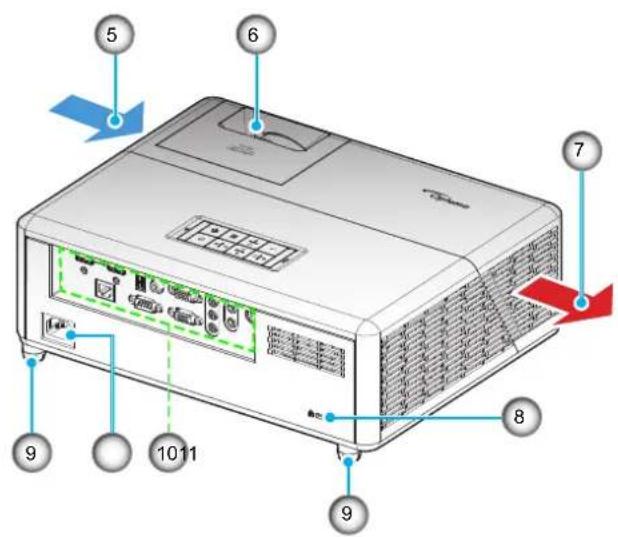

No Item No Item
1. IR Receivers 7. Ventilation (outlet)
2.	Keypad	8.	KensingtonTMLock Port
3. Lens Shift Dial 9. Tilt-Adjustment Feet
4. Focus Ring/Focus Lever 10. Input / Output
5.	Ventilation (inlet)	11.	Power Socket
6. Zoom Lever		12. Lens

INTRODUCTION

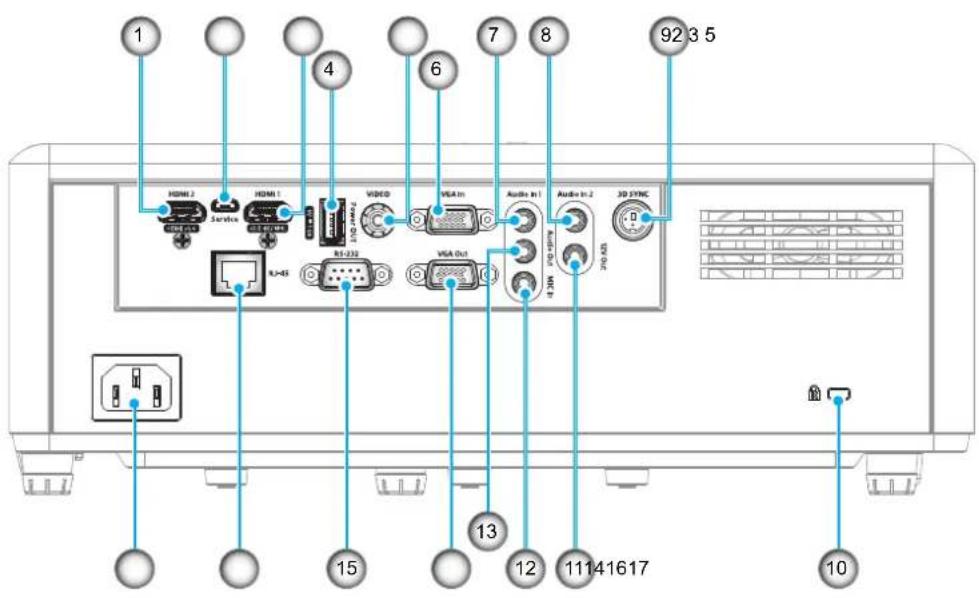

Connections

No Item No Item

1. HDMI 2 Connector 10. Kensington
2.	Micro USB Connector
3. HDMI 1 / MHL Connector
4.	USB Power Out (5V—1.5A) Connector
5. Video Connector
6. VGA In Connector
7. Audio In 1 Connector
8. Audio In 2 Connector
9. 3D Sync Connector

	TM Lock Port
11.	12V Out Connector
12.	MIC In Connector
13.	Audio Out Connector
14.	VGA Out Connector
15.	RS-232 Connector
16.	RJ-45 Connector
17.	Power Socket

INTRODUCTION

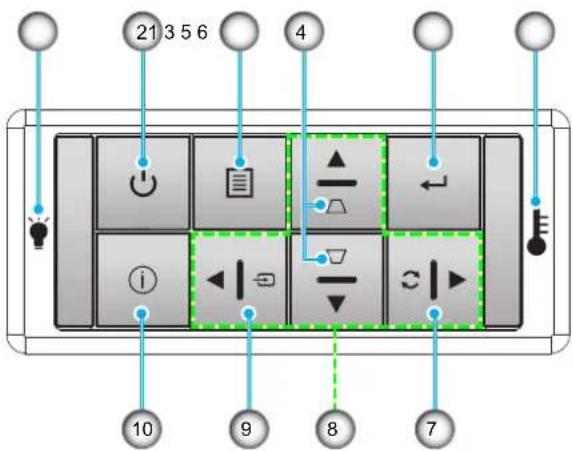

Keypad

No Item No Item

1. Lamp LED 6. Temp LED
2. Power and Power LED
3. Menu 8. Four Directional Select Keys
4. Keystone Correction 9. Source

5. Enter 10. Information

6. Re-Sync

INTRODUCTION

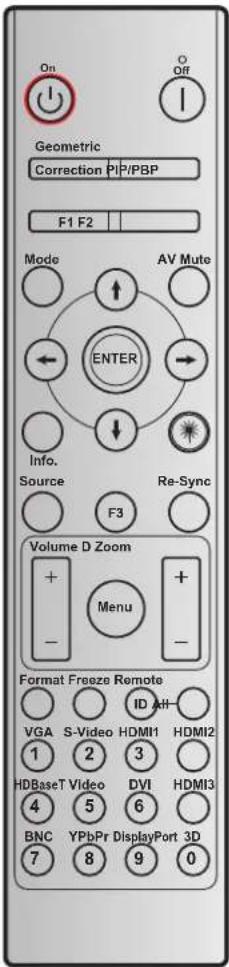

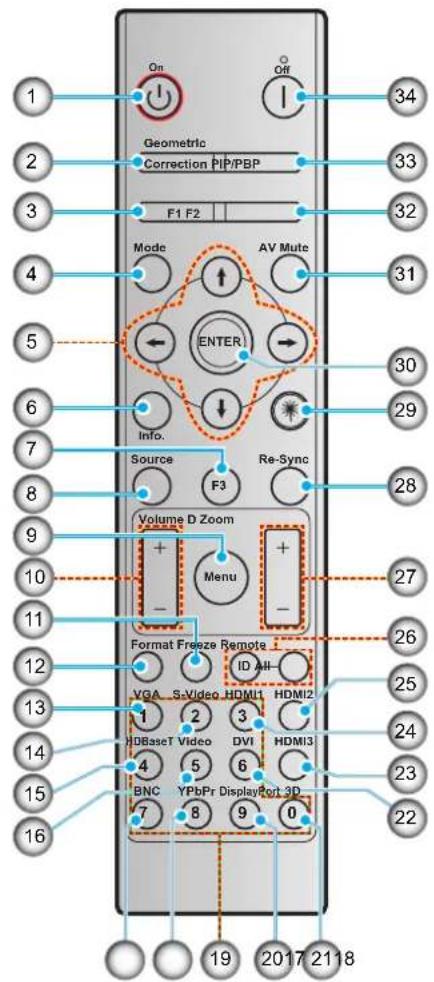

Remote control

No Item No Item
1. Power on 18. YPbPr (not supported)
2. Geometric Correction 19. Numeric keypad (0-9)
3. Function button (F1) (Assignable) 20. Display port (not supported)
4. Mode 21. 3D
5. Four directional select keys 22. DVI (not supported)
6. Information		23. HDMI3 (not supported)
7. Function button (F3) (Assignable) 24. HDMI1
8. Source		25. HDMI2
9. Menu 26. Remote ID / Remote all
10. Volume - / +		27. Digital Zoom - / +
11. Freeze		28. Re-sync
12. Format (Aspect Ratio)		29. Laser (not supported)
13. VGA		30. Enter
14. S-Video (not supported)		31. AV Mute
15. HDBase-T (not supported)		32. Function button (F2) (Assignable)
16. Video		33. PIP/PBP (not supported)
17. BNC (not supported)		34. Power off

Note: Some keys may have no function for models that do not support these features.

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

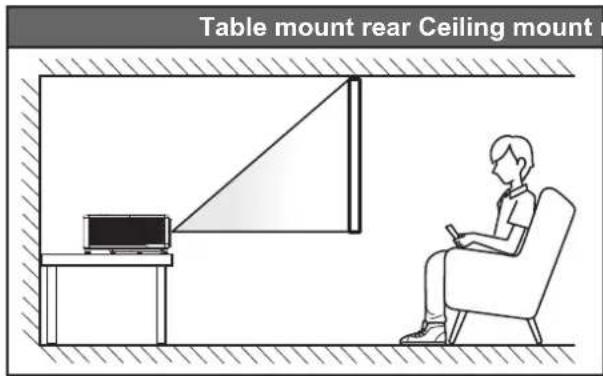

1080p/WXGA/WUXGA model

Line drawing of a person seated in a chair facing a wall-mounted device, no text or symbols present

Illustration of a person seated in a chair observing a projector mounted on a wall, with no visible text or symbols.

SETUP AND INSTALLATION

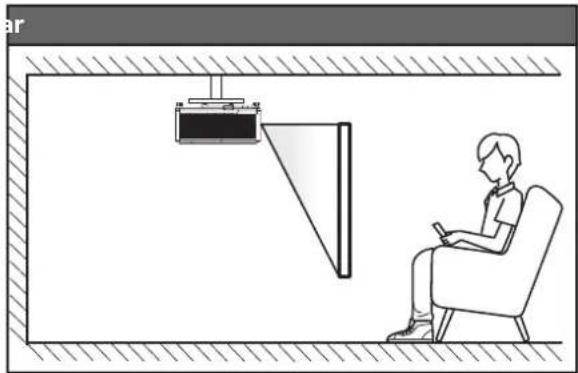

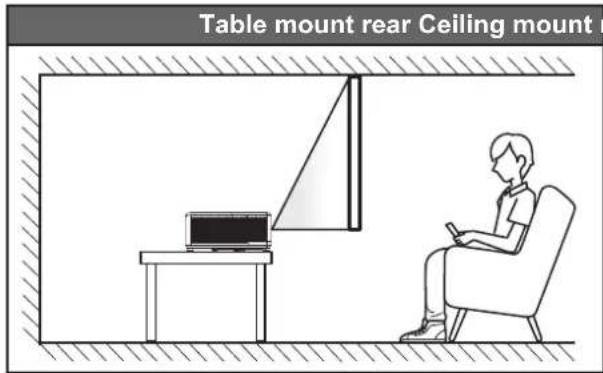

1080p Short Throw model

Simple line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Illustration of a person seated in a chair watching a wall-mounted projector (no text or symbols visible)

Projector should be placed flat on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages 61-63.
• How to determine screen size for a given distance, please refer to distance table on pages 61-63.

Note: The further away the projector is placed from the screen the projected image size increases and vertical offset also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector light source or the projector itself. For none standard installation advise please contact Optoma.

SETUP AND INSTALLATION

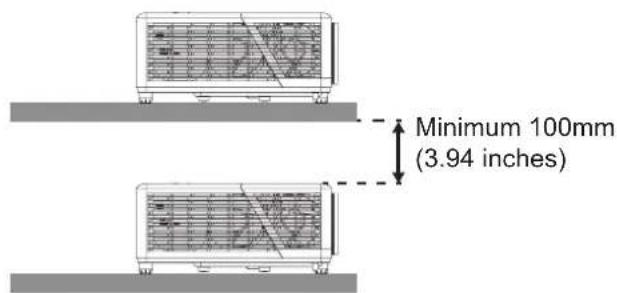

Projector installation notice

Note: Projector brightness will be decreased to 70% lumen and fan full load.

• Portrait mode


• Allow at least 30 cm clearance around the exhaust vent.


SETUP AND INSTALLATION

- Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

SETUP AND INSTALLATION

Connecting sources to the projector

No Item No Item

1. HDMI Cable 10. 3D Emitter Cable
2. MHL Cable
3. HDMI Dongle 12. Audio Out Cable
4. USB Power Cable 13. Microphone Cable
5. Video Cable 14. VGA Out Cable
6. Audio In Cable 15. RS232 Cable
7. VGA In Cable 16. USB Cable
8. RCA Component Cable 17. RJ-45 Cable

9. Audio In Cable 18. Power Cord

10. 12V DC Jack

SETUP AND INSTALLATION

Adjusting the projector image

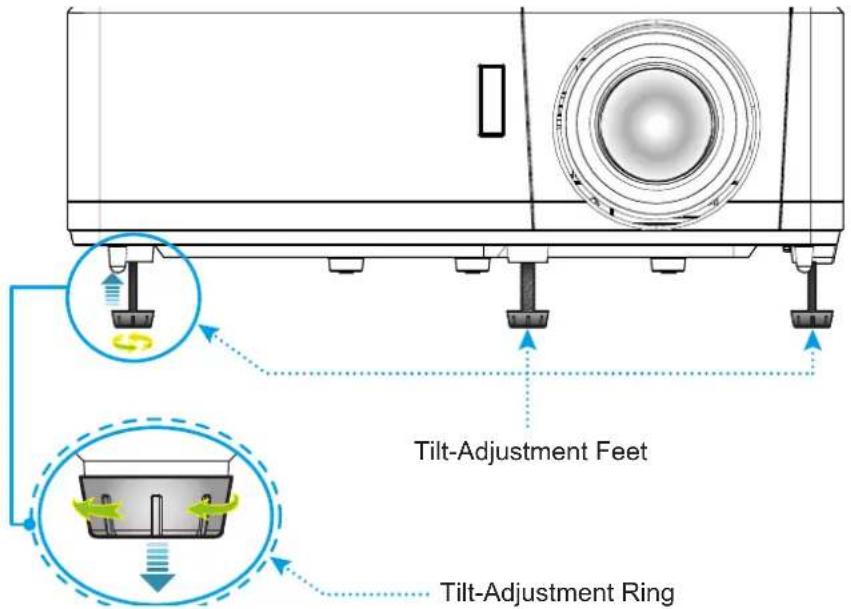

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Zoom, lens shift, and focus

• To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
• To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the position of the projected image vertically.
• To adjust the focus, turn the focus ring/focus lever clockwise or counterclockwise until the image is sharp and legible.

SETUP AND INSTALLATION

Note: 1080p Short Throw model does not support the zoom and lens shift function functions.

SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries

Two AAA size batteries are supplied for the remote control.

1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.

Note: Replace only with the same or equivalent type batteries.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.
- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
- Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control for an extended period of time, remove the batteries.

- When you dispose of the batteries, you must obey the law in the relative area or country.

SETUP AND INSTALLATION

Effective range

Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the remote control at an angle within 60 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 12 meters (39.4 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.
• Make sure the IR transmitter of the remote control is not being shined by sunlight or fluorescent lamps directly.
- Please keep the remote controller away from fluorescent lamps for over 2 m or the remote controller might become malfunction.
• If the remote control is close to Inverter-Type fluorescent lamps, it might become ineffective from time to time.
• If the remote control and the projector are within a very short distance, the remote control might become ineffective.
- When you aim at the screen, the effective distance is less than 5 m from the remote control to the screen and reflecting the IR beams back to the projector. However, the effective range might change according to screens.

USING THE PROJECTOR

Powering on / off the projector

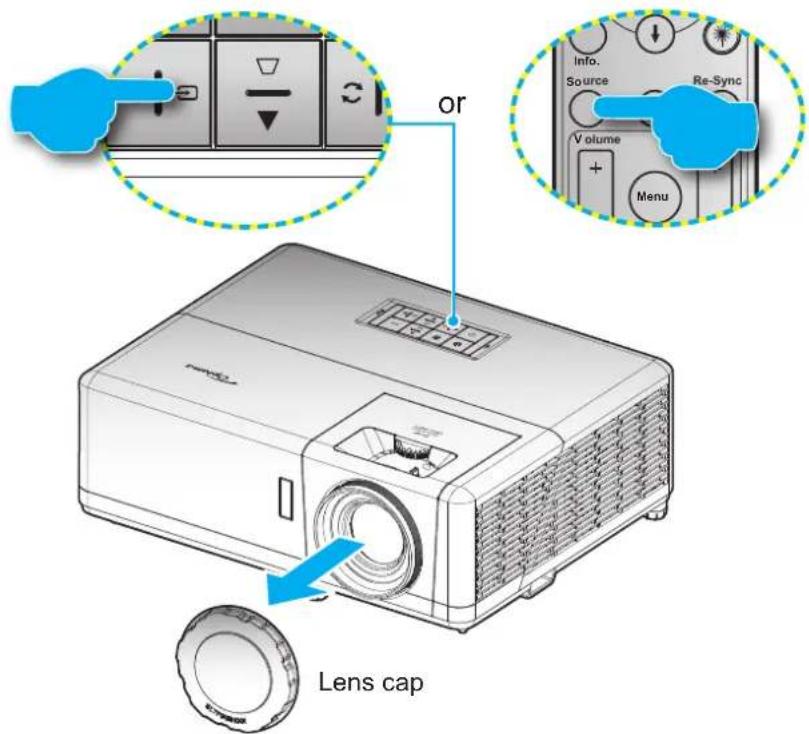

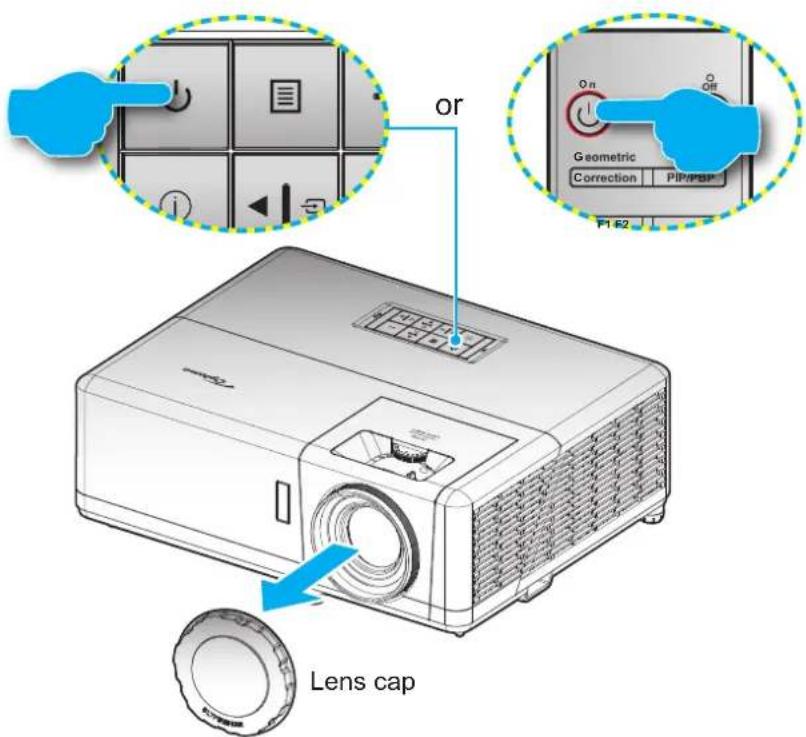

Powering on

1. Remove the lens cap.
2. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red.
3. Turn on the projector by pressing the button on the projector keypad or remote control.
4. A start up screen will display in approximately 10 seconds and the Power LED will be flashing blue.

Note: The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Powering off

1. Turn off the projector by pressing the button on the projector keypad or the button on the remote control.
2. The following message will be displayed:

1. Press the or button again to confirm, otherwise the message will disappear after 15 seconds. When you press the or button for the second time, the projector will shut down.
2. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power LED will flash blue. When the Power turns solid red, this indicates the projector has entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle has finished and the projector has entered standby mode. When the projector is in standby mode, simply press the ⏻ button again to turn on the projector.
3. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.

SETUP AND INSTALLATION

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the -button on the projector keypad or the Source button on the remote control to select the desired input.

SETUP AND INSTALLATION

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press the ☐ button on the projector keypad or the Menu button on the remote control.
2. When OSD is displayed, use ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press the ← button on the projector keypad or the Enter button on the remote control to enter sub menu.
3. Use ◀▶ keys to select the desired item in the sub menu and then press the ← or Enter button to view further settings. Adjust the settings by using ◀▶ keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press press the ← or Enter button to confirm, and the screen will return to the main menu.
6. To exit, press the ☐ or Menu button again. The OSD menu will close and the projector will automatically save the new settings.

SETUP AND INSTALLATION

OSD Menu tree

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Display Mode			Presentation
					Bright
					HDR
					Cinema
					Game
					sRGB
					DICOM SIM.
					User
					3D
		Wall Color			Off [Default]
					Blackboard
					Light Yellow
					Light Green
					Light Blue
					Pink
					Gray
		Dynamic Range	HDR		Off
					Auto [Default]
			HDR Picture Mode		Bright
					Standard [Default]
					Film
					Detail
		Brightness -50 ~ 50
		Contrast -50 ~ 50
		Sharpness 1 ~ 15
		Color -50 ~ 50
		Tint -50 ~ 50
		Gamma	Film
			Video
			Graphics
			Standard(2.2)
			1.8
			2.0
			2.4
			2.6
			HDR
			3D
			Blackboard
			DICOM SIM.

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display Image Settings		Color Settings	BrilliantColorTM		1 ~ 10
			Color Temperature		Warm
					Standard
					Cool
					Cold
			Color Matching	Color	Red [Default]
					Green
					Blue
					Cyan
					Yellow
					Magenta
					White(*)
				Hue / R(*) -50 ~ 50 [Default: 0]
				Saturation / G(*) -50 ~ 50 [Default: 0]
				Gain / B(*) -50 ~ 50 [Default: 0]
				Reset	Cancel [Default]
					Yes
				Exit
			RGB Gain/Bias	Red Gain -50 ~ 50
				Green Gain -50 ~ 50
				Blue Gain -50 ~ 50
				Red Bias	-50 ~ 50
				Green Bias	-50 ~ 50
				Blue Bias -50 ~ 50
				Reset	Cancel [Default]
					Yes
				Exit
			Color Space [Not HDMI Input]		Auto [Default]
					RGB
					YUV
			Color Space [HDMI Input]		Auto [Default]
					RGB(0~255)
					RGB(16~235)
					YUV
			White Level		0 ~ 31
			Black Level		-5 ~ 5
			IRE		0
					7.5
		Signal	Automatic		Off
					On [Default]
			Frequency		-10 ~ 10 (depends on signal) [Default: 0]
			Phase		0~31 (depends on signal) [Default: 0]

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Display	Image Settings	Signal	H. Position		-5 ~ 5 (depends on signal) [Default: 0]
			V. Position		-5 ~ 5 (depends on signal) [Default: 0]
		Brightness Mode			DynamicBlack
					Eco.
					Power (Power = 100%/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/ 50%)
		Reset
	3D	3D Mode			Off
					On [Default]
		3D Tech			DLP-Link [Default]
					3D Sync
		3D → 2D			3D [Default]
					L
					R
		3D Format			Auto [Default]
					SBS
					Top and Bottom
					Frame Sequential
		3D Sync Invert			On
					Off [Default]
		Reset			Cancel
					Yes
	Aspect Ratio				4:3
					16:9
					16:10 [Only for WXGA/WUXGA model]
					LBX
					Native
					Auto
	Edge Mask 0 ~ 10 [Default: 0]
	Zoom -5 ~ 25 [Default: 0]
	Image Shift	H			-100 ~ 100 [Default: 0]
		V			-100 ~ 100 [Default: 0]
	Geometric Correction	Four Corners
		H Keystone -30 ~ 30 [Default: 0]
		V Keystone -30 ~ 30 [Default: 0]
		Auto Keystone			Off
					On [Default]
		Reset

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Audio	Mute				Off [Default]
					On
	Volume 0 ~ 10 [Default: 5]
	Audio Input	HDMI1/MHL			Audio 1
					Audio 2
					Mic
					Default [Default]
		HDMI2			Audio 1
					Audio 2
					Mic
					Default [Default]
		VGA			Audio 1
					Audio 2
					Mic
		Video			Audio 1
					Audio 2
					Mic
Setup	Projection				Front [Default]
					Rear [IMAGE]
					Ceiling-top [IMAGE]
					Rear-top [IMAGE]
	Screen Type [Only for WXGA/WUXGA model]				16:9
					16:10 [Default]
	Power Settings	Direct Power On			Off [Default]
					On
		Signal Power On			Off [Default]
					On
		Auto Power Off (min.)			0 ~ 180 (5 min increments) [Default: 20]
		Sleep Timer (min.)			0 ~ 990 (30 min increments) [Default: 0]
			Always On		No [Default]
					Yes
		Power Mode (Standby)			Active
					Eco [Default]
		USB Power (Standby)			Off [Default]
					On

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup	Security	Security			Off
					On
		Security Timer	Month
			Day
			Hour
		Change Password			[Default: 1234]
	HDMI Link Settings	HDMI Link			Off [Default]
					On
		Inclusive of TV			No [Default]
					Yes
		Power On Link			Mutual [Default]
					PJ → Device
					Device → PJ
		Power Off Link			Off [Default]
					On
	Test Pattern				Green Grid
					Magenta Grid
					White Grid
					White
					Off
	Remote Settings [depends on remote]	IR Function			On [Default]
					Off
		Remote Code 00~99
		F1			Test Pattern
					Brightness
					Contrast
					Sleep Timer [Default]
					Color Matching
					Color Temp
					Gamma
					Projection
					MHL
		F2			Test Pattern
					Brightness
					Contrast
					Sleep Timer
					Color Matching [Default]
					Color Temp
					Gamma
					Projection
					MHL

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Remote Settings [depends on remote]	F3			Test Pattern
					Brightness
					Contrast
					Sleep Timer
					Color Matching
					Color Temp
					Gamma
					Projection
					MHL [Default]
	Projector ID 00 ~	99
	12V Trigger				On
					Off
	Options	Language			English [Default]
					Deutsch
					Français
					Italiano
					Español
					Português
					Polski
					Nederlands
					Svenska
					Norsk/Dansk
					Suomi
					ελληνικά
					繁體
					解体
					日本語
					한국어
					Русский
					Magyar
					Čeština
					عربي
					'ɪnu
					Türkçe
					فارسی
					Tiếng Việt
					Bahasa Indonesia
					Română
					Slovenčina
		Closed Captioning			CC1
					CC2
					Off [Default]

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Setup	Options	Menu Settings	Menu Location		Top left ■
					Top right ■
					Center [Default]
					Bottom left ■
					Bottom right ■
			Menu Timer		Off
					5sec
					10sec [Default]
		Auto Source			Off [Default]
					On
		Input Source			HDMI1/MHL
					HDMI2
					VGA
					Video
		Input Name	HDMI1/MHL		Default [Default]
					Custom
			HDMI2		Default [Default]
					Custom
			VGA		Default [Default]
					Custom
			Video		Default [Default]
					Custom
		High Altitude			Off [Default]
					On
		Display Mode Lock			Off [Default]
					On
		Keypad Lock			Off [Default]
					On
		Information Hide			Off [Default]
					On
		Logo			Default [Default]
					Neutral
					User
		Background Color			None
					Blue [Default]
					Red
					Green
					Gray
					Logo
	Reset	Reset OSD			Cancel [Default]
					Yes
		Reset to Default			Cancel [Default]
					Yes

SETUP AND INSTALLATION

Main Menu	Sub Menu Sub	Menu 2 Sub	Menu 3 Sub	Menu 4 Values
Network	LAN	Network Status (read only)
		MAC Address (read only)
		DHCP			Off [Default]
					On
		IP Address 192.168.0.100 [Default]
		Subnet Mask 255	255.255.0 [Default]
		Gateway 192.168	0.254 [Default]
		DNS 192.168.0.51 [Default]
		Reset
	Control	Crestron			Off
					On [Default]Note: Port 41794
		Extron			Off
					On [Default]Note: Port 2023
		PJ Link			Off
					On [Default]Note: Port 4352
		AMX Device Discovery			Off
					On [Default]Note: Port 9131
		Telnet			Off
					On [Default]Note: Port 23
		HTTP			Off
					On [Default]Note: Port 80
Info	Regulatory
	Serial Number
	Source
	Resolution 00x00
	Refresh Rate 0.00Hz
	Display Mode
	Remote Code				00~99
	Remote Code(Active)				00~99
	Power Mode (Standby)
	Light Source Hours				0 hr
	Network Status
	IP Address
	Projector ID				00 ~ 99
	Brightness Mode
	FW Version	System
		LAN
		MCU

SETUP AND INSTALLATION

Display menu

Display image settings menu

Display Mode

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing in front of public in connection to the PC.

- Bright: Maximum brightness from PC input.

- HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic color using REC.2020 color gamut. This mode will be automatically enabled if HDR is set to ON (and HDR Content is sent to projector – 4K UHD Blu-ray, 1080p/4K UHD HDR Games, 4K UHD Streaming Video). While HDR mode is active, other display modes (Cinema, Reference, etc.) cannot be selected as HDR delivers color that is highly accurate, exceeding the color performance of the other display modes.

- Cinema: Provides the best colors for watching movies.

• Game: Select this mode to increase the brightness and response time level for enjoying video games.

- sRGB: Standardized accurate color.

• DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography, MRI, etc.

- User: Memorize user's settings.

• 3D: To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.

Wall Color

Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard, light yellow, light green, light blue, pink, and gray.

Dynamic Range

Configure the High Dynamic Range (HDR) setting and its effect when displaying video from 4K Blu-ray players and streaming devices.

Note: HDMI1 and VGA do not support Dynamic Range.

▶ HDR

• Off: Turn off HDR Processing. When set to Off, the projector will NOT decode HDR content.

• Auto: Auto detect HDR signal.

▶ HDR Picture Mode

- Bright: Choose this mode for brighter more saturated colors.

• Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.

- Film: Choose this mode for improved detail and image sharpness.

• Details: The signal comes from OETF conversion to achieve the best color matching.

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

SETUP AND INSTALLATION

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Tint

Adjust the color balance of red and green.

Gamma

Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output.

• Film: For home theater.
• Video: For video or TV source.
• Graphics: For PC / Photo source.
- Standard(2.2): For standardized setting.
• 1.8 / 2.0 / 2.4 / 2.6: For specific PC / Photo source.

Note:

• These options are only available if the 3D mode function is disabled, the Wall Color setting is not set to Blackboard, and the Display Mode setting is not set to DICOM SIM. or HDR.
• If the Display Mode setting is set to HDR, user can only select HDR for Gamma setting.
• In 3D mode, user can only select 3D for Gamma setting.
• If the Wall Color setting is set to Blackboard, user can only select Blackboard for Gamma setting.
• If the Display Mode setting is set to DICOM SIM., user can only select DICOM SIM. for Gamma setting.

Color Settings

Configure the color settings.

- BrilliantColor™: This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

• Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.

• Color Matching: Select the following options:

– Color: Adjust the red, green, black, cyan, yellow, magenta, and white level of the image.
– Hue / R(red)*: Adjust the color balance of red and green.
Note: *If the Color setting is set to White, you can adjust the red color setting.
- Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.
Note: *If the Color setting is set to White, you can adjust the green color setting.
- Gain / B(blue)*: Adjust the image brightness.

Note: *If the Color setting is set to White, you can adjust the blue color setting.

- Reset: Return the factory default settings for color matching.

- Exit: Exit the "Color Matching" menu.

- RGB Gain/Bias: This settings allows to configure the brightness (gain) and contrast (bias) of an image.

• Reset: Return the factory default settings for RGB gain/bias.
• Exit: Exit the "RGB Gain/Bias" menu.

SETUP AND INSTALLATION

• Color Space (non-HDMI input only): Select an appropriate color matrix type from the following: AUTO, RGB, or YUV.
• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto, RGB(0-255), RGB(16-235), and YUV.
• White Level: Allow user to adjust White Level when inputting Video signals.

Note: White level can only be adjusted for Video/S-Video input sources.

- Black Level: Allow user to adjust Black Level when inputting Video signals.

Note: Black level can only be adjusted for Video/S-Video input sources.

- IRE: Allow user to adjust IRE value when inputting Video signals.

Note:

• IRE is only available with NTSC video format.
• IRE can only be adjusted for Video/S-Video input sources.

Signal

Adjust the signal options.

• Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
- Frequency: Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.
• Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

• H. Position: Adjust the horizontal positioning of the image.

• V. Position: Adjust the vertical positioning of the image.

Note: This menu is only available if the input source is RGB/Component.

Brightness Mode

Adjust the brightness mode settings.

• DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast performance.
- Eco.: Choose "Eco." to dim the projector lamp which will lower power consumption and extend the lamp life.
- Power: Choose the power percentage for brightness mode.

Reset

Return the factory default settings for color settings.

SETUP AND INSTALLATION

Display 3D menu

Note:

• This projector is a 3D ready projector with DLP-Link 3D solution.
  • Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
  • This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2/VGA ports.
  • To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not supported.
  • To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K (3840x2160) resolution is not supported in 3D mode.

3D Mode

Use this option to disable or enable the 3D function.

• Off: Select "Off" to turn off 3D mode.
• On: Select "On" to turn on 3D mode.

3D Tech

Use this option to select 3D technology.

• DLP-Link: Select to use optimized settings for DLP 3D Glasses.
  • 3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.

3D → 2D

Use this option to specify how the 3D content should appear on the screen.

• 3D: Display 3D signal.
- L (Left): Display the left frame of 3D content.
- R (Right): Display the right frame of 3D content.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identification signal is detected, the 3D format is selected automatically.
- SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
- Frame Sequential: Display 3D signal in "Frame Sequential" format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

Reset

Return the factory default setting for 3D settings.

• Cancel: Select to cancel Reset.
• Yes: Select to return the factory default settings for 3D.

SETUP AND INSTALLATION

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.

• 16:10 (for WXGA/WUXGA model only): This format is for 16:10 input sources, like widescreen laptops.

- LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1 aspect ratio in full resolution.

• Native: This format displays the original image without any scaling.

- Auto: Automatically selects the appropriate display format.

Note:

• Detailed informations about LBX mode:

Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of content, you can use LBX mode to fill the image on the 16:9 display.
- If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical resolution are fully utilized.

- To use the superwide format, do the following:

a) Set the screen aspect ratio to 2.0:1.

b) Select "Superwide" format.

c) Align the projector image correctly on the screen.

1080p scaling table:

16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9	Scale to 1920x1080.
LBX	Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode - 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If auto format is selected, the screen type will automatically become16:9 (1920x1080).- If source is 4:3, the screen type will be scaled to 1440 x1080.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.

SETUP AND INSTALLATION

1080p auto mapping rule:

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1080
4:3	640 480 1440	1080
	800 600 1440	1080
	1024 768 1440	1080
	1280 1024 1440	1080
	1400 1050 1440	1080
	1600 1200 1440	1080
Wide Laptop	1280 720 1920	1080
	1280 768 1800	1080
	1280 800 1728	1080
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

WXGA scaling table (screen type 16x10):

Note:

• Supported screen type 16:9 (1280x720), 16:10 (1280x800).
- When screen type is 16:9, the 16x10 format becomes unavailable.
- When screen type is 16:10, the 16x9 format becomes unavailable.
If you select auto option then the display mode will be also automatically changed.

16 : 10 screen 480i/p 576i/p 1080i/p 720p		PC
4x3	Scale to 1066x800.
16x10	Scale to 1280x800.
LBX	Scale to 1280x960, then get the central 1280x800 image to display.
Native mode	1:1 mapping centered.	1:1 mapping display 1280x800.	1280x720 centered.	1:1 mapping centered.
Auto	-Input source will be fit into 1280x800 display area and be kept its original aspect ratio.-If source is 4:3, the screen type will be scaled to 1066x800.-If source is 16:9, the screen type will be scaled to 1280x720.-If source is 15:9, the screen type will be scaled to 1280x768.-If source is 16:10, the screen type will be scaled to 1280x800.

SETUP AND INSTALLATION

WXGA auto mapping rule (screen type 16x10):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1280 800
4:3	640 480 1066	800
	800 600 1066	800
	1024 768 1066	800
	1280 1024 1066	800
	1400 1050 1066	800
	1600 1200 1066	800
Wide Laptop	1280 720 1280	720
	1280 768 1280	768
	1280 800 1280	800
SDTV	720 576 1280	720
	720 480 1280	720
HDTV	1280 720 1280	720
	1920 1080 1280	720

WXGA scaling table (screen type 16x9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 960x720.
16x9	Scale to 1280x720.
LBX	Scale to 1280x960, then get the central 1280x720 image to display.
Native mode	1:1 mapping centered.	1:1 mapping display 1280x720.	1280x720 centered.	1:1 mapping centred.
Auto	-If this format is select, screen type will automatically become 16:9 (1280x720).-If source is 4:3, the screen type will be scaled to 960x720.-If source is 16:9, the screen type will be scaled to 1280x720.-If source is 15:9, the screen type will be scaled to 1200x720.-If source is 16:10, the screen type will be scaled to 1152x720.

SETUP AND INSTALLATION

WXGA auto mapping rule (screen type 16x9):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1280 720
4:3	640 480 960 720
	800 600 960 720
	1024 768 960 720
	1280 1024 960 720
	1400 1050 960 720
	1600 1200 960 720
Wide Laptop	1280 720 1280 720
	1280 768 1200 720
	1280 800 1152 720
SDTV	720 576 1280 720
	720 480 1280 720
HDTV	1280 720 1280 720
	1920 1080 1280 720

WUXGA scaling table for 1920 x 1200 DMD (screen type 16:10):

Note:

• Supported screen type 16:10 (1920 x 1200), 16:9 (1920x1080).
- When screen type is 16:9, the16x10 format becomes unavailable.
- When screen type is 16:10, the 16x9 format becomes unavailable.
If you select auto option then the display mode will be also automatically changed.

16 : 10 screen	480i/p	576i/p	1080i/p	720p	PC
4x3	Scale to 1600x1200.
16x9	Scale to 1920x1080.
16x10	Scale to 1920x1200.
LBX	Scale to 1920x1440, then get the central 1920x1200 image to display.
Native mode	- 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If this format is selected, the screen type will automatically become 16:10 (1920x1200).- If source is 4:3, the screen type will be scaled to 1600x1200.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200.

SETUP AND INSTALLATION

WUXGA auto mapping rule (screen type 16:10):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1200
4:3	640 480 1600	1200
	800 600 1600	1200
	1024 768 1600	1200
	1280 1024 1600	1200
	1400 1050 1600	1200
	1600 1200 1600	1200
Wide Laptop	1280 720 1920	1080
	1280 768 1920	1152
	1280 800 1920	1200
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

WUXGA scaling table (screen type 16:9):

16 : 9 screen 480i/p 576i/p 1080i/p 720p PC
4x3	Scale to 1440x1080.
16x9	Scale to 1920x1080.
LBX	Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode	- 1:1 mapping centered.- No scaling will be made; the image is displayed with the resolution based on input source.
Auto	- If this format is selected, the screen type will automatically become 16:9 (1920x1080).- If source is 4:3, the screen type will be scaled to 1440x1080.- If source is 16:9, the screen type will be scaled to 1920x1080.- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to display.

SETUP AND INSTALLATION

WUXGA auto mapping rule (screen type 16:9):

Auto	Input resolution Auto/Scale
	H-resolution V-resolution 1920 1080
4:3	640 480 1440	1080
	800 600 1440	1080
	1024 768 1440	1080
	1280 1024 1440	1080
	1400 1050 1440	1080
	1600 1200 1440	1080
Wide Laptop	1280 720 1920	1080
	1280 768 1800	1080
	1280 800 1728	1080
SDTV	720 576 1350	1080
	720 480 1620	1080
HDTV	1280 720 1920	1080
	1920 1080 1920	1080

Display edge mask menu

Edge Mask

Use this function to remove the video encoding noise on the edge of video source.

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

Display geometric correction menu

Four Corners

Allow the image to be squeezed to fit an area defined by moving each of the four corners' x and y position.

H Keystone

Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length. This is intended for use with horizontally on-axis applications.

V Keystone

Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.

SETUP AND INSTALLATION

Auto Keystone

Correct keystone digitally to fit the projected image on the area on which you are projecting.

Note:

• The image size will reduce slightly when adjusting the horizontal and vertical keystone.
- When the Auto Keystone is used, the Four Corner Adjustment function will be disabled.

Reset

Return the factory default settings for geometric correction settings.

Audio menu

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

• On: Choose "On" to turn mute on.
• Off: Choose "Off" to turn mute off.

Note: "Mute" function affects both internal and external speaker volume.

Audio volume menu

Volume

Adjust the volume level.

Audio audio input menu

Audio Input

Select the audio input port for the video sources as follows:

• HDMI1/MHL: Audio 1, Audio 2, Mic, or Default.
• HDMI2: Audio 1, Audio 2, Mic, or Default.
• VGA: Audio 1, Audio 2, or Mic.
• Video: Audio 1, Audio 2, or Mic.

SETUP AND INSTALLATION

Setup menu

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup screen type menu

Screen Type (for WXGA or WUXGA model only)

Choose the screen type from 16:9 and 16:10.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the remote control.

Note: If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby mode will be over 3W.

Auto Power Off (min.)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Sleep Timer (min.)

Configure the sleep timer.

- Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Note: The Sleep Timer is reset every time when the projector is powered off.

- Always On: Check to set the sleep timer always on.

Power Mode (Standby)

Set the power mode setting.

• Active: Choose "Active" to return to normal standby.
• Eco: Choose "Eco." to save power dissipation further < 0.5W .

USB Power (Standby)

Enable or disable the USB power function when the projector is in standby mode.

Note: The USB is not able to supply power with MHL sources.

SETUP AND INSTALLATION

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose "On" to use security verification when the turning on the projector.
• Off: Choose "Off" to be able to switch on the projector without password verification.

Security Timer

Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has elapsed you will be requested to enter your password again.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

Setup HDMI link settings menu

Note:

- When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector's OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical configuration, your DVD player may be connected to the projector through an amplifier or home theater system.

HDMI Link

Enable/disable the HDMI Link function. The inclusive TV, power on link, and power off link options will only available if the setting is set to "On".

Inclusive of TV

Set to "Yes" if you prefer both TV and projector to be automatically turned off at the same time. To prevent both devices to be turned off at the same time, set the setting to "No".

Power On Link

CEC power on command.

• Mutual: Both projector and CEC device will be turned on simultaneously.
- PJ → Device: The CEC device will be turned on only after the projector is switched on.
• Device → PJ: The projector will be switched on only after the CEC device is turned on.

Power Off Link

Enable this function to let both HDMI Link and projector to be automatically turned off at the same time.

SETUP AND INSTALLATION

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off).

Setup remote settings menu

IR Function

Set the IR function setting.

• On: Choose "On", the projector can be operated by the remote control from the top and front IR receivers.
• Off: Choose "Off", the projector can't be operated by the remote control. By selecting "Off", you will be able to use the Keypad keys.

Remote Code

Set the remote custom code by pressing the remote ID button for 3 seconds and you will notice the remote indicator (above the Off button) starts blinking. Then, input a number between 00-99 using the keyboard numbered keys. After inserting the number, the remote indicator blinks twice quickly indicating that the remote code has changed.

F1/F2/F3

Assign the default function for F1, F2, or F3 between Test Pattern, Brightness, Contrast, Sleep Timer, Color Matching, Color Temp, Gamma, Projection, or MHL.

Setup projector ID menu

Projector ID

ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.

Setup 12V trigger menu

12V Trigger

Use this function to enable or disable the trigger.

• Off: Choose "Off" to disable the trigger.
• On: Choose "On" to enable the trigger.

SETUP AND INSTALLATION

Setup options menu

Language

Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplified Chinese, Japanese, Korean, Russian, Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.

Closed Captioning

Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input signal contains closed captions, you can turn on the feature and watch the channels. The available options include "Off", "CC1", and "CC2".

Menu Settings

Set the menu location on the screen and configure menu timer settings.

• Menu Location: Select the menu location on the display screen.
• Menu Timer: Set the duration where the OSD menu stays visible on the screen.

Auto Source

Choose this option to let the projector automatically find an available input source.

Input Source

Select the input source between HDMI1/MHL, HDMI2, VGA, and Video.

Input Name

Use to rename the input function for easier identification. The available options include HDMI1/MHL, HDMI2, VGA, and Video.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Display Mode Lock

Choose "On" or "Off" to lock or unlock adjusting display mode settings.

Keypad Lock

When the keypad lock function is "On", the Keypad will be locked. However, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the Keypad.

Information Hide

Enable this function to hide the information message.

• Off: Choose "Off" to show the "searching" message.
• On: Choose "On" to hide the info message.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

• Default: The default startup screen.
• Neutral: Logo is not displayed on startup screen.
• User: Use the stored picture as the startup screen.

Background Color

Use this function to display a blue, red, green, gray color, none, or logo screen when no signal is available.

Note: If the background color is set to "None", then the background color is black.

SETUP AND INSTALLATION

Setup reset OSD menu

Reset OSD

Return the factory default settings for OSD menu settings.

Reset to Default

Return the factory default settings for all settings.

Network menu

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• Off: To assign IP, subnet mask, gateway, and DNS configuration manually.
• On: Projector will obtain an IP address automatically from your network.

Note: Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

How to use web browser to control your projector

1. Turn "On" the DHCP option on projector to allow a DHCP server to automatically assign an IP address.
2. Open the web browser in your PC and type in the projector's IP address ("Network > LAN > IP Address").
3. Enter the user name and password, and click "Login". The projector's configuration web interface opens.

Note:

• The default user name and password is "admin".
• The steps in this section is based on Windows 7 operating system.

SETUP AND INSTALLATION

Making a direct connection from your computer to the projector\*

1. Turn "Off" the DHCP option on the projector.

2. Configure the IP address, Subnet Mask, Gateway, and DNS on projector ("Network > LAN").

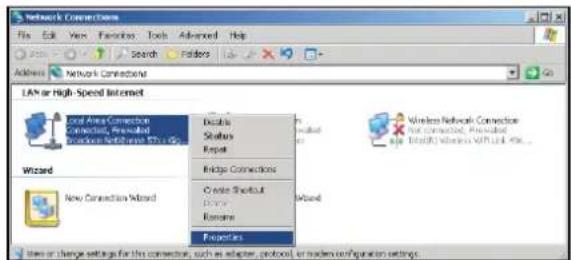

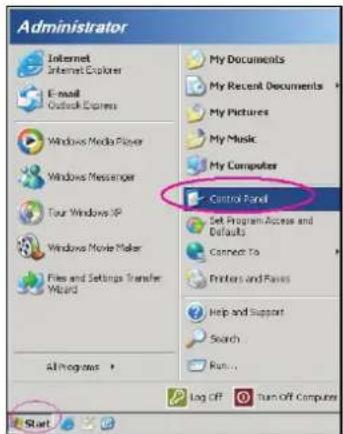

3. Open Network and Sharing Center page on your PC, and assign the identical network parameters to your PC as set on projector. Click "OK" to save the parameters.

1. Open the web browser on your PC and type in to the URL field the IP address, assigned in step 3. Then press "Enter" key.

Reset

Reset all values for LAN parameters.

Network control menu

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

SETUP AND INSTALLATION

Setup network control settings menu

LAN RJ45 function

For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings. Also, you can view the projector status information, such as: Video- Source, Sound-Mute, etc.

Wired LAN terminal functionalities

This projector can be controlled by using a PC (laptop) or other external device via LAN / RJ45 port and compatible with Crestron / Extron / AMX (Device -Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.
• Extron is a registered trademark of Extron Electronics, Inc. of the United States.
• AMX is a registered trademark of AMX LLC of the United States.
• PJLink applied for trademark and logo registration in Japan, the United States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron Electronics controller and related software, for example RoomView ^® .

http://www.crestron.com/

This projector is compliant to support Extron device(s) for reference.

http://www.extron.com/

This projector is supported by AMX (Device Discovery).

http://www.amx.com/

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detailed information about the various types of external devices which can be connected to the LAN / RJ45 port and remote control the projector, as well as the supported commands for these external devices, please contact the Support-Service directly.

SETUP AND INSTALLATION

LAN RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop).

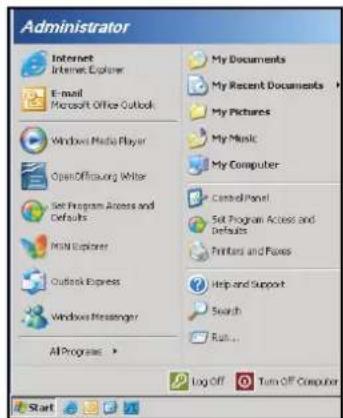

1. On the PC (Laptop), select Start > Control Panel > Network Connections.

1. Right-click on the Local Area Connection, and select Property.

1. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).

SETUP AND INSTALLATION

1. Click "Properties".

1. Type in the IP address and Subnet mask, then press "OK".

1. Press the "Menu" button on the projector.
2. Open on projector Network > LAN.

3. Enter the following connection parameters:

4. DHCP: Off

5. IP Address: 192.168.0.100
6. Subnet Mask: 255.255.255.0
7. Gateway: 192.168.0.254

8. DNS: 192.168.0.51

9. Press "Enter" to confirm settings.

10. Open a web browser, for example Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher installed.
11. In the Address bar, input the projector's IP address: 192.168.0.100.

1. Press "Enter".

The projector is setup for remote management. The LAN / RJ45 function displays as follows:

SETUP AND INSTALLATION

Information page

Main page

Tool page

Contact IT helpdesk

SETUP AND INSTALLATION

RS232 by Telnet Function

There is alternative RS232 command control way, in projector so called "RS232 by TELNET" for LAN / RJ45 interface.

Quick Start-Guide for "RS232 by Telnet"

• Check and get the IP address on OSD of the projector.
• Make sure that the PC / laptop can access the web-page of the projector.

• Make sure that "Windows Firewall" setting is set disabled in case of "TELNET" function filtering out by PC / laptop.

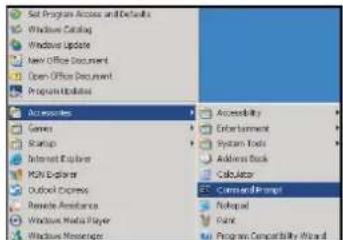

1. Select Start > All Programs.> Accessories > Command Prompt.

1. Input the command format as follows:

2. telnet ttt.xxx.yyy.zzz 23 ("Enter" key pressed)

3. (ttt.xxx.yyy.zzz: IP-Address of the projector)

4. If Telnet-Connection ready, and user can have RS232 command input, then "Enter" key pressed, the RS232 command will be workable.

Specification for "RS232 by TELNET":

1. Telnet: TCP.
2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team).
3. Telnet utility: Windows "TELNET.exe" (console mode).

4. Disconnection for RS232-by-Telnet control normally: Close

5. Windows Telnet utility directly after TELNET connection ready.

6. Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

7. Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control.
8. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

SETUP AND INSTALLATION

Info menu

Info menu

View the projector information as listed below:

• Regulatory
• Serial Number
• Source
• Resolution
• Refresh Rate
• Display Mode
• Remote Code
• Remote Code(Active)
  • Power Mode (Standby)
  • Light Source Hours
• Network Status
• IP Address
• Projector ID
• Brightness Mode
• FW Version

MAINTENANCE

Installing and cleaning the dust filter

Installing the dust filter

Note: Dust filters are only required/supplied in the selected regions with excessive dust.

Cleaning the dust filter

We recommend you to clean the dust filter every three months. Clean it more often if the projector is used in a dusty environment.

Procedure:

1. Switch off the power to the projector by pressing the " " button on the projector keypad or the " " button on the remote control.
2. Disconnect the power cord.
3. Pull the dust filter compartment downwards to remove it out from the bottom of the projector. 1
4. Carefully remove the air filter. Then clean or replace the dust filter. 2
5. To install the dust filter, reverse the previous steps.

ADDITIONAL INFORMATION

Compatible resolutions

Digital

B0 / Established Timing	B0 / Standard Timing	B0 / Detail Timing B1	/ Video Mode B1 / Detail Timing)
720 x 400 @ 70Hz SVGA: Native timing: 640 x 480p @ 60Hz 720 x 480p @ 60Hz
640 x 480 @ 60Hz 800 x 600 @ 120Hz XGA: 1024 x 768 @ 60Hz		720 x 480p @ 60Hz 1280 x 720p @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @ 120Hz WXGA: 1280 x 800 @ 60Hz; 1280 x 720 @ 60Hz		1280 x 720p @ 60Hz 1366 x 768 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz		1920 x 1080i @ 60Hz 1920 x 1080i @ 50Hz
640 x 480 @ 75Hz 1280 x 1024 @ 60Hz WUXGA: 1920 x 1200 @ 60Hz		720(1440) x 480i @ 60Hz 1920 x 1080p @ 60Hz
800 x 600 @ 56Hz 1680 x 1050 @ 60Hz 1920 x 1080p @ 60Hz
800 x 600 @ 60Hz 1280 x 720 @ 60Hz 720 x 576p @ 50Hz
800 x 600 @ 72Hz 1280 x 720 @ 120Hz 1280 x 720p @ 50Hz
800 x 600 @ 75Hz 1600 x 1200 @ 60Hz 1920 x 1080i @ 50Hz
832 x 624 @ 75Hz 720(1440) x 576i @ 50Hz
1024 x 768 @ 60Hz	XGA/WXGA:		1920 x 1080p @ 50Hz
1024 x 768 @ 70Hz	800 x 600 @ 120Hz 1920 x 1080p @ 24Hz
1024 x 768 @ 75Hz	1440 x 900 @ 60Hz 1920 x 1080p @ 30Hz
1280 x 1024 @ 75Hz	1024 x 768 @ 120Hz
1152 x 870 @ 75Hz	1280 x 800 @ 60Hz
	1280 x 1024 @ 60Hz
	1680 x 1050 @ 60Hz
	1280 x 720 @ 60Hz
	1280 x 720 @ 120Hz
	1600 x 1200 @ 60Hz
	1080P/WUXGA:
	1280 x 720 @ 60Hz
	1280 x 800 @ 60Hz
	1280 x1024 @ 60Hz
	1400 x 1050 @ 60Hz
	1600 x 1200 @ 60Hz
	1280 X 768 @ 60Hz
	1440 x 900 @ 60Hz
	1280 x 720 @ 120Hz
	1024 x 768 @ 120Hz

ADDITIONAL INFORMATION

Analog

B0 / Established Timing B0 / Standard Timing B0 / Detail		Timing B1 / Detail Timing
720 x 400 @ 70Hz SVGA: Native timing: 1366 x 768 @ 60Hz
640 x 480 @ 60Hz 800 x 600 @ 120Hz XGA: 1024 x 768 @ 60Hz
640 x 480 @ 67Hz 1024 x 768 @ 120Hz WXGA: 1280 x 800 @ 60Hz;1280 x 720 @ 60Hz
640 x 480 @ 72Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz
640 x 480 @ 75Hz 1280 x 1024 @ 60Hz WUXGA: 1920 x 1200 @ 60Hz
800 x 600 @ 56Hz 1680 x 1050 @ 60Hz
800 x 600 @ 60Hz 1280 x 720 @ 60Hz
800 x 600 @ 72Hz 1280 x 720 @ 120Hz
800 x 600 @ 75Hz 1600 x 1200 @ 60Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz XGA/WXGA:
1024 x 768 @ 70Hz 800 x 600 @120Hz
1024 x 768 @ 75Hz 1440 x 900 @ 60Hz
1280 x 1024 @ 75Hz 1024 x 768 @ 120Hz
1152 x 870 @ 75Hz 1280 x 800 @ 60Hz
	1280 x 1024 @ 60Hz
	1680 x 1050 @ 60Hz
	1280 x 720 @ 60Hz
	1280 x 720 @ 120Hz
	1600 x 1200 @ 60Hz
	1080P/WUXGA:
	1280 x 720 @ 60Hz
	1280 x 800 @ 60Hz
	1280 x1024 @ 60Hz
	1400 x 1050 @ 60Hz
	1600 x 1200 @ 60Hz
	1280 X 768 @ 60Hz
	1440 x 900 @ 60Hz
	1280 x 720 @ 120Hz
	1024 x 768 @ 120Hz

ADDITIONAL INFORMATION

True 3D video compatibility

Input resolutions	HDMI 1.4a3D Input	Input timing
		1280 x 720P @ 50Hz Top-and-Bottom
		1280 x 720P @ 60Hz Top-and-Bottom
		1280 x 720P @ 50Hz Frame packing
		1280 x 720P @ 60Hz Frame packing
		1920 x 1080i @ 50Hz Side-by-Side(Half)
		1920 x 1080i @ 60Hz Side-by-Side(Half)
		1920 x 1080P @ 24Hz Top-and-Bottom
		1920 x 1080P @ 24Hz Frame packing
	HDMI 1.3	1920 x 1080i @ 50Hz	Side-by-Side(Half) SBS mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @ 60Hz
		800 x 600 @ 60Hz
		1024 x 768 @ 60Hz
		1280 x 800 @ 60Hz
		1920 x 1080i @ 50Hz	Top-and-Bottom TAB mode is on
		1920 x 1080i @ 60Hz
		1280 x 720P @ 50Hz
		1280 x 720P @60Hz
		800 x 600 @ 60Hz
		1024 x 768 @ 60Hz
		1280 x 800 @ 60Hz
		480i HQFS 3D format is Frame sequential

Note:

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.
• Support NVIDIA 3DTV Play if there is no patent fee from Optoma.
• 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will run in 120Hz.

ADDITIONAL INFORMATION

Image size and projection distance

WXGA model

Diagonal Length Size of (16:9) Screen	Screen Size (W x H) Projection				Distance ( D )				Offset (Hd)
	(m) (inch) (m) (feet)
	Width	Height Width	Height Wide	Tele Wide	Tele (m) (inch)
19.7	0.42	0.27	16.71	10.44	NA	1.0	NA	3.28	0.03	1.18
40	0.86	0.54	33.92	21.2	1.3	2.0	4.27	6.56	0.07	2.76
50	1.08	0.67	42.40	26.5	1.6	2.5	5.25	8.20	0.09	3.54
60	1.29	0.81	50.88	31.8	1.9	3.0	6.23	9.84	0.10	3.94
70	1.51	0.94	59.36	37.1	2.2	3.5	7.22	11.48	0.12	4.72
80	1.72	1.08	67.84	42.4	2.5	4.1	8.20	13.45	0.13	5.12
90	1.94	1.21	76.32	47.7	2.8	4.6	9.19	15.09	0.15	5.91
100	2.15	1.35	84.80	53	3.2	5.1	10.50	16.73	0.16	6.30
120	2.58	1.62	101.76	63.6	3.8	6.1	12.47	20.01	0.20	7.87
150	3.23	2.02	127.20	79.5	4.7	7.6	15.42	24.93	0.25	9.84
180	3.88	2.42	152.64	95.4	5.7	9.1	18.70	29.86	0.30	11.81
200	4.31	2.69	169.60	106	6.3	10.1	20.67	33.14	0.34	13.39
250	5.38	3.37	212.00	132.5	7.9	NA	25.92	NA	0.41	16.14
315.8	6.80	4.25	267.80	167.4	10.0	NA	32.81	NA	0.53	20.87

Note: Zoom Ratio: 1.6x

1080P model

Diagonal Length Size of (16:9) Screen	Screen Size (W x H) Projection				Distance ( D )				Offset (Hd)
	(m) (inch) (m) (feet)
	Width	Height	Width	Wide Tele	Wide Tele (m) (inch)
20.2	0.45	0.25	17.61	9.9	NA	1.0	NA	3.28	0.04	1.57
40	0.89	0.5	34.86	19.6	1.2	2.0	3.94	6.56	0.08	3.15
50	1.11	0.62	43.58	24.5	1.6	2.5	5.25	8.20	0.10	3.94
60	1.33	0.75	52.29	29.4	1.9	3.0	6.23	9.84	0.12	4.72
70	1.55	0.87	61.01	34.3	2.2	3.5	7.22	11.48	0.14	5.51
80	1.77	1	69.73	39.2	2.5	4.0	8.20	13.12	0.16	6.30
90	1.99	1.12	78.44	44.1	2.8	4.5	9.19	14.76	0.18	7.09
100	2.21	1.25	87.16	49	3.1	5.0	10.17	16.40	0.19	7.48
120	2.66	1.49	104.59	58.8	3.7	6.0	12.14	19.69	0.24	9.45
150	3.32	1.87	130.74	73.5	4.7	7.4	15.42	24.28	0.30	11.81
180	3.98	2.24	156.88	88.2	5.6	8.9	18.37	29.20	0.36	14.17
200	4.43	2.49	174.32	98.1	6.2	9.9	20.34	32.48	0.40	15.75
250	5.53	3.11	217.89	122.6	7.8	NA	25.59	NA	0.50	19.69
320.4	7.09	3.99	279.25	157.1	10.0	NA	32.81	NA	0.64	25.20

Note: Zoom Ratio: 1.6x

ADDITIONAL INFORMATION

1080p Short Throw model

Diagonal Length Size of (16:9) Screen	Screen Size (W x H) Projection				Distance ( D )				Offset (Hd)
	(m) (inch) (m) (feet)
	Width Height Width		Height Wide	Tele Wide	Tele (m) (inch)
36.4	0.81	0.45	31.73	17.85	NA	0.4	NA	1.31	0.08	3.15
40	0.89	0.5	34.86	19.6	0.4	0.4	1.31	1.31	0.08	3.15
50	1.11	0.62	43.58	24.5	0.5	0.5	1.64	1.64	0.10	3.94
60	1.33	0.75	52.29	29.4	0.7	0.7	2.30	2.30	0.12	4.72
70	1.55	0.87	61.01	34.3	0.8	0.8	2.62	2.62	0.14	5.51
80	1.77	1	69.73	39.2	0.9	0.9	2.95	2.95	0.16	6.30
90	1.99	1.12	78.44	44.1	1.0	1.0	3.28	3.28	0.18	7.09
100	2.21	1.25	87.16	49	1.1	1.1	3.61	3.61	0.19	7.48
120	2.66	1.49	104.59	58.8	1.3	1.3	4.27	4.27	0.24	9.45
150	3.32	1.87	130.74	73.5	1.6	1.6	5.25	5.25	0.30	11.81
180	3.98	2.24	156.88	88.2	2.0	2.0	6.56	6.56	0.36	14.17
200	4.43	2.49	174.32	98.1	2.2	2.2	7.22	7.22	0.40	15.75
250	5.53	3.11	217.89	122.6	2.7	NA	8.86	NA	0.50	19.69
300.5	6.65	3.74	261.91	147.3	3.3	NA	10.83	NA	0.60	23.62

Note: Zoom Ratio: 1.0x

WUXGA model

Diagonal Length Size of (16:9) Screen	Screen Size (W x H) Projection				Distance ( D )				Offset (Hd)
	(m) (inch) (m) (feet)
	Width Height Width Height Wide Tele Wide Tele (m) (inch)
29.2	0.63	0.39	24.76	15.48	NA	1.0	NA	3.28	0.04	1.57
40	0.86	0.54	33.92	21.2	1.0	1.4	3.28	4.59	0.05	1.97
50	1.08	0.67	42.40	26.5	1.3	1.7	4.27	5.58	0.07	2.76
60	1.29	0.81	50.88	31.8	1.6	2.1	5.25	6.89	0.08	3.15
70	1.51	0.94	59.36	37.1	1.8	2.4	5.91	7.87	0.10	3.94
80	1.72	1.08	67.84	42.4	2.1	2.7	6.89	8.86	0.10	3.94
90	1.94	1.21	76.32	47.7	2.3	3.1	7.55	10.17	0.12	4.72
100	2.15	1.35	84.80	53	2.6	3.4	8.53	11.15	0.13	5.12
120	2.58	1.62	101.76	63.6	3.1	4.1	10.17	13.45	0.16	6.30
150	3.23	2.02	127.20	79.5	3.9	5.1	12.80	16.73	0.20	7.87
180	3.88	2.42	152.64	95.4	4.7	6.2	15.42	20.34	0.25	9.84
200	4.31	2.69	169.60	106	5.2	6.8	17.06	22.31	0.27	10.63
250	5.38	3.37	212.00	132.5	6.5	8.6	21.33	28.22	0.33	12.99
300	6.46	4.04	254.40	159	7.8	NA	25.59	NA	0.40	15.75
383.7	8.26	5.17	325.38	203.4	10.0	NA	32.81	NA	0.51	20.08

Note: Zoom Ratio: 1.3x

ADDITIONAL INFORMATION

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications:

- Screw type: M4*10

• Minimum screw length: 10mm

1080p/WXGA model

Unit: mm

ADDITIONAL INFORMATION

1080p Short Throw model

Unit: mm

ADDITIONAL INFORMATION

WUXGA model

Unit: mm
Note: Please note that damage resulting from incorrect installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

• Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
• Avoid installing the projector near a heat source.

ADDITIONAL INFORMATION

IR remote codes

Key	Printing-key definition	Key code				RepeatBYT
		customer 0 customer 1 data		0 data 1
Power On ⏻	On 32 CD	02 #BYTE3 F2
Power Off |	Off 32 CD	2E	#BYTE3 F2
Geometric Correction	Geometric Correction	32 CD 96	#BYTE3 F2
PIP/PBP	PIP/PBP 32	CD 78 #BYTE3 F2
F1	F1	32 CD 26	#BYTE3 F2
F2	F2	32 CD 27	#BYTE3 F2
Mode	Mode	32 CD 95	#BYTE3 F2
Four directional select keys (↑/↓/←/→)	Up arrow	32 CD	C6	#BYTE3 F2
	Down arrow	32 CD	C7	#BYTE3 F2
	Left arrow	32 CD	C8	#BYTE3 F2
	Right arrow	32 CD	C9	#BYTE3 F2
Enter	Enter	32	CD	C5	#BYTE3	F2
AV Mute	AV Mute	32	CD	03	#BYTE3	F2
Information	Info.	32 CD 25	#BYTE3 F2

ADDITIONAL INFORMATION

Key	Printing-key definition	Key code				RepeatBYT
		customer 0 customer 1 data		0 data 1
Laser *	Laser N/A N/A N/A N/A N/A
Source Source 32 CD 18 #BYTE3 F2
F3 F3 32 CD 66 #BYTE3 F2
Re-Sync	Re-Sync	32	CD	04	#BYTE3	F2
Volume	Volume +	32 CD 09	#BYTE3 F2
	Volume - 32 CD		0C #BYTE3 F2
D Zoom	D Zoom +	32 CD 08	#BYTE3 F2
	D Zoom -	32 CD	0B	#BYTE3 F2
Menu	Menu	32 CD 88	#BYTE3 F2
Format Format 32 CD 15 #BYTE3 F2
Freeze	Freeze	32 CD 06	#BYTE3 F2
Remote	Remote ID	3201~ 3299		N/A
	Remote All	32CD		N/A
VGA / 1	1/VGA	32	CD	8E	#BYTE3	F2
S-Video / 2	2/S-Video	32	CD	1D	#BYTE3	F2
HDMI1 / 3	3/HDMI1 32 CD 16 #BYTE3 F2
HDMI2	HDMI2	32	CD	9B	#BYTE3	F2
HDBaseT / 4	4/HDBaseT	32 CD 70	#BYTE3 F2
Video / 5	5/Video	32	CD	1C	#BYTE3	F2
DVI / 6	6/DVI	32 CD 19	#BYTE3 F2
HDMI3	HDMI3	32 CD 98	#BYTE3 F2
BNC / 7	7/BNC	32	CD	1A	#BYTE3	F2
YPbPr / 8	8/YPbPr	32 CD 17	#BYTE3 F2
Display Port / 9	9/DisplayPort	32	CD	9F	#BYTE3	F2
3D / 0	0/3D	32 CD 89	#BYTE3 F2

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image problems

No image appears on-screen

• Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
• Ensure the pins of connectors are not crooked or broken.
• Ensure that the "Mute" feature is not turned on.

? Image is out of focus

• Turn the focus ring/focus lever clockwise or counterclockwise until the image is sharp and legible. (Please see page 19).
  • Make sure the projection screen is between the required distance from the projector. (Please refer to pages 61-63).

The image is stretched when displaying 16:9 DVD title

• When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format on projector side.
• If you play the LBX format DVD title, please change the format as LBX in projector OSD.
• If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
• Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.

? Image is too small or too large

• Turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size. (Please see page 19).
• Move the projector closer to or further from the screen.
• Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the different settings.

? Image has slanted sides:

• If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.

? Image is reversed

- Select "Setup → Projection" from the OSD and adjust the projection direction.

ADDITIONAL INFORMATION

Other problems

The projector stops responding to all controls

• If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power.

Remote control problems

If the remote control does not work

• Check the operating angle of the remote control is pointed within ± 30^ to the IR receiver on the projector.
  • Make sure there are not any obstructions between the remote control and the projector. Move to within 12 m (39.4 ft) of the projector.

• Make sure batteries are inserted correctly.

• Replace batteries if they are exhausted.

ADDITIONAL INFORMATION

Warning indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown:

- "Lamp" LED indicator is lit red and if "Power" indicator flashes red.

- "Temp" LED indicator is lit red and if "Power" indicator flashes red. This indicates the projector has overheated. Under normal conditions, the project can be switched back on.

- "Temp" LED indicator flashes red and if "Power" indicator flashes red.

Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or flash, please contact your nearest service center for assistance.

LED lightning messages

Message	Power LED Temp LED Lamp LED
	(Red) (Blue) (Red) (Red)
Standby state (Input power cord)	Steady light
Power on (Warming)		Flashing(0.5 sec off / 0.5 sec on)
Power on and Lamp lighting Steady light
Power off (Cooling)		Flashing(0.5 sec off / 0.5 sec on). Back to red steady light when cooling fan turns off.
Quick Resume(100 secs)		Flashing(0.25 sec off / 0.25 sec on)
Error (Lamp failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light

- Power off:

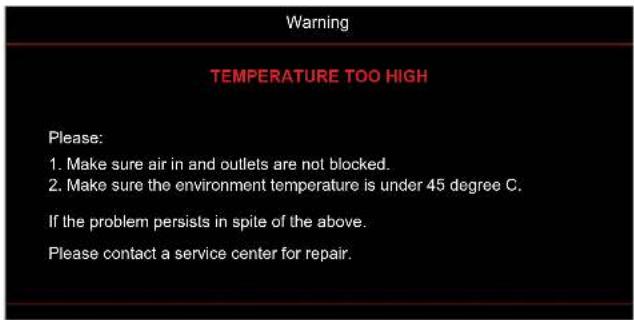

- Temperature warning:

ADDITIONAL INFORMATION

Specifications

Optical Description
Maximum resolution WUXGA
Native resolution	1080pWXGAWUXGA
Lens Manual zoom and manual focus
Image size (diagonal)	WXGA: 36.1" ~ 301.2"1080p: 37" ~ 301.4"WUXGA: 29" ~ 300.3"1080p Short Throw: 37" ~ 300"
Projection distance	WXGA: 1.2m to 7.7m (optimized@1.53m)1080p: 1.2m to 7.5m (optimized@1.53m)WUXGA: 1.0m to 7.9m (optimized wide 80"@2.2m)1080p Short Throw: 0.4m to 3.31m (optimized 89"@0.984m)

Electrical Description
Inputs	HDMI 1.4aHDMI 2.0b / MHL 2.2VGA InVideo (RCA connector (Y))Audio In 3.5mmMicrophoneUSB Type-A for power USB 5V/1.5A
Outputs	VGA OutAudio Out 3.5mm12V Trigger3D Sync
Control	Micro USBRS232RJ-45 (support web control)
Color reproduction 1073.4 Million color
Scan rate	Horizontal scan rate: 15.375~91.146 KHzVertical scan rate: 50~85 Hz (120Hz for 3D feature projector)
Built-in speaker Yes, 10W
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current 3.0A

Mechanical Description
Installation orientation Front,	Rear, Ceiling, Rear-top
Dimensions	337mm (W) x 265mm (D) x 108mm (H) (without feet)337mm (W) x 265mm (D) x 119.3mm( H) (with feet)
Weight 4.6 ±0.5kg
Environmental conditions	Operating in 5~40°C , 10% to 85% humidity (non-condensing)

Note: All specifications are subject to change without notice.

ADDITIONAL INFORMATION

Optoma global offices

For service or support, please contact your local office.

USA

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd.,

Xindian Dist., New Taipei City 231,

Taiwan, R.O.C.

www.optoma.com.tw

[phone]

[phone]

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

[phone]

[phone]

www.optoma.com.cn
