California - Luggage PRINCESS - Free user manual and instructions

Product Type	Luggage Suitcase
Brand	Princess
Model	California
Dimensions (H x W x D)	55 x 35 x 20 cm (approx.)
Weight	2.5 kg (approx.)
Volume	38 liters (approx.)
Material	ABS hard shell
Color	Black (typical)
Wheels	4 dual spinner wheels
Handle	Telescopic push-button handle
Lock	Built-in TSA-approved combination lock
Interior	Zippered divider and compression straps
Warranty	2 years limited warranty
Cleaning Instructions	Wipe with a damp cloth and mild soap
Maintenance	Check wheels and handle regularly for wear
Safety Features	TSA lock for secure travel
Spare Parts Availability	Wheels and handles available from authorized service
Repairability	Modular design; wheels and handle replaceable

Frequently Asked Questions - California PRINCESS

What are the dimensions of the Princess California suitcase?

The approximate dimensions are 55 cm in height, 35 cm in width, and 20 cm in depth, making it a standard carry-on size.

Is the Princess California suitcase allowed as carry-on luggage?

Yes, its size typically complies with most airline carry-on restrictions, but always check with your airline for specific limits.

How many wheels does it have?

It features 4 dual spinner wheels for smooth 360° maneuverability.

Does the suitcase have a TSA lock?

Yes, it comes with a built-in TSA-approved combination lock for secure travel to the US.

What material is the suitcase made of?

The shell is made of ABS hard shell for durability and lightweight protection.

How do I clean the Princess California suitcase?

Clean the exterior with a soft damp cloth and mild soap. Avoid abrasive cleaners.

Can I replace the wheels if they break?

Yes, the wheels are replaceable. Contact Princess customer service or an authorized repair center.

What is the weight of the suitcase?

The weight is approximately 2.5 kg (5.5 lbs), making it lightweight for travel.

Does the suitcase have a warranty?

Yes, it comes with a 2-year limited warranty against manufacturing defects.

How do I reset the combination lock?

Set the lock to the current code, press the reset button (usually with a paperclip), and dial your new sequence. Release the button to save.

USER MANUAL California PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

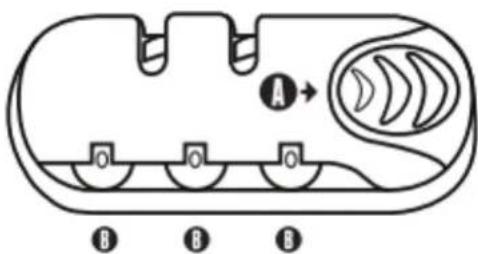

PULL LOCK INSTRUCTIONS

- The lock is set to 0-0-0

- Press the A button in the direction of the arrow

- While holding in the button, choose your 3-digit code by turning the wheels (B)

- Release the button to set your code

- Make sure that you do not release the button while setting the code

A B B B

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

A B B B

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

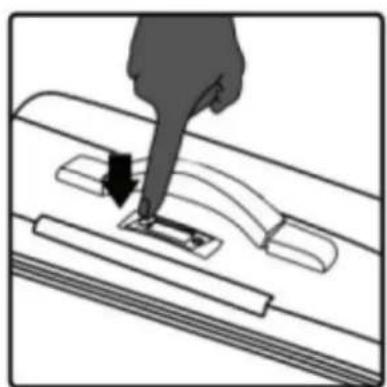

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating motion or movement (no text or symbols)

00.00

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

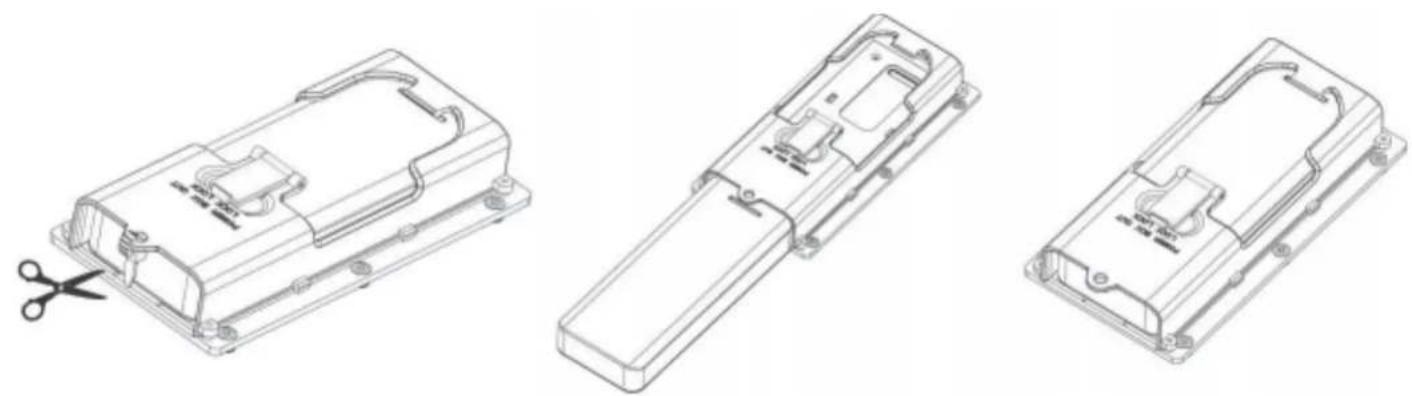

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

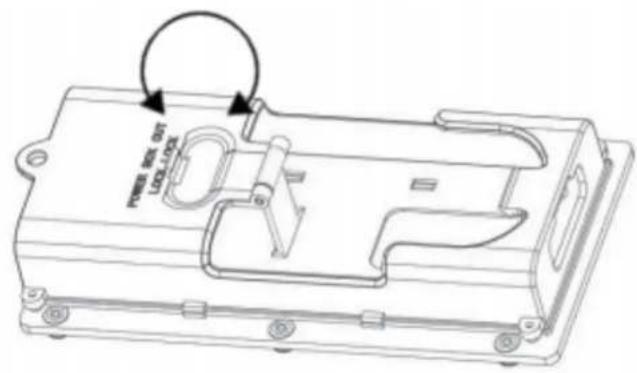

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

POWER SET OUT LOAD-LOCK

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
