USER MANUAL CP86 AVer
75"/86"
User Manual
FCC NOTICE (Class B)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Federal Communications Commission Statement
NOTE- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.
Class B (EMC)

This product is herewith confirmed to comply with the requirements set out in the Council Directives on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive 2014/30/EU.
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.
In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.
COPYRIGHT
©2017 AVer Information Inc. All rights reserved.
All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

The mark of Crossed-out wheeled bin indicates that this product must not be disposed of with your other household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. For more information about where to drop off your waste equipment for recycling, please contact your household waste disposal service or the shop where you purchased the product.
CONTENTS
Introduction ....1
Hardware Introduction ......2
Front Side 2
Back Side....2
Control Panel....3
Connection Panel 1 ....4
Connection Panel 2 ....5
Connection Panel 3 ....6
Remote Controller....8
Using Remote Controller....10
Mounting 11
Ventilation....11
Start up AVer CP System....13
Power on....13
Power off....14
Thermal Shutdown....15
Calibration....15
OPS Installation....17
Using The AVer CP System....18
Main Screen....18
Toolbar....19
Task Manager 22
Select Signal Source....23
Sound Mode, Screen and Display Setting....23
Whiteboard Mode 26
New Page/Overview/Delete all....26
Settings 28
Pen 29
Highlighter....30
Eraser....31
Go Back....32
Screen Capture 33
Print, Clear and Freeze Screen....34
Gallery 35
Copy Files....37
Kids Safety Lock....39
ECO Mode 41
Specification 42
Serial Port Control 42
VGA Signal Input 45
Multimedia Format Support....46
Common Faults and Solutions....46
Technical Specification....50
Care and Maintenance ....51
Safety Instruction
For your safety, please read the following instruction before you use the product. Serious injury or property loss may be caused by improper operations. Do not try to repair the product by your own.

WARNING

Disconnect the product from power supply immediately if major failures occur.
The major failures include the following:
- Smoke, peculiar smell or abnormal sound is discharged from the product.
- No image or sound is displayed, or the image error occurs.
- Where the mains plug or an appliance coupler is used as the disconnect device the disconnect device shall remain readily operable.
In the preceding scenarios, do not continue to use the product, disconnect power supply immediately and contact professional staff for troubleshooting.
The socket-outlet shall be installed near the equipment and shall be easily accessible.

Do not drop liquid, metal or combustible into the product.
- If any liquid or metal is dropped into the product, power off the product and disconnect power supply, then contact professional staff for solutions.
- Pay attention to the children when they are close to the product.
Do not damage the power cable.
- Do not damage, change, wind, bend, heat or drag the power cable forcibly.
- Do not put weights (such as the product itself) on the power cable.
- Do not drag the cable forcibly when you pull out the power plug. If the power cable is damaged, please contact the local distributor to repair or replace it.
- The power cable in the accessory box is for this product only. Don't use it on other devices.
WARNING | |
| Put the product on a stable surface.An unstable surface includes and does not limit to an inclined plane, a shaky stand, desk or platform, which might cause the turnover and damage. | |
| Use the battery correctly.Galvanic corrosion, electric leakage and even fire may be caused by improper battery usage.It is recommended to use the designated type of battery and install the battery by correct electrodes (positive and negative electrodes).Do not install and use new battery together with the used one.Take out the battery if the remote control is not used for a long period.Do not expose the battery under overheated environments such as sunlight and firing.Dump the used battery based on local regulations. | |
![]() | Do not open the cover or change the product by your own.High voltage components are installed in the product. When you open the cover, high voltage, electric shock or other dangerous situations may occur. If inspection, adjustment or maintenance is required, contact the local distributor for help. |
![]() | Use the specified power supply.Do not use any types of power cables other than the one provided with the product to prevent the product from being damaged.Use a three-wire socket and ensure that it is properly grounded.Pull out the power plug from the socket if the product is not used for a long period. |
| Before you move the product, disconnect all external connections and separate all toppling preventing devices.Move the product carefully to prevent it from being hit or squeezed, especially the screen, which may cause injury if broken.Clean the dust and metal on the power plug regularly. ·When you are cleaning, fire or electric shock may be caused if the product is powered on. ·Keep in mind to pull out the power plug before cleaning it by using a dried cloth. | |
![]() | Do not put items on the top of the product. ·Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics or liquid medicine), on the top of the product. ·If any water or liquid is spilled on the product, short circuit may occur and cause fire or electric shock. ·Do not tread on the product or hang any items on the product. |
![]() | Do not install the product in an improper place. ·Do not install the product in humid places, such as the bathroom, the shower room, the place near windows or outdoor environments where experience rain, snow or other harsh weather. The product installation is also required to avoid a place around by hot spring vapor. The preceding environments may cause faults or electric shock under extreme conditions. ·Do not put exposed fire source, such as an ignited candle, on the product. |
![]() | Pull out the power plug during thunderstorms. ·Do not touch the product when lighting to avoid electric shock. ·Install or place components which power supply voltage is high enough to cause personal injury in places out of the reach of children. |
![]() | Do not cover or block up any vents on the product. ·The overheated components may cause fire, damage the product and shorten the service life. ·Do not put the venting surface of the product facedown. ·Do not install the product on a carpet or bed clothes. ·Do not use a cloth such as table cloth to cover the product. |

WARNING

Do not touch the power cable with wet hands to avoid electric shock.
Altitude during operation (m): less than 5000m
CAUTION
CAUTION | |
![]() | Do not install the product in high temperature environments.Do not install the product near heat source, such as the radiator, the heat reservoir, the stove or other heating devices.Do not expose the product under sunlight, which may cause high temperature and subsequent faults in the product. |
![]() | For transport:Pack the product for mobility or maintenance by using the cartons and cushioning material provided with the product.Vertically move the product during transport. The screen or other components are easily broken if the product is moved by an improper way. |
![]() | Keep away from the product when you use a radio.The product design to prevent radio interference complies with the international EMI standard. However, the interference still exists and causes noise in the radio.If noise occurs in the radio, try the following solutions.Adjust the direction of the radio antenna to avoid the interference from the product.Keep the radio away from the product. |
CAUTION
CAUTION | |
| Advice for watching:Use the product in an environment with comfortable light. It is harmful to your eyes to watch in a too bright or too dark environment.Relax your eyes after a period of time for watching.When you are watching, the distance which is 3 to 7 times of the display height should be kept, and it is the best distance to protect eyes and prevent eyestrain.Adjust the volume to an appropriate level, especially at night.Use amplifier equipment as the audio input source with caution. If you must use amplifier equipment, the input power should not exceed the maximum of speaker power. Otherwise, problems occur, such as the speaker is overpowered and damaged. | |
Thank you for choosing our interactive display. As our latest independently developed and produced human-machine interactive product, the interactive display is a multi-functional display for interactive teaching, digital demonstration, multi-media presentation, touch operations and handwriting. They are well designed and produced to meet the needs of education and corporate applications, and provide a user-friendly experience, digital intelligent control as an ideal equipment for schools and companies. You can use your fingers or opaque objects to write, edit and delete any things on the screen.
The product features are as follows:
■ Specially designed for teaching and meeting systems.
■ Adopt advanced infrared array scanning and sensing technology, HID driver-free, meaning the product is activated soon after it is powered on.
■ Multi-signal sources can be previewed in the window and be switched by touching the screen.
■ A special button is set to adjust the brightness automatically with no impact on watching and save up to 50% energy.
■ Support front-facing high-power amplifiers.
■ When the screen display function is disabled, the product can still play audio to save energy.
■ Sense the illumination and brightness automatically to adjust the screen backlight so that the most comfortable screen brightness can be displayed to teachers and students.
Front Side
2: Infrared Frame
3: Screen - Left Loudspeaker
- Connection Panel 1
* indicates optional
- Control Panel
- Front Cover Plate*
- Power on/off
- Right Loudspeaker
- OPS Port
11: Connection Panel 2
12. Rocker Switch
13. Power inlet
14. Connection Panel 3
Control Panel
| Home | Enter to Android home page. |
| Return | Return to previous menu. |
| Menu | Enter the function menu of screen. |
| ECO | Switch among three modes: energy-saving, automatic, and standard. |
| Source | Enter the menu to select the signal source. |
| Vol- | Decrease volume. |
| Vol+ | Increase volume. |
| PC Power | Power on or off the OPS. |
Connection Panel 1
| Name | Descriptions |
| Touch Port 1 | PC connecting port 1 for touch control. |
| Display Port | HD digital display port. |
| HDMI 1 | The input terminal 1 for high definition signal, which is used with the Touch Port 1 to operate PC in the way of touch control. |
| PC | The USB 2.0 (Rated output: 5V/0.5A) and USB 3.0 (Rated output: 5V/0.9A) ports for the OPS. |
| Android | Android USB port. |
| MIC | The external microphone port. |
[Note]
Touch Port 1 to HDMI 1, Touch Port 2 to HDMI 2, Touch Port 3 to HDMI 3, Touch Port 4 to HDMI 4 and VGA.
Connection Panel 2
![AVer CP86 - [Note] - 1](/content/2026/06/1198407/images/484dd990553d388f3b141e772246d27633a402b8ca6d69088ca3e78341df3c11.jpg)
| Name | Descriptions |
| Audio | Audio input port. |
| VGA | The VGA port for an external PC, which is used with the Touch Port 4 to operate PC in the way of touch control. |
| HDMI 4 | The input terminal 4 for high definition signal, which is used with the Touch Port 4 to operate PC in the way of touch control. |
| Touch Port 4 | The terminal 4 for touch control signal. |
| HDMI 3 | The input terminal 3 for high definition signal, which is used with the Touch Port 3 to operate PC in the way of touch control. |
| Touch Port 3 | The terminal 3 for touch control signal. |
| HDMI 2 | The input terminal 2 for high definition signal, which is used with the Touch Port 2 to operate PC in the way of touch control. |
| Touch Port 2 | The USB terminal 2 for touch control signal. |
| Micro SD | The external port for the micro SD card. |
| USB 3.0 | The port for USB 3.0. |
| MIC | The external microphone port. |
| HDMI Out | The output terminal for high definition signal, which can transmit the signal to other display equipment with high definition. |
Connection Panel 3
![AVer CP86 - [Note] - 2](/content/2026/06/1198407/images/86380baa2ed3cd67369a171f592558e0e9e9bc29491bdb76890391605a4f0e96.jpg)
| Name | Descriptions |
| EARPHONE | The port for earphone. |
| SPDIF | Audio digital output port |
| RS-232 | The input port for series signals, which is used by specific control device of serial port to input serial port protocol in order to control the display. |
| LAN-IN | The input port for local area network. |
| LAN-OUT | The output port for local area network. |
| AV-IN | Audio and video signal input port. |
[Note]
■ Please use the cable provided with the product to connect to device.
■ HDMI 1, HDMI 2, HDMI 3 and HDMI 4 are high-definition multimedia ports, which are used to provide home theatre experience with the best quality for consumers by transmitting high-definition, all-digital audio and video. If there is an HDMI port on the external device, you are advised to connect it with the product by using the HDMI cable in order to display better image and sound effect.
Remote Controller
(1) ![]() | Power on or standby mode. |
(2) ![]() | Mute the sound. |
| (3) Number 0~9 | TV channel select or numbers enter. |
| (4) HOME | Open the Android home page. |
| (5) RETURN | Go back to the main screen or previous menu. |
| (6) MEMU | Display menu. |
| (7) SOURCE | Display the list of signal sources. |
(8) ▶, ▲, ▲ | Direction buttons |
| (9) OK | Confirm the selection. |
| (10) AUDIO ONLY | Enable audio only mode. The screen view will turn to black screen. |
| (11) FREEZE | Freeze/un-freeze the screen. |
| (12) DISPLAY | Display the current source data. It won’t work in Android platform. |
| (13) CAPTURE | Snapshot current screen view. |
| (14) ECO | Change the display mode. |
| (15) PC | Switch to VGA source. |
| (16) HDMI | Switch to HDMI source. |
| (17) AUTO | Adjust screen displaying. |
| (18) WIFI | Enable/disable WIFI connection (Optional WiFi adapter needed) |
| (19) NOTE | Open whiteboard function.[Note] Only work in Android system. |
| (20) ZOOM | Switch screen display between 16:9, 4:3, and P2P display mode. |
| (21) OPS | Switch over to OPS source. |
| (22) Pg Up/Pg Dn | ■ Pg Up: Switch to the previous page on whiteboard software and PPT.■ Pg Dn: Switch to the next page on whiteboard software and PPT. |
Using Remote Controller
The effective area of the remote controller is the vertical distance within 5 meters in front of the product and the area within an angle of 30 degrees from the vertical point to the left and the right.
■ Do not drop or beat the remote controller.
■ Do not spill water or other liquid on the remote controller.
■ Do not put the remote controller on wet items.
■ Do not expose the remote controller under sunlight or put it near overheated source.
Mounting
You can choose the portable or a wall-mounting method according to your needs. The wall mounting can substantially save the space.
If you choose portable mounting, use the mounting rack or support. If you want to use a self-made mounting rack, the bearing capacity of the rack should be at last four times of the display weight. The bearing capacity of the mounting support must be four times of the actual weight of the display to ensure steadiness of the interactive display.
When you choose wall mounted, the bearing capacity of the mounting surface must be at least four times of the weight of the display. When the mounting surface is a wall or ceiling of a building, the wall must be built with solid ricks, concrete or materials of equal intensity. If you need to mount the display on a loose surface such as an old brick wall, wood plank wall, solid wall, metal or non-metal structure wall or a wall with a thick decoration layer, take necessary consolidating measure to ensure that the display is steadily mounted.
Ventilation
| Ventilation requirements | Distance to the surface for installation (cm) | |||
| Nominal power | Left and right sides | Top | Bottom | Back |
| Larger than 100 W | 10 | 20 | 20 | 20 |
[Note]
If the product is being mounted inside a wall or a cabinet, in addition to the preceding requirements, the area of ventilation holes at the bottom, top and two sides must be at least 50% of the sealing surface to ensure proper ventilation.
![AVer CP86 - [Note] - 1](/content/2026/06/1198407/images/13fe071e4b52b0b9ca48a0c81abcc728df08256948c417533cdc0cf294a8e174.jpg)
■ When you install by using the wall mounting method, ensure that you insert the screws into the wall deeper than 10mm.
■ Do not block ventilation vents.
■ Reference to the CAS 132-2006
■ The dimension of the 4 bracket mounting holes in the back panel is VESA MIS-F compliant (800 x 400mm). Please use the metric M8 screws with length of 10 to 15 mm to secure the display with the mounting system.
- Please have a professional installer to install the display unit.
Start up AVer CP System
Power on
- Turn on the interactive display with the 100V-240V 50Hz/60Hz AC power supply. The power cord should be completely plugged into the power inlet, and insert the power connector into the appliance couplers at the bottom. The power current must be grounded.
- Press PC Power to turn off the OPS (for all-in-one models only).
- In the standby mode, switch off the rocker switch to turn off the interactive display.
[Note]
■ Please turn off the OPS before you turn off the interactive display. Otherwise, the computer may be damaged.
■ Disconnect the interactive display from power after the display enters standby mode. Otherwise, the display may be damaged. A sudden power failure may damage the interactive display.
■ Frequent power on and off in a short time may cause faults.
■ Status of the power indicator is as follows:
| Power Indicator | Status |
| No light | Powered off |
| Red | Standby |
| Green | Powered on |
Thermal Shutdown
In the running status, the overall temperature will be increased due to unfavorable ventilation environment and long working hours. When the system detects the actual temperature higher than the defined temperature, the temperature protecting program will run automatically, the system will turn to the standby mode. You shouldn't reboot the system within two minutes.
Calibration
To ensure that the handwriting display works properly, you need to make the handwriting shown on the display coincide with the actual handwriting. The highly accurate coincidence can be achieved by software positioning. Software positioning must be implemented in the following scenarios:
■ This is your first time your computer is connected to the panel.
■ The driver program is reinstalled.
■ The display is connected to another PC.
The handwriting display adopts nine-point positioning method. The positioning process is described as follows:
-
Please download the software from below URL link:
http://averusa.com/classroom-technology/support/ -
Connect the display and run the software program.
-
Click the software program icon on the right bottom of the screen. The following figure is displayed.
[Note] The OPS does not support hot-plugging. Please insert the plug of the OPS after the interactive display is disconnected from the power.
- Install the OPS by the following steps:
- Insert the OPS into the special slot on the rear of the interactive display.
- Tighten the screws.
- Confirm the OPS is installed correctly.
Main Screen
After login, the main screen will display as shown.
(1) (2) (3) (4)
| Name | Descriptions |
| (1) WiFi status | Indicates WiFi current status (Optional). |
| (2) System temperature | Display system’s temperature. Touch the temperature display area on screen to switch between Celsius and Fahrenheit. |
| (3) Timer, Date, Calculator | Touch will call out Timer, Date, and Calculator function on screen. Touch to hide the functions.![]() |
| (4) Time & Date | Display current time and date. |
| (5) Tool bar | Multifunction tool bar. Refer to Toolbar section for detail description. Touch can hide the toolbar. To bring out the toolbar, use finger to swipe the screen from the bottom up. |
Toolbar
The toolbar is located at bottom of the screen, use one finger to swipe the screen from the bottom up to bring out the toolbar. Touch 🧑 to hide the toolbar.

| Name | Descriptions |
![]() | Back to previous screen. |
![]() | Return to main screen. |
![]() | View recent running programs, switch to one of running program, and close the running programs. Refer to “Task manager” section. |
![]() | Select the source. Refer to “Select Single Source” section for more details. |
![]() | Select to switch to Whiteboard mode. Refer to “Whiteboard mode” section for more details. |
![]() | Select the input source which devices are connected with the AVer CP system through HDMI, VGA, and USB interface. |
Name
Descriptions

Call out the file management page. The system file is displayed by default. To view external device files, press to select the files in the SD card and USB drive. In the file management page, user can select, copy, and delete files.
Call out system setting page. System setting includes Network, App, Language & Input, Date & Time, Energy Saving Setup, Power on/off setting, Clear screen shots, Printer, Authorization setting, and Smart eye protection.
Call out browser to explore the Internet if Internet connection is available.

Call out search page to search.
Name

Descriptions
To enter the application program page. All application programs in the system are displayed. Swipe right and left to turn the page.
Hide the toolbar.
Task Manager
In the task management, you can view current running applications, switch and end applications. Click to enter the task management mode.
Scroll up and down to view all currently running applications.
■ Switch Application
Click on any window to switch to the application. For example, click Settings to switch to the system setting page, or click Browser to switch to the browser page.
■ Close Application
Select a program page; click the "X" at upper right corner or swipe on the application from left to right or right to left to terminate the application.
There are three ways to select a signal source:
■ Press "SOURCE" button on the remote controller.
■ Press "Source" button on the control panel of the interactive display.
■ At Main screen or Whiteboard mode, click icon to call out the source page.
In the source page, press ▲, ▼, ◀ or ▶ on remote controller to select a source and press OK to confirm the selection. User also can directly select the source icon on the screen
After switching to the source page, press MENU on the remote controller and the menu is displayed, including Sound Mode, Screen Setting, and Display setting. Scroll left and right on the screen or press ◀ or ▶ to switch between entries.
Sound Mode
The Sound Mode page displays options including STANDARD, MEETING, THEATER and CLASSROOM. Drag the volume key bar directly or press the ◀ or ▶ button to change volume. Press Mute for silence mode. Press RETURN to exit the menu.
The Screen Setting page displays options including Auto, P2P, 16:9 and 4:3.
Select the option to setup. Or Press ◀ or ▶ on remote controller to make a selection and setup. Press RETURN to exit the menu.
[Note] In different input sources, the screen settings could be different
The Display setting page displays options including STANDARD, LIGHTNESS, VIVID and EYE PROTECTION. Select the option to setup. Or Press ◀ or ▶ on remote controller to make a selection and setup. Press RETURN to exit the menu.
The whiteboard provides the write and draw function. In the whiteboard program, User can select a pen, line weight and color to write or draw, and use an eraser to erase content on the whiteboard. User also can print and clear the content on the whiteboard.
Click on the toolbar or press NOTE on the remote controller to enter the whiteboard interface.
■ New Page
Click icon and select "New page" to add a new Whiteboard page.
Select "Overview" can view all Whiteboard pages. User can select or delete (☐) the Whiteboard page in the overview page.
Select "Delete all" will delete all Whiteboard pages at once.
Click icon and select "Settings" to setup color and shade of whiteboard page. The settings is applied to all whiteboard pages.
Select and hold for two seconds to set its line weight and color.
Select and hold for two seconds to set its line weight and color.
Select icon to erase the content on the whiteboard.
Also, user can use five fingers to touch the screen and a big circle is displayed indicating the scope for erasing. Move the circle to erase the contents.
Select icon to go back to the last action that user has done on whiteboard.

Screen Capture
Click to capture current contents on the whiteboard and save it as an image to system directory (The toolbar is not captured).
Also, user can press "CAPTURE" button on the remote controller to save current content on the whiteboard, too.
To view the screenshot images, go to main screen and select icon and system file folder will display. In system file folder, select Pictures > Screenshots or select "Whiteboard", and then select the image that user wants to view.
Capture function can be used inside or outside of Whiteboard mode. When user sees icon appears in toolbar, it means capture function is available for use.
Select 📁icon to perform Print, Clear and Freeze screen functions.
■ Print: If user has setup the printer, user can print out the current content of whiteboard.
■ Clear: To clear all current contents on the whiteboard.
■ Freeze Screen: To capture the current screen and can do zoom in, zoom out, annotation on the screen.
Gallery
You can enter the gallery to view images one by one or play them as slides.
Click in the application programs to enter the gallery. All folders containing images are displayed.
One full screen can display a maximum of eight images; you can preview other group image by using your finger to swipe left or right. Using long press on screen to select multiple images, and then you can click icon on the upper right corner to slideshow, select item, and group the images.
Click one image in a folder. Scroll left to show the previous image and scroll right to show the next image.
■ Play slides
Click on the upper right corner of the folder and select Slideshow to play images as slides.
Copy files from system to external USB pen drive.
- Plug in the USB pen drive to "Android USB port" on the front panel.
- Select "icon" icon on screen. The system file folder screen will display on screen. Select the file type that user wants to copy; ex: document, pictures.
- After selecting files, select "Copy".
- Select icon in toolbar and the setting page will appear.
ECO Mode
[Note]
■ Please switch off the display when it is not used, and enable the function of Audio Only when you do not need to watch the display, helping to reduce power consumption and save energy.
■ On the premise of ensuring viewing effect, the energy consumption can be reduced by lowering display brightness.
■ To better save energy, the automatic power-off function is configured for the display and the default duration is 10 minutes. If no operation is performed in 10 minutes, the display is switched automatically to sleep mode (the same as power off) for reducing energy consumption.

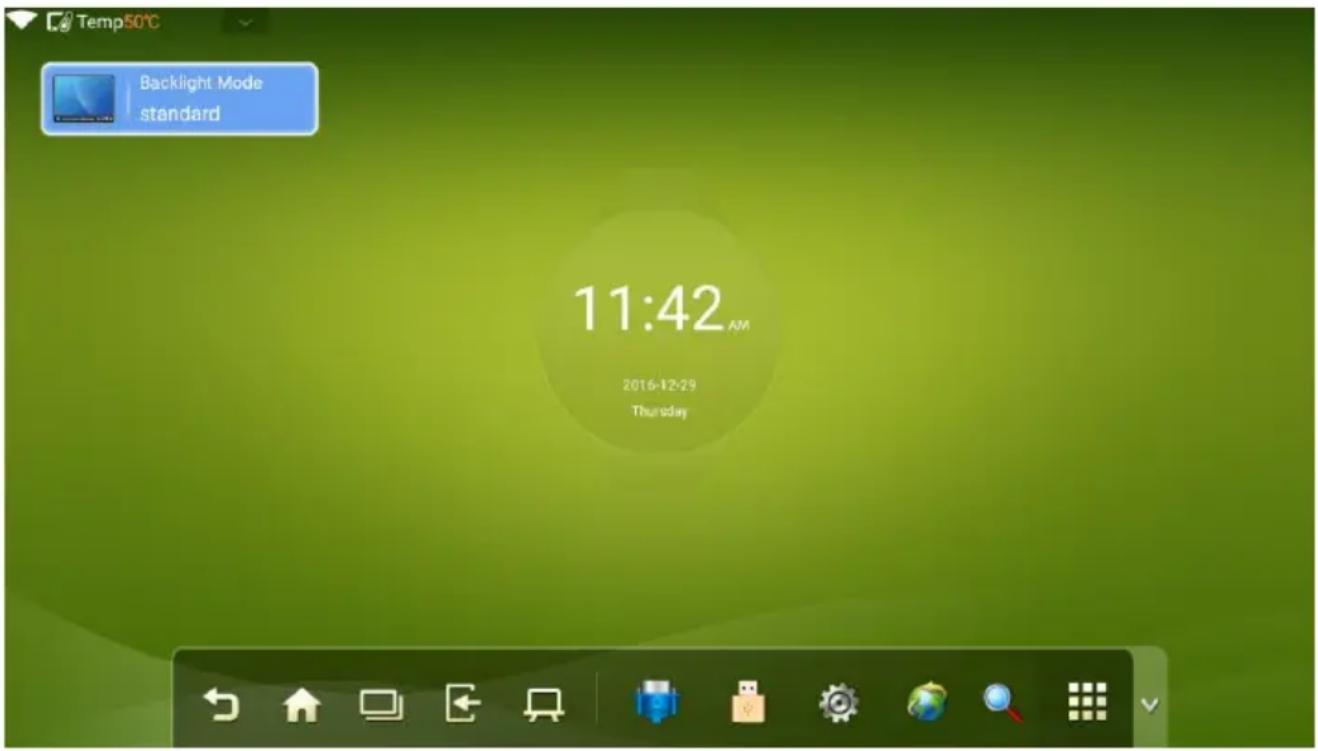

Press ECO on the remote controller to enter the backlight mode page. Press ECO to switch among ECO, Auto and Standard.
■ ECO mode: The power output is reduced 50%.
■ Auto mode: System automatically adjusts the screen brightness according to the light in the environment. When the light is strong, the screen brightens. When the light is weak, the screen darkens.
■ Standard mode: The screen brightness keeps the same.
![AVer CP86 - [Note] - 1](/content/2026/06/1198407/images/9bfc43bbc126ab33566a39e2d8ae8b0af8dfed2d39530500b4ef8a7f4c32e530.jpg)
The RS-232 port of the interactive display is defined as follows:
| Port Number: COM 1 (Set the value according to the port number of the PC or controlling device) | |||
| Bit rate | 19200 | Odd/even check | None |
| Data bit | 8 | Stop bit | 1 |
The following table lists button controlling codes. The buttons share same functions with corresponding buttons on the remote controller.
| Function | Controlling Code | Function | Controlling Code |
| Power on | 7F 08 99 A2 B3 C4 02 FF 01 00 CF | 1 | 7F 08 99 A2 B3 C4 02FF 01 21 CF |
| Power off | 7F 08 99 A2 B3 C4 02 FF 01 01 CF | 2 | 7F 08 99 A2 B3 C4 02FF 01 22 CF |
| Mute | 7F 08 99 A2 B3 C4 02 FF 01 02 CF | 3 | 7F 08 99 A2 B3 C4 02FF 01 23 CF |
| Sound mode | 7F 08 99 A2 B3 C4 02 FF 01 05 CF | 4 | 7F 08 99 A2 B3 C4 02FF 01 24 CF |
| Signal source | 7F 08 99 A2 B3 C4 02 FF 01 06 CF | 5 | 7F 08 99 A2 B3 C4 02FF 01 25 CF |
| One button start | 7F 08 99 A2 B3 C4 02 FF 01 07 CF | 6 | 7F 08 99 A2 B3 C4 02FF 01 26 CF |
| Display status | 7F 08 99 A2 B3 C4 02 FF 01 09 CF | 7 | 7F 08 99 A2 B3 C4 02FF 01 27 CF |
| HDMI 1 | 7F 08 99 A2 B3 C4 02 FF 01 0A CF | 8 | 7F 08 99 A2 B3 C4 02FF 01 28 CF |
| HDMI 2 | 7F 08 99 A2 B3 C4 02 FF 01 0B CF | 9 | 7F 08 99 A2 B3 C4 02FF 01 29 CF |
| HDMI 3 | 7F 08 99 A2 B3 C4 02 FF 01 0C CF | 0 | 7F 08 99 A2 B3 C4 02FF 01 2A CF |
| InternalPC(OPS) | 7F 08 99 A2 B3 C4 02 FF 01 38 CF | OK | 7F 08 99 A2 B3 C4 02FF 01 2B CF |
| HDMI 4 | 7F 08 99 A2 B3 C4 02 FF 01 51 CF | ← | 7F 08 99 A2 B3 C4 02FF 01 2C CF |
| DP | 7F 08 99 A2 B3 C4 02 FF 01 56 CF | → | 7F 08 99 A2 B3 C4 02FF 01 2D CF |
| VGA | 7F 08 99 A2 B3 C4 02 FF 01 0D CF | ↑ | 7F 08 99 A2 B3 C4 02FF 01 2E CF |
| AV | 7F 08 99 A2 B3 C4 02 FF 01 11 CF | ↓ | 7F 08 99 A2 B3 C4 02FF 01 2F CF |
| Up | 7F 08 99 A2 B3 C4 02 FF 01 13 CF | Menu | 7F 08 99 A2 B3 C4 02FF 01 1B CF |
| Down | 7F 08 99 A2 B3 C4 02 FF 01 14 CF | Home page | 7F 08 99 A2 B3 C4 02FF 01 1C CF |
| Listen alone | 7F 08 99 A2 B3 C4 02 FF 01 15 CF | Return (Exit) | 7F 08 99 A2 B3 C4 02FF 01 1D CF |
| ECO | 7F 08 99 A2 B3 C4 02 FF 01 16 CF | Search | 7F 08 99 A2 B3 C4 02FF 01 1E CF |
| VOL - | 7F 08 99 A2 B3 C4 02 FF 01 17 CF | Capture | 7F 08 99 A2 B3 C4 02FF 01 1F CF |
| VOL + | 7F 08 99 A2 B3 C4 02 FF 01 18 CF | Auto ADJ | 7F 08 99 A2 B3 C4 02FF 01 20 CF |
| Freeze | 7F 08 99 A2 B3 C4 02 FF 01 3B CF | Acoustic mode | 7F 08 99 A2 B3 C4 02 FF 03 XX CF[Note]XX indicate various mode: 00-Standard, 01-Music, 02-Film, 03-News, 04-User, 05-temporary 1, 06-temporary 2 |
| volume setting | 7F 08 99 A2 B3 C4 02 FF 05 XX CF | Energy saving mode | 7F 08 99 A2 B3 C4 02 FF 06 XX CF[Note]XX indicate various mode: 00-standard, 01-energy saving, 02-auto |
| Firmware version query | 7F 08 99 A2 B3 C4 02 FF 01 3D CF | Backlight brightness increase | 7F 08 99 A2 B3 C4 02 FF 01 47 CF |
| Backlight brightness decrease | 7F 08 99 A2 B3 C4 02 FF 01 48 CF | Backlight brightness setting | 7F 08 99 A2 B3 C4 02 FF 09 XX CF |
| Switch child lock | 7F 08 99 A2 B3 C4 02 FF 01 57 CF | Child lock mode | 7F 08 99 A2 B3 C4 02 FF 01 58 CF |
VGA Signal Input
VGA (Video Graphics Array) is the computer display standard for analog signal. VGA port is the special port on the computer which uses the VGA standard for data input. The following table lists the specifications of various VGA signal input.
[Note]
The VGA signal input is available only when the display is in PC mode.
| SN | Standard | Resolution | Refresh Rate (Hz) | Horizontal Frequency (KHz) | Vertical Frequency (Hz) | Horizontal/Vertical Sync Polarity (TTL) |
| 1 | VESA | 640x480 | 60 | 31.5 | 60 | N/N |
| 2 | VESA | 640x480 | 72 | 37.9 | 72 | N/N |
| 3 | VESA | 640x480 | 75 | 37.5 | 75 | N/N |
| 4 | VESA | 800x600 | 56 | 35.1 | 56 | P/P |
| 5 | VESA | 800x600 | 60 | 37.9 | 60 | P/P |
| 6 | VESA | 800x600 | 72 | 48.1 | 72 | P/P |
| 7 | VESA | 800x600 | 75 | 46.9 | 75 | P/P |
| 8 | VESA | 1024x768 | 60 | 48.4 | 60 | N/N |
| 9 | VESA | 1024x768 | 70 | 56.5 | 70 | N/N |
| 10 | VESA | 1024x768 | 75 | 60 | 75 | N/N |
| 11 | VESA | 1280x960 | 60 | 60 | 60 | N/N |
| 12 | VESA | 1280x960 | 75 | 75.159 | 75 | N/N |
| 13 | VESA | 1280x1024 | 60 | 64 | 60 | P/P |
| 14 | VESA | 1280x1024 | 75 | 80 | 75 | P/P |
| 15 | VESA | 1600x1200 | 60 | 75 | 60 | P/P |
| 16 | VESA | 1920x1080 | 60 | 66.547 | 59.988 | P/P |
Multimedia Format Support
| Media Type | File Format | File Extension |
| Image | JPEG, BMP, PNG | .jpg, .bmp, .png |
| Movie | MPEG1, MPEG2, MPEG4, H.264, H.265, RM, RMVB, MOV, MJPEG, VC1, DivX, FLV (Support 1080P, 4K HD Decoding) | .avi, mpg, .dat, .vob, .div, .mov, .mkv,.rm, .rmvb, .mp4, .ts, .trp, .asf, .flv |
| Music | MP3, M4A, (AAC) | .mp3, .m4a |
| Text | TXT | .txt |
Common Faults and Solutions
| Symptom | Possible Cause | Solution |
| The service program fails to connect. | The drive program is not correctly installed. | Install the drive program correctly. |
| The USB port (lead) is not connected or is faulty. | Change the USB lead or check if the USB port is faulty. | |
| The infrared tube is blocked. | Ensure that the surrounding infrared tubes are not blocked. | |
| Repositioning is required every time the display is switched on. | The computer is equipped with a recovery card. | Disable computer protection and perform the positioning again. |
| The positioning is inaccurate. | The positioning is not performed properly. | Press AUTO on the remote controller to show the full screen, and use the pen provided with the display to perform positioning again. |
| The cursor of the pen is unstable when the pen is used. | The writing method is incorrect.Strong light or infrared interference exists. | You are advised to use the pen rather than a finger to write. Hold the pen as far to the nib as possible. The angle between the pen and display needs to be greater than 60 degrees. Do not touch the display with your sleeve or wrist.Remove the interference source or change the using environment. |
| The handwriting is discontinuous. (Part of the handwriting cannot be displayed.) | The writing method is incorrect. | You are advised to use the pen rather than a finger to write. Hold the pen as far to the nib as possible. The angle between the pen and display needs to be greater than 60 degrees. Do not touch the display with your sleeve or wrist. |
| The covering area of the nib does not meet the requirement or the nib is too small. | Change the nib or use a pen with larger covering area. | |
| The infrared tube is blocked. | Check if infrared tubes are blocked. | |
| Strong light or infrared interference exists. | Remove the interference source or change the using environment. | |
| The handwriting cannot be shown or no touch signal is detected. | The color of the pen is the same as or similar to the background color. | Change the color of the pen. |
| Your hand or other objects are on the display when you are writing. | You are advised to use the pen rather than a finger to write. Hold the pen as far to the nib as possible. The angle between the pen and display needs to be greater than 60 degrees. Do not touch the display with your sleeve or wrist. | |
| Strong light or infrared interference | Remove the interference source or change the using environment. | |
| The writing method is incorrect. | You are advised to use the pen rather than a finger to write. Hold the pen as far to the nib as possible. The angle between the pen and display needs to be greater than 60 degrees. Do not touch the display with your sleeve or wrist. | |
| Not sound is played and no image is displayed. | Check whether the power plug is inserted into the power socket and whether the display is powered on.Check whether the rocker switch on the interactive display is switched on.Check whether the Standby button on the remote controller is pressed.Check whether the video and audio input cables are connected correctly.Check whether the display is switched to the right signal source.Check the settings on image brightness and contrast.Check the volume. | |
| Image is displayed properly, but no sound is played. | Check the volume.Check whether the Mute button on the remote controller is pressed.Check whether the audio cable between the PC and interactive display is connected correctly. | |
| No image is displayed or the image is black and white. | Modify the color settings.Check the color system. | |
| The image or sound is interrupted. | Find out the electric appliance that causes the interference and move it away from the interactive display.Do not share the power socket of the display with the electric appliance that causes interference. | |
| The remote controller fails. | Change the batteries.Clean the signal emitter at the top of the remote controller.(Check whether it is blocked.)Check contacts of the batteries. | |
| The PC cannot be started. (This scenario is applicable only to display models operating with the PC.) | ■ Check whether the PC adapter is correctly connected and whether the PC is powered on. ■ Check whether the PC is connected correctly to the interactive display. | |
The following symptoms are not considered faulty symptoms:
A very few of constantly bright or dark pixels, such as tiny red, blue, green or dark points, may exist on the LED. This symptom is not a fault and does not affect running functions of the display.
Slight sound may occur due to the backlight adjustment or ventilation. This is a normal symptom.
The image and sound are normal. However, you can sense static electricity when you touch the LED and metal back cover. This is a normal symptom.
Technical Specification
| Specification | Parameter | |
| Active Screen Size (inches) | 75" | 86" |
| Display Backlight | LED | LED |
| Display Ratio | Landscape 16:9 | Landscape 16:9 |
| Resolution | 3840*2160 Pixel (4K) | 3840*2160 Pixel (4K) |
| LCD Brightness | 370cd/m2 | 370cd/m2 |
| Contrast Ratio (typical) | 4000:1 | 4000:1 |
| Response Time (typical) | 8ms | 8ms |
| Viewing Angle | 178° | 178° |
| Power Consumption | Maximum <350W Standby Mode ≤0.5W | Maximum <450W Standby Mode ≤0.5W |
| Touch Surface Material | Tempered Glass | Tempered Glass |
| Touch Surface Technology | Anti-Glare Glass | Anti-Glare Glass |
| Transparency | >88% | >88% |
| Touch Sensor | Infrared | Infrared |
| Touch Points | 10 Points | 10 Points |
| Touch Screen Writing Tools | Writing Pen or Finger | Writing Pen or Finger |
| Positioning Accuracy | 5mm | 5mm |
| Communication Interface | USB-B | USB-B |
| Speaker Position | Forward | Forward |
| Speaker Max.Power Output | 15W x 2 | 15W x 2 |
*We may modify the user manual without prior notice.
*If you discover any unclear presentation, mistake or omission in this manual, please contact us immediately.
Maintenance Tips
Do not put or install the product near a heat source or under direct sunlight, or in dusty or humid places, or somewhere the product may be hit or damaged by mechanical vibration. To maximize the performance, it needs to be put away from equipment such as grid, large metal objects and radar stations as far as possible.
Do not wipe the display with any chemical reagent. Solvents may damage the enclosure or paint. If the display is stained by dust, cut off the power and then clean the display using a dried cloth with a little of warm water. Use a clean soft cloth to clean the LED of the display. Do not frequently switch on and off the product, which may shorten the product service life. After the display is switched off, wait for three minutes before switching it on again. If the product is not to be used for a long period of time, please power off the product and pull out the power plug.
Do not maximize the brightness and contrast of the LED for a long period of time, which may shorten the LED service life.
Do not use a hard object to write on the display, which may scratch the LED.
Clean the Infrared Tube
The interactive display uses the horizontal and vertical infrared matrix to detect and locate the user's touch. The screen is surrounded by an infrared tube (including the infrared acceptor and emitter), which forms an infrared net covering on the screen surface. When a user touches the screen, fingers or other opaque objects block the infrared rays that cross the touch point, which helps the controller detect the coordinate position of the touch point. Dust is easily retained on the screen surface due to its long-term exposure in the air and causes ineffective touch or inaccurate positioning. Therefore, you need to clean the infrared tube around the screen regularly.

WARNING





CAUTION


CAUTION

▶, ▲, ▲
