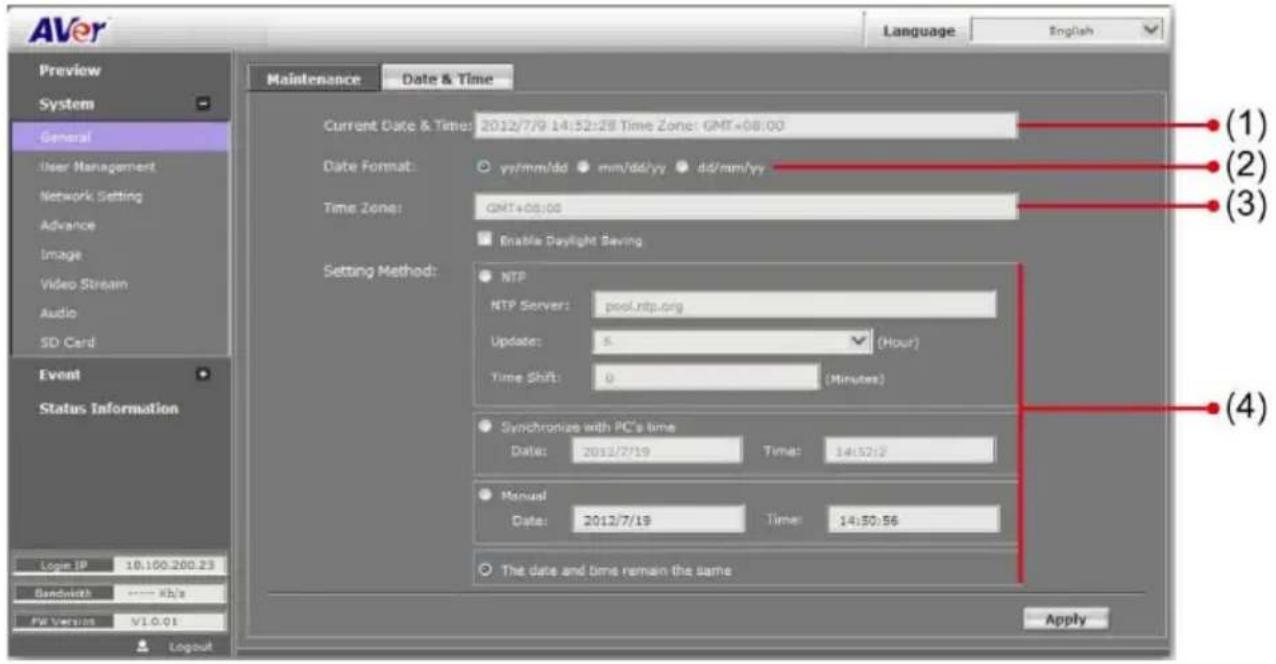

SYSTEM > GENERAL > DATE & TIME 24

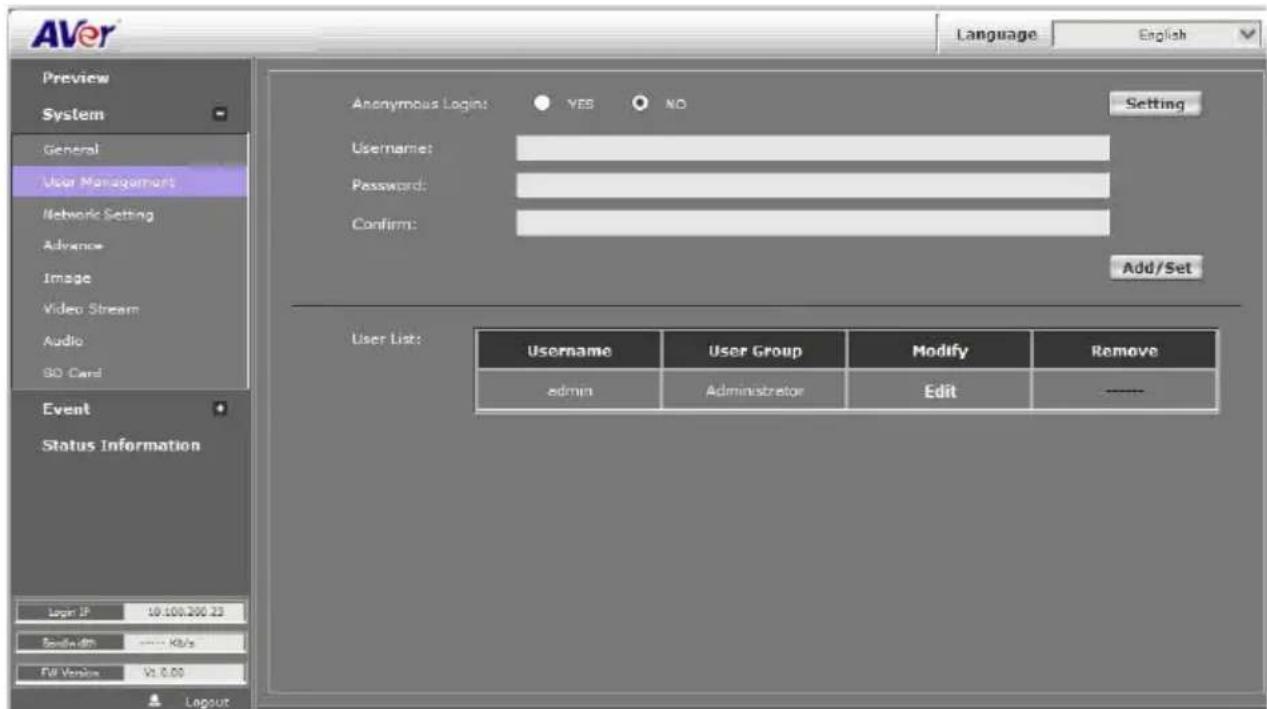

SYSTEM > USER MANAGEMENT 25

SYSTEM > USER MANAGEMENT 25

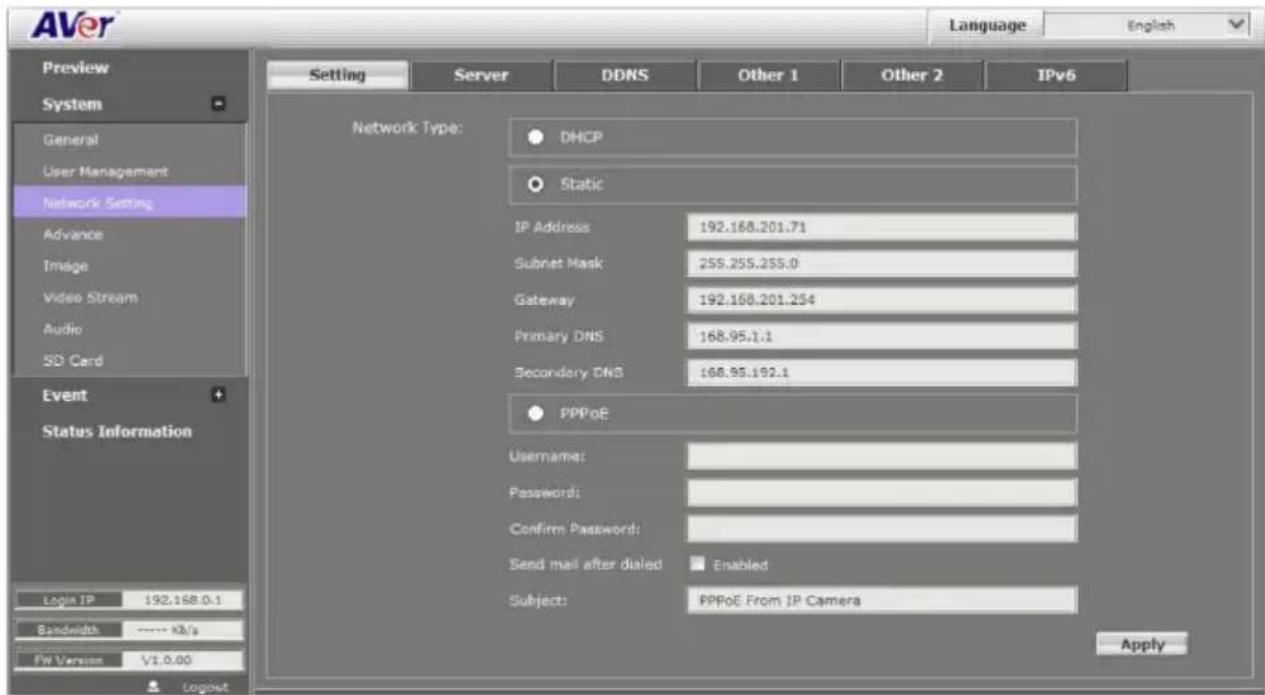

SYSTEM > NETWORK SETTING > SETTING.... 27

SYSTEM > NETWORK SETTING > SEVER 28

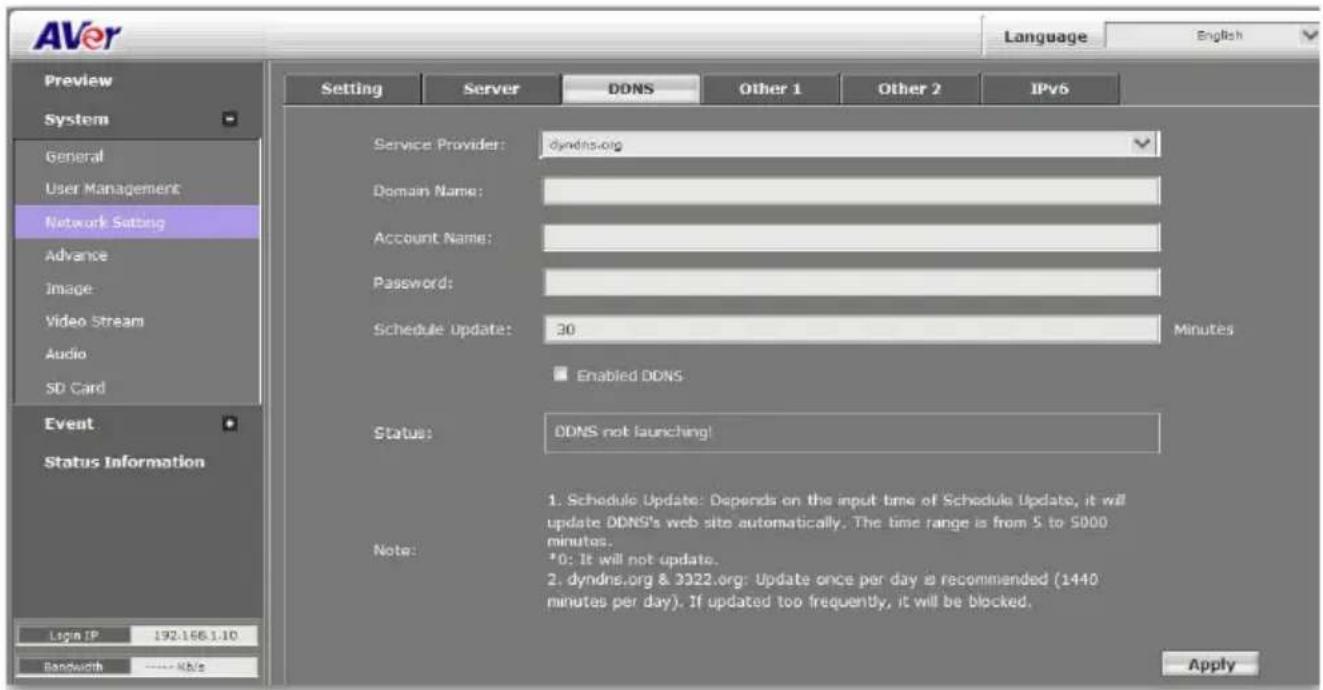

SYSTEM > NETWORK SETTING > DDNS 29

SYSTEM > NETWORK SETTING > OTHER 1 ....31

SYSTEM > NETWORK SETTING > OTHER 2 ....33

SYSTEM > NETWORK SETTING > IPv6 37

SYSTEM > ADVANCE > HTTPS .... 38

The FV2006 is an H.264, 10800p super min vandal proof dome camera designed ultra-discreet, recessed-mount and super mini dimension ( :80mm) for indoor and outdoor use. FV2006 is specifically developed for, offering discreet video surveillance solutions, ideal for ATM, banks, retail stores, boutiques and elevators. Rated to IP66, FV2006 gives you the flexibility of a camera that can withstand both dust and driving rain.

Product Specifications

■ 2-Mega pixel, vandal proof dome
■ HD Definition (1080p) 25fps support
■ Digital Wide Dynamic Range
■ Power over Ethernet (PoE)
■ H.264/MJPEG/MPEG-4 compression formats
■ microSD/SDHC card backup (SD card is not included)
■ 2-way audio
■ Adjustable shutter speed
■ Support iPhone/ iPAD/ Android phone and PAD
■ Free bundled 32-CH AVer NXU Lite recording software

Specifications

Hardware
CPU ARM 9, 32-bit RISC
RAM 128MB
Flash 16M
Image sensor 1/3.2” 5 Megapixels CMOS
Shutter time 1 / 5 ~ 1 / 10,000 sec
Lens Type 3.6 mm@F1.6, fixed lens
Shutter time 1/5~1/10,000
I/O 1 Sensor in /1 R	elay out
MIC in 1
Audio Out	1
Power Over Ethernet	Yes
Power Consumption	DC12V : 2.04WPoE : 2.88W
2-Axis Gimbal Adjustments Angle	Pan: 360°Tilt: 20° ~ 90°
Dimensions	Φ80 x 67 (mm)
Operation Temperature 0°C ~ 45°C
Weight 350g
Network
Ethernet 10/100 Base-T
Network Protocol	IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP (video only), SAMBA, Bonjour
System
Video Resolution	1920x1080@25fps,1280x720@30fps,640x480@30fps, 176x144@30fps
Video Adjust	Brightness, Contrast, Sharpness, D-WDR, Shutter Speed, Sense-Up, AGC..etc.
Triple Streaming Yes
Image snapshot Yes
Full screen monitoring Yes
Privacy Mask Yes, 3 different areas
Compression format H.264/ JPEG/ MPEG-4
Video bitrate adjust	CBR, VBR
Motion Detection	Yes, 3 different areas
Triggered action	Mail, FTP, Save to microSD/SDHC card, Relay, SAMBA
Pre/ Post alarm	Yes (Pre: 5 secs/ Post: 5 secs)
System
Security	Password protection, IP address filtering, HTTPS encrypted data transmission, QoS/DSCP
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous connection Up to 10
Audio Yes, 2-way (mono)
MicroSD/SDHC card management
Recording trigger Motion Detection	IP Check, Network Status (wired Connection only), Schedule,
Video format AVI, JPEG
Video playback Yes
Delete files Yes
Web browsing requirement
OS Windows	^ XP (32-bit), 7 (32/64-bit)Microsoft ^ IE 6.0 or above (32-bit only)Notes: Please enable “Compatibility View” while using IE 10 or above.
Hardware Suggested	Intel ^ Dual Core 2.53GHz, RAM: 1024MB, Graphics Card: 128MB
Mobil support iOS 5 or above, Android	1.6 or above.

*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Package contents

Item Descriptions
	1. FV2006
	2. Accessory pack
	3. Conversion ring
	4. Power Adaptor(DC 12V/ 0.5A) (Optional)
	5. CD (User's Manual, Quick Guide, and NVR software are included)

Product Installation

Monitor Setting

1. Right-click on the desktop. Select "Properties"

Arrange Icons By Refresh Paste Paste Shortcut Save As Scheme... Graphics Options Display Modes New Properties

1. Change "Color quality" to "Highest (32-bit)".

Display Properties Themes Desktop Screen Saver Appearance Settings Display: Plug and Play Monitor on Intel(R) 82915G/GV/910GL Express Chipset Family Screen resolution Less More 1024 by 768 pixels Color quality Highest (32 bit) Troubleshoot... Advanced OK Cancel Apply

Hardware Installation and I/O Pin Assignment

1. Set the camera

■ Locate cable from bottom

a. Use three screws to lock the base of camera on the ceiling or the wall.
b. Put back the cover, and turn it tightly to get waterproof.

Diagram showing a mechanical assembly with red arrows indicating direction of motion or force, and a magnified view of the component below.

Installation tip: Please don't open the top cover for too long if you install the camera under a high humidity environment

Locate cable from side

a. Open the conversion ring package in accessory. It includes a conversion ring and two set of screws.
b. Use three screws to lock the conversion ring on the ceiling or the wall.
c. Use three screws to combine the base of camera with the conversion ring. The cable can pass through the hole on the side of conversion ring.
d. Put back the cover, and turn it tightly to get waterproof.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

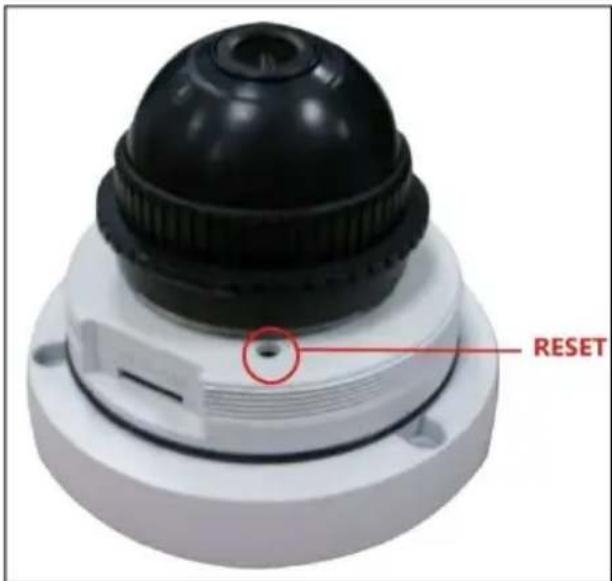

1. When removing the dome cover, you can see the Micro SD card slot and the reset button.

MICRO SD CARD RESET

1. I/O Interface

I/O Connection

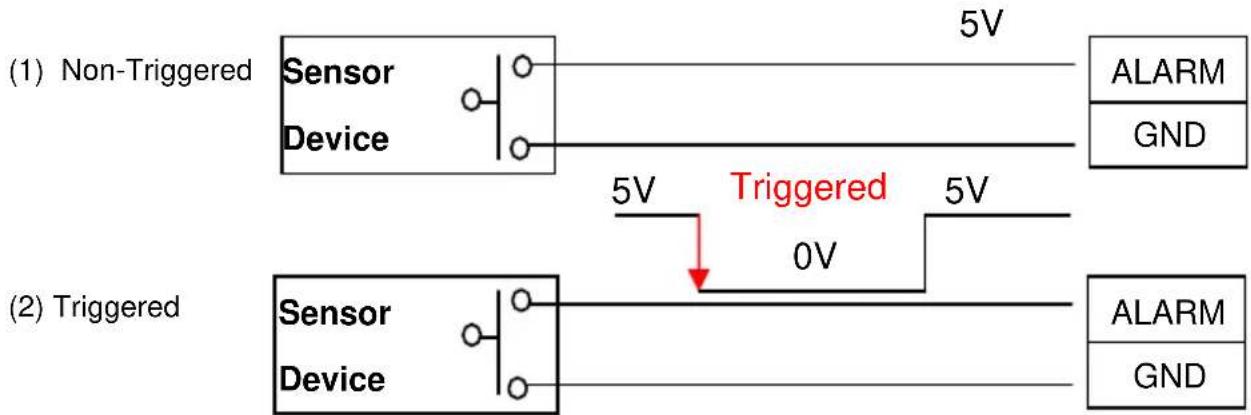

a. Please connect the GND & DO pin to the external relay (buzzer) device.
b. Please connect the GND & DI pin to the external trigger device.

Power Over Ethernet (PoE)

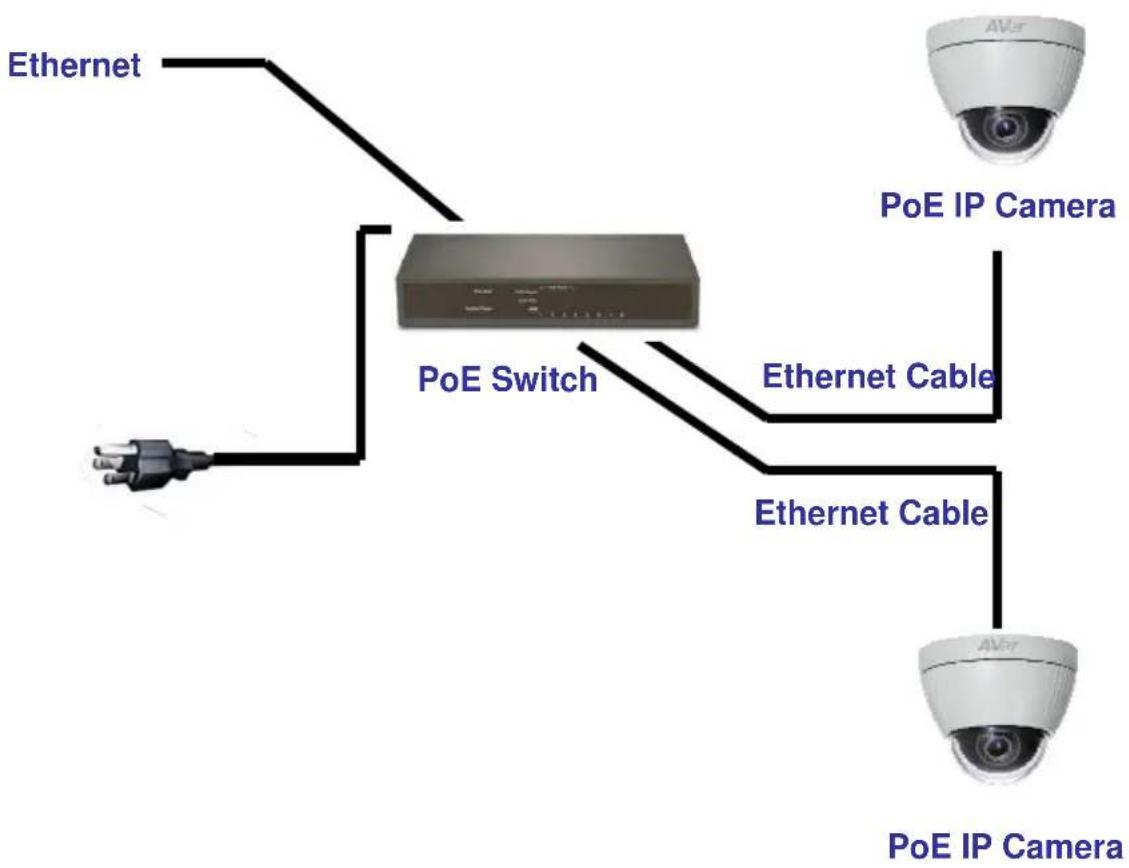

Set up the IP camera through Power over Ethernet (PoE). PoE is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP camera, using the same cable as that used for network connection. It eliminates the need for power outlets at the camera locations.

[Note] 802.3at, 30W PoE Switch is recommended.

IP Assignment

There are two ways to find IP Camera:

– Finding IP Camera by using "NXU Lite recording software"
- Finding IP Camera by using "AVer IPCam Utility"

Finding IP Camera by using "NXU Lite recording software"

1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first. During the installing process, users will be required to input a User name and Password for login NXU Lite system. Users can define the User name and Password as wishes. Please refer to NXU Lite user manual for detailed installation instruction.
2. To run the application, double-click on your PC desktop or click Start > Programs > DVR > NXU Lite. For security purpose, some of the features would require you to enter User name and Password before it can be accessed. When the Authorization dialog box appears, key in your User ID and Password. (If this is the first time, enter the one you have registered when installing the software.

Authorization Please enter your user ID and password. User ID Password OK Cancel Click it to call out virtual keyboard.

3. Click "Setup" button.

camera 1 camera 2 camera 3 camera 4 camera 5 camera 6 camera 7 camera 8 camera 9 camera 10 camera 11 camera 12 camera 13 camera 14 camera 15 camera 16 camera 17 camera 18 camera 19 camera 20 camera 21 camera 22 camera 23 camera 24 camera 25 camera 26 camera 27 camera 28 camera 29 camera 30 camera 31 camera 32 camera 33 camera 34 camera 35 camera 36 camera 37 camera 38 camera 39 camera 40 camera 41 camera 42 camera 43 camera 44 camera 45 camera 46 camera 47 camera 48 camera 49 camera 50 camera 51 camera 52 camera 53 camera 54 camera 55 camera 56 camera 57 camera 58 camera 59 camera 60 camera 61 camera 62 camera 63 camera 64 camera 65 camera 66 camera 67 camera 68 camera 69 camera 70 camera 71 camera 72 camera 73 camera 74 camera 75 camera 76 camera 77 camera 78 camera 79 camera 80 camera 81 camera 82 camera 83 camera 84 camera 85 camera 86 camera 87 camera 88 camera 89 camera 90 camera 91 camera 92 camera 93 camera 94 camera 95 camera 96 camera 97 camera 98 camera 99 camera100

4. Click "Add IPCam" button.

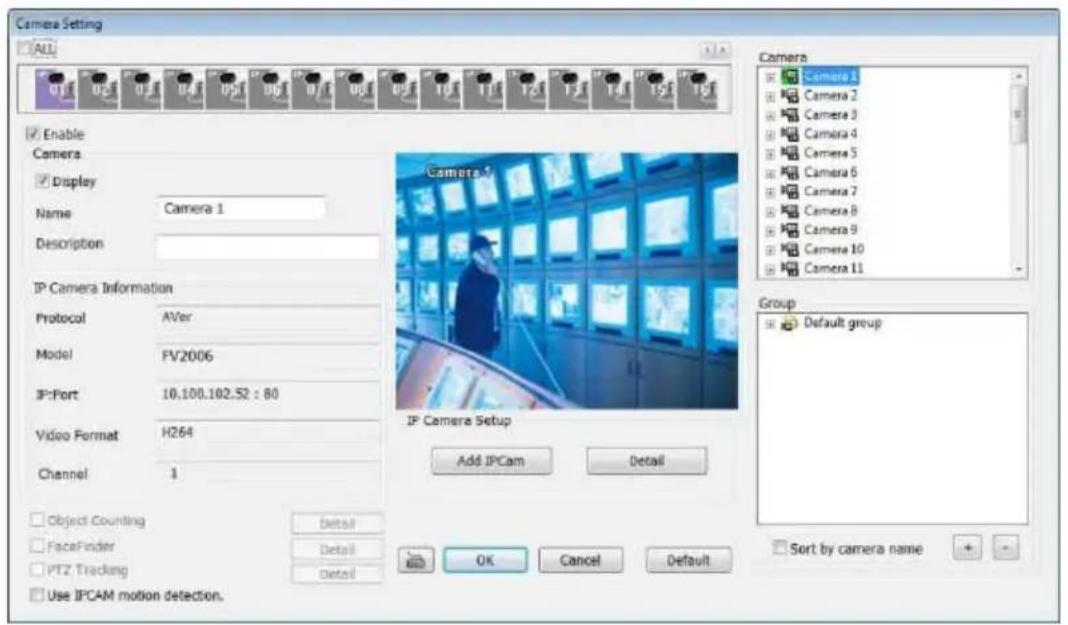

Camera Setting ALL Enable Camera Display Name Camera 1 Description IP Camera Information Protocol AVer Model FV2006 IF:Port 10.100.102.52 : 80 Video Format H264 Channel 1 Object Counting FaceFinder PTZ Tracking Use IPCAM motion detection. Camera 1 Camera 2 Camera 3 Camera 4 Camera 5 Camera 6 Camera 7 Camera 8 Camera 9 Camera 10 Camera 11 Group Default group Add IPCam Detail OK Cancel Default Sort by camera name + - Detail Detail OK Cancel Default

5. Select "IP Camera" item.

IP Camera Remote DVR OK Cancel

1. Key in IP Camera's ID and Password (default is admin/admin) and click "Auto Search" to find camera.

Add IPCam Auto Search Protocol AVer Model FV2006 Video Format Auto Channel 1 IP Camera Information F/W: V1.0.28 IP Camera Site 10.100.102.52 : 80 URL http:// Authentication ID admin Password •••••• Enable Audio Save & Exit Connect Cancel

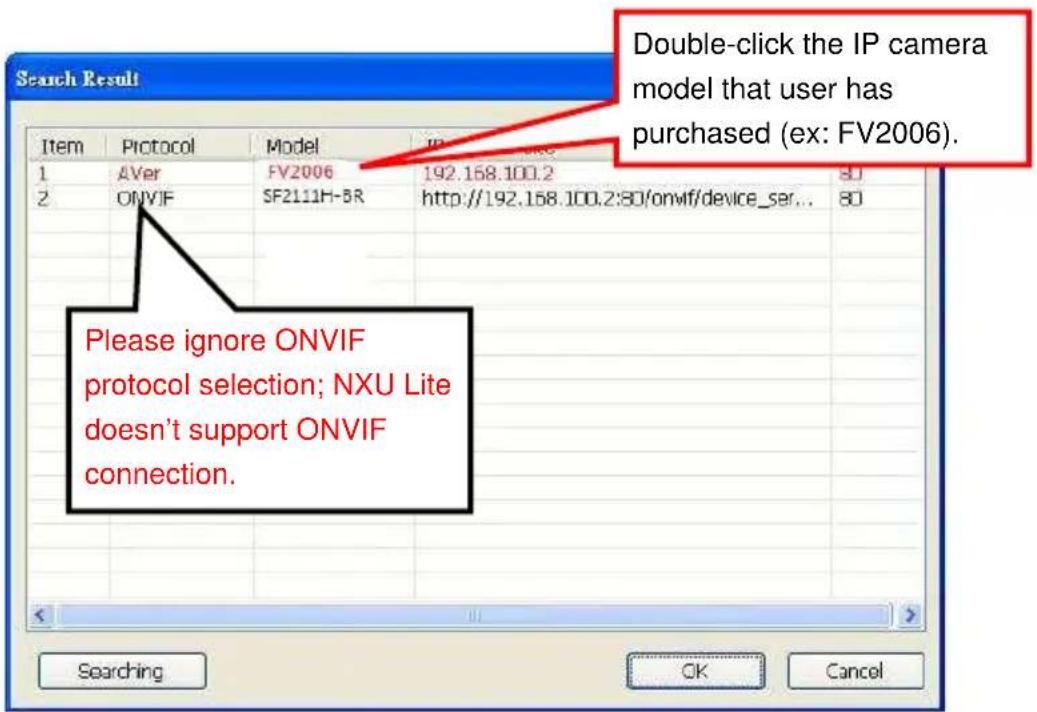

1. In Search Result window, click it the IP camera model that user has purchased (Please ignore ONVIF connection item); the camera is in red text that is configurable. User can double-click on the camera is in red text and configure the IP camera's setting; even the IP camera is not in the same IP segment. Press "OK" to back to previous screen and press "Connect" to start live view.

Double-click the IP camera model that user has purchased (ex: FV2006). Please ignore ONVIF protocol selection; NXU Lite doesn't support ONVIF connection.

Finding IP Camera by using "AVer IPCam Utility"

1. Use the software, "AVer IPCam Utility" to assign the IP address of the IP camera. The software is in the attached software CD.
2. Run the IPCam Utility
3. Select the proper network adapter and click [Search] to begin searching.

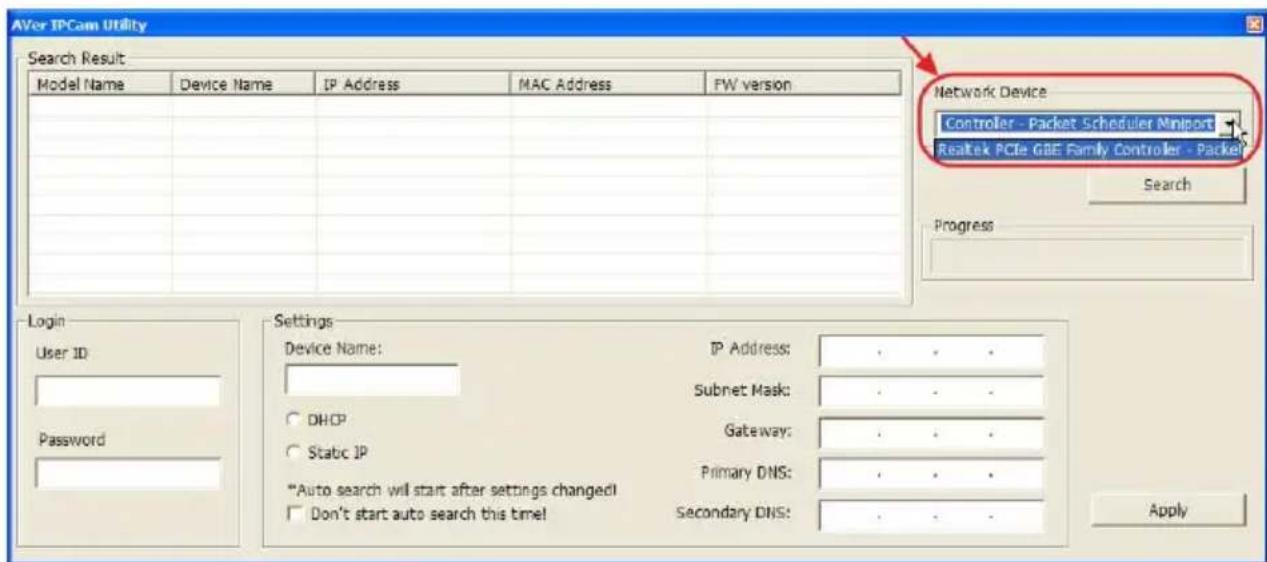

Aver IPCam Utility Search Result Model Name Device Name IP Address MAC Address FW version Network Device Controller - Packet Scheduler Miniport Realtek PCIe GBE Family Controller - Packet Search Progress Login User ID Password Settings Device Name: IP Address: . Subnet Mask: . . . DHCP Gateway: . . . Static IP Primary DNS: . . . "Auto search will start after settings changed" Don't start auto search this time! Secondary DNS: . . . Apply

1. Select and double click the IP camera you want to access. If you want to change the setting of the selected IP camera, enter the user ID, correct password, and change the settings and then click Apply button. This will change the setting and rescan the network again.

Aver IPCam Utility Search Result Model Name Device Name IP Address MAC Address FW version Network Device Controller - Packet Scheduler Miniport Realtek PCIe G&E Family Controller - Packet Search Progress Login User ID Password Settings Device Name: IP Address: . . . Subnet Mask: . . . DHCP Gateway: . . . Static IP Primary DNS: . . . "Auto search will start after settings changed" Don't start auto search this time! Secondary DNS: . . . Apply

1. The IE browser will open and direct you to IP camera login page. This requires IPSviewer.ocx to run. If the IE ActiveX warning message appears, click to allow running the add-on.

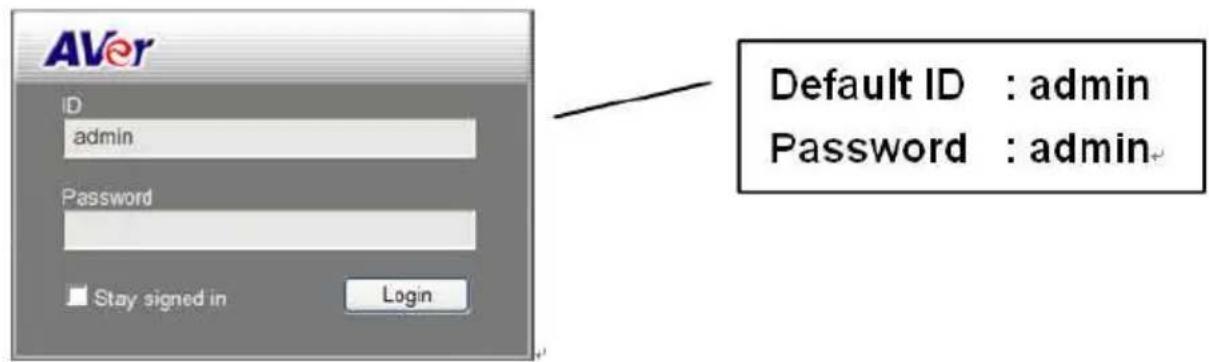

AVer D admin Password Stay signed in Login Default ID : admin Password : admin.

[Note]

■ The default IP address is: 192.168.1.168
■ The default ID and Password are both "admin".
It is not allowed to enter device name in Chinese and any other special characters ('" \ & ^).
■ Gateway number can't be "0".
■ IP camera device name should be less than 30 digits

Using NON-DHCP Server/Router Network

In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict.

Please make sure the Subnet of the PC's IP address and the IP camera's IP address are the same.

[Example]

The same Subnet:

IP camera IP address: 192.168.1.168

PC IP address: 192.168.1.100

Different Subnets:

IP camera IP address: 192.168.1.168

PC IP address: 192.168.2.100

To Change PC IP Address:

Control Panel→Network Connections → Local Area Connection Properties → Internet Protocol (TCP/IP) → Properties

Please make sure your IP camera and PC have the same Subnet. If not, please change IP camera subnet or PC IP subnet accordingly.

PC's IP address:

Local Area Connection Properties General Authentication Advanced Connect using: Realtek RTL6139 Family PCI Fast Ethernet NIC Configure... This connection uses the following items: Client for Microsoft Networks File and Printer Sharing for Microsoft Networks DoS Packet Scheduler Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain or IP address automatically Use the following IP address: IP address: 132 . 168 . 1 . 100 Subnet mask: 255 . 255 . 255 . 0 Default gateway: 192 . 168 . 1 . 254 Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: 132 . 168 . 1 . 2 Alternate DNS server: 168 . 95 . 132 . 1 Advanced... OK Cancel

IP camera IP addresses:

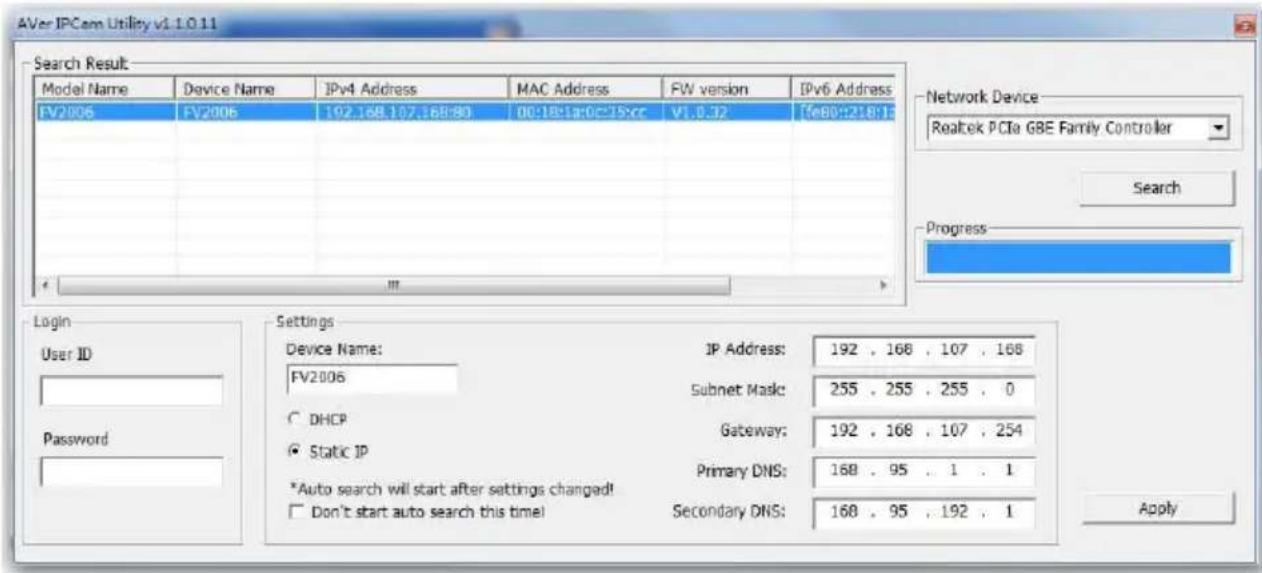

AVer IPCem Utility v1.1.0.11 Search Result Model Name Device Name IPv4 Address MAC Address FW version IPv6 Address FV2006 FV2006 192.168.107.168:80 00:18:1a:0c:25:cc V1.0.32 [fe80::218:13] Login User ID Settings FV2006 IP Address: 192 . 168 . 107 . 168 Subnet Mask: 255 . 255 . 255 . 0 DHCP Gateway: 192 . 168 . 107 . 254 Static IP Primary DNS: 168 . 95 . 1 . 1 *Auto search will start after settings changed! Don't start auto search this time! Secondary DNS: 168 . 95 . 192 . 1 Password Network Device Realtek PCIe GBE Family Controller Search Progress Apply

A quick way to access remote monitoring is to double-click on a selected IP camera in "Camera Name list" in AVer IPCam Utility. Then, the IE browser will open and connect to IP camera.

Then, please key in the default "ID" and "Password", both of which are "admin".

AVer ID: Password: Login Copyright © 2012 AVer Information Inc. All rights reserved.

Notes: Please enable "Compatibility View" while using IE 10 or above.

Install ActiveX Control

The first time you attempt to view the camera video via Internet Explorer, it will ask you to install the ActiveX component.

If the installation fails, please check the security settings for the Internet Explorer browser.

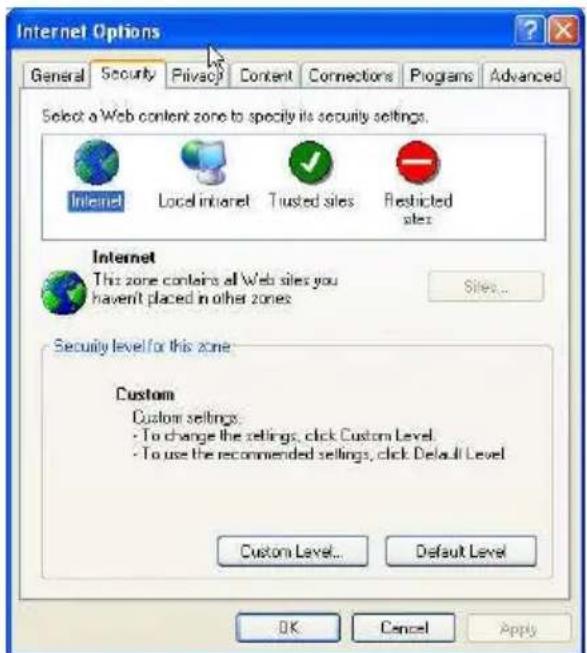

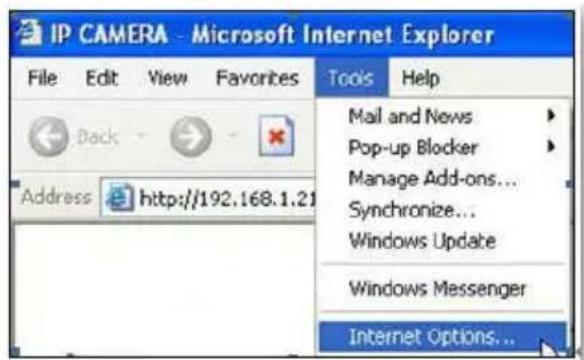

1. IE → Tools → Internet Options... → Security Tab → Custom Level... → Security Settings → Download unsigned ActiveX controls → Select "Enable" or Prompt.
2. IE → Tools → Internet Options... → Security Tab → Custom Level... → Initialize and script ActiveX controls not marked as safe → Select "Enable" or Prompt.

1 2

IP CAMERA - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Address http://192.168.1.21 Mail and News Pop-up Blocker Manage Add-ons... Synchronize... Windows Update Windows Messenger Internet Options...

Internet Options General Security Privacy Content Connections Programs Advanced Select a Web content zone to specify its security settings. Internet Local internet Trusted sites Restricted sites Internet This zone contains all Web sites you haven't placed in other zones Sites... Security level for this zone Custom Custom settings: - To change the settings, click Custom Level - To use the recommended settings, click Default Level Custom Level... Default Level OK Cancel Apply

3 4

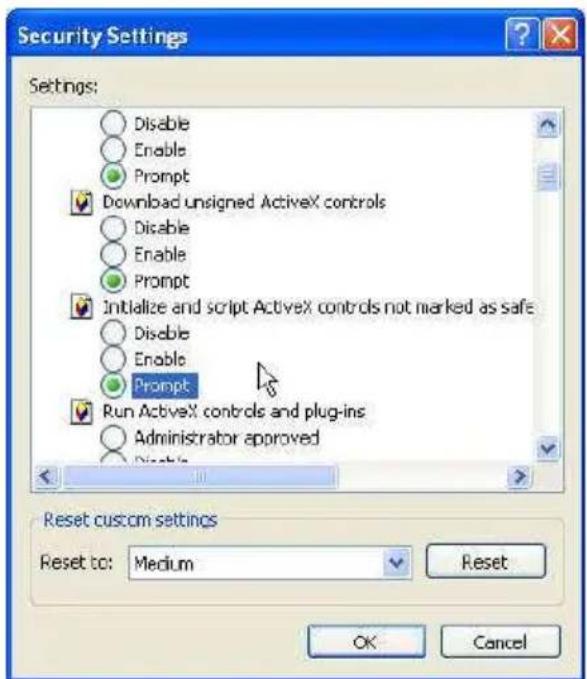

Security Settings Settings: Enable Binary and script behaviors Administrator approved Disable Enable Download signed ActiveX controls Disable Enable Prompt Download unsigned ActiveX controls Disable Enable Prompt Reset custom settings Reset to: Medium Reset OK Cancel

Security Settings Settings: Disable Enable Prompt Download unsigned ActiveX controls Disable Enable Prompt Initialize and script ActiveX controls not marked as safe Disable Enable Prompt Run ActiveX controls and plug-ins Administrator approved Reset custom settings Reset to: Medium Reset OK Cancel

5

When the following dialogue box appears, click "Yes".

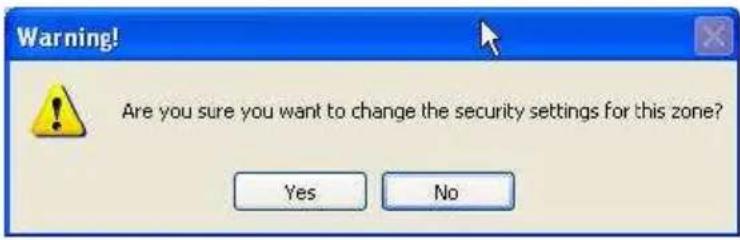

Warning! Are you sure you want to change the security settings for this zone? Yes No

Using the IP Camera Browser Interface

The admin have the full access to the IP camera browser interface. The menu on the left, you can expand and navigate to access all the features.

Preview

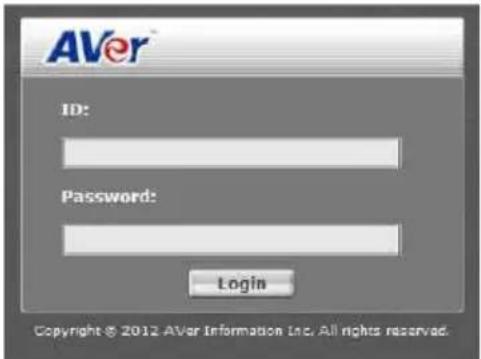

Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the "ID" and "Password". The default "ID" and "Password" are both "admin".

AVer ID: Password: Login Copyright © 2012 AVer Information Inc. All rights reserved.

Once connected to the IP camera, the following program interface will appear.

AVer Preview System Event Status Information (1) (14) (13) (12) Language English (11) System 0 88/16/18:05 09 21 32 MAR/18/2013 09:21:32 Size:$40x480 FPS: 15 Logos IP 182.168.1.67 Sachborn 4004 KB/s FX Version V1.0.04 Logout (2) (3) (4) (5) (6) (7)(8)(9) (10)

Name Function

(1) System/Event/Status Information

Set up IP camera's configuration.

Name Function
(2) Login IP	Show PC's IP address
(3) Bandwidth	Show current IP camera's transmitting bandwidth
(4) FW Version	Show IP camera's current firmware version
(5) Logout	Exit the application
(6) Zoom control	Reset zoom level.
	Increase zoom level.
	Decrease zoom level.
	Use the scroll bar to zoom in or zoom out the video screen
(7) Capture	Capture and save the image on the screen in *.bmp format
(8) Record	Start/stop audio and video recording. The recorded video will saved in *.avi format.
(9) 2-way Talk	Click the Microphone button to talk to IP camera side from site. Click this button again to mute this function.
(10) Speaker	Turn on the PC's speaker so that PC side can hear sound IP camera side. Click this button again to mute this function. Use the scroll bar to adjust the speaker volume.
	It shows the current speaker volume's value.
(11) Language	of the browser interface language.
(12) Video screen	Change the video screen display.
	Display the actual video pixel size
	Display the video screen in compact size.
	Display the video in full screen mode. Press ESC to exit full screen mode.
(13) Stream	Switch to view the video stream type. The IP camera can send multiple video streams of up to 3 types. To change the video stream setting, go to System > Video Stream.
	[Notes]When streaming 2 setting in"Video Setting" is closed, there won't have other stream option

Name Function

(14) Direction Controller

Move the position of the view point while in zoom mode. User has to zoom in first.

System > General

In this section, only admin level is authorized to configure the IP camera system maintenance and the date and time settings.

System > General > Maintenance

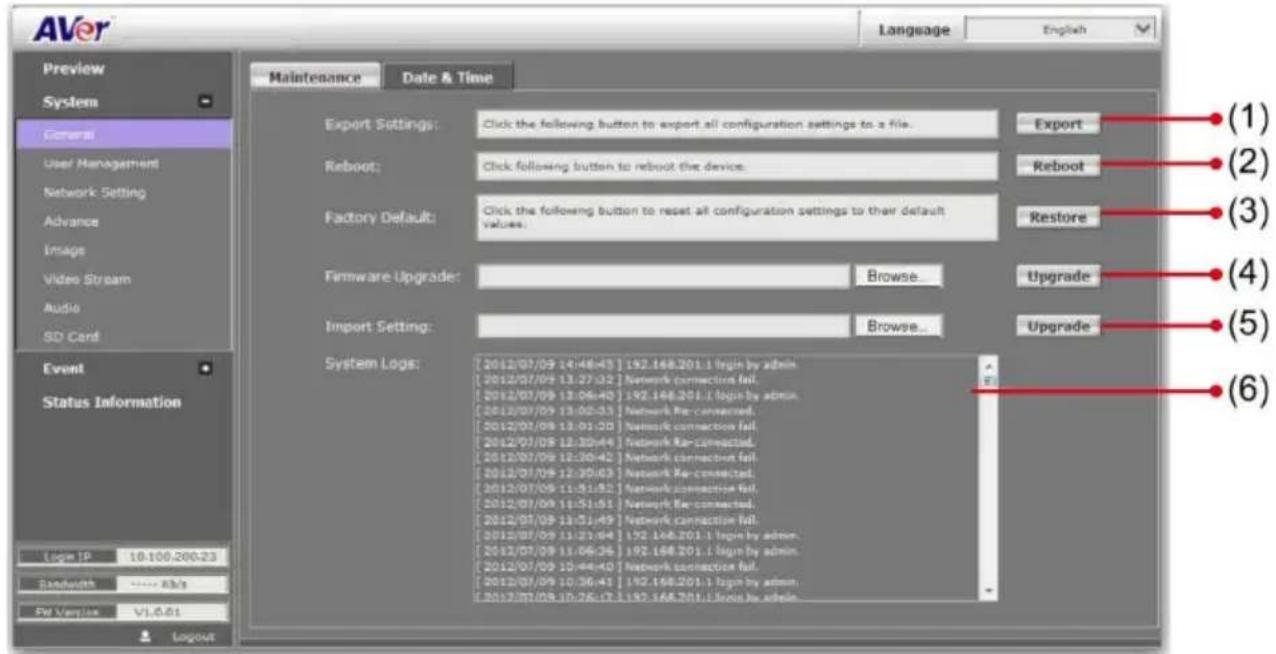

In the Maintenance tab, the administrator can check the system event log, upgrade the system firmware, reset the configuration settings without having to change the user management and network settings, reboot, and restore all back to factory default settings.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Logx IP 10.100.200.23 Bandwidth **** Rk/s PV Version V1.0.01 Logout Maintenance Date & Time Export Settings: Click the following button to export all configuration settings to a file. Reboot: Click following button to reboot the device. Factory Default: Click the following button to reset all configuration settings to their default values. Firmware Upgrade: Browse... Import Setting: Browse... System Logs: [2012/07/09 14:48:43] 192.168.201.1 login by admin. [2012/07/09 13:27:32] Network connection fail. [2012/07/09 13:06:40] 192.168.201.1 login by admin. [2012/07/09 13:02:33] Network Re-connected. [2012/07/09 13:01:20] Network connection fail. [2012/07/09 12:30:44] Network Re-connected. [2012/07/09 12:30:42] Network connection fail. [2012/07/09 12:30:43] Network Re-connected. [2012/07/09 11:51:52] Network connection fail. [2012/07/09 11:51:51] Network Re-connected. [2012/07/09 11:51:49] Network connection fail. [2012/07/09 11:51:44] 192.168.201.1 login by admin. [2012/07/09 11:06:34] 192.168.201.1 login by admin. [2012/07/09 10:48:40] Network connection fail. [2012/07/09 10:36:41] 192.168.201.1 login by admin. [2012/07/09 10:26:47] 192.168.201.1 login by admin. Export (1) (2) (3) (4) (5) (6)

Name Function

(1) Export Settings	Upload to save all the configuration settings from the IP camera to computer hard disk.
(2) Reboot	Turn the IP camera off and on again.
(3) Factory default	Set all the configuration settings back to default except the user management and network settings.

Name Function

(4) Firmware Upgrade

Upgrade the firmware to the latest version.

To Upgrade the IP Camera Firmware

1. Download the file from our website and save it in your computer hard disk.
2. Click Browse. Locate and select the file and click Open.
3. Click Apply. Wait till you see the massage

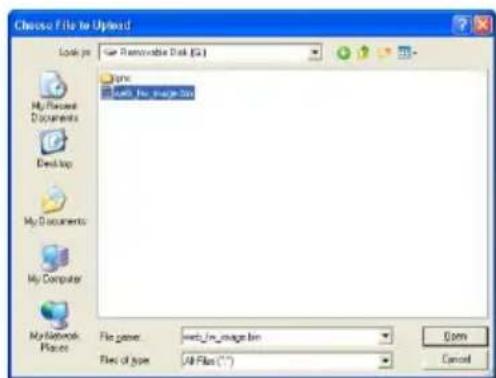

Choose File to Upload Look in: New Removable Disk (R) type: web1.0 image bin My Documents Desktop My Documents My Computer My Network Places File type: web1.0 image bin File of type: All Files (*.*) Open Cancel

"Firmware Upgrade OK!!". You may now click the Internet Explorer browser refresh button or press F5. The login page will appear.

New firmware download OK! It is strongly recommended to stop any unnecessary jobs while updating firmware. Please be patient and the updating process may take a long time.

Writing Progress:100% Firmware upgrade complete.

(5) Import	Download to replace the current settings with the configuration settings file from the computer hard disk to IP camera.
(6) System log	Display the IP camera system event log.

System > General > Date & Time

In the “Date & Time” tab, the administrator can set and update the system's date and time. After filling in the correct settings, click Apply to apply the new settings.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 18.100.200.23 Bandwidth **** Kh/a REV Version V1.0.01 Logout Maintenance Date & Time Current Date & Times: 2012/7/9 14:52:28 Time Zone: GMT+08:00 Date Format: yy/mm/dd mm/dd/yy dd/mm/yy Time Zone: GMT+08:00 Enable Daylight Saving Setting Method: NTP NTP Server: pool.ntp.org Update: 6 (Hour) Time Shift: 0 (Minutes) Synchronize with PC's time Date: 2012/7/19 Time: 14:52:28 Manual Date: 2012/7/19 Time: 14:50:56 The date and time remain the same Apply (1) (2) (3) (4)

Name Function

(1) Current Date & Time	Display the current date and time.
(2) Date Format	Select the date display format.
(3) Time Zone	Set the local time zone. Check the box next to “Enable Daylight Saving” to enable and setup the start date and end date for daylight saving time.

AVer Preview System General User Management Network Setting Usage Video Stream Audio 3D Card Event Status Information Maintenance Date & Time Clamid Date & Time: 2012/4/2 15:57:38 (New Array, GMT+96.00) Data Format: Type: system/cat - set/supply - d2/any/y Time Zone: GMT+96.00 Only Bluelight Setting SCT Item: Mar 2nd Sun 12 am SPT Info: May 1st Sun 12 am Setting Method: FTP FTP Server: post-ftp.org Updates: 6 (Year) Time Details: 0 (Linked) Synthetic with PC's Time Date: 2012/4/2 Time: 15:57:41 Format Date: 2012/4/2 Time: 15:54:58 The Data and Event Status in the context Language English Apply

Name Function

(4) Setting Method

Select the date & time settings method.

Sync with current PC – Obtain the date and time setting on the current login computer.

Sync with NTP Server – Obtain the date and time setting from NTP server. In the drop-down list, select the NTP host name.

Manual – Manually set the date and time. Click "Done" to close the date and time interface.

System > User Management

In this section, only admin level is authorized to create, delete, and edit the account in Account tab and configure the client connection setting in Connection tab.

System > User Management

IP camera supports two different user accounts – Administrator (Admin) and Guest User.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio BO Card Event Status Information Login IP 19.100.200.23 Send-in: **** Kbs Fill Version V1.0.00 Layout Anonymous Login: YES NO Setting Username: Password: Confirm: Add/Set User List: Username User Group Modify Remove admin Administrator Edit ----

User Type Access Rights

Admin Can access all the configuration pages

Guest User Can only access the preview page.

■ Anonymous User Login

√ Yes: Allow an anonymous user to view the IP camera without logging in.
√ No: Need user name & password to access this IP camera

• Add user: Enter the user name in "Username", the password in "Password", and re-enter the password in "Confirm". Then, click "Add/Set".
  ■ User List: Click edit to change the account password. To delete the user account, click Remove button.

User Setup Username: guest Password: Confirm: OK

[Note]

1. The password can't be empty, otherwise, user are not able to login successfully.
2. Please don't use special symbols as user name such as *, %, \$, &

System > Network Setting > Setting

■ Device Name: Used to name the IP camera to search more easily for this specific one among all connected IP cameras.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Setting Server DDNS Other 1 Other 2 IPv6 Network Type: DHCP Static IP Address 192.168.201.71 Subset Mask 255.255.255.0 Gateway 192.168.201.254 Primary DNS 168.95.1.1 Secondary DNS 168.95.192.1 PPPoE Username: Password: Confirm Password: Send mail after dialed Enabled Subject: PPPoE From IP Camera Login IP 192.168.0.1 Bandwidth ---- KB/s FW Version V1.0.00 Logout

■ Network Type: IP camera supports DHCP, static IP and PPPoE. After completed all settings, click Apply to save the configuration.

• DHCP: Using DHCP, IP camera will get all the network parameters from DHCP server automatically.
• Static IP: Please enter the IP address, subnet mask, gateway, Primary DNS, and Secondary DNS.

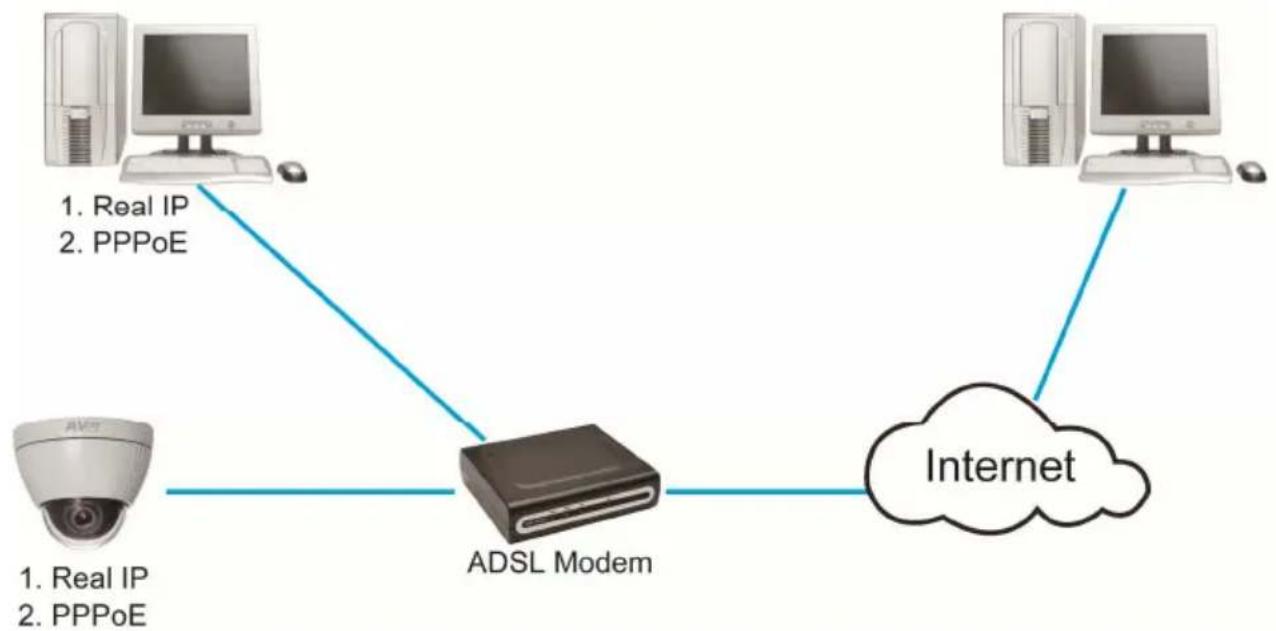

• PPPoE: Enter the Username, Password and re-enter Password in Confirm Password for the ADSL connection. And then click Apply to save the configuration.

System > Network Setting > Sever

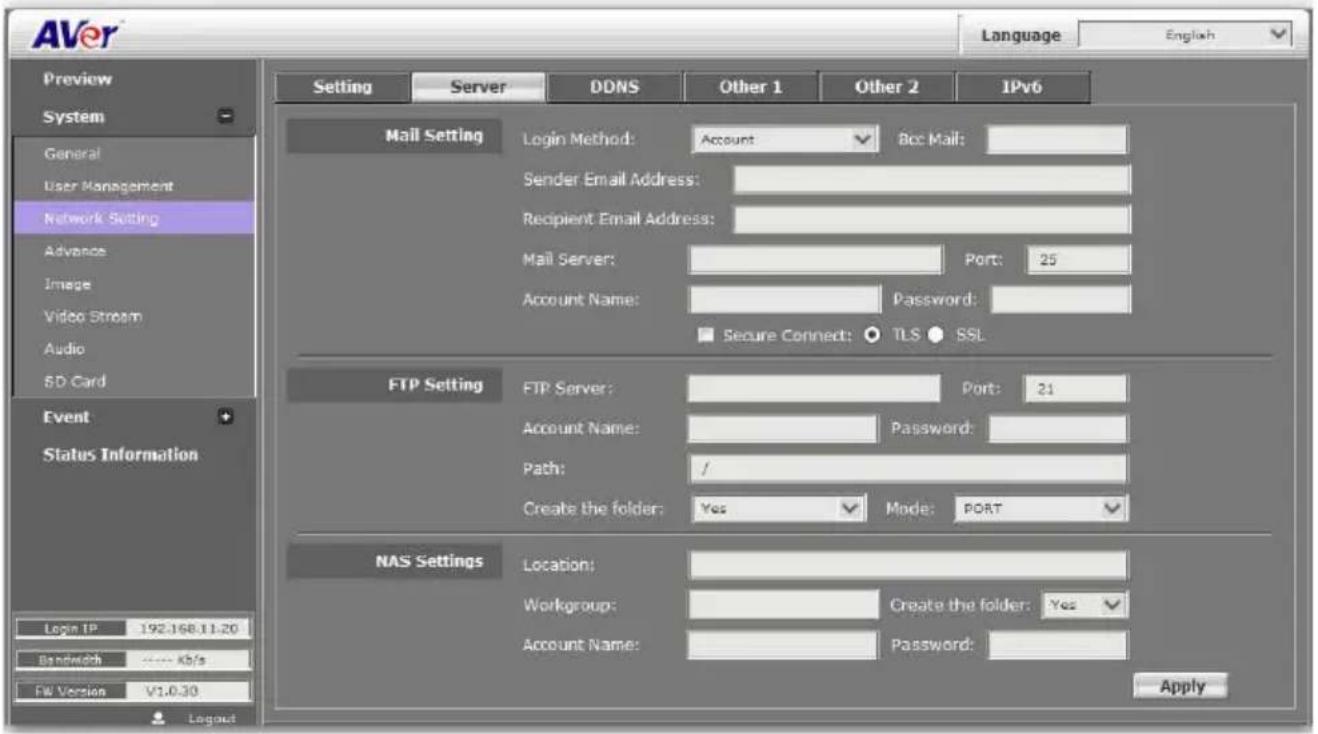

Used to send out the video via Email or FTP, or to save on NAS.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio 5D Card Event Status Information Login IP 192.168.11.20 Bandwidth ---- Kb/s FW Version V1.0.30 Server DDNS Other 1 Other 2 IPv6 Mail Setting Login Method: Account Bcc Mail: Sender Email Address: Recipient Email Address: Mail Server: Port: 25 Account Name: Password: Secure Connect: TLS SSL FTP Setting FTP Server: Port: 21 Account Name: Password: Path: / Create the folder: Yes Mode: PORT NAS Settings Location: Workgroup: Create the folder: Yes Account Name: Password: Apply

Mail Setting: Used to send out the video via Email.

a. Login Method: Click drop-down list to select the method to login Email server – "Account" or "Anonymous".
b. Enter necessary information in "Bcc Mail", "Sender Email Address", "Recipient Email Address", "Mail Server", "Mail Server Port", "Account Name", and "Password" columns.
c. Click "Apply" to save the configuration.

■ FTP Setting: Used to send out the video to FTP server.

a. Enter necessary information in "FTP Server", "Account Name", "Password", and "Path" columns.
b. Port: Select the FTP server port.
c. If the user wants to create a new folder on the FTP server to save the video file, select "Yes" under the "Create the folder".
d. Mode: Select the FTP transmission mode.
e. Click "Apply" to save the configuration.

■ NAS Settings: Used to send out the video to NAS server.

a. Enter necessary information in "Location", "Workgroup", "Account Name" and "Password" columns.
b. If the user wants to create a new folder on the NAS server to save the video file, select "Yes" under the "Create the folder".
c. Click "Apply" to save the configuration.

NAS Settings Location: \192.168.107.171\AverNAS Workgroup: AVerGroup Create the folder: Yes Account Name: AVerMember Password: ...... Apply

System > Network Setting > DDNS

The IP camera supports DDNS (Dynamic DNS) service.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.166.1.10 Bandwidth ---- Mb/s Setting Server DDNS Other 1 Other 2 IPv6 Service Provider: dyndns.org Domain Name: Account Name: Password: Schedule Update: 30 Minutes ■ Enabled DDNS Status: DDNS not launching! Note: 1. Schedule Update: Depends on the input time of Schedule Update, it will update DDNS's web site automatically. The time range is from 5 to 5000 minutes. *0: It will not update. 2. dyndns.org & 3322.org: Update once per day is recommended (1440 minutes per day). If updated too frequently, it will be blocked. Apply

a. Select "Enabled DDNS" to enable DDNS function.
b. Enter the Domain Name, Account Name, and Password that the user has registered on the DDNS service provider in the appropriate columns.
c. Enter the IP refreshing time period in the "Schedule Update" column.
d. Click "Apply" to save the configuration.

[Note] If you set up schedule update to occur too frequently, the IP may be blocked. In general, performing schedule update once a day (1440 minutes) is recommended.

Status

- Common warning message:

Updating!

Failed(1), Please check your DNS setting.

Failed(2), Please check your internet connection.

Failed(3), Please check your internet connection.

Failed(6), receiving data failure

- Warning message from different service provider:

Server Provider : dyndns.org

Failed(4), Please check the Dyndns.org.

Error : The system parameter given is not valid.

Error : No user agent was specified.

Error : The username and password pair do not match a real user.

Error : An option available only to credited users was specified.

Error : Not in the form hostname.domain.org or domain.com.

Error : The hostname specified does not exist.

Error : Not under the username specified.

Error : Too many or no hosts specified in an update.

Error : The hostname specified is blocked for update abuse.

Error : DNS error encountered.

Error : DNS Server Error Conditions.

Server Provider : ddns.camddns.com(TW)

Failed(5), The name has already been registered.

Server provider : ddns.ipddn.com(HK)

Failed(5), The name has already been registered

Server provider : www.3322.org.

Failed(4), Please check the www.3322.org.

System > Network Setting > Other 1

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.168.1.117 Bandwidth ...... KB/s PW Version V10.18 Layout Setting Server DDNS Other 1 Other 2 IPv6 HTTP Port: 80 HTTPS Port: 443 UPnP Support: Yes No UPnP Port Forwarding: Yes No External HTTP Port: 80 External HTTPS Port: 443 External RTSP Port: 554 RTSP Server: Yes No RTSP Authentication: Basic RTSP Port: 554 RTP Start Port: 5000 [1024..9997] RTP End port: 9000 [1027..10000] ONVIF: Enabled Disabled Security: Yes No RTSP Keepalive: Yes No Apply

User may need to assign different port to avoid conflict when setting up IP assignment. Click Apply to save the configuration.

• HTTP Port: setup web page connecting port and video transmitting port (Default: 80)
  ■ HTTPS Port: AVer IP Camerasupports encrypted browsing using HTTPS. This is configured on the System > Advance > HTTPS
  ■ UPnP Support: This IP camera supports UPnP, if this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to "My Network Places."

[Note] UPnP must be enabled on your PC.

Please follow the procedure to activate UPnP.

1. Open the Control Panel from the Start Menu.
2. Select Add/Remove Programs.
3. Select Add/Remove Windows Components and open Networking Services section.
4. Click Details and select UPnP to setup the service.
5. The IP device icon will be added to "My Network Places".
6. User may double click the IP device icon to access IE browser.

■ UPnP Port Forwarding: If the IP camera is set up behind the firewall, please select YES to enable it.
■ RTSP Server: Enable/disable RTSP function. The Real Time Streaming Protocol (RTSP) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers.
■ RTSP Authentication: While using iViewer software to get camera's image, please choose "Basic"

(base64) mode to enable security mechanism

■ RTSP Port: setup port for RTSP transmitting (Default: 554)
■ RTP Start and End Port: in RTSP mode, you may use TCP and UDP for connecting. TCP connection uses RTSP Port (554). UDP connection uses RTP Start and End Port.
■ Security: Yes is required account and password to connect with this IP camera through ONVIF protocol. No is not required account and password to connect.
■ RTSP Keepalive: To keep connection until remote site disconnects it.

System > Network Setting > Other 2

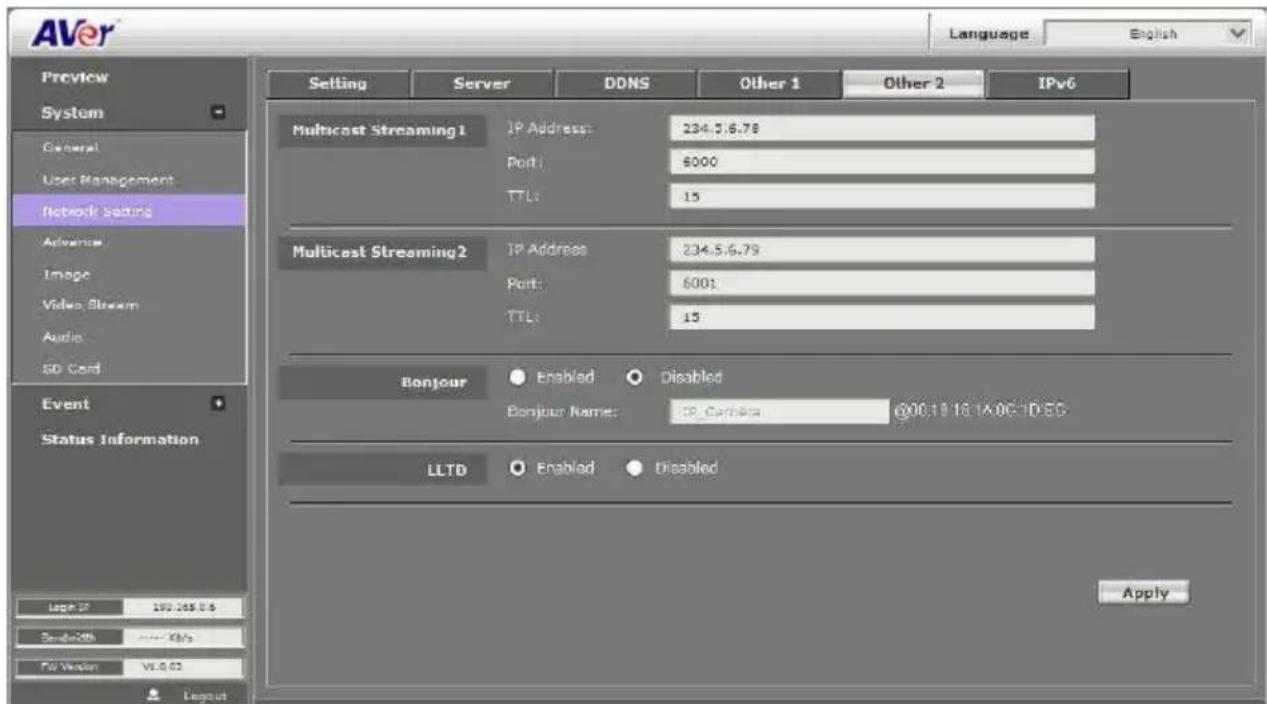

Multicast Setting (based on the RTSP Server): User can setup two streaming based on the RTSP Server.

AVer Language English Preview System General User Management Network Settings Advance Image Video Stream Audio SD Card Event Status Information Layout IP 192.265.0.6 Sendwidth 000 KBa FV Version V1.0.02 Layout Setting Server DDNS Other 1 Other 2 IPv6 Multicast Streaming1 IP Address: 234.5.6.78 Port: 6000 TTL: 15 Multicast Streaming2 IP Address: 234.5.6.79 Port: 6001 TTL: 15 Bonjour Enabled Disabled Bonjour Name: IP Camera @00.10.18.1A-00-1D-EC LLTD Enabled Disabled Apply

Multicast operation example:

The application is to get the multicast streaming in the LAN environment. Basically, the users operate VLC player, and then you can get the multicast streaming form IP camera.

Please follow the steps to obtain the multicast streaming in the following steps:

Step 1:

1. Implement VLC player (please download from the internet)
2. Select /tools/preferences

VLC media player Media Playback Audio Video Tools View Help Text Effects and Filters Ctrl+E Text Track Synchronization i Media Information Ctrl+I i Codec Information Ctrl+J Bookmarks Ctrl+B YLM Configuration Ctrl+W Program Guide Messages Ctrl+M Plugins and extensions Preferences Ctrl+P

Step 2:

2. Select Demuxers and RTP/RTSP Preferences Advanced Audio Input / Codes Access modules Audio codes Demuxers AVI DV Dump H264 MPEG MOD MPEG TS Matrosia PS Playlist RTP RTP/RTSP Row Audio Row Video Subtitles YC-1 es Stream filters Subtitles codecs Video codecs Show settings Simple All 3. Select force multicast RTP via TRSP Use RTP over RTSP (TCP) Client port Force multicast RTP via RTSP Tunnel RTSP and RTP over HTTP HTTP tunnel port Caching value (ms) Kasenna RTSP dialect WMServer RTSP dialect RTSP user name RTSP password 1. Select all Reset Preferences Save Cancel

Step 3:

Select Media/open network stream

VLC media player Media Playback Audio Video Tools View Help Open File... Ctrl+O Advanced Open File... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+V Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Streaming... Ctrl+S Quit Ctrl+Q

Step 4:

Input rtsp://[IPCAM Address] / [RTSP Path]

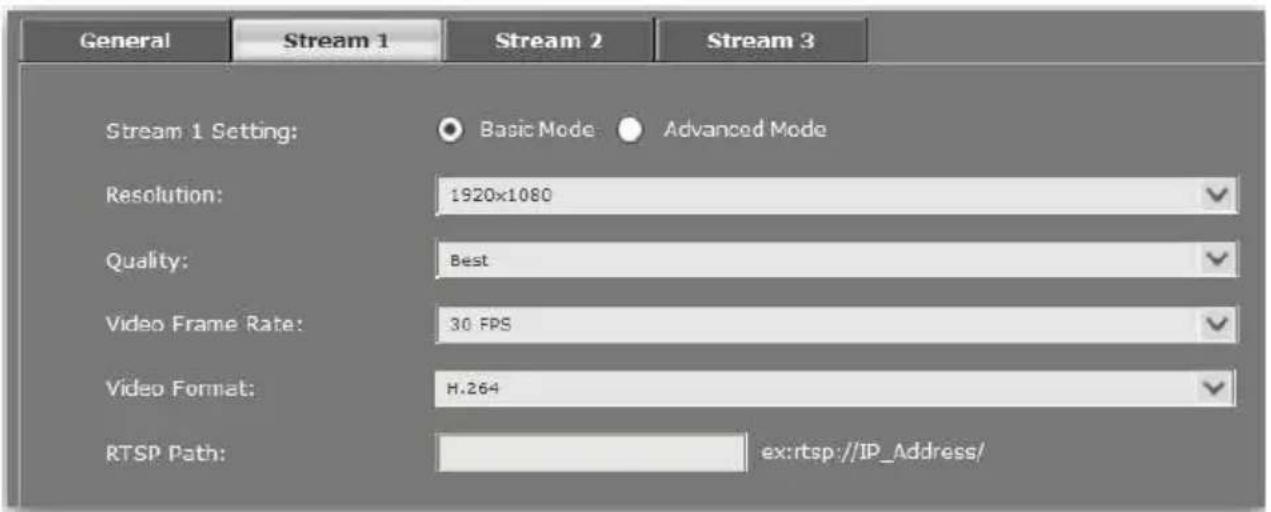

The URL address should be the same as the RTSP path in Video Stream (System-->Video Stream)

AVer Language English Preview System General User Management Network Setting Image Video Stream Audio SD Card Event Status Information General Stream 1 Stream 2 Stream 3 Stream 1 Setting: Basic Mode Advanced Mode Resolution: 320x240 Quality: Standard Video Frame Rate: 15 FPS Video Format: H.264 RTSP Path: MyMultiCast ex:rtsp://IP_Aдрес /MyMultiCast rtsp://192.168.0.7/MyMultiCast - YLC me Media Audio Video Playback Playlist Tools Help Open File Date Network Capture Device Network Protocol Protocol Address Port RTSP 192.168.0.7/MyMultiCast 1234 Options Allow timeSurfing risp://192.168.0.7/MyMultiCast 1.00x 00.00/00.00

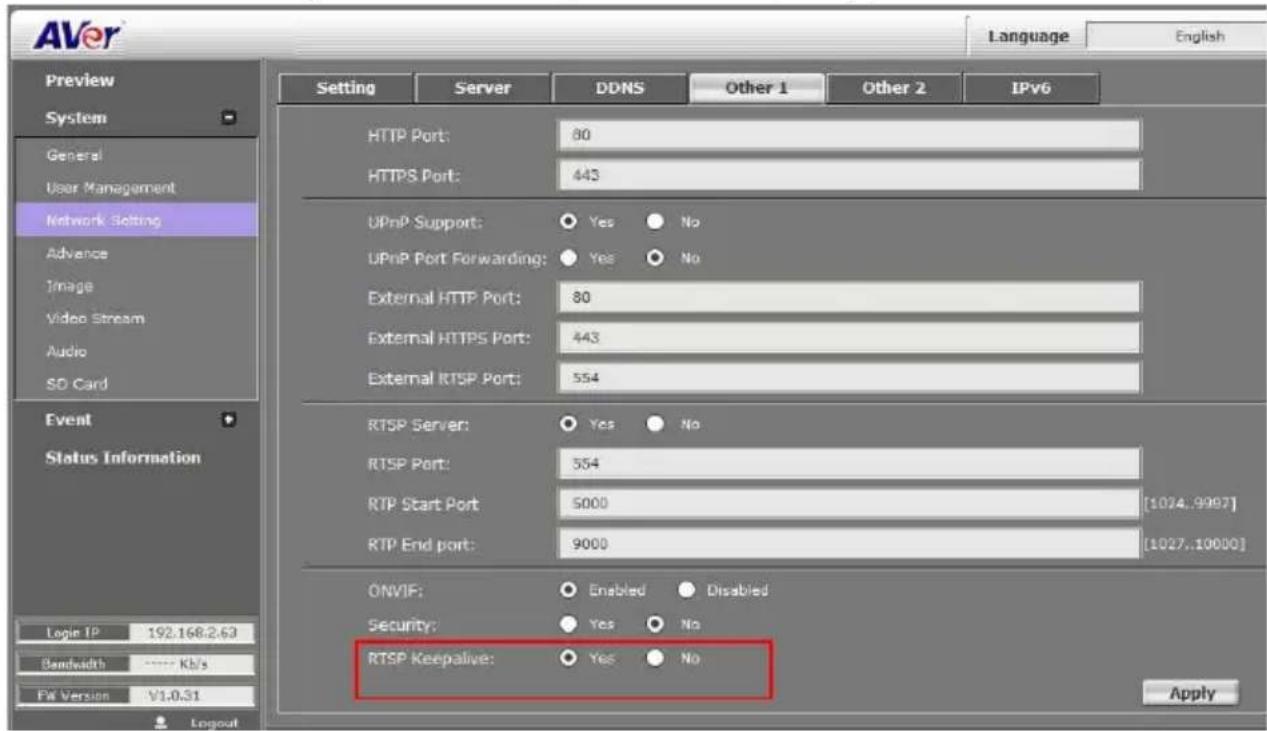

[Notice]

a. If the received image is not from the required IP camera, please adjust the value. (Change either IP Address or Port number)

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.165.0.6 Sendwidth 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Setting Server DDNS Other 1 Other 2 IPv6 Multicast Streaming 1 IP Address: 234.5.6.78 Port: 6000 TTL: 15 Multicast Streaming 2 IP Address: 234.5.6.78 Port: 6001 TTL: 15 Bonjour Enabled Disabled Bonjour Name: IP Camera @0018.18.1A.0G.1D.EG LLTD Enabled Disabled Apply

b. If the Multicast stream you use doesn't support RTSP Keepalive, please select NO.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.168.2.63 Bandwidth ---- Kb/s FW Version V1.0.31 Layout Setting Server DDNS Other 1 Other 2 IPv6 HTTP Port: 80 HTTPS Port: 443 UPnP Support: Yes No UPnP Port Forwarding: Yes No External HTTP Port: 80 External HTTPS Port: 443 External RTSP Port: 554 RTSP Server: Yes No RTSP Port: 554 RTP Start Port 5000 [1024..9997] RTP End port: 9000 [1027..10000] ONVIF: Enabled Disabled Security: Yes No RTSP Keepalive: Yes No Apply

■ Bonjour: This function enables MAC systems to link to this IP Camera. Please key in the name here.(Safari supports Bonjour protocol)
■ LLTD: If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position (like IP address) of this IP Camera in the network map. In the computer running Windows Vista or Windows 7, you can find LLTD through the path Start → Control Panel → Network and internet → Network and Sharing Center → Click “See full map”.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP: 202.168.0/s Bandwidth: **** AB/s FV Version: V1.0.02 Layout Setting Server DDNS Other 1 Other 2 IPv6 Multicast Streaming1 IP Address: 234.5.6.78 Port: 6000 TTL: 15 Multicast Streaming2 IP Address: 234.5.6.79 Port: 6001 TTL: 15 Bonjour Enabled Disabled Bonjour Name: IP Camer: ©2018-19-1A-05-10-EC LLTD Enabled Disabled Apply

System > Network Setting > IPv6

Beside IPv4, there is IPv6 for users to set up IP address.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.168.11.20 Bandwidth **** Kb/s FW Version V1.0.30 Layout Setting Server DDNS Other 1 Other 2 IPv6 IPv6 Assignment IPv6 Enabled Manually setup the IPv6 address: DHCPV6: Enabled Disabled IPv6 Address: fe80::218:laff:fe0c:3Sce Apply

System > Advance > HTTPS

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SP Card Event Status Information Login IP 192.168.0.1 Bandwidth ---- Kb/s FW Version V1.0.00 SNMP Access list QoS/DSCP Created Request Subject: C-TW, ST-, L-, O-, OU-, CN- Date: 2012/3/17 17:05:07 Content Remove Installed Certificate Subject: C-TW, ST-, L-, O-, OU-, CN- Date: Mar 14 09:45:42 2038 GMT Content Remove Connection Types Http&Https Language English

HTTPS (Hypertext Transfer Protocol Secure): Https can help protect streaming data transmission over the internal on the higher security level. You can select the connection type. "Https" means user cannot connect the camera via Http protocol. The HTTPS path will be: "https ://( IP address)/". If you select "Http & Https", both the Http and HTTPS path can be used to access the camera

Remove the existing setting: Before setting new request, please remove old secure identification. Select "Http" connection type and click "Remove".

Created Request Subject: C=TW, ST=, L=, O=, OU=, CN= Date: 2012/06/17 17:05:07 Content Remove Installed Certificate Subject: C=TW, ST=, L=, O=, OU=, CN= Date: Mar 14 08:45:42 2038 GMT Content Remove

Created Request: Setting the secure identification and apply it.

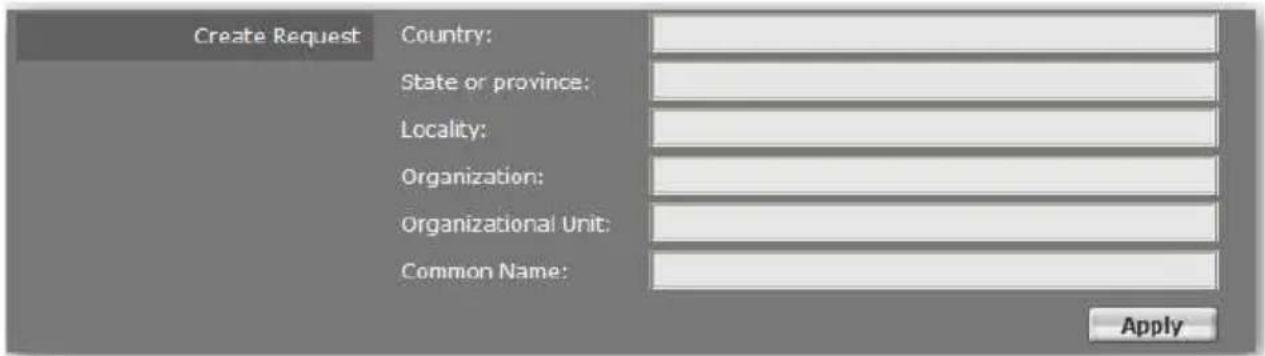

Create Request Country: State or province: Locality: Organization: Organizational Unit: Common Name: Apply

There are two ways to set Certificate- Install Signed Certificate or Create Self-Signed Certificate.

Install Signed Certificate Signed Certificate: Browse Apply Create Self-Signed Certificate Country: State or province: Locality: Organization: Organizational Unit: Common Name: Validity: Days Apply

System > Advance > SNMP

SNMP (Simple Network Management Protocol) provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare a MIB browser or similar tools first. SNMPv1, SNMPv2c, and SNMPv3 can be enabled simultaneously.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login ID 10.100.200.25 Bandwidth **** KB/s SNMP Setting SNMPv1 SNMPv2 Write Community: write Read Community: public SNMPv3 Write Security Name: write Authentication Type: NOS SNC Authentication Passwords: Encryption Type: OBS OBS Encryption Passwords: Read Security Name: public Authentication Type: NOS SNC Authentication Passwords: Encryption Type: OBS OBS Encryption Passwords: SNMPv4/nd Trap Trap Address: Trap Community: public Trap Events: Network Disconnected VO Authentication Failed Cold Sort Setting Changed Apply

■ SNMPv1 and SNMPv2: The term "Community name" in SNMPv1 and SNMPv2c can be roughly regarded as key. The person who has the community name has the authority to read or edit the information of IP camera via SNMP. Check the box to enable SNMPv1 or SNMPv2c protocol, and specify the community name for write (read and write) and read (read-only). The user who uses read community name to access the IP camera cannot modify any data of this camera.

SNMP Setting SNMPv1 SNMPv2c Write Community: write Read Community: public

■ SNMPv3: For data security reason, the authentication and encryption assurances are added when developing SNMPv3. The user has to give not only the security name (the same as "community name" in v1&v2c, or sometimes we call it "context name") but the password in order to access the IP camera. Please set security name, authentication type, authentication password, encryption type, encryption password of write and read respectively. The password must be 8\~64 bits in length. Different from in SNMPv1 and v2c, the user have to create a account when using SNMPv3. In the account parameters, key in the security name and password you set in the camera to get accessing.

SNMPv3 Write Security Name: write Authentication Type: MD5 SHA Authentication Password: Encryption Type: DES AES Encryption Password: Read Security Name: public Authentication Type: MD5 SHA Authentication Password: Encryption Type: DES AES Encryption Password:

■ SNMPv1/v2cTrap: Trap is a mechanism that allows the managed device to send messages to manager instead of waiting passively for polling from the manager. Specify the trap event. When those events happen, the camera will send the ring message to the Trap Address, which is usually the manager's IP address. Trap Community means the community that can receive the trap message.

• Cold Start: The camera starts up or reboots.
• Setting changed: The SNMP setting is changed.
• Network Disconnected: The network connection was broken down. (The camera will send trap messages after the network being connected again)

■ V3 Authentication Failed: A SNMPv3 user account tries to get authentication but failed. (Due to incorrect password or community)

■ SD Insert / Remove: A microSD/SDHC card is inserted or removed.

SNMPv1/v2c Trap Trap Address: Trap Community: public Trap Event: Cold Start Setting Changed Network Disconnected V3 Authentication Failed

System > Advance > Access list

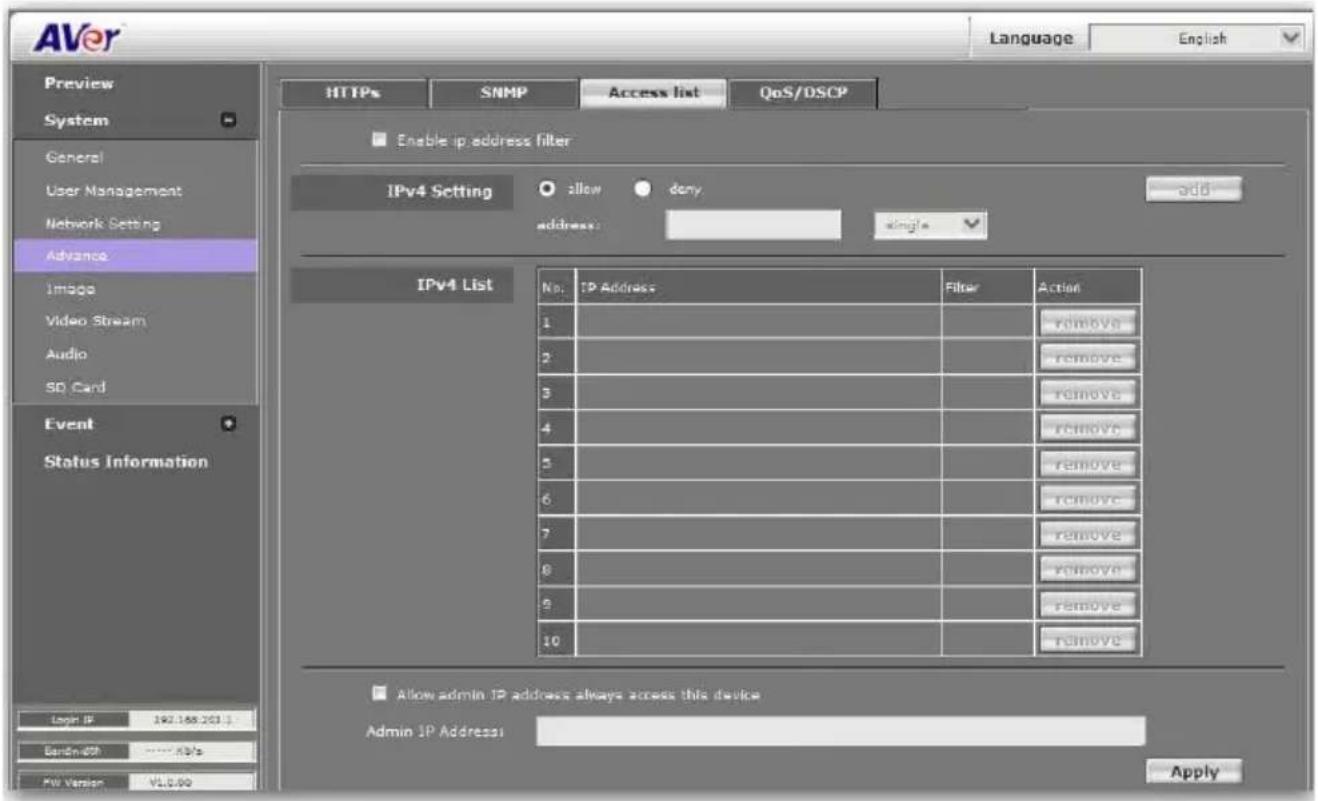

You can deny an IP address or a range of IP address so that they cannot access the IP camera. Tick the "enable" box, key in the IP address you want to deny, select" deny" then click "Add" to add it to the list. You can also choose to deny a range of IP address but allow one or several IP address of them. Take the picture above for example, IP address192.168.50.151\~161 is not allowed to connect to the camera, but only 192.168.50.159 can access. Note: In the list "allow" condition must be ranked before "deny" condition. For example, if we exchange the sequence, set "Deny: 192.168.50.151 \~ 192.168.50.161" for the first item and "Allow: 192.168.50.159" for the second item in the list, the IP "192.168.50.159" turns out to be denied by the camera because the "deny" condition has the priority according to our ranking way.

AVer Language English Preview SNMP Access list QoS/DSCP HTTPS SNMP Enable ip address filter IPv4 Setting allow deny address: single Add IPv4 List No. IP Address Filter Action 1 remove 2 remove 3 remove 4 remove 5 remove 6 remove 7 remove 8 remove 9 remove 10 remove Allow admin IP address always access this device Admin IP Address: Apply

System > Advance > QoS/DSCP

QoS/DSCP (Quality of Server/Differentiated Services Code-point) specifies a simple mechanism for classifying and managing network traffic and provides QoS on IP networks. DSCP is a 6-bit in the IP header for packet classification purpose. The number 0\~63 for Live Stream, Event / Alarm, and Management represent the ratio that the bandwidth is divided. For example, if you set5, 10, and 20 for the three items, then the bandwidth of the three item is 5:10:20. There is no difference between setting "0, 0, 0" or "63, 63, 63" because under these two settings the three items will get equal bandwidth (1/3).

HTTPS SNMP Access list QoS/DSCP QoS/DSCP Setting Enable QoS/DSCP Live Stream: 0 (0~63) Event / Alarm: 0 (0~63) Management: 0 (0~63) Apply

System > Image

Admin and operator levels can adjust the Image setting. There are 4 tabs: OSD, Preference, Advanced, and Privacy Mask

System > Image> OSD

In OSD tab, you can enable/disable overlaying time stamp and text title. After completing the setting, click Save to apply the new setting and Cancel to keep the new setting.

■ Time Stamp: Mark Enable check box and select a position where date and time stamp / text to display on video screen.
■ Customize Title: Click Enabled can adjust the OSD contents which are including Alpha of text.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information OSD Preference Advanced Privacy Mask Time Stamp: Top-Left Enabled Customize Title: Enabled Disabled OSD_Display (0~20 digits) Alpha: 0% Login IP 192.168.2.67 Bandwidth **** Kb/s Edit Version V1.0.30 Layout Apply

System > Image > Preference

In Preference tab, you can tune the IP camera white balance, change the video orientation, and adjust the brightness and contrast.

AVer Language OSD Preference Advanced Privacy Mask Preview System General User Management Network Settings Advance Image Video Stream Audio SD Card Event Status Information White Balance: AVD R-Sink AVD D-Sink Video Orientation: rip Minor D-WDR: Brightness: 6 Sharpness: 0 Contrast: 0 AGC: 24x Hue: 0 Saturation: -1 Default Login ID: 10.100.200.53 Resolution: **** 0Hz P/W Version: V1.3 dB

■ Video Orientation: To Flip or Mirror the video on screen.
■ D-WDR: This function is able to reduce the contrast in the view to avoid the dark zones resulting from over and under exposure.
■ Adjust "Brightness", "Contrast", "Hue", "Saturation" to get clear video.

System > Image> Advanced

Click Default button will back to factory default setting.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information OSD Preference Advanced Privacy Mask Shutter Time: Outdoor Sense-Up: 1/13 DNR: 3 Default Login IP 192.168.11.20 Bandwidth **** Kb/s FM Version V1.0.30 Layout

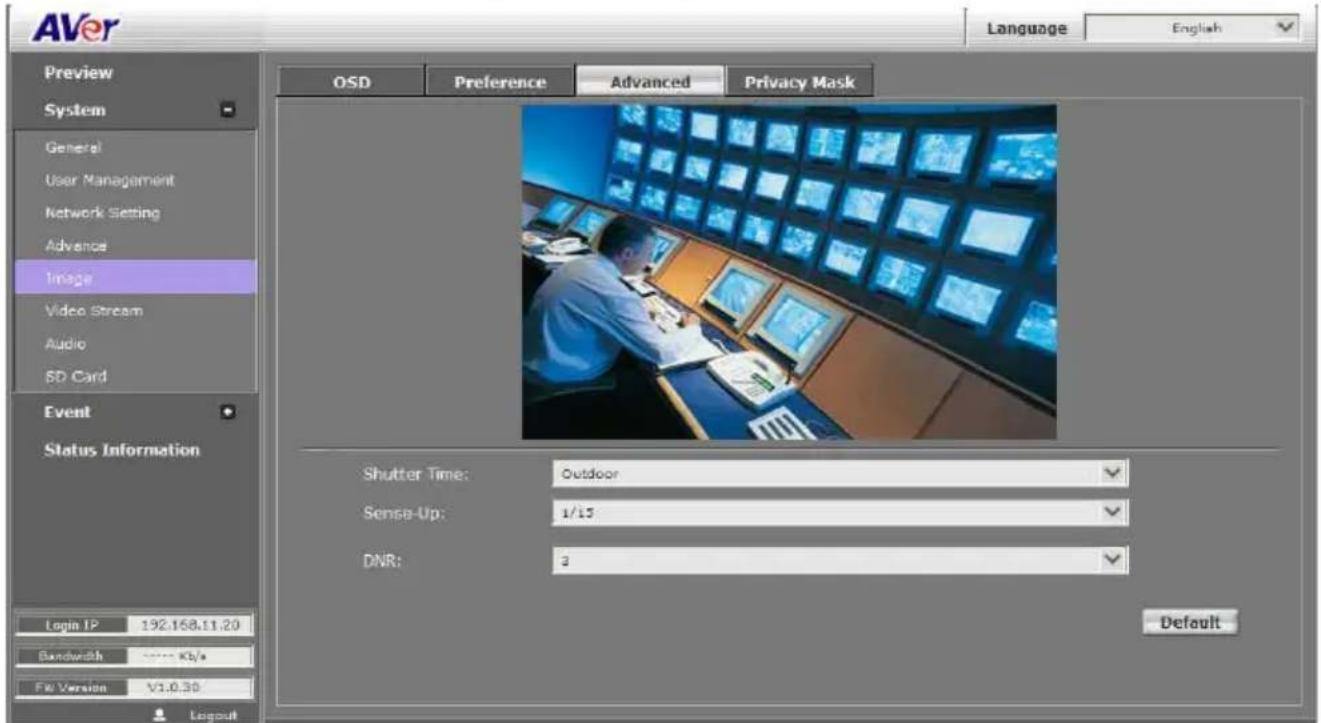

■ Shutter Time: Adjust the shutter time level to get the best image quality.
■ Sense-UP: The main purpose of sense-up is to provide a camera technology that does not rely on artificial light to see in very low light conditions. By The shutter stays open longer, allowing more light into the camera and seeing better in low light. This setting altogether when there is a moving object in the image and the faster the object moves, the worse the image appears (blurriness).
■ DNR (Denoise): This function is able to filter the noise and blur from the image and show a clearer view.

[Note] When you select a number in "Shutter Time", actually the shutter time varies in a range and controlled by camera automatically. Following table shows the shutter time option and corresponding range

Option Shutter Time Range (sec.)
Outdoor 1/10000 ~ Selected number in "Sense-up"
1/5 1/10000 ~ 1/5
1/10 1/10000 ~ 1/10
1/15 1/10000 ~ 1/15
1/30 1/10000 ~ 1/30
Indoor	NTSC: 1/125 ~ Selected number in "Sense-up"PAL: 1/100 ~ Selected number in "Sense-up"
1/30 1/10000 ~ 1/30
1/50 1/10000 ~ 1/50
1/60 1/10000 ~ 1/60
1/100 1/10000 ~ 1/100
1/125 1/10000 ~ 1/125
1/250 1/10000 ~ 1/250
1/500 1/10000 ~ 1/500
1/1000 1/10000 ~ 1/1000

System > Image> Privacy Mask

For the security purpose, there are three areas can be setup for privacy mask. Click Area #(Area 1, Area 2, Area 3) button first and drag a area on the image screen. Then, click Save button to save the setting.

System > Video Stream > General

Video System: Select the video format: PAL or NTSC

General Stream 1 Stream 2 Stream 3 Video System: NTSC

System > Video Stream > Stream1

Basic Mode

Click Apply to save the configuration.

• Resolution: There are 5 resolutions can be chosen – 1920x1080, 1280x720, 640x480, 320x240, 176x144.
• Quality: There are 5 levels to adjust – Best, High, Standard, Medium, and Low. The higher the quality is, the bigger the file size is. Also not good for internet transmitting.
• Video Frame Rate: The video refreshing rate per second.
• Video Format: H.264, MPEG4 or JPEG.
• RTSP Path: It's a URL address.

General Stream 1 Stream 2 Stream 3 Stream 1 Setting: Basic Mode Advanced Mode Resolution: 1920x1080 Quality: Best Video Frame Rate: 30 FPS Video Format: H.264 RTSP Path: ex:rtsp://IP_Address/

■ Advanced Mode

Click Apply to save the configuration.

- Resolution: There are 5 resolutions can be chosen – 1920x1080, 1280x720, 640x480, 320x240, 176x144.

- Rate Control: There are CBR (Constant Bit Rate) and VBR (Variable Bit Rate) to use.

√ CBR: 32Kbps\~8Mbps (the higher the CBR is, the better the video quality is).
√ VBR: 1(Low) \~10(High) – Compression rate, the higher the compression rate, the better the picture quality is; vise versa. The balance between VBR and network bandwidth will affect picture quality. Please carefully select the VBR rate to avoid picture breaking up or lagging.

• Video Quantitative:1(Low) \~10(High).When you select VBR setting, you can adjust the value.
• Video Frame Rate: The video refreshing rate per second.
• GOP Size: It means "Group of Pictures".
• Video Format: H.264, MPEG4 or JPEG
• RTSP Path: It's a URL address

Stream 1 Setting: Resolution: 1920x1080 Rate Control: Video Quantitative: 7 Video Bitrate: 5Mbps Video Frame Rate: 30 FPS GOP Size: 1 X FPS Video Format: H.264 RTSP Path: ex:rtsp://IP_Address/ Advanced Mode CBR VBR GOP = 30

System > Video Stream > Stream2

Basic Mode

Click Apply to save the configuration.

• Resolution: There are 5 resolutions can be chosen – 1920x1080, 1280x720, 640x480, 320x240, 176x144.
• Quality: There are 5 levels to adjust – Best, High. Standard, Medium, and Low. The higher the quality is, the bigger the file size is. Also not good for internet transmitting
• Video Frame Rate: The video refreshing rate per second.
• Video Format: H.264, MPEG4 or JPEG
• RTSP Path: It's a URL address

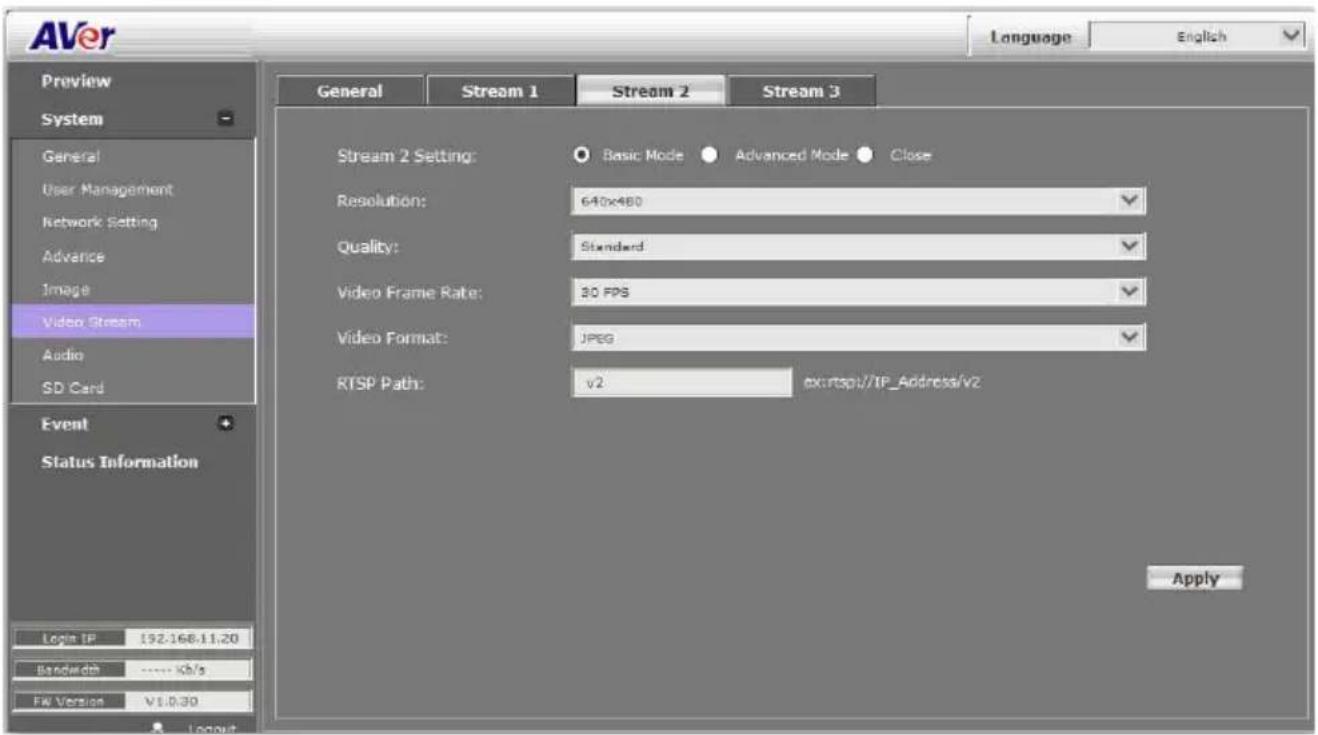

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.168.11.20 Bandwidth ---- Kb/s FW Version V1:0.30 Stream 1 Stream 2 Stream 3 Stream 2 Setting: Basic Mode Advanced Mode Close Resolution: 640x480 Quality: Standard Video Frame Rate: 30 FPS Video Format: JPEG RTSP Path: v2 ex:\rtsp1/TP_Address/v2 Apply

■ Advanced Mode

Click Apply to save the configuration.

• Resolution: There are 5 resolutions can be chosen – 1920x1080, 1280x720, 640x480, 320x240, 176x144.
• Quality: There are 5 levels to adjust – Best, High. Standard, Medium, and Low. The higher the quality is, the bigger the file size is. Also not good for internet transmitting
• Video Frame Rate: The video refreshing rate per second.
• Video Format: H.264, MPEG4 or JPEG.
• RTSP Path: It's a URL address

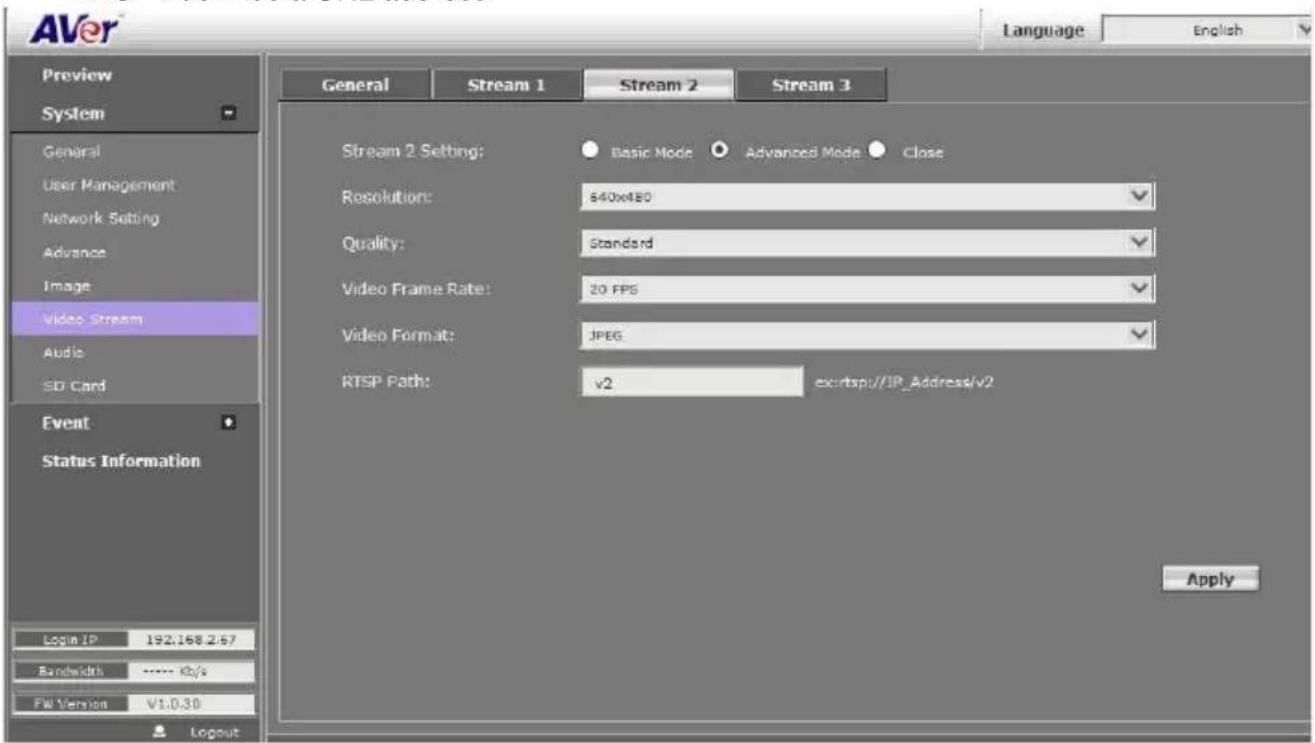

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP 192.168.2.67 Bandwidths ---- Kb/s File Version V1.0.30 General Stream 1 Stream 2 Stream 3 Stream 2 Setting: Basic Mode Advanced Mode Close Resolution: $40x480 Quality: Standard Video Frame Rate: 20 FPS Video Format: JPEG RTSP Path: v2 ex:rtsp://IP_Address/v2 Apply

■ Close: To close the stream 2. Click Apply to save the configuration.

System > Video Stream > Stream3

3GPP Streaming is designed for mobile viewing.

Stream 3 Setting: Enable or Disable 3GPP Streaming.
■ 3GPP Path: It's a URL address.

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Stream 1 Stream 2 Stream 3 Stream 3 Setting: Enabled Disabled (Resolution=176x144, FPS=5, Format=MPB4) 3GPP Path: 3g ex:rtsp://IP_Address/3g Audio:AMR Login IP 192.168.2.67 Bandwidth ----KB/s File Version V1.0.30 Logout Apply

[Note] To get the best mobile viewing quality, please download AVeriViewer (AndroidViewer) from the Apple App store or Google Play. iViewer takes video from Stream 1 or Stream 2, not from 3GPP streaming.

aver iviewer iViewer AVer Information Inc. AVer iViewer 90 Ratings FREE >

System > Audio

IP camera supports 2-way audio (mono). User can send audio from IP camera while connected to a microphone to remote site; User can also send audio from remote site to IP camera's external speaker.

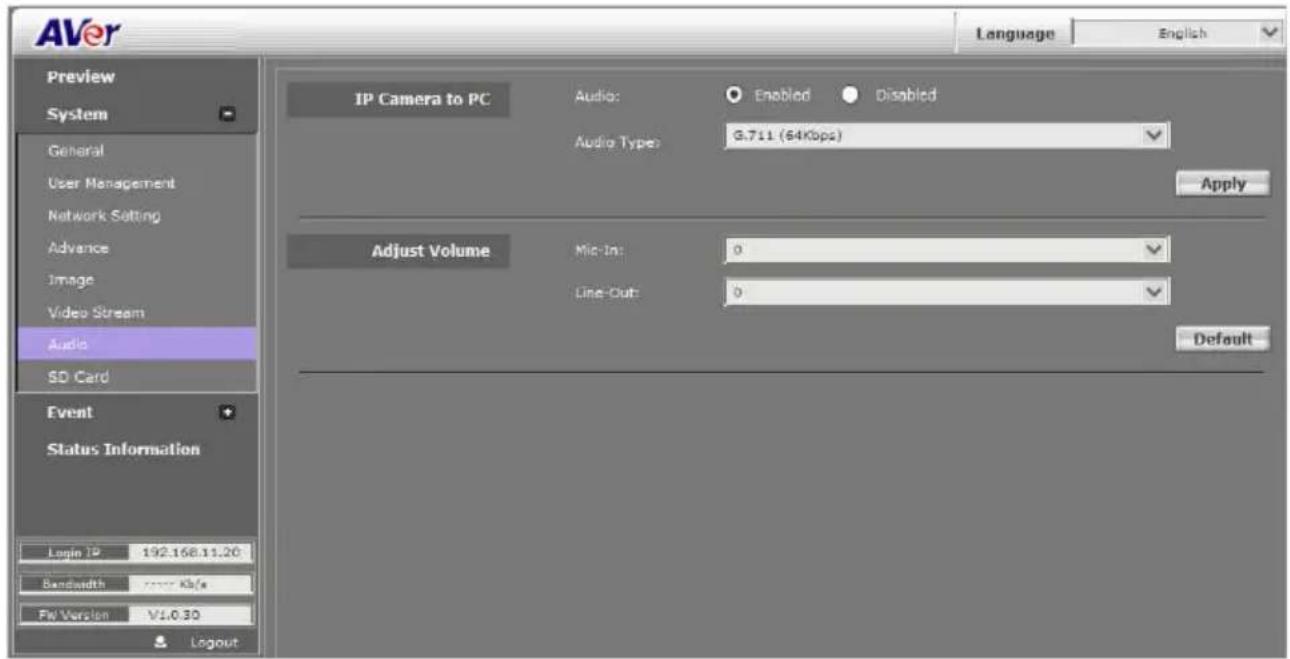

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Login IP: 192.168.11.20 Bandwidth : 7500 Kb/s Play Version V1.0.30 Logout IP Camera to PC Audio: Enabled Disabled Audio Type: G.711 (64Kbps) Apply Adjust Volume Mic-In: 0 Line-Out: 0 Default

a. IP camera to PC: select "Enable" to start this function.
b. In live video screen, click button to start chatting. Press again to mute. Click button to turn on or off the speaker of PC.
c. There are three audio codes: G.711 (64Kbps), G.726(24Kbps), G.726 (32Kbps)

AVer Language English Preview System Event Status Information Streaming 1 x1 2013/MAR/15 17:53:17 Size:1200x000 FPS: 30 Logit IP 192.168-11.20 Scanouts 3849 KB/s Per Version V1.0.30 Logout

System > SD Card

AVer Language English Preview System General User Management Network Setting Advance Image Video Stream Audio SD Card Event Status Information Loger IP 10.100.206.23 Cardwidth ***** KB/s/ Fill Version V1.0.00 Logout SD Card documents: No SD card SD Card Control: Auto Deletion: Off (Keep 1/ 2/ 2/ 4...days) Format: Click the following button to format SD Card. Format: WARNING!! All File will be deleted! Apply

Please insert microSD/SDHC card before use it. Make sure pushing microSD/SDHC card into the slot completely.

Event > Arrangement > Motion

Motion Detection: IP camera allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD/SDHC card. To set up the motion area 1, click "Area 1" button. Using mouse to drag and draw the area. The same operation for area 2 and 3. (The higher the sensitivity value is, the more sensitive to trigger event.)

AVer Preview System Event Arrangement Schedule D/DO Status Information Motion Preference Language English 1. Enabled Sensitivity: 5 Area 1 2. Enabled Sensitivity: 5 Area 2 3. Enabled Sensitivity: 5 Area 3 Area 1: E-mail FTP Out1 Samba Area 2: E-mail FTP Out1 Samba Area 3: E-mail FTP Out1 Samba Subject: IP Camera Warning! Interval: 10 sec Based on the schedule Apply Logit ID: 192.168.0.5 Bandwidth: Kbps FW Version V1.0.23 Logout AVer Preview System Event Arrangement Schedule DI/DO Status Information Motion Preference Language English 1. Enabled Sensitivity: 5 Area 1 2. Enabled Sensitivity: 5 Area 2 3. Enabled Sensitivity: 5 Area 3 Area 1: E-mail FTP Out1 Samba Area 2: E-mail FTP Out1 Samba Area 3: E-mail FTP Out1 Samba Subject: IP Camera Warning! Interval: 10 sec Based on the schedule Apply

Event > Arrangement > Preference

Record File File Format: AVI File(with Record Time Setting) Pre Alarm: 5 sec Post Alarm: 5 sec Network Connected Dis-connected: Save to SD card Network IP Check IP Check: Enabled Disabled IP Address: www.google.com Interval: 30 sec Check failed: Save to SD card

Record File:

➢ File Format: IP camera allows 3 different types of recording file to change its record size. When motion/alarm is triggered, there are 3 different types of record mode.

• AVI File (With Record File Setting)
• JPEG Files (With Record File Setting), only with M JPEG compression format.
• Single JPEG (Single File with Interval Setting) (JPEG photo).

Pre Alarm and Post Alarm: Setups for video start and end time when motion detected, I/O, or other devices got triggered.

[Note] Pre/Post Alarm record time is base on record time setting and IP camera built-in Ram memory. Limited by IP camera built-in Ram Memory, when information is too much or video quality set too high, it will cause recording frame drop or decrease on post alarm recording time.

■ Network Connected: When the network is down, it will save the video to local SD/SDHC card. [Note]This function is only enabled in wire connection.
■ Network IP check: When the connection is down, it records the video to SD/SDHC card. Make sure the video recording is continuous. To use this function, key in the IP address of the PC which has recording software installed. Enable the function of "Save to SD card", then click "Apply". [Note] The interval of two video files on SD/SDHC card is fixed with 30 seconds.

Event > Schedule

■ Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup.
■ Snapshot: After enable the snapshot function; user can select the storage position of snapshot file, the Interval time of snapshot and the reserved File Name of snapshot.

AVer Language English Preview System Event Arrangement Schedule 01/00 Status Information All 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Mon. Tue. Wed. Thu. Fri. Sat. Sun. Schedule Setup. Snapshot: Yes No Snapshot: E-mail FTP Save to SD card Samba Interval: 10 Second(s) File Name: Snapshot Logio JP 192.168.0.5 Bandwidth ............ Kb/s PW Version V1.0.33 Apply

Event > DI/DO

IP camera supports 1 input/1 output (depending on different models). When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD/SDHC card.

AVer Language English Preview System Event Arrangement Schedule BI/DO Status Information Input Setting Input 1 Sensor: N.O Input 1 Action: E-mail FTP Out1 Samba Subjects: GPIO In Detected! Interval: 10 sec Based on the schedule Output Setting Mode Setting: OnOff Switch Time Switch Relay Out: ON OFF Interval: 10 sec Apply Logit IP 192.168.16.1 Bandwidth ---- Kb/s FE Version V1.0.36 Layout

CAUTION!!

Please connect to propriety relay box to reduce the risk of electric shock & damaged.

Input Setting:

Input 1 sensor: This is to set the relay status while sensor is not yet triggered.

Input 1 action: Send the triggered video clips or photos to the selected method.

Subject: This is the subject while sending files via e-mail.

(1) Non-Triggered Sensor Device 5V ALARM GND (2) Triggered Sensor Device 5V Triggered 0V 5V ALARM GND

Output Setting:

Mode setting:

OnOff Switch: Relay status is based on sensor triggered times.

Time Switch: To restore the original relay status after the interval time.

[Note]GPIO pin define please refer to the part of Front / Back plane & I/O port pin assignment.

Ground (G)	ALARM INPUT:Normal: 5V (The voltage differential from ALM_IN pin & Ground)Active: 0V (Short the pin of ALM_IN and Ground pin)
DI
DO	RELAY OUTPUT:MAX: 50 mA, DV 5V
Ground(G)

Status Information

Click Apply button to save the configuration.

Networking info IP Address: 192.168.107.168 MAC Address: 00:18:1A:0C:35:CC Interface: Ethernet RTSP 1 Path: RTSP://192.168.107.168/ RTSP 2 Path: ---- 3GPP Path: ---- Product info Server Name: FV2006 Status Bar LED Indicator: ON OFF Company: AVer Model: FV2006 FW Version: V1.0.32 BuildTime: 2013/04/24 08:46:01 CST

■ Networking Info: Displays network information of the IP camera.
Product Info

• Server Name: Assigns a name to the IP camera and the name shows on the IP Installer. Also, displays the related information of the IP camera. Mark Status Bar to display the Server Name of IP camera on preview interface.
• LED indicator: To disable or enable the LED indicator on the IP camera.

Network Configuration

Configuration 1

a. Internet Access: ADSL or Cable Modem
b. IP address: More than one real IP
c. IP camera and PC connect to the internet
d. For fixed real IP, set up the IP into IP camera and PC. For dynamic IP, start PPPoE.

Configuration 2

a. Internet Access : ADSL or Cable Modem
b. IP address : one real IP
c. IP camera and PC connect to the internet
d. Device needed : IP sharing
e. Use virtual IP, set up port forwarding in IP sharing.(Please refer to Network Setting → Other 1 → UPnP Port Forwarding)

Factory Default

1. To recover the default IP address and password, please follow the following steps.
2. Remove power and Ethernet cable and the dome cover.

RESET

1. Press and hold the button and connect power and Ethernet cable to the camera again and hold for round 20 seconds for system booting.
2. Release the button when camera finishes proceed.
3. Re-login the camera using the default IP (http://192.168.1.168) or DHCP, and user name (admin), password (admin).

Troubleshooting

Here are some useful tips on how to solve some common problems.

Problem Solution

I forgot the account and password for FV2006. How can I go back to default setting?	Please refer to the manual of “Factory Default setting” description.
I can’t find a way to force day mode and night mode. Is this possible and how.	We don’t provide this function due to the limitation of hardware.
I recorded video file in H.264 file format but failed to playback on Media Player (V.9).	Default Windows Media Player doesn’t have H.264 decoder so that you can’t playback the file successfully. Please install K-Lite program in advance or install KMPlayer or VLC program to playback the video file. You can search those free programs on Internet.
When I use Chinese words as the Gmail title while motion triggered, it turns to be nonsense characters displayed on my Gmail.	It’s the spec limitation and please only use English or numbers as mail title to avoid this phenomenon.
I use VLC and connect three RTSP streams (stream 1, 2, 3) at the same time. However, it can’t work properly.	Due to spec limitation, please connect one stream each time.

Appendix

FV2006 is compliant with microSD/SDHC card and to ensure recording quality, and please use memory cards over 2G and Class 4 above (Max. 32G)

MicroSD/SDHC card

Transcend SDHC class4 16GB

Transcend SD class4 16GB

Transcend SDHC class4 32GB

Transcend SD class4 32GB

Transcend SD class6 4GB

Transcend SDHC class6 4GB

Transcend SD class6 8GB

Transcend SDHC class6 8GB

Transcend SD class6 16GB

Transcend SDHC class6 16GB

Transcend SDHC class10 4GB

Transcend SDHC class10 8GB

Transcend SDHC class10 16GB

SanDisk SDHC class4 4GB

SanDisk SDHC class4 8GB

SanDisk SDHC class4 16GB

SanDisk SDHC class4 32GB

COPYRIGHT

© 2013 AVer Information Inc. All rights reserved.

All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice. “AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

NOTICE

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY.

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION.

THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.

Limited Warranty

AVer Information, Inc. (“AVer”) warrants that the applicable product (“Product”) substantially conforms to AVer’s documentation for the product and that its manufacture and components are free of defects in material and workmanship under normal use. “You” as used in this agreement means you individually or the business entity on whose behalf you use or install the product, as applicable. This limited warranty extends only to You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement of the Product with the same or a comparable product. This warranty does not apply to (a) any Product on which the serial number has been defaced, modified, or removed, or (b) cartons, cases, batteries, cabinets, tapes, or accessories used with this product. This warranty does not apply to any Product that has suffered damage, deterioration or malfunction due to (a) accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, commercial or industrial use, unauthorized product modification or failure to follow instructions included with the Product, (b) misapplication of service by someone other than the manufacturer’s representative, (c) any shipment damages (such claims must be made with the carrier), or (d) any other causes that do not relate to a Product defect. The Warranty Period of any repaired or replaced Product shall be the longer of (a) the original Warranty Period or (b) thirty (30) days from the date of delivery of the repaired or replaced product.

Limitations of Warranty

AVer makes no warranties to any third party. You are responsible for all claims, damages, settlements, expenses, and attorneys' fees with respect to claims made against You as a result of Your use or misuse of the Product. This warranty applies only if the Product is installed, operated, maintained, and used in accordance with AVer specifications. Specifically, the warranties do not extend to any failure caused by (i) accident, unusual physical, electrical, or electromagnetic stress, neglect or misuse, (ii) fluctuations in electrical power beyond AVer specifications, (iii) use of the Product with any accessories or options not furnished by AVer or its authorized agents, or (iv) installation, alteration, or repair of the Product by anyone other than AVer or its authorized agents.

Disclaimer of Warranty

EXCEPT AS EXPRESSLY PROVIDED OTHERWISE HEREIN AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AVER DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, SATISFACTORY QUALITY, COURSE OF DEALING, TRADE USAGE OR PRACTICE OR THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS.

Limitation of Liability

IN NO EVENT SHALL AVER BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY NATURE INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DATA, REVENUE, PRODUCTION, OR USE, BUSINESS INTERRUPTION, OR PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES ARISING OUT OF OR IN CONNECTION WITH THIS LIMITED WARRANTY, OR THE USE OR PERFORMANCE OF ANY PRODUCT, WHETHER BASED ON CONTRACT OR TORT, INCLUDING NEGLIGENCE, OR ANY OTHER LEGAL THEORY, EVEN IF AVER HAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AVER'S TOTAL, AGGREGATE LIABILITY FOR DAMAGES OF ANY NATURE, REGARDLESS OF FORM OF ACTION, SHALL IN NO EVENT EXCEED THE AMOUNT PAID BY YOU TO AVER FOR THE SPECIFIC PRODUCT UPON WHICH LIABILITY IS BASED.

Governing Law and Your Rights

This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
