Product Type	Hidden LED Kit
Brand	Epcom
Model	X120-R
Voltage Range	10-24 VDC
Power Consumption	36W
Maximum Current Draw	1A
Number of Flash Patterns	12
Mounting Type	Permanent
LEDs per Lamp	6
Red Cable Function	Power (VCC)
Black Cable Function	Ground (GND)
White Cable Function	Flash pattern selection (pulse to VCC)
Green Cable Function	Synchronization with another light
Operating Environment	External vehicle use
Ventilation Requirement	Adequate ventilation required
Light Technology	Gen III
Safety Warning	High intensity; do not look directly at LEDs
Airbag Safety	Position equipment to avoid airbag interference
Installation	Easy installation
Service Life	Long service life

Frequently Asked Questions - X120-R Epcom

What is the voltage requirement for the Epcom X120-R?

The X120-R operates on 10-24 VDC. Ensure your vehicle's electrical system is within this range.

How many flash patterns does it have?

It offers 12 different flash patterns selectable via the white cable.

Can I sync two X120-R units together?

Yes, connect the green cable from each unit to synchronize their flash patterns.

What is the power consumption?

Maximum power consumption is 36W with a current draw of 1A.

Is the X120-R suitable for exterior use?

Yes, it is designed for external vehicle use but requires adequate ventilation.

How do I change the flash pattern?

Momentarily apply VCC to the white cable to cycle through the 12 patterns.

What safety precautions should I take?

Do not look directly at the LEDs; they are high intensity and can cause temporary blindness or permanent eye damage.

How should I mount the X120-R?

It requires permanent mounting. Ensure the light and cables do not interfere with airbag deployment.

What type of LEDs does it use?

It uses Gen III technology with 6 LEDs per lamp, providing high brightness and long service life.

Can I install it myself?

Installation is easy with basic tools. Follow the manual and ensure proper wiring: red to power, black to ground.

USER MANUAL X120-R Epcom

Electrical circuit setup with black components and two pressure gauges (no visible text or symbols)

Introduction

The X12 hidden LED kit adopts the highly innovative Gen III technology as a light source with unique appearance, compact structure, easy operation and diversified flash patterns.

It is characterized by high brightness, low work intensity, easy installation and a long service time; They are also specially designed to work on all types of emergency vehicles.

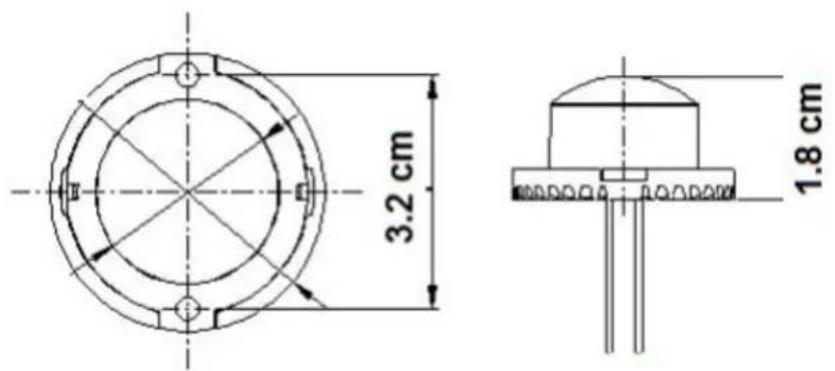

Dimensions

Please read all instructions before installing your equipment.

Technical data

• Voltage: 10-24 VDC
• 36W
- Consumption: 1 A max
- Flash patterns: 12
- Mounting: Permanent
• Total # of Leds: 6 for each lamp

Cable configuration

• Red Cable: VCC
• Black Cable: GND
• White Cable: to define type of flash (Pulse to Vcc)
• Green Cable: To synchronize with another light

Recommendations:

The equipment is designed for external use of the vehicle. The equipment must have adequate ventilation.

serious or fatal injuries

High intensity equipment. Do not look directly while the device is on. May cause momentary blindness and/or permanent eye damage.

WARNING You must be careful when positioning this equipment, for that the light and / or cable do not interfere with the proper functioning of the airbag of both the driver and the passenger. Not paying attention to this warning can cause

NOTE Due to continuous product improvements, we reserve the right to change the specifications and information contained in this manual without prior notice.
