Product Type	Hidden LED Kit
Brand	Epcom
Model	X12-B
LED Technology	Gen III
Input Voltage	10–24 VDC
Power Consumption	36W
Current Draw	1 A maximum
Number of Flash Patterns	12
LEDs per Lamp	6
Mounting	Permanent (external vehicle use)
Red Cable	VCC (positive)
Black Cable	GND (ground)
White Cable	Flash pattern selection (pulse to VCC)
Green Cable	Synchronization with another light
Application	Emergency vehicles
Safety Warning	Do not look directly at LEDs; risk of eye damage
Airbag Warning	Ensure no interference with airbag deployment
Ventilation Requirement	Adequate ventilation must be provided
Note	Specifications subject to change without notice

Frequently Asked Questions - X12-B Epcom

What power supply voltage does the X12-B require?

The X12-B operates on 10–24 VDC power supply.

How many flash patterns does the X12-B have?

The device offers 12 different flash patterns.

Can I synchronize two X12-B lights?

Yes, you can synchronize two lights by connecting the green wires together. The green cable is specifically designed for synchronization.

How do I change the flash pattern?

To change the flash pattern, momentarily connect the white wire to positive voltage (VCC). Each pulse cycles to the next pattern.

Is the X12-B suitable for indoor use?

No, the X12-B is designed for external vehicle use only. Adequate ventilation is required.

What is the power consumption of the X12-B?

The power consumption is 36 watts with a maximum current draw of 1 ampere.

How many LEDs are in each lamp?

Each lamp contains 6 LEDs, for a total of 12 LEDs per kit (two lamps).

Are there any safety precautions I should be aware of?

Yes, the light is high intensity. Never look directly at the LEDs as it can cause permanent eye damage. Also, ensure the light does not interfere with airbag deployment.

Can I mount this on any vehicle?

The X12-B is intended for emergency vehicles. Ensure proper ventilation and that cables do not obstruct airbags.

What do the different cable colors do?

Red is VCC (power positive), Black is GND (ground), White is used to select flash patterns by pulsing to VCC, and Green is for synchronizing with another light.

USER MANUAL X12-B Epcom

Electrical circuit setup with black components and two pressure gauges (no visible text or symbols)

Introduction

The X12 hidden LED kit adopts the highly innovative Gen III technology as a light source with unique appearance, compact structure, easy operation and diversified flash patterns.

It is characterized by high brightness, low work intensity, easy installation and a long service time; They are also specially designed to work on all types of emergency vehicles.

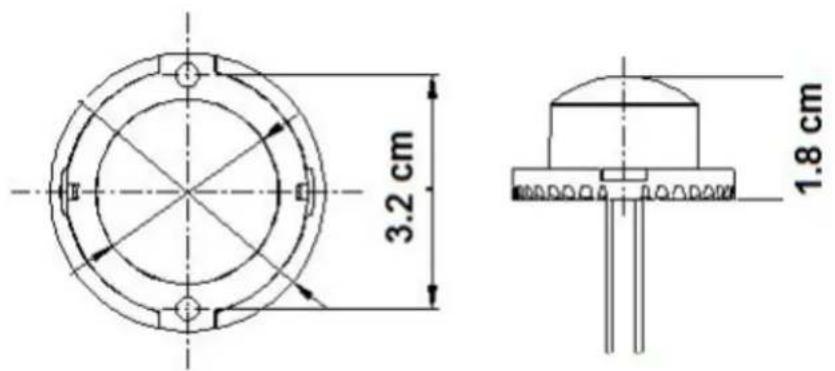

Dimensions

Please read all instructions before installing your equipment.

Technical data

• Voltage: 10-24 VDC
• 36W
- Consumption: 1 A max
- Flash patterns: 12
- Mounting: Permanent
• Total # of Leds: 6 for each lamp

Cable configuration

• Red Cable: VCC
• Black Cable: GND
• White Cable: to define type of flash (Pulse to Vcc)
• Green Cable: To synchronize with another light

Recommendations:

The equipment is designed for external use of the vehicle. The equipment must have adequate ventilation.

serious or fatal injuries

High intensity equipment. Do not look directly while the device is on. May cause momentary blindness and/or permanent eye damage.

WARNING You must be careful when positioning this equipment, for that the light and / or cable do not interfere with the proper functioning of the airbag of both the driver and the passenger. Not paying attention to this warning can cause

NOTE Due to continuous product improvements, we reserve the right to change the specifications and information contained in this manual without prior notice.
